GRANDSTREAM GRS DP-760 Datasheet

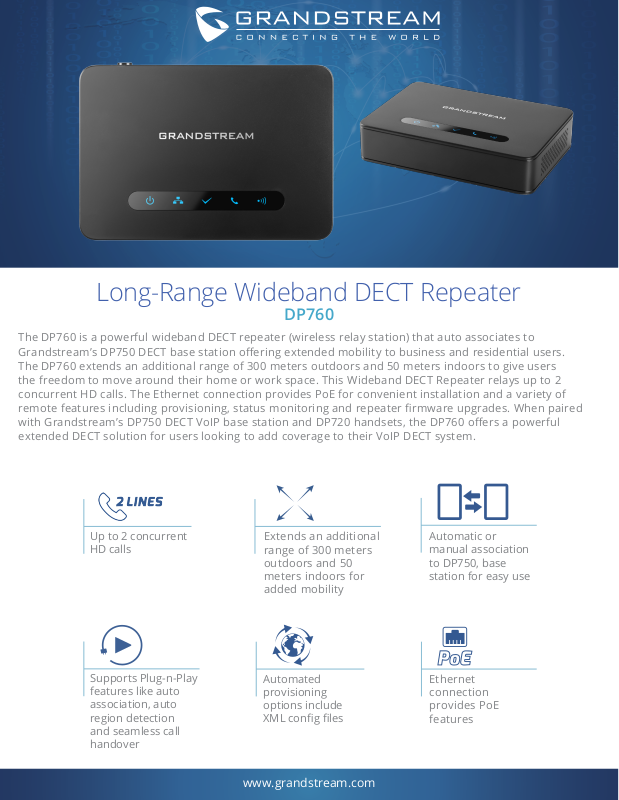

Long-Range Wideband DECT Repeater

DP760

The DP760 is a powerful wideband DECT repeater (wireless relay station) that auto associates to

Grandstream’s DP750 DECT base station oering extended mobility to business and residential users.
The DP760 extends an additional range of 300 meters outdoors and 50 meters indoors to give users
the freedom to move around their home or work space. This Wideband DECT Repeater relays up to 2
concurrent HD calls. The Ethernet connection provides PoE for convenient installation and a variety of
remote features including provisioning, status monitoring and repeater rmware upgrades. When paired
with Grandstream’s DP750 DECT VoIP base station and DP720 handsets, the DP760 oers a powerful
extended DECT solution for users looking to add coverage to their VoIP DECT system.

Up to 2 concurrent

HD calls

Supports Plug-n-Play
features like auto
association, auto
region detection

and seamless call

handover

Extends an additional
range of 300 meters

outdoors and 50
meters indoors for
added mobility

Automated

provisioning

options include

XML cong les

www.grandstream.com

Automatic or
manual association

to DP750, base

station for easy use

Ethernet
connection

provides PoE

features

Air Interface

Peripherals

Telephony standards:

DECT EN 301 406:2001
DECT GAP TBR22 EN 300 444:2001
DECT WRS EN 300 700
CAT-iq TS 102 527

Frequency bands:

1880 – 1900 MHz (Europe), 1920 – 1930 MHz (US), 1910 – 1920 MHz (Brazil)

Number of Channels: 10 (Europe), 5 (US, Brazil)
Range: up to 300 meters outdoors and 50 meters indoors

5 LED indicators: Power, Network, Association, Activity, DECT Signal Strength
Reset button, Dissociation button
One 10/100 Mbps auto-sensing Ethernet port with integrated PoE

Protocol/Standards

Voice Codecs G.722 codec for HD audio and G.726 codec for narrow band audio

Telephony Features Plug-n-Play, auto association, auto region detection and seamless call handover

Security

Multi-language

Upgrade/ Provisioning

Association

Power & Green Energy Eciency

Package Content

Dimensions (H x W x D) 28.5 x 130 x 90 mm

TCP/IP/UDP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, PPPoE, SSH, TFTP, NTP,
LLDP-MED, UPnP

User and administrator level access control, MD5 and MD5-sess based authentication,
256-bit AES encrypted conguration le, HTTPS, 802.1x media access control

Arabic, Chinese Simple, Chinese Tradition, Czech, Dutch, English, French, German,
Hebrew, Italian, Japanese, Korean, Polish, Portuguese, Russian, Serbian, Slovakian,
Spanish, Swedish, Turkish

Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using AES encrypted XML
conguration le

Up to 5 repeaters in star

Relays up to 2 concurrent HD calls

Automatic or manual association to base station

Universal Power Supply Input AC 100-240V 50/60Hz; Output 5VDC 1A; Micro-USB
connection;
PoE: IEEE802.3af Class 1, 0.44W–3.84W

Repeater Unit, Universal Power Supply; Ethernet cable; Quick Start Guide,

GPL statement

Weight Repeater Unit: 143g; Universal Power Supply: 50g; Package: 360g

Temperature and Humidity

Compliance

Operation: -10º to 50ºC (14º to 122ºF); Storage: -20º to 60ºC (-4º to 140ºF)
Humidity: 10% to 90% non-condensing

FCC: FCC Part 15B, FCC Part 15D, MPE
CE: EN 60950-1, EN 301 489-1, EN 301 489-6, EN 301 406, EN 50385, EN 55032,
EN 55024, EN 61000-3-2, EN 61000-3-3
RCM: AS/NZS 60950.1

ANATEL
