1 Barcode Printer

1.1 Box Content

Please check that all of the following items are included with your printer.



RT700x/RT730x Barcode Printer



Label Stock



Ribbon Module

Empty Ribbon Core

Ribbon



USB Cable



Power Adapter

Power Cord

AC Adapter



RT700x Series Quick Guide

RT700/RT700i/RT700



Including GoLabel software

and RT700x/RT730x user manual.

Series

Ribbon Hubs

Set of 2.

1 Barcode Printer

1.2 Getting to Know Your Printer

Device Overview



Front View

PRINTER COVER

LED INDICATOR

OPERATION PANEL

FEED BUTTON

POWER BUTTON



Rear View

CALIBRATION BUTTON

RT700

FRONT COVER

COVER RELEASE CATCHES

Pull catches for opening the printer cover

FAN-FOLD LABEL INSERT

Feed slot for continuous labels

USB HOST

ETHERNET PORT

SERIAL PORT

POWER JACK

USB PORT

1 Barcode Printer



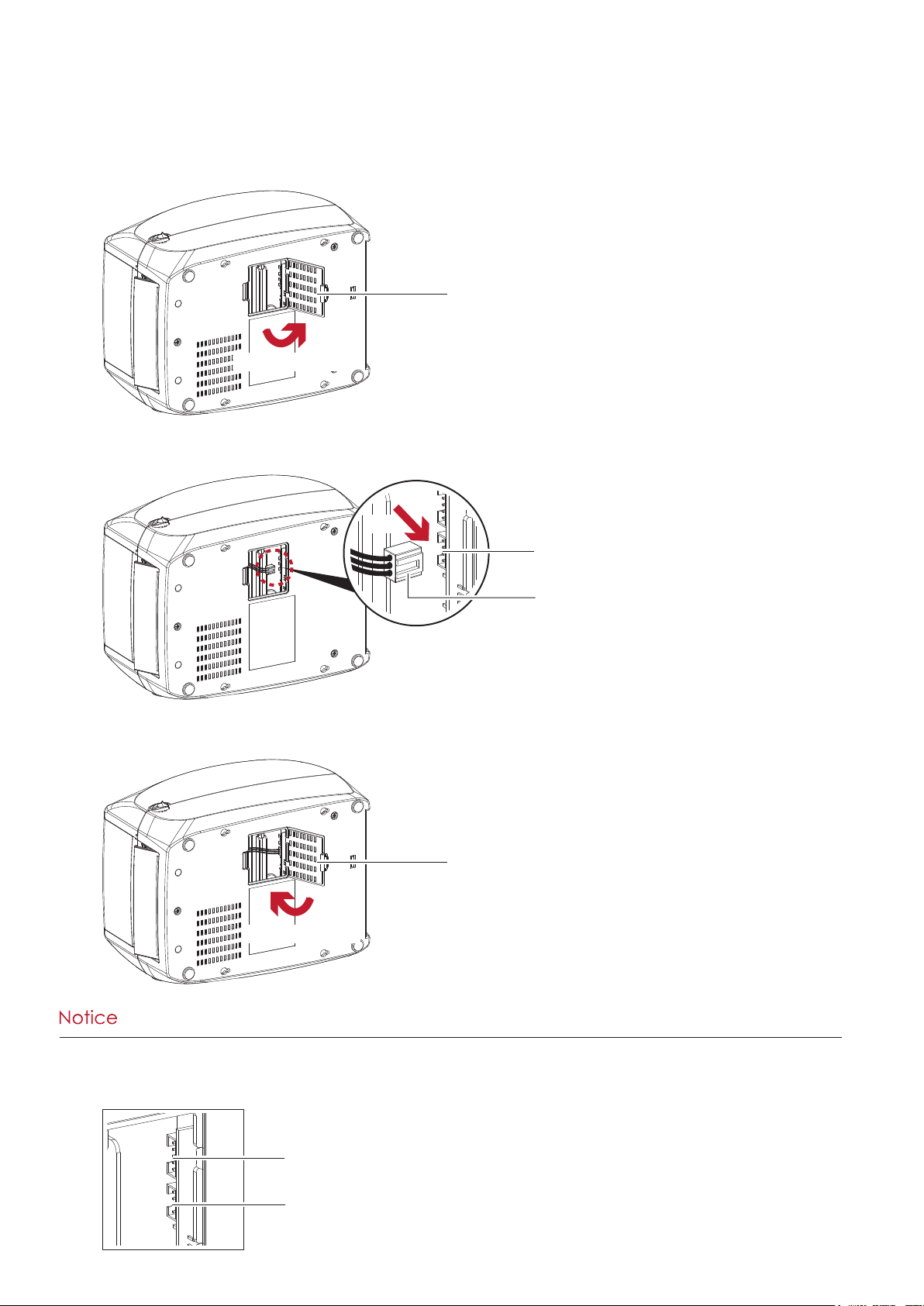

Bottom View

COVER OF THE MODULE CONNECTION JACKS

**** Cut-outs are not intended for wall-mount use.

1 Barcode Printer

The Internal View of Printer

LABEL GUIDE PLATE

Set of 2

LABEL SUPPLY MODULE

RELEASE CATCH

Release catch for closing

the printer cover

LABEL SUPPLY HUB

Set of 2

LABEL GUIDE

Set of 2

RELEASE CATCH

Release catch for opening

the label supply hub

LABEL SENSOR MODULE

PLATEN MODULE

PLATEN

LABEL SENSOR

GUIDE TRACK

PLATEN LOCKERS

1 Barcode Printer

The Printing Mechanism

RIBBON REWIND MECHANISM

PRINT HEAD

COVER

The cover for Ribbon rewind mechanism

NOTCH OF RIBBON REWIND WHEEL

RIBBON REWIND WHEEL

RIBBON SUPPLY MECHANISM

PAPER PRESS BAR

NOTCH OF RIBBON SUPPLY WHEEL

RIBBON SUPPLY WHEEL

2 Printer Setup

2.1 Open the Printer

Open the Printer Cover and the Printing Mechanism

Place the printer on a flat surface. Open the printer cover by pulling the cover release catches on both sides of the

printer and lift the printer cover.

Pull the catches toward the direction

COVER RELEASE CATCHES

Pull the catches for opening the printer cover

The printing mechanism is lifted up

with the printer cover

2 Printer Setup

2.2 Loading the Ribbon

A New Ribbon Module Installation

EMPTY RIBBON COREA NEW RIBBON

1. Attach the ribbon to the empty ribbon core with the adhesive strip at the end of the ribbon.

Stick on empty ribbon core

2. Insert the ribbon hub into empty ribbon core and new ribbon. Wind the ribbon around the empty ribbon core

for 2 to 3 circles.

Insert the ribbon hub

RIBBON HUB

3. A ribbon module is assembled as below.

A NEW RIBBON MODULE

Wind the ribbon around the core

RIBBON SUPPLY

RIBBON REWIND

2 Printer Setup

Load the Ribbon on the Printer

For Ribbon Supply Module

RIBBON SUPPLY MECHANISM

NOTCH OF RIBBON SUPPLY WHEEL

RIBBON SUPPLY WHEEL

1. Place the ribbon supply module into the printing mechanism. Please the left-hand side of ribbon hub first.

Make sure the holder of ribbon hub is inserted into the notch. Then place the right-hand side of ribbon hub.

Left side

放入

RIBBON SUPPLY

MODULE

Place

HOLDER

NOTCH OF RIBBON SUPPLY WHEEL

Right side

HOLDER

Place

NOTCH

2 Printer Setup

2. Unlock the release catch to close the printer cover. Push the release catch forward to unlock it.

The ribbon supply module loading is completed.

Close the printer cover

Load the Ribbon on the Printer

For Ribbon Rewind Module

Push

RELEASE CATCH

Release catch for closing

the printer cover

RIBBON REWIND MECHANISM

COVER

The cover for Ribbon rewind mechanism

NOTCH OF RIBBON REWIND WHEEL

RIBBON REWIND WHEEL

2 Printer Setup

1. Open the cover of ribbon rewind mechanism.

Open the cover

2. Place the ribbon rewind module into the ribbon rewind mechanism.

Please the left-hand side of ribbon hub first. Make sure the holder of ribbon hub is inserted into the notch.

Then place the right-hand side of ribbon hub.

RIBBON REWIND

MODULE

Place

Left side

Place

HOLDER

NOTCH OF RIBBON REWIND WHEEL

Right side

HOLDER NOTCH

Place

2 Printer Setup

3. Turn the ribbon rewind wheel to tighten the ribbon until it has no wrinkles.

Rotate backward

RIBBON REWIND WHEEL

4. Close the cover of ribbon rewind mechanism.

The ribbon loading is completed once the ribbon supply module and ribbon rewind module are assembled

correctly.

Close the cover

2 Printer Setup

2.3 Loading the Label Roll Module

Loading the Label Stock on the Printer

LABEL STOCK

LABEL GUIDE PLATE

Set of 2

LABEL SUPPLY HUB

Set of 2

LABEL SUPPLY MODULE

LABEL GUIDE

Set of 2

Release catch for opening

the label supply hub

1. Unlock the ribbon catch and pull to open the label guide plate.

Pull to open

LABEL GUIDE PLATE

Set of 2

RELEASE CATCH

Release catch for opening the label supply hub

2. Place the label stock on label supply hubs. Make sure the label stock is aligned to both hubs.

Adjust the label guide plates to fix the label width.

Remember to push the release catch when moving the label guide plates.

RELEASE CATCH

Place

Close the plates

2 Printer Setup

3. Feed the Label through the label guides. The label guides will help to prevent the label swaying.

Through the label guides

LABEL GUIDE

Set of 2

4. Unlock the release catch to close the printer cover.

Close the printer cover

RELEASE CATCH

Release catch

for closing the printer cover

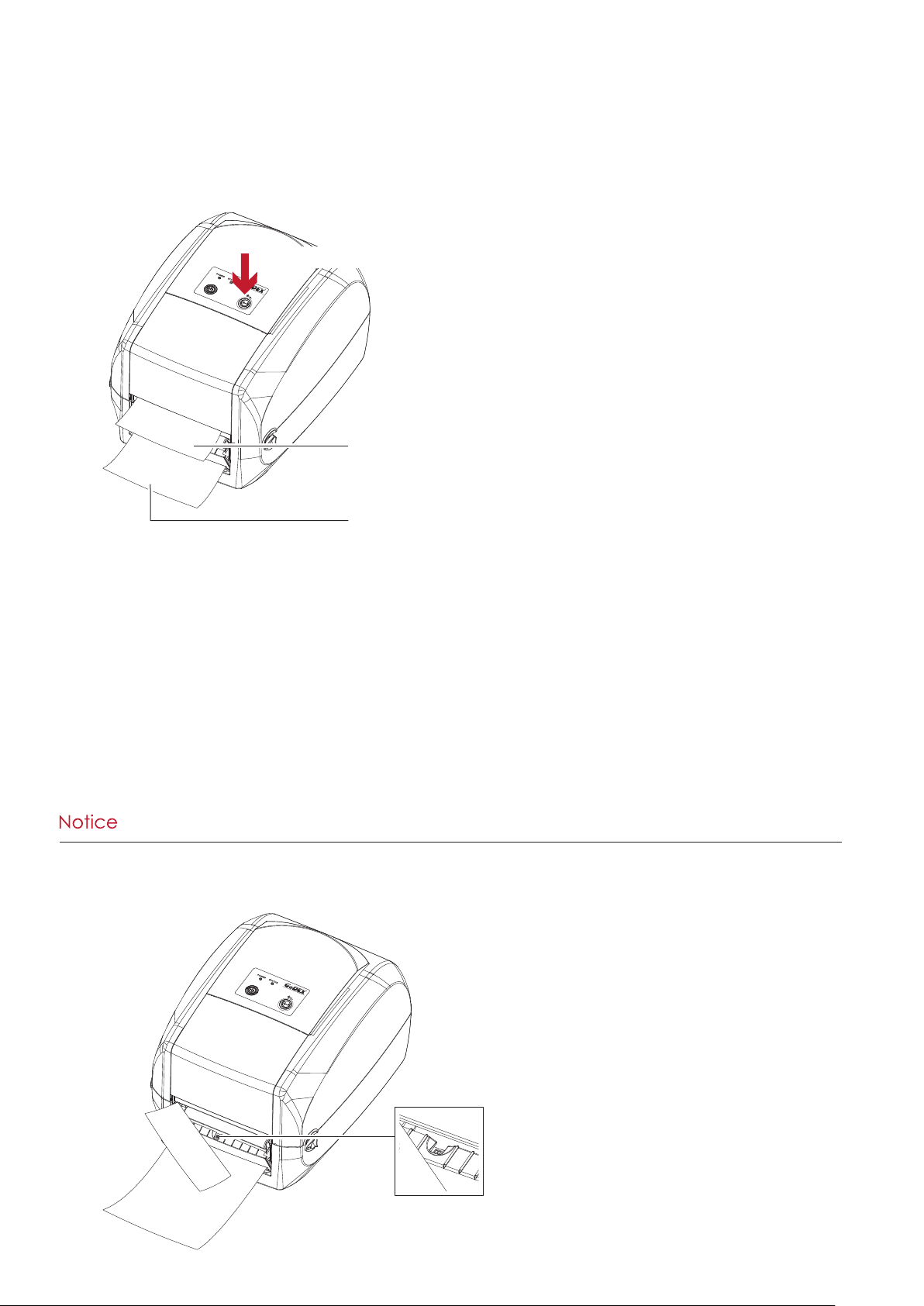

5. Press the FEED key and make sure the label is fed smoothly. The label loading is completed now.

RT700

**** Please keeps the rack gear clean to ensure the smoothness of label holder.
