1

1 Barcode Printer

1.1 Box Content

Please check that all of the following items are included with your printer.

USB Cable



RT700i Series Barcode Printer



CD

Including GoLabel software

and RT700i/RT730i user manual.



Label Stock



Ribbon Module

Empty Ribbon Core



Ribbon

Ribbon Hubs

Set of 2.

Power Adapter

Power Cord



AC Adapter

RT700i Series Quick Guide



RT700/RT700i/RT700

x

Series

RT700i

2

Front View



1 Barcode Printer

1.2 Getting to Know Your Printer

Device Overview

Rear View



RT700i

COVER RELEASE CATCHES

Pull catches for opening the printer cover

FRONT COVER

PRINTER COVER

OPERATION PANEL

RT700i

FEED BUTTON

POWER BUTTON

LCD SCREEN

DIRECTION KEY

RT700i

ETHERNET PORT

SERIAL PORT

POWER JACK

USB PORT

CALIBRATION BUTTON

USB HOST

FAN-FOLD LABEL INSERT

Feed slot for continuous labels

3

Bottom View



1 Barcode Printer

COVER OF THE MODULE CONNECTION JACKS

**** Cut-outs are not intended for wall-mount use.

4

1 Barcode Printer

The Internal View of Printer

RELEASE CATCH

Release catch for closing

the printer cover

LABEL SENSOR
MODULE

GUIDE TRACK

LABEL SENSOR

PLATEN MODULE

PLATEN

PLATEN LOCKERS

LABEL
SUPPLY
MODULE

RELEASE CATCH

Release catch for opening

the label supply hub

LABEL SUPPLY HUB

Set of 2

LABEL GUIDE

Set of 2

5

1 Barcode Printer

The Printing Mechanism

RIBBON REWIND MECHANISM

RIBBON WINDOW COVER

NOTCH OF RIBBON REWIND WHEEL

RIBBON REWIND WHEEL

PRINT HEAD

RIBBON
SUPPLY
MECHANISM

NOTCH OF RIBBON SUPPLY WHEEL

PAPER PRESS BAR

RIBBON SUPPLY WHEEL

6

2 Printer Setup

2.1 Open the Printer

Open the Printer Cover

Place the printer on a flat surface. Open the printer cover by pulling the cover release catches on both sides of the

printer and lift the printer cover.

RT700i

Pull the catches toward the direction

COVER RELEASE CATCHES

Pull the catches for opening the printer cover

Pull the catches toward the direction

Open the printer cover

7

2 Printer Setup

2.2 Loading the Ribbon

A New Ribbon Module Installation

1. Attach the ribbon to the empty ribbon core with the adhesive strip at the end of the ribbon.

2. Insert the ribbon hub into empty ribbon core and new ribbon. Wind the ribbon around the empty ribbon core

for 2 to 3 circles.

3. A ribbon module is assembled as below.

A NEW RIBBON MODULE

RIBBON HUB

EMPTY RIBBON COREA NEW RIBBON

Stick on empty ribbon core

Wind the ribbon around the core

Insert the ribbon hub

RIBBON REWIND MODULE

RIBBON SUPPLY MODULE

8

2 Printer Setup

Load the Ribbon on the Printer

For Ribbon Supply Module

RIBBON SUPPLY MECHANISM

RIBBON SUPPLY SPINDLE FIXED SLOT

RIBBON SUPPLY WHEEL

Place

RIBBON SUPPLY

MODULE

1. Place the ribbon module into the printing mechanism. Please the left-hand side of ribbon supply spindle

fixed slot first. Make sure the holder of square fixed shaft is inserted into the notch. Then place the

right-hand side of ribbon positioning round shaft. Can be fixed ribbon supply module.

放入

Left side

SQUARE FIXED SHAFT

RIBBON SUPPLY SPINDLE
FIXED SLOT

Place

Right side

POSITIONINGROUND SHAFT

Place

POSITIONING HOLES

9

2 Printer Setup

2. The ribbon supply module loading is completed. Pull the ribbon.

Push the release catch forward to unlock it. Close the printer cover.

For Ribbon Rewind Module

Close the printer cover

2

Push

1

RELEASE CATCH

Release catch for closing

the printer cover

RIBBON REWIND MECHANISM

RIBBON REWIND SPINDLE FIXED SLOT

RIBBON REWIND WHEEL

RIBBON WINDOW COVER

The cover for Ribbon rewind mechanism

10

2 Printer Setup

1. Open the cover of ribbon window.

2. Please the left-hand side of ribbon rewind spindle fixed slot first.

Make sure the holder of square fixed shaft is inserted into the notch. Then place the

right-hand side of ribbon positioning round shaft. Can be fixed ribbon rewind module.

Open the cover of ribbon window

Place

RIBBON REWIND

MODULE

Left side

Place

SQUARE FIXED SHAFT

RIBBON REWIND
SPINDLE FIXED SLOT

Place

Right side

Place

POSITIONING ROUND SHAFT

POSITIONING HOLES

11

2 Printer Setup

3. Turn the ribbon rewind wheel to tighten the ribbon until it has no wrinkles.

4. Close the cover of ribbon window.

The ribbon loading is completed once the ribbon supply module and ribbon rewind module are assembled

correctly.

Close the cover
of ribbon window

RIBBON REWIND WHEEL

Rotate backward

12

2 Printer Setup

2.3 Loading the Label Roll Module

Loading the Label Stock on the Printer

LABEL STOCK

LABEL
SUPPLY
MODULE

RELEASE CATCH

Release catch for opening

the label supply hub

LABEL SUPPLY HUB

Set of 2

LABEL GUIDE

Set of 2

1. Press the ribbon catch and pull to open the label supply hub.

2. The label roll into the label supply module and align the label supply hub.

Moving the label supply hub. The label roll is indeed installed in the label supply hub.

1

2

2

RELEASE CATCH

Release catch for opening the label supply hub

Place

13

2 Printer Setup

3. Feed the Label through the label guides. The label guides will help to prevent the label swaying.
(Press release catch removable label guide.)

Through the label guides

LABEL GUIDE

Set of 2

4. Unlock the release catch to close the printer cover.

5. Press the FEED key and make sure the label is fed smoothly. The label loading is completed now.

2

1

RELEASE CATCH

Release catch

for closing the printer cover

Close the printer cover

**** Please keeps the rack gear clean to ensure the smoothness of paper roll supply module.

RT700i

14

2 Printer Setup

2.4 Connecting the Printer to the Host Computer

1. Please make sure that the printer is switched off.

2. Connect the power cord to the AC adapter.

AC ADAPTER

POWER CORD

Connect the jack of the power adapter to the printer and connect the plug of the power adapter to the socket

of the wall.

RT700i

RT700i SERIES BARCODE PRINTER

POWER ADAPTER

THE WALL

SOCKET

SLOT

JACK

PLUG

15

2 Printer Setup

3. Connect the USB/serial cable to the printer and host computer.

4. Pressing the power button. The power LED indicator should now lights up.

RT700i

RT700i SERIES BARCODE PRINTER

USB CABLE

PC

SOCKET

USB PORT

PLUG

PLUG

RT700i

Pressing the power button

POWER LED INDICATOR

OPERATION PANEL

16

2 Printer Setup

2.5 Installing Printer Driver and GoLabel with Super Wizard CD

1. Insert the Super Wizard CD in the CD/DVD drive of the host computer and the program should pop up

automatically. You will see the Welcome screen first. On the Welcome screen, choose “Standard Installation”.

2. The wizard will then ask you to make sure your USB and power cables are connected and that the power is

turned on. Make sure that is done and then click “Next”.

3. The next screen you will see is, “Install the GoLabel Software and Windows driver”. Click “Next” to continue.

****If the Super Wizard program did not run automatically, you can either turn on the “Auto-run” setting for your

CD/DVD driver or double-click the icon of CD/DVD driver to run the program.

17

2 Printer Setup

4. As the printer driver and GoLabel are installing, a screen will display a progress bar.

6. As the optional steps, you can also print a test label or register your printer during the “Standard Installation”

procedure.

5. Once the installation is complete, you can start to make and print labels with GoLabel or throug the printer driver.

****If you need more resources, tools or reference documents, you can also find them on Super Wizard CD. Just click

“Other Choices” on Welcome Screen to access the files.

18

2 Printer Setup

1. Insert the product CD in the CD/DVD drive of the host computer and open the "Seagull Drivers" folder on the CD.

Select the icon for the driver file and click it to start the installation.

2. Follow the instructions on the screen. The Driver Wizard guides you through the installation procedure.

Select "Install printer drivers".

3. Specify your printer model.

Godex RT700i

Installing Printer Driver Directly from CD Folder

19

2 Printer Setup

4. Specify the port used to connect the printer to the host computer.

6. Once the installation is complete, a summary of the printer settings is displayed.

Check whether the printer settings are correct and click "Finish" to start copying the driver files.

Wait until copying is complete, then finish the installation.

5. Enter a printer name and assign the appropriate rights.

Godex RT700i

Godex RT700i

Godex RT700

Godex RT700i

20

2 Printer Setup

7. Once the driver installation is complete, the new printer should appear in the "Printers and Faxes" folder.

Godex RT700i

Godex RT700i

3 Printer Setting and Control

3.1 Operation Panel

021

Operation Panel Introduction

RT700i

RT700i

FEED BUTTON

DIRECTION KEY

OPERATION PANEL

POWER BUTTON

LCD SCREEN

FEED Button

When you press the FEED button, the printer moves the label to the defined stop position.

If you are using continuous labels, pressing the FEED button will move label stock until you release the button again.

If you are using individual labels, pressing the FEED button will move only one label.

If the label does not stop at the correct position, you need to run the auto-detection function on the label stock, please see Section 3.4 Label

Calibration and Self Test.

POWER Button

Press the POWER button to turn on the printer, and the START UP SCREEN appears. The printer is on “ready to print”

status, the LCD screen should display the message “READY“ on the screen.

When printer is turned on, keep pressing the POWER button for 3 second will turn the printer off.

PAUSE PRINTING_FEED Button

Pressing the FEED button during printing will interrupt printing, and the LCD display message “PAUSE...”.

When the FEED button is pressed again, the printer resumes printing. Example: While a 10-label print job is running,

you press the FEED button to pause the printer. Two of the labels have been printed. To resume printing and print the

remaining eight labels, you will need to press the FEED button again.

CANCEL PRINTING_FEED Button

Press and hold the FEED button for 3 seconds during printing, the current print job will be cancelled.

Example: While a 10-label print job is running, you press the FEED button. Two of the labels have been printed.

The print job is cancelled and the remaining eight labels will not be printed.

22

3 Setting and Control for Operation Panel

3.2 LCD Interface Introduction

Getting Started

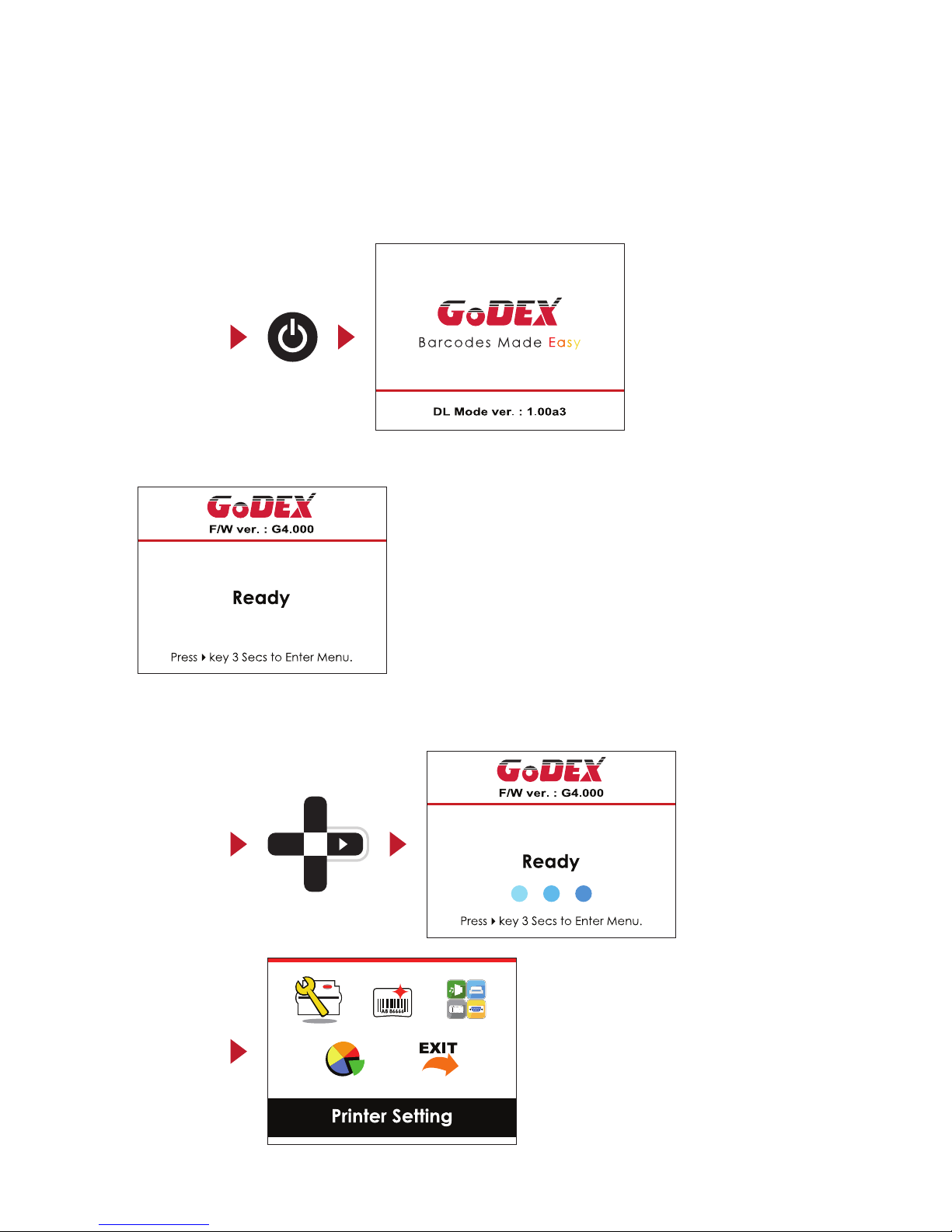

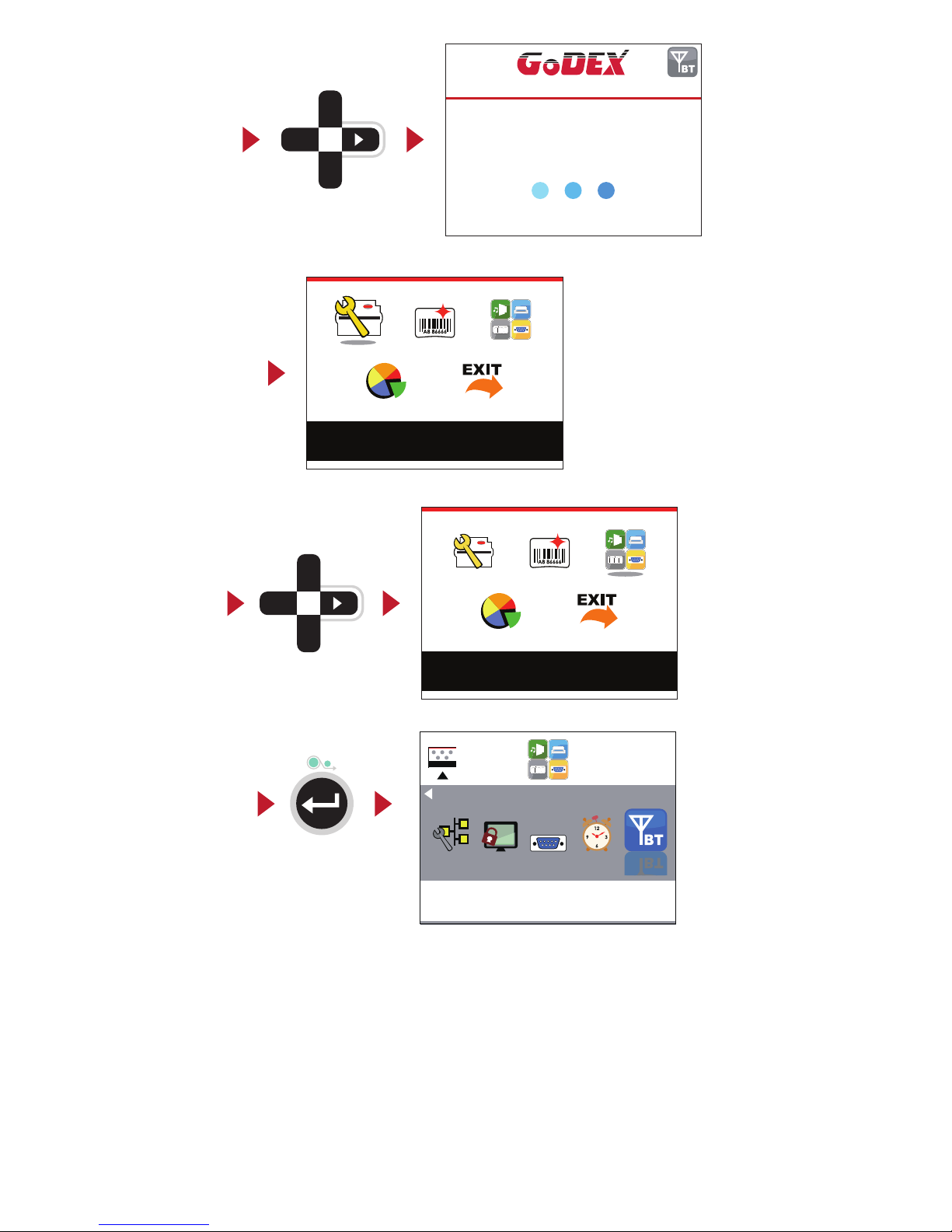

Press the POWER button to turn on the printer, and the START UP SCREEN appears.

If the printer is on “ready to print” status, the LCD screen should display the message “Ready“ on the screen.

Please keep pressing  button and wait for the timer to be filled, then the LCD interface will enter into the MAIN

PAGE for SETTING MODE. You can make various setting functions in SETTING MODE.

Power on

Enter Main page

23

3 Setting and Control for Operation Panel

Operations on Setting Page

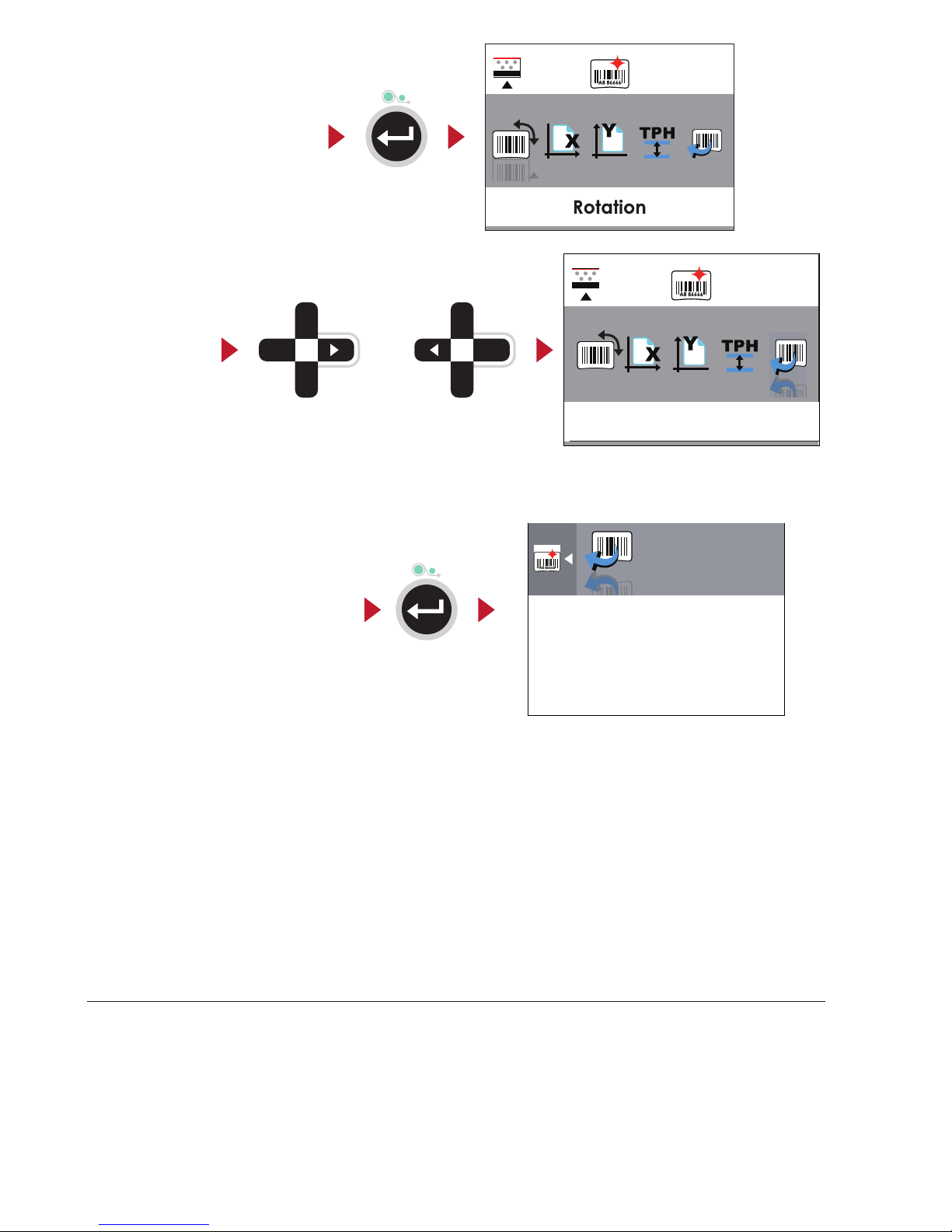

On MAIN PAGE, press  or  button to move the cursor and select the functions.

Select a designated function and press FEED button, you will enter the SETTING PAGES for the function.

or

Select

Enter

On SETTING PAGES, press  or  button to select the setting items.

Select a designated function and press FEED button, you will enter the SETTING VALUE PAGES for the function.

orSelect

Enter

24

3 Setting and Control for Operation Panel

Press FEED button will apply the setting value you just selected, and the red tick will appear to mark the value.

On SETTING VALUE PAGES, press  or  button to change the setting values.

orSelect

Apply

**** The blue arrow indicates the value you are selected.

**** The red tick indicates that the selected value is applied now.

25

3 Setting and Control for Operation Panel

On SETTING PAGES, press  button will go back to the MAIN PAGE screen.

Exit from Current Page to Ready Status

The icon on top-left corner displays the capture of upper level screen and also guides you back to upper level with

left or up arrow.

NAVIGATION ICON

On SETTING VALUE PAGES, press button will go back to the upper level screen.

Back to the Setting page

Back to the Main page

26

3.3 LAN Setting

Operations on Setting Page

On MAIN PAGE，press  or  button to move the cursor and select the functions.

Select a designated function and press FEED button, you will enter the SETTING PAGES for the function.

Device

or

Select Device

Enter LAN Setting

On LAN Setting PAGE，press  or  button to select the setting items.

Select DHCP and press FEED button, you will be able to setup DHCP function

or

Select a

designated funcition

3 Setting and Control for Operation Panel

27

The default of DHCP is Disable. ，Press  or  button to change the setting values.

Press FEED button twice to save the setting.

Select  to enable DHCP

Press FEED once to exit.

Press FEED again to save

and return to previous

SETTING PAGE.

3 Setting and Control for Operation Panel

28

3.4 LCD Password

Operations on Setting Page

On MAIN PAGE, press  or  button to move the cursor and select the functions. Seclect a designated function

and press FEED button, you will enter the SETTING PAGE for the function.

Device

or

Select Device

Enter LCD Password

The default of LCD Setting is Disable. Press  or  button to change the setting values.

Select  button to

Enable Password function

3 Setting and Control for Operation Panel

29

Select  button again to

setup the password

Press FEED button onece to exit.

Press FEED button twice to svae the setting

Press FEED button again to save

and

reture to previous SETTING PAGE

3 Setting and Control for Operation Panel

30

3 Setting and Control for Operation Panel

3.5 LCD Interface Function

Main Page

Printer Setting

Label Setting

Device

Analysis

Exit

Setting items for printer, ex. Printing speed, darkness.
Also includes a Printing Wizard for your ease of printing.

Setting items for printing label, ex. Rotation, Printing position offset.

Option modules and connection port settings.

Self-Diagnose functions for printer, ex. TPH testing, self-test page printing.

Exit from Setting Mode.

31

3 Setting and Control for Operation Panel

Setting Items in Setting Mode

Printer Setting

Label Setting

LCD Language

English

繁體中文
简体中文

Wizard

Speed

2-5 or 7

Darkness

0-19

Media Type

Label with Gaps

Label with Marks

Continuous

Printer Mode

Direct Thermal

Thermat Transfer

Tear-off Position

0-40

Setting

Darkness

0-19

Speed

2-5 or 7

Sensor

Media Detection

Auto Select

See-Through

Reflective

Media Type

Label with Gaps

Label with Marks

Continuous

Printing Mode

Direct Thermal

Thermat Transfer

Tear-off Position

0-40

Top of Form

Apply

Cancel

Codepage

850

852

437

860

863

865

857

861

862

855

866

737

851

869

Win 1252

Win 1250

Win 1251

Win 1253

Win 1254

Win 1255

Win 1257

Rotation

0°

90°

180°

270°

Horizental Offset

-100 - 100

Vertical Offset

-100 - 100

Start Offset

-100 - 100

Recall Label

001 Form Name

002 Form Name

Deutsch

Français
Español

日本語

Italiano

Pусский

Türk

32

3 Setting and Control for Operation Panel

Device

Analysis

Exit

Buzzer

Apply

Cancel

Optional Setting

Option

None

Cutter

Label Dispensor

Applicator

Pre-Printing

Apply

Cancel

Serial Port Setting

Baud Rate

4800 bps

9600 bps

19200 bps

38400 bps

57600 bps

115200 bps

Parity

Non

Odd

Even

Data bits

7 bits

8 bits

Stop bits

1 bits

2 bits

RTC Setting

Clock Display

Apply

Cancel

RTC Setting

YYYY/MM/DD

HH:MM:SS

Calibration

Apply

Cancel

Self-test

Apply

Cancel

TPH Testing

Apply

Cancel

Reset to Default

Apply

Cancel

Clear Memory

Label Format

Apply

Cancel

Graphic

Apply

Cancel

Bitmap Fonts

Apply

Cancel

True Type Fonts

Apply

Cancel

Asian Fonts

Apply

Cancel

ALL

Apply

Cancel

Exit

LAN Setting

Part NO.

DHCP

Dynamic IP

Default Gateway

Subnet Mask

09100
Disable

Enable

192.168.000.254

192.168.102.076

255.255.255.000

LCD Password

Disable
Enable

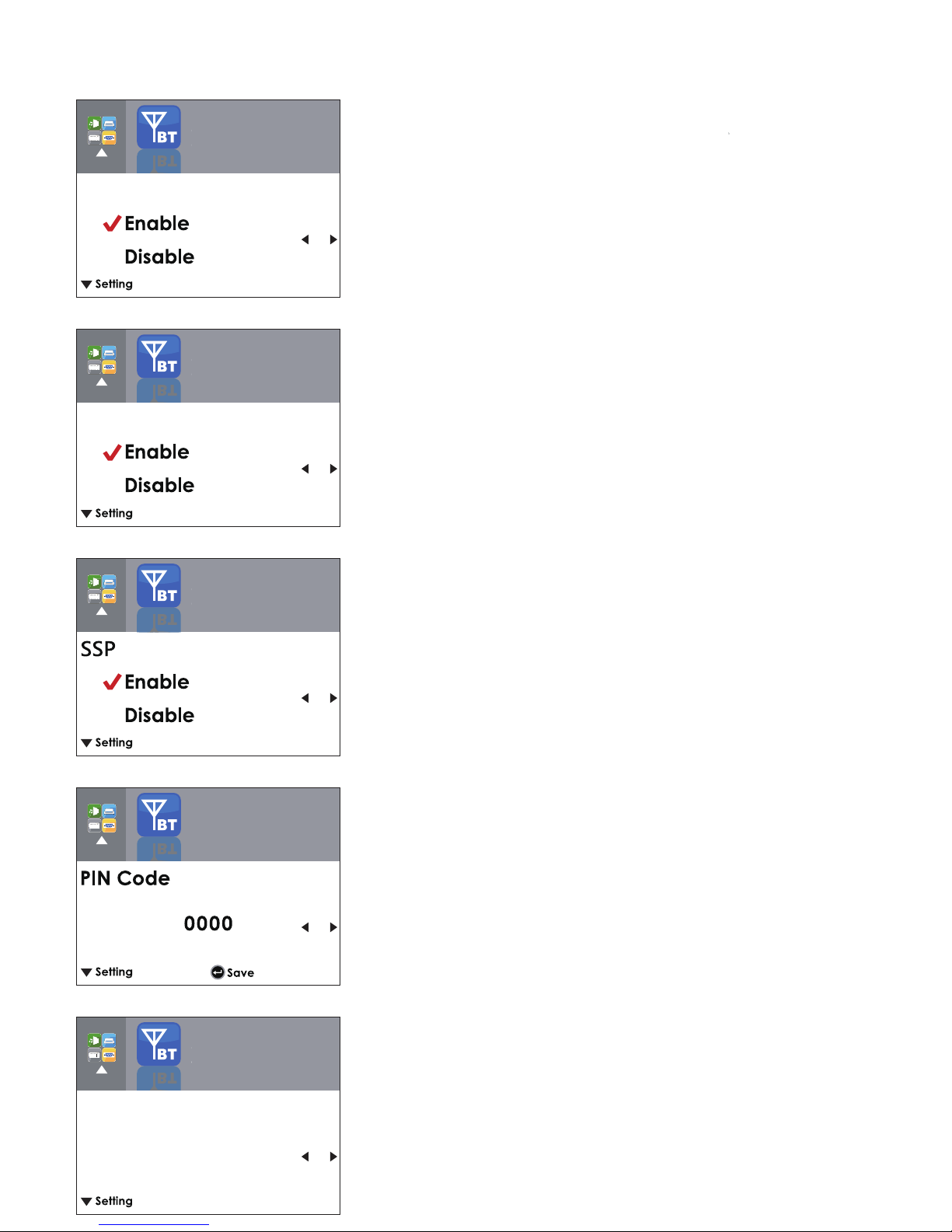

Bluetooth Setting

Clear Bind

Enable

Disable

Make Device
Visible

Enable
Disable

SSP

Enable

Disable
PIN Code 0000
Search Devices

33

3 Setting and Control for Operation Panel

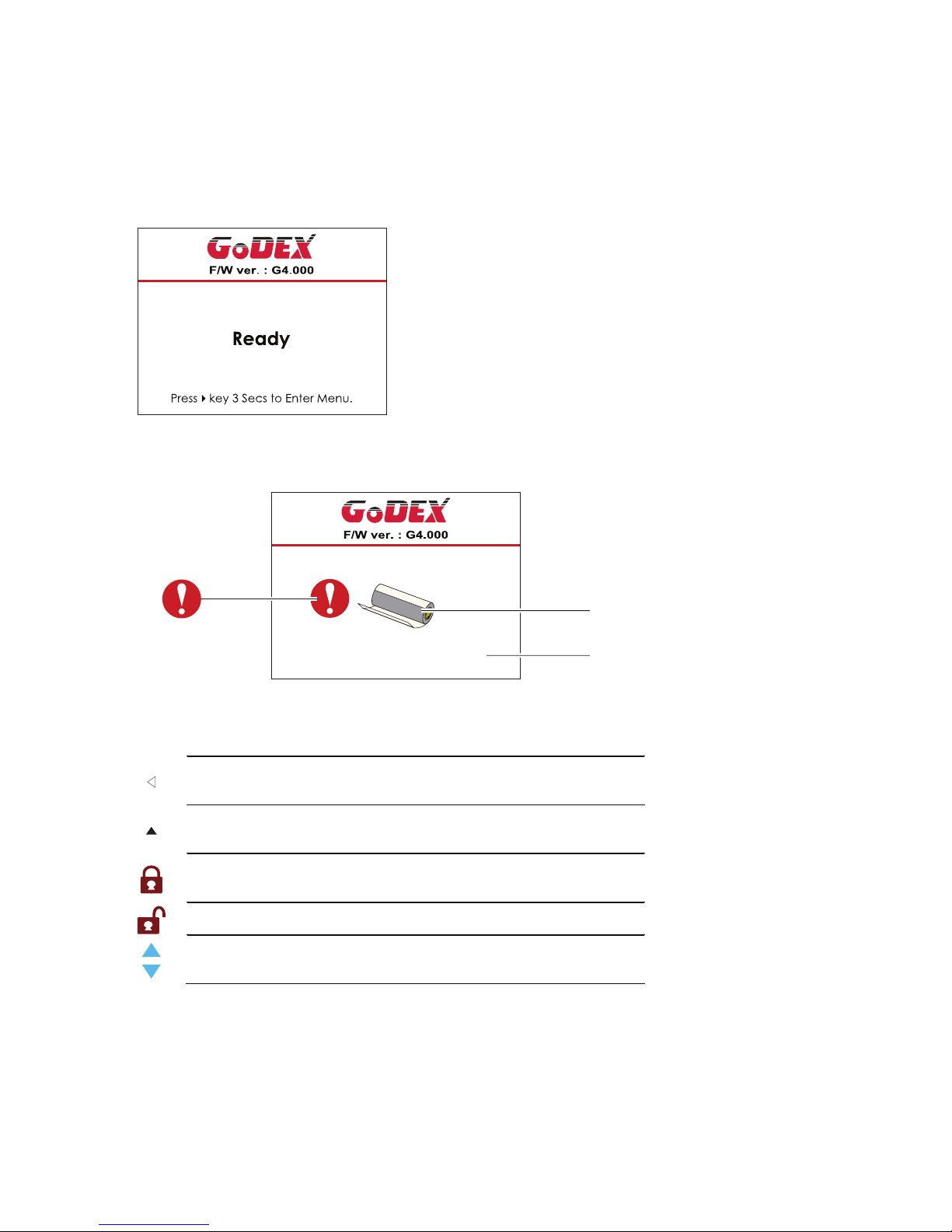

Status of LCD Interface

When printer is on standby status (ready to print), the LCD interface will display “Ready” on screen.

You can only print on this “Ready“ status.

If there is any printers error, the LCD screen will display the error screen to show the type of error.

You can fix the error according the notice.

WARNING ICON

ERROR DESCRIPTION

ERROR ICON

Icon Definition

To upper level

Appears on the NAVIGATION ICON of Setting

Pages. It guides you back to upper level by

pressing “LEFT“ key.

To upper level

Appears on the NAVIGATION ICON of Setting

Value Pages. It guides you back to upper level

by pressing “UP“ key.

Lock

On Setting Value pages, press “RIGTH“ key to

lock the value for preventing unexpected

change.

Unlock

For locked value, press “RIGHT” key again to
unlock the value.

Scroll the value

On Setting Value pages, press “UP“ or “DOWN“
key to scroll the values for your selection.

Check Ribbon

34

3 Printer Setting and Control

3.6 Label Calibration and Self Test

Label Calibration

The printer can automatically detect and store label height.

That means the host computer does not need to transmit the label height to the printer.

Self Test

Self-test function lets you check whether the printer is functioning normally.

Here is how you run the label size calibration and self test.

1. Check that the label stock is loaded correctly.

2. Turn off the printer.

3. Turn the printer on again, keeping the FEED button pressed. When the LED starts to flash red, release the FEED

button. The printer will now measure the label stock and store the label height.

4. Once the printer has successfully measured the label stock, it will print a self-test label.

The contents of a self-test printout are listed below.

Model & Version

USB ID setting

Serial port setting

MAC address of Ethernet port

IP protocol setting

IP address of Ethernet port

Gateway setting

Netmask setting

Number of DRAM installed

Image buffer size

Number of forms

Number of graphics

Number of fonts

Number of Asian fonts

Number of Databases

Number of Scalable fonts

Free memory size

Speed, Density, Ref. Point, Print direction

Label width, Form length, Stop position

Cutter, Label Dispenser, Mode

Sensor Setting

Code Page

RT700i:GX.XXX

USB S/N:12345678

Serial port:96,N,8,1

MAC Addr:xx-xx-xx-xx-xx-xx

DHCP Enable

IP xxx.xxx.xxx.xxx

Gateway xxx.xxx.xxx.xxx

Sub-Mask xxx.xxx.xxx.xxx

##################################

1 DRAM installed

Image buffer size:1500 KB

0000 FORM(S) IN MEMORY

0000 GRAPHIC(S) IN MEMORY

000 FONT(S) IN MEMORY

000 ASIAN FONT(S) IN MEMORY

000 DATABASE(S) IN MEMORY

000 TTF(S) IN MEMORY

4073 KB FREE MEMORY

^S4 ^H8 ^R000 ~R200

^W102 ^Q100,3 ^E18

Option:^D0 ^O0 ^AD

Reflective AD:1.96 2.84 2.49[0.88_23]

Code Page:850

35

3 Printer Setting and Control

Label Calibration Button

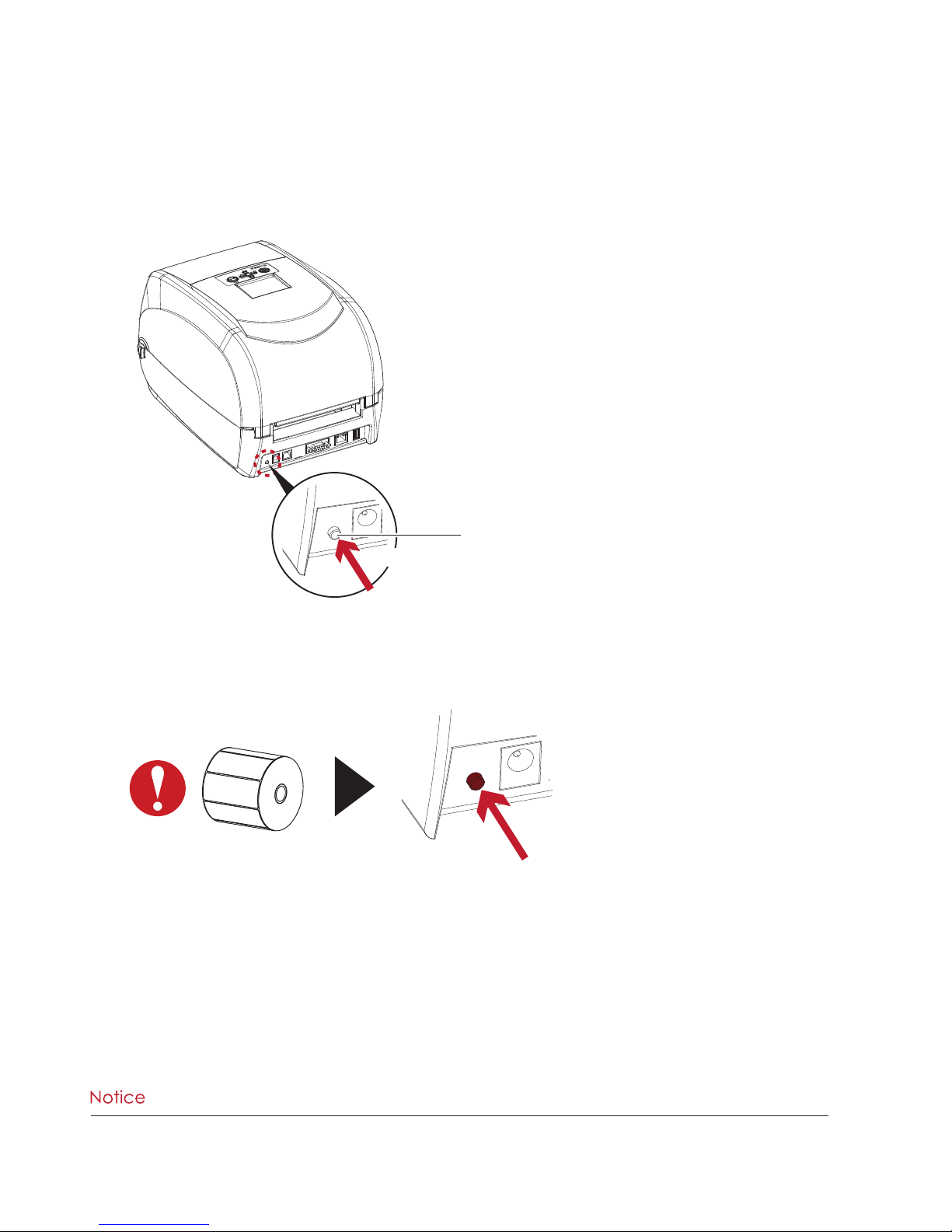

A hardware button to make a Label Calibration while printer encountering ‘’Media Error’’ during the cases when first-time

printer start up or change label or ribbon to another type, such as change using gap label to continuous or black mark

labels.

RT700i

Press

CALIBRATION BUTTON

Press C-button for 2 seconds, it will make an auto-sensing to calibrate the label and ribbon’s parameters.

Press

****Press C-button is equivalent to the auto-sensing command ‘’~S,SENSOR’’ that will cancel on-printing-job and make the

Label Calibration immediately.

36

3 Setting and Control for Operation Panel

3.7 Error Alerts

In the event of a problem that prevents normal functioning of the printer, you will see an error message on LCD

screen and hear some beep signals. Please refer to below table for the error alerts.

RT700i

FEED BUTTON

DIRECTION KEY

OPERATION PANEL

POWER BUTTON

LCD SCREEN

Operation Panel

Status

Type

Beeps

Description

Solution

Print Head Error 2 x 4 beeps

The printing mechanism is not
correctly closed.

Open the print mechanism and
close it again.

Print Head Error None

High temperature at the print
head.

Once the print head has cooled
down, the printer switches to
standby mode.

Media Error 2 x 3 beeps

No ribbon is installed and the
printer displays an error.

Make sure that the printer is set to
direct thermal printing mode.

The ribbon is finished or the label
supply hub is not moving.

Replace the ribbon roll.

Media Error 2 x 2 beeps

No paper is detected.

Make sure that the label sensor is
positioned correctly. If the sensor
still does not detect the paper,
run the auto-detection function
again.

Paper is finished. Replace the label roll.

Printer feed problem.

Possible reasons: the print medium
has become trapped around the
rubber roll; the sensor cannot
detect a gap or black mark
between the labels; there is no
paper. Please reset the sensor.

Printhead up (Open)

Check Ribbon

Check Media

37

3 Setting and Control for Operation Panel

Operation Panel

Status

Type

Beeps

Description

Solution

File Error 2 x 2 beeps

The memory is full. The printer
prints the message "File System full
".

Delete unnecessary data or install
additional memory.

Unable to find file. The printer
prints the message "File Name not
found"

Use the "~X4" command to print
all files. Then check whether the
files exist and whether the names
are correct.

A file of the same name already
exists. The printer prints the
message "Duplicate Name".

Change the name of the file and
try storing it again.

38

3 Printer Setting and Control

3.8 USB Host

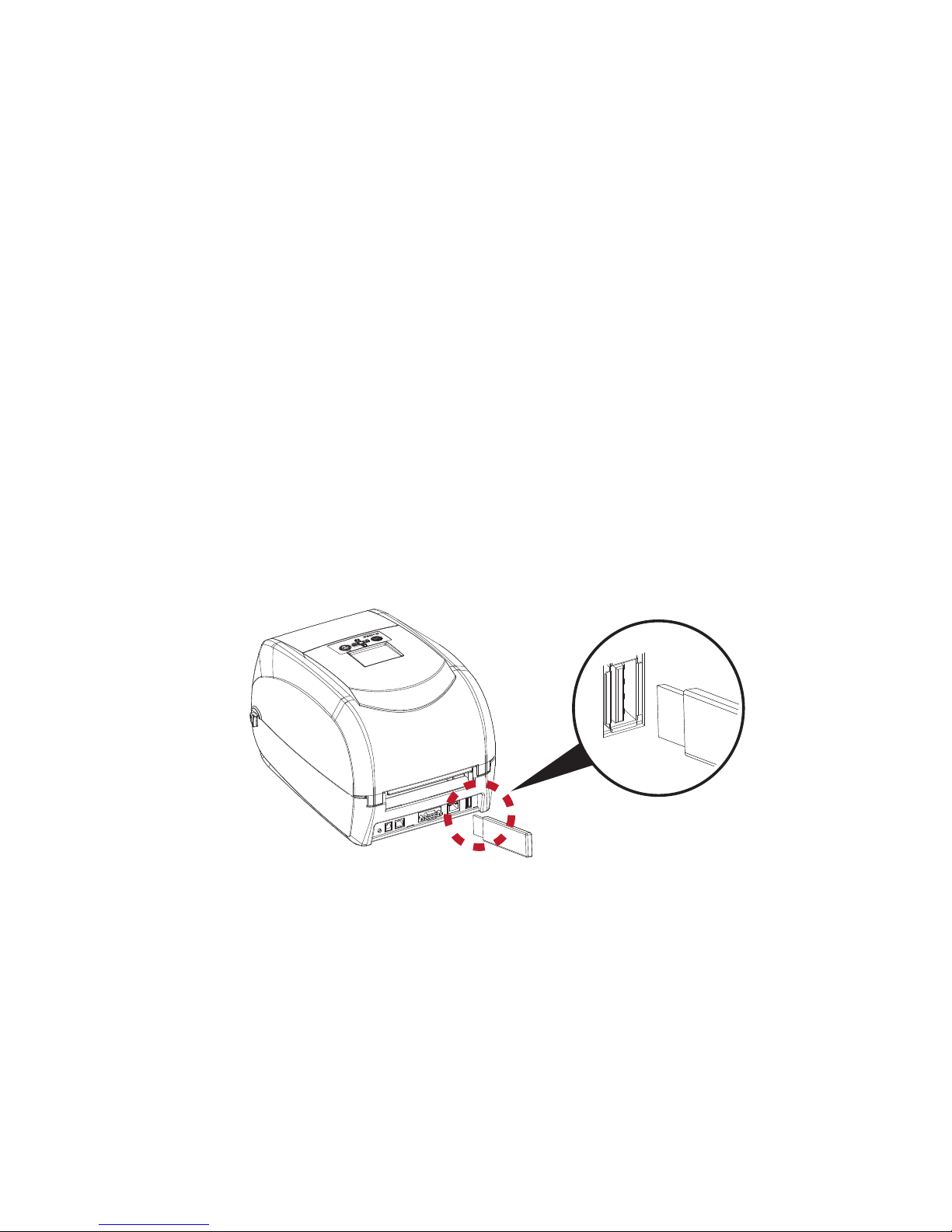

Definition : USB Host port supports either device：USB memory stick, keyboard or scanner.

Purpose



USB memory stick : It extends the user memory space up to 32GB for Graphic, Font, Label Format, DBF and Command

files downloading. The printer’s Firmware also can be updating if copy new version of Firmware into USB memory stick.



Connecting an USB keyboard to printer for ‘’ Standalone’’ mode operation.



Plug-in an USB scanner to operate the printer in ‘’Standalone’’ mode.

Usage of Extended Memory



USB memory stick : It supports hot-plugging function; printer will create a Folder ‘’\LABELDIR’’ and switch ‘’User Flash’’

to ‘’ Extended Memory‘’ automatically while user plugs an USB memory stick into a GoDEX ‘’i’’ model printer.



Connect the USB Stick plugged -in printer to PC via USB Device or Ethernet port and run ‘’GoLabel’’ software to

download Graphic, Font, Label Format, DBF and Command files to the printer.



Detail download procedures, please refer to ‘’GoLabel On-line Help’’.

Usage of Firmware Update



Remove USB memory stick from printer and plug-in it to a PC’s USB port; delete Firmware ‘’*.bin’’ file from

‘’\LABELDIR\FW’’ of USB memory stick if it existing; or create a Folder ‘’\LABELDIR\FW’’ to USB memory stick if it doesn’t

existing.



Copy a new version of Firmware ‘’xxxx.bin’’ to the Folder ‘’\LABELDIR\FW’’; and then remove USB and plug-in

back to the printer that going to update Firmware.



The printer will update the Firmware automatically when plug-it-into the printer and printer find-out the Firmware

in ‘’\LABELDIR\FW’’ is newer version.



Don’t remove the USB memory stick out while it’s under updating with ‘’Flash Writing...’’message that displays on

LCD panel.

RT700i

39

3 Printer Setting and Control

** The USB Host port on ‘’i’’ ‘’x’’ model printer is without ‘’HUB’’ function.

** The USB Memory Stick supports with ‘’FAT32’’Disk Format and up to 32GB only. The certified venders are Transcend,

Apacer, Patriot, Consair and Kingston.

* The download function for Graphic, Font, Label Format, DBF and Command files is operated by GoLabel of PC and

must go through the a ‘’i’’ ‘’x’’ model printer itself.

* On a PC, user may copy entire folder’’\LABELDIR’’ from USB memory stick to PC or vice-versa. Copy a sub-folder or

individual file in ‘’\LABELDIR’’ to PC or vice-versa is not supported.

USB Keyboard



When plug-in an USB keyboard to the printer, LCD panel will display “Standalone Mode”, press the “Enter” key

on keyboard and “Feed” key in the printer to entering to the dialog for “Recall Label” operation.



Only the sub-dialog “Recall Label” is able operating by keyboard as follow definition:

1. Press “ESC” key to exist from “Standalone Mode” or back to previous dialog

2. Press “F1”, it will let the printer from “Ready” mode entering into “Standalone Mode”

3. Press “Enter”, “Arrow” and “Alphabetic” keys as the usual in PC that will perform the key-in function of

“Recall Label” in “Standalone Mode”.

Scanner



When plug-in an USB scanner to the printer, LCD panel will display “Standalone Mode”, press the “Feed” key

in the printer to entering the dialog of “Recall Label” operation. User performs the “Recall Label” function interactively

through the LCD panel, 4 direction keys, Feed key and Scanner.



Scanner is using in “standalone Mode” to scanning the “Serial Number, Variable” and Print Quantity while the printer

prompts a message on LCD panel and wait for data input.

3 Printer Setting and Control

3.9 Dump Mode Begin

For make sure provide us correct information for check what commands sentfrom the PC or software, please following below

steps,

STEP 1, Let the printer enter Dump Mode

For Desktop printer (RT200i / RT700i series, with LCD)

Just press and hold the key until LCD Display shows “DUMP MODE ”, then release the key.

STEP 2. Make sure pinter ready for print a label

STEP 3. Send a label or commands which met problem to the printer

STEP 4. Printer will print out a label with letters and numbers, please take a picture on them and send us by email.

To cancel (get out of) the Dump Mode, please press the FEED key, and then the printer will

automatically print “OUT OF DUMP MODE.” This indicates that the printer is back to the standby mode.

40

41

4 NetSetting for Ethernet

4.1 Installing the NetSetting software

The NetSetting software is used to manage the network configurations when connecting the printer via Ethernet port.

It is available on product CD or can be downloaded from official website. To install the NetSetting, please follow

below steps.

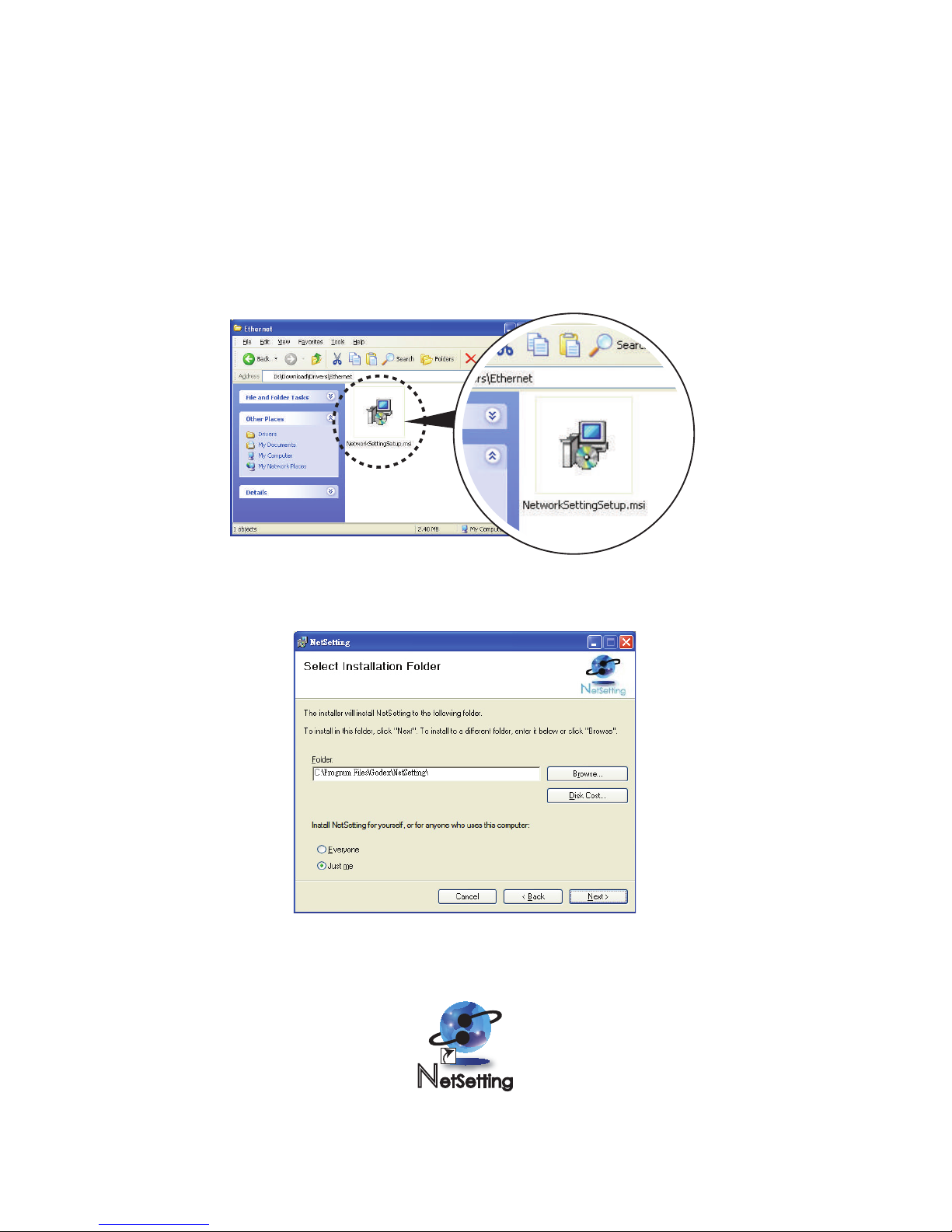

5. Click ”Next” to start the installation.

6. Once the installation is completed; you will see the NetSetting icon on your desktop.

1. Insert the product CD in the CD/DVD drive of the host computer and open the "Ethernet" folder on the CD.

2. Select the icon for the NetSetting installation file and click it to start the installation.

3. Follow the instructions on the screen. The Setup Wizard guides you through the installation procedure.

4. Specify the “Installation Folder".

42

4 NetSetting for Ethernet

4.2 The Interface of NetSetting

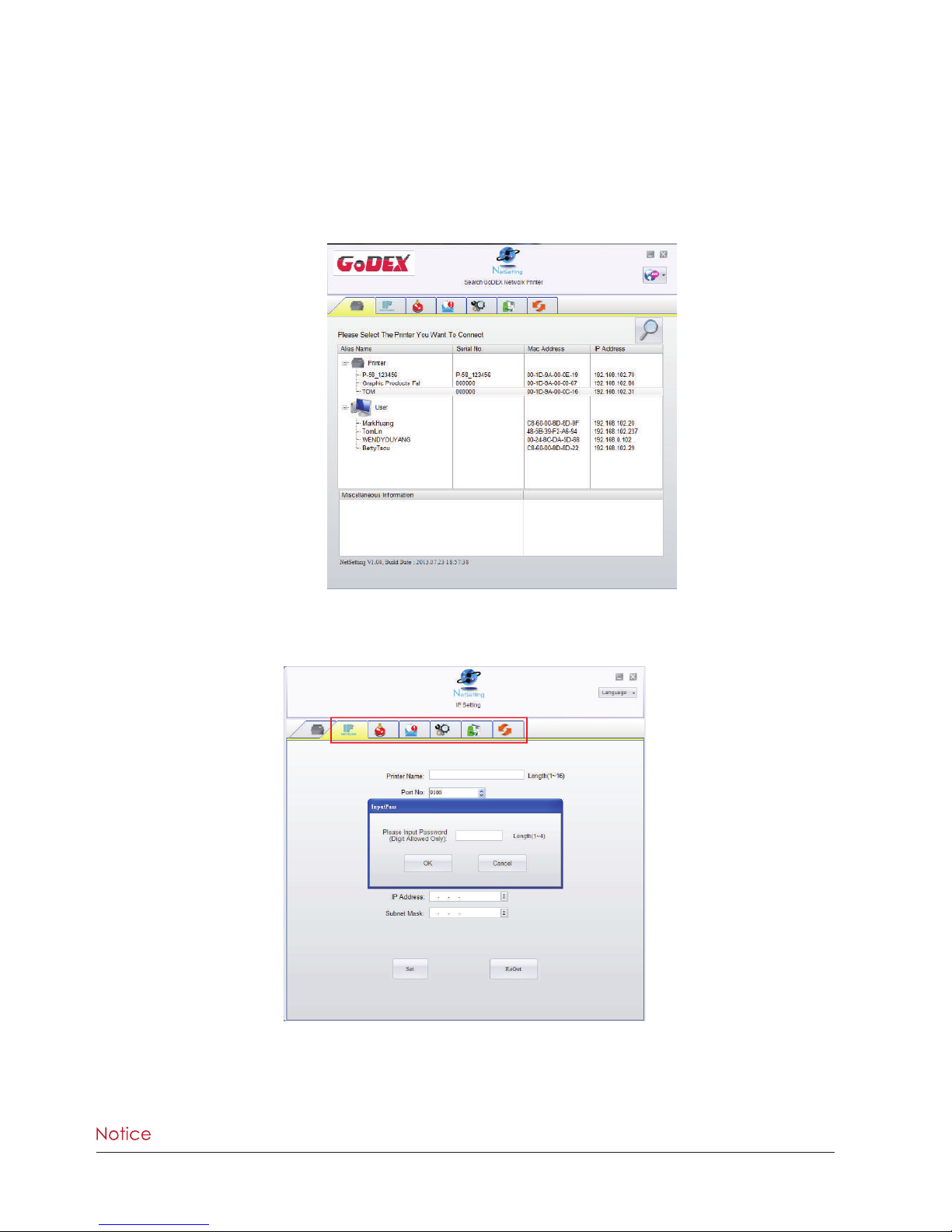

Click the NetSetting icon to start the program; you will see the start page as below. The start page will display the

basic information of connected printer and your PC.

There are six tabs on the top of interface which can configure different types of network settings. But for the data

security reason, you need correct password to enter the configuration pages.

Click the magnifier icon to search the Godex printers which are connected via Ethernet port in you network

environment. Once a connected Godex printer is detected, it will be listed on the start page.

**** The default password is “1111”, you can change the password later from the “IP Setting” tab.

ZX1200

43

4 NetSetting for Ethernet

**** To fully benefit from the NetSetting software, you should be familiar with basic networking principles. Please

contact your network administrator for related network setting information.

You can press “Set” button to apply the settings and “ReGet” button to refresh the setting values.

IP Setting

The IP Setting tab can change the printer name, Port number, Gateway setting and the password for configuring the

printer. You can also set the printer’s IP address ether by DHCP or by Static IP.

44

4 NetSetting for Ethernet

You can press “Set” button to apply the settings and “ReGet” button to refresh the setting values.

Alert Path Setting

NetSetting will send the alert messages to designated mail account when the error happened on printer. The alert

messages are sent by SMTP (Simple Mail Transfer Protocol) or SNMP (Simple Network Management Protocol).

You can set or change the configurations of SMTP and SNMP on this “Alert Path Setting” tab.

45

4 NetSetting for Ethernet

You can press “Set” button to apply the settings and “ReGet” button to refresh the setting values.

Alert Message Setting

For the alert message notification function, you can decide which error cases need to be sent out to the operator.

Moreover, the alert messages can be set to be sent by SMTP, SNMP or both.

46

4 NetSetting for Ethernet

You can press “Set” button to apply the settings and “ReGet” button to refresh the setting values.

Printer Configuration

Set or change the configurations of connected printer. Most of key settings for the printer operation can be done

by this setting page.

RT700i

47

4 NetSetting for Ethernet

You can press “Send Command” button to send printer commands via Ethernet port and control the printer

remotely.

User Command

The “User Command” tab provides a communication interface for operator to control the printer. Input printer

commands in "Input Command" window and press “Send Command” button, the commands will be sent to the

printer.

For some commands that will return response message, the message will be displayed in "Output Message" window.

48

4 NetSetting for Ethernet

In addition to the firmware update, you can press “Recover To Factory Settings” button to restore the printer

configurations back to factory default.

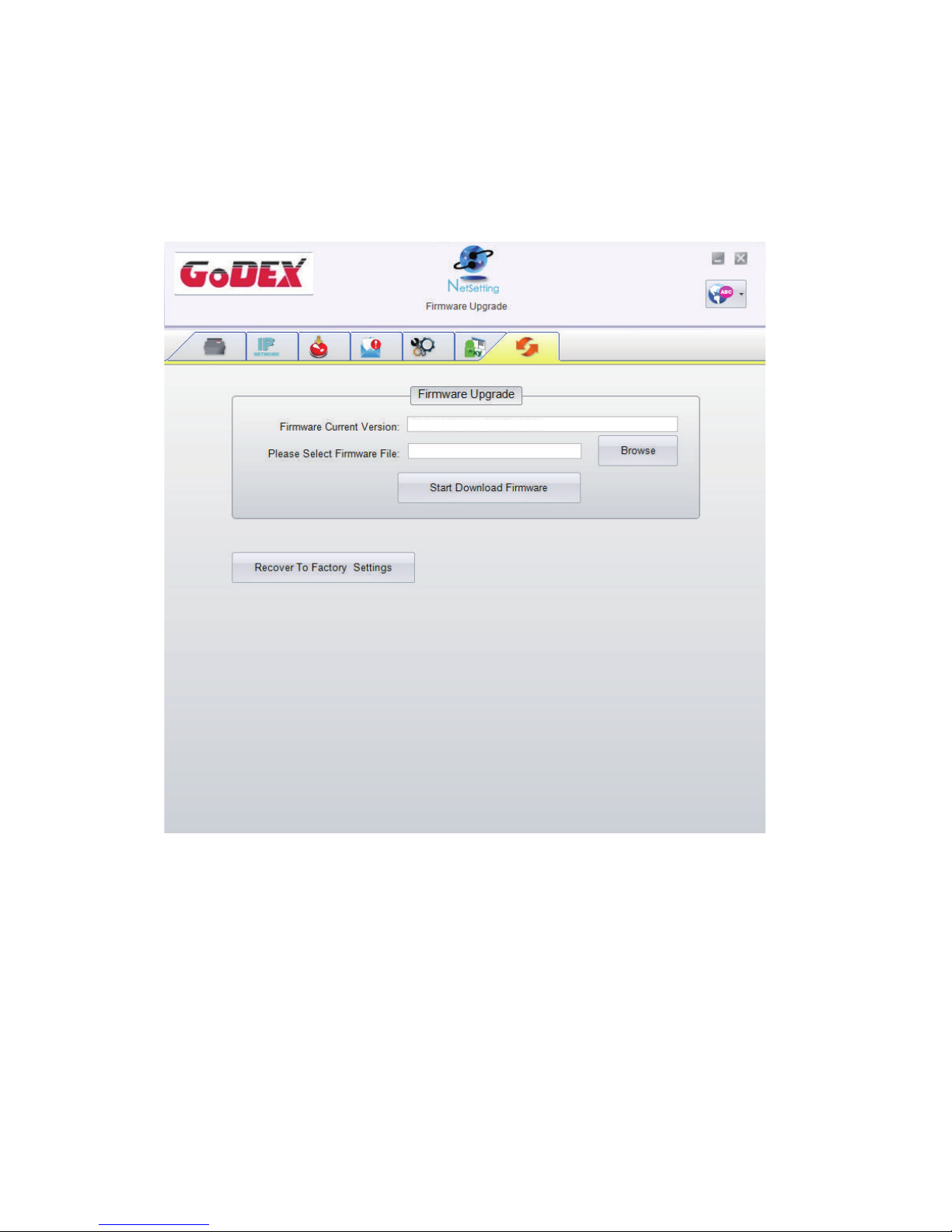

Firmware Download

On “Firmware Download” tab, the current version of printer firmware will be showed on the screen. If you need to

update the printer firmware, just specify the file location of firmware file and press “Start Download Firmware” button.

The printer firmware then can be updated remotely.

BOOT : 1.000a1 F/W : RT700i 1.000a

49

5 Accessories

Before installing the optional modules, please make some preparations as follows.

1. Turn off the printer :

Remember to switch off the printer before installing any module.

2. Open the printer cover :

Open the printer cover by pulling the release catches on both sides of the printer.

Please see the Section 2.1 for further information about Open the Printer.

3. Remove the front cover :

Please pull upward to remove the front cover.

5.1 Preparation Steps

Pull upward

FRONT COVER

50

5 Accessories

4. Remove the platen :

Lift up the release clips on both sides of the platen to release and pull upward the platen.

CLIP

Release the clip

Pull up the platen module

PLATEN MODULE

5 Accessories

5.2 Installing the Label Dispenser

51

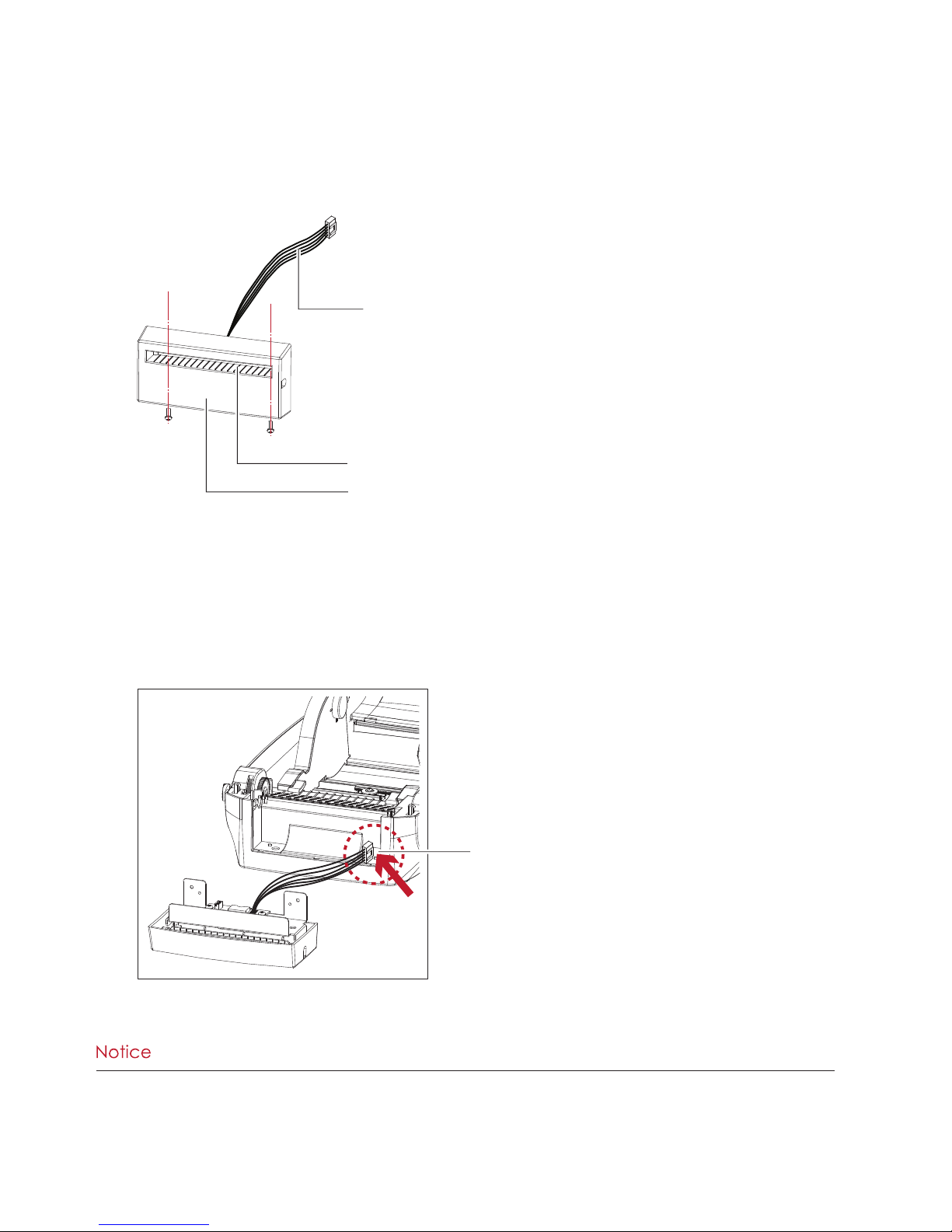

The Overview of the Label Dispenser

**** A label liner thickness of 0.006 mm ± 10% and a weight of 65 g/m2 ± 6% are recommended.

**** The label dispenser will take labels up to a max. width of 118 mm.

**** When using the label dispenser, set the stop position (printer command ^E) to 13.

Preparation Steps

Please see the Section 5.1 Preparation Steps to complete the preparation steps before installing the label dispenser.

Installing the Label Dispenser

1. Removed the front panel.

2. Press the catches on the left and right sides of the platen downwards and then pass the connection cable

through the slot of the printer.

PAPER SENSOR

PAPER FEED ROLLER

COVER

CONNECTION CABLE OF
LABEL DISPENSER

SLOT

5 Accessories

52

3. Place label dispenser to align both holes of screw.

4. Open the cover of the label dispenser, and then tighten the screws.

5. Close the printer cover.

Then to turn the printer upside down.

Close the printer cover

2

Push

1

RELEASE CATCH

Release catch for closing

the printer cover

2

Tighten the screws

2

Open the cover

1

5 Accessories

53

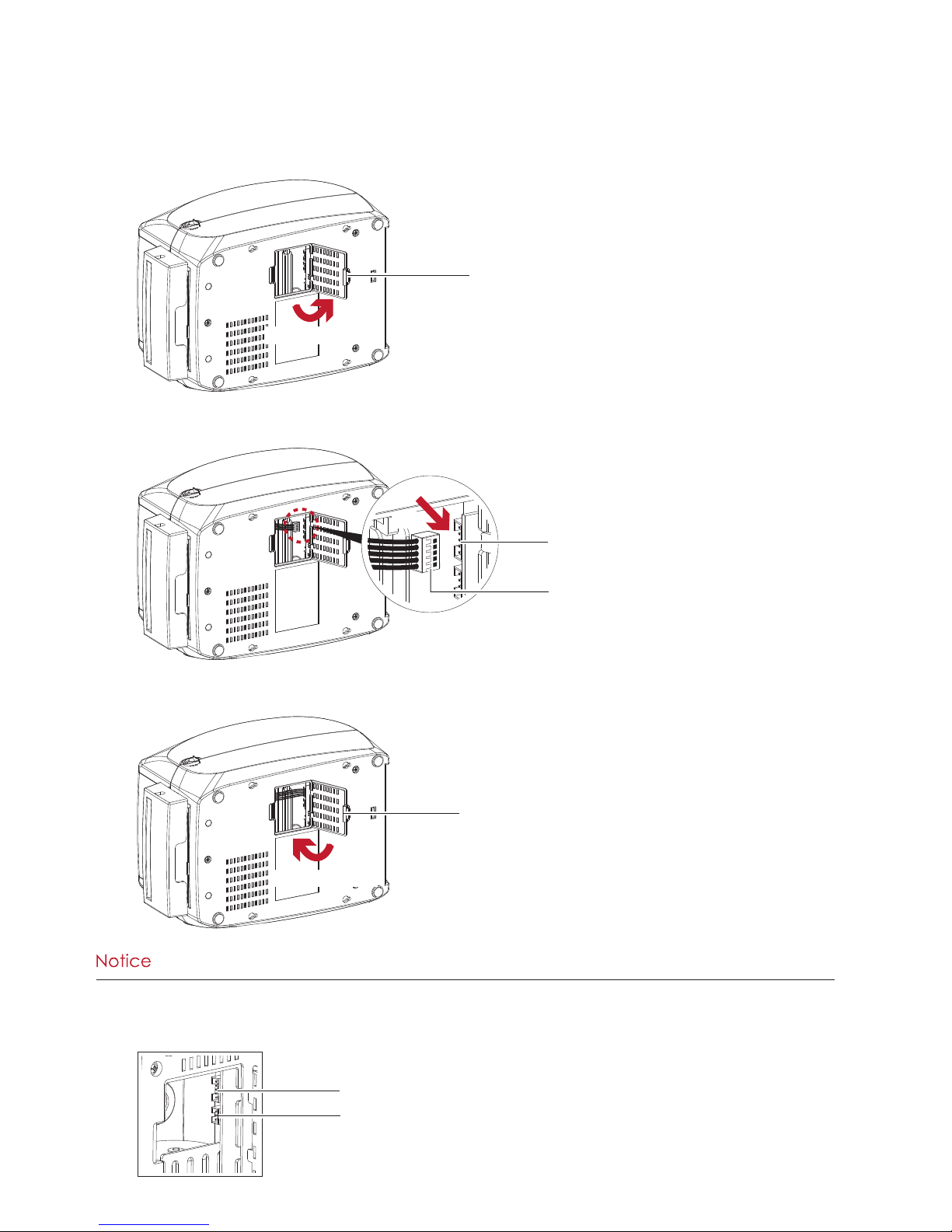

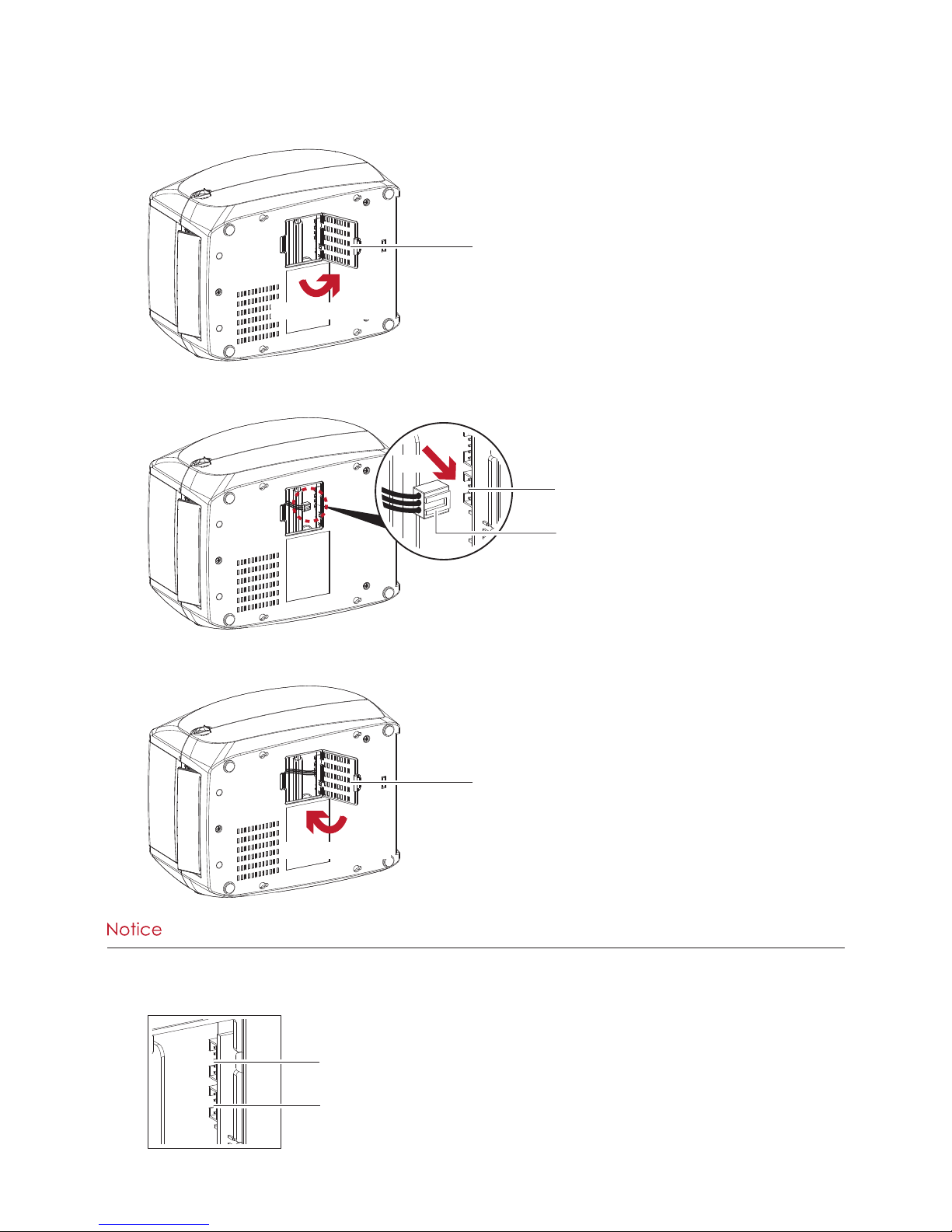

6. Open the cover on the bottom of printer.

7. Plug the connector fo the label dispenser to the jack.

8. Close the cover of the module connection jacks.

Open the cover

COVER OF THE MODULE CONNECTION JACKS

Plug

JACK

CONNECTOR OF THE CONNECTION CABLE

Close the cover

COVER OF THE MODULE CONNECTION JACKS

****The printer must be switched off when plugging the connector, or the motherboard may be destroyed!

****There are 2 jacks : the lower jack for the label dispenser, the upper jack for the cutter.

CUTTER JACK

LABEL DISPENSER JACK

54

5 Accessories

2. Feed the Label stock through the label guides.

And pull the label liner through the platen and the steel of the label dispenser.

****Labels should be at least 25 mm high.

Loading Label Roll with the Label Dispenser Module

1. Remove the first label from the label stock.

Tear a label

THE FIRST LABEL

LABEL STOCK

LABEL LINER

Through the label guides

LABEL LINER

PLATEN

Through the platen

and the steel

STEEL

55

5 Accessories

3. The feeding path of label and liner should be as shown in below graphic.

4. Close the printer cover. The installation is completed now.

LABEL STOCK

PLATEN

ROLLER

LABEL

LABEL LINER

RT700i

Close the cover

56

5 Accessories

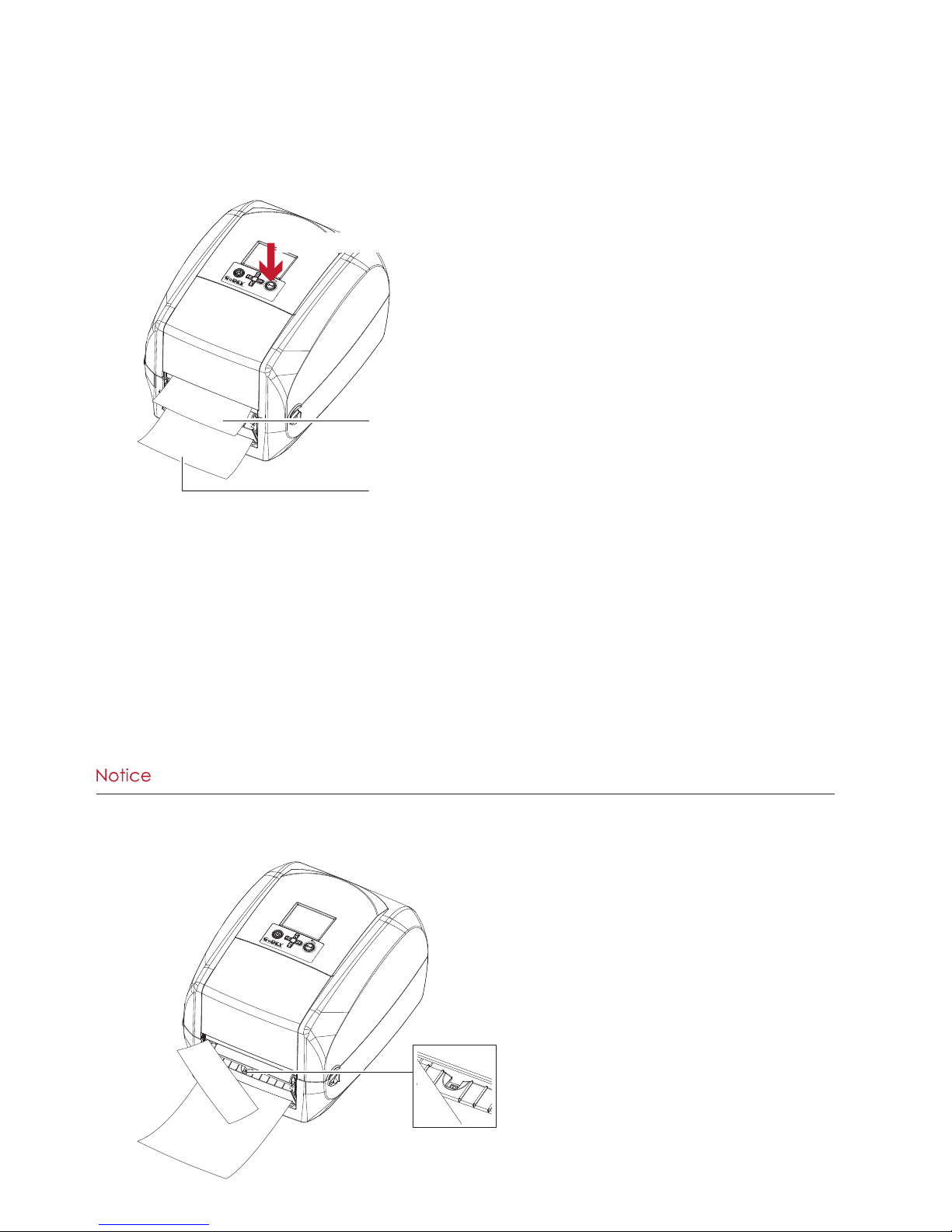

5. Press the FEED button to feed the label. The label will be peeled from the liner while it passes through the label

dispenser.

RT700i

Press the feed key

LABEL LINER

LABEL

**** There is a paper sensor on the Label Dispenser module. It will stop the printing if it is covered by label. Remove

the last printed label and the printer will then continue to print next label.

RT700i

PAPER SENSOR

57

5 Accessories

5.3 Installing the Cutter

The Overview of the Cutter

****Remember to switch off the printer before installing the cutter.

****Do not use to cut adhesive labels! Glue residue will be left on the cutter blade and impair its functioning. The

cutter has a blade life of 400,000 cuts when using paper liner which is 200μm thick and 3 inches wide.

****You can cut paper with a max. width of 118mm.

****With the cutter installed, set the stop position in Qlabel to 30, and the E value to 30.

Preparation Steps

Please see the Section 5.1 Preparation Steps to complete the preparation steps before installing the cutter.

Installing the Cutter

1. Pass the connection cable through the slot of the printer.

COVER

CONNECTION CABLE OF CUTTER

FEED-OUT SLOT

SLOT

58

5 Accessories

2. Place the cutter to align both holes of screw and then tighten the screws.

3. Place the platen back to the printer and lock the clips.

Lock the clip

CLIP

4. Close the printer cover.

Then to turn the printer upside down.

Close the printer cover

2

Push

1

RELEASE CATCH

Release catch for closing

the printer cover

Tighten the screw

2

59

5 Accessories

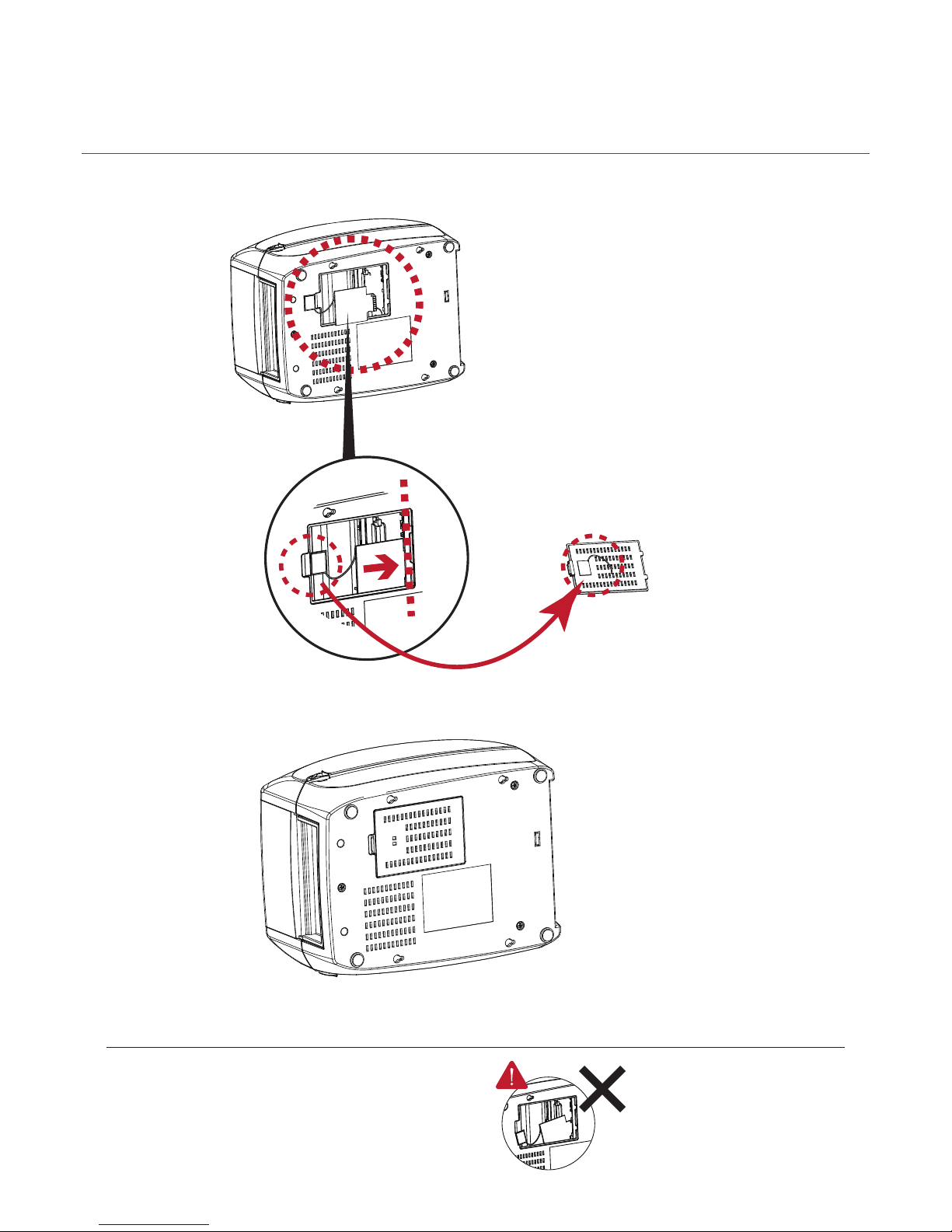

5. Open the cover on the bottom of printer.

6. Plug the connector for the cutter to the jack.

7. Close the cover of the module connection jacks.

****The printer must be switched off, or the motherboard may be destroyed!

****There are 2 jacks : the lower jack for the label dispenser, the upper jack for the cutter.

CUTTER JACK

LABEL DISPENSER JACK

Open the cover

COVER OF THE MODULE CONNECTION JACKS

Plug

JACK

CONNECTOR OF THE CONNECTION CABLE

Close the cover

COVER OF THE MODULE CONNECTION JACKS

60

5 Accessories

2. Close the top cover. To finish, press the feed button to set the label position.

****We advise against using inside wound label stock.

****Labels should be at least 30 mm high. When using the printer with the cutter, you should set the stop position

(^E) to 30.

Installing the Label Roll Module on the Printer

1. Pass the labels through the guides and the cutter.

Through the label guides

Through the cutter

RT700i

Press the feed key

Close the top cover

Push

1

RELEASE CATCH

Release catch for closing

the printer cover

2

61

6 Maintenance and Adjustment

6.1 Cleaning the Print Head

Dirt on the print head or ribbon, or glue residue from the label stock may result in inadequate print quality. The printer

cover must therefore always be closed during printing. Keeping dirt and dust away from the paper or labels ensures a

good print quality and a longer lifespan of the print head.

Cleaning Steps

Here is how you clean the print head.

1. Turn off the printer.

2. Open the printer cover.

3. Remove the ribbon.

4. To remove any label residue or other dirt from the print head (see red arrow), please use a soft lint-free cloth

dipped in alcohol.

****The print head should be cleaned once a week.

****Please make sure that there are no metal fragments or other hard particles on the soft cloth used to clean the

print head.

PRINT HEAD

To clean the print head

62

6 Maintenance and Adjustment

6.2 Troubleshooting

**** If any problems occur that are not described here, please contact your dealer.

Problem Solution

The printer is switched on but the LED
does not light up.

♦ Check the power supply.

Please see the Section 2.4

The LED lights up red and printing is
interrupted.

♦ Check the software settings (driver settings) or command codes.
♦ Look for the error alert in the table in Section 3.5. Error Alerts.
♦ Check whether the print mechanism is closed correctly.

Please see the Section 3.5

The label stock passes through the printer
but no image is printed.

♦ Please make sure that the label stock is loaded the right way up

and that it is suitable material.

♦ Choose the correct printer driver.
♦ Choose the correct label stock and a suitable printing mode.

The label stock jams during printing.

♦ Clear the paper jam. Remove any label material left on the

thermal print head and clean the print head using a soft lint-free
cloth dipped in alcohol.

Please see the Section 6.1

There is no printed image on some parts
of the label.

♦ Check whether any label material or ribbon is stuck to the thermal

print head.

♦ Check for errors in the application software.
♦ Check whether the starting position has been set incorrectly.
♦ Check the ribbon for wrinkles.

There is no printed image on part of the
label or the image is blurred.

♦ Check the thermal print head for dust or other dirt.
♦ Use the internal “~T” command to check whether the thermal print

head will carry out a complete print job.

♦ Check the quality of the print medium.

The printed image is positioned
incorrectly.

♦ Check whether there is paper or dust covering the sensor.
♦ Check whether the label stock is suitable. Contact your supplier.
♦ Check the paper guide settings.

A label is missed out during printing.

♦ Check the label height setting.
♦ Check whether there is dust covering the sensor.
♦ Run the auto-detection function.

Please see the Section 3.4

The printed image is blurred.

♦ Check the darkness setting.
♦ Check the thermal print head for dust or dirt.

Please see the Section 6.1

The cutter does not cut off the labels in a
straight line.

♦ Check whether the label stock is positioned straight.

The cutter does not cut off the labels
completely.

♦ Check whether the label is more than 0.2 mm thick.

When using the cutter, the labels are not
fed through or cut off incorrectly.

♦ Check whether the cutter has been correctly installed.
♦ Check whether the paper guides are functioning correctly.

The label dispenser is not functioning
normally.

♦ Check whether there is dust on the label dispenser.
♦ Check whether the label stock is positioned correctly.

Appendix

APPENDIX

PRODUCT SPENIFICATIONS

RT700i SERIES USER MANUAL

Model

RT700i

RT730i

Print Method Thermal Transfer / Direct Thermal

Resolution 203 dpi (8 dots/mm) 300 dpi (12 dots/mm)

Print Speed Up to 7 IPS (177 mm/s) 5 IPS (127 mm/s)

Print Width 4.25” (108 mm) 4.16” (105.7 mm)

Print Length

Min. 0.16” (4 mm)** ; Max.

68” (1727 mm)

Min. 0.16” (4 mm)** ; Max. 30” (762 mm)

Processor 32 Bit RISC CPU

Memory

Flash 8MB Flash (4MB for user storage)

SDRAM 16MB SDRAM

Sensor Type

Adjustable reflective sensor (full range). Fixed transmissive sensor, central

aligned

Media

Types

Continuous form, gap labels, black mark sensing, and punched hole; label

length set by auto sensing or programming

Width 1” (25.4 mm) Min. - 4.64” (118 mm) Max.

Thickness 0.003” (0.06 mm) Min. - 0.01” (0.2 mm) Max.

Label roll diameter Max. 5” (127 mm)

Core diameter 1” & 1.5” (25.4 mm & 38.1 mm)

Ribbon

Types Wax, wax/resin, resi

Length 981’ (300 m)

Width 1.18” Min. - 4.33” (30 mm - 110 mm) Max.

Ribbon roll diameter 2.67“ (68 mm)

Core diameter 1” (25.4 mm)

Printer Language

EZPL, GEPL, GZPL auto switch

Software

Label design software GoLabel (for EZPL only)

Driver Windows 2000, XP, Vista, 7, Windows Server 2003 & 2008

DLL Windows 2000, XP, Vista

Resident Fonts

Bitmap fonts

6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Bitmap fonts 8 times expandable in horizontal and vertical directions

Scalable fonts 90°, 180°, 270° rotatable

Download Fonts

Bitmap fonts Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable

Asian fonts

Asian fonts 90°, 180°, 270° rotatable and 8 times expandable in horizontal and

vertical directions

Scalable fonts Scalable fonts 90°, 180°, 270° rotatable

Barcodes

1-D Bar codes

Code 39, Code 93, EAN 8 /13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2
of 5 with Shipping Bearer Bars,
Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128
K-Mart, Random Weight,
Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1

DataBar

2-D Bar codes

PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code

and Aztec code

Code Pages

CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257

Unicode (UTF8, UTF16)

Graphics

Resident graphic file types are BMP and PCX, other graphic formats are

downloadable from the software

Appendix

RT700i SERIES USER MANUAL

APPENDIX

PRODUCT SPENIFICATIONS

Model

RT700i

RT730i

Interfaces

USB Device (B-Type)
Serial port: RS-232 (DB-9)
USB Host (A-Type)

IEEE 802.3 10/100Base-Tx Ethernet port (RJ-45)

Control Panel

Color TFT LCD with navigation button
Calibration button

Power on/off button

Real Time Clock

Standard

Power

Auto Switching 100-240VAC, 50-60Hz

Environment

Operation temperature 41°F to 104°F (5°C to 40°C)

Storage temperature -4°F to 122°F (-20°C to 50°C)

Humidity

Operation

30-85%, non-condensing.

Storage

10-90%, non-condensing.

Agency Approvals

CE(EMC), FCC Class A, CB, CCC, cUL

Dimension

Length 11.0” (280 mm)

Height 7.3” (186 mm)

Width 8.3” (210 mm)

Weight

6.6 lbs (3.0Kg), excluding consumables

Options

Bluetooth module
Guillotine Cutter
Label Dispenser
External label roll holder for 10” (250 mm) O.D. label rolls

External label rewinder

Notice

* Specifications are subject to change without notice. All company and/or product names are trademarks and/or registered

trademarks of their respective owners.

** Minimum print height and maximum print speed specification compliance can be dependent on non-standard material

variables such as label type, thickness, spacing, liner construction, etc. Godex is pleased to test non-standard materials for
minimum print height and maximu

m print speed capability.

Appendix

INTERFACE

RT700i SERIES USER MANUAL

APPENDIX

Pinout Description

Connector Type :

Type B

Serial Port

Default settings：

Baud rate 9600, no parity, 8 data bits, 1 stop bit, XON/XOFF
protocol and RTS/CTS

RS232 Housing(9-pin to 9-pin)

DB9 Socket

DB9 Plug

­RXD
TXD

DTR

GND

DSR

RTS

CTS

RI

Computer

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

+5V, max 500mA

TXD
RXD
N/C

GND

RTS

CTS

RTS
N/C

Printer

****The total current to the serial port may not exceed 500mA.



USB



Pin NO. 1 2 3 4

Function

VBUS

D-

D+

GND

Appendix

FILE MANIPULATION WHEN USING USB STICK

RT700i SERIES USER MANUAL

APPENDIX

File Manipulation

The files in both devices (USB memory stick and printer internal Flash memory) are able to copy and move by the

commands ‘’~MCPY’’ and ‘’MMOV’’ that sends from GoLabel on a PC via either connection - USB or Ethernet ports.



Copy

Syntax ~MCPY,s:o.x,d:o.x

Descripon Copy file from USB memory sck to Flash memory, or vise-versa

Parameter s = source device of stored object;

 “D” for USB memory sck; “F” for internal Flash memory

d = desnaon device of stored object

 “D” for USB memory sck; “F” for internal Flash memory

o = object name (file name); the name “o” is substuted for “*”

x = extension (file type), the type “x” is substuted by ”*”, or following

either one: D= database, A= Asia font, C= TTF font, E= Bit-Mapped

font, F= lab

el format, G= graphic, S= serial file, T= text, B= Unicode

Table.

Example ~MCPY,F:*.F,D:*.F

(Copy enre “Label Format” files from Flash memory to USB memory

sck)

~MCPY,D:*.G,F:*.G

(Copy enre “Graphic” files from USB memory sck to Flash Memory)

~MCPY,D:*.*,F:*.*

(Copy all object files from USB memory sck to Flash Memory)



Move

Syntax ~MMOV,s:o.x,d:o.x

Descripon Move files from USB memory sck to Flash memory or vise-versa

Parameter s = source device of stored object;

 “D” for USB memory sck; “F” for internal Flash memory

d = desnaon device of stored object

 “D” for USB memory sck; “F” for internal Flash memory

o = object name (file name); the name “o” is substuted for “*”

x = extension (file type), the type “x” is substuted by ”*”, or following

either one: D= database, A= Asia font, C= TTF font, E= Bit-Mappe

d

font, F= label format, G= graphic, S= serial file, T= text, B= Unicode

Table.

Example ~MMOV,F:*.F,D:*.F

(Move enre “Label Format” files from Flash memory to USB memory

sck)

~MMOV,D:*.G,F:*.G

(Move enre “Graphic” files from USB memory sck to Flash Memory)

~MMOV,D:*.*,F:*.*

(Move all object files from USB memory sck to Flash Memory)

Appendix

BT2.4G Module

RT700i/RT730i USER MANUAL

APPENDIX

BT2.4G Module

Getting Started

Open the bottom base cover

open

Install BT2.4G Module

Follow below step to insert BT2.4G Module
into the slot.

Follow the indicator to insert the module.

BT

rettuC

r
e
sne

psiD

BT

rettuC

resnepsiD

BT

rettuC

resnepsiD

Push the module to the end of the slot.
The Installation Line on BT2.4G Module
must right along with the edge of mainboard.
Otherwise, it might cause signal error.

**** Please prevent below incorrect installation.

* User have to turn off the machine that

can insert BT2.4G module.

BT

rettuC

resnepsiD

BT

rettuC

resnepsiD

Does not parallel with mainboard.

Does not push till the end of slot.

Notice

Appendix

1.2

Work with Logitech K810 Keyboard

After install BT2.4G Module,

the icon will be appear on LCD display.

Button

Switch

PressKey3 Secs to Enter Menu

Ready

The indicators are flashing and can be detected by wireless.

Connect printer and wireless keyboard

Turn on the switch and push the Connect Button.

Instruction icon

**** Different operation with different wireless keyboard. Please refer to wireless keyboard user manual.
** There have pin code default value is 9200 of K810 if user change SSP setting from enable to disable the printer will

be asked to key in pin code.

Notice

Ready

Appendix

Printer setting

Enter “BT2.4G Setting”

BT2.4G Setting

Select “Device”

Device

Enter Main page

PressKey3 Secs to Enter Menu

就緒

Ready

Printer setting

Appendix

Press



to scan

Bluetooth devices

BT2.4G Setting

Connecting

BT2.4G Setting

001/001
001F20758521
Logitech K810

Available devices found

BT2.4G Setting

Search Devices

Setting

Enter “Search Devices”

BT2.4G Setting

Press FEED to save the device
and return to previous

Appendix

藍芽設定

搜尋裝置

Wait a second, keyboard shows one of indicator
is flashing then it will connect successfully

Printer is connecting to K810 keyboard

or

Select

PressKey3 Secs to Enter Menu

***

The Wireless icon on LCD display will be turning from gray to blue when devices connect successfully.

Notice

Press  button back to SETTING PAGES

Printer Setting

Appendix

Enter

or

Select

Recall Label

Recall Label

Enter

001/001

FORM NAME

Label_1

Recall Label

Enter Recall Label can use keyboard for standalone function.

***

Back to MAIN PAGE screen and press FN+F1 also can use standalone function.

Notice

Appendix

1.3

Functions

Descriptions

Search Device only available when BT2.4G function was enabled.

Press FEED to search wireless devices.

LCD will display all of available devices.

1. Only supports SPP & HID Profile.

2. Alphanumeric only

3. Maximum 16- device can be displayed

* When connect successful, needs to disconnect before perform this function.

The default of Clear Bind is Disable. When enable this function,

it will clear up the saved connection of wireless device then

come back to Disable.

Secure Simple Pairing. The default is Enable.

When connect successful, the setting of Make Device Visible,

SSP and PIN Code cannot be changed. They only can be changed

after Clear Bind.

Password for connect printer and wireless device.

When connect successful, the PIN Code only can be changed after

Clear Bind.

The default of PIN Code is ''0000''.

Enable: Printer can be detected by wireless device.

Disable: Printer cannot be detected by wireless device.

* The default of Make Device Visible is Disable.

Printer can be detected during 120 sec.

BT2.4G Setting

BT2.4G Setting

BT2.4G Setting

BT2.4G Setting

BT2.4G Setting

Search Devices

Clear Bind

Make Device Visible

WiFi Printer Server Module Installation - For

RT700iW/ RT730iW

RT700i/RT730i USER MANUAL

APPENDIX

**** Please prevent below incorrect installation,

when installing WiFi Printer Server Module.

Note

1.1 WiFi Printer Server Module Installation

2. Remove the stickers and

paste to the cover.

1. Follow the indicator to insert the module.

1

2

3.

Close the bottom base cover,

the installation finished.

3

Does not parallel with mainboard.

WiFi Printer Server Module Installation - For

RT700iW/ RT730iW

RT700i/RT730i USER MANUAL

APPENDIX

1.2 WiFi Printer Server Module Setting

WiFi Printer Server Module Setting: Please Install GoLabel Software, and use GoLabel Software
to set and operate WiFi Module.
