GV-IPCamera
Hardware Manual
Vandal Proof IP Dome
Target Vandal Proof IP Dome
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
ICH265HISIV105-A
© 2016 GeoVision, Inc. All rights reserved.
Under the copyright laws, this manual may not be copied, in whole or in
part, without the written consent of GeoVision.
Every effort has been made to ensure that the information in this manual is
accurate. GeoVision, Inc. makes no expressed or implied warranty of any
kind and assumes no responsibility for errors or omissions. No liability is
assumed for incidental or consequential damages arising from the use of
the information or products contained herein. Features and specifications
are subject to change without notice. Note: no memory card slot or local
storage function for Argentina.
GeoVision, Inc.
9F, No. 246, Sec. 1, Neihu Rd.,
Neihu District, Taipei, Taiwan
Tel: +886-2-8797-8377
Fax: +886-2-8797-8335
0Uhttp://www.geovision.com.tw
Trademarks used in this manual: GeoVision, the GeoVision logo and GV
series products are trademarks of GeoVision, Inc. Windows is the
registered trademarks of Microsoft Corporation.
December 2016
Content
Content ................................................................................i
Caution.............................................................................. iv
Safety Notice .................................................................... iv
Options .............................................................................. v
Note for Adjusting Focus and Zoom............................. vii
Note for Installing Camera Outdoor............................. viii
Note for Silica Gel Bags ....................................................x
Chapter 1 Vandal Proof IP Dome (Part I) ........................1
1.1 Packing List..............................................................................3
1.2 Features...................................................................................4
1.3 Overview ..................................................................................6
1.4 Installation ................................................................................8
1.4.1 Hard-Ceiling Mount......................................................9
1.4.2 In-Ceiling Mount.........................................................14
1.5 Connecting the Camera..........................................................17
1.5.1 Wire Definition ...........................................................17
1.5.2 Power Connection......................................................19
1.5.3 Voltage Load Expansion (Optional)............................20
1.6 Loading Factory Default..........................................................21
Chapter 2 Vandal Proof IP Dome (Part II) .....................22
2.1 Packing List............................................................................25
i
2.2 Features.................................................................................28
2.3 Overview ................................................................................31
2.4 Installation ..............................................................................33
2.4.1 Installation of Weatherproof Shield.............................43
2.5 Connecting the Camera..........................................................45
2.5.1 Power Connection......................................................45
2.5.2 I/O Device Connections .............................................45
2.6 Loading Factory Default..........................................................47
Chapter 3 Vandal Proof IP Dome (Part III) ....................48
3.1 Packing List............................................................................49
3.2 Features.................................................................................51
3.3 Overview ................................................................................53
3.4 Installation ..............................................................................55
3.5 Connecting the Camera..........................................................61
3.5.1 Definition....................................................................61
3.5.2 Power Connection......................................................62
3.5.3 Voltage Load Expansion (Optional)............................63
3.6 Loading Factory Default..........................................................64
Chapter 4 Vandal Proof IP Dome (Part IV) ....................65
4.1 Packing List............................................................................66
4.2 Features.................................................................................69
4.3 Overview ................................................................................71
ii
4.4 Installation...............................................................................74
4.5 Connecting the Camera...........................................................85
4.6 I/O Connector.........................................................................86
4.6.1 Voltage Load Expansion (Optional)............................86
4.7 Loading Factory Default..........................................................87
Chapter 5 Target Vandal Proof IP Dome.......................88
5.1 Packing List............................................................................89
5.2 Features.................................................................................92
5.3 Overview ................................................................................94
5.4 Installation ..............................................................................96
5.5 Connecting the Camera........................................................107
5.6 Loading Factory Default........................................................108
iii
Caution
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
Safety Notice
The GV-IPCAM uses a Lithium battery as the power supply for its internal
real-time clock (RTC). The battery should not be replaced unless required!
If the battery does need replacing, please observe the following:
Danger of Explosion if battery is incorrectly replaced
Replace only with the same or equivalent battery, as recommended by
the manufacturer
Dispose of used batteries according to the manufacturer's instructions
iv
Options
Optional devices can expand your camera’s capabilities and versatility.
Contact your dealer for more information.
Device Description
The power adapter is available for all Vandal Proof
Power Adapter
GV-PA191 PoE
Adapter
GV-POE Switch
GV-Mount
Accessories
IP Dome. Contact your sales representative for the
countries and areas supported.
The GV-PA191 PoE adapter is designed to provide
power and network connection to the cameras over
a single Ethernet cable.
The GV-POE Switch is designed to provide power
along with network connection for IP devices. The
GV-POE Switch is available in various models with
different numbers and types of ports.
The GV-Mount Accessories provide a
comprehensive lineup of accessories for installation
on ceiling, wall corner and pole. For details, see GV-
Mount Accessories Installation Guide on the
Software DVD.
v
Device Description
The GV-Relay V2 is designed to expand the voltage
load of GV IP devices. It provides 4 relay outputs,
and each can be set as normally open (NO) or
GV-Relay V2
Metal PG21
Conduit
Connector
Weatherproof
Shield
normally closed (NC) independently as per your
requirement.
GV-Relay V2 does not support GV-EVD2100 / 3100
/ 5100.

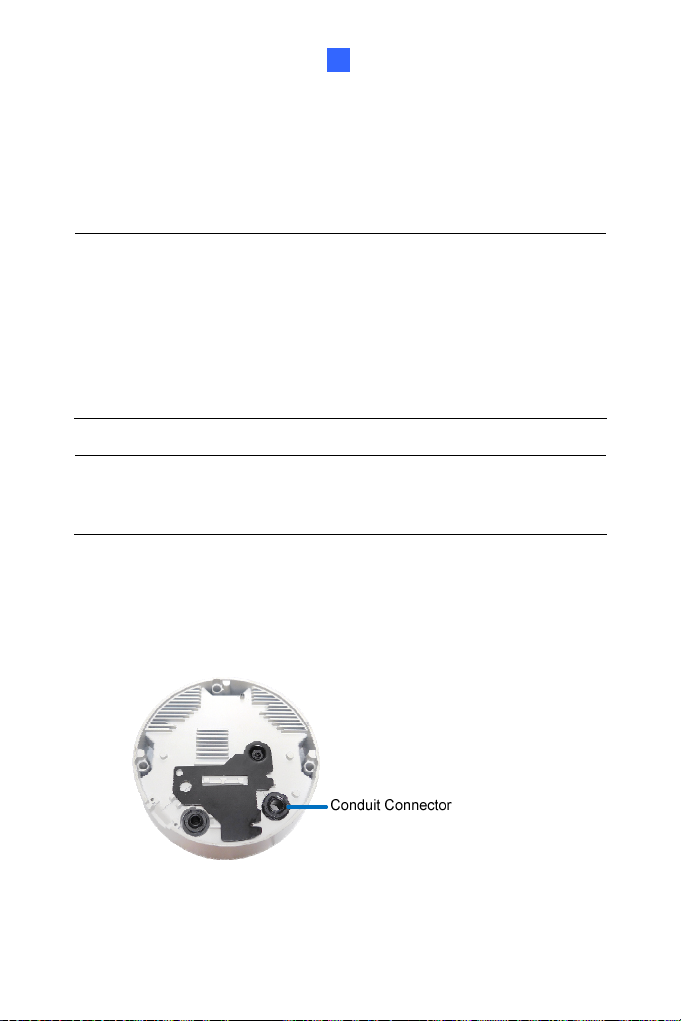

The metal PG21 conduit connector is used for
running the wires of GV-VD1530 / 2430 / 2530 /
3430, GV-VD1540 / 2440 / 2540 / 3440 / 4711 /
5340 / 5711, GV-VD2540-E / 5340-E, and GVEVD2100 / 3100 / 5100 through a 3/4” conduit pipe.
The weatherproof shield is made for GV-VD1530 /
2430 / 2530 / 3430, GV-VD1540 / 2440 / 2540 /
3440 / 4711 / 5340 / 5711, and GV-VD2540-E /
5340-E to protect the camera from rain and snow.
vi
Note for Adjusting Focus and Zoom
When adjusting the Focus and Zoom Screws, do not over tighten the
Focus and Zoom screws. The screws only need to be as tight as your
finger can do it. It is not necessary to use any tools to get them tighter.
Doing so can damage the structure of lens.
The maximum torque value for all the zoom and focus screws is 0.049 N.m
vii
Note for Installing Camera Outdoor
When installing the camera outdoor, be sure that:
1. The camera is set up above the junction box to prevent water from
entering the camera along the cables.
2. Any PoE, power, audio and I/O cables are waterproofed using
waterproof silicon rubber or the like.
viii
3. After opening the camera cover, ensure the screws are tightened
and the cover is in place.
4. Make sure the housing cover is properly secured to prevent water
from entering and damaging the inner housing.
ix
Note for Silica Gel Bags
1. The silica gel bag loses it effectiveness when the dry camera is
opened. To prevent the lens from fogging up, replace the silica gel
bag every time you open the camera, and conceal the gel bag in
camera within 2 minutes of exposing to open air.
2. When the camera is shipped, a silica gel bag will be included inside
the camera. For the first-time user, replace the silica gel bag prior to
the installation to avoid foggy live view.
x
Vandal Proof IP Dome (Part I)
1
Chapter 1 Vandal Proof IP Dome
(Part I)
The Vandal Proof IP Dome is a series of outdoor camera designed for
vandal protection. They are equipped with automatic infrared cut filters and
IR LED for day and night surveillance. The WDR Pro models can produce
clear image for scenes containing contrasting intensity of lights. The super
low lux models can display color live view in near darkness. For related
models, see 1.2 Features.
These Vandal Proof IP Domes can be installed on wall and ceiling using
the standard package. They can also be installed on wall corners and
poles using the GV-Mount accessories (optional). For more details, see
GV-Mount Accessories Installation Guide on the Software DVD.
Model No. Specification Description
GV-VD120D
(IK10+, Transparent Cover)
GV-VD121D
(IK10+, Smoked Cover)
GV-VD122D
(IK7, Transparent Cover)
GV-VD123D
(IK7, Smoked Cover)
Varifocal
Lens
Auto Iris, f:3 ~ 9
mm, F/1.3, 1/2.7”
ø 14 mm lens
mount
1.3 MP Low
Lux, H.264
1
Model No. Specification Description
GV-VD220D
(IK10+, Transparent Cover)
GV-VD221D
(IK10+, Smoked Cover)
GV-VD222D
(IK7, Transparent Cover)
GV-VD223D
(IK7, Smoked Cover)
GV-VD320D
(IK10+, Transparent Cover)
GV-VD321D
(IK10+, Smoked Cover)
GV-VD322D
(IK7, Transparent Cover)
GV-VD323D
(IK7, Smoked Cover)
GV-VD1500
(IK10+, Transparent Cover)
GV-VD2500
(IK10+, Transparent Cover)
GV-VD2400
(IK10+, Transparent Cover)
GV-VD3400
(IK10+, Transparent Cover)
Varifocal
Lens
Varifocal
Lens
Auto Iris, f:3 ~ 9
mm, F/1.3, 1/2.7”
ø 14 mm lens
mount
Auto Iris, f:3 ~ 9
mm, F/1.2, 1/2.7”
ø 14 mm lens
mount
2 MP, H.264
3 MP, H.264
1.3 MP / 2 MP
Super Low Lux
2 MP / 3 MP,
H.264, WDR
Pro
2
Vandal Proof IP Dome (Part I)
1
1.1 Packing List
Vandal Proof IP Dome Silica Gel Bag x 2
Screw Anchor x 4
Ceiling Screw x 4
T-Cap Screw x 3
T-Cap x 3
Focus Adjustment Cap
GV-Software DVD GV-IPCAM Software DVD
Warranty Card
Note:
1. Focus Adjustment Cap is only needed and supplied for IK10+
models.
2. The power adapter can be excluded upon request.
Torx Wrench
Blue Screw x 3
Small Screw Cap x 3
Plastic Clip x 3
2-Pin Terminal Block
Power Adapter
3
1.2 Features
Image sensor
Camera Model Image Sensor
GV-VD120D / 121D / 122D /
123D
GV-VD1500
1/3" progressive scan low lux
CMOS
1/3’’ progressive scan super low
lux CMOS
GV-VD2500
GV-VD2400 / 3400 1/3.2" progressive scan CMOS
GV-VD220D / 221D / 222D /
223D
GV-VD320D / 321D / 322D /
323D
Dual streams from H.264 or MJPEG
Frame rate
Camera Model Frame Rate
GV-VD120D / 121D / 122D /
123D / 1500
GV-VD220D / 221D / 222D /
223D / 2400 / 2500
GV-VD320D / 321D / 322D /
323D / 3400
Day and night function (with removable IR-cut filter)
Wide Dynamic Range Pro (for GV-VD2400 / 3400 only)
Defog
Intelligent IR
Vandal resistance (IK10+ and IK7)
Ingress protection (IP67 rating)
1/2.8’’ progressive scan super
low lux CMOS
1/2.5’’ progressive scan CMOS
Up to 30 fps at 1280 x 1024
Up to 30 fps at 1920 x 1080
Up to 20 fps at 2048 x 1536
4
Vandal Proof IP Dome (Part I)
1
3-axis mechanism (pan / tilt / roll)
Micro SD card slot (SD/SDHC) for local storage
NAS recording
Recording assigned by GV-Edge Recording Manager (Windows &
Mac)
One sensor input and alarm output
TV-out support
Two-way audio
3D noise reduction (for GV-VD1500 / 2500)
2D noise reduction (except for GV-VD1500 / 2500)
Motion detection
Tampering alarm
Visual automation
Text overlay
Privacy mask
IP address filtering
DC 12V / AC 24V / PoE (IEEE 802.3af)
Megapixel lens
Support for iPhone, iPad, Android and 3GPP
31 languages on Web interface
ONVIF (Profile S) conformant
5
1.3 Overview
2
1
4 5
3
6 7 8 9 7
10 11
Figure 1-1
No. Name Description
1 Power LED
2 Status LED
3 Default Button
Memory Card
4
Slot
Thread Lock Locks the housing cover to the camera body
5
6 Pan Disc Loosens to pan the camera.
7 Tilt Screw Loosen the screw to tilt the camera.
Turns on (green) when the power is on and
turns off when there is no power supply.
Turns on (green) when the system operates
normally and turns off when system error
occurs.
Resets the camera to factory default. For
details, see 1.6 Loading Factory Default.
Inserts a micro SD card (SD/SDHC, version
2.0 only, Class 10) to store recording data.
to prevent the cover from falling.
6
Vandal Proof IP Dome (Part I)
1
No. Name Description
8 Rotational Screw Loosens to adjust the camera angle.
9 Zoom Screw Adjusts the zoom of the camera.
10 Focus Screw Adjusts the focus of the camera.
11 Silica Gel Bag Absorbs moisture in the camera body.
7
1.4 Installation
The Vandal Proof IP Dome is designed for outdoors. With the standard
package, there are two ways to install the Vandal Proof IP Dome:
ceiling mount
Note: You can also install the camera:
and in-ceiling mount.
on a power box (of the 4" square and double gang type) using the
standard package
to ceilings, wall corners (concave or convex), and poles using
optional mounting kits
For details on these installations, see GV-Mount Accessories Installation
Guide on the Software DVD.
hard-
8
Vandal Proof IP Dome (Part I)
1
1.4.1 Hard-Ceiling Mount
Figure 1-2
1. Unpack the camera package and take out the camera body.
Unscrew the
housing cover
Unscrew thread
lock
9
Unscrew the inner
housing
Take out the
camera body
10
Vandal Proof IP Dome (Part I)
1
2. Mark the position of four screw holes on the desired installation
location, and drill holes in the marked locations. Drill the ellipse part if
you wish to put the wires through it.
3. Insert the screw anchors to the 4 holes on the ceiling.
4. Secure the back cover to the ceiling with 4 ceiling screws.
Figure 1-3
5. Refer to step 1 to secure the camera body with inner housing.
6. Thread the cable through the conduit entry at the side of the back
cover. Alternatively pass the wires through the ellipse hole at the
bottom of the back cover.
Figure 1-4
11
7. Connect the network, power and other cables to the camera. See 1.5
Connecting the Camera.
8. Access the live view. See 2.1 Accessing the Live View, GV-IPCam
Firmware Manual.
9. Based on the live view, adjust the camera to a desired angle as
illustrated below.
Tip: The 3-axis mechanism offers flexible and easy installation.
Pan Adjustment
Figure 1-5
12
Tilt Adjustment
Rotational Adjustment
Vandal Proof IP Dome (Part I)
1
10. Adjust image clarity using the GV-IP Device Utility program. For
details, see 2.2 Adjusting Image Clarity, GV-IPCam Firmware Manual.
11. Screw on the thread lock as shown in step 1.
12. Replace the silica gel bag on the camera body within 2 minutes of
opening the silica gel bag package.
13. Secure the housing cover to the camera body as shown in step 1.
Note: Adjust the black mask inside the housing cover to make sure the
camera view is not obscured.
Figure 1-6
13
1.4.2 In-Ceiling Mount
Figure 1-7
1. Follow step 1 in 1.4.1 Hard-Ceiling Mount section to remove the
housing cover, thread lock and back cover, and take out the camera
body.
2. Cut out a circle with a diameter of 142 mm on the ceiling.
3. Insert a blue screw to the indicated holes on the camera body.
14
Figure 1-8
Vandal Proof IP Dome (Part I)
1
4. Screw in a plastic clip to the blue screw, hold it with one hand and use
a screw driver to rotate the blue screw until the plastic clip moves half
way down.
Plastic Clip
Figure 1-9
5. Secure a T-cap on top of the blue screw with a small screw cap and a
T-cap screw. Do not tighten the small screw cap so that the plastic
clip can move down freely.
T-cap screw
small screw cap
T-cap
plastic clip
Figure 1-10
6. Repeat steps 4 and 5 for the other two blue screws.
15
7. Insert the camera to the ceiling with the plastic screws moved inward.
Figure 1-11
8. Move the blue screws out and rotate the blue screw with a screw
driver until the plastic clip and the bottom of the camera body clamps
the ceiling tightly.
Figure 1-12
9. Connect the network, power and other cables to the camera. See 1.5
Connecting the Camera.
10. Access the live view. See 2.1 Accessing the Live View, GV-IPCam
Firmware Manual.
11. Follow steps 9 to 10 in 1.4.1 Hard-Ceiling Mount section to adjust the
angle, focus and zoom of the camera.
12. Follow steps 11 to 13 in 1.4.1 Hard-Ceiling Mount section to secure
the thread lock, replace the silica gel bag and secure the housing
cover.
16
Vandal Proof IP Dome (Part I)
1
1.5 Connecting the Camera
Connect your Vandal Proof IP Dome to power, network and other cables
needed.
1.5.1 Wire Definition
The cables of Vandal Proof IP Dome are illustrated and defined below.
Shielding ground
DC 12V- / AC 24VDC 12V+ / AC 24V+
Digital in (oragne)
Digital out (brown)
Ground (yellow)
Audio in (red)
Audio out (green)
TV out
Ethernet (PoE)
Figure 1-13
No. Wire Color Definition
1 Black (thick) Shielding Ground
2 Black (thin) DC 12V- / AC 24V-
3 Red DC 12V+ / AC 24V+
4 Orange Digital In
5 Brown Digital out
6 Yellow Ground
7 Red RCA Audio in
8 Green RCA Audio out
9 Black BNC TV out
17
Note: The TV-out function can only be used during installation to adjust
the focus of the camera. To use the TV out function, connect the supplied
black BNC wire to a monitor and select your signal format (NTSC or PAL)
at the
TV Out field on the Web interface. The default signal format is
NTSC. For details, see 4.1.1 Video Settings, GV-IPCam Firmware Manual.
The TV-out wire must be removed before you secure the housing cover.
18
Vandal Proof IP Dome (Part I)
1
1.5.2 Power Connection
There are two ways to supply power to the camera:
Use a Power over Ethernet (PoE) adapter to connect the camera to the
network, and the power will be provided at the same time.
Plug the power adapter to the 12V terminal block as shown below.
1. Insert the thin black wire of the Vandal Proof IP Dome to the left
pin (-) and the red wire to the right pin (+).
Figure 1-14
2. Connect the DC 12V Power Adapter to the Terminal Block.
Terminal Block
Figure 1-15
DC 12V Power Adaptor
19
1.5.3 Voltage Load Expansion (Optional)
The camera can only drive a maximum load of 200mA 5V DC. To expand
the maximum voltage load to
connect the camera to a GV-Relay V2 module (optional product). Refer to
the figure and table below.
Output Devices
Connect to Power
10A 250V AC, 10A 125V AC or 5A 100V DC,
Figure 1-16
GV-Relay V2 Vandal Proof IP Dome
COM Ground (Yellow)
DO1 Digital Out (Brown)
20
Vandal Proof IP Dome (Part I)
1
1.6 Loading Factory Default
1. Keep the power and network cables (or PoE) connected to the camera.
2. Use a pin to press and hold the
3. Release the
take about 8 seconds.
4. When the
completed and the camera reboots automatically.
default button when the status LED blinks. This shall
status LED fades, the process of loading default settings is
default button on the inner housing.
Default button
Status LED
Figure 1-17
5. Insert a new Silica Gel Bag and fasten the camera’s cover
immediately.
21
Chapter 2 Vandal Proof IP Dome
(Part II)
These Vandal Proof IP Domes are outdoor cameras designed with IK10+
vandal resistance and IP67 ingress protection. They provide superior night
vision with their high power LEDs and allow up to 20 m (65.6 ft), 25 m (82
ft), 30 m (98.4 ft) effective IR distance. The
to display color live view in dear darkness. The
process scenes with contrasting intensity of lights. The
varifocal
models can withstand extreme temperatures. For related models, see 2.2
Features.
These Vandal Proof IP Domes can be installed on the ceiling using the
standard package. They can also be installed on wall surfaces, wall
corners and poles using the GV-Mount accessories (optional). For more
details, see GV-Mount Accessories Installation Guide on the Software DVD.
models support remote focus and zoom adjustment. The arctic
super low lux models are able
WDR Pro models can
motorized
22
Vandal Proof IP Dome (Part II)
2
Model No. Specification Description
GV-VD1530
GV-VD2430
GV-VD2530
GV-VD3430
GV-VD1540
GV-VD2440
GV-VD2540
GV-VD3440
GV-VD2540-E
Varifocal
lens
Motorized
varifocal lens,
high power IR
LEDs
Motorized
varifocal lens,
high power IR
LEDs, extreme
temperature
tolerance
Auto Iris,
f:3 ~ 9 mm,
F/1.2, 1/2.7”
ø 14 mm lens
mount
1.3 MP Super Low
Lux / 2 MP WDR
Pro / 2 MP Super
Low Lux / 3 MP
WDR Pro, H.264,
1.3 MP Super Low
Lux / 2 MP WDR
Pro / 2 MP Super
Low Lux / 3 MP
WDR Pro, H.264,
2 MP Super Low
Lux, H.264
GV-VD4711
GV-VD5711
GV-VD5340
Motorized
varifocal lens,
high power IR
LEDs
Motorized
varifocal lens,
high power IR
LEDs
Motorized
Varifocal Lens,
high power IR
LEDs
Auto Iris,
f: 2.8 ~ 12 mm,
F/1.7, 1/2.7”
ø 14 mm lens
mount
Auto Iris,
f: 4 ~ 8 mm,
F/1.65, 1/1.8”
ø 14 mm lens
mount
Auto Iris,
f: 3.3 ~ 9 mm,
F/1.2, 1/2.7”
4 MP Super Low
Lux, WDR Pro,
H.265
5 MP. Low Lux,
WDR, H.265
5 MP, H.264
23
GV-VD5340-E
Motorized
varifocal Lens,
high power IR
LEDs, extreme
temperature
tolerance
ø 14 mm lens
mount
24
Vandal Proof IP Dome (Part II)
2
2.1 Packing List
Vandal Proof IP Dome Torx Wrench
3-Pin Terminal Block
Audio wires x 2
Power Adapter (excluding
GV-VD4711 / 5711)
RJ-45 Connector x 2
Focus Adjustment Cap (for GV-VD1530 / 2430 / 2530 / 3430 only)
TV out wire
Back Plate
25
Installation sticker
Ceiling mount template
1
1
1
Long Screw x 4
Screw Anchor x 4
Flat Screw
Short Screw x 2
Sticker (for Silica Gel Bag) Ruler
Conduit Converter
Silica Gel Bag
Plastic PG21 conduit
connector
GV-Vandal Proof IP Dome
GV-Software DVD
Hardware Installation Guide
GV-IPCAM Software DVD Warranty Card
Note: The power adapter can be excluded upon request.
26
Vandal Proof IP Dome (Part II)
2
Note: You can choose to run the wires through a conduit pipe. After you
have threaded all the wires, install the supplied conduit converter and
plastic PG21 conduit connector with a self-prepared 1/2’’ conduit pipe to
the camera. Power will have to be supplied through a PoE adapter,
because the power adapter wire does not fit in a 1/2” pipe. You will have
to purchase your own PG21 conduit connector if you want to use 3/4” or
1” pipe.
Plastic PG21
conduit connector
Conduit pipe
Conduit converter
A metal PG21 conduit connector can be purchased upon request. The
metal PG21 conduit connector can be connected with a 3/4” pipe.
Conduit converter
Metal PG21
conduit connector
Conduit pipe
27
2.2 Features
Image sensor
Camera Model Image Sensor
GV-VD1530 / 1540 1/3" progressive scan super low lux CMOS
GV-VD2430 / 2440
GV-VD3430 / 3440
GV-VD2530 / 2540
GV-VD2540-E
GV-VD4711 1/3” progressive scan super low lux CMOS
GV-VD5711 1/1.8” progressive scan low lux CMOS
GV-VD5340
GV-VD5340-E
Minimum illumination at 0.01 lux (GV-VD1530 / 1540 / 1540-E)
Dual streams from H.264 or MJPEG
Dual streams from H.265, H.264 or MJPEG (for GV-VD4711 /5711)
Frame rate
Camera Model Frame Rate
GV-VD1530 / 1540 Up to 30 fps at 1280 x 1024
GV-VD2430 / 2440
GV-VD2530 / 2540
GV-VD2540-E
GV-VD3430 / 3440 Up to 20 fps at 2048 x 1536
GV-VD4711
GV-VD5711 Up to 30 fps at 2592 x 1944
GV-VD5340
GV-VD5340-E
1/3.2" progressive scan CMOS
1/2.8’’ progressive scan super low lux
CMOS
1/2.5’’ progressive scan CMOS
Up to 30 fps at 1920 x 1080
Up to 25 fps at 2560 x 1440
Up to 30 fps at 2048 x 1520
Up to 10 fps at 2560 x 1920
Day and night function (with removable IR-cut filter)
Intelligent IR
External high-power IR LEDs
28
Vandal Proof IP Dome (Part II)
2
Wide Dynamic Range Pro (for GV-VD2430 / 2440 / 2440-E / 3430 /
3440 / 3440-E / 4711)
Motorized varifocal lens for remote focus/zoom adjustment (GV-
VD1540 / 1540-E / 2440 / 2440-E / 2540 / 2540-E / 3440 / 3440-E /
4711 / 5711 / 5340 / 5340-E)
Defog
Vandal resistance (IK10+)
Ingress protection (IP67 rating)
Wide temperature tolerance: -40°C ~ 50°C / -40°F ~ 122°F
(for GV-VD2540-E / 5340-E)
3-axis mechanism (pan / tilt / roll)
Micro SD card slot of SD/SDHC/SDXC/UHS-I for local storage
(GV-VD4711 / 5711)
Micro SD card slot of SD/SDHC for local storage
NAS recording (excluding GV-VD4711 / 5711)
Recording assigned by GV-Edge Recording Manager (Windows &
Mac)
One sensor input and alarm output
TV-out support
Two-way audio
3D noise reduction (for GV-VD1530 / 1540 / 2530 / 2540 / 2540-E /
4711 / 5711)
2D noise reduction (for GV-VD2430 / 2440 / 3430 / 3440 / 5340 /
5340-E)
Smart streaming (for GV-VD4711 / 5711)
Motion detection
Tampering alarm
Visual automation
Text overlay
Privacy mask
IP address filtering
DC 12V / AC 24V / PoE+ (IEEE 802.3at)
29
Megapixel lens
Support for iPhone, iPad, Android and 3GPP
31 languages on Web interface
ONVIF (Profile S) conformant
30
2.3 Overview
1
Vandal Proof IP Dome (Part II)
2
4 5
2
3
7
8
9
10
11
12
13
14
6
Figure 2-1
31
No. Name Description
The power LED (top) turns on (green) when
the power is on and turns off when there is
1 LED Indicators
2 Audio In Connects to a microphone for audio output.
3 LAN / PoE Connects to a 10/100 Ethernet or PoE.
4 Default Button
5 Video Out
6 Memory Card Slot
7 Audio Out Connects to a speaker for audio output.
8 DC 12V / AC 24V Connects to power.
9 I/O Terminal Block Connects to an I/O device.
10 Rotational Screw Loosens to rotate the camera.
11 Cable Gland Waterproofs the Ethernet cable.
12 Tilt Screw Loosen the screw to tilt the camera.
13 Conduit Connector
14 Silica Gel Bag Absorbs moisture in the camera body.
no power supply. The status LED (bottom)
turns on (green) when the system operates
normally and turns off when system error
occurs.
Resets the camera to factory default. For
details, see 2.6 Loading Factory Default.
Connects to a portable monitor for setting
the focus and angle of the camera during
initial setup.
Inserts a micro SD card (SD/SDHC, version
2.0 only, Class 10) to store recording data.
Waterproofs the audio, TV out, power
adapter and I/O wires.
32
Vandal Proof IP Dome (Part II)
2
2.4 Installation
The Vandal Proof IP Dome is designed for outdoors. With the standard
package, you can install the camera on the ceiling.
Note: You can also install the camera:
on a power box (of the 4" square and double gang type) using the
standard package
to ceilings, wall corners (concave or convex), and poles using
optional mounting kits
For details on these installations, see GV-Mount Accessories Installation
Guide on the Software DVD.
IMPORTANT: When installing the Vandal Proof IP Dome near the
corner, maintain at least 25 cm away from the walls to avoid reflection
problems.
1. Remove the housing cover with the supplied torx wrench.
2. Thread wires into the camera.
A. Unscrew the conduit connector from the back.
Figure 2-2
33
B. Unplug the conduit connector inside the housing and disintegrate
the connector. You should have 4 parts:
1 2
Figure 2-3
C. Remove the terminal block from the supplied power adapter.
(Power adapter is not supplied for GV-VD4711 / 5711)
D. Thread the audio wires (optional), TV out wire (optional), adapter
wires and I/O wires (optional) through the conduit entry and then
through part 1, 2, 3 and 4 of the conduit connector.
Tip:
1. To make the threading easier, it is advised to thread the wires
in the order described here.
2. Use a pair of pliers to help you pull the wires through the
camera.
For part 2, there are 8 holes each labeled with its diameter.
Remove the plugs and push the wires to the corresponding hole
listed below:
3 4
Plug
34
Figure 2-4
Vandal Proof IP Dome (Part II)
2
2.6 mm: Audio, BNC
2 mm: DC12V / AC24V
1.8 mm: DIDO
Figure 2-5
IMPORTANT:
1. Use the supplied ruler and leave about 10 cm of power and I/O
wires between their connectors on the camera and the cable
gland; leave at least 11 cm of audio/TV-out wires between their
connectors and the cable gland.
2. The plugs are used to prevent water from entering the camera
housing. Keep the unused holes plugged and save the
removed plugs for future use.
3. Only thread the wires through their designated holes on the
conduit connector to make sure the wires are properly sealed.
35
3. Install the Ethernet cable.
A. Rotate to remove the indicated cap and the plug inside.
Figure 2-6
B. Thread an Ethernet cable (the end with no RJ-45 connector) from
the back panel through the cable gland
Figure 2-7
IMPORTANT: Use the supplied ruler and leave about 11 cm of the
Ethernet cable between the connector and the cable gland.
C. Re-install the cap. Make sure the cap is installed tightly to
waterproof the camera.
36
Vandal Proof IP Dome (Part II)
2
4. Connect the wires to the camera.
A. Install the terminal blocks to the power adapter and I/O devices.
See 2.5.1 Power Connection and 2.5.2 I/O Device Connections.
B. Install the supplied RJ-45 connector to the Ethernet cable.
C. Plug all the connectors to the camera panel.
Tip: Unscrew the indicated screws and lift the camera to help you
connect the wires.
D. Arrange the wires in the conduit connector and re-install it to the
camera.
37
5. Sort out the wires at the back. You can have the wires come out from
position A, B or both. The instructions here describe sorting wires for
position A.
A
B
Figure 2-8
From the back of the camera housing, unscrew and rotate the plate to
one side, sort out the wires and secure the plate back.
Figure 2-9
Plate
38
Vandal Proof IP Dome (Part II)
2
6. Secure the back plate to the ceiling.
A. Paste the sticker to the ceiling. The arrow on the sticker indicates
the direction that the camera faces.
Ceiling mount template
1
1
1
B
A
Figure 2-10
B. Drill 3 holes for screws. The recommended ones are indicated as
‘1’.
C. Insert the screw anchors to the 3 holes.
D. Depending on how you want to run the wires (see step 5). Drill
the right hole (Figure 2-10) for position A and the left for position
B or both if required.
E. Secure the back plate to the ceiling with long screws.
39
7. Secure the camera to the ceiling.
A. Secure the safety lock to the camera using a short screw. Use
flat screw for number 1 and small screw for number 2.
1
2
Figure 2-11
B. Thread all the wires into the ceiling and connect them.
Note: The TV-out function can only be used during initial
installation to adjust the focus of the camera. To use the TV out
function, connect the supplied black BNC wire to a monitor and
select your signal format (NTSC or PAL) at the
Web interface. The default signal format is NTSC. For details, see
4.1.1 Video Settings, GV-IPCam Firmware Manual. The TV-out
wire must be removed before you secure the housing cover.
TV Out field on the
40
Vandal Proof IP Dome (Part II)
2
C. Secure the camera using the torx wrench
Figure 2-12
8. Access the live view. See 2.1 Accessing the Live View, GV-IPCam
Firmware Manual.
9. Adjust the camera’s angle, focus and zoom of the camera.
Pan Adjustment
Tilt Adjustment
41
Rotational Adjustment
Figure 2-13
10. Replace the silica gel bag and secure the camera cover using the torx
wrench.
IMPORTANT: If the center of the camera view is less than 25° to the
ceiling, or lower than the grey line (as illustrated below), disassemble
the indicated ring so the view is not obstructed. However, with the ring
disassembled, slight reflections may occur.
42
Vandal Proof IP Dome (Part II)
2
2.4.1 Installation of Weatherproof Shield
Optionally purchase a weatherproof shield to protect the camera from rain
and snow.
Figure 2-14
Note: A weatherproof shield can be purchased upon request. The pan
and tilt angle of the camera is limited by the shield.
1. Remove the housing cover.
Figure 2-15
43
2. Remove the three screws from the housing cover.
Figure 2-16
3. Secure the three screws of the weatherproof shield to the housing
cover.
Weatherproof Shield
Figure 2-17
4. Secure the housing cover.
44
Vandal Proof IP Dome (Part II)
2
2
2.5 Connecting the Camera
Connect your Vandal Proof IP Dome to power, network and other wires
needed.
2.5.1 Power Connection
There are two ways to supply power to the camera:
Use a Power over Ethernet (PoE) adapter to connect the camera to the
network, and the power will be provided at the same time.
Plug the power adapter to the terminal block by inserting the striped
wire to the right pin (-) and the black wire to the left pin (+).
Figure 2-18
2.5.2 I/O Device Connections
The camera supports one digital input and one digital output of dry contact.
I/O
1
Figure 2-21
For details on how to enable an installed I/O device, see 4.2 I/O Settings,
GV-IPCam Firmware Manual.
3
Pin Function
1 Digital Output
2 GND
3 Digital Input
45
2.5.3 Voltage Load Expansion (Optional)
The camera can only drive a maximum load of
the maximum voltage load to
connect the camera to a GV-Relay V2 module (optional product). Refer to
the figure and table below.
Output Devices
10A 250V AC, 10A 125V AC or 5A 100V DC,
200mA 5V DC. To expand
I/O
123
Connect to Power
Figure 2-19
GV-Relay V2 Vandal Proof IP Dome
COM Pin 2 of I/O terminal block
DO1 Pin 1 of I/O terminal block
46
Vandal Proof IP Dome (Part II)
2
2.6 Loading Factory Default
Use a pin to press and hold the default button for about 8 seconds.
Release the default button when the status LED blinks. For details, see 1.6
Loading Factory Default.
Figure 2-20
47
Chapter 3 Vandal Proof IP Dome
(Part III)
These Vandal Proof IP Domes are outdoor cameras equipped with a
removable IR-cut filter for optimal day and night surveillance. The cameras
adhere to IK10 vandal resistance and IP67 ingress protection. They can
support H.265 video codec to achieve better compression ratio while
maintaining high quality picture. For night operations, the cameras allow up
to 30 m (98.4 ft) effective IR distance. All models have P-Iris for precise
control of exposure and better image clarity and contrast. The Super Low
Lux model, featuring Wide Dynamic Range Pro (WDR Pro), provides clear
live views not only in near darkness but also under contrasting light
intensities. Adjustable in 3 axis (pan, tilt and rotate), the cameras offer
effective surveillance solution with all the essential features and excellent
image quality.
Model No. Specifications Description
GV-VD3700
GV-VD4700
GV-VD5700
Varifocal
lens
P-Iris,
f:3 ~ 9 mm,
F/1.7, 1/2.7”
ø 14 mm lens mount
P-Iris,
f:2.8 ~ 12 mm, F/1.7,
1/2.7”
ø 14 mm lens mount
P-Iris,
f:4 ~ 8 mm, F/1.65,
1/1.8”
ø 14 mm lens mount
3 MP H.265,
WDR Pro, Super
Low Lux
4 MP H.265,
WDR Pro, Super
Low Lux
5 MP H.265,
WDR, Low Lux
48
3.1 Packing List
Vandal Proof IP Dome (Part III)
3
H.265 Vandal Proof IP Dome
Long Screw x 4
Back Plate
Installation sticker
Cable Stopper
Torx Wrench
Screw Anchor x 4
Short Screw (for Back
Plate) x 3
RJ-45 Connector x 2
Anti-Drop Wire
49
Screw (for the Anti-Drop Wire)
Silica Gel Bag x 2
Sticker (for Silica Gel Bag) x 2 GV-IPCAM Software DVD
GV-Software DVD Pan Angle Notification Card
Warranty Card
Note: The supplied anti-drop wire is used for attaching the camera body
to GV-Mount206. For more details, see GV-Mount Accessories
Installation Guide on the Software DVD.
50
Vandal Proof IP Dome (Part III)
3
3.2 Features
Image Sensor
Camera Model Min. Illumination
GV-VD3700
GV-VD4700
GV-VD5700 1/1.8” progressive scan CMOS
Min. illumination
Camera Model Min. Illumination
GV-VD3700
GV-VD4700
GV-VD5700
Dual streams from H.265, H.264 or MJPEG
Frame Rate
Color 0.01 Lux
B/W 0.01 Lux
Color 0.03 Lux
B/W 0.02 Lux
Color 0.04 Lux
B/W 0.03 Lux
1/2.8” progressive scan super low lux
CMOS
1/3” progressive scan super low lux
CMOS
Camera Model Frame Rate
GV-VD3700 Up to 30 fps at 2048 x 1536
GV-VD4700
GV-VD5700 Up to 30 fps at 2592 x 1944
P-Iris for auto iris adjustment
Vandal resistance (IK10 for metal casing)
Ingress protection (IP67)
Megapixel lens
Intelligent IR
Up to 25 fps at 2560 x 1440, 30 fps at
2048 x 1520
51
IR distance up to 30 m (98.4 ft)
Day and Night function (with removable IR-cut filter)
External microphone
3-axis mechanism (pan / tilt / rotate)
Micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
DC 12V / PoE (IEEE 802.3af)
Two-way audio
One sensor input and digital output
Wide Dynamic Range Pro (WDR Pro) for GV-VD3700 / 4700
Wide Dynamic Range (WDR) for GV-VD5700
Defog
Tampering Alarm
3D noise reduction
Smart streaming
Text overlay
IP address filtering
Recording assigned by GV-Edge Recording Manager (Windows &
Mac)
Supports iPhone, iPad, Android & 3GPP
31 languages on Web interface
ONVIF (Profile S) conformant
52
3.3 Overview
Vandal Proof IP Dome (Part III)
3
1
2
4
3
Figure 3-1
5
53
No. Name Description
1 Rotational Screw Loosen to rotate the lens.
Insert a micro SD card (SD/SDHC/SDXC/
2 SD Card Slot
3 Base Screw Loosen to pan the camera.
4 Tilt Screw Loosen to tilt the camera.
5 Default Button
UHS-I, Class 10) to store recording data.
* UHS-II card type is not supported.
Reset the camera to factory default. For
details, see 3.6 Loading Factory Default.
54
Vandal Proof IP Dome (Part III)
3
3.4 Installation
The Vandal Proof IP Dome is designed for outdoors. With the standard
package, you can install the camera on the ceiling.
Note: You can also install the camera to ceilings, wall corners (concave
or convex), and poles using optional mounting kits.
For details on these installations, see GV-Mount Accessories Installation
Guide on the Software DVD.
1. Remove the housing cover with the supplied torx wrench.
Figure 3-2
2. Thread the Ethernet cable into conduit connector.
A. Remove the plug from the conduit connector.
Figure 3-3
55
B. Disintegrate the removed conduit connector. Thread the
Ethernet cable through the 3 parts.
Figure 3-4
C. Assemble the conduit connector.
Note: If you can’t plug the self-prepared RJ-45 connector into the jack of
the conduit, it is suggested to use the supplied RJ-45 connector.
3. Secure the back plate to the ceiling.
A. Paste the sticker to the ceiling. The triangle on the sticker
indicates the direction that the camera faces.
Figure 3-5
56
Figure 3-6
B. Drill 4 holes for screws. The recommended ones are indicated as
‘1’.
C. Insert the screw anchors to the 4 holes on the ceiling.
D. Secure the back plate to the ceiling with 4 long screws.
E. Align and secure the back plate to the rear side of the camera
with the supplied short screws.
4. Insert your micro SD card into the SD card slot.
Figure 3-7
Vandal Proof IP Dome (Part III)
3
5. Access the live view. See 2.1 Accessing the Live View, GV-IPCam
Firmware Manual.
Figure 3-8
57
6. Based on the live view, adjust the camera’s angle, focus and zoom.
Pan Adjustment
Figure 3-9
IMPORTANT:
1. Loosen the screw indicated below before adjusting the camera pan
angle.
2. The front of the camera is marked with a white line in front of the
memory card slot. When adjusting the camera pan angle, avoid
turning the camera for more than 180 degrees in either direction.
Continuous rotation greater than 180 degrees could pull off the
internal cable and cause the camera to malfunction.
58
Tilt Adjustment
Vandal Proof IP Dome (Part III)
3
Rotational Adjustment
7. Paste the silica gel bag with a sticker right behind the lens.
Figure 3-10
Figure 3-11
59
8. Secure the housing cover back to the camera body.
You can remove the cable stopper to thread the camera’s cable
Note:
through the side opening.
60
Vandal Proof IP Dome (Part III)
3
3.5 Connecting the Camera
Connect your camera to power, network and other cables needed.
3.5.1 Definition
Figure 3-12
Pin Wire Name Definition
1 DO + Digital out +
2 DO - Digital out -
3 DI + Digital in +
4
5 L – Out Audio out
6 A GND Audio ground
7 L – IN Audio in
8 GND DC 12 V +
9
Wire Definition
RJ-45 Ethernet or PoE
For details on how to enable an installed I/O device, see 4.2 I/O Settings,
GV-IPCam Firmware Manual.
4-Pin terminal
block
DI - Digital in -
5-Pin terminal
block
12 V DC 12 V -
61
3.5.2 Power Connection
There are two ways to supply power to the camera:
Use a Power over Ethernet (PoE) adapter to connect the camera to
the network, and the power will be provided at the same time.
Connect the wires of your power adapter to the DC 12V+ and DC
12V- to the 5-pin terminal blocks.
Figure 3-13
62
Vandal Proof IP Dome (Part III)
3
3.5.3 Voltage Load Expansion (Optional)
The camera can only drive a maximum load of 200mA 5V DC. To expand
the maximum voltage load to
connect the camera to a GV-Relay V2 module (optional product). Refer to
the figure and table below.
10A 250V AC, 10A 125V AC or 5A 100V DC,
Figure 3-14
GV-Relay V2 Vandal Proof IP Dome
COM Digital in + & Digital out +
DO1 Digital out -
63
3.6 Loading Factory Default
Insert a thin object into the default button next to the camera lens. Press
and hold the default button for about
For details, see 1.6 Loading Factory Default.
Figure 3-15
5 seconds to load the factory default.
64
Vandal Proof IP Dome (Part IV)
4
Chapter 4 Vandal Proof IP Dome
(Part IV)
These Vandal Proof IP Domes are outdoor cameras equipped with a
removable IR-cut filter for optimal day and night surveillance. The cameras
adhere to IK10 vandal resistance and IP67 ingress protection. They can
support H.265 video codec to achieve better compression ratio while
maintaining high quality picture. For night operations, the cameras allow up
to 30 m (98.4 ft) effective IR distance. With their super low lux CMOS
image sensor and WDR Pro, the cameras are capable of not only providing
a color live view in near darkness but also under contrasting light
intensities. Adjustable in 3 axis (pan, tilt and rotate), the cameras offer
effective surveillance solution with all the essential features and excellent
image quality.
For GV-VD2712, with its motorized varifocal lens, the user can zoom and
focus the camera from the Web interface.
Model No. Specifications Description
P-Iris,
GV-VD2702
GV-VD2712
Varifocal
lens
Motorized
varifocal lens
f:2.8 ~ 12 mm,
F/1.7, 1/2.7”
ø 14 mm lens
mount
P-Iris,
f:2.8 ~ 12 mm,
F/1.7, 1/2.7”
ø 14 mm lens
mount
2 MP H.265,
WDR Pro, Super
Low Lux
2 MP H.265,
WDR Pro, Super
Low Lux
65
4.1 Packing List
H.265 Vandal Proof IP Dome
Screw x 4
TV-Out Wire
I/O Cable
Torx Wrench
Screw Anchor x 4
Audio Wires x 2
Installation sticker
Conduit Converter
66
RJ-45 Connector
Vandal Proof IP Dome (Part IV)
4
PG21 Conduit Connector
Waterproof Rubber Sets
(for RJ-45 Cat.5 and 12V DC
/ for RJ-45 Cat.6)
Cat.5
(Ø 5 mm)
Cat.6
(Ø 6 mm)
Big Concave Hexagon
Wrench
Small Concave Hexagon
Wrench
Silica Gel Bag Sticker (for Silica Gel Bag)
GV-IPCAM Software DVD Ruler
GV-Software DVD Warranty Card
Note: You can choose to run the wires through a conduit pipe. After you
have threaded all the wires, install the supplied conduit converter and
plastic PG21 conduit connector with a self-prepared 1/2’’ conduit pipe to
the camera. Power will have to be supplied through a PoE adapter,
because the power adapter wire does not fit in a 1/2” pipe. You will have
to purchase your own PG21 conduit connector if you want to use 3/4” or
1” pipe.
Plastic PG21
conduit connector
Conduit pipe
Conduit converter
67
A metal PG21 conduit connector can be purchased upon request. The
metal PG21 conduit connector can be connected with a 3/4” pipe.
Conduit converter
Metal PG21
conduit connector
Conduit pipe
68
Vandal Proof IP Dome (Part IV)
4
4.2 Features
Image Sensor
Camera Model Min. Illumination
GV-VD2702
GV-VD2712
Min. illumination
Camera Model Min. Illumination
GV-VD2702
GV-VD2712
Dual streams from H.265, H.264 or MJPEG
Frame Rate
Camera Model Frame Rate
GV-VD2702
GV-VD2712
Vandal resistance (IK10 for metal casing)
Ingress protection (IP67)
Motorized varifocal lens for remote focus / zoom adjustment (for GV-
VD2712)
P-Iris for auto iris adjustment
Intelligent IR
IR distance up to 30 m (98.42 ft)
Day and night function (with removable IR-cut filter)
3-axis mechanism (pan / tilt / rotate)
DC 12V / PoE (IEEE 802.3af)
Two-way audio
Wide Dynamic Range Pro (WDR Pro)
Color 0.005 Lux
B/W 0.004 Lux
1/2.8” progressive scan super low lux
CMOS
Up to 30 fps at 1920 x 1080
69
3D noise reduction
Smart streaming
Defog
Motion detection
Tampering alarm
Text overlay
Privacy mask
IP address filtering
Recording assigned by GV-Edge Recording Manager (Windows &
Mac)
Supports iPhone, iPad, Android & 3GPP
31 languages on Web interface
ONVIF (Profile S) conformant
70
4.3 Overview
Vandal Proof IP Dome (Part IV)
4
8
7
11
13
14
12
9
10
Figure 4-1
71
Figure 4-2
No. Name Description
The power LED (top) turns on (green)
when the power is on and turns off when
1 LED Indicators
2 Audio Out Connects to a speaker for audio output.
3 Audio In Connects to a microphone for audio input.
4 I/O Connector
5 LAN / PoE Connects to a 10/100 Ethernet or PoE.
6 DC 12V Connects to power.
7 Default Button
8 Rotational Screw Loosens to rotate the camera.
there is no power supply. The status LED
(bottom) turns on (green) when the system
operates normally and turns off when
system error occurs.
Connects to I/O devices. For details, See
4.6 I/O Connector.
Resets the camera to factory default. For
details, see 4.7 Loading Factory Default.
72
Vandal Proof IP Dome (Part IV)
4
9 Tilt Screw Loosens the screw to tilt the camera.
10 TV-Out
Provides video input (D1 resolution) for a
monitor.
11 Conduit Connector Waterproofs the audio / I/O wires.
12 Cable Gland Waterproofs the Ethernet cable.
13 Zoom Screw Adjusts the zoom of the camera.
14 Focus Screw Adjusts the focus of the camera.
Memory Card Slot Inserts a micro SD card
15
(SD/SDHC/SDXC/UHSI, Class 10) to
store recording data. For details, see 4.4
Installation
Note: The TV-out function can only be used during installation to adjust
the focus of the camera. To use the TV out function, connect the
supplied black BNC wire to a monitor and select your signal format
(NTSC or PAL) at the TV Out field on the Web interface. The default
signal format is NTSC. For details, see 4.1.1 Video Settings, GV-IPCam
Firmware Manual. The TV-out wire must be removed before you secure
the housing cover.
73
4.4 Installation
The Vandal Proof IP Dome is designed for outdoors. With the standard
package, you can install the camera on the ceiling.
Note: You can also install the camera to ceilings, wall corners (concave
or convex), and poles using optional mounting kits.
For details on these installations, see GV-Mount Accessories Installation
Guide on the Software DVD.
1. Remove the housing cover with the supplied torx wrench.
74
Figure 4-3
c
2. Remove the back plate with the supplied torx wrench and remove the
safety lock with a Philips screwdriver. Keep the removed screw for
later use.
Vandal Proof IP Dome (Part IV)
4
Safety lo
Figure 4-4
3. Thread wires into the camera.
A. Rotate to remove the cap of the conduit connector.
Figure 4-5
75
B. Unplug the conduit connector inside the housing and disintegrate
the connector. You should have 3 parts:
Figure 4-6
C. Thread the audio wires and I/O wires through the conduit entry
and then through part 1, 2, and 3 of the conduit connector.
Tip:
1. To make the threading easier, it is advised to thread the wires
in the order described here.
2. Use a pair of pliers to help you pull the wires through the
camera.
For part 1, there are 5 holes each labeled with its diameter.
Remove the plugs and push the wires to the corresponding hole
listed below:
76
Plug
Figure 4-7
Vandal Proof IP Dome (Part IV)
4
3.2 mm: Audio
1.9 mm: DIDO
Figure 4-8
IMPORTANT:
1. Use the supplied ruler and leave at least 14 cm of I/O wires
and 10 cm of audio wires between their connectors on the
camera and the cable gland.
2. The plugs are used to prevent water from entering the
camera housing. Keep the unused holes plugged and save
the removed plugs for future use.
3. Only thread the wires through their designated holes on the
conduit connector to make sure the wires are properly sealed.
77
If you use cat 6 Ethernet cable, you need to thread the DC 12V
wires through the conduit connector. Followings are the
corresponding holes.
3.2 mm: Audio
1.9 mm: DIDO
1.9 mm: DC 12V
Figure 4-9
IMPORTANT: Leave more than 10 cm of power wires between
their connectors on the camera and the cable gland.
4. Install the Ethernet cable.
A. Rotate to remove the indicated cap and the plug inside.
78
Figure 4-10
B. Thread an Ethernet cable (the end with no RJ-45 connector) and
the optional power adapter wires from the back panel through the
cable gland
Vandal Proof IP Dome (Part IV)
4
Figure 4-11
IMPORTANT: Use the supplied ruler and leave about 14 cm of the
Ethernet cable between the connector on the camera and the cable
gland.
C. Re-install the cap. Make sure the cap is installed tightly to
waterproof the camera.
79
5. Connect the wires to the camera and insert the memory card to the
memory card slot.
A. Install the terminal blocks to the power adapter and I/O devices.
See 4.5 Power Connection and 4.6 I/O Connector.
B. Install the supplied RJ-45 connector to the Ethernet cable.
C. Plug all the connectors to the camera panel.
D. Inserts a micro SD card to the memory card slot.
Tip: Unscrew the indicated screws and lift the camera to help you
connect the wires and insert the memory card.
E. Arrange the wires in the conduit connector and re-install it to the
camera.
80
6. Sort out the wires at the back. You can have the wires come out from
position A and B or from C.
Vandal Proof IP Dome (Part IV)
4
A
B
C
Figure 4-12
7. Secure the back plate to the ceiling.
A. Paste the sticker to the ceiling. The arrow on the sticker indicates
the direction that the camera faces.
Figure 4-13
B. Drill 4 holes for screws. The recommended ones are indicated as
‘1’.
C. Insert the screw anchors to the 4 holes.
D. Drill A & B holes or only C hole for sorting out the wires according
to Figure 4-13.
E. Secure the back plate to the ceiling with the supplied screws.
81
8. Secure the camera to the ceiling.
A. Secure the safety lock to the camera with the screw you
removed from the back plate in step 2.
Safety lock
Figure 4-14
B. Thread all the wires into the ceiling and connect them.
C. Secure the camera to the back plate with the torx wrench.
82
Vandal Proof IP Dome (Part IV)
4
9. Access the live view. See 2.1 Accessing the Live View, GV-IPCam
Firmware Manual.
Note: The TV-out function can be used to access the live view. For
details, see the note for TV-out in 4.3 Overview.
10. Adjust the camera’s angle, focus and zoom of the camera.
Pan Adjustment
Rotational Adjustment
Figure 4-15
Tilt Adjustment
83
11. Replace the silica gel bag, press all the wires and cables into the
notch and secure the camera cover with the torx wrench.
Figure 4-16
84
Vandal Proof IP Dome (Part IV)
4
4.5 Connecting the Camera
Figure 4-17
1. Use a standard network cable to connect the camera to your network.
2. Optionally connect a speaker and an external microphone.
3. Optionally connect a monitor using a Video Out wire. Enable this
function by selecting your signal format at the
Web interface. See 4.1.1 Video Settings, GV-IPCam Firmware
Manual.
4. Optionally connect to input / output devices. For details, see 4.6 I/O
Connector.
5. Connect power using one of the following methods:
Plug the power adapter to power port.
Use the Power over Ethernet (PoE) function and the power will be
provided over the network cable.
6. The status LED of the camera will be on.
TV Out field on the
85
4.6 I/O Connector
The camera supports one digital input and one digital output of dry contact.
Pin Supplied I/O Cable Function
1 Red Digital Output
2 Black GND
3 White Digital Input
For details on how to enable an installed I/O device, see 4.2 I/O Settings,
GV-IPCam Firmware Manual.
4.6.1 Voltage Load Expansion (Optional)
The camera on its own can only drive a maximum load of 200mA 5V DC.
To expand the maximum voltage load to
5A 100V DC
product).
), connect the camera to a GV-Relay V2 module (optional
10A 250V AC / 10A 125V AC /
86
Vandal Proof IP Dome (Part IV)
4
4.7 Loading Factory Default
Use a pin to press and hold the default button for about 8 seconds.
Release the default button when the status LED blinks. For details, see 1.6
Loading Factory Default.
Figure 4-18
87
Chapter 5 Target Vandal Proof IP
Dome
The Target Vandal Proof IP Dome is an outdoor camera designed with
IK10 vandal resistance and IP67 ingress protection. The camera is
equipped with an automatic IR-cut filter and IR LEDs for day and night
surveillance. With the super low lux CMOS image sensor, the camera is
capable of providing a color live view in near darkness. Adjustable in 3 axis
(pan, tilt and rotate), it offers an entry-level surveillance solution with all the
essential features and excellent image quality.
Model No. Specifications Description
2 MP H.264,
WDR, Super Low
Lux
3 MP H.264,
WDR Pro, Super
Low Lux
5 MP H.264,
WDR, Low Lux
GV-EVD2100
GV-EVD3100
GV-EVD5100
Varifocal
lens
P-Iris,
f:3 ~ 9 mm, F/1.7,
1/2.8”
ø 14 mm lens
mount
P-Iris,
f:3 ~ 9 mm, F/1.7,
1/2.7”
ø 14 mm lens
mount
88
Loading...
