Genius SP-HF1100X User Manual

Service Guide SP-HF1100X

SERVICE GUIDE

KYE SYSTEMS CORP

Version 1.0 Page 1 of 14

Service Guide SP-HF1100X

SP-HF1100X
Version:1.0

Revision History

Version Date Change

1.0 2008/03/06

Version 1.0 Page 2 of 14

Service Guide SP-HF1100X

Table of Contents

Revision History 2
Table of Contents 3
Getting Started 4

Conventions Used in this Guide 4
Safety Precautions 4

Chapter 1. How to Handle Defective Returns 5

1.1 Overview 5

1.2 Problems 6

1.2.1 L/R channels no sound 7

1.2.2 No power 8
Chapter 2. Specifications R / L 9
Chapter 3. Block Diagram 10
Chapter 4. Exploded View R / L 11
Chapter 5. Part List 12
Chapter 6. Schematic Diagram 13
Chapter 7. Important Notes 14

7.1 Packing Requirement for Sending the PCB Assembly by post 14

7.2 Short of Spare Parts while Repairing a Speaker system 14

Version 1.0 Page 3 of 14

Service Guide SP-HF1100X

Getting Started

Conventions Used in this Guide

Pay Special Attention: Instructions that are important to remember and may
prevent mistakes.

Caution: Information that, if not followed, may result in damage to the
product.

Safety Precautions

The following precautions should be observed in handling the speaker

described in this guide:
Place the speakers on a flat, level and stable surface.
Do not place the speakers in environments subject to mist, smoke,

vibration, excessive dust, salty or greasy air, or other corrosive gases and

fumes.
Do not drop or jolt the speakers.
Do not allow anything to drop into the subwoofer case through its

ventilator, as it could result in fatal electric shock or fire.
Place the unit far enough from other equipment s for good heat dissip ation.
Disconnect the AC power cord from the AC outlet before performing any

maintenance on the speakers.
Do not perform any maintenance with wet hand.
Prevent foreign substances, such as water, other liquids or chemical, from

entering the speakers while performing maintenance procedures on the

speakers.

Version 1.0 Page 4 of 14

Service Guide SP-HF1100X

p

p

y

g

y

Chapter 1. How to Handle Defective Returns

1.1 Overview

Receiving Defective speaker form cu stomers

Verifying problems
proceeding
necessar

tests

Function NG

Analyzing possible
malfunction causes

Function OKFunction NG

Deciding & proceeding the
rectification methods

Replace necessary
defective

arts

Proceeding tests to
verify if the speaker is
functionin

normall

Function OK

Return the speakers with proper
re

ackaging to customers

Version 1.0 Page 5 of 14

Service Guide SP-HF1100X

1.2 Problems

Item Problem Description

1.2.1 L/R channels no sound

1.2.2 NO power

Version 1.0 Page 6 of 14

Service Guide SP-HF1100X

* Attention

Please follow the numbered sequence marked within parenthesis given in individual
Flow chat, in that this is the best-recommended sequence to rectify the problems.

1.2.1 L/R channels no sound

Problem

Analyze and
Identify the Causes

Solutions

Broken or short circuit

Check solder points on
PCB

L/R channels no sound

Defective
U1,U2,VR1,VR2,VR3,
C1,C3,C21,C22,L1,L2,
PHONE1,CON3

Check and replace
defective IC or
components

Speaker cable dis-connect or
speaker damaged

Re-connected speaker cable
or replace defective speakers

Version 1.0 Page 7 of 14

Service Guide SP-HF1100X

1.2.3 No power

Problem

Analyze and
Identify the Causes

Broken or short circuit

No power

Defective
D1,D2,D3,D4, SW1,
Transformer

Speaker cable dis-connect or
speaker damaged

Solutions

Check solder points on
PCB

Check and replace
defective components

Re-connected speaker cable
or replace defective speakers

Version 1.0 Page 8 of 14

Service Guide SP-HF1100X

Chapter 2. Specifications

R/L (AT 1KHZ):

NO Description Unit Specifications

1 Out Power at THD 10% W >14
2 Sensitivity mV 800 ± 50
3 Freq Response (Ref:-3dB) Hz 20~20K
4 Separation dB > 30
5 S/N ratio dB > 78
6 Hum & Noise Vol:max mV <5

Version 1.0 Page 9 of 14

Service Guide SP-HF1100X

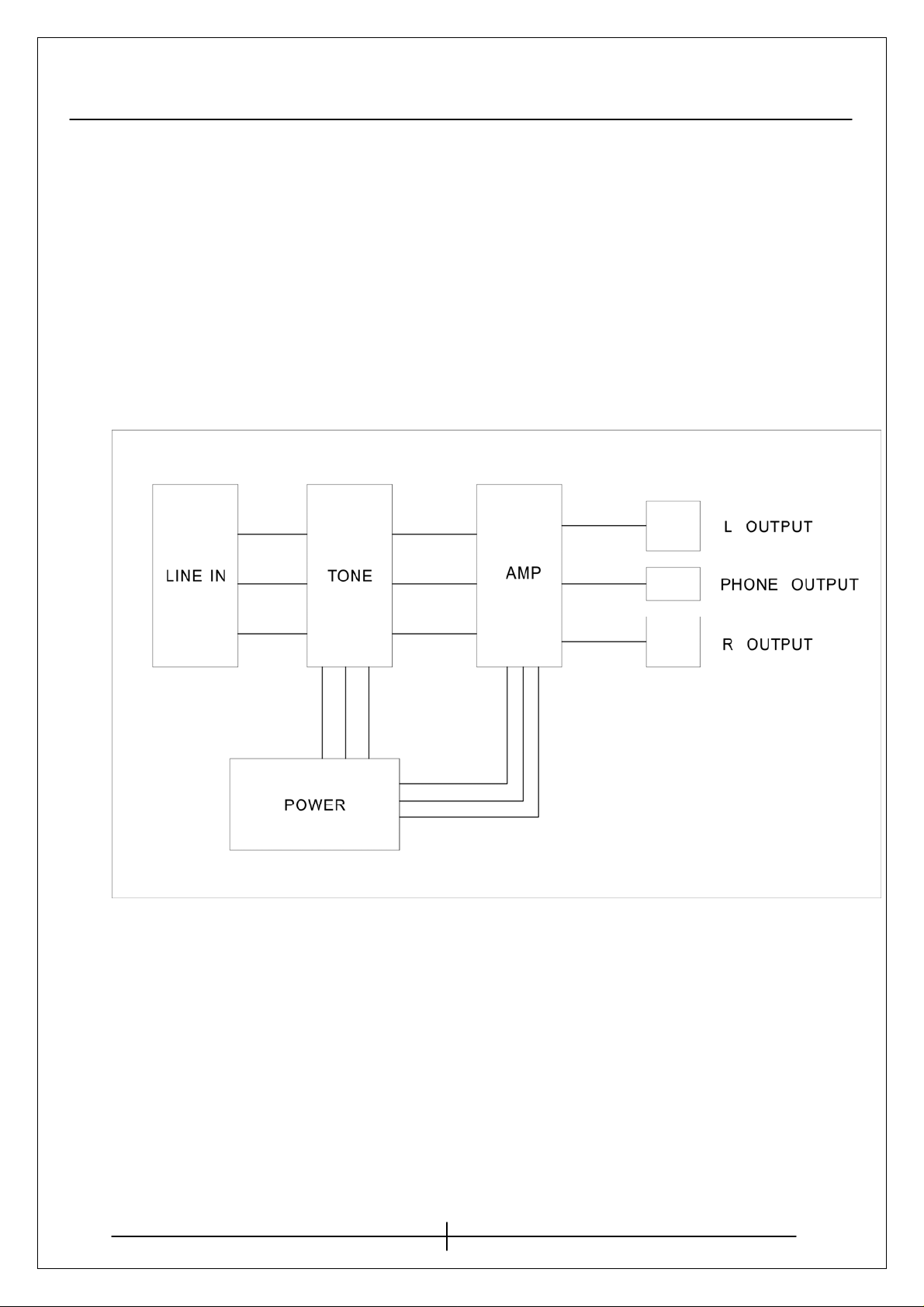

Chapter 3. Block Diagram

Version 1.0 Page 10 of 14

Service Guide SP-HF1100X

Chapter 4. Exploded View

Host ( R )

L

Version 1.0 Page 11 of 14

Service Guide SP-HF1100X

Chapter 5. Part List

NO DESCRIPTION Qty UNIT Part No

1 SP-HF1100X/BODY/R/230V-EU 1 PC F-000-063-0000
2 SP-HF1100X/BODY/L 1 PC F-000-063-0000
3 SPEAKER UNIT 4” 4 OHM 15-20W 2 PC S-000-000-0042
4

SPEAKER UNIT(
5 RUBBER, Ø16*3/BLACK 8 PC 5-127-210-0020
6 MANUAL, SP-HF1100X 1 PC 5-035-055-0037
7 CUSHION(tip cover), SP-HF1100X 1 PC 6-008-000-0073
8 CUSHION(bottom cover), SP-HF1100X 1 PC 6-008-000-0074

9 PCBA SP-HF1100X 1 PC X-000-002-0154

10 IC TDA2030A (SJ) 2 PC Q-000-000-0014
11 PUSH SW 1 PC 3-166-000-0005
12 ROTARY SWITCH, B50K 1 PC 1-224-000-0056
13 ROTARY SWITCH, B50K 2 PC 1-224-000-0057
14 CARTON, SP-HF1100X 1 PC 6-017-078-0026
15 Gift box, SP-HF1100X 1 PC 6-012-076-0013
16 TRANSFORMER, 230V/12V*2/2A 1 PC 1-296-500-0137
17 SPEAKER CABLE, 1 to 0 RCA,1.3M 1 PC C-001-000-0006
18 AUDIO CABLE, 1 to 0 ST, 1.7M 1 PC C-000-000-0001
19 AUDIO CABLE, 1ST to 1 ST, 30CM 1 PC C-000-002-0000

High sound), 1” 4 OHM 10W

2 PC S-000-000-0043

20 POWER CORD, BLACK,EU,1.5M 1 PC 3-372-011-0038
21 CARTON LABEL, SP-HF1100X 1 PC 5-030-402-0018
22 S/N LABEL, SP-HF1100X 2 PC 5-030-401-0020
23 PE BAG, 480*350*0.04mm,SP-HF1100X 2 PC 6-002-000-0092
24 PE BAG, 200*100*0.04mm, POWER CORD 1 PC 6-102-000-0012

Version 1.0 Page 12 of 14

Service Guide SP-HF1100X

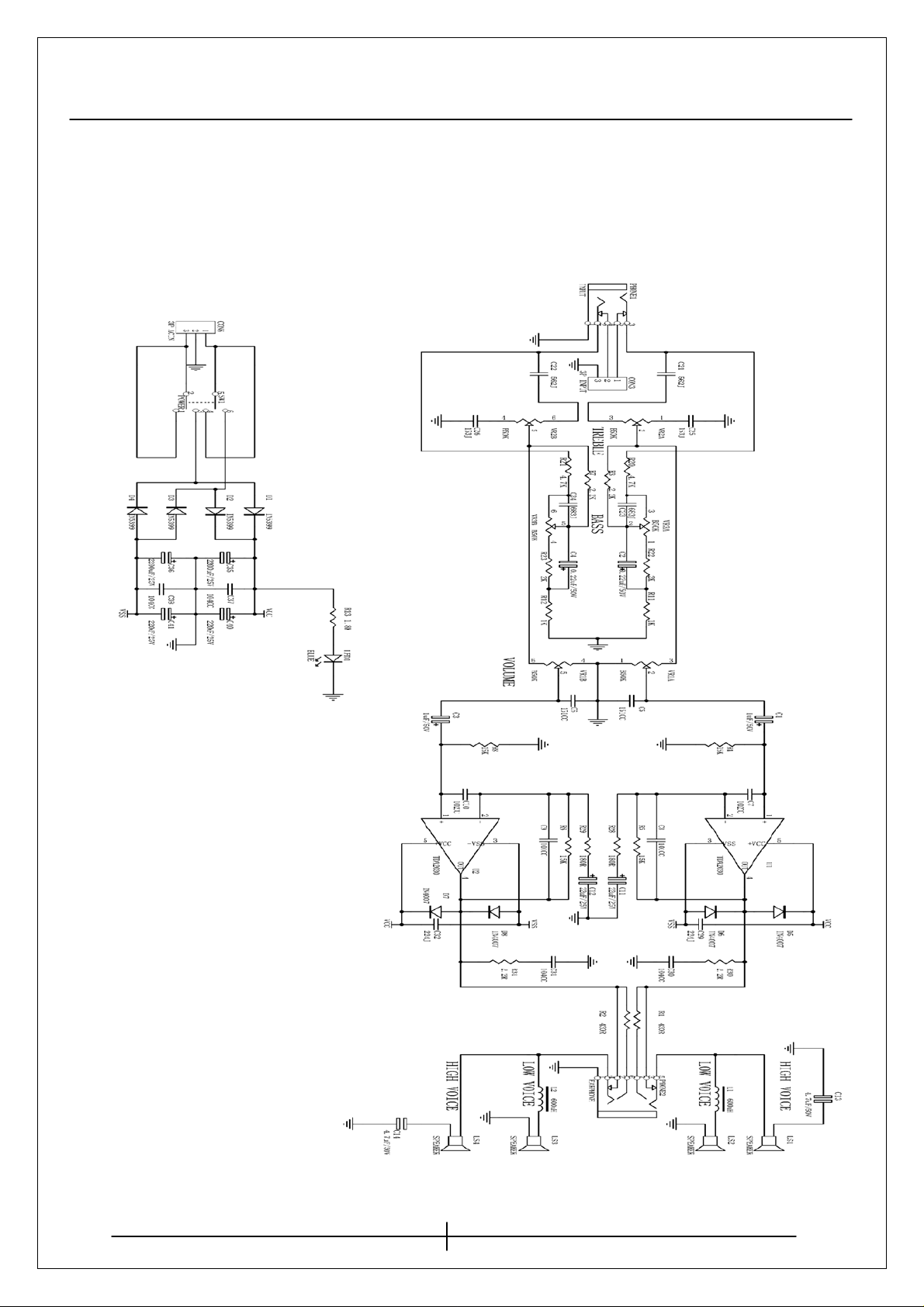

Chapter 6. Schematic Diagram

Version 1.0 Page 13 of 14

Service Guide SP-HF1100X

Chapter 7. Important Notes

7.1 Packing Requirement for Sending the PCB Assembly by Post

PCB assembly is a kind of sophisticated electronic circuit board. Well
packing will be required when sending them by post.

* Some sophisticated IC components are mounted on the PCB assembly,
hence it is necessary to pack each PCB assembly with a separate static
protecting bag, in order to avoid static electricity.

* Reliable external packing is also very important when sending PCB
assembly by post, in that it would avoid unnecessarily lost or damage.

7.2 Short of Spare Parts while Repairing a Speaker System

If you are short of spare parts when you have some speaker systems waiting
to be repaired, it would be recommended to take the necessary parts form
one speaker system, so that you may have the as many speaker systems.

Version 1.0 Page 14 of 14
