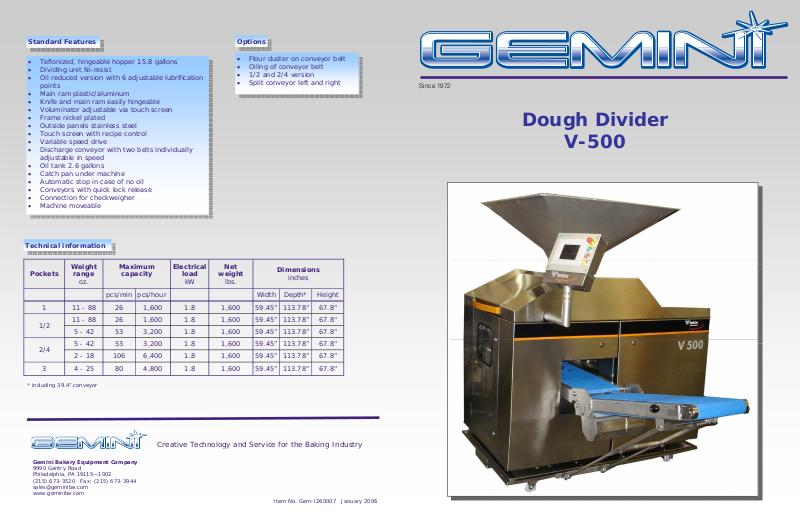

Gemini V-500 User Manual

StandardFeatures

•Teflonized, hingeable hopper 15.8 gallons

•Dividing unit Ni-resist

•Oil reduced version with 6 adjustable lubrification points

•Main ram plastic/aluminum

•Knife and main ram easily hingeable

•Voluminator adjustable via touch screen

•Frame nickel plated

•Outside panels stainless steel

•Touch screen with recipe control

•Variable speed drive

•Discharge conveyor with two belts individually adjustable in speed

•Oil tank 2.6 gallons

•Catch pan under machine

•Automatic stop in case of no oil

•Conveyors with quick lock release

•Connection for checkweigher

•Machine moveable

Options

•Flour duster on conveyor belt

•Oiling of conveyor belt

•1/2 and 2/4 version

• Split conveyor left and right	Since 1972

Technicalinformation

		Weight	Maximum		Electrical	Net	Dimensions
	Pockets	range	capacity		load	weight
								inches
		oz.			kW	lbs.
			pcs/min	pcs/hour			Width	Depth*	Height
	1	11 - 88	26	1,600	1.8	1,600	59.45”	113.78”	67.8”
	1/2	11 - 88	26	1,600	1.8	1,600	59.45”	113.78”	67.8”
		5 - 42	53	3,200	1.8	1,600	59.45”	113.78”	67.8”
	2/4	5 - 42	53	3,200	1.8	1,600	59.45”	113.78”	67.8”
		2 - 18	106	6,400	1.8	1,600	59.45”	113.78”	67.8”
	3	4 - 25	80	4,800	1.8	1,600	59.45”	113.78”	67.8”

* including 39.4” conveyor

Creative Technology and Service for the Baking Industry

Gemini Bakery Equipment Company

9990 Gantry Road Philadelphia, PA 19115—1002

[phone] Fax: [phone] [e-mail] www.geminibe.com

Item No. Gem-I260007 January 2006

Dough Divider

V-500
