Geemarc AMPLI 100VM User Manual
DESCRIPTION
g
General Description
Handset
Clip for
wall
mountin
Line
cord
socket*
Amplify
Indirect
memory
button
R button
(for private
exchanges)
Hold
button
Voice
meter
Customer Service Key
Memory
storing key
Quick Dial
locations,
M1,M2 and CS
Ringer
Volume
settings
Ringer
tone
settin
Sending
level
amplified
setting
Numeric
keypad
Last number
redial
Handset tone
slide control
(*) Classified TNV-3 according to EN60950 standard.
1
Handset
volume
slide control
DESCRIPTION
Rear
Voice level
meter setting
Base
Amplify
default
setting
Dialing
mode
setting
Flash
setting
Telephone
line socket
Thread the line
cord through
this groove
2
INSTALLATION
1 - Connecting Telephone
1 - Connect the handset cord.
2 - Connect the line cord to the socket located at rear of telephone
then connect the PTT plug*.
(*) Classified TNV-3 according to EN60950 standard.
2 - Ringer Volume Setting
A switch located on the right side allows the ringer to be switched
to HI, LOW or OFF.
3 - RINGER Tone Setting
A switch located on the right side allows the melody to be
switched to HI, Middle or LOW.
3
INSTALLATION
4 - Wall Mounting
To wall-mount your telephone, slide out the clip turn around and
slide back into the wall mounting position (located in the base unit,
just below the ear piece).This will ensure that the handset stays
firmly in position. Make 2 holes in the wall 85mm apart, insert the
wall plugs and the wall mounting screws. The screws should
protrude from wall by 6-7 mm. Place the phone onto the screwheads and slide down to secure.
5 - TONE/PULSE Switch (T/P)**
The Tone/Pulse switch is factory pre-set to Tone position (T).In
the UK, all telephone exchanges now use Tone dialing. If your
phone does not dial out it is probably being used from an older
private switch board (PBX). In this case, the Tone/Pulse switch
must be moved to Pulse (P).
** Please note that this switch is not to be moved after setting.
4
USING THE PHONE
1 - Answering Incoming Call
- When an incoming call is received the phone will ring and flash.
To answer the call lift the handset and speak.
- On completion of the call, carefully replace the handset in the
cradle to release the line.

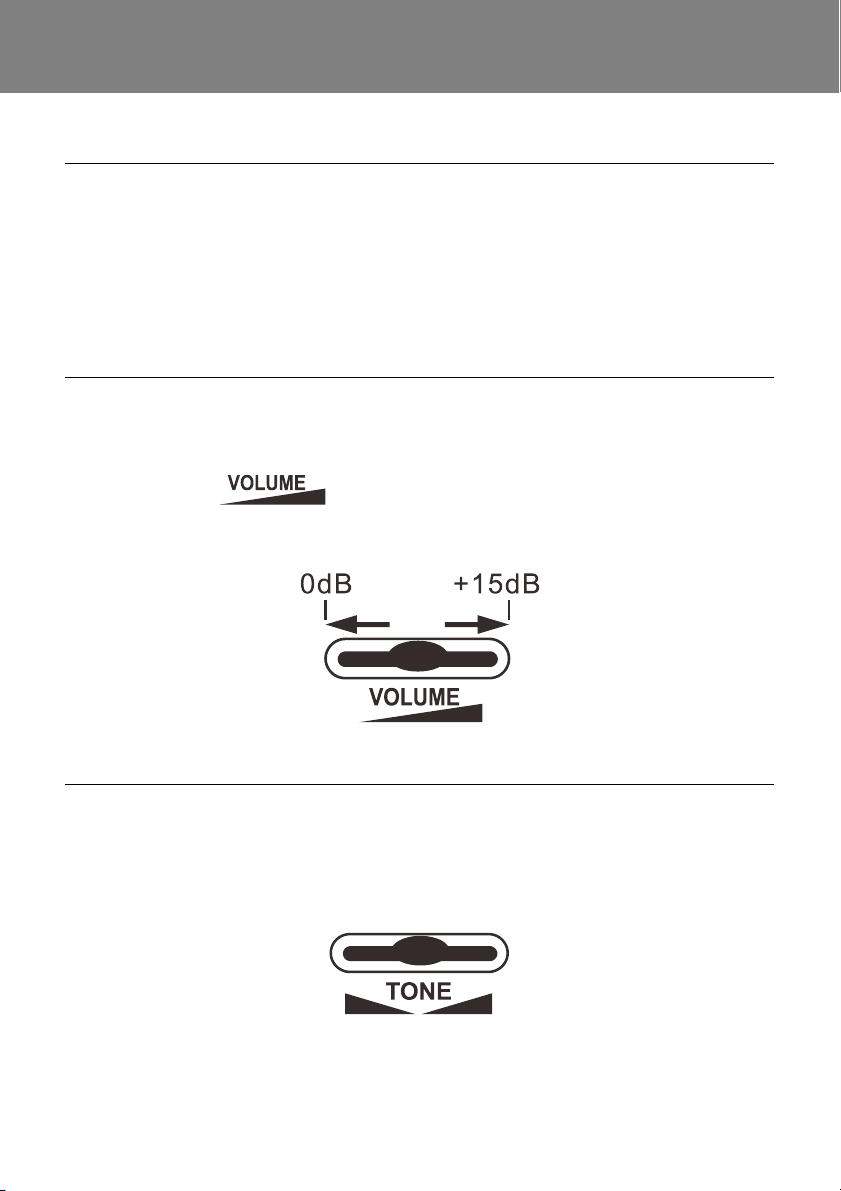

2 - Volume Receiving Adjustment
You can increase the volume according to your own hearing
requirements.
Use the button, located on the front side, to adjust the
level according to your own hearing requirements.
3 - Tone Receiving Adjustment
If the receiver volume has been amplified, the tone control can
also be adjusted. You can adjust and increase the low frequency
or high frequency sounds with the tone slide control on the front
edge of the unit.
Note: The tone adjustment function will not be effective when the
receiver volume is set to normal level.
5
USING THE PHONE
4 - Making A Call
- Lift the handset.
- Await the dial tone and dial required number.
- On completion of the call, carefully replace the handset in the
cradle.
5 - Sending Level Adjustment
If your voice is quiet or called parties have difficulty hearing you,
you can increase the sending level volume with the switch
located on the right side.
6 - Last Number Redial
0db +4db
- Lift the handset.
- Await the dial tone and press button.
- The previously dialled number will be automaticaly redialled (not
in use for memory numbers).
7 - R , * & # Buttons
These are used with the new services provided on digital
exchanges. For details please contact your network operator.
8 - Storing Telephone Numbers
Your phone can store 3 direct and 10 indirect memories (16 digits
maximum for each memory).
- Lift the handset.
- Press button.
- Dial the telephone number you wish to store.
- Press button.
6
USING THE PHONE
- Press one of the direct memory buttons, M1, M2, CS.
Or press M and any button 0 to 9 on the key pad under which you
wish to store the telephone number in indirect memory.
- Replace the handset.
Note : Numbers will be lost if you disconnect your phone. Entering
a new number in memory will automatically erase the previous
number.
9 - Dialling Stored Number
- Lift the handset and await the dial tone.
- Press appropriate direct memory button M1, M2, or CS. The
stored number will be dialled out automatically.
Or press the M button followed by the keypad 0 to 9 button under
which the desired number is stored. The stored number will be
dialled out automatically.
To register your stored phones numbers, use the index located on
the base.
10 - Voice Meter Function
Push switch to adjust voice level meter ON and OFF .
On mode:
When unit is off-hook, the voice meter LEDs inside the memory
card cover will indicate the outgoing voice level on telephone line.
Off mode:
When unit is off-hook, the voice meter is turned off.
11 - Hold Function
The Hold function is designed to stop conversation temporarily.
Hold On:
In off-hook state, to press "HOLD" key on the keyboard, the Hold
function is enabled and all speech meter LEDs are turned on.
7
USING THE PHONE
Hold Off:
In hold mode, put the handset on cradle. Then pick up the
handset again or if the parallel phone goes off hook, the Hold
function will be disabled and all speech meter LEDs are turned off.
12 - Amplification Setting
a.Set the AMPLIFY Switch located at rear side of unit to ON
position, the Amplification is auto on when handset is lifted.
b.Set the AMPLIFY Switch to OFF position, the
Amplification is off when handset is lifted.
13 - Receive Volume Amplification
When unit is off-hook, press the button to toggle the
amplification On & Off
Amplification On:
When amplification is on, the corresponding LED on, +15dB extra
amplification is applied to the handset receive volume control.
Amplification Off:
When amplification is off, the corresponding LED is off, no extra
amplification to the handset receive volume control.
14 - Flash Time Setting
a.Set the flash Switch located at rear side of unit .set to 100ms
position (for UK), the time is auto set in 100ms mode when
handset is lifted.
b.Set the flash Switch to 600ms position (for US), the time is auto
set in 600ms mode when handset is lifted.
8
REGULATORY COMPLIANCE
- This equipment complies with Part 68 of the FCC rules and the
requirements adopted by the ACTA. On the bottom of this
equipment is a label that contains, among other information, a
product identifier in the format US:AAAEQ##TXXXX. If requested,
this number must be provided to the telephone company.
- All applicable certification jacks Universal Service Order Codes
(USOC) for the equipment is provided (i.e. RJ11C) in the package
with each piece of approved terminal equipment.
- A plug and jack used to connect this equipment to the premises
wiring and telephone network must comply with the applicable
FCC Part 68 rules and requirement adopted by the ACTA. A
compliant telephone cord and modular plug is provided with this
product. It is designed to be connected to a compatible modular
jack that is also compliant. See installation instructions for details.
- The REN is useful to determine the quantity of devices you may
connect to your telephone line and still have all of those devices
ring when your telephone number is called. In most, but not all
areas, the sum of the REN’s of all devices connected to one line
should not exceed five (5.0). To be certain of the number of
devices you may connect to your line, as determined by the REN,
you should contact your local telephone company to determine
the maximum REN for your calling area.
- If this equipment causes harm to the telephone network, the
telephone company will notify you in advance that temporary
discontinuance of service may be required. But if advance notice
isn’t practical, the telephone company will notify the customer as
soon as possible. Also, you will be advised of your rights to file a
complaint with the FCC if you believe it is necessary.
- The telephone company may make changes in its facilities,
equipment, operation or procedures that could affect the operation
of the equipment. If this happens the telephone company will
provide advance notice in order for you to make necessary
modifications to maintain uninterrupted service.
- This equipment may not be used on coin service provided by the
telephone company. Connection to party lines is subject to state
tariffs. This equipment is hearing aid compatible.
9
REGULATORY COMPLIANCE
Warning: Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for
help.
- If trouble is experienced with this equipment, for repair or
warranty information, please contact our customer service staff at:
1-888-864-2446
If the equipment is causing harm to the telephone network, the
telephone company may request that you disconnect the
equipment until the problem is resolved.
- Please follow instructions for repairing if any; otherwise do not
alter or repair any part of device except as specified.
This Class B digital apparatus complies with Canadian ICES-003.
10
REGULATORY COMPLIANCE
Opening the equipment or any attempt to perform repairs will
void the warranty. For service or repairs, call 1-888-864-2446
(To setup the auto dial feature for Sonic Alert/ Geemarc customer
service the Green CS key must be programmed with the following
phone number 1-888-864-2446. Follow the directions for the
emergency key programming on page1 to program the CS
customer Service Key.)
- Connection to party line service is subject to state tariffs. Contact
the state public utility commission, public service commission or
corporation for information.
- If your home has specially wired alarm equipment connected to
the telephone line, ensure the installation of this telephone
equipment does not disable your alarm equipment. If you have
questions about what will disable alarm equipment, consult your
telephone company or a qualified installer.
- This equipment is hearing aid compatible.
IMPORTANT SAFETY INSTRUCTIONS When using your
telephone equipment, basic safety precautions should always be
followed to reduce the risk of fire, electric shock and injury to
persons, including the following:
1. Do not use this product near water, for example, near a bath
tub, wash bowl, kitchen sink or laundry tub, in a wet basement or
near a swimming pool.
2. Avoid using a telephone (other than a cordless type) during an
electrical storm. There may be a remote risk of electric shock from
lightning.
3. Do not use the telephone to report a gas leak in the vicinity of
the leak. SAVE THESE INSTRUCTIONS
11
Loading...
