Page 1

XLMTM

Self-Cleaning Gas Range

Safe~

instructions ....................2-5

Anti-Tip Device .................................3, 35,43

Operating Instructions, Tips

Aluminum Foil ............................5, 17, 18,20

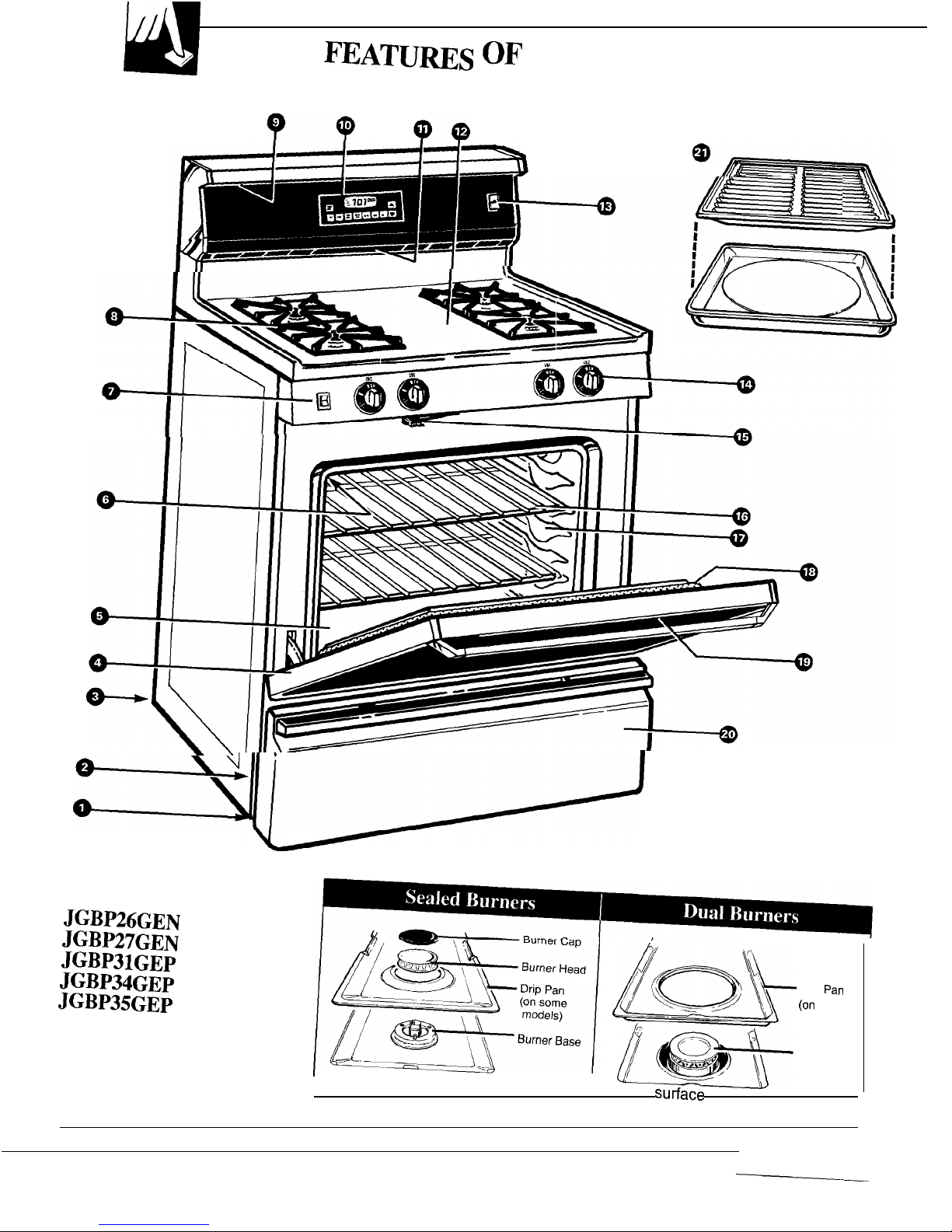

Features

........................................................6,

Oven. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12-24

Baking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

14-17

Broiling, Broiling Guide ....................20, 21

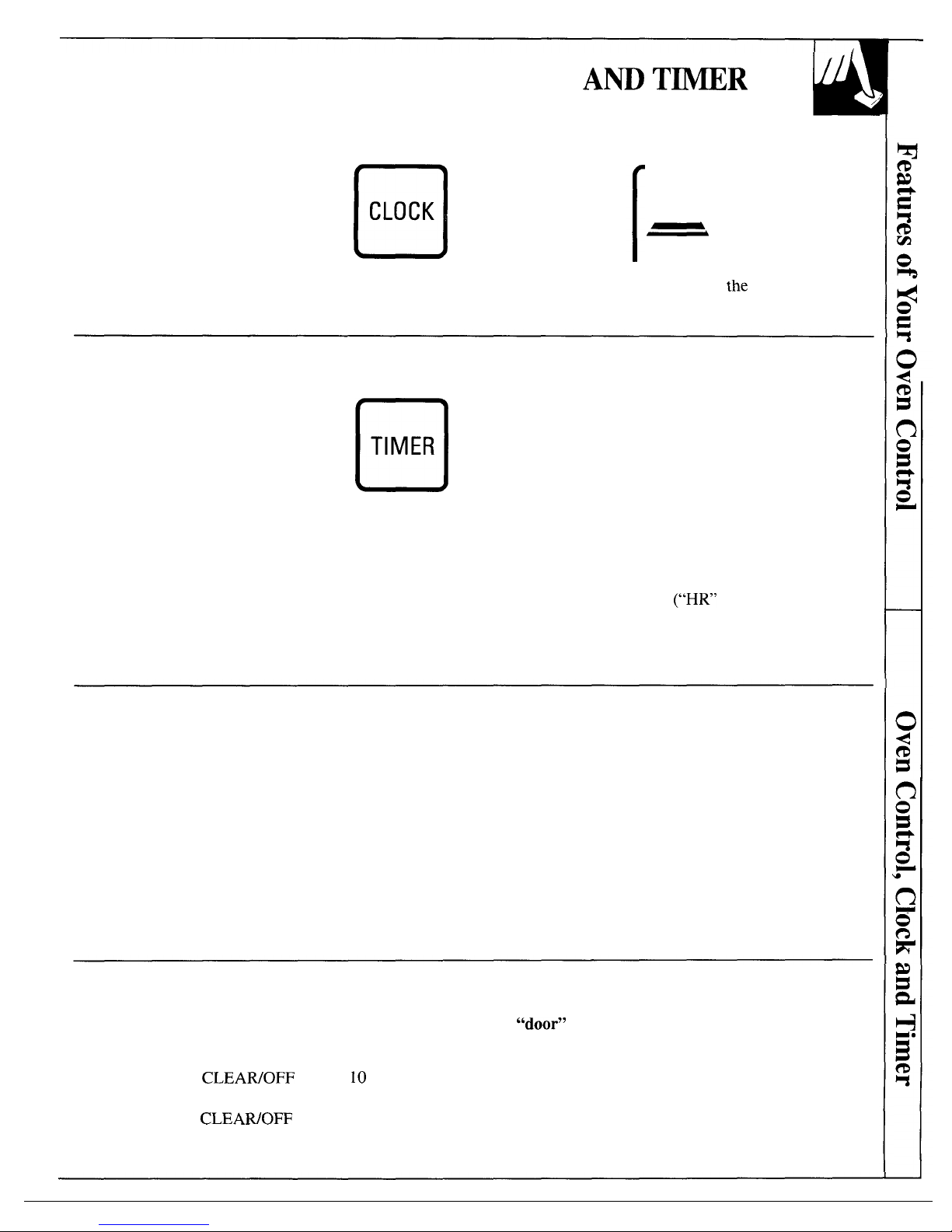

Clock and Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10, 11

Door Latch .............l4, 15, 18,20,22-24

Light; Bulb Replacement . . . . . . . . . . . . . . . . . 13,30

Oven Control ......................................10, 11

Preheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Roasting, Roasting Guide ................l8, 19

Self-Cleaning Instructions ..............22-24

Shelves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12, 16–1 8,29

Thermostat Adjustment .........................13

Surface Cooking .........................................8, 9

Control Settings ..........................................8

Electric

lgnition............................................8

Surface Light; Bulb Replacement 13,32

Care and Cleaning ....................25-32

Broiler Pan and Rack ..........................................29

Burner Assembly .................................25, 26,27

Cooktop..........

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .......27,32

Door Removal

...........,...................................2

Oven Bottom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Oven Vents ........................................5, 13,32

Storage Drawer ............................................3 1

Problem Solver .......................49, 50

More questions

?...call

GE Answer Center” 800.626.2000

preparation .................................33-48

Flame Size ...................................9, 41,48,49

Flooring Under the Range .........................36

Installation Instructions ......................34 -48

Leveling

..........................................................43

Minor Adjustments .....................................33

Consumer Services

...................5l

Appliance Registration ..................................2

Model and Serial Number Location ...........2

Warranty

.......................................,Back

Cover

Models:

JGBP26GEN JGBP34GEP JGBP27GEN JGBP35GEP JGBP31GEP

GE Appliances

Page 2

~LP

YOU...

Read this book carefully.

It is intended to help you operate and maintain your new range

properly. Keep it handy for answers to your

questions. If you don’t understand something

or need more help, write (include your phone number):

Consumer Affairs GE Appliances Appliance Park Louisville, KY 40225

Write down the model and serial numbers.

Depending on your range, you’ll find the model and serial numbers

on a label on the front of the range, behind the kick panel, storage drawer or broiler drawer.

These numbers are also on the Consumer Product Ownership Registration Card that came with your range. Before sending in this card, please write these numbers here:

Model Number

Serial Number

Use these numbers in any correspondence or service calls concerning your range.

If ou received

amaged

range...

Immediately contact the dealer (or builder) that sold you the range.

Save time and money. Before you request service . . .

Check the Problem Solver in the back of this book. It lists causes of minor operating problems that you

can correct yourself.

APPROVEO

YOU NEED SERVICE...

To obtain service, see the Consumer Services page in the back of this book.

To obtain replacement parts, contact

GE/Hotpoint Service Centers.

We’re proud of our service and

want you to be pleased. If for some reason you are not happy with the service you receive, here are three steps to follow for further help.

FIRST, contact the people who

FINALLY, if your problem is still

serviced your appliance. Explain

not resolved, write:

why you are not pleased. In most

Major Appliance Consumer

cases, this will solve the problem.

Action Panel

NEXT, if you are still not pleased,

20 North

Wacker

Drive

write all the details—including

Chicago, IL 60606

your phone number—to:

Manager, Consumer Relations GE Appliances Appliance Park Louisville, KY 40225

WANING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.

—Do not store or use gasoline or other

● Immediately call your gas supplier from a

flammable vapors and liquids in the vicinity

neighbor’s phone. Follow the gas supplier’s

of this or any other appliance.

instructions.

—WHAT TO DO IF YOU SMELL GAS

● If you cannot reach your gas supplier, call

the fire department.

● Do not try to light any appliance.

—InstaUation and service must be performed

● Do not touch any electrical switch; do not

by a qualified installer, service agency or

use any phone in your

buflding.

the gas supplier.

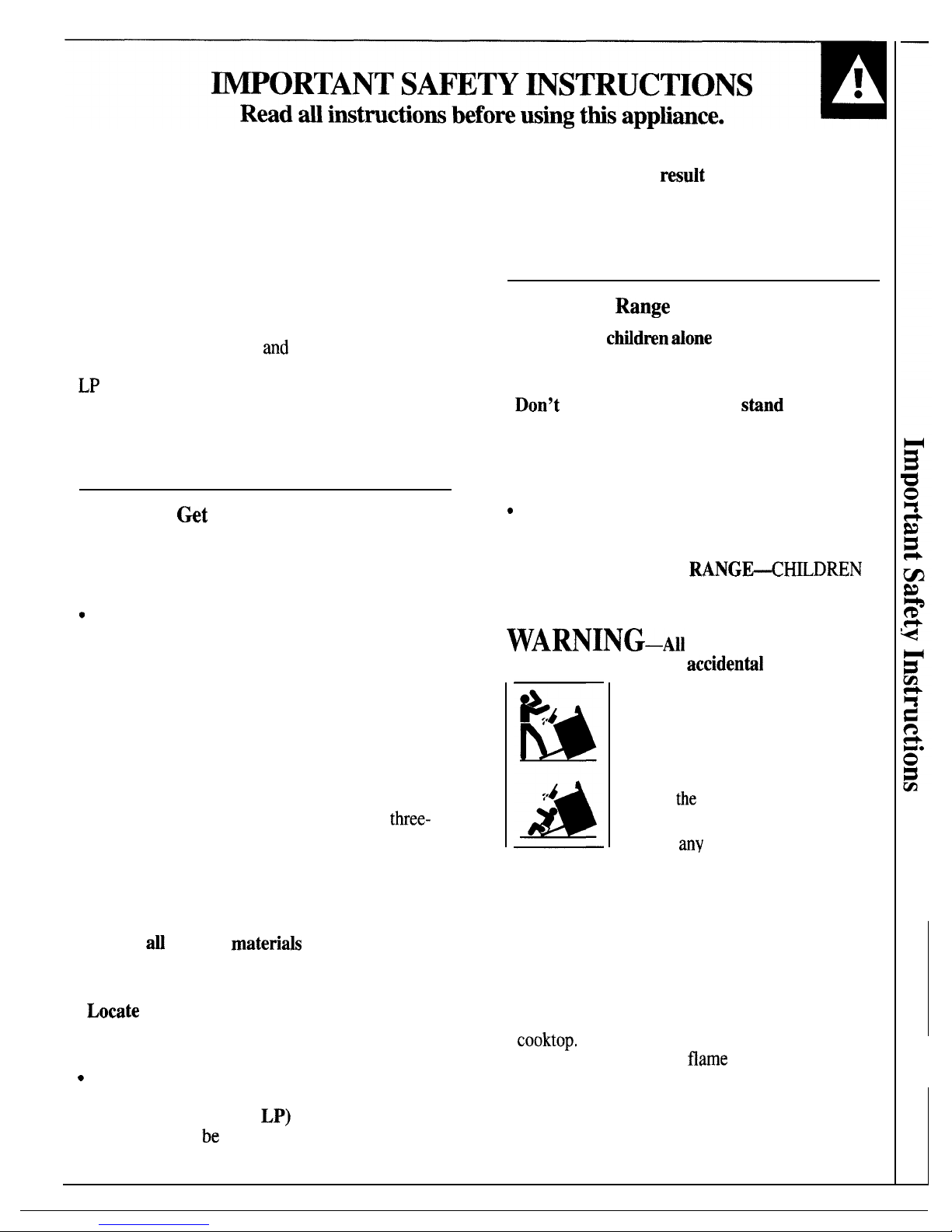

Page 3

IMPORTANT SAFETY NOTICE

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure to such substances.

Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon

monoxide, formaldehyde

and

soot, caused primarily by the incomplete combustion of natural gas or

fuels. Properly adjusted burners, indicated by a bluish rather than a yellow flame, will minimize incomplete combustion. Exposure to these substances can be minimized by venting with an open window or using a ventilation fan or hood.

When You at Your Range

●

Have the installer

show you the location of the range gas cut-off valve and how to shut it off if necessary.

Have your range installed and properly

grounded by a qualified installer, in accordance with the Installation Instructions. Any adjustment and service should be performed only by qualified gas range installers or service technicians.

● Plug your range into a 120-volt grounded

outlet only. Do not remove the round grounding prong from the plug. If in doubt about the grounding of the home electrical system, it is your personal responsibility and obligation to have an ungrounded outlet replaced with a properly grounded,

three-

prong outlet in accordance with the National Electrical Code. In Canada, the appliance must be electrically grounded in accordance with the Canadian Electrical Code. Do not use an extension cord with this appliance.

● Be sure au packing materbds are removed from

the range before operating it to prevent fire or smoke damage should the packing material ignite.

● Locate range out of kitchen traffic path

and out of drafty locations to prevent poor air circulation.

Be sure your range is correctly adjusted by a

qualified service technician or installer for the type of gas (natural or

LP) that is to be used.

Your range can be converted for use with either

type of gas. See Installation Instructions.

● After prolonged use of a range, high floor

temperatures may

result and many floor

coverings will not withstand this kind of use. Never install the range over vinyl tile or linoleum that cannot withstand such type of use. Never install it directly over interior kitchen carpeting.

Using Your

Range

● Don’t leave chtidren

alone

or unattended where a range is hot or in operation, They could be seriously burned.

● Don’t allow anyone to climb,

sbnd

or hang on

the door, storage or broiler drawer (on models

so equipped) or range top. They could damage the range and even tip it over, causing severe personal injury.

“

CAUTION: ITEMS OF INTEREST TO

CHILDREN SHOULD NOT BE STORED IN CABINETS ABOVE A RANGE OR ON THE BACKSPLASH OF A

WNGHHILDREN

CLIMBING ON THE RANGE TO REACH ITEMS COULD BE SERIOUSLY INJURED.

WARNING–A1l

ranges can tip and injur

could result. To prevent accidenhl tipping of the

range, attach an approved Anti-Tip device to the wall. (See Installation Instructions.) To check if the device is installed and engaged properly, carefully tip the range forward. The Anti-Tip device should engage and prevent

the

range from tipping over.

If you pull the range out from the wall for

any

reason, make sure the Anti-Tip device is engaged-when you push the range back against the wall.

● Let burner grates and other surfaces cool

before touching them or leaving them where children can reach them,

● Never wear loose fitting or hanging garments

while using the appliance. Be careful when reaching for items stored in cabinets over the

cooktop,

Flammable material could be ignited if

brought in contact with

flame

or hot oven surfaces

and may cause severe burns.

{continued next page)

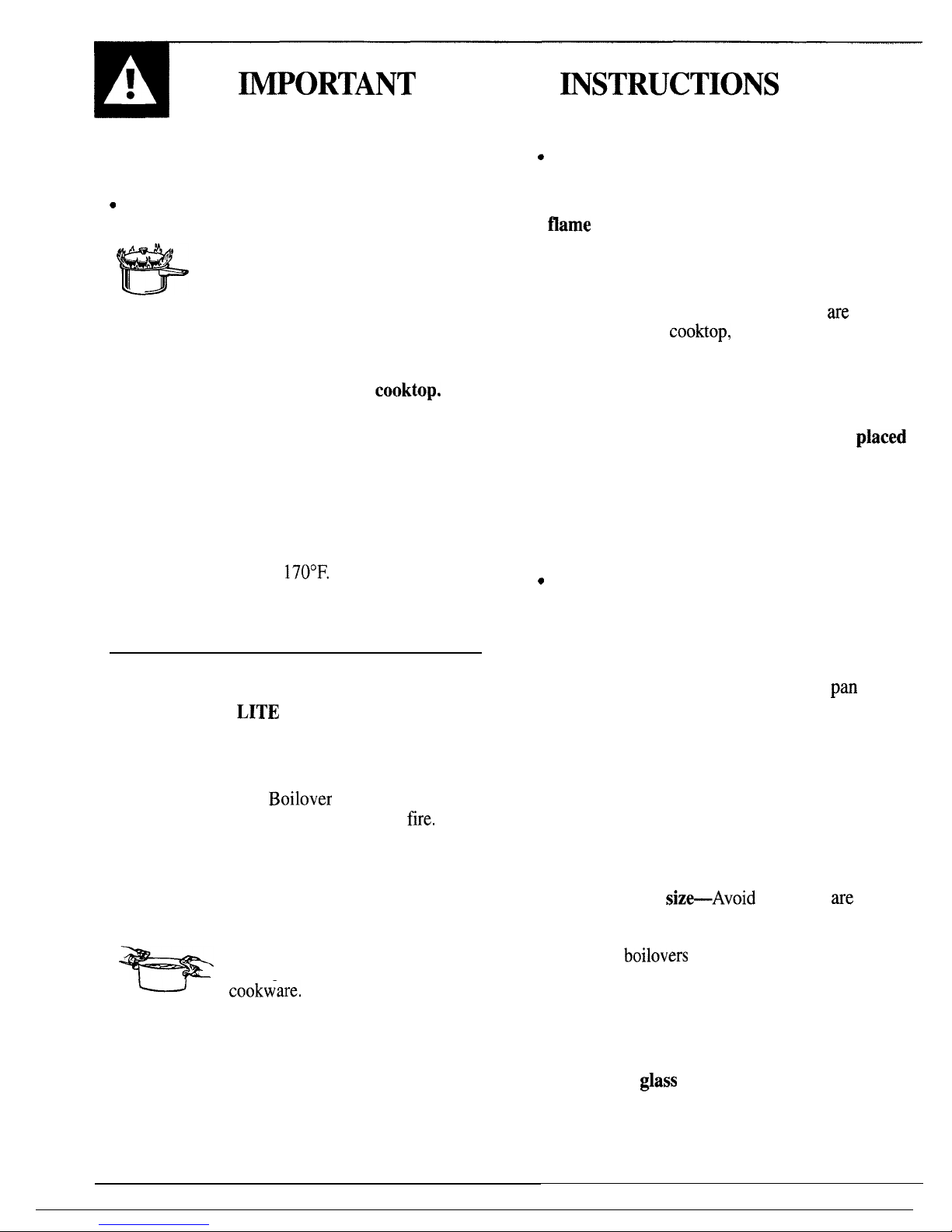

Page 4

WORTANT

SAFETY

~STRUCTIONS

(continued)

● For your safety, never use your appliance for

warming or heating the room.

Do not use water on grease fires. Never pick up

a flaming pan. Turn off burner, then smother

flaming pan by covering pan

“

completely with well-fitting lid, cookie sheet or flat tray. Flaming grease outside

a pan can be put out by covering with baking soda or, if available, a multi-purpose dry chemical or foam-type fire extinguisher.

● Do not store flammable materials in an oven,

a range storage drawer or near a

cooktop.

● Do not store or use combustible materials,

gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

● Do not let cooking grease or other flammable

materials accumulate in or near the range.

● When cooking pork, follow the directions

exactly and always cook the meat to an internal temperature of at least

170°F.

This assures that, in the remote possibility that trichina may be present in the meat, it will be killed and the meat will be safe to eat.

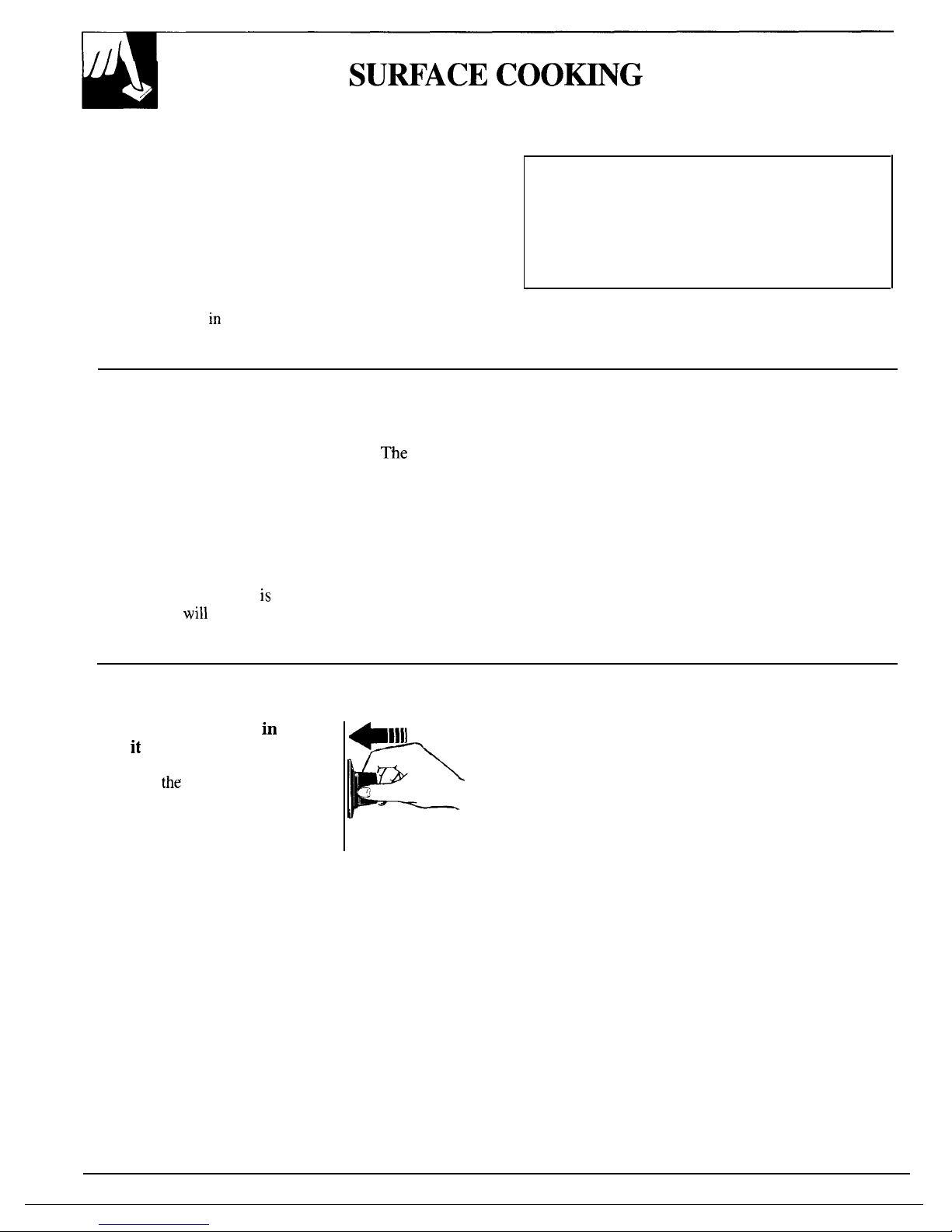

Surface Cooking

● Always use the LITE position when

igniting top burners and make sure the burners have ignited.

● Never leave surface burners unattended at

high flame settings.

Boilover

causes smoking

and greasy spillovers that may catch on

fire.

● Adjust top burner flame size so it does not

extend beyond the edge of the cookware. Excessive flame is hazardous.

● Use only dry pot holders—moist or damp pot

holders on hot surfaces may result in burns from

steam. Do not let pot holders come near open flames when lifting

cookw-are.

Do not use a towel

or other bulky cloth in place of a

pot holder.

● To minimize the possibility of burns, ignition

of flammable materials, and spillage, turn cookware handles toward the side or back of the range without extending over adjacent burners.

Always turn surface burner to OFF before

removing cookware.

● Carefully watch foods being fried at a high

flame setting.

● Never block the vents (air openings) of the

range. They provide the air inlet and outlet that are necessary for the range to operate properly with correct combustion. Air openings

are

located

at the rear of the

cooktop,

at the top and bottom of the oven door, and at the bottom of the range, under the kick panel, storage drawer or broiler drawer (depending on the model).

●

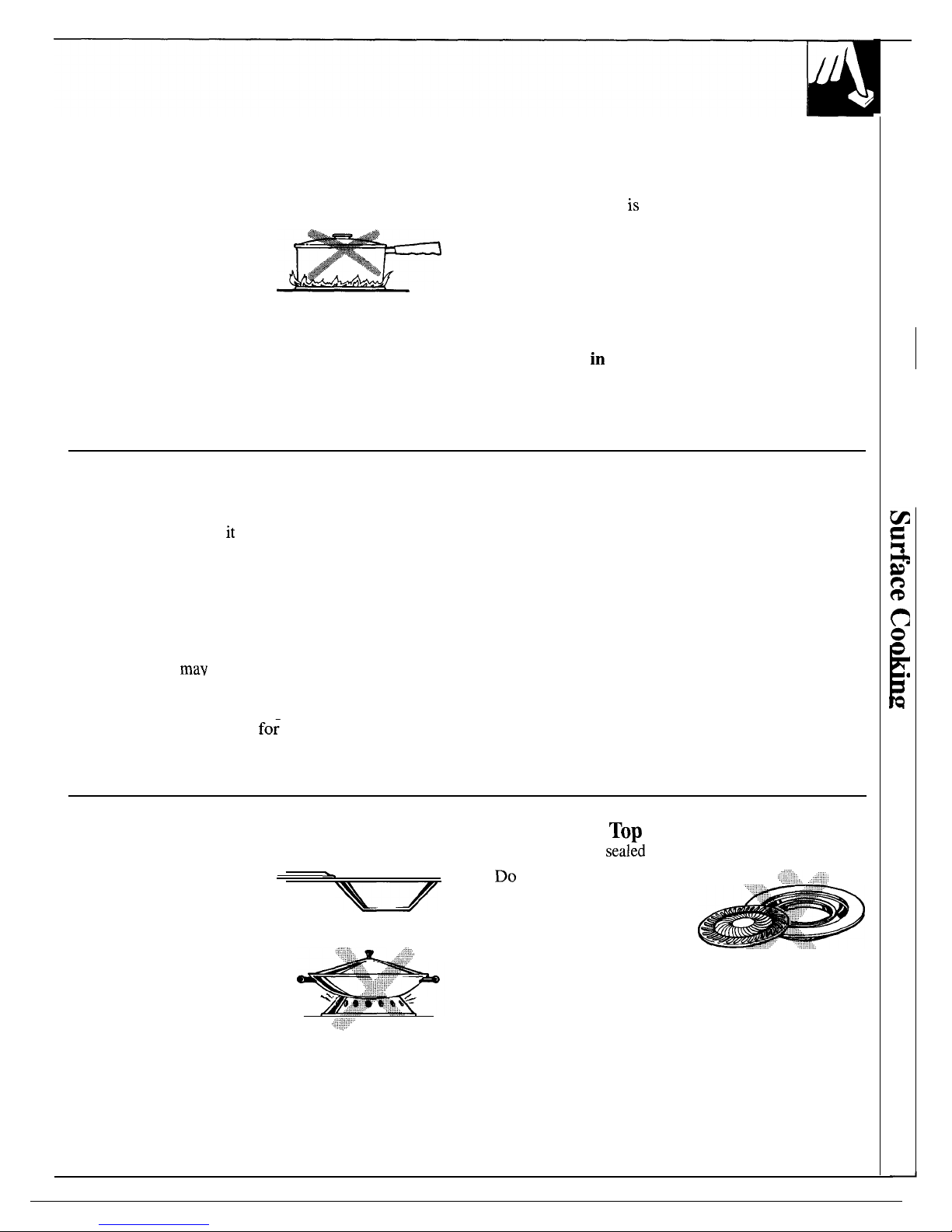

Do not use a wok on models with sealed burners

if the wok has a round metal ring that is placed over the burner grate to support the wok. This ring acts as a heat trap, which may damage the burner grate and burner head. Also, it may cause the burner to work improperly. This may cause a carbon monoxide level above that allowed by current standards, resulting in a health hazard.

Foods for frying should be as dry as possible.

Frost on frozen foods or moisture on fresh foods can cause hot fat to bubble up and over sides of pan.

● Use least possible amount of fat for effective

shallow or deep-fat frying. Filling the

pan

too

full of fat can cause spillovers when food is added.

● If a combination of oils or fats will be used

in frying, stir together before heating or as fats melt slowly.

● Always heat fat slowly, and watch as it heats.

● Use a deep fat thermometer whenever

possible to prevent overheating fat beyond the smoking point.

● Use proper pan

siz+Avoid

pans that

are

unstable or easily tipped. Select cookware having flat bottoms large enough to properly contain food and avoid

boilovers

and spillovers and large enough to cover burner grate. This will both save cleaning time and prevent hazardous accumulations of food, since heavy spattering or spillovers left on range can ignite. Use pans with handles that can be easily grasped and remain cool.

● When using

@ass

cookware, make sure it is

designed for top-of-range cooking.

. Keep all plastics away from top burners.

Page 5

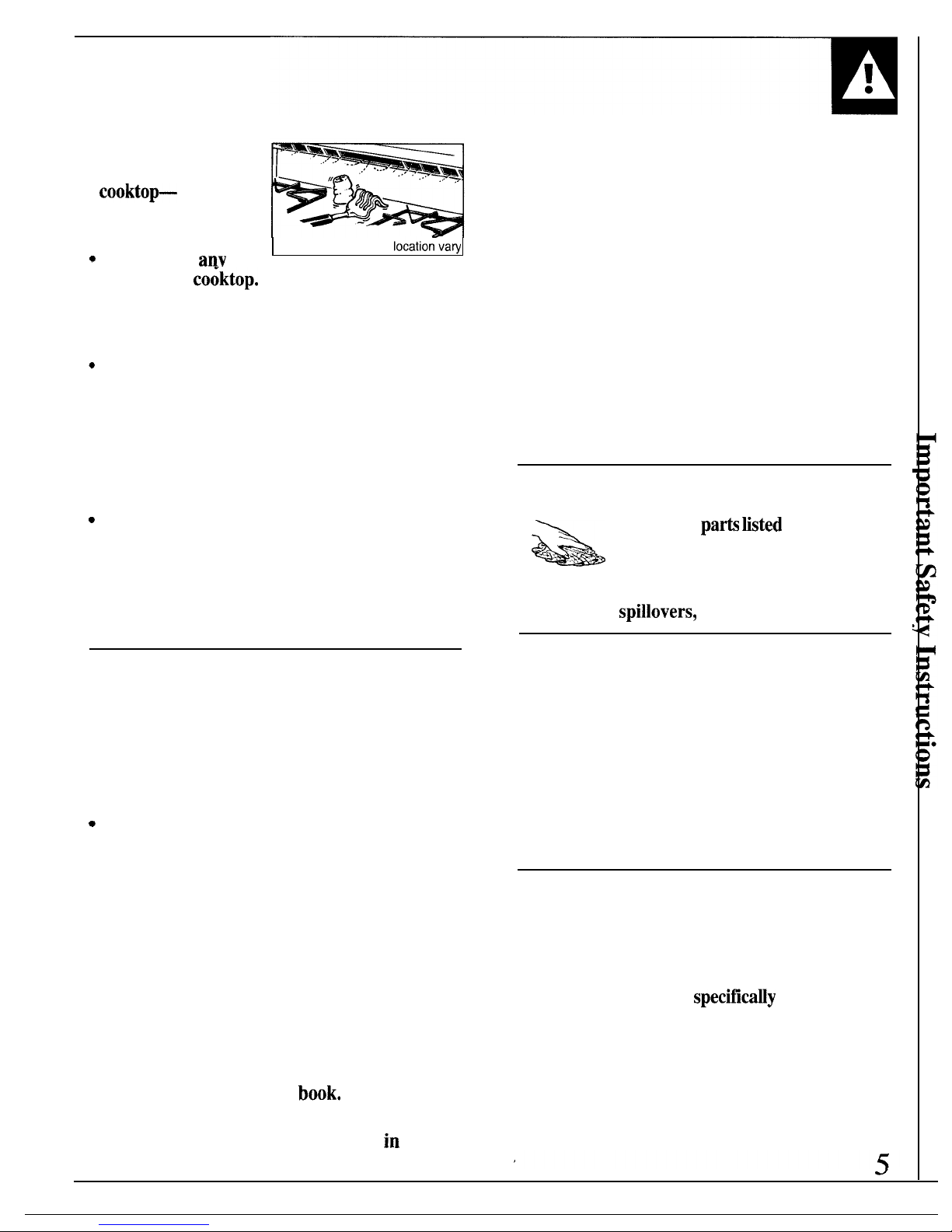

● Do not leave plastic

items on the

cookto~

they may melt if left too close to the vent.

Do not leave anv

Vent appearance and Iocation-vay

items on the codktop. The hot air from the vent may ignite flammable items and will increase pressure in closed containers, which may cause them to burst.

To avoid the possibility of a burn, always be

certain that the controls for all burners are at the OFF position and all grates are cool before attempting to remove them.

● When flaming foods are under the hood, turn

the fan off. The fan, if operating, may spread the flames.

If range is located near a window, do not hang

long curtains that could blow over the top burners and create a fire hazard.

●

If you smell gas, turn off the gas to the range and

call a qualified service technician. Never use an open flame to locate a leak.

Baking, Broiling and Roasting

● Do not use oven for a storage area. Items

stored in the oven can ignite.

● Stand away from the range when opening the

door of a hot oven. The hot air and steam that escape can cause burns to hands, face and eyes.

Keep oven free from grease buildup.

● Place oven shelves in desired position while

oven is cool.

● Pulling out shelf to the shelf-stop is a

convenience in lifting heavy foods. It is also a precaution against burns from touching hot surfaces of the door or oven walls. The lowest position “R” is not designed to slide.

● Don’t heat unopened food containers in the

oven. Pressure could build up and the container could burst, causing an injury.

● Don’t use aluminum foil anywhere in the oven

except as described in this

book,

Misuse could

result in a fire hazard or damage to the range.

● When using cooking or roasting bags in oven,

follow the manufacturer’s directions,

. Use only glass cookware that is recommended

for use in gas ovens.

● Always remove broiler pan from oven as soon

as you finish broiling. Grease left in the pan can catch fire if oven is used without removing the grease from the broiler pan.

● When broiling, if meat is too close to the flame,

the fat may ignite. Trim excess fat to prevent excessive flare-ups.

● Make sure broiler pan is in place correctly to

reduce the possibility of grease fires.

● If you should have a grease fire in the broiler

pan, turn off oven, and keep oven door closed to contain fire until it burns out.

Cleaning Your Range

●

Clean only

pa~ fisted

in this Use

. . .

. . . .

..:s

and Care Guide.

. . . .

. -

● Keep range clean and free of

accumulations of grease or

spillovers,

which may ignite.

Self-Cleaning Oven

● Do not clean door gasket. The door gasket is

essential for a good seal. Care should be taken not to rub, damage or move the gasket.

●

Do not use oven cleaners. No commercial oven

cleaner or oven liner protective coating of any kind should be used in or around any part of the oven.

● Before self-cleaning the oven, remove broiler

pan and other cookware.

If You Need Service

● Read “The Problem Solver” in the back of

this guide.

● Don’t attempt to repair or replace any part of

your range unless it is

specifica~y

recommended in this guide. All other servicing should be referred to a qualified technician.

SAVE THESE

INSTRUCTIONS

Page 6

FEATu~s OF

RANGE

JGBP26GEN

JGBP27GEN

JGBP31GEP

JGBP34GEP

JGBP35GEP

Drip

Pan

(on Some

models)

Burner

Your range is equipped with one of the two types of

surface

burners shown above.

Page 7

Feature Index (Not all models have all features. Appearance of features varies.)

See

page

1 Air Int&e (under storage drawer or kick panel)

4,32

2 Model and Serial Numbers

(on front frame of range, behind storage drawer or kick panel)

3 Anti-Tip Device

3,35,43

(Lower right rear corner on range back. See Installation Instructions.)

4 Removable Oven Door

(easily removed for oven cleaning)

5 Oven Bottom

6 Oven Interior Light 13,30

7 Oven Lamp On/Off Switch 13,30

8 Grates, Drip Pans (on some models) and Surface Burners

25-28

9 Fluorescent Surface Light

10 Oven Control, Clock and Timer

Automatic Oven Timer (turns oven on and off for you automatically) Oven Thermostat Clock Timer (lets you time any kitchen function, even when the oven is in use)

13,32 10, 11

13 10, 11 10, 11

11 Oven Vents

5, 13,32

Cooktop

27,32

13 Surface Light Switch

14 Surface Burner Controls

15 Oven Door Latch

14, 15, 18

(use for Self-Cleaning cycle only)

20,22-24

16 Oven Shelves

12, 16-18

(easily removed or repositioned on shelf supports)

17 Oven Shelf Supports

18 Oven Gasket

5,22,28

19 Air Vent in Oven Door (top of oven door)

4, 13,32

20 Storage Drawer or Kick Panel (depending on model)

21 Broiler Pan and Rack

5,20,29

Page 8

SUWACE COOmG

Electric Ignition

Your surface burners are lighted by electric ignition, eliminating the need for standing pilot lights with

The electrode of the spark igniter is exposed.

constantly burning flames.

When one burner is turned to LITE, all the burners

In case of a power failure, you can light the surface

spark. Do not attempt to disassemble or clean

burners on your range with a match. Hold a lighted

around any burner while another burner is on. An electric shock may result, which could cause

match

to the burner, then turn the knob to the LITE

position,

Use extreme caution when lighting burners

you to knock over hot cookware.

this way. Surface burners

use when an electrical power

failure

occurs will continue to operate normally.

Surface Burner Controls

Before Lighting a Burner

Knobs that turn the surface burners on and off are

● If drip pans are supplied with your range, they

marked as to which burners they control.

The

two

should be used at all times. knobs on the left control the left front and left rear burners. The two knobs on the right control the right

● Make sure the grates on the range are in place

front and right rear burners.

before using either burner.

On ranges with sealed burners:

●

The smaller burner (right rear position) will give the

best simmer results.

●

The right front burner is higher powered than the

others and

will

bring liquids to a boil quicker

(natural gas installations only).

To Light a Surface Burner

Push the control knob in and turn

to LITE. You will hear

a little “clicking” noise—the

sound of

the

electric spark

igniting the burner. After the burner ignites, turn the

knob to adjust the flame size.

+1!11

After Lighting a Burner

● Check to be sure the burner you turned on is the one

you want to use.

● Do not operate a burner for an extended period

of time without cookware on the grate. The finish on the grate may chip without cookware to absorb the heat.

● Be sure the burners and grates are cool before you

place your hand, a pot holder, cleaning cloths or other materials on them.

Page 9

How to Select Flame Size

Watch the flame, not the knob, as you reduce heat. The flame size on a gas burner should match the

cookware you are using. FOR SAFE HANDLING OF

COOKWARE NEVER LET THE FLAME EXTEND UP THE SIDES OF THE COOKWARE. Any flame larger than the bottom of the cookware is wasted and only serves to heat the handle.

When boiling, use this same flame size—1/2 inch smaller than the bottom of the cookware-no matter what the cookware

made of. Foods cook just as quickly at a gentle boil as they do at a furious, rolling boil. A high boil creates steam and cooks away moisture, flavor and nutrition. Avoid it except for the few cooking processes that need a vigorous boil.

When frying or warming foods in stainless steel, cast iron or enamelware, keep the flame down lower—to about 1/2 the diameter of the pan.

When using aluminum or aluminum-clad stainless

When frying

glass or ceramic cookware, lower

steel pots and pans, adjust the flame so the circle it

the flame even more.

makes is about 1/2 inch smaller than the bottom of the cookware.

Top-of-Range Cookware

Aluminum: Medium-weight cookware is

Heatproof Glass Ceramic: Can be used for either

recommended because it heats quickly and evenly. Most foods brown evenly in an aluminum skillet. Use

surface or oven cooking. It conducts heat very

slowly and cools very slowly. Check cookware

saucepans with tight-fitting lids when cooking with

manufacturer’s directions to be sure it can be used

minimum amounts of water.

on gas ranges.

Cast-Iron: If heated slowly, most skillets will give

Stainless Steel: This metal alone has poor heating

satisfactory results.

properties and is usually combined with copper,

Enamelware: Under some conditions, the enamel of

aluminum or other metals for improved heat

some cookware

mav

melt. Follow cookware

distribution. Combination metal skillets usually work

manufacturer’s recommendations for cooking methods.

satisfactorily if they are used

Glass: There are two types of glass cookware-those

manufacturer recommends.

for oven use only and those

fo;

top-of-range cooking (saucepans, coffee and teapots). Glass conducts heat very slowly.

with medium heat as the

Wok Cooking

(on models with sealed burners)

● We recommend that you

use only a flat-bottomed wok. They are available at your local retail store.

● Do not use woks that have

!~~& ,:i:/;:

support rings. Use of these types of woks, with or

without the ring in place, can be dangerous. Placing the

~~!”;’:”

ring over the burner grate may cause the burner to work improperly resulting in carbon monoxide levels above allowable current standards. This could be dangerous to your health. Do not try to use such woks without the ring. You could be seriously burned if the wok tipped over.

Use of Stove

ToP

Grills

(on models with seal;d burners)

not use stove top grills

~~~:;:,: .;:;;[,

on your sealed gas burners. If you use the stove top grill on the sealed gas burner it will cause incomplete combustion and can result in exposure to carbon monoxide levels above allowable current standards. This can be hazardous to your health.

Page 10

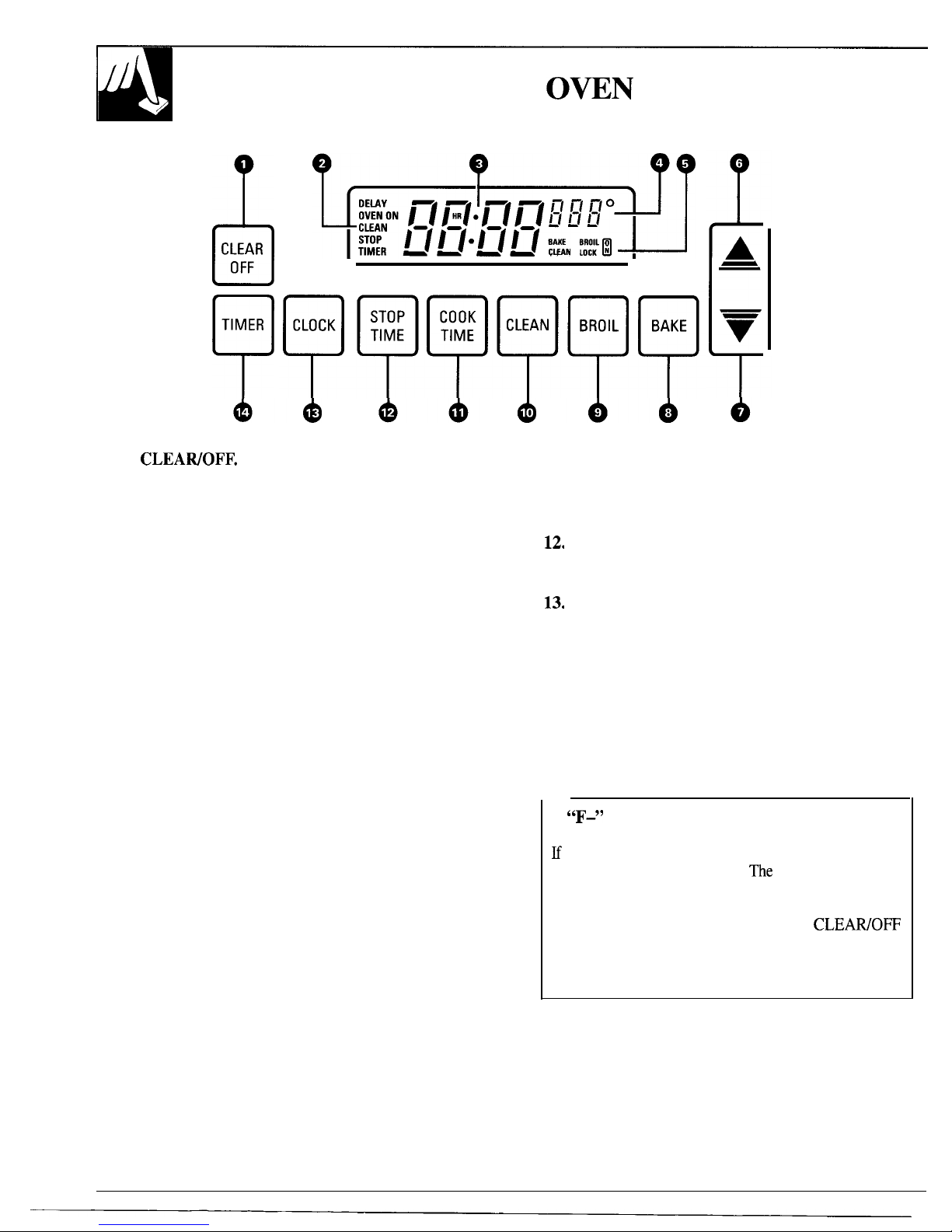

FEATURES OF YOUR

OWN

CONTROL

CLEAR

OFF

TIMER

Q-w]

●

BAKE BROIL o

CMN

LOCK N ,

1. CLEAWOFF. Press this pad to cancel all oven operations except clock and timer.

2. PROGRAM STATUS. Words light up in the display to indicate what is in time display.

Programmed information can be displayed at any time by touching the pad of the operation you want to see. For example, you can display the current time of day while the timer is counting down by pressing the CLOCK pad.

3. TIME DISPLAY. Shows the time of day, the times set for the timer or automatic oven operation.

4. OVEN TEMPERATURE AND BROIL DISPLAY. Shows the oven temperature or the broil setting selected.

5. FUNCTION INDICATORS. Lights up to show whether oven is in bake, broil or self-clean mode.

6. INCREASE. Short taps to this pad increase time or temperature by small amounts. Press and hold pad to increase time or temperature by larger amounts.

7. DECREASE. Short taps to this pad decrease time or temperature by small amounts. Press and hold pad to decrease time or temperature by larger amounts.

8. BAKE. Press this pad to select bake function.

9. BROIL. Press this pad to select broil function.

10. CLEAN. Press this pad to select self-cleaning function. See Self-Cleaning Instructions.

11. COOK TIME. Press this pad for Time Bake operations.

12.

13.

14.

STOP TIME. Use this pad along with COOK TIME or CLEAN pad to set the oven to start automatically at a time you select.

CLOCK. To set clock, first press CLOCK pad. Then press the INCREASE or DECREASE pad to change the time of day. Press the CLOCK pad to start.

TIMER. Press this pad to select timer function. The timer does not control oven operations. The timer can time up to 9 hours and 55 minutes.

To set timer, first press TIMER pad. Then press the INCREASE or DECREASE pad to change the time.

“F-”

and a number flash on display and the control beeps, this indicates function error code.

function error code appears during the self-cleaning

cycle, check oven door latch.

The

latch handle may have been moved, even if only slightly, from the latched position. Make sure the latch is moved to the right as far as it will go. Press the

CLEAWOFF

pad. Allow oven to cool for one hour. Put oven back into operation. If function error code repeats, disconnect power to the range and call for service.

Page 11

OVEN CONTROL, CLOCK

Am T~R

Clock

To Set the Clock

The clock must be set for the automatic oven timing functions to work properly. The time of day cannot be changed during a TIME BAKE or CLEAN cycle.

Step 1:

Press the

CLOCK pad.

CLOCK

Step 2: Press

INCREASE or DECREASE pad to

set the time of day.

Step 3: Press

the

CLOCK pad

to start.

Timer To Set the Timer

The timer is a minute timer; it does not control oven operations. The maximum setting on the timer is 9 hours and 55 minutes.

Step 1:

Press the

TIMER pad.

TIMER

Step 2: Press INCREASE or

DECREASE pad to set the amount of time on timer.

The timer will start automatically within a few seconds of releasing the pad.

The timer, as you are setting it, will display seconds until 60 seconds is reached.

Then it will display minutes and seconds until 60 minutes is reached.

After 60 minutes, it will display hours

(“HR”

now appears in display) and minutes until the maximum time of 9 hours and 55 minutes is reached.

To Reset Timer To Cancel Timer

Power Outage?

Press TIMER pad and then press Press TIMER pad until the word After a power outage, when power

INCREASE or DECREASE pad

“TIMER” quits flashing on the is restored, the display will flash

until the time you want shows on

display (about 4 seconds).

and time shown will no longer be

the display.

correct-for example, after a 5-minute power interruption the clock will be 5 minutes slow.

The display flashes until the clock

is reset. All other functions that were in operation when the power went out will have to be programmed again.

End of Cycle Tones

Display Messages

The end of cycle tone is a series of three beeps

If “door” appears on the display, the door latch

followed by one beep every six seconds. If you would

handle is not moved all the way to the right.

Move the

like to remove the signal that beeps every six seconds,

latch handle and cleaning will start. If “LOCK”

press and hold the

CLEAWOFF pad for 10 seconds.

appears on the display, the oven door is in the locked

To return the signal that beeps every six seconds,

position. BAKE, BROIL and COOK TIME cannot be

press and hold the

CLEAWOFF pad for 10 seconds.

set if the door is in the locked position.

Page 12

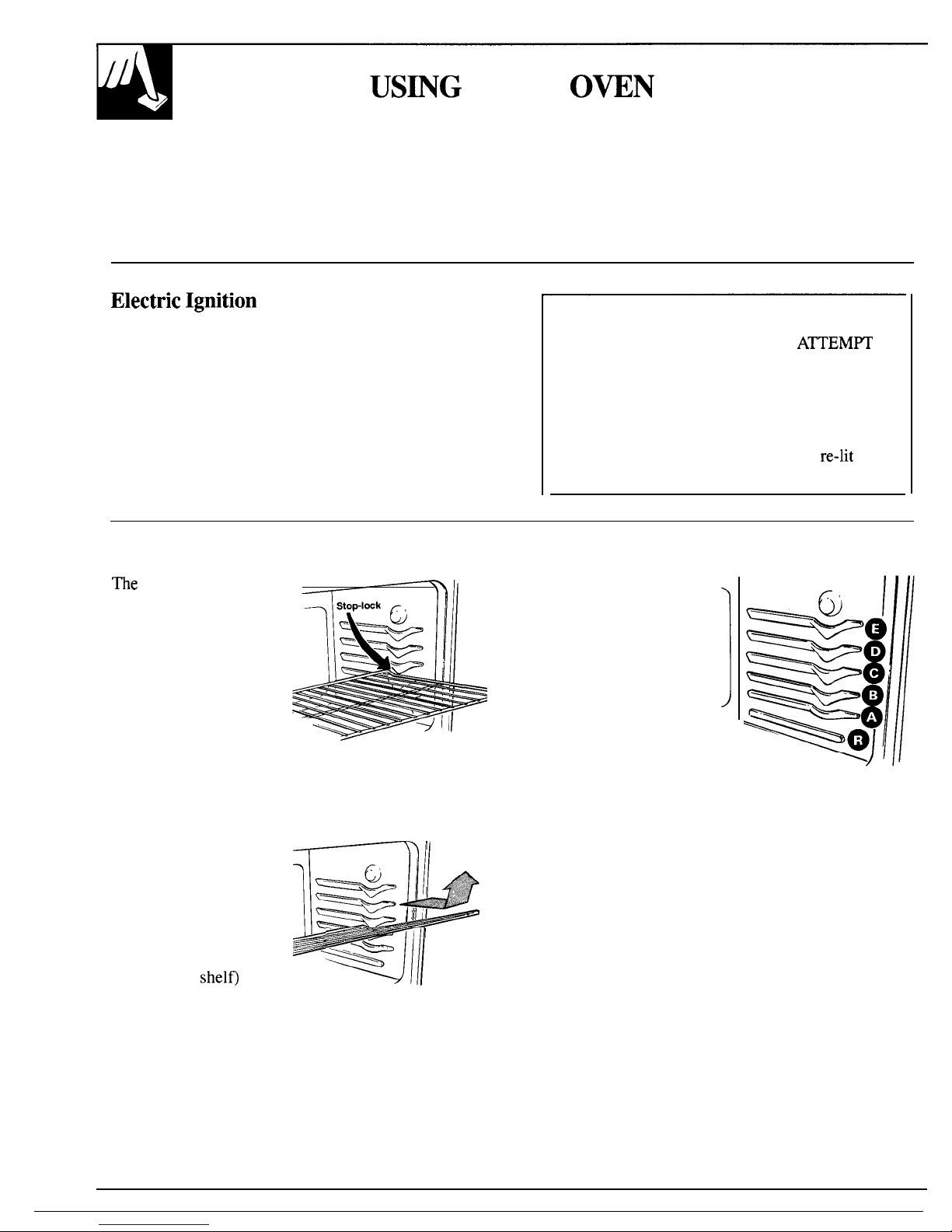

USmG

YOUR

OWN

Before Using Your Oven

Be sure you understand how to set the controls properly. Practice removing and replacing the shelves while the oven is cool. Read the information and tips on the following pages. Keep this book handy where you can refer to it, especially during the first weeks of using your new range.

Mlectrlc lgnltlon

The oven burner and

broil burner are lighted by

electric ignition.

light either burner,

press the pad for the desired function then press the INCREASE or DECREASE pad until the desired temperature is displayed. The burner should ignite within 30-90 seconds.

After the oven reaches the selected temperature, the oven burner cycles—off completely, then on with a full flame-to keep the oven temperature controlled.

Power Outage

CAUTION: DO NOT MAKE ANY

ATTEM~

TO OPERATE THE ELECTRIC IGNITION OVEN DURING AN ELECTRICAL POWER FAILURE. The oven or broiler cannot be lit during a power failure. Gas will not flow unless the glow bar is hot.

If the oven is in use when a power failure occurs, the oven burner shuts off and cannot be

re-lit

until

power is restored.

Oven Shelves

The

shelves are designed with stop-locks so when placed correctly on the shelf supports, they will stop before coming completely out of the oven and will not tilt when you are removing food from them or placing food on them.

remove a shelf

from the oven, pull it toward you, tilt front end upward and pull shelf out.

replace,

place shelf on shelf support with stop-locks (curved

extension of shelo

facing up and toward rear of oven. Tilt up front

Shelf Positions

The oven has five shelf supports for normal baking and roasting identified in this illustration as A (bottom), B, C, D and E (top). It also has a special low shelf

)

position (R) for roasting

extra large items, such

When placing cookware on a shelf, pull the shelf out

as a large turkey—the

to the “stop” position. Place the cookware on the

shelf is not designed to

shelf, then slide the shelf back into the oven. This will

slide out at this position.

eliminate reaching into the hot oven.

Shelf positions for cooking are suggested on Baking

“

—$

and Roasting pages.

,f$~;t

/%@

I !

41/

and push shelf toward back of oven until it goes past “stop” on oven wall. Then lower front of shelf and push it all the way back.

Page 13

Oven Moisture

As your oven heats up, the temperature change of the air in the oven may cause water droplets to form on the door glass. These droplets are harmless and will evaporate as the oven continues to heat up.

Oven

Ven@

The oven is vented through duct openings at the rear of the cooktop. See Features section. Do not block these openings when cooking in the oven—it is important that the flow of hot air from the oven and fresh air to the oven burners be uninterrupted.

● The vent openings and

nearby surfaces may

; ‘“’,; ~

‘

.-.’ ,.. ~+

become hot. Do not touch them.

~>~~

‘“

.-*

. Do not leave plastic

Vent appearance and location

vay+

items on the

cooktop

they may melt if left too close to the vent.

● Handles of pots and pans on the cooktop may

become hot if left too close to the vent.

“

Metal items will become very hot if they are left

on the cooktop and could cause burns.

Do not leave any items on the cooktop. The hot air

from the vent may ignite flammable items and will increase pressure in closed containers, which may cause them to burst.

Suflace Light

Oven Light

Use the switch on the upper control panel to turn the

The oven light comes on automatically when the door

surface light on and off.

is opened. Some models have a switch on the lower control panel that allows you to turn the light on or off when the door is closed.

Adjusting Oven

Themostat

When cooking a food for the first time in your new

oven, use time given on recipes as a guide. Oven thermostats, over a period of years, may “drift” from the factory setting, and differences in timing between an old and a new oven of 5 to 10 minutes are not

unusual. You may be inclined to think that the new

oven is not performing correctly; however, your new oven has been set correctly at the factory and is more likely to be accurate than the oven it replaced.

If you think the oven should be hotter or cooler, you can adjust it yourself. To decide how much to change the thermostat, set the oven temperature

25°F.

higher or lower than the temperature in your recipe, then bake. The results of this “test” should give you an idea of how much the thermostat should be changed.

To adjust thermostat:

1. Press the BAKE pad.

Select an oven temperature between

500°F.

and

550°F.

3. Immediately, before BAKE indicator stops flashing, press and hold the BAKE pad for about 4 seconds. The red display will change to the oven

adjustment display.

4. The oven thermostat can be adjusted up to

(+) 35°F.

hotter or (-)

35°F.

cooler. Use the

INCREASE or DECREASE pads to select the

desired change in the red display.

5. When you have made the adjustment, press the

CLEAWOFF pad to go back to the time of day

display. Use your oven as you would normally.

NOTE: This adjustment will not affect Broil or

Clean temperatures. It will be remembered when

power is removed.

Page 14

BA~G

Your oven temperature is controlled very accurately using an oven control system. We recommend that you operate the range for a number of weeks to become familiar with your new oven’s performance. If you think an adjustment is necessary, see the Using Your Oven or Minor Adjustments section.

How to Set Your Range for Baking

Step 2: Press the INCREASE or DECREASE pad

Do not lock the oven door with the door latch

until desired temperature is displayed.

during baking. This is used for self-cleaning only.

When the oven starts to heat, the word “ON” and the

To avoid possible burns, place the shelves in the

changing temperature, starting at

100°F.,

will be

displayed. When the oven reaches the temperature

correct position before you turn the oven on.

you set, a tone will sound.

Step 1:

Press the BAKE pad.

To change oven temperature during

BA~

cycle,

BAKE

press

BA~

pad and then INCREASE or DECREASE

pad to get new temperature.

Step

Press the

CLEAWO~

pad

CLEAR

when baking is finished.

OFF

How to Set Immediate Start and Automatic Stop

The oven turns on right away, cooks for preset length

Step

3: Press BAKE pad. Attention tone will occur if

of time, and turns off automatically at the selected

step 3 is not done.

Stop Time.

Step 4: Press INCREASE or DECREASE pad until

To avoid possible burns, place the shelves in the

desired temperature is displayed.

correct position before you turn the oven on.

When the oven starts to heat, the word “ON” and the

COOK

TIME

Step 1: Press COOK TIME pad.

changing temperature, starting at

100°F.,

will be displayed. When the oven reaches the temperature you set, a tone will sound. The oven will continue to cook for the programmed amount of time, then shut off automatically.

Step 5: Remove food from the oven. Remember, even

Step 2: Press INCREASE pad until

though oven shuts off automatically, foods continue

the desired length of baking time

cooking after controls are off.

appears in the display.

NOTE: Foods that spoil easily such as milk, eggs, fish, stuffings, poultry and pork should not be allowed to sit out for more than one hour before or after cooking. Room temperature promotes the growth of harmful bacteria. Be sure that the oven light is off because heat from the bulb will speed harmful bacteria growth.

Page 15

The oven control allows you to turn the oven on or

To set the clock, first press the CLOCK pad.

off automatically at specific times that you set.

“TIME” will flash in the display. Press INCREASE or

NOTE: Before beginning make sure the oven clock

DECREASE pad until correct time of day is displayed.

shows the correct time of day.

Press the CLOCK pad to start.

Do not lock the oven door with the door latch during time baking. This is used for self-cleaning only.

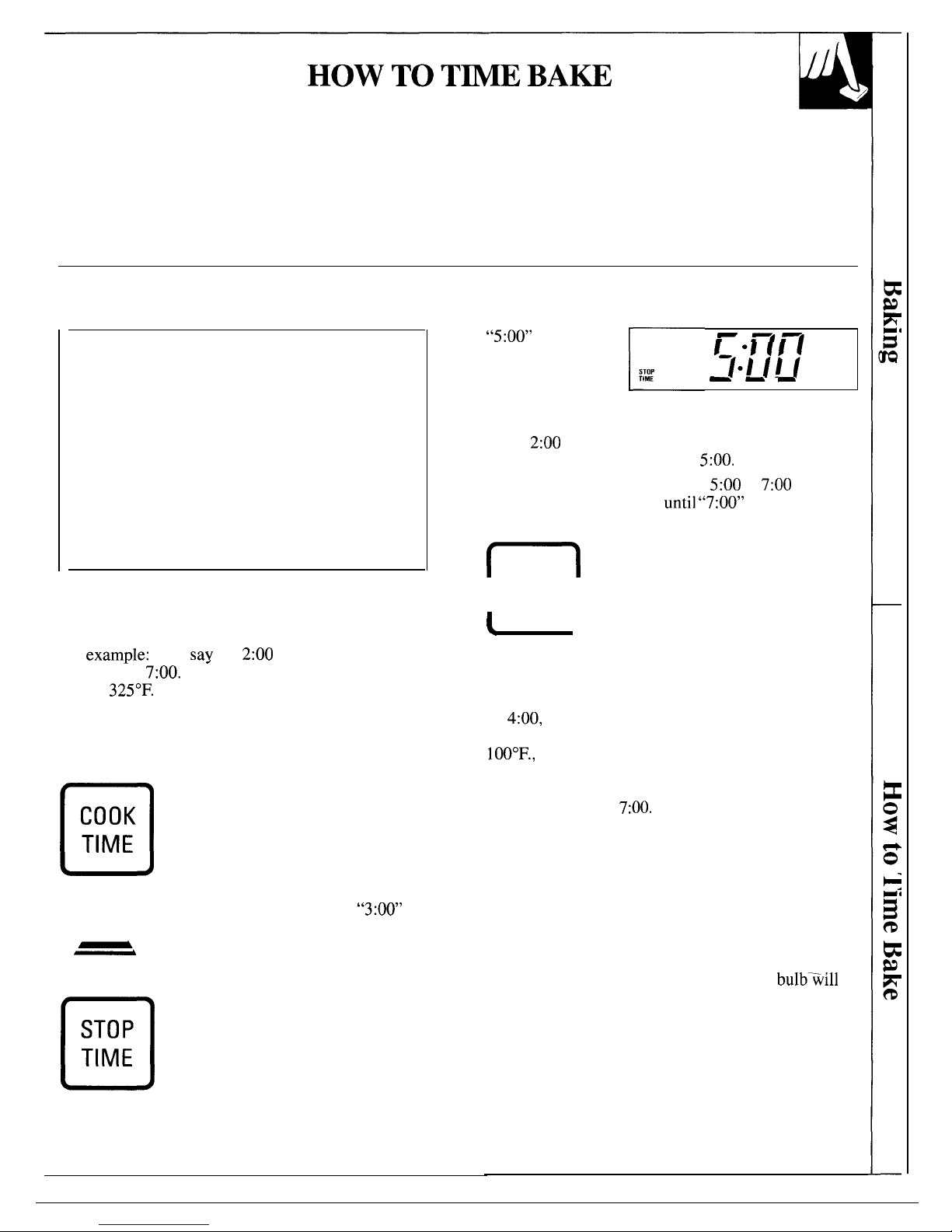

How to Set Delay Start and Stop

Quick Reminder:

1. Press COOK TIME pad.

2. Press INCREASE/ DECREASE pad to set cooking time.

3. Press STOP TIME pad.

4. Press INCREASE/ DECREASE pad until desired Stop Time appears in display.

5. Press BAKE pad.

6. Press INCREASE/ DECREASE pad to select

oven temperature.

Delay Start and Stop is setting the oven timer to turn the oven on and off automatically at a later time than the present time of day.

For

exam~le:

Let’s

sav

it’s

2:00

and dinner time is

shortly after

7:00.

The recipe suggests 3 hours baking

time at

325°F.

Here’s how:

To avoid possible burns, place the shelves in the correct position before you set Delay Start.

Step 1:

Close the oven door.

COOK

TIME

STOP TIME

Step 2: Press COOK TIME pad.

Step 3: For 3 hours of cooking time,

press INCREASE pad until

“3:00”

appears in the display.

Step 4: Press STOP TIME pad.

“5:00”

appears on the display and “STOP TIME”

~g[

flashes. The control

“J /1

(“l (Ll

.-$.-

.- —

automatically sets Stop Time by adding the Cook Time to the time of day. In this example, the time of day is

2:00

and the Cook Time is 3 hours. Adding 3

hours to the time of day equals

5:00.

Step 5: Change Stop Time from

5:00

7:00

pressing INCREASE pad

until “7:00”

appears in

the display.

Step 6: Press BAKE pad.

BAKE

(

Step 7: Press INCREASE pad. The last oven set

temperature appears in the display. Press INCREASE or DECREASE pad until “325°” is displayed.

4:00,

the oven will turn on automatically. The

word “ON” and the changing temperature, starting at

100°F.,

will be displayed. When the oven reaches the temperature you set, a tone will sound. The oven will continue to cook for the programmed 3 hours and shut off automatically at

7:00.

Step 8: Remove food from the oven. Remember, even though oven shuts off automatically, foods continue cooking after controls are off.

NOTE: When setting your oven for a Delay Start, never let foods that spoil easily such as milk, eggs, fish, stuffings, poultry and pork sit out for more than one hour before or after cooking. Room temperature promotes the growth of harmful bacteria. Be sure that the oven light is off because heat from the

bulb%ill

speed harmful bacteria growth.

Page 16

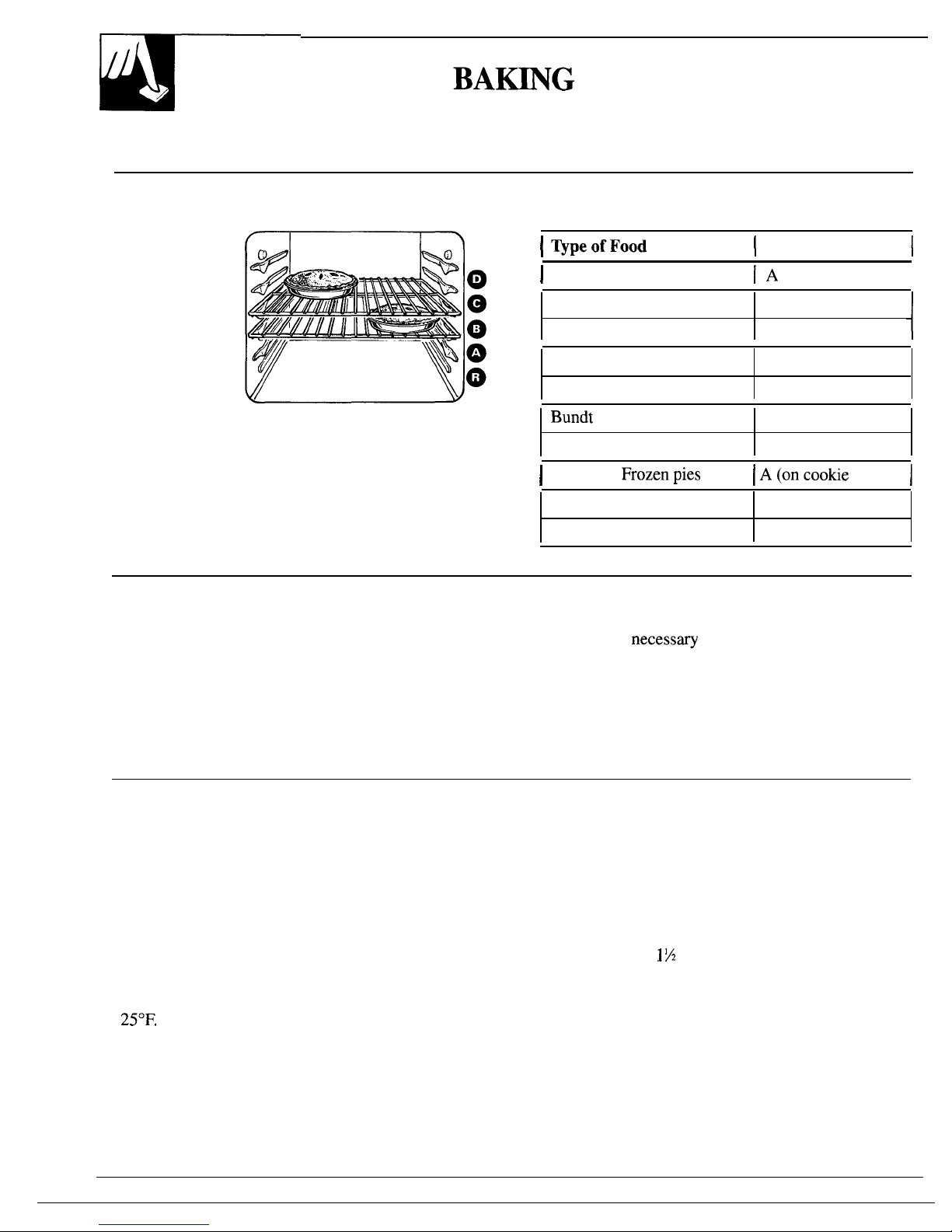

BA~G

(continued)

For best baking results, follow these suggestions:

Oven Shelf

Arrange the oven

shelf or shelves in the desired locations while

the oven is cool. The correct shelf

position depends on the kind of food and the

browning desired. As a general rule, place most foods in the middle of the oven, on either the second or third shelf from the bottom. See the chart for suggested shelf positions.

I ~peofFood

Shelf Position

Angel food cake

Biscuits or muffins

B or C

Cookies or cupcakes

B or C

Brownies

B or C

Layer cakes

B or C

Bundt

or pound cakes

A or B

Pies or pie shells

B or C

Frozenpies

I A(oncookie

sheet)

Casseroles

B or C

Roasting

A or B

Preheating

Preheat the oven if the recipe calls for it. Preheat means bringing the oven up to the specified temperature before putting in the food. To preheat, the oven at the correct temperature—selecting a

higher temperature does not shorten preheat time.

Preheating is

necess~

for good results when baking

cakes, cookies, pastry and breads. For most casseroles

set

and roasts, preheating is not necessary. For ovens

without a preheat indicator light or tone, preheat 10 minutes. After the oven is preheated place the food in the oven as quickly as possible to prevent heat from escaping.

Baking Pans

Use the proper baking pan. The type of finish on the pan determines the amount of browning that will occur.

● Dark, rough or dull pans absorb heat resulting in a

browner, crisper crust. Use this type for pies.

● Shiny, bright and smooth pans reflect heat, resulting

in a lighter, more delicate browning. Cakes and cookies require this type of pan.

● Glass baking dishes also absorb heat. When baking

in glass baking dishes, lower the temperature by

25°F.

and use the recommended cooking time in the recipe. This is not necessary when baking pies or casseroles.

Pan Placement

For even cooking and proper browning, there must be enough room for air circulation in the oven. Baking results will be better if baking pans are centered as much as possible rather than being placed to the front or to the back of the oven.

Pans should not touch each other or the walls of the oven. Allow 1 to

k inch space between pans as well as from the back of the oven, the door and the sides. If you use two shelves, stagger the pans so one is not directly above the other.

Page 17

Baking Guides

When using prepared baking mixes, follow package recipe or instructions for best baking results.

When baking cookies, flat cookie sheets (without

sides) produce better-looking cookies. Cookies baked in a jelly roll pan (short sides all around) may have darker edges and pale or light browning may occur.

Do not use a cookie sheet so large that it touches the walls or the door of the oven.

For best results, use only one cookie sheet in the oven at a time.

9 0

Pies

Cakes

For best results, bake pies in dark, rough or dull pans

When baking cakes, warped or bent pans will cause to produce a browner, crisper crust. Frozen pies in foil uneven baking results and poorly shaped products. pans should be placed on an aluminum cookie sheet A cake baked in a pan larger than the recipe for baking since the shiny foil pan reflects heat away recommends will usually be crisper, thinner and drier from the pie crust; the cookie sheet helps retain it. than it should be. If baked in a pan smaller than

recommended, it may be undercooked and batter may

overflow. Check the recipe to make sure the pan size

used is the one recommended,

Aluminum Foil

Never cover a shelf entirely with a large cookie sheet or aluminum foil. This will disturb the heat circulation and results in poor baking. A smaller sheet of foil may be used to catch a

spillover

by placing it

on a lower shelf several inches below the food.

Don’t Peek

Set the timer for the estimated cooking time and do

DO NOT open the door to check until the minimum

not open the door to look at your food. Most recipes

time. Opening the oven door frequently during

provide minimum and maximum baking times such

cooking allows heat to escape and makes baking

as “bake 30-40 minutes.”

times longer. Your baking results may also be affected.

Page 18

Do not lock the oven door with the door latch

during roasting. This is used for self-cleaning only.

Roasting is cooking by dry heat. Tender meat or poultry can be roasted uncovered in your oven. Roasting temperatures, which should be low and steady, keep spattering to a minimum.

The oven has a special low shelf (R) position just above the oven bottom. Use it when extra cooking space is needed, for example, when roasting a large turkey. The shelf is not designed to slide out at this position.

ROAST~G

BAKE

Roasting is really a baking procedure used for meats. Therefore, oven controls are set for

BA~

or TIME

BAKE. (You may hear a slight clicking sound,

indicating the oven is working properly.) Roasting

is easy; just

follow these steps:

Step 1:

Place the shelf

in A or B position for

small size roasts (3 to

lbs.)

and R position for larger roasts. No preheating is necessary.

Step

Check the weight of the meat. Place the meat

fat-

side-up,or

poultry breast-side-up, on roasting rack in

shallow pan. The melting fat will baste the meat. Select a pan as close to the size of the meat as possible. (Broiler pan with rack is a good pan for

this.) Line broiler pan with aluminum foil-when using pan for marinating, cooking with fruits, cooking heavily cured meats, or basting food during cooking. Avoid spilling these materials inside the oven or

inside the oven door.

For Frozen Roasti

● Frozen roasts of beef, pork, lamb, etc., can be started

without thawing, but allow 10 to 25 minutes per pound additional time (10 minutes per pound for roasts under 5 pounds, more time for larger roasts).

● Thaw most frozen poultry before roasting to ensure

even doneness. Some commercial frozen poultry can be cooked successfully without thawing. Follow directions given on package label.

Step

Press the BAKE pad.

Step 4: Press INCREASE or DECREASE pad until desired temperature is displayed.

When the oven starts to heat, the word “ON” and the changing temperature, starting at

100°F.,

will be displayed. When the oven reaches the temperature you set a tone will sound.

To change oven temperature during roasting, press the

BAKE

~ad

and

then”INCREASE ~r

DECREASE pad

to get new temperature.

CLEAR

OFF

Step 5: Press the CLEAWOFF pad when roasting is finished and then remove food from oven.

Step 6:

N40st

meats continue to cook slightly while

standing, after being removed from the

overi.

Standing time recommended for roasts is 10 to 20 minutes. This allows roasts to firm up and makes them easier to carve. Internal temperature will rise about 5° to

10°F.;

to compensate for temperature

increase, if desired, remove the roast from oven

sooner (at 5° to

10°F.

less than temperature in the

Roasting Guide). NOTE: You may wish to TIME BAKE, as described

in the Baking section of this book, to turn oven on and

off automatically.

Remember that food will continue to cook in the hot

oven and therefore should be removed when the

desired internal temperature has been reached.

Dual Shelf Cooking

This allows more than one food to be cooked at the

same time. For example: While roasting a 20 lb.

turkey on shelf (R) a second shelf maybe added on

position D so that scalloped potatoes can be cooked

at the same time. Calculate the total cooking time to

enable both dishes to complete cooking at the same

time. Allow 15-20 minutes of additional cooking time

for the potatoes.

Page 19

Questions and Answers

Q. Is it necessary to check for doneness with a

Q. Do I need to preheat my oven each time I cook a

meat thermometer?

roast or poultry?

A. Checking the finished internal temperature at the

completion of cooking time is recommended. Temperatures are shown in Roasting Guide. For roasts over 8 lbs., check with thermometer at

half-

hour intervals after half the time has passed.

Q. Why is my roast crumbling when I try to

carve it?

A. Roasts are easier to slice if allowed to cool 10 to

20 minutes after removing from oven. Be sure to cut across the grain of the meat.

A. It is unnecessary to preheat your oven. Q. When buying a roast, are there any special tips

that would help me cook it more evenly?

A. Yes. Buy a roast as even in thickness as possible,

or buy rolled roasts.

Q. Can I seal the sides of my foil “tent” when

roasting a turkey?

A. Sealing the foil will steam the meat. Leaving it

unsealed allows the air to circulate and brown the meat.

~pe

Meat

Tender cuts; rib, high quality sirloin tip, rump or top

round~

Lamb leg or bone-in

shouldert

Veal shoulder, leg or

loin~

Pork loin, rib or

shoulder~

Ham, precooked

Poultry Chicken

or Duck

Chicken pieces Turkey

ROAST~G GU~E

Oven

Temperature

325°

325° 325° 325°

325° 350°

325°

Doneness

Rare: Medium: Well Done: Rare: Medium: Well Done: Well Done: Well Done: To Warm:

Well Done: Well Done:

Well Done:

Approximate Roasting Time in Minutes per Pound

3 to 5 lbs.

6 to 8 lbs.

2635

18-25 35-39 22-31 3945 31-33 21-25 20-23 25-30

2428

30-35

28-33

3545

3040 3545 3040 18–23 minutes

per pound (any

weight

3 to 5 lbs. Over 5 lbs. 3540 30-35 3540

10 to 15

Ibs.

Over 15

Ibs

16-22

12-19

Internal

temperature

‘F.

140°–1500* 150°–160” 170°–1850 140°–1500* 150°–1600 170°–1850 1700–1 80° 170°–1800 115°–1250

185°–1900 185°–1900

In thigh:

185°–1900

~For

boneless rolled roasts over 6 inches thick, add 5 to 10 minutes per pound to times given above.

*The U.S. Department of Agriculture says “Rare beef is popular, but you should know that cooking it to only

140°F.

means

some food poisoning organisms may survive.” (Source: Safe Food Book. Your Kitchen Guide. USDA Rev. June 1985.)

Page 20

Broiling is cooking food by intense radiant heat from the upper unit in the oven. Most fish and tender cuts of meat can be broiled. Follow these steps to keep spattering and smoking to a minimum.

The oven door should be closed during broiling. Do not lock the oven door with the door latch during broiling. This is used for self-cleaning only.

Step 1: If meat has fat or gristle near edge, cut

vertical slashes through both about 2“ apart. If desired, fat maybe trimmed, leaving layer about

1/8” thick.

Step

Place meat on broiler rack in broiler pan. Always use rack so fat drips into broiler pan; otherwise juices may become hot enough to catch fire.

Step

Position

shelf on recommended shelf position

as suggested in Broiling Guide.

Step

Close the oven door.

Step 5: Press BROIL pad.

Step 6: Select LO Broil

(450°F.)

by tapping

INCREASE pad once. Select HI Broil

(550°F.)

tapping INCREASE pad twice. To change from HI Broil to LO Broil, press the

BROIL pad then tap DECREASE pad once. Step 7: Turn food only

once during cooking. Time foods for first side per Broiling Guide.

Turn food, then use

times given for second

side as a guide to preferred doneness.

(Where two thicknesses

and times are given together, use first times given for thinnest food.)

Step 8: When broiling is completed press the

CLEAWOFF pad. Serve food immediately, and

leave pan outside oven to cool during meal for easiest cleaning.

Use of Aluminum Foil

You can use aluminum foil to line your broiler pan and broiler rack. However, you must mold the foil tightly to the rack and cut slits in it just like the rack.

Without the slits, the foil will prevent fat and meat juices from draining to the broiler pan. The juices could become hot enough to catch on fire. If you do not cut the slits, you are frying, not broiling.

Questions & Answers

Q. When broiling, is it

necessag

to always use a rack

in the pan?

A. Yes. Using the rack suspends the meat over the

pan. As the meat cooks, the juices fall into the pan, thus keeping meat drier. Juices are protected by the rack and stay cooler, thus preventing excessive

spatter and smoking.

Q. Should I salt the meat

before broiling?

A. No. Salt draws out the juices and allows them to

evaporate. Always salt after cooking. Turn meat with tongs; piercing meat with a fork also allows

juices to escape. When broiling poultry or fish,

brush each side often with butter.

Q. Do I need to grease my

broiler rack to prevent meat from sticking?

A. No. The broiler rack is designed to reflect broiler

heat, thus keeping the surface cool enough to prevent meat from sticking to the surface. However, spraying the broiler rack lightly with a vegetable cooking spray before cooking will make clean up easier.

Why are my meats not turning out as brown as

they should?

A. Check to see if you are using the recommended

shelf position. Broil for longest period of time indicated in the broiling Guide. Turn food only once during broiling.

Page 21

1. Always use broiler pan and rack that comes with

5. When arranging food on pan, do not let fatty

your oven. It is designed to minimize smoking and

edges hang over sides, which could soil oven with

spattering by trapping juices in the shielded lower

fat dripping.

part of the pan.

6. Broiler does not need to be preheated. However,

2. Broiling should always be done with the oven

for very thin foods, or to increase browning,

door closed.

preheat if desired.

3. For steaks and chops, slash fat evenly around

7. Frozen steaks can be broiled by positioning the

outside edges of meat. To slash, cut crosswise

oven shelf at next lowest shelf position and

through outer fat surface just to the edge of the

increasing cooking time given in this guide 1

meat. Use tongs to turn meat over to prevent

times per side.

piercing meat and losing juices.

4. If desired, marinate meats or chicken before broiling or brush with barbecue sauce last 5 to 10 minutes only.

Quantity

arstior

Shelf

HI or

First Side

Food

Second Side

Thickness

Position LO Broil

Time, Minutes Time, Minutes

Bacon

1/2

lb. (about 8

thin slices)

Ground Beef

lb. (4 patties)

Well Done 1/2 to 3/4 inch tbick

10-11

4-5

Beef Steaks

Rare 1 inch thick

Medium

(1 to 1X

lbs.)

5-6

Well Done

8-9

Rare

inch thick

Medium

(2 to 2X

lbs.)

6-7

12-15

10-12

Well Done

16-18

Chicken

1 whole

30-35

25-30

(2 to 2%

Ibs.),

split lengthwise

Bakery

Prothscw

Bread (Toast) or

2 to 4 slices

Toaster Pastries

2-3

1/2-1

pkg. (2)

English Muffins

2 (split)

3-5

Lobster Tails

2-4

13-16

not

(6 to 8 oz. each) turn over.

Fish

l-lb. fillets

1/4

1/2 inch thick

Ham Slices

inch thick

(precooked) Pork Chops

2 (1/2

inch thick)

Well Done

2(1 inch thick)

4-5

9-12

about 1 lb.

Lamb Chops

Medium

2(1 inch thick)

4-7

Well Done

about 10 to 12 oz.

Medium

2(1 k inch thick)

4-6

Well Done

about 1 lb.

B 17

12-14

Wieners

and similar

l-lb. pkg. (10)

HI 6

1-2 precooked sausages, bratwurst

Arrange in single layer,

Space evenly. Up to 8 patties take about same time.

Steaks less than 1 inch thick cook through before browning. Pan frying is recommended. Slash fat.

Reduce time about 5 to 10 minutes per side for cut-up chicken. Brush each side with melted butter. Broil skin-side-down first and broil with door closed.

Space evenly. Place English muffins cut-side-up and brush with butter, if desired.

Cut

through back of shell. Spread open. Brush with melted butter before and after half

broiling time.

Handle and turn very carefully, Brush with lemon butter before and during

cooking if desired. Preheat broiler to

increase browning. Increase time 5 to 10 minutes per side

for 1

inch thick or home cured ham,

Slash

fat.

Slash fat

If desired, split sausages in half lengthwise; cut into 5-to 6-inch pieces.

Page 22

OPEMT~G

THE SELF-CLEANING

OWN

Normal Cleaning Time: 4 hours

Before a Clean Cycle

Quick Reminder:

1. Prepare the oven for cleaning.

2. Close and latch the oven door.

3. Press the CLEAN pad.

4. Press the INCREASE pad.

m M ~ “~~

If you wish to change preset clean time of 4

hours;

press the

DECREASE pad until

desired stop time appears in the display.

Step 1:

Remove the broiler pan, broiler rack, all

cookware and

anv

aluminum foil from the

oven—thev

cannot withstand the high cleaning temperatures. (Oven shelves may be left in oven.

NOTE:

Shelves

will discolor after the self-clean cycle.)

Step 2: Wipe up heavy soil on the oven bottom,

A. Oven Front Frame B. Oven Door Gasket C. Oven Light

Step

3: Clean spatters or spills on the oven front frame

(A) and

only

that area on the oven door that is outside the gasket (B). Do not clean the gasket. Use detergent and hot water with a soap-filled steel wool pad, then rinse well with a vinegar and water mixture. This will help prevent a brown residue from forming when the oven is heated. Buff these areas with a dry cloth. Never use a commercial oven cleaner in or around the

self-

cleaning oven.

How to Set Oven for Cleaning

Step 1:

Follow steps above to prepare the oven

for cleaning.

Step

Close the oven door and slide the latch handle

to the right as far as it will go.

Never force the door latch handle. Forcing the handle may damage the door lock mechanism.

Step 3: Press the CLEAN pad. Step 4: Press the INCREASE or

CLEAN DECREASEpaduntil desired Clean

Time is displayed.

● Clean top, sides and outside front of oven door with

soap and water. Do not use abrasives or oven cleaners.

● Do not rub or clean the door gasket

(B)—the

fiberglass material of the gasket has an extremely low resistance to abrasion. An intact and well-fitting oven door gasket is essential for energy-efficient oven operation and good baking results. If you notice the gasket becoming worn, frayed or damaged in any way or if it has become displaced on the door, you should have it replaced.

Step 4: Close and latch the door. Make sure the oven

light (C) is off.

Oven shelves may be cleaned in the self-cleaning oven. However, they will darken, lose their luster and become hard to slide. Wipe the shelf supports with cooking oil after self-cleaning to make shelves slide more easily.

Caution: Drip pans should never be cleaned in the

self-cleaning oven. Do not use commercial oven cleaners or oven

protectors in or near the self-cleaning oven. A

combination of any of these products plus the high clean cycle temperatures may damage the porcelain finish of the oven.

Important

The oven door must be closed and latched and all controls must be set correctly for the clean cycle to work properly.

Clean Time is normally 4 hours. You can change the Clean Time to anywhere between 2 and 4 hours, depending on how dirty the oven is. The self-clean cycle will automatically begin within a few seconds after the word “CLEAN” is displayed and the word “ON” appears on the display. When the oven heats to a high temperature, the word “LOCK” will be displayed and, a short time later, the door latch handle will be locked in position. It will not be possible to open the oven door until the temperature drops below the lock temperature.

Step

5: When the LOCK light is off, slide the latch

handle to the left as far as it will go and open the door.

Page 23

After a Clean Cycle

When the clean cycle is finished, the word “CLEAN”

After a clean cycle, you may notice some white ash in

will go out in the display and the oven will begin to

the oven. Just wipe it up with a damp cloth. If white

cool. When the oven temperature has fallen below the

spots remain, remove them with a soap-filled steel wool

locking temperature the word “LOCK” goes out and

pad. Be sure to rinse thoroughly with a vinegar and

the door can be opened.

water mixture. These deposits are usually a

sdt

residue

that cannot be removed by the clean cycle. If the oven is not clean after one clean cycle, the cycle

may be repeated.

How to Delay Start of Cleaning

Delay Start is setting the oven timer to start the clean cycle automatically at a later time than the present time of day. NOTE: Before beginning, make sure the oven clock shows the correct time of day.

Quick Reminder—Delay Start for Self-Clean:

1. Prepare the oven for cleaning.

2. Close and latch the oven door.

3. Press the CLEAN pad.

4. Press the INCREASE pad. If you wish to change preset clean time of 4 hours, touch the

INCREASE~ECREASE pad until desired

time appears.

5. Press the STOP TIME pad.

Time that appears is 4 hours later than the time of day. Press the INCREASE pad until the Stop Time you desire appears in the display. The self-clean cycle will automatically begin 4 hours before the Stop Time you select.

For example: Let’s say it’s

7:00

and you want the

oven to begin self-cleaning at

9:00

after you’re

finished in the kitchen. The oven has been preset to

clean for four hours.

Step 1: Prepare the oven for cleaning. Step

Close the oven door and slide the latch handle to the right as far as it will go. Make sure the oven light is off.

Step 3: Press the CLEAN pad.

CLEAN

Step

Press the INCREASE pad.

The oven is set,

Step

Clean Time is preset for 4 hours. You can change the Clean Time to anywhere between 2 and 4 hours, depending on how dirty the oven is. If a shorter

Clean Time is desired, press the DECREASE pad until desired Clean Time is displayed.

Step 6: Press the STOP TIME pad.

STOP

“11

:00”

appears on display and “STOP

TIME” flashes. The control

TIME automatically sets

Stop

Time by

adding the Clean Time to the time of day. In this example, the time of

day

7:00

and the Clean Time is 4 hours: Adding 4 hours to the time of day equals 1 1:00.

Step 7: Change Stop Time from

11:00

to 1

:00

by pressing the INCREASE pad until “1:00” appears in the display. The words “DELAY CLEAN” will also appear in the display.

The self-clean cycle will automatically begin at

9:00

and finish at 1

:00.

The word “ON” will appear on the

display at

9:00.

When the oven locks, the word “LOCK” will be displayed and a short time later, the door latch handle will be locked in position. It will not be possible to open the oven door until the temperature drops below the lock temperature.

When the clean cycle is finished, the word “CLEAN” will go out in the display and the oven will begin to cool. When the oven temperature has fallen below

the locking temperature the word “LOCK” goes out and the door can be opened.

Step

8: When the LOCK light is off, slide the latch

handle to the left as far as it will go and open the door.

Never force the latch handle. Wait until the word “LOCK” goes out in the display. Forcing the latch handle may damage the door lock.

(continued next page)

Page 24

OPEWT~G T~ SELF-CLEA~G OWN

(continued)

Questions and Answers Q.

If my oven clock is not working, can I still self-

clean my oven?

A. If the clock is not working then the entire control is

not working. If the clock is not set to the correct time of day you will not be able to set a delay clean to end at a specific time.

Q. Can I use commercial oven cleaners on any part

of my self-cleaning oven?

A. No cleaners or coatings should be used around any

part of this oven. If you do use them and do not thoroughly rinse the oven with water, wiping it absolutely clean afterwards, the residue can scar the oven surface and damage metal parts the next time the oven is automatically cleaned.

Q. What should I do if excessive smoking occurs

during cleaning?

A. This is caused by excessive soil. Press the

CLEAWOFF pad. Open windows to rid room

of smoke. Wait until the oven has cooled (about 20-30 minutes) and the word “LOCK” is off in the display. Wipe up the excess soil and reset the clean cycle.

Q. Is the “crackling” sound I hear during

cleaning normal?

A. Yes. This is the sound of the metal heating

and cooling during both the cooking and cleaning functions.

Q. Should there be any odor during the cleaning?

A. Yes, there maybe a slight odor during the

first

few cleanings. Failure to wipe out excessive soil might also cause a strong odor when cleaning.

Q. What causes the hair-like lines on the enameled

surface of my oven?

A. This is a normal condition, resulting from heating

and cooling during cleaning. These lines do not affect how your oven performs.

Q. Why

do I have ash left in my oven after cleaning?

A. Some types of soil will leave a deposit which is

ash. It can be removed with a damp sponge or cloth.

Q. My oven shelves do not slide easily. What is

the matter?

A. After many cleanings, oven shelves may become

so clean they do not slide easily. To make shelves slide more easily, after each self-cleaning function dampen fingers with a small amount of cooking oil and rub lightly over sides of shelf where they contact shelf supports.

Q. My oven shelves have become gray after the

self-clean cycle. Is this normal?

A. Yes. After the self-clean cycle, the shelves may

lose some luster and change to a deep gray color.

Q. The word “door” appeared on the display when

I selected the Clean Cycle. What is wrong?

A. The door latch handle must be moved all the way

to the right. Move the latch handle and cleaning will

stti.

Page 25

Proper care and cleaning are important so your range will give you efficient

and satisfactory service. Follow these directions carefully in caring for it to

help assure safe and proper maintenance.

BE SURE ELECTRICAL POWER IS DISCONNECTED BEFORE

CLEANING ANY PART OF YOUR RANGE.

—

Sealed Burner Assemblies

(on some models)

Dual Burners

(on some models)

CAUTION: DO NOT OPERATE THE BURNER WITHOUT ALL BURNER PARTS AND DRIP PANS (IF SO EQUIPPED) IN PLACE.

Grate

Burner Cap

-(u 8

\,\

.—.

Burner Base

The burner assemblies should be washed regularly and, of course, after

spillovers.

Turn all controls OFF before removing burner parts and drip pans (if so equipped).

The burner grates, caps, burner heads and drip pans (if so equipped) can be lifted off, making them easy to

clean.

The electrode of the

Electrode

spark igniter is exposed. When one burner is turned to

LITE,

all the burners””

—

spark. Do not attempt to disassemble or clean around any burner while another burner is on. An electric shock may result, which could cause you to knock over hot cookware.

~Grate

On models with dual burners, the

cooktop

lifts up for

easy access. The holes in the surface burners of your range must

be kept clean at all times for proper ignition and an even, unhampered flame.

You should clean the surface burners routinely, especially after bad

spillovers,

which could clog these

holes. Wipe off surface burners. If heavy

spillover

occurs, remove the surface burners from range. Burners lift out for cleaning. Lift up the

cooktop

and

then lift out the surface burners. To remove burned-on food, soak the surface burner in

a solution of mild liquid detergent and hot water. Soak the surface burner for 20 to 30 minutes. For more stubborn stains, use a cleanser like Soft

Scrub”

brand

or Bon

Ami@

brand. Rinse well to remove any traces of the cleanser that might clog the surface burner openings. Do not use steel wool because it will clog the surface burner openings and scratch the surface burners. If the holes become clogged, clean them with a toothpick.

Before putting the surface burner back, shake out excess water and then dry it thoroughly by setting it in a warm oven for 30 minutes. Then place it back in the range, making sure it is properly seated and level.

(continued next page)

Page 26

CAm Am

CLEANING

(continued)

Burner

Caps

(on sealed burners only)

Lift off when cool. Wash burner caps in hot, soapy water and rinse with clean water. If desired, so& up to 30 minutes and scour with a plastic scouring

pad

to remove burned-on food particles. Dry them in a warm oven or with a cloth—don’t reassemble them wet.

Range Burner Heads

(on sealed burners

only)

The holes in the burners of your range, and the spark electrodes, must be kept clean at all times for proper ignition and an even, unhampered flame.

You should clean the burner heads routinely, especially after bad

spillovers,

which could clog these holes.

Wipe off burner heads. If heavy

spillover

occurs,

remove burner heads from range. Remove the burner grate and burner cap. Then lift the

burner head straight up. To remove burned-on food, soak the burner head

upside-down in a solution of mild liquid detergent and hot water. Soak the burner head for 20 to 30 minutes. If the food doesn’t rinse off completely, scrub it with soap and water and a brush or plastic scouring pad.

For more stubborn stains, use a cleanser like Soft

Scrub@

brand or Bon

Ami@

brand. Rinse well to remove any traces of the cleanser that might clog the burner openings. Do not use steel wool because it will clog the burner openings and scratch the burners. If the holes become clogged, clean them with a toothpick.

Do not clean the burner head in the self-cleaning oven. Before putting the burner head back, shake out excess

water and dry it thoroughly by setting it in a warm oven for 30 minutes. Then place it back in the range, making sure the pin in the burner base goes in the hole in the burner head, and that the burner heads are

properly seated and level.

Range Burner Base

(on sealed burners

only)

The burner base (the part of the burner fastened to the

cooktop)

may be cleaned with a soft brush and a mild cleanser. Clean all food residues from around spark electrode. Do not use steel wool; small bits of steel wool will short out the electrode. Rinse well.

Page 27

Burner Grates

Lift out when cool. Grates should be washed

regularly and, of course, after

spillovers.

Wash

them in hot, soapy water and rinse with clean water.

After cleaning, dry them thoroughly by putting them

in a warm oven for a few minutes. Don’t put the grates back on the range while they are wet. When replacing the grates, be sure they’re positioned securely over the burners.

To get rid of burned-on food, place the grates in a covered container (or plastic bag) with 1/4 cup ammonia to loosen the soil. Then scrub with a soap-filled scouring pad if necessary.

Although they’re durable, the grates will gradually lose their shine, regardless of the best care you can give them. This is due to their continual exposure to high temperatures.

Do not operate a burner for an extended period of time without cookware on the grate. The finish on the grate may chip without cookware to absorb the heat.

Drip

Pans

(on some models)

Remove the grates and lift out the drip pans. Drip pans can be cleaned in dishwasher or by hand. Place

~~[

them in a covered container (or plastic bag) with

1/4 cup ammonia to loosen the soil. Then scrub with

a soap-filled scouring pad if necessary.

Caution: Drip pans CANNOT be self-cleaned.

Cooktop

Sutiace

To avoid damaging the porcelain enamel surface of the

cooktop

and to prevent it from becoming dull, clean up spills right away. Foods with a lot of acid (tomatoes, sauerkraut, fruit juices. etc.) or foods with high sugar content could cause a dull spot if allowed to set.

When the surface has cooled, wash and rinse. For other spills such as fat smatterings, etc., wash with soap and water once the surface has cooled. Then rinse and polish with a dry cloth.

Do not

store flammable materials in an oven or

near the

cooktop.

Do not store or use combustible materials, gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

(continued next page)

Page 28

CA~ Am

CLEANING

(continued)

Lift-Off Oven Door

The oven door is removable but it is heavy. You may need help removing and replacing the door.

remove the door,

open it a few inches to the special “stop” position that will hold the door open. Grasp firmly on each side and lift the door straight up and off the hinges.

NOTE: Be careful not to place hands between the spring hinge and the oven frame as the spring hinge could snap back and pinch your fingers.

To replace the door,

make sure the hinges are in the “out” position. Position the slots in the bottom of the door squarely over the hinges. Then lower the door slowly and evenly over both hinges at the same time.

TO CLEAN THE DOOR:

(Do not immerse door in water.)

Inside of door:

● Because the area inside the gasket is cleaned during

the self clean cycle, you do not need to clean this by hand. Any soap left on the

liner

causes additional

stains when the oven is heated.

● The area outside the gasket can be cleaned with a

scouring pad.

●

Do not rub or clean the door gasket—the fiberglass

material of the gasket has an extremely low resistance to abrasion. An intact and well-fitting oven door gasket is essential for energy-efficient oven operation and good baking results. If you notice the gasket becoming worn, frayed or damaged in any way or if it has become displaced on the door, you should have it replaced.

41”

,+ ,fl$+’:

,,,.YPJ

Inside

Gasket

::::::

&ti

‘?

~w’b.

Outside of door:

●

Use soap and water to thoroughly

clean

the top,

sides and front of the oven door. Rinse well. You

may also use a glass cleaner to clean

the

glass

the

outside of the door.

●

Spillage of marinades, fruit juices, tomato sauces

and basting materials containing acids may cause discoloration and should be wiped up immediately. When surface is cool, clean and rinse.

●

Do not use oven cleaners, cleansing powders or

harsh abrasives on the outside of the door.

—

Page 29

Oven Shelves

Shelves can be cleaned by hand using soap and water or

witi

an abrasive cleanser. After cleaning, rinse the

shelves with clean water and dry. To remove heavy,

burned-on soil, you may use scouring pads. After

scrubbing, wash with soapy water, rinse and dry. Shelves may also be cleaned in self-cleaning oven,

but will discolor and lose some luster. See the Self-

Cleaning section.

Oven Bottom

The oven bottom has a porcelain enamel finish.

To make cleaning easier, protect the oven bottom from excessive

spillovers

by placing a cookie sheet on the shelf below the shelf you are cooking on. You can use aluminum foil if you do not cover the whole shelf. This is particularly important when baking a fruit pie or other foods with a high acid content. Hot fruit

fillings

or other foods that are

hi~hlv

acidic (such as

milk,-tomatoes

or sauerkraut,

an~ s~uces

with vinegar or lemon juice) may cause pitting and damage to the porcelain enamel surface and should be wiped up immediately. Take care not to touch hot portion of oven.

If a

spillover

does occur on the oven bottom, allow

,,/.

the oven to cool first. You can then clean the oven bottom with soap and water, an abrasive cleanser or scouring pads.

●

Rinse well to remove any soap before self-cleaning,

Broiler Pan and Rack

After broiling, remove the broiler pan and rack from the oven. Remove the rack from the pan. Carefully pour out the grease in the pan into a proper container.

If food has burned on, sprinkle the rack with detergent while hot and cover with wet paper towels or a dishcloth. That way, burned-on foods will soak loose while the meal is being served.

Wash; scour if necessary. Rinse and dry. The broiler pan and rack may also be cleaned in a dishwasher. Do not store a soiled broiler pan and rack anywhere in the range.

(continued next page)

Page 30

CAm Am

CLEANING

(continued)

Oven

Lamp Replacement

(on some models )

CAUTION: Before replacing your oven bulb,

disconnect electrical power to the range

the

main fuse or circuit breaker panel.

Be sure to let

the lamp cover and bulb cool completely.

The oven lamp (bulb) is covered with a removable glass cover that is held in place with a bail-shaped wire. Remove oven door, if desired, to reach cover easily.

To remove:

1. Hold hand under cover so it doesn’t fall when

released. With fingers of same hand, firmly push

back wire bail until it clears cover. Lift off cover.

DO NOT REMOVE ANY SCREWS TO REMOVE COVER.

2. Do not touch hot bulb with a wet cloth. Replace bulb with a 40-watt household appliance bulb.

To replace cover:

1. Place it into groove of lamp receptacle. Pull wire

bail forward to center of cover until it snaps into place. When in place, wire holds cover firmly. Be certain wire bail is in depression in center of cover.

2. Connect electrical power to the range.

Control Panel and Knobs

It’s a good idea to wipe the control panel after each use of the oven. Clean with mild soap and water or

-@..Q

n’

vinegar and water, rinse with clean water and polish dry with a soft cloth.

Do not use abrasive cleansers, strong liquid cleaners,

‘

plastic scouring pads or oven cleaners on the control panel—they will damage the finish. A 50/50 solution of vinegar and hot water works well.

The control knobs may be removed for easier cleaning. To remove knob, pull it straight off the stem. If knob is difficult to remove, place a towel

or dishcloth between the knob and control panel

and pull gently. Wash the knobs in soap and water

or a vinegar and hot water solution but do not soak. To clean outside glass finish, use a glass cleaner. Do

not allow the water or cleaner to run down inside openings in the glass while cleaning,

Metal parts can be cleaned with soap and water. Do not use steel wool, abrasives, ammonia, acids or commercial oven cleaners. Dry with a soft cloth.

Page 31

Removable Storage Drawer

(on some models)

The storage drawer is a good place to store cookware and

bakeware.

Do not store plastics and flammable

material in the drawer. Do not overload the storage drawer. If the drawer is

too heavy, it may slip off the track when opened. The storage drawer may be removed for cleaning

under the range. Clean

the

storage drawer with a

damp cloth or sponge. Never use harsh abrasives or

scouring pads.

To remove storage drawer:

Pull drawer straight out until it stops.

2. Lift drawer until stops on drawer clear stops on range.

3. Again pull drawer out until it hits second set of stops.

4. Tilt front of drawer up and free of range.

To replace storage drawer:

1. Set the stops on the back of the drawer over the

stops in the range.

2. Slide drawer evenly and straight back, so that the rails in the range are engaged.

3. Push drawer back until second stops on drawer hit stops in the range. Tilt drawer up and over these.

4. Slide drawer the rest of the way in.

Removable Kick Panel

(on some models)

The kick panel may be removed for cleaning under the range.

To remove,

lift up bottom of panel slightly to disengage the panel from the tabs at the base of the range. Pull bottom of panel forward

unti

spring clips are released at top of panel.

To replace,

insert the two slots at bottom of panel onto the two tabs at base of range and push top of panel forward to engage spring clips.

(continued next page)

Page 32

CAW Am CLEAN~G

(continued)

Oven Air

Venk

Never block the vents (air openings) of the range. They provide the air

‘. 7-*Y%

.,, ..>

inlet and outlet that

are

necessary for the range to operate properly with

‘>

correct combustion. Air openings are located at the rear of the cooktop, at the top and bottom of the oven door, and at the bottom of the range, under

7>7Z

the kick panel, storage drawer or broiler drawer (depending on the model).

Vent appearance and location

vay

Lift-up Cooktop

Clean the area

under the cooktop

often. Built-up soil, especially grease, may catch on fire.

To make

cleaning

(on models with dual burners)

easier, the

cookt<p

may be lifted up.

To raise the cooktop:

1. Be sure burners

are

turned off.

2. Remove the grates.

3. Grasp the two front burner wells and lift up.

Some models have dual support rods that will hold the cooktop up while you clean underneath it.

After cleaning under the cooktop with hot, soapy

water and a clean cloth, lower the cooktop. Be careful

not to pinch your fingers.

Surface Light and

Shrter

(on some models)

CAUTION: Do

not touch the bulb with wet

Can

hands or when

LiR

bulb is hot. Never wipe the

Statier

light area with a wet cloth. Electrical power must be shut off if you have to replace a bulb.

To replace bulb:

With one hand at each end of the hinged canopy, grasp it by the front edge and flip it up.

2. Remove fluorescent light bulb. Replace the bulb with one of the same length and wattage.

3. Lower the canopy.

To replace starter:

1. Open canopy and remove bulb as explained above.

2. Grasp starter, turn it counterclockwise about one-quarter turn and lift out. Replace with one of the same wattage.

3. Replace bulb and lower the canopy.

Metal

Park

Do not use

steel

wool, abrasives, ammonia or commercial oven cleaners. To safely clean surfaces; wash, rinse and then dry with a soft cloth.

Glass Surfaces

To clean the outside glass finish, use a glass cleaner. Rinse and polish with a dry cloth. Do not allow the water or cleaner to run down inside openings in the glass while cleaning.

Page 33

M~OR ADWST~NTS

YOU CAN

MA~

Broil and Bottom Burner Air

Ad.iustment

Shutters

The combustion quality of burner flames needs to be determined visually. See the Installation Instructions and the Problem Solver sections in this book. Air adjustment shutters for the top (broil) and bottom burners regulate the flow of air to the flames.

The air adjustment shutter for the top (broil) burner is in the center of the rear wall of the oven. (See Installation Instructions in this book.)

The shutter for the bottom (oven) burner is near the back

wdl

behind the storage drawer, or kick panel.

To adjust the flow of air to either burner, loosen the Phillips head screw and rotate the shutter to allow more or less air into the burner tube as needed.

The flames for the top (broil) burner should burn steady with approximately 1“ blue cones and should not extend out over the edges of the burner baffle.

To determine if the bottom burner flames are proper, remove the oven bottom and the burner

baffle.

To remove the oven bottom:

1. Remove the knurled screws holding down rear of

oven bottom.

2. Grasp the oven bottom at finger slots on each side.

3. Lift the rear of the oven bottom enough to clear the lip of the range frame, then pull out.

Burner Baffle

Remove Screw

To remove the burner

ba~e,

use a nut driver

to remove the 1/4” hex head screw shown in the

illustration above. Do not remove any other screws. Pull baffle straight out until it is free from the slot that holds it at rear of oven.

The

flames

should have 1/2” to 3/4” blue cone with no yellow tipping. When the baffle is back in place, the flames will resettle.

Page 34

mSTALLATION ~STRUCTIONS

FOR YOUR SAFETY

Eyou smell gas:

1. Open windows.

2. Don’t touch electrical switches.

Efinguish

any open flame.

4. Immediately call your gas supplier.

FOR YOUR

SAFETY

Do not

,store

or use combustible

materials, gasoline or other flammable

vapors and liquids in the vicinity of this

or any other appliance.

BEFORE YOU BEGIN

Read these instructions completely and

carefilly.

IMPORT~:

Save these instructions

for the local electrical inspector’s use.

IN~~R:

bave

these instructions

with the appliance tier installation is

completed. CONSUMER: Keep this Use and Care

Guide

and the Initiation Instructions

for future use.

This

appfiance

must be

proper~

grounded.

WARNING

Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to

this manu~.

For assistance or additional

information, consult a qualified installer,

service agency, manufacturer (dealer) or

the gas supplier.

I ~UTION

Do not attempt to operate the oven of

this range during a power failure.

lM~~ANT

Remove d

pacting

material and

literature from oven before connecting

gas and electrical

supp~

to range.

DIMENSIONS AND CLEARANCES

Provide adequate clearances

betieen

the range

and adjacent combustible surfaces.

Height:

471~”

Depth with Door Open:

‘,

/#@

46Y8°

//”

\H~”-

18,, ~;

Page 35

lM~RTANT

SAFETY INSTRUCTIONS

Instigation of

his

range must conform with

local codes, or in the absence of local codes,

with

tie

National Fuel Gas Code, ANSI

2223.1, latest edition. In Canada, initiation must conform with the current Natural Gas Installation Code,

CAN/CGA-B149.l

or the

current Propane Initiation Code,

CAN/CGA-

B149.2,

and with

10A

codes where applicable.

This range has been design-certified by the American Gas Association according to ANSI

221.1, latest edition and Canadian Gas Association according to

CAN/CGA-l.l

latest edition. As with

any appliance using gas and generating heat, there are certain safety precautions you should follow. You will find these precautions in the

Important Safety Instructions in the front of this book. Read them carefully.

● Have your range installed by a qualified

installer or service technician.

Your range must be electrically grounded in accordance with local codes or, in the absence of local codes, in accordance with the National Electrical Code

(ANSI/NFPA 70, latest edition).

In Canada, electrical grounding must be in

accordance with

the current

CSA C22.1

Canadian Electrical Code Part 1 and/or local codes. See Electrical Connections in this section.

● Before installing your range on linoleum or

any other synthetic floor covering, make sure the floor covering can withstand

180°E without

shrinking, warping or discoloring. Do not install the range over carpeting unless a sheet of 1/4” thick plywood or similar insulator is placed between the range and carpeting.

● Make sure the wall coverings around the

range can withstand heat generated by the range up to

200°F.

Avoid placing cabinets above the range. To reduce the hazard caused by reaching over the open flames of operating burners, install a

ventilation hood over the range that projects forward at least 5“ beyond the front of the cabinets.

● The ventilating hood must be constructed of

sheet metal not less than 0.0122” thick. Install above the

cooktop with a clearance of not less

thm

1/4” between the hood and the underside

of the combustible material or metal cabinet. The hood must beat least as wide as the appliance and centered over the appliance. Clearance between the cooking surface and the

ventilation hood surface MUST

N~R

:,;!~ ‘i

~SS

THAN 24 INCHES.

I ‘\.)}

,,,

●

cabinets are placed above the range, allow a f

minimum clearance of 30” between the cooking . surface and the bottom of unprotected cabinets.

. H a 30” clearance between cooking surface

and overhead combustible material or metal cabinets cannot be maintained, protect the underside of the cabinets above the

cooktop with

not less than

114”

insulating millboard covered

with sheet

metil

not less than 0.0122” thick.

● Clearance between the cooking surface and

protected cabinets

MUW NE~R

~SS

THAN 24 INCHES. The vertical distance from the plane of the cooking surface to the bottom of adjacent overhead cabinets extending closer than

1“ to the plane of the range sides must not be less than 18”. (See Dimensions and Clearances illustration in this section.)

● Caution: Items of interest to children should

not be stored in cabinets above a range or on the backsplash of a range—children climbing on the range to reach items

could be seriously injured.

•~

WARNING

ranges can tip and injury

could result. To prevent

accidental tipping of the range, attach an approved Anti-Tip device to the wall.

(See Installing the Anti-Tip

Device in this section.) To

check if the device is

installed and engaged properly, carefully tip the range forward.

The

Anti-Tip device should engage and prevent the range from tipping over.

If you pull the range out from the wall for any reason, make sure the Anti-Tip device is engaged when you push the range back against the wall.

● For your safety, never use your range for

warming or heating the room. Your oven and

range top are not designed to heat your kitchen.

Top burners should not be operated without

cookware on the grate. Such abuse could result in fire and damage to your range and will void your warranty.

● Do not store or use combustible materials,

gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Explosions or fires could result.

● Do not use oven for a storage area. Items

stored in the oven can ignite.

● Do not let cooking grease or other flammable

materials accumulate in or near the range.

Page 36

mSTALLATION mSTRUCTIONS

GENERAL

● See Dimensions and Clearances in this section

for all rough-in and spacing dimensions. These

dimensions must be met for safe use of your range. The location of the electrical outlet and pipe opening (see Gas Pipe and Electric Outlet Locations) may be adjusted to meet specific requirements.

●

The range may be placed with O“ clearance

(flush) at the back wall and side walls of

the range.

LO~TION

Do not locate the range where it may be subject to strong drafts. Any openings in the floor or wall behind the range should be sealed. Make sure the openings around the base of the range that supply fresh air for combustion and ventilation are not obstructed by carpeting or woodwork.

PROTECT YOUR FLOOR

Your range, like many other household items, is heavy and

~an

settle into soft floor coverings

such as cushioned vinyl or carpeting. Use care when moving the range on this type of flooring. It is recommended that the following simple and inexpensive instructions be followed to protect your floor.

The range should be installed on a sheet of plywood (or similar material).

men thefloor

covering

etih

at the front of the

range,

the area that the range will rest on should be built up with plywood to the same level or higher than the floor covering. This will allow the range to be moved for cleaning or servicing.

MODEL AND SERIAL NUMBER

LO~TION

Depending on your range, you’ll find the model and serial numbers on a label on the front frame of the range, behind the storage drawer, kick panel or broiler drawer.

TOOLS YOU WILL NEED

● Phillips and flat-blade screwdrivers

● Pencil and ruler

● Two pipe wrenches (one for backup)

●

1%” open-end or adjustable wrench

● Nut drivers or wrenches: 3/16” and 1/4”

ADDITIONAL

MTERIALS

YOU

HEED

●

Gas line shut-off valve

● Pipe joint sealant or

UL-approved

pipe thread tape with Teflon* that resists action of natural and LP gases

●

Flexible metal appliance connector (1/2” I. D.) A 5foot length is recommended for ease of installation but other lengths are acceptable. Never use an old connector when installing a new range.

● Flare union adapter for connection to gas

supply line (3/4” or 1/2”

N~x

1/2” I. D.)

● Flare union adapter for connection to pressure

regulator on range (1/2”

NPTx

1/2” I. D.)

Weflon:

Registered trademark of DuPont

PREMRATION

●

Remove all tape and packaging. Lift up the

cooktop

(on models with dual burners) and remove any packing material under it. Make sure the dual burners are properly seated and level.

● Remove plastic film that covers some chrome

parts (around oven door, side trim).

● Take the accessory pack out of the oven.

● Check to be sure that no range parts have

come loose during shipping.

Page 37

❑

pROVIDE

ADEQuATE

GAS

SUPPLY

Your range is designed to operate at a pressure

of 4“ of water column on natural gas or, if designed for LP gas

@ropane

or butane), 10” of water

column. Make sure you are supplying your range

with the type of gas for which it is designed. This

range is convertible for use on natural or propane gas, if you decide to use this range on a different type of gas, conversion adjustments must be made by a service technician or other

qualtiled

person before attempting to operate the range on that gas.

For proper operation, the pressure of natural gas supplied to the regulator must be between 4“ and

13” of water column. For

gas, the pressure supplied must be between 10” and 13” of water column.

men

checking for proper operation of the regulator, the inlet pressure must beat least 1“ greater than the operating (manifold) pressure as given above. The pressure regulator located at the inlet of the range manifold must remain in the supply line regardless of whether natural or

gas is being used. A flexible metal appliance connector used to connect the range to the gas supply line should have an I.D. of 1/2” and be 5 feet in length (shorter and longer lengths are acceptable) for ease of instillation. In Canada,

flexible connectors must be single wall metal

connectors no longer than 6 feet in length.

❑

CONNECT THE RANGE TO GAS

Shut off the main gas supply valve before disconnecting the old range and leave it off until new hook-up has been completed. Don’t forget to relight the pilot on other gas appliances when you turn the gas back on.

Because hard piping restricts movement of the range, the use of an A. G.A.-certified flexible

metil appliance connector is recommended

unless local codes require a hard-piped connection. Never use an old connector when installing a new range. If the hard piping method is used, you must carefully align the pipe; the range cannot be moved after the connection is made.

To prevent gas leaks, put pipe joint compound on, or wrap pipe thread tape with Teflon* around, all male (external) pipe threads.

*Teflon: Registered trademark of DuPont

Gas Pipe and

Eleetrit

Outlet Locations

for Models Equipped with Sealed Burners

Gas Pipe. and Electric Outlet Locations for

Models

Equipped with Dual Burners

This area allows for flush range installation with

through-the-floor connection of pipe stub/shut-off valve.

(continued next page)

Page 38

~STALLATION

~STRUCTIONS

(continued)

CONNECT THE

WNGE

TO GM (continued)

Flexible Connector Hookup for Models Equipped with Sealed Burners

Pressure

Regulator

-. 0-

90°Elbow~

(provided)

Flex

Connector

Adapter

(6 ft. max.)

Adapter

,,a:,:,L;

Gas

Shut-off

Valve

Rigid Pipe Hookup for Models Equipped with Sealed Burners

Pressure

Regulator

90° Elbow

;;:2::;+

~iT”~=T

Black

Iron Pipe

e @

~=-!:i

Flexible Connector and Rigid Pipe Hookups

for Models Equipped with Dual Burners

Manifold Pipe

Adapter

Nipple~

Page 39

Install a manual gas line shut-off valve in the gas line in an easily accessed location outside of the range. Make sure everyone operating the range knows where and how to shutoff the gas supply to the range.

2. Install male 1/2” flare union adapter to the

1/2” NPT internal thread elbow at inlet of

regulator. On models equipped

titi

dual

burners,

install the male pipe thread end of

the 1/2” flare union adapter to the 1/2”

internal thread at inletof pressure regulator. Use a backup wrench on the regulator fitting to avoid damage.

men

installing the range from the front,

remove the 90° elbow for easier installation.

3. Install male 1/2” or 3/4” flare union adapter to the

NPT internal thread of the manual shut-

off valve, taking care to back-up the shut-off

valve to keep it from turning.

Connect flexible metal appliance connector to the adapter on the range. Position range to permit connection at the shut-off valve.

men

all connections have been made, make sure all range controls are in the off position and turn on the main gas supply valve. Use a liquid

leak detector at all joints and connections to

check for leaks in the system.

CA~ON:

DO NOT USE A

FME

CHECK FOR GAS

men

using test pressures greater than 1/2

psig

to pressure test the gas supply system of the residence, disconnect the range and individual shut-off valve from the gas supply piping.

men

using test pressures of 1/2

psig

or less to test the gas supply system, simply isolate the range from the gas supply system by closing the individual

shut-off valve.

❑ ELECTRIUL COnneCtiOnS

Electrical Requirements

120volt,

Her@,

properly grounded branch

circuit protected by a 15-amp or

2@amp

circuit

breaker or time delay fuse.

Extension Cord Cautions

Because of potential safety hazards associated

with certain conditions, we strongly recommend

against the use of an extension cord. However, if you still elect to use an extension cord, it is absolutely necessary that it be a

UL-listed,

3-wire grounding-type appliance extension cord and that the current carrying rating of the cord in amperes be equivalent to, or greater than,

the branch circuit rating.

Grounding

IMPORT~—(Please

read

careti~y)

FOR

PERSONW SN~,

THIS

NPLWCE

MU=

BE PROPERLY GROUNDED.

The power cord of this appliance is equipped with a three-prong

@rounding)

plug which

mates with a standard three-prong grounding

wall receptacle

PREFERRED ‘

to minimize the

METHOD

possibility of

electric shock hazard from

this appliance.

The customer

ENSURE PROPER GROUND EXISTS

should have the

BEFORE USE

wall receptacle and circuit

checked by a

qualified electrician to make sure the receptacle

is properly grounded.

mere

a standard two-prong wall receptacle is encountered, it is the personal responsibility and obligation of the customer to have it replaced with a properly grounded

threeprong

wall receptacle.

DO NOT, UNDER ANY

CIRCUM~ANCES,

CUT OR

REMO~

THE THIRD (GROUND)

PRONG

~OM

THE

POWR

CORD.

(continued next page)

Page 40

~STALLATION

~STRUCTIONS

(continued)

ELECTRl~L

CONNECTIONS

(continued)

❑

Usage

Situations where Appliance

Power Cord

Disconn~ted Mquen&.

adapter maybe used only on a

l~amp

circuit. Do not use an adapter on a

2@amp

circuit.

Were

local codes permit, a

TEMPOUY

CONNE~ON

may be made to a properly grounded two-prong wall receptacle by the use of a

UL-listed

adapter, available at most hardware stores. The larger slot in the adapter must be aligned with the larger slot in the wall receptacle to provide proper

polari~

in the connection of the

power cord.

ALIGN LARGE

PRONGS/SLOTS

-“’

ENSURE PROPER GROUND AND FIRM CONNECTION BEFORE USE

CA~ON:

Attaching the adapter ground

terminal to the wall receptacle cover screw

does not ground the appliance unless the cover screw is metal, and not insulated, and the wall receptacle is grounded through the house wiring. The customer should have the circuit checked by a qualified electrician to make sure

the receptacle is properly grounded.

men

disconnecting the power cord from the adapter, always hold the adapter with one hand.

E this is not done, the adapter ground terminal

is very likely to break with repeated use. Should this happen, DO

USE the appliance until a

proper ground has again been established.

❑ Usage Situations where Appliance Power

Cord

Disconne@d Frquen&.

Do not use an adapter plug in these situations because disconnecting of the power cord places undue strain on the adapter and leads to eventual failure of the adapter ground terminal.

The

customer should have the two-prong

wall receptacle replaced with a three-prong

@rounding)

receptacle by a qualified electrician

before using the appliance.

The installation of appliances designed for

mobile home installation must conform with the Manufactured Home Construction and Safety Standard, Title 24

CFR,

Part 3280

(formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD, Part 280) or, when such standard is not applicable, the Standard for Manufactured Home Installations, latest edition (Manufactured Home Sites, Communities and Set-Ups), ANSI

A225.1,

latest edition, or with local codes. In

Canada, mobile home installation must be in

accordance with the current

CN/CSA

Z240/MH Mobile Home Installation Code.

Electric Disconnect

bcate

disconnect plug on the range back.

2. Pinch sides of connector and pull out of

range back.

Models Equipped with

Dual Burners

Waled

Burners

——

Page 41

❑

SU1

THE OPENINGS

Seal any openings in the wall behind the range and in the floor under the range when hookups are completed.

❑

CHECK

SUR~CE

BURNER IGNITION

Operation of all cooktop and oven burners should be checked after range and gas supply lines have been carefully checked for leaks.

Push in one of the surface burner controls and

turn it to the

LITE

position. You will hear a snapping sound indicating proper operation of the spark module. Once the air has been purged

from the supply lines, burner should light within 4 seconds. After burner lights, rotate knob out of the

LITE

position. Try each burner in succession

until all burners have been checked.

Quali~ of Flames

The combustion quality of burner flames needs to be determined visually.

Eburner

flames look like (A), call for service.

Normal burner flames should look like (B) or

(C), depending on the type of gas you use.

With

gas, some yellow tipping on outer

cones is normal.

(A) YeUow

flames—

Call for service

(B)

YeUow tips on

outer

cones—

Normal for LP gas

(C)

Soft

blue flame-

Normal for natural gas

❑

CHECK IGNITION

OF OVEN BURNER

oven is designed to operate quietly and

automatically. To operate the oven, press the

pad and then press the INCREASE pad until “350°” appears in the display. After 30-90 seconds, the oven burner will ignite and burn until the set temperature is reached. The oven burner will continue to cycle on and off as necessary to maintain the oven at the temperature indicated by the display.

To check ignition of the broil burner, press the BROIL pad md then

tie

INCREASE or DECREASE

pad. After 30-90 seconds, the broil burner will ignite.

The oven requires electrical power to operate. In

the case of a power outige, the oven burners on these models cannot be lit manually with a match. Gas will not flow unless the glow bar is hot.

the oven is in use when a power outage occurs,

the oven burner shuts off and cannot be

relit

until power is restored.

(continued next page)

Page 42

~STALLATION mSTRUC~ONS

❑

ADJUST

BROILAHD

OVEN BURNER AIR

ADJUSTMENT SHUTTERS IF NECESSARY

adjustment shutters for the top and bottom

burners regulate the flow of air to the flames.

The air adjustment shutter for the top (broil)

burner is in the center of the rear wall of the oven.

The shutter for the bottom (oven) burner is near

the back wall behind the storage drawer or the kick panel (depending on the model). Remove the drawer or panel. (See Care and Cleaning section in this book.)

To adjust the flow of air to either burner, loosen

the Phillips head screw and rotate the shutter

toward open or closed position as needed.

The flames for the top

@roil)

burner should be steady with approximately 1“ blue cones and should not extend out over the edges of the burner baffle.

To determine if the bottom burner flames are burning properly, remove the oven bottom and the burner baffle (see below). Flames should have approximately 1“ blue cones and, if range is supplied with natural gas, should burn with no yellow tipping.

with

most LP gas, small yellow tips at the end of outer cones are normal.) Flames should not lift off burner ports. If lifting is observed, gradually reduce air shutter opening until flames are stabilized. With the baffle in place, the flames should burn steady and should not extend past the edges of the burner baffle.

Oven Bottom

-J

\&,>~~g

bfi\

To remove the oven bottom:

Remove the knurled screws holding down rear

of the oven bottom.

2. Grasp the oven bottom at finger slots on each side.

3. Lift the rear of the oven bottom enough to clear the lip of the range frame, then pull out.

‘urnerBaff’e~N*2

To remove the burner baffle (on some models):

1. Use a nut driver to remove the 1/4” hex-head

screw shown

the illustration above. Do not

remove any other screws.

2. Pull baffle straight out until it is free from the slot that holds it at rear of oven.

Page 43

❑

LEVELING THE RANGE

Remove the storage drawer, broiler drawer or kick panel.

2. Use a 3/16” open-end or socket wrench to back out both rear leveling legs approximately two turns.

3. Use a

1%”

open-end or adjustable wrench to back out the front leveling legs two turns.

4. Install the oven shelves in the oven and

position the range

where it will be installed.

5. Check for levelness by placing a spirit level or a cup, partially filled with water, on one of

the

oven

racks.

using a spirit level, take two readings—with the level placed diagonally first in one direction and then the other.

6. Adjust the leveling legs until the range is level.

7. After the range is level, slide the range away from

the wall so that the Anti-Tip device can be installed.

❑

INSTALLING THE ANTI-TIP DEVICE

WARNING:

●

Range must be secured with an approved

Anti-Tip device.

●

Unless properly installed, the range could be tipped by you or a child standing, sitting or leaning on an open door.

●

After installing the Anti-Tip device, verify that it is in place by carefully attempting to tilt the range forward.

● This range has been designed to meet all

recognized industry tip standards for all normal conditions.

●

The

use

of this device does not preclude

tipping of the range when not properly installed.

●

If the Anti-Tip device supplied with the range does not fit this application, use the universal Anti-Tip device

WB02X7909.

1. Mark the wall where the

NGHT

EDGE of the range is to be located. Be sure to allow for the countertop overhang if you intend to install the range next to cabinets.

hcate

the outside edge of the device 2%” toward the center of the range from the marked edge of the range.

3. Using the device as a template, mark the

position of the hole for the screw.

4. For wood construction, drill a pilot hole at an angle of 20 degrees from the horizontal. A nail or awl may be used if a drill is not available.

Mount the

kti-Tip

device with the screw provided.

For cement or concrete construction, you will need a 1/4” x

1X”

lag bolt and a 1/2”

O.D.

sleeve anchor, which are not provided. Drill the recommended size hole for the hardware.

Install the sleeve anchor into the drilled hole and then install the lag bolt through the device. The bolts must be properly tightened as recommended for the hardware,

Back of Range

Slide the range against the wall, and check for

proper installation by grasping the front edges of the rear surface unit openings and carefully attempting to tilt the range forward.

WHEN ml HOOKUPS ARE

COMPLETE~

WE SURE~L ~NTROLSARE

LEFT IN THE OFF

POSITION.

-E

SURE THE FLOW OF

~MBUSTION

AND

VENTIUTION NR

TO THE RANGE IS

UNOBSTRU~ED.

(contin[~ed

next page)

Page 44

~STALLA~ON ~STRUCTIONS

HOW TO CONVERT THE RANGE FOR USE WITH

GAS OR NATURAL GAS

TOOLS REQUIRED:

T-10

Torxdriver

(for sealed burners)

1/2” and 3/4” open-end wrench Flat blade screwdriver (small) Nut drivers or wrenches:

7mm

or 5/16”

(depending on the size of the spuds)

❑

PREPARE RANGE FOR CONVERSION

(1) Turn off gas

supp&

tie

wall.

(2) Turn off

tie electicd

power to

tie

range.

range has not yet been connected to gas supply,

or if flexible connection was made, range maybe pulled out from the wall to make conversion easier.

❑

CONVERT THE PRESSURE REGULATOR

W~~G:

Do not remove the pressure

re~lator

from the range.

1. For models equipped with sealed burners,

remove the storage drawer, broiler drawer or

kick panel and locate the pressure regulator at

rear of the range.

{

Remove Screws

Access Cover

On some models, you may have to remove an

access cover also.

For models equipped with dual burners, remove

the

cooktop

and locate the pressure regulator at

right rear of range.

❑ D

2. Follow the directions in A or B that match

your regulator type.

Is the e in a

ation.

Hit

is this regulator:

1. Use a coin to remove the cap from the

pressure regulator.

2. Turn the cap over and hook it into the slots.

The type of gas to be used should now be visible

on the top of the cap.

❑

Note:

On some models the shut-off valve

may be

a different location.

If it is this regulator:

1. Unscrew the plastic-protected hex-nut cap

from the regulator.

2. Carefully pry the protective plastic cap off the threaded metal cap. Gently pull the plastic

washer off the threads on the other side of the

metal cap.

3. Push the plastic cap onto the end of the metal cap displaying the type of gas you are converting to. Press the attached plastic washer onto the threads on the other side of the metal cap.

4. Screw the hex-nut cap back into the regulator. Do not overtighten.

Page 45

❑

CONVERTING

SURFME

BURNERS ON

MODELS EQUIPPED WITH S~LED BURNERS (See

Step 4 if range is equipped with dual burners.)

Burnercap~

Burner Head

Bu::a

Orifice Spud

Gas Inlet Tube

~~~a\

—.

)

..-—

1. Remove grates, burner caps and burner heads.

2. Remove burner bases by unscrewing the 3 small screws in each base.

burner

strti@t

out.

DO NOT

disconnect the wires from the burner

bases unless the

cooktop

needs to be raised.

3. With

7mm

or 5/16” wrench (depending on the size of your spuds), remove the 4 brass

orflce spuds.

4. Install orifice spuds

accordin

to one of the

following diagrams (see ❑ or B ), for

gas or natural gas, depending on which you are converting to.

❑

Orifice Spuds brConve~ingto

U&:

orifice spuds are in a small plastic bag packed

with this Use and Care book.

orifice spuds

have a 2-digit number and the Letter “L” on

one side. Each orifice spud will also have 1 or 2 grooves on one side, denoting the location on the range where it is to be installed.

❑

Orifice Spuds

ferConVefiing

to Natural Gas:

Natural gas orifice spuds have a 3-digit number

on one side. Each orifice spud will also have 1, 2

or 3 grooves on one side, denoting the location

on the range where it is to be installed.

Front of Range

(continued next page)

—

Page 46

~STALLATION WSTRUC~ONS

HOW TO CONVERT THE RANGE FOR USE

WITH 1P GAS OR NATURAL GAS

(continued)

5. To prevent leakage, make sure the orifice spuds are securely screwed into the gas inlet tubes. Use a small wrench to hold the inlet tube hex to prevent it from twisting.

6. Put old orifice spuds back in the bag to save for possible future conversion.

Note: If an

ortilce

spud is accidentally dropped, the cooktop can be raised by

“engaging

the 2 front clips with a large

flat

blade screwdriver.

DO NOT attempt to raise the cooktop without

removing all 4 burner bases. If wires were disconnected to remove the

cooktop, feed wires through the burner holes in

the cooktop.

Atich

to each burner electrode terminal carefully, making sure not to bend the terminal.

men

lower cooktop until it snaps

over the clips.

Electrode

Tall Screw

7. Carefully insert burner bases straight down

with the tube over the

orflce

spud. Replace the

screws,

mting

sure the Ml screw is

opposite

the

burner electrode in each

burner base.

❑

CONVERTING SURFACE BURNERS

MODELS EQUIPPED WITH DUAL BURNERS (See

Step 3 if range is equipped with sealed

burners.)

Lift cooktop.

2. Lift burner assemblies straight up and set aside to gain access to surface burner spuds.

3. With a

7mm

or 5/16” wrench

(depending on

the size of your

spuds), remove each of the four . spuds on the surface burner gas inlet tubes and replace them

tith

the correct

gas spuds mounted in a holder at the right rear

of the range, above the regulator. Natural gas spuds are brass and LP gas spuds are red or silver.

Mount

the spuds that you removed from the inlet tubes back in the holder.) To prevent leakage, make sure spuds are securely screwed

into gas inlet tubes.

4. Replace the burner assemblies.

5. Keep all spuds with your range so you have them if you move or get a different gas hook-up.

Page 47

❑

CONVERT THE

OVEN

BURNER ORIFICES

Oven Burner

1. Remove oven door, storage drawer or broiler

drawer, oven bottom and burner baffle. The lower burner ofilce spud is located behind the storage drawer, broiler drawer or kick panel. (On some models, a metal shield must be removed to access the orflce.)

To convert to ~ gas,

use a 1/2” wrench to turn the lower burner orifice spud clockwise. Tighten the spud only until it is snug.

To prevent damage, do

not overtighten the spud.

To convert to

natiral

gas,

loosen the spud about 2 turns.

Broil Burner

(on

some models)

To convert to

gas, use a 1/2” wrench to

turn the upper burner orifice spud clockwise. Tighten spud only until it is snug with the base.

To prevent damage, do not

overtighten

spud.

To convert to

natiral

gas, loosen the spud

about 2 turns.

❑

CONVERT AIR ADJUSTMENT SHUTTER(S)

For U gas, loosen the

Phillips head screw and rotate the shutter to the

Screw

full open position. With

Air Shutter

baffle in place, flames

should have approximately l-inch blue cones and

should not extend beyond the edges of the burner baffle. After 30 seconds of burner operation, check for flames lifting off

burner ports. If lifting is observed, gradually

reduce air

shutier

opening until flames are

stabilized.

For

natird

gas, the shutter should be open

1/2” or about 3/4 of the way open.

❑

CHECK FOR LEAKS

When all connections have been made, make sure all range controls are in the off position and turn on the main gas supply valve. Use a liquid leak detector at all joints and connections to check for leaks in the system.

CA~ON:

DO NOT USE A

FME

CHECK FOR GAS

When using test pressures greater than 1/2 psig to pressure test the gas supply system of the residence, disconnect the range and individual

shut-off valve from the gas supply piping. When

using test pressures of 1/2

psig or less to test the

gas supply system, simply isolate the range from the gas supply system by closing the individual shut-off valve.

(continued next page)

Page 48

~STALLATION

~STRUCTIONS

HOW TO CONVERT THE RANGE FOR

USE

WITH 1P GAS OR HATURAL GAS

(continued)

❑

CONVERT

TOP

BURNER VALVES

1. Turn all top

burners to LOW.

2. Remove all four knobs.

3. With a small flat

W*.

‘

blade screwdriver, turn the valve set screws clockwise to decrease

flame size, counterclockwise

to increase flame size. Adjust

until the flame is about the same

[

height as the top of the burner.

4. Replace knobs.

5. Check for flame outage by opening and closing the oven door several times. If the flame goes out, increase the flame size.

❑

CHECK QUALITY OF

FL~ES

The

combustion quality of burner flames needs

to be determined visually.

If burner flames look like (A), call for service. Normal burner flames should look like (B) or

(C), depending on the type of gas you use.

With

gas, some yellow tipping on outer cones

is normal.

m“’’’’’’’c~es-

(B)

YeMow

tips on

outer

cones—

Normal for LP gas

(C)

%fi

blue

fl=eb

Normal for natural gas

Page 49

PROBLEM

OVEN

WLL

NOT WORK

TOP BURNERS DO NOT LIGHT OR DO NOT BURN EVENLY

BURNERS HAVE YELLOW OR YELLOW-TIPPED

PLAMES

BURNER FLAMES VERY

LARGE OR YELLOW

OVEN DOES NOT

COOK PROPERLY

CLOCK AND

MINUTEISECOND

T~ER

DO NOT WORK OVEN LIGHT DOES NOT

COME ON

POSSIBLE CAUSE

● Plug on range is not completely inserted in the electrical outlet.

● The circuit

brewer

in your house has been tripped, or a fuse has been blown.

● Oven controls not properly set.

● Door left in locked position after cleaning.

Make sure electrical plug is plugged into a live power outlet.

● Burner holes on the side or around the top of burner may be clogged. Remove

burners (on models with dual burners) or burner heads (on models with sealed burners) or burner caps on spill-proof models, and clean them with a toothpick. Make sure you do not enlarge the holes. On spill-proof models, check electrode area for burned-on food or grease.

(A) Yellow

flames— (B) Yellow tips on outer (C) Soft blue

flame+

Call for service

cones—Normal for

LP gas

Normal for natural gas

●

If burner flames look like (A),

cdl

for service. Normal burner

flames

should look

like (B) or (C), depending on the type of gas you use.

With LP gas, some yellow tipping on outer cones is normal.

“

If range is connected to LP gas, check all steps in the

Instrdlation

Instructions.

Make sure thermostat capillary bulb (located in upper portion of oven) is in

correct position, not touching oven sides and not coated with anything.

● Aluminum foil being used improperly in oven.

● Incorrect cookware being used. Check each cooking section for cookware tips

or recommendations.

● Check common problems listed in Baking, Roasting and Broiling sections.

● Oven bottom not securely seated in position.

. Range electrical plug must be securely seated in a live power outlet. Check for

blown fuse or tripped circuit breaker.

● Review

instmctions

in Oven Control, Clock and Timer section.

● Bulb may be loose or burned out.

“

Electrical plug must be plugged into a live power outlet.

(continued next page)

Page 50

QUESTIONS?

USE THIS PROBLEM SOLVER

(continued)

PROBLEM

SURFACE LIGHT DOES NOT WORK

STRONG ODOR

OVEN WILL NOT SELF-CLEAN

OVEN DOOR WILL NOT UNLOCK

OVEN NOT CLEAN AFTER CLEAN

CYCLE

“door” APPEARS ON

DISPLAJ

CONTROL BEEPS AFTER ENTERING OVEN TIME OR STOP TIME

“F” AND A NUMBER FLASH ON DISPLAY

POSSIBLE CAUSE

● Fluorescent bulb is loose or defective. Adjust or replace.

● Switch operating light is broken.

Cdl

for service.

● Improper

air\gas

ratio in oven. Adjust oven burner air shutters.

● An odor from the insulation around the oven liner is normal for the first few

times the oven is used. This is temporary.

●

Oven

temperature is too high to set self-cleaning operation. Allow the range to

cool to room temperature and reset the controls.

Door latch handle not moved dl the way to the right.

Oven

must cool below locking temperature (approximately 30 minutes after the

clean cycle is complete).

not lock door with door latch except when using

self-clean feature or the oven may

lock.

●

Oven

controls not set properly. Review Operating the Self-Cleaning Oven section.

●

Heavily soiled ovens require

3’/2

to 4 hour clean time.

● Heavy

spillovers should

be cleaned up before starting clean cycle.

● Self-cleaning cycle has been selected but latch handle was not moved all the

way to the

right.

Move the latch handle.

Latch handle was moved to the right but a program other than self-cleaning was

selected. Move the latch handle to the right only when setting self-cleaning cycle.

This is reminding you to enter a bake temperature (see Baking section).

● If the time display flashed “F-” and a number, you have a function error code.

If function error code appears during the self-cleaning cycle, check oven door latch. The latch handle may have been moved, even if only slightly, from the latched position, Make sure

tie

latch is moved to the right as far as it will go.

Press the

CLEAWOFF pad. Allow oven to cool for one hour. Put oven back

into operation. If the failure code repeats, disconnect all power to the range. Call for service.

If you need more help... call, toll free: GE Answer

Center@

800.626.2000 consumer information service

Page 51

Wdll

Be There

With tie

purchase of your new GE appliance, receive the

assurance that if you ever need information or assistance from

GE, we’ll be

tiere. Ml

you have to do is cdl—toll-free!

GEAnswer Center@

in-HomeRepak Service

~0-GE-CARES

AGE Consumer Service professional

wdl

provide expert repair

semice,

scheduled at a time that’s convenient for you. Many GE Consumer Service company-operated locations offer you service today or tomorrow, or at your convenience

(7:00

a.m. to

7:00

pm.

weekda~ 9:00

a.m. to

2:00

pm. Saturdays). Our factory-trained technicians know your appliance inside and

out—

so most repairs can be

handed

in just

one visit.

Service

Contrac&

800-626-D24

You can have the secure feeling that GE Consumer Service

wtil sttil

there after your warranty

expire%

Pur-

chase a

GE contract whale your

war-

ranty is

sttil

in effect and you’ll receive

subs~tid

discount. With a

mdtiple-

year

contrac~

you’re assured of future

service at today’s prices.

Patis andAcce~ories

800-R6-2002

~ditidti

qu~fied

to service thek own appliances can have needed parts or accessories sent directly to

their home.

The GE parts system pro-

vides access to over 47,000

par~...and

all GE Genuine Renewal

Par~

are fully warranted. VISA, MasterCard and Discover cards are accepted.

User maintenance instructions

contained

this booUet cover proce-

dures

btended

to be performed by

any user. Other servicing

generdy

shodd

be referred to

q~ed ser-

tice

personnel. Caution must

exercised,

shce

improper

setic~g

may cause unsafe operation.

Whatever your question about any

major appliance,

GE Answer

Cente@

information service is

avaflable

help. Your

cdl—and

your question—

will be answered

prompfly and

courteously And you can cdl any time. GE Answer Cente@ service is open 24 hours a

day

7 days a week.

Telecommunication

Dtice

for the Deaf

For Customers

Wtih

SpecialNeeds...

Upon request, GE

wfll

provide

Braflle

controls for a variety of GE appliances, and a brochure to assist in planning a barrier-free kitchen for persons with limited

mobdity

ob~in

these

items

free of charge,

cdl 800.626.2000.

Consumers with impaired hearing

or speech who have access to a

TDD

or a conventional teletypewriter may

cdl

800-TDD-GEAC

(800-833-4322)

to request information or service.

—

Page 52

YOUR GE GAS RANGE

WARRANTY

Save proof of original purchase date such as your sales slip or

cancelled

check to establish warranty period.

WHAT IS COVERED

FULL ONE-YEAR WARRANTY

This warranty is extended to

For one year from date of original

the original purchaser and any

purchase, we will provide, free of

succeeding owner for products

charge,

patis and sewice labor in

purchased for ordinary home use

your home to repair or replace

in the 48 mainland states, Hawaii

any

pati

of the range that fails

and Washington,

D.C.

In Alaska the

because of a manufacturing defect.

warranty is the same except that it is LIMITED because

vou

must

pav

to ship the product to-the service

shop or for the service technician’s

travel costs to your home.

All warranty service will be provided by our Factory Service Centers or by our authorized Customer

Care” servicers during

normal working hours. Should your appliance need

sewice, during the warranty period

or beyond, call 800-GE-CARES (800-432-2737).

WHAT IS NOT COVERED

● Sewice trips to your home to

teach you how to use the product.

Read

your Use and Care material.

If you then have any questions about operating the product, please contact your dealer or our Consumer Affairs office at the address below, or call, toll free:

GE Answer

CenteF

800.626.2000 consumer information service

described in the Installation Instructions provided with the product.

● Replacement of house fuses or

resetting of circuit breakers.

● Failure of the product if it is used

for other than its intended purpose or used commercially.

● Damage to product caused

by accident, fire, floods or acts

of God.

. Improper installation.

WARRANTOR IS NOT RESPONSIBLE

If you have an installation problem,

FOR CONSEQUENTIAL DAMAGES. contact your dealer or installer. You are responsible for providing adequate electrical, gas, exhausting and other connecting facilities as

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion

may not apply to you, This warranty gives you specific legal rights, and you may also have other rights which

vay

from state to state

To know what your legal rights are in your state, consult your local or state consumer affairs office or your state’s Attorney General.

Warrantor: General Electric Company

If further help is needed concerning this warranty, write:

Manager—Consumer Affairs, GE Appliances, Louisville, KY 40225

Thjs

book is printed on recycled paper

Part

No,

164

D2764PO07

Pub No. 49-8312

4-92

JGBP26GEN

JGBP31GE

JGBP27GEN

JGBP34GE JGBP35GE

GE XL44 JGBP26GEN, XL44 JGBP34GEP, XL44 JGBP27GEN, XL44 JGBP35GEP, XL44JGBP31GEP Use And Care & Installation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
