Chapter 1

Programming Site Data

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Programming Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Activating a Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Entering System Data for the Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Entering Transducer and Pipe Parameters . . . . . . . . . . . . . . . . . . . . . . . . 1-7

Entering Setup Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15

Entering Global Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-21

November 2004

Introduction The Model XGS868 flow transmitter must be properly installed and

programmed, as described in the Startup Guide, before it can provide
accurate flow rate measurements. After completing the installation
and initial setup, use this chapter to program the advanced features of
the Model XGS868’s User Program.

Step-by-step programming instructions are presented in this chapter.

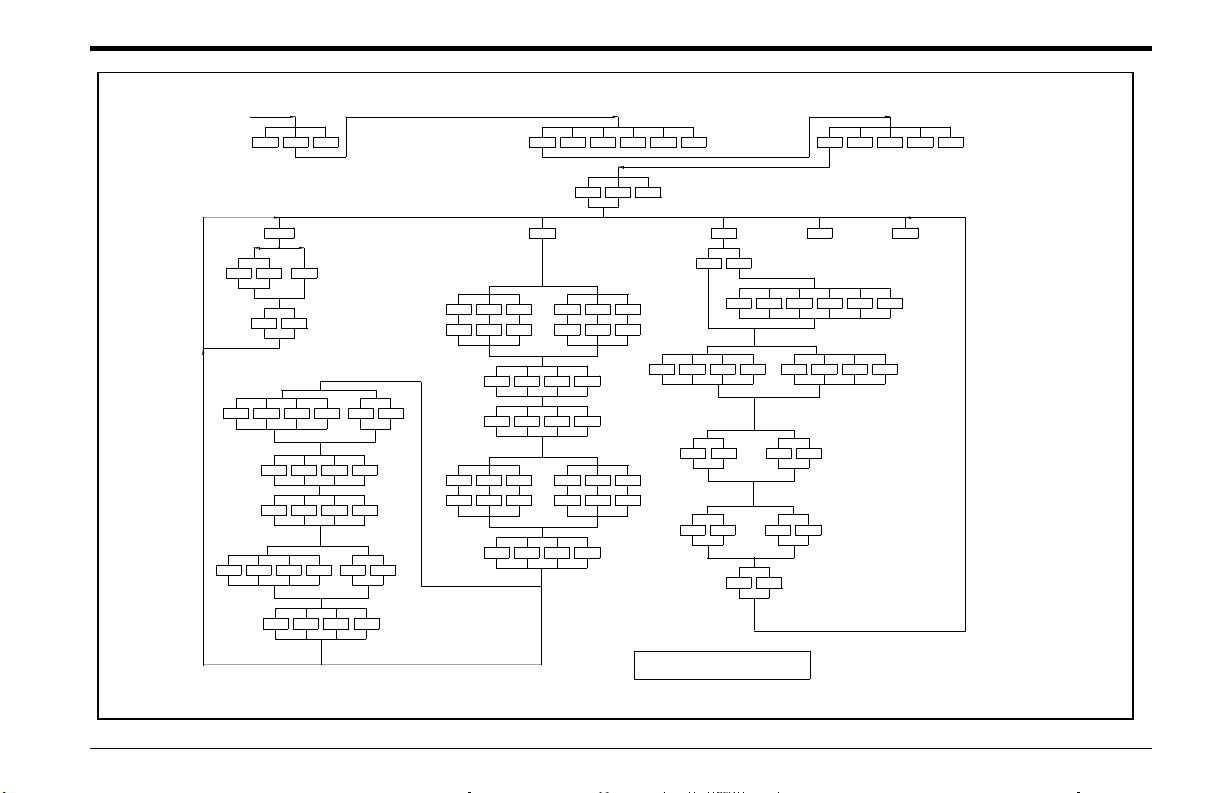

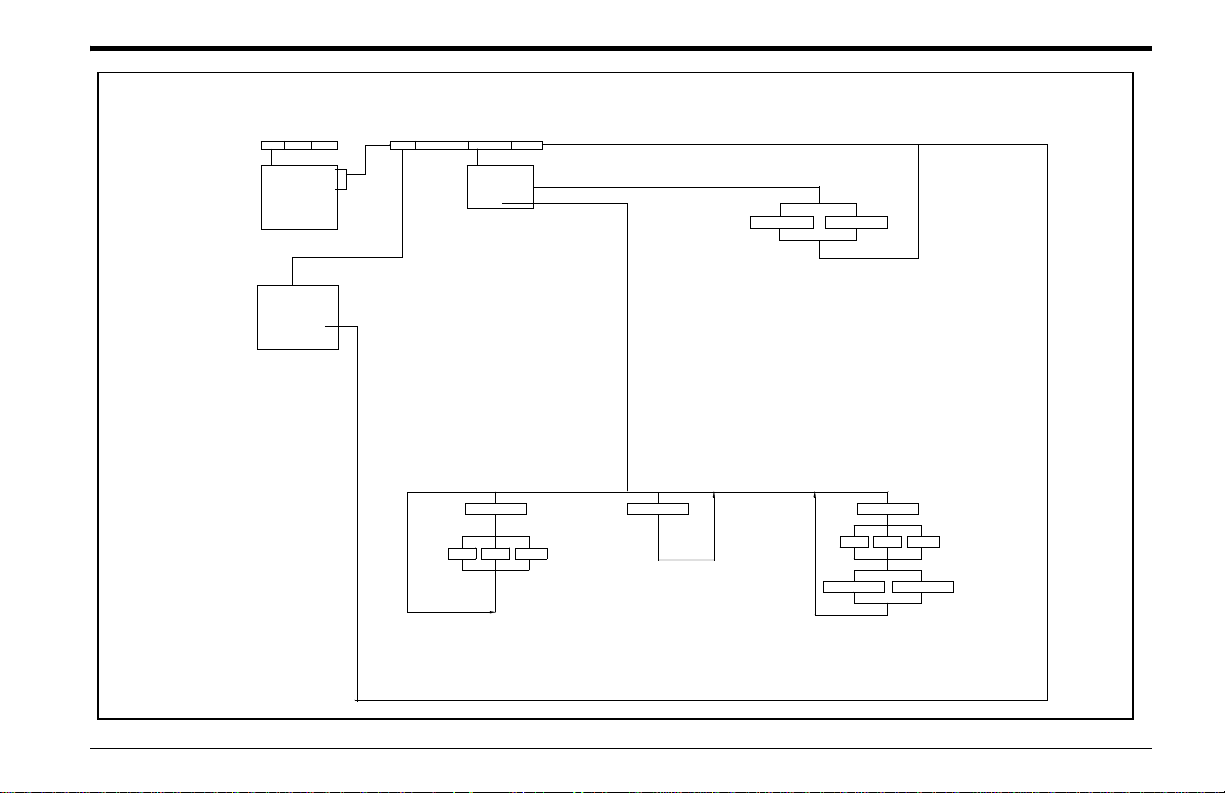

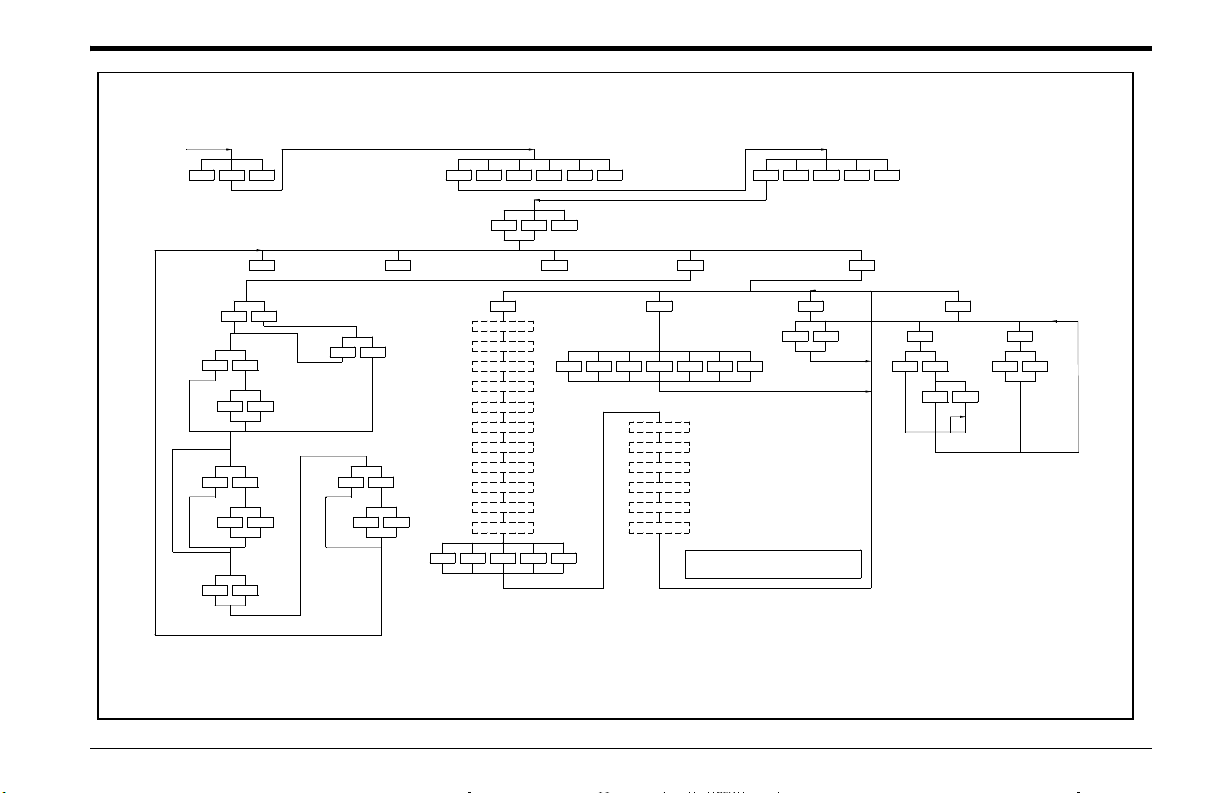

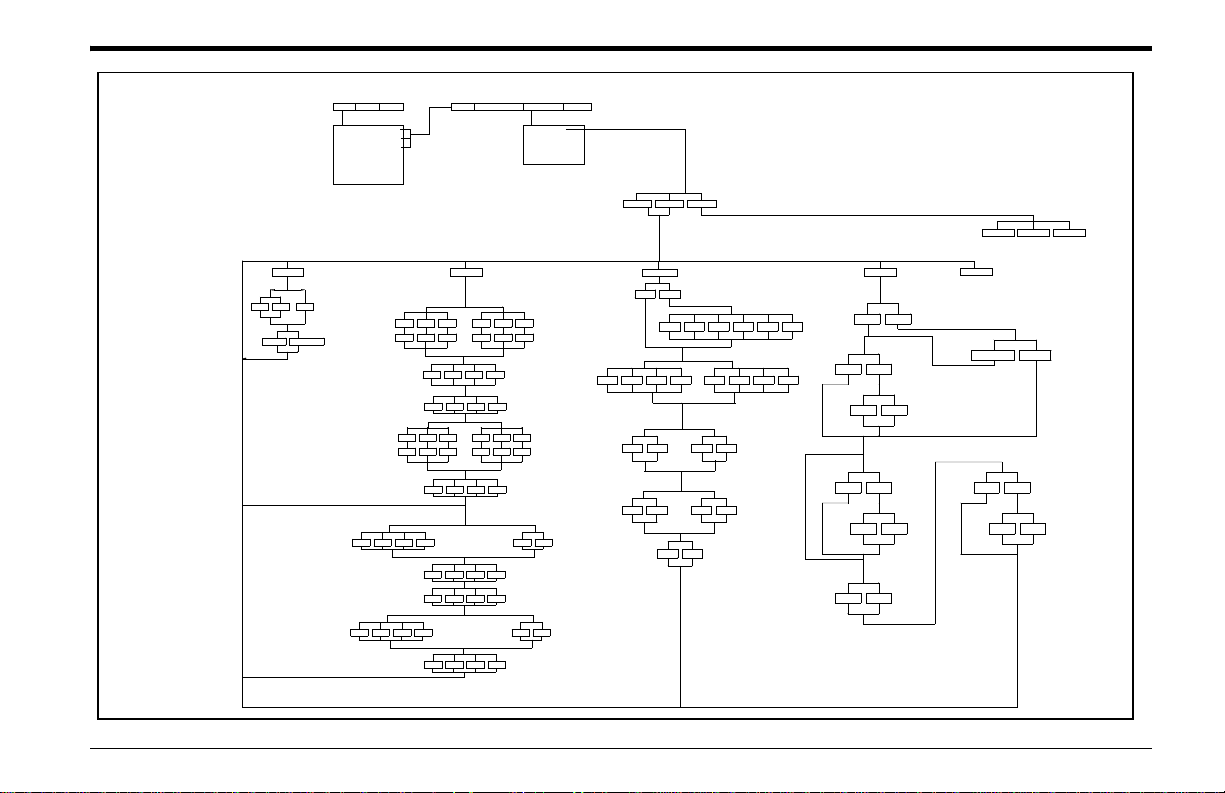

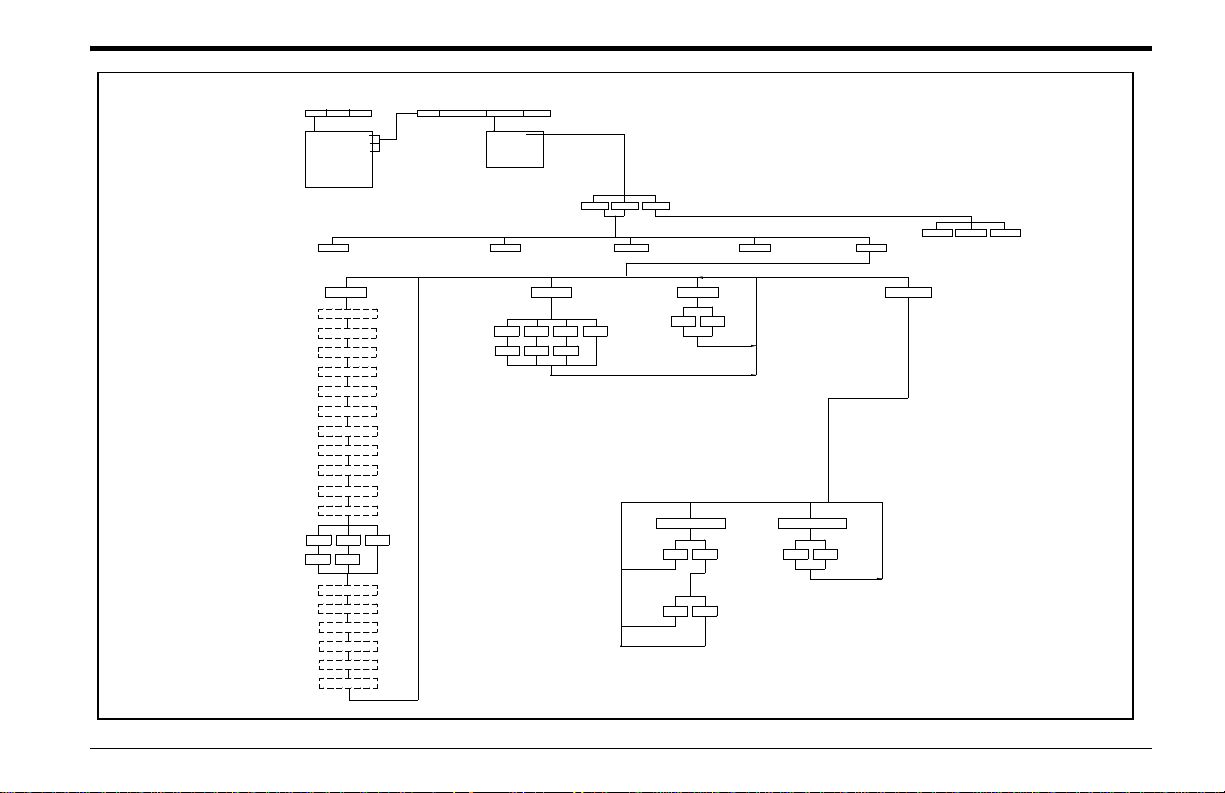

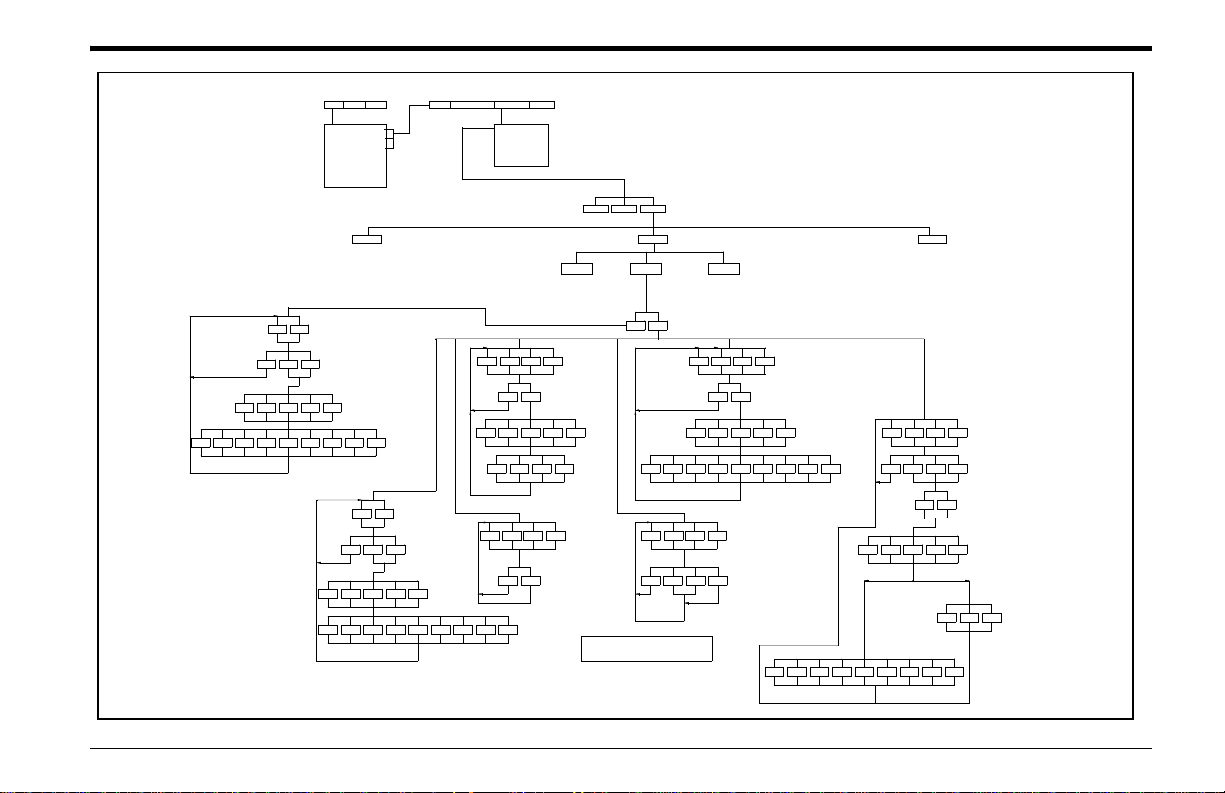

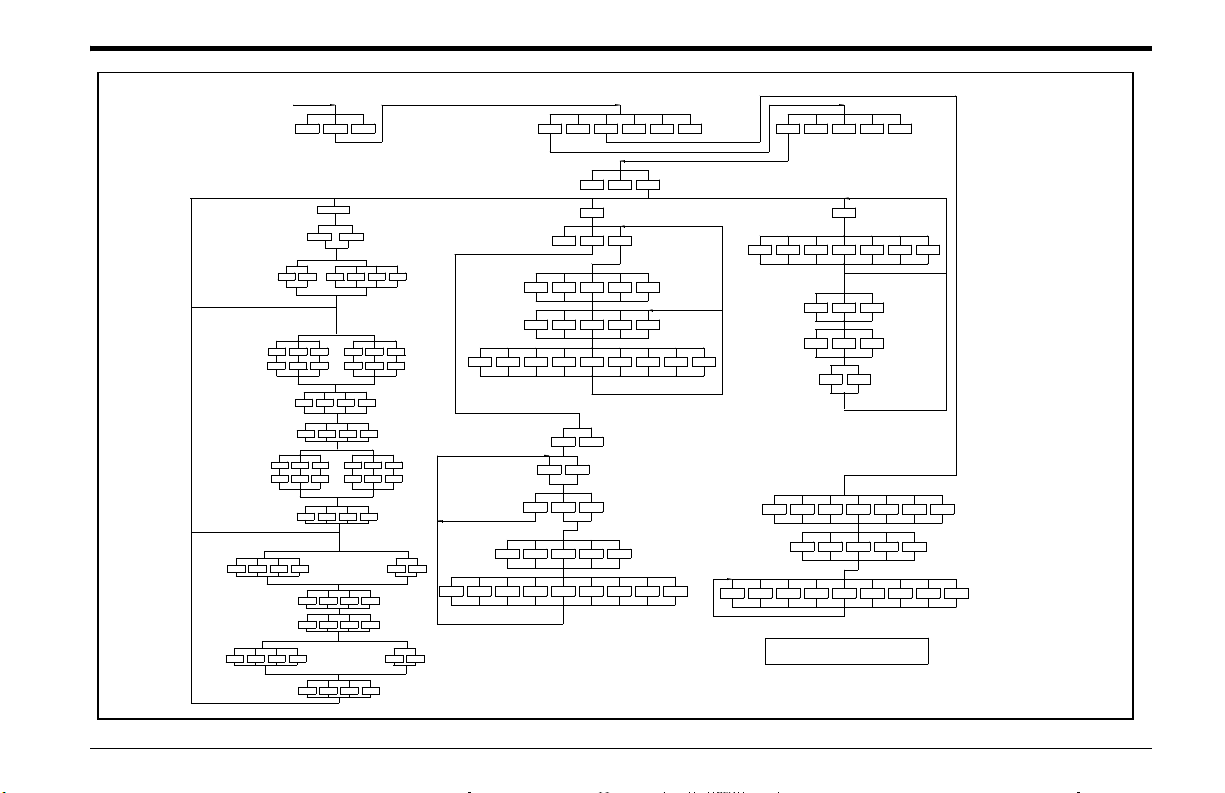

Also, as a programming aid, a complete set of menu maps for the SITE
EDIT MENU are included in Appendix A, Menu Maps for IDM. The
specific figure numbers will be referenced throughout this chapter, as
required.

Refer to the appropriate section for a discussion of the following SITE
EDIT MENU features.

• Channelx-Status - activate one or both channels and select the

desired measurement method.

• Channelx-System - enter the individual channel parameters.

• Channelx-Pipe Parameters - enter the pipe geometry and other

parameters.

• Channelx-Input/Output - set up the inputs and outputs.

• Channelx-Setup - set the signal limits, response times and mass

flow status.

• Global-System - select system units (English and metrics).

• Global-Input/Output - set up error handling, option cards and

display.

• Global-Comm Port - set the serial port parameters.

Note: The “x” in CHx represents the channel number. If you are

using a 1-Channel meter, only Channel 1will appear.

To get the XGS868 up and running as quickly as possible you must,
as a minimum, activate the channel(s), enter channel and global
system data and pipe parameters. The Procedure Options sections at
the end of each menu will help you in programming the required
(quick startup) and optional data.

Note: In this manual, only the programming of Channel 1 will be

described. T o pr ogram Channel 2 of a 2-channel meter , simply
repeat the same procedure presented for Channel 1.

Programming Site Data 1-1

November 2004

Programming Methods There are three methods for programming the XGS868 flowmeter:

• Instrument Data Manager (IDM) - a PC-based, non-resident

software program that communicates with the XGS868 via its
RS232 serial port.

• PanaView™ - a Windows-based, non-resident software program

that communicates with the XGM868 via its RS232 serial port.

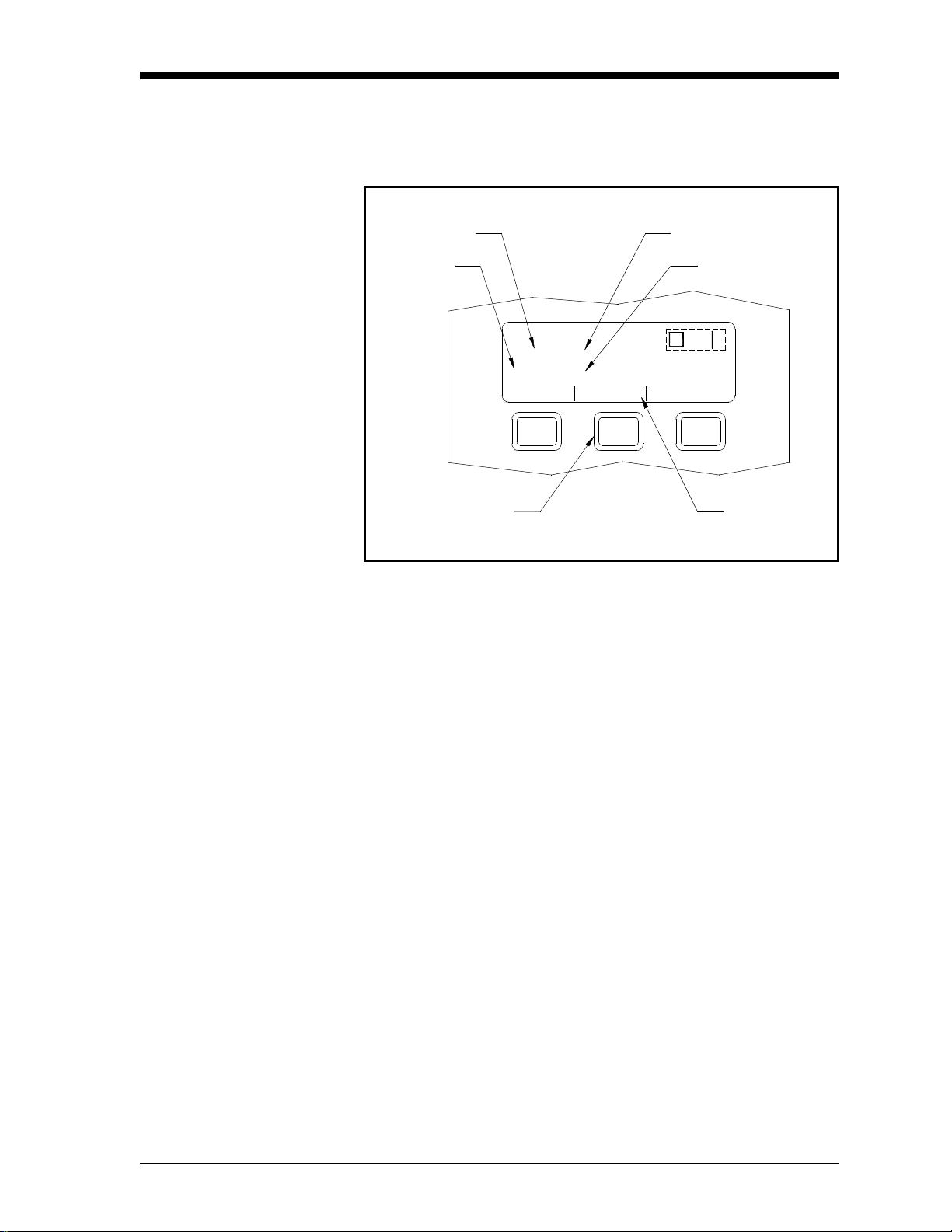

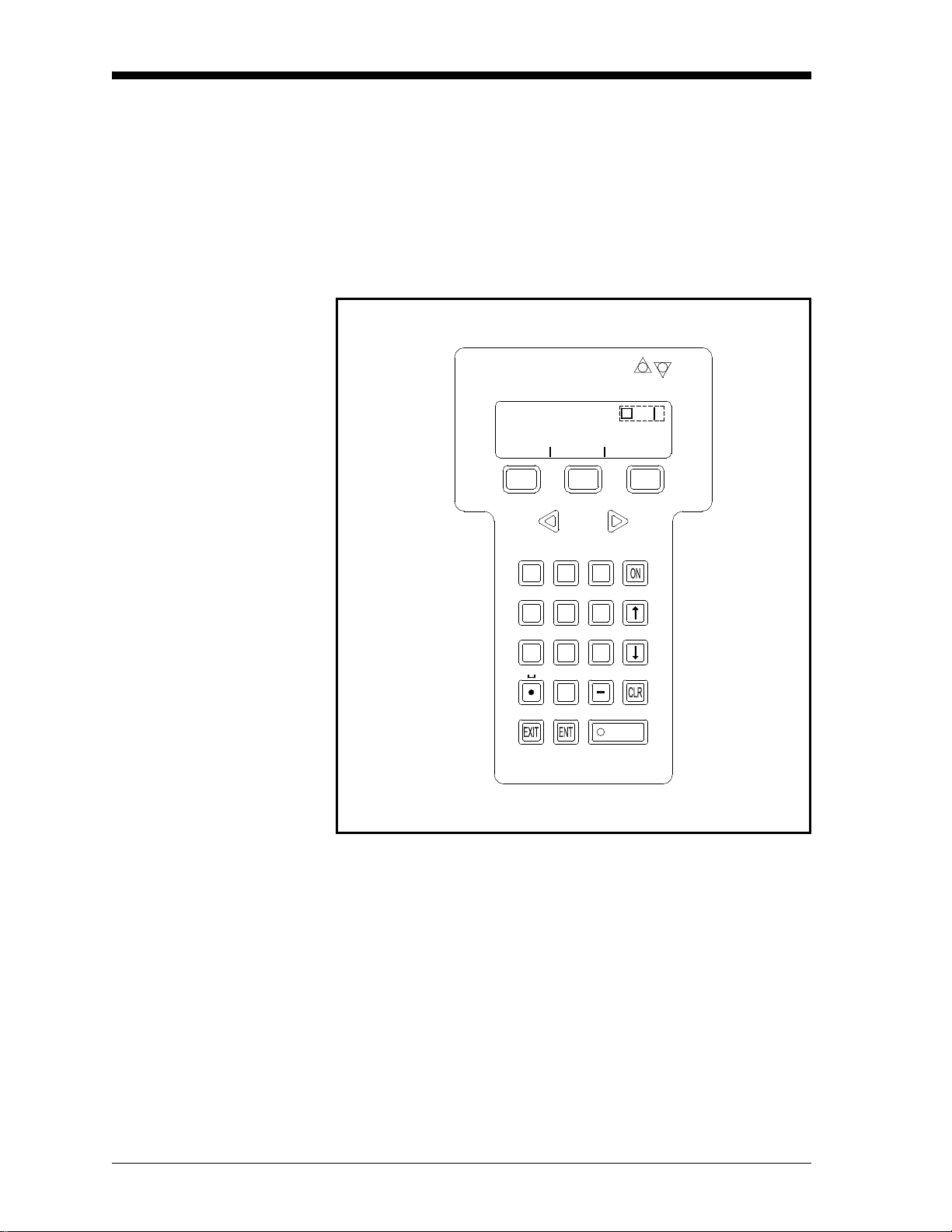

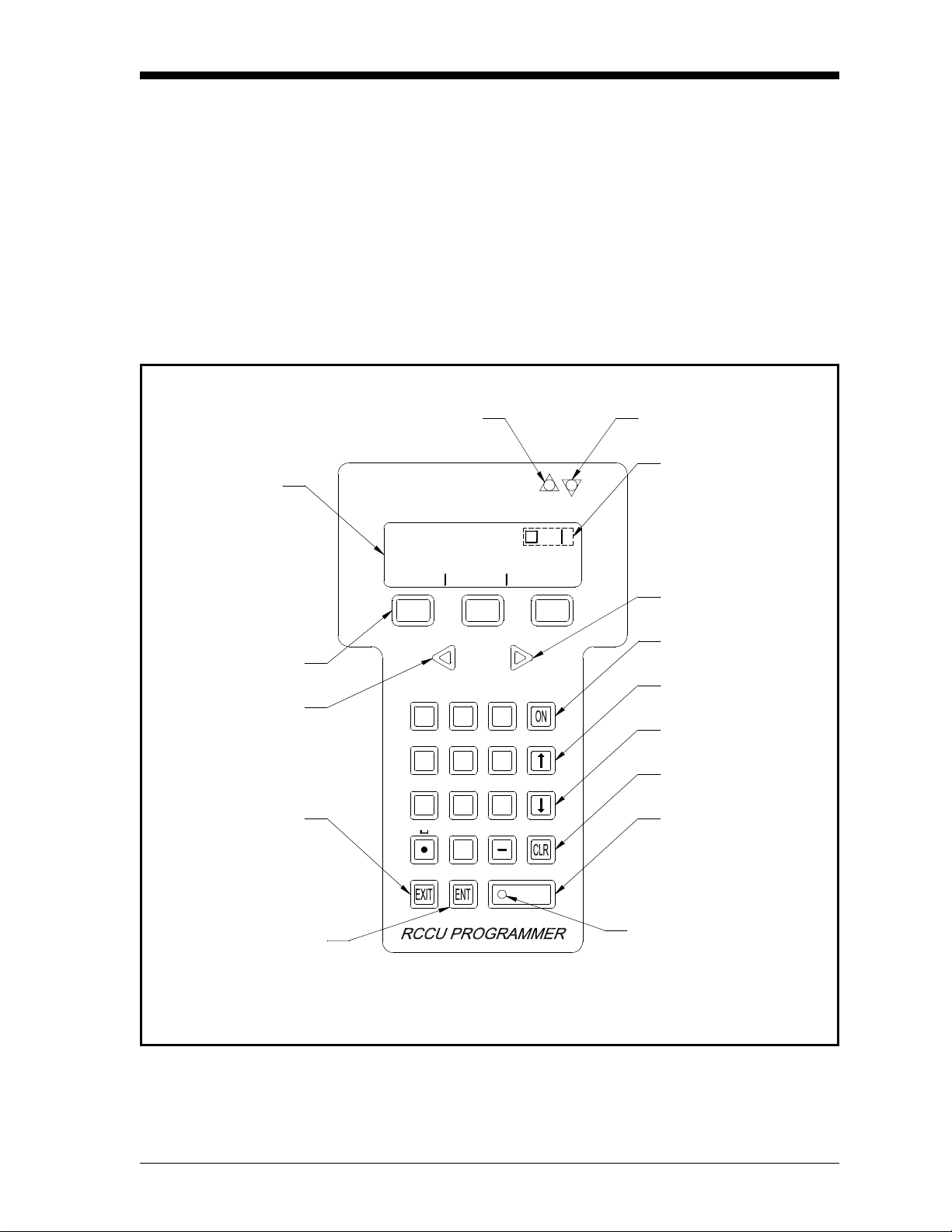

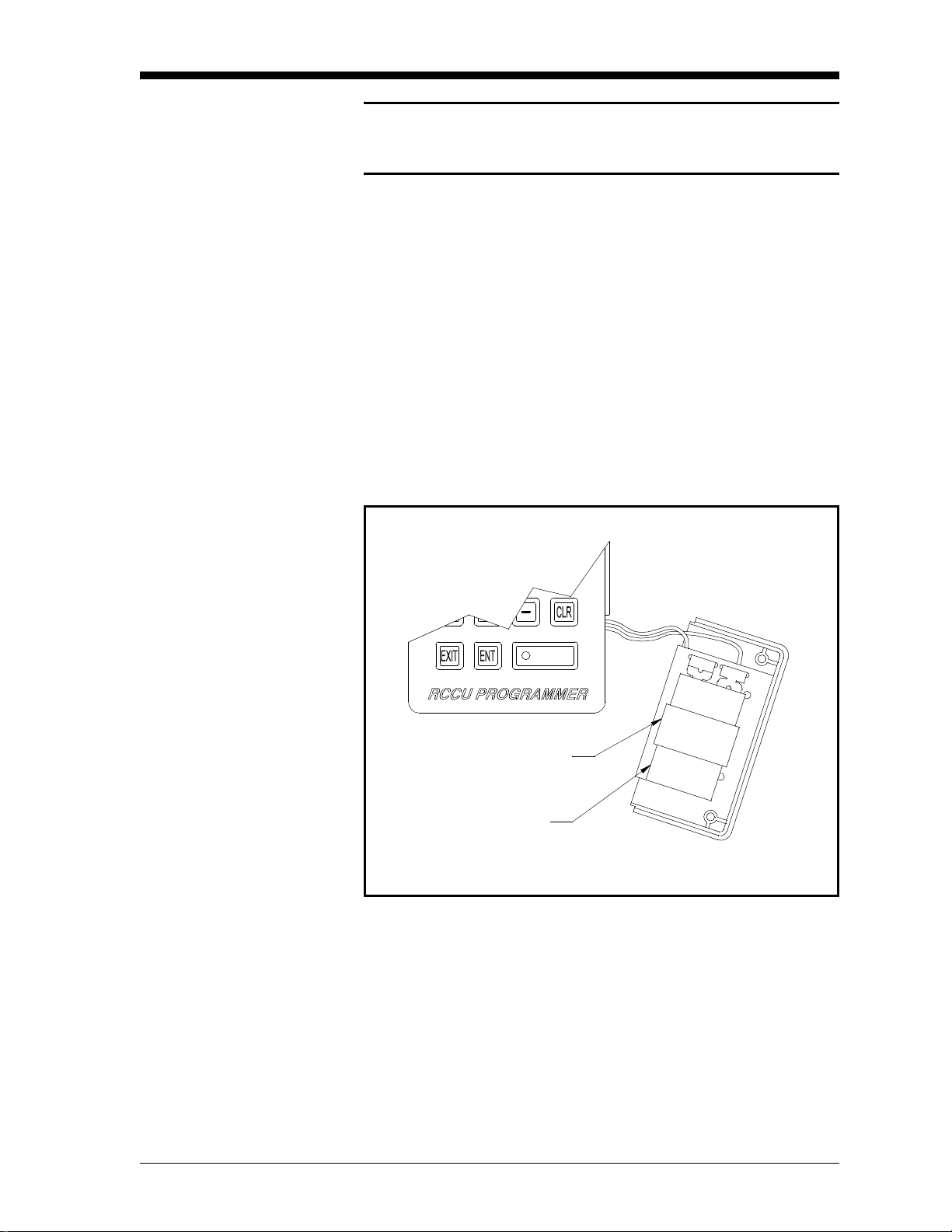

• Remote Control Communications Unit (RCCU) - a hand-held

device that communicates with the XGM868 through wireless,
infrared transmissions.

Note: The XGM868 cannot be programmed at the electronics

enclosure. One of the above methods must be used.

Although the actual displays differ somewhat, the general procedures
are the same for all three programming methods. This chapter
provides detailed IDM programming instructions. If you are using
PanaView™, see Appendix D, PanaView™ for IDM-Compatible
Meters and/or the PanaView™ User’s Manual (910-211) for detailed
instructions. If you are using the RCCU, refer to Appendix C, Remote
Control Communications Unit, for specific instructions.

Note: This manual is for instruments using software verion Y3DS or

later.

1-2 Programming Site Data

November 2004

Activating a Channel The Channelx-Status submenu permits selection of the desired

measurement method. In addition, it is used to activate/deactivate one
or both of the channels in a 2-Channel Model XGS868.

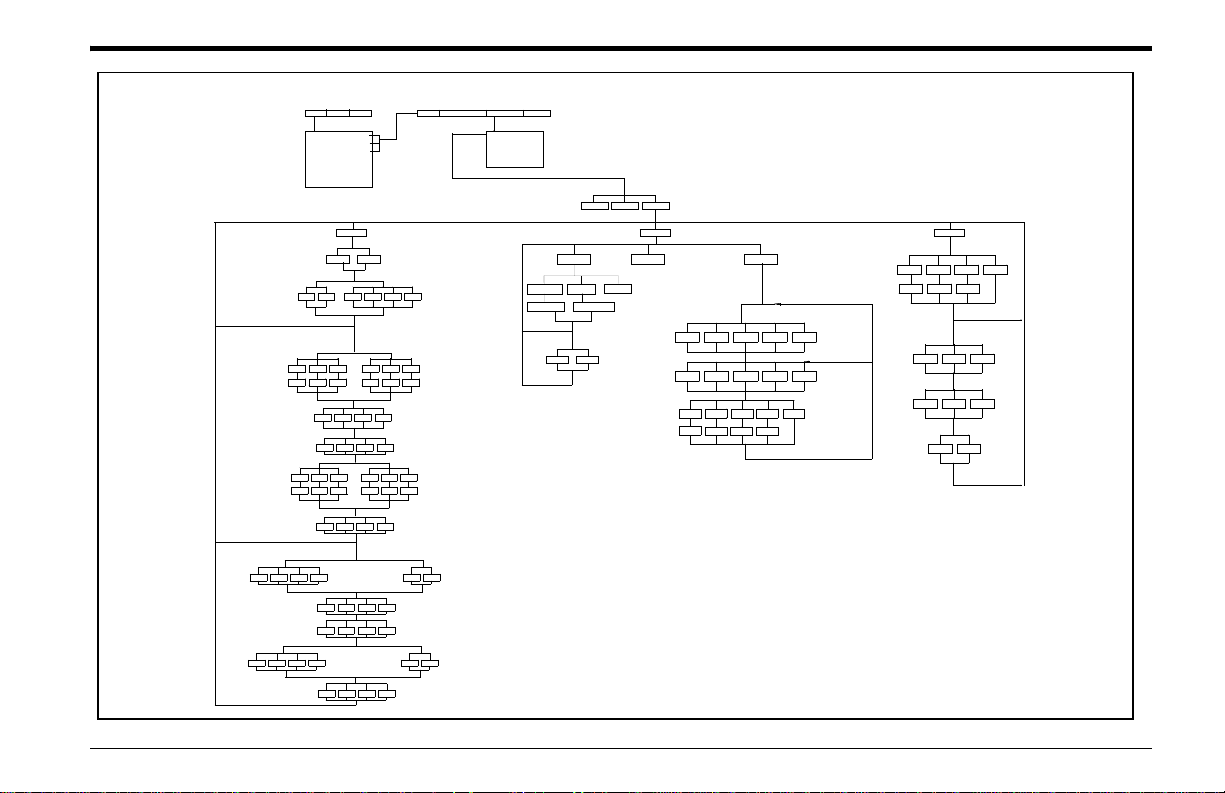

While following the programming instructions, refer to Figure A-1 in
Appendix A.

To access the Channelx-Status submenu:

1. Open the SITE EDIT MENU from the Edit Functions menu.

2. Select Channelx.

3. Select Status.

4. Select Burst to activate the channel/path and press Next Item/

Enter.

Note: Burst is automatically selected for a 1-Channel meter.

5. Use the pull-down menu to select one of the measurement

methods described below and press Next Item/Enter.

• Skan Only is the preferred technique for locating the acoustic

signal and for high velocity measurements. It is more robust in
a noisy environment than the Measure technique.

• Skan/Measure is the preferred technique to use for low

velocity measurements.

If Skan Only is selected at the above prompt, the meter uses this
technique exclusively. However, if Skan/Measure is selected, the
meter uses Skan Only to find the acoustic signal and then tries to use
the Skan/Measure technique for the actual measurement.

Note: To change the Skan Only and Skan/Measure parameters, see

Signal submenu section on page 1-15 of this chapter.

the

Procedure Options After completing the above step, IDM returns to the Channel

PROGRAM window. Do one of the following:

• To continue entering “quick startup” data, proceed to Step 3 in

the following section.

• To continue regular programming, refer to Appendix A, Menu

Maps, to navigate to the desired menu.

• To leave the User Program, press Exit Page twice.

Programming Site Data 1-3

November 2004

Entering System Data for the Channel

Accessing the Channelx­System submenu

Selecting the Volumetric Units

The Channelx-System submenu is used to enter system parameters
for the channel. While following the programming instructions, refer
to Figure A-1 in Appendix A.

1. Open the SITE EDIT MENU from the Edit Functions menu.

2. Select Channelx.

3. Select System.

4. Key in the desired Channel Label (up to 5 characters) and press

Next Item/Enter.

5. Key in the desired Site/Channel Message (up to 21 characters)
and press Next Item/Enter.

1. Use the pull-down menu to select the desired volumetric units for
the flow rate display and press Next Item/Enter. Available units
are listed in Table 1-1 below.

2. Use the pull-down menu to select the desired time units for the
flow rate display and press Next Item/Enter.

3. Use the pull-down menu to select the desired number of digits to
the right of the decimal point in the volumetric flow rate display
and press Next Item/Enter.

Table 1-1: Available Volumetric/Totalizer Units

English Metric

Actual Cubic Feet Actual Cubic Meters

Thousands of ACF Thousands of ACM

Millions of ACF Millions of ACM

Standard Cubic Feet Standard Cubic Meters

Thousands of SCF Thousands of SCM

Millions of SCF Millions of SCM

1-4 Programming Site Data

November 2004

Selecting the Totalizer Units

Selecting the Mass Flow Units

1. Use the pull-down menu to select the desired units for the totalized
flow rate display and press Next Item/Enter. Available units are
listed in Table 1-1 on the previous page.

2. Use the pull-down menu to select the desired number of digits to
the right of the decimal point in the totalized flow rate display and
press Next Item/Enter.

3. Do one of the following:

• If MASS FLOW is ON, proceed to Selecting the Mass Flow

Units below.

• If MASS FLOW is OFF, the meter returns to the Channel

PROGRAM window. Go to Procedure Options on the following

page.

Note: To activate mass flow, refer to page 1-20.

1. Use the pull-down menu to select the desired mass flow units for

the flow rate display and press Next Item/Enter. The available
units for this prompt are determined by the selection made at
System Units. See Table 1-2 below.

Table 1-2: Available Mass Flow Units

English Metric

Pounds Kilograms

Thousands of LB Metric Tons (1000 KG)

Millions of LB

Tons (2000 LB)

2. Use the pull-down menu to select the desired time units for the
mass flow rate display and press Next Item/Enter.

3. Use the pull-down menu to select the desired number of digits to
the right of the decimal point in the mass flow rate display and
press Next Item/Enter.

4. Use the pull-down menu to select the desired units for the totalized
mass flow rate display and press Next Item/Enter. The available
units for this prompt are determined by the selection made at
System Units.

5. Use the pull-down menu to select the desired number of digits to
the right of the decimal point in the totalized mass flow rate
display and press Next Item/Enter.

Programming Site Data 1-5

November 2004

Procedure Options After completing the above steps, IDM returns to the Channel

PROGRAM window. Do one of the following:

• T o continue entering “quick startup” data, continue to Step 3 in

Entering Transducer and Pipe Parameters on the next page.

• To continue regular programming, refer to Appendix A, Menu

Maps, to navigate to the desired menu.

• To leave the User Program, press Exit Page twice.

1-6 Programming Site Data

November 2004

Entering Transducer and Pipe Parameters

Enter the transducer and pipe parameters via the Pipe Parameters
submenu. While following the programming instructions, refer to
Figure A-1 in Appendix A.

1. Open the SITE EDIT MENU from the Edit Functions menu.

2. Select Channelx.

3. Select Pipe Parameters.

4. Do one of the following:

• Standard transducers: enter the number engraved on the

transducer head, then use the pull-down menu to select
Standard and press Next Item/Enter. Proceed to Pipe Data on
the next page.

• Special transducers: use the pull-down menu to select Special

and press Next Item/Enter. Proceed to Special Transducers
below.

IMPORTANT: Special transducers have no engraved number on the

head and are rarely used. Examine the transducer
head carefully for a number.

Special Transducers 1. Assign a number between 91 and 99 for the special transducer and

press Next Item/Enter.

2. Use the pull-down menu to select the transducer frequency
(supplied by the factory) and press Next Item/Enter.

Note: The frequency is requir ed to transmit an excitation voltage at

the transducer’s natural frequency.

3. Enter the special transducer time delay value (supplied by the
factory) and press Next Item/Enter.

Tw is the time required for the transducer signal to travel through
the transducer and its cable. This time delay must be subtracted
from the transit times of the upstream and downstream transducers
to ensure an accurate measurement.

Programming Site Data 1-7

November 2004

Pipe Data If a standard transducer is being used, the programming sequence

should be rejoined at this point.

1. Enter the known pipe outside diameter or circumference, then use
the pull-down menu to select the units. Press Next Item/Enter.

Obtain the required information by measuring either the pipe
outside diameter (OD) or circumference at the transducer
installation site. The data may also be obtained from standard pipe
size tables found in Sound Speeds and Pipe Size Data manual
(914-004). Available units are shown in Table 1-3 below.

Table 1-3: Available Pipe OD Units

English Metric

pipe OD in inches pipe OD in millimeters
pipe OD in feet pipe OD in meters
pipe circumference in inches pipe circumference in millimeters
pipe circumference in feet pipe circumference in meters

2. Enter the know thickness of the pipe wall and press Next Item/
Enter. If the pipe wall thickness is not available, look up the value

in a table of standard pipe size data which can be found in Sound
Speeds and Pipe Size Data manual (914-004).

IMPORTANT: Because the units cannot be independently chosen for

this parameter, the value must be entered in the same
units used for the pipe OD.

3. Enter the path length of the ultrasonic signal, then use the pull­down menu to select the units. Press Next Item/Enter.

Note: If a spoolpiece was ordered with the meter, the transducer

signal path length

(P) and the transducer signal axial length (L)

are engraved on the flowcell and/or are included in the
documentation supplied with the meter. For on-site transducer
installations, refer to Appendix C, Measuring P and L
Dimensions, in the Startup Guide for instructions.

1-8 Programming Site Data

November 2004

Pipe Data (cont.) 4. Enter the axial length of the ultrasonic signal, then use the pull-

down menu to select the units. Press Next Item/Enter.

5. Use the pull-down menu to select the fluid type and press Next
Item/Enter. Then do one of the following:

• If OTHER was selected - proceed to Step 6.

• If STEAM was selected - proceed to Step 7.

6. Enter the speed of sound (in feet per second) in the gas to be
measured and press Next Item/Enter.

7. Enter a value for the flow calibration factor and press Next Item/
Enter. The default value is 1.00, but values between 0.50 and 2.0

may be entered.

Procedure Options After entering the Calibration Factor, IDM returns to the Channel

PROGRAM

. Do one of the following:

• To continue entering “quick startup” data, press EXIT PAGE once

and proceed to Step 2 in Entering Global System Data on
page 1-21

.

• To continue regular programming, refer to Appendix A, Menu

Maps, to navigate to the desired menu.

• To leave the User Program, press the EXIT PAGE key twice.

Programming Site Data 1-9

November 2004

Entering Zero Cutoff and Setting Up Inputs

Enter the zero cutoff value and set up the temperature, pressure and
quality inputs via the
these parameters, refer to Figure A-1 in Appendix A.

IMPORTANT: If an option card in

Input/Output submenu. While programming

Slot 1 fails to appear in this menu,

it may be turned

Options

section on page 1-26 for setup instructions.

Off. See the Global-Input/Output-

Zero Cutoff Value Near a zero flow rate, the Model XGS868 ’s readings may fluctuate

due to small offsets caused by thermal drift or similar factors. To
force a zero display reading when there is minimal flow, enter a zero
cutoff value as described below.

1. Open the SITE EDIT MENU from the Edit Functions menu.

2. Select Channelx.

3. Select Input/Output.

4. Enter a value from 0 to 1 ft/sec (0 to 0.30 m/sec) for the zero

cutoff and press Next Item/Enter. The recommended setting is 0.1
ft/sec (0.03 m/sec).

Assume Saturation This prompt permits you to use a single input for either temperature

or pressure to measure mass flow. The User Pr ogram contains a ta ble
that correlates pressure and temperature for saturated steam. If the
meter can assume the steam is always at or near saturation, then only
a temperature or pressure input is needed. The meter will interpolate
the corresponding pressure or temperature.

1. Use the pull-down menu to select whether you will assume
saturation or not and press Next Item/Enter. Proceed to one of the
following sections:

• If you selected Yes - proceed to Steam Input Type on the next

page.

• If you selected No - proceed to Temperature Input on the next

page.

1-10 Programming Site Data

November 2004

Steam Input Type Use the next prompt to select which type of input will be used to

measure mass flow.

1. Use the pull-down menu to select the type of input that will be
used to measure mass flow and press Next Item/Enter. Proceed to
one of the following sections:

• If you selected Temperature - proceed to T emperature Input on

the next page.

• If you selected Pressure - proceed to Base Temperature on the

next page.

IMPORTANT: GE Infrastructure Sensing recommends using a live

input for either temperature or pressure when
assuming the saturation.

Temperature Input The Model XGS868 can use either a fixed temperature value or a live

temperature input to calculate the steam density for the mass flow rate
display.

1. Use the pull-down menu to select a fixed temperature value or to
set up the option card in Slot 1 that will supply the live
temperature input and press Next Item/Enter.

Note: If Slot 1 contains an activated option card with an analog

input assigned to
as an option at the above prompt. If the pr ocess temperatur e is
stable, a fixed value may be used, but most applications
require a live temperature input.

If there is no active option card for temperature, the meter
assumes you are using a fixed temperature.

2. Proceed to one of the following sections:

Temperature or an RTD input, Slot 1 appears

• If you selected Fixed - proceed to Step 3.

• If you selected Slot 1 - proceed to Step 4.

3. Enter the know fixed process temperature and press Next Item/
Enter. The meter will accept values from -328° to 1832°F

o

(-200 to 1000

4. Use the pull-down menu to set up input A or input B and press
Next Item/Enter. The inputs were lab eled du ring setup.

C). Proceed to Base Temperature on the next page.

Note: The set up of input A is used as an example. Identical

procedures would be used to set up input B.

Programming Site Data 1-11

November 2004

Base Temperature 1. Enter the base temperature and press Next Item/Enter. The ratio of

this value to the actual temperature is used to calculate the
standard mass flow rate.

2. Do one of the following:

• If you selected No at Assume Saturation, proceed to Pressure

Input below.

• If you selected Pressure as the Steam Input Type, proceed to

Pressure Input below.

• If you selected Temperature as the Steam Input Type, procee d

to Base Pressure below.

Pressure Input 1. Use the pull-down menu to select a fixed pressure value or to set

up the option card in Slot 1 that will supply the live pressure input
and press Next Item/Enter.

Note: If Slot 1 contains an activated option card with an input

assigned to
prompt. If the process pressure is stable, a fixed value may be
used, but most applications require a live pressure input.

Pressure, Slot 1 appears as an option at the above

If there is no active option card for pressure, the meter
assumes you are using a fixed pressure.

2. Proceed to one of the following sections:

• If you selected Fixed - proceed to Step 3.

• If you selected Slot 1 - proceed to Step 4.

3. Enter the known fixed process pressure and press Next Item/
Enter. The meter will only accept values from 0 to 5000 psia.

Proceed to Base Pressure below.

4. Use the pull-down menu to set up input A or input B and press
Next Item/Enter. The inputs were labeled du ring setup.

Note: The set up of input A is used as an example. Identical

procedures would be used to set up input B.

Base Pressure Enter the base pressure and press Next Item/Enter. The ratio of this

value to the actual pressure is used to calculate the standard mass
flow rate.

1-12 Programming Site Data

November 2004

Low Pressure Switch 1. Use the pull-down menu to activate or deactivate the low pressure

switch software function and press Next Item/Enter.

2. Proceed to one of the following sections:

• If you selected Yes - proceed to Step 3.

• If you selected No - proceed to Quality Input below.

3. Enter the low pressure switch set point and press Next Item/Enter.
The acceptable range is 0 to 5000 psia. The meter will stop taking
readings if the pressure drops below this value.

Quality Input When the temperature and pressure inputs indicate that the steam is

saturated, the
calculations. Unless a different value is accurately known, accept the
default value at the following prompt:

Note: The quality value indicates what fraction of the fluid is in the

Quality Input value is used for the mass flow rate

gas phase. The remaining fraction is assumed to be liquid
water. Thus, a quality value of 1.0 indicates 100% gas.

1. Use the pull-down menu to select a fixed steam quality value or to
set up the option card in Slot 1 that will supply the live steam
quality input and press Next Item/Enter.

Note: If Slot 1 contains an activated option card with an analog

input that has been programmed as
an option at the above prompt. Normally, a fixed value of 1.0
(100% steam) should be used for the steam quality value.

If there is no active option card for a special input, the meter
assumes you are using a fixed quality value.

2. Proceed to one of the following sections:

Special, Slot 1 appears as

• If you selected Fixed - proceed to Step 3.

• If you selected Slot 1 - proceed to Step 4.

3. Enter the known fixed steam quality and press Next Item/Enter.
(The meter will accept values from 0.0000 to 1.0000.) Go to
Procedure Options of the following page.

4. Use the pull-down menu to set up input A or input B and press
Next Item/Enter. The inputs were lab eled du ring setup.

Note: The set up of input A is used as an example. Identical

procedures would be used to set up input B.

Programming Site Data 1-13

November 2004

Procedure Options After completing the above steps, IDM returns to the Channel

PROGRAM window. Do one of the following:

• To continue programming, refer to Appendix A, Menu Maps

for IDM, to navigate to the desired menu.

• To leave the User Program, press Exit Page twice.

1-14 Programming Site Data

November 2004

Entering Setup Data The signal limits, response times, mass flow and multi K factors for

the Model XGS868 are specified via the
following four submenus are included in this section:

Setup submenu. The

• Signal - set the parameters related to the transducer signal

(see below).

• V averaging - specify the response of the meter to step changes

(page 1-18).

• Default Setup - reset all parameters to default values (page 1-18)

• Advanced Features - enable mass flow and enter K factors

(page 1-19).

While following the programming instructions, refer to Figure A-2 in
Appendix A. Record all programmed data in Appendix B, Data
Records.

Set Transducer Signal Settings

Use this option to set the limits for the incoming signal and other
parameters affecting the transducer signal. For example, the
programmed signal strength low limit may be used to determine the
trigger point for an alarm.

Caution!

The Signal default settings are suitable for most

applications. Consult the factory before

changing any of these parameters.

Only after consulting the factory, complete the following steps to
program the signal parameters:

1. Open the SITE EDIT MENU from the Edit Functions menu.

2. Select Channelx.

3. Select Set up.

4. Select Signal.

5. Use Table 1-4 on the next page to choose the desired values. Enter

or select a value and press Next Item/Enter.

Procedure Options After completing the above steps, IDM returns to the Channel SET UP

window. Do one of the following:

• T o continue programming, refer to Appendi x A, Menu Maps, to

navigate to the desired menu.

• To leave the User Program, press Exit Page three times.

Programming Site Data 1-15

November 2004

Set Transducer Signal
Settings (cont.)

Transducer

Signal

Parameters Range

Signal Low

Limit

Correlation

Peak Limit

Soundspeed

+- Limit

Velocity Low

Limit

Velocity High

Limit

Acceleration

Limit

Amplitude

Discriminator

Low

Amplitude

Discriminator

High

-20 to 100 20

0 to 500 100

1 to 50% 20%

-500 to

500 ft/sec

(-150 to

150 m/sec)

-500 to 500
ft/sec (-150

to 150 m/

sec)

0 to 250ft/s
(0 to 76m/s)

0 to 100 14

0 to 100 34

Table 1-4: Transducer Signal Settings

Default

Value Miscellaneous Information

The E1:LOW SIGNAL error message appears when the
signal strength falls below the programmed SIGNAL LOW
LIMIT value. See Chapter 2, Error Codes, in the Service
Manual for a discussion of error codes.

The E4: SIGNAL QUALITY error message appears when the
signal quality falls below the programmed COR. PEAK
LIMIT value. See Chapter 2, Error Codes, in the Service
Manual for a discussion of error codes

The E2:SOUNDSPEED error message appears when the
calculated fluid sound speed differs from the fluid sound
speed entered in the Channelx-System menu by more
than the programmed SOUNDSPEED +- LIMIT value.
See Chapter 2, Error Codes, in the Service Manual for a
discussion of error codes.

The E3: VELOCITY RANGE error messages appears when

-75.0 ft/sec
(-23 m/sec)

75.0 ft/sec
(23 m/sec)

50 ft/s

(15 m/s)

the calculated fluid velocity is less than the programmed
VELOCITY LOW LIMIT value.
See Chapter 2, Error Codes, in the Service Manual for a
discussion of error codes.

The E3: VELOCITY RANGE error messages appears when
the calculated fluid velocity exceeds the programmed
VELOCITY HIGH LIMIT value.
See Chapter 2, Error Codes, in the Service Manual for a
discussion of error codes.

The E6: CYCLE SKIP error message appears when the
calculated fluid velocity changes by more than the
programmed ACCELERATION LIMIT value from one reading
to the next. See Chapter 2, Error Codes, in the Service
Manual for a discussion of error codes.

The amplitude discriminator measures the transducer
signal received by the XGS868. The default value for this
parameter is 14, and values from 0 to 100 are acceptable.
The E5: AMPLITUDE error message appears when the
amplitude discriminator falls below the programmed AMP.
DISCRIM LOW value. See Chapter 2, Error Codes, in the
Service Manual for a discussion of error codes.

The amplitude discriminator measures the transducer
signal received by the Model XGS868. The default value for
this parameter is 34. Values from 0 to 100 are acceptable.
The E5: AMPLITUDE error message appears when the
amplitude discriminator exceeds the programmed AMP.
DISCRIM HIGH value. See Chapter 2, Error Codes, in the

Service Manual for a discussion of error codes.

1-16 Programming Site Data

Table 1-4: Transducer Signal Settings

Transducer

Signal

Parameters Range

Delta T Offset

-1000 to

Default

Value Miscellaneous Information

0 msec

1000 msec

Skan T Offset

–500 to

500 msec

58 msec

% of Peak 1 to 100% 50%

Xmit Sample

Size

M>S Switch

2, 4, 8, 16

or 32

0 to 250

50 msec

msec

# Shifts 0 to 10 3

A Divisor 0.1 to 10 2.5

# Transmit

1 to 16 4

Pulses

T Window

0 to 1000 0

(cycles)

R Window

10 to 128 10

(cycles)

November 2004

An offset between the upstream and downstream transit
times is specified at this prompt.

At this prompt, specify a time measurement offset that
compensates for a shift resulting from cross-correlation.

The percentage of peak used to calculate the transit times
and Delta T is specified at this prompt.

Both the upstream and downstream transducers transmit
ultrasonic pulses in bursts, which consist of a series of

8

transmit pulses. XMIT SAMPLE SIZE determines how many
bursts are sent in one direction before sending in the other
direction.

If the burst mode is set to Skan/Measure (S/M), the meter
switches from Skan to Measure Mode when Delta T is less
than the M>S_Switch value. DO NOT change this value
unless advised by the factory.

The number of shifts corresponds to the actual number of
transmits per cycle (number of signals added together in
one direction to produce an averaged signal for one
interrogation of the fluid) and need only be changed if the
environment is very noisy or the acoustic signal is weak.

The Divisor used to calculate the Measure Mode
integrated threshold level is not normally changed.

# Transmit Pulses specifies the number of pulses in a
burst. For difficult conditions (i.e. long paths, high velocity
or high temperature), settings as high as 16 may be
necessary.

The XGS868 calculates the size of the transmit window
based on pipe size and fluid sound speed. However, for
special diagnostic purposes, it is possible to reset the
window size.

The XGS868 calculates the size of the receive window
based on pipe size and fluid soundspeed. However, for
special diagnostic purposes, it is possible to reset the
window size.

Programming Site Data 1-17

November 2004

Setting Response Time - V Averaging

Use this option to specify the number of readings that occur before
the meter will respond to a step change in flow rate. In general, the
smaller the number of readings, the less steady the display will
appear. Complete the following steps to set the response time:

IMPORTANT: Do not change this number unless instructed to do so

by GE Infrastructure Sensing personnel.

1. Open the SITE EDIT MENU from the Edit Functions menu.

2. Select Channelx.

3. Select Set up.

4. Select V Averaging.

5. Select the response time (in seconds ) from the pull-down menu

and press Next Item/Enter. For best results, select 30 to ensure the
most stable signal.

Procedure Options After completing the above steps, IDM returns to the Channel SET UP

window. Do one of the following:

• To continue programming, refer to Appendix A, Menu Maps

for IDM, to navigate to the desired menu.

• To leave the User Program, press Exit Page three times.

Initializing Setup Parameters - Default Setup

Procedure Options After completing the above steps, IDM returns to the Channel Set up

Use this option to initialize (reset) all of the parameters within the Set

up

menu to their default values. Complete the following steps to reset

all of the parameters:

1. Open the SITE EDIT MENU from the Edit Functions menu.

2. Select Channelx.

3. Select Set up.

4. Select Default Setup.

5. Select Yes to initialize parameters or No to abort this command.

window. Do one of the following:

• To continue programming, refer to Appendix A, Menu Maps

for IDM, to navigate to the desired menu.

• To leave the User Program, press Exit Page three times.

1-18 Programming Site Data

November 2004

Using Advanced Features This option enables you to access the more advanced features of the

meter. In this option you can do the following:

• enter a table of K factors - that compensates for non-linear flow

rates (see below).

• enable mass flow - calculated for static fluid density (on the

next page).

Entering Multiple K Factors Use this option to enter a table of K factors. K factors are used to

create a curve for the flow range (based on velocity) that compensates
for non-linear flow rates. The meter accepts from 2 to 20 pairs.
Complete the following steps to enter multiple K factors for velocity
values:

Note: The factors are supplied by the factory; without them the

K-factor table cannot be edited.

1. Open the SITE EDIT MENU from the Edit Functions menu.

2. Select Channelx.

3. Select Set up.

4. Select Advanced Features.

5. Select Multiple K Factors.

6. Use the pull-down menu to select whether to activate or deactivate

multiple K factors and press Next Item/Enter.

Note: If you select Off, go to Procedure Options on the following

page.

7. Use the pull-down menu to select whether to edit the table and
press Next Item/Enter.

Note: If you select No, go to Procedure Options on the next page.

Editing K Factors 1. Enter the number of K factors (2 to 20) in the table and press Next

Item/Enter.

2. Enter the velocity value for K-factor number “X” and press Next
Item/Enter.

Note: When editing the K-factor table, the velocities must be entered

in increasing order.

3. Enter the K-factor corresponding to velocity number “X” (0.333
to 3.0) and press Next Item/Enter.

4. Repeat Steps 2 and 3 for each pair of values.

Programming Site Data 1-19

November 2004

Procedure Options After completing the above steps, IDM returns to the Advanced

Features window. Do one of the following:

• T o continue programming, refer to Appendi x A, Menu Maps, to

navigate to the desired menu.

• To leave the User Program, press Exit Page four times.

Activating Mass Flow Use this option to calculate mass flow from a static fluid density.

Complete the following steps to enter the static density of the fluid:

IMPORTANT: The Model XGS868 calculates the actual steam

density from the live or fixed temperature and
pressure inputs, as programmed in the
menu. However, setting the
prompt to
density entered at the following prompt to calculate
mass flow.

1. Open the SITE EDIT MENU from the Edit Functions menu.

Yes overrides this value and uses the

Mass flow calculation

Input/Output

2. Select Channelx.

3. Select Set up.

4. Select Advanced Features.

5. Select Mass flow calculation.

6. Use the pull-down menu to select whether activate or deactivate

mass flow (mass flow is calculated from a static density) and press
Next Item/Enter.

Note: If you select No, go to Procedure Options below.

7. Enter the fluid density and press Next Item/Enter.

Procedure Options After completing the above steps, IDM returns to the Advanced

Features window. Do one of the following:

• T o continue programming, refer to Appendi x A, Menu Maps, to

navigate to the desired menu.

• To leave the User Program, press Exit Page four times.

1-20 Programming Site Data

November 2004

Entering Global Data The Global menu is used to enter information that is not specific to

any of the individual channels. Information programmed via this
menu is used to compute parameters such as the sum, difference or
average of the channel 1 and channel 2 signals (for a 2-Channel
meter). In addition, several general system parameters may be entered

Global menu.

in the

IMPORTANT: When calculating the sum, difference or average

readouts, data from the
used. Any conflicting data entered in the

System

submenu is overridden.

Global-System submenu is

Channelx-

Entering Global System Data

The following submenus are included in the

Global menu:

• System - use to specify the units of measure used in calculations

(see below).

• Input/Output - used to set up error handling and to configure analog

inputs and outputs (see page 1-24).

• Communication Port- used to set up the serial communications port

(see page 1-36).

Based on the selection made above, proceed to the appropriate section
of this chapter for instructions. While following the programming
instructions, refer to Figure A-3 in Appendix A. Remember to record
all programmed data in Appendix B, Data Records.

This menu enables you to select system units that the XGS868 will
use when channel data is added, subtracted or averaged together.

1. Open the SITE EDIT MENU from the Edit Functions menu.

2. Select Global.

3. Select System.

4. Enter the desired meter message (up to 21 characters) and press

Next Item/Enter.

5. Use the pull-down menu to display measurements in English units
or metric units and press Next Item/Enter.

6. Use the pull-down menu to select the desired pressure units
(absolute or gauge) and press Next Item/Enter.

7. Do one of the following:

• 1-Channel meter, go to Procedure Options on page 1-23.

• 2-Channel meter, proceed to Selecting Volumetric Units on the

next page.

Programming Site Data 1-21

November 2004

Selecting the Volumetric
Units

1. Use the pull-down menu to select the desired volumetric units for
the flow rate display and press Next Item/Enter. Available units
are listed in Table 1-5 below.

Table 1-5: Available Volumetric/Totalizer Units

English Metric

Actual Cubic Feet Actual Cubic Meters

Thousands of ACF Thousands of ACM

Millions of ACF Millions of ACM

Standard Cubic Feet Standard Cubic Meters

Thousands of SCF Thousands of SCM

Millions of SCF Millions of SCM

2. Use the pull-down menu to select the desired time units for the
flow rate display and press Next Item/Enter.

3. Use the pull-down menu to select the desired number of digits to
the right of the decimal point in the volumetric flow rate display
and press Next Item/Enter.

Selecting the Totalizer
Units

1. Use the pull-down menu to select the desired units for the totalized
flow rate display and press Next Item/Enter. Available units are
listed in Table 1-5 above.

2. Use the pull-down menu to select the desired number of digits to
the right of the decimal point in the totalized flow rate display and
press Next Item/Enter.

3. Do one of the following:

• If MASS FLOW is ON, proceed to Selecting the Mass Flow

Units below .

• If MASS FLOW is OFF, the meter returns to the Channel

PROGRAM window. Go to Procedure Options on the following

page.

Note: To activate mass flow, refer to page 1-20.

1-22 Programming Site Data

November 2004

Selecting the Mass Flow
Units

1. Use the pull-down menu to select the desired mass flow units for
the flow rate display and press Next Item/Enter. The available
units for this prompt are determined by the selection made at
System Units. See Table 1-6 below.

Table 1-6: Available Mass Flow Units

English Metric

Pounds Kilograms

Thousands of LB Metric Tons (1000 KG)

Millions of LB

Tons (2000 LB)

2. Use the pull-down menu to select the desired time units for the
mass flow rate display and press Next Item/Enter.

3. Use the pull-down menu to select the desired number of digits to
the right of the decimal point in the mass flow rate display and
press Next Item/Enter.

4. Use the pull-down menu to select the desired units for the totalized
mass flow rate display and press Next Item/Enter. The available
units for this prompt are determined by the selection made at
System Units.

5. Use the pull-down menu to select the desired number of digits to
the right of the decimal point in the totalized mass flow rate
display and press Next Item/Enter.

Procedure Options After completing the above steps, IDM returns to the Global

PROGRAM window. Do one of the following:

• T o continue programming, refer to Appendi x A, Menu Maps, to

navigate to the desired menu.

• To leave the User Program, press Exit Page twice.

Programming Site Data 1-23

November 2004

Setting Up Inputs and Outputs

Set up the XGS868’s inputs and outputs via the Input/Output
submenu. While following the programming instructions, refer to
Figure A-3 in Appendix A. The following three submenus are
included in this section:

• Error Handling - program the meter’s response during an error

condition (see below)

• Options - set up any option cards and the Slot 0 analog outputs

(page 1-26)

• Display - set up the optional LCD display. Refer to Chapter 2,

Displaying and Handling Data.

Note: In this section,

option card is installed in Slot 1.

Proceed to the appropriate section to program the option selection
made at the above prompt. Remember to record all programmed data
in Appendix B, Data Records.

Selecting Error Handling This menu option permits programming of the manner in which the

Model XGS868’s outputs respond during an error condition. See
Chapter 2, Error Codes, in the Service Manual for a discussion of the
built-in error codes.

Slot 1 appears as an option only if a suitable

2-Channel meters have an additional option for error handling. To
access this submenu:

1. Open the SITE EDIT MENU from the Edit Functions menu.

2. Select Global.

3. Select Input/Output.

4. Select Error Handling.

5. Use the pull-down menu to select the desired option for error

handling and press Next Item/Enter. If you select Error Level in
mA, proceed to Step 6. See Table 1-7 on the following page for a

description of error handling options available and how the
totalizers and analog output respond to them.

Note: The error responses listed in Table 1-7 on the next page apply

only to the

Difference measurement modes, if either or both channels are

in error. Error handling in the
set in Step 7.

6. Enter a specific current that will signify meter errors and press

Next Item/Enter. Then, do one of the following:

Channelx measurement mode and to the Sum/

Average measurement mode is

• For a 1-Channel meter, go to Procedure Options on the next

page.

• For a 2-Channel meter - proceed to Step 7 on the next page.

1-24 Programming Site Data

November 2004

Selecting Error Handling
(cont.)

7. Use the pull-down menu to enable or disable 2-path error
handling. Specific responses of the display and the totalizer are
listed in Table 1-8 below.

2-path error handling option is intended for applications where

The
two sets of transducers are installed in the same location in the
same pipe to improve accuracy and the meter is operated in
mode. With this function enabled, the Model XGS868 performs
error handling only if both
disabled, error handling occurs when either

channels are in error. If this function is

channel goes into

error.

Table 1-7: Error Response Options

Option Output Response Totalizer Response

Hold Last

Value

Force Low

Force High

Force High

High

Error Level

in mA

Holds the last “good”
reading.

Forces the outputs to
the low set point.

Forces the outputs to
the high set point.

Forces the outputs
≈10% above the high
set point.

Forces outputs to
entered mA level.

Continues to totalize, based on
the last “good” flow reading.

Stops totalizing.

Stops totalizing.

Stops totalizing.

Stops totalizing during critical
errors.

AVE

Table 1-8: 2-Path Error Response Options

Option Display Response Totalizer Response

Outputs the average of
Channel1 and Channel2
totals, regardless of the error
state of either channel.

1. If one channel is in error,
totalizing continues.

2. If both channels are in
error, totalizing stops.

No

Yes

Displays the average of
Channel1 and Channel2,
regardless of the error state
of either channel.

1. If one channel is in error,
the other channel’s value
is displayed as the
average.

2. If both channels are in
error, the last average
reading is held.

Procedure Options After completing the above steps, IDM returns to the Global I/O

window. Do one of the following:

• T o continue programming, refer to Appendi x A, Menu Maps, to

navigate to the desired menu.

• To leave the User Program, press Exit Page three times.

Programming Site Data 1-25

November 2004

Setting Up Slot 0 and Slot 1
Input/Outputs

The Model XGS868 has two built-in analog outputs, which are
assigned to
installed in
a complete description of the available option cards.

To set up option cards, refer to one of the following sections:

Slot 0. Also, a variety of input/output option cards may be

Slot 1. See Chapter 1, Installation, of the Sta rtup Guide for

• Analog Outputs - refer to section below.

• Analog Inputs - see page 1-28

• RTD Inputs - see page 1-29

• Alarm Relays - see page 1-30

• Totalizer Outputs - see page 1-32

• Frequency Outputs - see page 1-34

Analog Outputs While following the programming instructions, refer to Figure A-4 in

Appendix A.

Accessing the Output

1. Open the SITE EDIT MENU from the Edit Functions menu.

2. Select Global.

3. Select Input/Output.

4. Select Options.

5. Select Slot 0 or Slot 1 depending on which outp ut you want to set

up.

6. Use the pull-down menu to select the desired output and press
Next Item/Enter.

Note: Output letters (A, B, etc.) correspond to the output wiring

terminal numbers from top to bottom. For example, Output A
corresponds to pins 1,2 and 3; Output B corr esponds to pins 4,
5 and 6; etc.

Setting Up Output Scale 1. Use the pull-down menu to select the desired output scale and

press Next Item/Enter.

2. Do one of the following:

• If you selected Off, IDM returns to the Input/Output window.

Go to Procedure Options on the next page.

• If you selected 0-20 mA or 4-20 mA, and are using a

• 1-Channel meter, proceed to Step 4.

• 2-Channel meter, proceed to the next step.

1-26 Programming Site Data

November 2004

Setting Up Output Scale
(cont.)

3. Use the pull-down menu to select the desired channel option and
press Next Item/Enter.

4. Use the pull-down menu to select the desired measurement
parameter and press Next Item/Enter. See Table 1-9 below for a
description of the available options.

5. At Zero, enter a flow rate value for the low end of the analog
output range and press Next Item/Enter.

6. At Full, enter a flow rate value for the high end of the analog
output range and press Next Item/Enter.

Table 1-9: Output Measurement Options

Options

Flow Velocity

Volumetric Flow
Forward Totalized Volume Flow
Reverse Totalized Volume Flow

Total Flow Measurement Time

Mass Flow

Forward Totalized Mass Flow

Reverse Totalized Mass Flow

Diagnostic Parameters*

DIAG* option listed above represents all of the individual

The
diagnostic parameters that appear at the previous prompt. See
Chapter 3, Diagnostics, of the Service Manual for a complete
description of these options.

Note: The measurement units that appear in these pro mpts are those

selected in the

Global-System window earlier in this section.

Procedure Options After completing the above steps, IDM returns to the Input/Output

window. Do one of the following:

• To continue programming, refer to Appendix A, Menu Maps

for IDM, to navigate to the desired menu.

• To leave the User Program, press Exit Page three times.

Programming Site Data 1-27

November 2004

Analog Inputs While following the programming instructions, refer to Figure A-4 in

Appendix A.
Complete the following steps to set up the analog inputs of an option

card installed in

Accessing the Input

1. Open the SITE EDIT MENU from the Edit Functions menu.

2. Select Global.

3. Select Input/Output.

4. Select Options.

5. Select Slot 1.

6. Use the pull-down menu to select the desired input and press Next

Item/Enter.

Note: Input letters (A, B, etc.) correspond to the input wiring

terminal numbers from top to bottom. For example, Input A
corresponds to pins 1,2 and 3; Input B corresponds to pins 4,
5 and 6; etc.

Slot 1:

Setting Up the Input

1. Enter a label of up to eight characters for input and press Next
Item/Enter.

2. Use the pull-down menu to select the desired input measurement
and Next Item/Enter. Do one of the following:

• If Off was selected, go to Procedure Options below.

• If Pressure or Temperature was selected, proceed to Step 5.

• If Special was selected to set up the input as a live special input,

proceed to the next step.

3. Enter a name for the input and press Next Item/Enter.

4. Enter a unit of measurement for the input and press Next Item/

Enter.

5. Enter a value (a temperature value for special inputs) for the low
end of the analog input range and press Next Item/Enter.

6. Enter a value (a temperature value for special inputs) for the high
end of the analog input range and press Next Item/Enter.

Procedure Options After completing the above steps, IDM returns to the Input/Output

window. Do one of the following:

• To continue programming, refer to Appendix A, Menu Maps

for IDM, to navigate to the desired menu.

• To leave the User Program, press Exit Page three times.

1-28 Programming Site Data

November 2004

RTD Inputs Option cards with RTD inputs have a temperature range of –100° to

350°C. While following the programming instructions, refer to
Figure A-4 in Appendix A.

Complete the following steps to set up the RTD inputs of an option
card installed in Slot 1:

Accessing the Input

1. Open the SITE EDIT MENU from the Edit Functions menu.

2. Select Global.

3. Select Input/Output.

4. Select Options.

5. Select Slot 1.

6. Use the pull-down menu to select the desired input and press Next

Item/Enter.

Note: Input letters (A, B, etc.) correspond to the input wiring

terminal numbers from top to bottom. For example, Input A
corresponds to pins 1, 2 and 3; Input B corresponds to pins 4,
5 and 6; etc.

Setting Up the RTD Input

1. Enter a label for the RTD input and press Next Item/Enter.

2. Use the pull-down menu to select the desired input type and Next

Item/Enter. Do one of the following:

• If Off was selected, go to Procedure Options below.

• If Temperature was selected, proceed to the next step.

3. Enter a temperature value for the low end of the analog input
range and press Next Item/Enter.

4. Enter a temperature value for the high end of the analog input
range and press Next Item/Enter.

Procedure Options After completing the above steps, IDM returns to the Input/Output

window. Do one of the following:

• To continue programming, refer to Appendix A, Menu Maps

for IDM, to navigate to the desired menu.

• To leave the User Program, press Exit Page three times.

Programming Site Data 1-29

November 2004

Alarm Relays While following the programming instructions, refer to Figure A-4 in

Appendix A.

Complete the following steps to set up the alarm relays of an option
card installed in

Accessing the Alarm Relay

1. Open the SITE EDIT MENU from the Edit Functions menu.

2. Select Global.

3. Select Input/Output.

4. Select Options.

5. Select Slot 1.

6. Use the pull-down menu to select the desired input and press Next

Item/Enter.

Note: Output letters (A, B, etc.) correspond to the output wiring

terminal numbers from top to bottom. For example, Output A
corresponds to pins 1,2 and 3; Output B corr esponds to pins 4,
5 and 6; etc.

Slot 1:

Selecting the Alarm Type

1. Use the pull-down menu to select the desired alarm type and press

Next Item/Enter.

2. Do one of the following:

• If you selected Off, IDM returns to the Input/Output window.

go to Procedure Options below.

• If you selected High, Low or Fault, proceed to the next step.

3. Use the pull-down menu to select how the alarm will operate,
standard or failsafe mode, and press Next Item/Enter. Refer to
Chapter 1, Installation, of the Startup Guide for wiring
instructions.

1-30 Programming Site Data

November 2004

Selecting the Alarm Type (cont.)

4. Do one of the following:

• If you are using a 1-Channel meter and selected

• high or low, proceed to Step 7.

• fault, proceed to S tep 9.

• If you are using a 2-Channel meter, proceed to the next step.

5. Use the pull-down menu to select the desired channel option and
press Next Item/Enter.

6. Do one of the following:

• high or low, proceed to Step 7.

• fault, proceed to S tep 9.

7. Use the pull-down menu to select the desired measurement
parameter and press Next Item/Enter. See Table 1-10 below for a
description of the available options.

Table 1-10: Output Measurement Options

Options

Flow Velocity

Volumetric Flow
Forward Totalized Volume Flow
Reverse Totalized Volume Flow

Total Flow Measurement Time

Mass Flow

Forward Totalized Mass Flow

Reverse Totalized Mass Flow

Diagnostic Parameters*

DIAG* option listed above represents all of the individual

The
diagnostic parameters that appear at the previous prompt. See
Chapter 3, Diagnostics, of the Service Manual for a complete
description of these options.

Note: The measurement units that appear in these pro mpts are those

selected in the

8. Enter a value for the trigger point of the alarm and press Next
Item/Enter. Go to Procedure Options on the following page.

Global-System window earlier in this section.

9. Use the pull-down menu to select the type of error (flow, non-flow
or both) that will trigger the fault alarm and press Next Item/
Enter.

Programming Site Data 1-31

November 2004

Procedure Options After completing the above steps, IDM returns to the Input/Output

window. Do one of the following:

• To continue programming, refer to Appendix A, Menu Maps

for IDM, to navigate to the desired menu.

• To leave the User Program, press Exit Page three times.

Totalizer Outputs The totalizer output issues one pulse per selected volume of flow. The

meter produces a pulse each time the programmed amount of flow
passes through the pipe. While following the programming
instructions, refer to Figure A-4 in Appendix A.

Complete the following steps to set up the totalizer outputs of an
option card installed in

Accessing the Totalizer Output

1. Open the SITE EDIT MENU from the Edit Functions menu.

2. Select Global.

Slot 1:

3. Select Input/Output.

4. Select Options.

5. Select Slot 1.

6. Use the pull-down menu to select the desired input and press Next

Item/Enter.

7. Do one of the following:

• If you selected Off, IDM returns to the Input/Output window.

Go to Procedure Options on the following page.

• If you selected Totalizer, and are using a

• 1-Channel meter, proceed to Step 2 in the next section.

• 2-Channel meter, proceed to Step 1 in the next section.

Note: Output letters (A, B, etc.) correspond to the output wiring

terminal numbers from top to bottom. For example, Output A
corresponds to pins 1,2 and 3; Output B corr esponds to pins 4,
5 and 6; etc.

1-32 Programming Site Data

November 2004

Setting Up the Totalizer

1. Use the pull-down menu to select the desired channel option and
press Next Item/Enter.

2. Use the pull-down menu to select the desired measurement
parameter and press Next Item/Enter. See Table 1-11 below for a
description of the available options.

Table 1-11: Output Measurement Options

Options

Forward Totalized Volume Flow
Reverse Totalized Volume Flow

Forward Totalized Mass Flow

Reverse Totalized Mass Flow

Note: The measurement units that appear in these pro mpts are those

selected in the

Global-System window earlier in this section.

3. Enter a value for the minimum pulse on time (between 1 µsec and
10,000 µsec) for the frequency of the totalizer pulses and press
Next Item/Enter.

Note: A complete pulse consists of equal amounts of ON and OFF

times. Choose a value that is compatible with the frequency
counter to be used.

4. Enter a value for the number of measurement units represented by
each pulse and press Next Item/Enter.

Procedure Options After completing the above steps, IDM returns to the Input/Output

window. Do one of the following:

• To continue programming, refer to Appendix A, Menu Maps

for IDM, to navigate to the desired menu.

• To leave the User Program, press Exit Page three times.

Programming Site Data 1-33

November 2004

Frequency Outputs The frequency output issues a continuous signal with a frequency

proportional to the selected measurement. While following the
programming instructions, refer to Figure A-4 in Appendix A.

Complete the following steps to set up the totalizer outputs of an
option card installed in

Accessing the Frequency Output

1. Open the SITE EDIT MENU from the Edit Functions menu.

2. Select Global.

3. Select Input/Output.

4. Select Options.

5. Select Slot 1.

6. Use the pull-down menu to select the desired input and press Next

Item/Enter.

7. Do one of the following:

SLOT 1:

• If you selected Off, IDM returns to the Input/Output window.

Go to Procedure Options on the following page.

• If you selected Frequency, and are using a

• 1-Channel meter, proceed to Step 2 in the next section.

• 2-Channel meter, proceed to Step 1 in the next section.

Note: Output letters (A, B, etc.) correspond to the output wiring

terminal numbers from top to bottom. For example, Output A
corresponds to pins 1, 2 and 3; Output B corresponds to pins
4, 5 and 6; etc.

Setting Up the Frequency

1. Use the pull-down menu to select the desired channel option and
press Next Item/Enter.

2. Use the pull-down menu to select the desired measurement
parameter and press Next Item/Enter. See Table 1-12 on the next
page for a description of the available options. Refer to page 3-2 in
the Service Manual for a description of diagnostic parameters.

1-34 Programming Site Data

November 2004

Setting Up the Frequency (cont.)

Table 1-12: Output Measurement Options

Options

Flow Velocity

Volumetric Flow
Forward Totalized Volume Flow
Reverse Totalized Volume Flow

Total Flow Measurement Time

Mass Flow

Forward Totalized Mass Flow

Reverse Totalized Mass Flow

Diagnostic Parameters*

Note: The measurement units that appear in these pro mpts are those

selected in the

Global-System window earlier in this section.

3. Enter a value for the low end of the frequency output range and
press Next Item/Enter.

Note: A complete pulse consists of equal amounts of ON and OFF

times. Choose a value that is compatible with the frequency
counter to be used.

4. Enter a value for the high end of the frequency output range and
press Next Item/Enter.

5. Enter a value between 1 and 10,000 for the frequency at full scale
and press Next Item/Enter.

Procedure Options After completing the above steps, IDM returns to the Input/Output

window. Do one of the following:

• To continue programming, refer to Appendix A, Menu Maps

for IDM, to navigate to the desired menu.

• To leave the User Program, press Exit Page three times.

Programming Site Data 1-35

November 2004

Configuring the Communications Port

The Model XGS868 flowmeter is equipped with an RS232 or an
RS485 serial interface. An RS485 option is also available with
MODBUS capability. When the MODBUS option is present, the
XGS868 may also have the standard RS232 serial interface.

The serial port is used to transmit stored data and displayed readings
to a personnel computer by connecting the meter’s serial interface to
the serial port of the PC. In addition, the Model XGS868 can receive
and execute remote commands, using the Instrument Data Manager
software via this link.

Use the
MODBUS parameters. While following the programming
instructions, refer to Figure A-3 in Appendix A.

Comm Port submenu to set the communications port baud and

Setting Up the Serial Port Use the steps below to configure the communications port:

1. Open the SITE EDIT MENU from the Edit Functions menu.

2. Select Global.

3. Select Comm Port.

4. Enter a meter address (between 1 and 127) and press Next Item/

Enter. The default address is 1.

A meter address is only necessary for communication with the GE
Infrastructure Sensing Instrument Data Manager software. See the
IDM User’s Manual (910-185) for more information.

IMPORTANT: If the meter address or baud rate is changed,

communication with the Instrument Data Manager
must be re-established with the new parameters.

5. Use the pull-down menu to select a baud rate and press Next Item/
Enter.

6. Do one of the following:

• If you have the RS485 MODBUS option, proceed to Step 1 in

Setting Up MODBUS Communications on the following page.

• If you have the standard RS232 serial interface, go to

Procedure Options on the next page.

1-36 Programming Site Data

November 2004

Setting Up MODBUS

Use the steps below to configure MODBUS communications:

Communications

Note: The XGS868 MODBUS communications settings chosen in

the next four steps must match those of the MODBUS control
system.

1. Use the pull-down menu to select a MODBUS baud rate and press

Next Item/Enter.

2. Use the pull-down menu to select the MODBUS parity and press

Next Item/Enter.

3. Use the pull-down menu to the MODBUS stop bits and press Next
Item/Enter.

4. Enter a MODBUS meter address (betwee n 1 and 254) and press

Next Item/Enter. The default address is 1.

IMPORTANT: You must reboot the XGS868 to load the new settings.

Procedure Options After completing the above steps, IDM returns to the Global

PROGRAM window. Do one of the following:

• Refer to the following section Requesting Parameters Using

MODBUS on the following page to retrieve data from the

XGS868 using MODBUS.

• To continue regular programming, refer to Appendix A, Menu

Maps for IDM, to navigate to the desired menu.

• To leave the User Program, press Exit Page twice.

Programming Site Data 1-37

November 2004

Requesting Parameters Using MODBUS

To request specific parameters from the XGS868 via the MODBUS,
the control system must enter the appropriate register number. Only
registers 1 through 90 are available for MODBUS communications,
while registers 508 through 512 are used by the XGS868 to sto r e the
MODBUS parameters. For details, see Table 1-13 below for a
1-Channel meter or Table 1-14 on the next page for a 2-Channel
meter.

Note: If you request Channel2 or Averaged data from a 1-Channel

meter, the values will all be zero.

Table 1-13: MODBUS Registers for a 1-Channel XGS868

MODBUS

Reg #

10

DPR

Hex Addr Description

1

”Clear Ch1 Totalizers”

Scaling

(decimal places) Size in Bytes

-- 2 (16 bit signed)

2 2 Not Used -- 2 (16 bit signed)
3 4 Velocity 2 4 (2 16-bit int)
5 8 Act Volumetric #Q DIGITS 4 (IEEE 32 bit)
7 C Std Volumetric #Q DIGITS 4 (IEEE 32 bit)

9 10 Fwd Totals #T DIGITS 4 (2 16 bit int)
11 14 Rev Totals #T DIGITS 4 (2 16 bit int)
13 18 #Tot Digits 0 2
14 1A Mass Flow #M DIGITS 4 (IEEE 32 bit)
16 1E Fwd Mass Totals #MT DIGITS 4 (2 16-bit int)
18 22 Rev Mass Totals #MT DIGITS 4 (2 16-bit int)
20 26 #Mass Tot Digits 0 2
21 28 Timer 2 4 (2 16-bit int)
23 2C Error Code 0 2
24 2E Sound Speed 3 4 (2 16-bit int)
26 32 Steam Density 4 4 (2 16-bit int)
28 36 Signal Strength Upstream 1 4 (2 16-bit int)
30 3A Signal Strength Downstream 1 4 (2 16-bit int)
32 3E Temperature 2 4 (2 16-bit int)
34 42 Pressure 3 4 (2 16-bit int)

508 3F6

509 3F8

510 3FA

2

MODBUS baud rate

3

MODBUS parity

4

MODBUS stop bits

02

02

02

511 3FC MODBUS meter addr 0 2
512 3FE RESERVED --- ---

1-38 Programming Site Data

November 2004

Table 1-14: MODBUS Registers for a 2-Channel XGS868

MODBUS

Reg #

10

22

DPR

Hex Addr Description

1

”Clear Ch1 Totalizers”

1

”Clear Ch2 Totalizers”

Scaling

(decimal places) Size in Bytes

-- 2 (16 bit signed)

-- 2 (16 bit signed)

3 4 Ch1 Velocity 2 4 (2 16-bit int)
5 8 Ch1 Act Volumetric #Q DIGITS 4 (IEEE 32 bit)
7 C Ch1 Std Volumetric #Q DIGITS 4 (IEEE 32 bit)

9 10 Ch1 Fwd Totals #T DIGITS 4 (2 16 bit int)
11 14 Ch1 Rev Totals #T DIGITS 4 (2 16 bit int)
13 18 Ch1 #Tot Digits 0 2
14 1A Ch1 Mass Flow #M DIGITS 4 (IEEE 32 bit)
16 1E Ch1 Fwd Mass Totals #MT DIGITS 4 (2 16-bit int)
18 22 Ch1 Rev Mass Totals #MT DIGITS 4 (2 16-bit int)
20 26 Ch1 #Mass Tot Digits 0 2
21 28 Ch1 Timer 2 4 (2 16-bit int)
23 2C Ch1 Error Code 0 2
24 2E Ch1 Sound Speed 3 4 (2 16-bit int)
26 32 Ch1 Steam Density 4 4 (2 16-bit int)
28 36 Ch1 Sig Strength Upstream 1 4 (2 16-bit int)
30 3A Ch1 Sig Strength Downstream 1 4 (2 16-bit int)
32 3E Ch1 Temperature 2 4 (2 16-bit int)
34 42 Ch1 Pressure 3 4 (2 16-bit int)
36 46 Ch2 Velocity 2 4 (2 16-bit int)
38 4A Ch2 Act Volumetric #Q DIGITS 4 (IEEE 32 bit)
40 4E Ch2 Std Volumetric #Q DIGITS 4 (IEEE 32 bit)
42 52 Ch2 Fwd Totals #T DIGITS 4 (2 16 bit int)
44 56 Ch2 Rev Totals #T DIGITS 4 (2 16 bit int)
46 5A Ch2 #Tot Digits 0 2
47 5C Ch2 Mass Flow #M DIGITS 4 (IEEE 32 bit)
49 60 Ch2 Fwd Mass Totals #MT DIGITS 4 (2 16-bit int)
51 64 Ch2 Rev Mass Totals #MT DIGITS 4 (2 16-bit int)
53 68 Ch2 #Mass Tot Digits 0 2
54 6A Ch2 Timer 2 4 (2 16-bit int)
56 6E Ch2 Error Code 0 2
57 70 Ch2 Sound Speed 3 4 (2 16-bit int)
59 74 Ch2 Steam Density 4 4 (2 16-bit int)

Programming Site Data 1-39

November 2004

Table 1-14: MODBUS Registers for a 2-Channel XGS868 (Continued)

MODBUS

Reg #

DPR

Hex Addr Description

Scaling

(decimal places) Size in Bytes

61 78 Ch2 Sig Strength Upstream 1 4 (2 16-bit int)
63 7C Ch2 Sig Strength Downstream 1 4 (2 16-bit int)
65 80 Ch2 Temperature 2 4 (2 16-bit int)
67 84 Ch2 Pressure 3 4 (2 16-bit int)
69 88 Avg Velocity 2 4 (2 16-bit int)
71 8C Avg Act Volumetric #Q DIGITS 4 (IEEE 32 bit)
73 90 Avg Std Volumetric #Q DIGITS 4 (IEEE 32 bit)
75 94 Avg Fwd Totals #T DIGITS 4 (2 16 bit int)
77 98 Avg Rev Totals #T DIGITS 4 (2 16 bit int)
79 9C Avg #Tot Digits 0 2
80 9E Avg Mass Flow #M DIGITS 4 (IEEE 32 bit)
82 A2 Avg Fwd Mass Totals #MT DIGITS 4 (2 16-bit int)
84 A6 Avg Rev Mass Totals #MT DIGITS 4 (2 16-bit int)
86 AA Avg #Mass Tot Digits 0 2
87 AC Avg Timer 2 4 (2 16-bit int)
89 B0

5

Avg Error Code

02

90 B2 Avg Sound Speed 3 4 (2 16-bit int)

508 3F6

509 3F8

510 3FA

2

MODBUS baud rate

3

MODBUS parity

4

MODBUS stop bits

02

02

02

511 3FC MODBUS meter addr 0 2
512 3FE RESERVED --- ---

Notes:

1.Clear Totalizers:

flag from the 8051 to clear either the Channel 1 or Channel 2 totalizers.

2.MODBUS baud rate:

5 = 2400, 6 = 4800, 7 = 9600

3.MODBUS parity:

0 = none, 1 = odd, 2 = even

4.MODBUS stop bits:

1 = 1 stop bit, 2 = 2 stop bits

5.AVG Error Code:

0=Both Ch1 and Ch2 are in error.
1=Ch1 only is in error
2=Ch2 only is in error
3=Both channels are error free

1-40 Programming Site Data

Chapter 2

Displaying and Handling Data

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Setting Up the LCD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Adjusting LCD Contrast and Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Clearing Totals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Pausing and Restarting the Measurement. . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Uploading Files to the PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Deleting Files from the XGS868 Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Printing Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

November 2004

Introduction Although there are various ways to display data, the most popular is

the optional Liquid Crystal Display (LCD). If the Model XGS868
flow transmitter is equipped with the optional LCD, it may be
programmed to display up to four variables in sequence.

Other operations may also be performed while displaying data. This
chapter includes instructions for the following:

• Setting Up the LCD - see page 2-1.

• Adjusting Brightness and Contrast on the LCD - see page 2-3.

• Clearing Totals - page 2-3.

• Pausing and Restarting the Measurement - see page 2-4.

• Uploading Files to the PC - see page 2-4.

• Deleting Files from the XGS868 Memory - see page 2-5.

• Printing Data - see page 2-5.

Setting Up the LCD Use the Instrument Data Manager (IDM) to establish

communications with the XGS868. Then, complete the following
instructions to display the desired data on the LCD (refer to
Figure A-3 in Appendix A):

Use the following steps to set up the display:

1. Open the SITE EDIT MENU from the Edit Functions menu.

2. Select Global.

3. Select Input/Output.

4. Select Display.

5. Select LCD.

6. Use the pull-down menu to select the desired number of

parameters to be sequentially displayed and press Next Item/
Enter.

7. Do one of the following:

• If you are using a 1-Channel meter, proceed to Step 9.

• If you are using a 2-Channel meter, proceed to the next step.

Displaying and Handling Data 2-1

November 2004

Setting Up the LCD
(cont.)

8. Use the pull-down menu to select the desired channel option and

press Next Item/Enter.

9. Use the pull-down menu to select the desired measurement
parameter and press Next Item/Enter.

Note: The measurement units that appear in these pro mpts are those

selected in the

10.Repeat Steps 8 and 9 until all of the specified
have been set up.

After leaving the User Program, the XGS868 will reset itself and will
begin to display the parameters specified in this section. If more than
one parameter was set up, each of the parameters will be displayed in
sequence, with a pause of several seconds between display changes.

Global-System window earlier in this section.

# OF LCD PARAMS

Procedure Options After completing the above steps, IDM returns to the Global Input/

Output

window. Do one of the following:

• To continue regular programming, refer to Appendix A, Menu

Maps, to navigate to the desired menu.

• To leave the User Program, press Exit Page three times.

2-2 Displaying and Handling Data

November 2004

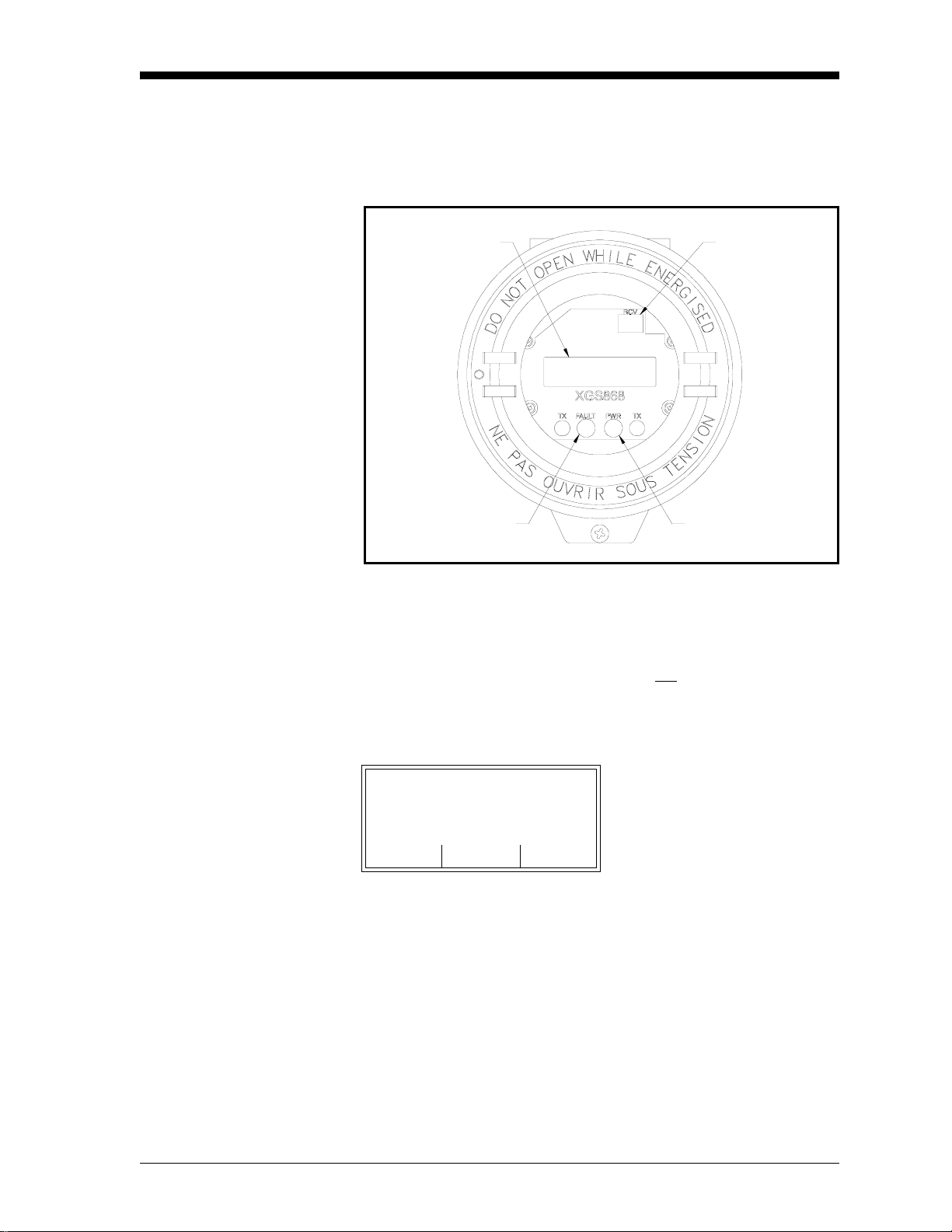

Adjusting LCD Contrast and Brightness

Both the contrast and the brightness of the optional LCD may be
adjusted to suit individual needs. As shown in the upper right view of
Figure 4-1 on page 4-12 of the Service Manual, there are two 3/4-turn
adjustment potentiometers located on the LCD circuit board. Using
these pots for the LCD adjustment, complete the following steps:

!WARNING!

Never remove the covers from the XGS868 in a hazardous

environment while the line power is on.

1. Make sure the XGS868 is in a safe environment, and loosen the

set screw to remove the front cover (see Chapter 4, Parts
Replacement, in the Service Manual for details, if necessary).

IMPORTANT: If the XGS868 is to be installed in a hazardous

environment, adjust the LCD brightness and contrast
in a safe area, before mounting the enclosure.

2. With power still applied to the meter, carefully use a small
screwdriver to adjust the LCD brightness. Turning the

BKLT

(backlight) pot fully clockwise yields maximum brightness.

3. In a similar manner, adjust the
contrast as desired. At either extreme of the

CONT (contrast) pot to set the LCD

CONT pot, the display

is unreadable; turn the pot fully counterclockwise and then turn it
clockwise very slowly until the display is clear.

4. Readjust the

BKLT control, as desired.

5. Replace the front cover on the XGS868, and secure it in place with
the set screw.

The meter may now be placed back into service.

Clearing Totals When clearing totals, the totals for both channels will be reset. Refer

to Figure A-6 in Appendix A.

1. Open the System menu.

2. Select Clear Instrument Totalizers.

3. IDM automatically clears the totalizers and exits the System

menu.

Displaying and Handling Data 2-3

November 2004

Pausing and Restarting the Measurement

IDM offers a unique command that enables you to pause and st art the
measurement display (refer to Figure A-6 on page A-6).

Pausing the Measurement Display

1. Open PAUSE MEASUREMENT from the Edit Functions menu.

2. Select Stop Measurement.

3. IDM automatically stops taking measurements and exits the Edit

Functions menu.

Restarting the Measurement Display

1. Open PAUSE MEASUREMENT from the Edit Functions menu.

2. Select Measure Flow.

3. IDM automatically begins taking measurements and exits the Edit

Functions menu.

Uploading Files to the PC Any files stored in the XGS868’s memory may be uploaded to the

PC’s disk. The files may then be displayed and examined via IDM.

To upload a log file, complete the following steps (see Figure A-6 on
page A-6):

1. Open the FILE MENU from the Edit Functions menu.

2. Select Upload File.

3. Use the pull-down menu to select the desired memory location and

press Next Item/Enter.

Note: The

4. IDM displays the available files. Press Next Item/Enter.

5. Enter the filename and press Next Item/Enter.

6. Select the desired directory, enter a new filename and press Next

Item/Enter.

IDM uploads the selected file and automatically exits the menu.

PCMCIA option only appears if such a card has been

installed.

2-4 Displaying and Handling Data

November 2004

Deleting Files from the XGS868 Memory

Any files stored in the XGS868’s memory may be deleted. To delete
a file, complete the following steps (see Figure A-6 in Appendix A):

1. Open the FILE MENU from the Edit Functions menu.

2. Select Delete File.

3. Use the pull-down menu to select the desired memory location and

press Next Item/Enter.

Note: The

4. IDM displays the available files. Press Next Item/Enter.

5. Enter the filename and press Next Item/Enter.

IDM deletes the file from the XGS868’s memory and automatically
exits the menu.

PCMCIA option only appears if such a card has been

installed.

Printing Data The Model XGS868 flowmeter has no ability to print any of its data

either directly or using the RCCU. However, any of the data stor ed in
its memory may be printed via the built-in RS232 communications
port, using a computer terminal. In order to use the capability, the
XGS868 must be linked to the computer terminal with the optional
Instrument Data Manager (IDM) software.

Note: See Chapter 1, Installation, of the Startup Guide for

instructions on wiring the RS232 serial port. For more
information on serial communications refer to your EIA-RS

Serial Communications manual (916-054).

After making the hardware connections and installing the IDM
software, the following data may be output to a printer connected to
the personal computer:

• live data in numeric or graphical format

• log file in numeric or graphical format

• site file in tabular format

• transducer signal array data in tabular format

For detailed instructions on printing any of the data types listed
above, consult the User’ s Manuals for the IDM software, the personal
computer, and the printer.

Displaying and Handling Data 2-5

Chapter 3

Logging Data

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Setting Up a Standard Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Setting Up an Error Log. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

Checking the XGS868 Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9

Stopping a Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9

November 2004

Introduction In order to log data to the Model XGS868 it must be fitted with an

optional data logging option card in Slot 2. See Chapter 4, Parts
Replacement, of the Service Manual for instructions on installing the

card. After the option card has been installed, further memory
expansion is possible by plugging an industry-standard PCMCIA
memory card into a connector on the data logging option card.

If you do not have the data logging option card, you can log data on a
remote computer terminal via the meter’s RS232 serial port. This
requires the use of the optional Instrument Data Manager (IDM)
software. Refer to the IDM User’s Manual in the chapter discussing
the Real Time Menu.

This chapter explains how to log data to the Model XGS868’s using
the optional data logging card and IDM. Also refer Appendix A,
Menu Maps.

Note: After the specified data has been logged, the log file may be

uploaded to the Remote Control Communications Unit
(RCCU) via an infrared transmission. See Appendix C,
Remote Control Communications Unit.

Setting Up a Standard Log

A standard log is used to record up to six flow rate measurement
parameters in a log file stored in the XGS868’s memory. Complete
the following steps to set up a log (see Figure A-5 in Appendix A).

1. Open the LOG EDIT MENU from the Edit Functions menu.

2. Select Create Standard Log.

3. Use the pull-down menu to select the desired option. The memory

location chosen at the above prompt must have sufficient room for
the expected size of the log file being created. After the memory
location for the log file has been specified, IDM displays the
amount of that type of memory available.

IMPORTANT: If a circular log is being set up, DO NOT choose

FLASH as the memory location for the log file.

Note: The PCMCIA option only appears if such a card has been

installed.

4. Enter a log name up to five characters and press Next Item/Enter.

5. Enter a log message of up to twenty-one characters and press Next

Item/Enter.

6. Enter the number of parameters to be logged (1-6) and press Next
Item/Enter. These parameters will be refered to as channels by the

meter.

Logging Data 3-1

November 2004

Setting Up a Standard
Log (cont.)

7. Do one of the following:

• For 1-Channel meter, proceed to Step 2 in Selecting the Log

Channels below.

• For a 2-Channel meter, proceed to Step 1 in Selecting the Log

Channels below.

Selecting the Log Channels 1. Use the pull-down menu to select the desired channel option and

press Next Item/Enter.

2. Use the pull-down menu to select the desired measurement
parameter and press Next Item/Enter. See Table 3-1 below for a
list of the available options.

Table 3-1: Output Measurement Options

Description

Flow Velocity

Volumetric Flow
Forward Totalized Volume Flow
Reverse Totalized Volume Flow

Total Flow Measurement Time

Mass Flow

Forward Totalized Mass Flow

Reverse Totalized Mass Flow

Diagnostic Parameters

The DIAG* option listed in the table above represents all of the
individual diagnostic parameters that appear. See Chapter 3,
Diagnostics, of the Service Manual for a complete description of
these options.

Note: The measurement units that appear in these pro mpts are those

selected in the Global-System window earlier in this section.

3. Repeat Steps 1 and 2 until until all of the log channels have been
set up.

4. Do one of the following:

• If you selected a totalized value, proceed to the next step.

• If you selected a non-totalized value for the log and

• selected FLASH as the log memory location, proceed to

Selecting the Start Time on the next page.

• selected NVR or PCMCIA as the log memory location,

proceed to Step 6.

3-2 Logging Data

November 2004

Selecting the Log Channels
(cont.)

5. Use the pull-down menu to clear or keep current log totals and
press Next Item/Enter.

Note: Responding YES at the above prompt clears only the log

totals; it does not clear the meter totalizers. To reset meter
totals, see Clearing Totals on page 2-3.

6. Use the pull-down menu to create a circular or linear log and press

Next Item/Enter.

A circular log records data continuously, but only the data from
the most recent log cycle is saved. The circular log begin s
recording data at the specified START TIME and continues to record
data until a manual STOP command is issued. At the end of each
log cycle, as defined by the DURATION time, previously recorded
data is overwritten by the new data.

IMPORTANT: If there is insufficient memory available to store a

specified log, setup of that log will not be permitted.

Selecting the Start Time 1. Use the pull-down menu to select the desired start time for the log

and press Next Item/Enter.

2. If you selected:

• OK, proceed to Selecting the Start Date below.

• EDIT, proceed to the next step.

• NOW and the log is

• non-circular, proceed to Selecting the End Time on the next

page.

• circular, proceed to Selecting the Duration on page 3-5.

3. Use the pull-down menu to select AM or PM. Then, enter the
desired hour (1-12) and press Next Item/Enter.

Note: If you enter a start time earlier that the current time and error

will occur.

4. Enter the desired minutes (0 to 59) and press Next Item/Enter.

5. Enter the desired seconds (0 to 59) and press Next Item/Enter.

Logging Data 3-3

November 2004

Selecting the Start Date 1. Use the pull-down menu to select the desired start date for the log

and press Next Item/Enter.

2. If you selected:

• OK or TODAY and the log is

• non-circular, proceed to Selecting the End Time below.

• circular, proceed to Selecting the Duratio n on the next page.

• EDIT, proceed to the next step.

3. Enter the desired year (0-99) and press Next Item/Enter.

4. Use the pull-down menu to select the desired month and press

Next Item/Enter.

5. Enter the desired day (1 to the number of days in the selected
month) and press Next Item/Enter.

6. Do one of the following:

• If you are creating a non-circular log, proceed to Selecting the

End Time below.

• If you are creating a circular log, proceed to Selecting the

Duration on the next page.

Selecting the End Time 1. Use the pull-down menu to select the desired start time for the log

and press Next Item/Enter.

2. If you selected:

• OK, proceed to Selecting the End Date below.

• EDIT, proceed to the next step.

• TIMED, use the pull-down menu to select how long you want

the log to run and press Next Item/Enter. Then, proceed to
Selecting the Time Increment on the next page.

3. Use the pull-down menu to select AM or PM. Then, enter the
desired hour (1-12) and press Next Item/Enter.

Note: If you enter a start time earlier that the current time and error

will occur.

4. Enter the desired minutes (0 to 59) and press Next Item/Enter.

5. Enter the desired seconds (0 to 59) and press Next Item/Enter.

3-4 Logging Data

November 2004

Selecting the End Date 1. Use the pull-down menu to select the desired end date for the log

and press Next Item/Enter.

2. If you selected:

• OK or TODAY, proceed to Selecting the Time Increment below.

• EDIT, proceed to the next step.

3. Enter the desired year (0-99) and press Next Item/Enter.

4. Use the pull-down menu to select the desired month and press

Next Item/Enter.

5. Enter the desired day (1 to the number of days in the selected
month) and press Next Item/Enter.

6. Proceed to Selecting the Time Increment below.

Selecting the Duration 1. Use the pull-down menu to select the desired units of measure.

2. Enter the desired number of hours/days and press Next Item/
Enter.

Selecting the Time
Increment

3. Proceed to the Selecting the Time Increment below.

1. Use the pull-down menu to select the desired time increment and

Next Item/Enter.

The time increment is the frequency at which the Model XGS868
takes and records data measurements. If any reading takes longer
than the programmed time increment, the log is filled in with the
next consecutive reading. For example, assume that a velocity
value of 3 ft/sec is recorded at 12:00:00 in a log with a time
increment of five seconds. If the next reading is 8 ft/sec and it
takes the meter 12 seconds to read this value, then both of the
missed readings (12:00:05 and 12:00:10) will be filled in with the
8 ft/sec value.

2. Press Next Item/Enter to acknowledge the message.

Note: Although each log is restricted to six logged parameters, it is

still possible to log more than six parameters. Simply re-enter
the Create Standard Log submenu as many times as
necessary to set up additional logs. Select the other desired
parameters, and run these logs simultaneously with the first
log.

Logging Data 3-5

November 2004

Setting Up an Error Log An error log updates every 5 seconds (or whenever the display

updates), but only if a new error condition occurs. Error logs have a
fixed length of 2 pages and contain sixty records per page. Each
record shows the time of the error, the measurement parameter values
at that time, and the error code message. The logged values of the
chosen measurement parameters at the time of the error condition
provide valuable troubleshooting information.

Complete the following steps to set up an error log (see Figure A-5 in
Appendix A).

Setting Up the Log 1. Open the LOG EDIT MENU from the Edit Functions menu.

2. Select Create Error Log.

3. Use the pull-down menu to select the desired option. The memory

location chosen at the above prompt must have sufficient room for
the expected size of the log file being created. After the memory
location for the log file has been specified, IDM displays the
amount of that type of memory available.

IMPORTANT: If a circular log is being set up, DO NOT choose

FLASH as the memory location for the log file.

Note: The PCMCIA option only appears if such a card has been

installed.

4. Enter a log name up to five characters and press Next Item/Enter.

5. Enter a log message of up to twenty one characters and press Next

Item/Enter.

6. Enter the number of parameters to be logged (1-6) and press Next
Item/Enter. These parameters will be refered to as channels by the

meter.

Note: For a 1-Channel XGS868, the data for Channel 1 is logged

automatically. However, for a 2-Channel meter, the channel
data to be logged must be specified.

7. Do one of the following:

• For 1-Channel meter, proceed to Step 2 in Selecting the Log

Channels on the next page.

• For a 2-Channel meter, proceed to Step 1 in Selecting the Log

Channels on the next page.

3-6 Logging Data

November 2004

Selecting the Log Channels 1. Use the pull-down menu to select the desired channel option and

press Next Item/Enter.

2. Use the pull-down menu to select the desired measurement
parameter and press Next Item/Enter. See Table 3-1 below a list
of the available options.

Table 3-2: Output Measurement Options

Description

Flow Velocity

Volumetric Flow
Forward Totalized Volume Flow
Reverse Totalized Volume Flow

Total Flow Measurement Time

Mass Flow

Forward Totalized Mass Flow

Reverse Totalized Mass Flow

Diagnostic Parameters

The DIAG* option listed in the table above represents all of the
individual diagnostic parameters that appear. See Chapter 3,
Diagnostics, of the Service Manual for a complete description of
these options.

Note: The measurement units that appear in these pro mpts are those

selected in the Global-System window earlier in this section.

3. Repeat Steps 1 and 2 until until all of the log channels have been
set up.

4. Do one of the following:

• If you selected a totalized value, proceed to the next step.

• If you selected a non-totalized value for the log and

• selected FLASH as the log memory location, proceed to

Selecting the Start Time on the next page.

• selected NVR or PCMCIA as the log memory location,

proceed to Step 6.

5. Use the pull-down menu to clear or keep current log totals and
press Next Item/Enter.

Note: Responding YES at the above prompt clears only the log

totals; it does not clear the meter totalizers. To reset meter
totals, see Clearing Totals on page 2-3.

Logging Data 3-7

November 2004

Selecting the Log Channels
(cont.)

6. Use the pull-down menu to create a circular or linear log and press

Next Item/Enter.

A circular log records data continuously, but only the data from
the most recent log cycle is saved. The circular log begin s
recording data at the specified START TIME and continues to record
data until a manual STOP command is issued. At the end of each
log cycle, as defined by the DURATION time, previously recorded
data is overwritten by the new data.

IMPORTANT: If there is insufficient memory available to store a

specified log, setup of that log will not be permitted.

Selecting the Start Time 1. Use the pull-down menu to select the desired start time for the log

and press Next Item/Enter.

2. If you selected:

• OK, proceed to Selecting the Start Date below.

• EDIT, proceed to the next step.

• NOW, press Next Item/Enter to acknowledge the message. You

have completed creating an error log.

3. Use the pull-down menu to select AM or PM. Then, enter the
desired hour (1-12) and press Next Item/Enter.

Note: If you enter a start time earlier that the current time and error

will occur.

4. Enter the desired minutes (0 to 59) and press Next Item/Enter.

5. Enter the desired seconds (0 to 59) and press Next Item/Enter.

Selecting the Start Date 1. Use the pull-down menu to select the desired start date for the log

and press Next Item/Enter.

2. If you selected:

• OK or TODAY, proceed to Step 6.

• EDIT, proceed to the next step.

3. Enter the desired year (0-99) and press Next Item/Enter.

4. Use the pull-down menu to select the desired month and press

Next Item/Enter.

5. Enter the desired day (1 to the number of days in the selected
month) and press Next Item/Enter.

3-8 Logging Data

November 2004

Selecting the Start Date
(cont.)

Checking the XGS868 Memory

6. Press Next Item/Enter to acknowledge the message.
Note: To log more than six parameters, simply re-enter the Create

Error Log submenu as many times as necessary to set up
additional logs. Select the other desired parameters, and run
these logs simultaneously with the first log.

Use the Memory submenu to verify that the available log memory is
sufficient for the desired log. If the expected amount of logged data
will exceed the remaining memory capacity, the Model XGS868
suggests that some old logs be cleared to make room for the new log.
Refer to Figure A-5 in Appendix A.

Complete the following steps to set up an error log:

1. Open the LOG EDIT MENU from the Edit Functions menu.

2. Select Memory.

3. IDM displays the available memory. Press EXIT PAGE.

Stopping a Log Use the Stop submenu to terminate a logging process that is currently

active. Refer to Figure A-5 in Appendix A.

Complete the following steps to set up an error log:

1. Open the LOG EDIT MENU from the Edit Functions menu.

2. Select Stop Logging.

3. Use the pull-down menu to find the desired log and press Next

Item/Enter.

Note: Once a log is stopped it cannot be restarted, but the log

remains in memory. To clear the log from memory, refer to
Deleting Files from the XGS868 Memory on page 2-5.

Logging Data 3-9

Appendix A

Menu Maps

Channel-Status, System, Pipe Parameters & I/O Menu Map . . . . . . . . . A-1

Channel-SETUP Menu Map. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Global-System, I/O (Error Handling/Display), Comm Port Menu Map . A-3

Global-Input/Output, Options Menu Map. . . . . . . . . . . . . . . . . . . . . . . . . . A-4

Log Edit Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-5

File Menu, Clear Totalizers & Pause Measurement Menu Map. . . . . . . . A-6

Channel status

Skan/Measure Mode

November 2004

IDM Main Menu Meter Window Menu

Data

Global

Help

Connect to a New Instrument
Select an Existing Instrument
Scan Network for Instruments
Preferences
Dial Modem
Hang Up Modem
Exit

Status

1-Channel2-Channel

Site status

Burst

Burst

Off

Skan Only

Skan/Measure

MASS FLOW OFF

MASS FLOW OFF

LB KLB

LB KLB

[English]

[English]

LB KL B

LB KL B

MMLB

MMLB

VOLUMETRIC UNITS

[ENGLISH] [METRIC]

ACF KACF

SCF KSC F MMSCF

VOLUMETRIC TIME

VOL DECIMAL DIGITS

VOL DECIMAL DIGITS

TOTALIZER UNITS

TOTALIZER UNITS

[ENGLISH]

ACF KACF

SCF KSCF MMSCF

TOTAL DECIMAL DIGITS

TOTAL DECIMAL DIGITS

MASS FLOW UNITS

MASS FLOW UNITS

[English]

[English]

MMLB

MMLB

TONS

TONS

MASS FLOW TIME

/SEC

/SEC

MDOT DECIMAL DIGITS

MDOT DECIMAL DIGITS

0

0

TONS

TONS

MASS DECIMAL DIGITS

MASS DECIMAL DIGITS

01 32

01 32

System

Upload/Download Edit Functions

System Input/Output

CHANNEL LABEL
SITE/CHANNEL MESSAGE

MMACF

ACM KACM

SCM KSCM

/MIN/SEC /DAY/H R

1032

1032

[METRIC]

MMACF

ACM KACM

SCM KSCM

1032

1032

MASS FLOW ON

MASS FLOW ON

/DAY/HR

/DAY/HR

/MIN

/MIN

132

132

MASS TOTALS

MASS TOTALS

SITE EDIT MENU
CALIBRATION/TEST
PAUSE MEASUREMENT
LOG EDIT MENU*
FILE MENU*

[*Only if data logging option card installed]

MMACM

MMSCM

MMACM

MMSCM

[Metric]

[Metric]

TONNE

TONNE

KG

KG

[Metric]

[Metric]

TONNE

TONNE

KG

KG

Real Time

inch in/PI ft/PIfeet

[*for 2-Channel meter only]

Channel 1

Pipe Parameters

STD

[ENGLISH]

PATH LENGTH P

[ENGLISH] [METRIC]

inch feet

AXIAL LENGTH L

[ENGLISH]

inch feet

Channel 2*

TRANSDUCER NUMBER

TRANSDUCER NUMBERTRANSDUCER NUMBERTRANSDUCER NUMBERTRANSDUCER NUMBER

SPEC

SPECIAL TRANSDUCER

PIPE OD

PIPE WALL

FLUID TYPE

Steam

Global

FREQUENCY

200k100k50k 25k500k 33k

Tw

[METRIC]

mm mm/PI M/PIm

mm m

[METRIC]

mm m

Other

FLUID SOUNDSPEED

CALIBRATION FACTOR

A:LABEL B:LABEL

FIXED TEMP.

Steam Input Type = Temp

A:LABEL B:LABEL

FIXED PRESSURE

No

Fixed

A

Fixed

AB

No Yes

ZERO CUTOFF

ASSUME SATURATION

Yes

TEMP INPUT

Slot1

[*only if input option is installed]

B

BASE TEMP.

PRESSURE INPUT

[*only if input
option is

Slot1

installed]

BASE PRESSURE

Low Pressure Switch

PRESSURE LIMIT

SET UP

See Figure A-2

Temperature

FIXED

FIXED QUAL.

System

F1

Input/Output

See Figure A-3

STEAM INPUT TYPE

QUALITY INPUT

F2

SLOT1

A:LABEL B:LABEL

F1

AF2B

Comm Port

Pressure

Figure A-1: Channel-Status, System, Pipe Pa rameters & I/O Menu Map

Menu Maps A-1

November 2004

IDM Main Menu Meter Window Menu

Data

Global

Help

Connect to a New Instrum ent
Select an Existing Instrument
Scan Network for Instruments
Preferences
Dial Modem
Hang Up Modem
Exit

Status

See Figure A-1

Signal V averaging Default Setup Advanced Features

SIGNAL LOW LIMIT

CORR. PEAK LIMIT

SOUNDSPEED +- LIMIT

VELOCITY LOW LIMIT

VELOCITY HIGH LIMIT

ACCELERATION LIMIT

AMP. DISCRIM LOW

AMP. DISCRIM HIGH

DELTA T OFFSET

SKAN T OFFSET

% OF PEAK

XMIT SAMPLE SIZE

42

16832

M>S SWITCH

# SHIFTS

A DIVISOR

# TRANSMIT PULSES

T WINDOW

R WINDOW

System

Upload/Download Edit Functions

Real Time

SITE EDIT MENU
CALIBRATION/TEST
PAUSE MEASUREMENT
LOG EDIT MENU*
FILE MENU*

[*Only if data logging option card installed]

System

See Figure A-1

RESPONSE TIME

0.2

30

1

60 STATS

[*for 2-Channel meter only]

Channel 1

Channel 2* Global

Pipe Parameters

See Figure A-1 See Figure A-1

4

10

Input/Output

Press YES to Default

NO YES

Multiple K Facto rs

Activate Multi K Fact?

Off On

Edit table?

NO YES

Enter # of K Factors
Velocity #*
K Factor #*

*Repeat for the # of K Factors entered previously

Mass flow calculation

Mass from Static Dens?

No Yes

Fluid Density

SET UP

System

Input/Output

Comm Port

See Figure A-3

Figure A-2: Channel-SETUP Menu Map

Menu Maps A-2

November 2004

LB KLB

LB KLB

LB KLB

LB KLB

IDM Main Menu Meter Window Menu

Data

Global

Help

Connect to a New Instrum ent
Select an Existing Instrument
Scan Network for Instruments
Preferences
Dial Modem
Hang Up Modem
Exit

System

METER MESSAGE

SYSTEM UNITS

English

Metric

PRESSURE UNITS

[METRIC]

[ENGLISH]

BARg

PSIgPSIa

BARa Kpaa

1-CHANNEL UNITS

2-CHANNEL UNITS

VOLUMETRIC UNITS

[METRIC]

[ENGLISH]

MMACF

ACF KACF

SCF KSCF MMSCF

ACF KACF

SCF KSCF MMSC F

MASS FLOW OFF

MASS FLOW OFF

[English]

[English]

MMLB

MMLB

[English]

[English]

MMLB

MMLB

[ENGLISH]

ACM KACM

SCM KSCM

VOLUMETRIC TIME

/MIN/SEC /DAY/HR

VOL DECIMAL DIGITS

VOL DECIMAL DIGITS

1032

1032

TOTALIZER UNITS

TOTALIZER UNITS

[METRIC]

MMACF

ACM KACM

SCM KSCM

TOTAL DECIMAL DIGITS

TOTAL DECIMAL DIGITS

03

03

1

2

1

2

MASS FLOW ON

MASS FLOW ON

MASS FLOW UNITS

MASS FLOW UNITS

TONS

TONS

MASS FLOW TIME

/SEC

/SEC

MDOT DECIMAL DIGITS

MDOT DECIMAL DIGITS

TONS

TONS

MASS DECIMAL DIGITS

MASS DECIMAL DIGITS

/MIN

/MIN

01 32

01 32

MASS TOTALS

MASS TOTALS

01 32

01 32

/DAY/HR

/DAY/HR

System

Kpag

MMACM

MMSCM

MMACM

MMSCM

[Metric]

[Metric]

KG

KG

[Metric]

[Metric]

KG

KG

Upload/Download Edit Functions

TONNE

TONNE

TONNE

TONNE

Real Time

SITE EDIT MENU
CALIBRATION/TEST
PAUSE MEASUREMENT
LOG EDIT MENU*
FILE MENU*

[*Only if data logging option card installed]

Force High High

1-CHANNEL UNITS

Yes

Error Handling

Force Low

[*for 2-Channel meter only]

Channel 1

See Figure A-1

Error Handling

Error Level in mA

2-CHANNEL UNITS

2PATH ERROR HANDLING

No

Channel 2* Global

Input/Output Comm Port

Options

See Figure A-4

Display

Force HighHold Last Value

# OF LCD PARAMS

OFF312 4

[only appears for 2-Channel meter]

CH1

CH2 SUM DIF AVE

VOLUMVEL -TOTL+TOTL

MDOT

+MASS

Measurement Name

-MASS

[*all diagnostic parameters appear here]

[until all channels set up]

TIME

DIAG*

600300

4800

MODBUS option install ed

Meter Address
BAUD RATE

1200 2400

192009600

MODBUS Baud Rate

960048002400

MODBUS Parity

EvenOddNone

MODBUS Stop Bits

2 Bits1 Bit

MODBUS Address

Figure A-3: Global-System, I/O (Error Handling/Display), Comm Port Menu Map

Menu Maps A-3

November 2004

IDM Main Menu

Data He lp

Global

Connect to a New Instrument
Select an Existing Instrument
Scan Network for Instruments
Preferences
Dial Modem
Hang Up Modem
Exit

System

See Figure A-3

Slot 0 Outputs

B

Slot 0 Output A

Off 0-20mA4-20m

[only appears for 2-Channel meter]

Channel

CH2

CH1

Measurement Name

VEL

VOLUM

+TOTL

-TOTL

AVE

SUM

DIF

Analog Outputs

DIAG+MASS -MASSTIME

[*all diagnostic
parameters appear here]

MDOT

ZERO

FULL

AB

Slot 1 Outputs

OFF 4-20m0-20m

Channel

[only appears for 2-Channel meter]

CH1 SUM

CH2 DIF AVE

Measurement Name

VOLUM

VEL -TOTL+TOTL

ZERO

FULL

System

Upload/Download Edit Functions

MDOT +MASS -MASS DIAG*

TIME

[*all diagnostic parameters appear here]

Meter Window Menu

SITE EDIT MENU
CALIBRATION/TEST
PAUSE MEASUREMENT
LOG EDIT MENU*

FILE MENU*

[*Only if data logging option card installed]

Totalizer Outputs

A

B

Slot 1 Outputs

OFF

CH1

+TOTL -TO TL

UNITS/PULSE

RTD Inputs

A B C D

LABEL

Input measurement

OFF

FULL Scale Value

Real Time

[*for 2-Channel meter only]

Channel 1

Channel 2* Global

See Figure A-1

Error Handling
See Figure A-3 See Figure A-3

C D

TTLZR

Channel

SUMCH2 DIF AVE

Measurement Name

+MASS -MASS

MINIMUM ON PULSE TIME

TEMP

ZERO Value

NOTE: Plain text represents prompt area messages and
boxed text represents option bar choices.
Fx represent function keys to s elect option bar choices.

Input/Output

Options

I/O

[*appears only if option card instal led]

SLOT0

SLOT1

(Option Card)

Slot 1

Analog Inputs

A B C D

LABEL

Input measurement

OFF PRESR TEMP SPEC

ZERO Value

FULL Scale Value

Display

Frequency Outputs

A B C D

Slot 1 Outputs

FREQ

OFF

Channel

[only appears for 2-Channel meter][only appears for 2-Channel meter]

SUM AVEDIF

CH2CH1

Measurement Name

-TOTLVEL +TOTLVOLUM

BASE

FULLFULL SCALE FREQUENCY

INPUT NAME

INPUT UNITS

+MASSMD OTTIME DIAG*-MASS

[*all diagnostic parameters appear here]

Measurement Name

-TOTLVEL +TOTLVOLUM

Trigger point

Comm Port

See Figure A-3

Alarm Relays

A B C D

Slot 1 Outputs

OFF

HIGH FAULTLOW

Failsafe?

[only appears for 2-Channel meter]

Channel

DIF AVE

CH2CH1 SUM

HIGH/LOW FAULT

+MASSTIME MDOT DIAG*-MASS

[*all diagnostic parameters appear here]

YESNO

Fault Type

FLOW

OTHER

ALL

Figure A-4: Global-Input/Output, Options Menu Map

Menu Maps A-4

IDM Main Menu Meter Window Menu

Data

Help

Global

Connect to a New Instrument
Select an Existing Instrument
Scan Network for Instruments
Preferences
Dial Modem
Hang Up Modem
Exit

System

Upload/Download Edit Functions

Real Time

SITE EDIT MENU
CALIBRATION/TEST
PAUSE MEASUREMENT
LOG EDIT MENU

*

FILE MENU*

[*only if data logging option card installed]

November 2004

[*only appears if PCMCIA card installed]

[repeats until all channels set up]

[only appears for 2-Channel meter]

NO YES

Create Standard Log

LOG LOCATION

NVR FLASH

CH1 SUMCH2 AVE

PCMCIA*

LOG NAME
LOG MESSAGE
Log how many vars?

Channel 1

DIF

Measurement Name 1

VOLUMVEL +TOTL

-TOTL

+MASS

+ENRG

(totalized value) (non-totalized value)

Set LOG Totals to 0 ?

MDOT

TIME

POWER

-MASS

DIAG*

-ENRG

[*all diagnostic parameters available]

Is LOG circular ?

NO

YES

(FLASH)(NVR or PCMCIA)

Memory

Log Memory

STARTTIME

OK

START DATE

OK

JAN

AM

(12 choices)

EDIT

EDIT

HOUR

PM

MINUTES
SECONDS

YEAR

MONTH

DAY

NOW

TODAY

DEC

Stop Logging Create Error Log

NO YES

(for STANDARD log)

(for ERROR log)

Log Name

Stop Logging ?

END TIME

END DATE

JAN

(non-circular log)

EDITOK

TIMED HOURS DAYS

HOUR

PMAM

10min 24 HR

MINUTES
SECONDS

TODAY

EDITOK

YEAR

MONTH

DEC

(12 choices)

DAY

5sec

(9 choices)

(circular log)

LOG TIME

(7 choices)

TIME INCREMENT

60min

DURATION

log created

OK

Menu Maps A-5

Figure A-5: Log Edit Menu

November 2004

IDM Main Menu

Data

Global

Help

Connect to a New Instrument
Select an Existing Instrument
Scan Network for Instruments
Preferences
Dial Modem
Hang Up Modem
Exit

Read Instrument Clock
Set Instrument/PC Clock
Print Site
Delete Stored Site
Clear Instrument Totalizers
Erase Log from Instrument
Close Connection to Instrument

System

CLEARING TOTALIZERS

Meter Window Menu

Upload/Download Edit Functions

SITE EDIT MENU
CALIBRATION/TEST
PAUSE MEASUREMENT
LOG EDIT MENU
FILE MENU*

[*only if data logging option card installed]

Upload File Delete File

NVR FLASH

[*only appears if
PCMCIA card installed]

Real Time

*

FILE LOCATION

PCMCIA*

DIRECTORY
ENTER FILENAME

SELECT NEW FILE LOCATION

FILE LOCATION
DIRECTORY
ENTER FILENAME

PAUSE: Measure Flow

MEASURE FLOW STOP MEASUREMENT

NVR FLASH

Do not attempt repair

Repair Disk

FILE LOCATION

PCMCIA*

ATTEMPT REPAIR

Proceed with repair

[*only appears if PCMCIA card installed]

REPAIR COMPLETED

Figure A-6: File Menu, Clear Totalizers & Pause Measurement Menu Map

Menu Maps A-6

Appendix B

Data Records

Available Option Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1

Option Cards Installed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-2

Setup Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-3

November 2004

Available Option Cards The Model XGS868 can hold one option card in Slot 1 and one in

Slot 2. The available configurations are listed in Table B-1 below.

Table B-1: Option Card Configurations

Card # Slot # Configuration

1215-02 1 FF - 4 Frequency Outputs
1215-03 TT - 4 Totalizer Outputs
1215-04 FT - 2 Frequency Outputs/2 Totalizer Outputs
1215-05 FO - 2 Frequency Outputs
1215-06 TO - 2 Totalizer Outputs
1215-07 AA - 4 Standard Alarms
1215-08 HH - 4 Hermetic Alarms
1215-09 FA - 2 Frequency Outputs/2 Standard Alarms
1215-10 FH - 2 Frequency Outputs/2 Hermetic Alarms
1215-11 TA - 2 Totalizer Outputs/2 Standard Alarms
1215-12 TH - 2 Totalizer Outputs/2 Hermetic Alarms
1223-02 OI - 2 Current Inputs
1223-03 OR - 2 RTD Inputs
1223-04 TI - 2 Current Inputs/2 Totalizer Outputs
1223-05 TR - 2 RTD Inputs/2 Totalizer Outputs
1223-06 FI - 2 Current Inputs/2 Frequency Outputs
1223-07 FR - 2 RTD Inputs/2 Frequency Outputs
1223-08 AI - 2 Current Inputs/2 Standard Alarms
1223-09 HI - 2 Current Inputs/2 Hermetic Alarms
1223-10 AR - 2 RTD Inputs/2 Standard Alarms
1223-11 HR - 2 RTD Inputs/2 Hermetic Alarms
1225-13 CO - 2 Current Outputs
1225-14 CF - 2 Current Outputs/2 Frequency Outputs
1225-15 CT - 2 Current Outputs/2 Totalizer Outputs
1225-16 CA - 2 Current Outputs/2 Standard Alarms
1225-17 CH - 2 Current Outputs/2 Hermetic Alarms
1233-02 RR - 4 RTD Inputs
1233-03 IR - 2 RTD Inputs/2 Current Inputs
1233-04 II - 4 Current Inputs
1272-02 CI - 2 Current Outputs/2 Current Inputs
1272-03 CR - 2 Current Outputs/2 RTD Inputs
1272-04 CIR - 2 Current Outputs/1 Current Input/1 RTD Input
1146-02 2 512 KB Memory + PCMCIA Card Connector
1146-03 2 MB Memory + PCMCIA Card Connector

1310 Modbus Communications Protocols

Data Records B-1

November 2004

Option Cards Installed Whenever an option card is installed or changed in the Model

XGS868 flow transmitter, record the type of card and any additional
setup information in the appropriate row of Table B-2 below.

Table B-2: Option Cards Installed

Slot # Type of Option Card Additional Setup Information

0 Analog Outputs (A, B)

1

2

B-2 Data Records

November 2004

Setup Data After the Model XGS868 flow transmitter has been installed, setup

data must be entered via the User Program prior to operation. Record
that information in Table B-3 below.

Table B-3: Setup Data

General Information

Model # Serial #

Software Vers. Setup Date

Global - System

Meter Message Tot. Dec. Digits

System Units English Metric Mass Flow

Pressure Units Mass Flow Time

Vol. Units MDOT Dec. Digit
Vol. Time Units Mass Totals
Vol. Dec. Digits Mass Dec. Digits

Totalizer Units

Global - Input/Output - Error Handling

Error Handling 2-Path Error No Yes

Global - Communications Port

Meter Address MOD. Parity

Baud Rate MOD. Stop Bits

MOD. Baud Rate MOD. Address

Channel - Sta tu s

Channel 1 Channel 2

Channel Status Off Burst Channel Status Off Burst

Measure Mode Skan S/M Measure Mode Skan S/M

Channel - System

Channel Label Channel Label

Site/Channel Msg.

Vol. Units Vol. Units
Vol. Time Units Vol. Time Units
Vol. Dec. Digits Vol. Dec. Digits

Totalizer Units Totalizer Units

Tot. Dec. Digits Tot. Dec. Digits

Mass Flow Mass Flow

Mass Flow Time Mass Flow Time

MDOT Dec. Dig. MDOT Dec. Dig.

Mass Totalizer Mass Totalizer

Mass Dec. Dig. Mass Dec. Dig.

Channel Message

Data Records B-3

November 2004

Table B-3: Setup Data (cont.)

Channel - Pipe Parameters

Channel 1 Channel 2

Trans. Type STD SPEC Trans. Type STD SPEC

Transducer # Transducer #
Spec. Trans. Hz Spec. Trans. Hz
Spec. Trans. Tw Spec. Trans. Tw

Pipe O.D. Pipe O.D.

Pipe Wall Pipe Wall
Path Length (P) Path Length (P)
Axial Length (L) Axial Length (L)

Fluid Type Steam Other Fluid Type Steam Other

Other/Sndspd Other/Sndspd

Calibration Factor Calibration Factor

Channel - Input/Output

Zero Cutoff Zero Cutoff

Assume Sat. No Yes Assume Sat. No Yes

Steam Input Type Temp Pressure Steam Input Type Temp Pressure

Temp. Input Temp. Input

Base Temp. Base Temp.
Pressure Input Pressure Input
Base Pressure Base Pressure

Low Press. Switch No Yes Low Press. Switch No Yes

Pressure Limit Pressure Limit

Quality Input Quality Input

Channel - SETUP - V Averaging

Response Time Response Time

Channel - SETUP - Advanced Features - Multi K Factors

K-Factor # Velocity K-Factor K Factor # Velocity K-Factor

11
22
33
44
55
66
77
88
99

10 10

B-4 Data Records

November 2004

Table B-3: Setup Data (cont.)

Channel - SETUP - Advanced Features - Multi K Factors (cont.)

K-Factor # Velocity K-Factor K Factor # Velocity K-Factor

11 11
12 12
13 13
14 14
15 15
16 16
17 17
18 18
19 19
20 20

Data Records B-5

Appendix C

Remote Control Communications Unit

Using the RCCU. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-1

The User Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-6

Displaying Measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-9

Replacing the RCCU Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-14

November 2004

Using the RCCU To energize the Remote Control Communications Unit (RCCU),

press the [ON] key on its keypad. The LCD display, which consists of
4 lines x 20 characters, is activated. See Figure C-1 below for the
layout of the RCCU keypad and display.

For reliable RCCU operation, the XGS868’s infrared receiver should:

• have a clear line of sight to the RCCU

• be located within 8 ft (2.5 m) of the RCCU

• have an angle of incidence of no more than 15°

Display

Soft Function Key

Left Arrow Key

Exit Key

Send Light

ONLINE PROGRAM

On Line Operations
Edit Site

PROG LOG DATA

5

VWXSTU

0

F2

PQRMNOJKL SEND

6

YZ

3

F1

ABC8DEF9GHI OFF

7

4

12

PRINT MENU

RCV

S

F3

Receive Light

Indicator Block

L

Right Arrow Key

ON Key

Up Arrow Key

Down Arrow Key

Clear Key

Shift Key

Enter Key

Shift Indicator Light

Figure C-1: RCCU Components

Remote Control Communications Unit C-1

November 2004

Using the RCCU (cont.) The optional RCCU keypad contains 24 keys, which are labeled with

their primary (unshifted) functions. In addition, pressing the red
[SHIFT] key will access the secondary functions assigned to most of
the keys.

The complete keypad is illustrated in Figure C-2 below and a detailed
description of both the unshifted and shifted functions for each of the
24 keys is listed in Table C-4 on the next page.

GE PANAMETRICS

ONLINE PROGRAM

On Line Operations
Edit Site

PROG LOG DATA

F1

ABC8DEF9GHI

F2

OFF

S

L

F3

7

SEND

PQRMNOJKL

5

4

12

6

RCV

YZ

VWXSTU

3

0

PRINT MENU

RCCU PROGRAMMER

Figure C-2: The RCCU Keypad

C-2 Remote Control Communications Unit

November 2004

Table C-4: The RCCU Key Functions

Key Unshifted Function Shifted Function

Software Function Keys - press to select
the functions displayed directly above

None

them in the display window.

Shift Key - press to access the shifted
functions of the other keys; the light
indicates that shifted mode is active.
Press once to shift next entry only, press

None

twice to lock shift mode, press again to
unlock shift mode.

Left Arrow Key - press to scroll through
menu options; when entering text,
moves the cursor one space to the left

None

and deletes character in that space.
Right Arrow Key - press to scroll through

menu options; when entering text,
deletes rest of entry and moves cursor

None

one space to the right.

Up Arrow Key - in programming mode,
press to return to the previous prompt.

Down Arrow Key - in programming
mode, press to move to the next prompt.

SEND - not yet available

RCV - not yet available

Zero Key - use to enter a number 0. None

Press 1 time to enter the letter S

One Key - press to enter a number 1.

Press 2 times to enter the letter T
Press 3 times to enter the letter U

Press 1 time to enter the letter V

Two Key - press to enter a number 2.

Press 2 times to enter the letter W
Press 3 times to enter the letter X

Three Key - press to enter a number 3.

Press 1 time to enter the letter Y
Press 2 times to enter the letter Z

Press 1 time to enter the letter J

Four Key - press to enter a number 4.

Press 2 times to enter the letter K
Press 3 times to enter the letter L

Remote Control Communications Unit C-3

November 2004

Key Unshifted Function Shifted Function

Table C-4: The RCCU Key Functions (cont.)

Five Key - press to enter a number 5.

Six Key - press to enter a number 6.

Seven Key - press to enter a number 7.

Eight Key - press to enter a number 8.

Nine Key - press to enter a number 9.

Clear Key - press to enter the CLEAR
menu. See Chapter 5, Clearing Data, for
details.

Press 1 time to enter the letter M
Press 2 times to enter the letter N
Press 3 times to enter the letter O

Press 1 time to enter the letter P
Press 2 times to enter the letter Q
Press 3 times to enter the letter R

Press 1 time to enter the letter A
Press 2 times to enter the letter B
Press 3 times to enter the letter C

Press 1 time to enter the letter D
Press 2 times to enter the letter E
Press 3 times to enter the letter F

Press 1 time to enter the letter G
Press 2 times to enter the letter H
Press 3 times to enter the letter I

None

Exit Key - press to leave the current
menu, saving entered values, and return
to the next higher menu.

Enter Key - press to accept the currently
displayed value or text.

ON Key - press once to power up the
RCCU. Hold down to turn on the display
backlight.

Decimal Point Key - press to enter a
decimal point during numeric entry.

Minus Key - press to enter a minus sign
or a dash.

PRNT - not yet available

MENU - not yet available

OFF - press to power down the

RCCU

Space - press to enter a space

None

C-4 Remote Control Communications Unit

November 2004

Using the RCCU (cont.) To energize the RCCU, press the [ON] key on its keypad. The

RCCU’s LCD display, which consists of 4 lines x 20 characters, will
be activated. See Figure C-2 on page C-2 for the layout of the RCCU
keypad and display.

For reliable RCCU communications, the infrared receiver in the
window of the XGS868 should have a clear line of sight to the RCCU
and should be located within 8 ft (2.5 m) of the RCCU with an angle
of incidence of no more than 15°.

Immediately upon activation, the RCCU will perform its normal
startup routine. This results in a display of the GE Panametrics logo,
followed by these informational displays:

GE Panametrics Inc.

--RCCU-­Remote Control
Communications Unit

Software Revision

RCCU R1B

F1 F2 F3

IDM MENU START
IDM MENU
previous selection appears here
SYSTEM ONLINE OFFLNE

F1 F2 F3

GGGG

The RCCU is now ready for operation.

When the startup routine has
been completed, this IDM
Menu Start display appears.

Remote Control Communications Unit C-5

November 2004

Communications Failure If an attempt to communicate with the XGS868 does not result in a

proper connection with the RCCU, an error message such as the
following appears:

8C or Communicating
NO Packet Rcvd ce2
Retry/Abort Commlink

RETRY ABORT

F1 F2 F3

At this display, press [F1] to
try again or press [F2] to quit.

Make sure that the RCCU battery is not weak, the windows on both
the RCCU and the XGS868 are clean, the transmission distance does
not exceed 8 ft (2.5 m), the angle of incidence does not exceed 15°
and there is an unobstructed line of sight between the two devices.
Then, carefully aim the RCCU and try again. If this fails to resolve
the problem, see Replacing the RCCU Battery on page C-14 for
instructions on RCCU battery replacement. If a fresh battery does not
solve the problem, contact GE Panametrics for help.

The User Program Use the RCCU keypad (see Table C-4 on page C-3) to navigate

through the PROG menu of the User Program. The menu map may be
followed in sequence, or the [↑] and [↓] keys may be used to scroll
through the prompt screens. The [←] key may be used to delete the
last alphanumeric character that was entered from the keypad.

Note: Be sure to record all the programming data entered in this

chapter in Appendix B, Data Records.

Programming of the CHx-ACTIV, CHx-SYSTM, CHx-PIPE, and
GLOBL-SYSTM submenus is required for basic operation of the

Model XGS868. Failure to accurately enter all of the necessary
information will result in unreliable flow rate data. Therefore, be sure
to complete at least the sections of this chapter pertaining to those
three submenus. Refer to Figures C-7 through C-12 on pages C-16
through C-21.

Except for the three submenus noted above, it is not necessary to
program the Model XGS868 flowmeter in any particular order.

C-6 Remote Control Communications Unit

November 2004

Accessing the User Program

To access the XGS868’s User Program, the RCCU must be pointed
directly at the receiver in the window on the electronics enclosure
whenever data is being sent or received (see Figure C-3 below).

Optional Display

Receiver

Green Power LightRed Fault Light

Figure C-3: XGS868 Front Window

The green light in the window glows continuously to indicate that the
XGS868 is receiving power, while the red light should glow for more
than two seconds whenever a signal from the RCCU is initiated. If the
red light blinks repeatedly, the XGS868 is not

receiving the RCCU
signal correctly. The Send/Receive lights on the RCCU blink once to
indicate the sending/receiving of a signal.

IDM MENU START GGGG
IDM MENU
previous selection appears here
SYSTEM ONLINE OFFLNE

F1 F2 F3

At this display, press [F2] to
select ONLINE

IMPORTANT: Always keep the RCCU pointed directly at the

XGS868 while communicating with the meter.

Remote Control Communications Unit C-7

November 2004

Accessing the User
Program (cont.)

Uploading Basic
Target System Inf o.
Press RCV Key...

RCV CANCEL

F1 F2 F3

Press the [F1] key to select
RCV and begin communica-
tions, or press [F2] to select
CANCEL and abort the opera-

tion.

If the operation was aborted, the RCCU resets to the main menu.
Otherwise, proceed to the next display.

Communicating...
PRESS EXIT to ESCAPE
50 Percent Complete

F1 F2 F3

TARGET METER ID
THIS IS AN XGS

F1 F2 F3

ONLINE PROGRAM
On Line Operations
Edit Site

PROG LOG DATA

ONLINE PROGRAM
On Line Operations
Edit Site

SITE CLEAR TEST

F1 F2 F3

GGG|

GGG|

This display shows the status
of the communication attempt.

When the connection is estab­lished, this message appears
briefly and is then replaced by
the following display.

The XGS868 is now ready to
be programmed. To begin pro­gramming, press [F1] to select
PROG.

(These additional options are
accessed by pressing the [←]
and/or [→] keys.)

Note: The arrow in the upper right corner of the display indicates

that additional options are available. These are accessed by
pressing the [←] or [→] key.

C-8 Remote Control Communications Unit

November 2004

Displaying Measurements

The components of the optional RCCU display are shown in
Figure C-4 below, along with a typical mass flow rate readout.

Channel #

Flow Rate

Function Key

LIVE FLOW LINK

CH1 MASS
4500 LB/HR

VEL VOLUM +TOTL

F1

F2

Parameter

Units

S

L

F3

Option Choice

Figure C-4: A Typical RCCU Flow Rate Display

As shown in Figure C-4 above, the display screen includes the
following information:

• Channel Number

• Flow Parameter

• Units of Measure

• Parameter Option Choices

• Flow Rate Value

The example in Figure C-4 above is typical, but the first three items in
the list above may be reprogrammed to display those parameters that
are most frequently used. See the following section for general
instructions on changing these parameters.

Note: Error code messages may appear in the upper right corner of

the LCD display. For informati on about these err or codes and
how to respond to them, refer to page C-13.

Remote Control Communications Unit C-9

November 2004

Setting Up the Display Flow rate data and diagnostic parameters may be displayed on the

RCCU screen. To access and program this display, establish a link
between the RCCU and the XGS868, and enter the ONLINE program
(see Accessing the User Program on page C-7). Then, refer to
Figure C-9 on page C-19 and complete the following instructions to
display the desired data:

ONLINE PROGRAM GGG|
On Line Operations
previous selection appears here

PROG LOG DATA

ONLINE PROGRAM
On Line Operations
previous selection appears here

SITE CLEAR TEST

F1 F2 F3

GGG|

Press the [F3] key to select
DATA.

(These additional options are
accessed by pressing the [←]
and/or [→] keys.)

Upon entering the ONLINE-DATA submenu, the following display
appears:

ONLINE PROGRAM
Live Data Update
current setting appears here

5sec 10sec 30sec

GGG|

Use the [←] and [→] keys to
find the desired time between
data updates, and press the [Fx]
key under it to select that
interval.

ONLINE PROGRAM
Live Data Update
current setting appears here

1min 3min 6min

ONLINE PROGRAM
Live Data Update
current setting appears here

12min

F1 F2 F3

C-10 Remote Control Communications Unit

GGG|

GGG|

(These additional options are
accessed by pressing the [←]
and/or [→] keys.)

(These additional options are
accessed by pressing the [←]
and/or [→] keys.)

November 2004

Setting Up the Display
(cont.)

Note: For a 1-Channel XGS868, only the CH1 option in the [F1]

position appears at the next prompt.

GGG|

CHAN NAMES
current selection appears here

CH1 CH2 SUM

GGG|

CHAN NAMES
current selection appears here

DIF AVE

F1 F2 F3

Use the [←] and [→] keys to
find the desired channel
option, and press the [Fx] key
under it to select it.

(These additional options are
accessed by pressing the [←]
and/or [→] keys.)

IMPORTANT: Both channels must be activated to make all of the

above channel options available. If one of the
channels is disabled, only the individual active
channel appears.

See Table C-5 below for a complete description of the channel
display options available at the above prompt.

Table C-5: Channel Display Options

Display Type Description

[F1] = CH1 Channel 1
[F2] = CH2 Channel 2
[F3] = SUM (Channel 1) + (Channel 2)
[→] + [F1] = DIF (Channel 1) - (Channel 2)
[→] + [F2] = AVE [(Channel 1) + (Channel 2)]/2

Uploading Chan Names
To Start Upload
Press RCV Key...

RCV CANCEL

F1 F2 F3

Communicating...
PRESS EXIT to ESCAPE
50 Percent Complete

Press the [F1] key to select
RCV and begin uploading live
data, or press [F2] to select
CANCEL and abort the opera-

tion.

This display shows the status
of the communication attempt.

F1 F2 F3

Remote Control Communications Unit C-11

November 2004

The RCCU Display (cont.) After the previous response has been communicated to the XGS868,

the RCCU is connected to the meter by a Live Flow Link and displays
the current flow rate value for the channel option specified. At this
time, the flow parameter to be displayed may be changed as follows:

LIVE FLOW Link GGG|
CH1 Mass flow

4500 LB/HR

VEL VOLUM +TOTL

LIVE FLOW Link
CH1 Mass flow

4500 LB/HR

-TOTL TIMER MDOT

LIVE FLOW Link
CH1 Mass flow

4500 LB/HR

+MASS -MASS DIAG*

F1 F2 F3

GGG|

GGG|

Use the [←] and [→] keys to
find the desired flow parame­ter, and press the [Fx] key to
select it.

(These additional options are
accessed by pressing the [←]
and/or [→] keys.)

(These additional options are
accessed by pressing the [←]
and/or [→] keys.)

Table C-6 below describes the measurement parameters that are
available at the above prompt.

Table C-6: Display Parameter Options

Available Choice Description

[F1] = VEL Flow Velocity
[F2] = VOLUM Volumetric Flow
[F3] = +TOTL Forward Totalized Volume Flow

[→] + [F1] = –TOTL Reverse Totalized Volume Flow
[→] + [F2] = TIME Total Flow Measurement Time
[→] + [F3] = MDOT Mass Flow
[→] + [→] + [F1] = +MASS Forward Totalized Mass Flow
[→] + [→] + [F2] = –MASS Reverse Totalized Mass Flow
[→] + [→] + [F3] = DIAG* Diagnostic Parameters*

The DIAG* option represents all of the individual diagnostic
parameters. See Chapter 3, Diagnostics, of the Service Manual
for a complete description of these options.

Note: To terminate the live data connection between the XGS868

and the RCCU, simple press the [EXIT] key on the RCCU
keypad, between actual data transmissions.

C-12 Remote Control Communications Unit

November 2004

RCCU Errors The following RCCU errors may be encountered during operation of

the XGS868 with an RCCU unit:

Note: Error codes that begin with a “ce” indicate a communications

error between the RCCU and the XGS868.

ce1: No Link

Indicates: The RCCU has received no communication from the

XGS868

ce2: No Packet Rcvd

Indicates: The RCCU received a signal from the XGS868, but the

information was not recognizable.

ce3: CRC Error

Indicates: Cyclical Redundancy Check. The RCCU received a

signal from the XGS868, but the command was not
recognizable.

ce4: NAK Error

Indicates: Not Acknowledged error. The communications link

works, but the XGS868 did not understand the signal
from the RCCU.

Remote Control Communications Unit C-13

November 2004

Replacing the RCCU Battery

The RCCU is powered by one disposable, standard 9-V battery . When
the battery has been depleted, it must be replaced with a fresh battery
of the same type. Both Standard and Intrinsically-Safe (IS) versions
of the optional RCCU are available. Follow the instructions
appropriate to the specific unit being used.

Note: The RCCU cannot recharge batteries. A depleted battery must

be replaced with a new one.

Standard Version 1. Loosen the two (2) screws along the bottom edge of the back of

the RCCU housing, as illustrated in Figure C-5 below . Remove the
battery compartment cover.

2. Remove the battery connector from the top of the old battery.

3. Install the battery connector on the top of the new battery.

4. Replace the battery and the battery compartment cover . Tighten

the two (2) screws on the cover.

FRONT VIEWREAR VIEW

F2

ABCF1DEF GHI

789

JKL

MNO

5

4

STU

VWX3YZ

1

2

0

PRINT MENU

F3

OFF

SEND

PQR

6

RCV

Loosen 2 Screws

Battery

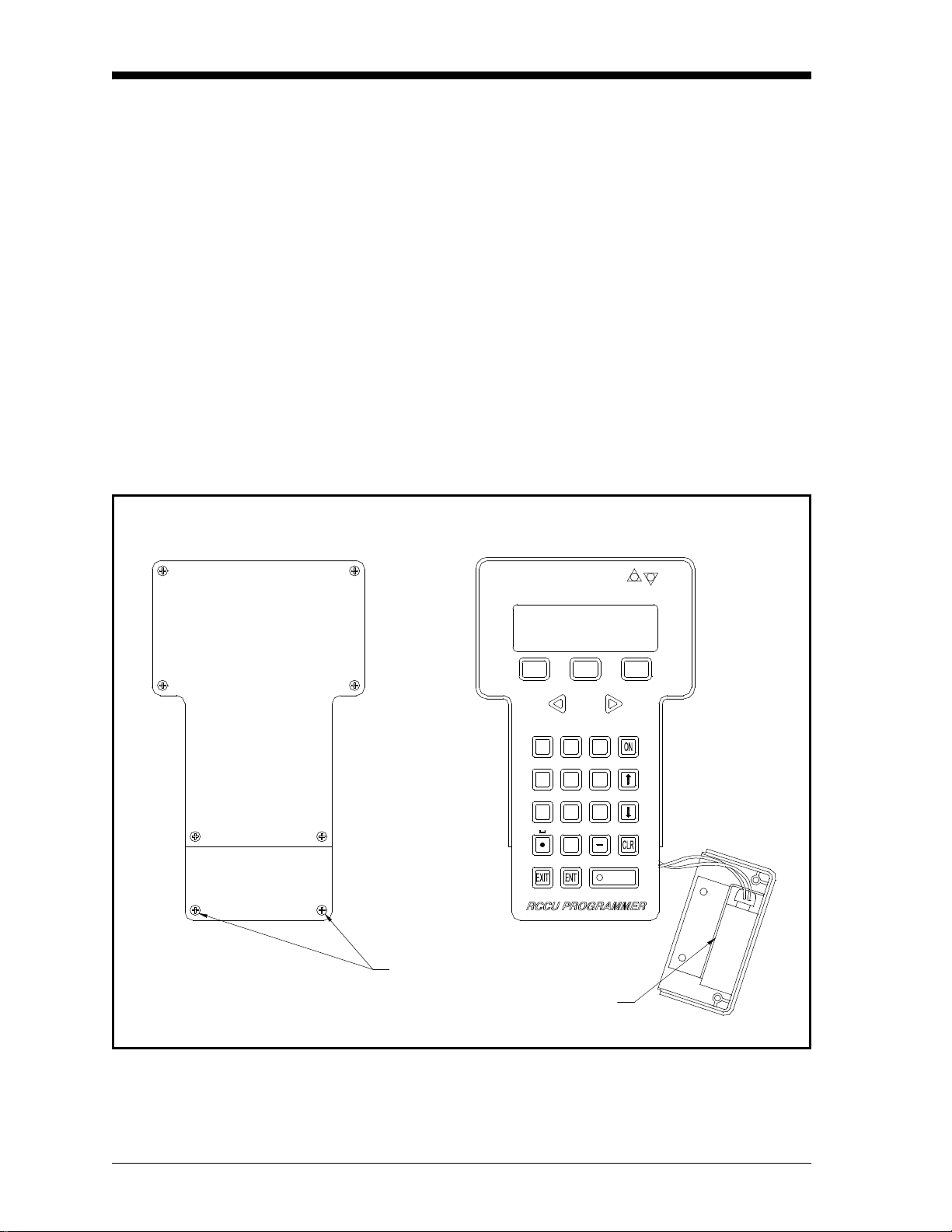

Figure C-5: Replacing the Battery (Standard RCCU)

C-14 Remote Control Communications Unit

Intrinsically-Safe Version !WARNING!

Do not open the RCCU enclosure in a hazardous

environment.

1. Remove the RCCU to a safe area before opening the unit. Loosen

the two (2) screws along the bottom edge of the back of the RCCU
housing, as illustrated in Figure C-5 on the previous page. Remove
the battery compartment cover.

2. Unfasten the Velcro strap that secures the battery to the cover , and

remove the battery connector from the top of the old battery. See
Figure C-6 below. Dispose of the old battery properly.

3. Install the battery connector on the top of the new battery and

secure the new battery to the cover with the Velcro strap.

4. Replace the battery compartment cover and tighten the two (2)

screws on the cover. The RCCU may now be safely brought into a
hazardous environment.

November 2004

PRINT MENU

Velcro Strap

Battery

Figure C-6: Battery and Cover (IS Version)

Remote Control Communications Unit C-15

November 2004

Channel status

Skan/Measure Mode

F1

LB

F1

LB

RCCU Program
F2

SYSTEMF1OFFLNE

ONLINE

F1

ACTIV

1-Channel2-Channel

Site status

F2F1

F1

BURSTOFF

BURST

F2F1

SKAN S/M

MASS FLOW

[ENGLISH]

F2 F3 F1

MMLBKLB

TONS

MASS FLOW TIME

/SECF1/MINF2/HR

MDOT DECIMAL DIGITS

F1

0F212

MASS (TOTALIZER)

[ENGLISH]

F2 F3 F1

MMLBKL B

TONS

MASS DECIMAL DIGITS

F1

F2 F33F1

0

12

F3

F3

F3 F1

[METRIC]

KG

[METRIC]

KG

/DAY

F1

F1

PROG

F2 F3 F2

SYSTM

CHANNEL LABEL
SITE/CHANNEL MESSAGE

VOLUMETRIC UNITS

[ENGLISH]

F3

F2

MMACF

ACFF1KACF

F1

F2

MMSCF

VOLUMETRIC TIME

F1 F2

VOL DECIMAL DIGITS

F1 F232F3 F1

TOTALIZER UNITS

[ENGLISH]

F2

MMACF

F1

F2

MMSCF

TOTAL DECIMAL DIGITS

F1 F2

0

MASS FLOW ON

F3

/MIN/SEC

10

F3

F3

1

MASS FLOW OFF

SCF KSCF

F1

F2

TONNE

F1

ACFF1KACF

3

F2

TONNE

SCF KSCF

F2

LOG

[*for 2-Channel meter only]

Channel PROGRAM

[METRIC]

ACMF1KACM

F1

SCM KSCM

F3 F1

/DAY/HR

[METRIC]

ACMF1KACM

F1

SCM KSCM

F3 F1

3

2

F3

F1 F2

F3

CLEARDATA

SITE

PROGRAM
F2*F1 F3

GLOBLCH1 CH2

Figure C-3

TEST

STD

F3

F2

MMACM

F2

F3

MMSCM

F1

F2 F3 F1

inch

inchF1feet

F3

F2

MMACM

F2

F3

MMSCM

AXIAL LENGTH L

inchF1feet

NOTE: Plain text represents prom pt area messages and
boxed text represents option bar choices.
Fx represent function keys to select option bar choices.

PROG

FREQUENCY

200k100k50k

Tw

[METRIC]

F1

mm

[METRIC]

mmF1m

[METRIC]

mmF1m

FLUID SOUNDSPEED

F1

I/O

F2 F3 F1

F2

F2

PIPE SETUP

TRANSDUCER NUMBERTRANSDUCER NUMBER Figure C-2 Figure C-2

TRANSDUCER NUMBER

F1

F2

SPEC

SPECIAL TRANSDUCER

F1 F2 F3

PIPE OD

[ENGLISH]

in/PI ft/PIfeet

PIPE WALL

PATH LENGTH P

[ENGLISH]

F2

[ENGLISH]

F2

FLUID TYPE

F1 F2

STEAM OTHER

CALIBRATION FACTOR

SITE EDIT MENUPROG CHOICES

F1 F3

F2

PAUSECAL

[*only if data logging option card installed]

F1

F2 F3

25k500k

33k

mm/PI M/PIm

F1*

F2*

LOG

FILE

Figure C-7: CHx-ACTIV, SYSTM and PIPE Menu Maps

Remote Control Communications Unit C-17

November 2004

SYSTEMF1OFFLNE

FIXED

A:LABEL B:LABEL

FIXED TEMP.

Steam Input Type = Temp

FIXED

A:LABEL B:LABEL

FIXED PRESSURE

RCCU Program
F2

F3

ONLINE

F1

ACTIV

Figure C-1 Figure C-1 Figure C-1

ZERO CUTOFF

ASSUME SATURATION

F1

F2

NO

YES

TEMP INPUT

F1

SLOT1

F1

A

BASE TEMP.

PRESSURE INPUT

F1

SLOT1

AF1B

BASE PRESSURE

Low Pressure Switch

NOF1YES

[*only if input

F2

option is
installed]

F2

B

F2 [*only if input
option is
installed]

F2

F2

PRESSURE LIMIT

TEMP

FIXED QUAL.

F2 F3

SYSTM PIPE

STEAM INPUT TYPE

F1

F2

PRESR

QUALITY INPUT

F2

F1

SLOT1

FIXED

A:LABEL B:LABEL

F1

AF2B

F1

PROG

F1 F2

[*for 2-Channel meter only]

Channel PROGRAM

42

F3

F2

LOG

SIGNAL LOW LIMIT

COR. PEAK LIMIT

SOUNDSPEED +- LIMIT

VELOCITY LOW LIMIT

VELOCITY HIGH LIMIT

ACCELERATION LIMIT

AMP. DISCRIM LOW

AMP. DISCRIM HIGH

DELTA T OFFSET

SITE

PROGRAM

F1 F2* F3

F1

SIGNL

Skan T OFFSET [*Set to 0 for Active
Skan T Off set]

% of Peak

XMIT SAMPLE SIZE
F3 F132F2

168

F1 F2

CLEARDATA

GLOBLCH2CH1

Figure C-3

1

F3

TEST

F1

I/O

F2

AVRG

RESPONSE TIME

F1

F22F3

F1

10 30F260

5

M>S_Switch

# shifts

A Divisor

# Transmit Pulses

T WINDOW (cycles)

R WINDOW (cycles)

NOTE: Plain text represents p rompt area messages and
boxed text represents option bar choices.
Fx represent function keys to s elect option bar choices.

SET UP

F3 F1

STATS

F1 F3

PROG

SITE EDIT MENUPROG CHOICES

F2

PAUSECAL

[*only if data logging option card instal l ed ]

LOG

SETUP

F3

INIT

Press YES to Default

F1 F2

YES

NO

F1*

F2*

FILE

F2

F4

ADVAN

F1 F2

MULTK

Multi K-factors

F2

F1

OFF

ON

Edit table?
F1

NO

YES

F2

# of K factors
Velocity # x
K Factor # x

MASS

Static Density

NOF1YES

F2

FLUID DENSITY

Figure C-8: Channel SET UP Menu Maps

Remote Control Communications Unit C-18

November 2004

F1

F1 F3F2

ACF KACF

F1 F3F2

SCF KSCF MMSCF

F1 F3F2

ACF KACF

F1 F3F2

SCF KSCF MMSCF

MASS FLOW OFF

MASS FLOW OFF

[English]

[English]

F1 F3F2 F1

LB KLB

LB KLB

MMLB

MMLB

[English]

[English]

F1 F3F2 F1

LB KLB

LB KLB

MMLB

MMLB

RCCU Program
F2

SYSTEMF1OFFLNE

ONLINE

SYSTM

METER MESSAGE

SYSTEM UNITS

F1

F2

English

Metric

PRESSURE UNITS

[ENGLISH] [METRIC]

F2 F1 F3F2 F1

BARa

PSIgPSIa

1-CHANNEL UNITS

2-CHANNEL UNITS

VOLUMETRIC UNITS

[ENGLISH]

MMACF

VOLUMETRIC TIME

F1 F3F2

/MIN/SEC /DAY/HR

VOL DECIMAL DIGITS

VOL DECIMAL DIGITS

1032

1032

TOTALIZER UNITS

TOTALIZER UNITS

[ENGLISH]

MMACF

TOTAL DECIMAL DIGITS

TOTAL DECIMAL DIGITS

F1 F3F2 F1

1032

1032

MASS FLOW ON

MASS FLOW ON

MASS FLOW UNITS

MASS FLOW UNITS

TONS

TONS

MASS FLOW TIME

F1 F3F2 F1

/SEC

/SEC

/MIN

/MIN

MDOT DECIMAL DIGITS

MDOT DECIMAL DIGITS

F1 F3F2 F1

01 32

01 32

MASS TOTALS

MASS TOTALS

TONS

TONS

MASS DECIMAL DIGITS

MASS DECIMAL DIGITS

F1 F3F2 F1F1 F2

0

0

132

132

BARg

[METRIC]

F1 F3F2

ACM KACM

F1 F3F2

SCM KSCM

F1

[METRIC]

F1 F 3F2

ACM K ACM

F1 F3F2

SCM KSCM

F3

Kpag

Kpaa

MMACM

MMSCM

F1F3F2

MMACM

MMSCM

[Metric]

[Metric]

F1 F2

TONNE

TONNE

KG

KG

/DAY/HR

/DAY/HR

[Metric]

[Metric]

TONNE

TONNE

KG

KG

F1 F2

[*only appears if option card installed]

F1

F2 F3

VOLUMVEL

PROG

OFF 3

[only appears for 2-Channel meter]

F1

CH1

F2

VOLUMVEL

Slot 0 Output A

OFF

F1

F2 F3

CH2

CH1

Measurement Name

F1

+TOTL

-TOTL

F1

F3

F2

LOG

[*for 2-Channel meter only]

F1

ERROR

Figures C-4

F2F1

1F32

CH2F2SUM

F1 F3

I/O

F1

SLOT0

Slot 0 Outputs

F1 F2

A

B

F2F1

0-20m

Channel

[only appears for 2-Channel meter]

SUM

F2

TIME

ZERO

FULL

F1 F2

SITE

PROGRAM

F1 F2* F3

GLOBLCH2CH1

Figures C-1 and C-2

F2

I/O

Global I/O

F3F2

OPTN

LCD

# OF LCD PARAMS

Channel 1
F3 F1

DIF AVE

Measurement Name 1

F3 F1

TIME+TOTLF3-TOTL

+MASSF2-MASS

[*all diagnostic parameters appear here]

F2*

SLOT1

F3

4-20m

F1

F2

AVE

DIF

F3

MDOT

[*all diagnostic parameters appear here]

Global PROGRAM

Global PROGRAM

F2F1

4

F2

F2 F3*

CLEARDATA

[until all channels set up]

DIAG+MASSF1-MASS

TEST

F3

PROG

600F1300 4800

MODBUS OPTION INSTALLED

DIAG*MDOT

F1

5sec

F2 F3

VOLUMVELF1+TOTL

NOTE: Plain text represents prompt area messages and
boxed text represents option bar choices.
Fx represent function keys to select option bar choices.

SITE EDIT MENUPROG CHOICES

F1 F3

F2

PAUSECAL

[*only if data logging option card installed]

F3

COMM

Meter Address

BAUD RATE

BAUD RATE

F2 F3

F3

1200F12400

1200F12400

MODBUS BAUD RATE

MODBUS BAUD RATE

F1

F1

2400F24800

2400F24800

MODBUS PARITY

F1

NoneF2Odd

MODBUS STOP BITS

F1

1 BitF22 Bits

MODBUS ADDRESS

Live Data Update

F2 F3

30sec10sec

1minF16min

CHAN NAMES

F2 F3

SUMCH1F1CH2

Measurement Name

F1

F2 F3

TIME

-TOTL

F1*

F2*

LOG

FILE

F3

F2

F2

19200

9600

4800

F3

F3

9600

9600

F3

Even

F2

F3 F1

3min 12min

[only appears for 2-Channel meter]

F2

DIFF1AVE

-MASSMDOT

+MASSF1DIAG

[*all diagnostic parameters appear here]

F1

Figure C-9: Global-System, SLOT0 and Communication Port Menu Maps

F2 F3*

Remote Control Communications Unit C-19
