2002 Merchandising
GE®Clothes Care
Spacious. Efficient. Elegant. Laundry fit for your lifestyle.
MERCHANDISING 2004
2
■ ENERGY STAR®-qualified
■ Stainless steel basket
■ Rotary electronic controls
with cycle status lights
■ 5 wash/spin speeds
■ 26 cycles
■ PerfecTemp
■ Bleach and fabric softener
dispensers
WHRE5260E
GE 3.5 cu. ft. king-size capacity washer
■ Stainless steel basket
■ Rotary electromechanical
controls
■ 4 wash/spin speeds
■ 17 cycles
■ Bleach and fabric softener
dispensers
■ 4 water levels
■ Auto Soak
WJRR4170E
GE 3.5 cu. ft. king-size capacity washer
Available March 2004
WHAT’S NEW FOR 2004
GE®and Hotpoint®washers and dryers
Available May 2004
3
Available July 2004
Available July 2004

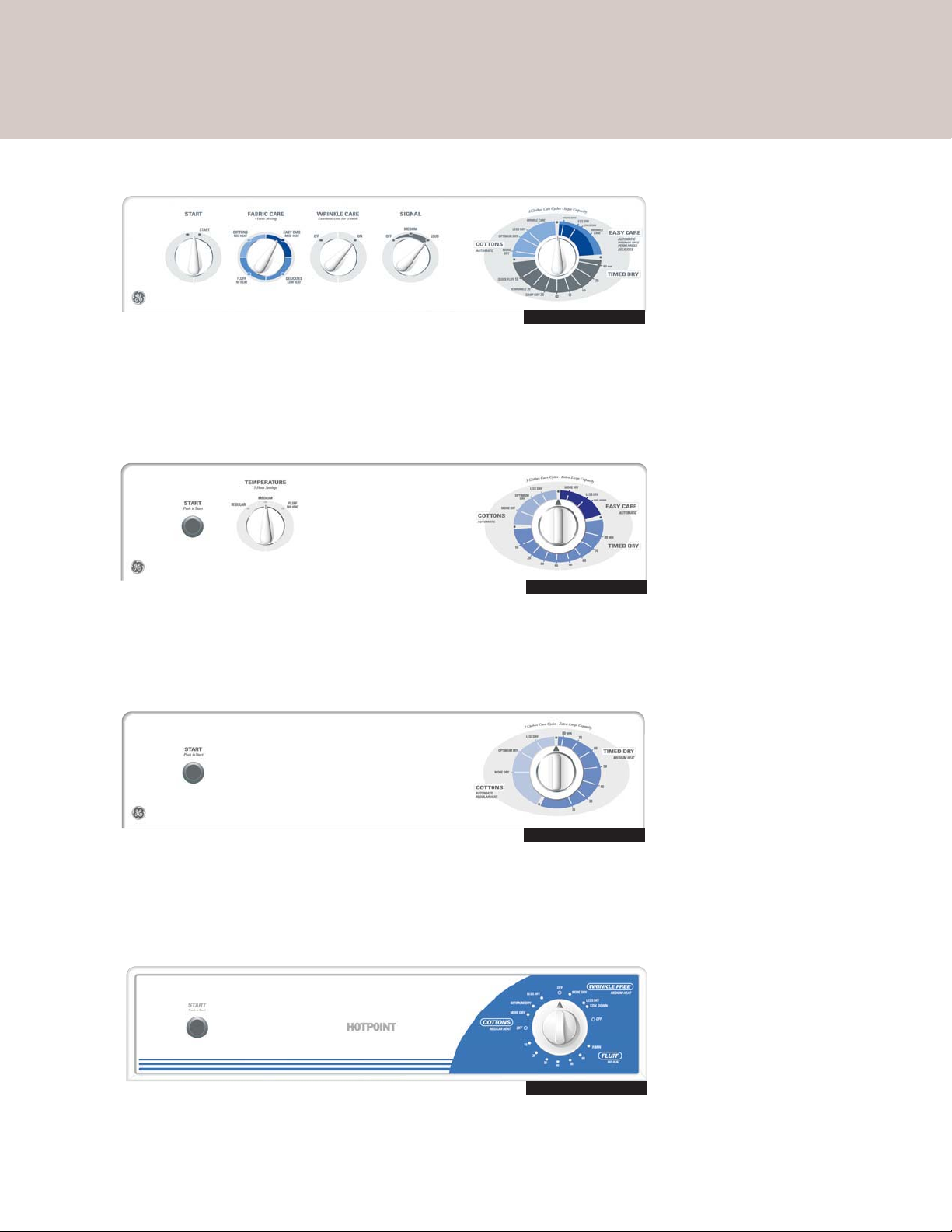

■ Long vent (up to 150 ft.
of equivalent ducting)
■ Auto dry
■ DuraDrum™
■ 4 heat selections
■ Wrinkle Care extended
tumble
■ Interior dryer light
■ 8 dry cycles
DLSR483EE/GE
GE
®
7.0 cu. ft. super capacity dryer
■ 5.8 cu. ft. capacity
■ Auto dry
■ DuraDrum
■ 2 heat selections
■ 2 dry cycles
■ Quiet-By-Design™
■ Reverse-A-Door
■ Upfront lint filter
DVLR223EE/GE
GE 5.8 cu. ft. extra-large capacity dryer
■ 5.8 cu. ft. capacity
■ DuraDrum
■ 3 heat selections
■ Quiet-By-Design™
■ Reverse-A-Door
■ Upfront lint filter
NVLR333EE/GE
Hotpoint
®
5.8 cu. ft. extra-large capacity dryer
Available May 2004
■ 5.8 cu. ft. capacity
■ Auto dry
■ DuraDrum
■ 3 heat selections
■ 3 dry cycles
■ Quiet-By-Design
™
■ Reverse-A-Door
■ Upfront lint filter
DBLR333EE/GE
GE 5.8 cu. ft. extra-large capacity dryer
Available July 2004
4
GE®Dryers
GE Hotpoint
Electric DLSR483ED DBLR333EE DVLR223EE NVLR333EE
Gas DLSR483GD DBLR333GE DVLR223GE NVLR333GE
Capacity
Capacity cu. ft. 7.0 Super 5.8 Extra-large 5.8 Extra-large 5.8 Extra-large
Controls
Rotary ●●●●
Long vent capability Up to 150 ft.
Heat selections 4 3 2 3
Dry System
Temperature sensor Thermostat Thermostat Thermostat Thermostat
Dryer drum DuraDrum
™
DuraDrum DuraDrum DuraDrum
Drum baffles White White White White
Signals
End-of-cycle Variable
Dry Cycles
Number of cycles 8 3 2 3
Cottons ●●●●
Easy care ●● ●
Damp dry ●
Timed Dry
Time control 80 min. 80 min. 80 min. 70 min.
Special Cycles
Dewrinkle ●
Quick Fluff (no heat) ●
Additional Features
Dryer interior light ●
Quiet performance Quiet-by-Design™ Quiet-by-Design Quiet-by-Design Quiet-by-Design
Appearance
Colors available* WW/CC WW/CC WW WW/CC
Weights & Dimensions
Approx. shipping weight–elec. (lbs.) 120 112 112 112
Approx. shipping weight–gas (lbs.) 125 115 115 115
*WW = White on white, CC = Bisque on bisque.
Dryer Exhausting Information—Use Metal Duct Only
Vertical and Horizontal Ducting
0 90 ft. 60 ft. 55 ft. 45 ft.
1 60 ft. 45 ft. 40 ft. 30 ft.
7.0, 6.0 and 5.8 2 45 ft. 35 ft. 30 ft. 20 ft.
Capacity Models 3 35 ft. 25 ft. 20 ft. 15 ft.
all Electric Dryers 4 25 ft. 15 ft. 15 ft. 10 ft.
0 90 ft. 60 ft. 55 ft. 45 ft.
7.0, 6.0 and 5.8 1 60 ft. 45 ft. 40 ft. 30 ft.
Capacity Models 2 45 ft. 35 ft. 30 ft. 20 ft.
all Gas Dryers 3 35 ft. 25 ft. 20 ft. 15 ft.
0 150 ft. 125 ft. 55 ft. 45 ft.
1 135 ft. 115 ft. 52 ft. 42 ft.
DLSR483E/G
2 125 ft. 105 ft. 49 ft. 39 ft.
3 115 ft. 95 ft. 46 ft. 36 ft.
4 105 ft. 85 ft. 43 ft. 33 ft.
5 95 ft. 75 ft. 40 ft. 30 ft.
Number
of
90°
Turns
Maximum Length of 4"
Dia. Rigid Metal Duct
Maximum Length of 4"
Dia. Flexible Metal Duct
Exhaust Hood Type
Exhaust Hood Type
Domestic
Dryer Models
A
4" OpeningB2-1/2"
Opening
A
4" OpeningB2-1/2"
Opening
A
4
Best Performance
B
2-1/2
A
Power Cord Locations
5’’
Power
Cord Hole
4-1/2’’
Back View
5.8 and 7.0 Dryers
Dryer Specifications
Exhaust Options:
Electric: 4-way via rear, right, left and bottom. Except
for DLSR483 which is exhausted 3-way via rear, right
and bottom.
Gas: For 5.8 and 7.0 cu. ft. dryers, when viewed from
the front of the unit, exhaust 3-way via rear, left and
bottom. Except for DLSR483 which is exhausted
2-way via rear and bottom for gas. Dryer is shipped
exhausted to the rear. Alternate exhausting knockouts
are supplied.
Circuit Requirements:
Electric: An individual, properly grounded branch
circuit, protected by a 30-amp circuit breaker or
a time-delay fuse is required.
Electric Dryer Rating:
240V, 5600W, 24A, 60Hz—5.8, and 7.0 cu. ft. dryers
208V, 4400W, 22A, 60Hz—5.8, and 7.0 cu. ft. dryers
Gas: An individual, properly grounded branch circuit,
with a three-prong grounding-type receptacle, protected
by a 15- or 20-amp circuit breaker or a time-delay fuse
is required.
NEMA Receptacle Numbers:
3 prong dryer cord/30A/4' long (cat #WX9X2) is for
NEMA10-30R receptacle.
4 prong dryer cord/30A/4' long (cat #WX9X18) is for
NEMA14-30R receptacle.
Gas Dryer Electric Rating:
120V, 60Hz, 6A
Gas (BTU/HR): 22,000. Factory-equipped for natural
gas. Tested for LP gas. LP gas supply requires an
optional conversion kit, 5.8 and 7.0 cu. ft. model kit is
WE25X0217. Have a qualified gas technician install a
conversion kit. See dryer ducting information for proper installation.
Dryer Note: Dryer wall outlet must be located within
36" of service cord entry and accessible when dryer is
mounted in position.
Dryer Dimensions (in inches)
K
C
A
E
F
H
G
D
J
B
Side View
Rear View
L
5.8 cu. ft. Capacity 7.0 cu. ft. Capacity
A 27 27
B 25-1/2* 25-1/2*
C 42 42
D 25-3/4 28-1/4
E 23-1/2 23-1/2
F 11-1/2 11-1/2
G 3-1/2 3-1/2
H 22
J 2-1/2 2-1/2
K 36 36
L 5-1/4 8-1/2
*24-1/2" from the edge of the side panel to the
front. 25-1/2" from front to edge of end caps.
Washer Dimensions
(in inches)
Washer Specifications
Circuit Requirements:
An individual, properly grounded branch circuit,
with a three-prong grounding-type receptacle,
protected by a 15- or 20-amp circuit breaker or
time-delay fuse is required.
Electrical Rating:
115V, 60Hz, 10A
Washer Note:
Washer wall outlet must be located within 36"
of service cord entry. Wall outlet must not be
located behind dryer.
36
25-1/2
42
51
Side View
27
Rear View
GE®Washers
GE
WHRE5260E WJRR4170E
Capacity
Capacity cu. ft. 3.5 King-size 3.5 King-size
Energy
ENERGY STAR
®
●
Controls
Rotary electronic ● Rotary electromech.
Status indicators Status lights
Water temp system PerfecTemp
Wash/rinse temps 3 3
Water levels 4 4
Wash System
Wash basket Stainless steel Stainless steel
Wash mechanism GentlePower™ Agitator GentlePower Agitator
Wash/spin combinations 5 4
Drive System
Transmission Steel Steel
Maximum spin speed 630 RPM 630 RPM
Dispensers
Bleach ●●
Fabric softener ●●
Wash Cycles
Number of cycles 26 17
Cottons Regular ●●
Auto soak (30 min.) ●
Auto soak (15 min.) ●●
Extra heavy soil ●
Heavy soil ●●
Medium soil ●●
Light soil ●●
Extra light ●
Easy Care ●●
Auto soak (15 min.) ●●
Heavy soil ●●
Medium soil ●●
Light soil ●●
Extra light soil ●
Casuals - Pulsed ●
Heavy soil ●
Medium soil ●
Delicate ●●
Medium soil ●
Light soil ●
Hang to Dry/Prewash ●
Special Cycles
Prewash ●
2nd rinse ●●
Extended spin ●
Rinse & spin (Quick rinse) ●●
Spin only ●●
Additional Features
Quiet performance Quiet-By-Design Quiet-By-Design™
Color lid instructions ●●
Appearance
Colors available* WW, CC WW, CC
Weights & Dimensions
Approx. shipping weight (lbs.) 160 160
*WW = White on white, CC = Bisque on bisque.
5
Convenience
Capacity
3.5 cu. ft. capacity allows you to wash
BIG loads.
EfficiencyPerformance
Stainless steel basket
Resists rust, won’t chip peel
or snag fabrics.
Feature for feature, GE®clothes care systems
wash away the competition!
Convenience
Ultimate in flexibility
Reverse-A-Door is the ultimate in
flexibility. Change door swing to
accommodate your laundry area.
Quality
Designed for performance
Upfront lint filter is close at hand for
cleaning, optimizing dryer performance.
Performance
Better clothes care
Auto Dry system monitors air
temperature, shutting off dryer when
the proper dryness level is reached.
GE has a policy of continuous improvement of its products and reserves the
right to change materials and specifications without notice.
© 2003 GE Company
Pub. No. 14-X004 PC37331
Before purchasing an appliance, read important information about its estimated
annual energy consumption or energy efficiency rating that is available from your
retailer or GEAppliances.com
As an ENERGY STAR
®
partner, GE has determined that the appliances marked with
the ENERGY STAR logo meet the ENERGY STAR guidelines for energy efficiency.
