GE TNX22PRCBB, TNX22PRCWW, TNX22PRCCC User Manual

Specification Revised 11/99

TNX22PRCWW - GE Profile Performance™21.7 Cu. Ft. CustomStyle™No-Frost Top-Freezer Refrigerator with Dispenser

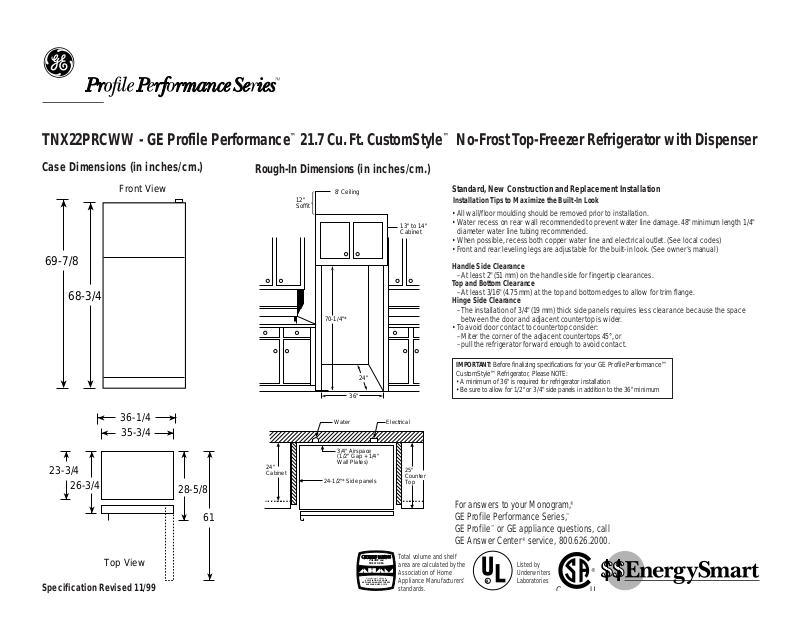

Case Dimensions (in inches/cm.)

69-7/8

68-3/4

Manufacturer Certified to

ASSOCIATION OF HOME

APPLIANCE MANUFACTURERS

ANSI/AHAN HRF-1-1979

VOLUME and SHELF AREA

Total volume and shelf area are calculated by the Association of Home Appliance Manufacturers’ standards.

Listed by Underwriters Laboratories

For answers to your Monogram,

GE Profile Performance Series,

™

GE Profile™or GE appliance questions, call GE Answer Center®service, 800.626.2000.

35-3/4

28-5/8

23-3/4

26-3/4

36-1/4

25" Counter Top

ElectricalWater

3/4" Airspace (1/2" Gap + 1/4" Wall Plates)

24-1/2"* Side panels

24" Cabinet

8' Ceiling

13" to 14" Cabinet

12" Soffit

70-1/4"*

36"

24"

Standard, New Construction and Replacement Installation

Rough-In Dimensions (in inches/cm.)

• All wall/floor moulding should be removed prior to installation.

• Water recess on rear wall recommended to prevent water line damage. 48" minimum length 1/4" diameter water line tubing recommended.

• When possible, recess both copper water line and electrical outlet. (See local codes)

• Front and rear leveling legs are adjustable for the built-in look. (See owner’s manual)

Installation Tips to Maximize the Built-In Look

Handle Side Clearance

–At least 2" (51 mm) on the handle side for fingertip clearances.

Top and Bottom Clearance

–At least 3/16" (4.75 mm) at the top and bottom edges to allow for trim flange.

Hinge Side Clearance

–The installation of 3/4" (19 mm) thick side panels requires less clearance because the space

between the door and adjacent countertop is wider.

• To avoid door contact to countertop consider: –Miter the corner of the adjacent countertops 45°, or –pull the refrigerator forward enough to avoid contact.

IMPORTANT: Before finalizing specifications for your GE Profile Performance™ CustomStyle™ Refrigerator, Please NOTE:

• A minimum of 36" is required for refrigerator installation

• Be sure to allow for 1/2" or 3/4" side panels in addition to the 36" minimum

Front View

Top View

Specification Revised 11/99

TNX22PRCWW - GE Profile Performance™21.7 Cu. Ft. CustomStyle™No-Frost Top-Freezer Refrigerator with Dispenser

REFRIGERATOR

FREEZER

Veg

Humidity

Fruit

.....

Veg

Humidity

Fruit

.....

Features and Benefits

• 21.7 cu ft Capacity (Fresh Food 15.4 cu ft / Freezer 6.3 cu ft)

• LightTouch! Dispenser Delivers Chilled Water, Cubed and Crushed Ice Through the Door

• 2 Adjustable Humidity Window Vegetable/Fruit Crispers

• Adjustable Temperature Meat Pan

• Slide-Out, Spill-Proof Crisper Cover

• 4 Adjustable Glass Fresh Food Cabinet Shelves (3 Slide Out, 3 Spill Proof)

• 3 Adjustable Modular Door Bins with Gallon Storage

• 1 Fixed Fresh Food Door Shelf

• Quick Space

™

Shelf

• Quick Store

™

Bin

• Beverage Rack

• Slide-Out, Slide-Over Pans

• Modular Dairy Compartment with Glass Butter Dish

• Snugger

™

Clips

• 1 Adjustable Wire Everwhite Freezer Compartment Shelf

• 2 Fixed Freezer Door Bins

• Ice Storage Bin

• Interior Freezer Light

• Dual Upfront Temperature Controls

• Bright Fresh Food Upfront Lighting

• Color-Matched Premium Deluxe Door Handles

• Model TNX22PRCWW - White on white

• Model TNX22PRCBB - Black on black

• Model TNX22PRCCC - Bisque
