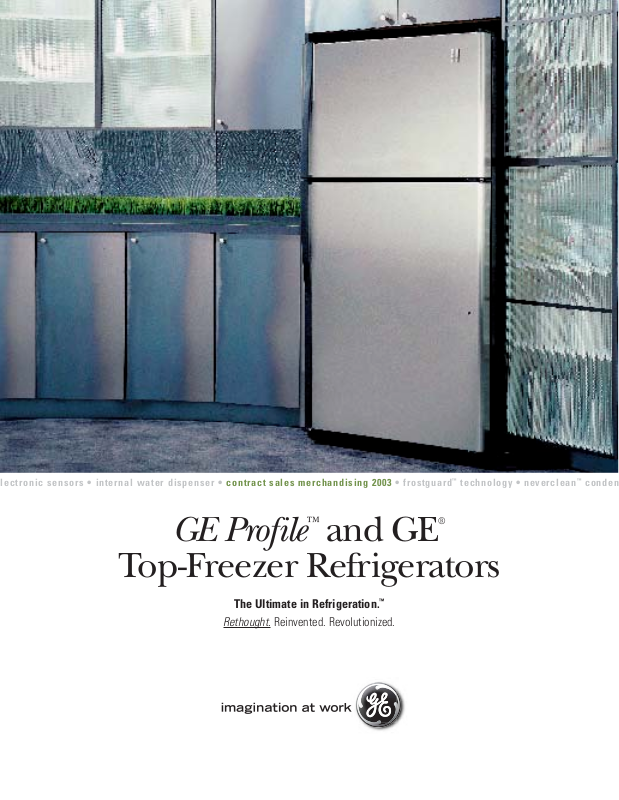

Page 1

• frostguard™technology • neverclean™conden

GE Profile

™

and GE

Top -Freezer Refrigerators

The Ultimate in Refrigeration.

™

Rethought. Reinvented. Revolutionized.

lectronic sensors • internal water dispenser •

contract sales merchandising 2003

Page 2

Page 3

GEAppliances.com

Rethought. Reinvented. Revolutionized.

GE offers a fresh look to complement every kitchen.

❚Radius doors and low-profile hinges offer a soft, rounded appearance. ❚New slim-line, upfront controls offer maximum style and convenience. ❚Adjustable ClearLook

™

gallon-door bins hold large containers with

style and ease.

❚New CleanSteel

™

models offer the look of stainless steel without

the cost or fingerprints.

Exclusive ClimateKeeper™system – helps foods stay fresh.

❚Electronic touch controls with digital temperature readout are

precise and easy to use.

❚More electronic sensors than our competitors’ systems for

maximum freshness.

❚Multi-flow air tower distributes cool air evenly throughout

the fresh food compartment.

❚Exclusive FrostGuard

™

technology defrosts only when needed,

reducing freezer burn.

❚NeverClean

™

condenser coils offer years of trouble-free operation.

Thoughtful features give consumers new, convenient ways to use their refrigerators.

❚Innovative water filtration system with GE SmartWater

™

filtration delivers clean, fresh-tasting water through an internal water dispenser.

❚Spillproof freezer floor offers easy cleanup with a seamless design. ❚Pivot-out, pan-removal system makes it easy to remove and

clean crispers.

❚Dual-level lighting system puts both fresh food and freezer contents

into full view.

❚ShelfSaver

™

beverage rack keeps favorite beverages close at hand.

GE Profile™and GE®top-freezer refrigerators reach a new level of design innovation.

Page 4

GE SmartWater

™

and ice filtration

Delivers clean, fresh-tasting water through the internal water dispenser.

Slide-out, spillproof glass shelves

Simplify loading, unloading and cleaning.

Internal water dispenser

Provides chilled, great tasting water on demand, from inside the refrigerator.

Adjustable temperature deli drawer

Provides a convenient, temperature-controlled place for meats, cheeses and other favorite foods.

Feature gallery.

Rethought. Reinvented. Revolutionized.

Page 5

FrostGuard

™

technology

Defrosts only when needed, reducing freezer burn.

Adjustable-humidity crispers

Provide the ideal storage environment for fruits and vegetables.

The inside story.

Rethought. Reinvented. Revolutionized.

Adjustable ClearLook

™

gallon door bins

Hold large containers with style and ease.

Electronic touch controls with digital temperature readout

Precise and easy to use. Takes the guesswork out of selecting accurate temperatures.

ShelfSaver

™

beverage rack

Provides convenient storage for a 12-pack, two egg cartons or a 9"x 13" casserole dish.

ENERGY STAR®-qualified

Higher energy efficiency means lower utility bills.

GEAppliances.com

NeverClean™condenser

Condenser coils are encased and don’t require cleaning in normal operating environments.

ONLY GE HAS IT!

PTI22SFM PTC22SFM PTI22MFM PTC22MFM PTS25SHP PTS25LHP PTS22SHP PTS22SCP PTS22LHP PTS22LCP

GTH22SHP GTH22SBN GTH18KBP GTH18JBP GTH15BBM

Page 6

GE Profile™and GE®top-freezer refrigerators.

Dare to compare.

Exclusive ClimateKeeper™system

❚Electronic controls with digital temperature readout

are precise and easy to use.

❚Multiple electronic sensors keep temperatures

consistent and help preserve refrigerator contents.

❚Multiflow air tower distributes cool air evenly

throughout the fresh food compartment.

Exclusive FrostGuard™technology

❚Uses a “prechill” function to lower freezer

temperature prior to the defrost cycle.

❚Reduces freezer burn, so foods retain their texture

and flavor.

GE Profile Whirlpool KitchenAid Kenmore Frigidaire Maytag

Controls Electronic Touch Mechanical Mechanical Electronic (1 model) Mechanical Mechanical Sensors 3 2 2 212 Variable Speed Fan YES No No No No No Fresh Food Fan YES No No No No No Air Tower System YES No No No No No Digital Temp. Read-Out YES No No No No No FrostGuard Technology YES No No No No No

Competitive comparison—Temperature Management

Exclusive cooling technology sets GE Profile and GE top-freezers apart.

Page 7

GEAppliances.com

Internal water dispenser with SmartWater™filtration

❚Conveniently located inside the fresh food compartment, the internal water dispenser puts refreshing water

well within reach.

❚Consumers can enjoy the benefits of bottled water without the bottled-water expense. ❚SmartWater

™

filtration system delivers clean, fresh-tasting water through the internal water dispenser.

GE Profile Whirlpool KitchenAid Kenmore Frigidaire Maytag

Internal Water Dispenser YES Yes Yes Yes No No

Water Filtration 6 Month/750 gal. 6 month/300 gal. 6 month/300 gal 6 month/300 gal No No

External Water Dispenser YES No No No No No

Filters up to 750 gallons vs competitors at 300 gallons

Competitive comparison—Water Dispenser

When it comes to filtered water, GE has the inside advantage.

Page 8

GE Profile™and GE®top-freezer refrigerators.

Dare to compare.

Competitive comparison—Maximum Capacity

The ultimate in storage and design flexibility.

❚Redesigned interior gives consumers

more options for storing more food.

❚Adjustable crispers, adjustable door bins

and slide-out, spillproof shelves make the large interior seem even more spacious.

25 cu. ft. 21 cu. ft. 21 cu. ft. 22 cu. ft. 22 cu. ft.

GE Profile Frigidaire Whirlpool KitchenAid Kenmore

Page 9

GEAppliances.com

Installed-trim models

❚Accept stainless steel or acrylic panels in white or black, all of which can

be ordered from GE.

❚Give consumers the option of ordering wood panels from their cabinet-

maker for a custom look.

Trimless models

❚Instantly look built-in—nothing

to attach or build.

❚Slide smoothly into the space

between cabinets.

Only GE offers a built-in-style top-freezer.

ONLY GE HAS IT!

CustomStyle™Top-Freezer Refrigerators

Because they install nearly flush with the cabinets, these refrigerators save floor space. They don’t stick out into the kitchen!

Optional Acrylic Panels

Choose stainless steel panels or acrylic panels in white or black

Custom Wood Panels

Make and install your own custom wood panels to accent cabinetry.

Others extend up to 31" from wall

31"

GE Profile CustomStyle extends 26" from wall

26"

saves nearly 5"

Page 10

Rethought. Reinvented. Revolutionized.

Top-freezer refrigerators.

All Models Include:

❚Upfront illuminated temperature controls ❚ Spillproof freezer floor ❚Deluxe quiet design ❚NeverClean

™

condenser ❚Radius doors

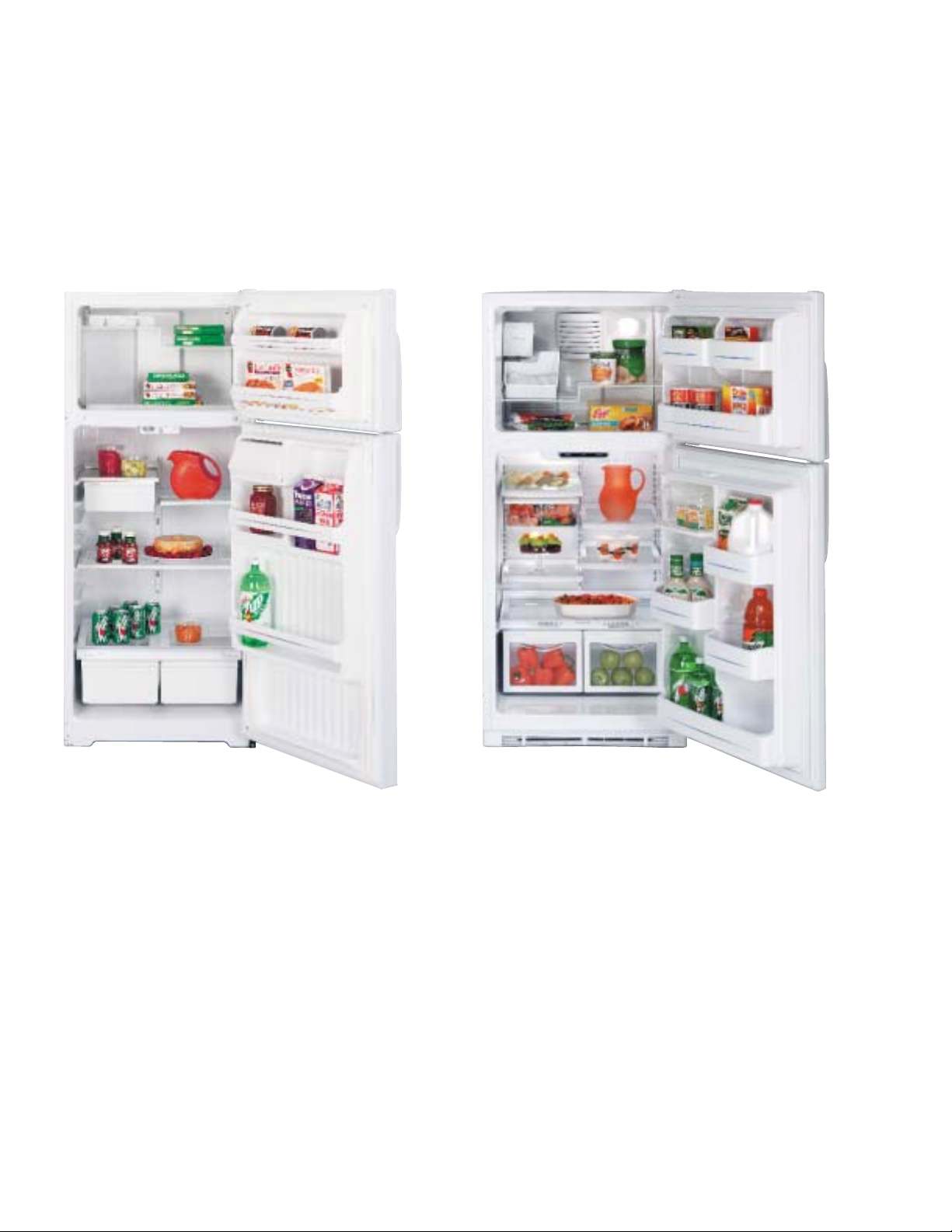

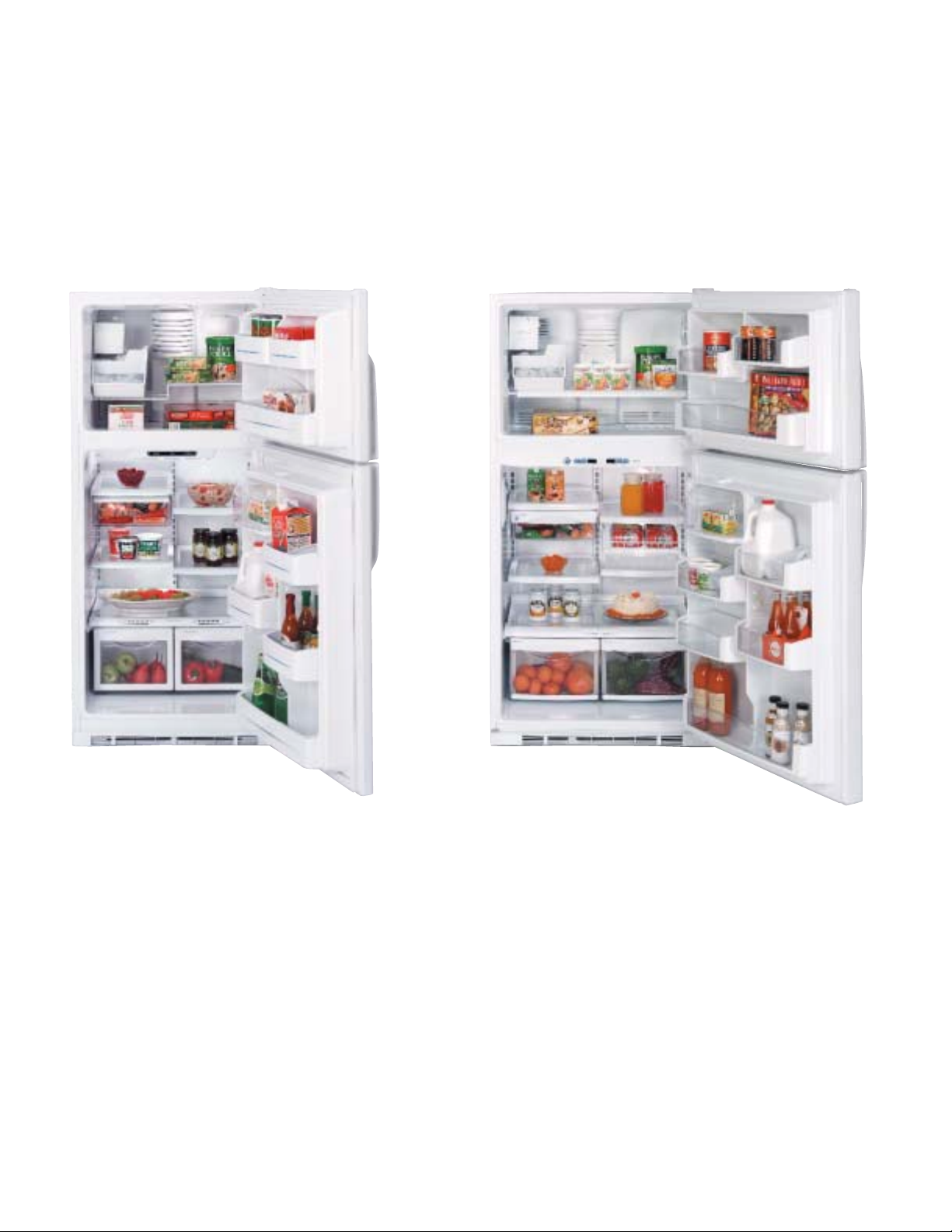

GE Top-Freezer “D” Series

❚Offered in 18 cu. ft. capacity ❚3 wire, 1 full-width, 2 split ❚Two vegetable/fruit crispers ❚Snack pan ❚Automatic moisture control ❚Optional IM4A icemaker

GE Top-Freezer “W” Series (18 cu. ft.)

❚Offered in 18 cu. ft. capacity ❚Upfront illuminated controls ❚Lift-off, slide-out, spillproof glass shelves, four split ❚Two adjustable humidity, clear vegetable/

fruit crispers

❚Clear snack pan ❚Three adjustable gallon door bins ❚Freezer light

Page 11

GEAppliances.com

GE Top-Freezer “W” Series (22 cu. ft.)

❚Offered in 22 cu. ft. capacity

GE Profile Arctica

™

Top-Freezer Models

❚Offered in 22 and 25 cu. ft. capacities ❚ClimateKeeper

™

system

❚Upfront electronic touch controls

with digital temperature readout

❚ShelfSaver

™

can rack

❚ClearLook

™

adjustable gallon door bins

❚Premium quiet design ❚Factory installed icemaker ❚Tilt-out locking freezer door bin ❚Optional internal water dispenser with

GE SmartWater

™

filtration

Page 12

GE Profile Arctica

PTS25LHP

PTS25SHP

PTS22LHP PTS22SHP PTS22LCP PTS22SCP

Stainless steel model ●●

Capacity

Total (cu. ft.) 24.6 / 21.7 24.6 / 21.7 21.7 21.7 Fresh food (cu. ft.) 17.51 / 15.35 17.51 / 15.35 15.35 15.35 Freezer (cu. ft.) 7.08 / 6.35 7.08 / 6.35 6.35 6.35 Shelf area (sq. ft.) 29.1 / 26.3 29.1 / 26.3 26.3 26.3

Fresh Food Features

Internal water dispenser ●● ClimateKeeper™ system ●●● ●

Multiflow air system ●●●● Upfront electronic

touch temperature controls ●●● ● Electronic sensors ●●●●

GE SmartWater™ filtration ●● Cabinet shelves 4 Glass 4 Glass 4 Glass 4 Glass

Adjustable 4 Split 4 Split 4 Split 4 Split Slide-out, removable 3 3 3 3 Spillproof 4 4 4 4

ShelfSaver™ rack ●●● ● Deli pan Adj. Temp. Adj. Temp. Adj. Temp. Adj. Temp. Vegetable/fruit crisper(s) 2 Adj. Humid. 2 Adj. Humid. 2 Adj. Humid. 2 Adj. Humid. Pivot-out pan removal system ●●● ● ClearLook™ adjustable

gallon door bins 4 (Adj.) 4 (Adj.) 4 (Adj.) 4 (Adj.) Snugger™ clip(s) 2 2 2 2 Fixed door bins 1 (Tall Bottle) 1 (Tall Bottle) 1 (Tall Bottle) 1 (Tall Bottle) Dairy compartment ●●●● Interior light system Dual Dual Dual Dual Quiet Design Premium Premium Premium Premium Automatic moisture control ●●●● NeverClean™ condenser ●●●● ENERGY STAR

●●●●

Freezer Features

Factory-installed icemaker and bin ●●● ● Multiflow air system (freezer) ●●● ● Ice storage bin Ice Bucket Ice Bucket Ice Bucket Ice Bucket FrostGuard™ technology ●●●● Spillproof freezer floor ●●●● Wire freezer 1 full-width 1 full-width 1 full-width 1 full-width

compartment shelves (2 pos.) (2 pos.) (2 pos.) (2 pos.) Freezer door bins 2 (1 Adj.) 2 (1 Adj.) 2 (1 Adj.) 2 (1 Adj.) Tilt-out locking freezer door bin ●●● ● Interior light ●●●●

Exterior

Color(s) available* WW, CC, BB BS WW, CC, BB BS Deluxe door handle(s) Color-Matched Black Color-Matched Black Customer installed handles ●●● ● Exterior design Rounded Doors Rounded Doors Rounded Doors Rounded Doors Reversible doors ●●● ● Adjustable rollers Front Front Front Front

Weights & Dimensions

Height to top of hinge (in.) 68-5/8 / 67-1/2 68-5/8 / 67-1/2 67-1/2 67-1/2 Height to top of case (in.) 67-7/8 / 66-7/8 67-7/8 / 66-7/8 66-7/8 66-7/8 Case depth without door (in.) 27-5/8 27-5/8 27-5/8 27-5/8 Case depth less door

handle (in.) 31-5/8 31-5/8 31-5/8 31-5/8 Case depth with door

handle (in.) 33-5/8 33-5/8 33-5/8 33-5/8 Depth with fresh food door

open 90° (in.) 66 / 63 66 / 63 63 63 Width (in.) 35 7/8 / 32-7/8 35-7/8 / 32-7/8 32-7/8 32-7/8 Width w/door open 90°

less door handle (in.) 38 / 35 38 / 35 35 35

Air clearances Each side (in.) 1/8 1/8 1/8 1/8

Top (in.) 1 1 1 1

Back (in.) 1 1 1 1 Approx. shipping weight (lbs.) 310 /260 310 / 260 260 260 Power/Ratings 120V, 60Hz, 15Amps

*Color(s) available: BS = Black case with stainless steel doors, WW = White on white,

CC = Bisque on bisque, BB = Black on black.

ALL MODELS AVAILABLE IN U.S. AND CANADA.

PTC22MBM

PTC22MFM PTC22SBM PTC22SFM

PTI22MBM PTI22MFM PTI22SFM

Stainless steel model ●●

Capacity

Total (cu. ft.) 21.9 21.7 21.9 21.7 Fresh food (cu. ft.) 15.4 15.4 15.4 15.4 Freezer (cu. ft.) 6.5 6.3 6.5 6.3 Shelf area (sq. ft.) 22.4 20 22.4 20

Fresh Food Features

SmartWater™ filtration system ●●

Crushed Ice, Crushed Ice,

LightTouch! dispenser Cubes, Water Cubes, Water Upfront illuminated

temperature controls ●●●● Cabinet shelves 4 Glass 4 Glass 4 Glass 4 Glass

Adjustable 4 Split 4 Split 4 Split 4 Split Slide-out, spillproof 3 3 3 3

Snugger clip ●●●● QuickSpace™ shelf ●●●● Meat pan Adj. Temp. Adj. Temp. Adj. Temp. Adj. Temp. Vegetable/fruit crisper(s) 2 Adj. Humid. 2 Adj. Humid. 2 Adj. Humid. 2 Adj. Humid. Slide-out, spillproof crisper cover ●●●● ClearLook modular door bins 4 Adj. 4 Adj. 4 Adj. 4 Adj.

w/gallon storage w/gallon storage w/gallon storage w/gallon storage Fixed door bins 1 F/W tall bottle 1 F/W tall bottle 1 F/W tall bottle 1 F/W tall bottle Slide-out, slide-over

pan removal system ●●●● Dairy compartment ●●●● Beverage rack ●●●● Interior light system Dual Dual Dual Dual Quiet Design Deluxe Deluxe Deluxe Deluxe Automatic moisture control ●●●● NeverClean condenser ●●●● ENERGY STAR

●●

Freezer Features

Factory-installed icemaker & bin Opt. (IM4A) ● Opt. (IM4A) ● Ice 'N Easy trays 3 3 Ice storage bin ●● Wire compartment shelf(s) 2 Split (Adj.) 1(Adj.) 2 Split (Adj.) 1(Adj.)

2 fixed 2 fixed

Door bins 2 Adj./1 F/W fixed (1 w/gallon storage) 2 Adj./1 F/W fixed (1 w/gallon storage) Interior light ●●●●

Exterior

WW, CC, BB

Color(s) available* WW, BB WW, BB BS BS

rimless Trimless Trimless

CustomStyle configuration Installed Trim Installed Trim Trimless Installed Trim

Black Deluxe

CM Deluxe

CM Deluxe Stainless Steel

Premium door handles* CM Full-Length CM Full-Length Black Deluxe Appearance Choose right or left door opening ●●●● Reversible doors ● / –

Rounded Doors

Rounded Doors Rounded Doors

Exterior design Squared Doors Squared Doors Rounded Doors Squared Doors Adjustable rollers All All All All

Weights & Dimensions

Height to top of hinge (in.) 69-7/8 69-7/8 69-7/8 69-7/8 Height to top of case (in.) 68-3/4 68-3/4 68-3/4 68-3/4 Height to top of door trim (in.) – / 70-1/2 – / 70-1/2 – / 70-1/2 Case depth without door (in.) 23-3/4 23-3/4 23-3/4 23-3/4 Depth less door handle (in.) 26-3/4 26-3/4 26-3/4 26-3/4 Depth with door handle (in.) 28-5/8 / 28-3/8 28-5/8 / 28-3/8 28-5/8 28-5/8 Depth with fresh food door

open 90° (in.) 61 61 61 61 Width (in.) 35-3/4 35-3/4 35-3/4 35-3/4 Width with door open 90°

w/door handle (in.) 38-1/4 / 38 38-1/4 / 38 38-1/4 38-1/4 / 38

Air clearances Each side (in.) 1/8 1/8 1/8 1/8

Top (in.) 1 1 1 1

Back (in.) 1/2 1/2 1/2 1/2 Approx. shipping weight (lbs.) 300 324 300 324 / 360 Power/Ratings 120V, 60Hz, 15Amps

Accessories

Black acrylic panels (optional) N/A / PTPK22CBB N/A / PTPK22DBB N/A N/A White acrylic panels (optional) N/A/ PTPK22CWW N/A / PTPK22DWW N/A N/A Stainless steel panels (optional) N/A / PTPK22CSS N/A / PTPK22DSS N/A N/A Black collar trim (optional) N/A / TRMBISBB N/A / TRMBISBB N/A N/A White collar trim (optional) N/A / TRMBISWW N/A / TRMBISWW N/A N/A Bisque collar trim (optional) N/A N/A N/A N/A Stainless steel collar trim (optional) N/A / TRMBISSS N/A / TRMBISSS N/A N/A / TRMBISSS

*Color(s) available: BS = Black case with stainless steel doors, WW = White on white, CC = Bisque on

bisque, BB = Black on black, CM = Color-Matched.

ALL MODELS AVAILABLE IN U.S. AND CANADA.

GE Profile CustomStyle

Total volume and shelf area are calculated by the Association of Home Appliance Manufacturers’ standards.

Listed by Underwriters Laboratories

GE Profile CustomStyle

™

To p - F r e e z e r R e frigerators

GE Profile Arctica

™

To p - F r e e z e r R e frigerators

Page 13

GEAppliances.com

GE®To p - F r e e z e r R e frigerators

Note: All Top-Freezer No-Frost Right-Hand Refrigerator Doors: As you face the front

of the refrigerator, the handle is on your left and the hinges are on your right. All Top-Freezer No-Frost Left-Hand Refrigerator Doors: As you face the front of the refrigerator, the handle is on your right and the hinges are on your left.

Total volume and shelf area are calculated by the Association of Home Appliance Manufacturers’ standards.

Listed by Underwriters Laboratories

GE “W” Series GE “K” Series

GTH22SBN GTH18KBP GTS18SBP

GTS22WCP GTS18WCP GTS22KBP GTS22KHP GTH22SHP GTS18KBP GTS18KHP GTS18SHP

Capacity

Total (cu. ft.) 21.7 17.9 21.7 21.7 21.7 17.9 17.9 17.9 Fresh food (cu. ft.) 15.35 12.87 15.35 15.35 15.35 12.87 12.87 12.87 Freezer (cu. ft.) 6.35 4.98 6.35 6.35 6.35 4.98 4.98 4.98 Shelf area (sq. ft.) 24.9 22.0 25.3 24.9 25.3 22.4 22.4 22.4

Fresh Food Features

Upfront temperature controls Illuminated Illuminated Illuminated Illuminated Illuminated Illuminated Illuminated Illuminated Cabinet shelves 4 Glass 4 Glass 4 Glass 4 Glass 4 Glass 4 Glass 4 Glass 4 Glass

Adjustable 4 Split 4 Split 4 Split 4 Split 4 Split 4 Split 4 Split 4 Split Spillproof 4 4 4 44444

Internal water dispenser ● – / ●●– / ● GE SmartWater™ filtration ● – / ●●– / ● Vegetable/fruit crisper(s) 2 Adj. Humid. 2 Adj. Humid. 2 Adj. Humid. 2 Adj. Humid. 2 Adj. Humid. 2 Adj. Humid. 2 Adj. Humid. 2 Adj. Humid. Snack pan ●●●●●●●●

Slide over, Slide over, Slide over, Slide over,

Pivot-out pan removal system ● Slide out ●● ●Slide out Slide out Slide out Adjustable gallon door bins 3 (Adj.) 3 (Adj.) 3 (Adj.) 3 (Adj.) 3 (Adj.) 3 (Adj.) 3 (Adj.) 3 (Adj.)

Fixed door bins 1 (Tall Bottle) 1 (Gallon) 1 (Tall Bottle) 1 (Tall Bottle) 1 (Tall Bottle) 1 (Gallon) 1 (Gallon) 1 (Gallon)

Door shelves Dairy compartment ●●●●●●●● Interior light system Dual Dual Dual Dual Dual Dual Dual Dual Quiet Design Deluxe Deluxe Deluxe Deluxe Deluxe Deluxe Deluxe Deluxe Automatic moisture control ●●●●●●●● NeverClean™ condenser ●●●●●●●● ENERGY STAR

●●/ –

Freezer Features

Opt. (IM4A)

Factory-installed icemaker ●●Opt. (IM4A) ●●●●Opt. (IM4A) / ● Ice 'N Easy trays 2 2 2 2 2 / – Ice storage bin Ice Bucket Ice Bucket Ice Bucket – / ●●– / ● FrostGuard™ technology ● Spillproof freezer floor ●●●●●●●● Wire freezer

compartment shelves 1 F/W (2 pos.) Step 1 F/W (2 pos.) 1 F/W (2 pos.) 1 F/W (2 pos.) Step Step Step Adjustable door bins 1 (Adj.) 1 (Adj.) 1 (Adj.) 1 (Adj.) Fixed door bins 1 (1 F/W) 2 Split (1 F/W) 1 Split (1 F/W) 1 Split (1 F/W) 1 Split (1 F/W) 2 Split (1 F/W) 2 Split (1 F/W) 2 Split (1 F/W) Interior light ●●●●●●●●

Exterior

Color(s) available* WW, CC WW, CC WW, CC, BB WW, CC, BB BS WW, CC, BB WW, CC, BB BS Door handle(s)* CM CM CM CM Black CM CM Black Customer installed handles ●● ●●●●●● Exterior design Rounded Doors Rounded Doors Rounded Doors Rounded Doors Rounded Doors Rounded Doors Rounded Doors Rounded Doors Reversible doors ●●●●●●●● Adjustable rollers Front Front Front Front Front Front Front Front

Weights & Dimensions

Height to top of hinge (in.) 67-1/2 66-5/8 67-1/2 67-1/2 67-1/2 66-5/8 66-5/8 66-5/8 Height to top of case (in.) 66-7/8 66-1/8 66-7/8 66-7/8 66-7/8 66-1/8 66-1/8 66-1/8 Height to mid-freezer (in.) 54-1/2 53-15/16 54-1/2 54-1/2 54-1/2 53-15/16 53-15/16 53-15/16 Case depth without door (in.) 27-5/8 27-1/2 27-5/8 27-5/8 27-5/8 27-1/2 27-1/2 27-1/2 Case depth less door

handle (in.) 31-5/8 30-1/4 31-5/8 31-5/8 31-5/8 30-1/4 30-1/4 30-1/4 Case depth with door

handle (in.) 33-5/8 32-1/8 33-5/8 33-5/8 33-5/8 32-1/8 32-1/8 32-1/8 Depth w/fresh food door

open 90° (in.) 63 58-1/8 63 63 63 58-1/8 58-1/8 58-1/8 Width (in.) 32-7/8 29-1/2 32-7/8 32-7/8 32-7/8 29-1/2 29-1/2 29-1/2 Width w/door open 90°

w/door handle (in.) 35 32 35 35 35 32 32 32

Air clearances Each side (in.) 1/8 1/8 1/8 1/8 1/8 1/8 1/8 1/8

Top (in.) 1 1 1 11111

Back (in.) 1 1 1 11111 Approx. shipping weight (lbs.) 260 233 255 260 255 231 231 231 Power/Ratings 120V, 60Hz, 15Amps

*Color(s) available: BS = Black case with Stainless steel doors, WW = White on white, CC = Bisque on bisque, BB = Black on black, CM = Color-Matched.

ALL MODELS AVAILABLE IN U.S. AND CANADA.

Page 14

GE®To p - F r e e z e r R e frigerators

Note: All Top-Freezer No-Frost Right-Hand Refrigerator Doors: As you face the front

Total volume and shelf area are calculated by the Association of Home Appliance Manufacturers’ standards.

Listed by Underwriters Laboratories

GE “J” Series GE “I” Series GE “D” Series

GTS22JBP GTH18JBP GTL18JBP GTH18DBP GTS22JCP GTS18JBP GTL18JCP GTS18JCP GTS20ICN GTS18DBP GTS18DCP

Capacity

Total (cu. ft.) 21.8 17.9 17.9 17.9 20.0 17.9 17.9 Fresh food (cu. ft.) 15.47 12.89 12.89 12.89 14.61 12.89 12.89 Freezer (cu. ft.) 6.37 5.03 5.03 5.03 5.41 5.03 5.03 Shelf area (sq. ft.) 25.4 /25.1 22.6 22.6 22.2 24.5 22.6 22.2

Fresh Food Features

Upfront temperature controls Illuminated Illuminated Illuminated Illuminated ●● ● Cabinet shelves 3 Glass 3 Glass 3 Glass 3 Glass 3 Glass 3 Wire 3 Wire

Adjustable 2 Split, 1 F/W 2 Split, 1 F/W 2 Split, 1 F/W 2 Split, 1 F/W 2 Split, 1 F/W 2 Split, 1 F/W 2 Split, 1 F/W Spillproof ●●●●SpillKeeper™

Vegetable/fruit crisper(s) 2 2 2 2 2 2 2 Snack pan ●●●●●●

Slide-out, Slide-out, Slide-out, Slide-out, Slide-out,

Pivot-out pan removal system ● Slide over Slide over Slide over Slide over Slide over

2 F/W 1 w/ 2 F/W w/ 2 F/W w/ 2 F/W w/ 3 F/W (2 adj. w/

Fixed door bins gallon storage gallon storage gallon storage gallon storage gallon storage)

1/2 w/ 1/2 w/ 1/2 w/ 1 w/ 1 Split w/gallon 1 Split w/gallon

Door shelves gallon storage gallon storage gallon storage gallon storage 1/2 fixed 2 F/W w gallon 2 F/W w gallon Dairy compartment ●●●●●●● Interior light system Dual Dual Dual Dual Single Single Single Quiet Design Deluxe Deluxe Deluxe Deluxe Deluxe Deluxe Deluxe Automatic moisture control ●●●●●●● NeverClean™ condenser ●●●● ●● ENERGY STAR

● / – ● / –

Freezer Features

Factory-installed icemaker Opt. (IM4A) / ● Opt. (IM4A) Opt. (IM4A) / ●● ● Opt. (IM4A) ● Ice 'N Easy trays 2 / – 2 2 / – 2 Ice storage bin – / Ice Bucket – / Ice Bucket Ice Bucket Ice Bucket Spillproof freezer floor ●●●● ●● Wire freezer compartment shelves 1 F/W (2 pos.) Step Step Step 1 Adj. F/W (Step) Step

2 F/W w/

Fixed door shelves gallon storage 2 Full-width 2 Full-width 2 Full-width 2 Fixed 2 2

Exterior

, CC

Color(s) available* WW, CC WW, CC CleanSteel™ WW, CC WW, CC WW, CC, BB** WW, CC Door handle(s)* CM CM Black CM CM CM CM Customer installed handles ●●●●●●● Exterior design Rounded Doors Rounded Doors Rounded Doors Rounded Doors Rounded Doors Rounded Doors Rounded Doors Reversible doors ●●●●●●● Choose right or left door opening ●● Adjustable rollers Front Front Front Front Front Front Front

Weights & Dimensions

Height to top of hinge (in.) 67-1/2 66-5/8 66-5/8 66-5/8 68-1/8 66-5/8 66-5/8 Height to top of case (in.) 66-7/8 66-1/8 66-1/8 66-1/8 67-1/2 66-1/8 66-1/8 Height to mid-freezer (in.) 54-1/2 53-15/16 53-15/16 53-15/16 56-3/4 53-5/16 53-5/16 Case depth without door (in.) 27-5/8 27-1/2 27-1/2 27-1/2 27-1/2 27-1/2 27-1/2 Case depth less door handle (in.) 31-5/8 30-1/4 30-1/4 30-1/4 30-5/8 30-1/4 30-1/4 Case depth with door handle (in.) 33-5/8 32-1/8 32-1/8 32-1/8 32-3/8 32-1/8 32-1/8 Depth w/fresh food door

open 90° (in.) 63 58-1/8 58-1/8 58-1/8 57-15/16 58-1/8 58-1/8 Width (in.) 32-7/8 29-1/2 29-1/2 29-1/2 29-1/2 29-1/2 29-1/2 Width w/door open 90°

w/door handle (in.) 35 32 32 32 32-1/2 32 32

Air clearances Each side (in.) 1/8 1/8 1/8 1/8 1/8 1/8 1/8

Top (in.) 1 1 1 1 1 1 1

Back (in.) 1 1 1 1 1 1 1 Approx. shipping weight (lbs.) 255/ 260 226 226 231 227 223 228 Power/Ratings 120V, 60Hz, 15Amps

*Color(s) available: WW = White on white, CC = Bisque on bisque, BB = Black on black, CM = Color-Matched, CleanSteel™= Stainless appearance.

**GTH18DBPBB and GTS18DBPBB only available with right door opening.

ALL MODELS AVAILABLE IN U.S. AND CANADA.

Page 15

GEAppliances.com

GE Top-Freezer Refrigerators

Note: All Top-Freezer No-Frost Right-Hand Refrigerator Doors: As you face the front

Total volume and shelf area are calculated by the Association of Home Appliance Manufacturers’ standards.

Listed by Underwriters Laboratories

GE “B” Series GE “A” Series

GTS17BBM GTS15BBM

GTR18BBM GTS17BCM GTR17BBM GTS16BBM GTH15BBM GTS15BCM GTR15BBM GTS12BBP GTR11AAP

Capacity

Total (cu. ft.) 17.6 16.9 16.9 15.6 14.6 14.6 14.6 11.7 11.4 Fresh food (cu. ft.) 13.62 13.05 13.05 11.69 10.77 10.77 10.77 8.9 8.4 Freezer (cu. ft.) 4.01 3.86 3.86 3.86 3.86 3.86 3.86 3.0 3.0 Shelf area (sq. ft.) 18.0 17.5 /16.7 17.5 17.2 17.2 16.4 17.2 12.1 13.4

Fresh Food Features

Upfront temperature controls ● ●●●●●●●● Cabinet shelves 2 Wire 2 Wire 2 Wire 2 Wire 2 Wire 2 Wire 2 Wire 2 Wire 2 Wire

Adjustable 2 F/W 2 F/W 2 F/W 2 F/W 2 F/W 2 F/W 2 F/W 2 F/W 2 F/W Vegetable/fruit crisper(s) 2 222222Divided 1 F/W Door shelves 2 (Tall Bottle) 2 (Tall Bottle) 2 (Tall Bottle) 2 (Tall Bottle) 2 (Tall Bottle) 2 (Tall Bottle) 2 (Tall Bottle) (1 Tall Bottle) 4 (1 Tall Bottle) Dairy compartment ● ●●●●●●● Interior light system Single Single Single Single Single Single Single Single Single Quiet Design Deluxe Deluxe Deluxe Deluxe Deluxe Deluxe Deluxe Standard Standard Automatic moisture control ● ●●●●●● NeverClean™ condenser ● ●●●●●● ENERGY STAR

– / ●

Freezer Features

Factory-installed icemaker & bin Opt. (IM4A) Opt. (IM4A) / ● Opt. (IM4A) Opt. (IM4A) Opt. (IM4A) ● Opt. (IM4A) Opt. (IM4A) Ice 'N Easy trays 2 2 / – 2 2 2 2 1 2 Ice storage bin – / Ice Bucket Ice Bucket Wire freezer compartment shelves 1 F/W Fixed door shelves 2 22222222

Exterior

, CC WW, CC

Color(s) available* WW, CC WW, CC WW, CC WW, CC WW, CC WW, CC WW, CC WW, CC WW Door handle(s)* CM Recessed CM CM Recessed CM CM CM CM Recessed CM CM Recessed Exterior design Square Doors Square Doors Square Doors Square Doors Square Doors Square Doors Square Doors Rounded Doors Rounded Doors Reversible doors ● ●●●●●●●● Choose right or left door opening ●●●●●●● Adjustable rollers Front Front Front Front Front Front Front

Weights & Dimensions

Height to top of hinge (in.) 67-3/8 67-3/8 67-3/8 64-1/4 61-3/4 61-3/4 61-3/4 60-5/8 57-7/8 Height to top of case (in.) 66-7/8 66-7/8 66-7/8 64-3/4 61-1/4 61-1/4 61-1/4 60 57-7/8 Height to mid-freezer (in.) 57 57 57 54-3/8 51-3/8 51-3/8 51-3/8 51-3/4 50 Case depth without door (in.) 26-3/4 26-3/4 26-3/4 25-7/8 25-7/8 25-7/8 25-7/8 27-3/4 28-1/4 Case depth less door handle (in.) 30-1/2 30 30 29-1/8 29-1/8 29-1/8 29-1/8 30-1/4 31-1/8 Case depth with door handle (in.) 30-1/2 31-7/8 30 31 31 31 29-1/8 32 31-1/8 Depth w/fresh food door

open 90° (in.) 56-3/8 55-3/4 55-3/4 54-7/8 54-7/8 54-7/8 54-7/8 51-5/8 52-3/4 Width (in.) 28 28 28 28 28 28 28 23-3/8 23-7/8 Width w/door open 90°

w/door handle (in.) 28-7/8 30-1/2 28-5/8 30-1/2 30-1/2 30-1/2 28-5/8 26-1/2 25-1/8

Air clearances Each side (in.) 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4 1

Top (in.) 1 1 1 1 1 1 1 2 4

Back (in.) 1 1111113/43 Approx. shipping weight (lbs.) 178 179 / 184 178 166 166 171 165 155 163 Power/Ratings 120V, 60Hz, 15Amps

*Color(s) available: WW = White on white, CC = Bisque on bisque, CM = Color-Matched.

ALL MODELS AVAILABLE IN U.S. AND CANADA.

Page 16

GE Appliances

GEAppliances.com

GE Consumer Products General Electric Company Louisville, Kentucky 40225

Before purchasing an ENERGY STAR®-qualified appliance, read important information about its estimated annual energy consumption or energy efficiency rating that is available from your retailer or at GEAppliances.com.

GE has a policy of continuous improvement of its products and reserves the right to change materials and specifications without notice.

Pub. No. 24-C293-1 PC35874

Enhanced look

❚ Slim-line upfront controls offer

a sleek, stylish look.

❚ CleanSteel

™

stainless-look finish offers the ultimate in convenience and contemporary style.

Better temperature management

❚Digital controls and electronic

sensors give you a greater degree of control over food preservation.

❚ Exclusive FrostGuard

™

technology reduces freezer burn, so foods retain their flavor and texture.

More convenient features

❚ Internal water dispenser lets

you enjoy the fresh taste of clean, filtered water—right from inside the refrigerator.

❚ New ShelfSaver

™

beverage rack keeps favorite beverages close at hand.

New GE Profile

™

and GE®top-freezers have been redesigned to offer more style, innovation and convenience.

For more than a century, GE has been committed to producing innovative products that change the way people live. The result of thorough research and rigorous testing, GE appliances are designed for years of dependable performance. Today, the GE tradition of quality and innovation continues.

A Century of Quality and Innovation
