GE TNS22PRCBS Specification
Revised 4/99

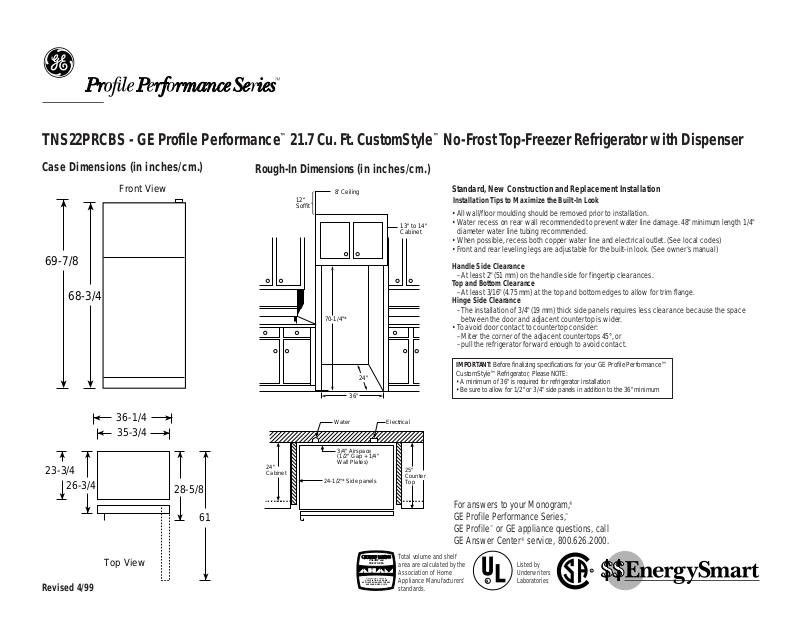

TNS22PRCBS - GE Profile Performance™21.7 Cu. Ft. CustomStyle™No-Frost Top-Freezer Refrigerator with Dispenser
Case Dimensions (in inches/cm.)
69-7/8
68-3/4
R
Manufacturer Certified to
ASSOCIATION OF HOME
APPLIANCE MANUFACTURERS
ANSI/AHAN HRF-1-1979
VOLUME and
SHELF AREA
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
35-3/4
28-5/8
23-3/4
61
26-3/4
36-1/4
25"
Counter
Top
ElectricalWater
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24-1/2"* Side panels
24"
Cabinet
8' Ceiling
13" to 14"
Cabinet
12"
Soffit
70-1/4"*
36"
24"
Standard, New Construction and Replacement Installation
Rough-In Dimensions (in inches/cm.)
• All wall/floor moulding should be removed prior to installation.
• Water recess on rear wall recommended to prevent water line damage. 48" minimum length 1/4"
diameter water line tubing recommended.
• When possible, recess both copper water line and electrical outlet. (See local codes)
• Front and rear leveling legs are adjustable for the built-in look. (See owner’s manual)
Installation Tips to Maximize the Built-In Look
Handle Side Clearance
–At least 2" (51 mm) on the handle side for fingertip clearances.
Top and Bottom Clearance
–At least 3/16" (4.75 mm) at the top and bottom edges to allow for trim flange.
Hinge Side Clearance
–The installation of 3/4" (19 mm) thick side panels requires less clearance because the space
between the door and adjacent countertop is wider.
• To avoid door contact to countertop consider:
–Miter the corner of the adjacent countertops 45°, or
–pull the refrigerator forward enough to avoid contact.
IMPORTANT: Before finalizing specifications for your GE Profile Performance™
CustomStyle™ Refrigerator, Please NOTE:
• A minimum of 36" is required for refrigerator installation
• Be sure to allow for 1/2" or 3/4" side panels in addition to the 36" minimum
Front View
Top View
Revised 4/99
TNS22PRCBS - GE Profile Performance™21.7 Cu. Ft. CustomStyle™No-Frost Top-Freezer Refrigerator with Dispenser
REFRIGERATOR
FREEZER
Veg
Humidity
Fruit
.....
.....
Veg
Humidity
Fruit
.....
.....
Features and Benefits
•21.7 cu ft Capacity (Fresh Food 15.4 cu ft / Freezer 6.3 cu ft)
•LightTouch! Dispenser Delivers Chilled Water, Cubed and Crushed Ice
Through the Door
•2 Adjustable Humidity Window Vegetable/Fruit Crispers
•Adjustable Temperature Meat Pan
•Slide-Out, Spill Proof Crisper Cover
•4 Adjustable Glass Fresh Food Cabinet Shelves (3 Slide Out, 3 Spill Proof)
•3 Adjustable Modular Door Bins with Gallon Storage
•1 Fixed Fresh Food Door Shelf
•Quick Space
™
Shelf
•Quick Store
™
Bin
•Beverage Rack
•Slide-Out, Slide-Over Pans
•Modular Dairy Compartment with Glass Butter Dish
•Snugger
™
Clips
•1 Adjustable Wire Everwhite Freezer Compartment Shelf
•2 Fixed Freezer Door Bins
•Ice Storage Bin
•Interior Freezer Light
•Dual Upfront Temperature Controls
•Bright Fresh Food Upfront Lighting
•Black Premium Deluxe Door Handles
•Model TNS22PRCBS - Stainless steel
