PT7800DH
C
L
Suitable
bracing
to support
runners
2 x 4 or
equivalent runners
level with bottom of cutout
and flush with sides of cutout
or solid bottom floor.
B
30 ''
A
C
CUTOUT WIDTH
28-1/2" MIN.
28-5/8" MAX.
Recommended
minimum
cutout location
from the floor
21-5/8"
21"
E
F
D
CUTOUT HEIGHT
42-3/16" MIN.
42-1/4" MAX.
(must support 275 lbs.)
20" MIN.
door opening
allowance
CONDUIT
48"
CABINET 30"
A –Overlap of oven at top of cutout 1"
B – Overlap of oven over side of edges of cutout 3/4"
C –Overlap of oven at bottom of cutout 1"
OVEN
D –Install depth 23-1/2"
E –Overall height with trim 42-3/8"
F –Overall width 29-3/4"
JK3800
PK7800
ATTENTION INSTALLER:
All electric wall ovens must be hard-wired (direct-wired)
into an approved junction box. A plug and receptacle is NOT permitted on these products.
NOTE: If the cabinet does not have a solid bottom,
two braces or runners must be installed to support
the weight of the oven. For single ovens, the runners
and braces must support 200 lbs (91 kg). For double
ovens, the runners and braces must support 375 lbs.
(170 kg).
NOTE: If marks, blemishes or the cutout opening are
visible above the installed oven, it may be necessary
to add wood shims under the runners and front trim
until the marks or opening are covered.
NOTE: If the cabinet does not have a front frame
and the sides are less than 3/4" (1.9 cm) thick, shim
both sides equally to establish the cutout width.
9-1/2" MAX.
RIGHT SIDE ONLY
CUTOUT DEPTH
23-1/2" MIN.
28" MIN. to
bottom of
junction box
Junction box
location
(Junction box
may be located
in adjacent
cabinet)

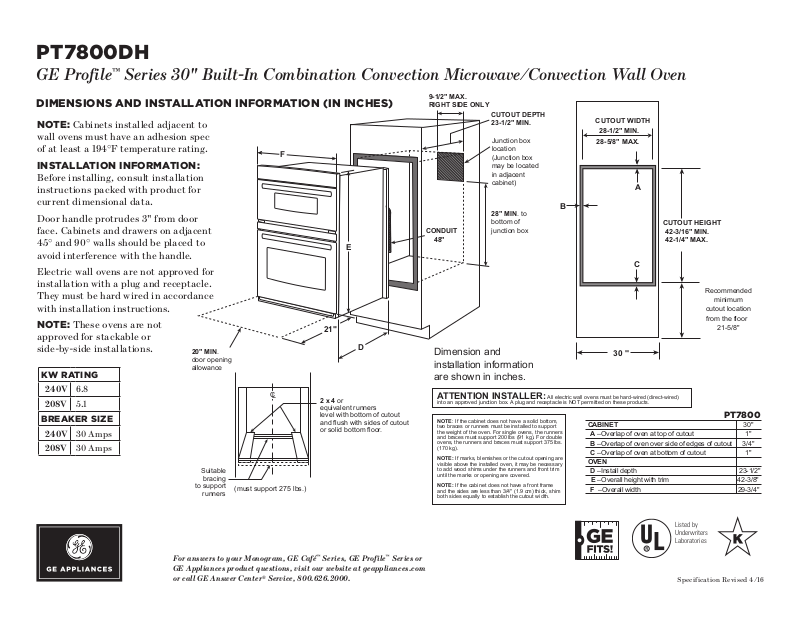

GE Profile™ Series 30" Built-In Combination Convection Microwave/Convection Wall Oven
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
NOTE: Cabinets installed adjacent to
wall ovens must have an adhesion spec
of at least a 194°F temperature rating.
INSTALLATION I N FORMATI O N :
Before installing, consult installation
instructions packed with product for
current dimensional data.
Door handle protrudes 3" from door
face. Cabinets and drawers on adjacent
45° and 90° walls should be placed to
avoid interference with the handle.
Electric wall ovens are not approved for
installation with a plug and receptacle.
They must be hard wired in accordance
with installation instructions.
NOTE: These ovens are not
approved for stackable or
side-by-side installations.
KW R ATI N G
24 0V 6.8
208V 5.1
BREAKER SIZE
24 0V 30 Amps
208V 30 Amps
Dimension and
installation information
are shown in inches.
PT7800
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
Listed by
Underwriters
Laboratories
Speci fication Revised 4/16
PT7800DH
GE Profile™ Series 30" Built-In Combination Convection Microwave/Convection Wall Oven
FEATURES AND BENEFITS
1.7 cu. ft. microwave capacity (1000 watts (IEC-705 test procedure)
Convection microwave (upper oven) - Circulates heat for high-quality results
16" turntable (upper oven) - Rotates food throughout the cooking cycle for even
cooking results
True European Convection (lower oven) - Achieve delicious results from a third heating element and
fan combination
Self-clean with steam clean option (lower oven) - Clean your oven the way you want
Self-clean heavy-duty oven racks (lower oven) - Conveniently clean your oven and
racks together
Glass touch controls - Set temperatures quickly and clean with little effort
Halogen interior oven lighting (lower oven) - Easily see how your food is baking
Ten-pass bake element (lower oven) - Even baking is assured with heat that covers more surface area
Eight-pass broil element (lower oven) - Get full broil coverage and even browning from edge to edge
• Model PT7800DHBB – Black on black
• Model PT7800DHWW – White on white
GUARANTEED FIT
Replacing a similar wall oven from GE or another brand? GE wall ovens are
guaranteed for an exact fit to make replacement easy
Visit geappliances.com for more info
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
Speci fication Revised 4/16
