GE PS905SP Specification
PS905SP
23-3/16
30
If you are NOT using the
Filler strip or Backguard:
23-3/16
30
30
If you are NOT using the
Filler strip or Backguard:
If you are using the
Filler strip or Backguard:
25
Acceptable
Electrical
Outlet Area
30" Min.
30" Min.
Shave Raised Edge To Clear
31-1/8" Wide Control Panel
Excluding Model JSS28
2-7/8"
To Front
Surface Of
Countertop
20-5/8" Door
Clearance
From Front
Surface of
Countertop
31-1/4
30
25-3/4**
Recommended
6" Min.
From Walls
23-3/16
15" Min.
A*
13" Max.
2-1/2
30
25
9/16
7-1/2
2-1/2
Accessory
Backguard
24
36-1/4
*JXS32 is 4"
(excluding handle)
**Total depth from wall to
35-7/8"–38"
from floor to
countertop

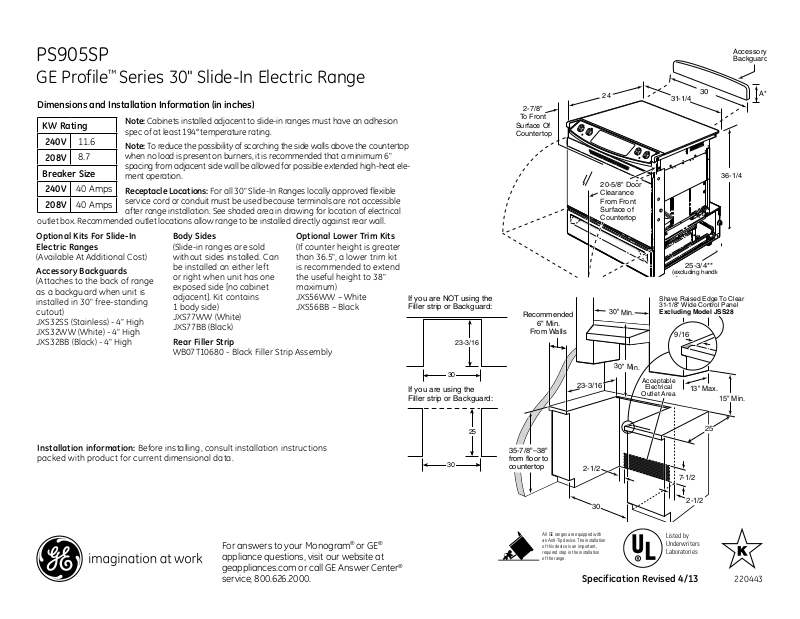

GE Profile™ Series 30" Slide-In Electric Range
Dimensions and Installation Information (in inches)
KW Rating
240V
208V
Breaker Size
40 Amps
40 Amps
240V
208V
outlet box. Recommended
Optional Kits For Slide-In
Electric Ranges
(Available At Additional Cost)
Accessory Backguards
(Attaches to the back of range
as a backguard when unit is
installed in 30" free-standing
cutout)
JXS32SS (Stainless) - 4" High
JXS32WW (White) - 4" High
JXS32BB (Black) - 4" High
Installation information: Before installing, consult installation instructions
packed with product for current dimensional data.
11.6
8.7
Note: Cabinets installed adjacent to slide-in ranges must have an adhesion
spec of at least 194° temperature rating.
Note: To reduce the possibility of scorching the side walls above the countertop
when no load is present on burners, it is recommended that a minimum 6"
spacing from adjacent side wall be allowed for possible extended high-heat element operation.
Receptacle Locations: For all 30" Slide-In Ranges locally approved flexible
service cord or conduit must be used because terminals are not accessible
after range installation.
outlet locations allow range to be installed directly against rear wall.
Body Sides
(Slide-in ranges are sold
without sides installed. Can
be installed on either left
or right when unit has one
exposed side [no cabinet
adjacent]. Kit contains
1 body side)
JXS77WW (White)
JXS77BB (Black)
Rear Filler Strip
See shaded area in drawing for location of electrical
Optional Lower Trim Kits
(If counter height is greater
than 36.5", a lower trim kit
is recommended to extend
the useful height to 38"
maximum)
JXS56WW – White
JXS56BB – Black
WB07T10680 - Black Filler Strip Assembly
For answers to your Monogram® or GE®
appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
Recommended
6" Min.
From Walls
35-7/8"–38"
from floor to
countertop
23-3/16
2-1/2
30
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Specification Revised 4/13
30" Min.
30" Min.
Shave Raised Edge To Clear
31-1/8" Wide Control Panel
Excluding Model JSS28
9/16
Acceptable
Electrical
Outlet Area
13" Max.
7-1/2
2-1/2
Listed by
Underwriters
Laboratories
15" Min.
25
220443
PS905SP
GE Profile™ Series 30" Slide-In Electric Range
Features and Benefits
• Self-clean Oven - Self-clean allows you to spare yourself from the trouble and effort
it takes to scrub the oven interior. The oven does all the work!
• Power Boil Element - Accommodates various-size pots or pans and 3,000 watts of
power speeds the broiling process
• Bridge Element - Combines three cooktop elements into one large cooking area,
ideal for griddles and gourmet pans
• Warming Zone (Fifth element warming zone) - Simplify meals by keeping foods fresh
from the oven warm and ready to serve
• True Temp Oven System - This feature helps ensure the temperature you set is the
temperature you get to give you the baking and broiling performance you desire
• Ribbon Heating Elements - Powerful heat beneath the smooth surface provides
high-speed warm-up and even heating
• Electronic Oven Controls - Electronic pads on the control panel are easy to operate
with just a touch
• 4.4 cu. ft. Oven Capacity - Remarkably large oven interior is ideal for holidays, dinner
parties and everyday family cooking
• Ceramic Glass Cooktop - A smooth cooktop surface makes cleaning quick and easy
• Warm Mode - Helps keep just-cooked foods warm and at the ideal
serving temperature
• Model PS905SPSS - Stainless steel (Stainless steel door and black patterned cooktop)
I
H
8
1
2
I
H
1
8
8
6
4
6
2
9
3
4
8
4
7
2
5
6
2
O
L
L
O
3
8
6
9
6
4
8
4
2
2
L
O
7
4
6
5
Specification Revised 4/13
