GE
Lighting
™
Evolve
Scalable Specification Grade Cobrahead (ERS1, ERS2, ERS3 & ERS4)
LED Roadway Lighting
imagination at work
Product Features
From local to major roadways, the GE Evolve™ LED Roadway Scalable Cobrahead fixtures are changing the way you
light your lanes. Preserving the aesthetic look of traditional roadway Cobrahead fixtures, GE balances the technical needs
of a sophisticated LED system with the functional demands of an outdoor fixture facing extreme weather hazards. GE’s
advanced LED optical design offers hundreds of photometric options to meet your precise lighting requirements, while
delivering reduced glare and improved light control. The refined thermal management system incorporates a sleek and
robust heat sink directly into the fixture to ensure maximum heat transfer and long LED life.
The GE Evolve LED Roadway Scalable Cobrahead offers more than 11 years of reliable service life to significantly
reduce maintenance frequency and expense, based on a 50,000 hour life and 12 hours of operation per day.
Applications
• Designed to meet recommended luminance and
illuminance requirements for local to major
roadway / street classifications.

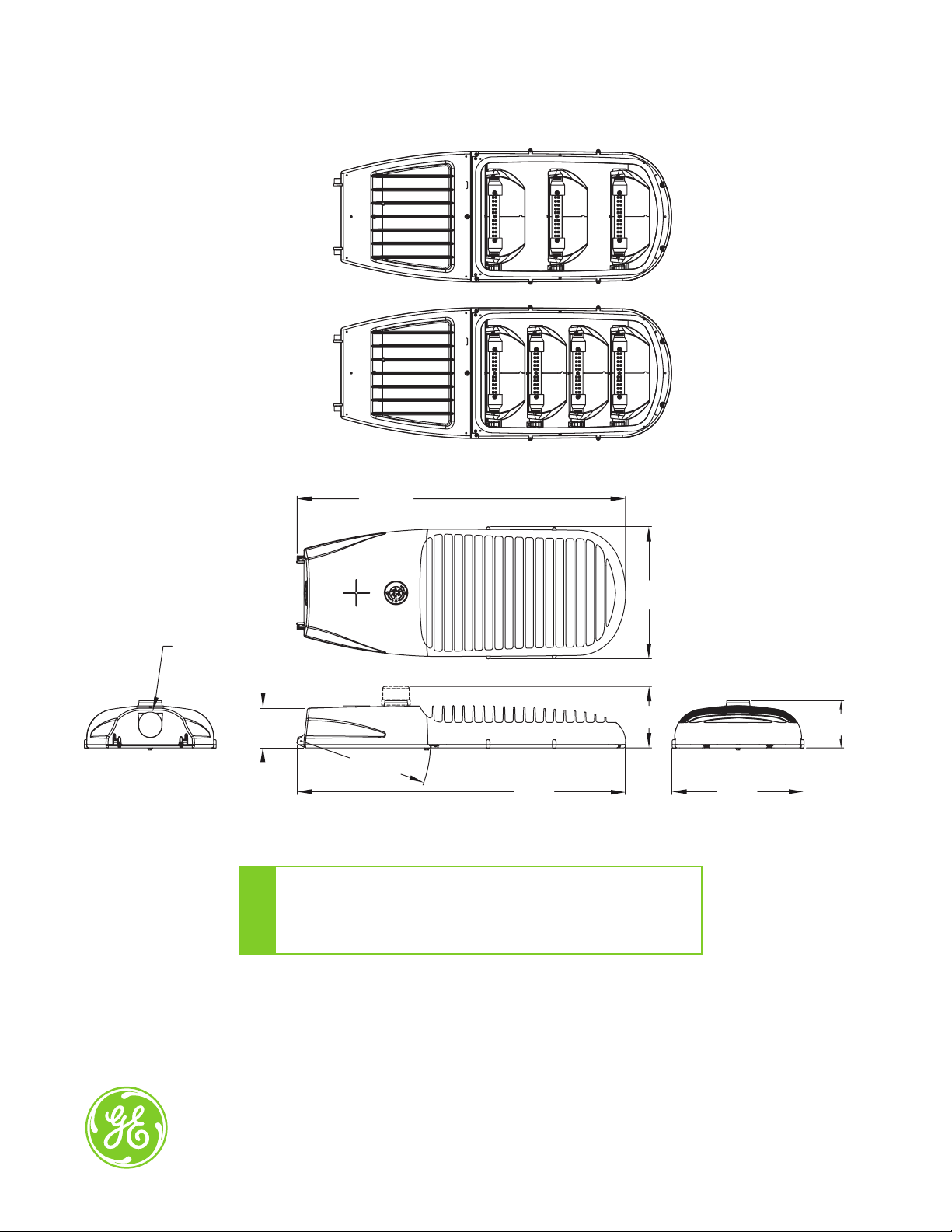

Housing
• Die cast aluminum housing.
• A modern design preserving the aesthetic look of
traditional roadway Cobrahead fixtures incorporates
the heat sink directly into the unit ensuring maximum
heat transfer and long LED life.
• Meets 3G vibration per C136.31-2010
• Power door assembly with removable retention latch.
LED & Optical Assembly
• Structured LED array for optimized roadway
photometric distribution.
•
Evolve light engine consisting of scalable reflective
technology designed to optimize application efficiency
and minimize glare.
• Reverse facing light engine options available.
• Utilizes high brightness LEDs, 70 CRI at 4000K
& 5000K typical.
• LM-79 tests and reports are performed in accordance
with IESNA standards.
Lumen Maintenance
• Lumen Maintenance and TM21 projections listed
below each lumen data table
Mounting
• Slipfitter with +/- 5 degree of adjustment for leveling.
• Integral die cast mounting pipe stop feature.
• Wildlife intrusion protection at mounting pipe entry.
• Adjustable for 1.25 in. or 2 in. mounting pipe.
Finish
• Corrosion resistant polyester powder painted,
minimum 2.0 mil. thickness.
• Standard colors: Black and Gray.
• RAL & custom colors available.
Electrical
• 120-277 volt and 347-480 volt available.
• System power factor is >90% and THD <20%.*
• Class “A” audible sound rating.
• Integral surge protection:
- For 120-266VAC per IEEE/ANSI C62.41.-1991,
6kV/3kA Location Category B3 (120 events)
- Optional higher rating surge protection
device available
• Optional high capability surge protection per IEEE/
ANSI C62.41.2-2002.
- 6kV/3kA Location Category C-Low (5000 events).
• EMI: Title 47 CFR Part 15 Class A.
• Photo electric sensors (PE) available for all voltages.
* System power factor and THD is tested and specified at 120V
input and maximum load conditions .
Ambient Temperature Conversion Table
Ratings
/
• listed, suitable for wet locations per UL 1598.
• IP66 rated optical enclosure per ANSI C136.25-2009.
• Temperature ratings:
- 40°C to 50°C for 525mA and 700mA skus except for
ERS4 @ 347-480V (-40°C to +45°C)
- 40°C to +40°C for 1050mA skus
• Upward Light Output Ratio (ULOR) = 0.
AMBIENT
TEMPERATURE (°C)
15 1.01 1.01
20 1.01 1.00
25 1.00 1.00
30 0.99 1.00
35 0.99 0.99
INITIAL LUMENS
FACTOR
INITIAL WATTS
FACTOR
Ordering Number Logic
Scalable Specification Grade Cobrahead (ERS1)
E R S 1
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
PROD. ID
E = Evolve
R = Roadway
S = Scalable
1 = Single
Module
Optical
Assembly
VOLTAGE
0 = 120-277
1 = 120
2 = 208
3 = 240
4 = 277
H = 347-480
D = 347
5 = 480
525 mA
PRODUCT
ERS1 23 525mA 31 2700 2700 1 0 1 87 87 456364 456384
ERS1 A3 525mA 45 4000 4000 1 0 1 89 89 456365 456385
ERS1 B3 A1 525mA 60 5400 5400 2 0 1 90 90 456366 456386
ERS1 C3 525mA 73 6600 6600 2 0 2 90 90 456367 456387
ERS1 23 525mA 31 2800 2800 1 0 1 90 90 456368 456388
ERS1 A3 525mA 45 4100 4100 1 0 1 91 91 456369 456389
ERS1 B3 B1 525mA 60 5500 5500 2 0 1 92 92 456370 456390
ERS1 C3 525mA 73 6800 6800 2 0 1 93 93 456371 456391
ERS1 23 525mA 31 2800 2800 1 0 1 90 90 456372 456392
ERS1 A3 525mA 45 4100 4100 1 0 1 91 91 456373 456393
ERS1 B3 C1 525mA 60 5500 5500 2 0 1 92 92 456374 456394
ERS1 C3 525mA 73 6800 6800 2 0 1 93 93 456375 456395
ERS1 23 525mA 31 2700 2700 1 0 1 87 87 456376 456396
ERS1 A3 525mA 45 4000 4000 1 0 1 89 89 456377 456397
ERS1 B3 D1 525mA 60 5400 5400 1 0 1 90 90 456378 456398
ERS1 C3 525mA 73 6600 6600 2 0 1 90 90 456379 456399
ERS1 23 525mA 31 2800 2800 1 0 1 90 90 456380 456400
ERS1 A3 525mA 45 4100 4100 1 0 1 91 91 456381 456401
ERS1 B3 E1 525mA 60 5500 5500 2 0 1 92 92 456382 456402
ERS1 C3 525mA 73 6800 6800 2 0 1 93 93 456383 456403
OPTICAL
CODE
ID
OPTICAL
Product Tier
*3 = Specification
Grade
See Charts
for all levels
-
METRIC
TYPE
CODE
DRIVE
CURRENT
PHOTOMETRIC
TYPE
A1 = Extra Narrow
Asymmetric
B1 = Narrow
Asymmetric
(Medium)
C1 = Asymmetric
(Short)
D1 = Asymmetric
Forward
E1 = Asymmetric
(Medium)
TYPICAL
SYSTEM
WAT TAG E
120-277V
4000K
CURRENT
5 = 525mA
7 = 700mA
1 = 1050mA
TYPICAL
INITIAL
LUMENS
5000K
DRIVE
LED COLOR
TEMP
40 = 4000K
50 = 5000K*
NOTE: For
1050mA
drive current,
nominal color
temperature
(CCT) = 5300K
B
RATINGURATINGGRATING
1 = None
2 = PE Rec.
4 = PE Rec. with Shorting Cap
5 = PE Rec. with Control
7 = GE Dimming 5-Pin PE
Receptacle *†
9 = GE Dimming 5-Pin PE Receptacle
with Shorting Cap *†
† When ordering PE function socket 7
or 9, a dimming driver add after dimming
driver (D=Dimming) must also be ordered
under the “OPTIONS” column
* Order dimming control PE as a
separate item
NOTE: A= ANSIC136.41 7-Pin dimming
receptacle, contact manufacturer
PE FUNCTION
TYPICAL
INITIAL
LPW
5000K 5000K
4000K 4000K
NUMBERS
BLCK = Black
GRAY = Gray
IES
FILE
COLOR
NOTES:
• Max Operating Ambient 50° C
• 347-480V Available (Approximate Wattage = 1.1* Times Wattage Listed Below) Contact Manufacturer for 347-480V LPW
• Some 347-480 Not DLC Listed (Contact Manufacturer)
OPTIONS
B = Internal Bubble level
D = Dimming*
F = Fusing
G = External Bubble Level
L = Tool-Less Entry
Additional Secondary Surge
R =
Protection Device
T = GE Energy Extreme Surge Protection
per IEEE/ANSI C62.41.2-2002.
- Rating 1 - 10kV/5kA Location
Category (120 events).
- Rating 2 - 6kV/3kA Location
Category C-Low (5000 events).
XXX = Special Options
* When ordering Dimming PE Receptacle
7, 9 or A, D=Dimming driver must be
selected under “OPTIONS” column
NOTE: If no dimming receptacle under PE
Function is selected and D+Dimming is
selected under OPTIONS, 0-10v dimming
leads will be provided with access through
slipfitter opening in unit
Lumen Maintenance
• Projected L92 (10K) ≥ 50,000 at Ta 25C
• Projected L70 (10K) > 100,000 at Ta 25C
Based on 10,000h LM-80 data for Nichia 219B SQETMLH17005
Scalable Specification Grade Cobrahead (ERS1)
4000K
TYPICAL
INITIAL
LUMENS
5000K
B
RATINGURATINGGRATING
700 mA
PRODUCT
ERS1 23 700mA 41 3400 3400 1 0 1 83 83 456554 456574
ERS1 A3 700mA 60 5000 5000 2 0 1 83 83 456555 456575
ERS1 B3 A1 700mA 78 6600 6600 2 0 2 85 85 456556 456576
ERS1 C3 700mA 95 8000 8000 2 0 2 84 84 456557 456577
ERS1 23 700mA 41 3500 3500 1 0 1 85 85 456558 456578
ERS1 A3 700mA 60 5100 5100 2 0 1 85 85 456559 456579
ERS1 B3 B1 700mA 78 6800 6800 2 0 1 87 87 456560 456580
ERS1 C3 700mA 95 8200 8200 2 0 1 86 86 456561 456581
ERS1 23 700mA 41 3500 3500 1 0 1 85 85 456562 456582
ERS1 A3 700mA 60 5100 5100 2 0 1 85 85 456563 456583
ERS1 B3 C1 700mA 78 6800 6800 2 0 1 87 87 456564 456584
ERS1 C3 700mA 95 8200 8200 2 0 1 86 86 456565 456585
ERS1 23 700mA 41 3400 3400 1 0 1 83 83 456566 456586
ERS1 A3 700mA 60 5000 5000 1 0 1 83 83 456567 456587
ERS1 B3 D1 700mA 78 6600 6600 2 0 1 85 85 456568 456588
ERS1 C3 700mA 95 8000 8000 2 0 1 84 84 456569 456589
ERS1 23 700mA 41 3500 3500 1 0 1 85 85 456570 456590
ERS1 A3 700mA 60 5100 5100 2 0 1 85 85 456571 456591
ERS1 B3 E1 700mA 78 6800 6800 2 0 1 87 87 456572 456592
ERS1 C3 700mA 95 8200 8200 2 0 1 86 86 456573 456593
OPTICAL
ID
CODE
METRIC
TYPE
DRIVE
CURRENT
TYPICAL
SYSTEM
WAT TAG E
120-277V
TYPICAL
INITIAL
LPW
5000K 5000K
4000K 4000K
NUMBERS
IES
FILE
NOTES:
• Max Operating Ambient 50° C
• 347-480V Not Available
• For T Option, Contact Manufacturer
Lumen Maintenance
• Projected L91 (10K) ≥ 50,000 at Ta 25C
• Projected L70 (10K) > 100,000 at Ta 25C
Based on 10,000h LM-80 data for Nichia 219B SQETMLH17005
Scalable Specification Grade Cobrahead (ERS1)
4000K
TYPICAL
INITIAL
LUMENS
5000K
B
RATINGURATINGGRATING
1050 mA
PRODUCT
ERS1 23 1050mA 64 4600 4600 2 0 1 72 72 456644 456664
ERS1 A3 1050mA 90 6600 6600 2 0 2 73 73 456645 456665
ERS1 B3 A1 1050mA 117 8700 8700 2 0 2 74 74 456646 456666
ERS1 C3 1050mA 143 10700 10700 3 0 2 75 75 456647 456667
ERS1 23 1050mA 64 4700 4700 1 0 1 73 73 456648 456668
ERS1 A3 1050mA 90 6800 6800 2 0 1 76 76 456649 456669
ERS1 B3 B1 1050mA 117 8900 8900 2 0 1 76 76 456650 456670
ERS1 C3 1050mA 143 10900 10900 3 0 2 76 76 456651 456671
ERS1 23 1050mA 64 4700 4700 1 0 1 73 73 456652 456672
ERS1 A3 1050mA 90 6800 6800 2 0 1 76 76 456653 456673
ERS1 B3
ERS1 C3 1050mA 143 10900 10900 3 0 2 76 76 456655 456675
ERS1 23 1050mA 64 4600 4600 1 0 1 72 72 456656 456676
ERS1 A3 1050mA 90 6600 6600 2 0 1 73 73 456657 456677
ERS1 B3 D1 1050mA 117 8700 8700 2 0 2 74 74 456658 456678
ERS1 C3 1050mA 143 10700 10700 2 0 2 75 75 456659 456679
ERS1 23 1050mA 64 4700 4700 1 0 1 73 73 456660 456680
ERS1 A3 1050mA 90 6800 6800 2 0 1 76 76 456661 456681
ERS1 B3 E1 1050mA 117 8900 8900 2 0 1 76 76 456662 456682
ERS1 C3 1050mA 143 10900 10900 3 0 2 76 76 456663 456683
OPTICAL
ID
CODE
-
METRIC
TYPE
DRIVE
CURRENT
C1
1050mA 117 8900 8900 2 0 1 76 76 456654 456674
TYPICAL
SYSTEM
WAT TAG E
120-277V
TYPICAL
INITIAL
LPW
5000K 5000K
4000K 4000K
NUMBERS
IES
FILE
NOTES:
• Max Operating Ambient 40° C
• 347-480V Not Available
• T Option Not Available
• For 1050mA Drive Current, Nominal Color Temperature (CCT) = 5300K
Lumen Maintenance
• Projected L88 (10K) ≥ 50,000 at Ta 25C
• Projected L70 (10K) > 100,000 at Ta 25C
Based on 10,000h LM-80 data for Nichia 219B SQETMLH17005

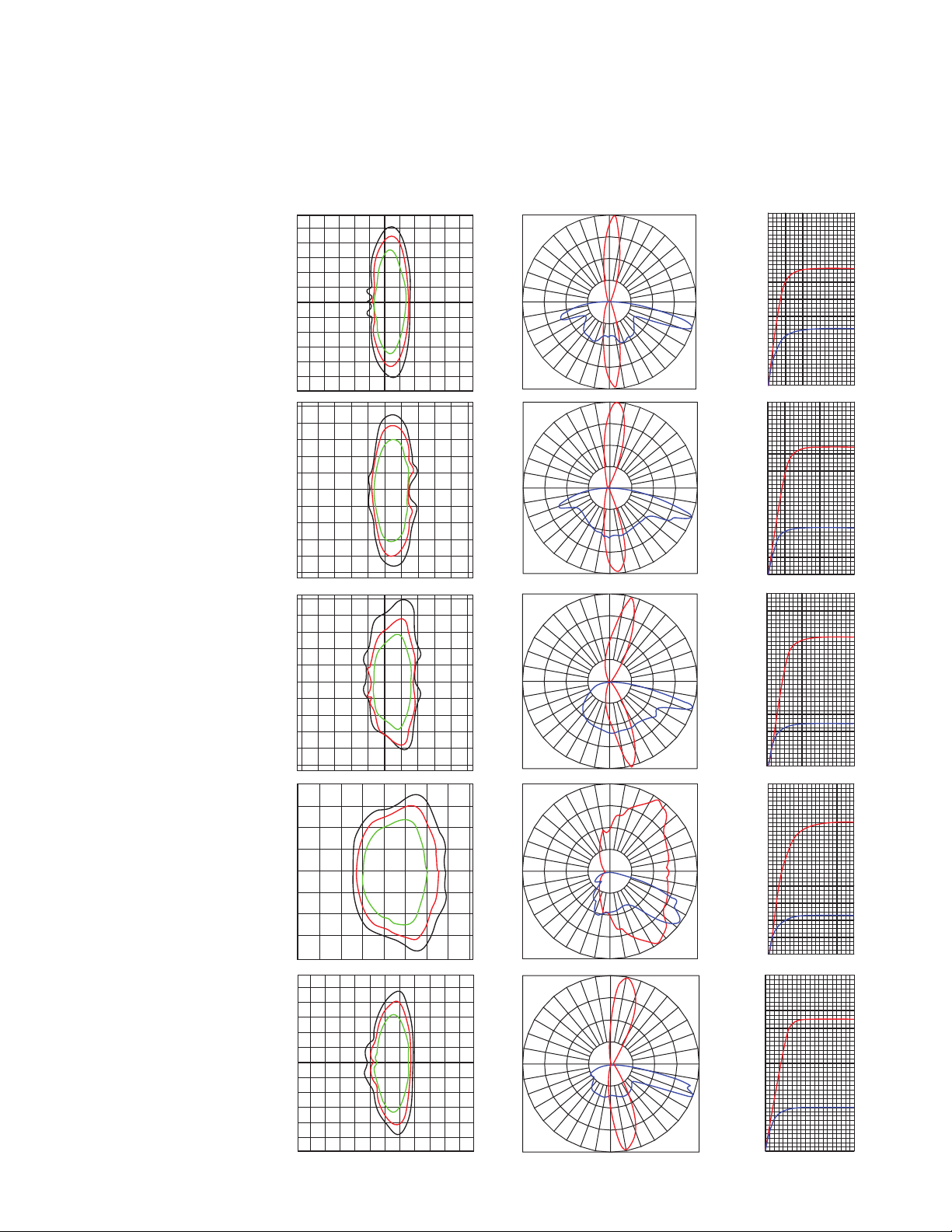

Photometrics
Scalable Specification Grade Cobrahead (ERS1)
ERS1
Extra Narrow Asymmetric
(C3A1)
11300 Lumens
5000K
GE456667
ERS1
Narrow Asymmetric Medium
(C3B1)
11600 Lumens
5000K
GE456671
ERS1
Asymmetric Short
(C3C1)
11600 Lumens
5000K
GE456675
ERS1
Asymmetric Forward
(C3D1)
11300 Lumens
5000K
GE456679
ERS1
Asymmetric Medium
(C3E1)
11600 Lumens
5000K
GE456683
ISO Plot
Grid Distance in Units of
Mounting Height at 30’ Initial
Footcandle Values at Grade
.1
.2
HS
HS
HS
.5
.1
.2
.5
.2
.5
.1
.2
.5
Polar Curve
Polar Trace Vertical and Horizontal
Plane through Horizontal Angle of
Coefficients of Utilization Street
CU Graph
Width / Mounting Height
Maximum Candlepower
10226
7668
5113
SS
SS
.1
SS
.1
.2
.5
SSHS
SSHS
2556
2
7034
5276
3517
1753
2
6290
4711
3145
1572
2
6218
4668
3103
1554
8763
8572
4382
2197
2
1
1
1
1
2
1
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
012 3 4
0.0
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
0 1 2 3 4 5
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0 1 2 3 4 5
0.0
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0 1 2 3 4 5
0.0
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
0 1 2 3 4 5
SS
HS
5
SS
HS
SS
HS
SS
HS
SS
HS
Ordering Number Logic
Scalable Specification Grade Cobrahead (ERS2)
E R S 2
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
LED COLOR
TEMP
40 = 4000K
50 = 5000K*
NOTE: For
1050mA
drive current,
nominal color
temperature
(CCT) = 5300K
B
RATINGURATINGGRATING
1 = None
2 = PE Rec.
4 = PE Rec. with Shorting Cap
5 = PE Rec. with Control
7 = GE Dimming 5-Pin PE
Receptacle *†
9 = GE Dimming 5-Pin PE Receptacle
with Shorting Cap *†
† When ordering PE function socket 7 or 9, a
dimming driver add after dimming driver
(D=Dimming) must also be ordered under the
“OPTIONS” column
* Order dimming control PE as a separate item
NOTE: A= ANSIC136.41 7-Pin dimming receptacle,
contact manufacturer
PE FUNCTION
TYPICAL
INITIAL
LPW
5000K 5000K
4000K 4000K
NUMBERS
COLOR
BLCK = Black
GRAY = Gray
IES
FILE
Product Tier
*3 = Specification
Grade
See Charts
for all levels
-
METRIC
TYPE
OPTICAL
CODE
DRIVE
CURRENT
PROD. ID
E = Evolve
R = Roadway
S = Scalable
2 = Double
Module
Optical
Assembly
VOLTAGE
0 = 120-277
1 = 120
2 = 208
3 = 240
4 = 277
H = 347-480
D = 347
5 = 480
525 mA
PRODUCT
ERS2 D3 525mA 88 8000 8000 2 0 2 91 91 456404 456429
ERS2 E3 525mA 99 9100 9100 3 0 2 92 92 456405 456430
ERS2 F3 A1 525mA 112 10300 10300 3 0 2 92 92 456406 456431
ERS2 G3 525mA 125 11500 11500 3 0 2 92 92 456407 456432
ERS2 H3 525mA 138 12700 12700 3 0 3 92 92 456408 456433
ERS2 D3 525mA 88 8200 8200 2 0 1 93 93 456409 456434
ERS2 E3 525mA 99 9300 9300 2 0 1 94 94 456410 456435
ERS2 F3 B1 525mA 112 10600 10600 3 0 2 95 95 456411 456436
ERS2 G3 525mA 125 11800 11800 3 0 2 94 94 456412 456437
ERS2 H3 525mA 138 13000 13000 3 0 2 94 94 456413 456438
ERS2 D3 525mA 88 8200 8200 2 0 1 93 93 456414 456439
ERS2 E3 525mA 99 9300 9300 2 0 1 94 94 456415 456440
ERS2 F3 C1 525mA 112 10600 10600 3 0 1 95 95 456416 456441
ERS2 G3 525mA 125 11800 11800 3 0 2 94 94 456417 456442
ERS2 H3 525mA 138 13000 13000 3 0 2 94 94 456418 456443
ERS2 D3 525mA 88 8000 8000 2 0 1 91 91 456419 456444
ERS2 E3 525mA 99 9100 9100 2 0 2 92 92 456420 456445
ERS2 F3 D1 525mA 112 10300 10300 2 0 2 92 92 456421 456446
ERS2 G3 525mA 125 11500 11500 2 0 2 92 92 456422 456447
ERS2 H3 525mA 138 12700 12700 3 0 2 92 92 456423 456448
ERS2 D3 525mA 88 8200 8200 2 0 3 93 93 456424 456449
ERS2 E3 525mA 99 9300 9300 2 0 2 94 94 456425 456450
ERS2 F3 E1 525mA 112 10600 10600 3 0 2 95 95 456426 456451
ERS2 G3 525mA 125 11800 11800 3 0 2 94 94 456427 456452
ERS2 H3 525mA 138 13000 13000 3 0 2 94 94 456428 456453
OPTICAL
CODE
ID
PHOTOMETRIC
TYPE
A1 = Extra Narrow
Asymmetric
B1 = Narrow
Asymmetric
(Medium)
C1 = Asymmetric (Short)
D1 = Asymmetric
Forward
E1 = Asymmetric (Medium)
TYPICAL
SYSTEM
WAT TAG E
120-277V
4000K
CURRENT
5 = 525mA
7 = 700mA
1 = 1050mA
TYPICAL
INITIAL
LUMENS
5000K
DRIVE
NOTES:
• Max Operating Ambient 50° C
• 347-480V Not Available
• For T Option Availability Contact Manufacturer
Lumen Maintenance
• Projected L92 (10K) ≥ 50,000 at Ta 25C
• Projected L70 (10K) > 100,000 at Ta 25C
Based on 10,000h LM-80 data for Nichia 219B SQETMLH17005
OPTIONS
B = Internal Bubble level
D = Dimming*
F = Fusing
G = External Bubble Level
L = Tool-Less Entry
Additional Secondary Surge
R =
Protection Device
T = GE Energy Extreme Surge Protection
per IEEE/ANSI C62.41.2-2002.
- Rating 1 - 10kV/5kA Location
Category (120 events).
- Rating 2 - 6kV/3kA Location
Category C-Low (5000 events).
XXX = Special Options
* When ordering Dimming PE Receptacle
7, 9 or A, D=Dimming driver must be
selected under “OPTIONS” column
NOTE: If no dimming receptacle under PE
Function is selected and D+Dimming is
selected under OPTIONS, 0-10v dimming
leads will be provided with access through
slipfitter opening in unit
Scalable Specification Grade Cobrahead (ERS2)
4000K
TYPICAL
INITIAL
LUMENS
5000K
B
RATINGURATINGGRATING
700 mA
PRODUCT
ERS2 D3 700mA 113 9700 9700 3 0 2 86 86 456594 456619
ERS2 E3 700mA 130 11300 11300 3 0 2 87 87 456595 456620
ERS2 F3 A1 700mA 148 12800 12800 3 0 3 86 86 456596 456621
ERS2 G3 700mA 172 14200 14200 3 0 3 83 83 456597 456622
ERS2 H3 700mA 189 15700 15700 3 0 3 83 83 456598 456623
ERS2 D3 700mA 113 10000 10000 3 0 1 88 88 456599 456624
ERS2 E3 700mA 130 11600 11600 3 0 2 89 89 456600 456625
ERS2 F3 B1 700mA 148 13100 13100 3 0 3 89 89 456601 456626
ERS2 G3 700mA 172 14600 14600 3 0 2 85 85 456602 456627
ERS2 H3 700mA 189 16100 16100 3 0 2 85 85 456603 456628
ERS2 D3 700mA 113 10000 10000 3 0 1 88 88 456604 456629
ERS2 E3 700mA 130 11600 11600 3 0 2 89 89 456605 456630
ERS2 F3 C1 700mA 148 13100 13100 3 0 2 89 89 456606 456631
ERS2 G3 700mA 172 14600 14600 3 0 2 85 85 456607 456632
ERS2 H3 700mA 189 16100 16100 3 0 2 85 85 456608 456633
ERS2 D3 700mA 113 9700 9700 2 0 2 86 86 456609 456634
ERS2 E3 700mA 130 11300 11300 2 0 2 87 87 456610 456635
ERS2 F3 D1 700mA 148 12800 12800 3 0 2 86 86 456611 456636
ERS2 G3 700mA 172 14200 14200 3 0 2 83 83 456612 456637
ERS2 H3 700mA 189 15700 15700 3 0 2 83 83 456613 456638
ERS2 D3 700mA 113 10000 10000 2 0 2 88 88 456614 456639
ERS2 E3 700mA 130 11600 11600 3 0 2 89 89 456615 456640
ERS2 F3 E1 700mA 148 13100 13100 3 0 2 89 89 456616 456641
ERS2 G3 700mA 172 14600 14600 3 0 2 85 85 456617 456642
ERS2 H3 700mA 189 16100 16100 3 0 2 85 85 456618 456643
OPTICAL
ID
CODE
METRIC
TYPE
DRIVE
CURRENT
TYPICAL
SYSTEM
WAT TAG E
120-277V
TYPICAL
INITIAL
LPW
5000K 5000K
4000K 4000K
NUMBERS
IES
FILE
NOTES:
• Max Operating Ambient 50° C
• 347-480V Not Available
• For T Option, Contact Manufacturer
Lumen Maintenance
• Projected L91 (10K) ≥ 50,000 at Ta 25C
• Projected L70 (10K) > 100,000 at Ta 25C
Based on 10,000h LM-80 data for Nichia 219B SQETMLH17005
Scalable Specification Grade Cobrahead (ERS2)
4000K
TYPICAL
INITIAL
LUMENS
5000K
B
RATINGURATINGGRATING
1050 mA
PRODUCT
ERS2 D3 1050mA 179 13000 13000 3 0 3 73 73 456684 456709
ERS2 E3 1050mA 204 15000 15000 3 0 3 74 74 456685 456710
ERS2 F3 A1 1050mA 232 16900 16900 3 0 3 73 73 456686 456711
ERS2 G3 1050mA 257 18800 18800 3 0 3 73 73 456687 456712
ERS2 H3 1050mA 285 20500 20500 3 0 3 72 72 456688 456713
ERS2 D3 1050mA 179 13400 13400 3 0 2 75 75 456689 456714
ERS2 E3 1050mA 204 15400 15400 3 0 2 75 75 456690 456715
ERS2 F3 B1 1050mA 232 17400 17400 3 0 2 75 75 456691 456716
ERS2 G3 1050mA 257 19200 19200 3 0 2 75 75 456692 456717
ERS2 H3 1050mA 285 21100 21100 3 0 3 74 74 456693 456718
ERS2 D3 1050mA 179 13400 13400 3 0 2 75 75 456694 456719
ERS2 E3 1050mA 204 15400 15400 3 0 2 75 75 456695 456720
ERS2 F3 C1 1050mA 232 17400 17400 3 0 2 75 75 456696 456721
ERS2 G3 1050mA 257 19200 19200 3 0 2 75 75 456697 456722
ERS2 H3 1050mA 285 21100 21100 3 0 2 74 74 456698 456723
ERS2 D3 1050mA 179 13000 13000 3 0 2 73 73 456699 456724
ERS2 E3 1050mA 204 15000 15000 3 0 2 74 74 456700 456725
ERS2 F3 D1 1050mA 232 16900 16900 3 0 2 73 73 456701 456726
ERS2 G3 1050mA 257 18800 18800 3 0 2 73 73 456702 456727
ERS2 H3 1050mA 285 20500 20500 3 0 2 72 72 456703 456728
ERS2 D3 1050mA 179 13400 13400 3 0 2 75 75 456704 456729
ERS2 E3 1050mA 204 15400 15400 3 0 2 75 75 456705 456730
ERS2 F3 E1 1050mA 232 17400 17400 3 0 2 75 75 456706 456731
ERS2 G3 1050mA 257 19200 19200 3 0 2 75 75 456707 456732
ERS2 H3 1050mA 285 21100 21100 3 0 2 74 74 456708 456733
OPTICAL
ID
CODE
METRIC
TYPE
DRIVE
CURRENT
TYPICAL
SYSTEM
WAT TAG E
120-277V
TYPICAL
INITIAL
LPW
5000K 5000K
4000K 4000K
NUMBERS
IES
FILE
NOTES:
• Max Operating Ambient 50° C
• 347-480V Not Available
• T Option Not Available
Lumen Maintenance
• Projected L88 (10K) ≥ 50,000 at Ta 25C
• Projected L70 (10K) > 100,000 at Ta 25C
Based on 10,000h LM-80 data for Nichia 219B SQETMLH17005
Photometrics
Scalable Specification Grade Cobrahead (ERS2)
ERS2
Extra Narrow Asymmetric
(H3A1)
21800 Lumens
5000K
GE456713
ERS2
Narrow Asymmetric Medium
(H3B1)
22400 Lumens
5000K
GE456718
ERS2
Asymmetric Short
(H3C1)
22400 Lumens
5000K
GE456723
ERS2
Asymmetric Forward
(H3D1)
21800 Lumens
5000K
GE456728
ERS2
Extra Narrow Asymmetric
(H3E1)
22400 Lumens
5000K
GE456733
ISO Plot
Grid Distance in Units of
Mounting Height at 30’ Initial
Footcandle Values at Grade
.1
.2
.5
HS
.1
.2
.5
HS
.2
.5
HS
.1
.2
.5
Polar Curve
Polar Trace Vertical and Horizontal
Plane through Horizontal Angle of
Coefficients of Utilization Street
CU Graph
Width / Mounting Height
Maximum Candlepower
18728
14786
9864
SS
SS
.1
SS
.1
.2
.5
SSHS
SSHS
4932
2
13583
10187
6781
3396
2
12146
9108
6073
3030
2
11996
8997
5988
2999
16922
12682
8461
4237
2
1
1
1
2
1
1
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
012 3 4
0.0
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
0 1 2 3 4 5
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0 1 2 3 4 5
0.0
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0 1 2 3 4 5
0.0
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
0 1 2 3 4 5
SS
HS
5
SS
HS
SS
HS
SS
HS
SS
HS
Ordering Number Logic
Scalable Specification Grade Cobrahead (ERS3)
E R S 3 5
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
LED COLOR
TEMP
40 = 4000K
50 = 5000K
B
RATINGURATINGGRATING
1 = None
2 = PE Rec.
4 = PE Rec. with Shorting Cap
5 = PE Rec. with Control
7 = GE Dimming 5-Pin PE
Receptacle *†
9 = GE Dimming 5-Pin PE Receptacle
with Shorting Cap *†
† When ordering PE function socket 7 or 9, a
dimming driver add after dimming driver
(D=Dimming) must also be ordered under the
“OPTIONS” column
* Order dimming control PE as a separate item
NOTE: A= ANSIC136.41 7-Pin dimming receptacle,
contact manufacturer
PE FUNCTION
TYPICAL
INITIAL
LPW
5000K 5000K
4000K 4000K
NUMBERS
BLCK = Black
GRAY = Gray
IES
FILE
COLOR
Product Tier
*3 = Specification
Grade
See Charts
for all levels
-
METRIC
TYPE
OPTICAL
CODE
DRIVE
CURRENT
PROD. ID
E = Evolve
R = Roadway
S = Scalable
3 = Triple
Module
Optical
Assembly
VOLTAGE
0 = 120-277
1 = 120
2 = 208
3 = 240
4 = 277
H = 347-480
D = 347
5 = 480
525 mA
PRODUCT
ERS3 J3 525mA 151 14000 14000 3 0 3 93 93 456454 456479
ERS3 K3 525mA 170 15300 15300 3 0 3 90 90 456455 456480
ERS3 L3 A1 525mA 183 16500 16500 3 0 3 90 90 456456 456481
ERS3 M3 525mA 196 17700 17700 3 0 3 90 90 456457 456482
ERS3 N3 525mA 209 18900 18900 3 0 3 90 90 456458 456483
ERS3 J3 525mA 151 14400 14400 3 0 2 95 95 456459 456484
ERS3 K3 525mA 170 15600 15600 3 0 2 92 92 456460 456485
ERS3 L3 B1 525mA 183 16900 16900 3 0 2 92 92 456461 456486
ERS3 M3 525mA 196 18100 18100 3 0 2 92 92 456462 456487
ERS3 N3 525mA 209 19400 19400 3 0 2 93 93 456463 456488
ERS3 J3 525mA 151 14400 14400 3 0 2 95 95 456464 456489
ERS3 K3 525mA 170 15600 15600 3 0 2 92 92 456465 456490
ERS3 L3 C1 525mA 183 16900 16900 3 0 2 92 92 456466 456491
ERS3 M3 525mA 196 18100 18100 3 0 2 92 92 456467 456492
ERS3 N3 525mA 209 19400 19400 3 0 2 93 93 456468 456493
ERS3 J3 525mA 151 14000 14000 3 0 2 93 93 456469 456494
ERS3 K3 525mA 170 15300 15300 3 0 2 90 90 456470 456495
ERS3 L3 D1 525mA 183 16500 16500 3 0 2 90 90 456471 456496
ERS3 M3 525mA 196 17700 17700 3 0 2 90 90 456472 456497
ERS3 N3 525mA 209 18900 18900 3 0 2 90 90 456473 456498
ERS3 J3 525mA 151 14400 14400 3 0 2 95 95 456474 456499
ERS3 K3 525mA 170 15600 15600 3 0 2 92 92 456475 456500
ERS3 L3 E1 525mA 183 16900 16900 3 0 2 92 92 456476 456501
ERS3 M3 525mA 196 18100 18100 3 0 2 92 92 456477 456502
ERS3 N3 525mA 209 19400 19400 3 0 2 93 93 456478 456503
OPTICAL
CODE
ID
PHOTOMETRIC
TYPE
A1 = Extra Narrow
Asymmetric
B1 = Narrow
Asymmetric
(Medium)
C1 = Asymmetric (Short)
D1 = Asymmetric
Forward
E1 = Asymmetric (Medium)
TYPICAL
SYSTEM
WAT TAG E
120-277V
4000K
CURRENT
5 = 525mA
TYPICAL
INITIAL
LUMENS
5000K
DRIVE
NOTES:
• Max Operating Ambient 50° C
• Max Operating Ambient 45° C for 347-480V
• For T Option, Contact Manufacturer
Lumen Maintenance
• Projected L91 (10K) ≥ 50,000 at Ta 25C
• Projected L70 (10K) > 100,000 at Ta 25C
Based on 10,000h LM-80 data for Nichia 219B SQETMLH17005
OPTIONS
B = Internal Bubble level
D = Dimming*
F = Fusing
G = External Bubble Level
L = Tool-Less Entry
Additional Secondary Surge
R =
Protection Device
T = GE Energy Extreme Surge Protection
per IEEE/ANSI C62.41.2-2002.
- Rating 1 - 10kV/5kA Location
Category (120 events).
- Rating 2 - 6kV/3kA Location
Category C-Low (5000 events).
XXX = Special Options
* When ordering Dimming PE Receptacle
7, 9 or A, D=Dimming driver must be
selected under “OPTIONS” column
NOTE: If no dimming receptacle under PE
Function is selected and D+Dimming is
selected under OPTIONS, 0-10v dimming
leads will be provided with access through
slipfitter opening in unit
Photometrics
Scalable Specification Grade Cobrahead (ERS3)
ERS3
Extra Narrow Asymmetric
(N3A1)
20000 Lumens
5000K
GE456483
ERS3
Narrow Asymmetric
Medium
(N3B1)
20500 Lumens
5000K
GE456488
ERS3
Asymmetric Short
(N3C1)
20500 Lumens
5000K
GE456493
ERS3
Asymmetric Forward
(N3D1)
20000 Lumens
5000K
GE456498
ERS3
Asymmetric Medium
(N3E1)
20500 Lumens
5000K
GE456503
ISO Plot
Grid Distance in Units of
Mounting Height at 30’ Initial
Footcandle Values at Grade
.1
.2
.5
HS
HS
HS
.1
.2
.5
.1
.2
.5
.1
.2
.5
.1
.2
.5
Polar Trace Vertical and Horizontal
Plane through Horizontal Angle of
SS
SS
SS
SSHS
SSHS
Polar Curve CU Graph
Coefficients of Utilization Street
Maximum Candlepower
18099
13574
9043
4525
2
1
12431
9328
6215
3108
2
1
11115
8337
5558
2779
2
1
11005
8254
5503
2751
1
15481
11615
7743
3873
2
1
2
Width / Mounting Height
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
012 3 4
0.0
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
0 1 2 3 4 5
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0 1 2 3 4 5
0.0
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0 1 2 3 4 5
0.0
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
0 1 2 3 4 5
SS
HS
5
SS
HS
SS
HS
SS
HS
SS
HS
Ordering Number Logic
Scalable Specification Grade Cobrahead (ERS4)
E R S 4 5
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
PHOTOMETRIC
TYPE
A1 = Extra Narrow
Asymmetric
B1 = Narrow
Asymmetric
(Medium)
C1 = Asymmetric (Short)
D1 = Asymmetric
Forward
E1 = Asymmetric (Medium)
TYPICAL
SYSTEM
WAT TAG E
120-277V
Product Tier
*3 = Specification
Grade
See Charts
for all levels
-
METRIC
TYPE
OPTICAL
CODE
DRIVE
CURRENT
PROD. ID
E = Evolve
R = Roadway
S = Scalable
4 = Quad
Module
Optical
Assembly
VOLTAGE
0 = 120-277
1 = 120
2 = 208
3 = 240
4 = 277
H = 347-480
D = 347
5 = 480
525 mA
PRODUCT
ERS4 P3 525mA 222 20100 20100 3 0 3 91 91 456504 456529
ERS4 Q3 525mA 234 21300 21300 3 0 3 91 91 456505 456530
ERS4 R3 A1 525mA 247 22500 22500 4 0 3 91 91 456506 456531
ERS4 S3 525mA 260 23700 23700 4 0 3 91 91 456507 456532
ERS4 T3 525mA 274 24800 24800 4 0 3 91 91 456508 456533
ERS4 P3 525mA 222 20600 20600 3 0 2 93 93 456509 456534
ERS4 Q3 525mA 234 21800 21800 3 0 3 93 93 456510 456535
ERS4 R3 B1 525mA 247 23000 23000 3 0 3 93 93 456511 456536
ERS4 S3 525mA 260 24300 24300 3 0 3 93 93 456512 456537
ERS4 T3 525mA 274 25400 25400 4 0 3 93 93 456513 456538
ERS4 P3 525mA 222 20600 20600 3 0 2 93 93 456514 456539
ERS4 Q3 525mA 234 21800 21800 3 0 2 93 93 456515 456540
ERS4 R3 C1 525mA 247 23000 23000 3 0 2 93 93 456516 456541
ERS4 S3 525mA 260 24300 24300 3 0 2 93 93 456517 456542
ERS4 T3 525mA 274 25400 25400 4 0 3 93 93 456518 456543
ERS4 P3 525mA 222 20100 20100 3 0 2 91 91 456519 456544
ERS4 Q3 525mA 234 21300 21300 3 0 2 91 91 456520 456545
ERS4 R3 D1 525mA 247 22500 22500 3 0 3 91 91 456521 456546
ERS4 S3 525mA 260 23700 23700 3 0 3 91 91 456522 456547
ERS4 T3 525mA 274 24800 24800 3 0 3 91 91 456523 456548
ERS4 P3 525mA 222 20600 20600 3 0 2 93 93 456524 456549
ERS4 Q3 525mA 234 21800 21800 3 0 2 93 93 456525 456550
ERS4 R3 E1 525mA 247 23000 23000 3 0 3 93 93 456526 456551
ERS4 S3 525mA 260 24300 24300 3 0 3 93 93 456527 456552
ERS4 T3 525mA 274 25400 25400 4 0 3 93 93 456528 456553
OPTICAL
CODE
ID
NOTES:
• Max Operating Ambient 50° C
• Max Operating Ambient 40° C for 347-480V
• For T Option, Contact Manufacturer
DRIVE
CURRENT
5 = 525mA 40 = 4000K
TYPICAL
INITIAL
LUMENS
5000K
4000K
Lumen Maintenance
• Projected L91 (10K) ≥ 50,000 at Ta 25C
• Projected L70 (10K) > 100,000 at Ta 25C
LED COLOR
TEMP
1 = None
50 = 5000K
B
RATINGURATINGGRATING
1 = None
2 = PE Rec.
4 = PE Rec. with Shorting Cap
5 = PE Rec. with Control
7 = GE Dimming 5-Pin PE
Receptacle *†
9 = GE Dimming 5-Pin PE Receptacle
with Shorting Cap *†
† When ordering PE function socket 7 or 9, a dimming
driver add after dimming driver (D=Dimming) must
also be ordered under the “OPTIONS” column
* Order dimming control PE as a separate item
NOTE: A= ANSIC136.41 7-Pin dimming receptacle,
contact manufacturer
PE FUNCTION
TYPICAL
INITIAL
LPW
5000K 5000K
4000K 4000K
NUMBERS
BLCK = Black
GRAY = Gray
IES
FILE
COLOR
Based on 10,000h LM-80 data for Nichia 219B SQETMLH17005
OPTIONS
B = Internal Bubble level
D = Dimming*
F = Fusing
G = External Bubble Level
L = Tool-Less Entry
Additional Secondary Surge
R =
Protection Device
T = GE Energy Extreme Surge Protection
per IEEE/ANSI C62.41.2-2002.
- Rating 1 - 10kV/5kA Location
Category (120 events).
- Rating 2 - 6kV/3kA Location
Category C-Low (5000 events).
XXX = Special Options
* When ordering Dimming PE Receptacle
7, 9 or A, D=Dimming driver must be
selected under “OPTIONS” column
NOTE: If no dimming receptacle under PE
Function is selected and D+Dimming is
selected under OPTIONS, 0-10v dimming
leads will be provided with access through
slipfitter opening in unit
Photometrics
Scalable Specification Grade Cobrahead (ERS4)
ERS4
Extra Narrow Asymmetric
(T3A1)
26200 Lumens
5000K
GE456533
ERS4
Narrow Asymmetric Medium
(T3B1)
26900 Lumens
5000K
GE456538
ERS4
Asymmetric Short
(T3C1)
26900 Lumens
5000K
GE456543
ERS4
Asymmetric Forward
(T3D1)
26200 Lumens
5000K
GE456548
ERS4
Asymmetric Medium
(T3E1)
26900 Lumens
5000K
GE456553
ISO Plot
Grid Distance in Units of
Mounting Height at 30’ Initial
Footcandle Values at Grade
.1
.2
.5
HS
.1
.2
.5
HS
.5
HS
.1
.2
.5
Polar Curve CU Graph
Polar Trace Vertical and Horizontal
Plane through Horizontal Angle of
Maximum Candlepower
23708
17782
11855
SS
SS
.1
.2
SS
.1
.2
.5
SSHS
SSHS
5927
2
16317
12284
8166
4078
2
14586
10989
7283
3640
2
14417
10813
7208
3604
20322
15241
10161
5080
2
1
1
1
1
2
1
Coefficients of Utilization Street
Width / Mounting Height
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
012 3 4
0.0
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
0 1 2 3 4 5
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0 1 2 3 4 5
0.0
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0 1 2 3 4 5
0.0
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
0 1 2 3 4 5
SS
HS
5
SS
HS
SS
HS
SS
HS
SS
HS
Product Dimensions
21.3 in.
[542 mm]
Evolve LED Scalable Specification
Grade Cobrahead (ERS1)
Adjustable for 1-1/4 to 2 in. mounting pipe
(1.660 to 2.375 inch OD)
[42 to 60 mm OD]
4.5 in.
[114 mm]
• Approximate Net Weight: 20 to 25 lbs. (9.07 to 11.34 kgs.)
Contact manufacturer for specific configuration weight.
DATA
• Effective Projected Area (EPA): 0.5 sq. ft. max (0.046 sq. m)
11.8 in. R
[300 mm R]
21.3 in.
[542 mm]
14.5 in.
[368 mm]
7.0 in.
[177mm]
5.4 in.
[136 mm]
14.5 in.
[368 mm]
Evolve LED Scalable Specification
Grade Cobrahead (ERS2)
Adjustable for 1-1/4 to 2 in. mounting pipe
(1.660 to 2.375 inch OD)
[42 to 60 mm OD]
4.5 in.
[114 mm]
11.8 in. R
[300 mm R]
25.9 in.
[659 mm]
25.9 in.
[659 mm]
14.5 in.
[368 mm]
7.0 in.
[177mm]
5.4 in.
[136 mm]
14.5 in.
[368 mm]
• Approximate Net Weight: 25 to 29 lbs. (11.34 to 13.15 kgs.)
Contact manufacturer for specific configuration weight.
DATA
• Effective Projected Area (EPA): 0.7 sq. ft. max (0.065 sq. m)
Product Dimensions
Evolve LED Scalable Specification
Grade Cobrahead (ERS3)
Evolve LED Scalable Specification
Grade Cobrahead (ERS4)
37.3 in.
[947 mm]
Adjustable for
1-1/4 to 2 in. pipe
(1.660 to 2.375 inch OD)
[42 to 60 mm OD]
4.5 in.
[114 mm]
DATA
15.0 in.
[380 mm]
7.0 in.
[177mm]
14.7 in. R
[373 mm R]
37.3 in.
[947 mm]
• Approximate Net Weight: 40 to 46 lbs. (18.14 to 20.87 kgs.)
Contact manufacturer for specific configuration weight.
• Effective Projected Area (EPA): 1.0 sq. ft. max (0.093 sq. m)
15.0 in.
[380 mm]
5.4 in.
[136 mm]
GE Lighting • 1-888-MY-GE-LED (1 - 888 - 69 - 43 - 533) • www.gelighting.com
GE Lighting Solutions, LLC
© 2014
GE Lighting Solutions, LLC
is a subsidiary of the General Electric Company. Evolve and the GE brand and logo are trademarks of the General Electric Company.
. Information provided is subject to change without notice. All values are design or typical values when measured under laboratory conditions.
OLP-3067 06/25/14
Loading...
