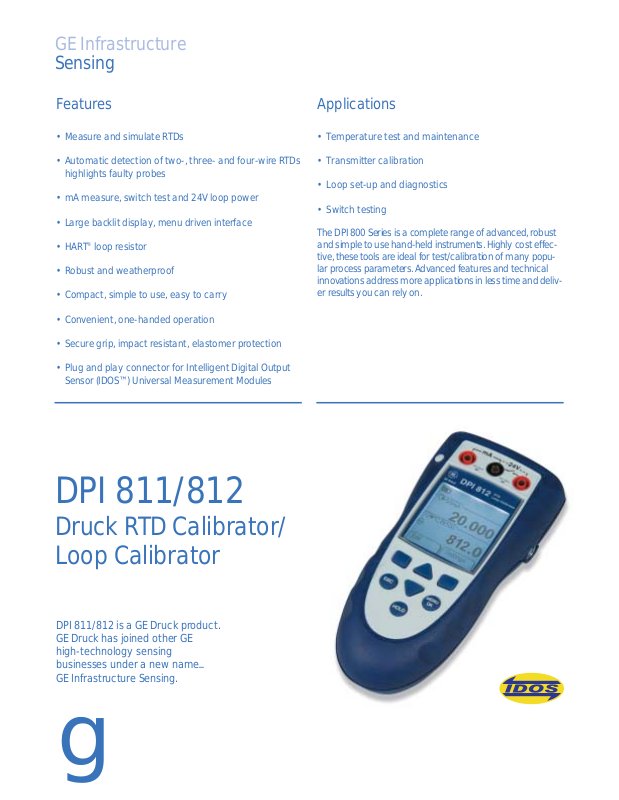

GE DPI 811, DPI 812 Data Sheet

GE Infrastructure
Sensing
DPI 811/812
Druck RTD Calibrat or/ Loop Calibrat or
DPI 811/812 is a GEDruck product . GEDruck has joined other GE high-technology sensing businesses under a new name
_
GE Infrastructure Sensing.
Features
• Measure and simulate RTDs
• Automatic detection of two-, three- and four-wire RTDs highlights faulty probes
• mA measure, switch test and 24V loop power
• Large backlit display, menu driven interface
• HART®loop resistor
• Robust and weatherproof
• Compact , simple to use, easy t o carry
• Convenient , one-handed operation
• Secure grip, impact resistant, elast omer prot ection
• Plug and play connector for Intelligent Digital Output Sensor (IDOS™) Universal Measurement Modules
• Temperature test and maintenance
• Transmitter calibration
• Loop set-up and diagnostics
• Switch testing The DPI 800 Series is a complete range of advanced, robust
and simple to use hand-held instruments. Highly cost effec­tive, these tools are ideal for test/calibration of many popu­lar process parameters. Advanced features and technical innovations address more applications in less time and deliv­er results you can rely on.
Applications
g
GE Infrastructure
Sensing
Type P P RTD °F (°C) TC mA/V Hz
Indicator (measure pressure) !! Calibrator (measure or source) !! ! ! ! ! ! Thermometer (dual input T1, T2, T1 - T2) !
Dual Capability
mA measure with 24 V loop power !! !! ! Switch test !! !! ! HART resistor !! !! ! IDOS Universal Measurement Modules !!!! ! !! ! !!
Features
Programmable step and ramp output !! !! ! ! ! Hold, scaling, max/min/avg, filter, alarm, !!!! ! !! ! !!
tare 25 pressure units, flow scaling, leak test !!"" " "" " "" 1000 point data memory, RS232 #### ! ## # ##
Applications
Measurement and monitoring !!!! ! !! ! !! Indicator, controller and recorder testing !!!! !! ! !! Transmitter maintenance and calibration !! !! ! Process loop set-up and maintenance !! !! ! Switch, trip and safety system testing !! !! !
!Optional (please refer to IDOS datasheet) "When f itt ed with IDOS pressure module #Optional (please refer to accessories IO800E)
DPI 800
DPI 832
DPI 841
DPI 842
DPI 802
DPI 811
DPI 812
DPI 820
DPI 821
DPI 822
DPI 811/812 Specifications
DPI 811 RTD Calibrator
Measures or simulates RTD sensor and is the ideal tool for checking probes, indicators, recorders and controllers
Automatic Detection of Two-, Three- and Four-Wires
Quickly detects faulty sensors and wiring
Pulsed RTD Transmitter Compatibility
Simulation mode
Temperature Test and Measurement
DPI 812 RTD Loop Calibrator
Provides simultaneous RTD output and mA measurement for transmitter/loop maintenance
24V Loop Power Supply
Energizes transmitters and control loops
Automatic Switch Test
Captures open/closed trip values providing a fast and highly accurate “safety system” check
HART Resistor
Can be switched into the loop when required by a HART digital communicator and avoids the inconvenience of carrying a 250 S resistor
Temperature Instrumentation and Loop Maintenance
IDOS™ Flexibility
Intelligent Digital Output Sensor (IDOS)
Universal Pressure Modules are available from 10 in H2O to 10,000 psi (25 mbar to 700 bar).
Total Flexibility
IDOS modules can be used with any compatible instru­ment; for example, a DPI 812 RTD loop calibrator can become a fully featured pressure calibrator.
Advanced Features
Step, ramp, maximum/minimum/average hold and facili­tate troubleshooting and system checks
GE Infrastructure
Sensing
DPI 811/812 Specifications
DPI 811 and DPI 812 Measure and Standard *Accuracy Range
Simulate
Pt 50 (385) IEC 751 0.9°F (0.5°C) -328°F to 1562°F
(-200°C to 850°C)
Pt 100 (385) IEC 751 0.45°F (0.25°C) -328°F to 1562°F
(-200°C to 850°C)
Pt 200 (385) IEC 751 1.08°F (0.6°C) -328°F to 1562°F
(-200°C to 850°C)
Pt 500 (385) IEC 751 0.72°F (0.4°C) -328°F to 1562°F
(-200°C to 850°C)
Pt 1000 (385) IEC 751 0.36°F (0.2°C) -328°F to 752°F
(-200°C to 400°C)
D 100 (392) JIS 1604-1989 0.45°F (0.25°C) -328°F to 1202°F
(-200°C to 650°C)
Ni 100 DIN 43760 0.36°F (0.2°C) -76°F to 482°F
(-60°C to 250°C)
Ni 120 MINCO 7-120 0.36°F (0.2°C) -112°F to 500°F
(-80°C to 260°C)
Ohms 0 to 4000 0.1 to 1.3 S
*Accuracy includes operation over 50°F to 86°F (10°C to 30°C), one year stability and
calibration uncertainty.
Excitation: 0.2 to 0.5 mA measure 0.05 to 3 mA simulat e
Pulse excitation currents minimum duration 10 ms
Operating Temperature
14°F to 122°F (-10°C to 50°C)
Storage Temperature
-4°F to 158°F (-20°C to 70°C)
Humidity
0% to 90% non-condensing, Def Stan 66-31, 8.6 Cat III
Shock and Vibration
BS EN61010:2001, Def Stan 66-31, 8.4 Cat III
EMC
BS EN61326-1:1998 + A2:2001
Safety
Electrical BS EN61010:2001, CE marked
Display
Graphic LCD with backlight . Resolution 99999
Size and Weight
7.1 in x 3.3 in x 2 in (180 mm x 85 mm x 50 mm), 14 oz (400 g)
Batteries
3 AAalkaline, >70 hours measure, >10 hours 24 mA source (24V @ 12 mA)
Plug and Play
Modules are interchangeable between instruments, requiring no set-up or instrument calibration.
Please refer to IDOS Universal Pressure Modules data sheet.
DPI 812 Only Measure Accuracy
0 to 55.000 mA 0.02% reading + 3 counts Temperature coefficient 14°F to 50°F, 86°F to 122°F, 0.0011% FS/°F
(30°C to 50°C, -10°C to 10°C, 0.002% FS °C) Switch detection Open and closed. 2 mA current Loop power output 24V ±10% (35 mA maximum) HART mA loop resistor 250 S (menu selection) Electrical connectors 4 mm sockets
Accessories
IO800A
Soft fabric carrying case with accessory pocket
IO800B
Belt clip, wrist strap/hanging loop and bench stand
IO800C
NiMh batteries with charger, batteries charged ext ernally
IO800E
Data logging upgrade and RS232 lead Log data periodically (1 second to 23 hours 59 minut es
59 seconds) or manually by key press. Review data on- screen or upload to a PC via the RS232 interface.
DPI 800 Series Common Specif ication
GE Infrastructure
Sensing
g
DPI 811/812 Specifications
©2005 GEInfrastructure Sensing, Inc. All rights reserved. 920-111A
All specifications are subject to change for product improvement without notice. GE
®
is a registered trademark of General Electric Co. Other company or product names mentioned in this document may be trademarks or registered trademarks of their respective companies, which are not affiliated with GE.
Ordering Information
Please state the model number DPI 811 or DPI 812 and accessories as separate items.
Each unit is supplied with batteries, calibration certificate, user guide and a set of electrical test leads.
Related Products
GEis a world leader in the design and manufacture of pressure, temperature and electrical f ield cal ibrators, laboratory/workshop calibration equipment and pres­sure sensors.
No software purchase is necessary as standard Microsoft®applications provide data transfer (HyperTerminal) and analysis (Excel). Alternatively, print directly to a compatible serial printer. Real time clock with date. Memory: 1000 single or 750 dual read ing screens with date and time. Header tag: 6 user charac­ters to identify groups of readings. RS232: 19.2 k baud, 8 data bits, 1 stop bit , no parity, Xon/Xoff. Data output: comma separated ASCII.
