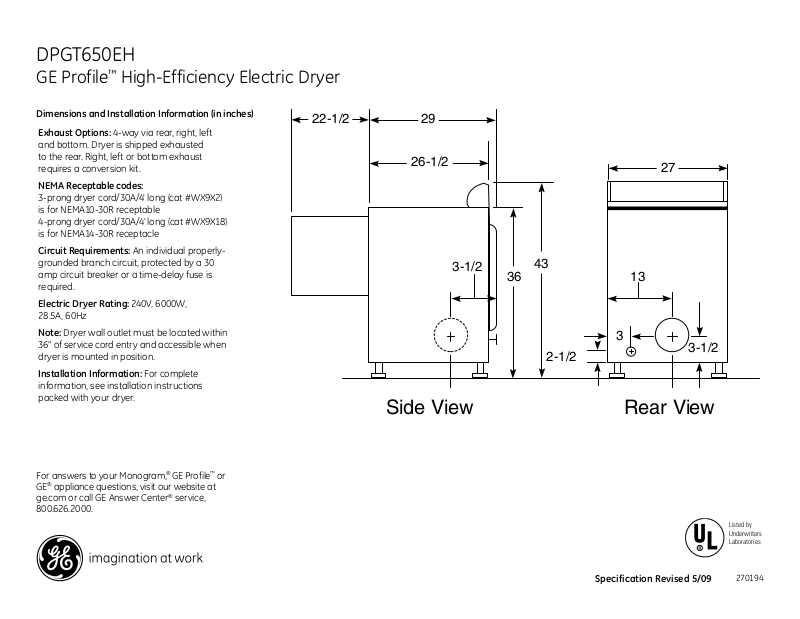

Page 1
22-1/2
Side View
Rear View
GE Profile Harmony Dryer
29
26-1/2
3-1/2
36
43
3
2-1/2
3-1/2
13
27
DPGT650EH
GE Profile™ High-Efficiency Electric Dryer
Dimensions and Installation Information (in inches)
Exhaust Options: 4-way via rear, right, left
and bottom. Dryer is shipped exhausted
to the rear. Right, left or bottom exhaust
requires a conversion kit.
NEMA Receptable codes:
3-prong dryer cord/30A/4' long (cat #WX9X2)
is for NEMA10-30R receptable
4-prong dryer cord/30A/4' long (cat #WX9X18)
is for NEMA14-30R receptacle
Circuit Requirements: An individual properlygrounded branch circuit, protected by a 30
amp circuit breaker or a time-delay fuse is
required.
Electric Dryer Rating: 240V, 6000W,
28.5A, 60Hz
Note: Dryer wall outlet must be located within
36" of service cord entry and accessible when
dryer is mounted in position.
Installation Information: For complete
information, see installation instructions
packed with your dryer.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Specification Revised 5/09
Listed by
Underwriters
Laboratories
270194
Page 2
DPGT650EH
GE Profile™ High-Efficiency Electric Dryer
For complete information, see installation instructions packed with your dryer.
Ducting Materials:
For best performance, this dryer should be vented with 4" diameter all rigid metal exhaust duct. If
rigid metal duct cannot be used, then UL-listed flexible metal (semi-rigid) ducting can be used (Kit
WX08X10077). In special installations, it may be necessary to connect the dryer to the house vent
using a flexible metal (foil-type) duct. A UL-listed flexible metal (foil-type) duct may be used ONLY
in installations where rigid metal or flexible metal (semi-rigid) ducting cannot be used AND where
a 4” diameter can be maintained throughout the entire length of the transition duct. Please see
installation instruction packed with your dryer for complete instructions when using flexible metal
(foil type) ducting.
Exhaust Length Calculation:
1. Determine the number of 90° turns needed for your installation. If you exhaust to the side or
bottom of dryer, add one turn.
2. The maximum length of 4" rigid (aluminum or galvanized) duct which can be tolerated is shown
in the table. A turn of 45° or less may be ignored. Two 45° turns within the duct length should be
treated as a 90° elbow. A turn over 45° should be treated as a 90° elbow.
Dryers must be exhausted to the outside.
Caution: For personal safety do not terminate exhaust into a chimney, under any enclosed
house floor (crawl space), or into an attic, since the accumulated lint could create a fire hazard or
moisture could cause damage. Never terminate the exhaust into a common duct or plenum with
a kitchen exhaust , since the combination of lint and grease could create a fire hazard.
Exhaust ducts should be terminated in a dampered wall cap to prevent back drafts, bird nesting,
etc. The wall cap must also be located at least 12" above the ground or any other obstruction
with the opening pointed down.
Dryer Elbow Kit, Pub. No. 14-A003 is available at additional cost. For use with side or bottom
exhaust options.
For more information on venting kits and accessories, please call 1-800-GE-CARES.
Specification Revised 5/09
270194
Page 3
DPGT650EH
Best performance
Domestic
dryer models
Maximum length of 4"
dia. rigid metal duct
Number
of
90°
turns

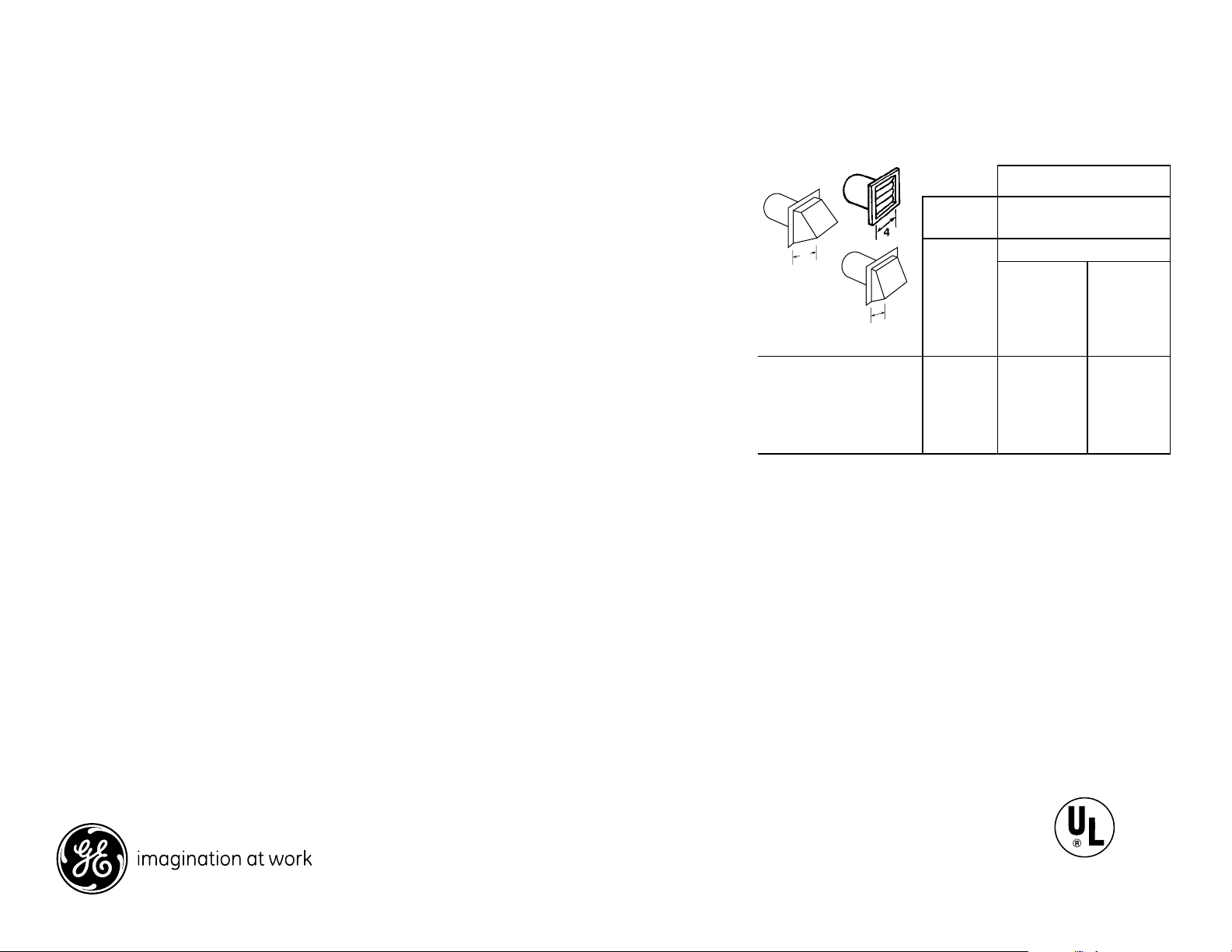

Exhaust hood type
A
4"
opening
B
2-1/2"
opening
7.0, 6.0 and 5.8 cu. ft.
capacity models
all electric dryers
0
1
2
3
4
90 ft.
60 ft.
45 ft.
35 ft.
25 ft.
60 ft.
45 ft.
35 ft.
25 ft.
15 ft.
A
4
B
2-1/2
A
GE Profile™ High-Efficiency Electric Dryer
Dimensions and Installation Information (in inches)
Special Installation Requirements
Alcove or Closet Installation:
• If your dryer is approved for installation in an alcove or closet, it will be stated on a label
on the dryer back.
• The dryer MUST be exhausted to the outside.
• Minimum clearances between dryer cabinet and adjacent walls or other surfaces are:
0" either side; 3" front and rear
• Minimum vertical space from floor to overhead cabinets, ceilings, etc. is 52”.
• Closet doors must be louvered or otherwise ventilated and must contain a minimum
of 60 sq. in. of open area equally distributed. If this closet contains both a washer and
a dryer, doors must contain a minimum of 120 sq. in. of open area equally distributed.
• No other fuel-burning appliance shall be installed in the same closet with a gas dryer.
Bathroom or Bedroom Installation:
• The dryer MUST be exhausted to the outdoors.
• The installation must conform with the local codes, or in the absence of local codes,
with the National Electric Code and National Fuel Gas Code, ANSI Z223 for gas dryers.
Minimum Clearances other than Alcove or Closet Installation:
• Minimum clearances to combustible surfaces are: 0" both sides; 3" rear
Dryer Exhausting Information : Use metal duct only, vertical and horizontal ducting.
For answers to your Monogram,
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
®
GE Profile™ or
Specification Revised 5/09
Listed by
Underwriters
Laboratories
270194
Page 4
P
OWER
M
ANU
AL
D
RY
S
TART
P
AUSE
D
RY
L
EVEL
T
EMP
S
IGNAL
C
YCLES
T
IME
DRY
S
EN
S
OR
D
RY
Very Dry
More Dry
Less Dry
Damp Dry
Norm
al
60 Mins.
50
30
20
40
COTTON
S
ULTRA DELICATES
SPEED DRY
DEW
RINKLE
AIR DRY
MIXED
LOAD
ACTIVE
WEAR
DELICATES
EASY CARE
High
Off
Low
High
Medium
High
Low
Extra low
Medium

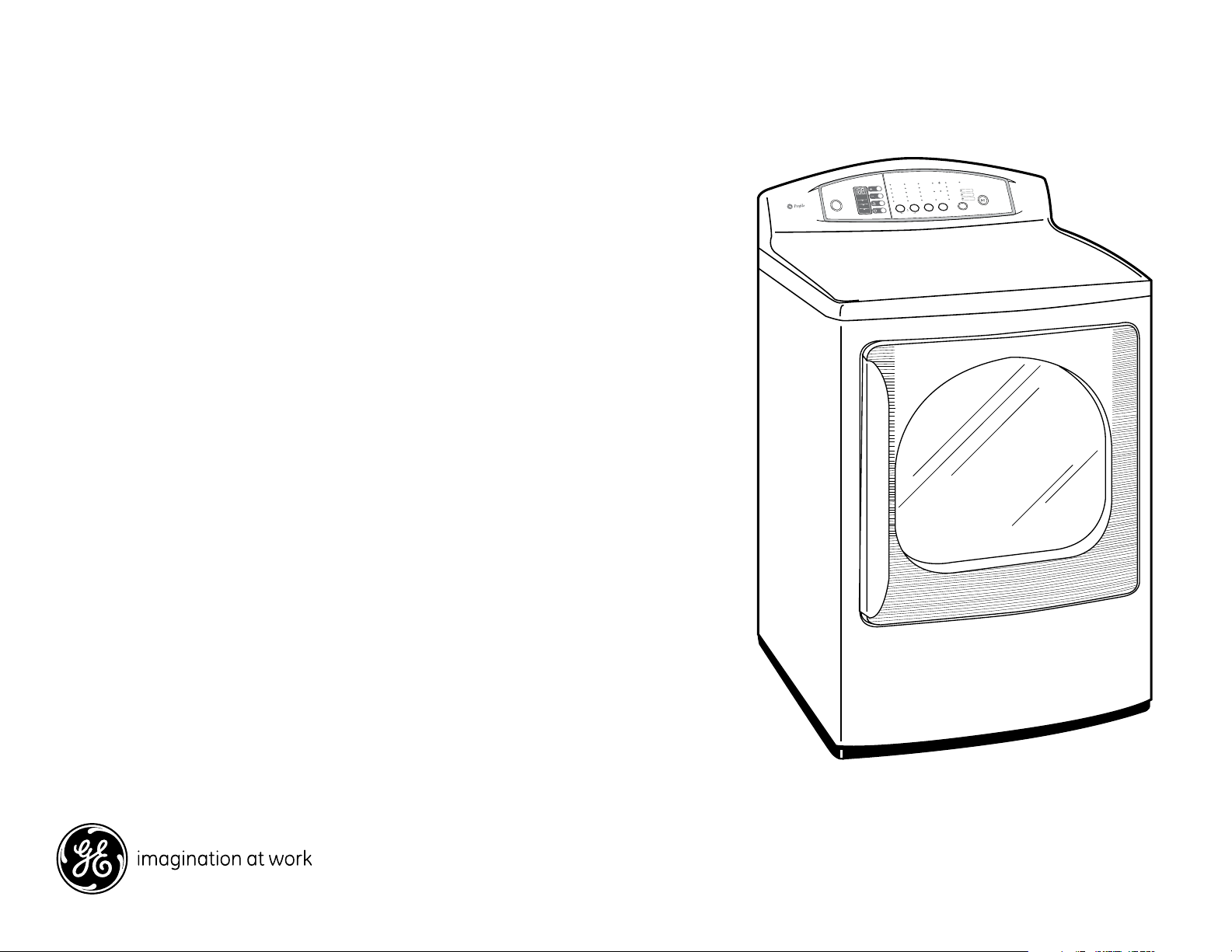

DPGT650EH
GE Profile™ High-Efficiency Electric Dryer
Features and Benefits
• 7.1 Cu. Ft. King-Size Capacity - Large enough to handle anything the
washer sends its way
• Sensor Dry Plus - Continually monitors moisture levels to help clothes
look better longer
• Push Button Controls with LED Countdown Timer - Simplify cycle
selection and provide accurate cycle times
• Delicate Cycle with Extra-Low Heat Setting - Maintains an average
fabric temperature of 125 degrees F to protect fine handwashables
• Stainless Steel Drum - Resists rust and won't chip, peel
or snag clothes
• 5 Heat Selections - Offer enhanced drying performance
and fabric care
• Multiple Dry Cycles - Deliver optimal drying results
• Adaptive Cool-down - Tumbles clothes with cool air to
reduce wrinkling
• Speed Dry - Delivers ready-to-go results in minutes
• Wrinkle Care Extended Tumble - Continues to tumble clothes without
heat to help prevent wrinkling and creasing
• Delay Start - Lets you do the laundry on your terms
• Variable End-Of-Cycle Signal - Adjustable volume offers
added flexibility
• Supreme Quiet Sound Package - GE's quietest sound package ever
• Reverse-A-Door - Offers added installation flexibility
• Model DPGT650EHMG –Champagne
• Model DPGT650EHWW –White on white
Specification Revised 5/09
270194
