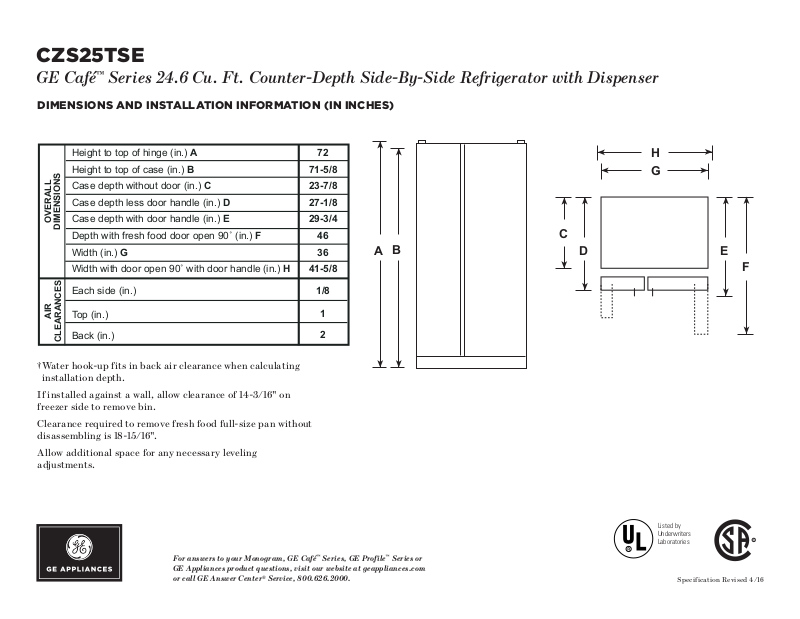

CZS25TSE
GE Café™ Series 24.6 Cu. Ft. Counter-Depth Side-By-Side Refrigerator with Dispenser
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
|
|
|
|
|
|
|
|
|
|
Height to top of hinge (in.) A |
72 |
|
|
|
|
|
|
<![if ! IE]> <![endif]>DIMENSIONS |
Height to top of case (in.) B |
71-5/8 |
|
|
|
|
|
|
<![if ! IE]> <![endif]>OVERALL |
Case depth without door (in.) C |
23-7/8 |
|
|
|
|
|
|
Case depth with door handle (in.) E |
29-3/4 |
|
|
|
|
|
|
|
|
Case depth less door handle (in.) D |
27-1/8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Depth with fresh food door open 90˚ (in.) F |
46 |
|
|
|
|
|
|
|
A B |
|||||||
|
Width (in.) G |
36 |
|
|||||
|
|
|
|
|
|
|
|
|
|
Width with door open 90˚ with door handle (in.) H |
41-5/8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
<![if ! IE]> <![endif]>AIR CLEARANCES |
Back (in.) |
2 |
|
|
|
|
|
|
|
Each side (in.) |
1/8 |
|
|
|
|
|
|
|
Top (in.) |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
†Water hook-up fits in back air clearance when calculating installation depth.
If installed against a wall, allow clearance of 14-3/16" on freezer side to remove bin.
Clearance required to remove fresh food full-size pan without disassembling is 18-15/16".
Allow additional space for any necessary leveling adjustments.
H
G
C
D |
E |
F
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center® Service, 800.626.2000.
Listed by
Underwriters
Laboratories
Specification Revised 4/16
CZS25TSE
GE Café™ Series 24.6 Cu. Ft. Counter-Depth Side-By-Side Refrigerator with Dispenser
FEATURES AND BENEFITS
Counter-depth design – Offers a built-in look by fitting nearly flush with surrounding cabinetry 72" tall
Angled ALL LED lighting in fresh food and freezer – Illuminates every inch of the fresh food and freezer ompartments
Express Chill – Chill your favorite beverages in minutes, not hours Integrated shelf support system – Provides strong, flexible support
Adjustable slide-out, spillproof glass shelves – Raised edges help contain spills and make cleanup quick and easy
Adjustable Clear Look door bins – Offer ideal space for storing large containers in the door and free up valuable space
In-the-door beverage rack – Beverages are chilled and ready without taking ip valuable space Arctica icemaker – Holds up to 10 lbs of ice, so there’s enough for all occasions
Multi-level full-extension freezer baskets – Slide well beyond the door for easy access to all your frozen favorites
Tilt-out freezer door bins – Rotate forward for convenient access
Quick Ice setting – Creates ice up to 50% faster than normal settings
Turbo Cool setting – Drops interior temperature to maintain freshness after frequent openings
Advanced water filtration uses MWF replacement filter – Reduces trace pharmaceuticals from water and ice* (* Removes 98% of ibuprofen, atenolol, fluoxetine, progesterone and trimethoprim. These pharmaceuticals are not necessarily in all users’ water)
Model CZS25TSE – Stainless steel
UFAS
COMPLIANT
Specification Revised 4/16
