GE CWE23SSHSS User Manual

GEAppliances.com

Safety Instructions ............ 2-4

Operating Instructions

Features ..........................5, 6

Controls ..........................7, 8

Odor Remover ......................9

Dispenser ..........................10

Hot Water .........................11

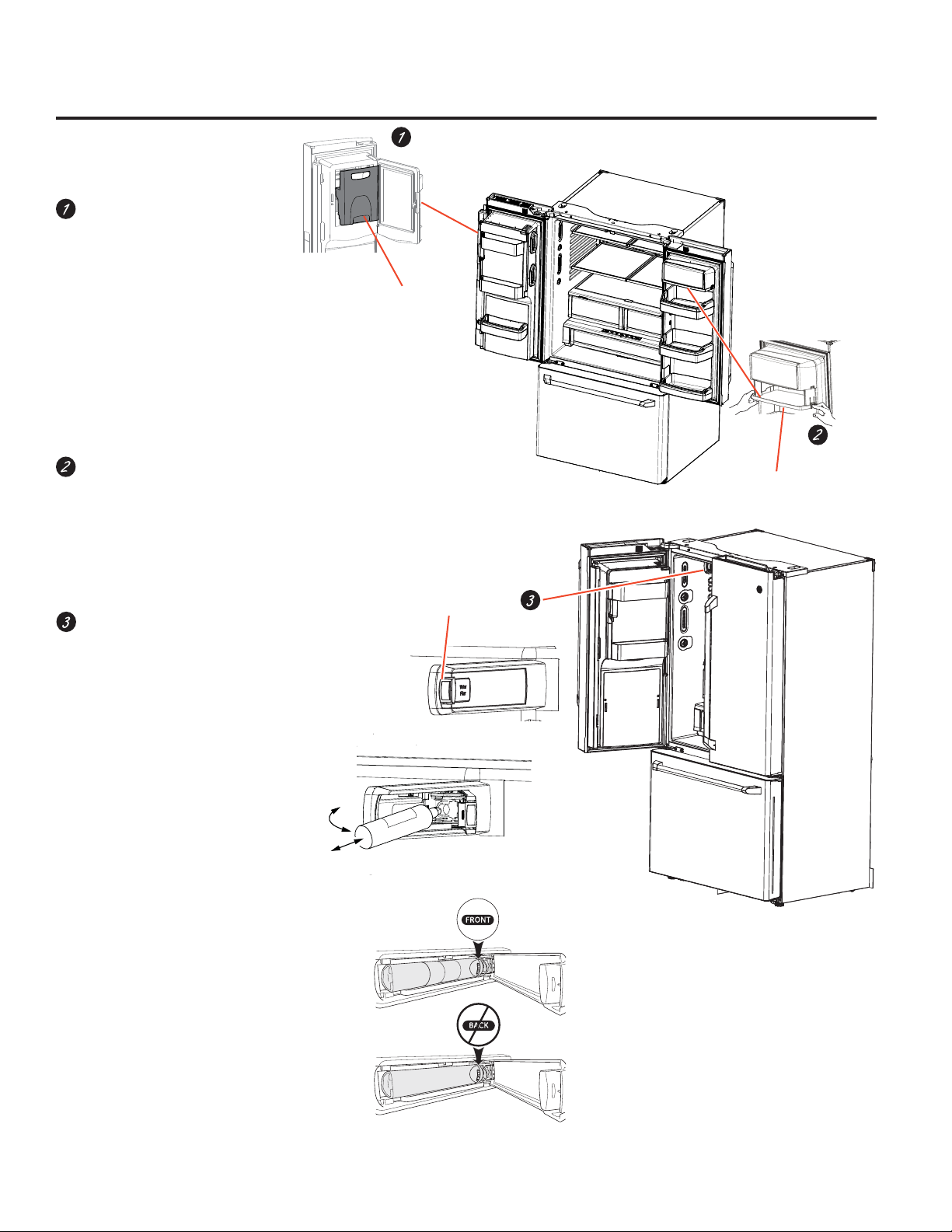

Water Filter ........................12

Fresh Food Storage Options .....13,14

Climate Zone & Temperature

Controlled Drawer ...............15,16

Freezer ............................17

Automatic Ice maker ...............18

Care and Cleaning ................ 19

Replacing the Lights ................20

Bottom Freezer

Installation Instructions

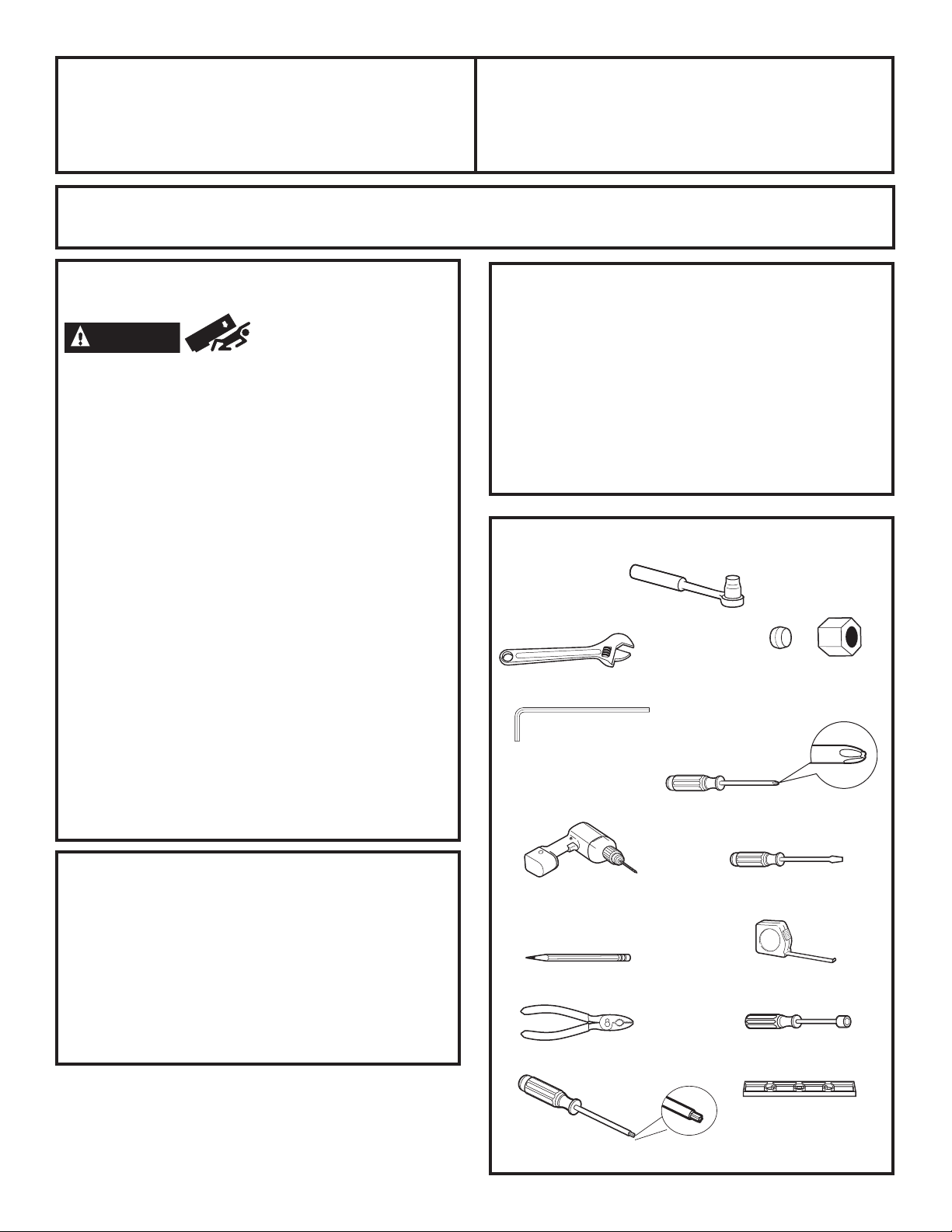

Preparing to Install the

Refr igerato r ....................21, 22

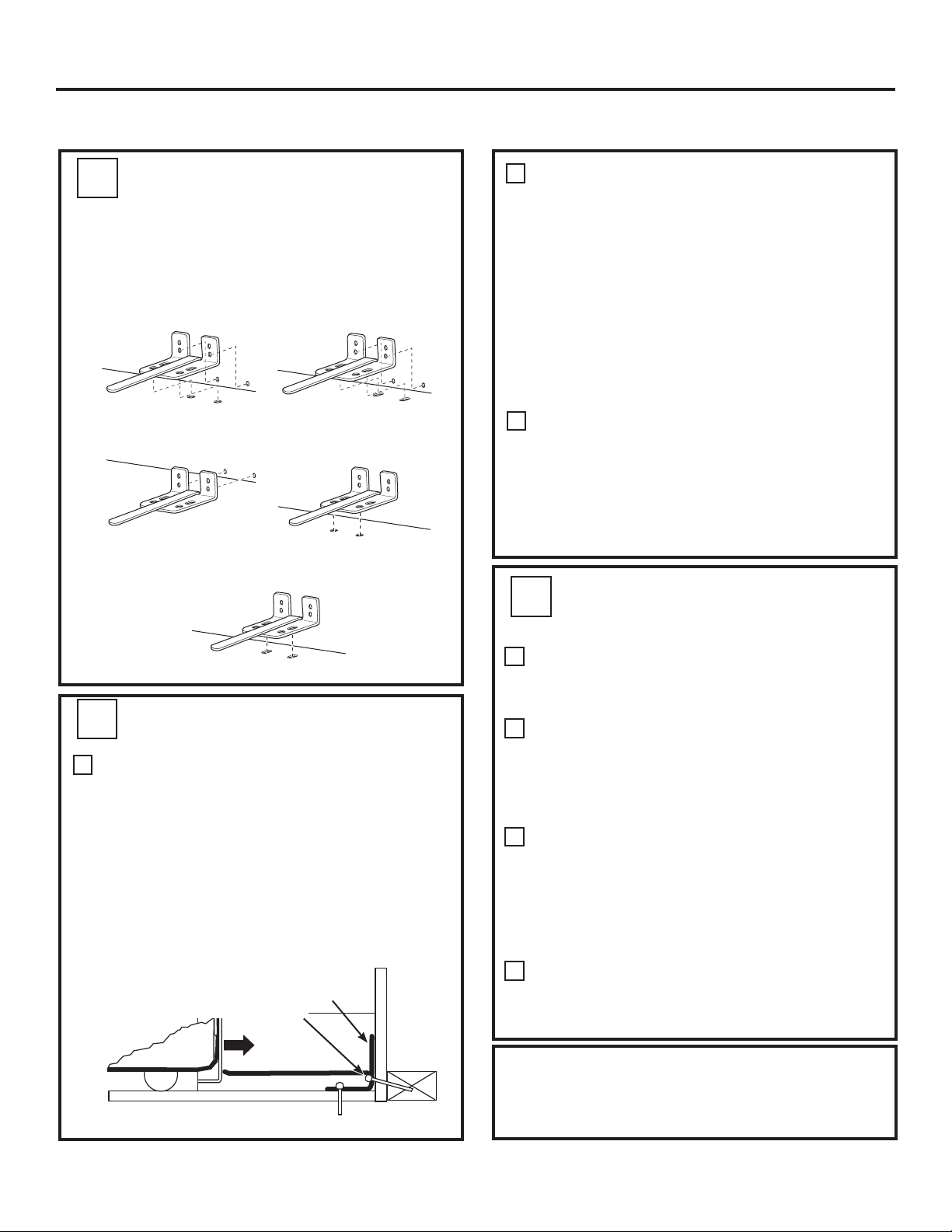

Installing the Anti-Tip Bracket . . . 29, 30

Installing the Refrigerator .......23–33

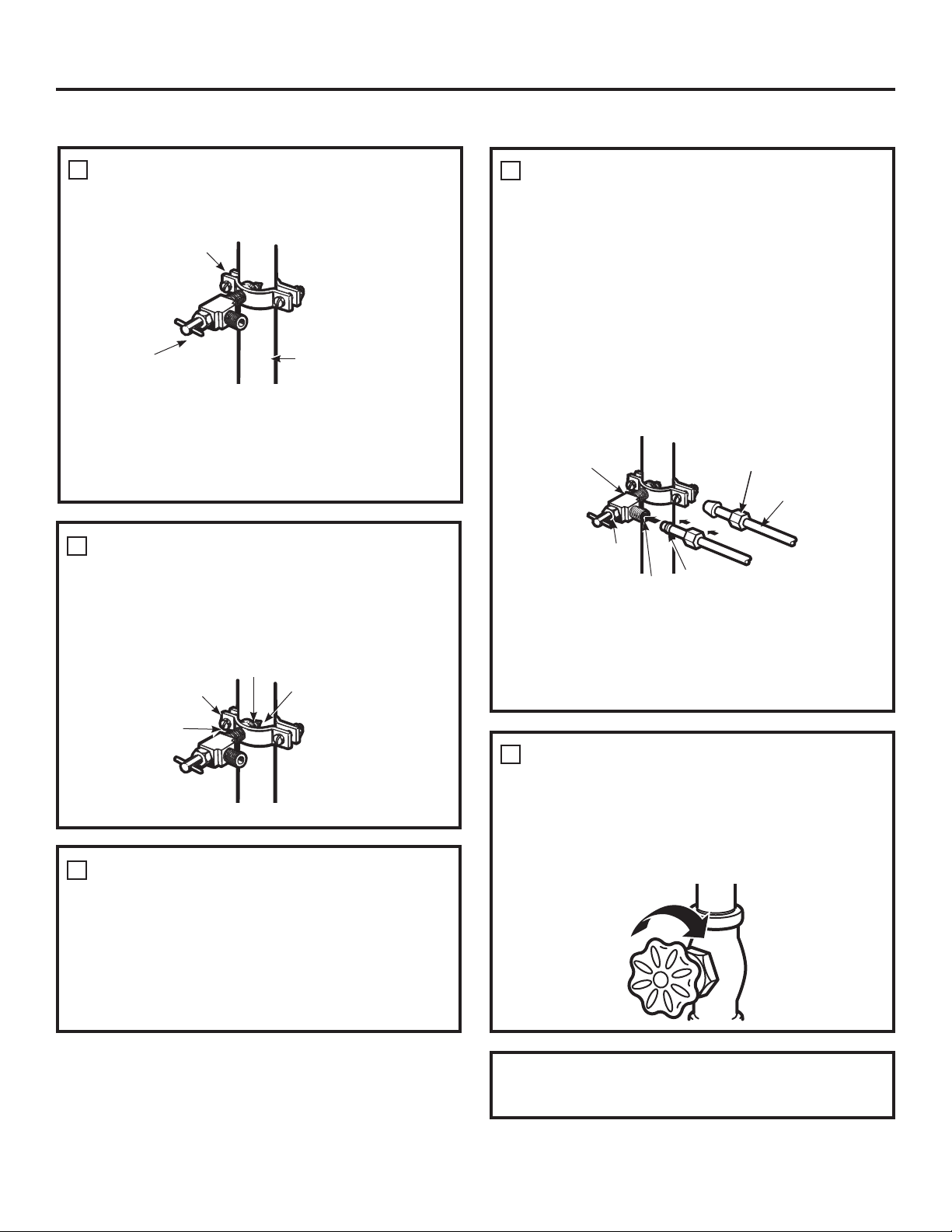

Installing the Water Line ........34-35

Troubleshooting Tips ......38, 39

Normal Operating Conditions .......37

Service - Truth or Myth .........40, 41

Consumer Support

Warranty ..........................42

RPWFE Water Filter Cartridge Limited

Warranty ........................43

Performance Data Sheet ...........44

Consumer Support ........Back Cover

Owner’s Manual and

Installation Instructions

GE Café™ models

Models that start with CFE are

Standard Depth Models (SD)

Models that start with CYE and CWE

are Counter Depth Models (CD)

Réfrigérateurs

Manuel d’utilisation

et instructions

d’installation

Modèles GE Café™

La section française commence à la

page 47

Les numéros de modèle commençant par

CFE sont des modèles de profondeur normale

(PN).

Les numéros de modèle commençant par

CYE et CWE sont des modèles de profondeur

de comptoir (PC).

Refrigeradores

Manual del Propietario

e Instrucciones de

Instalación

TM

(SD)

Write the model and serial
numbers here:

Model # ____________________
Serial # ____________________

Find these numbers on a label
on the left side, near the middle
of the refrigerator compartment.

Modelos GE Café

La sección en español empieza en la

página 93

Los modelos que comienzan con las letras

CFE son Modelos con Profundidad Estándar

Los modelos que comienzan con las letras

CYE y CWE son Modelos con Profundidad de

Mesada (CD)

Refrigerators

239D3389P008 Pub No. 49-60713-1 09-14 GE

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.

SAFETY

IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING

GE Appliances website

For more information on your refrigerator’s operation, visit
www.GEAppliances.com In Canada visit GEAppliances.ca or call 800.561.3344.

REFRIGERATOR SAFETY INFORMATION

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety

messages will follow the safety alert symbol and the word “DANGER”, “WARNING”, or “CAUTION”. These words are defined as:

Indicates a hazardous situation which, if not avoided, will result in death or serious injury.

DANGER

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

WARNING

Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

CAUTION

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, explosion, electric shock, or injury when using your

refrigerator follow these basic safety precautions:

 This refrigerator must be properly installed and located in

accordance with the Installation Instructions before it is
used.

 Unplug the refrigerator before cleaning and making repairs.
 NOTE: Repairs must be performed by a qualified Service

Professional.

 Replace all parts and panels before operating.
 Because of potential safety hazards under certain

conditions, we strongly recommend against the use of an
extension cord. However, if you must use an extension cord,
it is absolutely necessary that it be a UL-listed (in the United
States) or a CSA certified (in Canada), 3-wire grounding type
appliance extension cord having a grounding type plug
and outlet and that the electrical rating of the cord be 15
amperes (minimum) and 120 volts.

 To prevent suffocation and entrapment hazards to children,

Remove the fresh food and freezer doors from any
refrigerator before disposing of it or discontinuing its use.

 Do not store or use gasoline or other flammable vapors and

liquids in the vicinity of this or any other appliance.

 Power to the refrigerator cannot be disconnected by

any setting on the control panel, refrigerator must be
unplugged to remove power.

 Do not allow children to climb, stand or hang on the door

handles or the shelves in the refrigerator. They could
seriously injure themselves.

 In refrigerators with automatic ice makers, avoid contact

with the moving parts of the ejector mechanism, or with
the heating element that releases the cubes. Do not place
fingers or hands on the automatic ice making mechanism
while the refrigerator is plugged in.

 Do not clean glass shelves or covers with warm water

when they are cold. Glass shelves and covers may break if
exposed to sudden temperature changes or impact, such
as bumping or dropping. Tempered glass is designed to
shatter into many small pieces if it breaks.

 Keep fingers out of the “pinch point” areas; clearances

between the doors and between the doors and cabinet are
necessarily small. Be careful closing doors when children are
in the area.

 Do not touch the cold surfaces in the freezer compartment

when hands are damp or wet., skin may stick to these
extremely cold surfaces.

 Do not refreeze frozen foods which have thawed completely.
 Use a sturdy glass when dispensing ice (on models with ice

dispenser)

2

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING. GEAppliances.com

SAFETY (CONT.)

INSTALLATION

WARNING

Explosion Hazard.

Keep flammable materials and vapors, such as gasoline, away from refrigerator. Failure to do so can
result in fire, explosion, or death.

WARNING

Tip Over Hazard.

Built-in style models (model PYE, CYE, GYE, PWE, CWE, and ZWE) are top heavy, especially with any doors
open. These models must be secured with the anti-tip floor bracket to prevent tipping forward, which
could result in death or serious injury. Read and follow the entire installation instructions for installing
the anti-tip floor bracket packed with your refrigerator.

CONNECTING ELECTRICITY

WARNING

Plug into a grounded 3-prong outlet
Do not remove the ground prong
Do not use an adapter
Failure to follow these instructions can result in death, fire, or electrical shock.

Electrical Shock Hazard.

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
For personal safety, this appliance must be properly grounded.

The power cord of this appliance is equipped with a 3-prong
(grounding) plug which mates with a standard 3-prong
(grounding) wall outlet to minimize the possibility of electric
shock hazard from this appliance.

Have the wall outlet and circuit checked by a qualified
electrician to make sure the outlet is properly grounded.

Where a standard 2-prong wall outlet is encountered, it is
your personal responsibility and obligation to have it replaced
with a properly grounded 3-prong wall outlet. Do not use an
adapter.

The refrigerator should always be plugged into its own
individual electrical outlet which has a voltage rating that
matches the rating plate.

3

A 115 Volt AC, 60 Hz, 15- or 20-amp fused, grounded
electrical supply is required. This provides the best
performance and also prevents overloading house wiring
circuits which could cause a fire hazard from overheated
wires.

Never unplug your refrigerator by pulling on the power cord.
Always grip plug firmly and pull straight out from the outlet.

Repair or replace immediately all power cords that have
become frayed or otherwise damaged. Do not use a cord
that shows cracks or abrasion damage along its length or at
either end.

When moving the refrigerator away from the wall, be careful
not to roll over or damage the power cord.

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.

SAFETY (CONT.)

HOT WATER DISPENSER

WARNING

Scalding Hazard.

The hot water dispenser is capable of heating water to a temperature of approximately 185°F (85°C).
Water temperatures above 125°F (52°C) can cause severe burns or death from scalding. Children, the
disabled, and the elderly are at highest risk of being scalded.

Use this appliance only for its intended purpose as described in this Owner’s Manual. To reduce the risk of severe burns,
scald injuries, or death when using your hot water dispenser, the instructions below must be followed:

 The water coming from the dispenser is very hot. Use

extreme caution when dispensing and drinking water. Allow
water to cool to a drinkable temperature before drinking.

 When dispensing water below 125ÛF, always test the

temperature of the water before drinking.

 When dispensing hot water, the container can become

very hot. Use a temperature insulating container, such
as ceramic or Styrofoam. Using container materials such
as paper or plastic may result in a burn while holding the
cup. Do not use glass containers, as thermal shock can
cause the container to break and may result in scalding or
lacerations.

 Do not permit children to use the hot water dispenser.
 The hot water dispensing knob requires both twist and

push motions in order to reduce the risk of hot water being
dispensed unintentionally or by small children. Do not
tamper with or modify the hot water dispensing knob.

 Always follow the formula manufacturer’s instructions for

preparation of baby formula.

 Hold your cup or container close to the dispensing point to

minimize splashing of hot water that could contact your

hand. Do not dispense hot water into a cup resting on the
dispenser tray, as this will increase water splash.

 Do not use with water that is microbiologically unsafe or of

unknown quality.

 The hot water dispenser is designed to only dispense water.

Do not attempt to heat or dispense anything other than
water. Do not attempt to disassemble or clean the tank.

 A newly installed water filter cartridge will cause water to

spurt from the dispenser. Run 2 gallons of water through
the cold water dispenser (about 5 minutes) to remove air
from the system. Until this air is removed from the system
through the cold water dispenser, DO NOT use the hot water
dispenser as it may result in spurting of hot water and lead
to hot water scalding.

 The hot water dispensing tank is a non-pressurized tank,

with a vent on the tank and a dispenser tube outlet. Do
not modify the system, close or block the dispense tube, or
connect any other type of device to the tank or dispense
tube. Doing so may lead to rupture of the tank and hot
water scalding.

PROPER DISPOSAL OF YOUR OLD REFRIGERATOR

WARNING

Remove fresh-food and freezer doors from the refrigerator, prior to disposal. Failure to do so can
result in child entrapment which can lead to death or brain damage.

IMPORTANT:

Suffocation and child entrapment hazard.

Child entrapment and suffocation are not problems of
the past. Junked or abandoned refrigerators are still
dangerous even if they will sit for “just a few days.”
If you are getting rid of your old refrigerator, please
follow the instructions below to help prevent accidents.

Before You Throw Away Your Old Refrigerator or
Freezer:

 Take off the fresh food and freezer doors.
 Leave the shelves in place so that children may not

easily climb inside.

Refrigerants

All refrigeration products contain refrigerants, which
under federal law must be removed prior to product
disposal. If you are getting rid of an old refrigeration
product, check with the company handling the disposal
about what to do.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

4

About the features. GEAppliances.com

Space-saving ice maker*

Ice maker and bin are located on the door creating
more usable storage space.

Showcase LED lighting

LED lighting is positioned throughout the interior to
spotlight areas in the refrigerator. LEDs are located
under the fresh food door to light the freezer when
opened.

Drop-down tray*

Allows for extra door storage when you need it and
tucks away when you don’t.

Full-width temperature controlled drawer

Adjustable temperature control bin that can accommo­date larger items.

Dairy bin

Separate compartment for your items.

Ice bin/Ice maker*

Ice maker with ice storage bins.

QuickSpace™ shelf*

Functions as a normal full-sized shelf when needed and
easily slides back to store tall items below.

Spillproof shelves

Designed to capture your spills for easier clean up.

Anti-slip Mat

Liner that captures spills, keeps containers from shifting
when the door is opened and is easily removable for
cleaning.

Removable door bin

Can be removed for those with a wall limiting the door
opening.

Climate zone bin

Separate bins for produce storage.

Water filter

Filters water and ice.

* Select models only.

5

About the features .

Door ice bin*

1. Open left fresh food door.

2. Pull down latch to release bin
door.

3. Using handhold lift ice bucket up
and out to clear locators in bot­tom of bin.

4. To replace the ice bucket, set
it on the guide brackets and
push until the ice bucket seats
properly.

5. If bucket cannot be replaced,
rotate the Ice Bucket Fork 1/4
turn clockwise.

Drop down dairy bin*

1. Open right fresh food door.

2. Depress both buttons on lower
sides and bin will drop down.

3. Reverse to reinstall.

Ice/water filter
Remove filter/bypass plug

Push the indent on the cover and
open filter door. Pull out on filter/
bypass plug and pull straight back
to remove.

Installing the filter cartridge

Push the indent at the bottom of
the cover and open. Lift door and
align tabs on filter to filter/holder
and push filter into place.

Latch

Ice bucket

Drop tray
(tray open)

Push in and
pull open

*Select Models Only

Swing

1

Push \ Pull

2

6

About the controls with temperature settings. GEAppliances.com

CYE/CFE Control Style CWE Control Style

Lock

Controls

Light

Temperature Express Modes Settings

Water

Water Crushed Cubed

Precise

Fill

Hot

Water

Changing the Temperature for Control Style CYE/CFE

To Change the Refrigerator Temperature:
Access By: Temperature Button
Activate By: Below the word “Refrigerator”, use the arrows to select the
desired temperature. Press DONE when finished to return to HOME screen.
To Change the Freezer Temperature:
Access By: Temperature Button
Activate By: Below the word “Freezer”, use the arrows to select the desired

temperature. Press DONE when finished to return to HOME screen.
To turn OFF cooling system, access SETTINGS from the HOME screen. Page
over and tap COOLING SYSTEM ON. Press DONE to return to HOME screen.
To turn ON cooling system, access SETTINGS from the HOME screen. Page
over and tap COOLING SYSTEM OFF. Press DONE to return to HOME screen.
Turning the cooling system off stops the cooling to refrigerator, but it does
not shut off the electrical power.

Temperature

Temperature

Refrigerator

Hold 3 Sec for °F/°C

Recommended: 37 °F

Actual Set

F

Energy Smart

Recommended: 0°F

Freezer

Energy Smart Override

Hold 3 Seconds

Door Alarm

Ice Maker

Lock Controls

Hold 3 Seconds

Reset Filter

Hold 3 Seconds

NOTE: For optimal temperature performance, we
recommend to avoid placing food or other items directly
at the air flow vents or the fresh food air tower, thus
blocking the air flow.

Changing Temp. for Control Style CWE

Temperature Display is located on inside of left-hand
refrigerator door. To change the temperature, press and
release the REFRIGERATOR or FREEZER pad. The ACTUAL
TEMP light will come on and the display will show the actual
temperature. To change the temperature, tap either the
REFRIGERATOR or FREEZER pad until the desired
temperature is displayed.
To turn OFF cooling system, press and hold the
REFRIGERATOR and FREEZER pads simultaneously for 3
seconds. When the cooling system is OFF the display should
read OFF.
To turn ON cooling system, press either REFRIGERATOR or
FREEZER pad. The display will show the preset temperature
settings of 37°F for refrigerator and 0°F for freezer. Turning
the cooling system off stops the cooling to refrigerator, but it
does not shut off the electrical power.

7

About the controls features.

Control Style A, External Controls

Lock

Controls

Light

CFE/CYE Models

Temperature Express Modes Settings

Water

Water Crushed Cubed

Precise

Fill

Hot

Water

NOTE: The refrigerator is shipped with protective film covering the temperature
controls. If this film was not removed during installation, remove it now.

The temperature controls are preset in the factory at 37°F for the refrigerator compartment and 0°F for the freezer
compartment. Allow 24 hours for the temperature to stabilize to the preset recommended settings.

The temperature controls can display both the SET temperature as well as the actual temperature in the refrigerator and
freezer. The actual temperature may vary slightly from the SET temperature based on usage and operating environment.

Hot Water

Dispenses up to 10 ounces of filtered hot water from user
selected ranges of 90°F to 185°F.

Hot Water Knob

Illuminates to indicate hot water is ready. Dispenses with two
motions: a counter-clockwise twist and then push to dispense.

Precise Fill

Precisely dispenses filtered water in accurate measurements
in ounces, cups, quarts, or liters using paddle.

Refrigerator temp control

Adjust freezer compartment temperature.

Fresh food temp control

Adjust fresh food compartment temperature.

TurboFreeze™ setting

Activate TurboFreeze to quickly restore freezer
temperatures after frequent door openings.

TurboCool™ setting

Activate TurboCool to quickly restore fresh food temperature after
frequent door openings.

Humidity setting

Humidity setting can be normal or high.

Lock controls

Press and hold 3 seconds to lock out ice and water dispenser
and all feature and temperature buttons.

LED dispenser light

LED lighting that can be turned on/off to light your dispenser.

Photo Upload

Insert USB memory stick to upload personal photos to the
refrigerator LCD screen. LCD will provide on screen prompts to
load and view slideshow. Make sure the photos are in the root
directory in your USB.

Additional Settings

• Connected Home ready

• Slideshow

• Rese t filter

• Ice maker on/off

• Door alarm

• Sound control

• Cooling system On/Off

• Metric/English units

Additional Modes

• Sabbath Mode
Press and hold lock & light simultaneously for 3 seconds to
enter/exit Sabbath mode.
Activate Sabbath Mode to turn off interior lights, tempera­ture control and advanced features. Compressor will run on
a timed defrost when in Sabbath mode.

8

GEAppliances.com

Controls Style B, Internal Controls

Door Alarm

Sounds to alert when the freezer or fresh food doors
have been left open.

Reset Filter

Hold for 3 seconds after replacing filter.
Lock Controls

Press and hold 3 seconds to lock out ice and water
dispenser and all feature and temperature buttons.

CWE Models

Refrigerator

Hold 3 Sec for °F/°C

Recommended: 37 °F

Actual Set

Energy Smart

Recommended: 0°F

Freezer

Energy Smart Override

Hold 3 Seconds

Door Alarm

Ice Maker

Lock Controls

Hold 3 Seconds

Reset Filter

Hold 3 Seconds

F

Freezer temp control

Adjust freezer compartment temperature

Refrigerator temp control

Adjust fresh food compartment temperature

Ice maker setting

Turn your ice makers on/off.

9

About the dispenser. (CFE & CYE Models Only)

Water & Ice Dispenser

(See About the controls
with temperature settings &
About the control features)

Dispenser tray

WARNING

Laceration Hazard

 Never put fingers or any other object into ice crusher

discharge opening. Doing so can result in contacting the ice
crushing blades and lead to serious injury or amputation

 Use a sturdy glass when dispensing ice. A delicate glass may

break and result in personal injury.

If no water is dispensed when the refrigerator is first installed,
there may be air in the water line system. Press the dispenser
paddle for at least five minutes to remove trapped air from the
water line and to fill the water system. To flush out impurities in
the water line, throw away the first six full glasses of water.

To remove Dispenser Tray



Pull Dispenser Tray out until it stops.



Locate tab in the center on the bottom and push up.



Pull Dispenser Tray assembly out.



Lift metal Dispenser Tray out at center notch to clean.

To reinstall Dispenser Tray



Place the Dispenser Tray cover on top of catch tray and

position under the two plastic retainers on either side.



Center Dispenser tray, and align with center guides.



Push in until is firmly in place.

Important Facts About Your Dispenser



Do not add ice from trays or bags to the door ice maker

bucket. It may not crush or dispense.



Avoid overfilling glass with ice and use of narrow glasses.

Backed-up ice can jam the chute or cause the door in the
chute to freeze shut. If ice is blocking the chute remove the ice
bucket, poke it through with a wooden spoon.



Beverages and foods should not be quick-chilled in the

door ice maker bin. Cans, bottles or food packages in the
storage drawer may cause the ice maker or auger to jam.

To Use the Internal Water Dispenser (CWE Models Only)

The water dispenser is located on
the left wall inside the refrigerator
compartment.

To dispense water:

Hold the glass against the recess.
Push the water dispenser button.
Hold the glass underneath the

dispenser for 2–3 seconds after
releasing the dispenser button. Water
may continue to dispense after the
button is released.



To keep dispensed ice from missing the glass, put the glass

close to, but not touching, the dispenser opening.



Some crushed ice may be dispensed even though you

selected CUBED ICE. This happens occasionally when a few
cubes accidentally get directed to the crusher.



After crushed ice is dispensed, some water may drip from the

chute.



Sometimes a small mound of snow will form on the door in the
ice chute. This condition is normal and usually occurs when you
have dispensed crushed ice repeatedly. The snow will eventually
evaporate.

If no water is dispensed when the refrigerator is first installed,
there may be air in the water line system. Press the dispenser
button for at least 5 minutes to remove trapped air from the
water line and to fill the water system. During this process,
the dispenser noise may be loud as the air is purged from the
water line system. To flush out impurities in the water line,
throw away the first 6 glassfuls of water.

NOTE: To avoid water deposits, the dispenser should be
cleaned periodically by wiping with a clean cloth or sponge.

10

About Hot Water. (CFE & CYE Models Only)

GEAppliances.com

Lock

Controls

Light

To Use Hot Water Dispenser

• Press HOT WATER button.

• Select desired water temperature on the LCD screen (90, 150,
170, 185, or Custom).

• When hot water is ready (indicated on the screen and by a
beeping sound) hold container with left hand centered in the
recess under the spout.

• To dispense water, rotate the hot water knob counterclockwise
and then push it in. The knob must be held in during dispense.

Temperature Express Modes Settings

Water

Water Crushed Cubed

Precise

Fill

Hot

Water

Important Facts about HOT WATER

WARNING

•
The water coming from the dispenser is very hot and can cause

Scalding Hazard.

scalds or burns. Read all warnings prior to use. (See page 4.)

• Always use a container that is suitable for hot liquids (ceramic,
styrofoam, etc.)

• The maximum single hot water dispense amount is 10 oz.
Additional hot water can be dispensed by restarting the hot
water feature through the LCD screen.

• HOT WATER works best with household water pressure of 40 to
100 psi.

• HOT WATER will time out if unused and may require a short
reheat time.

11

About the GE® RPWFE water filter cartridge.

Water Filter Cartridge

The water filter cartridge is located in the fresh food interior
on the left side wall, near the top.

This product uses radio frequency identification (RFID) to
detect leaks and monitor filter status. The RFID technology is
certified by the FCC.

FCCID: ZKJ-EBX1532P001 ICID: 10229A-EBX1532P001

“This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.”

“This device complies with Industry Canada licence-exempt
RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference
that may cause undesired operation of the device.”

When to replace the filter cartridge

The filter cartridge should be replaced every six months or
earlier if 170 gallons of water has been dispensed or the flow of
water to the dispenser or icemaker decreases.

Touch Screen Models: A filter status message will appear on
the screen when the water filter needs to be replaced. The filter
status will automatically update when the filter is replaced.

Non-touch Screen Models: A filter indicator light will illuminate
on the screen when the water filter needs to be replaced.

Removing the filter cartridge

To replace the filter, first remove the old cartridge by opening
the filter door and pulling on the bottom of the cartridge to allow
it to swing outward. When the cartridge can no longer swing,
gently pull to unseat it from the cartridge holder. DO NOT TWIST
CARTRIDGE. A small amount of water may drip out.

Installing the Filter Cartridge

1. Align top of filter cartridge with cartridge holder with the word
“FRONT” facing outward then push the cartridge toward
the rear of the unit until it is fully seated. DO NOT TWIST THE
FILTER CARTRIDGE!

2. While continuing to ensure cartridge is fully seated in the
holder, gently swing the filter inward until it is in position. If
filter will not swing easily, check to ensure filter is properly
aligned and fully seated within the cartridge holder. Close the
filter door.

Swing

Push \ Pull

3. Run two gallons of water through the cold water dispenser
(about 5 minutes) to remove air from the system. A newly

installed filter cartridge will cause water to spurt from the
dispenser. Use a large pitcher or sports bottle to catch the

water spray. DO NOT use hands-free auto-fill (some models)
until all air is removed from the system.

4. Reset Filter Status message (non-touch screen models).

WARNING

Use of the hot water dispenser prior to purging air from the
system may result in spurting of hot water and lead to hot water
scalding. Follow the instructions above to purge all air from the
system through the cold water dispenser prior to using the hot
water dispenser.

Note: It is normal for water to appear discolored during the initial
system flush. Water color will return to normal after first few
minutes of dispensing.

Filter Bypass Plug

To reduce the risk of property damage due to water leakage,
you MUST use the filter bypass plug when a replacement filter
cartridge is not available. The dispenser and icemaker will not
operate without either the filter or bypass plug installed. The
bypass plug is installed in the same way as a filter cartridge.

*Select Models Only

Scalding Hazard.*

WARNING

To reduce the risk associated with choking, do not allow children under 3 years of age to have access to small parts
during the installation of this product. The disposable filter cartridge should be replaced every 6 months at the rated capacity,

or sooner if a noticeable reduction in flow rate occurs.
For the maximum benefit of your filtration system, GE recommends the use of GE-branded filters only. Using GE-branded filters

in GE and Hotpoint® refrigerators provides optimal performance and reliability. GE filters meet rigorous industry NSF standards
for safety and quality that are important for products that are filtering your water. GE has not qualified non-GE-branded filters
for use in GE and Hotpoint refrigerators and there is no assurance that non-GE-branded filters meet GE’s standards for quality,
performance and reliability.

If you have questions, or to order additional filter cartridges, visit our website at www.geapplianceparts.com or call GE
Parts and Accessories, 800.626.2002.

Customers in Canada should consult the yellow pages for the nearest Camco Service Center.

12

About the fresh food storage options. GEAppliances.com

Rearranging the Shelves

Shelves in the refrigerator compartment are adjustable.

To remove:

Remove all items from the shelf.
Tilt the shelf up at the front.
Lift the shelf up at the back and bring the

shelf out.

To replace:

While tilting the shelf up, insert the top hook
at the back of the shelf in a slot on the
track.

Lower the front of the shelf until the bottom
of the shelf locks into place.

Spillproof Shelves

Spillproof shelves have special edges to help
prevent spills from dripping to lower shelves.

Quick Space Shelf *

This shelf splits in half and slides under itself for
storage of tall items on the shelf below.

This shelf can be removed and replaced or
relocated (just like spillproof shelves).

NOTE: The back half of the Quick Space Shelf is
not adjustable.

*Select Models Only

13

About the fresh food storage options.

Non-Adjustable Dairy Bin*

To remove: Lift the dairy bin straight up,

then pull out.

Adjustable Bins on the Door

Adjustable bins can easily be carried from
refrigerator to work area.

To remove: Lift bin straight up, then pull out.
To replace or relocate: Slide in the bin just

above the molded door supports, and push
down. The bin will lock in place (see page 33).

Non-Dispense Models
(Left Hand Door)

To replace: Engage the bin in the molded door

supports and push down. The bin will lock in
place. See page 33.

Drop down tray *

(tray open)

1. Open right fresh food
door

2. Depress both buttons
on lower sides of bin
and bin will drop down.

3. Reverse to reinstall.

Non-Adjustable Bins on the Door (Dispenser Models - Left Hand Door)

To remove: Lift the bin straight up, then pull

out.
To replace: Engage the bin in the molded

supports on the door and push down.
It will lock in place.

The ice maker door bins are not
interchangeable, note the location upon
removal and replace the bin in its proper
location.

*Select Models Only

14

About the climate zone and temperature
controlled drawer. GEAppliances.com

ClimateZone

Keep fruits and vegetables organized in
separate compartments for easy access.

Excess water that may accumulate in the
bottom of the drawers or under the drawers
should be wiped dry.

Temperature Controlled Drawer

The Temperature Controlled Drawer is a
full-width drawer with adjustable temperature
control. This drawer can be used for large
miscellaneous items.

To change setting, press select button.

Note: Temperatures indicate the appropriate tem­peratures for the food and actual temperatures may
vary based on normal operation and other factors
such as door openings and fresh food set point.

Meat Beverage Deli

32° 34° 38°

CAUTION

Laceration Hazard.

Do not store glass bottles at this setting. If
they are frozen, they can break and result
in personal injury.

Select

15

About the climate zone and temperature controlled drawer.

How to Remove and Replace the Adjustable Deli/Produce Drawer

To remove:

Pull the drawer out to the stop position.
Lift the front of the drawer up and out.

To replace:

Pull left and right slides until fully extended.
Place drawer back in first and rotate drawer

front down to seat on slide.
Push the drawer in to closed position.

How to Remove and Replace Drawer Divider*

To remove:

Pull the drawer out to the stop position.
Slide pan divider to right to release it from

pan.

To replace:

Reverse steps 1 and 2 to replace drawer
divider.

*Select Models Only

16

About the freezer. GEAppliances.com

Freezer Basket and Drawer

Basket.
Drawer

Ice Bucket*

Non-Adjustable Bin in the Freezer

To remove: push in plastic tab on either left or

right side

To replace: slide bin into location until it
locks into place.

Basket Removal

To remove, CFE only:

Open freezer door to the stop position.
Remove freezer door bin by pushing

plastic tab on either left or right side to
release bin hinge pin.

Remove freezer basket by lifting up the
rear of the basket and moving basket
rearward until the front of the basket
can be rotated upward and out.

Lift it out to remove.

To remove, CYE and CWE only:

Open fresh food doors.
Open freezer doorto the stop position.

Remove freezer basket by lifting up the
rear of the basket and rotate it
upward.

Lift it out to remove.

To replace:

Reverse step 1 thru 4 to replace.

*Select Models Only

17

About the automatic ice maker.

A newly installed refrigerator may take 12 to 24 hours to begin making ice.

Ice maker

Feeler Arm

Automatic Ice maker (on some models)

The ice maker will produce seven cubes
per cycle approximately 100–130 cubes
in a 24-hour period, depending on freezer
compartment temperature, room temperature,
number of door openings and other use
conditions.

The ice maker will fill with water when it cools to
15°F (–10°C). A newly installed refrigerator may
take 12 to 24 hours to begin making ice cubes.

If the refrigerator is operated before the water
line connection is made to the unit or if the
water supply to an operating refrigerator is
turned off, make sure that the ice maker is
turned off. Once the water has been connected
to the refrigerator, the ice maker may be turned
on. See the table below for details.

WARNING

You may hear a buzzing sound each time the
ice maker fills with water.

Throw away the first few batches of ice to allow
the water line to clear.

Be sure nothing interferes with the sweep of the
feeler arm.

When the bin fills to the level of the feeler
arm, the ice maker will stop producing ice. It is
normal for several cubes to be joined together.

If ice is not used frequently, old ice cubes will
become cloudy, taste stale and shrink.

NOTE: In homes with lower-than-average water
pressure, you may hear the ice maker cycle
multiple times when making one batch of ice.

To minimize the risk of personal injury, avoid contact with the moving parts of the ejector
mechanism, or with the heating element that releases the cubes. Do not place fingers or
hands on the automatic ice making mechanism while the refrigerator is plugged in.

How to Turn the Ice Maker On/Off

Display Type (See Page 7) Model # How to turn the ice maker on/off

Control Style A CYE/CFE Use the settings menu on the touchscreen
Control Style B CWE Use the “ICE MAKER” button on the control

Lift and pull

Ice Box
Door

Ice Bucket and Dispenser*

• Open the ice box door on inside of the left
door.

• Pull up and out on on the ice bucket in
the left hand door to remove it from the
compartment .

• To replace the ice bucket, set it on the
guide brackets and push until the ice
bucket seats properly.

• If bucket cannot be replaced, rotate the ice
bucket fork 1/4 turn clockwise.

Freezer Ice Bucket*

The ice storage is in the freezer compartment
drawer.

• Open the freezer drawer.

• The ice bucket is located on the left side of
the upper basket.

• Pull the upper basket forward to remove
the ice bucket.

Freezer
Ice
Bucket

18

Care and cleaning of the refrigerator. GEAppliances.com

Cleaning the Outside

The stainless steel panels, door handles and trim.

Do not use appliance wax, polish, bleach, or other products
containing chlorine on stainless steel.
Stainless steel can be cleaned with a commercially available
stainless steel cleaner. A spray-on stainless steel cleaner
works best.

Cleaning the Inside

Unplug the refrigerator before cleaning.

If this is not practical, wring excess moisture out of sponge or
cloth when cleaning around switches, lights or controls.
Use an appliance wax polish on the inside surface between
the doors.

8VHZDUPZDWHUDQGEDNLQJVRGDVROXWLRQ³DERXWD

tablespoon (15 ml) of baking soda to a quart (1 liter) of water.
This both cleans and neutralizes odors. Rinse and wipe dry.

Behind the Refrigerator

Be careful when moving the refrigerator away from the wall. All
types of floor coverings can be damaged, particularly cushioned
coverings and those with embossed surfaces.

Silver-accented plastic parts.

Wash parts with soap or other mild detergents. Wipe clean with
a sponge, damp cloth or paper towel.
Do not use scouring pads, powdered cleaners, bleach or
cleaners containing bleach because these products can
scratch and weaken the paint finish.

Should spill tray need cleaning use lime remover.

CAUTION

with warm water when they are cold. Glass shelves and
covers may break if exposed to sudden temperature
changes or impact such as bumping or dropping.
Tempered glass is designed to shatter into many small
pieces if it breaks.

Pull the refrigerator straight out and return it to position by
pushing it straight in. Moving the refrigerator in a side direction
may result in damage to the floor covering or refrigerator.

Do not clean glass shelves or covers

Raise the leveling legs located at the bottom front of the
refrigerator.

Preparing for Vacation

For long vacations or absences, remove food and unplug the
refrigerator. Clean the interior with a baking soda solution of
one tablespoon (15 ml) of baking soda to one quart (1 liter) of
water. Leave the doors open.

LCD Models: turn refrigerator off at control (pg 7) .
If the temperature can drop below freezing, have a qualified

service technician drain the water supply system to prevent
serious property damage due to flooding.

1) Turn refrigerator off (pg. 7) or unplug the refrigerator.

2) Empty ice bucket

Preparing to Move

Secure all loose items such as shelves and drawers by taping
them securely in place to prevent damage.

When using a hand truck to move the refrigerator, do not rest
the front or back of the refrigerator against the hand truck. This
could damage the refrigerator.

Lower the leveling legs until they touch the floor.

When pushing the refrigerator back, make sure you don’t
roll over the power cord or water supply line.

3) Turn water supply off

If you cut the water supply off, turn off the ice maker (pg. 18).

Upon returning from vacation:

1) Replace the water filter.

2) Run 2 gallons of water through the cold water dispenser
(about 5 minutes) to flush the system.

3) Dispense 185°F hot water 3 times (10 oz. each) to flush the
system.

Handle only from the sides of the refrigerator.

Be sure the refrigerator stays in an upright position during
moving.

19

Replacing the lights

Refrigerator Lights (LEDs)

There is LED lighting in fresh food
compartment and on the bottom of
the fresh food doors to light the freezer
compartment.

An authorized technician will need to
replace the LED light.

If this assembly needs to be replaced, call
GE Service at 1.800.432.2737
in the United States or 1.800.561.3344
in Canada.

20

Installation

Refrigerator

Instructions

Questions? Call 800.GE.CARES (800.432.2737) or v isit our Website at: GEAppliances.com
In Canada, call 1.800.561.3344 or visit our Website at: www.GEAppliances.ca

GE Café™ models

BEFORE YOU BEGIN

Read these instructions completely and carefully.

WARNING

Built-in style models (model PYE, CYE, GYE, PWE,
CWE, and ZWE) are top heavy, especially with any
doors open. These models must be secured with
the anti-tip floor bracket to prevent tipping forward,
which could result in death or serious injury. Read
and follow the entire installation instructions for
installing the anti-tip floor bracket packed with your
refrigerator.

•

IMPORTANT ³

and ordinances. Save these instructions for local
inspector’s use.

• Note to Installer – Be sure to leave these instructions with
the Consumer.

• Note to Consumer – Keep these instructions for future
reference.

• Skill level – Installation of this appliance requires basic
mechanical skills.

• Completion time –

Water Line Installation 30 minutes

• Proper installation is the responsibility of the installer.

• Product failure due to improper installation is not covered
under the Warranty.

Tip Over Hazard.

Observe all governing codes

Refrigerator Installation can vary

TOOLS YOU MAY NEED

Adjustable Wrench

1/4” Outer Diameter

Compression Nut

and Ferrule (sleeve)

1/8”, 3/32”, 1/4” & 5/32”

Allen Wrenches

1/8” Drill Bit and
Electric or Hand Drill

Pencil

Ȓµ Socket Ratchet/Driver

Phillips-Head Screwdriver

Flat-Head Screwdriver

Tape Measure

1/4” Nut Driver

PREPARATION

MOVING THE REFRIGERATOR INDOORS

If the refrigerator will not fit through a doorway, the
refrigerator door and freezer drawer can be removed.

• To remove the refrigerator door, see the Installing the
Refrigerator section.

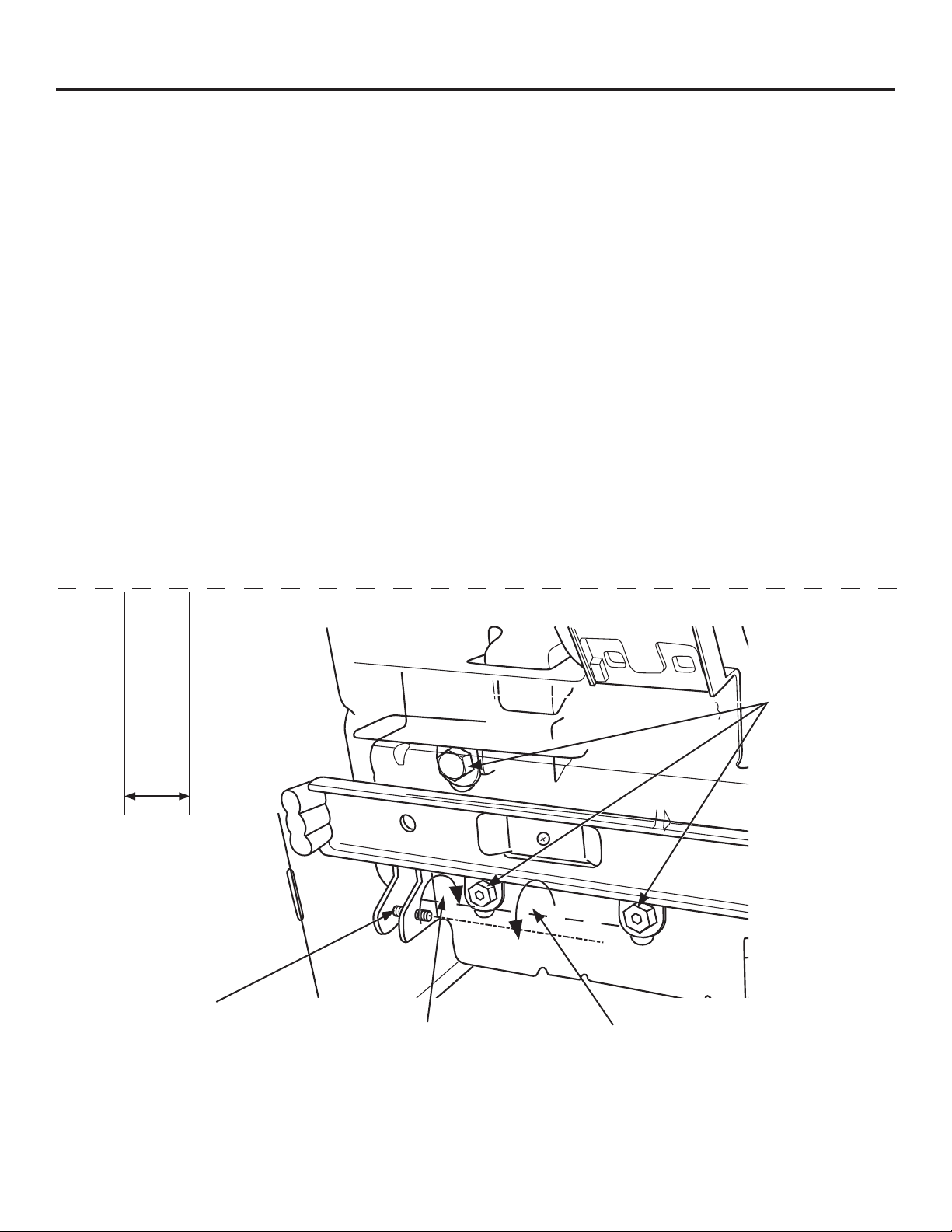

• To remove the freezer drawer, see the Removing the
Freezer Drawer section.

WATER SUPPLY TO THE ICE MAKER AND DISPENSER

If the refrigerator has an ice maker, it will have to be
connected to a cold water line. A GE water supply
kit (containing tubing, shutoff valve, fittings and
instructions) is available at extra cost from your dealer,
by visiting our website at GEAppliances.com (in Canada
at www.GEAppliances.ca) or from Parts and Accessories,

800.626.2002 (in Canada 1.800.661.1616).

21

Pliers

Torx T20, T25

Level

Installation Instructions

DIMENSIONS

7

ø8

”

All measurements are given with leveling leg fully retracted.

CFE OnlyCYE, CWE Only

353ø4”353ø4”

7

ø8

69

”69

Case Depth w/o

3

CFE

24

”

ø8

3

CYE

”

ø8

Doors 29

23 1ø4” CFE
18 1ø4” CYE

Height from

floor to hinge

cover top 69

7

ø8”

69”69”

Additional Dimensions

361ø4”311ø4”

MOVING THE REFRIGERATOR

• Using the chart below determine if the width of your passageway can accommodate the depth of the refrigerator.
Ensure you have clearance to prevent damage to the refrigerator before safely moving it to the final location.

• If passageways are large enough to accommodate the refrigerator without removing the handles skip to Step 6. Leave
tape, film and all packaging on doors until the refrigerator is in the final location.

• NOTE: Use a padded hand truck or moving straps to move this refrigerator. Place the refrigerator on the hand truck

with a side against the truck. We strongly recommend that two people move and complete this installation.

If your model number starts with CFE

CFE CYE, CWE

7

ø8

Overall Height to Top of

69

Hinge Cover
Height to Top of Cabinet
Case Depth without Doors
Overall Exterior Case Width
Overall Exterior Depth

69” 69”

3

ø8

29

353ø4”353ø4”

36¼” 31¼”

Doors/Drawers with Handles

If your model number starts with CYE, CWE

7

”69

”24

ø8

”

3

ø8

36.25” 35.25” 29.375”

33.75” 30.25”

22

31.25”

30.25”

28.75”

25.25”

24.375”

Installation Instructions

INSTALLING THE REFRIGERATOR

REFRIGERATOR LOCATION

• Do not install the refrigerator where the temperature will
go below 60°F (16°C) because it will not run often enough
to maintain proper temperatures.

• Do not install the refrigerator where the temperature will
go above 100°F (37°C) because it will not perform properly.

• Install it on a floor strong enough to support it fully loaded.

REMOVE THE FRESH FOOD

1

DOOR HANDLE

Handle Design varies based on models, however
Installation is same.

Stainless steel and plastic handles:

Loosen the set screws with the 1/8” Allen wrench and

remove the handle.
NOTE: If the handle mounting fasteners need to be tightened or
removed, use a 1/4” Allen wrench.

CLEARANCES

Allow the following clearances for ease of installation, proper
air circulation and plumbing and electrical connections.

Sides 1/8” (3 mm)
Top 1” (25 mm) Cabinet/Hinge Cover
Back 2” (50 mm)

REMOVING THE REFRIGERATOR DOORS

• IMPORTANT NOTE: This refrigerator is 361/4” deep (311/4”
for CYE models). Doors and passageways leading to the
installation location must be at least 36
leave the doors and handles attached to the refrigerator
while transporting it into the installation location. If

1

passageways are less than 36

/4”, the refrigerator doors and
handles can easily be scratched and damaged. The top cap
and doors can be removed to allow the refrigerator to be
safely moved indoors. If passageways are less than 31
start with Step 1.

• If it is not necessary to remove doors, skip to Step 11. Leave
tape and all packaging on doors until the refrigerator is in the
final location.

• NOTE: Use a padded hand truck to move this refrigerator.
Place the refrigerator on the hand truck with a side against
the truck. We strongly recommend that TWO PEOPLE move
and complete this installation.

1

/4” wide in order to

1

/4”,

Mounting
Fasteners

Leave film
on until after
installation

REMOVE THE FREEZER DOOR HANDLE

2

Handle Design varies based on models, however
Installation is same.

Stainless steel and plastic handles:

Loosen the set screws with the 1/8” Allen wrench and remove the

handle.
NOTE: If the handle mounting fasteners need to be tightened or
removed, use a 1/4” Allen wrench.

Mounting

Fasteners

Leave film
on until after
installation

Reinstall the handles using the same
procedure as removing.

23

Installation Instructions

INSTALLING THE REFRIGERATOR (cont.)

REMOVE THE REFRIGERATOR DOORS

3 3

Securely tape the door shut with masking tape or have

A

a second person support the door.

Start with left-hand door first: Remove the hinge cover

B

on top of the left refrigerator door by removing all hex
screws and pulling it up. Do the same for the
right-hand door and the middle cover.

Hinge
Cover

D

REMOVE THE REFRIGERATOR DOORS (cont)

Disconnect the water line from the back of the unit by

pressing down on the dark grey collar while pulling up
on the water line.

Pull waterline through case conduit from the top to
free the line for door removal. The water line is more
than 4’ long and may need to be taped to Door for
accessibility when reinstalling.

C

Disconnect both electrical connectors at the top cover.

Remove the 1/4” hex head screw to disconnect the
ground wire from the hinge.
Remove the 1/4” hex head screw to remove the strain
relief from the water line.

Ground
screw

Strain
Relief

Using a 3/8” socket ratchet/driver, remove the screws

E

securing the top hinge to the cabinet,
then lift the hinge straight up to free the hinge pin
from the location in the top of the door.

CAUTION

Single person lift could cause injury. Use assistance
when handling, moving or lifting the refrigerator doors.

Note: when removing door, to prevent damage to door
and electronics, carefully place the door in a proper
location.
Note: The lower door hinge pin and hinge are keyed and
must be matched correctly for the door to self close
properly. Please follow the directions carefully.

Lifting Hazard.

24

Installation Instructions

INSTALLING THE REFRIGERATOR (cont.)

REMOVE THE REFRIGERATOR DOORS (cont)

3

Note: for proper installation later, please follow the next step
carefully.

Fresh Food doors to be REMOVED and INSTALLED

F

opened at 90° with case front.

Lift up & off
center hinge

Open Door to
90°

REMOVE OPPOSITE DOOR

Follow the same procedure on the opposite
door. There are no wires or water lines on the opposite
side

5

A

B

REINSTALLING THE REFRIGERATOR DOORS

Reverse steps 1 through 4 to reinstall refrigerator, follow
details below for critical alignments.

Reinstall center hinge first and torque the screws to 65
in-lbs. With the LH door at 90º to the front of

the case, lower the refrigerator door onto the center hinge.
Ensure that the door and hinge align correctly.

Rotate doors closed and make sure moveable center sealing
portion of the door aligns with the striker. If the door will not

self-close after reinstalling, remove door, turn door upside down,
check alignment mark and arrow; (there is an alignment mark
on the door closure mechanism It corresponds to an alignment
mark on the bottom end cap. Rotate door closure mechanism
to align mark and arrow, reinstall door).

REMOVE CENTER HINGE (if necessary)

4

Remove the 3/8ļscrews securing the center hinge to the
cabinet. Use T20 driver to remove outboard screw

Remove
center screw

Loosen Outer screws

Underside of Fresh Food Door

align marks

If door cannot be installed at 90° follow steps below:

1. If space or model limits opening door to less than 180°, then:
a) Remove door, carefully turn door upside down.
b) Check alignment of door closure mechanism shaft on
underside of door. The flats on the shaft should
correspond to alignment tab on plastic ring or mark
on bottom end cap.
c) If shaft is not aligned to tab/mark, using 5/32” Allen
wrench, rotate door closure mechanism shaft
counterclockwise for right door and clockwise for left
door. Then align flat with tab/mark.
d) Install the door at 90°.

Securely tape the door shut with masking tape or have a
second person support the door. Reinstall the top hinge
and torque the screws to 65 in-lbs.

C

Be sure to reinstall the ground wire and strain relief to the top
hinge.

Reinstall the hinge cover. Note: Ensure wires are not pinched or

D

under screw bosses before tightening screws.

25

Installation Instructions

INSTALLING THE REFRIGERATOR (cont.)

REMOVE THE FREEZER DOOR

6

A

Pull the freezer door open to full extension.
Remove 3 attachment screws, located at the bottom

B

on each side of the freezer door using 3/8” hex socket
driver.

7

A
B

REPLACING THE FREEZER DOOR

Pull the slide Mechanism to full extension using both
hands simultaneously.

Remove the basket resting on the slides.

CAUTION

Freezer door is heavy Use both hands to secure the
door before lifting.

Lift the freezer door to disengage it from the slide

C

mechanism

Lifting Hazard

CAUTION

Freezer door is heavy Use both hands to secure the
door before lifting.

Lift the freezer door and place it on the slide mechanism

C

Lifting Hazard

Align and insert
tab on freezer
door bracket
into slot on
freezer slide
bracket.

The door can safely rest on the bottom. Do not rest the
door on any other surfaces to avoid scratches.

Push the slide mechanism back completely until it self
retracts.

26

Replace the attachment screws and torque the screws

D

to 65 in-lb
For adjusting freezer door gaps, follow the instructions

E

on pg 27.
Replace the basket

F

Installation Instructions

INSTALLING THE REFRIGERATOR (cont.)

Instructions for adjusting freezer door gaps:

IMPORTANT!
The 6 mounting screws (3 on each side) are NOT interchangeable with the center or top hinge
screws. Drawer screws have flat washer heads, and other screws have lines/ribs on washer heads.

After installation of the freezer door, check for uniform gaps (top and bottom of right and left hand side)
with the template provided.

In the event of excessive gaps use the following steps to adjust the freezer door.

Step 1 - Loosen the 3 screws on each side (right and left) of the freezer door.

Step 2 - Adjust set screw clockwise if gap at the top is too big (see template). Turn the set screw using 3/32” hex

key clockwise by quarter to half a rotation
Step 3 - Adjust set screw counter-clockwise if gap at the bottom is too big (see template). Turn the set screw

using 3/32” hex key counter-clockwise by quarter to half a rotation

Step 4 - Tighten the 3 screws on each side (right and left).
Step 5 - Re-check the gaps using the template and repeat steps 1 to 4 if required and complete with step 5.

Fold here for using template

0.600”

Template for checking gaps.

Gap should be 0.6” or below.

Gabarit pour vérifier les

écarts. L’écart doit être de

0,6 po (1,5 cm) ou moins.

Plantilla para el control de

espacios. El espacio debería

ser de 0.6” o inferior.

Plier ici pour utiliser le gabarit Dóblelo aquí para usar la plantilla

Step 1
Étape 1
Paso 1

Step 4
Étape 4
Paso 4

Set Screw
Vis d’ajustement
Tornillo del Set

GE Appliances
General Electric Company
Louisville, KY 40225

GEAppliances.com

Step 2
Étape 2
Paso 2

Step 3
Étape 3
Paso 3

Refer to 239D4144P001 Pub No. 31-45474-2 11-12 GE

27

Installation Instructions

INSTALLING THE REFRIGERATOR (cont.)

LEVEL THE FREEZER DOOR

8

9

LEVEL THE FREEZER DOOR (cont.)

A

Lift the door on the side requiring adjustment,
rotate the cam to required position.

0 - Initial position
1 - Lift by 0.050”

-1 - Lower by 0.050”

-2 - Lower by 0.100

-3 - Lower by 0.150”

Locate the height adjuster cam in the freezer

A

door. Slightly loosen the three door attachment
screws on both sides using a 3/8” hex socket
driver.

Locate and loosen the cam screw using the

B

T-27 screw driver.

After adjustment tighten the 3 attachment

B

screws using to 65 in-lb.

REMOVE PACKAGING

10

A) Remove all tape, foam and protective

packing from shelves and drawers.

28

Installation Instructions

INSTALLING THE REFRIGERATOR (cont.)

Anti-Tip Floor Bracket Installation (Models PYE, CYE, GYE, PWE, CWE, and ZWE only)

WARNING

Tip Over Hazard.

Built-in style models (model PYE, CYE, GYE, PWE,
CWE, and ZWE) are top heavy, especially with any
doors open. These models must be secured with
the anti-tip floor bracket to prevent tipping forward,
which could result in death or serious injury. Read
and follow the entire installation instructions for
installing the anti-tip floor bracket packed with your
refrigerator.

NOTE:

If you did not receive an anti-tip bracket with your
purchase, call 1.800.626.8774 to receive one at no
cost. (In Canada, call 1.800.561.3344.)

For installation instructions of the bracket, visit:
www.GEAppliances.com.
(In Canada, www.GEAppliances.ca.)

MATERIALS YOU MAY NEED (not included)

TOOLS YOU WILL NEED

1/8” (3 mm) Drill Bit and

Electric or Hand Drill

Pencil

Tape measure

5/16” (8 mm) Nut Driver

LOCATING THE ANTI-TIP FLOOR

AT-2

BRACKET

Place the anti-tip floor bracket locator template

A

(included inside the anti-tip kit) onto the floor up
against the rear wall, within W, and in line with the
desired location of the RH side of the refrigerator
(see Figure 1).

Figure 1 – Installation Overview

Floor – Concrete
(2 Holes)

Floor – Wood
(2 Holes)

2 Wall Holes

Floor Bracket
to Install

RH Holes

15 ¼”

Lag Bolts
1/4” (6 mm) x 1-1/2” (38 mm)

Drill Bit Appropriate for Anchors

For Anti-Tip Bracket Mounted on CONCRETE Floors Only

AT-1

MEASURE CABINET OPENING
AVAILABLE VS. REFRIGERATOR WIDTH

Measure width of cabinet opening where refrigerator
will be placed, W.

Be sure to account for any countertop overhang,
baseboard thickness and any clearance desired. Width,
W, should not be less than 36”. The refrigerator will be
placed approximately in the middle of this opening.

Rear Wall

W

REFRIGERATOR

Front

Anchor Sleeves

1/2” (12 mm) OD

Baseboard
Thickness or
Countertop
Overhang
(Whichever Is
Larger) Plus
Any Desired
Clearance

RH Side

29

Rear RH
Corner of

Base Bracket
on the
Refrigerator

Place the anti-tip floor bracket onto the locator

B

RH Side of
Refrigerator

Cabinet Wall

Locator Template
Sheet

template with its RH floor holes lined up with
the floor holes indicated on the template sheet,
approximately 15 ¼” from the edge of the sheet or
the RH side of the refrigerator.

Hold down in position and use the anti-tip floor

C

bracket as a template for marking the holes based
upon your configuration and type of construction
as shown in Step 3. Mark the hole locations with a
pencil, nail or awl.

NOTE:

•

It is REQUIRED to use at least 2 screws to mount
the floor bracket (one on each side of the anti-tip
floor bracket). Both must be into either the wall
or the floor. Figure 2 indicates all the acceptable
mounting configurations for screws. Identify the
screw holes on the anti-tip floor bracket for your
configuration.

Refer tp 239D1142 P001 Pub# 31-45484-3

Installation Instructions

INSTALLING THE REFRIGERATOR (cont.)

Anti-Tip Floor Bracket Installation (Models PYE, CYE, GYE, PWE, CWE, and ZWE only) (cont.)

LOCATING THE ANTI-TIP FLOOR

AT-2

BRACKET (cont.)

Figure 2 – Acceptable Screw

Placement Locations

Recommended Installation

Minimum Acceptable #1 –

AT-3

A

WOOD Wall and Floor Construction:

• Drill the appropriate number of 1/8” (3 mm)

•

– Wood

Wall Plate Stud

Minimum Acceptable #3 –

Concrete Floor

ANTI-TIP BRACKET INSTALLATION

pilot holes in the center of each floor bracket
hole being used (a nail or awl may be used
if a drill is not available) AND remove the
locator template from the floor.

Mount the anti-tip floor bracket by fastening the
2, or recommended 4, #10-16 hex-head screws
tightly into place as illustrated in Figure 3.

Recommended Installation

– Concrete

Minimum Acceptable #2 –

Wood Floor

Figure 3 – Attachment to Wall and Floor

Rear RH

Corner of the

Refrigerator

2 Screws

Must Enter

Wood or

Metal Stud

Floor

Floor

Bracket

Wall

Wall

Plate

Stud

CONCRETE Wall and Floor Construction:

B

• Anchors required (not provided):
4 each 1/4” (6 mm) x 1-1/2” (38 mm) lag bolts
4 each 1/2” (12 mm) O.D. sleeve anchors

• Drill the recommended size holes for the
anchors into the concrete at the center of the
holes marked in Step 2.

• Install the sleeve anchors into the drilled
holes. Place the anti-tip floor bracket as
indicated in Step 2. Remove the locator
template from the floor.

• Install the lag bolts through the anti-tip floor
bracket and tighten appropriately.

WOOD Wall and TILE Floor Construction:

C

• For this special case, locate the 2 wall holes
identified in Fig. 1. Drill an angled 1/8” (3 mm)
pilot hole (approx. as shown in Fig. 3) in the
center of each hole.

• Mount the anti-tip floor bracket using the
Minimum Acceptable Installation #1, as
illustrated in Fig. 2.

POSITIONING THE REFRIGERATOR

AT-4

TO ENGAGE THE ANTI-TIP FLOOR
AND BASE BRACKETS

Before pushing the refrigerator into the

A

opening, plug the power cord into the
receptacle and connect waterline (if equipped).
Check for leaks.

Locate the refrigerator’s RH side and move back

B

approximately in line with the RH side of the
cabinet opening, W. This should position the
anti-tip floor bracket to engage the anti-tip base
bracket on the refrigerator.

Gently roll the refrigerator back into the cabinet

C

opening until it comes to a complete stop. Check to
see if the refrigerator front lines up with the cabinet
front face. If not, carefully rock the refrigerator
forward and backward until engagement occurs
and you notice that the refrigerator is fully pushed
up against the rear wall.

If Applicable: Adjust the rear (and front) wheel

D

height settings to fully engage the rear anti-tip
brackets, while also aligning the refrigerator
front with the cabinet front face.

NOTE:

If you pull the refrigerator out and away from the wall for
any reason, make sure the anti-tip floor bracket is engaged
when the refrigerator is pushed back against the rear wall.

30

Refer tp 239D1142 P001 Pub# 31-45484-3
