GE AEE12DTL2, AEE12DTL1, AEE12DSW1, AEE12DRL1, AEE12DQW1 Owner’s Manual

...

I,.,

GEAppliances.corn

Safety Instructions ........................2,3

Operoting Instructions .................4,s

Care and Cleaning

Air Filter .............................................................5

Grille and Case ...............................................5

Outdoor Coils ..................................................5

Installation Instructions

Through-the-Wall

Installation-Optional ...............................12

Window Installation .............................7-11

Troubleshooting Tips ..............14, 15

AEE08 AEE12

Climatiseur

La section franqaise commence 8 la page 19

.t..!

Consumer Support

Consumer Support ..................Back Cover

Ownership Registration for

Customers in Canada only ............15, 16

Warranty for Customers

in Canada .......................................................17

Warranty for Customers

in the U.SA.....................................................18

Write the model and serial numbers here:

Acondicionador

deaire

Lo secci6n en espahol empieza en la pdgina 35

Model #

Serial #

Find these numbers on a label on the side of

the air conditioner.

In Canada, contact us at:

www.GEAppliances.ca

49-7665-1 10-12 GE

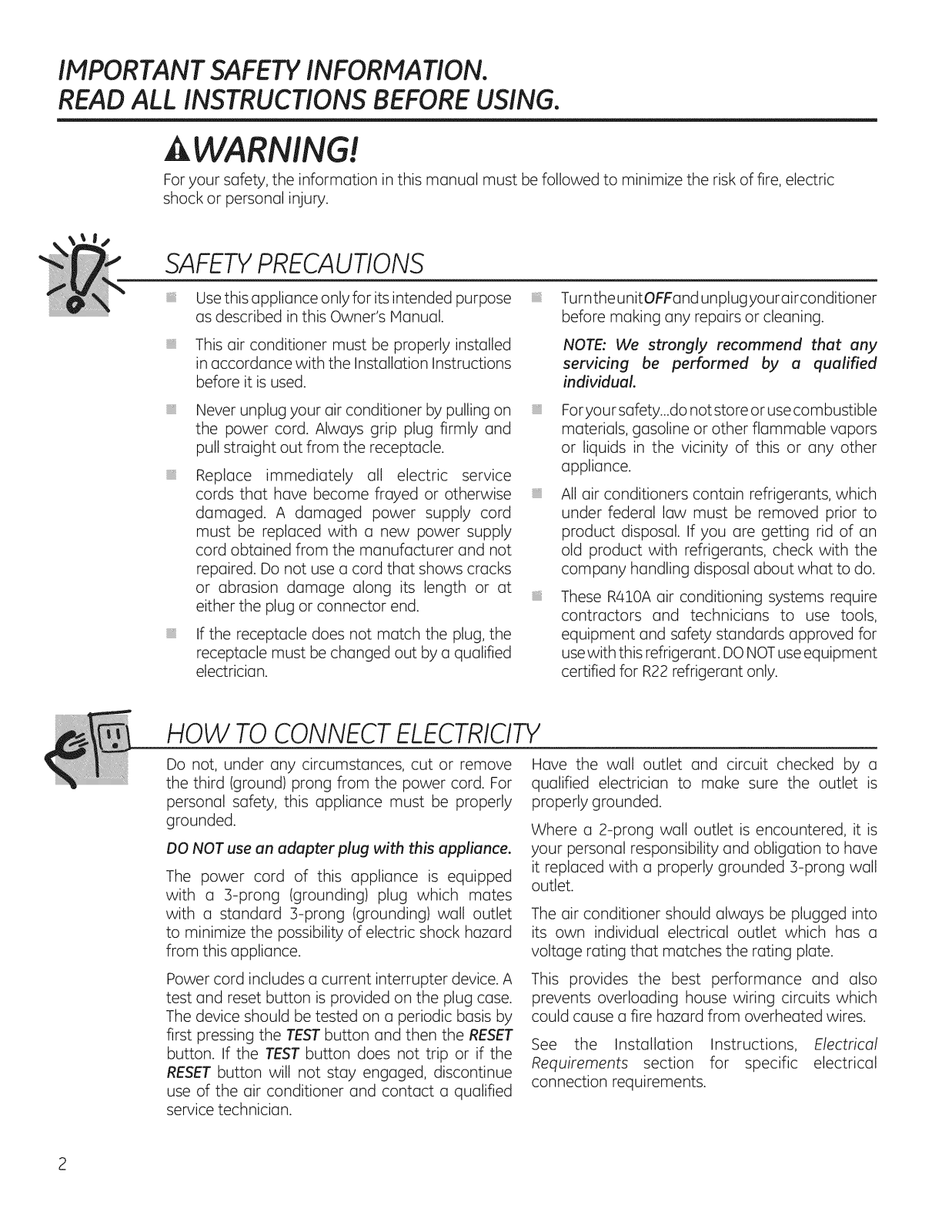

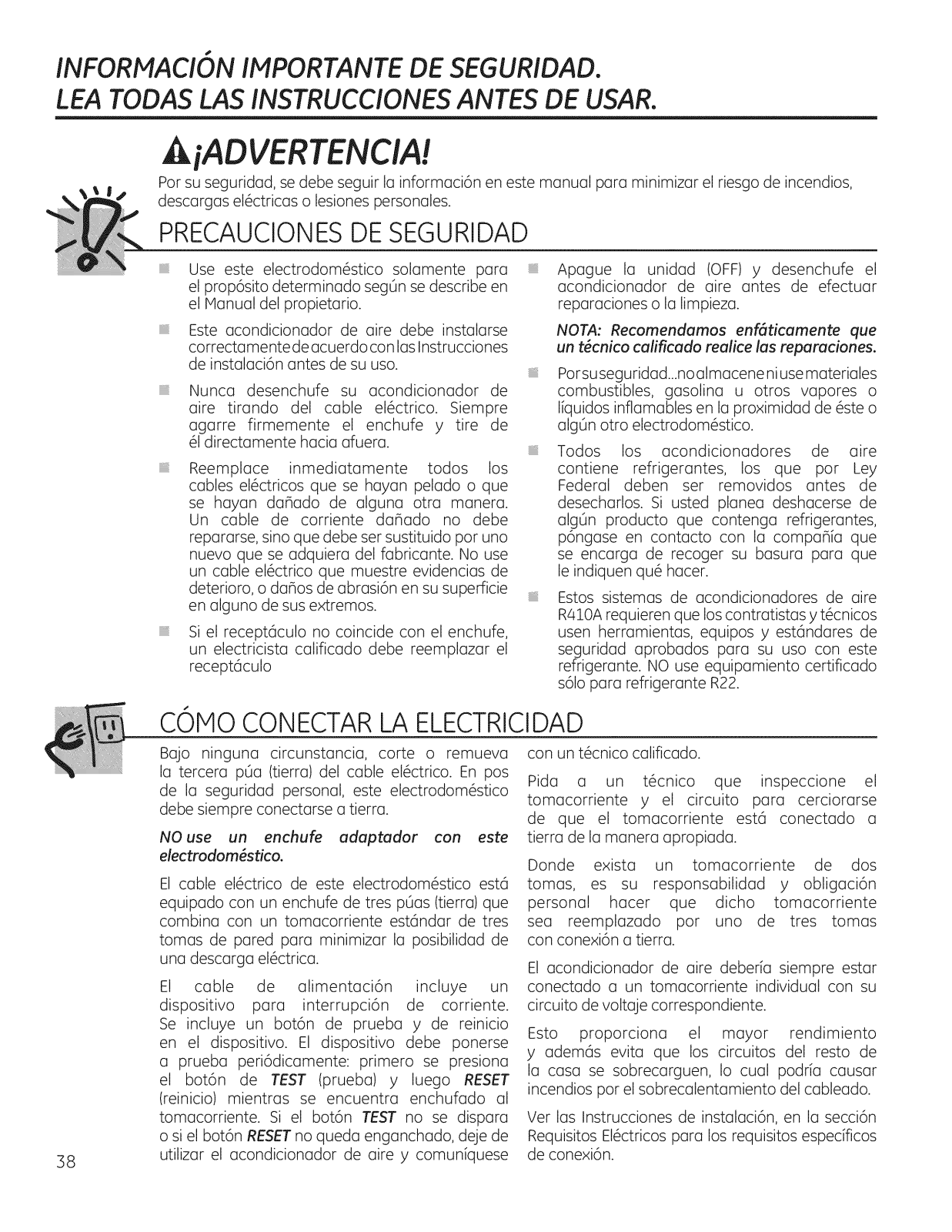

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

A WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock or personal injury.

SAFETYPRECAUTIONS

Use this appliance only for its intended purpose as described in this Owner's Manual.

This air conditioner must be properly installed in accordance with the Installation Instructions

before it is used. Never unplug your air conditioner by pulling on

the power cord. Always grip plug firmly and pull straight out from the receptacle.

Replace immediately all electric service cords that have become frayed or otherwise damaged. A damaged power supply cord must be replaced with a new power supply

cord obtained from the manufacturer and not repaired. Do not use a cord that shows cracks

or abrasion damage along its length or at either the plug or connector end.

If the receptacle does not match the plug, the receptacle must be changed out by a qualified

electrician.

HOW TO CONNECT ELECTRICITY

TurntheunitOFFand unplugyourairconditioner before making any repairs or cleaning.

NOTE: We strongly recommend that any servicing be performed by a qualified

individual.

Foryour safety...do not store or use combustible materials, gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.

All air conditioners contain refrigerants, which under federal low must be removed prior to product disposal. If you are getting rid of an old product with refrigerants, check with the company handling disposal about what to do.

These R410A air conditioning systems require contractors and technicians to use tools, equipment and safety standards approved for use with this refrigerant. DONOTuse equipment certified for R22 refrigerant only.

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded.

DO NOT use an adapter plug with this appliance.

The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance.

Power cord includes a current interrupter device. A test and reset button is provided on the plug case. The device should be tested on a periodic basis by first pressing the TEST button and then the ,RESET

button. If the TEST button does not trip or if the RESET button will not stay engaged, discontinue use of the air conditioner and contact a qualified

service technician.

Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.

Where a 2-prong wall outlet is encountered, it is

your personal responsibility and obligation to have

it replaced with a properly grounded 3-prong wall outlet.

The air conditioner should always be plugged into its own individual electrical outlet which has a

voltage rating that matches the rating plate. This provides the best performance and also

prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.

See the Installation Instructions, Electrical Requirements section for specific electrical

connection requirements.

GEAppliances.com

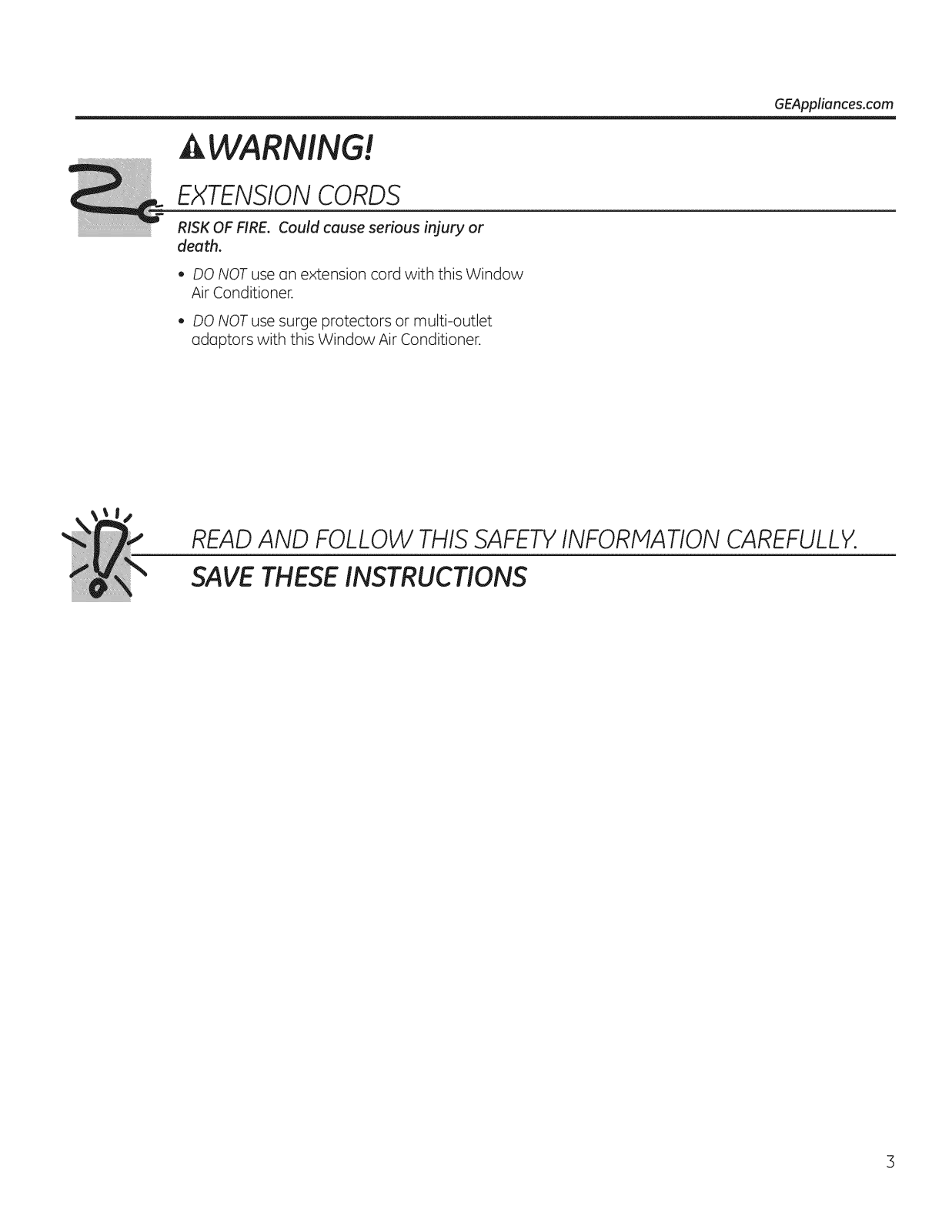

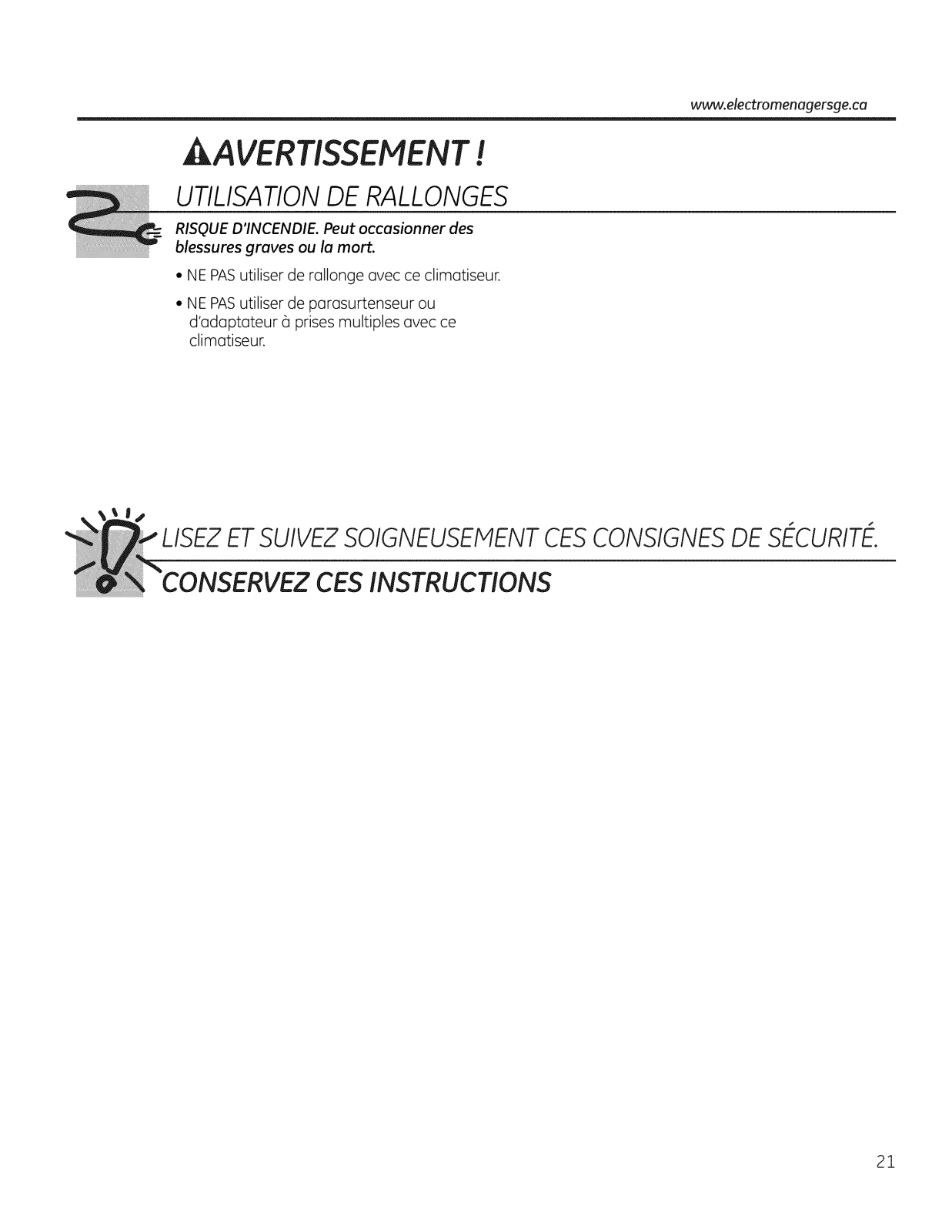

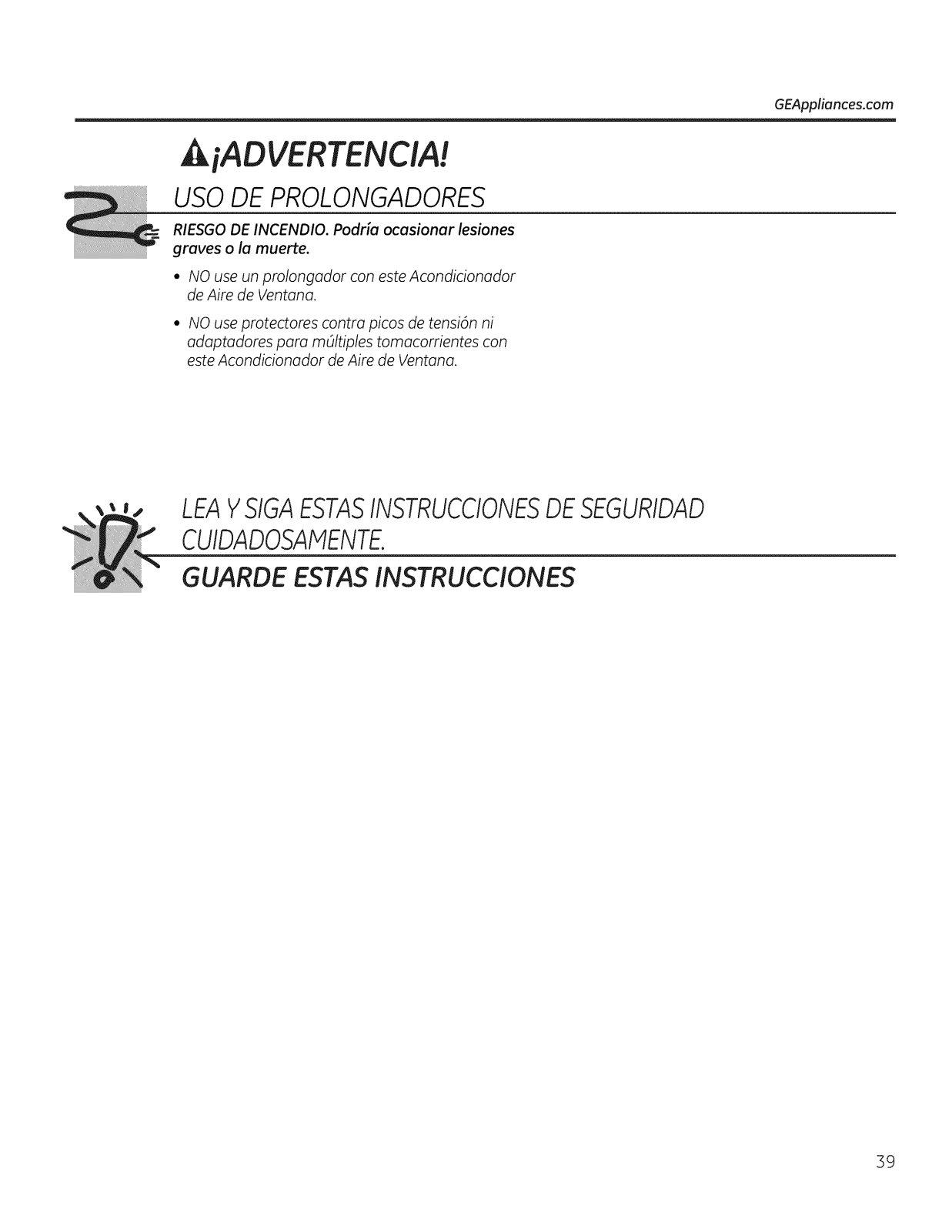

A WARNING!

EXTENSION CORDS

RISK OF FIRE. Could cause serious injury or death.

,, DO NOT use an extension cord with this Window

Air Conditioner.

,, DO NOT use surge protectors or multi-outlet

adaptors with this Window Air Conditioner.

READAND FOLLOW THISSAFETYINFORMATIONCAREFULLY. SAVE THESE INSTRUCTIONS

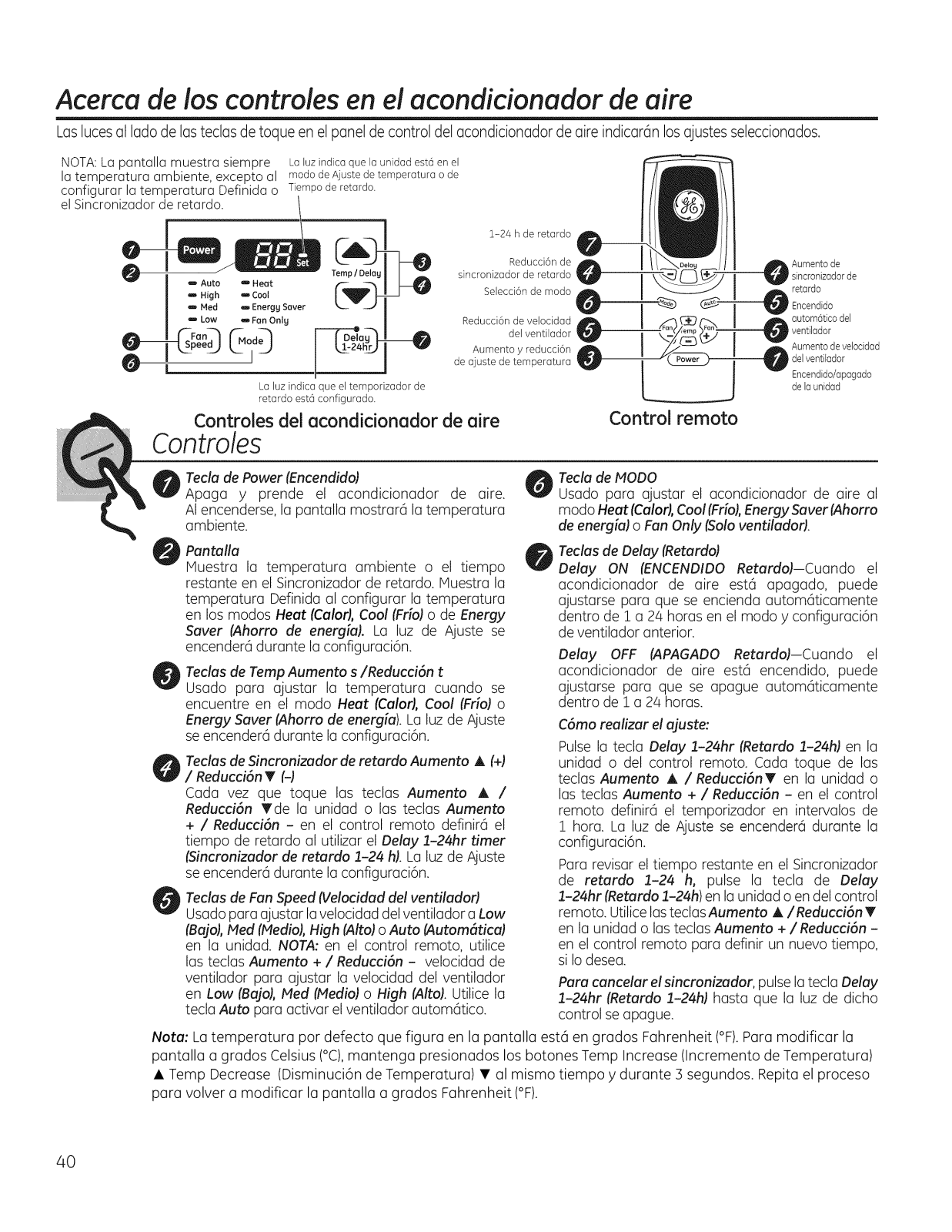

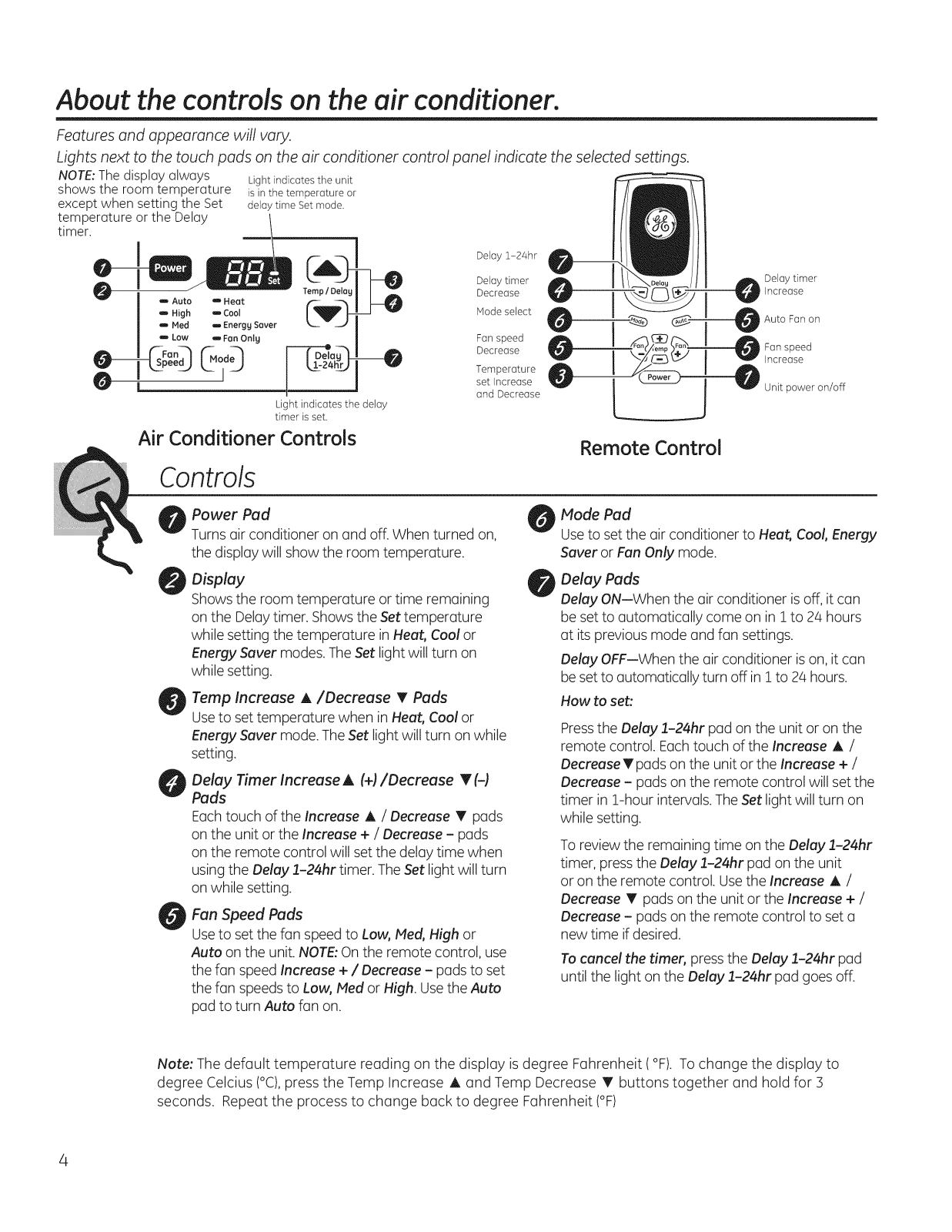

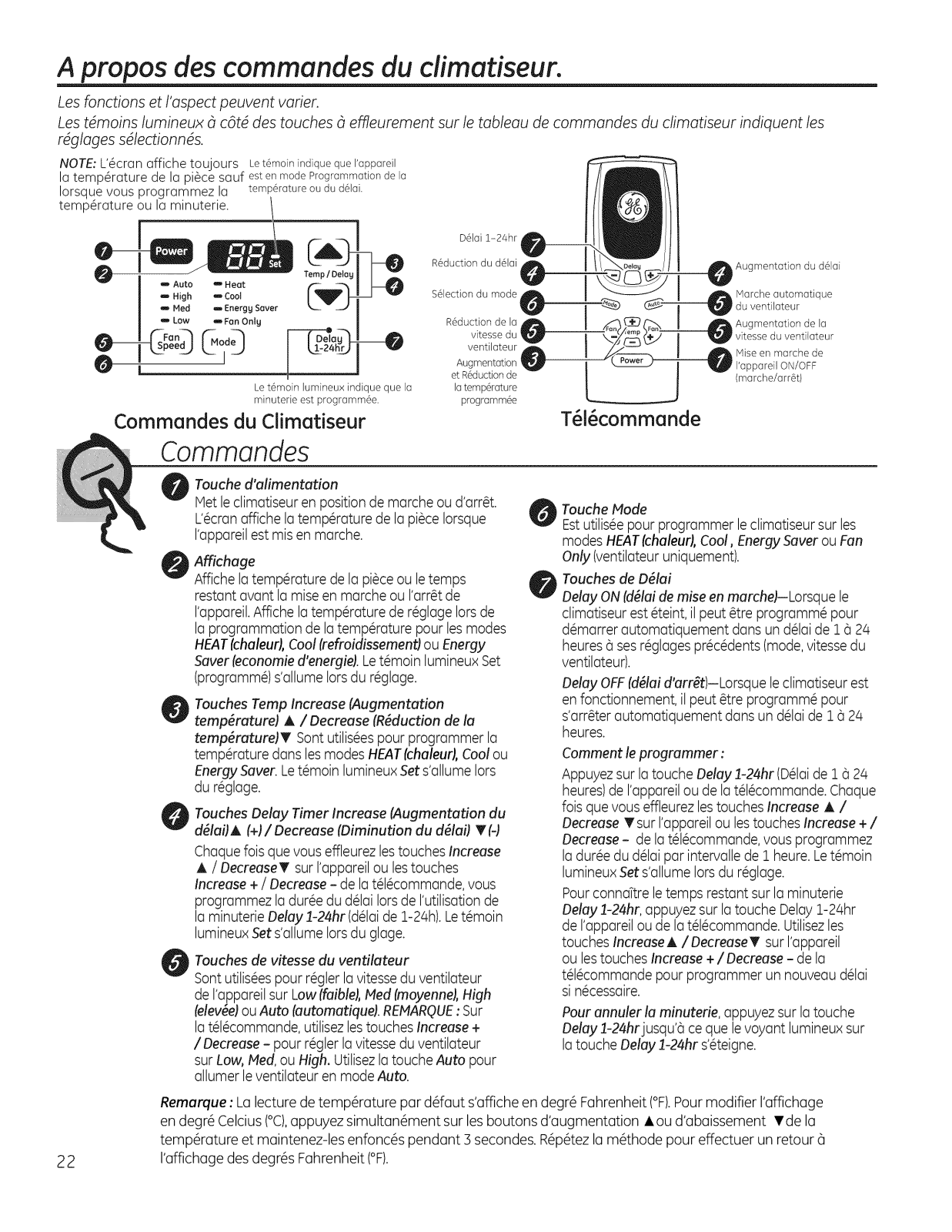

About the controls on the air conditioner.

Features and appearance will vary. Lights next to the touch pads on the air conditioner control panel indicate the selected settings.

NOTE:The display always Light indicates the unit

shows the room temperature is inthe temperatureor except when setting the Set delay time Setmode.

temperature or the Delay

timer.

m High am Cool Mode select amMed _ Energg Saver

_ o,o_.oo Cv]iz_ @

m Low m Fon Only Fan speed

Air Conditioner Controls

Controls

Power Pad

Turns air conditioner on and off.When turned on, the display will show the room temperature.

Display

Showsthe room temperature or time remaining on the Delaytimer. Showsthe Settemperature

while setting the temperature in Heat, Cool or Energy Saver modes. TheSet light will turn on

while setting. Temp Increase A/Decrease T Pads

Useto set temperature when in Heat, Cad or

Energy Saver mode. TheSet light will turn on while setting.

Delay Timer Increase A (+)/Decrease T (-) Pads

Eachtouch of the Increase A / Decrease T pads

on the unit or the Increase + / Decrease - pads on the remote control will setthe delay timewhen

using the Delay 1-24hr timer. TheSetlight will turn on while setting.

Fan Speed Pads

Useto set the fan speed to Low, Med, High or

Auto on the unit. NOTE:Onthe remote control, use the fan speedIncrease + / Decrease - padsto set the fan speedsto Law, Mealor High. Usethe Auto

pad to turn Auto fan on.

T__ Delay 1-24hr

" and Decrease

Light indicates the delay timer is set.

Decrease

Delay timer 0

Temperature set Increase

Delay timer Increase

Remote Control

Mode Pad

Useto set the air conditioner to Heat, Coal, Energy

Saver or FanOnly mode.

Delay Pads

Delay ON--When the air conditioner is off,it can

be set to automatically come on in i to 24 hours

at its previous mode and fan settings. Delay OFF--When the air conditioner is on,it can

beset to automatically turn off in i to 24 hours.

How to set:

Pressthe Delay 1-24hr pad on the unit or on the remote control. Eachtouch of the Increase A /

DecreaseT pads on the unit or the Increase + / Decrease - pads on the remote control will set the

timer in 1-hour intervals.TheSetlight will turn on while setting.

To reviewthe remaining time on the Delay 1-24hr timer, pressthe Delay 1-24hr pad on the unit or on the remote control. Usethe Increase A /

Decrease T padson the unit or the Increase + / Decrease - pads on the remote control to set a

new time if desired. Tocancel the timer, press the Delay 1-24hr pad

until the light on the Delay 1-24hr pad goes off.

Note: The default temperature reading on the display isdegree Fahrenheit (°F). Tochange the display to degree Celcius (°C),press the Temp Increase A and Temp Decrease T buttons together and hold for 3 seconds. Repeat the process to change back to degree Fahrenheit (°F)

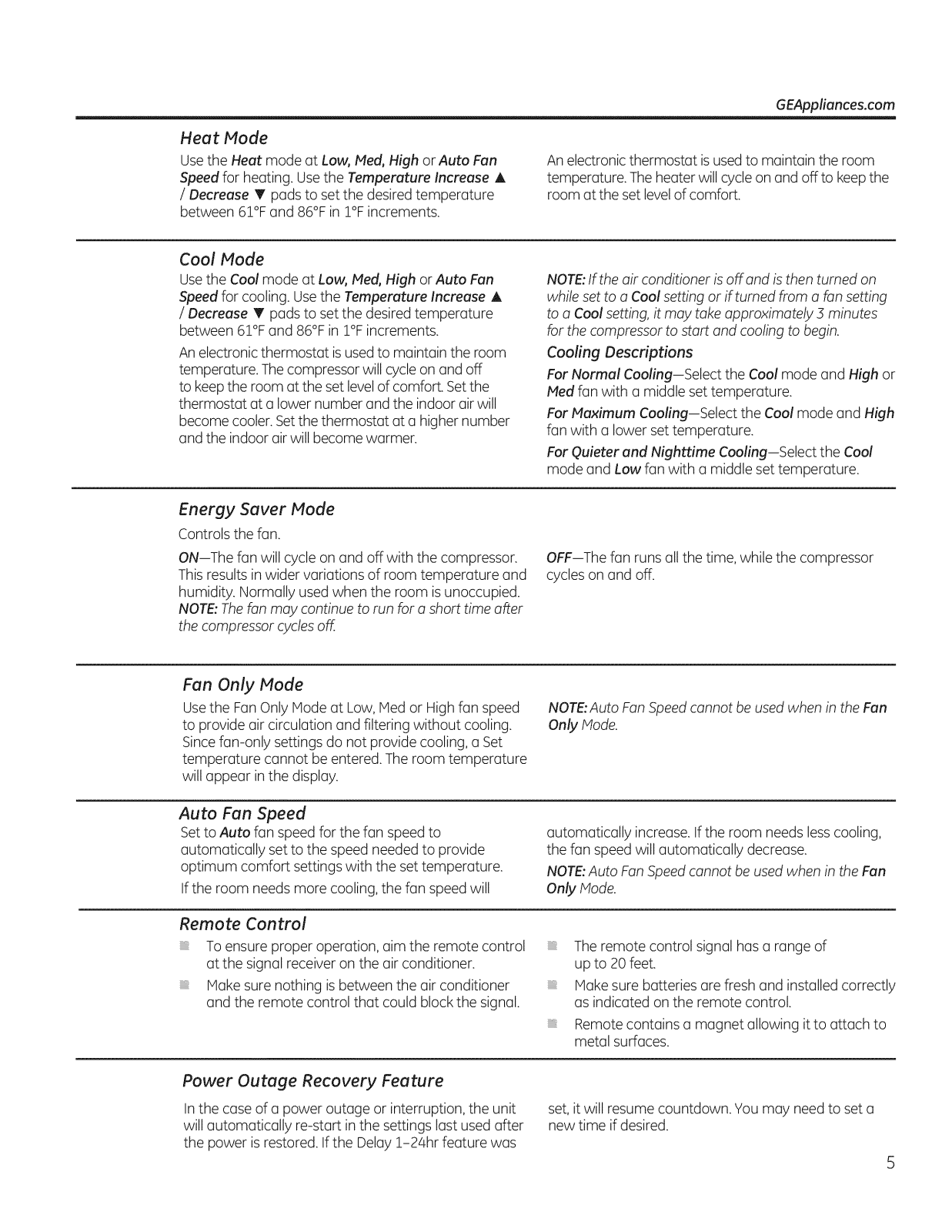

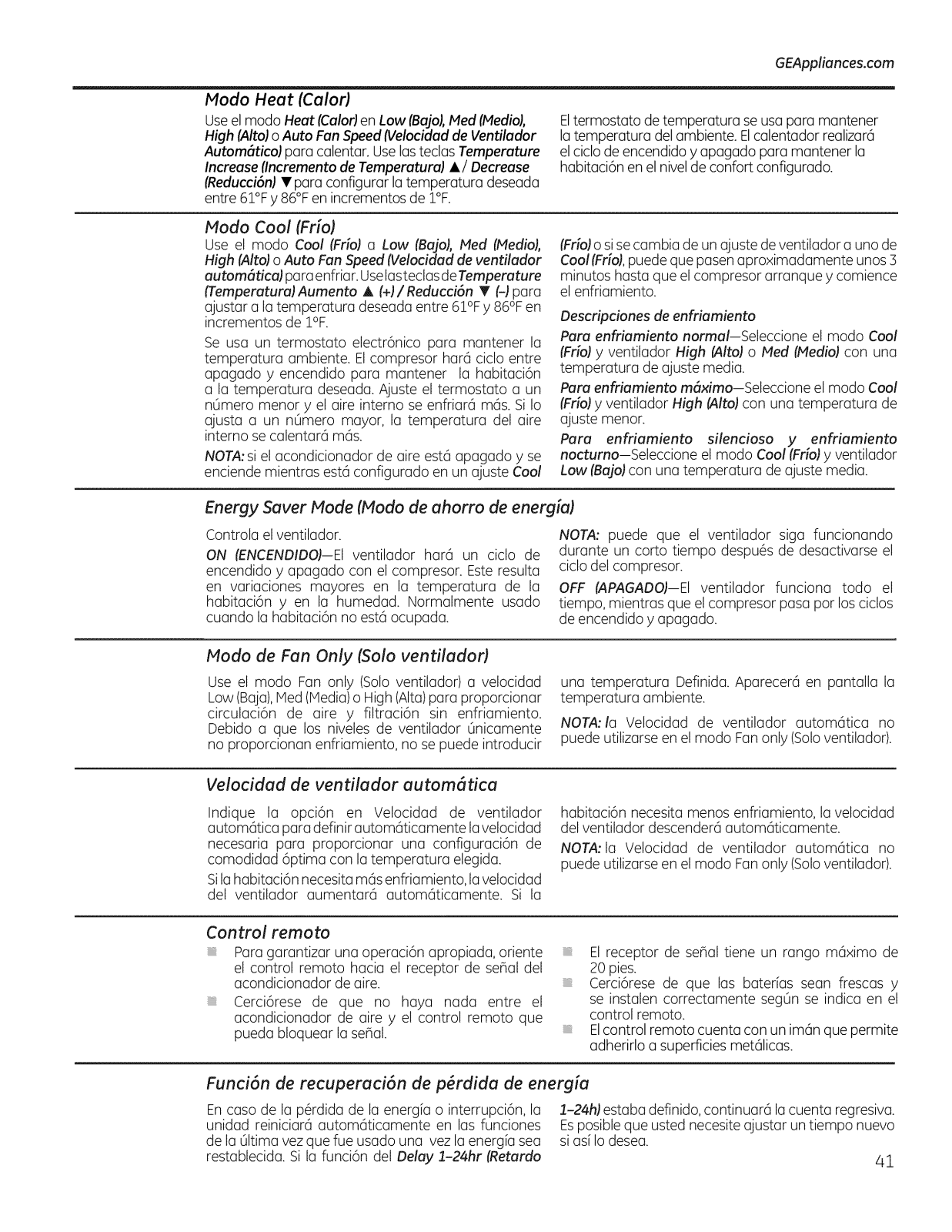

Heat Mode

Usethe Heat mode at Low, Med, High or Auto Fan Speed for heating. Usethe Temperature Increase A / Decrease T pads to set the desiredtemperature

between 61°Fand 86% in I°F increments.

Cool Mode

Usethe Cool mode at Low, Med, High or Auto Fan Speedfor cooling. Usethe Temperature Increase A / Decrease T padsto set the desiredtemperature

between 61°Fand 86% in I°F increments. An electronicthermostat isusedto maintain the room

temperature. Thecompressorwill cycleon and off to keepthe room at the set levelofcomfort. Set the

thermostat at a lower number and the indoor air will become cooler.Setthethermostat at u higher number

and the indoor airwill become warmer.

Energy Sever Mode Controlsthe fan.

ON--The fan will cycleon and off with the compressor.

This results inwider variations of room temperature and

humidity. Normally used when the room is unoccupied.

NOTE:Thefan may continue to run for a short time after the compressorcyclesoff.

GEAppliances.com

An electronicthermostat isusedto maintain the room temperature. Theheaterwill cycleon and off to keep the

room at the set levelof comfort.

NOTE:Ifthe air conditioner is off and is then turned on whilesetto a Coolsetting or if turned from a fan setting

to aCool setting,it may take approximately 5 minutes for thecompressor to start and cooling to 5egin.

Cooling Descriptions ForNormal Cooling--Select the Cool mode and High or

Madfan with a middle set temperature. ForMaximum Cooling--Select the Cool mode and High

fan with u lower set temperature.

ForQuieter end Nighttime Cooling-Select the Cool mode and Low fun with a middle set temperature.

OFF--Thefan runs all the time, while the compressor cycles on and off.

Fan Only Mode

Usethe FanOnly Mode at Low, Hed or Highfan speed to provide air circulation and filtering without cooling. Sincefan-only settings do not provide cooling, a Set temperature cannot be entered.The room temperature will appear inthe display.

Auto Fen Speed

Setto Auto fan speedfor the fan speed to automatically set to the speedneededto provide

optimum comfort settings with the set temperature.

Ifthe room needs more cooling, the fan speedwill

Remote Control

To ensureproper operation, aim the remote control

at the signal receiver on the air conditioner. Hake sure nothing is between the air conditioner

and the remote control that could block the signal.

Power Outage Recovery Feature

Inthe case of a power outage or interruption, the unit will automatically re-start in the settings last used after the power is restored.If the Delay1-24hr feature was

NOTE:AutoFanSpeedcannot be used when in the Fan Only Mode.

automatically increase. Ifthe room needs lesscooling,

the fan speedwill automatically decrease.

NOTE:AutoFanSpeedcannot be used when in the Fan

Only Mode.

Theremote control signal hasa range of

up to 20 feet. Hake sure batteries are fresh and installed correctly

as indicated on the remote control.

Remotecontains a magnet allowing it to attach to metal surfaces.

set,it will resume countdown. You may need to set a new time if desired.

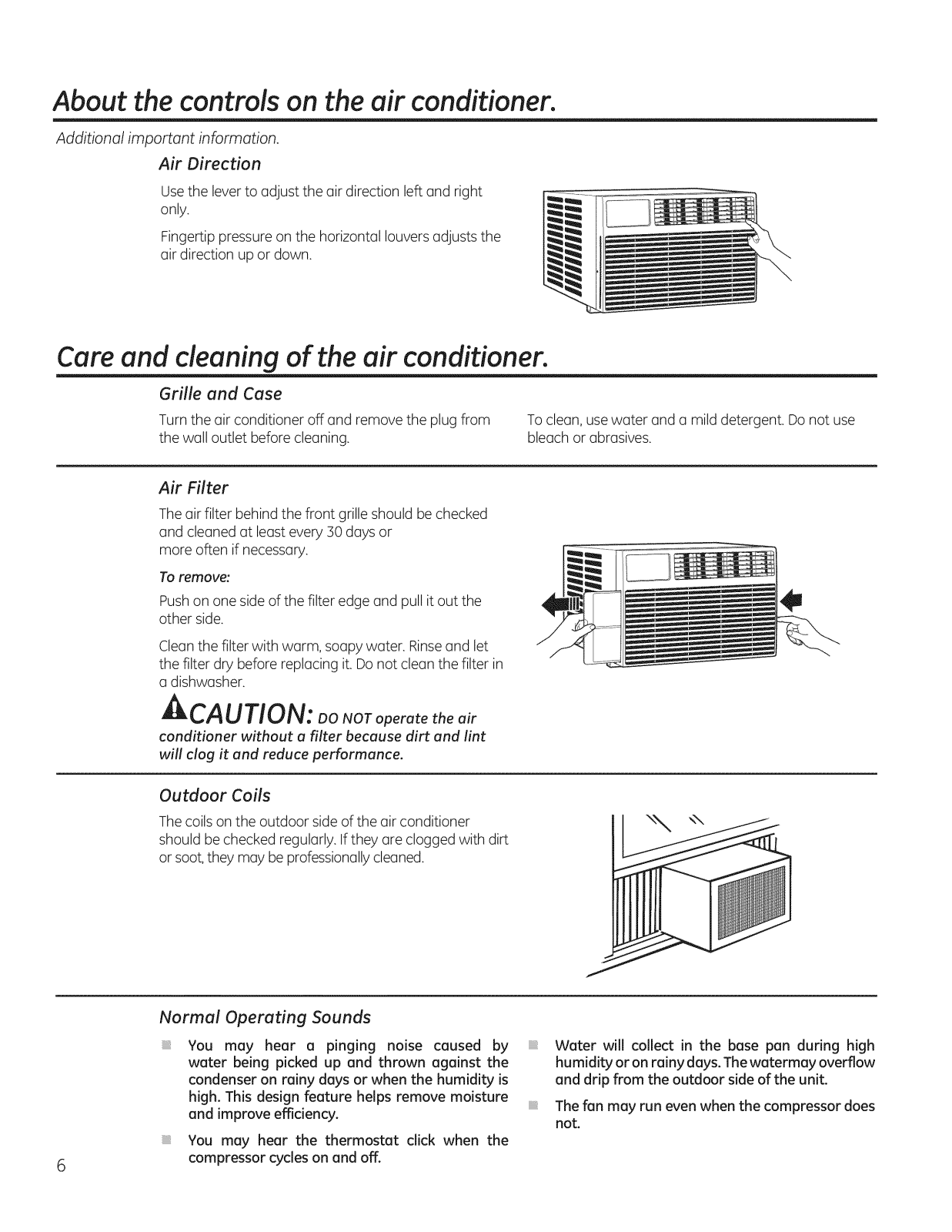

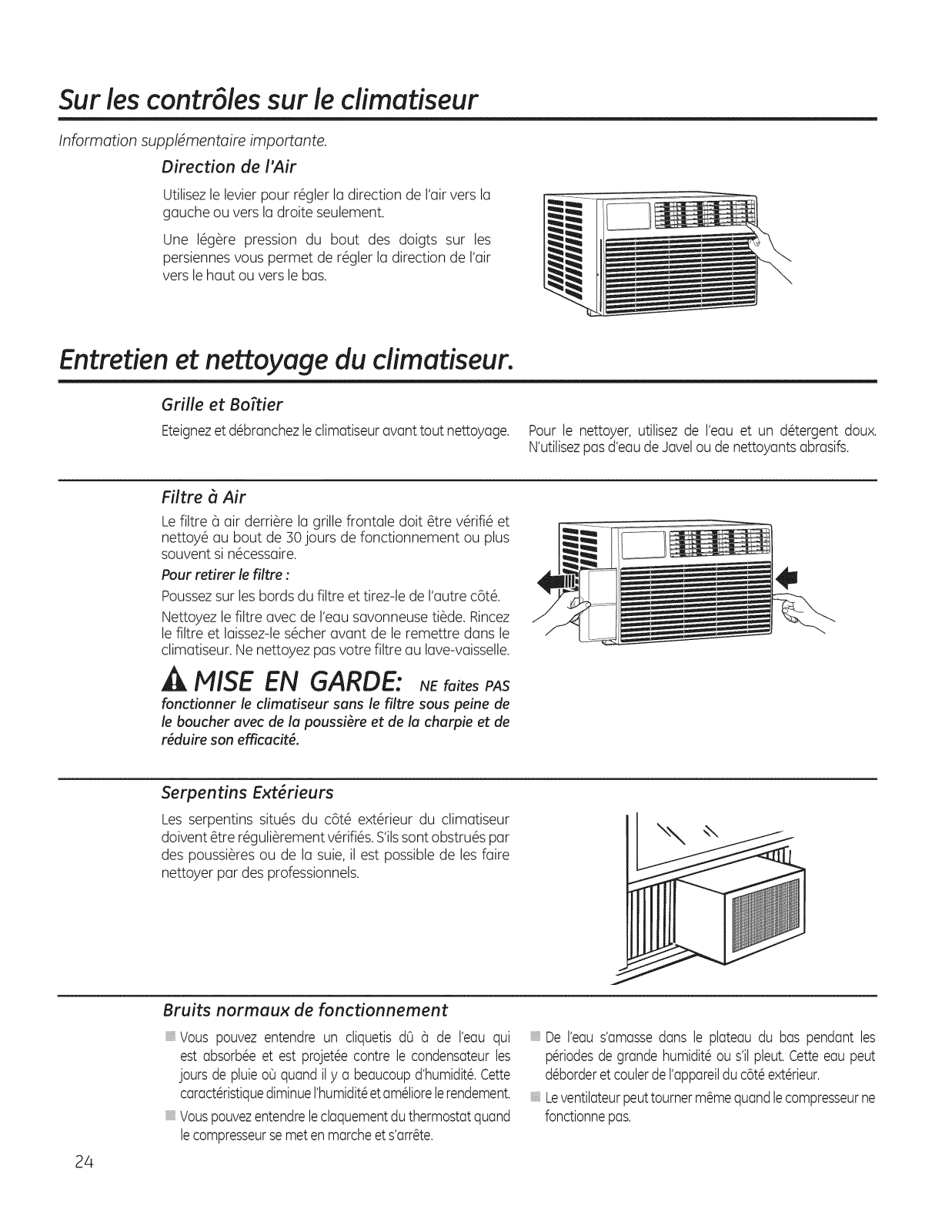

About the controls on the air conditioner.

Additionalimportant information.

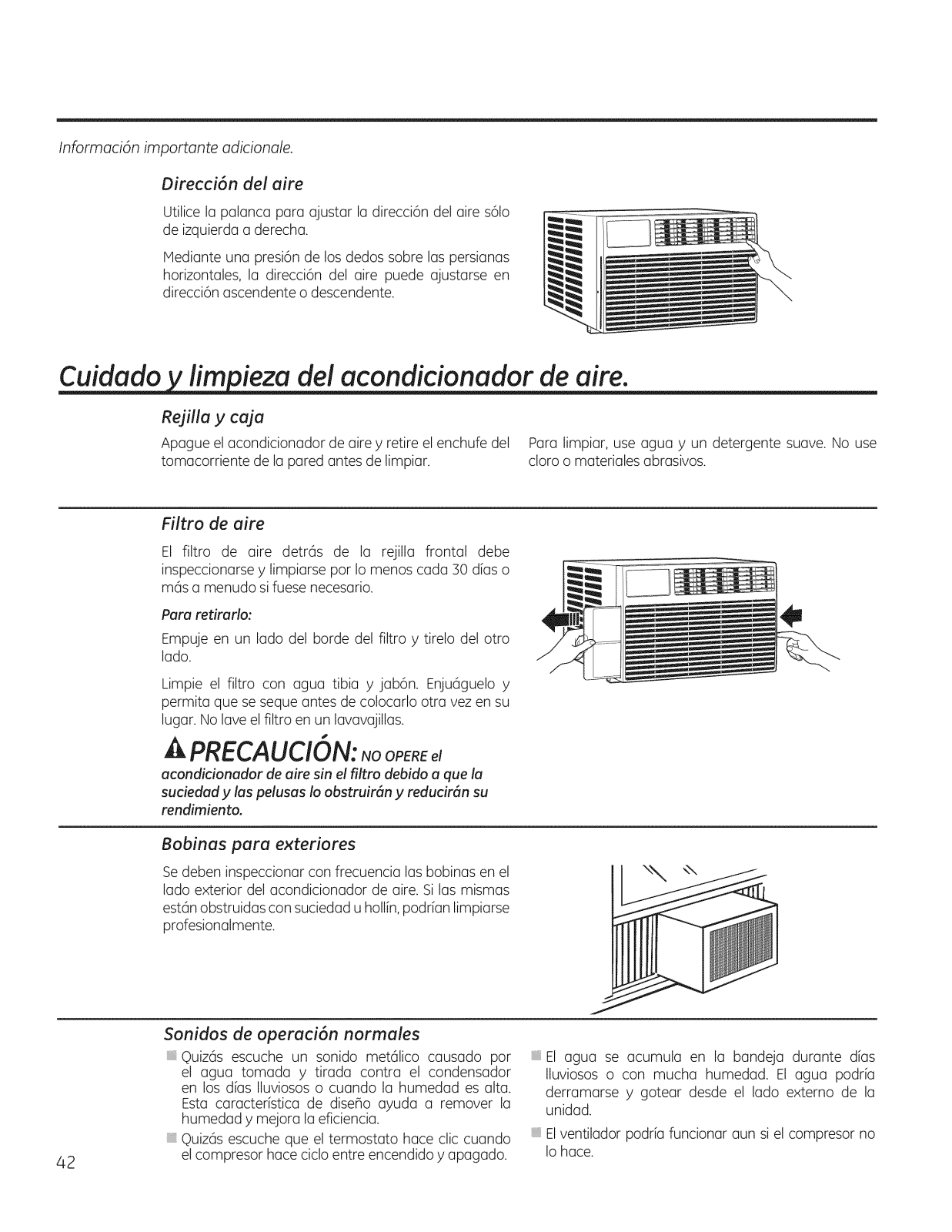

Air Direction

Usethe leverto adjust the air direction left and right

only.

Fingertip pressureon the horizontal louvers adjusts the

air direction up or down.

Care and cleaning of the air conditioner.

Grille and Case Turnthe air conditioner off and remove the plug from Toclean,usewater and a mild detergent. Donot use

the wall outlet before cleaning, bleach or abrasives.

Air Filter

Theairfilter behind the front grille should be checked and cleaned at least every 30 days or

more often if necessary.

To remove:

Pushon one side ofthe filter edge and pull it out the

other side. Cleanthe filter with warm, soapy water. Rinseand let

the filter dry before replacing it. Do not clean the filter in a dishwasher.

_kCAUTiON: ooNoToperate theair

conditioner without a filter because dirt and lint will clog it and reduce performance.

Outdoor Coils

Thecoilsonthe outdoor sideof the air conditioner should be checked regularly. Ifthey are clogged with dirt

or soot,they may be professionallycleaned.

Normal Operating Sounds

iiiiiiiiiiii_iii

You may hear a pinging noise caused by water being picked up and thrown against the

condenser on rainy days or when the humidity is high. This design feature helps remove moisture and improve efficiency.

You may hear the thermostat click when the compressor cycles on and off.

Water will collect in the base pan during high humidity or on rainy days. Thewatermay overflow

and drip from the outdoor side of the unit. Thefan may run even when the compressor does

not.

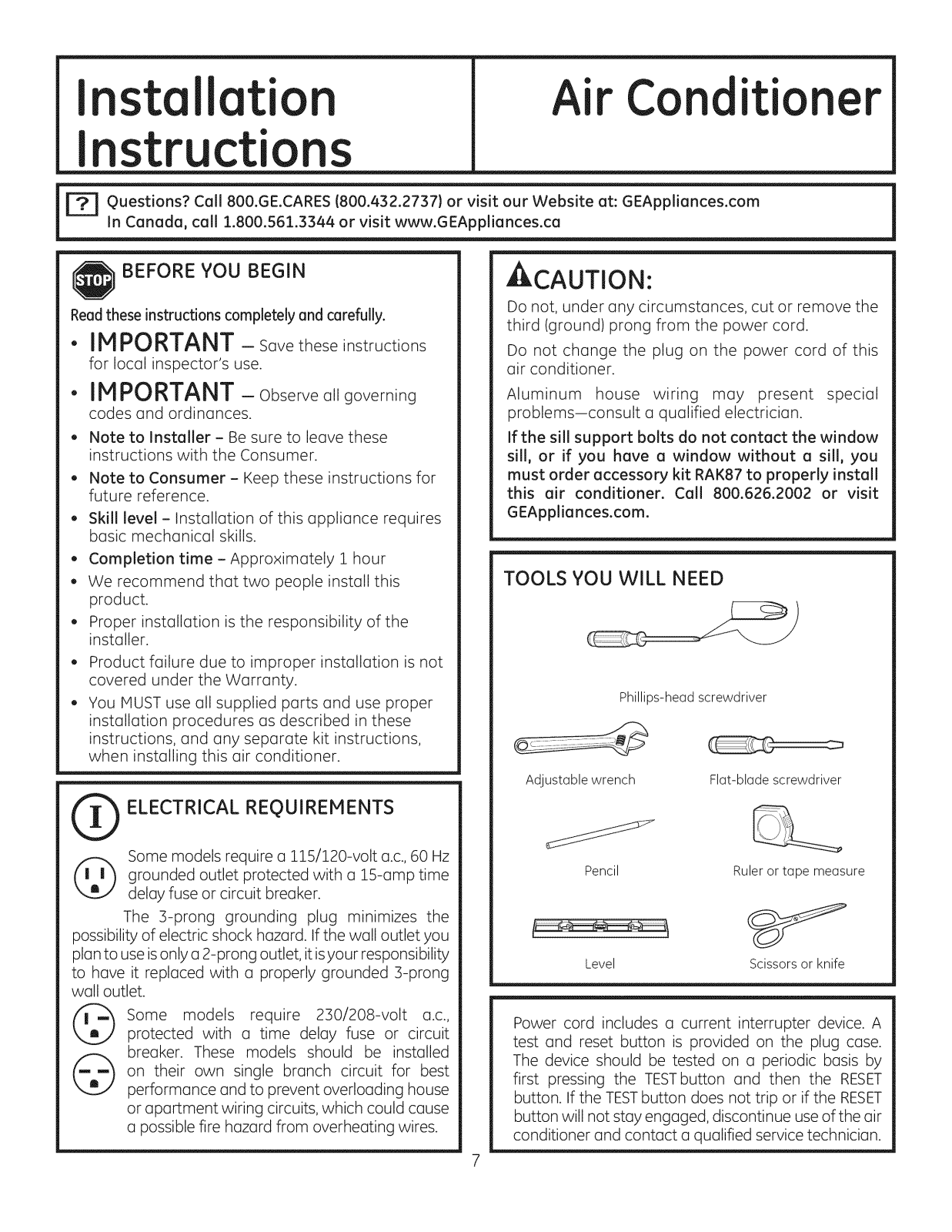

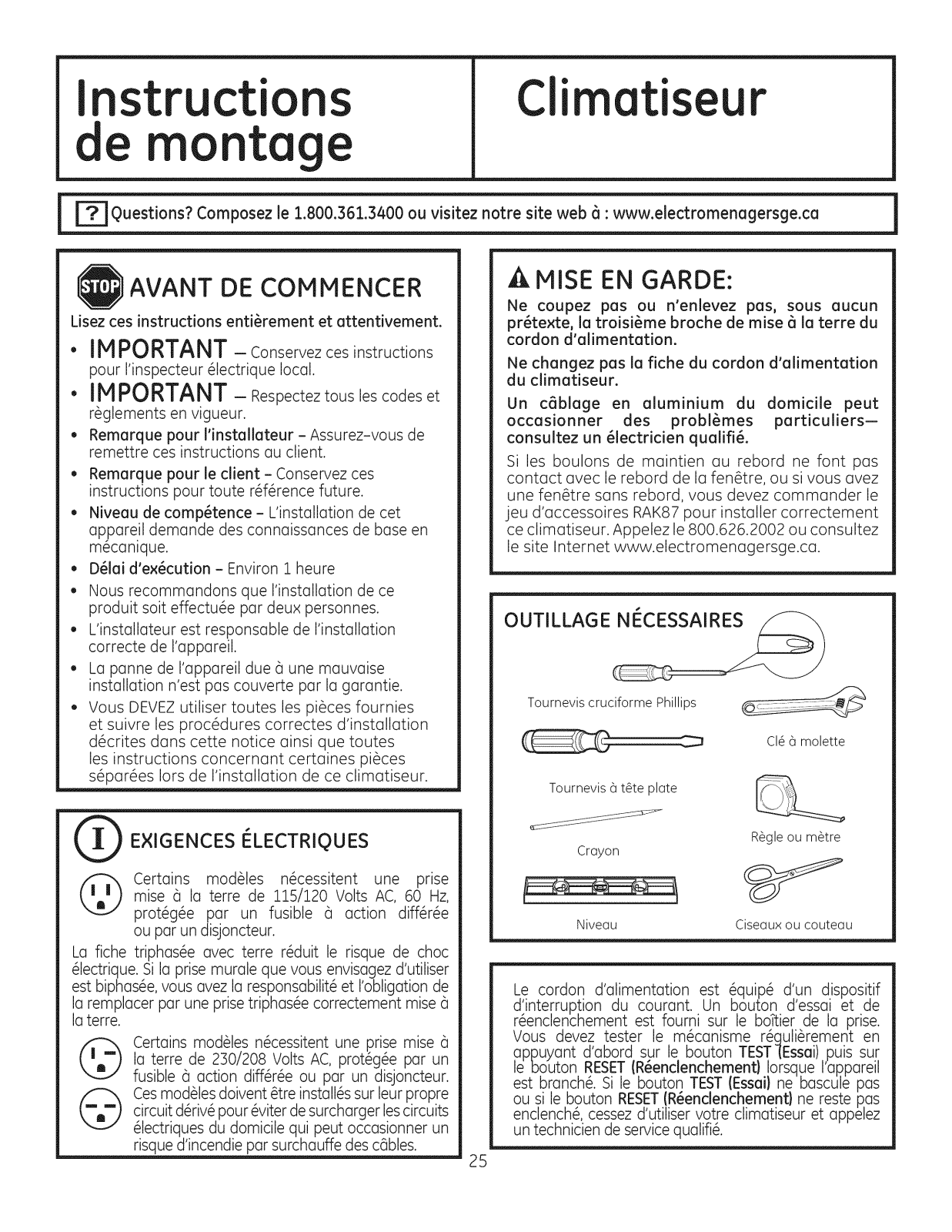

I stall ti

I structi ns

Air Conditio r

BEFORE YOU BEGIN

Readthese instructions completelyand carefully.

. IMPORTANT - Savetheseinstructions

for local inspector's use.

. IMPORTANT - Observeallgoverning

codes and ordinances

, Note to Installer- Be sure to leave these

instructions with the Consumer.

, Note to Consumer - Keep these instructions for

future reference.

, Skill level - Installation of this appliance requires

basic mechanical skills.

, Completion time - Approximately 1 hour

. We recommend that two people install this

product.

. Proper installation is the responsibility of the

installer.

Product failure due to improper installation is not

covered under the Warranty. You MUST use all supplied ports and use proper

installation procedures as described in these instructions, and any separate kit instructions,

when installing this air conditioner.

tkCAUTION:

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.

Do not change the plug on the power cord of this air conditioner.

Aluminum house wiring may present special

problems-consult a qualified electrician.

If the sill support bolts do not contact the window sill, or if you have a window without a sill, you must order accessory kit RAK87 to properly install

this air conditioner. Call 800.626.2002 or visit GEAppliances.com.

TOOLS YOU WILL NEED

Phillips-head screwdriver

Adjustable wrench Flat-blade screwdriver

ELECTRICAL REQUIREMENTS

Some models require a 115/120-volt a.c., 60 Hz grounded outlet protected with a 15-amp time delay fuse or circuit breaker.

The 3-prong grounding plug minimizes the possibility of electric shock hazard. If the wall outlet you plan to use is only a 2-prong outlet, it isyour responsibility

to hove it replaced with a properly grounded 3-prong wall outlet.

(_ Some models require 230/208-volt o.c.,

protected with a time delay fuse or circuit breaker. These models should be installed

on their own single branch circuit for best performance and to prevent overloading house

or apartment wiring circuits, which could cause a possible fire hazard from overheating wires.

Pencil Ruler or tape measure

Level Scissors or knife

Power cord includes a current interrupter device. A test and reset button is provided on the plug case. The device should be tested on o periodic basis by first pressing the TESTbutton and then the RESET

button. If the TESTbutton does not trip or if the RESET button will not stay engaged, discontinue useof the air

conditioner and contact a qualified service technician.

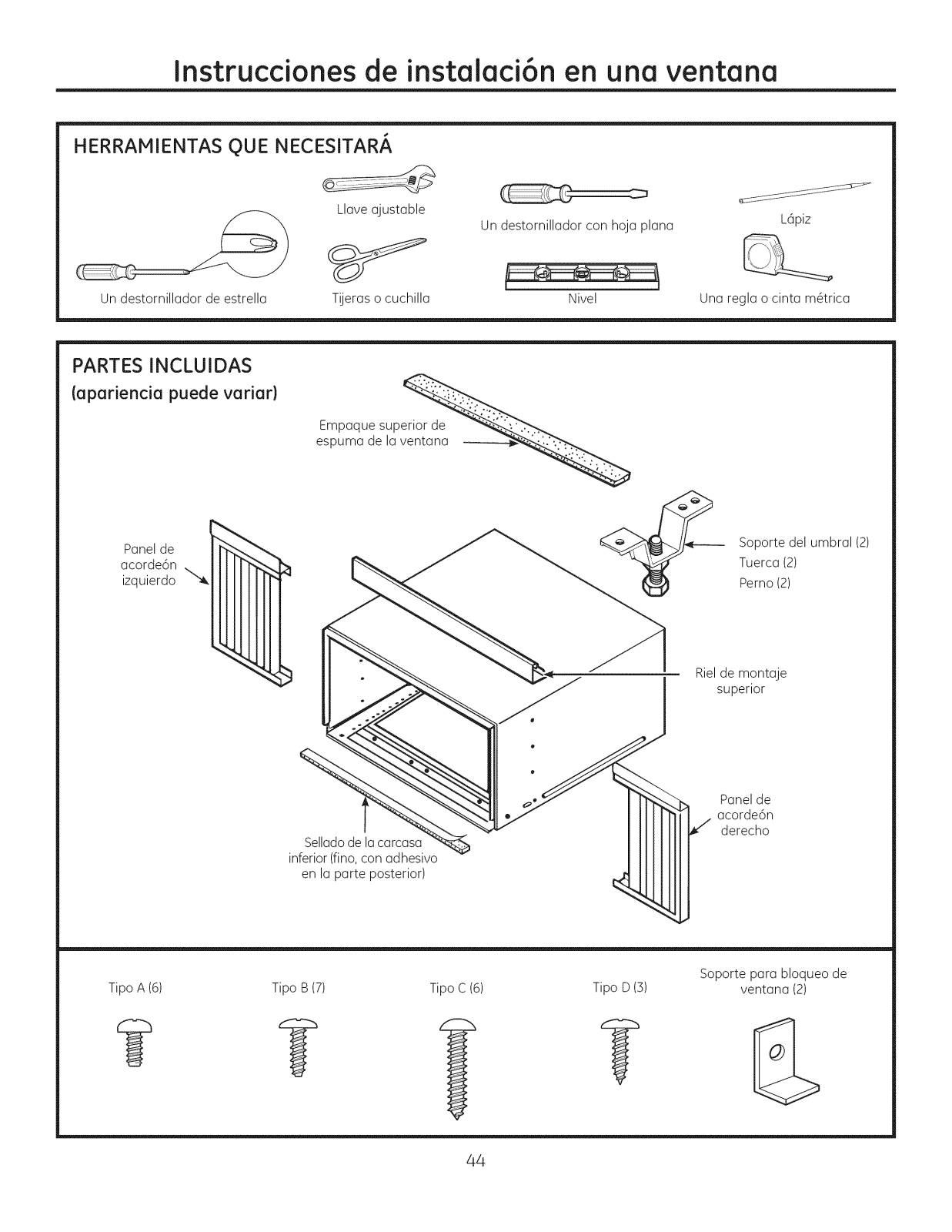

Window Installation Instructions

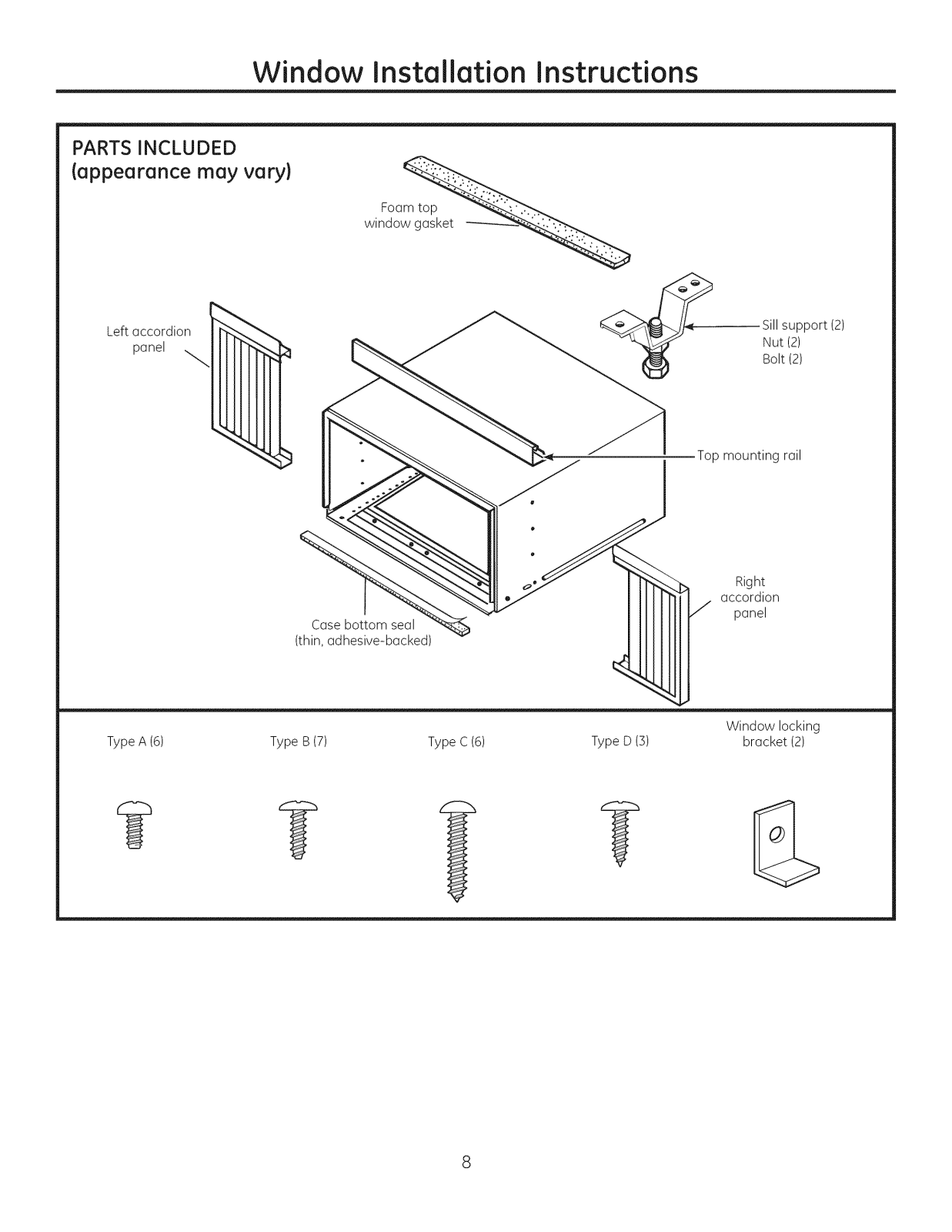

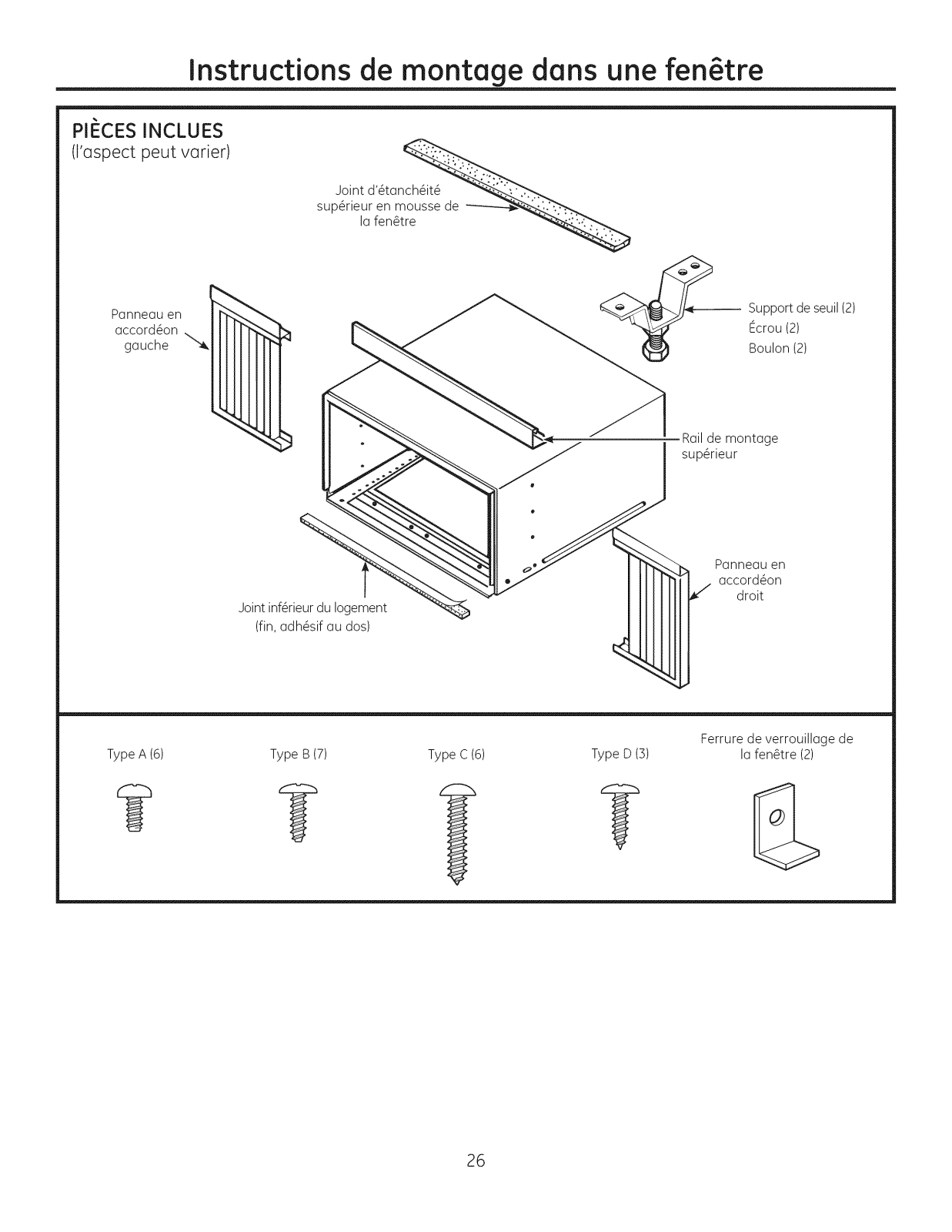

PARTS INCLUDED

(appearance may vary)

. Foa_

window gasket ....

Left accordion

panel

Top mounting rail

Case bottom seal

(thin, adhesive-backed)

Type A (6) Type B (7) Type C (6) Type D (3) bracket (2)

Sill support (2)

Nut (2) Bolt (2)

Right

accordion

panel

Window locking

Window Installation Instructions

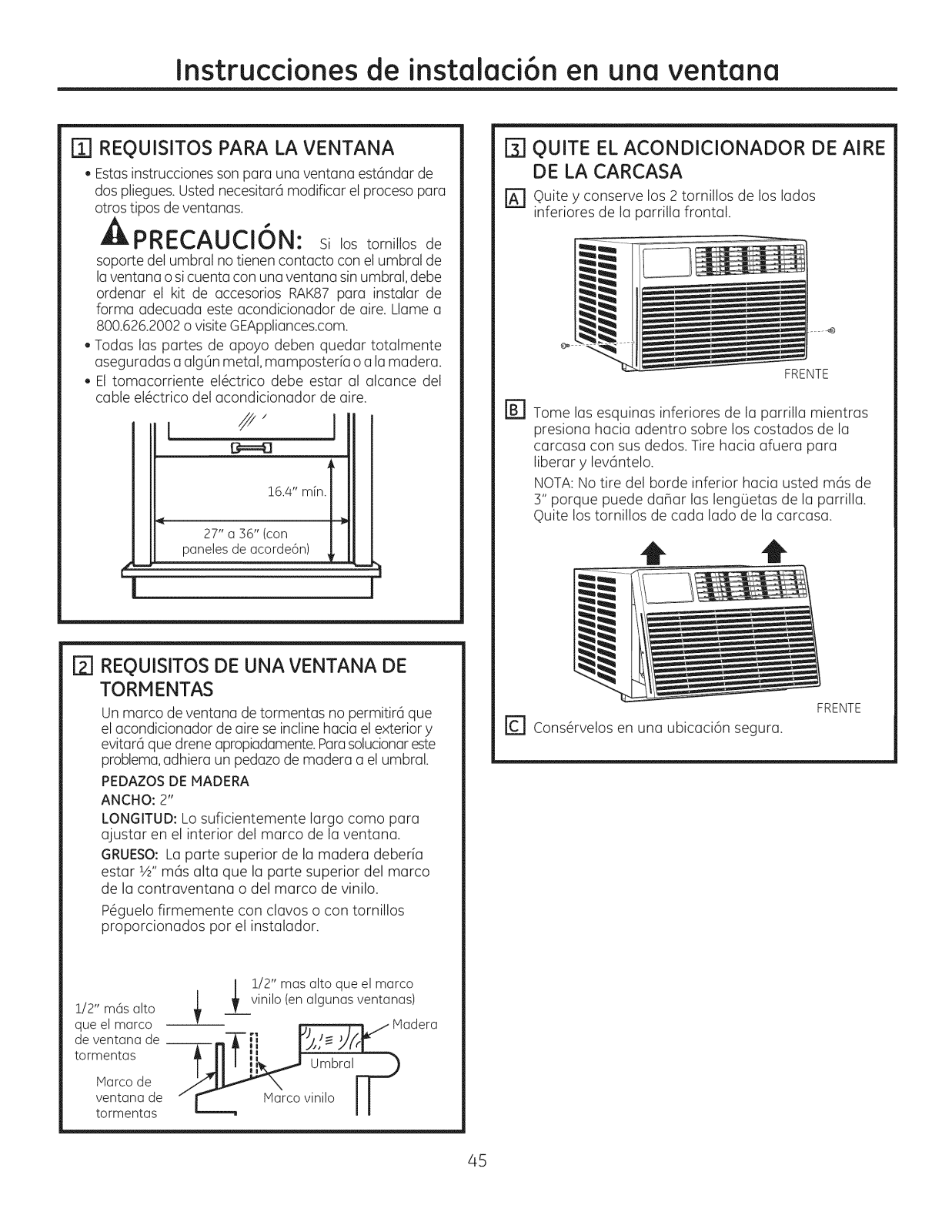

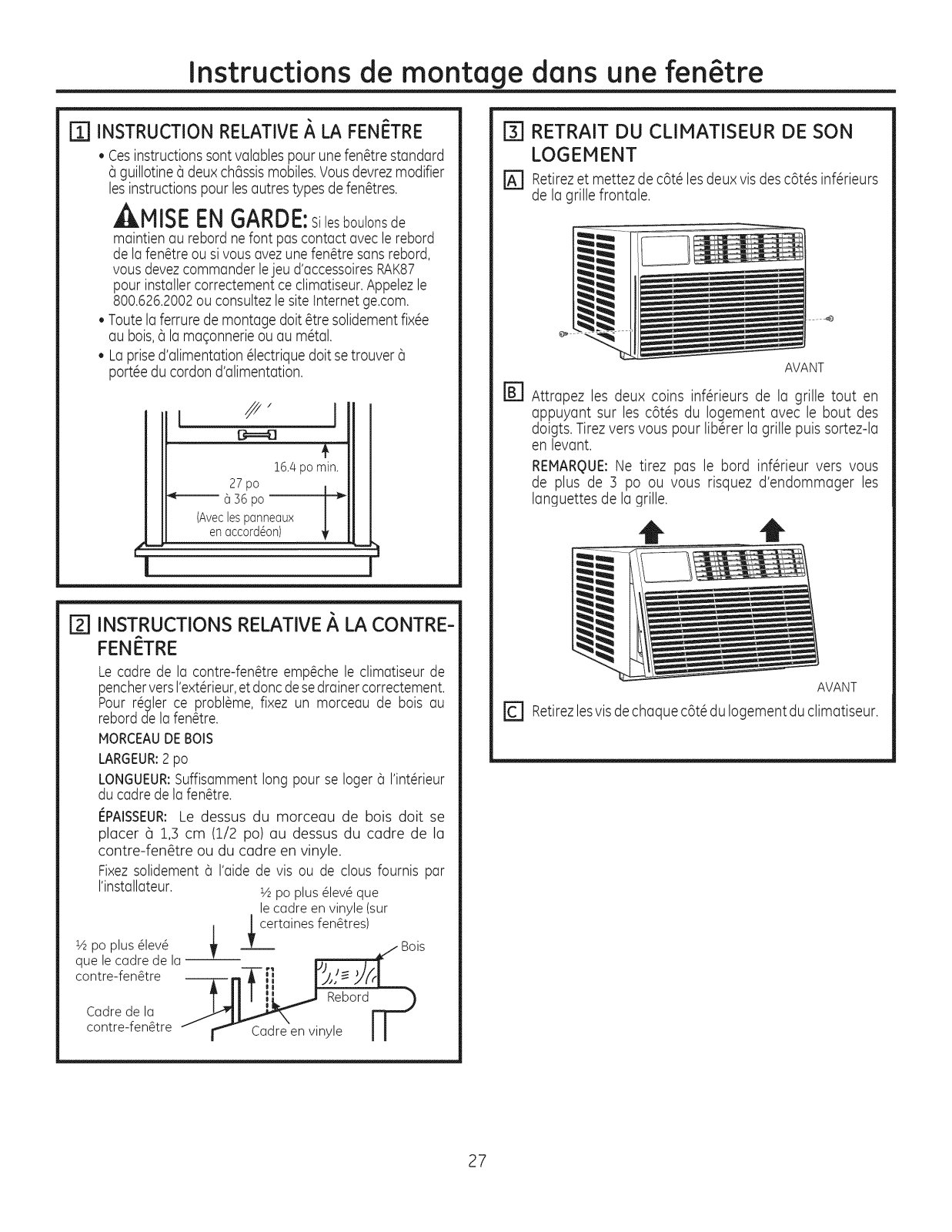

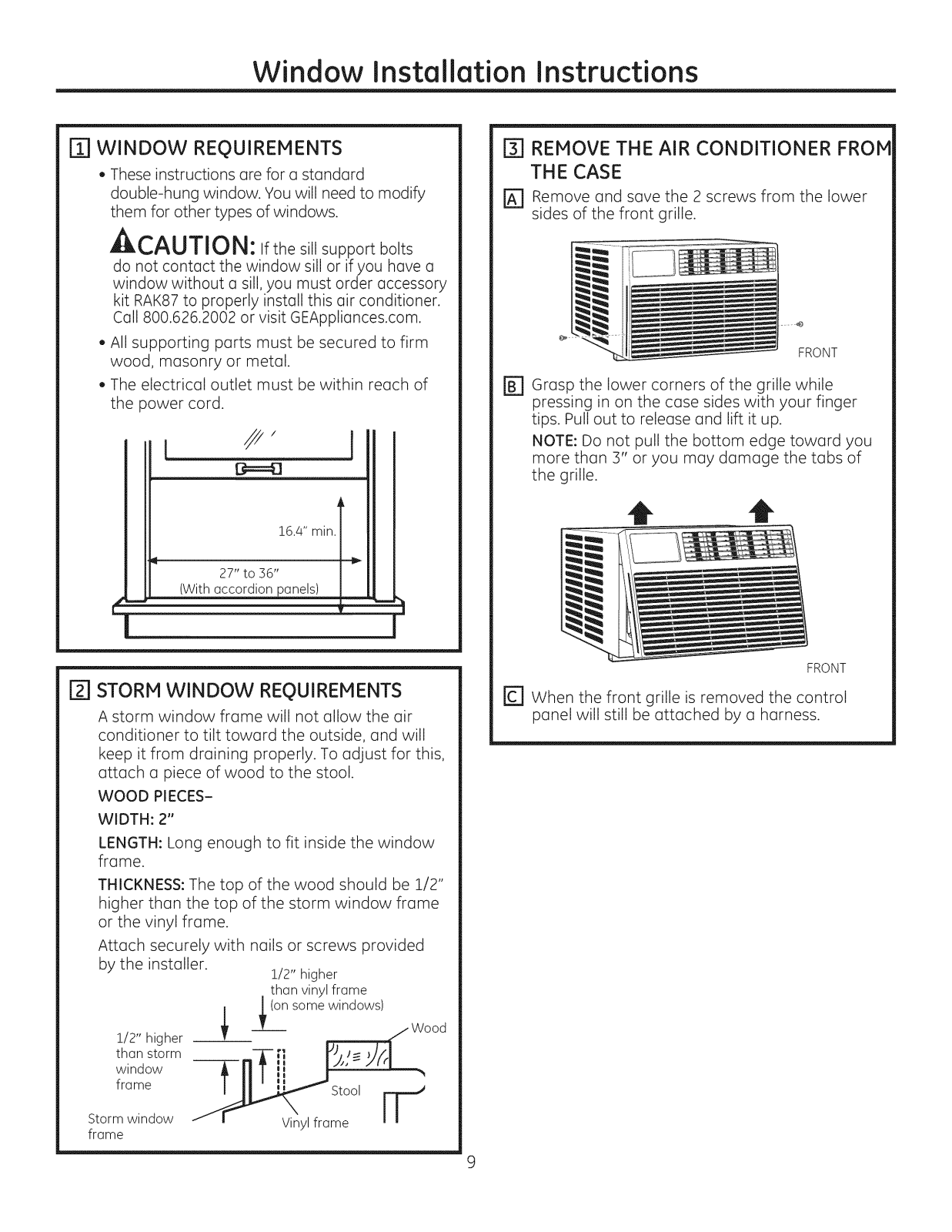

l'_ WINDOW REgUIREMENTS

, These instructions are for a standard

double-hung window. You will need to modify them for other types of windows.

, CAUTION: If the sill support bolts

do not contact the window sill or if you have a

window without a sill, you must order accessory

kit RAK87 to properly install this air conditioner. Call 800.626.2002 or visit GEAppliances.com.

, All supporting parts must be secured to firm

wood, masonry or metal.

, The electrical outlet must be within reach of

the power cord.

16.4" min T

27" to 36"

(With accordion ponels)

[] REMOVE THE AIR CONDITIONER FROM

THE CASE

[] Remove and save the 2 screws from the lower

sides of the front grille.

FRONT

r_ Grasp the lower corners of the grille while

pressing in on the case sides with your finger tips. Pull out to release and lift it up.

NOTE: Do not pull the bottom edge toward you more than 3" or you may damage the tabs of the grille.

t t

[_] STORM WINDOW REQUIREMENTS

A storm window frame will not allow the air conditioner to tilt toward the outside, and will

keep it from draining properly. To adjust for this,

attach a piece of wood to the stool. WOOD PIECES-

WIDTH: 2"

LENGTH: Long enough to fit inside the window

frame. THICKNESS: The top of the wood should be 1/2"

higher than the top of the storm window frame

or the vinyl frame. Attach securely with nails or screws provided

by the installer.

1/2" higher

than storm window frame

Storm window

frame

1/2" higher than vinyl frame

_ (on some windows)

Stool

Vinyl frame

FRONT

[] When the front grille is removed the control

panel will still be attached by a harness.

Wood

Window Installation Instructions

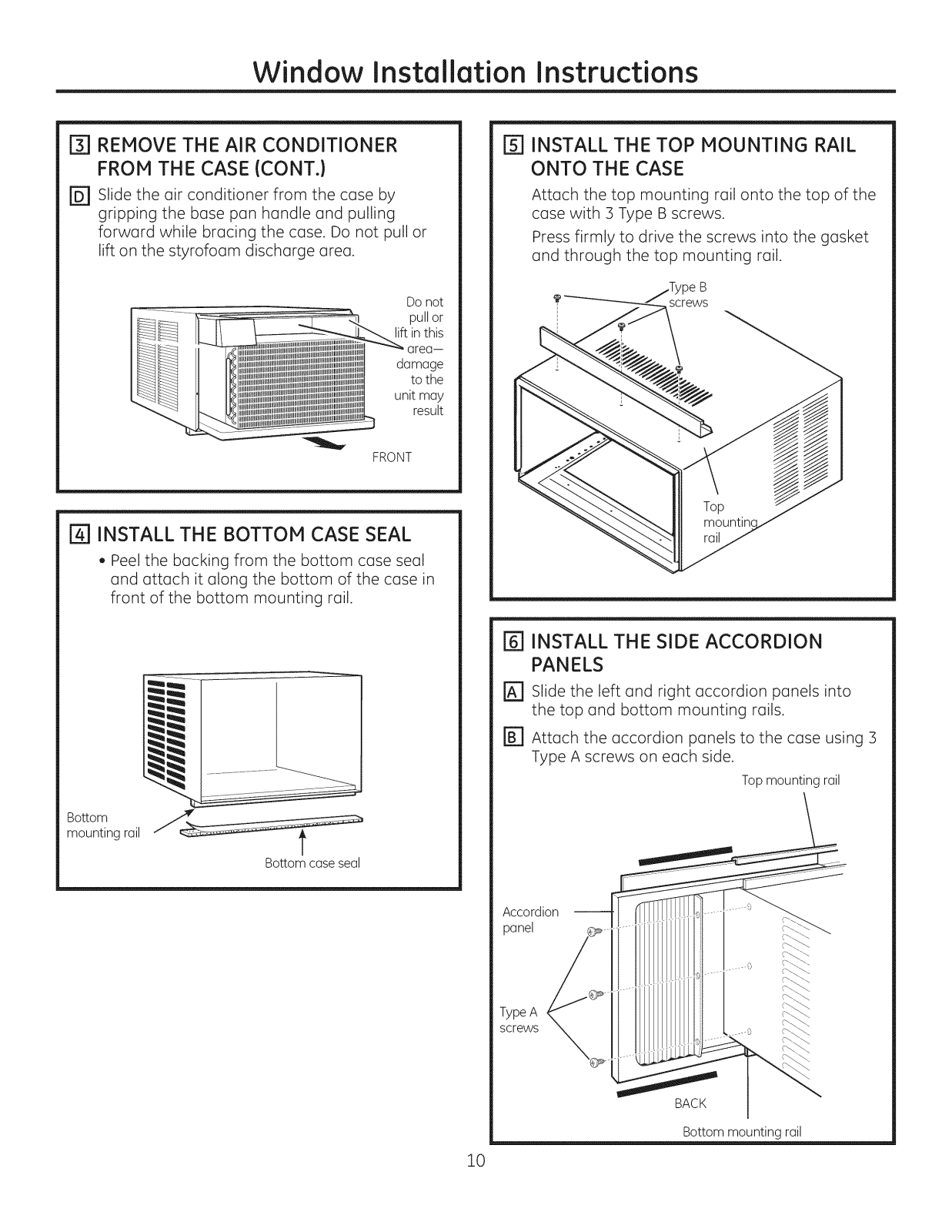

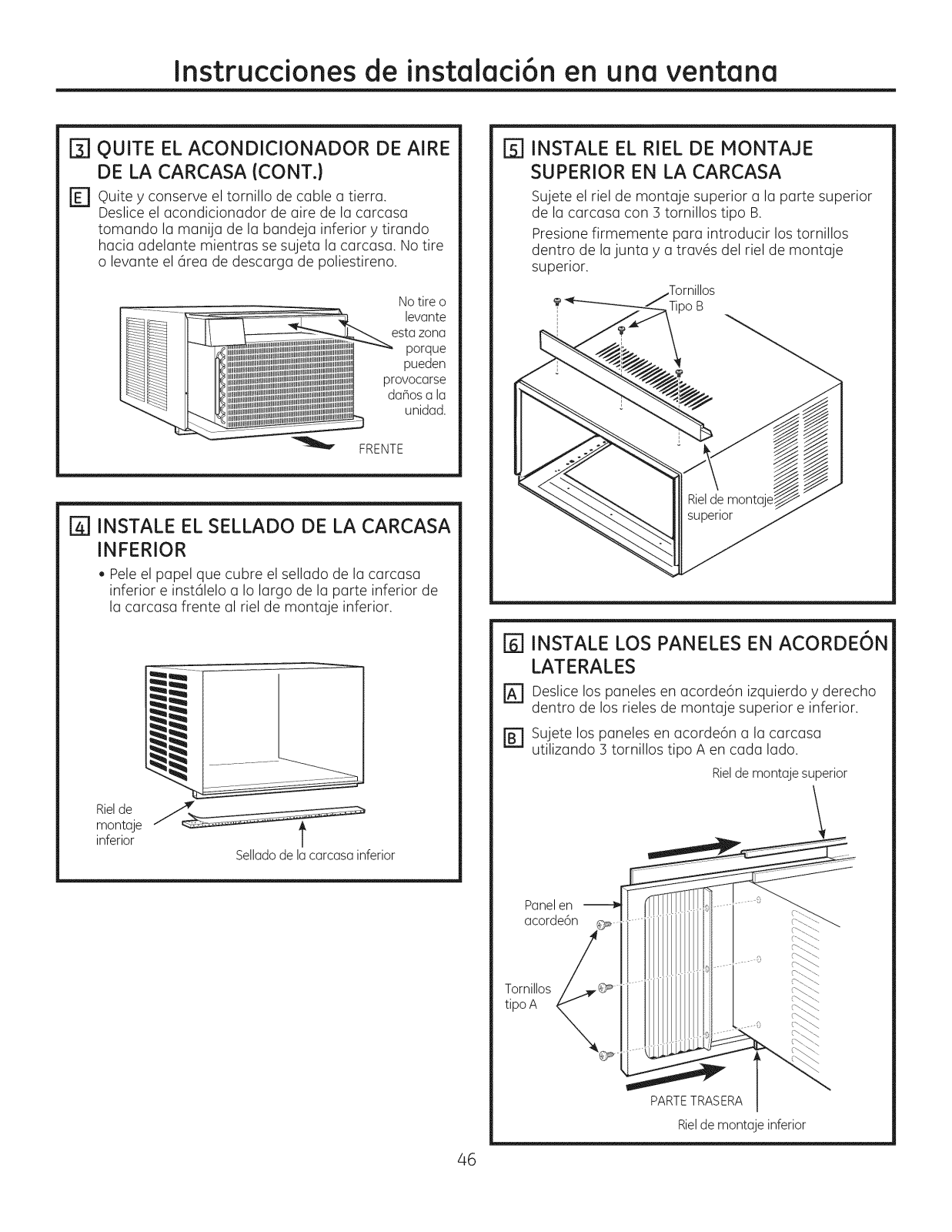

r_ REMOVE THE AIR CONDITIONER

FROM THE CASE (CONT.)

rD'] Slide the air conditioner from the case by

gripping the base pan handle and pulling forward while bracing the case. Do not pull or lift on the styrofoam discharge area.

lift in this

damage

unit may

FRONT

I_ INSTALL THE BOTTOM CASE SEAL

, Peel the backing from the bottom case seal

and attach it along the bottom of the case in front of the bottom mounting rail.

Do not

pull or

to the

result

rs] INSTALL THE TOP MOUNTING RAIL

ONTO THE CASE

Attach the top mounting rail onto the top of the case with 3 Type B screws.

Press firmly to drive the screws into the gasket and through the top mounting rail.

_e B

screws

Bottom mounting rail

[_ INSTALL THE SIDE ACCORDION

PANELS

[] Slide the left and right accordion panels into

the top and bottom mounting rails.

Bottom case seal

r_ Attach the accordion panels to the case using 3

Type A screws on each side.

Top mounting rail

TypeA screws

BACK

Bottom mounting rail

Window Installation Instructions

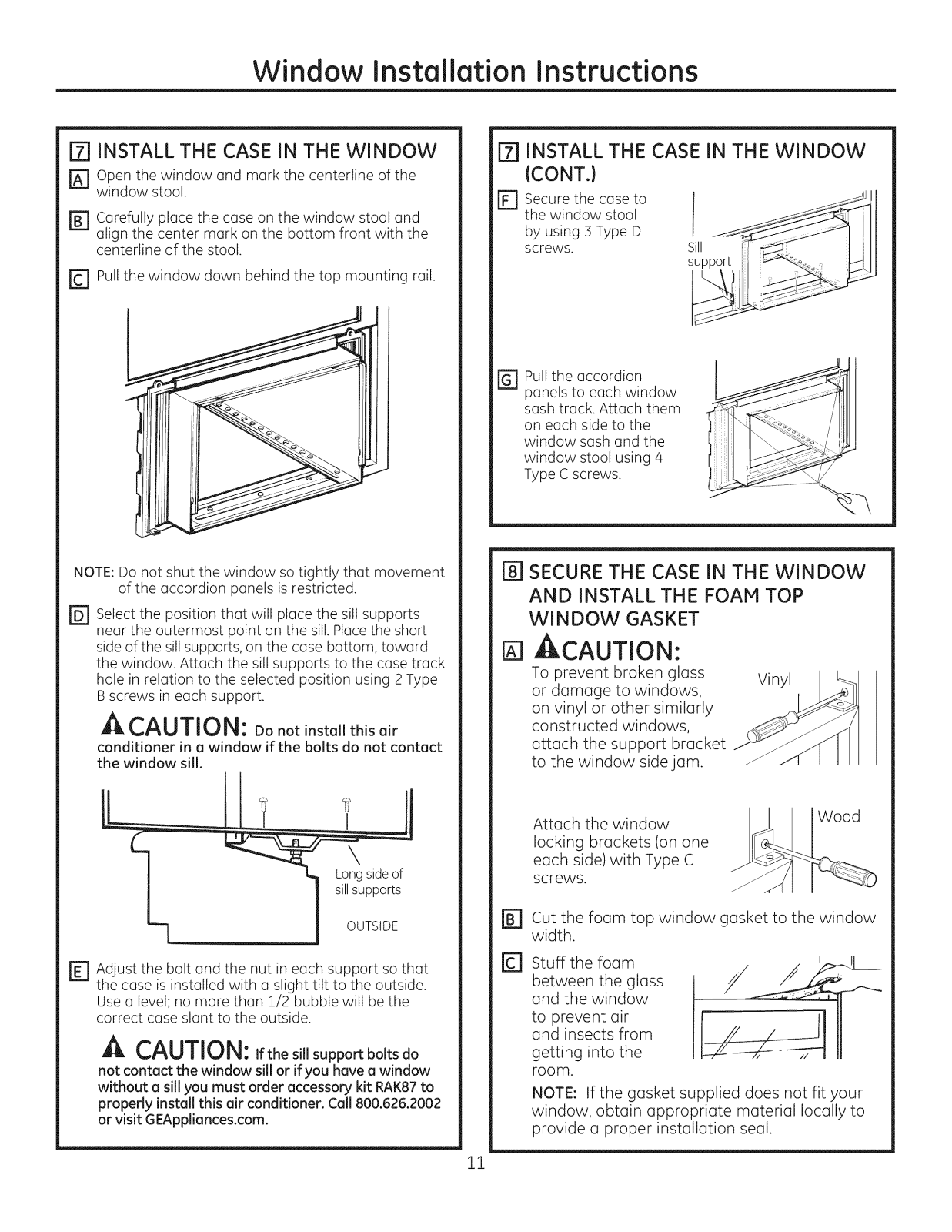

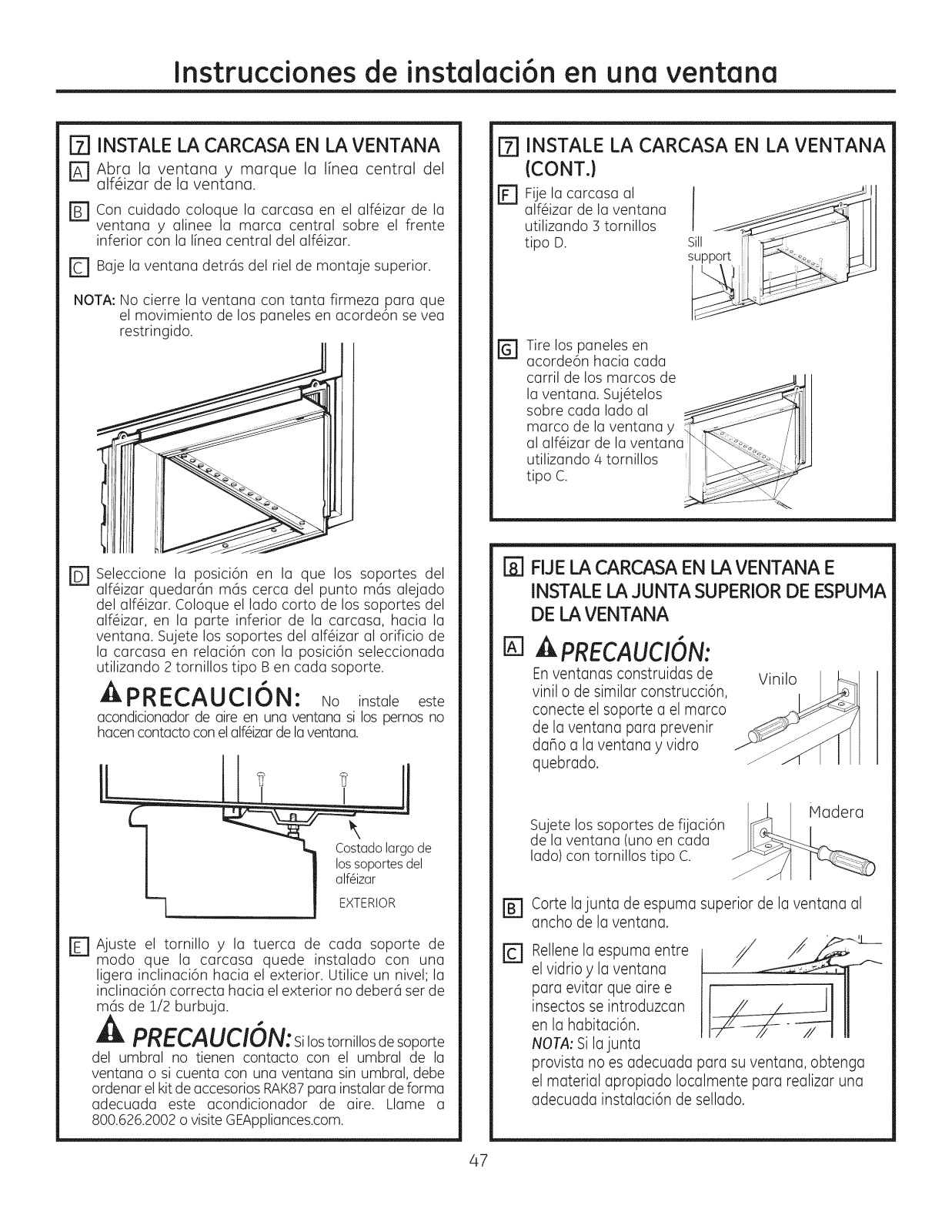

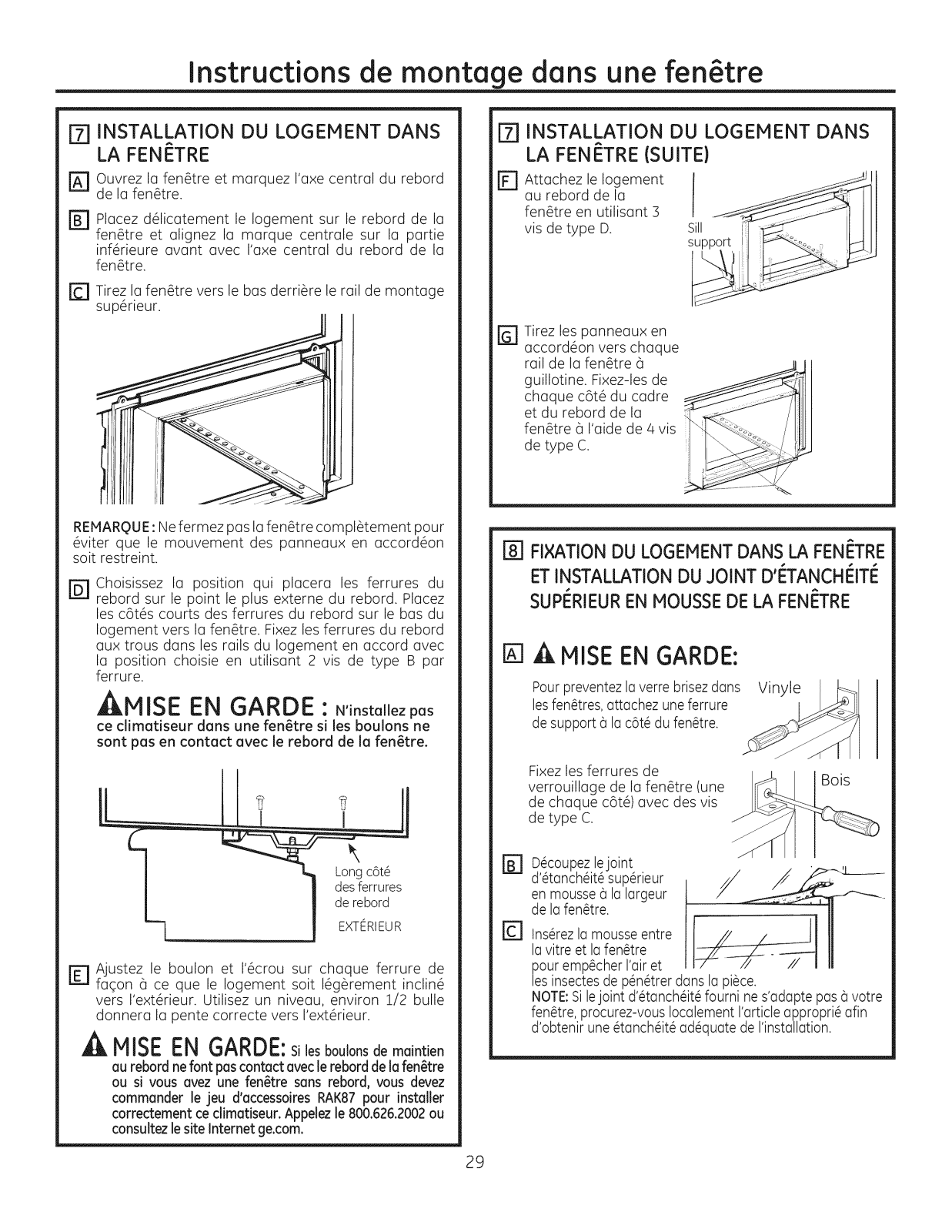

r_ INSTALL THE CASE IN THE WINDOW

r_ open the window and mark the centerline of the

window stool.

r_ Carefully place the case on the window stool and

align the center murk on the bottom front with the centerline of the stool.

r_ Pull the window down behind the top mounting rail.

NOTE:Do not shut the window so tightly that movement

of the accordion panels is restricted.

[] Select the position that will place the sill supports

near the outermost point on the sill. Placethe short sideof the sill supports, on the case bottom, toward

the window. Attach the sill supports to the case track hole in relation to the selected position using 2 Type

B screws in each support.

A CAUTION: Donotinstallthisair

conditioner in e window if the bolts do not contact the window sill.

171INSTALL THE CASE IN THE WINDOW

(CONT.)

r_ Secure the case to

the window stool

by using ] Type D

screws.

Pullthe accordion

panels to each window sash track. Attach them

on each side to the window sash and the

window stool using 4 Type Cscrews.

SECURE THE CASE IN THE WINDOW

Sill support

AND INSTALL THE FOAM TOP WINDOW GASKET

CAUTION:

To prevent broken glass Vinyl or damage to windows,

on vinyl or other similarly constructed windows,

attach the support bracket to the window side jam.

I I

Longsideof sillsupports

OUTSIDE

[] Adjust the bolt and the nut in each support so that

the case is installed with a slight tilt to the outside. Use a level; no more than 1/2 bubble will bethe

correct case slant to the outside.

A CAUTION: _fthesill supportboltsdo

notcontoctthewindow sillorifyou hoveo window withouto sillyou must orderoccessorykitRAK87 to

properlyinstallthisoirconditioner.Coll800.626.2002 orvisitGEApplionces.com.

Attach the window locking brackets (on one

each side) with Type C screws.

Cut the foam top window gasket to the window width.

Stuff the foam between the glass

and the window to prevent air

and insects from getting into the

room. NOTE: If the gasket supplied does not fit your

window, obtain appropriate material locally to provide a proper installation seal.

Window Installation Instructions

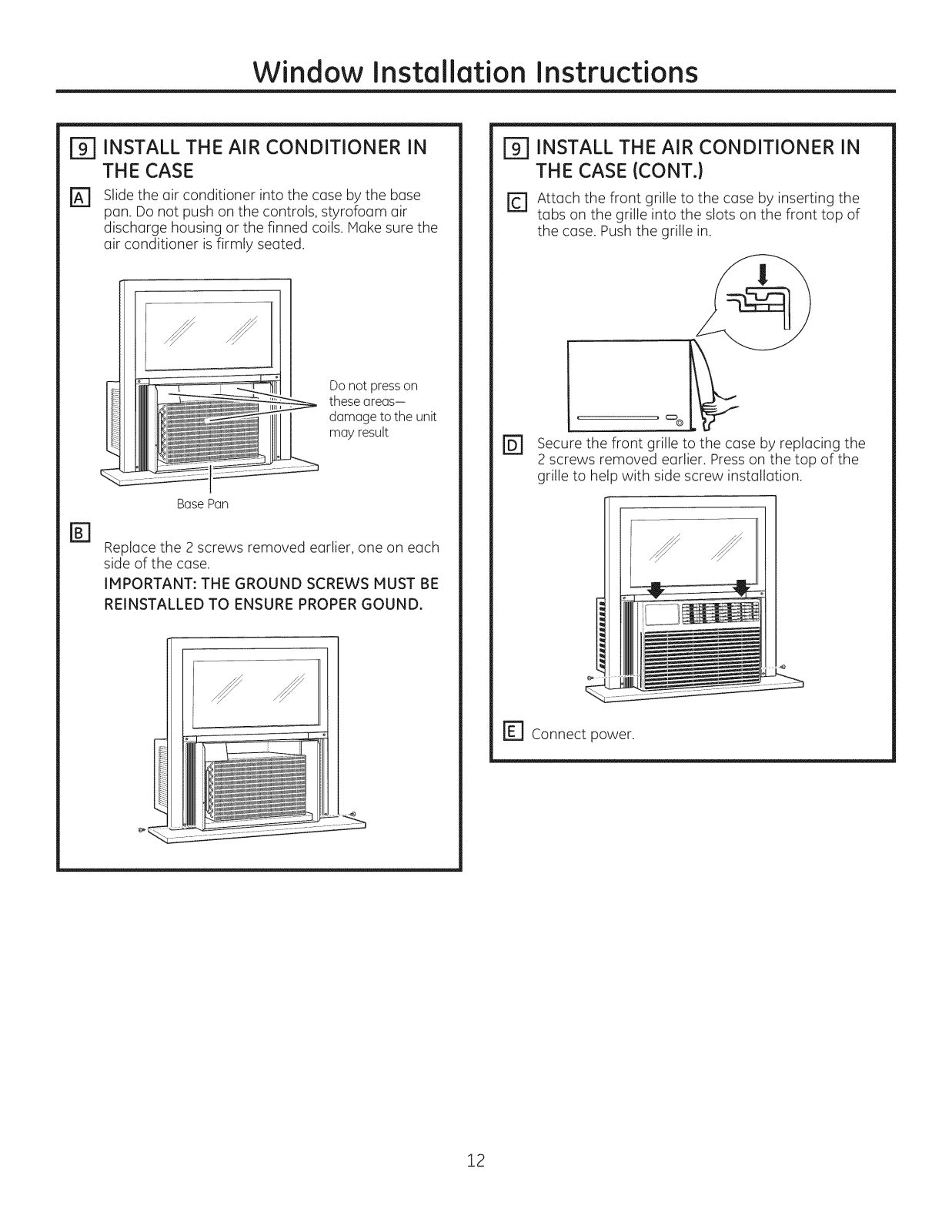

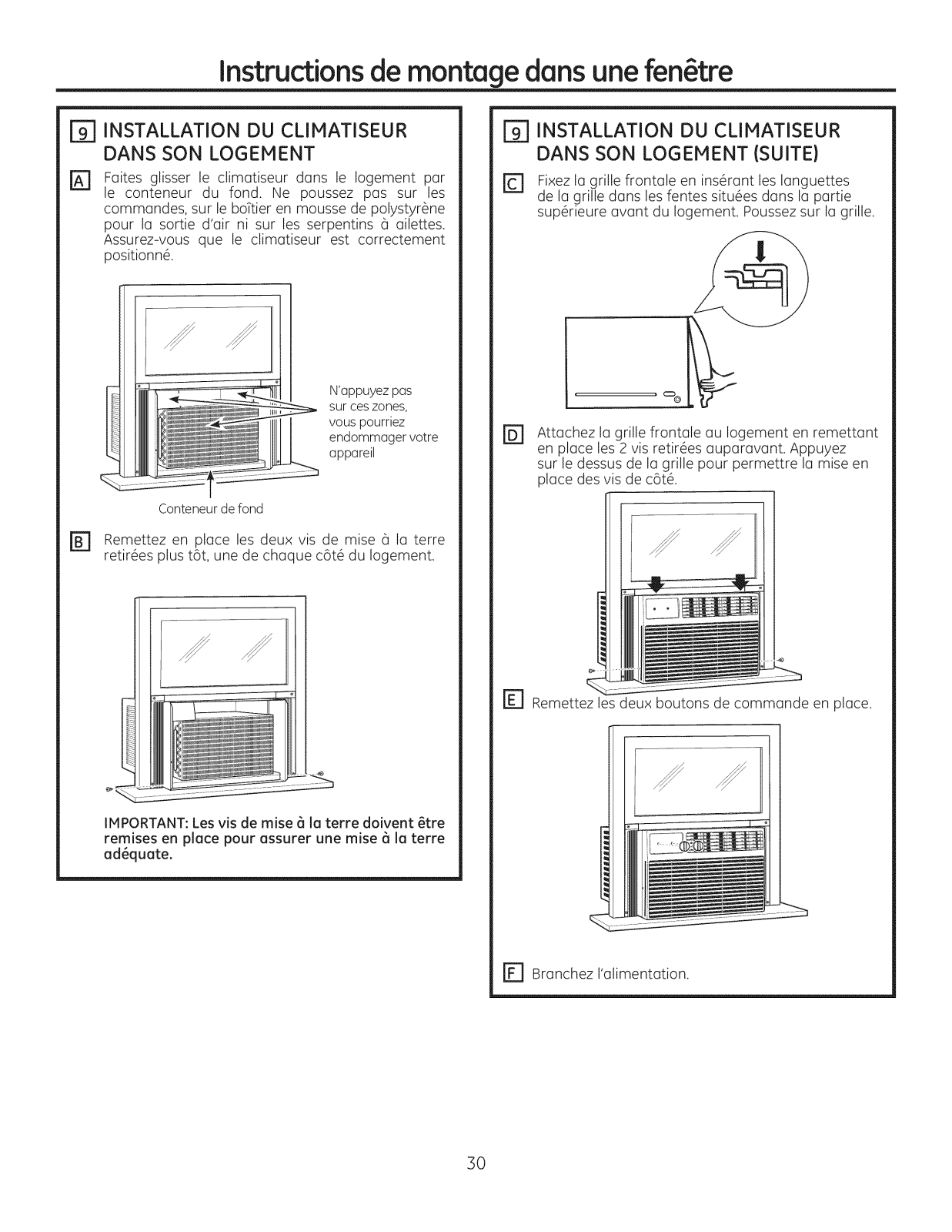

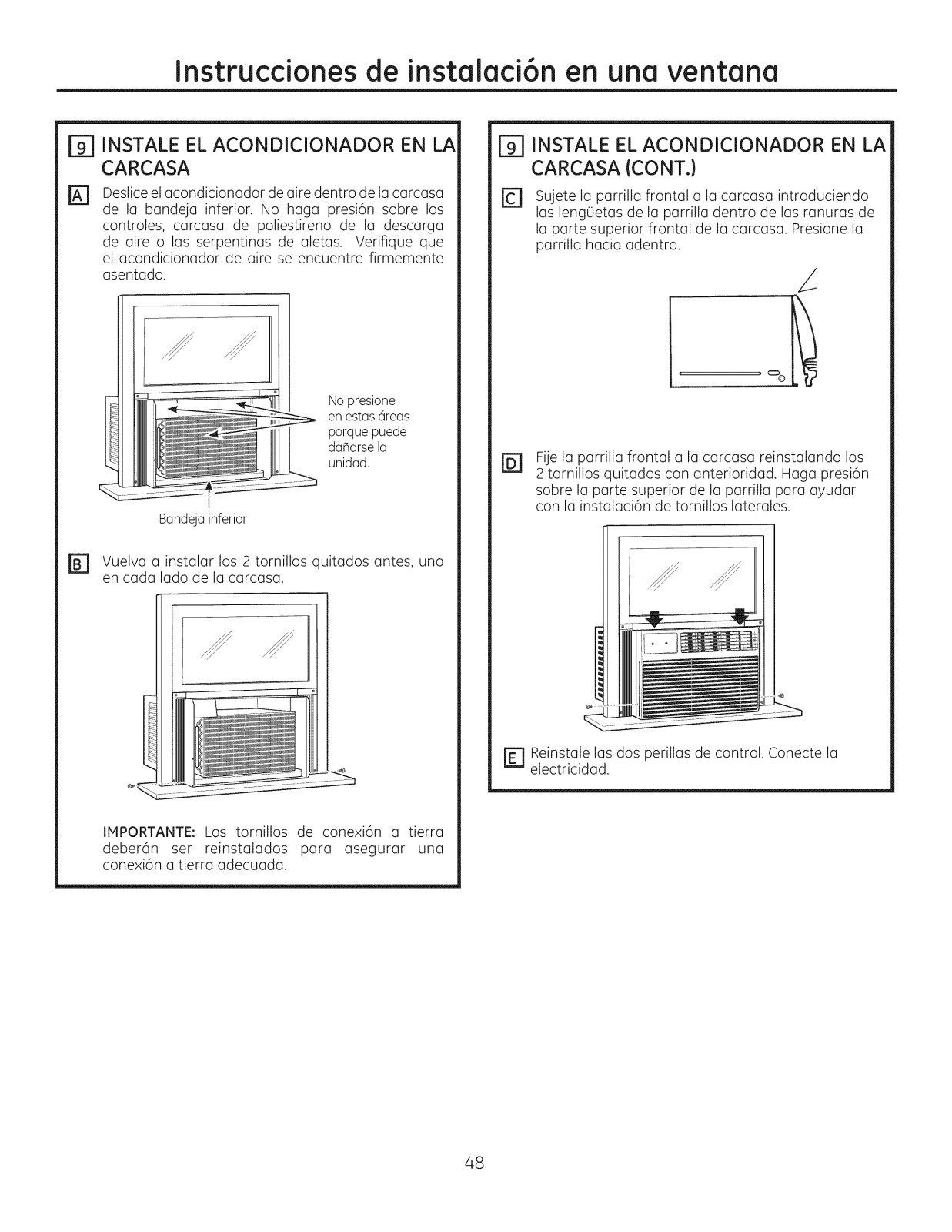

INSTALL THE AIR CONDITIONER IN

THE CASE

Slidethe air conditioner into the case by the base

pan. Do not push on the controls, styrofoam air discharge housing or the finned coils. Make sure the

air conditioner isfirmly seated.

Do not presson

these ureas-

damage to the unit may result

BasePan

[] INSTALL THE AIR CONDITIONER IN

THE CASE (CONT.)

rc] Attach the front grille to the case by inserting the

tabs on the grille into the slots on the front top of the case. Push the grille in.

Secure the front grille to the case by replacing the

2 screws removed earlier. Press on the top of the grille to help with side screw installation.

Replace the 2screws removed earlier, one on each side of the case.

IMPORTANT: THE GROUND SCREWS MUST BE REINSTALLED TO ENSURE PROPER GOUND.

r_ Connect power.

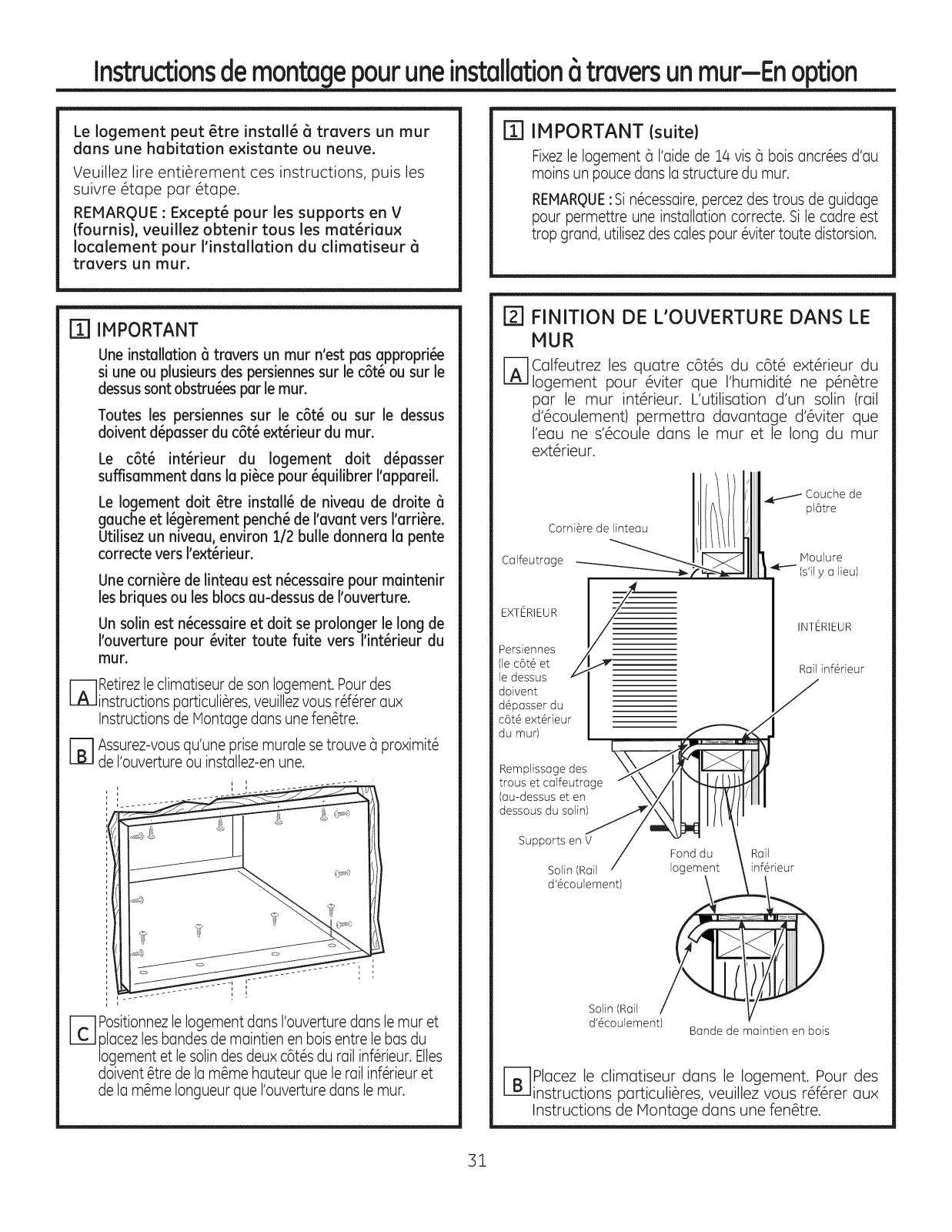

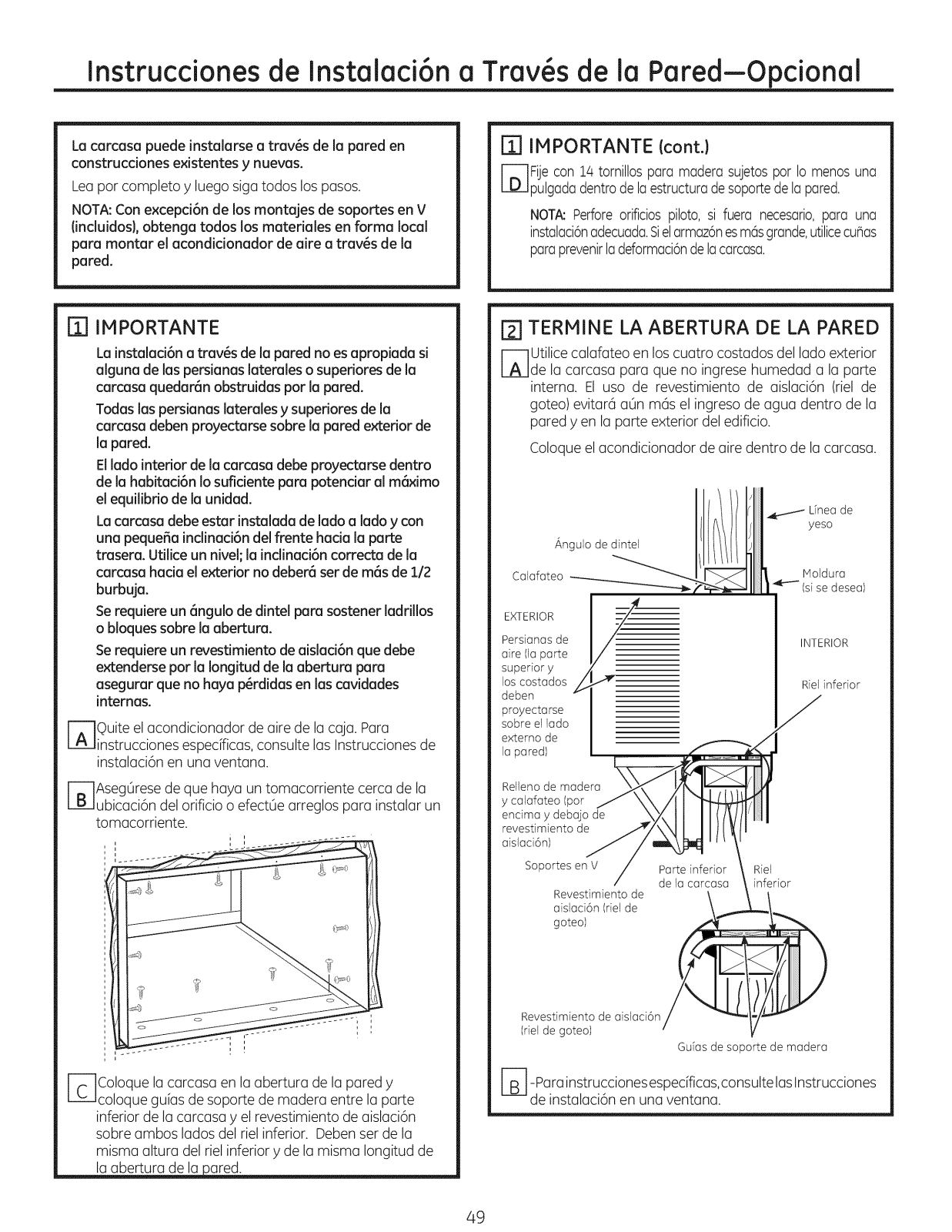

Through-the-Wall Installation Instructions-Optional

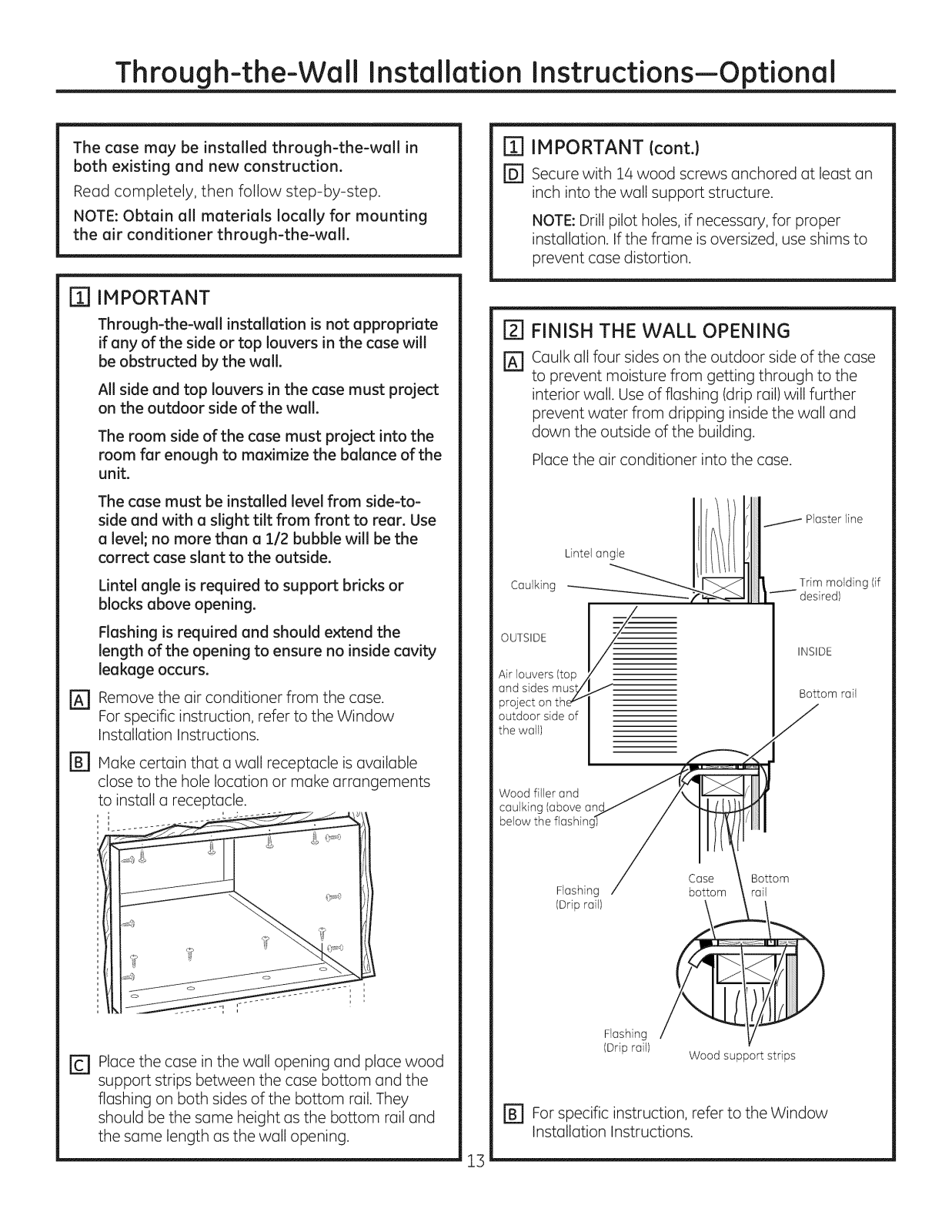

The case may be installed through-the-wall in both existing and new construction.

Read completely, then follow step-by-step. NOTE: Obtain all materials locally for mounting

the air conditioner through-the-wall.

1_1IMPORTANT

Through-the-wall installation is not appropriate if any of the side or top louvers in the case will be obstructed by the wall.

All side and top louvers in the case must project on the outdoor side of the wall.

The room side of the case must project into the room far enough to maximize the balance of the

unit. The case must be installed level from side-to-

side and with a slight tilt from front to rear. Use a level; no more than a 1/2 bubble will be the correct case slant to the outside.

Lintel angle is required to support bricks or

blocks above opening.

m IMPORTANT (cont.)

r_ Secure with 14wood screws anchored at least an

inch into the wall support structure. NOTE: Drill pilot holes, if necessary, for proper

installation. If the frame is oversized, use shims to prevent case distortion.

FINISH THE WALL OPENING

Caulk all four sides on the outdoor side of the case to prevent moisture from getting through to the

interior wall. Use of flashing (drip rail) will further prevent water from dripping inside the wall and down the outside of the building.

Place the air conditioner into the case.

Plaster line

Lintel angle

Caulking Trim molding (if

desired)

Flashing is required and should extend the length of the opening to ensure no inside cavity leakage occurs.

Remove the air conditioner from the case.

[]

For specific instruction, refer to the Window Installation Instructions.

Make certain that a wall receptacle is available close to the hole location or make arrangements to install a receptacle.

', i÷_.

[] Place the case in the wall opening and place wood

support strips between the case bottom and the flashing on both sides of the bottom rail. They should be the same height as the bottom rail and the same length as the wall opening.

OUTSIDE

Air louvers (top j

and sides must/_

projecton thev

outdoor side of

the wall)

Wood filler and caulking (above an

below the flashinc

Flashing (Drip rail)

Flashing

(Drip rail)

Wood support strips

r_ For specific instruction, refer to the Window

Installation Instructions.

INSIDE

Bottom rail

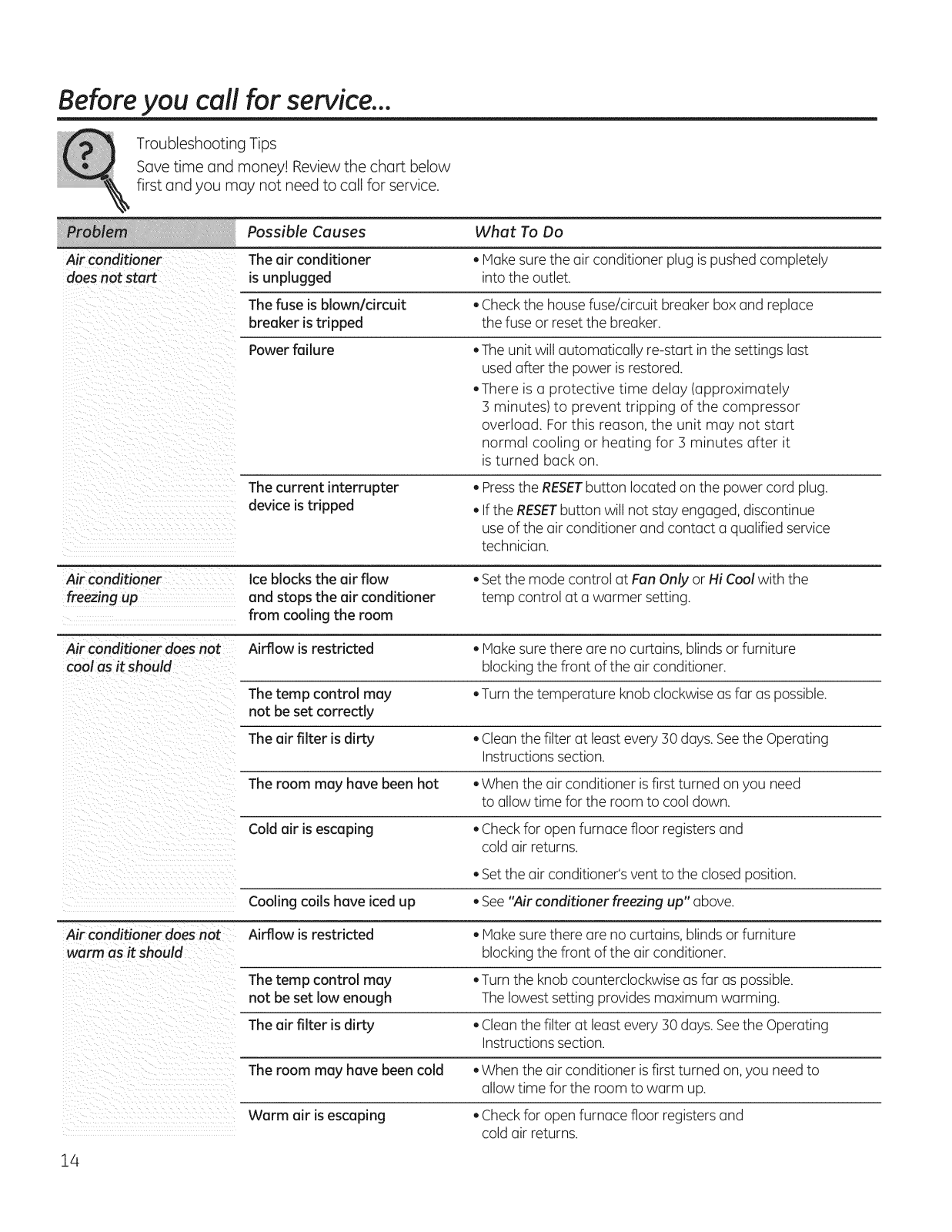

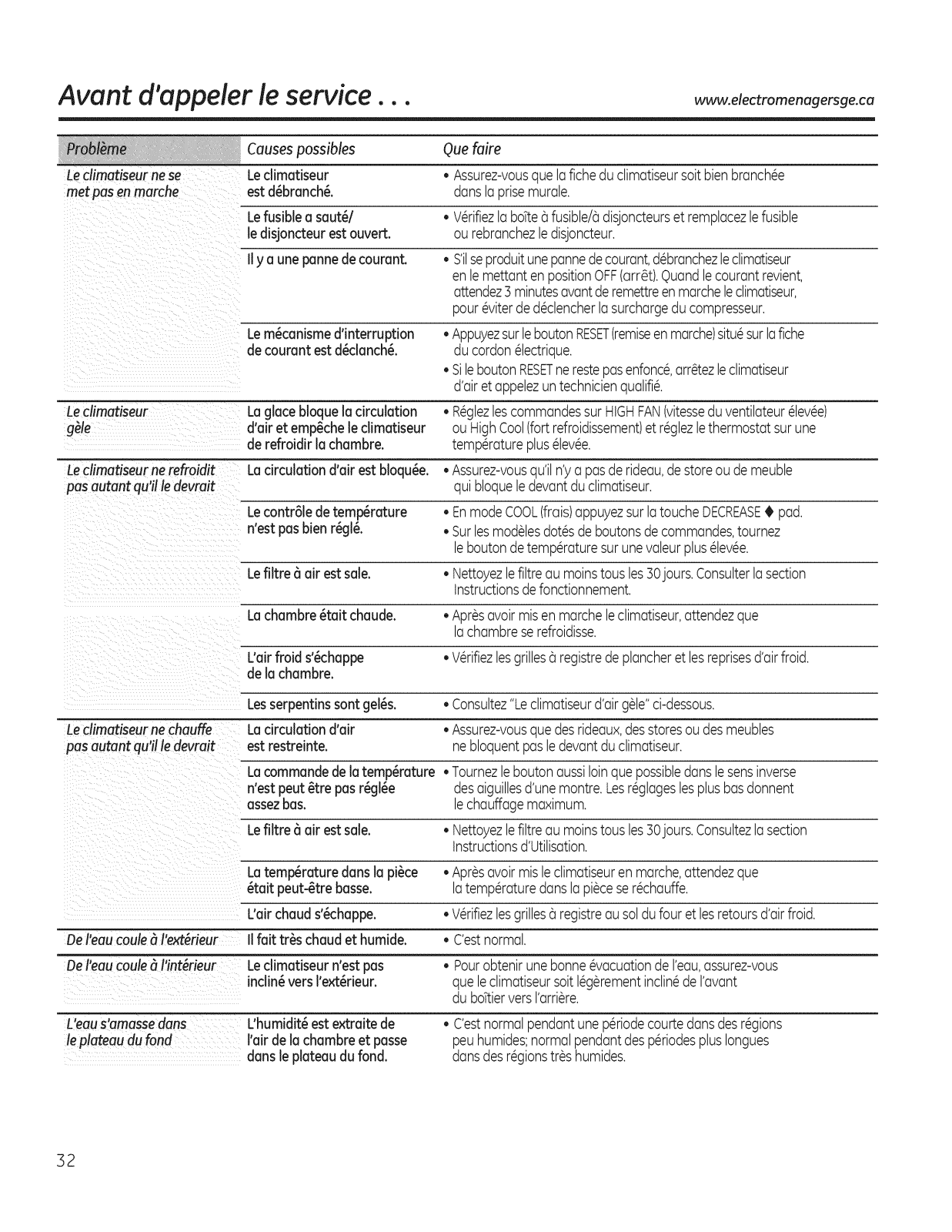

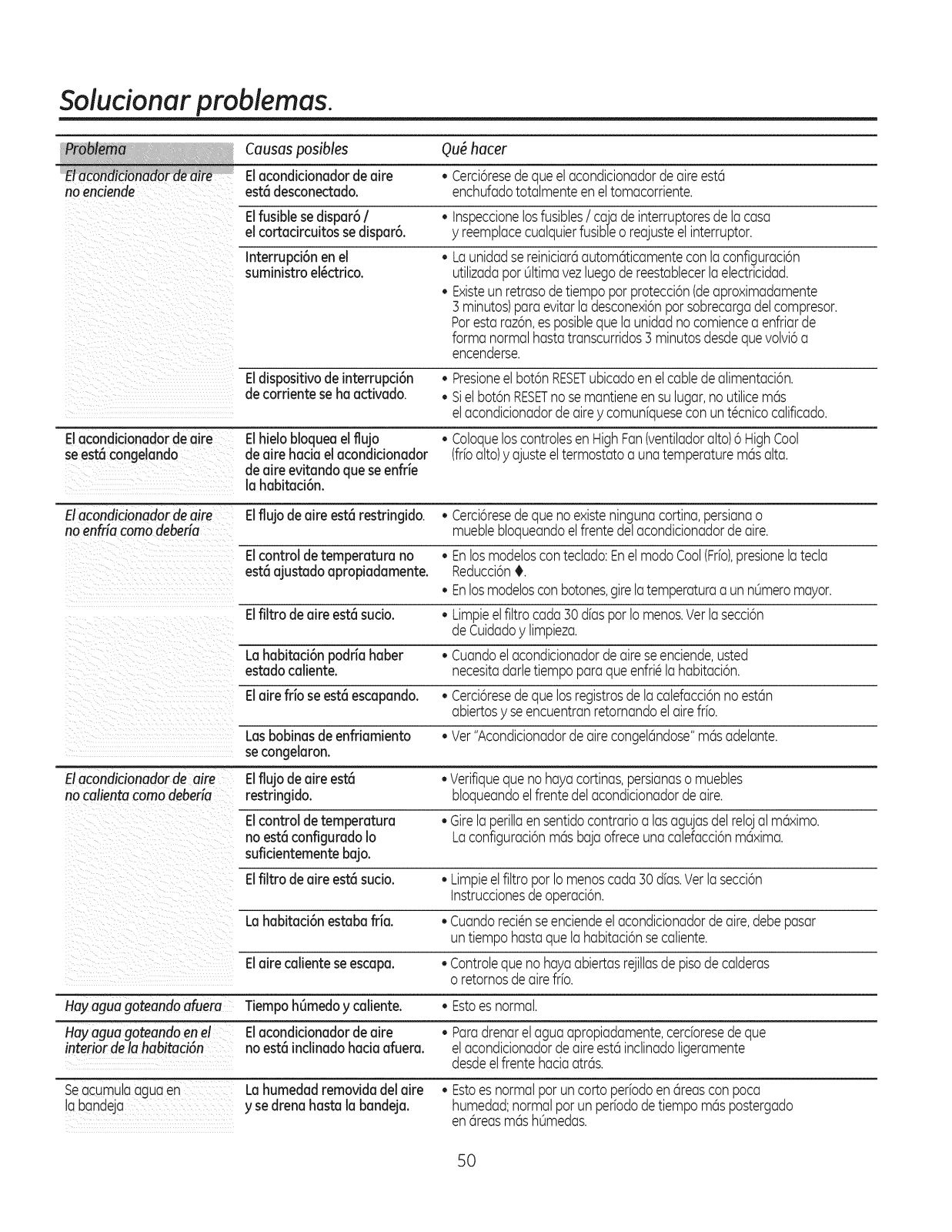

Before you call for service...

Troubleshooting Tips Save time and money! Review the chart below

first and you may not need to call for service.

Passible Causes What To Do

Air conditioner The air conditioner • Hake sure the air conditioner plug ispushed completely

does notstart is unplugged into the outlet.

The fuse is blown/circuit • Checkthe housefuse/circuit breaker box and replace

breaker is tripped the fuse or reset the breaker. Power failure •The unit will automatically re-start in the settings last

usedafter the power isrestored.

•There is a protective time delay (approximately 3 minutes) to prevent tripping of the compressor

overload. Forthis reason, the unit may not start normal cooling or heating for 3 minutes after it

isturned back on.

The current interrupter

device is tripped

Air conditioner Ice blocks the air flow • Setthe mode control at Fan Only or Hi Coolwith the freezing up and stops the air conditioner temp control at a warmer setting.

from cooling the room

Air conditioner does not Airflow isrestricted • Hake surethere are no curtains, blinds or furniture cool as it should blocking the front of the air conditioner.

The temp control may •Turn the temperature knob clockwise as far as possible.

not be set correctly

The air filter is dirty • Cleanthe filter at least every 30 days. Seethe Operating

The room may have been hot • When the air conditioner is first turned on you need

Cold air is escaping • Checkfor open furnace floor registersand

Cooling coils have iced up • See"Air conditioner freezing up" above.

Air conditioner does not Airflow isrestricted • Hake surethere are no curtains, blinds or furniture

warm us itshould blocking the front of the air conditioner.

The temp control moy .Turn the knob counterclockwise as far as possible.

not be set low enough Thelowest setting provides maximum warming.

The air filter is dirty • Cleanthe filter at least every 30 days. Seethe Operating

• Pressthe RESETbutton located on the power cord plug.

• If the RESETbutton will not stay engaged, discontinue useof the air conditioner and contact a qualified service

technician.

Instructions section.

to allow time for the room to cool down.

cold air returns.

• Setthe air conditioner's vent to the closed position.

Instructions section.

The room may have been cold • When the air conditioner is first turned on,you need to

allow time for the room to warm up.

Warm air isescaping • Checkfor open furnace floor registersand

cold air returns.

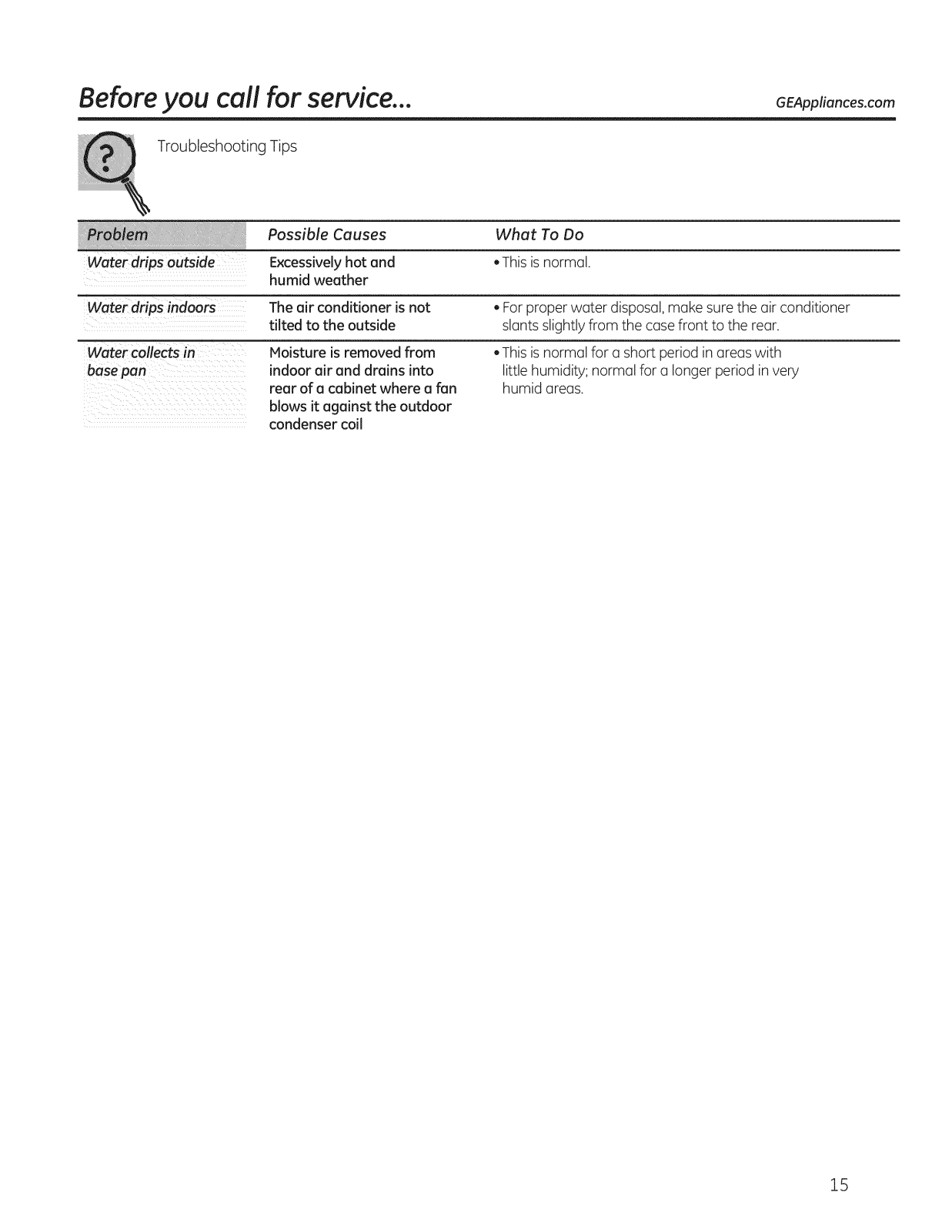

Before you call for service...

Troubleshooting Tips

Possible Causes What To Do

Water drips outside Excessively hot and • This is normal.

humid weather

Water drips indoors The air conditioner is not • For proper water disposal, make sure the air conditioner

tilted to the outside slants slightly from the case front to the rear.

Water collects in

base pan

Moisture is removed from indoor air and drains into

rear of a cabinet where a fan blows it against the outdoor

condenser coil

•Thisisnormal for a short period in areaswith little humidity; normal for a longer period in very

humid areas.

GEAppliances.com

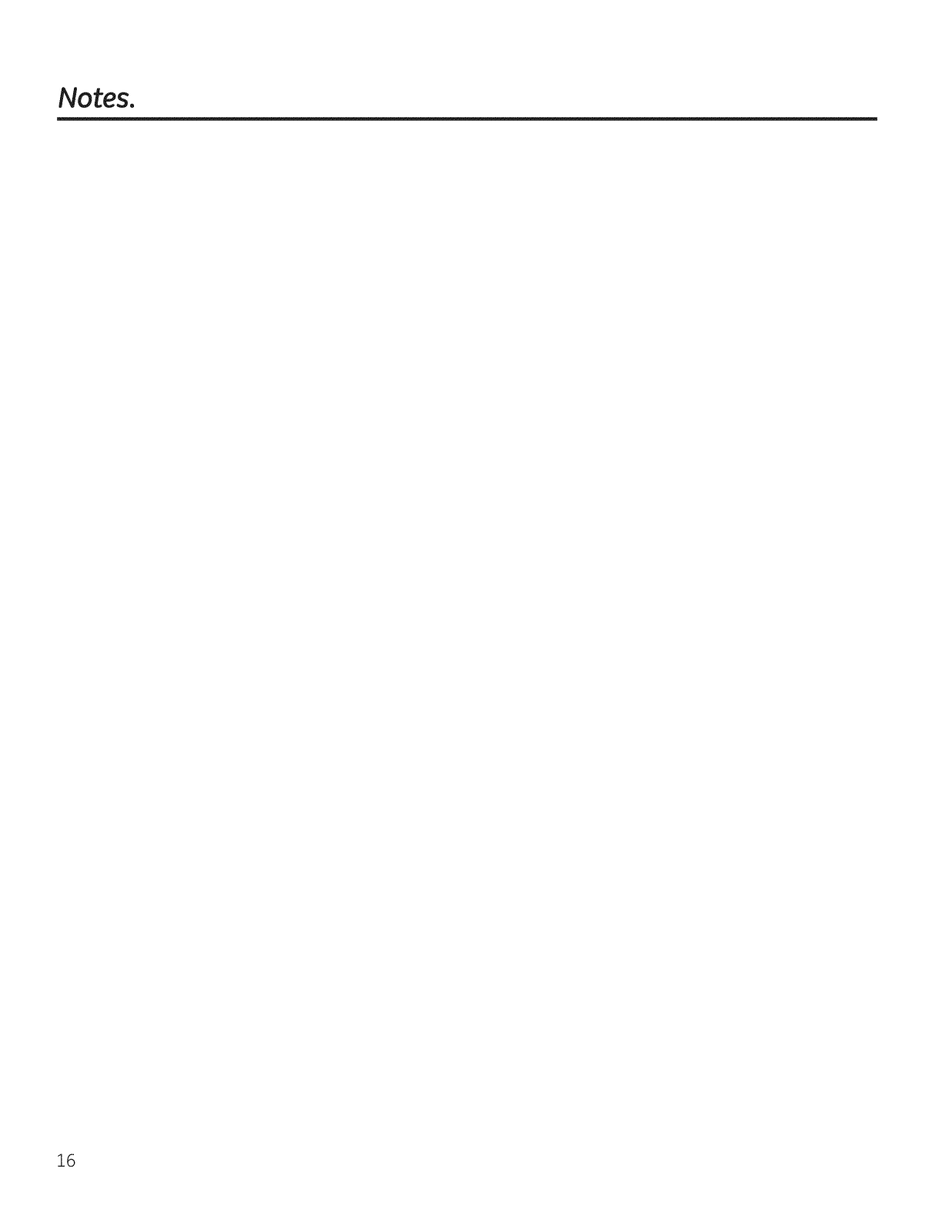

Notes.

+ 36 hidden pages
