User Guide

Gateway M405 Notebook

1 Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Gateway Web site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Using eSupport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Help and Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Searching for a topic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Using Your Computer guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Online help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2 Checking Out Your Gateway Notebook. . . . . . . . . . . . . . . . . . . . 9

Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Left Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Right Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Bottom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Keyboard area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Identifying your model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Gateway model and serial number . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Gateway serial number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Internal wireless label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Microsoft Certificate of Authenticity . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Finding your specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

3 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Connecting the AC adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Protecting from power source problems . . . . . . . . . . . . . . . . . . . . . . . 26 Starting your notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Waking up your notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Turning off your notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Restarting (rebooting) your notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Status indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Using the keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Key types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 System key combinations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Multi-function buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Using the EZ Pad touchpad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Using the touchpad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Adjusting the volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

www.gateway.com

i

Turning your wireless network on or off . . . . . . . . . . . . . . . . . . . . . . . . . . .

41

4 Using Drives and Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

43

Using the CD or DVD drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

44

Identifying drive types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

44

Inserting a CD or DVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

45

Playing a CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

46

Playing a DVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

46

Creating CDs and DVDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

46

Using the optional diskette drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

47

Using the optional memory card reader . . . . . . . . . . . . . . . . . . . . . . . . . . .

48

Memory card types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

48

Using a memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

49

Adding and removing a PC Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

50

Viewing the display on a projector or monitor . . . . . . . . . . . . . . . . . . . . . .

53

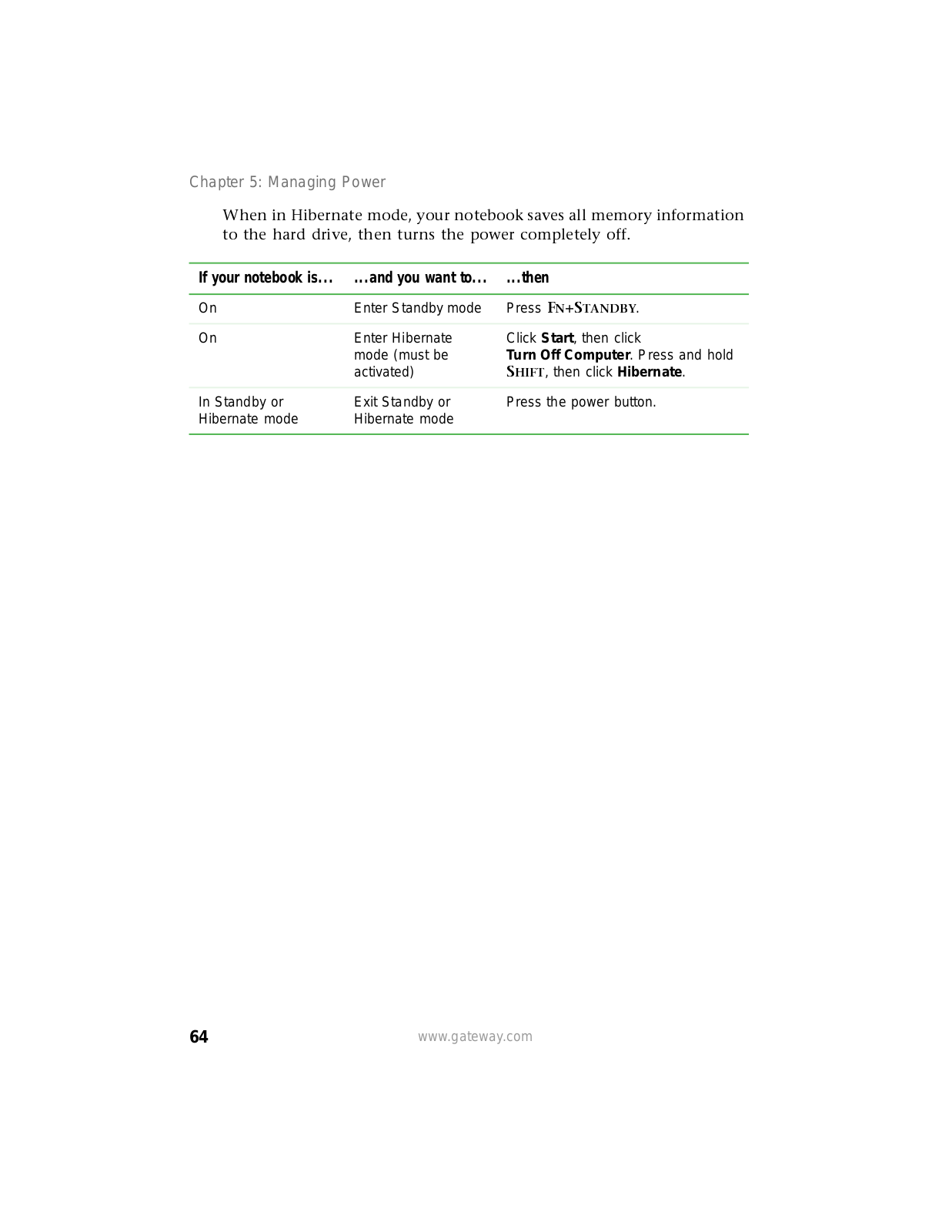

5 Managing Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

55

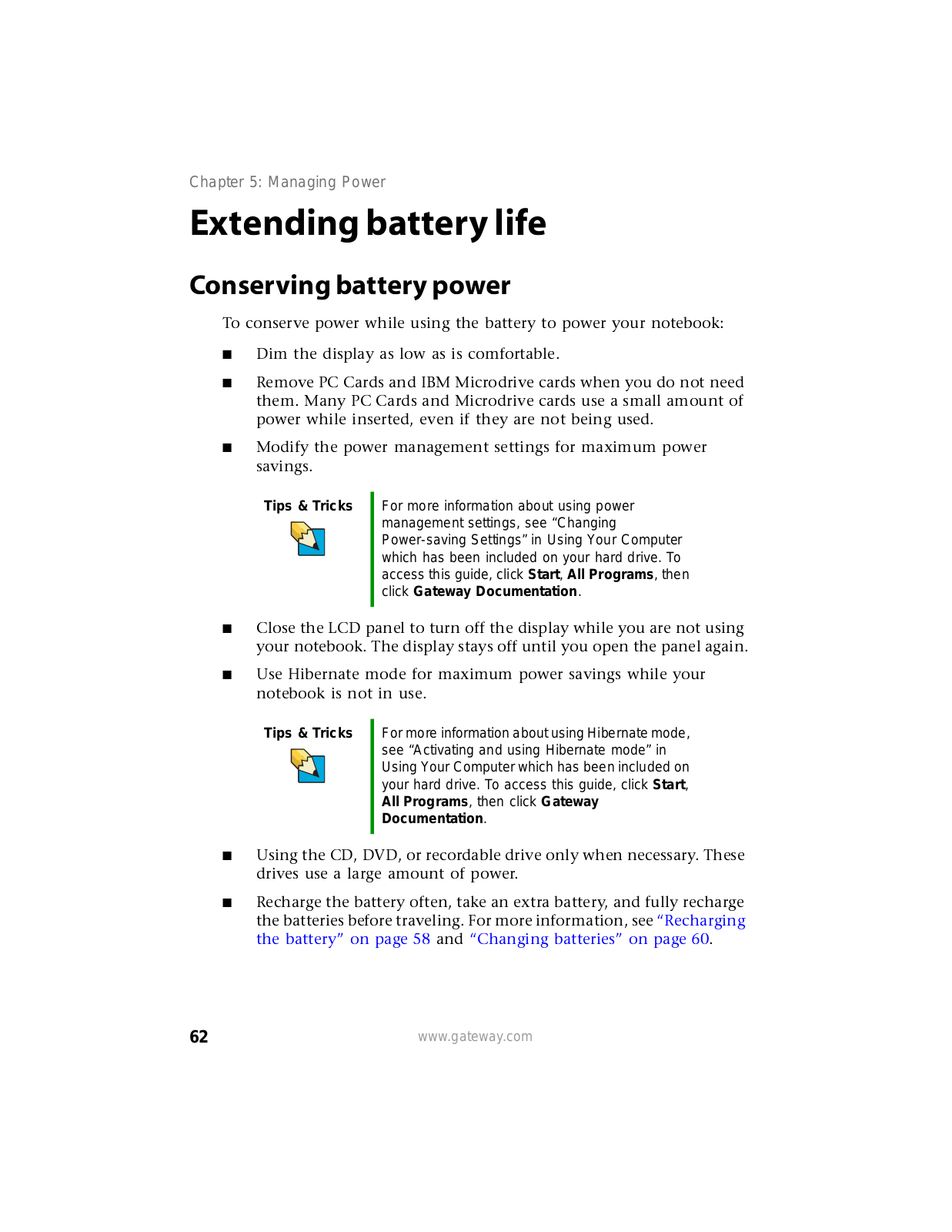

Monitoring the battery charge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56 Recharging the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58 Recalibrating the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59 Changing batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60 Replacing the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60 Extending battery life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62 Conserving battery power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62 Using alternate power sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63 Changing power modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

6 Upgrading Your Notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

65

Preventing static electricity discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

66

Adding or replacing memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

67

Replacing the hard drive kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

70

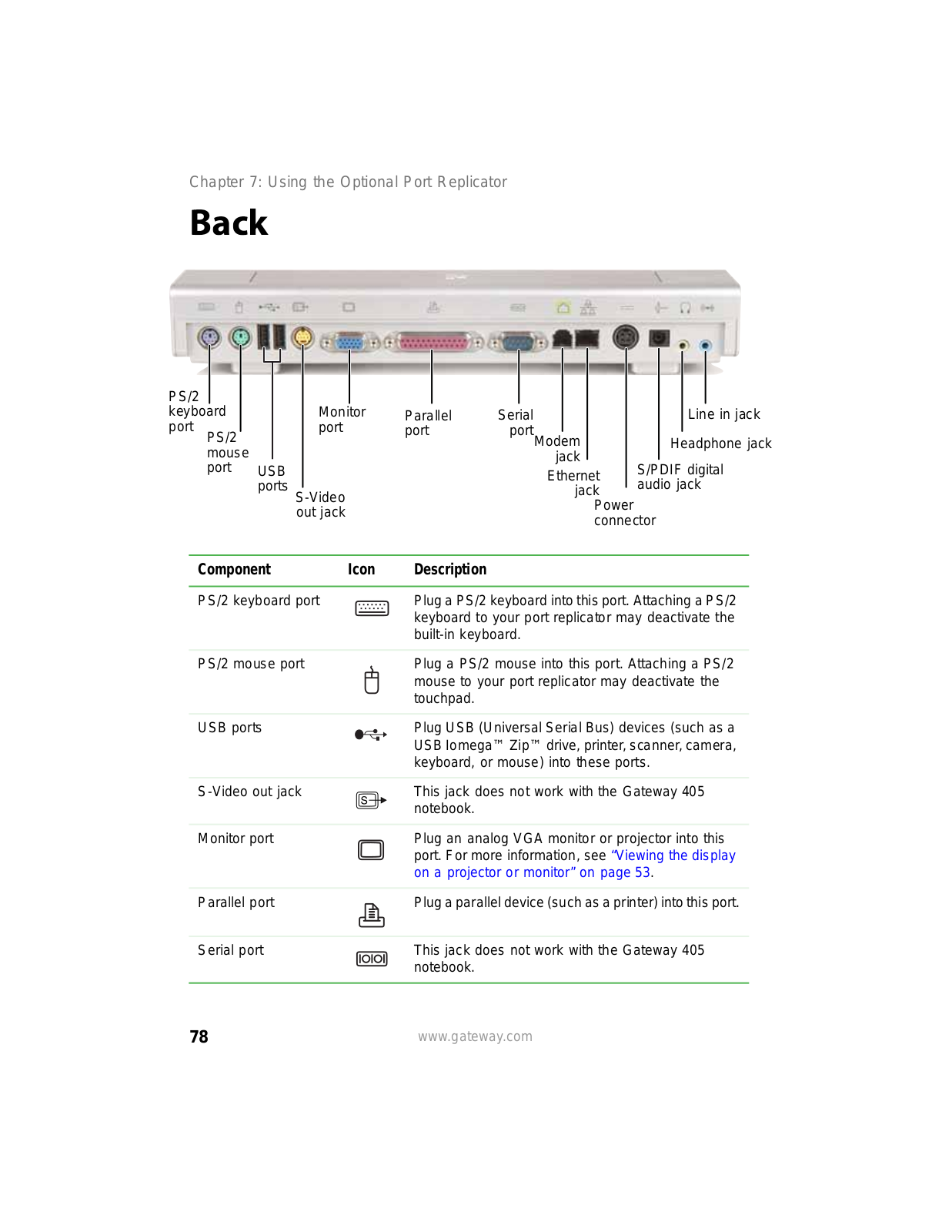

7 Using the Optional Port Replicator. . . . . . . . . . . . . . . . . . . . . . . .75

Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76 Left . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77 Back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78 Connecting to the port replicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80 Attaching to the port replicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80 Disconnecting from the port replicator . . . . . . . . . . . . . . . . . . . . . . . . .81 Securing your port replicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

ii

www.gateway.com

8 Maintaining Your Notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Caring for your notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84 Cleaning your notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85 Cleaning the exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85 Cleaning the keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86 Cleaning the notebook screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86 Cleaning CDs or DVDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86 Protecting your notebook from viruses . . . . . . . . . . . . . . . . . . . . . . . . . . . 87 Updating Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90 Restoring your system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Safety guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92 First steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94 Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94 Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94 CD drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94 Device installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94 Diskette drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96 DVD drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97 File management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99 Hard drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99 Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101 Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102 Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103 Memory card reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103 Modem (dial-up) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104 Mouse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107 Networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108 Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108 PC Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109 Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109 Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109 Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111 Touchpad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112 Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112 Telephone support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113 Before calling Gateway Customer Care . . . . . . . . . . . . . . . . . . . . . . 113 Telephone numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

www.gateway.com

iii

A Safety, Regulatory, and Legal Information . . . . . . . . . . . . . . .115

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

127

iv

www.gateway.com

1

Chapter 1: Getting Help

!

"

# "

$

% % %

% &

'

2

www.gateway.com

Gateway Web site

( )* +

" ,

-

www.gateway.com

3

Chapter 1: Getting Help

-' .

-/

#-

0

! 1

#!

!Support Home All Support Documents

!Support Home General Tutorials

% !0

!Product Support

!Downloads My Downloads

2&3-2

!All Downloads

% % "

!Contact Us

% !Call Us

4

5 6 778

!PC Tools

4

www.gateway.com

Help and Support

1 /

-

To start Help and Support:

!Start Help and Support/-

www.gateway.com

5

Chapter 1: Getting Help

/-

9 :Search/-

4 .

-% /-

4 %-; % /

- Search

; < 2 % ;

Search

&

Search Results

&

& %

To access the Using Your Computer guide:

!Start All Programs Gateway Documentation

6



www.gateway.com



Online help

;

Help

Help

www.gateway.com

7

Chapter 1: Getting Help

8

www.gateway.com

!

"

9

Chapter 2: Checking Out Your Gateway Notebook

Speaker

Battery

Power

LCD panel

Speaker



charge

indicator

release latch





indicator







Component

Icon



Description

























Speakers





















Provide audio output when headphones or























amplified speakers are not plugged in.

























Battery charge indicator





















The LED shows the battery activity and status.























LED green - battery is fully charged.























LED orange - battery is charging.























LED blinking red - battery charge is very low.























LED solid red - battery is malfunctioning.























This LED only lights up when your notebook is























connected to AC power or the battery charge is























very low.

























Power indicator





















The LED shows your notebook’s power status.























LED on - notebook is on.























LED blinking - notebook is in Standby mode.























LED off - notebook is off.

























LCD panel release latch





















Open the LCD panel by pressing the release























latch.

























10

www.gateway.com

Left Side

!





























































Microphone jack

USB ports

PC Card slot

Diskette drive

















or memory

Headphone jack





card reader

Component

Icon

Description









Microphone jack





Plug a microphone into this jack.









Headphone jack





Plug amplified speakers or headphones into this jack.







The built-in speakers are turned off when speakers or







headphones are plugged into this jack.









USB ports





Plug USB (Universal Serial Bus) devices (such as a







diskette drive, flash drive, Iomega™ Zip™ drive, printer,







scanner, camera, keyboard, or mouse) into these ports.









PC Card slot





Insert one Type II or one Type III PC Card into this slot.







For more information, see “Adding and removing a













PC Card” on page 50.









www.gateway.com

11

Chapter 2: Checking Out Your Gateway Notebook

Component

Icon

Description







Diskette drive or



Insert a standard 3.5-inch diskette into the optional

memory card



diskette drive. For more information, see “Using the

reader



optional diskette drive” on page 47.





Insert a memory card from a digital camera, MP3 player,





PDA, or cellular telephone into the optional memory card





reader. For more information, see “Using the optional





memory card reader” on page 48.





Important: Your notebook comes with either a built-in





diskette drive or a built-in memory card reader. If your





notebook has a built-in memory card reader and you





need to use a diskette drive, Gateway recommends





purchasing a USB diskette drive. To order a USB diskette





drive, visit the Accessory Store at





accessories.gateway.com.







12

www.gateway.com

Right Side

"





CD, DVD, or

Kensington





DVD/CD-RW drive

lock slot









Component

Icon

Description



CD, DVD, DVD/CD-RW, or recordable DVD drive

Insert CDs or DVDs into this drive. For more information, see “Using the CD or DVD drive” on page 44.

This drive may be a CD, DVD, combination DVD/CD-RW, or recordable DVD drive. To determine the type of drive in the notebook, examine the drive tray’s plastic cover and compare the logo to those listed in “Identifying drive types” on page 44.

Kensington™ lock slot

Secure your notebook to an object by connecting a



Kensington cable lock to this slot.





www.gateway.com

13

Chapter 2: Checking Out Your Gateway Notebook

#









































Modem jack





Parallel

Monitor

Ventilation









port

port

fan

Ethernet jack







































Power

















connector













Component

Icon







Description























Modem jack



















Plug a modem cable into this jack.













































Ethernet jack



















Plug a 10/100 Ethernet network cable into this jack.

























































































Power connector



















Plug the AC adapter cable into this connector.









































Parallel port



















Plug a parallel device (such as a printer) into this port.













































Monitor port



















Plug an analog VGA monitor or projector into this port.





















For more information, see “Viewing the display on a





















projector or monitor” on page 53.























Ventilation fan



















Helps cool internal components. Do not block or insert





















objects into these slots.























14

www.gateway.com

Bottom

#

Docking

port

System

label

















Memory

































































bay cover

















Battery













Reset hole













bay







































Battery latch Hard drive bay

























Component

Icon



Description

























Memory bay





















Install as many as two memory modules into this bay. For























more information, see “Adding or replacing memory” on























page 67.

























Reset hole





















Insert a straightened paper clip into this hole to manually























restart the notebook.

























Hard drive bay





















The hard drive is located in this bay. For more information,























see “Replacing the hard drive kit” on page 70.

























Battery latch





















Slide to release the battery.

























Battery bay





















Insert the battery into this bay. For more information, see























“Changing batteries” on page 60.

























www.gateway.com

15

Chapter 2: Checking Out Your Gateway Notebook

Component

Icon

Description







System label



Includes the product model number. For more information,





see “Identifying your model” on page 18.







Docking port



Connect the port replicator to this port.





Warning! Power is passed through this port. This docking





connection is certified to UL 1950 for use only with port





replicators designed for your Gateway notebook.







$

451 6

8)

Multi-function buttons

Status indicators

Power button

Keyboard

Touchpad

16

www.gateway.com





Keyboard area







Component

Icon

Description







Multi-function buttons



Press these buttons to open programs assigned to





them. These buttons are set to open your default





e-mail program, your default Web browser, online





help, and the My Computer window. For more





information, see “Multi-function buttons” on page 36.







Touchpad



Provides all the functionality of a mouse. For more





information, see “Using the EZ Pad touchpad” on





page 37.







Keyboard



Provides all the features of a full-sized, 86-key





keyboard. For more information, see “Using the





keyboard” on page 32.







Power button



Press to turn the power on or off. You can also





configure the power button for Standby/Resume





mode. For more information, see “Starting your





notebook” on page 27.







Status indicators



Inform you when a drive is in use or when a button





has been pressed that affects how the keyboard is





used. For more information, see “Status indicators”





on page 30.







www.gateway.com

17

Chapter 2: Checking Out Your Gateway Notebook

%

Important The labels shown in this section are for informational purposes only. Label information varies by model, features ordered, and location.

-

Gateway

model number

.

#

#

&0

18

www.gateway.com

Identifying your model

; !

www.gateway.com

19

Chapter 2: Checking Out Your Gateway Notebook

4 "

" =

4

51-6 *

20

www.gateway.com

Accessories

&

-

&

- 5! 6 >?

@

%

%

A

&

- 5

6 >+

9 :

- 51 3 # B 6 +C

www.gateway.com

21

Chapter 2: Checking Out Your Gateway Notebook

'

& '

1 '

A

' A '

1 1-2

22

www.gateway.com

!

#

$ $

%& "

! ' (

#

23

Chapter 3: Getting Started

&

! =

!

Important If the battery is not fully charged before you use your notebook on battery power for the first time, the battery life may be much shorter than you expect. If the battery life seems short even after being charged for three hours, the battery may need to be recalibrated. For information on recalibrating the battery, see “Recalibrating the battery” on page 59.

To connect the AC adapter:

1 ! !

Caution Make sure that you use the AC adapter that came with your notebook or one of the same type purchased from Gateway.

Replace the power cord if it becomes damaged. The replacement cord must be of the same type and voltage rating as the original cord or your notebook may be damaged.

24

www.gateway.com

Connecting the AC adapter

2 ! ! =

3 #

95-6

8?:

4

!

Warning

Do not attempt to disassemble the AC adapter. The



AC adapter has no user-replaceable or user-serviceable



parts inside. The AC adapter has dangerous voltages that



can cause serious injury or death. Contact Gateway about



returning defective AC adapters.





Important If the battery charge indicator does not turn green after three hours, contact Gateway Customer Care at support.gateway.com.



www.gateway.com

25



Chapter 3: Getting Started

0

#

Warning High voltages can enter your notebook through both the power cord and the modem connection. To protect your notebook and avoid electrical shock, use a surge protector. If you have a telephone modem, use a surge protector that has a modem jack. If you have a cable modem, use a surge protector that has an antenna/cable TV jack. During an electrical storm, unplug both the surge protector and the modem.

26

www.gateway.com

Starting your notebook

To start your notebook:

1 # A!0

2 #

Power button

3 @3 /

-@B

Tips & Tricks

For more information about changing the power button



mode, see “Changing Power-saving Settings” in Using



Your Computer which has been included on your hard



drive. To access this guide, click Start, All Programs,



then click Gateway Documentation.





3 & %



www.gateway.com

27



Chapter 3: Getting Started

A!0

% -

&-5 6

Tips & Tricks

For more information about changing the power button



mode, see “Changing Power-saving Settings” in Using



Your Computer which has been included on your hard



drive. To access this guide, click Start, All Programs,



then click Gateway Documentation.





To turn off your notebook:

1 !Start Turn Off Computer

2 !Turn Off

Important If for some reason you cannot use the Turn Off Computer option in Windows to turn off your notebook, press and hold the power button for about five seconds, then release it.

28



www.gateway.com



Restarting (rebooting) your notebook

" ' (

&

&

9 :

To close unresponsive programs and restart your notebook:

1

2

3

4

5

#

!7DVN 0DQDJHU

!

!End Task

!X %

6 &

Important If your notebook does not turn off immediately, complete the following steps until your notebook turns off:

1Press and hold the power button for about five seconds, then release it.

2Insert a straightened paper clip into the reset hole on the bottom of your notebook.

3Unplug the power cord and remove the battery for more than 10 seconds.



www.gateway.com

29



Chapter 3: Getting Started

-

Hard drive

Caps lock

Disc drive Scroll lock

Diskette drive

Pad lock

Indicator

Icon

Description













Diskette drive









The diskette drive or the memory card reader is in use.

































Disc drive









The CD or DVD drive is in use.













Hard drive









The hard drive is in use.













Caps Lock









Caps Lock is turned on.













30

www.gateway.com









Status indicators











Indicator

Icon

Description











Scroll Lock







Scroll Lock is turned on. For more information, see









“System key combinations” on page 34.





























Pad Lock







Numeric keypad is turned on. For more information, see



1

“System key combinations” on page 34.















www.gateway.com

31

Chapter 3: Getting Started

% "

;

D A

1-2

1-2

1-2 #-@)

Function keys/System keys

Navigation keys/Volume keys

































































































































































































key Windows

Numeric

Application

Arrow keys/LCD

key

keypad

key

brightness keys

32

www.gateway.com

Using the keyboard

-

Key type

Icon



Description











Function keys







Press these keys labeled to to perform actions









in programs. For example, pressing may open help.









Each program uses different function keys for different









purposes. See the program documentation to find out









more about the function key actions.











System keys







Press these colored keys in combination with the key









to perform specific actions. For more information, see









“System key combinations” on page 34.











Navigation keys







Press these keys to move the cursor to the beginning









of a line, to the end of a line, up the page, down the









page, to the beginning of a document, or to the end of









a document.











Volume keys







Press these colored keys in combination with the key









to increase or decrease the volume or to turn off all









sound.











key







Press the key in combination with a colored system









key (such as , , or ) to perform









a specific action.











Windows key







Press this key to open the Windows Start menu. This









key can also be used in combination with other keys to









open utilities like (Search utility), (Run utility), and









(Explorer utility).











Application key







Press this key for quick access to shortcut menus and















help assistants in Windows.













































Arrow keys







Press these keys to move the cursor up, down, right,









or left.











LCD brightness







Press these colored keys in combination with the key

keys







to control the screen brightness.











www.gateway.com

33

Chapter 3: Getting Started

Press and hold , then

To...

press this system key...













Display the power status box in the upper-left corner of





your display. The box shows the battery charge level, the





BIOS version, and whether the AC adapter is being





used. Press the key combination again to close this box.











Toggle your notebook’s display between the LCD, an





external monitor, or both displays at the same time. A





monitor must be plugged into the monitor port on your





notebook.











Enter Standby mode. Press the power button to leave





Standby mode. For more information, see “Changing





power modes” on page 63.











Turn on Pad Lock so you can use the numeric keypad.





Press this key combination again to turn off Pad Lock.





The Pad Lock status indicator appears when this





function is turned on.











Pause the text scrolling in a DOS screen. Press this key





combination again to continue scrolling. The Scroll Lock





status indicator appears when this function is turned on.









(This function is only available in some programs.)











Pause execution of a DOS program. (This function is





only available in some programs.)











Stop the currently running DOS program. (This function





is only available in some programs.)











Increase the brightness of the display.

34

www.gateway.com



Using the keyboard

Press and hold , then

To...

press this system key...





Decrease the brightness of the display.

Home

Mute the sound. Press the key combination again to

restore the sound. For more information, see “Adjusting



the volume” on page 40.

PgUp

Increase volume. For more information, see “Adjusting

the volume” on page 40.

PgDn

Decrease volume. For more information, see “Adjusting

the volume” on page 40.















































www.gateway.com

35

Chapter 3: Getting Started

) *

# %

Help

Internet

E-mail

My Computer

















Button

Icon

Press to...

E-mail



Open your default e-mail program.

Internet



Open your default Web browser.

Help



Open online help.

My Computer



Open the My Computer window.

36

www.gateway.com

Using the EZ Pad touchpad

+, -

E # F

Touchpad

Left touchpad

Rocker

Right touchpad

button

switch

button

www.gateway.com

37

Chapter 3: Getting Started

9 :

E%#

'

" "

-

Tips & Tricks

For instructions on how to adjust the double-click speed,



pointer speed, right-hand or left-hand configuration, and



other touchpad settings, see “Changing the mouse or



touchpad settings” in Using Your Computer which has



been included on your hard drive. To access this guide,



click Start, All Programs, then click Gateway



Documentation.





38

www.gateway.com

+ 100 hidden pages
