Garmin NAVTALKGSM User Manual

NavTalk

GSM Phone/GPS

owner’s
manual
and
reference
guide

®

© Copyright 2002 GARMIN Ltd. or its subsidiaries

GARMIN International, Inc.
1200 East 151st Street, Olathe, Kansas 66062, U.S.A.
Tel. [phone] or 800/800.1020
Fax [phone]

GARMIN (Europe) Ltd.
Unit 5, The Quadrangle, Abbey Park Industrial Estate, Romsey, SO51 9DL, U.K.
Tel. [phone]
Fax [phone]

GARMIN Corporation
No. 68, Jangshu 2

nd

Road, Shijr, Taipei County, Taiwan
Tel. [phone]
Fax [phone]

All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated,
downloaded or stored in any storage medium, for any purpose without the express prior written consent of GARMIN. GARMIN hereby grants
permission to download a single copy of this manual onto a hard drive or other electronic storage medium to be viewed and to print one copy
of this manual or of any revision hereto, provided that such electronic or printed copy of this manual must contain the complete text of this
copyright notice and provided further that any unauthorized commercial distribution of this manual is strictly prohibited.

Information in this document is subject to change without notice. GARMIN Corporation reserves the right to change or improve its products
and to make changes in the content without obligation to notify any person or organization of such changes or improvements. Visit the
GARMIN web site (www.garmin.com) for current updates and supplemental information concerning the use and operation of this and other
GARMIN products.

GARMIN® and NavTalk® are registered trademarks of GARMIN Ltd. or its subsidiaries and may not be used without the express permission of
GARMIN.

November 2002 Part Number 190-00218-00 Rev. C Printed in Taiwan

Thank you for choosing the GARMIN NavTalk GSM Phone/GPS. This
product is designed for easy operation and to provide years of reliable
service.

Section 1

Introduction

Please take the time to read this Owner’s Manual, and learn the opera­tion of your new phone. This will help ensure that you get the most from
the unit.

If you encounter a problem, or just have a question, contact our
European Product Support Department, GARMIN (Europe) Ltd. at
44/0870-8501241.

In the U.S.A.: contact our Product Support Department at
913-397-8200 or 800-800-1020,
Monday — Friday 8:00 A.M. to 5:00 P.M. Central Time,
or by e-mail at [e-mail].

Customer Service

Product Registration

Help us better support you by completing our
on-line registration today! Have the serial number
of your NavTalk handy and connect to our web site
(www.garmin.com). Look for the Product Registra­tion link on the Home page.

Software License Agreement

BY USING THE NavTalk GSM Phone/GPS, YOU AGREE TO
BE BOUND BY THE TERMS AND CONDITIONS OF THE FOL­LOWING SOFTWARE LICENSE AGREEMENT. PLEASE READ
THIS AGREEMENT CAREFULLY.

GARMIN grants you a limited license to use the software
embedded in this device (the “Software”) in binary executable
form in the normal operation of the product. Title, ownership
rights and intellectual property rights in and to the Software
remain in GARMIN.

You acknowledge that the Software is the property of
GARMIN and is protected under the United States of America
copyright laws and international copyright treaties. You further
acknowledge that the structure, organization and code of the
Software are valuable trade secrets of GARMIN and that the
Software in source code form remains a valuable trade secret
of GARMIN. You agree not to decompile, disassemble, modify,
reverse assemble, reverse engineer or reduce to human readable
form the Software or any part thereof or create any deriva­tive works based on the Software. You agree not to export or
re-export the Software to any country in violation of the export
control laws of the United States of America.

i

Section 1

Introduction

Limited Warranty

This GARMIN product is warranted to be free
from defects in materials or workmanship for
one year from the date of purchase. Within this
period, GARMIN will at its sole option, repair or
replace any components that fail in normal use.
Such repairs or replacement will be made at no
charge to the customer for parts or labor, provided
that the customer shall be responsible for any
transportation cost. This warranty does not cover
failures due to abuse, misuse, accident or unau­thorized alteration or repairs.

THE WARRANTIES AND REMEDIES CON­TAINED HEREIN ARE EXCLUSIVE AND IN
LIEU OF ALL OTHER WARRANTIES EXPRESS
OR IMPLIED OR STATUTORY, INCLUDING
ANY LIABILITY ARISING UNDER ANY WAR­RANTY OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE, STATUTORY OR
OTHERWISE. THIS WARRANTY GIVES YOU
SPECIFIC LEGAL RIGHTS, WHICH MAY VARY
FROM STATE TO STATE.

ii

IN NO EVENT SHALL GARMIN BE LIABLE FOR ANY INCI­DENTAL, SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES,
WHETHER RESULTING FROM THE USE, MISUSE, OR INABILITY
TO USE THIS PRODUCT OR FROM DEFECTS IN THE PRODUCT.
Some states do not allow the exclusion of incidental or consequential
damages, so the above limitations may not apply to you.

GARMIN retains the exclusive right to repair or replace the unit or
software or offer a full refund of the purchase price at its sole discre­tion. SUCH REMEDY SHALL BE YOUR SOLE AND EXCLUSIVE
REMEDY FOR ANY BREACH OF WARRANTY.

To obtain warranty service, contact your local GARMIN authorized
dealer. Or call GARMIN Customer Service at one of the numbers
shown below, for shipping instructions and an RMA tracking number.
The unit should be securely packed with the tracking number clearly
written on the outside of the package. The unit should then be sent,
freight charges prepaid, to any GARMIN warranty service station. A
copy of the original sales receipt is required as the proof of purchase

warranty repairs.
Products sold through online auctions are not eligible for rebates

or other special offers from GARMIN. Online auction confirmations
are not accepted for warranty verification. To obtain warranty service,
an original or copy of the sales receipt from the original retailer is
required. GARMIN will not replace missing components from any
package purchased through an online auction.

GARMIN International, Inc. GARMIN (Europe) Ltd.
1200 East 151st Street Unit 4, The Quadrangle, Abbey Park Industrial Estate
Olathe, Kansas 66062, U.S.A. Romsey, SO51 9DL, U.K.
Phone: [phone] Phone: [phone]

FAX: [phone] FAX: [phone]

for

Exposure to Radio Frequency Signals - Your wireless hand-held
portable telephone is a low power radio transmitter and receiver. When
it is ON, it receives and also sends out radio frequency (RF) signals. The
NavTalk GSM Wireless Telephone/GPS Receiver meets compliance require­ments for maximum Specific Absorption Rate of radio wave emissions for
the limit given.

Efficient Phone Operation Guidelines - Do not touch the antenna
unnecessarily when the phone is in operation. Contact with the antenna
affects reception and transmission quality causing the phone to operate at a
higher power than necessary, causing possible injury.

Electronic Devices - Most modern electronic equipment is shielded from
RF signals. However, certain electronic equipment may not be shielded
against the RF signals from your wireless phone. The Health Industry Man­ufacturer’s Association recommends that a minimum separation of six (6”)
inches be maintained between a handheld wireless phone and a pacemaker
to avoid possible interference with the pacemaker. These recommendations
are consistent with independent research and recommendations of Wire­less Technology Research. Persons with pacemakers should ALWAYS keep
the phone more than six inches from their pacemaker when the phone is
turned ON, should not carry the phone in a breast pocket, and should use
the ear opposite the pacemaker to minimize the potential for interference.

If you have any reason to suspect that interfer­ence is taking place, turn your phone OFF imme­diately. If you use any other personal medical
device, consult the manufacturer to determine if
it is adequately shielded from external RF energy.
Turn your phone off in health care facilities when
any regulations posted in these areas instruct you
to do so. Hospitals and health care facilities may
be using equipment that could be sensitive to
external RF energy.

Posted Facilities - Turn your phone OFF in any
facility where posted notices so require.

Blasting Areas - To avoid interfering with blast­ing operations, turn your phone OFF when in a
“blasting area” or in areas posted: “Turn Off Two­way Radio”. Obey all signs and instructions.

Section 1

Introduction

Warnings and Precautions

iii

Section 1

Introduction

Warnings and Precautions

Driving - Check the regulations on the use of wireless telephones
in the areas where you drive. Always obey them. Also, if using
your phone while driving, give full attention to driving. Driving
safely is your first responsibility. Pull off the road and park before
making or answering a call if driving conditions so require.

Potentially Explosive Atmospheres - Turn your phone
OFF when in any area with a potentially explosive atmo­sphere and obey all signs and instructions. Sparks in such
areas could cause an explosion or fire resulting in bodily
injury or death.

Areas with potentially explosive atmospheres are often,
but not always clearly marked. They include fueling areas
such as gasoline stations, below deck on boats, fuel or
chemical transfer or storage facilities, vehicles using lique­fied petroleum gas (such as propane or butane), areas
where the air contains chemicals or particles (such as
grain dust or metal powders), and any other area where
you would be normally advised to turn off your vehicle
engine.

Aboard Aircraft - Regulatory agencies prohibit the use of
conventional wireless phones while an aircraft is in flight.
These RF signals may interfere with the operation of equip­ment aboard the aircraft.

iv

Vehicles - RF signals may affect improperly installed or inad­equately shielded electronic systems in motor vehicles.

Caution - The Global Positioning System (GPS) is operated by
the government of the United States of America, which is solely
responsible for its accuracy and maintenance. The system is sub­ject to changes that could affect the accuracy and performance of
all GPS equipment. Although this device is a precision electronic
NAVigation AID (NAVAID), any NAVAID can be misused or misin­terpreted and therefore, become unsafe.

To reduce the risk of unsafe operation, carefully review
and understand all aspects of this manual and thoroughly practice
operation prior to actual use. When in actual use, carefully
compare indications from this device to all available navigation
sources including information from other NAVAIDS, visual sight­ings, maps, etc. For safety, always resolve any discrepancies before
continuing navigation.

Map Data Information - One of our goals is to provide cus­tomers with the most complete and accurate cartography that
is available to us at a reasonable cost. We use a combination
of governmental and private data sources that we identify as
required in product literature and copyright messages displayed
to the consumer. Virtually all data sources contain inaccurate
or incomplete data to some degree. This is particularly true
outside the United States where complete and accurate digital
data is not available or prohibitively expensive.

CAUTION - IT IS THE USER’S RESPONSIBILITY TO USE
THIS PRODUCT PRUDENTLY. THIS PRODUCT IS INTENDED
TO BE USED ONLY AS A TRAVEL AID AND MUST NOT BE
USED FOR ANY PURPOSE REQUIRING PRECISE MEA­SUREMENT OR DIRECTION, DISTANCE, LOCATION, OR
TOPOGRAPHY. THIS PRODUCT SHOULD NOT BE USED
AS AN AID TO DETERMINE GROUND PROXIMITY FOR
AIRCRAFT NAVIGATION.

European Union Directives Conformance Statement

This product is in conformance with the requirements of the
applicable EU Council Directives.

Declarations of Conformance with the requirements are
located at:

GARMIN International, Inc.

1200 E 151st Street

Olathe, Kansas 66062, U.S.A.

Warning and Important Information Symbols

Section 1

Introduction

Warnings and Precautions

Service and Repair - This product does not contain any user
serviceable parts. Repairs should be made only by an authorized
service center.

This Warning Symbol indicates conditions that may cause
possible injury to the user or damage to this equipment.

This Important Information Symbol indicates useful infor­mation that can enhance operation of this equipment.

v

Section 1

Introduction

Table of Contents

SECTION 1: Introduction..................................... i-viii

Customer Service - Product Registration................................... i

Limited Warranty .................................................................... ii

Warnings and Precautions ...................................................iii-v

Table of Contents .............................................................. vi-vii

Network Service Provider Information ................................. viii

SECTION 2: Getting Started................................... 1-24

Battery Installation and Charging ............................................1

SIM Card Installation ............................................................. 2

Using the Keypad ....................................................................3

Turning the Unit On/Off.......................................................... 4

Adjusting the Screen Contrast .................................................4

Activating the Backlight Feature ..............................................5

Adjusting the Volume.............................................................. 5

Understanding the Status Bar ..................................................6

The Time and Date Display ..................................................... 6

Using the ‘Quick Set’ Feature................................................... 7

Using the Keyguard Feature .................................................7

Turning the GPS On/Off....................................................... 7

Marking your current location as a Waypoint....................... 7

Using the Profi les Feature..................................................... 8

vi

Using the Standby Feature....................................................... 8

How the Operating System is Structured................................. 9

Entering Data ...................................................................10-11

The Main Menu................................................................12-24

The Phone Tab .............................................................. 12-16

The GPS Tab .................................................................17-18

The PDA Tab...................................................................... 19

The Settings Tab............................................................20-24

SECTION 3: Phone Operation ............................25-60

Making a Call ....................................................................25-27

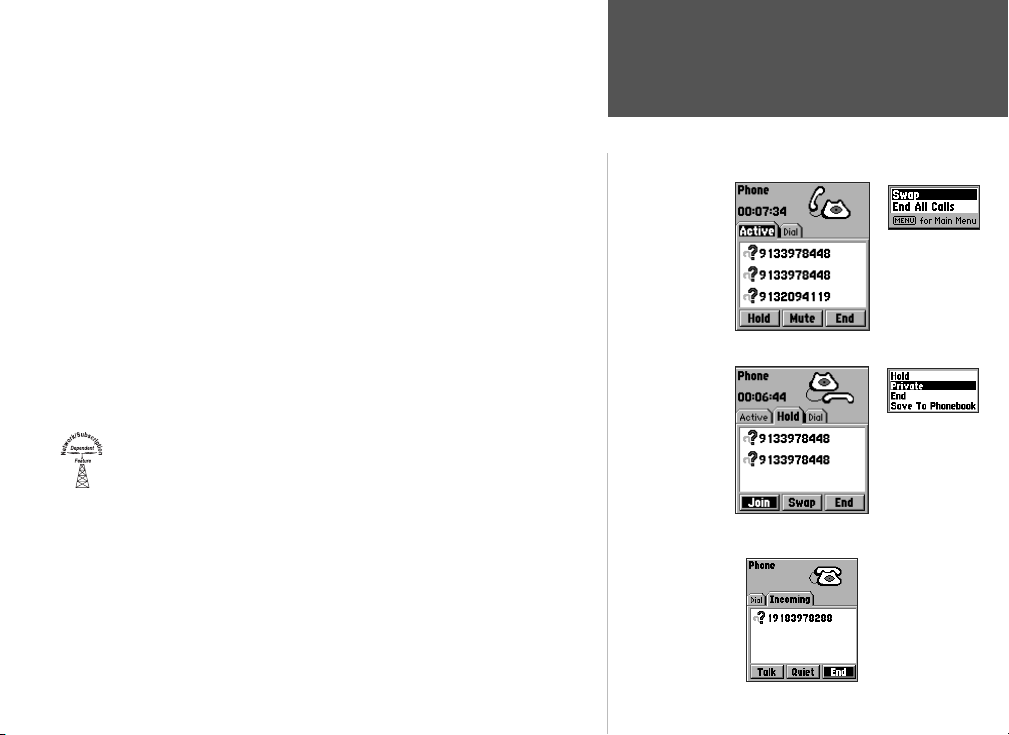

Handling a Call .................................................................28-29

Answering a Call ................................................................. 28

Placing a Call on Hold ........................................................28

Muting a Call ...................................................................... 28

Ending a Call ......................................................................28

Conference Calls .................................................................29

Sending a Call to your Voice Mail........................................ 29

Using Contacts ..................................................................30-34

Call History.......................................................................35-36

Dialled Calls........................................................................ 35

Missed Calls ........................................................................ 35

Received Calls .....................................................................36

Air Time.............................................................................. 36

Call Cost .............................................................................36

Messages ...........................................................................37-42

New Messages..................................................................... 37

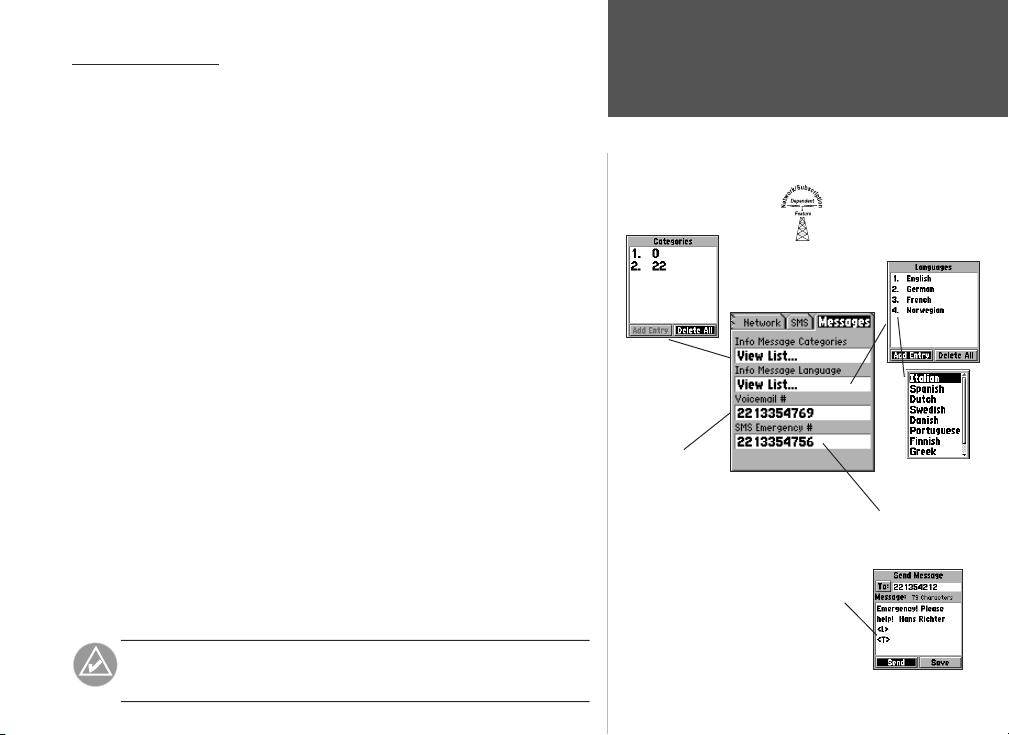

Voice Mail Messages ...........................................................38

SECTION 3: Phone Operation (cont.)

Message Inbox .................................................................... 38

Read Messages .................................................................... 38

Using Numbers and Websites in Messages ..........................39

Message Drafts .................................................................... 40

Sent Messages ..................................................................... 40

Templates............................................................................ 41

Reports ..........................................................................41-42

Recurrences......................................................................... 42

MiniBrowser......................................................................43-45

Personal Digital Assistant (PDA) Tab .................................46-52

Calendar ............................................................................. 46

Tasks................................................................................... 47

Notes .................................................................................. 48

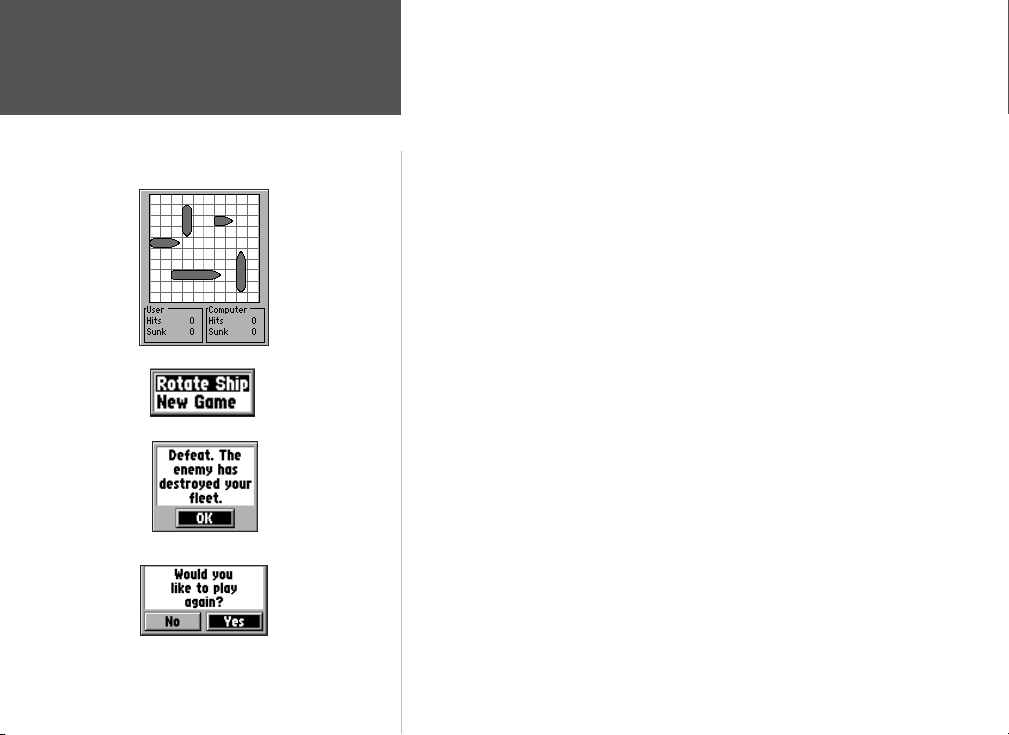

Playing Games ...............................................................49-51

Calculators.......................................................................... 52

Settings Tab.......................................................................53-64

Phone.............................................................................53-60

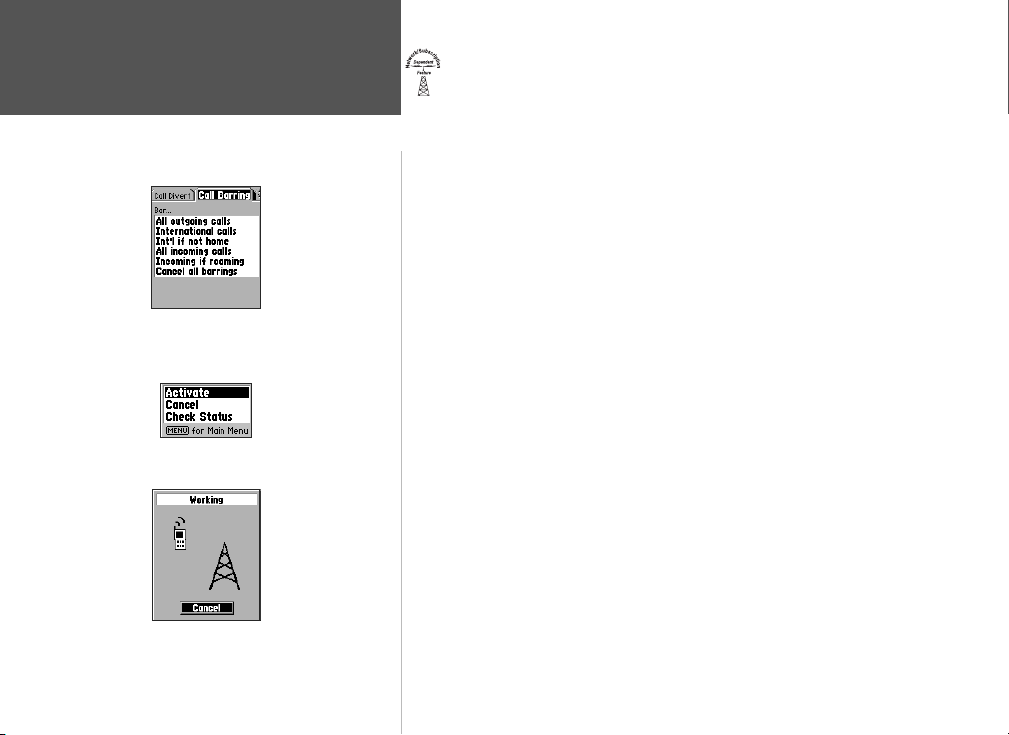

Call Services...................................................................61-64

SECTION 4: GPS Navigation...............................65-95

GPS Tab - Features Pages........................................................ 65

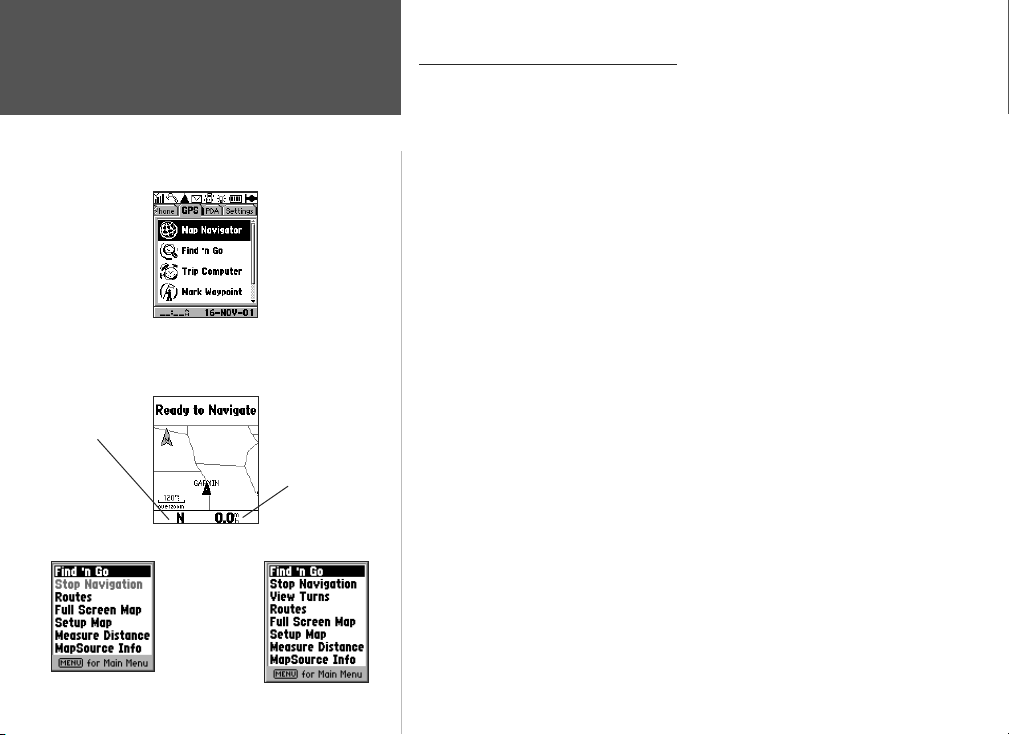

Map Navigator........................................................................ 66

Data Fields .......................................................................... 67

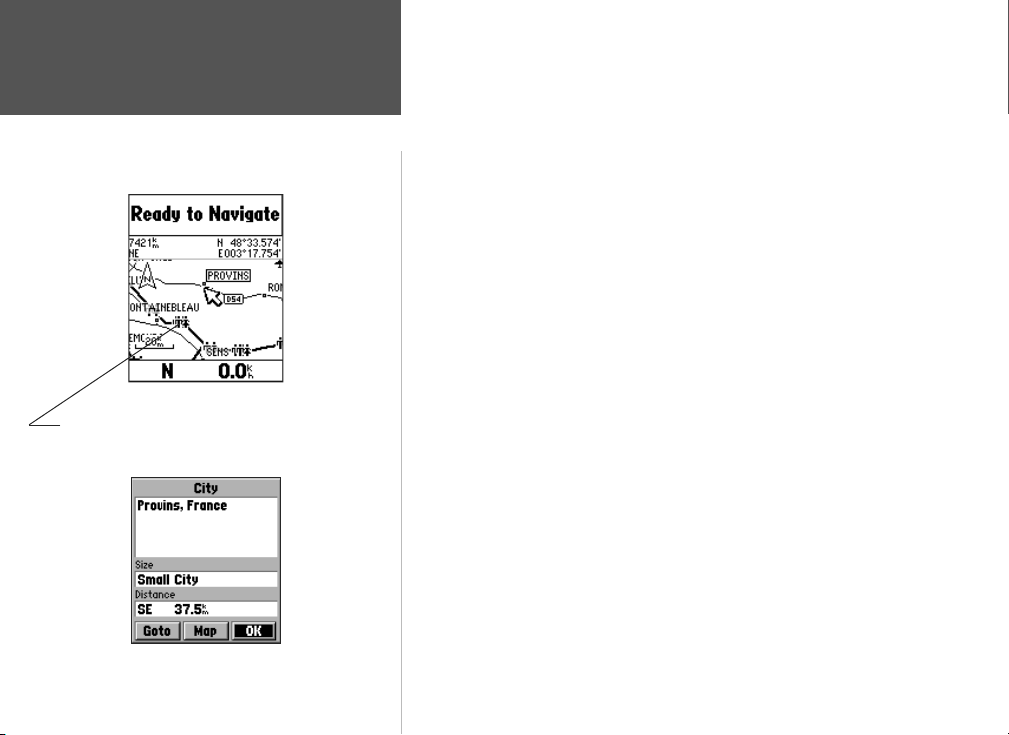

Map Display........................................................................ 68

Panning Arrow...............................................................69-70

Zooming In and Out ...........................................................71

Map Navigator Options..................................................72-76

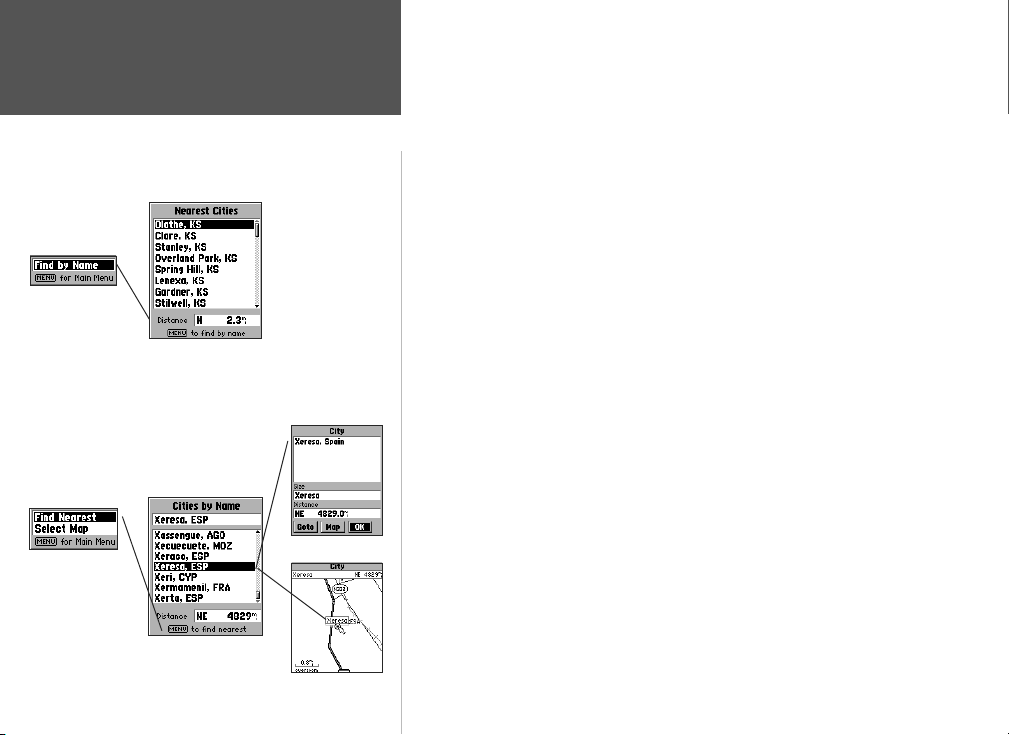

Find ‘n Go.........................................................................77-83

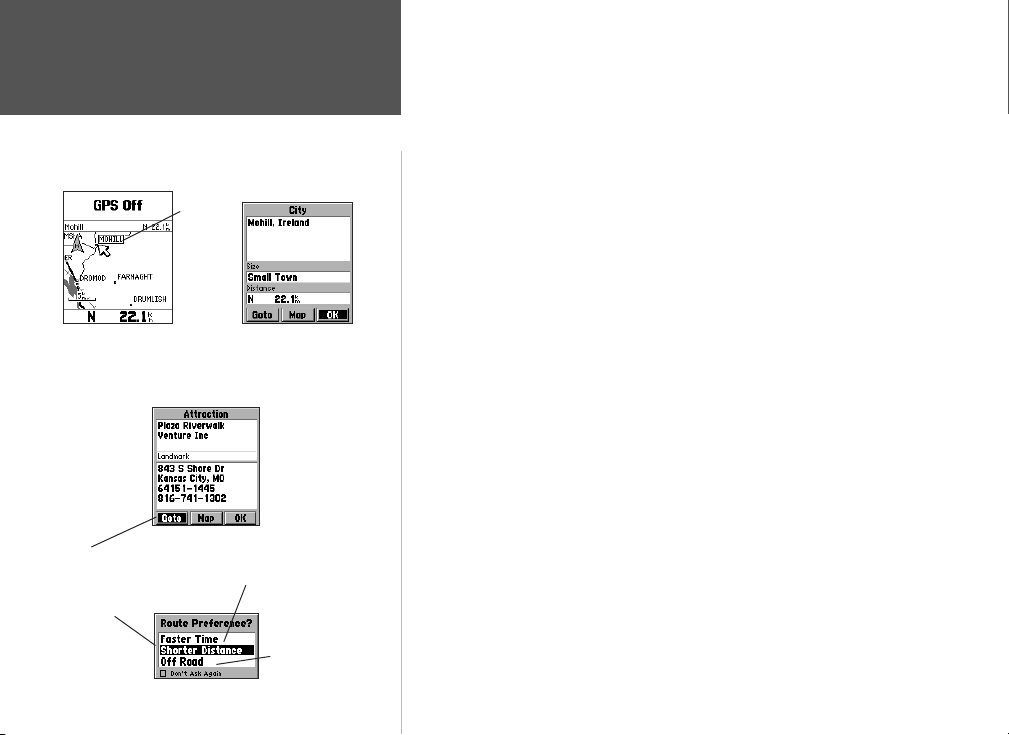

Creating a Route To a Destination...........................................84

Auto Routing.......................................................................... 85

Section 1

Introduction

Table of Contents

Trip Computer .......................................................................86

Waypoints .........................................................................87-91

Satellite Page ..........................................................................92

GPS Settings......................................................................93-95

SECTION 5: System Settings Options ................96-98

Display Settings...................................................................... 96

Time Settings..........................................................................97

Interface Settings .................................................................... 98

SECTION 6: Appendices

Appendix A: Accessories ............................................... 99-101

Appendix B: Specifi cations .................................................102

Appendix C: Messages ................................................ 103-106

Appendix D: Unit Care ......................................................107

Appendix E: UTC Offset Chart............................................108

Appendix F: Intellisync for GARMIN PC Interface ..............109

Appendix G: MapSource Data Information .........................110

Appendix H: Interface Modem Setup ..................................111

Appendix I: Troubleshooting Guide....................................112

Appendix J: Glossary of Terminology.......................... 113-114

Appendix K: Index By Subject .................................... 115-117

.......................................... 99-118

vii

Section 1

Introduction

Network Service Provider

Information

This Network Subscription Dependent Feature
symbol indicates a feature which is functional
only when supported by your Network Service
Provider. It will usually require activation and
often an additional subscription charge above the
basic service fee.

Many of the features of the NavTalk GSM are dependent on services
provided by the network used to provide wireless phone service. When­ever these features are discussed in this manual, a Network/Subscription
icon (like the one shown to the left) will be located at the beginning of the
paragraph describing how the feature functions.

If your network service provider offers these features, they may be
provided as a standard option included with your basic subscription fee
or may require an additional subscription fee. In any event, they must be
activated by your service provider in order to function with the NavTalk unit.

It is suggested that you review this manual before selecting a Network
Provider in order to determine which of NavTalk Network Dependent
features you would like to use. This will allow you to determine if a
particular provider can offer connection to the desired features. Some
network provided features, such as Voice Mail may function in a manner
unique to your provider’s system and are not discussed in detail in this
manual. The network provider will provide you with proper instruction
for their use. It is assumed that your network service provider will test the
function of network dependent features supported by this device prior to
returning it for your personal use.

Here is a list of network dependent features supported by the NavTalk:

✓ Voice Mail ✓ Network Selection

✓ Short Message Service ✓ MiniBrowser
✓ Information Messaging ✓ Call Barring (Restriction)
✓ Call Waiting ✓ Caller Line Identification (CLIP)

viii

Battery Installation and Charging

The unit is powered by a Lithium Ion rechargeable battery located on
the back of the unit. The battery does not require removal from the unit
for recharging. Charging at “Start Up” may require up to three hours. The
battery is already installed on the unit, but must be removed in order to
remove the insulating strip from the contacts on the battery which prevents
complete discharge of the battery during shipping.

Battery Installation/Removal

1. Turn the unit over and use your index fi nger to depress the tab in the

slot on the back of the unit to release the battery.

2. Pull the battery away from the unit and then remove the insulating strip

from the electrical contacts on the battery. Discard the strip.

3. Reinstall the battery on the back of the unit.

Section 2

Getting Started

Battery Installation

Back of Unit

Press down on the release tab to
remove the insulating strip from
the battery contacts

Insulating Strip

Charging the Battery

1. With the battery in place and the insulating strip removed from the
contacts, connect the charger (supplied with the unit) to the connector
on the base of the unit.

2. Then, connect the charger power input to an appropriate power source,
power point, etc. The unit will display a “Charging” message.

3. Allow approximately 2 to 3 hours for the initial charge and somewhat
less time for recharging thereafter. The message will change to indicate
that charging is complete.

4. The NavTalk can be operated while connected to the charger.

NavTalk Unit

Charger Plug

Battery Charging

Power Point

Travel Charger

1

Section 2

Getting Started

SIM Card Installation

Place this side face down with the notch at
the upper right side

89490
08997
90087

DYNE STK

4568

Subscriber Identity Module (SIM) Card Installation

The SIM card (supplied by your cellular service provider) is a “Smart
Card” that includes your phone number, memory for storing phone num­bers, messages, and service information. You can use your SIM card in any
GSM phone and you will be charged for the call. The SIM card should be
kept secure. Do not bend, scratch, expose to static electricity, or water as
damage may occur. Your SIM card is secured by a Personal Identification
Number (PIN) to discourage theft or unauthorized use. Your cellular ser­vice provider will often perform this installation for you in order to check
the phone for proper operation.

SIM Card

Slide to the left and then lift up tray and
insert SIM Card

Orient card with notch to the upper right
and electrical contacts facing down.

Back of Unit with Battery Removed

2

NOTE: Switch off your unit before inserting or
removing your SIM card to prevent damage to the SIM
card memory.

SIM Card Installation/Removal

1. Switch off the unit by pressing and holding the POWER key for more
than two seconds.

2. Remove the battery pack from the back of the unit.

3. Install the SIM card by sliding and lifting the tray in the back of the
unit. Insert the card with the notch directed toward the top right side
of the opening.

4. To remove, lift up the tray and carefully extract the card.

5. Replace the tray and secure it in place. The tray must be closed and
moved to the right until it clicks in place in order for the SIM card to
function.

Remote Earpiece/Microphone
Connection

Service Status Indicator (LED)

Wireless Phone Antenna

Volume UP/Zoom OUT key

Press and Hold to increase earpiece
volume or to zoom out on the map
page to show more map area with
less detail. Press and Release
by increments.

Volume DOWN/Zoom IN
key

Press and Hold to decrease earpiece
volume or to zoom in on the map
page to show more map detail with
less area. Press and Release
by increments.

to move

to move

MENU key

Press and Release to display
the Main Menu or the Options
Menu for any page. Press and
Hold to display the ‘Find ‘n Go’
fi nd menu.

SEND key

Press and Release to call a
dialled number, a highlighted
number from the Contacts List,
or to display the Call History
Page.

Rechargeable Battery

on back of unit

Auxiliary Power/Data Connector

Refer to Pages 99-101 for information on accessories
and how to connect them to the NavTalk Unit.

Section 2

Getting Started

Using the Keypad

Built-in GPS Antenna

POWER key

Press and Release to turn the unit
ON. Press and Hold
Off. Press and Release while the unit
is On to display the Backlight/
Contrast adjustment window.

ENTER & Up/Down-Right/Left keys

(5 position key) Press In for ENTER to highlight,
confi rm a message or select an option. Move
Up, Down, Left, or Right to move from fi eld
to fi eld, tab to tab, or move the map pointer.
Move Up or Down
Left or Right to move from page to page of a
list. Press
Menu.

CLEAR key

Press and Release to delete a previous character
or exit a data entry fi eld. Press and Release
again to escape to the Main Menu. Press
Once from the Main Menu to place the unit on
Standby. Press and Hold

END key

Press and Release to end a call or stop the
phone from ringing. Press Once to exit a page
or menu when not on a call.

Dialling and Data Entry KEYPAD

Used to dial phone numbers and enter alpha­numeric characters for data entry. Also some
special key functions for speed and emergency
dialling, international prefi xes, etc.

to turn the unit

to scroll through a list

and Hold to display the ‘Quick Set’

to

delete a fi eld.

3

Section 2

Turning the Unit On and Off

Getting Started

Turning the Unit On/Off

Unit Power Key

Press and Release to turn On

Press and Hold to turn Off

SIM PIN 1 Code Entry

SIM Code Entry Successful

SIM Code Entry Error - Re-enter correct code

SIM Blocked Message after three unsuccessful attempts.

Contrast/Backlight Settings Screen

Backlight
Settings
Buttons

4

Contrast
Adjustment
Lever

1. Press and hold the POWER key for more than two seconds.
A Welcome page will display and if no PIN security is active, then move
to the Main Menu when GPS is Off. If there is no SIM card installed
an “Insert SIM” message will display. Turn Off the unit and install the
SIM card as explained previously. A “SIM Not Ready” message may
also appear if you try to dial immediately after

t

urning the unit On.

2. An “Enter PIN 1 Code” message will display if the SIM card security
is activated. Use the KEYPAD keys to enter your PIN1 code. As you
enter each character of your PIN 1 code, an * will display for number
of the code, then press the ENTER key. A “Code Accepted” message
will appear. Press ENTER to acknowlwdge and, if the GPS receiver
is enabled, a warning message will appear. Press the ENTER key to
acknowledge and display the Main Menu. Your service provider will
advise you of the preset PIN 1 code (i.e. 1234). It is recommended that
you change this code when setting up your unit. Record your new PIN
code and store in a safe place.

3. If you make a mistake, press the CLEAR key and begin again. If you fail
to enter your PIN 1 code in three attempts the unit will lock and a “SIM
Blocked” message will appear. To learn how the PIN Code Security
feature is set up and how to use an unblock code (PUK), see the section
of Phone Operation, entitled “Security Settings” on page 56.

Adjusting the Screen Contrast and Backlight Settings

1. Press and release the POWER key with power On to display the Screen
Contrast/Backlight Settings panel.

2. Use the Right and Left ARROW keys to move the contrast lever until
the desired contrast level is achieved.

3. Use the Up and Down ARROW keys to select the Backlight buttons
Refer to the following page for more Backlight details.

Activating the Backlight Feature

1. Press and release any key to turn on the Backlight. The Backlight will
remain on for the amount of time set. Default is 10 seconds. A small
illuminated light bulb will appear in the Status Bar at the top of the
screen. Press and release the POWER key to display the Contrast/Back
light settings window (see page 4).

2. To select from “Always On”, “Timeout”, or “Always Off” options, use
the Up/Down ARROW keys to select a button and then press ENTER.

3. To turn off the backlight before it times out, press and release the

POWER key. To reset the timeout see page 96.

4. The backlight timeout can be set for; 10 Seconds, 30 Seconds,
1 Minute, and 2 Minutes.

Adjusting the Volume

The volume for the earpiece can be adjusted by pressing and holding

the UP and DOWN keys on the side of the unit.

1. Press and hold the UP key to display the volume control window

with a slider control for the earpiece.

2. Use the UP/DOWN Volume or ARROW keys to raise or lower the

volume. Press the CLEAR key to close the window when done or allow
it to timeout.

3. To adjust the earpiece, ringer, and key press tone volumes at the same

time, refer to the Phone Settings Profi les Page on page 53.

4. For quick adjustment of volume levels for different environments, refer

to the Profi les option of the ‘Quick Set Menu’ as described on page 8.

Section 2

Getting Started

Activating the Backlight

Press and Release the

POWER key with the

unit On to turn On the

Backlight.

The Backlight will come

On after any key press

and remain On until the

Timeout period ends.

Use the Up/Down

ARROW keys to select

a backlight option and

then press ENTER.

Adjusting the Volume

The UP key

increases volume

The DOWN key

decreases volume

The UP/DOWN keys

Adjust earpiece volume by

using the slider on the volume

adjustment window.

5

Section 2

Getting Started

In Call status

indicator

Phone Service

signal strength

indicator.

Messages

Roaming

In Call Encrypted

In Call Mute

No Service

Incoming Call

Backlight On

Silent Mode

External Power

VoiceMail

Battery Power

status indicator

Differential GPS

No GPS Position

Simulated GPS

Vibrate On

The Time and Date Display

The date and time are settable using the ‘Set Time’ page of the

The time can be changed to refl ect daylight savings time, and time zone.

The time can also be displayed in either 12 or 24 hour format.

6

‘Settings’ Time Tab.

GPS status

indicator

Fix

Understanding the Status Bar

The Status Bar at the top of the display screen provides a constant
indicator of unit function.

From left-to-right, the Status Bar displays the wireless phone signal
strength, the current status of your phone call (in- call active, In Call
Encrypted, In call Mute, Incoming Call and No Service), current messages
(indicating SMS, Info Messages, Voice Mail, and Position Reports), whether or
not you are roaming outside your service area, vibrator On/Off, backlight On,
power source (battery or external power and capacity if using the battery),
and GPS status ( Simulating, Active, Position Fix Status, Differential GPS, or Off).

The Time and Date Display

The current Time and Date are displayed only when the Main Menu
page is active.

To set the time and your current time zone, refer to Time Settings on
page 97. On the ‘Time’ page of the ‘Settings’ section you will be able to
access the ‘Set Time’ page to set the date, current time, and select the proper
time zone. The ‘Time’ settings page also allows you to select a time format
(12 or 24 hour), and to activate/deactivate daylight savings time options.

The Service Status Indicator (LED)

The current service status is indicated by an LED located at the top of the
unit next to the wireless antenna (see page 3). When the Service Status feature
is turned On, the LED will: Flash Red when no service is available, Flash
Amber when roaming, Flash Green when service is available, stay Solid Amber
when in a call while roaming, and stay Solid Green when in a call with service
from your home network provider. Refer to Network Settings on page 57 for
detailed information.

Using the ‘Quick Set’ Feature

The Quick Set feature allows you to quickly activate some basic opera­tional characteristics of your unit such as Keyguard, Profiles (unit ringer
volume and call answer modes), GPS On/Off, and Mark Waypoint features.

Using the Keyguard Feature

The ‘Keyguard’ feature allows you to lock the keypad to prevent
inadvertent pressing of a key while the unit is in your pocket, purse, etc.
This prevents accidental placement of one keypress dialling options such
as speed dial and emergency dialling. Press and Hold the ENTER key
to display the Quick Set Menu, use the ARROW key to highlight the
‘Keyguard’ option and press ENTER again to activate this feature. When
‘Keyguard’ is operational, a message will appear each time a key press is
attempted. Press and Hold the CLEAR key to cancel ‘Keyguard’. Incom­ing calls and messages will temporarily unlock the keypad.

Synchronizing Contact Data (Begin Sync)

(Applies only to units provided with the Intellisync for GARMIN CD-ROM)

To begin synchronizing PC contact program data using Intellisync for
GARMIN, highlight this option and press ENTER. Refer to page 109.

Turning the GPS Receiver On or Off

To turn the GPS receiver On or Off, highlight the GPS Off/On option
and press ENTER. When On the receiver will significantly reduce the
battery reserve. When Off, it will allow extended battery use.

Marking Your Current Location (Mark Waypoint)

The Mark Waypoint feature allows you retain a record of your cur­rent location and save it as a waypoint which can be used as a destina­tion when creating a route. Highlight the Mark Waypoint option and
press ENTER to display the Mark Waypoint page. Use the ARROW key
to highlight the ‘OK’ button and press ENTER to save the waypoint.
Refer to page 87 for more information.

Section 2

Getting Started

Using the ‘Quick Set’ Feature

‘Mark Waypoint’
Option will appear
gray if GPS is not
active or searching
for satellites.

The Quick Set List of Options

Keyguard

“Pop-Up”

Window

Keyguard On message appears whenever a key is pressed.

GPS On and Off Messages

The Mark Waypoint Page

Press and Hold the

CLEAR key to Disable

7

Section 2

Getting Started

Using Profi les

Profi les Options Menu

The Standby Feature

The Power Saver Feature

8

Profi les Settings Tab

Using the Profiles Feature

The Profiles feature allow you to determine quickly, the mode in
which the phone portion of the unit will operate when a call is received
according to the environment in which you are currently located with­out the need to manually adjust volume and feature settings. Use the
ARROW keys to highlight your choice and press ENTER to activate.
Profile options are:

• Normal - settings you desire for regular use of the unit.

• Silent - settings for use when you want the unit to be silent.

• Outdoor - settings for use in an outdoor (noisy) environment.

• Meeting - settings for use when in a meeting environment.

• Headset - settings for use when using a hands-free headset.

• Car - settings for use when using in a vehicle or with the Hands-

Free Kit. The unit switches to this profile when in the cradle.

• Personal 1 & 2 - settings for use in any other type environment.

Settings for each profile type are made from the Profiles Settings tab of
the Phone Option of the Main Menu Settings tab as described on Page 53.
When viewed on this page, each setting displays a list of custom settings
for: Calls, SMS, Alarms, Data Calls, Vibrate, Message Beeps, and Key Beeps.

Using the Standby and Power Saver Features

The Standby feature shuts down many operating features without
actually turning off the unit power when the display timeout is reached.
This allows you to still make and receive calls while saving on battery
power. To manually activate Standby, press the CLEAR or END key
from the Main Menu. To de-activate, press any key. The Power Saver
feature turns off the lower two-thirds of the display for maximum power
saving. Refer to page 96 for details about the Power Saver feature.

Understanding the Operating Software Structure

The Main Menu is the display that you see when the Welcome Page
and PIN Entry prompt are completed. It also is displayed whenever you
press and release the MENU or END key, when not on an active call.

It consists of four tabbed pages and is the starting point for access
to most of the NavTalk’s Features. Each tabbed page consists of a
listing of features related to the tab’s title. Each feature is subsequently
divided into either a single page of features and options or a set of
tabbed pages with features and options.

hese pages often include an Option Menu that allows you to

T
customize the page’s features. Individual features on these pages contain
data fields that display useful information, most can be programmed, by
selecting options from a list, or allow you to enter specific data using
the KEYPAD keys. To move about the fields on these pages use the
ARROW keys. To activate a field for data entry, use the ENTER key. To
return to the previous page use the CLEAR key.

To Select a Feature

1. Use the ARROW key to and highlight the feature on the page.

2. Press ENTER to display the feature page or tabbed pages.

3. Use the ARROW key to move from tabbed page to tabbed page.

To View the Option Menus

1. With the feature page displayed, press the MENU key to display
the Page Options Menu.

2. To view options for an item on the feature page, use the ARROW
key to highlight the item and then press ENTER.

Section 2

Getting Started

How the Operating System is

Pages

Structured

Page Options Menu

Page Entry Options Menu

Page Entry Option

Main Menu with

Tabbed Pages

Phone Tab of the
Main Menu with
the Call History’
Feature Selected

Feature with Tabbed Pages

Dialled Calls List

of the Tabbed Call History

Page Entry Option (Sub-option)

Go To Status Report on Page 10

9

Section 2

Getting Started

Entering Data

Data Entry Field with List of Options

Data Entry Field with Keypad Entry Option

Data Entry Field with Alpha Character Entry

10

Data Fields and Data Entry Techniques

Nearly every feature page contains a data field (a page item that
can be highlighted using the ARROW key and modified as desired).
There are two methods for entering data in a field:

Selecting Data from a list

Many data fields contain an options menu with a list of choices.

To use Options Lists

1. Highlight the data fi eld and press the ENTER key to display the menu.

2. Use the ARROW key to highlight your selection and then press ENTER
to place it in the data fi eld. To move from page to page of long lists,

use the Left/Right ARROW keys.

Entering Data using the KEYPAD keys

The KEYPAD keys provide a dual function, when you are ready to enter
user specific data into a data field. Not only do they dial phone numbers
but they also allow you to enter alpha/numeric characters in data fields by
repeatedly pressing the key. The alpha characters are entered in sequence
starting with first letter on the key and ending with the numeral.

A

character chart for each key press sequence is provided on the following page.

To enter data using the KEYPAD keys:

1.

With the data fi eld highlighted, press the ENTER key to isolate the fi rst character
space in the fi eld. If you want the fi rst character to be upper case, press the # key
fi rst, then cycle the key with the desired character until that character displays in
the space. If you want all upper case characters, press the # key twice. If you want
numerals only, press the # three times. Wait a few seconds for the character space
to advance, then enter your next character. To add a space press the 0 key. Use the

CLEAR key to erase and the ARROW key to back up and change.

2. Press ENTER when completed.

Text Entry - Character Chart

Section 2

Getting Started

Number of key presses required to display the desired character

Key

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Press the # Key before pressing a number
key to switch to upper case characters

upper case characters

Space Next Line

Press once before pressing a number key to shift to an upper case character for the fi rst letter of an entry. Press twice to enter all char­acters in upper case characters. The status bar will display a solid arrow for fi rst character caps only and an arrow with a dash for
all upper case. Pressing this key will not enter a # symbol when entering text. Use the 1 Key. Use the NumLock feature for quick entry
of numerals only. To engage the NumLock feature, press this key three times until the symbol appears in the status bar.

11

Section 2

Getting Started

The Main Menu

Phone Tab - Contacts

Contacts List

The Main Menu

The Main Menu is a directory of the unit’s operating features. By
selecting a tab and pressing the ENTER key you can access a list of features
for that category. The Main Menu features are: Phone, GPS (Global
Positioning System), PDA (Personal Digital Assistant), and Settings.

To access the Main Menu, at any time, press and release the MENU key,

CLEAR key, or END key until the Main Menu is displayed.

Here is a quick review of the Main Menu tabbed features,
detailed instructions on their use is contained in the sections
titled “Phone Operation” and “GPS Navigation”:

Phone - Selecting this tab presents you with a list of phone feature
pages which allow you to manage your calls.

The first is Contacts, which is a tabbed directory of the names you
have entered and saved for future use. Names and numbers entered
in Contacts can be synchronized with those contained in PC Contact
management programs using the Intellisync for GARMIN CD-ROM,
see page 109. Options for creating a New Phone Number entry are:

First Name, Last Name, Home Phone No., Work Phone No., Car Phone
No., Mobile Phone No., Pager No., Fax No., Company, Home Address,
Work Address, e-mail Address, Web Address, Note, Waypoint, and Special
Date.

Page Options are: View SIM #’s, View Speed Dial List, View Fixed Dialling
#’s, View My Phone #’s, and Delete All.

12

NOTE: The SIM #’s feature, similar to Contacts, is
available on most SIM cards. Refer to the section detail­ ing SIM card use on pages 27 and 32.

Phone Number New Entry Page

The second is Call History, selecting this tabbed feature allows
you to access information about calls received and made

• The Dialled Calls page provides you with a list of the last calls
made and allows you to redial them if desired.

Page Options are: Delete All.

• The Missed Calls page provides a list of calls made to you, but
were unanswered. Those calls with CLIP (Caller Line Identification
Presentation) can be redialled.

Page Options are: Delete All.

• The Received Calls page maintains a record of the last calls
you have received, allowing you to redial them if desired.

Page Options are: Delete All.

• The Air Time, in minutes, page keeps track of the number of call
minutes used for your last call and for all accumulated calls.

Page Options are: No Options.

• The Call Cost page provides you with accurate information
about your call units for the last call made and for the total of all
calls. You can also set call unit limits using this feature. The unit of
measure is ACM or Accumulated Charge Meter and will be
displayed in units that can be cost calculated using appropriate
currency values. This feature requires the PIN 2 security code.

Page Options are: No Options.

Dialled Calls

Section 2

Getting Started

The Main Menu

Phone Tab - Call History

Missed Calls

Received Calls

Air Time

Call Cost

13

Section 2

Getting Started

The third feature is Messages with tabbed pages for Short Message
Service storage, management, and creation.

New Message

14

The Main Menu

Phone Tab - Messages Pages

Voice mail

Draft

Inbox

SentRead

• The New page allows you to create new messages. You can select
the name of the recipient from Contacts, write your message,
and send or save the message as desired.

Page Options: Set Signature and View Info Messages

• The Voice mail page allows you to access voice mail messages.

Page Options: Set Signature and View Info Messages

• The Inbox page is a comprehensive listing of received messages,
information and voice mail.

Page Options: Clear Folder, Set Signature, and View Info Messages

• The Read page is a listing of received messages, that have been read
and retained for review or reference.

Page Options: Clear Folder, Set Signature, and View Info Messages

• The Draft page is a comprehensive list of messages, informa-
tion and voice mail to be sent at a later date.

Page Options: Clear Folder, Set Signature, and View Info Messages

• The Sent page is a comprehensive list of sent messages, informa-
tion and voice mail.

Page Options: Clear Folder, Set Signature, and View Info Messages

• The Templates page allows you to create messages that can be
saved and used for multiple applications.

Page Options: Clear Folder, Set Signature, and View Info Messages

• The Reports page allows you to view a record of what position
reports have been sent to recipients.

Page Options: Clear Folder, Set Signature and View Info Messages

• The Recurrences page allows you to view the number of times a
particular position report has been sent.

Page Options: Clear Folder, Set Signature, and View Info Messages

Messages Page Options

The Messages Page provides three options: ‘Set Signature’ (include
a “From” signature that identifies you as the author of the message)
and ‘View Info Messages’ (which provides access to a service provider
feature page that displays information messages for service or other
type promotions). The ‘Clear Folder’ option allows you to remove
all entries from the page currently displayed. Individual entries can
be deleted by viewing the message, pressing the MENU key, and
selecting the ‘Delete’ option.
Info Messages are also known as “Cell Broadcast”

Section 2

Getting Started

The Main Menu

Templates

Reports

Message Page

Options

Info Messages

Recurrences

15

Section 2

Getting Started

The Main Menu

Phone Tab - MiniBrowser

Air Time

Fee Adviser

The final selection is the MiniBrowser which allows you access
to the wireless web.

Page Options: Add to Bookmark, Show URL, View Air Time, Encryption,

and Restart..

This feature will not be functional unless your service
provider offers support and you add it to your sub­ scription. Like internet service at your home or
offi ce, there will be air time fee charges for its use.

16

MiniBrowser Page

GPS - This tab presents you with a list of five Global Positioning
System related feature pages

The first on the list is the Map Navigator, which is the main
navigation display. This page provides a direction field with compass
or direction arrow, a speed field, a distance to go field, a time to go
field, a map with position icon or panning arrow and Zoom In/Out
scale.

Page Options: Find ‘n Go, Full Screen Map, Show Data Fields, Show Next

Street, Hide Next Street, Stop Navigation , Measure Distance, Setup Map,
Trip Computer, and Turn GPS On/Off.

The second feature is Find ‘n Go, which consists of a database of
map locations for waypoints, points of interest, cities, exits, addresses,
and junctions. Select a map item from the lists provided and then
press ENTER to view on the map, create a route and Goto it or save it
as a waypoint. You can choose from lists of “Nearest” or “By Name”.

The type of mapping information available to Find ‘n Go func­tions like points of interest, addresses, and junctions is dependent on
the type of MapSource map data software that is downloaded to the
NavTalk. Refer to page 110 for a detailed description of MapSource
mapping data and how it functions with the NavTalk GSM.

Page Options: Find By Name, Find Nearest , Delete Waypoint, Delete By.

Symbol, Delete All, and Save as Waypoint.

Section 2

Getting Started

The Main Menu

GPS Tab Pages

Map Navigator

Find ‘n Go

17

Section 2

Getting Started

The Main Menu

Trip Computer

Satellite Information

The third item on the list is the Trip Computer, which displays
information about the navigation process using data fields to indicate:
Trip Odometer, Stopped Time, Moving Time, Moving Average, Overall
Average, Total Time, Maximum Speed, and accumulated distance
Odometer.

Page Options: Reset Trip, Reset Max Speed, and Reset Odometer.

The final feature on the list is the Satellite Information Page,
which displays both an overhead view of the GPS satellites being
tracked by the unit and the relative strength of each signal being
received. In addition, it displays your present latitude and longitude,
elevation, current speed and relative accuracy of your position.

Page Options: North or Track Up, New Elevation, New Location, and Turn

GPS On/Off.

18

PDA - This tab displays Personal Digital Assistant style feature pages
which allows you to manage personal information.

The first feature is the Calendar which incorporates a calendar with
selectable dates and a notation page to list appointments for that day
along with a reminder alert option. Data contained in this feature can be
synchronized with PC contact management data using the Intellisync for
GARMIN CD-ROM for appointment scheduling, etc. See page 109.

Page Options: Delete All and Move All.

The second feature is the Tasks which allows you to create a list
of tasks with check boxes to indicate when they have been completed.
When highlighted a task on the list will display the due date for the task
at bottom of the page. Data contained in this feature can be synchronized
with contact management data for a PC as explained on page 109.

Page Options: Delete All.

The third feature on the list is Notes which allows you to store
important information in note form. To retrieve that information with­out scrolling through long lists, just use the on-screen Find key, enter
a key word and press ENTER. Data contained in this feature can be

page

synchronized with contact management data for a PC. See

Page Options: Delete All.

The fourth feature on the list is the Games Page which offers a
variety of familiar games for recreational use.

Page Options: New Game, Set Level, etc..

The final feature on the list is the Calculator Page
which offers two types: standard and scientific.

Page Options: Standard, Scientific, Radians, and Degrees.

109.

Calculator

Section 2

Getting Started

The Main Menu

PDA Tab Pages

Calendar

Notes Games

Tasks

19

20

Section 2

Getting Started

The Main Menu

Settings Tab - Phone Pages

Profi les

Calls

Security Network

SMS

Messages

Settings - This tab displays pages which used to manage unit features
that include the Phone pages, the Call Services pages, the System
pages, the GPS pages, and the Map pages.
pages, a tabbed directory of settings that allow you to customize the

• The Profiles Page allows you to volumes and tones for a variety of
call and message profiles.
Page Options: Restore Defaults. Edits : Alerts, Volume, General.

The Security page controls PIN number entry, fixed dialling, and

•

Page Options: None.

• The Network page allows you select a network, choose a preferred
network, and select a service operator.

Page Options: Restore Defaults.

• The Calls page allows you to setup the ways calls are handled.

Page Options: Restore Defaults.

• The SMS page allows you to enter a Service Center No., determine

the length that a message is valid, choose a format, and select how
the recipient replies.
Page Options: Restore Defaults.

• The Messages page allows you set Info message categories, choose

an Info message language, enter a Voice mail number, and an
SMS emergency number.

Page Options: None.

r

• The Browse
No.

Connection Settings, and enable/disable
fee warning, require authorization, and enable
push content.
Page Options: None.

page allows you to enter a home page

The first are the Phone

phone.

codes.

Browser

Section 2

The second feature on the list is the Call Services pages which is a
tabbed directory of four call services.

• The Call Divert Page, allows you to divert calls to a variety of
choices: All Voice Mail, Voice if Busy, Voice if No Answer, Voice if
Out of Reach, Voice if Not Available, All Fax Calls, and All Data
Calls.

Page Options: None.

• The Call Barring Page allows you to bar: All Outgoing Calls,
International Calls, International if not Home, All Incoming Calls,
Incoming if Roaming, and Cancel All Barrings.

Page Options: None.

• The Call Waiting Page allows you to be notified of all incoming `
calls while on another call.

Page Options: None.

• The Setup Page allows you to send your own phone number and to
select settings for the Call Divert feature.

Page Options: Restore Defaults

Getting Started

The Main Menu

Settings Tab - Call Services Pages

Call Divert Call Barring

Call Waiting

Setup

21

Section 2

Getting Started

The Main Menu

Settings Tab - System Pages

Display

Time

The third item on this list is the System pages which is another
tabbed directory for accessing three unit features.

• The Display page with Backlight Timeout, Display Timeout, Units
of Measure, and Language options.

Page Options: Restore Defaults.

• The Time page with Time Setting, Time Format, Time Zone
options, and Daylight Savings Time options.

Page Options: Restore Defaults.

• The Interface page with Serial Data Format options, Baud Rate
options, Beacon, Frequency, Bit Rate options, and Beacon Receiver
Status Information.

Page Options: Restore Defaults.

22

Interface

The fourth on this list is the GPS pages which is another tabbed
directory for determining the type of GPS navigation information
displayed in the Map Navigation Page.

• The General page with choices for GPS On/Off, Battery Saver, or
Simulation, Location Format, Map Datum, and Track Log selection.

Page Options: Restore Defaults and Setup User Datum.

• The Heading page with North Reference selections, Magnetic Varia-
tion, and Direction Displays, and Cardinal Letters or Numeric
Degrees.

Page Options: Restore Defaults and Setup User Grid.

• The Guidance page which allows re-calculation of a route after
you have traveled off the original path to a destination, an optional
pop-up message to advise you of upcoming turns on a route, and
three optional avoidance selections to make a route more efficient.

Page Options: Restore Defaults.

• The Routing page that allows you select the type of route desired,
an optional preferences prompt when creating a route, a choice of
methods for calculating a route, and calculation of routes most
suitable for the type of transportation you plan to use.

Page Options: Restore Defaults.

Section 2

Getting Started

The Main Menu

Settings Tab - GPS Pages

General Settings

Heading Settings

Guidance Settings Routing Settings

23

Section 3

Section 2

Getting Started

The Main Menu

Settings Tab - Map Pages

Map

Line

Point

The last item on this list is the Map pages which is another tabbed
directory for customizing the map display.

• The Map page with setting options, Detail, Orientation, Color
Mode, and AutoZoom.

Page Options: Restore Defaults and Restore All.

• The Line page with text and zoom options for: Track Log, Railroad,
and Street Label.

Page Options: Restore Defaults.

• The Point page with text and zoom options for: Waypoint, Exit,
and Point of Interest

Page Options: Restore Defaults.

• The City page with text and zoom options for: Large City, Medium
City, Small City, and Small Town.

Page Options: Restore Defaults.

• The Area page with text and zoom options for: River, Lake, Park,
and Other.

Page Options: Restore Defaults.

24

City

Area

Making a Call

Dialling from the Keypad

1.

Enter the phone number by pressing the appropriate keys on the Phone KEYPAD.

2. Observe the number displayed on the Dialling Page. Press the SEND
key when the entire number has been entered. Highlight and press

‘Find’ to locate the number in the Phonebook, highlight and press ‘SMS’
to send a short message, or press Save to place the number in Contacts

Dialling from Contacts

The Contacts List is comprised of entries downloaded from another
list or by manual entry. Detailed information on how to enter names,
numbers and other data in Contacts is contained on page 30. Informa­tion on using dialling and call information options is contained on
pages 31 through 42. To make Contact List entries easier, you may
want to install the Intellisync for GARMIN CD-ROM on your PC and
begin to synchronize Contact Data already established in your contact
management program. Intellisync is compatible with Microsoft
Outlook, ACT!, Lotus Notes, and Palm Desktop applications. Refer to
instructions provided with the CD-ROM.

1. Highlight Contacts from the Main Menu ‘Phone Tab’ and press

the ENTER key to display the tabbed list of names and phone numbers.

2. Select the desired name from the list and press the ENTER key to

display the Information Page for that name.

3. With the page for that name displayed, highlight and press the

on-screen ‘Call’ button to dial.
Or... display the phone number options if more than one number is listed

on the page. Then highlight the desired number on the list and press

ENTER or the green DIAL key to dial the number.

Section 3

Phone Operation

Making A Call

Dial Tab

Dialling Page

Simply press the key. to dial a number

displayed on the Dialling Page.

Highlight the phone number you

Contact Name

Information Page

Highlight the ‘Call’ button and press ENTER to dial or display the

options windows for multiple number listings.

NOTE: Contacts will synchronize with the SIM card phone list at the

fi rst access to Contacts after each power up.

want to dial and then press

ENTER.

25

Section 3

Phone Operation

Making A Call

Dialled Calls List

Missed Calls List

Dialling from the Call History Pages

The Call History Pages allow you maintain records of Dialled
Calls, Missed Calls (calls made to you that you did not answer), and
Received Calls. An options menu provides the ability to call those
individuals on the lists, send messages and other call management
tasks. The Call History pages won’t consist of very much call data
until you have used the phone for a while and some call activity has
been recorded.

1. Highlight Call History from the Main Menu ‘Phone Tab’ and press the

ENTER key to display tabs for the ‘Dialled’, ‘Missed’, and ‘Received’

Calls lists.
Or...if you are on any other page and not highlighting a contact/

number, press the SEND key to display the ‘Dialled’ Calls list.

2. Use the ARROW key to select the desired tab for the list you want
to view.

3. Use the ARROW key to select the desired name and number and then
press ENTER to display the list of options or the SEND key to dial
the number listed. Pressing the MENU key will display the ‘Delete All’
option to clear the list

4. If you chose the Options Menu, use the ARROW key to highlight
‘Call’ and then press ENTER. The Calling Page will display and the
number will be dialled. To use the other options from this list refer to
page 35, “Call History”.

26

Received Calls List

It is important to note: that if a missed or received call originated
from a source that did not allow Caller Line Identifi cation Presenta-
tion (CLIP), you will not be able to dial that number from the Missed
or Received Calls Lists.

Dialling from the Speed Dial List

Prior to using the Speed Dial List you must place phone numbers
on the list. Note that the Voice mail number is reserved for the number
one position on the list. You can enter the voice mail number directly
to the number one position on the list or enter it in the Main Menu­Settings-Phone-Messages Tab-Voice Mail # field (page 60). When
entered in either location it will be automatically copied to the other.
The last number (9) on the list is reserved for an Emergency number,
which is a specific number that you have designated with an SMS mes­sage. A standard Emergency call can be dialed as you would any other
phone. An emergency call can be made when the keypad is locked. See
page 60 for entry details.

1. Press and Hold the appropriate Keypad key (1-9) that corresponds to
the phone number entered in that slot on the Speed Dial List. Refer to
page 31 for setting up the Speed Dial List and page 60 for entering
your Voice mail number.

Dialling from the SIM Card or Fixed Dialling List

As with Speed Dialling, prior to using these two Dialling Lists
you must place phone numbers on the lists. Note that if you have
previously added numbers to your SIM card prior to installing it in
the NavTalk, those numbers will be available for use. You will also be
prompted to add them to Contacts. Fixed Dialling Numbers will always
be available for use whether or not the Fixed Dialling Feature is On or
Off. When On, only those numbers on the List may be dialled.

1.

Access Contacts and press the MENU key to display the Options

menu. Observe “View SIM #’s” and “View Fixed Dialling #’s” options.

Highlight the desi

2.
then highlight the number you want to call and press the SEND key to dial.

red option and press ENTER to display this list of

numbers,

Section 3

Phone Operation

Making A Call

Speed Dial List

Fixed Dialling List

SIM Card List

27

Section 3

Phone Operation

Handling A Call

Incoming Call Page

Answering a Call

Press the key.

Placing A Call On Hold

Ending a Call

Press the key, or highlight the on-screen ‘END’ button

28

and press ENTER.

The Active Call Page

You can employ a variety of options to perform call handling tasks from
the Active Call Page. This page displays whenever you are dialling, answer­ing, holding, transferring or conferencing calls.

Answering a Call

1. Press the SEND key or highlight the ‘Talk’ button and press ENTER.
You may also use the Auto-Answer feature as explained on page 58.

Placing a Call on Hold

1. Highlight the on-screen ‘Hold’ button and press the ENTER key to place
a call on hold while you answer another incoming call, talk to someone
already on hold, listen to voice mail messages, or perform a task that
takes you away from the phone.

2. To return to the person just placed on hold, highlight the Hold tab to
display the Hold List. Then highlight call on hold and press ENTER.

Muting a Call

1. Highlight the on-screen ‘Mute’ button and press the ENTER key to
mute the microphone in order to talk privately with someone nearby
without the person on the phone overhearing your conversation.

2. To restore the microphone to normal, highlight and press the on-screen
‘VOICE‘ button.

Ending a Call

1. Press the END key, or highlight the on-screen ‘End’ button and
press ENTER at any time.

Conference Calls

1. When on an active call, highlight the Hold tab on the Call Page to
display the Hold List.

2. Press the on-screen ‘Join’ button to connect all callers on the Hold list
to the conference call.

3. To speak to an individual within the conference in private or to exclude
any individual temporarily from the conversation; highlight the name
of the caller from the list of callers and press the ENTER key to display
a list of options that can be performed with that caller. To exclude the
caller temporarily from the conference, select ‘Hold’ and press ENTER.

To speak with a caller in private, select ‘Private’ and press ENTER.

4. To return to the regular conference mode, return to the Hold List and
press the on-screen ‘Join’ button.

5. To end a conference call, press the END key.

Section 3

Phone Operation

Handling A Call

Active Calls for a Conference Call

Active Call

Options Menu

Sending an Incoming Call to your Voice Mailbox

If you have voice mail service, any unanswered call will be for­warded to your voice mailbox. However, when you are using CLIP
(Caller Line Identification Presentation), the name of the caller will be
displayed on the Incoming Call Page. If you do not want to talk to the
caller at this time and would rather send the call directly to your voice
mailbox, follow the instructions below.

Highlight the on-screen ‘End’ button and press ENTER or press the
END key to send the call to your voice mailbox.

Calls on Hold List

Forwarding A Call to Voice Mail

Individual Caller

Options Menu

29

Contacts

Contact Page

Options Menu

30

Section 3

Phone Operation

Using Contacts

Main Menu - Phone Tab

New Entry Page

Reviewing an Entry

Entry Options

New and
Review Entry
Page Options

Menu

Using Contacts

Contacts store names and numbers for later use and is the path to
such features as Speed Dial List, SIM Card Directory, Fixed Dialling
List, and your Own Phone Numbers.

To open Contacts

1. Start from the Main Menu ‘Phone Tab’ and highlight ‘Contacts’ from
the list of options. Press ENTER and the Contacts page will be
displayed with tabbed sections for portions of the alphabet.

2. Use the ARROW keys to move from tab to tab.

To Enter a New Name and Number in Contacts

1. Highlight the ‘New’ key with Contacts page displayed and then
press ENTER to display the New Entry page.

2. Use the ARROW key to highlight First Name entry fi eld, then press
ENTER to isolate the fi rst character space. Follow instructions for

entering data as described on page 10.

3. Use the ARROW key to highlight the next fi eld and repeat the process

described in Step 2.

4.

Once you reach the ‘Phone Number’ fi eld, press ENTER to display the

‘Change Type To’ or “Swap With” option. Select one and press ENTER to
display a list of entry categories. You can select any for

5. To edit an entry, highlight the desired fi eld and use the KEYPAD to

enter new names, phone numbers, etc.

o view the Options menu for New and Review Entry Pages press the

6. T
MENU key to display the menu. Duplicating an entry will display a

number 2 after the name of in Contacts for the duplicated entry
allowing you to record more information by expanding entry options.

7. To quickly access additional data pages, move the ARROW key to the

Right. These pages hold additional information about each contact,
either synchronized from Intellisync or manually entered.

entry.

Contacts Options

Contacts offers several options for storing and dialling phone
numbers.

Delete All

This option allows you to remove all entries from Contacts.

Setting Up the Speed Dial List

Speed Dialling allows you to dial a selected Phone Number by press­ing and holding a single KEYPAD key (1 through 9) for a total of nine
Speed Dial Entries. Phone Numbers can be added from the New Entry or
Edit Entry pages to the Speed Dial List page. The first entry on the list
is reserved for the number used to dial your voice mail message service,
while the ninth entry is reserved for an emergency number of your selection.

To set up and use Speed Dialling Numbers:

1. With Contacts Data Page displayed press the MENU key to
display the Options Menu.

2. Use the ARROW key to highlight the View Speed Dial List option
and press ENTER to display the Speed Dial List page, or add a
number to the list directly from Contacts Entry page by
choosing ‘Add To Speed Dial’ from the options menu.

3. Once an entry on the list is highlighted, pressing the MENU key will
display the Entry Options Menu. From this menu, you can edit an entry,
select a number from Contacts, edit using Contacts Entry page, call
directly from the list, move the number on the list, swap the number
with another on the list, or delete the entry.

4. To dial a Speed Dialling Number, press and hold the keypad number key
corresponding to the Speed Dialling entry on the list (1-9).

Phone Operation

Add To Speed Dial

Option from Phone

Book Data Page

Options

Press and hold the
KEYPAD number to
one-touch dial the
appropriate number
on the list.

Use the Edit Number
option to change
both the name and
number of an entry.

Find the number in
Contacts

Enter a number to
the list or edit from
Contacts

Section 3

Using Contacts

Phone Book Data Page

Speed Dialling No’s

Speed Dial Entry Options

Add Names and
Numbers to the
Speed Dialling
No’s. list using
Contacts Entry
Page Options

Speed Dial List

Option

Use the Move To
and Swap With
options to edit
the Speed Dial
List.

31

Section 3

Phone Operation

Using Contacts

SIM Numbers List will
recognize a number
by the fi rst few digits.

Entry Options Menu

Saving a Name and Number To the SIM List.

Select a Number

Editing a Name and Number from the SIM List.

32

SIM Dialling No’s.

Page Options Menu

View SIM Numbers

The SIM Numbers feature allows you to dial numbers stored on the
card that can be transferred to another SIM compatible phone. The total
amount of numbers that can be stored on the SIM Card depends on the
capacity of that particular card.

To use the SIM Numbers feature:

1. With Contacts page displayed press the MENU key to display
the Options Menu.

2. Use the ARROW key to highlight the ‘View SIM #’s’ option and press

ENTER to display the SIM Phone Numbers list. You can also dial a
number from this list by pressing the KEYPAD key with the correspond­ ing number on the SIM Dialling List followed immediately by the # key.

To Save a Phone Number to the SIM Numbers List:

1. With Contacts page displayed, highlight a name from the ‘All’
tab list and press ENTER to display the information page for that name.

2. Press the MENU key to display the Options Menu for that page.

3. Use the Down ARROW key to highlight the ‘Save To SIM Numbers’
option and press ENTER. If there is more than one phone number
listed on the page, a prompt window will appear for you to select the
desired number. Highlight the desired number and press ENTER to
place the name and number on the SIM Numbers List.

To Edit a SIM Name or Number:

1. With the SIM Number page displayed press the MENU key to display
the Options Menu.

2. Select ‘Edit Name’ or ‘Edit Number’ and press ENTER to display the edit
window. Press ENTER to highlight the fi rst character.

3. Change the name or number as desired and then press ENTER.

View Fixed Dialling Numbers

The Fixed Dialling Numbers list allows you to dial only those num­bers on the list and is controlled by a pass code (PIN 2)

To set the Fixed Dialling Feature

1. Highlight the ‘Settings’ tab of the Main Menu, select the ‘Phone’ option
and then press ENTER to display the tabbed index of features.

2. Use the ARROW key to select the ‘Security’ tab, then highlight the Fixed
Dial Mode fi eld and press ENTER to display the On/Off menu.

3. Select ‘On’ and press ENTER to display the PIN 2 Code Entry box.

Fixed Dialling
Numbers are the only
numbers that can be
dialled when this
feature is active.

To insert phone numbers on the Fixed Dialling Numbers list

1. With Contacts page displayed press the MENU key to display the
Options Menu.

To use the Fixed Dialling Numbers feature:

1. With Contacts page displayed press the MENU key to display the
Options Menu.

2. Use the ARROW key to highlight the ‘View Fixed Dialling No’s’ option
and then press ENTER to display the Fixed Dialling No’s List.

Security Page

Fixed Dialling On/Off Field

Section 3

Phone Operation

Using Contacts

Page Options Menu

Fixed Dialling No’s.

PIN 2 Code Entry

Entry Options Menu

Press ENTER to

acknowledge

33

Section 3

Phone Operation

Using Contacts

Enter up to two
user Phone Numbers

My Phone No’s.

Use the Edit Name
and Edit Number
options to change
both the name and
number of an entry.

Entry Options Menu

Delete Prompt

Entering Dial Strings with (DTMF) Dual Tone

Multi-Frequency Tones .

To automate dialling of numbers with extensions, pass codes,
etc., you can enter Dial Strings that include DTMF Tones and 5
second pauses for recorded messages, connection delays, etc.

When entering a phone number in any directory: Contacts, Fixed
Dialling, Speed Dialling, etc., press and hold the # key while pressing
the 7 key to enter a 5 second pause (p) in the dialling sequence.
You can place as many pauses as required to allow for recorded
messages to complete before the next number sequence is dialled. It
is recommended that you do not record bank account PIN’s or credit
card numbers for reasons of security.

34

Page Options Menu

Save a number to
Contacts by pressing
ENTER with this option
highlighted

Save as First Name or
as Last Name

My Phone Numbers

Contacts offers an option for recording your phone numbers for
reference. The My Phone Numbers List will hold two numbers (often a
business number and a personal number or two separate numbers for
two different users of the same unit).

To place numbers in Contacts ‘My Phone Numbers’ List:

1. With Contacts page displayed press the MENU key to display the
Options Menu.

2. Use the ARROW key to highlight the ‘View My Phone #’s’ option and
press ENTER to display the ‘My Phone Numbers’ page. The fi rst entry
fi eld will be highlighted.

3. Press ENTER to display the Entry Options Menu and observe the list of
options; Edit Name, Edit Number, Save to Phonebook, and Delete.

4. Select Edit Name and press ENTER to begin entry of a name by using
the KEYPAD keys. Press ENTER when entry is completed to return
to the entry fi eld.

5. Press ENTER again to display the option menu. Highlight ‘Edit Number’
and press ENTER to display the number entry page. Use the KEYPAD

keys to enter the desired phone number and press ENTER when fi nished.

6. To save the newly entered Name and Number to Contacts, press

ENTER to display the Options Menu again, select ‘Save To Phonebook’
and press ENTER.

7. To delete a Name and Number, press ENTER to display the Options
Menu, select ‘Delete’, press ENTER, select ‘Yes’ from the Delete prompt
and press ENTER.

Call History

You can review information about previously Dialled Calls, Missed
Calls, Received Calls, Air Time for a call, and Call Cost. Any call can be
redialled by highlighting it and pressing the SEND key.

Dialled Calls

A record of Dialled Calls are stored on this list to provide you with
information about to who and when you have made phone calls.

To view Dialled Calls

1.

Highlight Call History and then press ENTER to display the ‘Dialled Calls’ list.

2. Use the Up/Down ARROW keys to scroll through the list. Each entry
lists the phone number, name of individual called (if listed in the
Phone Book), and the time and date the call was made.

3. To redial, Send A Message, Save to Contacts, add to Speed Dial,

or

Delete a highlighted entry, press ENTER to display the Entry Options Menu.

Missed Calls

Missed Calls are those which were received by the NavTalk but
not answered. If the caller had Caller Line id enabled you will see the
Name and Number of the caller as well as the time and date of the call.

To view Missed Calls

1.

Highlight Call History and then press ENTER to display the ‘Call History’ tabs.

2. Use the Up/Down ARROW keys to scroll through the list. Each entry
lists the phone number, name of individual called (if listed in the
Phone Book or Caller id is enabled), and the time and date of the call.

3. To Call, Send A Message, Save to Contacts, add to Speed Dial, or Delete
a highlighted entry that displays a phone number, press ENTER to
display the Entry Options Menu.

Icons next to a
number indicate
the location,
Home, Offi ce,
Pager, Unknown,
etc.

Dialled Number
or Name from
Contacts

Time of Call

Date of Call

Unidentifi ed
calls will be
designated as
Unknown (?)

Call the number

Send a Message

Save to the
Phonebook

Section 3

Phone Operation

Call History

Dialled Calls List
Options Menu

Dialled Calls List

Call Entry Options Menu

Missed Calls List
Options Menu

Missed Calls List

Add to the
Speed Dial List

Delete from this list

Call Entry Options Menu

35

Phone Operation

Received Calls Page
Options Menu

36

Section 3

Call History

Received Calls

Air Time History

Before you can clear
the Last Call and
Total Call Units fi elds
or set the Maximum
Call Units allowed,
you must enter your

Call Cost

PIN 2 code.

Call Entry Options
Menu

Highlight the Clear
Button and press
ENTER to reset the
‘Last Call’ and ‘All
Enter Since’ data
fi elds.

Received Calls
To view Received Calls

1. Highlight Call History and press ENTER to display the ‘Received Calls’ list.

2. Use the Up/Down ARROW keys to scroll through the list. Each entry
lists the phone number, name of individual called (if listed in the
Phone Book or CLIP is available), the time and date the call was made.

3. To redial a highlighted entry, press ENTER to display the Call Options
Menu. You can choose from Call, Send Message, Save (or Edit) To
Phonebook, Add To Speed Dial, or Delete options. Highlight an option
and press ENTER to display the option page or complete the task.

Air Time
To view Air Time

1. Highlight Call History and then press ENTER to display the ‘Call History’
tabs. Highlight ‘Air Time’ and press ENTER.

2. Observe two time fi elds, one for the ‘Last Call’ and ‘All Calls Since’ the
last time you cleared the time entries, and Total Minutes.

3. Use the Up/Down ARROW key to highlight the on-screen ‘Clear’ button
to reset the ‘All Calls Since’ fi eld.

Call Cost

To view Call Cost

1. Highlight Call History and then press ENTER to display the ‘Call History’
tabs. Highlight ‘Call Cost’ and press ENTER to display the Call Cost Page.

2. Observe the Accumulated Charge Meter (ACM) fi elds on this page to

determine the units for the last call made, total units to date, and if

you are approaching your pre-set maximum call units limit. Before

clearing the accumulated units fi elds or setting a call unit limit, you
must fi rst enter your PIN 2 code.

Messages

You can send, receive and save messages in both voice and text f
Messages features are accessed from the Phone tab of the Main Menu.

Highlight ‘Messages’ on the Phone Tab Page and press ENTER to
display the Messages Page. All features on the Message Page require
support from your Network Provider, and in many cases a subscription.

Messages can only be sent to phones with Short Message Service
capability. Messages received can be from any source capable of trans­mitting the message, i.e., another phone or your service provider. This
includes notification of voice mail.

To send a New message:

1. Use the ARROW key to highlight the New button on the Message Page

2. Press ENTER with the ‘New” button highlighted to display the New
Message Page.

3. Use the ARROW key to highlight the “To:” fi eld to enter a desired
name from Contacts, or...enter the desired number in the adja

data fi eld using the KEYPAD. You must either enter the recipient’s
phone number or a valid name from Contacts.

4. Next move to the Message fi eld press ENTER and begin

message using the phone KEYPAD.

5. When the message is complete, press the SEND or SAVE button.

Note that: Information Messages are independent of this feature and are
controlled and sent by your service provider. They will appear on their own
page when you press the MENU key and select “View Info Messages’.

cent

to enter your

Set Signature

With the Messages page displayed, press the MENU key to display the
‘Set Signature’ option. Press ENTER to display the Set Signature dialog

box. Enter a “From” type signature and press ENTER.

orm.

Section 3

Phone Operation

Messages

Message Page
Options Menu

Phone Tab - Messages

New Messages Select Recipient Send Message

Save Message
Options Menu

Set Signature
Entry

Send Message
Options Menu

37

Message Inbox List

38

Section 3

Phone Operation

Messages

Voice Mail Set Up Field

Dialling Voice Mail

Read Message List

Voice Mail Messages
To setup Voice Mail

Voice mail is a Network Service Provider operated feature and
instructions for setting up voice mail will be given by your provider.
Refer to page 60 for details on entering your voice mail number.

To check your Voice Mail:

1. Highlight the ‘Voice Mail’ button and press ENTER to dial your voice mail.

Or... Simply press and hold the 1 key to dial it from the Speed Dial List

2. Press the END key when fi nished listening to your voice mail

Message Inbox

.

The Message Inbox lists all messages received that are unread. It
may also include voice mail notification.

To view the Message Inbox

1. Highlight the Inbox tab and press ENTER to view received messages.

2. To read a desired message, use the ARROW key to highlight it and
then press ENTER to display the message. You will have three options
to choose from: ‘Reply’, ‘Forward’, or ‘Delete’. Once read, the message
will move to the ‘Read’ page.

Read Messages

Once you open a message in the Message Inbox, it will automati­cally be saved for review in the ‘Read’ list.

To view Read Messages:

1. Highlight the Read tab and highlight the message you would like to
review, then press ENTER to display the message.

2. To exit the displayed message, press the END key.

Using Numbers and Websites included in Messages

You can extract phone numbers and website addresses included
in messages and save them to Contacts and Browser Bookmarks List
respectively.

To call and save phone numbers included in Messages:

1. Highlight the desired message from the ‘Inbox’ or ‘Read’ list and press
ENTER to display the message.

2. Press the MENU key to display the Options Menu for the Message

Page. Highlight ‘Use Number’ and press ENTER to display a list of the
fi rst four recognized numbers in the message (three or more numerical
digits).

3. Use the ARROW keys to highlight the desired number from the list and

press ENTER to display the list of ‘Use’ Options. You can ‘Call’, ‘Send a
Message’, ‘Save To Contacts’, or ‘Add To Contacts’.

4. Highlight the option of your choice and press ENTER to initiate.

To view and bookmark websites included in Messages:

1. Highlight the desired message from the Inbox list and press ENTER
to display the message.

2. Press the MENU key to display the Options Menu for the Message

Page. Highlight ‘Use Web Address’ and press ENTER to move to the
Browser ‘Enter Address” window where you will be asked to enter the
displayed web address.

3. Highlight the on-screen ‘OK’ button and press ENTER to display the

web page on the Browser.

4. Press the MENU key to display the Browser page Options Menu, select

‘Add To Bookmarks’, and press ENTER to save the web address.

Phone Operation

Message Page
Options Menu

Use Number Option

Message with website

URL

Section 3

Messages

Message with phone

numbers

Selected Number

Use Options

Use Web Address

Option

Enter Address Window

Number from

Message saved to

Phonebook

Website opened on

Browser

39

Section 3

Phone Operation

Messages

Message Draft List

Sent Messages List

Message Drafts

You can create a message and save for transmission at a later time by
storing it in the ‘Drafts’ list.

To view Message Draft:

1. Highlight the Drafts tab and then press ENTER to view the list of sent
messages.

2. To read a desired message, use the ARROW key to highlight it and
then press ENTER to display the message. You will have two options
to choose from: ‘Send’ or ‘Save’.

To send a Draft as a Message:

1. Highlight the Drafts tab and then use the ARROW keys to highlight the
desired drafted message and then press ENTER to display the message.

2. Highlight the on-screen ‘Send’ key and press ENTER to send the
message.

Sent Messages

Sent Messages are those which have been forwarded to the recipient
as opposed to those which you have created and placed in the Draft
List to be sent at a later date.

To view Sent messages

1. Highlight the Sent tab.

2. Observe the list of current Sent messages.

40

Message Templates

Message templates are messages that, once created, can be used
over and over or sent to more than one recipient.

To create a Message Template

1. Highlight the on-screen ‘New’ button and then press ENTER to display

the New Message dialog fi eld.

2. Use the ARROW key to move to the fi eld and then press ENTER to

begin entering the fi rst character of the text message.

3. Then highlight the on screen ‘Save’ button and press to display the save

options menu. Highlight ‘Save To Template’ and press ENTER.

To use a Message Template

1. Highlight the desired pre-constructed message from the Template List

and then press ENTER to display the Send Message page.

2. Highlight the ‘To’ button an press ENTER to select a recipient from the

message from Contacts or highlight the recipient fi eld and enter
a phone number, then highlight the ‘Send’ button and press ENTER.
Or... while composing a message, press MENU and select ‘Insert Template’
and select a template to insert in your message.

Reports

Reports allow you to report your position to another NavTalk unit.
The Reports List displays those Status Reports.

To create a Status Report or a Status Request

1. Access the Messages Page from the Phone Tab of the Main Menu.

2. Select the ‘New’ button and press ENTER for the New Messages Page.

3. With the New Message Page displayed, press the MENU key to display

the Options Menu, then select ‘Status Report’ and press ENTER to
display the Send Status Report Page.

Section 3

Phone Operation

Select a message from the
Templates List.

Message Templates List

Reports List Options

Send To Entry using
Contacts

Repeat - Timeout
Hours/Minutes Option

Messages

Message recipient selected
from Contacts.

Signature

Message
selected
from the
Templates
List

Template inserted in a Message

Reports List

Status Report

Request for a
StatusReport

Choosing the
Repeat option
allows your posi­tion to be sent as
you move about at
set intervals until
the timeout option
ends reporting.

41

Repeat and
Timeout Units
Option Menu

42

Section 3

Phone Operation

Messages

Choosing the Repeat
and Timeout options
allows you to receive
position reports at a set
interval and until you
no longer require them.

Status Request

Read Message -Status Request

Recurrences List

4. Highlight the ‘To’ button and press ENTER to display Contacts
listing of names. Highlight the desired name and press ENTER and then
select the phone number desired from those displayed for that name
and press ENTER to place the name in the ‘To’ fi eld on the New

Message Page, or... use the KEYPAD to enter a phone number manually.

5. Next Highlight the Repeat Option and press ENTER if you want to
repeat the Report. This will place a check mark next to the Repeat Option.

6. Highlight the number fi eld just below the repeat check mark and press
ENTER to and then use the KEYPAD to enter the number of desired

units of time (minutes or hours). Then move to the adjacent fi eld, press

ENTER and select either Minutes or Hours then press ENTER again.

7. Move down to the Timeout fi eld and press ENTER to place a check

mark next to the Timeout option.

8. Use the ARROW key to highlight the number fi eld below the timeout
option and then use the KEYPAD to enter the units (minutes or hours)
before the report stops repeating. Then highlight the unit fi eld next to it and

press ENTER, to select either minutes or hours and then press ENTER again.

9. To create a Status Request select Send Status Request from the New

Message Options menu and repeat the steps explained above.

Recurrences

Allows you to view outgoing reports or requests that are set to repeat.

To view Recurrences

1. Highlight the Recurrences tab to display the Recurrences Page.

2. Observe the list of recurrences.

3. After selecting a recurring status report or request, you may choose to

re-send or delete it. Otherwise messages on this list will continually be
sent out at the set interval until they timeout.

MiniBrowser

The MiniBrowser uses Wireless Application Protocol (WAP) to provide
access to a network of wireless websites (specially designed Internet sites).
Because devices like the NavTalk have limited memory for caching (storing)
recently downloaded information the MiniBrowser cannot use plug-ins,
java-based features, or download anything. It can display some basic
graphics, but these sites are designed to be small in size, load quickly and
in general minimize waiting time. The list of sites for you to choose from is
network dependent, if your service provider does not provide a gateway to
sites, then you will need to know the URL (web address) for a site and enter
it manually.

To Set Up the MiniBrowser:

1. Select the Settings Tab of the Main Menu, then highlight the
Phone feature and press ENTER to display the Phone Settings tabs.

2. Use the ARROW keys to tab over to the ‘Browser’ tab.

3. Refer to page 61 for detailed information on Browser Settings.

To access the MiniBrowser:

1. Select the Phone Tab of the Main Menu, then highlight the MiniBrowser
feature.

2. Press the ENTER key to display the MiniBrowser page. An ‘Air Time’
advisor window will pop-up. Select ‘OK’ and press ENTER to open
the page.

3. The MiniBrowser will display your Home Page.

4. From this Home Page you can navigate the web using the toolbar at the
top of the page.

Back

Reload

Stop

NavTalk

Section 3

®

Phone Operation

MiniBrowser

Phone Tab - MiniBrowser

MiniBrowser Page

Air Time

Fee Adviser

Site address

Bookmarks

Home

entry

43

URL

Air Time Meter

Entry Option

Bookmark
Individual Entry
Options

44

Section 3

Phone Operation

MiniBrowser

Options Menu

Bookmarks Page

Bookmarks Page

Add To Bookmarks Entry

Enter Site Address Window

Sending Data
Indicator

To use the MiniBrowser Page Options:

1. Select the Phone Tab of the Main Menu, then highlight MiniBrowser.

2. Press the ENTER key to display the MiniBrowser page. An ‘Air Time’
advisor window will pop-up. Select ‘OK’ and press ENTER to open.

Bookmarking a Site

1. With the web site open, press MENU to display the options menu.

2. Highlight ‘Add To Bookmarks’ and press ENTER to place the URL or
label on the Bookmarks List.

3. To display the Options Menu for an individual entry, press ENTER.

Viewing a site URL

1. With the web site displayed, press MENU to display the options menu.

2. Highlight ‘Show URL’ and then press ENTER to display the URL dialog
window. Press ENTER to close the window.

Viewing Air Time

1. With the web site displayed, press MENU to display the options menu.

2. Highlight ‘View Air Time’ and press ENTER to display the Current Call
Time window. Press ENTER again to close.

Encrypting

1. With the web site displayed, press the MENU key to display the
page options menu. Highlight ‘Encryption’ and press ENTER to begin.

Restarting the MiniBrowser

1.

From the options menu, highlight ‘Restart’ and press

ENTER.

To access a site by entering an address:

1. Use the ARROW key to highlight the Enter Address icon at the top
right side of the page and then press ENTER to display the ‘Enter
Address’ window. Enter the site URL and then press the ‘OK’ button.

PDA (Personal Digital Assistant) Style Applications

You can use these PDA style applications to manage your time and
activities. Using the Intellisync Software Interface you can synchronize
both PDA and PhoneBook data with your PC. Refer to instructions
provided with the Intellisync CD-ROM provided with your NavTalk.

Using the Calendar

You can use the Calendar to mark important dates, setup a schedule,
and place reminder messages for events on specific dates. When and
appointment time on the list has past, it will automatically be deleted
from the list. You can setup appointments for recurring events as well.

To mark a date on the calendar

1. Select ‘Calendar’ from the Main Menu PDA tab and press the ENTER

key to display the Calendar page calendar

2. Use the ARROW key to move to the desired date on the calendar and
then press ENTER to display the Appointment page for that day.

3. If there are no notes for that day and you want to create an entry, use
the ARROW key to highlight the ‘New’ button and then press ENTER

to display the ‘New Appointment‘ page.

4. Use the ARROW key to highlight the From and To boxes and the
beginning and ending times for the appointment KEYPAD keys to enter
the beginning and ending times for the appointment. Then highlight
the appointment description box and press ENTER to begin entering
the description using the data entry methods explained on page 10.

5. Highlight and press ENTER to check the Reminders option if you want
a reminder prior to an appointment. Highlight the reminder units fi eld
and press ENTER to access the units number entry, then use the keypad
to enter the number of minutes, hours, etc. before the appointment .

Phone Operation

Using the Calendar

Highlight the year or
month:

Ґ Use the RIGHT
Arrow to move
forward in time

Ґ Use the LEFT Arrow
to move back in
time

Use the ARROW key
to move the date box
about on the page

New Appointment

PDA Tab - Calendar Page

Section 3

Options
Menu

Options
Menu

Appointments Page

Press ENTER with the
month highlighted to
display month options

Calendar Page

Time
Entries

Description

Reminder
Units

Page Options Menu

45

Section 3

Phone Operation

Using the Calendar

A Reminder will

turn the unit On

, if necessary in

order to signal the

reminder note.

Appointment Reminder Page

New Appointment Options Menu

Interval Settings Page for Appointment Reminders

46

Appointments List Options Menu

You must clear a
Reminder before

the next reminder

End-On Options

will signal.

6. Move to the units fi eld and press ENTER to display the options list.
Highlight the desired option and press ENTER.

7. When completed, press the ENTER key and then move down to
highlight the ‘Save’ key and then press ENTER to save the appoint-
ment to the Appointments List Page.

8. Press the MENU key to view or use the Appointment Page options.

Using the Appointment Page Options

When setting up an appointment page you can choose from three
options: Delete, Recurrences, and Move To.

To cancel an appointment:

1. Select the appointment from the list page and press ENTER to display
the page.

2. Press the MENU key to display the options menu. Select ‘Delete’ and
press ENTER to delete the page, or... use the page ‘Delete’ button..

To setup recurrences:

(usually done for a new appointment)

1. With the New Appointments Page displayed, press the MENU key to
display the options menu.

Select ‘Recurrences’ and press ENTER to display the Recurrences setup

2.
page. On this page you will observe and ‘Interval’ fi eld with a default
entry of “None”. Press ENTER to display the list of interval options.
When you highlight any other option than “None” and then press

ENTER, to display the ‘Frequency’, ‘Day of the Week’, and ‘End On’ fi elds.

3. Highlight each fi eld as required and enter the desired data. Press the

CLEAR key to close.

To move an appointment to a new date:

1. Select the ‘Move To’ option and press ENTER to display the Calendar
ge. Use the ARROW keys to move to the new date and press ENTER.

Pa

Using Tasks

You can use Tasks to record tasks, list them in order of importance,
and the date by which they must be completed.

To create an item on the Task List:

1. Select Tasks from the Main Menu PDA tab and press the ENTER
key to display the Task List Page.

2. Use the ARROW key to move to the New on-screen button and

then press ENTER to display the New Task Details page.

3. Use the ARROW key to highlight the priority fi eld , then press ENTER
to display the priority number list (most important item fi rst). Use the
ARROW key to select the desired number and then press ENTER.

4. Use the ARROW key to highlight the Due Date fi eld and then

press ENTER to display the due date option menu. Select “Choose Due
Date” and press ENTER to display a calendar page. Use the ARROW

key and ENTER key to select a month, year and day. After the day is

selected, the Task Item Details page will reappear.

5. Next, highlight the Task description box and press ENTER to begin

entering the description. Use the KEYPAD keys to enter the description.
Press the # key prior to the desired letter to create an uppercase
character. Press the 0 key to create a space between words or number
groups.

6. When completed, press the ENTER key and then move down to

highlight the ‘Done’ key and then press ENTER to save the item
to the Task List.

7. To clear the Task List of items press the MENU key to display the

‘Delete All’ option and then press ENTER.

Highlight and
press ENTER to
check-off an
entry.

Priority Setting
and Range

Data Entry
Field

Section 3

Phone Operation

The Tasks List

PDA Tab - Tasks

Task List Page

New Item Entry Page

Task List Option

Menu

Due Date for

Completion

Option Menu

47

Section 3

Phone Operation

Using Notes

PDA Tab - Notes

Notes Page

Page Options

Menu

Using Notes

You can use Notes to store important numbers, data, personal
information, etc.

To create a note in Notes:

1. Select ‘Notes’ from the Main Menu PDA tab and press the ENTER
key to display the Notes Page.

2. To view the contents of a note in detail, use the ARROW key to

highlight the note on the page and then press ENTER to display the
Note Detail page.

3. If there are no notes for that day and you want to create an entry, use

the ARROW key to highlight the ‘New’ button and then press ENTER

to display a new ‘Note Detail‘ page.

4. Begin entering your note using the keypad as explained on page 10.

5. When completed, press the ENTER key and then move down to

highlight the ‘Done’ key and then press ENTER to save the note to
Notes List.

6. To view the Note Detail page for any note, select the on-screen

‘Find’ key and press ENTER. Then, use the keypad to enter a key
word from the note to and then pre ENTER to display the ‘Find
Results’ page with the details of your note.

New Note Entry Page

48

Find Note Option

Games

Games are provided as an entertainment feature.

To select and play a game:

1. Use the ARROW key to highlight the PDA Tab and display its list of
features.

Highlight the ‘Games’ feature and press ENTER to display game choices.

2.

3. Use the ARROW key to highlight your choice then press ENTER.

Blackjack - This is a classic card game of chance in which you play
against the dealer. It is also sometimes known as twenty one with the
object to see who can get as close to 21 points without going over (bust).

Rules of the game:

• With each new hand the first card is dealt to the dealer. The
dealer’s cards are shown at the top of the display and your cards
are shown at the bottom.

• Face cards count as 10 points, number cards count as face value,
and aces count as either 11 or 1 point.

•

An ace and face card is blackjack and automatically wins against

any other hand.

•

If you and the dealer have the same score, neither wins.

To play Blackjack:

1. Use the ARROW and ENTER keys to highlight and press the on-screen
buttons for Hit, Stay, Split, and Double Down.

2. Press the MENU key for the New Game option. Press ENTER to
activate.

Blackjack

Blackjack Options

Menu

Section 3

Phone Operation

Playing Games

Game Selection List

PDA Tab - Games

Naval Assault

Beast Hunt

Blackjack “Bust”

Notice

Press ENTER to deal a

new hand.

Blackjack - playing a

Split Option

49

50

Section 3

Phone Operation

Playing Games

Naval Assault Game Page

Rotate Ship/ New Game Prompt

End of Game Message

Play Again Prompt

Naval Assault - This is a classic game in which you compete against
the computer (the enemy) in a battle for naval superiority. By deploying
your fleet and firing at the enemy’s fleet on grid of squares (the playing
field). The object is find and sink the enemy’s fleet before they sink
yours. Each side takes turns firing a round at a selected squares on the
playing field.

To play Naval Assault:

1.

Use the ARROW and ENTER to select Naval Assault from the list of

games.

2. You will be prompted to begin deployment of your fl eet. An aircraft car-

rier (5 squares long), battleship (four squares long), destroyer (3 squares
long), submarine (3 squares long), and a gunboat (2 squares long). All
placeable on the playing fi eld in either a horizontal of vertical orienta­ tion. Use the ARROW keys to move your ships about. Press the MENU

key to pop-up the rotation option.

3. When your ships have been deployed, press ENTER to begin fi ring. A

blank playing fi eld will display with the enemy ships deployed and
hidden from view. Use the ARROW keys to select a square where you
believe an enemy ship to be hidden.

4. Press ENTER to fi re. A pop-up message will tell wether you missed or

hit a ship. If a hit, it will tell you what type of ship was hit and round dot
will display on that square. Misses are marked by an “X.” After you
have fi red the display will show your fl eet and where the enemy has
fi red.

5. Keep taking turns until either you or the enemy has sunk the other’s

entire fl eet. At that point, a “Victory” or “Defeat” message will display.

6. At the end of the game you will be prompted to play another game or

to quit.

Beast Hunt - This is a game of skill in which you must find and kill
the dragon with an arrow before it incinerates you or you fall into one
of several pits while navigating a maze of platforms. From time to time
you will be transported by slides that curve or move diagonally. The
game consists of several difficulty levels and an extended or limited
visibility option. When you lose a game the screen will display the
layout of hazards, slides and warning platforms. A scoreboard keeps
track of your wins and losses.

To play Beast Hunt:

1.

Use the ARROW and ENTER keys to select Beast Hunt from the Games

list. When the display screen appears it will contain a list of skill levels.

2. Use the ARROW key to select the desired Diffi culty level and press
ENTER to display the Visibility Option Menu. Select Extended or Limited

and press ENTER to begin the game.

3. Use the ARROW key to move about from platform to platform.

4. When you land on a light or dark grey platform you are near a pit or

the dragon. If you plunder into a pit, you will fall to the bottom. If you
move into the dragon, you will be incinerated by his fi ery breath. These
hazards will almost always be surrounded by grey platforms.

5. To kill the dragon with an arrow and win the game, stop on the dark

grey platform you believe to next to the dragon. Press ENTER to place
an arrow on the platform, then use the ARROW key to point the arrow
at the dragon and then press ENTER to fi re the arrow. If you are on
target, the arrow will strike and kill the dragon.

Game Page and
Diffi culty Selection
List

Maze displayed
at the end of a
session

Section 3

Phone Operation

Playing Games

Visibility Options

Maze showing

Warning and Arrow

Platforms

Scoreboard

Game Symbols

Pit Warning Platform (1 around pits) - Light Grey

Dragon Warning Platform (2 around dragon)- Dark

Pit and Dragon Warning Platform - Grey Stripes

Grey

Pit

Dragon

Arrow Platform

Archer - Arrow Shot

Falling into a Pit

Pit in Maze

Hitting the Pit BottomDragon

Dragon
in Maze

51

Section 3

Phone Operation

Calculator

PDA Tab - Calculator

Standard Calculator

Calculator

The calculator feature is available in two forms, Standard or
Scientific. It operates in the same manner as any other calculator.

To use the calculator:

1. Use the ARROW keys to highlight the desired calculator key and then
press ENTER keys to enter a number or function. The phone keypad #

key also performs the = function. The keypad

2. To select the Standard or Scientifi c calculator function, press the MENU
key to display the options menu.

3. From the options menu use the ARROW and ENTER keys to select

the calculator type and method of angle measurement (Radians or
Degrees).

4. To exit the calculator feature, press the CLEAR or END key.

Note that the CLEAR key clears the display if there are numbers displayed,
otherwise it will exit the Calculator Page.

acts as a decimal point.

*

Calculator Type
and Units Options

52

Scientifi c Calculator

Calculator Type
and Units Options

Settings- Phone Tabs

Highlight ‘Phone’ and press ENTER to display the Phone Tabs.

Setting Environment Profi les

Profiles allow you to program the NavTalk to perform appropriately for
different environments by selecting the type of alert signals, volume levels
for the earpiece, ringer, key presses, and activation of beeps, prompts, auto­answer and auto-redial features.

To select environment profi les:

1. Use the ARROW key to highlight the fi eld at the top of the Profi les
Page and then press ENTER to display the list of profi les.

2. Use the ARROW keys to move up or down the list of profi les to select
the environment that you want to create custom settings for. Highlight
and press the on-screen ‘

EDIT’ button to display the Alerts, Volume and

General tabs for that environment.

Alerts Settings

Alerts are features that provide signals for the different types of incoming
events, such as Calls, SMS messages, Alarms, Data Calls, and Vibrate On/Off.
The Ringer choices are: Standard Ringer, Ringers 1 -5, 10 Melodies, and Off.

To set a ringer for the event type:

1. Use the ARROW key to highlight the event fi eld.

2. Press the ENTER key to display the list of choices.

3. Use the ARROW key to highlight your choice then press ENTER. When
you select a ringer sound, it will play a sample for you to hear.

List of Unit
Environment
Profi les

To activate/deactivate the vibrator alert feature:

1. Use the ARROW key to highlight the Vibrator text. Then press ENTER
to place a check mark in the box to active. Repeat the process to deactivate.

Select Ringer for Calls,

SMS, Alarms, Data &

Phone Operation

Alerts Tab

Vibrator On/Off

Section 3

Phone Settings

Settings Tab - Phone

Profi les Page

Vibrate On/Off
Check Box

Options Menu
restores Profi le
in this fi eld to
factory settings

Display of settings
for this Profi le

Ringer Sounds
Options Menu

53

Section 3

Phone Operation

Phone Settings

Earpiece
Volume Control

Ringer Volume
Control

Volume Settings Tab

When using the Volume
Up/Down keys to adjust
the earpiece volume, this
display will appear.

One press of the key
opens the display and
subsequent presses
adjust the volume.

The display will timeout
and close after a few
seconds.

Key Beeps
Volume Control

When you change
the volume using this
method, it will reset the
earpiece volume for the
environment profi le cur­rently in use.

Volume Settings

Earpiece Volume - Allows you adjust the earpiece volume to fit the
environment profile you are creating.

Ringer Volume - Allows ringer volume for the particular profile being
created.

Key Beeps Volume - Allows you to adjust the key beep volume as
appropriate for the environment profile being created.

To set volumes for each control:

1. Use the Down ARROW key to highlight the volume control slider for
the Earpiece.

2. Press the ENTER key to isolate the slider bar and then use the Up/
Down ARROW key to adjust the Earpiece volume.

3. Use the Right ARROW key to highlight to the volume control slider for
the Ringer.

4. Press the ENTER key to isolate the slider bar and then use the Up/
Down ARROW key to adjust the Ringer volume.

5. Use the Right ARROW key to highlight to the volume control slider for
the Key Beeps.

6. Press the ENTER key to isolate the slider bar and then use the Up/
Down ARROW key to adjust the Key Beep volume.

7. Press the ENTER key to isolate the slider bar and then use the Up
ARROW key to return to the Volume Tab, then press the Right ARROW

key again to move to the ‘General’ tab to complete customizing the
environment. Or...press the CLEAR key to return to the Profi les Page.

54

General Settings

Key Beeps - Allows you turn On a beep to indicate when a key has
been pressed, or use DTMF tones. Multiple beeps indicate when a
particular key is pressed that is inappropriate for the function desired.

Or...you can turn Off all key beeps.

To set the Key beeps:

1. Use the ARROW key to highlight the fi eld, then press ENTER
to display the ON/OFF menu.

2. Use the ARROW key to highlight your choice and then press ENTER.

Message Beeps - Allows the NavTalk to beep when a message con­cerning unit operation is displayed.

Voice Navigation Prompts - Allows you to turn On or Off navigation
voice prompts when using the Auto-Routing feature for notification of
turns or events in a route.

Auto Answer - Allows you to select and activate the Auto-Answer
feature. Auto-Answer automatically connects the call without the need
to manually press a key to answer an incoming call. This is of particular
convenience when using the NavTalk Hands-Free Kit.

Auto Redial - This feature allows you to redial a number you are
attempting to call when there is no answer during the initial call. The
unit will automatically redial the number up to 7 times.

To turn On/Off the above mentioned features:

1. Use the ARROW key to highlight the desired feature and then press
ENTER to place or remove the check mark from the adjacent box. A

check mark indicates that the feature is active.

Section 3

Phone Operation

Phone Settings

Message Beeps

Message Beeps,
Voice Navigation
Prompts,
Auto-Answer, and
Auto Redial
On/Off
check boxes.

NOTE: When an Auto-Redial number has been redialled repeatedly
without connecting, the unit assumes that the number is not in
service and places it on a blacklist. If you attempt to dial a number
that has been placed on the blacklist, a message will appear to
indicate that the number is on the blacklist and cannot be dialed.

Another message will appear when the list is full. The list resets
itself each time the unit is turned On.

General Settings Tab

Options Menu

55

Section 3

Phone Operation

Security Settings

PIN Request
On/Off Menu

Fixed Dialling
On/Off Menu

Change Code
Options Menu

Security Page

Enter Current
PIN 1 Code

Enter New
PIN 1 Code

Confi rm New PIN 1
Code

NOTE: To discourage theft of your NavTalk, each unit is assigned an
International Mobile Equipment Identity (IMEI) number that must
be recognized by service provider systems before any type call is
allowed. If your unit is stolen, report it immediately to your service
provider along with the IMEI code found in the options menu of the
Display Setting Page (Page 96 of this manual)

56

Security

Security features can prevent unauthorized use and provide privacy and
restrictions for use of certain phone features.

PIN Request Mode - Allows you to set the Personal Identification
Number request to On or Off. The On mode requires that you enter
the PIN code before the NavTalk will become functional. You must also
enter the PIN code before turning this mode Off.

Fixed Dialling Mode - Allows you to set Fixed Dialling Mode feature
to On or Off using the PIN 2 code. When Fixed Dialling is On, only
those phone numbers on the List may be called using the NavTalk.

Change Codes - Allows you to change the access codes for PIN 1, PIN
2 and the Network. Your service provider can set the PIN 1 code and
PIN 2 code initially and inform you of the number sequence.

To change a code

1. Highlight the Change Code Field. “Select Code” will be highlighted.

2. Press the ENTER key to display the Code Options Menu.

3. Select the code you want to change and press ENTER to display the
Enter Code Box.

4. Enter the current code for PIN 1, PIN 2, or the Network and press
ENTER to display the New Code Box.

5. Enter the new code and press ENTER to display the Confi rm Code Box.

6. Re-enter the new code and press ENTER to complete the code change.

Unblocking the SIM Card -

If you fail to enter the correct PIN
code three times in secession a “SIM Card Blocked” message will appear
and you now must enter the Pin Unblocking Code (PUK) in order to
restore service. Your Service Provider can supply the required PUK

code.

Network

Network settings allow you to determine network preferences, view the
status of the current network operator, select a network, and enable/disable
the Service Indicator (LED).

Network Selection - When Roaming outside your home network
this feature allows you to determine whether you want the NavTalk
to select a network automatically or allow you to choose a network
of your own choice. Highlighting this field and pressing ENTER will
display the Searching for Network Page

Preferred Networks - Allows you to choose a network from a list of
preferred networks that you have created and stored in the unit or that
have been programmed into the SIM card.

To enter preferred networks to the selection list:

1. Use the ARROW key to highlight the Preferred Network fi eld and press
ENTER to display the Preferred Network List.

2. Use the ARROW key to move to an empty slot on the list and press
ENTER to start the entry process. Use the KEYPAD to enter the code

for the network. The network name will appear above the entered code.

To select a network from the preferred networks list:

1. Select ‘Manual’ from the Network Selection Field Options.

2. Highlight the Preferred Networks fi eld and press ENTER to display the

list of networks. Highlight the desired network and press ENTER.

Operator - Displays the current network operator selected from the
network list or a network automatically selected while roaming.

Section 3

Phone Operation

Network Settings

Network Selection
Options Menu

Preferred Network
Entries List

Displays Currently
Selected Network

Displays Status of
Service Indicator
(LED)

Service Indicator
Options Menu

Service Indicator - Controls the LED that signals
the Service Status. The Options Menu allows On
for display, On for display only when connected to
the Handsfree Kit, and Off.

Network Page

Seaching for Network Page

Network Entries
List Options

Insert Options

57

Service Center
Number Entry Field

Messages Format
Options Menu

58

Section 3

Phone Operation

Calls Settings

Calls Page

SMS Settings

SMS Page

Recipient Replies Through:
Options Menu

SMS Page Options Menu

Messages Valid
For:
Options Menu

Calls Settings

The Calls Settings page allows you to determine, in advance, how
incoming calls are to be negotiated by the phone.

To select a call handling option:

1. Use the ARROW key to highlight the Calls tab on the Phone feature of
the Main Menu Settings Tab to display the Calls page.

2. Use the ARROW key to highlight the ‘Handle Incoming Calls’ fi eld and
press ENTER to display the list of options.

3. When “Next Call is Data” or ”Next Call is Fax” are selected they will
default back to “All Voice Calls” after the call has been handled.

Short Message Service (SMS) Settings

Short Message Service allows you to send a text message to any
individual with SMS enabled on their phone and allows you to determine
parameters for sending SMS messages.

To set up the SMS message service:

1. Use the ARROW key to highlight the SMS tab on the Phone feature of
the Main Menu Settings Tab to display the SMS page.

2. Use the ARROW key to highlight the ‘Service Center #’ fi eld and press
ENTER and begin using the KEYPAD keys (as explained on page 10)

to enter the number of the service center providing you with SMS
service. Press ENTER when fi nished.

3. Use the ARROW key to move down to highlight the ‘Messages Valid

For’ fi eld. Press ENTER to view the Options Menu. You can choose
from 1 Hour, 12 Hours, 1 Day, 1 Week, and Maximum Time. Use the

ARROW key to highlight your selection and then press ENTER.

4. Follow the instructions in Step 3 to select an option from the list

for the ‘Message Format’ fi eld. You can choose from Text, Fax, Paging,
E-mail, Voice, X.400, and ERMES.

5. Use the ARROW key to highlight the ‘Recipient Replies Through’ fi eld.

Press ENTER then use the ARROW key to select an option.

Messages Settings

Info Message Categories - Allows you to enter the desired categories
for Info Messages. If this feature is available, your network provider will
supply you with a list of categories to choose from.

Info Message Languages - This feature allows you to determine the
language of received Info Messages. You can choose from ten languages.

Voice Mail Number - This feature allows you to view the Voice Mail
number provided by your service provider. This allows you to autodial
your voice mailbox by pressing and holding the #1 key and dialling from
the Speed Dial List. This number can be read off your SIM card or from
your phone and it will automatically be placed in the Voice mail # field
on the Message page and key number1 position on the Speed Dial List.

SMS Emergency Number - This feature allows you to enter a specific
phone number that you want dialled when pressing and holding the
NINE key to auto-dial the number which sends an SMS message.

If you want to insert your own message, you may enter it in the
message box or insert a template from the templates list. However, if
you delete the ‘<L>’ and ‘<T>’ characters from the message, your loca­tion will not be sent with the message. When your message is actually
sent, your phone number, the time, and your current location is also
included. Note that the time and location do not update if you are

moving, unless you send the Emergency call again.

NOTE: All of these entries are dependent on whether or
not you have subscribed to that particular service.

List of
Info Message
Categories.

Voice mail
Number is
read off your
SIM card.

Section 3

Phone Operation

Messages Settings

SMS Page

Enter an
Emergency Number
and Message.

When the message
is sent, the time
and your location is
included.

Info Message
Language
List.

Info Message
Language
Options Menu.

59

Phone Operation

Highlight each box
and then press
ENTER to place a
check mark to
enable these
options.

Section 3

Browser Settings

Connection Settings
Set Up page.

Highlight each
fi eld and then
press ENTER to
display the data
entry page for
each.

Home Page Dial
Up Number entry
page.

Browser Settings

Home Page - Allows you to enter the home page URL or address that
you would like to call each time you use the Browser.

1. Highlight the ‘Home Page’ fi eld and press ENTER to display the ‘Home
Page’ dialog window.

2. Use the data entry methods explained on page 10 to enter the Home
Page URL. Press ENTER when fi nished.

Connection Settings - This feature is controlled and set up by your
cellular service provider. You may not be able to open this page if your
service provider has already initialized these settings.

Enable Fee Warning - This feature allows you to activate/deactivate a
pop-up warning window prior to each time you use the Browser

Require Authorization - This feature allows you to require an autho­rization code prior to active use of the Browser. The authorization code
you will be prompted to enter will be your PIN 2 code. See page 56 for
information on PIN codes.

Enable Push Content - This feature allows you to enable/disable
certain types of internet communications such as advertisements,
announcements, etc.

To enable Fee Warning, Authorization and Push Content:

1. To enable/disable the three options discussed above, use the ARROW
keys to highlight each option individually. Press ENTER to place or

remove the check mark next to the option. A check mark signifi es
“enabled”.

60

Call Services

You can program a variety of call services to help you make more
efficient use of your phone such as, ‘Call Diverting’, ‘Call Barring’, ‘Call
Waiting’, and a Setup Page to set parameters for these services.

Using Call Divert

1. Highlight ‘Call Services’ from the Main Menu and press ENTER to
display the tabbed Call Services Pages.

2. Use the ARROW key to highlight the ‘Call Divert’ tab and then press
ENTER to display the Divert List.

3. Use the ARROW key to highlight options on the list. As each option is

highlighted, a description will be displayed at the bottom of the page.

Choose any or all from the list below…

•

All voice calls - to send all voice calls to a number you have specified.

• Voice if busy - to divert voice calls to the specified number only

when your phone is busy.

• Voice if no answer - if you don’t want to answer your phone and

prefer to send the call to the specified number.

Voice if out of reach - if out of your service area or the phone is Off.

•

• Voice if not available - if your phone is busy, there is no answer,

you are out of your service area, or the phone is turned Off.

• All fax calls - to send all fax calls to the specified number.

• All data calls - to send all data calls to the specified number.

• Cancel all diverts - to cancel all voice, fax, and data call diverts.

4. Press the ENTER key to pop-up the options menu and use the ARROW

keys to choose from ‘Activate’, ‘Cancel’, ‘Check Status’ or ‘Set Delay’.
Press the

to the Call Divert list

ENTER key to confi rm your choice or press CLEAR to return

.

Section 3

Phone Operation

Call Services

Settings Tab - Call Services

Call Divert Tab with

List of Options

Call Divert Options Menu

Enter Divert Number Field

(i.e. Voice Mail or other number)

Call Divert Activation Page

Set Delay Options List

61

Section 3

Phone Operation

Call Services

Call Barring Tab with

List of Call Types to Bar

Call Barring Options Menu

Using Call Barring

1. Highlight ‘Call Services’ from the Main Menu and press ENTER to
display the tabbed Call Services Pages.

2. Use the ARROW key to highlight the ‘Call Barring’ tab and then press
ENTER to display the Call Barring List.

3. Use the ARROW key to highlight options on the list. As each option is

highlighted, a brief description of its function will be displayed in the
fi eld at the bottom of the page.

Choose…

• All outgoing calls - to restrict any outgoing calls using the phone.

• International calls - to restrict any outgoing international calls.

• Int’l if not home - to restrict international calls to your home coun-

try only.

• All incoming calls -to restrict all incoming calls.

• Incoming if roaming - to restrict all incoming calls if roaming

outside your home network.

• Cancel all barrings - to cancel all call restrictions.

4. Press the ENTER key to pop-up the options menu and use the ARROW

keys to choose from ‘Activate’, ‘Cancel’, or ‘Check Status’. Press the

ENTER key to confi rm your choice or press CLEAR to return to the list.

62

Call Barring Activation Page

Using Call Waiting

1. Highlight ‘Call Services’ from the Main Menu ‘Settings’ tab and press
ENTER to display the tabbed Call Services Pages.

2. Use the ARROW key to highlight the ‘Call Waiting’ tab and then press
ENTER to display the Call Waiting Page.

Use the ARROW key to highlight ‘All incoming calls’. A “Select this to notify of

3.

all incoming calls” message will appear at the bottom of the page.

4. Press ENTER to pop-up the menu. Highlight ‘Activate’, ‘Cancel’, or

‘Check Status’ and then press ENTER to confi rm.

5. An activation page will appear if you selected ‘Activate’. This page will

cycle off when the activation message has been received by your service
provider. Press CANCEL to stop activation before the page cycles off.

Section 3

Phone Operation

Call Services

Call Waiting Page

Call Waiting Options Menu

Call Waiting Activation Page

63

Send Own
Number Option

Default Divert
Delay Options

Section 3

Phone Operation

Call Services

Call Services Setup Page

Using the Call Services Setup Page

1. Highlight ‘Call Services’ from the Main Menu ‘Settings’ tab and press
ENTER to display the tabbed ‘Call Services’ Pages

2. Use the ARROW key to highlight the ‘Setup’ tab and then press
ENTER to display the call Setup Page.

3. Use the ARROW key to highlight ‘Send Own #’ fi eld, press ENTER to

display the On and Off option. Use the ARROW key to highlight your
choice and then press ENTER.

4. Highlight the Default Divert Delay fi eld and press ENTER to display the

list of delay options. Highlight your choice and press ENTER.

64

GPS Overview

The GPS portion of your unit provides a method for navigation using
a system of overhead satellites to determine your location on the earth,
combined with a mapping database. Other built-in features allow you
to record waypoints (landmarks and destination points), find destination
points, (cities, points of interest, waypoints, etc.), chart your progress, and
monitor details such as speed, direction, and elapsed time.

Each time you turn on the unit, it must determine its location. The first
time you use your unit, this may take from five to fifteen minutes.
first use, the unit should determine your location in less than one minute.
While the unit is collecting satellite information, a “searching for satellites”
window will appear in the lower left corner of the display.

When your location has been determined, the Map Navigator Page will
state “Ready To Navigate” and display Cardinal letters (North, South, East,
West) and your current location will be shown on the map above it.

If there are not enough satellites in view to determine its location, the
unit will display a “Poor Satellite Reception” message with four options. A
brief explanation for each option will appear when it is highlighted.

Use the ARROW keys to highlight the logical option and then press
the ENTER key to activate it.

If the time displayed in the time field on the Map Page is not correct,
you will need to set the time for your current location. Whenever the
unit is operating with GPS On, a Battery Life warning will appear. Press
ENTER to acknowledge.

After

Section 3

Section 4

GPS Navigation

The GPS Features Pages

GPS Tab - Features Page

Poor Satellite Reception Message with

List of Options and Instructions

Battery Life Warning Message

Searching for Satellites Window

65

Section 3

Section 4

GPS Navigation

Using the Map Navigator Page

GPS Tab - Map Navigator Page

Directional Indicator

Speed Indicator

The Map Navigator Page

When Not
Navigating

Using the Map Navigator Page

The Map Navigator provides graphic display for the three methods of
unit navigation:

Goto - A direct path to a map location, (waypoint, city, address, etc.)

Travel when not on a Goto - This is best described as travel without

entering a destination in the unit. The Map Navigator displays your real
time movement as you travel with the unit turned on and receiving satel­lites. It can be saved (logged) as a Track.

Auto-Routing - A path of travel to a selected destination using existing
roads that is automatically placed on the map. Auto-routing also provides
text directions at the top of the display indicating direction to go and when
to make turns. Using an earpiece or the Handfree Kit with remote speaker,
you can receive voice commands for each change in direction.

The Map Navigator Page Options Menu provides you with a variety
of features to enhance your navigation capabilities. You can modify the
map display to fit your needs by changing to a full screen and selecting
from a variety of setup options that control map item display, text size and
other features.

66

When Navigating

a Route

The Map Navigator Options Menu

Map Navigator Page Data Fields

Several Data Fields support the Map Navigator and consist of the

following elements.

Direction Field

There is one direction field, providing direction information
dependent on whether you are stopped while navigating, navigating to
a destination, or traveling without a recorded destination.

Direction To Go (N. S. E. W.) - Cardinal letters indicate the direction
to go when starting out or to resume after having stopped while on an
active Goto, Track or Route. These letters can be changed to degrees.

Speed Field

Speed - Your rate of travel can be displayed in miles per hour, kilome­ters per hour, or nautical miles per hour.

Distance To Go Field

Distance - When on a route to a destination, the distance remaining to
the destination will be displayed in the left side of the field below the
map.

Time Remaining Field

Time - The time remaining until you reach your destination, at your
current speed, is displayed in the right side of the field below the map.

Route Instructions Field

Instructions - When traveling a route to a destination, the field at the
top of map will provide you with directions for streets and highways as
well as when to make turns in the route.

Direction Field

Section 3

Section 4

GPS Navigation

Map Page Data Fields

Direction Field

Direction you are heading when
navigating without a predeter­mined destination

Speed Data Field

Current Speed

Distance and Time to go fi elds

67

Section 3

Section 4

GPS Navigation

Map Display

Position Icon

The Position Icon displays in the center of the Map
Page and indicates your current location.

Accuracy Circle

The Map Display

The map display shows your present position and direction of move­ment as a triangular ‘Position Icon’ in the center of the map. As you travel,
the map display leaves a “trail” (track log) of where you’ve been. The
map display also shows the map scale and geographic details such as lakes,
rivers, highways, and towns.

Use the UP and DOWN keys to change the map scale to show more
map area with less detail, or less map area with more detail. Press and hold
to zoom the map scale rapidly.

In many instances the map will display an ‘Accuracy Circle’ surround­ing the ‘Position Icon’. The unit uses both map resolution and GPS
accuracy in defining your location to a point within the circle. The smaller
the circle, the more accurate your location.

More detailed map features as well as information about those features
can be displayed using map data transferred from a GARMIN MapSource
CD-ROM. When using MapSource data, the word “MapSource” will appear
below the map scale whenever you zoom in to view map details.

NOTE: When you use the GPS feature for the fi rst time. It
may take up to fi ve minutes to fi nd your location. After that,
it will take about 15 to 45 seconds to locate your position.

The Accuracy Circle defi nes your location by placing
the position icon with the confi nes of the circle.

The size of the circle is determined by map resolution
and current GPS receiver accuracy. The smaller the
circle the more accurate your location.

68

The Panning Arrow (Map Pointer)

The Panning Arrow is controlled by the ARROW keys and is used
to identify map objects and move the map in order to view areas of the
map not currently within the display. The Panning Arrow can be used
to establish a ‘Point of Reference’ when measuring distance between map
items. It can be used to create a waypoint or to move a waypoint to a new
location. Press the ARROW keys at an angle to move diagonally. Press and
hold the ARROW keys to move to new areas of the map. Press the CLEAR
key to cancel the panning arrow.

Using the Panning Arrow:

The Map Page pan function allows you to display an arrow to point at
and identify items on the map, and to move the map in order to view areas
beyond the current viewing area on the display.

The pan function is activated by the ARROW keys which move the
arrow in the desired direction. As the arrow moves to the edge of the dis­play screen the map will also move to reveal more map area. When moving
to the edge of the display, the map will take some time to draw the new
area of the map. An hourglass will display in place of the panning arrow
when the map is redrawing.

Pressing the CLEAR key cancels the pan function.

The detail of map features will be enhanced when you are using
MapSource information loaded on a map data card. When using any map
data, whenever the panning arrow is placed on a map item, the name of the
object will be highlighted. This feature applies to waypoints, roads, lakes,
rivers...almost everything that is displayed.

Section 3

Section 4

GPS Navigation

The Panning Arrow

or

(Map Pointer)

The Panning Arrow

ARROW key

The Panning
Arrow moves

about on the Map

Page as you press

the ARROW key

in the desired

direction.

69

Section 4

Section 4

GPS Navigation

The Panning Arrow

Highlighted Map Item

When the Panning Arrow is moved to a map item, it will be
highlighted for 5 seconds.

To fi nd details about a map item:

1. Move the panning arrow to the map item when you want to learn more
about that item.

2. When the item’s name is highlighted, press and release the ENTER key
to display the Information Page for that item.

The information page is type specific with such titles as ‘Address’, ‘City’,
or ‘Exit’ followed by a name and description field, a distance field, and
on-screen buttons. Press the MENU key to display the ‘Save as Waypoint’
option to mark this item as a waypoint.

You can also use the panning arrow to measure the distance between
two map items as explained in the section titled “Measure Distance”
on page 75.

When using the panning arrow on the map page and pressing the
MENU key and then selecting ‘Find ‘n Go’ from the options menu, the
Find Menu will display items with the panning arrow (map pointer) loca­tion used as a reference for distance. The Find Menu will display “Using
Map Pointer” just beneath the page title.

With the Panning Arrow on a map item, press the ENTER
key to display the information page for the item.

Item Information Page

70

Zooming In and Out

Use the INand OUT keys to Zoom (adjust) the map scale, which is

displayed at the bottom of the Map Page.

To change the map scale:

1. Press the IN key to Zoom In and select a scale that shows more detail
for a smaller map area.

2. Press the OUT key to Zoom Out and select a scale that displays a larger
map area, but with less detail.

The map scale is shown in the lower left corner of the map display area.

Press and release
the Zoom IN key to
view less map area
with more detail by
increments. Press
and hold it to
zoom in rapidly.

The scale is shown in the unit of measure selected from the ‘Units’ field of
the ‘Display’ Settings page. Refer to page 96 for setup details.

It is possible to zoom in so far that the resolution of the map data is
exceeded and the appearance of the map will no longer be accurate. When
this occurs, the word “overzoom” will appear just below the map scale.

When using a map data downloaded from a CD, the word “MapSource”
will appear below the map scale when you zoom in to see more detailed

Press and release
the Zoom OUT key
to view more map
area with less detail
by increments.
Press and hold it to
zoom out rapidly.

map features. When driving on city streets within a MetroGuide or other
MapSource coverage area, more detailed map scales (500 to 100 meters)
may be preferred since they provide a good view of all streets and not just
major roadways. When traveling on major roadways (highways and Inter­states) map scales of two kilometers or more may be more practical.

With certain types of MapSource data, such as MetroGuide data, the

The Map Scale is
displayed in the
lower left corner
of the map page

unit may match your location to roads on the map. In these instances, the
‘Accuracy Circle’ (discussed on page 68) will not be shown.

Section 4

Section 4

GPS Navigation

Zooming & Map Scales

Zoom In Key
and map scale

Zooming In

Zoom Out Key
and map scale

Zooming Out

If you have down­loaded additional
map data, “map
source” will display
below the scale.

If you zoom in
beyond the map
data’s resolution
then “overzoom”
will appear
beneath the scale.

Map Scales

71

Section 4

Section 4

GPS Navigation

Map Navigator Page Options

Options Menu

Find Menu

72

Full Screen Map

The Map Navigator Page Options

Map Navigator Page options allow a variety of operating and custom­izing features for the unit. Pressing the MENU key from the Map Page will
display the Map Navigator Page Options Menu. Many are replaced by
another option when they are selected, while others are methods of cancel­ing an option when you no longer need it.

You can choose an option by highlighting it and pressing the ENTER key.

Find ‘n Go -This ‘Find’ option allows you to locate and Goto a
waypoint or other map item. Refer to “ Find ‘n Go” on page 77.

Stop Navigation - The ‘Stop Navigation’ option stops any active Goto
navigation. The option will appear gray and cannot be selected if there
is no active navigation. When activated the ‘Stop Navigation’ option
will be replaced by a ‘Resume Navigation’ option.

View Turns - This feature is only available when navigating an auto
matically generated route and displays a list of turns in the route.

Routes - This feature allows you to save a current route or to access
previously traveled routes that are stored in the unit. Refer to page 85
for more information.

Full Screen Map - The ‘Full Screen Map’ option uses the full screen
to display the map. This option is replaced by ‘Show Data Fields’.

To display a ‘Full Screen Map’:

1. With the Options Menu displayed, highlight ‘Full Screen Map’.

2. Press the ENTER key and the Map Page will display a full screen map.

3. To return to a Map Page with data fi elds displayed, repeat the process.
You will notice that the ‘Full Screen Map’ option now reads ‘Show Data
Fields’ When this option is highlighted and the ENTER key is pressed
the page will display the data fi elds again.

Map Page Settings

The Setup Map Options displays the Map Setting Pages. Map Settings
pages determine how the map is displayed, allowing you to custom tailor
the map display.

Common Settings

Text - Specifies the text size for a displayed map item. Selecting ‘Off’

Detail
Options Menu

will turn off the text display for that item.

AutoZoom (also Zoom) - Specifies the maximum map scale at which
a map item will be displayed. If ‘Auto’ is selected, the maximum map
scale will be determined by the ‘Detail’ setting to prevent map clutter.

Map Options

Detail - Adjusts the amount of map information, such as roads, that is
displayed. ‘Most’ shows maximum detail and ‘Least’ shows minimum
detail. The higher level of detail, the slower the map redrawing time.

Orientation - Selecting ‘North Up’ will display the map with North
at the top. Selecting ‘Track Up’ will automatically rotate the map to
keep your current direction of travel at the top of the screen. A ‘North’
indicator is displayed on the map when in the ‘Track Up’ mode.

Color Mode - Allows the selection of either Land or Water Modes to
display map features on a light (Land) or dark (Water) background

Orientation
Options Menu

AutoZoom - When ‘On’, this option will automatically adjust the map
scale to show both your current location and the next item to which
you are navigating.

Section 4

Section 4

GPS Navigation

Map Navigator Page Options

Color Mode
Options Menu

Map Options

AutoZoom Scale
Options Menu

73

Section 4

Section 4

GPS Navigation

Map Navigator Page Options

Line Options

Line Options

Track Log - Controls the display of the ‘Track Log’ on the map.

Railroad - Controls the display of the Railways on the map.

Street Label - Controls the display of street names on the map.

Point Options

Waypoint - Controls the method for display of waypoints on the map.

Exit - Controls the method for displaying highway exits on the map.

Points of Interest -

Controls the display of points of interest on the map.

Text Options
Menu

74

Point Options

City Options

Area Options

Zoom
Options
Menu

City Options

Large City - Controls the display of large cities on the map.

Medium City -

Controls the display of medium sized cities on the map.

Small City - Controls the display of small cities on the map.

Small Town - Controls the display of small towns on the map.

Area Options

River, Lake - Controls the display of river, lakes and other bodies of
water on the map.

Park -

Controls the display of parks and other public lands on the map.

Other - Controls the display of all other land forms.

The Map Setup Options
can also be accessed from
the Settings Tab of the
Main Menu.

Measure Distance - The ‘Measure Distance’ option allows you to view
the distance and direction from your current location to another loca­tion on the map or from one map location to another. In addition the
directional bearing from your current location is shown as well as the
coordinates for that other location.

To use the ‘Measure Distance’ feature:

1. With the Map page displayed, highlight and select ‘Measure Distance’
from the list of options.

Press the ENTER key. A fi eld for distance will appear at the top of the map.

2.

3. Move the panning arrow to the location you want to measure from and
press the ENTER key.

4. Move the panning arrow to the location you want to measure to and
the distance information will be displayed in the fi eld.

5. Press the CLEAR key or select ‘Stop Measuring’ to exit this feature.

Routes - You can create a route to a destination with Turn-By-Turn
directions and then save it for reuse. Refer to page 84 for details on
creating and saving a route.

To Select a Route from the Saved Routes List:

1. With the Map Navigator Page displayed, press the MENU key to “pop
up” the page Options Menu.

2. Use the ARROW key to highlight the “Routes” option and press
ENTER to display the Routes Page.

3. Highlight the desired saved route from the Saved Routes fi eld and press
ENTER to display that route on the Map Navigator Page.

Section 4

Section 4

GPS Navigation

Map Navigator Page Options

Measure Distance

Use the Panning Arrow to measure the

distance between two map items by

moving it to the fi rst item, pressing ENTER,

and then moving it to the second item.

The distance is displayed in the fi eld just

Current Route

Saved Routes

above the map.

Routes List

75

Section 4

Section 4

GPS Navigation

Map Navigator Page Options

Show on Map
Option Check Box

MapSource Info Page

This option is
only available
while the
“Calculating
Route” widow is
displayed.

MapSource Info - The ‘MapSource Info’ option allows you to view the
various maps loaded onto the unit By highlighting a MapSource title
and pressing ENTER you can activate or deactivate that map data.

When using MapSource maps, there is a hierarchy that determines
which map is displayed when geographical features on more than one
map overlap each other. Refer to page 110 for detailed information
about this subject.

MapSource Info will be grayed if there are no recognizable maps
loaded, or an unlock code is required to open the map.

Stop Calculating - This option is available when a route is being
calculated. Choose this option if you no longer want to navigate to a
destination or if you have chosen a destination that is very difficult for
the unit to create a route to. When this occurs, a recalculating message
will be repeatedly displayed until an insufficient data message displays.

76

Calculating a Route

Find ‘n Go

You can locate Waypoints, Cities, and Interstate Exits which are
included in the unit basemap. You can also locate Cities, Exits, Points of
Interest, Addresses and Junctions when using MapSource MetroGuide or
MapSource Points of Interest mapping data. If this data is not present,
these options are not available and will appear gray.

Your current location is normally used as the reference point for the
‘Nearest’, ‘Distance’, and ‘Direction’ features. However, if you are using the
panning arrow (Map Pointer), it is used as the reference point. The Find
Menu will state either “Using Current Location” or “ Using Map Pointer”
depending on which reference point is used.

Using ‘By Name’ and ‘Nearest’ Lists

All items on Find Menu option lists can be viewed in two formats, ‘By

Name’ (a list of every item available for a category) or by ‘Nearest’ (a list of
only those items for a category that are nearby). The ‘Nearest’ option pres­ents you with a much smaller list of items and speeds the selection process.

To switch back and forth between Find ‘By Name’ and by ‘Nearest,,

press the MENU key to display the Options Menu for that category page.

All map items found using the Find ‘n Go feature can be marked as a

waypoint when selecting the ‘Save as Waypoint’ option accessed by press­ing the MENU key when the information page for an item is displayed.

Section 4

Section 4

GPS Navigation

Find ‘n Go

GPS Tab - Find ‘n Go Page

Find Menu

77

Find By Name is
the option when
a ‘Nearest’ list
is currently being
displayed.

Find Nearest &
Select Map are
options when a
‘By Name’ list
is currently being
displayed.

78

Section 4

Section 4

GPS Navigation

Find ‘n Go

Nearest Cities List

Cities By Name List

Map Item
Information Page

Item on Map

Finding a nearest item:

1. Highlight the item you want from the nearest list using the method for
selecting data from lists described on page 10.

2. Press the ENTER key to display the information page for the item.

Finding an item by name:

1. The fi rst character in the name fi eld at the top of the page will be
highlighted.

2. Begin entering the name of the item you want, using the method for
entering each letter or number described on page 10.

3. When you can see that the names of the items in the list below are
near the name of the item you want, press the ENTER key to move the
highlight to the list.

4. Highlight the item you want from the list using the method for selecting
data from lists as described on page 10.

5. Press the ENTER key to display the information page for the item.

Selecting a Map:

You can select the type of map data from which to base your Find
List items by choosing from either the built-in basemap or a down­loaded MapSource product, such as City Navigator or City Select.

1. With a ‘By Name’ fi nd list displayed, press the MENU key to display
the Options Menu

2. Use the ARROW key to highlight ‘Select Map’ and press ENTER to
display the list of map choices.

3. Use the ARROW key to select the map you desire and press ENTER.
Map items shown on fi nd lists will originate from this map data base.

Finding a Waypoint

Waypoints that you have created and stored in the unit can be found by
selecting the ‘Waypoint’ option of the Find Menu. You can find a waypoint
from a list of waypoints ‘By Name’ or by ‘Nearest’ using the procedure
explained on the previous page to display the Waypoint Information Page.

The Waypoint Information Page displays the waypoint name, a map
symbol, the location in lat/lon, elevation and four on-screen buttons for
viewing the waypoint on the map, creating a Goto, confirming changes, or
deleting the waypoint.

Finding a City

Cities listed in the map database can be found by selecting the ‘Cities’
option of the Find Menu. You can find a city from a list of cities ‘By
Name’ or by ‘Nearest’ using the procedure explained on the previous page
to display the City Information page. You can use the options menu ‘Select
Map’ option to display the city from the maps contained in your map data
storage area.

The City Information Page for the selected city displays the city name,
the size by population and the distance from your location. You can view it
on the map or create a route to the city from your current location or from a
location defined by the panning arrow (Map Pointer).

Waypoints By Name List

Section 4

Section 4

GPS Navigation

Nearest Cities List

Find ‘n Go

Waypoint Information Page

City Information Page

City Displayed on Map

79

Section 4

Section 4

GPS Navigation

Find ‘n Go

Find Exits Options List

Nearest Exits List

Exit Info Page

Finding an Exit

You can use the Find Exit option to locate a nearby exit on an interstate
or highway. Exits are listed only by ‘Nearest’.

To fi nd an Exit:

1. Select the Find Menu. From the Main Menu and then press the
ENTER key.

2. Use the ARROW keys to highlight ‘Exits’ and then press the ENTER
key. An Exits menu will appear with a choice of exit types.

Highlight the type of exits you wish to view, then press the ENTER key.

3.

4. A list of the nearest exits ahead of you will be displayed. The title

of the list indicates the interstate for the exits listed. At the bottom of
the list, a distance fi eld indicates the distance from your location to the
highlighted exit. The options menu allows you to ‘Select Map’ if the
exit is shown on more than one map on your map data base.

5. Scroll through the list to highlight the desired exit.

6. Press the ENTER key to display the Info Page for that exit. This page

contains the exit description at the top of the page and a list of
services near that exit at the bottom.

7. Use the ARROW keys Up/Down keys to move the highlight into the

list of services. Press the CLEAR key to move the highlight back to
the ‘OK’ button.

8. You can select ‘Goto Exit’ to create a route to the exit on the map.

80

Finding a Point of Interest:

You must be using MapSource City Select to select “Points of Interest”
which provides this type of map data, otherwise this option will appear
gray and will not be available.

To locate a point of interest:

1. Press the ENTER key to display the Find Feature Menu. Highlight ‘Points
of Interest’ and then, press the ENTER key to display a list of categories.

2. Highlight the category of your choice and then press the ENTER key
to display the list of types.

3. Highlight the type of your choice and then press the ENTER key to
display the list of the points of interest of that type.

4. A ‘Select Map’ option is available if there is more than one map loaded
that has the information you are trying to fi nd. Press the MENU key
to access the ‘Select Map’ option and then press the ENTER

key to display the map choices. Highlight the map you wish to use and

press the ENTER key to return to the list.

Follow instructions on page 78 to fi nd a point of interest by name or nearest.

5.

6. Highlight the desired point of interest on the list and press the ENTER
key to display the item information page. The information page will

include the full name, address, and often the phone number. If a phone
number is included, you can press the SEND key to call the number.
Press the MENU key to display the Options Menu for this page.

When searching for points of interest using the ‘By Name’ list,
multiple items with the same name appear only once on the list (for
example: McDonalds). When you highlight it and press ENTER, a list
of ‘Nearest’ locations for that name will appear.

Section 4

GPS Navigation

Points or Interest Option

List of Categories

Press Goto to navigate
to the item

Item Information

Page

Section 4

Find ‘n Go

List of Types

Information
Page
Options
Menu

Item on Map

List of Items

81

Enter the Street
Address using the
KEYPAD keys.

Select the Street,
City, and Postal
Code from the
option lists.

Use the KEYPAD
keys to enter the
fi rst few letters or
numbers and then
use the ARROW
key to select from
the matches on the
list.

Press Goto to navi­gate to the address.

82

Section 4

Section 4

GPS Navigation

Find ‘n Go

Find Address Page

Select Address Page

Press Map to view on
the Map Page.

Press OK to save as a
waypoint.

Address Information Page

Highlight the Find
button and press
ENTER to display
all matching
addresses . If the
address is not
correct, a “None
Found” message
will appear. Re­Enter new data.

Finding an Address or a Junction

You must be using MapSource City Select which provides this type of
map data, otherwise these options will appear gray and will not be avail­able.

To locate an address:

1. Select ‘Find’ from the Main Menu and then press the ENTER key to
display the Find Feature Menu. Highlight the ‘Address’ option and then,
press the ENTER key to display the ‘Find Address’ page.

2. Highlight the Number fi eld and use the method for entering numbers
and letters as explained on page 10.

3. Move to the ‘Street’ fi eld using the ARROW keys.

4. Press the ENTER key to display the ‘Select Street Name’ list. Find the
street you want by entering the fi rst few letters in the name fi eld to get
a match or scroll through the list to highlight your choice.

5. With the desired street highlighted, press the ENTER key to place the
street name on the fi nd page.

6. Highlight the ‘Find’ button and press the ENTER key to view the
location on the Map Page.

7. If the address is incorrect or not in the map data base, a “None Found”
message will appear and you must re-enter new data.

8. If the address is accurate, Select Address page will display those
addresses that match your entry. As each is highlighted a match quality
index will display at the bottom of the page.

9. If there are many matches, use the optional city and postal code fi elds to
place the best matches near the top of the list.

Once selected, the address will appear on the Address Information

10.

page.

Locating a Junction:

The Find Junction feature operates like the Find Address feature,
with the exception that you enter first and second street names instead
of an address and a street name.

To Locate a Junction

1. Follow Steps 1 through 10 on page 82, substituting data entry fi elds on

the Find Junction page with those on page 82.

Reviewing Recently Found Places

The Find Menu includes categories for recently found map items.
This allows you to review (by category) previously found items that
you did not save as waypoints for later use. When the list becomes full,
the oldest entry is deleted to make space for the newest.

To Review a Recently Found Place

1. Access the ‘Find ‘n Go’ Find Menu from the Main Menu GPS Tab.

2. Use the ARROW key to move down the menu list to the ‘Recently

Found Places’ option and press ENTER to display the tabbed pages for
Points of Interest, Addresses and Junctions, Cities, and Other.

3. Use the ARROW Right or Left key to move to the tab with the desired

category, then move down the list of places to highlight your selection
and then press ENTER to display the Information Page for that item.

4. Highlight the Map or Goto key on the page and press ENTER to either

view it on the map or create a route to the item. Press the MENU key

to save it as a waypoint.

Enter the First
Street from the
options list.

Select the Second
Street, City, and
Postal Code from
the option lists.

Highlight an item
on the list and
press ENTER to
display the Infor­mation page for
that item.

Section 4

Section 4

GPS Navigation

Find ‘n Go

Find Junction Page

Highlight the Find
button and press
ENTER to display
the Match Quality
List for the selected
Junction.

Direction and
Distance from
your current
location.

Recently Found Places Option - Points of Interest Tab

83

Section 4

GPS Navigation

Creating A Route To A Destination

Map item

Map Item Located

Using the Map Pointer

Press Goto to navigate
to the destinations.

Routes you to
destination using
all available
roads.

Find Menu Item Info Page

Route Preference Window

84

Map Item Info Page

Routes you to destination
using highways.

Creates a direct line
route to destination.

Traveling to a Map item or Find Menu item

You can create a route to guide you to a map item or Find Menu
item using the Goto feature on the Information Page for that item. A
Goto can be a straight-line from your current location to one you’ve
selected or you can choose from two options (Auto-Routes) that lay out
a graphic path to the item on the Map Navigator page using existing
roads and highways. The Map Navigator will also provide you with
directions to go, roads to use and when to make turns. It also provides
you with time and distance information. These routes can be saved
and stored in the unit memory for later use as well.

To Goto a map item location:

1. Use the ARROW keys to move the panning arrow to the item
(waypoint, city, exit, etc.) on the map.

2. Press the ENTER key to display an information page which contains a
‘Goto’ button.

3. Highlight the ‘Goto’ button on the page and press the ENTER key.

To Goto a Find Menu Item:

1. Use the Find Menu to display the various lists of map items. Select a
category and highlight an item on the list.

2. Press the ENTER key to display the item’s information page which
contains the ‘Goto’ button.

2.

Highlight the ‘Goto’ button on that page, and then press the ENTER key.

If GPS is Off, you will prompted to turn it On. A route cannot be
created with GPS Off. Once a Goto destination is selected, a ‘Route Pref­erence?’ window will pop-up and offer you three choices: Faster Time,

Shorter Distance or Off Road (Direct Line) routing to the destina

tion.

Highlight your choice and press ENTER to begin the route calculation
and display the Map Navigator Page. While the route is being calculated a
small window depicting route waypoints will appear in the lower left corner
of the display. If there are no connecting roads to the destination from your
current location, a ‘Route Calculation Error’ message will display.

When the route has been calculated, the Map Navigator will display a
wide overlay of the route on roads leading to the destination or a direct
line to the destination. Directions to travel are displayed at the top of the
page with distance to go and time remaining at the bottom. As you move

Route Calculation Window

along the route the directions to travel will update and indicate changes in
direction along with graphic turn arrows at Junctions and corners. Turns are
also indicated by a voice message, best utilized with the aid of an ear bud or
hands-free kit. Turn voice On/Off from the General Setting Tab, See page 55.

To view route options, press the MENU key with the View Turns Page
displayed. Options are: Stop Navigation, Recalculate, Use Detour, Save Route,
and Show Arrival Times/Show Time to Go.

Route Displayed on Map

To view the Route Turns list, press the MENU key while navigating by
selecting ‘View Turns’ from the Map page options menu. Use the ARROW
key to scroll up and down the list of turns. Press ENTER for a zoomed in
view of that turn with distance from your current location.

To save a route for future use, press the MENU key with the Map Naviga­tor displayed and then select Routes from the Options List. Press ENTER to
display the Current Route name and all Saved Routes. With the ‘Save’ button
highlighted, press ENTER to save the current route to the list. To navigate
any saved route, highlight the route and press ENTER.

To rename a route, highlight the desired route from the routes list and
press the MENU key. Select ‘Rename’ from the Options list and press ENTER
to display the route name field. Enter the desired name using the KEYPAD
keys and press ENTER when completed.

Saved Routes List

Section 4

GPS Navigation

Auto-Routing

Route Turns List

Route Options

Route Calculation Error Message

Direct Route on Map

Route Turn on Map

Detour Distance

Options

85

Section 4

GPS Navigation

Trip Computer

Trip Computer Page

Distance units can be set from the
Settings Tab of the Main Menu by
selecting the ‘System’ option

Trip Computer Options Menu

Trip Computer

The third feature on the Main Menu GPS Tab, the Trip Computer,
provides current information read-outs about speed, distance and time
as you travel. To view the Trip Computer, highlight the Trip Computer
option on the GPS tab and press ENTER. The Trip Computer displays
a Trip Odometer, Moving Average, Overall Average, Maximum Speed,
Stopped Time, Moving Time, Total Time, and an Odometer that dis­plays accumulated distance.

To Reset the Trip Odometer

1. With the Trip Computer page displayed, press the MENU key to display
the Options Menu.

2. Use the ARROW key to highlight the Reset Trip option.

3. Press the ENTER key to clear the Trip Odometer fi eld.

To Reset the Maximum Speed:

1. Follow the steps defi ned above.

To Reset the Odometer:

1. Follow the steps used to reset the Trip Odometer above.

To select the Units of Measurement:

1.

Distance can be set to Statute, Metric, Nautical, or Yards. See Section 5,

‘System Options’, for details on setting the Units of Measure.

86

Waypoints

A waypoint is a location you have identified and stored in the unit.
The unit can store 500 waypoints in memory. Waypoints can be used as
destinations to ‘Goto’.

Marking your current location as a Waypoint:

1. Pr

ess and hold the ENTER key to display the ‘Quick Set’ menu

. Highlight
‘Mark Waypoint’ and press ENTER to mark a waypoint for your current
location. It will automatically be assigned a 3-digit number.

If the GPS function is turned Off or the unit is acquiring satellites, the
‘Mark Waypoint’ option will appear gray and cannot be activated.

2. To change the name of the waypoint, use the ARROW keys
to highlight the waypoint name fi eld. Follow instructions titled
“Entering Each Letter or Number” on page 10. You can enter a
total of 10 characters in the fi eld. This waypoint name will appear
on the Map Page, when Map Page settings are confi gured to do so.

3. To assign an identifying map symbol to a waypoint, use the

ARROW keys to highlight the fi eld to the left of the waypoint
name. Follow instructions titled “Selecting Data from Lists” on
page 10 to select a symbol. The selected symbol will appear
along with the name on the Map Page.

4. To save the waypoint highlight ‘OK’ and press the ENTER key.

5. If you do not want to save it as a new waypoint, press the

CLEAR key before pressing any other keys.

Section 4

GPS Navigation

Waypoints

Mark Waypoint Page

Press and hold the ENTER key display the

“Quick Set’ menu, then highlight ‘Mark

Waypoint’ and press ENTER again to mark

your present location as a Waypoint.

Highlight and use the on-screen buttons
to save the waypoint and place it on the

waypoints list, display the waypoint on the

map, or to delete it.

The Goto button does not function for

Mark Waypoint as you are currently at the

destination, unless you are using the Map

Pointer to mark a Map ltem.

87

Section 4

GPS Navigation

Waypoints

From the
information page,
press MENU to
display the ‘Save

As Waypoint’
Use the Panning
Arrow to highlight
a map item and
then press the
ENTER key to
display the item
information page.

Creating a Waypoint from a Map Item

Enter the Lat/Lon coordinates to create a waypoint for a known

location. Elevation can also be entered if known.

Creating a Waypoint by entering

new coordinates

option..

To create a waypoint using the panning arrow to highlight a
map item:

1. Move the panning arrow to the item (a city, address, or Junction, road,
etc.)

2. Press and release the ENTER key to display the item information page.

3. With the information page displayed, press the MENU key to display
the ‘Save as Waypoint’ option and then press the ENTER key.

4. The ‘New Waypoint’ page will display the waypoint newly created from
the map item.

To create a waypoint using the panning arrow when a map

item is not highlighted:

1. Press and release the ENTER key with the panning arrow positioned
where you want to mark the waypoint (off of roads, streets or other items).

2. The ‘New Waypoint’ page will display the waypoint that was created at
the panning arrow location.

Be certain to press and release the ENTER key for these operations.

Pressing and holding the key will mark your current location. See
“Marking Your Current Location” on page 87.

To create a new waypoint by manually entering its coordi-

nates (lat/lon):

1. Press and hold the ENTER key to access the Mark Waypoint Option
from the ‘Quick Set’ Menu.

2. Highlight the Location fi eld on the Mark Waypoint Page and follow
instructions titled “Entering Data” on page 10.

3. If desired, you may also change the waypoint name and/or symbol.

88

To move a waypoint by dragging it on the map:

1. Use the Find Feature to display the Waypoint Page as described on
page 79.

2. Highlight and press the ‘Map’ button to display the waypoint map.

3. With the waypoint highlighted by the panning arrow, press the ENTER
key once. The word “Move” will appear beneath the panning arrow.

4. Use the panning arrow to move the waypoint to the new location and

then press the ENTER key.

5. Press the CLEAR key to cancel moving the waypoint.

Using the ‘Mark Waypoint’ feature to quickly determine your
latitude and longitude:

1. Press and Hold the ENTER key to display the Quick-Set Menu. Then

highlight ‘Mark Waypoint from the list of options.

2. Press and hold the ENTER key to display the ‘Mark Waypoint’ page.

Your current lat/lon will be displayed in the ‘Location’ fi eld.

3. Press the CLEAR key before pressing any other key to close the page

without storing your location as a waypoint.

Sending your latitude and longitude position data to another
NavTalk GSM Phone:

Refer to the section on sending Status Reports on pages 41 and 42.
When you send a Report, you’re latitude and longitude are included
automatically.

Highlight the
waypoint you
want to move and
then drag it to the
new
location.

Press and hold the
ENTER key to dis­play the Lat/Lon
coordinates for
your current
location.

Section 4

GPS Navigation

Waypoints

Moving a Waypoint

Using Mark Waypoint to determine your

location

89

Section 4

GPS Navigation

Highlight the fi eld
you want to edit
and enter new
data.

Highlight the ‘Delete’
button and press ENTER.

Waypoints

Editing a Waypoint

Highlight the ‘Yes’ or ‘No’
button and press ENTER.

Deleting a Waypoint

Editing a Waypoint

A waypoint can be edited to change the map symbol, name, coordi­nates, or elevation. It can also be deleted.

To edit a waypoint:

1. Use the Find ‘n Go feature to display the Waypoint Page as described on
page 79.

2. Make changes as desired to the waypoint symbol, name, location, and
elevation fi elds following the instructions in the section titled “How To
Enter Data” on page 10.

3. Highlight the ‘OK’ button and press the ENTER key to save changes.

To delete a waypoint:

1. Use the Find ‘n Go feature to display the Waypoint Page as described on
page 79.

2. Highlight the ‘Delete’ button and press the ENTER key.

90
