GARMIN DASH CAM™ MINI 3
Owner’s Manual
© 2024 Garmin Ltd. or its subsidiaries
All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Garmin. Garmin reserves the right to change
or improve its products and to make changes in the content of this manual without obligation to notify any person or organization of such changes or improvements. Go to
www.garmin.com for current updates and supplemental information concerning the use of this product.
Garmin® and the Garmin logo are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. Garmin Dash Cam™, Garmin Drive™, and Garmin Express
are trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin.
The BLUETOOTH® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. microSD® and the microSD logo are trademarks
of SD-3C, LLC. USB-C® is a registered trademark of USB Implementers Forum. Wi‑Fi® is a registered mark of Wi-Fi Alliance Corporation.
M/N: A04766
™
Table of Contents
Getting Started................................. 1
Installing a Memory Card........................1
Device Overview...................................... 2
Installing the Camera on Your
Windshield............................................... 2
Connecting the Camera to Vehicle
Power....................................................... 4
Formatting the Memory Card................. 5
Pairing with Your Smartphone.......... 5
Connecting Your Camera to a Wi‑Fi
Network....................................................6
Voice Control....................................6
Controlling the Camera Using Voice
Commands.............................................. 6
Turning Voice Control On or Off............. 6
Changing the Wake Word....................... 6
Voice Control Tips................................... 7
Dash Cam Recording........................ 7
Device Information......................... 13
Status LEDs........................................... 13
Cleaning the Camera Lens................... 14
Updating Your Device Using the Garmin
Drive App............................................... 14
Product Updates................................... 14
Specifications........................................14
Memory Card Specifications................ 15
Appendix........................................ 15
Parking Guard........................................ 15

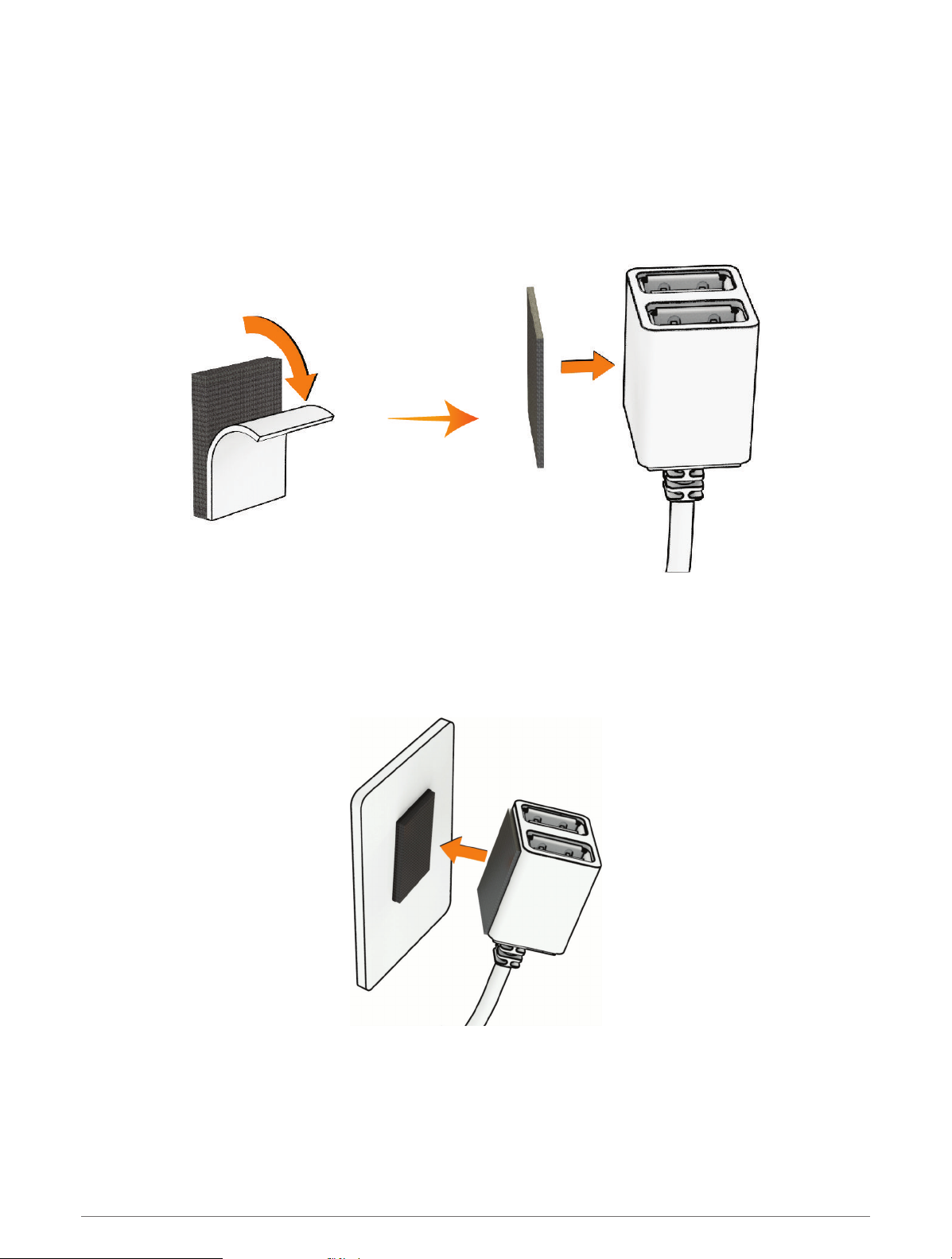

Constant Power Cable.......................... 15
Parking Mode Cable.............................. 17
Troubleshooting............................. 18
My camera feels warm while it is
operating................................................18
The status LEDs are flashing yellow.... 18
My memory card has degraded and
needs to be replaced............................ 19
My video recordings are blurry............. 19
My video recordings are choppy or
incomplete............................................. 19
Turning Audio Recording On or Off........ 7
Event Detection....................................... 7
Saving Videos.......................................... 8
Viewing Videos on Your Smartphone.... 8

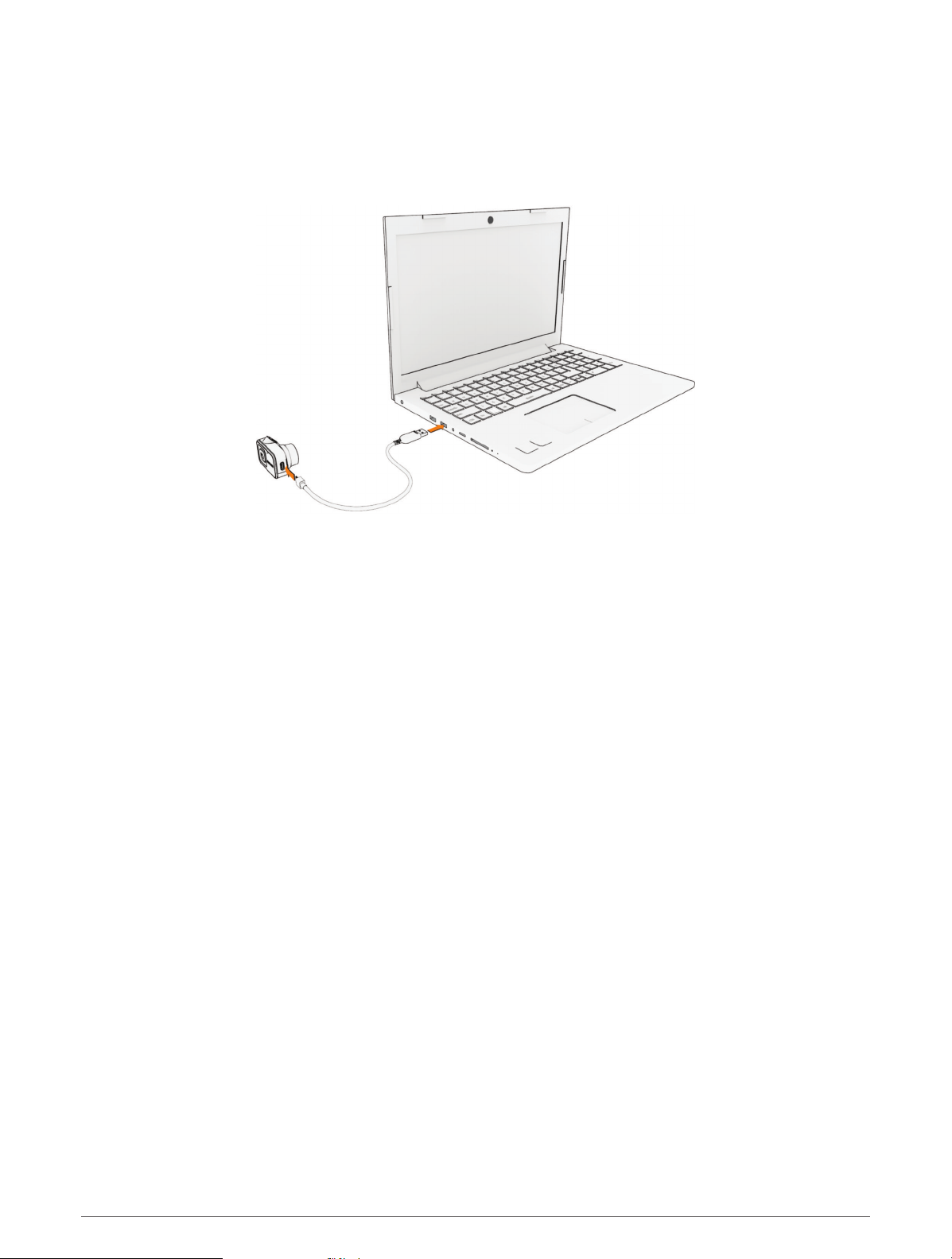

Connecting the Camera to Your
Computer............................................... 10
Vault Storage................................. 10
Subscribing to Vault.............................. 11
Sharing a Video..................................... 11
Removing a Video from the Vault........ 11
Multiple Camera Network............... 11
Creating Picture-in-Picture Multi-Camera
Videos.................................................... 11
Settings..........................................12
Recording Settings................................ 12
Setup Settings....................................... 12
Safety and Security Settings................ 12
System Settings.................................... 12
Device Settings......................................12
Renaming a Camera............................. 13
Table of Contents i
Getting Started
WARNING
See the Important Safety and Product Information guide in the product box for product warnings and other
important information.
Installing a Memory Card
To record video, you must install a compatible memory card (Memory Card Specifications, page15).
1 Insert the memory card into the slot .
2 Press it in until it clicks.
Removing the Memory Card
NOTICE
Removing the memory card while the camera is turned on can result in a loss of data or damage to the camera.
1 Disconnect the power cable from the camera.
2 Wait for both status LEDs to turn off.
3 Press the memory card in until it clicks.
4 Release the card.
The card ejects from the slot.
Getting Started 1
Device Overview
Press to save a video clip.
Hold to enter pairing mode (Pairing with Your Smartphone, page5).
Press to enable or disable audio recording.
Hold to format the memory card (Formatting the Memory Card, page5).
Installing the Camera on Your Windshield
NOTICE
The adhesive mount is intended for a long-term installation and can be difficult to remove. You should carefully
consider the mounting location before you install the mount.
Before you can install the adhesive mount onto your windshield, you should review the windshield mounting
considerations.
For the best results, the ambient temperature should be from 21° to 38°C (from 70° to 100°F) while installing the
camera on your windshield. The adhesive may not bond correctly if the temperature is outside this range. If you
need to install the camera at lower temperatures, you must clear all snow, ice, and moisture from the windshield
and warm the windshield using the vehicle defroster before installing the camera.
The camera attaches to the windshield using the included adhesive mount.
1 Clean the inside of the windshield using water or alcohol, and a lint-free cloth.
The windshield must be free of dust, wax, oils, or coatings.
2 Hold the camera in the desired mounting location on the windshield, and verify the camera has a clear,
unimpeded view.
TIP: You can use the live view feature in the Garmin Drive™ app to see the field of view from the camera
(Viewing the Live View Camera Feed, page8).
2 Getting Started

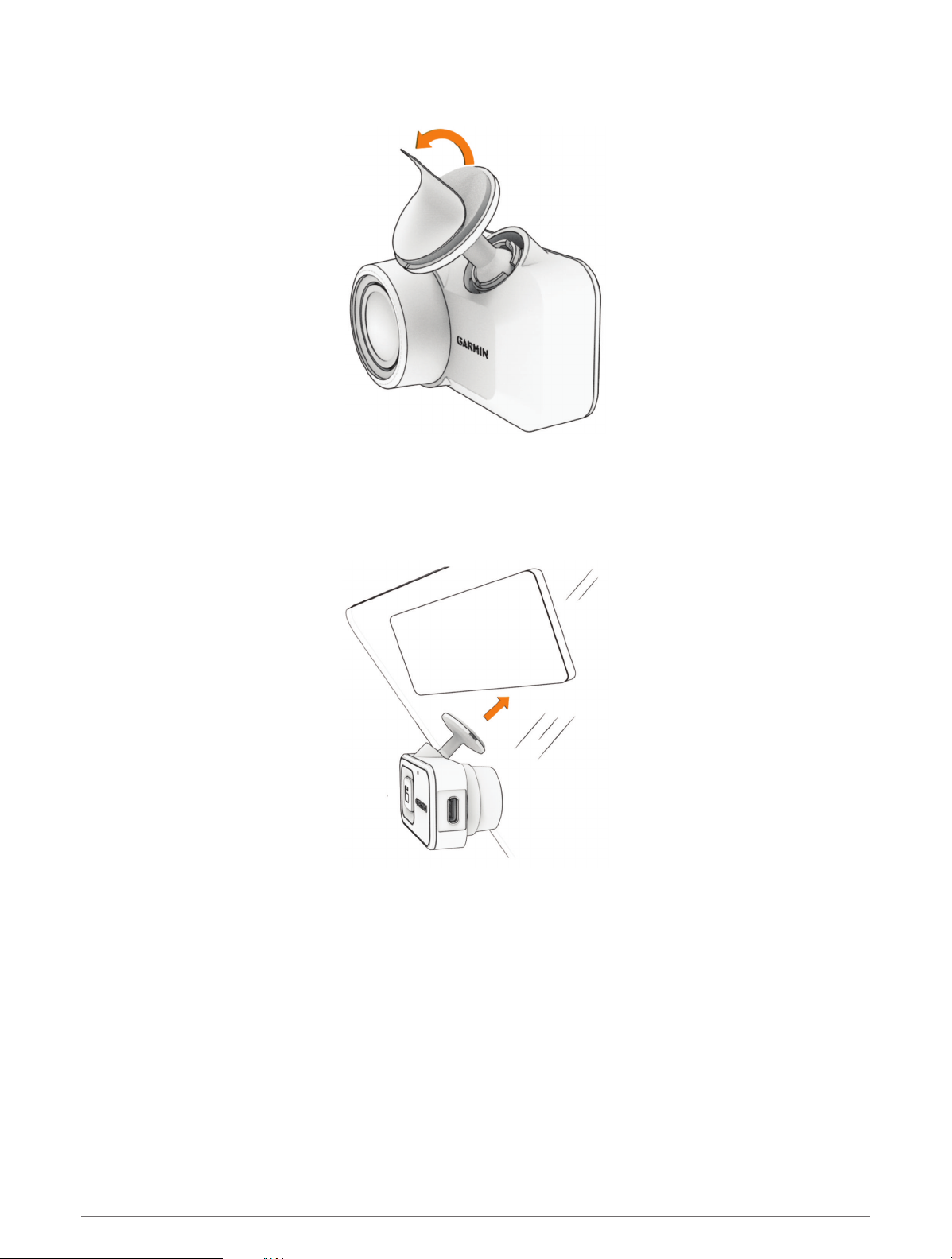

3 After you have selected a mounting location with a clear view, remove the protective film from the mount
adhesive.
4 Position the mount over the mounting location.
TIP: The adhesive is extremely sticky. Avoid touching the adhesive to the windshield until the mount is
properly positioned.
5 Press the mount firmly onto the windshield, and maintain pressure for 30 seconds.
This helps to ensure the mount adhesive has proper contact with the windshield.
Getting Started 3

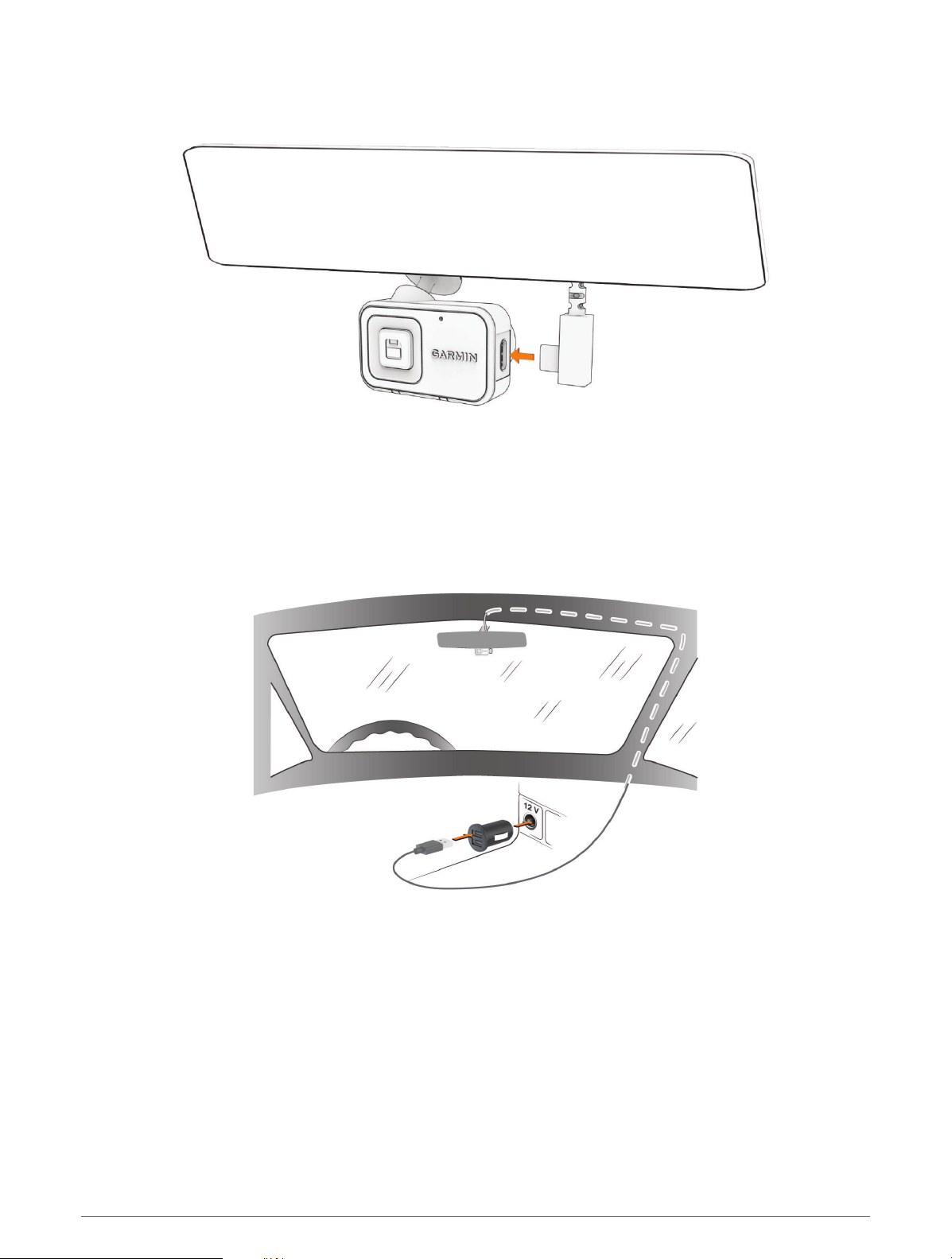

Connecting the Camera to Vehicle Power
1 Plug the power cable into the USB port on the camera.
2 Route the power cable to your vehicle power outlet.
NOTE: You should power the camera using the included vehicle power adapter and avoid using a vehicle
USBport. A vehicle USBport may not provide enough power for reliable camera operation.Also, the camera
may enter USB mass storage mode if you connect it to a vehicle USBport using a cable that allows
data transfer (not included). The camera cannot record video or connect to your smartphone while it is in
USBmass storage mode.
The included lightweight power cable is designed to be routed out of sight. To hide the power cable, route it
behind the vehicle trim along the windshield, doorframe, or dash.
3 Plug the Garmin Dash Cam Mini 3 power cable into the included vehicle power adapter.
4 Plug the vehicle power adapter into the power outlet in your vehicle.
5 If necessary, turn on the vehicle ignition switch to provide power to the power outlet in your vehicle.
The camera turns on and starts recording.
Turning Off the Device Manually
The camera does not have a power button. It turns on automatically when it receives power, and it turns off
when it stops receiving power.
When the device is connected to an ignition-switched power outlet, it turns off automatically when you turn off
the vehicle.
To manually turn off the camera, disconnect the device from power.
4 Getting Started
Formatting the Memory Card
The device requires a memory card formatted using the FAT32 file system. You can use the device to format
your card using this file system. You should format your memory card at least one time every 6 months to help
extend the useful life of the memory card. You must also format a brand new memory card.
NOTE: Formatting the memory card deletes all videos and data on the card.
1 Connect the camera to power using the included vehicle power adapter and a USBcable.
The camera turns on. If the memory card is not correctly formatted in FAT32 format, the status LED flashes
yellow.
2 Hold for eight seconds.
The status LED turns green while the card is formatting.
When formatting is complete, the status LED turns red and the camera begins recording.
Pairing with Your Smartphone
You can pair your Garmin Dash Cam Mini 3 camera with your smartphone and the Garmin Drive app. The
Garmin Drive app allows you to set up a multiple-camera network, change camera settings, and view, edit, and
save videos. You can also upload, manage, and share videos on a secure, online storage drive using the Vault.
NOTE: Remote Wi‑Fi® network features and Vault features require a paid subscription (Subscribing to Vault,
page11).
1 From the app store on your smartphone, install the Garmin Drive app.
2 Connect the camera to power using the included vehicle power adapter and cable.
The camera turns on.
3 Place the camera and your smartphone within 3m (10ft.) of each other.
4 On your phone, open the Garmin Drive app.
5 Select an option:
• If this is the first Garmin® device you are pairing with your smartphone, accept the Garmin Drive app
license agreements.
• If you are pairing an additional Garmin camera with your smartphone, select Add Another Device.
6 Select Garmin Dash Cam Series.
7 On your camera, press and hold until the status LEDflashes blue.
8 Follow the on-screen instructions to complete the pairing and setup process.
After pairing is complete, the main app dashboard appears. After the camera and smartphone are paired, they
connect automatically when they are turned on and within range.
Pairing with Your Smartphone 5
Connecting Your Camera to a Wi‑Fi Network
NOTE: Remote Wi‑Fi network features and Vault features require a paid subscription (Subscribing to Vault,
page11).
To connect the camera to an existing Wi‑Fi network, the network must be set up to allow connected devices to
see and communicate with each other.
You can use the Garmin Drive app to connect your camera to a Wi‑Fi network.
While connected to a Wi‑Fi network, your camera automatically uploads full-resolution videos to the Vault when
it detects an incident. You can also connect to your camera remotely using the Garmin Drive app to view a live
video feed (Viewing the Live View Camera Feed, page8).
1 Connect your camera to the Garmin Drive app (Pairing with Your Smartphone, page5).
2 From the Garmin Drive app, select , and select your vehicle and camera name.
3 Select Wi-Fi Connections.
A list of nearby Wi‑Fi access points appears.
4 Select your Wi‑Fi network, and enter the network password.
The camera connects to the Wi‑Fi network.
The camera saves the network information and connects automatically the next time the camera is turned on
and within range of the network.
Voice Control
The voice control feature allows you to control your camera by saying words and commands.
NOTE: The voice control feature is not available for all languages. You can use this feature while the interface is
set to an unsupported language, but you must speak the commands in English.
Controlling the Camera Using Voice Commands
1 Say OK, Garmin to activate the voice control feature.
The camera plays a tone and starts listening for a command.
2 Say a command:
• To save a video, say Save Video.
• To enable audio recording for your videos, say Record Audio.
• To disable audio recording for your videos, say Stop Audio.
The camera plays a tone when it recognizes your command.
Turning Voice Control On or Off
You can turn voice control on or off from the Garmin Drive app on your smartphone.
From the device settings menu, select Voice Commands, and select an option.
Changing the Wake Word
By default, your dash camera's voice control activates when you say OK, Garmin. You can change the wake word
from the Garmin Drive app on your smartphone.
From the device settings menu, select Wake Word, and select a wake word.
6 Voice Control
Voice Control Tips
• Speak in a normal voice directed at the device.
• Reduce background noise to increase the accuracy of the voice recognition.
• Before each command, say the wake word. The default wake word is OK, Garmin.
• Listen for a tone to confirm that the camera successfully recognized a command.
• Change the wake word if you have more than one Garmin device with voice control features (Changing the
Wake Word, page6).
Dash Cam Recording
NOTICE
Some jurisdictions may prohibit or regulate recording audio and video, or taking photographs. Jurisdictions
may require that all parties have knowledge of the recording and provide consent before you record audio and
video or take photographs. It is your responsibility to know and comply with all laws, regulations, and any other
restrictions in your jurisdiction.
The dash cam records video to the camera memory card (Installing a Memory Card, page1). By default, the
device immediately starts recording video when it turns on, and it continues recording until it is turned off. If the
memory card is full, the device automatically deletes the oldest unsaved video to create space for new video.
When the option to promptly delete unsaved video is enabled, the device continually deletes unsaved video
more than three minutes old and deletes all unsaved video each time it is powered off. You can enable or
disable this feature in the camera settings (Settings, page12).
You can save a video recording to prevent it from being overwritten or deleted (Viewing Videos on Your
Smartphone, page8).
Turning Audio Recording On or Off
NOTICE
Some jurisdictions may prohibit recording audio in the vehicle or may require that all passengers have
knowledge of the recording and provide consent before you record audio in the vehicle. It is your responsibility
to know and follow all laws and restrictions for your jurisdiction.
The device can record audio using the integrated microphone while recording video. You can turn audio
recording on or off at any time.
Press .
TIP: You can also use voice controls to enable or disable audio recording (Voice Control, page6).
The microphone LED turns red while audio is recording.
Event Detection
By default, the device uses a sensor to detect possible incidents and automatically saves video footage
recorded 15 seconds before and 15 seconds after the detected event. The video footage is stamped with the
time and date of the event.
Dash Cam Recording 7
Saving Videos
By default, the device uses a sensor to detect a possible incident and saves video footage automatically before,
during, and after the detected event. You can also save video files manually at any time.
1 Press .
TIP: You can also use voice controls to save video (Voice Control, page6).
The device saves the video footage recorded before, during, and after you select .
2 Press again to extend the length of the saved video footage (optional).
The memory card has limited storage. After you save a video recording, you should export the recording to
your smartphone (Editing and Exporting a Video, page9), or transfer the recording to your computer or other
external storage location for permanent storage (Videos on Your Computer, page10). If you have an active
Vault subscription, saved recordings are automatically uploaded to the Vault when you are connected to a Wi‑Fi
network.
Viewing Videos on Your Smartphone
Before you can view videos on your smartphone, you must pair your Garmin Dash Cam Mini 3 device with the
Garmin Drive app (Pairing with Your Smartphone, page5).
NOTE: The device stops recording and alerts are disabled while viewing videos.
1 From the Garmin Drive app on your smartphone, select Review Video.
2 Select an option:
• To view a video you saved, select a file from the Saved category.
• To view recent video footage that has not been saved, select a video from the Temporary category.
Viewing the Live View Camera Feed
Before you can view the Live View camera feed remotely, you must have an active Vault subscription and you
must connect your camera to a Wi‑Fi network (Connecting Your Camera to a Wi‑Fi Network, page6).
You can also connect your camera to a constant 12V power source (Constant Power Cable, page15).
You can view the live camera feed using the Live View feature in the Garmin Drive app. You can connect directly
to your paired camera using Bluetooth® technology, or you can connect remotely using a Wi‑Fi network.
1 From the Garmin Drive app on your smartphone, select Live View.
The app scans for available cameras.
2 If necessary, select your camera from the list of available devices.
The live view appears.
8 Dash Cam Recording
Editing and Exporting a Video
You can trim the length of your video to remove unnecessary footage before exporting it to the Vault.
NOTE: Videos stored in the Vault cannot be trimmed.
1 While viewing a video, drag the trimming handles on the video progress bar left or right to trim the video
length.
2 Select the Include Audio check box to include the recorded audio (optional).
3 Select Export.
NOTE: You must keep the app in the foreground while exporting a video.
The app exports the trimmed video.
4 After the video export is complete, select an option:
• To save the video to your phone, select Save to Phone.
• To remove the video from the camera memory card, select Remove FromCamera.
• To return to the gallery, select Done.
Deleting a Video Using Your Smartphone
1 When you are viewing the list of saved videos on your smartphone, select Select.
2 Select one or more files.
3 Select .
Dash Cam Recording 9
Connecting the Camera to Your Computer
You can connect the camera to your computer to install software updates or transfer videos to your computer.
NOTE: The power cable included with your device is intended for power only, and it cannot be used to connect
to your computer.
1 Using a compatible USB-C® data cable, plug the data cable into the USB-Cport on the camera.
2 Plug the other end of the cable into a compatibleUSB port on your computer.
Depending on your computer operating system, the device appears as either a removable drive or a
removable volume on your computer.
Videos on Your Computer
NOTE: Some media players might not support high-resolution playback.
Videos are stored in the DCIM directory on the camera memory card. Videos are stored in MP4 file format. You
can view and transfer videos by connecting the memory card or the device to your computer (Connecting the
Camera to Your Computer, page10).
The videos are sorted into several folders.
NOTE: Unsaved videos are not available when the option to promptly delete unsaved video is enabled (Settings,
page12).
100EVENT: Contains videos saved automatically when the device detects an incident.
102SAVED: Contains videos saved manually by the user.
103PARKM: Contains videos saved while parked.
104UNSVD: Contains unsaved video footage. The device overwrites the oldest unsaved video when the storage
space for unsaved videos is full.
Vault Storage
NOTE: This feature requires an active Vault subscription. Vault features are not available for all countries.
You can upload, manage, and share dash camera videos on a secure, online storage drive using the Vault. With
a paid subscription, the dash camera uploads saved videos to the Vault automatically while it is connected to a
Wi‑Fi network.
You can purchase a Vault subscription from the Garmin Drive app on your smartphone.
NOTE: Your dash camera must be connected to a Wi‑Fi network to use this feature.
10 Vault Storage
Subscribing to Vault
You can purchase a Vault subscription to store your videos in a secure online storage server.
1 From the Garmin Drive app on your smartphone, select your device.
2 Select Settings > Vault Storage > Choose a Plan.
3 Follow the on-screen instructions.
Sharing a Video
You can share a secure link to a dash camera video from the Vault.
NOTE: An active Vault subscription is required to use this feature.
1 From the Garmin Drive app on your smartphone, select Vault.
2 Select a video, and select Secure Share.
3 Follow the on-screen instructions.
Disabling a Shared Video Link
You can disable a link to a video that you previously shared from the Vault. When you disable a shared video
link, the video is set to private and the shared link and passcode are disabled.
1 From the Garmin Drive app on your smartphone, select Vault.
2 Select a video, and select Disable Link > Continue.
Removing a Video from the Vault
1 From the Garmin Drive app on your smartphone, select Vault.
2 Select a video, and select Remove From Vault > Continue.
Multiple Camera Network
You can install multiple dash cameras in the same vehicle, such as front and rear cameras, and create
composite picture-in-picture videos from the simultaneous recordings. You can pair multiple dash cameras
with the Garmin Drive app. If a GPS-connected camera is part of the network, you can add location information
to saved videos for all cameras on the network.
Creating Picture-in-Picture Multi-Camera Videos
Before you can use this feature, you must pair at least two cameras with the Garmin Drive app and record
footage using both cameras.
The Garmin Drive app allows you to create composite, picture-in-picture videos from footage recorded at the
same time on two cameras.
1 From the Garmin Drive app, select Review Video.
2 Select a multi-camera video.
Multi-camera videos are indicated by multiple camera icons on the video thumbnail. The app
automatically combines video recorded at the same time into one multi-camera video icon.
3 Select and to choose the camera footage to use for the fullscreen portion of the video.
4 Drag the handles on the video progress bar to the left or right to trim the video length.
5 Select Continue.
6 Select and to choose the camera footage to use for the picture-in-picture portion of the video.
7 Select the corner of the screen where you want the picture-in-picture footage to appear, and select Export.
NOTE: You must keep the app in the foreground when exporting a video.
The app exports the picture-in-picture video to your smartphone.
Multiple Camera Network 11
Settings
The settings for your Garmin Dash Cam Mini 3 device are configured using the Garmin Drive app. Before you
can configure settings, you must pair your device with the Garmin Drive app (Pairing with Your Smartphone,
page5).
Recording Settings
From the Garmin Drive app, select , and select the vehicle and the camera name.
Data Overlay: Adjusts the type of data displayed on videos.
Exposure Value: Adjusts the level of light exposure in videos.
Incident Detection: Adjust the sensitivity level for incident detection.
Resolution: Adjusts the video resolution.
Unsaved Videos: Sets when the device deletes unsaved video footage. When the Delete When Full option
is selected, the device deletes the oldest unsaved video when the memory card storage is full. When the
Promptly Delete option is selected, the device continually deletes unsaved video more than three minutes old
and deletes all unsaved video each time it is powered off. This is useful to help protect data privacy.
Setup Settings
From the Garmin Drive app, select , and select the vehicle and camera name.
Finish Setup: Provides options to finish setup steps that may not have been completed during installation.
Vault Storage: Provides options for available Vault subscriptions.
Wi-Fi Connections: Shows the wireless network connection status.
Safety and Security Settings
From the Garmin Drive app, select , and select the vehicle and camera name.
Parking Guard: Enables parking guard and adjusts the parking guard recording settings.
System Settings
From the Garmin Drive app, select , and select the vehicle and camera name.
Alert Volume: Adjusts the volume of camera alerts.
Language: Sets the device language.
Units and Time: Adjusts settings for the date and time format.
Voice Commands: Enables voice commands and sets the voice command language.
Wake Word: Allows you to change the voice control activation word.
Device Settings
From the Garmin Drive app, select , and select the vehicle and camera name.
About Device: Lists the camera software version and unit ID.
Check for Updates: Checks the device for software updates.
Reassign to a Different Vehicle: Sets the vehicle used with the selected camera.
Format SD Card: Formats the memory card and deletes all videos and data on the card.
Help: Opens the product support page for the device.
Restore: Restores the device to factory default settings and unpairs the device from the Garmin Drive app.
Forget Device: Unpairs the device from the Garmin Drive app.
12 Settings
Renaming a Camera
You can change the name of your camera to help differentiate it from other cameras in a multiple camera
network.
1 From the Garmin Drive app, select your camera.
2 Select Settings > Finish Setup > Camera Alignment.
3 Select a camera name from the Camera Name field.
TIP: You can select Custom to enter a custom camera name.
Device Information
Status LEDs
The status LED and the microphone LED show the device status.
Status LED Activity Status
Solid green
Flashing green The device is preparing to record.
Flashing green, alternating with microphone
LED
Solid red Video is recording.
Flashing red A video is being saved.
Flashing red, slowly The device is in Parking Guard mode.
Alternating red and yellow flashes The memory card is low on space or is underperforming.
Flashing yellow, alternating with microphone
LED
Flashing blue The device is in Bluetooth pairing mode.
Off The device is not connected to power.
The device is connected to a computer in mass storage mode.
The memory card is being formatted.
An update is being installed.
There is a problem with the memory card.
The memory card is not installed.
Device Information 13
Microphone LED Activity Status
Solid red The device is recording audio.
Off The device is not recording audio.
Flashing green, alternating with status LED An update is being installed.
Flashing yellow, alternating with status LED
There is a problem with the memory card.
The memory card is not installed.
Cleaning the Camera Lens
NOTICE
Avoid chemical cleaners and solvents that can damage plastic components.
You should clean the camera lens regularly to improve the quality of recorded video.
1 Wipe the lens with a non-scratch lens cloth, optionally dampened with isopropyl alcohol.
2 Allow the lens to air dry.
Updating Your Device Using the Garmin Drive App
The Garmin Drive app notifies you when a software update is available for your device. You can also check for
updates at any time.
1 From the Garmin Drive app, select your camera.
2 Select Settings > Check for Updates.
3 Select Install Now.
The software update is sent to your device. You are notified when the transfer is complete.
4 Disconnect the device from power until the device turns off.
5 Connect the device to power.
The device installs the software update.
NOTE: Video is not recorded while the software is updating.
Product Updates
On your computer, install Garmin Express™ (www.garmin.com/express).
This provides easy access to these services for Garmin devices:
• Software updates
• Product registration
Setting Up Garmin Express
1 Connect the device to your computer using a USBcable.
2 Go to garmin.com/express.
3 Follow the on-screen instructions.
Specifications
Operating temperature range From -20° to 60°C (from -4° to 140°F)
Wireless frequency and transmit power 2.4 GHz @ 19.79 dBm maximum
14 Device Information
Memory Card Specifications
The camera requires a memory card with these specifications. Go to garmin.com/dashcamcards to view a list
of recommended memory cards.
Type microSDHCor microSDXC
Capacity From 8 to 512 GB
Speed class Class 10 or higher
File system FAT32
Appendix
Parking Guard
Before you can record videos while parked, you must connect your dash camera to an always-on, 12V power
cable, or to the parking mode cable accessory (Constant Power Cable, page15).
The Parking Guard feature allows the camera to record video automatically while your vehicle is parked. When
you turn off your vehicle, the camera automatically enters parked recording mode. The camera automatically
records video each time it detects an incident, and sends a notification to your smartphone when the camera
is connected to a Wi‑Fi network. You can manage Parking Guard settings from the Garmin Drive app on your
smartphone.
Constant Power Cable
The Constant Power Cable is an always-on, 12V power adapter that connects to the OBDII port in your vehicle.
The device can power up to two dash cameras for a selected length of time after you turn off your vehicle.
For more information, or to purchase a Constant Power Cable, go to garmin.com.
Getting Started
WARNING
When installing the device in a vehicle, you must install the device securely so it does not interfere with the
vehicle operating controls, such as the foot pedals, or the driver's feet. Interference with the vehicle operating
controls or feet can result in an accident, which could result in property damage, personal injury, or death.
If you notice any change in engine performance after connecting the device, disconnect the device immediately
and contact Garmin product support. Do not use the device if it affects engine performance or acceleration in
your particular make and model of vehicle. Issues with engine performance or acceleration could result in an
accident, leading to property damage, personal injury, or death.
NOTICE
Defer to your vehicle's warranty provisions and owner's instructions for guidance on whether any OBD II
connector product might void or alter your vehicle's warranty. Garmin is not responsible for any costs or
expenses associated with vehicle repairs or voided warranties.
Appendix 15
Installing the Device
1 Set the time switch (Time Switch, page17).
2 Connect the device to the OBDII port in your vehicle.
The OBDII port is usually located under the dashboard on the driver's side of the vehicle. The OBDII port
location may vary depending on the make and model of your vehicle. See your vehicle owner's manual for
more information.
3 Remove the protective film from one reclosable fastener, and press the reclosable fastener firmly onto the
USB port end of the device for 10 seconds.
4 Clean the vehicle mounting surface using water or alcohol, and a lint-free cloth.
5 Allow the surface to dry completely.
6 Remove the protective film from a second reclosable fastener, and press it firmly onto the vehicle mounting
surface for 10 seconds.
7 Press the reclosable fastener on the device against the reclosable fastener on the mounting surface to
secure the device to the mounting location.
8 Connect the USB power cable from your Garmin Dash Cam device to a USB port on the Constant Power
Cable device.
16 Appendix
Time Switch
The time switch sets the length of time the device continues to supply power after you exit the vehicle. The
device reenables power when it detects motion, or when you reenter and restart the vehicle.
10m 10 minutes
24h 24 hours
Always on
If you want the device to remain off until you reenter the vehicle, you should select the 10m option.
If you want the device to operate continuously while the vehicle is parked, you should select the 24h or
option.
Status LED
The status LED shows the device status.
Status LED Activity Status
Red The device is supplying power to the connected devices.
Flashing red
Off
The timer has expired and the device is no longer supplying power to the connected
devices.
The device is receiving less than 12V of power. The low battery protection feature turns
off the device to protect the vehicle battery.
Specifications
Operating temperature From -20° to 45°C (from -4° to 113°F)
Input From 12 to 16V, 1.6A Max.
Output 5Vdc, 1.5A each (3.0A total)
Low battery protection voltage 12V
Parking Mode Cable
The parking mode cable accessory connects the camera to constant power and allows the camera to record
video while the vehicle is parked and turned off.
For more information, or to purchase a parking mode cable, go to garmin.com.
Appendix 17
Parking Mode Cable Wiring Diagram
Item Wire Color Wire Function
Black Ground
Yellow Battery 12 V
Red Accessory 12 V
Connecting the Parking Mode Cable Accessory to Power
CAUTION
Garmin strongly recommends having an experienced installer with the proper knowledge of electrical systems
install the device. Incorrectly wiring the power cable can result in damage to the vehicle or the battery and can
cause bodily injury.
1 Route the parking mode cable accessory to a location in the vehicle with constant power, switched power,
and a ground connection.
2 Connect the BATT wire to a constant power source.
3 Connect the ACC wire to a switched power source.
4 Connect the GND wire to the bare metal of the vehicle's chassis using an existing bolt or screw.
5 Plug the parking mode cable accessory into the USB port on the camera.
Troubleshooting
My camera feels warm while it is operating
Garmin cameras are designed for the automotive environment. It is normal and expected for the products to
become warm or hot and remain safe for use in warm climates with full sun exposure. The temperature of the
device itself can exceed the specified maximum operating ambient temperature for the device and remain safe
for use. Always follow the device use and care instructions contained in the product manual.
The status LEDs are flashing yellow
When the status LEDs flash yellow, the camera has detected a problem with the memory card.
• Verify a memory card is installed.
• Format the memory card using the device (Formatting the Memory Card, page5).
18 Troubleshooting
My memory card has degraded and needs to be replaced
All microSD® memory cards wear out after they are overwritten a large number of times. Periodically formatting
the card can extend the useful life and improve performance. Because the dash camera records continuously,
you may need to replace the memory card periodically (Installing a Memory Card, page1). Your device detects
memory card errors automatically and alerts you when it is time to format or replace your memory card.
You can take these actions to help extend the useful life of the memory card.
• Format the memory card at least one time every six months (Formatting the Memory Card, page5).
• If the device displays a memory card error alert, first try formatting the memory card (Formatting the Memory
Card, page5) and then, if necessary, replace the memory card (Installing a Memory Card, page1).
• Disconnect the device from power, or ensure the Parking Guard feature is enabled when your vehicle is not in
use.
If your device is not connected to an ignition-switched vehicle power outlet, you should disconnect it from
power when your vehicle is not in use to prevent the dash camera from recording unneeded footage.
• Use a memory card with a higher storage capacity.
Because higher-capacity memory cards are overwritten less frequently, they usually last longer.
• Use a high-quality memory card with a speed rating of class 10 or higher.
• Purchase your replacement memory card from a high-quality manufacturer and a reputable vendor.
My video recordings are blurry
• Clean the camera lens (Cleaning the Camera Lens, page14).
• Clean the windshield in front of the camera.
• Verify the area of the windshield in front of the camera is cleared by the windshield wipers, and move the
device, if necessary.
My video recordings are choppy or incomplete
• For the best camera and video results, use a high-quality memory card with a speed rating of class 10 or
higher. Go to garmin.com/dashcamcards to view a list of recommended memory cards.
A slower memory card may not record video quickly enough.
• If you are viewing videos on your smartphone using a wireless connection to the camera, try viewing them
in another location with less wireless interference, or try transferring videos to the smartphone (Editing and
Exporting a Video, page9).
• Transfer important recordings to a computer or smartphone, and format the memory card (Formatting the
Memory Card, page5).
• If the device displays a memory card error alert, first try formatting the memory card (Formatting the Memory
Card, page5) and then, if necessary, replace the memory card (Installing a Memory Card, page1).
• Update your device to the latest software (Product Updates, page14).
Troubleshooting 19
support.garmin.com
GUID-8B5CEA4F-A508-4496-9EDE-B6D1669C09BE v1September 2024
Loading...
