echoMAP™ 40/50 Series Installation
Instructions
To obtain the best performance and to avoid damage to your
boat, install the device according to these instructions.
Read all installation instructions before proceeding with the
installation. If you experience difficulty during the installation,
contact Garmin® Product Support.
Important Safety Information
WARNING
See the Important Safety and Product Information guide in the
product box for product warnings and other important
information.
When connecting the power cable, do not remove the in-line
fuse holder. To prevent the possibility of injury or product
damage caused by fire or overheating, the appropriate fuse
must be in place as indicated in the product specifications. In
addition, connecting the power cable without the appropriate
fuse in place voids the product warranty.
CAUTION
Always wear safety goggles, ear protection, and a dust mask
when drilling, cutting, or sanding.
NOTICE
When drilling or cutting, always check what is on the opposite
side of the surface.
To obtain the best performance and to avoid damage to your
boat, install the device according to these instructions.
Read all installation instructions before proceeding with the
installation. If you experience difficulty during the installation,
contact Garmin Product Support.
Registering Your Device
Help us better support you by completing our online registration
today.
• Go to http://my.garmin.com.
• Keep the original sales receipt, or a photocopy, in a safe
place.
Contacting Garmin Product Support
• Go to www.garmin.com/support for in-country support
information.
• In the USA, call 913-397-8200 or 1-800-800-1020.
• In the UK, call 0808 238 0000.
• In Europe, call +44 (0) 870 850 1241.
Mounting Considerations
The device can be mounted using the included bracket, or it can
be mounted flush with the dashboard using a flush-mount kit
(may be sold separately).
Before permanently installing any part of your device, you
should plan the installation by determining the location of the
various components.
• The mounting location must provide a clear view of the
screen and access to the keys on the device.
• The mounting location must be sturdy enough to support the
device and the mount.
• The cables must be long enough to connect the components
to each other and to power.
• The cables can be routed under the bail mount or behind the
device.
• To avoid interference with a magnetic compass, the device
should not be installed closer to a compass than the
compass-safe distance value listed in the product
specifications.
Flush Mounting the Device
NOTICE
Be careful when cutting the hole to flush mount the device.
There is only a small amount of clearance between the case and
the mounting holes, and cutting the hole too large could
compromise the stability of the device after it is mounted.
Using a metal pry tool such as a screwdriver can damage the
trim caps and the device. Use a plastic pry tool when possible.
A flush-mount template and hardware can be used to mount the
device in your dashboard.
Trim the template and make sure it fits in the location where
1
you want to mount the device.
Secure the template to the selected mounting location.
2
Using a 9.5 mm (3/8 in.) drill bit, drill one or more of the holes
3
inside the corners of the solid line on the template to prepare
the mounting surface for cutting.
Using a jigsaw or rotary cutting tool, cut the mounting surface
4
along the inside of the solid line indicated on the template.
Place the device into the cutout to test the fit.
5
If necessary, use a file and sandpaper to refine the size of
6
the hole.
NOTE: Not all devices have trim caps.
7
Using a pry tool such as a flat piece of plastic or a
screwdriver, carefully pry up the corners of the trim caps
and slide the pry tool to the center Á to remove the trim caps.
À
Tools Needed
• Drill and drill bits
• #2 Phillips screwdriver
• Marine sealant
•3/8 in. wrench or socket
• Masking tape
• Hardware for the swivel mount (not included)
◦ Self-tapping, pan-head wood screws or pan-head bolts,
either size #8 or a diameter of 5/32 in. (4 mm)
◦ Appropriate washers and nuts (if selecting bolts)
◦ Appropriate drill bit for drilling the pilot hole
September 2016
Ensure the mounting holes on the device line up with the pilot
8
holes on the template.
If the mounting holes on the device do not line up, mark the
9
new pilot-hole locations.
Using a 3.2 mm (1/8 in.) drill bit, drill the pilot holes.
10
Remove the template from the mounting surface.
11
Printed in Taiwan 190-01834-12_0A
If you will not have access to the back of the device after you
12
mount it, connect all necessary cables to the device before
placing it into the cutout.
NOTE: To prevent corrosion of the metal contacts, cover
unused connectors with weather caps.
Install the rubber gasket pieces on the back of the device.
13
The pieces of the rubber gasket have adhesive on the back.
Make sure you remove the protective liner before installing
them on the device.
Place the device into the cradle.
14
Securely connect each cable to a port on the cradle.
15
Place the locking bracket over the cables.
16
Place the device into the cutout.
17
Secure the device to the mounting surface using the included
18
screws.
Install the trim caps by snapping them in place around the
19
edges of the device.
Using the appropriate drill bit for the hardware, drill the three
5
pilot holes.
Using a 5/8 in. (16 mm) drill, drill a hole through the mounting
6
surface at the location you marked in step 4.
Fastening the Swivel Mount without the Cables Running through the Mount
You should complete this procedure only if you are not running
the power and transducer cables under the mounting surface
and through the swivel-mount base.
Place the base À on the mounting surface, and fasten it
1
using the appropriate screws or bolts Á.
Installing the Swivel Base
Preparing to Run Cables under the Mounting Surface
NOTICE
Use pan-head screws or bolts when securing the swivel-mount
base. Screws or bolts with countersunk heads damage the
base.
Before you can prepare the swivel-mount base, you must
choose the location to install the mount and decide whether to
attach the mount using screws or bolts.
Remove the 10 mm M6x1 Phillips screw À and separate the
1
swivel mount Á from the base Â.
Orient the swivel base so the pass-through holes à face the
2
desired direction.
Using the swivel base as a template, mark the pilot hole
3
locations Ä.
Mark the cable routing hole Å.
4
Place the swivel mount on the base, and replace the 10 mm
2
M6×1 Phillips screw.
Seal the cable pass-through holes with marine sealant.
3
Fastening the Swivel Mount with the Cables Running through the Mount
You should complete this procedure only when running the
power and transducer cables under the mounting surface and
through the swivel-mount base.
Feed the cables through the 16 mm (5/8 in.) center hole you
1
drilled when preparing to run cables beneath the mounting
surface.
Place the base on the mounting surface.
2
Route the cables through the cable pass-through holes.
3
Loosely fasten the base using the appropriate screws or
4
bolts.
Place the swivel mount on the base, but do not fasten it.
5
Place the cradle or device into the swivel mount (Installing
6
the Device in the Cradle, page 3).
Pull out enough slack from the power and transducer cables
7
so the mount can fully swivel to the desired positions when
the cables are connected.
Remove the cradle and the swivel mount from the base.
8
Apply marine sealant to the 16 mm (5/8 in.) center hole and to
9
the cable pass-through holes.
Securely fasten the base with the appropriate screws or
10
bolts.
Place the swivel mount on the base, and fasten it using the
11
included 10 mm M6×1 Phillips screw.

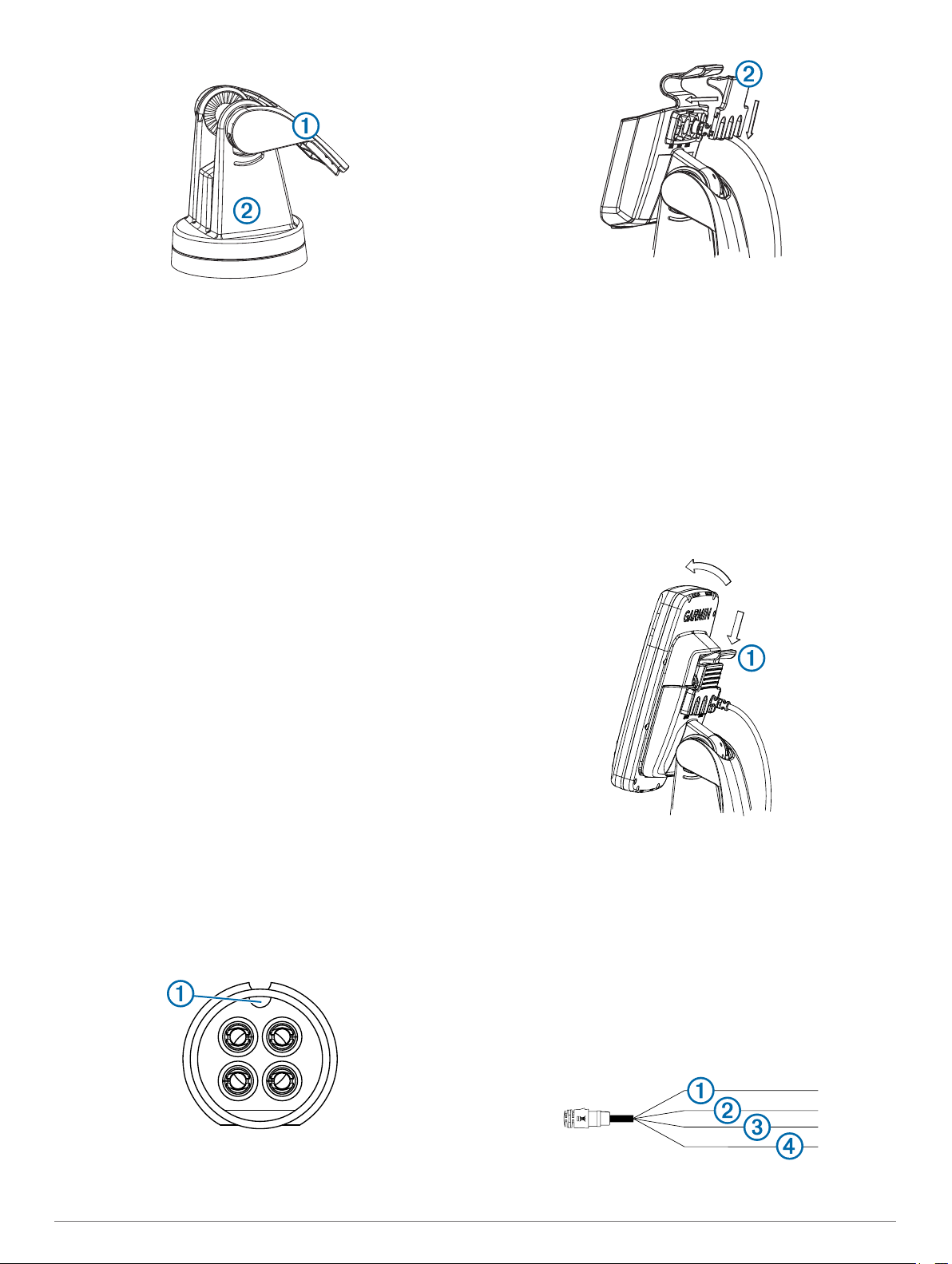

Installing the Cradle in the Mount
2 echoMAP 40/50 Series Installation Instructions
Pull up the locking arm À.
1
Place the cradle into the swivel mount Á.
2
Tilt the mount to the desired viewing angle.
3
Press down the locking arm.
4
Installing the Cables and Connectors
Wiring to Power
Route the power cable from the swivel mount to the boat
1
battery or fuse block.
If necessary, extend the wires using .52 mm2 (20 AWG) or
2
larger wire.
Connect the red wire to the positive terminal on the battery or
3
fuse block, and connect the black wire to the negative
terminal.
Connecting the Device to a Transducer
NOTE: The device goes into simulator mode if the connection is
not secure between the device and transducer.
This chartplotter is compatible with the included Garmin
ClearVü™ transducer as well as a range of accessory
transducers including Garmin GT transducers, which are
available at www.garmin.com. Go to www.garmin.com or contact
your local Garmin dealer to determine the appropriate type of
transducer for your needs.
Follow the instructions provided with your transducer to
1
correctly install it on your boat.
Route the transducer cable to the back of your device, away
2
from sources of electrical interference.
Connect the transducer cable to the appropriate port on your
3
device.
Connecting the Cables to the Cradle
The connectors on the cables are keyed to fit only in the correct
ports on the device or cradle. The connected cables are held in
place by a locking bracket.
Remove the cable locking bracket from the cradle.
1
Compare the divots À on each cable connector to the keying
2
on each port to determine which cable corresponds to each
port.
There is an audible click when the locking bracket is installed
correctly.
Installing the Device in the Cradle
If your device uses a cradle and you have connected the cables
to the cradle, you can quickly place the device in the cradle
without plugging in any cables.
Place the base of the device in the bottom of the cradle.
1
Tilt the device toward the cradle until it fastens in place.
2
There is an audible click when the device is secured in the
cradle.
Removing the Device from the Cradle
Press the release lever À on the cradle until the device is
1
released.
Tilt the device forward, and lift it out of the cradle.
2
Wiring Harness
• The wiring harness is used for NMEA® 0183 devices, and to
share route and waypoint information.
• The wiring harness connects the device to power and NMEA
0183 devices.
• The device has one internal NMEA 0183 port that is used to
connect to NMEA 0183 compliant devices.
• If it is necessary to extend the power and ground wires, you
must use .52 mm2 (20 AWG) or larger wire.
• If it is necessary to extend the NMEA 0183 or alarm wires,
you must use .33 mm2 (22 AWG) wire.
Securely connect each cable to a port.
3
Place the locking bracket Á over the cables and slide the
4
bracket down to lock the cables in place.
echoMAP 40/50 Series Installation Instructions 3
Item Wire Function Wire Color
+
-
NMEA 0183 internal port Rx (in) Brown
À
NMEA 0183 internal port Tx (out) Blue
Á
Ground (power and NMEA 0183) Black
Â
Power Red
Ã
Connecting the Wiring Harness to Power
Route the wiring harness to the power source and to the
1
device.
Connect the red wire to the positive (+) battery terminal, and
2
connect the black wire to the negative (-) battery terminal.
NMEA 0183 Connection Considerations
• The installation instructions provided with your NMEA 0183
compatible device should contain the information you need to
identify the transmitting (Tx) and receiving (Rx) A (+) and B
(-) wires.
NMEA 0183 Connection Diagram
Item Description
À
Á
Â
Item Garmin Wire
Ê
Ë
Ì
Í
Î
12 Vdc power source
Wiring harness
NMEA 0183 compliant device
Function
Power Red Power
Ground Black Data ground
Tx/Rx Tx/Rx/B (-)
Tx Blue Rx/A (+)
Rx Brown Tx/A (+)
Garmin Wire
Color
NMEA 0183 Device Wire
Function
Updating the Device Software
Before you can update the software, you must obtain a
software-update memory card or load the latest software onto a
memory card.
Turn on the chartplotter.
1
After the home screen appears, insert the memory card into
2
the card slot.
NOTE: In order for the software update instructions to
appear, the device must be fully booted before the card is
inserted.
Follow the on-screen instructions.
3
Wait several minutes while the software update process
4
completes.
When prompted, leave the memory card in place and restart
5
the chartplotter manually.
Remove the memory card.
6
NOTE: If the memory card is removed before the device
restarts fully, the software update is not complete.
Specifications
Device Specification Measurement
echoMAP 40 Dimensions (W x H x D) 10.2 x 16.8 x 4.6 cm (4 x 6.6 x
Display size (W x H) 5.4 x 9.5 cm (2.1 x 3.7 in.)
Weight 0.4 kg (0.9 lbs.)
1.8 in.)
Device Specification Measurement
Power input From 10 to 18 Vdc
Max. power usage 5 W
Compass-safe distance 20 cm (8 in.)
echoMAP 50 Dimensions (W x H x D) 17.3 x 13.5 x 4.4 cm (6.81 x
5.35 x 1.73 in.)
Display size (W x H) 9 x 9 cm (3.54 x 3.54 in.)
Weight 0.58 kg (1.28 lbs.)
Power input From 10 to 20 Vdc
Max. power usage 7.1 W
Compass-safe distance 75 cm (29.5 in.)
All Models Temperature range From -15 to 55°C (from 5 to
131°F)
Material Polycarbonate plastic
Water rating IEC 60529 IPX7
Transmit power (RMS)** 500 W
Maximum depth*** 701 m (2300 ft) at 77 kHz
Frequencies**** • Traditional: 50,77, or
200 kHz
• Garmin ClearVü: 260 or
455 kHz.
*The device withstands incidental exposure to water of up to 1 m
for up to 30 min. For more information, go to www.garmin.com
/waterrating.
**Dependent upon transducer rating and depth.
***Maximum depth, dependent upon transducer, water salinity,
bottom type, and other water conditions.
****Dependent upon echoMAP model.
NMEA 0183 Information
Type Sentence Description
Transmit GPAPB APB: Heading or track controller
(autopilot) sentence "B"
GPBOD BOD: Bearing (origin to
destination)
GPBWC BWC: Bearing and distance to
waypoint
GPGGA GGA: Global positioning system
fix data
GPGLL GLL: Geographic position
(latitude and longitude)
GPGSA GSA: GNSS DOP and active
satellites
GPGSV GSV: GNSS satellites in view
GPRMB RMB: Recommended minimum
navigation information
GPRMC RMC: Recommended minimum
specific GNSS data
GPRTE RTE: Routes
GPVTG VTG: Course over ground and
ground speed
GPWPL WPL: Waypoint location
GPXTE XTE: Cross track error
PGRME E: Estimated error
PGRMM M: Map datum
PGRMZ Z: Altitude
SDDBT DBT: Depth below transducer
SDDPT DPT: Depth
SDMTW MTW: Water temperature
SDVHW VHW: Water speed and heading
Receive DPT Depth
DBT Depth below transducer
4 echoMAP 40/50 Series Installation Instructions
Type Sentence Description
MTW Water temperature
RMC/GGA/GLL GPS position
VHW Water speed and heading
WPL Waypoint location
DSC Digital selective calling
information
DSE Expanded digital selective calling
HDG Heading, deviation, and variation
HDM Heading, magnetic
MWD Wind direction and speed
MDA Meteorological composite
MWV Wind speed and angle
VDM AIS VHF data-link message
You can purchase complete information about National Marine
Electronics Association (NMEA) format and sentences from: NMEA,
Seven Riggs Avenue, Severna Park, MD 21146 USA (www.nmea.org)
Garmin® and the Garmin logo are trademarks of Garmin Ltd. or its subsidiaries, registered
in the USA and other countries. echoMAP™ and Garmin ClearVü™ are trademarks of
Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express
permission of Garmin.
NMEA® is a registered trademark of the National Marine Electronics Association.
echoMAP 40/50 Series Installation Instructions 5
© 2016 Garmin Ltd. or its subsidiaries www.garmin.com/support
TA-2015/119
Loading...
