GETTING STARTED WITH
THE GARDENA ROBOTIC LAWN MOWER
For more information and instructions, plea se read the complete supplied Operator‘s manual or visit www.garde na.com.
Installation suppor t videos can be found on ww w.gard ena.com.

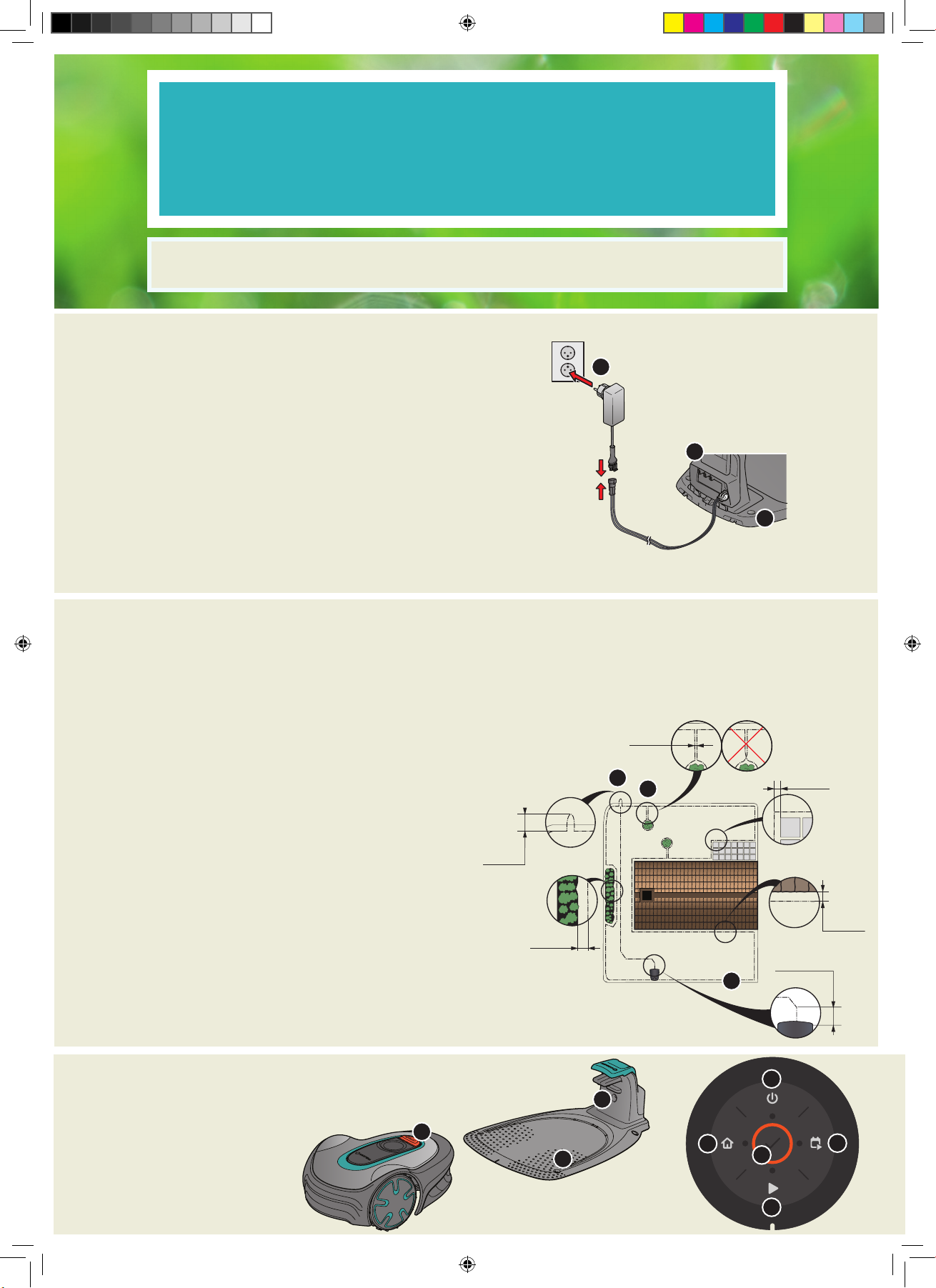

1. To install the charging station
1. Place the charging station on a flat level surface where there is open space.
NOTE: To place the charging station in a limited space or in a corner, please read
the Operator’s manual.
2. Connect the low voltage cable to the charging station and the power supply.
3. If outdoor, put the power supply at a minimum height of 30 cm / 12 in from the
ground.
4. Connect the power supply to a 100-240 V wall socket.
5. Place the robotic lawn mower in the charging station.
6. Push the ON/OFF button to switch on the robotic lawn mower and to charge the
battery while the boundary wire is laid.
NOTE: Do not continue with any product settings before the installation is
complete.
3
2
1
2. To install the boundary wire
1. Lay the boundary wire so that it forms a loop around the whole work area using stakes supplied or bury the wire.
NOTE: Do not lay the boundary wire in sharp bends.
2. Adapt the distance between the boundary wire and different objects.
A. Lay the boundary wire around all work area in a loop.
B. High obstacles > 3.5 cm / 1.4 in e.g. wall or fence.
C. Low obstacles 1-3.5 cm / 0.4-1.4 in. or a dropped edge e.g. flower bed.
D. Objects level with the lawn 0-1 cm / 0.4 in e.g. path, paving stones.
E. Make an island to isolate areas.
3. Make an eyelet at the point on the boundary wire where the guide wire is later connected (F).
4. To handle slopes, passages and secondary areas, refer to the Operator’s manual.
10 cm / 4”
30 cm / 12”
3
0 cm / 0”
2
10 cm / 4”
35 cm / 14”
30 cm / 12”
1
1. STOP button
2. LED for function check of the charging station,
boundary and guide wires
3. Charging station
4. ON/OFF button
5. Park button
6. Start button
7. Start/Schedule button
8. OK button
QG_Minimo_Gardena.indd 2QG_Minimo_Gardena.indd 2 2021-03-02 11:18:412021-03-02 11:18:41
1
2
5
3
4
7
8
6
3. To connect the boundary wire
1. Open the connector and lay the boundary wire in the connector.
2. Press the connector and the wire together by using a pair of pliers.
3. Cut off the wire 1-2 cm / 0.4-0.8 in. after the connectors.
4. Press the boundary wire connectors onto the contact pins marked L (left) and R (right) on the charging station.
1
2
3
NOTE: The right-hand wire must be connected to the right-hand contact pin on the
charging station, and the left-hand wire to the left-hand pin.
4. To install and connect the guide wire
Install a guide wire to lead the robotic lawn mower to remote parts of the lawn and
to help it to find the charging station.
1. Push the guide wire through the bottom of the charging station and fasten it into
place using the snap locks.
2. Fit the connector to the guide wire in the same way as for the boundary wire,
according to the instructions above.
3. Press the guide wire connector onto the contact pin marked GUIDE on the
charging station.
4. Pull the guide wire a minimum of 1 m / 3.3 ft. straight out from the front edge of
the charging station.
5. Lay the guide wire from the charging station to the point on the boundary wire
(eyelet) where the connection is made using stakes supplied or bury the wire.
NOTE: Do not lay the guide wire in sharp bends and it cannot cross the boundary
wire that for instance is laid out for an island.
6. Cut the boundary wire at the center of the eyelet that was made in step 2.3.
7. Connect the guide wire to the boundary wire by inserting the boundary wires
and guide wire in the coupler, and pressing the coupler together with a pair of
pliers.
NOTE: After the guide wire is installed, attach the charging station to the ground
with the supplied screws and allen key.
NOTE: For optimal performance through narrow passages please ensure the
guide wire is laid correctly through it. Please read the Operator‘s manual for
further instructions.
4
1
7
5. To start and stop the robotic lawn mower
To start the product
1. Push the ON/OFF button for 3 seconds.
2. Enter the PIN code.
3. Select the operating mode.
(the appearance of the power supply
Power supply
may differ depending on market)
QG_Minimo_Gardena.indd 3QG_Minimo_Gardena.indd 3 2021-03-02 11:19:102021-03-02 11:19:10
Low voltage cable Boundary wire and
To enter the factory PIN code
1. Push the ON/OFF button.
2. Push the Start/Schedule button.
3. Push the Start button.
4. Push the Park button.
NOTE: You can change the PIN code in the
GARDENA Bluetooth® App.
Stakes
couplers
To stop the product
1. Push the STOP button.
Connectors
Measurement
gauge

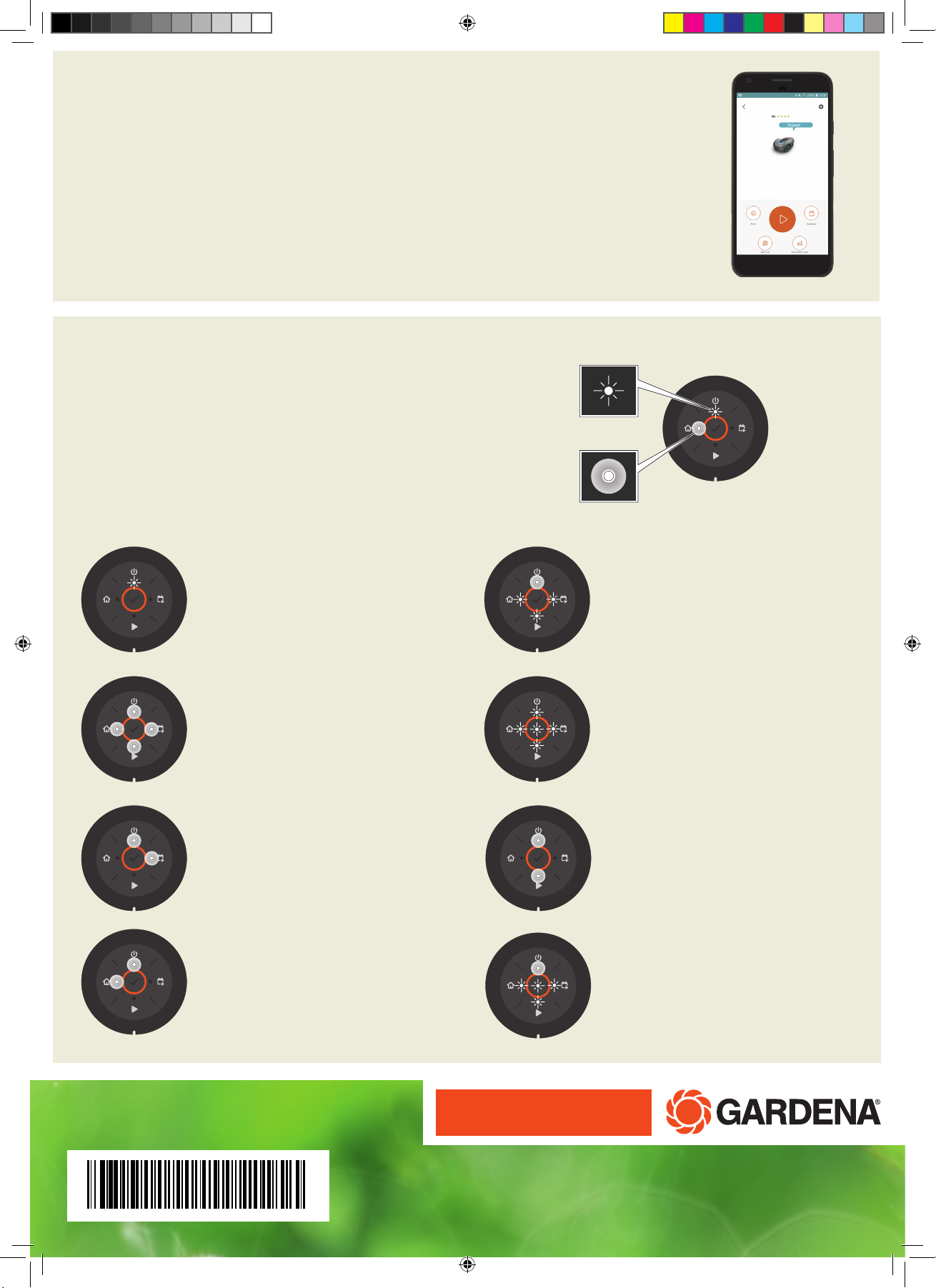

To pair the robotic lawn mower and the app
A
The GARDENA Bluetooth® App is a free app for your mobile device. The GARDENA Bluetooth® App is used for the settings
and operation of the robotic lawn mower. When pairing between the robotic lawn mower and app has been confirmed, you have
access to the menus and functions as long as you are within short-range (Bluetooth®).
1. Download the GARDENA Bluetooth® App on your mobile device.
2. Switch off the robotic lawn mower and switch it on again.
3. Pair the GARDENA Bluetooth® app with the product.
4. Enter the PIN code.
NOTE: The Bluetooth® pairing mode is active for 3 minutes.
LED status indicator on the keypad
The LED status indicator lamps on the keypad shows the status of the robotic
lawn mower. The buttons on the keypad with flashing lights are the available
operating modes for the robotic lawn mower that you can select. You must enter
the PIN code before you can select an operating mode.
If the robotic lawn mower is parked, push the STOP button and the robotic lawn
mower is set to idle mode where you can set an operating mode.
A. Flashing light
B. Solid light
B
Standby
Waiting for PIN code
Cutting according
to set schedule
Parking
Idle
Wrong PIN code
Cutting, either in operating mode
override schedule or secondary area
Error
