Pub. 42003-194A
GAI-TRONICS® CORPORATION
A HUBBELL COMPANY
RigCom Statio n PCBA Replaceme nt Kit
Models 12705-001, -002, -003, and -004
Confidentiality Notice
This manua l is provide d sole ly as an operatio nal, installation, and ma inte nance guide and conta ins
sensitive business and t e chnical informatio n tha t is confidentia l and pr opri et ary to GAI- Tronics.
GAI-Tronics retains all intellectual property and other rights in or to the information contained herein,
and such information may only be used in connection with the operation of your GAI-Tronics product or
system. This manu al may not be dis clos e d in any form, in whole or in pa rt, direct ly or i ndir ectly, to a ny
third pa r ty.
General Information
The RigCom Station PCBA Replacement Kit provides replacement PCBAs for the following stations:
Kit No. For RigCom Station:
12705-001 MS3985 Common Talk Station, 120 V ac
12705-001 MS3986 Master RigCom Station, 120 V ac
12705-002 MS3987 Slave RigCom Station, 120 V ac
12705-003 MS3988 Common Talk Station, 12 V dc
12705-003 F96019 Master RigCom Station, 12 V dc
12705-004 MS3990 Slave RigCom Station, 12 V dc
Installation
Model 12705-001
This kit is intended for the MS3985 Common Talk and MS3986 Master RigCom 120 V ac Stations. It
consists of the f ollow ing c o mpone nt:
Qty Description
1 WBA4201 PCBA
GAI-Tronics Corporation P.O. Box 1060, Readi ng, PA 19607-1060 USA
610-777-1374 800-492-1212 Fax: 610-796-5954
ISIT WWW.GAI-TRONICS.COM FOR PRODUCT LITERATURE AND MANUALS
V
Pub. 42003-194A
R
IGCOM STATION PCBA REPLACEMENT KIT Page: 2 of 3
Instructions
1. Mount PCBA on existing standoffs using existing hardware.
2. Wire as shown in Figure 1 below.
Note:
Rela y K1 is NOT USED in the Mast er and C o mmon Talk stations.
Model 12705-002
This kit is intended for the MS3987 Slave RigCom 120 V ac Station. It consists of the following
components:
Qty Description
1 WBA4201 PCBA
1 Relay
1 Clip
Instructions
1. Install r elay on K1.
2. Secure us ing cl ip.
3. Mount PCBA on existing standoffs using existing hardware.
4. Wire as shown in Figure 1 below.
Model 12705-003
This kit is intended for the MS3988 Common Talk and F96019 Master RigCom 12 V dc Stations. It
consists of the f ollow ing c o mpone nt:
Qty Description
1 WBA4202 PCBA
Instructions
1. Mount PCBA on existing standoffs using existing hardware.
2. Wire as shown in Figure 1 below.
Model 12705-004
This kit is intended for the MS3990 Slave RigCom 12 V dc Station. It consists of the following
components:
Qty Description
1 WBA4202 PCBA
1 Relay
1 Clip
Instructions
1. Install r elay on K1.
2. Secure us ing cl ip.
3. Mount PCBA on existing standoffs using existing hardware.
\\s_eng\gtc proddoc s \st andard iom s - current release\42003 kit manuals \ 42003-194a.doc
09/02
Pub. 42003-194A
R
IGCOM STATION PCBA REPLACEMENT KIT Page: 3 of 3
4. Wire as shown in Figure 1 below.

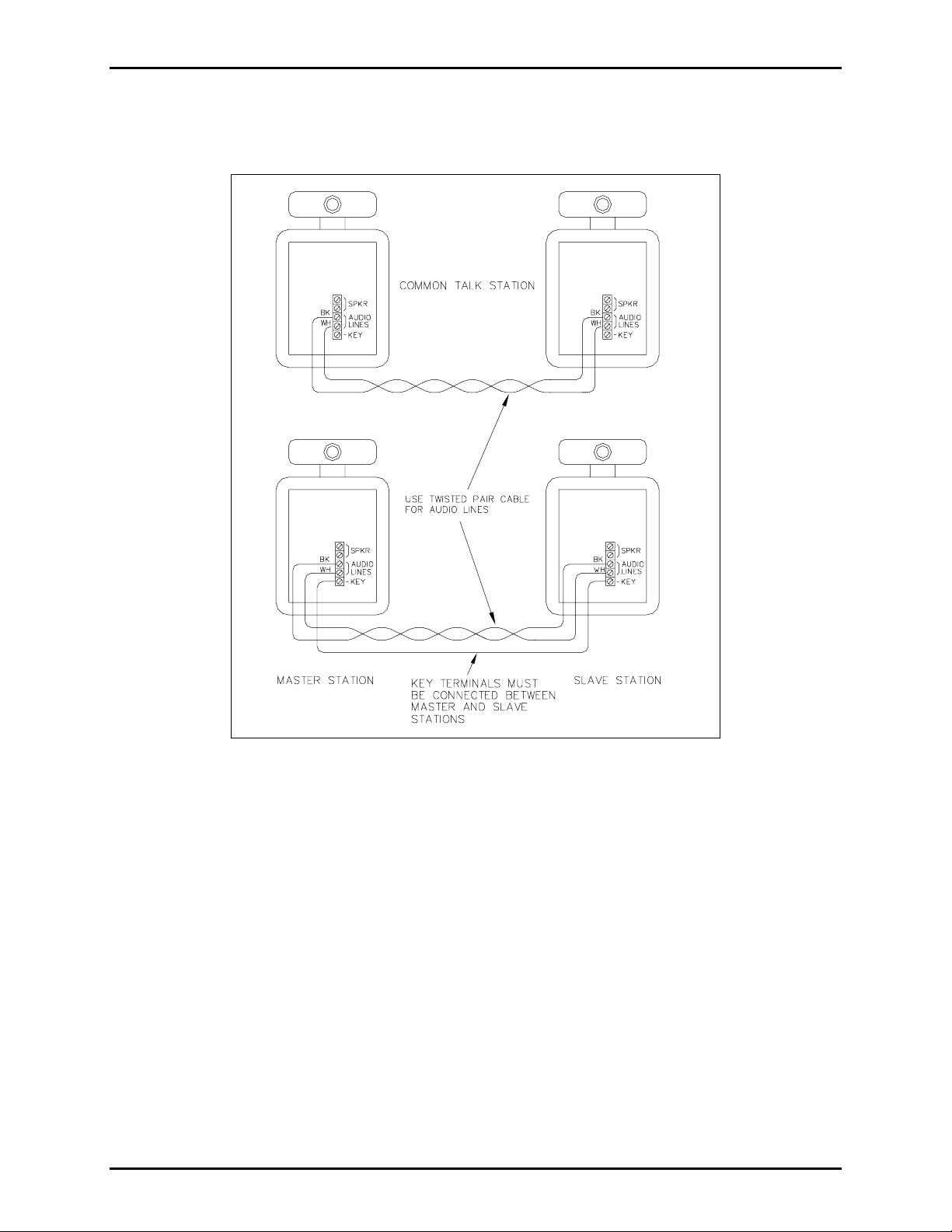

Figure 1. Wiring Details
\\s_eng\gtc proddoc s \st andard iom s - current release\42003 kit manuals \ 42003-194a.doc
09/02
Warranty
Equipment. GAI-Tronics warrants for a period of one (1) year from the date of shipment, that any
GAI-Tronics equipment supplied hereunder shall be free of defects in material and workmanship, shall
comply with the then-current product specifications and product literature, and if applicable, shall be fit
for the purpose specified in the agreed-upon quotation or proposal document. If (a) Seller’s goods prove
to be defective in workmanship and/or material under normal and proper usage, or unfit for the purpose
specified and agreed upon, and (b) Buyer’s claim is made within the warranty period set forth above,
Buyer may return such goods to GAI-Tronics’ nearest depot repair facility, freight prepaid, at which time
they will be repaired or replaced, at Seller’s option, without charge to Buyer. Repair or replacement shall
be Buyer’s sole and exclusive remedy. The warranty period on any repaired or replacement equipment
shall be the greater of the ninety (90) day repair warranty or one (1) year from the date the original
equipment was shipped. In no event shall GAI-Tronics warranty obligations with respect to equipment
exceed 100% of the total cost of the equipment supplied hereunder. Buyer may also be entitled to the
manufacturer’s warranty on any third-party goods supplied by GAI-Tronics hereunder. The applicability
of any such third-party warranty will be determined by GAI-Tronics.
Services. Any services GAI-Tronics provides hereunder, whether directly or through subcontractors,
shall be performed in accordance with the standard of care with which such services are normally
provided in the industry. If the services fail to meet the applicable industry standard, GAI-Tronics will
re-perform such services at no cost to buyer to correct said deficiency to Company's satisfaction provided
any and all issues are identified prior to the demobilization of the Contractor’s personnel from the work
site. Re-performance of services shall be Buyer’s sole and exclusive remedy, and in no event shall GAITronics warranty obligations with respect to services exceed 100% of the total cost of the services
provided hereunder.
Warranty Periods. Every claim by Buyer alleging a defect in the goods and/or services provided
hereunder shall be deemed waived unless such claim is made in writing within the applicable warranty
periods as set forth above. Provided, however, that if the defect complained of is latent and not
discoverable within the above warranty periods, every claim arising on account of such latent defect shall
be deemed waived unless it is made in writing within a reasonable time after such latent defect is or
should have been discovered by Buyer.
Limitations / Exclusions. The warranties herein shall not apply to, and GAI-Tronics shall not be
responsible for, any damage to the goods or failure of the services supplied hereunder, to the extent
caused by Buyer’s neglect, failure to follow operational and maintenance procedures provided with the
equipment, or the use of technicians not specifically authorized by GAI-Tronics to maintain or service the
equipment. THE WARRANTIES AND REMEDIES CONTAINED HEREIN ARE IN LIEU OF AND
EXCLUDE ALL OTHER WARRANTIES AND REMEDIES, WHETHER EXPRESS OR IMPLIED BY
OPERATION OF LAW OR OTHERWISE, INCLUDING ANY WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
Return Policy
If the equipment requires service, contact your Regional Service Center for a return authorization number
(RA#). Equipment should be shipped prepaid to GAI-Tronics with a return authorization number and a
purchase order number. If the equipment is under warranty, repairs or a replacement will be made in
accordance with the warranty policy set forth above. Please include a written explanation of all defects to
assist our technicians in their troubleshooting efforts.
Call 800-492-1212 (inside the USA) or 610-777-1374 (outside the USA) for help identifying the
Regional Service Center closest to you.
