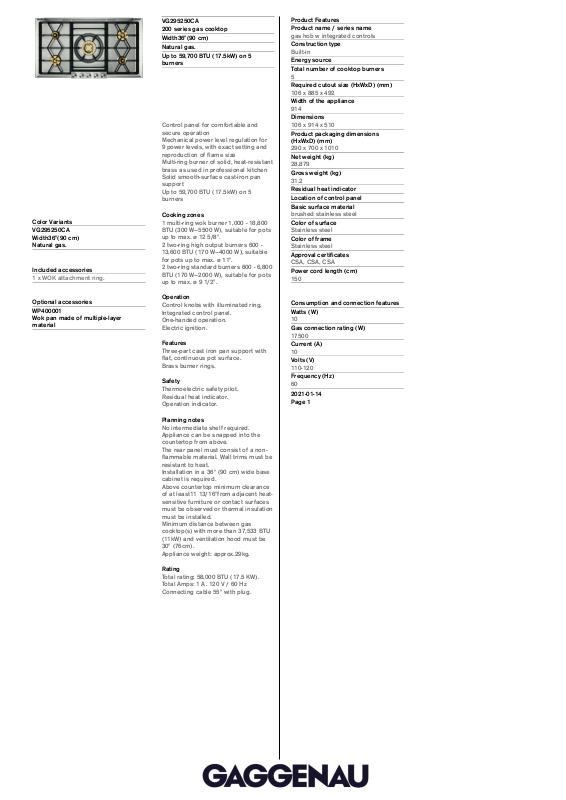

Gaggenau VG295250CA Specification Sheet

Color Variants VG295250CA
Width36"(90 cm) Natural gas.
Included accessories
1 x WOK attachment ring.
Optional accessories WP400001
Wok pan made of multiple-layer material
Product Features Product name / series name
gas hob w integrated controls
Construction type
Built-in
Energy source Total number of cooktop burners
5
Required cutout size (HxWxD) (mm)
106 x 885 x 492
Width of the appliance
914
Dimensions
106 x 914 x 510
Product packaging dimensions (HxWxD) (mm)
290 x 700 x 1010
Net weight (kg)
28.879
Gross weight (kg)
31.2
Residual heat indicator Location of control panel Basic surface material
brushed stainless steel
Color of surface
Stainless steel
Color of frame
Stainless steel
Approval certificates
CSA, CSA, CSA
Power cord length (cm)
150
Consumption and connection features Watts (W)
10
Gas connection rating (W)
17500
Current (A)
10
Volts (V)
110-120
Frequency (Hz)
60
2021-01-14 Page 1
VG295250CA 200 series gas cooktop
Width36"(90 cm) Natural gas. Up to 59,700 BTU (17.5kW) on 5
burners
Control panel for comfortable and secure operation Mechanical power level regulation for 9 power levels, with exact setting and reproduction of flame size Multi-ring burner of solid, heat-resistant brass as used in professional kitchen Solid smooth-surface cast-iron pan support Up to 59,700 BTU (17.5kW) on 5 burners
Cooking zones
1 multi-ring wok burner 1,000 - 18,800 BTU (300 W–5500 W), suitable for pots up to max. ø 12 5/8". 2 two-ring high output burners 600 ­13,600 BTU (170 W–4000 W), suitable for pots up to max. ø 11". 2 two-ring standard burners 600 - 6,800 BTU (170 W–2000 W), suitable for pots up to max. ø 9 1/2".
Operation
Control knobs with illuminated ring. Integrated control panel. One-handed operation. Electric ignition.
Features
Three-part cast iron pan support with flat, continuous pot surface. Brass burner rings.
Safety
Thermoelectric safety pilot. Residual heat indicator. Operation indicator.
Planning notes
No intermediate shelf required. Appliance can be snapped into the countertop from above. The rear panel must consist of a non­flammable material. Wall trims must be resistant to heat. Installation in a 36" (90 cm) wide base cabinet is required. Above countertop minimum clearance of at least11 13/16"from adjacent heat­sensitive furniture or contact surfaces must be observed or thermal insulation must be installed. Minimum distance between gas cooktop(s) with more than 37,533 BTU (11kW) and ventilation hood must be 30" (76cm). Appliance weight: approx.29kg.
Rating
Total rating: 58,000 BTU (17.5 KW). Total Amps: 1 A. 120 V / 60 Hz Connecting cable 55" with plug.
VG295250CA 200 series gas cooktop
Width36"(90 cm) Natural gas. Up to 59,700 BTU (17.5kW) on 5
burners
2021-01-14 Page 2
