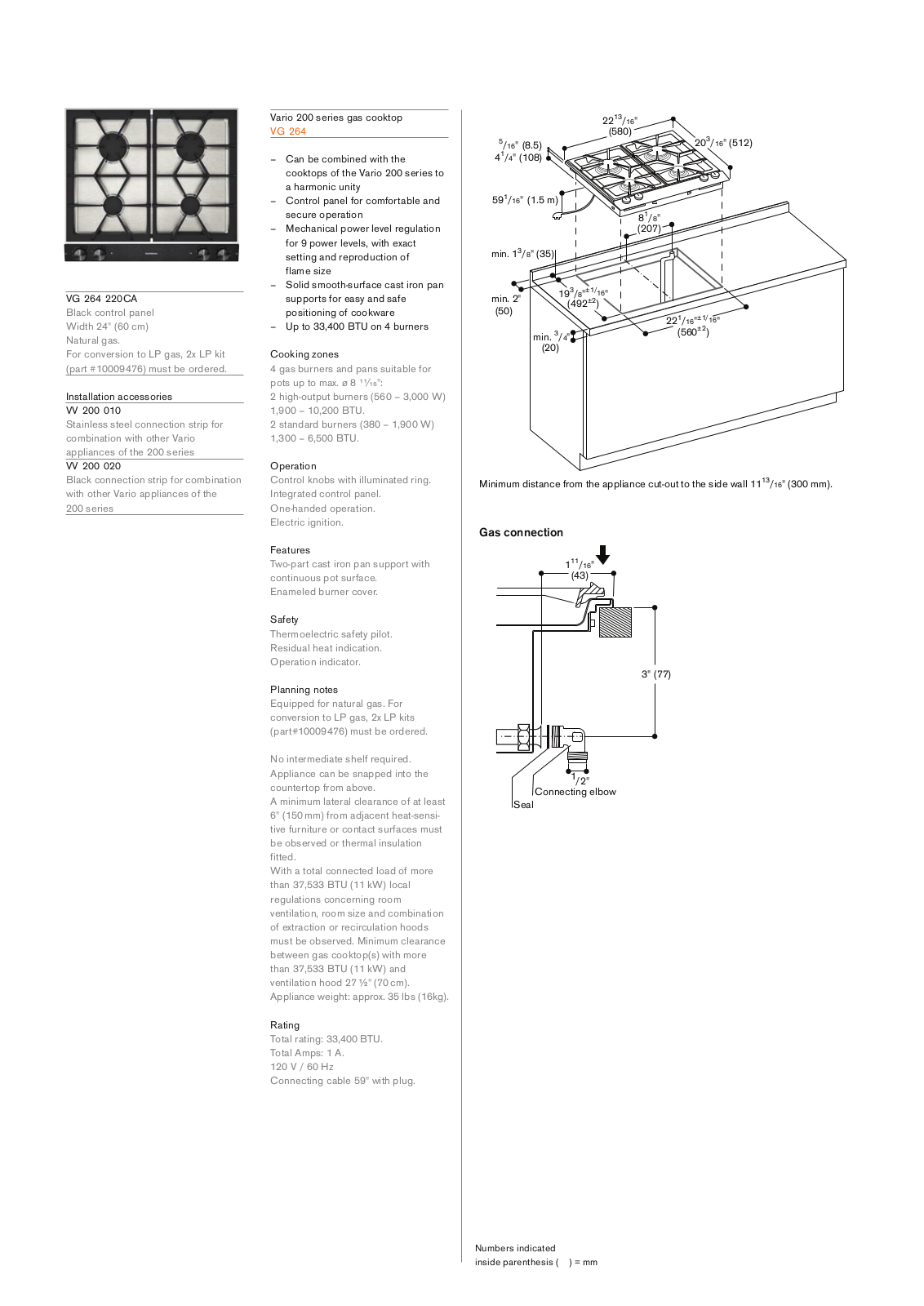

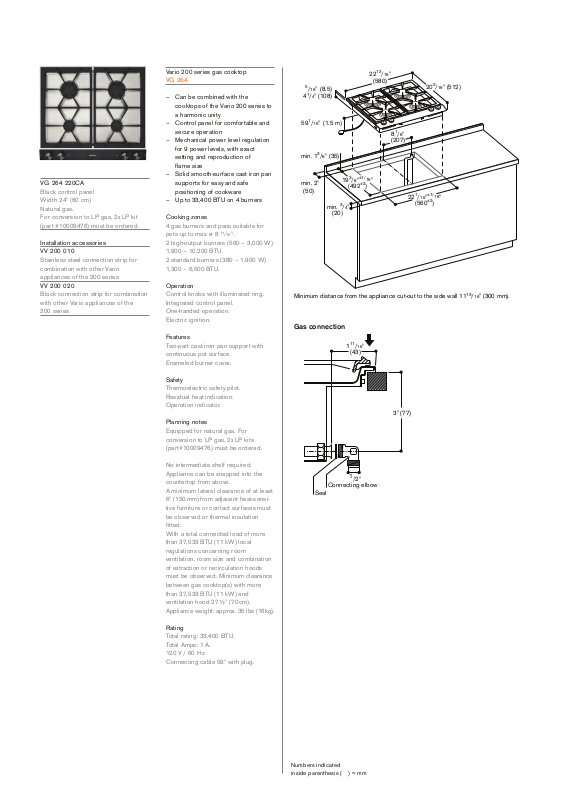

Gaggenau VG264220CA Specifications
V G 264 220CA
(1.5 m)
min. 1
(8.5)
min. 2"
min.
Minimum distance from the appliance cut-out to the side wall 11 (300 mm).
13
/16"
203/16" (
512)
2213/16"
(
580)
81/8"
(
207)
3
/4"
193/8"
±1/
16
"
(
(20)
492±2)
221/16"
±1/
16
"
(
560±2)
4
5
/16"3/8"
(50)
(35)
591/16"
1
/4" (
108)
Gas connection
Connecting elbow
Seal
111/16"
(43)
3
" (77)
1
/2
"
Black control panel
Width 24" (60 cm)
Natural gas.
For conversion to LP gas, 2x LP kit
(part #10009476) must be ordered.
Installation accessories
V V 200 010
Stainless steel connection strip for
combination with other Vario
appliances of the 200 series
V V 200 020
Black connection strip for combination
with other Vario appliances of the
200 series
Vario 200 series gas cooktop
V G 264
– Can be combined with the
cooktops of the Vario 200 series to
a harmonic unity
– Control panel for comfortable and
secure operation
– Mechanical power level regulation
for 9 power levels, with exact
setting and reproduction of
flame size
– Solid smooth-surface cast iron pan
supports for easy and safe
positioning of cookware
– Up to 33,400 BTU on 4 burners
Cooking zones
4 gas burners and pans suitable for
pots up to max. ø 8 ¹¹⁄₁₆":
2 high-output burners (560 – 3,000 W)
1,900 – 10,200 BTU.
2 standard burners (380 – 1,900 W)
1,300 – 6,500 BTU.
Operation
Control knobs with illuminated ring.
Integrated control panel.
One-handed operation.
Electric ignition.
Features
Two-part cast iron pan support with
continuous pot surface.
Enameled burner cover.
Safety
Thermoelectric safety pilot.
Residual heat indication.
Operation indicator.
Planning notes
Equipped for natural gas. For
conversion to LP gas, 2x LP kits
(part#10009476) must be ordered.
No intermediate shelf required.
Appliance can be snapped into the
countertop from above.
A minimum lateral clearance of at least
6" (150 mm) from adjacent heat-sensitive furniture or contact surfaces must
be observed or thermal insulation
fitted.
With a total connected load of more
than 37,533 BTU (11 kW) local
regulations concerning room
ventilation, room size and combination
of extraction or recirculation hoods
must be observed. Minimum clearance
between gas cooktop(s) with more
than 37,533 BTU (11 kW) and
ventilation hood 27 ½" (70 cm).
Appliance weight: approx. 35 lbs (16kg).
Rating
Total rating: 33,400 BTU.
Total Amps: 1 A.
120 V / 60 Hz
Connecting cable 59" with plug.
Numbers indicated
inside parenthesis ( ) = mm
