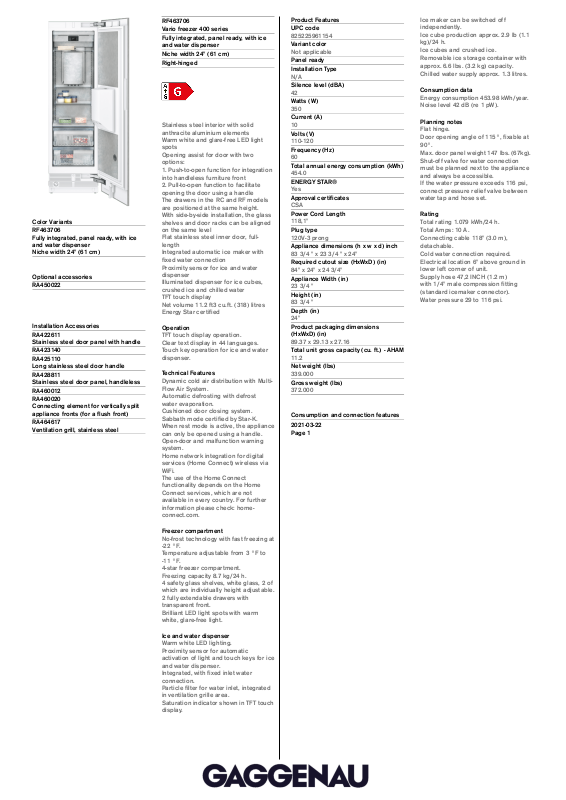

Gaggenau RF463706 Specification Sheet
Color Variants
RF463706
Fully integrated, panel ready, with ice
and water dispenser
Niche width 24" (61 cm)
Optional accessories
RA450022
Installation Accessories
RA422611
Stainless steel door panel with handle
RA423140
RA425110
Long stainless steel door handle
RA428811
Stainless steel door panel, handleless
RA460012
RA460020
Connecting element for vertically split
appliance fronts (for a flush front)
RA464617
Ventilation grill, stainless steel
Product Features
UPC code
825225961154
Variant color
Not applicable
Panel ready
Installation Type
N/A
Silence level (dBA)
42
Watts (W)
350
Current (A)
10
Volts (V)
110-120
Frequency (Hz)
60
Total annual energy consumption (kWh)
454.0
ENERGY STAR®
Yes
Approval certificates
CSA
Power Cord Length
118,1"
Plug type
120V-3 prong
Appliance dimensions (h x w x d) inch
83 3/4 " x 23 3/4 " x 24"
Required cutout size (HxWxD) (in)
84" x 24" x 24 3/4"
Appliance Width (in)
23 3/4 "
Height (in)
83 3/4 "
Depth (in)
24"
Product packaging dimensions
(HxWxD) (in)
89.37 x 29.13 x 27.16
Total unit gross capacity (cu. ft.) - AHAM
11.2
Net weight (lbs)
339.000
Gross weight (lbs)
372.000
Consumption and connection features
2021-03-22
Page 1
RF463706
Vario freezer 400 series
Fully integrated, panel ready, with ice
and water dispenser
Niche width 24" (61 cm)
Right-hinged
Stainless steel interior with solid
anthracite aluminium elements
Warm white and glare-free LED light
spots
Opening assist for door with two
options:
1. Push-to-open function for integration
into handleless furniture front
2. Pull-to-open function to facilitate
opening the door using a handle
The drawers in the RC and RF models
are positioned at the same height.
With side-by-side installation, the glass
shelves and door racks can be aligned
on the same level
Flat stainless steel inner door, fulllength
Integrated automatic ice maker with
fixed water connection
Proximity sensor for ice and water
dispenser
Illuminated dispenser for ice cubes,
crushed ice and chilled water
TFT touch display
Net volume 11.2 ft3 cu.ft. (318) litres
Energy Star certified
Operation
TFT touch display operation.
Clear text display in 44 languages.
Touch key operation for ice and water
dispenser.
Technical Features
Dynamic cold air distribution with MultiFlow Air System.
Automatic defrosting with defrost
water evaporation.
Cushioned door closing system.
Sabbath mode certified by Star-K.
When rest mode is active, the appliance
can only be opened using a handle.
Open-door and malfunction warning
system.
Home network integration for digital
services (Home Connect) wireless via
WiFi.
The use of the Home Connect
functionality depends on the Home
Connect services, which are not
available in every country. For further
information please check: homeconnect.com.
Freezer compartment
No-frost technology with fast freezing at
-22 °F.
Temperature adjustable from 3 °F to
-11 °F.
4-star freezer compartment.
Freezing capacity 8.7 kg/24 h.
4 safety glass shelves, white glass, 2 of
which are individually height adjustable.
2 fully extendable drawers with
transparent front.
Brilliant LED light spots with warm
white, glare-free light.
Ice and water dispenser
Warm white LED lighting.
Proximity sensor for automatic
activation of light and touch keys for ice
and water dispenser.
Integrated, with fixed inlet water
connection.
Particle filter for water inlet, integrated
in ventilation grille area.
Saturation indicator shown in TFT touch
display.
Ice maker can be switched off
independently.
Ice cube production approx. 2.9 lb (1.1
kg)/24 h.
Ice cubes and crushed ice.
Removable ice storage container with
approx. 6.6 lbs. (3.2 kg) capacity.
Chilled water supply approx. 1.3 litres.
Consumption data
Energy consumption 453.98 kWh/year.
Noise level 42 dB (re 1 pW).
Planning notes
Flat hinge.
Door opening angle of 115°, fixable at
90°.
Max. door panel weight 147 lbs. (67kg).
Shut-off valve for water connection
must be planned next to the appliance
and always be accessible.
If the water pressure exceeds 116 psi,
connect pressure relief valve between
water tap and hose set.
Rating
Total rating 1.079 kWh/24 h.
Total Amps: 10 A.
Connecting cable 118" (3.0 m),
detachable.
Cold water connection required.
Electrical location 6" above ground in
lower left corner of unit.
Supply hose 47,2 INCH (1.2 m)
with 1/4" male compression fitting
(standard icemaker connector).
Water pressure 29 to 116 psi.
RF463706
Vario freezer 400 series
Fully integrated, panel ready, with ice
and water dispenser
Niche width 24" (61 cm)
Right-hinged
2021-03-22
Page 2
