Preface
1. Important notes Page 3-4
1.1 For your safety Page 3
1.2 Operating for the first time Page 3
1.3 About use Page 4
2. Structure and operating principle Page 5-10
2.1 Structure Page 5
2.2 Accessories / special accessories Page 6
2.3 Operating principle of the operating modes Page 7-9
2.4 Special functions Page 10
3. Operation Page 11-23
3.1 Overview Page 11
3.2 Operating the timer Page 12-16
Time of day Page 13
Short time Page 14
Elapsing timer Page 14
Programming a cooking time Page 15
Programming a switch-off time Page 16
Programming a cooking time and an off time Page 16
3.3 Hot air circulation Page 17
3.4 ECO Page 17
3.5 Top and bottom heat / Top heat Page 18
3.6 Hot air circulation and bottom heat Page 18
3.7 Grilling Page 19
3.8 Core temperature sensor Page 20-21
3.9 Special functions Page 22-23
Child lock Page 22
Display of the current oven temperature Page 22
Holiday safeguard Page 22
Options menu Page 23
4. Baking and roasting table Page 24-27
5. Tips and tricks Page 28-29
6. Cleaning and care Page 30-32
6.1 Manual cleaning Page 30
6.2 Self-cleaning Page 31
6.3 Cleaning the grease filter Page 32
6.4 Removing the catalytic cleaning plate Page 32
7. Maintenance Page 33-34
7.1 General Page 33
7.2 Replacing the lamp Page 33
7.3 Disassembly of the front window Page 34
2
Preface
Baking with your new oven will be even
more fun than before.
The appliance offers you the following advantages:
– Very rapid heating up in the hot air and bottom
heat modes.
– The appliance features CleanEmail and a
catalytic cleaning function for air cleaning.
To ensure that you will be able to use this
appliance in all its diversity, read through the
operating and assembly instructions
conscientiously before operating it for the first
time. The instructions contain important notes on
use, installation and maintenance of the
appliance.
You will find notes on Page 3 that you ought to
observe before operating the appliance for the
first time.
The chapters entitled “Structure and operating
principle" and “Operation" will tell you all the
things your oven is capable of doing and how it is
operated.
The chapter entitled “Cleaning and care" will
make sure that your appliance will stay operable
and beautiful for a long time.
We have also compiled some “Tips and tricks"
for you.
And now we wish you lots of fun
with your oven.
Fig. 1
3
1. Important notes
1.1 For your safety
You must not operate the appliance if it is
damaged.
The appliance must only be connected by an
authorised specialist, paying attention to the
relevant regulations of the power supply companies
and the regional construction regulations.
Observe the assembly instructions!
When connecting electrical appliances and
devices in the proximity of cooking surfaces and
ovens, make sure that connecting cables do not
become jammed under the hot oven door or come
into contact with hot cooking surfaces.
As the user, you yourself are responsible for
maintenance and proper use in the household.
Only ever operate the appliance under
supervision.
Caution: fire risk! Do not store any combustible
items in your oven. During operation, only leave the
parts in the cooking compartment that you actually
need.
Caution! The appliance and, until the cooling fan is
switched on, also the control panel heat up during
operation. Keep children away!
Note: to avoid jeopardising the electrical safety of
the appliance, it is forbidden to use high-pressure
or steam jet cleaning devices.
The appliance has to be isolated from the mains
during all maintenance. To do this, remove the
mains plug or actuate the corresponding fuse.
Repairs may only be carried out by authorised
electricians, in order to guarantee the safety of the
appliance.
No warranty claims can be lodged for any
damage resulting from failure to observe these
instructions.
Technical modifications reserved.
1.2 Operating for the first time
Before operating the appliance for the first time,
please pay attention to the following notes:
Read through these instructions attentively before
operating your appliance for the first time.
The appliance must be installed and connected by
a specialist.
Remove the packaging from the appliance and
dispose of it properly.
Pay attention to the fact that there are accessories
in the base of the packaging.
Keep packaging material away from children.
Before operating the appliance for the first time,
make sure that the mains connection is in proper
working order.
Before using the oven for the first time, remove
all removable interior parts (grid iron, tray ...). Now
operate the oven for one hour at 300 °C in the hot
air mode. During this time, pay attention to ensuring
that the room is ventilated well, thus removing any
newness smells.
Thoroughly clean the appliance and accessories
before using them for the first time (see chapter
entitled “Cleaning and care”).
After a new connection or a power failure, the
suggested time of 8:00 lights up on the display and
the symbol (Time unit) flashes. By pressing the +
and – keys, you can set the current time and you
can confirm it by pressing the (Confirmation)
key. This will ensure perfect functioning of the
appliance. The suggested time 8:00 will be stored
as the time of day if you turn one of the control
knobs.
The rating plate for this appliance is visible when
you open the appliance door. An additional rating
plate is included on a separate sheet of the
instructions. For warranty reasons, store this
rating plate in the same location as your operating
and assembly instructions.
4
1.3 About use
The appliance is intended solely for use in the
household and must not be put to any other uses.
Use the appliance to prepare meals only. It must
not be used to heat up the room in which it is
installed.
Caution! You will risk injuring yourself, should you
close the door improperly. You might jam and crush
your fingers and hands.
Do not store any combustible objects in your oven
and, when operating the oven, never leave any
items inside the oven compartment other than the
ones needed.
Make sure that the bottom of the oven
compartment is never covered up during operation
or lined with aluminium foil.
Never pour water directly into the hot oven. This
could damage the enamel.
Always preheat your oven in the mode in which
you intend to bake or roast.
Tip: you have a possibility of heating up the
appliance very quickly. To do this, use the hot air
and bottom heat program.
The “Heating" symbol in the control panel
goes off as soon as the set temperature has been
reached.
Observe caution with oils and fats. They may
overheat and burn easily.
Note! Fruit acids such as the juice of lemons or
plums etc. should be removed after every baking
operation, thus making sure that they will not cause
spots on the oven’s enamel.
After baking/roasting, open the door completely or close it. Do not leave the oven door half
open as otherwise the control panel and
kitchen furniture may be damaged.
Caution: risk of burns. The inside of the door
gets very hot during operation; observe appropriate
caution when opening the appliance. Make sure
that the open door does not swing back when you
are standing in front of the appliance.
Built-in temperature protection prevents overheating of the appliance and of kitchen furniture.
Return the “Temperature" knob to “0" after baking.
If malfunctions should occur, first check the fuses
in your household. If there is no fault in the power
supply, consult your dealer or the nearest authorised Gaggenau service centre.
All heating elements and the fan are switched off
when you open the door.
After completion of baking or roasting, the
cooling fan will continue to run for a time and will
then switch off automatically.
The socket for the separate heating element for the
roaster and the baking stone (special accessory),
can be found in the middle of the back panel at the
bottom. During normal operation, please leave the
cover in the socket.
2.1 Structure
1 Grill and top heating elements
2 Ventilation slots
3 Control panel
4 Grease filter
5 Oven lighting
6 Insert-type grill
7 Oven door
8 Timer key
9 Display with timer
10 “Plus” key
11 “Confirm” key
12 Time display
13 “Minus” key
14 “Mode" knob
15 “Temperature" knob
16 “Child lock" symbol
17 “Duration, end" symbol
18 “Short timer" symbol
19 “Cooking time" symbol
20 “Core temperature sensor" symbol
21 “Heating" symbol
22 “Time unit” symbol
5
2. Structure and operating principle
50
0
Fig. 2
Fig. 3
Fig. 4
123
7654
89 10
11 12 13 14 15
16 17 18 19 20
21 22
2.2 Accessories / special accessories
As standard, your appliance comes with the
following accessories:
– GR 200-046:
Grid iron for cake tins, roasts, grilled pieces and
crockery (Fig. 5)
– KB 200-046:
Baking tray for cakes, biscuits and pastries
(Fig. 6)
– GP 200-046:
Grilling tray for roasts or as a grease collecting
tray (Fig. 7)
– FT 100-060:
Core temperature sensor (Fig. 8)
You can order the following special accessories:
– PS 026-001:
Baking stone and wooden pizza spatula
(Fig. 9 and 10)
– BT 026-001:
Roaster (Fig. 11)
– KB 110-046:
Glass tray for soufflés and much more (Fig. 12)
– HZ 026-001:
Heating element for roaster and baking stone,
variable up to 300 °C (Fig. 13)
– GR 082-046:
Grid iron
– GR 085-046:
Grid iron for grilling tray
– AZ 031-002:
Pull-out rails
– US 210-002:
Catalytic trays
6
Fig. 6
Fig. 8
Fig. 9
Fig. 10
Fig. 11
Fig. 12
Fig. 13
Fig. 5
Fig. 7
2.3 Operating principle of the
operating modes
Hot air circulation
In the hot air circulation mode, all prepared meals
are cooked at the same temperature. Diverse or
similar meals can be prepared on several levels
without any transfer of taste.
You can bake, roast and sterilise with hot air.
Baking with hot air circulation
This is the ideal operating mode for baking several

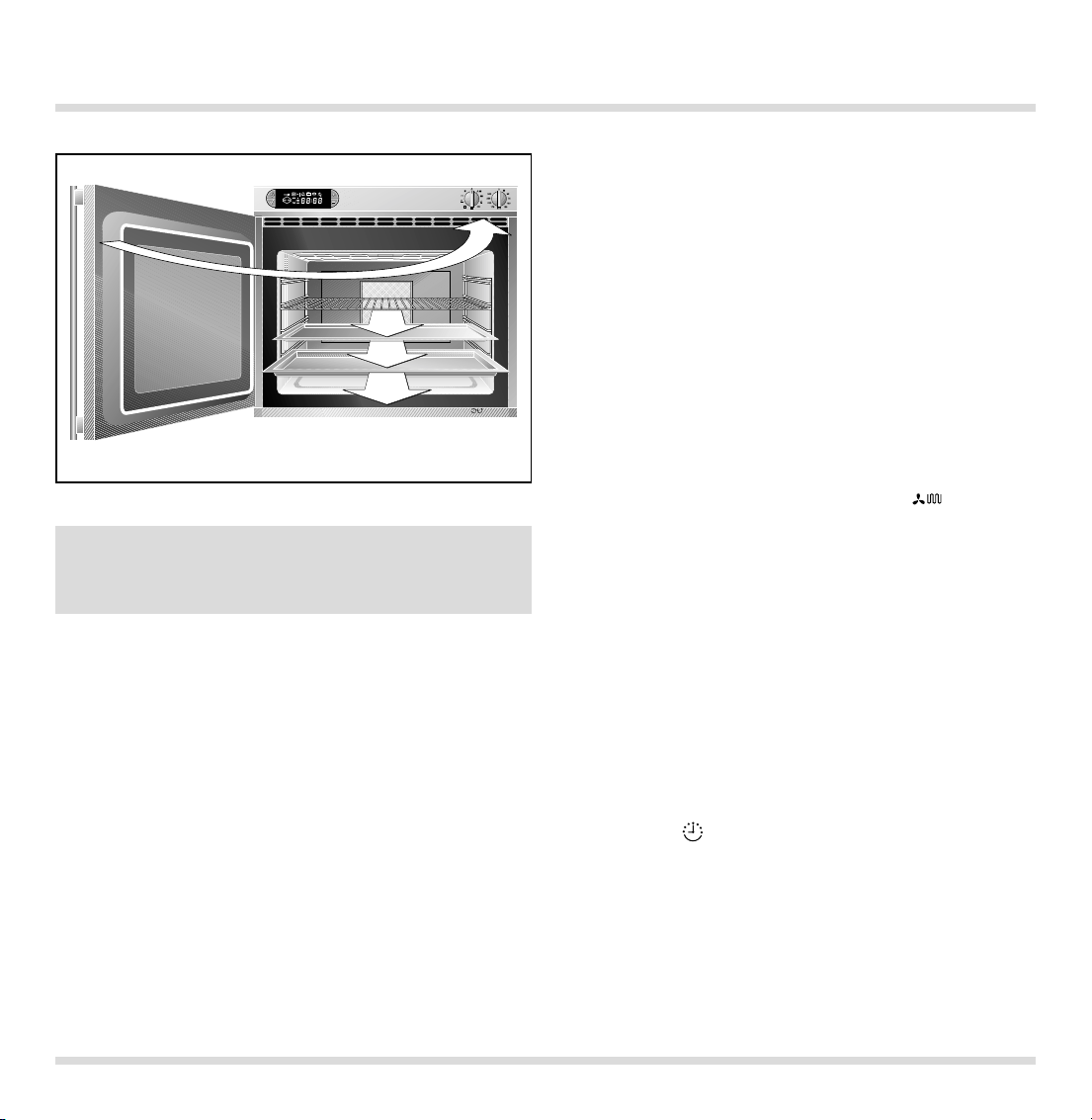

trays and tins at the same time. (Fig. 14)
Roasting with hot air circulation
Meat is evenly browned on all sides. When roasting
on the grid iron, push the grilling tray one level
lower to collect dripping fat.
Hot air circulation and bottom heat
When this function is used, the bottom heating
element is additionally in operation.
The fan wheel ensures a uniform distribution of
heat. Heat is also generated from below. (Fig. 15)
Top and bottom heat
Two heating elements (top and bottom heat) are
operated jointly. When baking with top and bottom
heat, you can only use one level. You get the best
baking and roasting results on the second level
from below. (Fig. 16)
This unit allows you to select the top heat element
separately. In this mode of operation you can
deliberately choose to bake or roast food from the
top.
7
Fig. 14
Fig. 15
Fig. 16
0
300
250
200
175
150
50
50
75
100
125
0
50
300
250
75
200
100
175
125
150
50
0
50
300
250
75
200
100
175
125
150
50
Grilling
When grilling, food is cooked/roasted at a temperature of 150-300 °C from above. A distinction can be
made between the following kinds:
Temperature-controlled grilling
During temperature-controlled grilling, the heating
element emits a greater or lesser amount of infrared radiation depending on the setting of the temperature selector switch. (Fig. 17)
This method of grilling is suitable for flat pieces of
meat and for browning or gratins.
Do not forget to turn grilled food!
Grilling with the hot air fan
The additional fan circulates the hot air and so
ensures a more even heat, when grilling several
items at the same time. There is no need to turn the
food frequently. (Fig. 18)
Economy grilling
Only the middle area of the grill heating element is
heated. (Fig. 19)
Do not forget to turn grilled food!
8
Fig. 17
Fig. 18
Fig. 19
0
50
300
250
75
200
100
175
125
150
50
0
50
300
250
75
200
100
175
125
150
50
0
50
300
250
75
200
100
175
125
150
50
ECO
Using the ECO mode is an energy saving way to
prepare cakes, small pastries and gratins with hot
air circulation. The light and catalytic converter
heating are switched off in this mode and the oven
will take longer to heat up. When you program the
timer, the heating element will be switched off
before the cooking time has elapsed, thus
exploiting the residual heat. (Fig. 20)
Baking stone operation (with special
accessories PS 026 and HZ 026 only)
Be it crispy pizza or fresh bread - with the baking
stone you produce baking results that are
comparable to those of a solid stone oven. (Fig. 21)
Roaster operation (with special accessories
BT 026 and HZ 026 only)
Using the cast roaster, you can brown and gently
roast large quantities of meat, or you can prepare a
Christmas turkey or a large oven-baked dish.
(Fig. 22)
9
Fig. 21
Fig. 22
50
150
175
200
300
250
125
0
100
75
50
Fig. 20
0
50
300
250
75
200
100
175
125
150
50
0
50
300
250
75
200
100
175
125
150
50
10
2.4 Special functions
Display of the current oven temperature
(Thermotest)
Core temperature sensor
Power failure safeguard
Holiday safeguard
Child lock
ECO plus mode
The current oven temperature is displayed for a few
seconds when you press the (Confirmation) key.
Note: when the oven is operated continuously,
temperature fluctuations of up to 5 °C, which are
inherent to the system, may occur.
You can measure the core temperature of your food
exactly using the core temperature sensor. You can
select and set the core temperature between 1°C
and 99°C.
When the oven is on and a power failure occurs,
the heating process is stopped when the power
returns after the failure.
Note: the appliance bridges a power failure lasting
5 minutes without any consequences.
Every oven heating process is cancelled after
12 hours if the oven has not been operated during
this time. This function is not active if the timer has
been programmed.
The child lock prevents inadvertent activation of the
oven.
When you select the energy saving ECO plus mode
in the options menu, the light and catalytic converter
heating are switched off during the cooking
process in all the heating modes. If the timer has
been programmed, the oven also switches off the
heating element before expiry of the programmed
time to make use of the residual heat.
3.1 Overview
Switching on
Switching off
“Temperature" knob:
The temperature can be set within the range from
50 - 300°C – in 5 ° steps from 50 - 200°C and in 10°
steps from 200 - 300°C.
“Mode" knob:
You can choose from 10 programs:
– Hot air circulation
– Grilling with the hot air fan
– Grilling
– Hot air circulation with bottom heat
– ECO
– Top and bottom heat
– Top heat
– Baking stone operation
– Roaster operation
– Economy grill
Switching on: (Fig. 23)
Turn the “Temperature" control knob to operate the
appliance.
You can set any temperature by turning the
“Temperature" control knob to the right. The control
knob has latching positions. The first latching
position on the right is the lighting level. The set
temperature is shown on the display for a few
seconds.
Switching off: (Fig. 24)
To switch off, turn the “Temperature" control knob
to the 0 position. The lighting goes off and now only
the current time of day appears on the display.
Note: after switching off the oven, the cooling fan
will continue to run for a time to protect the
electronics and will then switch off automatically.
3. Operation
11
Fig. 23
Fig. 24
Inserting the baking tray
– Insert the baking tray at the same height on both
sides.
– Make sure that the notch on the baking tray is at
the rear and that the handle is at the front.
12
3.2 Operating the timer
The required mode and temperature can be set
before and after time programming by turning the
“Temperature" or “Mode" knob.
As long as one or several symbol(s) in the display
flash(es), no input is possible and no value is programmed or an invalid value has been programmed.
All time values are entered by means of the
(Timer), +, – and (Confirmation) keys.
Every input triggers an audible and a visible signal.
If you select a program (e.g. end), but you do not
enter a value, the current time will appear on the
display after 20 seconds.
An entered value (e.g. duration programming) must
be confirmed within 20 seconds (Confirmation
key). Entered values are not stored if they are not
confirmed.
Press the (Confirmation) key if you wish to
confirm a value during programming.
If you press any other key instead, the entered
value will not be stored and will disappear.
You can query set values by pressing the
(Timer) key. The value appears on the display for
around 10 seconds. During this time, you can
modify the value by pressing the + or – key and you
can confirm it by pressing the (Confirmation)
key.
Press the + and – keys at the same time if you wish
to clear a value.
If you have already programmed a time value once
(e.g. a duration) on the appliance, this previously
programmed value will be proposed to you when
programming a value again.
The longer you press the + or – key when
programming a time, the faster the time elapses on
the display.
After the programmed time has elapsed, the
corresponding symbol flashes on the display. For
example, if you have programmed an end time, the
(End time) symbol will flash. An audible signal is
also sounded. Heating is deactivated and the oven
lighting goes off. You can restart the previously
selected mode by pressing any key on the display.
You end the baking process by turning the
“Temperature" knob to 0.
Switching from the automatic mode to the “normal
mode":
Turn the temperature control knob back to 0.
The oven will then no longer heat. The previously
programmed time value is retained. An audible
signal sounds after the entered time has elapsed.
Note: if the time is not displayed accurately on the
timer, this is not due to a technical defect. The
mains frequency of the public power supply is the
time base for the timers. In Europe, this is a
standard frequency of 50 Hz (Hertz). As far as this
point is concerned, power supply networks that are
fed from power stations in eastern Europe fluctuate.
This is why an incorrect time may be displayed.
This discrepancy has no influence on the functions
and program sequences of the appliance.
Every alarm goes off after 3 minutes.
Note: all time programming functions can be
programmed simultaneously.
13
Setting the time of day
Proceed as follows:

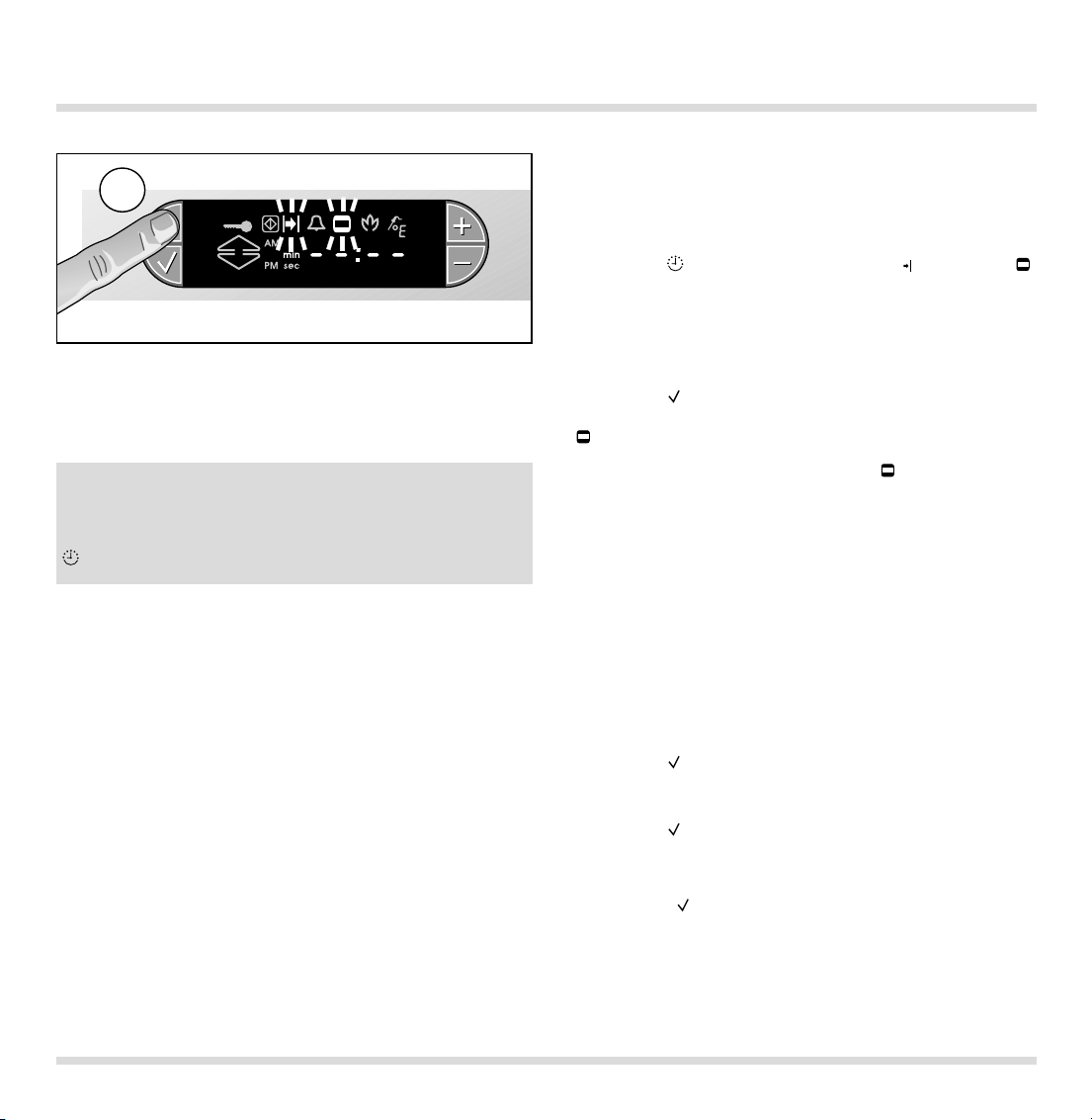

– Press the (Timer) key 3 times. The (Time
unit) symbol flashes on the display.
The time display shows the currently set time
of day (Fig. 25).
– You can select the required time by pressing
the + or – key.
– Press the (Confirmation) key to confirm the
entered value. An audible signal is sounded.
After a new connection or a power failure, the
suggested time of 8:00 lights up on the display
and the symbol (Time unit) flashes. By pressing
the + and – keys, you can set the current time and
you can confirm it by pressing the (Confirmation)
key. This will ensure perfect functioning of the
appliance. The suggested time 8:00 will be stored
as the time of day if you turn one of the control
knobs.
Fig. 25
3x
14
Short time
You can program a period of time with the short
time function without automatic activation or
deactivation. You can use this mode of operation
even when the appliance is switched off as an egg
timer, for example. The range that can be set is
between ten seconds (00:10) and 23.59 hours
(23:59)
Proceed as follows:

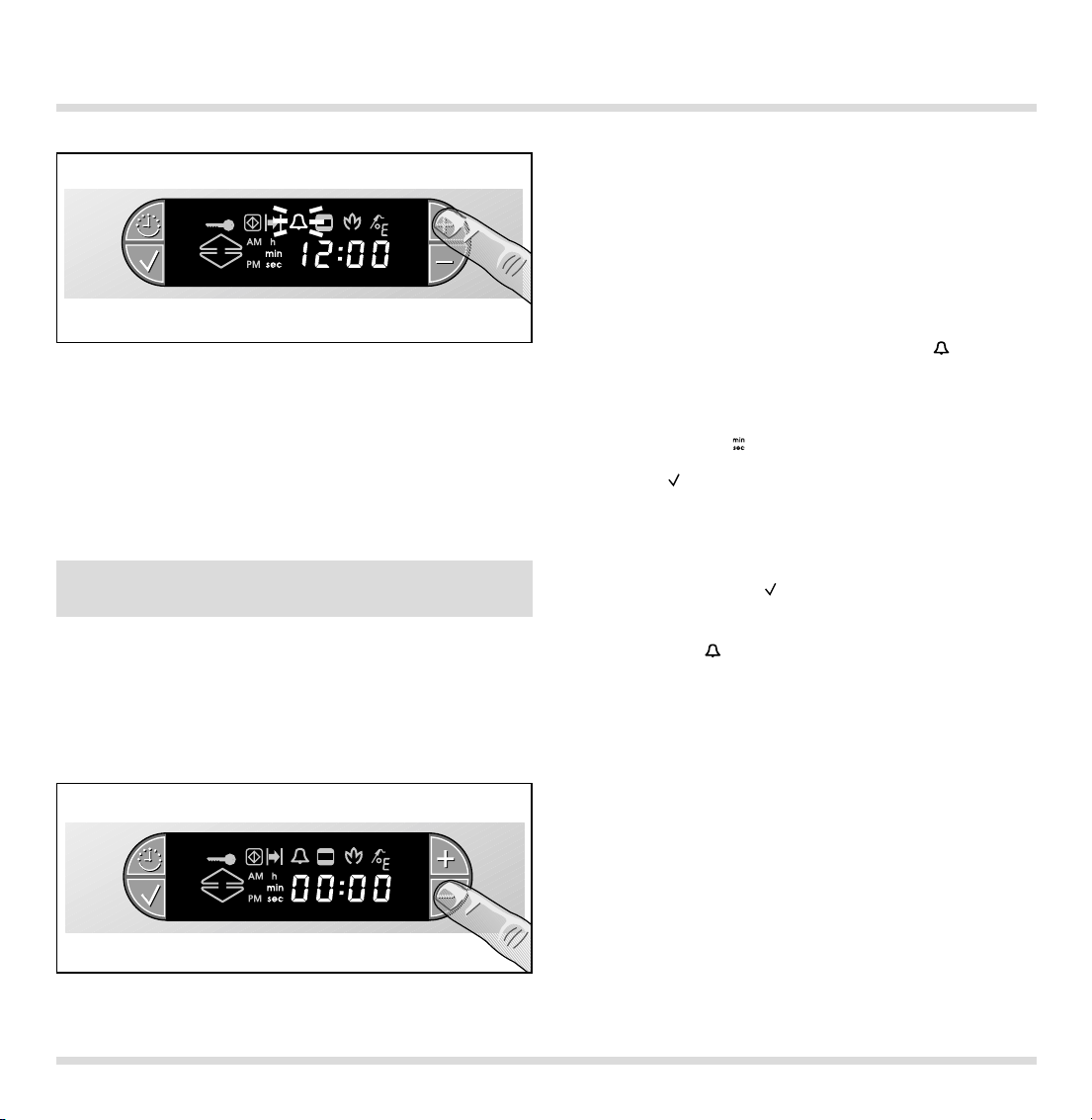

– Press the + key. The short time symbol flashes
(Fig. 26).
– The entered value appears on the display, which
you can modify by pressing the + or – key. The
time unit symbol lights up.
– Press the (Confirm) key to confirm the entered
value.
– The elapsing time is displayed.
Note: if nothing is entered for 5 seconds, the short
time starts even if the key (Confirm) is not
pressed.
Once the short time has elapsed, an audible signal
sounds and the (Short time) symbol flashes on
the display. The signal goes off when you press any
key. The short time reminder can be switched off at
any time by pressing the + and – minus keys at the
same time.
Elapsing timer
Proceed as follows:
– Press the – key while the appliance is on (Fig. 27).
– The time, beginning at 00:00, is displayed
(maximum value 12 hours).
Thus, you can continuously display the elapsed
cooking time without programming automatic
switch-off.
When you press the – key again, the timer is
switched off.
The last programmed value is proposed to you the
next time you program a short time.
Fig. 26
Fig. 27
15
Programming a cooking time
The appliance is operated for a specific period of
time. The range that can be set is between one
minute (00:01) and 23 hours and 59 minutes (23:59).
Proceed as follows:

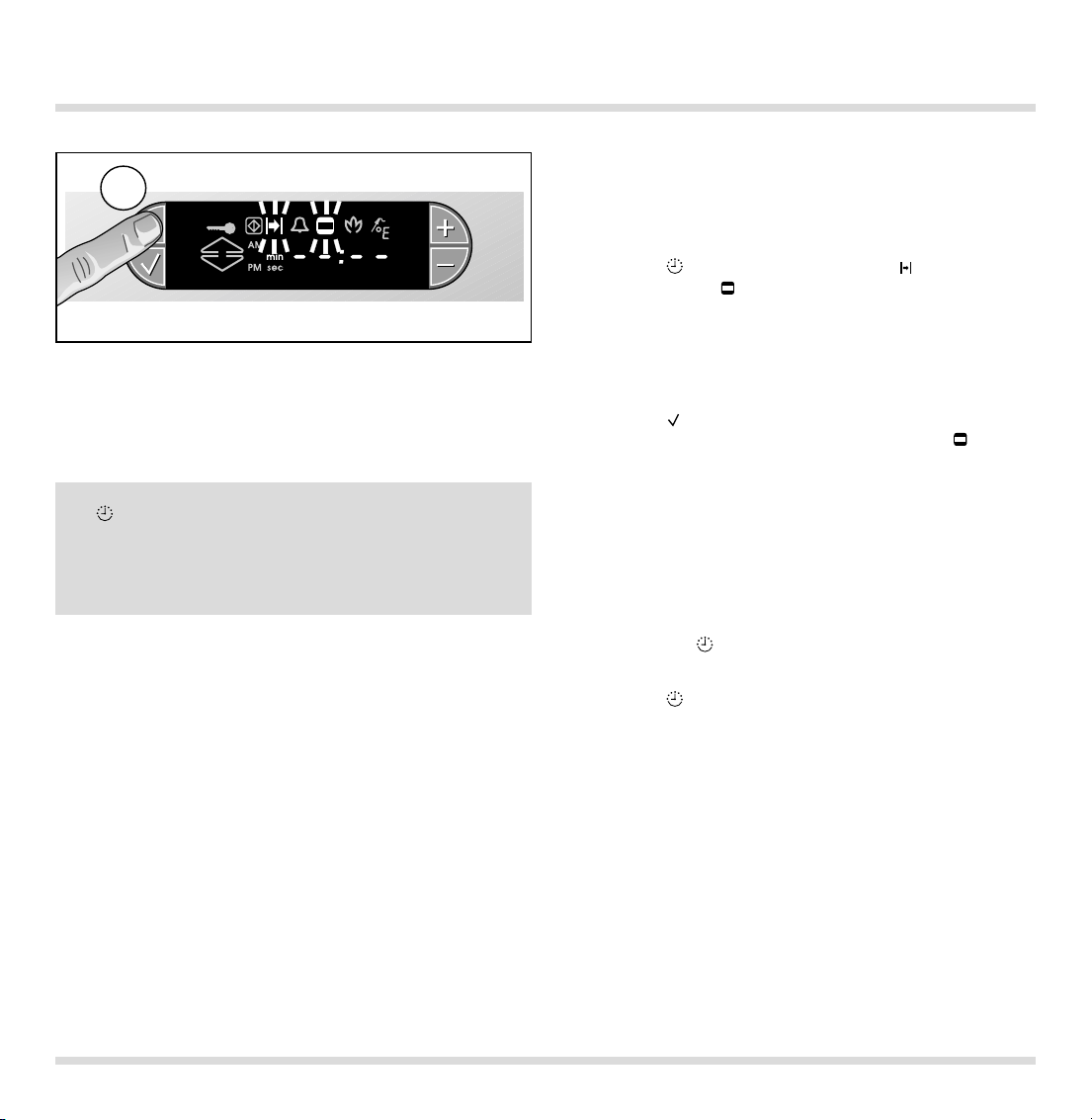

– Press the (Timer) key once. The (Duration)
symbol and the (Cooking time) symbol flash on
the display. Dashes appear on the display (i.e. no
value programmed) (Fig. 28).
– Press the + or the – key to set the required
duration.
– Press the (Confirm) key to confirm the set
value. An audible signal is sounded. The
(Cooking time) symbol lights up on the display.
Note:
– A signal is sounded after the programmed
duration has elapsed. At the same time, the oven
switches off automatically.
– Press any key to switch off the signal.
– The programmed duration can only be queried by
pressing the (Timer) key.
Clearing incorrectly programmed values:
– Press the (Timer) key once.
– Press the + and – keys at the same time.
An audible signal is sounded.
The end time is display automatically if you press
the (Timer) key twice.
The next time you program a duration, the
previous programmed value is proposed to you
when you press the + key.
Fig. 28
1x
Programming a switch-off time
The appliance switches off automatically at a time
that you have chosen. The starting point is the time
of day set on the appliance.
Proceed as follows:
– Press the (Timer) key twice. The (End) and
(Cooking time) symbols flash (Fig. 29).
– Press the + or – key to set the required time. You
can choose any switch-off time within a period of
24 hours.
– Press the (Confirmation) key to confirm the
entered value. An audible signal is sounded. The
(Cooking time) symbol lights up on the display.
After the set time has elapsed, the (Cooking
time) symbol flashes and an audible signal is
sounded.
By pressing any key, you can switch off the signal
and heating will start again. Turn the temperature
selector switch to 0 to end the operation.
Programming a cooking time and an off time
This mode enables you to start and end baking and
cooking in your absence.
Proceed as follows:
– Enter a required duration (see Page 15)
– Press the (Confirmation) key
– Enter the required switch-off time (see above)
– Press the (Confirmation) key
The automatic mode becomes active as soon as the
switch-off time is programmed and you have
pressed the (Confirmation) key.
16
Note: the time of day that is set on the appliance
is the starting point for programming the switch-off
time.
You can query the entered value by pressing the
(Timer) key twice.
Fig. 29
2x
17
3.3 Hot air circulation
Switching on
Sterilising
3.4 ECO
Switching on
Turn the “Mode" control knob to the (Hot air)
symbol and set the “Temperature" control knob to
the required temperature. (Fig. 30)
You can bake, roast, and sterilise with hot air
circulation.
When roasting on the grid iron, insert the grilling
tray / glass tray one level lower than the food you
are cooking to collect dripping fat.
Switching off
Turn the temperature selector switch to the 0
position. The oven lighting goes off and the hot air
fan switches off.
Sterilising
When placing bottles (no more than 6) containing
fruit or vegetables in the grill pan / glass tray filled
with water, make sure that they do not touch each
other. (Fig. 31) Heat them at 175 °C until the liquid in
the glasses begins to bubble.
– Sterilise vegetables at 80-100°C for app. 30-60 mi-
nutes.
– After the onset of bubbling, switch off the oven to
sterilise fruit for app. 5-15 minutes.
Switching on
Turn the “Mode" control knob to the ECO symbol
and set the “Temperature" control knob to the
required temperature (Fig. 32). Using the ECO
mode is an energy saving way of baking. The oven
will take longer to heat up and the light is switched
off during baking. You can switch on the lighting for
a few seconds by pressing the (Confirmation)
key. In the ECO mode the catalytic converter
heating is switched off. Therefore you might notice
a slightly stronger smell with certain foods (for
example yeast dough) than during normal
operation.
50
150
175
200
300
250
125
0
100
75
50
Fig. 30
Fig. 31
Fig. 32
3.5 Top and bottom heat / Top heat
Switching on
3.6 Hot air circulation and bottom heat
This unit allows you to select the top heat element
separately. In this mode of operation you can
deliberately choose to bake or roast food from the
top.
Switching on:
Turn the “Mode" control knob to the top and bottom
heat symbol and set the “Temperature" control
knob to the required temperature. (Fig. 33)
Switching off:
Turn the “Temperature" knob to the 0 position. The
oven lighting goes off.
Note:
Baking with top and bottom heat
In this mode of operation you can bake in the usual
manner on one level.
Roasting with top and bottom heat
Place the meat on the grid iron or in the grill pan /
glass tray. When roasting on the grid iron, you can
insert the grill pan / glass tray one level lower to
collect fat.
Switching on:
Turn the “Mode" control knob to the (Hot air and
bottom heat) symbol.
Set the “Temperature" control knob to the required
temperature. (Fig. 34)
Switching off:
Turn the “Temperature" knob to the 0 position. The
oven lighting goes off.
18
Fig. 33
Fig. 34
3.7 Grilling
Switching on
Switching on
Temperature-controlled grilling
Switching on:
Turn the “Mode" control knob to the (Grilling)
symbol.
Turn the “Temperature" control knob to the
temperature you require. (Fig. 35)
Switching off:
Turn the “Temperature" control knob to the 0
position.
Note:
When grilling on the grid iron, place the grilling pan/
glass tray one level lower than the grilled food.
Grilling with the hot air fan
Switching on:
Turn the “Mode" control knob to the (Grilling
with hot air) setting and set the “Temperature"
control knob to the required temperature. (Fig. 36)
Switching off:
See above.
Economy grilling
Switching on:
Turn the “Mode" control knob to the (Economy
grilling) setting and set the “Temperature" control
knob to the required temperature.
Switching off:
See above.
19
Caution!
Very high temperatures occur during grilling, and
these also warm up doors and frames. Observe
the appropriate caution and keep children away!
Fig. 35
Fig. 36
Note: grilling is possible only when the oven is
closed.
3.8 Core temperature sensor
Using the core temperature sensor, during the
cooking process you can measure the core
temperature of the food you are preparing exactly
between 1°C and 99 °C. The sensor measures the
temperature in the interior of the meat. It indicates
when the set core temperature has been reached
and the meat has been cooked to satisfaction.
The core temperature sensor
– enables exact cooking.
– prevents overcooking of roasts.
– provides you with a display of the actual
temperature for total control of the cooking
process.
Proceed as follows:
– Preheat the oven.
– Insert the grid iron with the food.

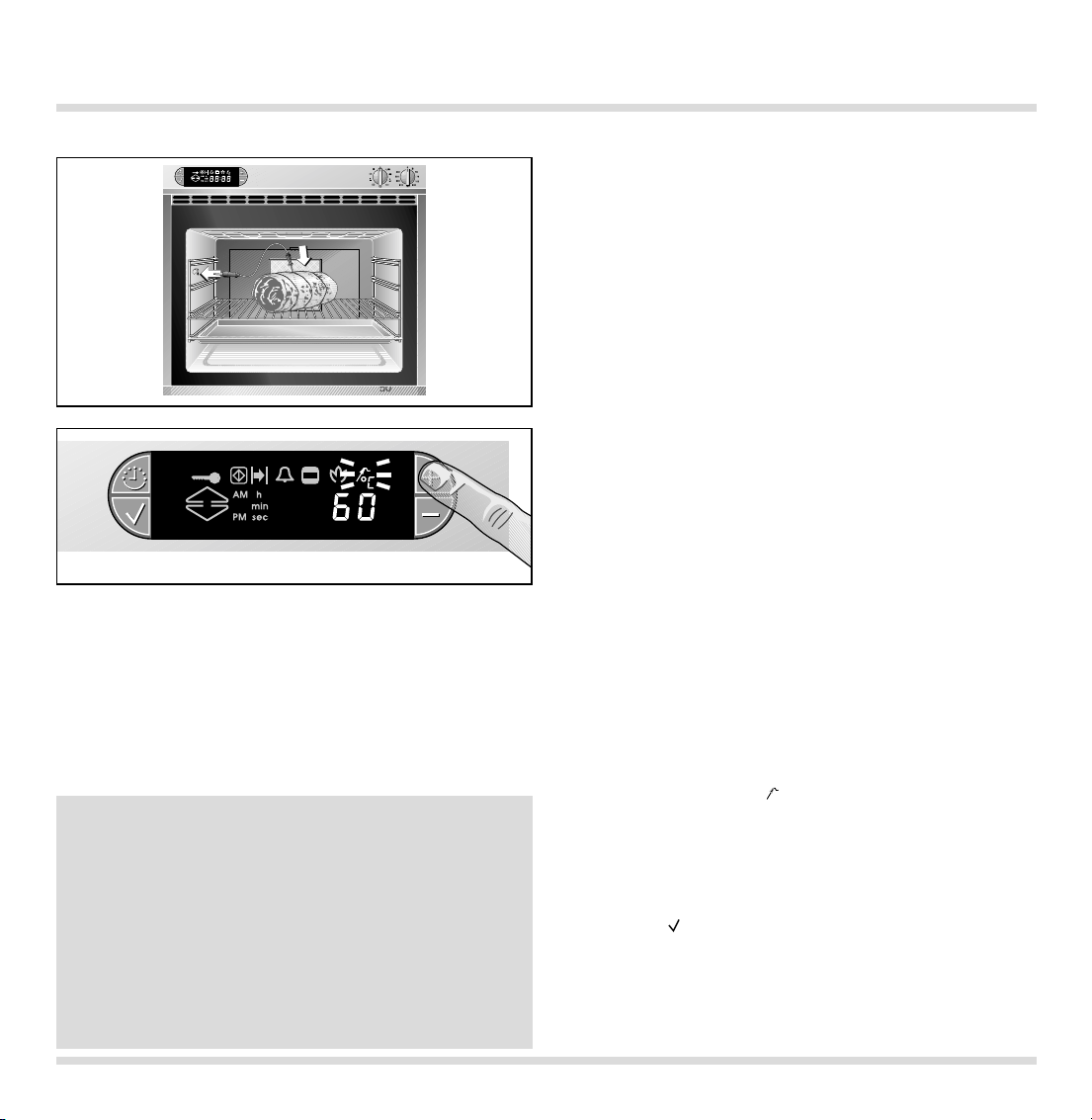

– Insert the core temperature sensor in the front left
socket in the oven (Fig. 37).
Caution: the side panels are hot. Use a glove.
– Insert the tip of the core temperature sensor in
the middle of the food, at its thickest point; not in
the middle in the case of poultry (hollow), but
between the belly and the thigh.
The measuring tip must not touch any bones and
should not be inserted into fatty tissue.
– Close the oven door.
– Press the + key. The (Core temperature sensor)
symbol flashes and the suggested value of 60°C
appears on the display (Fig. 38).
– You can enter a value between 1°C and 99 °C (see
table) by pressing the + and – keys.
– Press the (Confirmation) key to confirm the
entered value. An audible signal is sounded.
20
Fig. 37
Fig. 38
Note:
You cannot set a temperature on the core
temperature sensor which is lower than the actual
core temperature of the food you are preparing.
If you set programming with the core temperature
sensor and the timer at the same time, the
programming that reaches the entered value first
will switch off the oven.
It is not possible to program a short time while the
core temperature sensor is plugged in.
50
An audible signal sounds as soon as the
programmed core temperature has been reached.
The oven switches off automatically. The (Core
temperature sensor) and (End) symbols flash on
the display.
Caution: Pull out the core temperature sensor
before removing the food. Use a glove to do this
because the core temperature sensor gets very hot
during operation.
Note:
When you press the (Confirmation) key twice,
the temperature on the core temperature sensor is
displayed for a few seconds.
Clearing the core temperature:
– Press the + or – key. The (Core temperature
sensor) symbol lights on the display.
– Press the + and – keys at the same time.
– An audible signal sounds and the (Core
temperature sensor) symbol goes off. Switch off
the appliance.
To clean it, simply rub the core temperature sensor
with a moist cloth.
Recommended core temperature values
Beef
Roast beef / fillet of beef
rare 45-50 °C
medium-rare 55-65°C
well-done 70-80 °C
Beef roast 80-85 °C
Boiled fillet of beef 90 °C
Pork
Roast pork 75-80 °C
Back of pork 65-70°C
Meat loaf 85 °C
Veal
Roast veal 75-80 °C
Breast of veal, stuffed 75-80 °C
Back of veal medium-rare 65-70 °C
Venison
Leg of venison 75-80 °C
Back of hare / venison 65-70 °C
Poultry
Chicken 85 °C
Goose 85-90 °C
Turkey, duck 80-85 °C
Duck breast 70 °C
Lamb
Leg of lamb medium-rare 55-65 °C
Lamb well-done 75-80°C
Mutton
Leg of mutton medium-rare 75-80°C
Back of lamb well-done 80 °C
Bread 90 °C
21
Note:
Remove the core temperature sensor from the
oven when it is not in use.
Only ever use the included original temperature
sensor. You can order the core temperature sensor
as a spare part (Order No. 156838).
3.9 Special functions
Child lock
Display of the current oven temperature
(Thermotest)
Holiday safeguard
The child lock prevents inadvertent activation of the
oven.
Proceed as follows:
Switching on:
– Turn the “Temperature" control knob to any
position on the right.
– Press the (Confirmation) key and keep it
pressed.
– Turn the “Temperature" control knob to 0.
The symbol (Child lock) appears on the display.
Switching off:
– Press the (Confirmation) key and keep it
pressed.
– Turn the “Temperature" control knob to any
position on the right.
– Release the (Confirmation) key.
– Press the “Temperature" control knob to 0.
The symbol (Child lock) disappears from the
display.
The current oven temperature will appear on the
display for a few seconds when you press the
(Confirmation) key.
For your protection, the oven features holiday
safeguard. Every heating operation is switched off
after 12 hours if the appliance is not operated
during this time. Flashing dashes appear on the
display.
Turn the two control knobs to 0. You can then
operate the appliance in the way to which you are
accustomed.
22
Fig. 39
Fig. 40
Options menu
With the aid of the Options menu, you can
– choose between °C and °F on the temperature
display.
– choose between 12h and 24h (am/pm) on the time
display.
– switch the ECO plus mode (power-saving mode)
on or off. When you select the energy saving ECO
plus mode in the options menu, the light and
catalytic converter heating are switched off
during the cooking process in all the heating
modes. If a cooking time has been programmed,
the oven also switches off the heating element
before expiry of the programmed time to make
use of the residual heat. You can switch on the
lighting for a few seconds by pressing any key. In
the ECO mode the catalytic converter heating is
switched off. Therefore you might notice a slightly
stronger smell with certain foods (for example
yeast dough, roasting, grilling) than during normal
operation.
Note: the setting of the ECO plus mode in the
options menu does not influence the ECO mode.
Proceed as follows:
– Turn the two control knobs to the topmost
position.
– Press the (Confirmation) key and keep it
pressed.
– Turn the “Modes" knob to the right.
– Release the (Confirmation) key.
– By turning the “Modes" control knob, you can now
choose the various functions:
Position 1:
temperature display either in °C or °F.
Position 2:
time display in 24 hours or
12 hours (am and pm)
Position 3:
ECO plus on or off
– Set the required option by pressing the + or – key.
– Press the (Confirmation) key.
– To quit the options menu, turn the “Modes" control
knob back up or turn the “Temperature" control
knob.
23
Fig. 41
time display
24h/12h (am/pm)
ECO plus
on/off
temperature display
°C/°F
24
4. Baking table
Cakes and biscuits Hot air ECO Hot air and Top and
Level Baking
circulation bottom heat bottom heat
time
Temp. °C Temp. °C Temp. °C Temp. °C from below
Min.
Swiss roll 210 2 7-9
Flan base 170-175 2 30-35
Fruit flan on yeast dough 165 165-175 2 40-45
Fruit flan on short-crust pastry 165 165 165 165-175 2 40-45
Small flaky pastry cakes 180 180 190 1+3/2* 15-20
Cheesecake (high) 165 165 165 165-175 2 90-100
Cheesecake slices (flat) 165 165 165 165-175 245-50
Sponge cake (round) 160-175 160-175 175-180 2 50-60
Loaf cake 160-175 160-175 175-180 2 50-60
Yeast dough ring cake (tall) 160-175 165-175 1 40-50
Biscuits 160-175 160-175 170-175 1+3/2* 15-20
‘Hefezopf’ 165 165-175 2 30-40
Cake on baking tray (dry top) 165-170 165-170 165-175 2 40-50
Cake on baking tray (moist top) 165-170 165-170 170 165-175 2 40-50
Cream puffs 180 180 180-190 1+3/2* 20-25
Mixed-grain bread** 200/170 210/170 2 40-50
* In the ECO and hot air circulation modes, you can bake simultaneously on several levels.
** Preheat the appliance to the specified temperature. Switch back to the second temperature
when inserting the food.
Note: the values given above should be looked upon as recommended values. We advise you to always preheat the oven.
For baking yeast dough we recommend the hot air circulation mode.
The recommended mode is printed in bold.
25
Roasting table
* First brown the meat all-round in the casserole on the cooker.
** Brown the meat at a high heat level, switching back to a lower temperature after 15-20 minutes.
*** Cook the meat at a low temperature and set the temperature higher for the last 15-20 minutes.
Note: the values given above should be looked upon as recommended values. We advise you to always preheat the oven.
The recommended mode is printed in bold.
Dish Level Hot air Grill and Top and Cooking Core
hot air bottom heat time temperature
from below Temp. °C Temp. °C Temp. °C minutes sensor
Beef
Roast beef (casserole*)
1,5 kg
2 180 180 60-90
Roast beef rare
1,5 kg** 2 230/180 230/180 45-50 45-50 °C
Roast beef medium
1,5 kg** 2 230/180 230/180 60-70 55-65°C
Roast beef well-done
1,5 kg** 2 230/180 90-100 70-80°C
Pork
Pork roast
1,5 kg** 2 230/180 230/180 60-70 75-80 °C
Pork roast with rind
1,5 kg*** 2 180/200 180/200 60-70 75-80 °C
Smoked pork
1,5 kg** 2 180/160 40-50 65-70°C
Leg of pork*** 2 150/200 150/200 50-60 80-85°C
Collared roast** 2 230/180 230/180 60-70 75-80 °C
Veal
Roast veal** 2 230/180 230/180 60-70 75-80 °C
Leg of veal*** 2 150/180 150/180 50-60 75 °C
Loin of veal 2 160-170 20 70-75°C
Stuffed breast of veal* 2 120-130 120 75-80 °C
26
Roasting table
* First brown the meat all-round in the casserole on the cooker.
** Cook the meat at a low temperature and set the temperature higher for the last 15-20 minutes.
Note: the values given above should be looked upon as recommended values. We advise you to always preheat the oven.
The recommended mode is printed in bold.
Dish Level Hot air Grill and Top and Cooking Core
hot air bottom heat time temperature
from below Temp. °C Temp. °C Temp. °C minutes sensor
Venison
Roast boar (casserole*) 170-180 60-90
Leg of venison (casserole*) 170-180 60-80 75-80 °C
Saddle of venison 2 165-175 170-180 20-25 65-70°C
Leg of lamb (casserole*) 180-200 35-45 65-75 °C
Poultry
Duck
2-3 kg
** 2 160/190 160/190 100-120 80-85 °C
Duck breast 2 160 160 15-20 70 °C
Goose
2-3 kg
** 2 160/190 160/190 100-120 85-90 °C
Turkey
3-4 kg** 2 160/190 160/190 120-180 85-90 °C
Roast chicken 2 180 180 50-60 85 °C
27
Grilling table
Dish Level* Pre- Temp. Grill Grill and hot air Total
heat °C
minutes minutes
cooking
1. side 2. side 1. side 2. side
time[min]
Sliced pork belly 3 X 180-200 6 4 55
Kebab 3 X 190 88
Fried sausage 3 X 200 54
Merguez (grilled sausage) 3 X 200 66
Roast chicken** 2 180 30 30
Leg of chicken 3 X 180 20 20 15 15
Spare ribs 3 X 180-200 15 15 12 12
Leg of pork*** 2 X 150/200 50-60
Trout 3 X 180-200 88
Vegetable kebabs 3 X 200 77
Shrimp kebab 3 X 175 77
Preparing au gratin
Toasted sandwich 3 X 190 5-7
Crème caramel**** 4 250
Crème brulée**** 4 250
Cake with meringue**** 3 X 200
Important: only ever grill with the oven door closed.
You are advised to place the grilling tray in the lowest level to collect dripping fat.
* Level from below
** In the case of appliances featuring a rotary spit, you are advised to use the spit in the grill mode.
*** Do not turn the leg of pork. Set the temperature high for the last 15-20 minutes.
**** You should bake this dish au gratin until it has reached the level of browning you require.
Note: the values given above should be looked upon as recommended values. We advise you to always preheat the oven.
The recommended mode is printed in bold.
5. Tips and tricks
28
Baking
Roasting and grilling
What to do if ... ? The solution !
... a cake baked in a tray is too light at the bottom? Push the cake in deeper and remove all objects from the oven that you do not need.
... a cake baked in a form is too light at the bottom? Do not insert the baking form in the oven on the tray, but on the grid iron.
... a cake/small cakes and pastries are too dark at the bottom? Insert the cake/pastries at a higher level.
... a cake is too dry? Set the oven temperature to a slightly higher value. Preheat the oven.
... a cake is too slippery or doughy on the inside or if meat Set the baking or roasting temperature to a slightly lower value. Important: baking or
is not cooked on the inside? roasting times cannot be shortened by selecting higher temperatures. It is better to
choose a slightly longer baking or roasting time and to allow the dough to bake longer.
... a cake baked with hot air in a form or a rectangular form Do not place the baking form directly in front of the rear wall of the oven, but in the
is too dark at the back? middle.
... a cake sags? Use less fluid the next time or set the oven temperature to a value that is lower by
10 degrees. Pay attention to the stirring times specified in the recipe. Do not open
the oven door too soon.
... a cake has risen in the middle and is lower at the edges? Do not grease the edge of the spring form. After baking, carefully loosen the cake
with a knife.
... a cake is too dark at the top? Push it in deeper, select a lower temperature and bake the cake for a slightly longer
time.
... a cake is too dark at the bottom? Insert it at a higher level and choose a lower temperature the next time.
... a fruit cake is too light at the bottom and the fruit juices The next time, you are best advised to use the deeper universal pan for baking.
spill over?
... a cake is too dry at the bottom? Use a toothpick to make small holes in the finished cake. Then sprinkle fruit juice or
an alcoholic beverage over it. The next time, choose a temperature that is higher by
10 degrees and shorten the baking time.
... bread or a cake looks good from the outside, but is slippery
The next time, use slightly less fluid and bake slightly longer at a lower temperature. In
on the inside (watery stripes)?
the case of cakes with a moist covering, first bake the base, sprinkle almonds or bread-
crumbs over it and then add the covering. Pay attention to recipes and baking times.
...you have baked on several levels and your cakes on the If you select a slightly lower temperature, your cakes and pastries will be browned
top tray are darker than on the bottom one? more evenly. Trays inserted at the same time need not be ready at the same time.
Allow the bottom trays to bake for 5-10 minutes longer and insert them at an appro-
priately earlier time.
... biscuits stick to the tray? Briefly reinsert the tray in the oven and remove the biscuits immediately.
... a cake does not come loose when turned out? Carefully loosen the edge with a knife. Turn out the cake again and cover the
form several times with a cold wet cloth. The next time, grease the form well and
additionally sprinkle breadcrumbs into it.
... a roast has become dark and parts of the crust are burnt? Check the insertion height and the temperature.
... a roast looks good, but the sauce is burnt? The next time, choose a smaller roasting dish and add more fluid.
... a roast looks good, but the sauce is too light and has The next time, choose a larger roasting dish and use less fluid.
become watery?
... the table does not list a weight for the roast? Choose the next lowest weight in the list and prolong the roasting time.
Tips for baking:
– You can use any heat-resistant dishes.
Place dishes in the middle of the grid iron.
You can also use the grilling tray for large roasts.
After removing glass dishes, place them on a dry
kitchen cloth or cooling grill. Do not place them
on a cold or wet support surface. The glass could
crack.
– You are advised to use dark metal baking forms.
You may also use light baking forms in the hot air
mode. In this case, the baking time is longer.
– The values in the cooking tables apply to the
preheated oven. The temperature and duration
depend on the quantity and consistency of the
dough. This is why the tables list temperature
ranges. You are advised to begin with the lowest
temperature the first time. If required, set it
higher the next time. Remember: a lower
temperature ensures more even browning.
– To find out if your cake mixture has baked
properly, insert a wooden stick at the highest
point of the cake around 5-10 minutes before
expiry of the baking time specified in the recipe.
The cake is ready if dough no longer sticks to the
wood.
– In the ECO mode you might notice a slightly
stronger smell with certain foods (for example
yeast dough). In this case it is advisable to use the
normal hot air circulation mode.
Tips for roasting and grilling:
– Before serving, allow the roast to rest for
10 minutes with the oven switched off and closed.
This keeps the roast juicy.
– Always grill in the closed oven. If possible, grilled
pieces should be equally thick, at least 2 to 3 cm.
When this is the case, they will brown evenly and
will stay nice and juicy. Never grill steaks salted!
Place pieces for grilling directly on the grid iron.
– Poultry becomes particularly crispy brown if you
coat it with butter, salt water, dripped-off fat or
orange juice.
– Even sensitive frozen food is thawed gently and
fast. Place the frozen food on the grid iron and
turn the “Temperature" control knob to the “Light"
position. Use the grilling tray to collect the liquid
from thawing.
– When roasting put a little bit of water into the
grilling tray and place it one level below the grid
iron. This ensures that the juices of the meat are
collected and the oven stays clean.
– In the case of duck or goose, pierce the skin
under the wings to allow the fat to drain off.
29
30

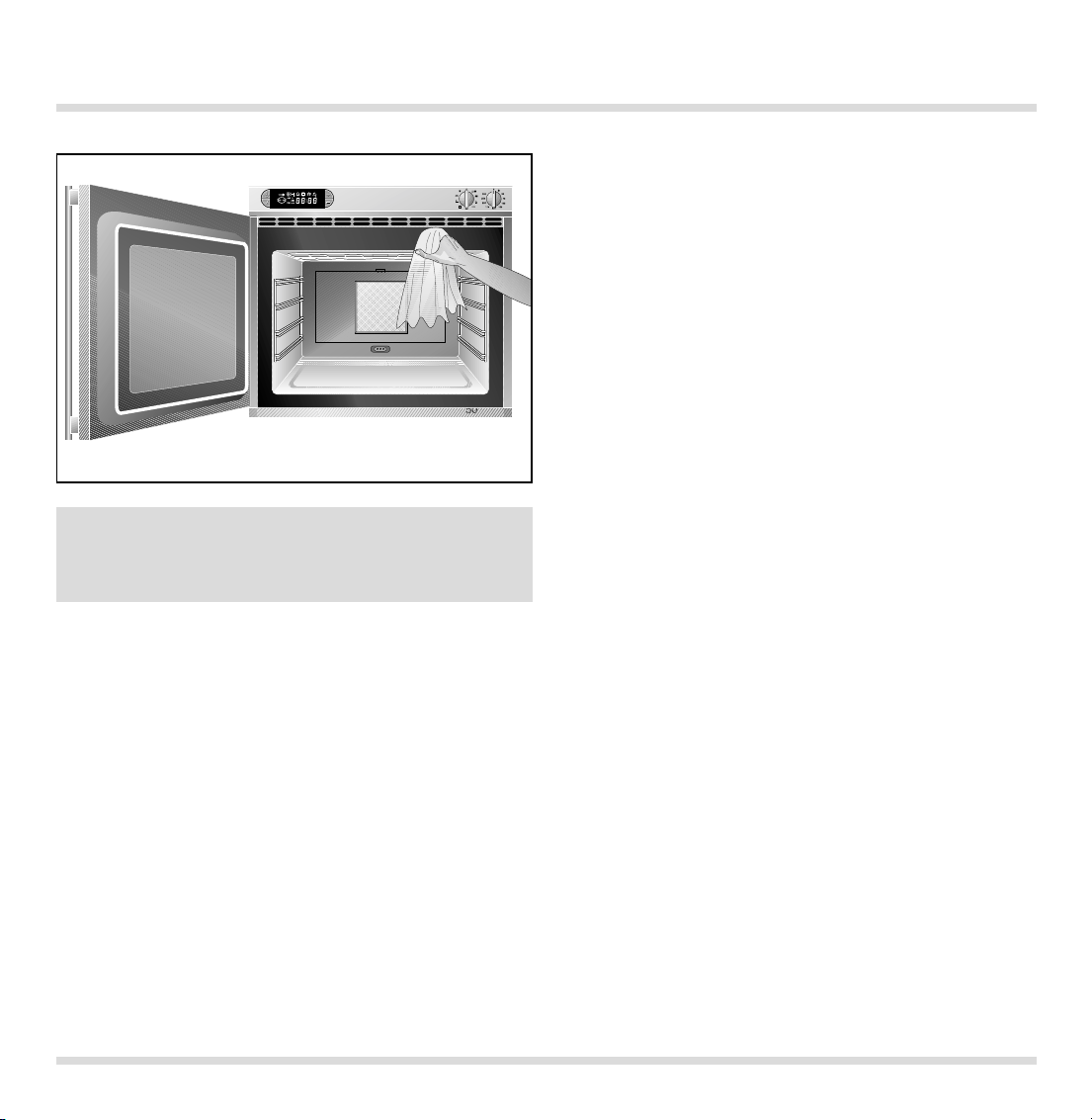

6.1 Manual cleaning
Caution, risk of burns! Wait until the oven has
cooled down to be touched safely before
cleaning.
Do not use any scouring cleaning agents,
aggressive or nitro-polishing agents, scouring
pads or other tools.
Thoroughly clean the appliance before operating it
for the first time and after every use, thus avoiding
the residues baking in. After residues have baked
in several times, they are then difficult to remove.
Clean the oven with hot soapy water while it is still
warm and leave it open to dry. Do not scrape off
baked-in remainders of food. Instead, moisten them
with a wet cloth and detergent.
Fruit juices from moist cakes dripping onto the oven
interior can damage the enamel. Remove such
soiling as soon as the oven has cooled down
sufficiently.
Do not use commercially available oven sprays to
clean the oven.
Clean accessories (baking tray, grid iron and grill
pan) with hot water or detergent.
Clean the control panel, glass surface and
operator controls with a moist cloth and mild
soapy water and dry them with a soft dry cloth.
Do not use any commercially available stainless
steel cleaners or highly alkali cleaners (for example
oven cleaning spray) for the control panel as
these can damage the panel and the printed
symbols. Do not use any abrasive sponges either.
Do not use scouring agents or abrasive sponges to
clean the glass front. Use commercially available
window cleaning detergents and apply them on a
soft, moist cloth or a window leather. Do not spray
onto the control panel.
Cleaning the baking stone (special accessory)
Remove coarse soiling from the baking stone. Turn
the baking stone round before using it again. This
will ensure self-cleaning. Dough residues can then
be removed using a soft brush.
Note: Do not clean the baking stone with water and
detergents.
50
150
175
200
300
250
125
0
100
75
50
Fig. 42
6. Cleaning and care
Note:
Do not use high-pressure or steam jet cleaning
devices to clean the appliance – risk of shortcircuit occurring.
31
6.2 Self-cleaning
In this mode, soiling on the catalytic interior
plates (accessories) combusts at temperatures
around 300°C.
In the event of extreme soiling, coarse greasy
residues must be removed from the oven before
cleaning.
The non-catalytic parts such as the muffle base,
the door inside and the glass pane are not cleaned.
These parts must be cleaned beforehand.
Proceed as follows:
–
Remove all loose inside parts such as the grid
iron or the baking stone from the oven interior.
– Remove the grease filter. Push the grease filter up
and remove it from the oven interior.
– Close the oven door.
– Turn the “Mode" control knob to the (Grilling
with hot air) setting
– Turn the “Temperature" control knob to 300°C.
– Enter a duration (see page 15). We recommend a
time of 1:30 h. You should modify the cleaning
time depending on the degree of soiling. The
setting should be at least 1 hour and no more than
2 hours.
The catalytic cleaning operation begins
immediately after you have set the timer.
The catalytic cleaning operation can also be started
automatically at a later time if you enter a switch-off
time.
You can display the current catalysis time by
pressing the (Timer) key.
Turn the temperature control knob back to the 0
setting after the self-cleaning process has ended.
50
0
Fig. 43
The rear plate is catalytically enamelled.
You can order catalytically enamelled plates for
the sides and top as special accessories.
6.3 Cleaning the grease filter
6.4 Removing the catalytic cleaning
plate (accessory)
You are advised to clean the grease filter after two
roasting operations or after baking if the oven gets
sufficiently soiled. Push the grease filter upwards
and remove it. Clean the grease filter in hot soapy
water or in a dishwasher. If you clean the grease
filter in a dishwasher, place it vertically in the
crockery basket to ensure that no food remainders
will stay on it. After cleaning, hook the grease filter
back onto the rear panel.
If it is only slightly soiled, wash the oven while warm
using hot soapy water and leave it open to dry.
Removing the catalytic cleaning plate:
– Remove the two knurled nuts at the front and rear
of both side panels (Fig. 45).
– Remove the catalytic side plates with the support
grids (Fig. 46). If the catalytic inside plates are
highly soiled, you can clean them in very hot
soapy water with a soft brush.
– Do not use any abrasive or aggressive detergents.
32
Fig. 45
Fig. 46
Fig. 44
33
7.1 General
7.2 Replacing the lamp
The appliance must always be disconnected
from the mains when being repaired.
If the appliance does not function correctly, check
the fuses first.
If the power supply is functioning correctly, but your
appliance still does not work, please contact your
dealer or your local Gaggenau customer service
agency. Specify the appliance type (see rating
plate).
Repairs may only be carried out by authorised
electricians, in order to guarantee the safety of the
appliance.
Unauthorised tampering with the appliance will
invalidate any warranty claims.
You can obtain spare lamps from Gaggenau
Customer Service or a dealer. We recommend that
you use these lamps only. (Order number 157312)
Proceed as follows:
– Disconnect fuses.
– Remove one of the lamp cover screws.
– Swivel the cover to the side.
Caution: the lamp cover may still be hot.
– Push the lamp to the side by about 4-5 mm.
The lamp can now be titled down and removed.
– Insert the lamp in the reverse order. Swivel the
cover back to its original position and screw it
on. (Caution: secure the seal properly!)
7. Maintenance
Note: do not touch the halogen lamp with your
hands. Use a cloth and only touch the edges of the
lamp.
Fig. 47
Fig. 48
7.3 Disassembly of the front window
The oven door is actively ventilated. Dust and
grease particles may therefore settle after some
time. Detach the front window to remove this
soiling.
Proceed as follows:
– Remove the bottom screw from the door handle.
– Remove the top screw from the door handle and
detach the door handle.
– Hold the front window with one hand and lightly
shake the door to and fro. The glass window can
be removed towards you.
You can now clean the front window.
Install in the reverse order. In doing so, make sure
that you first insert the window on the left hinge
side and that you hold it with one hand to stop it
from falling out.
34

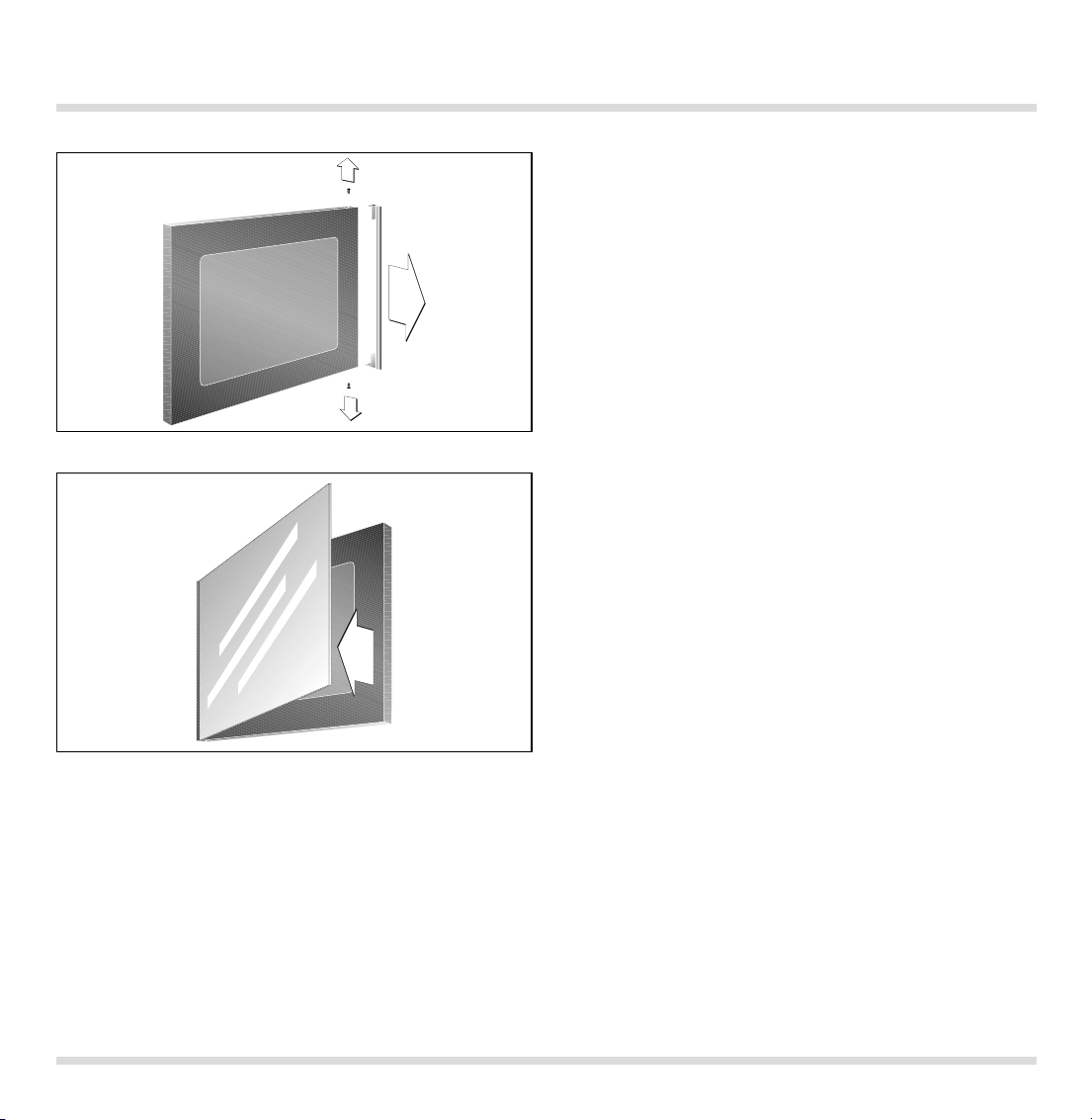

Fig. 49
Fig. 50
35
8.1 Technical data
Rating: 230 V AC, 16 A
Heating power:
Infra-red grill 3100 W
Hot air heating element 2300 W
Top heat 1100 W
Bottom heat 1100 W
Power circuit 3600 W
Dimensions:
Outer 590 x 590 x 550 mm
Inner 460 x 365 x 400 mm
Y
ou can order the following spare parts by stating
the specified numbers:
Baking plate KB 200-046
Grid iron GR 200-046
Grilling tray GP 200-046
Halogen lamp 157312
Core temperature sensor 156838
Technical modifications without notice.
8.2 How to do it
The appliance must only be connected by an
authorised specialist, paying attention to the
relevant regulations of the power supply companies
and the regional construction regulations.
The electrician is responsible for the correct
functioning of the appliance at the time of
installation. He should instruct the user on how to
operate the appliance correctly on the basis of the
Operating Instructions, and the user has to be
instructed on how to disconnect the appliance in an
emergency.
We accept no liability for damage caused by failure
to comply with these instructions.
If it is not possible to disconnect the appliance from
the mains via an easily accessible plug and
permanent cable connection, an isolating switch
with a contact clearance of at least 3 mm must be
fitted on the installation side.
Repairs carried out improperly may involve
substantial risks for you.
Connection to the power mains:
On the top of the appliance there is a cover that has
to be unscrewed. The wiring diagram stuck onto
the top of the appliance shows the connection
variant.
The power mains to which the oven/cooker is to be
connected is fused with 16 A in each phase.
For 230 V only: the oven is connected in one
phase.
For 400 V only: the oven is connected in two
phases, i.e. L1, L2 and N.
The appliance must be earthed.
The manufacturer cannot be held liable for
damages that might arise from improper or nonexistent earthing of the appliance.
Screw the cover back on.
8. Assembly instructions
36 5080007850 en 01.03 SK
Proceed as follows:
– When unpacking the appliance, check it for
transport damage.
– Please remove the transport protection under the
handle, and the adhesive tape which protects the
door during transportation.
– A flexible cable should be used as the mains
lead. The cross-section must be selected
according to the rated current consumption and
the type of connection.
– Push the appliance into the item of furnishing. Use
the included wood screws to firmly bolt it to the
face timber surface of the conversion cabinet on
the handle and hinge side, directly underneath
the bottom panel.
Note: use a spirit level to check that the oven is
installed exactly horizontally.
– After installing, ensure that wires are protected
against contact.
– Check the oven functions correctly.
– Thoroughly clean the appliance and accessories
before using them for the first time.
(see ”Cleaning and Care”)
5
8
5
585
5
6
0
560
min.min.
550550
5
5
0
550
5
8
0
5
3
6
536
4242
5
9
0
590
8585
5
9
0
590
1
0
Fig. 51
GAGGENAU HAUSGERÄTE GMBH
P.O. BOX 10 02 50 · D-80076 MÜNCHEN
Y (089) 45 90-03
FAX (089) 45 90-23 47
www.gaggenau.com
Loading...
