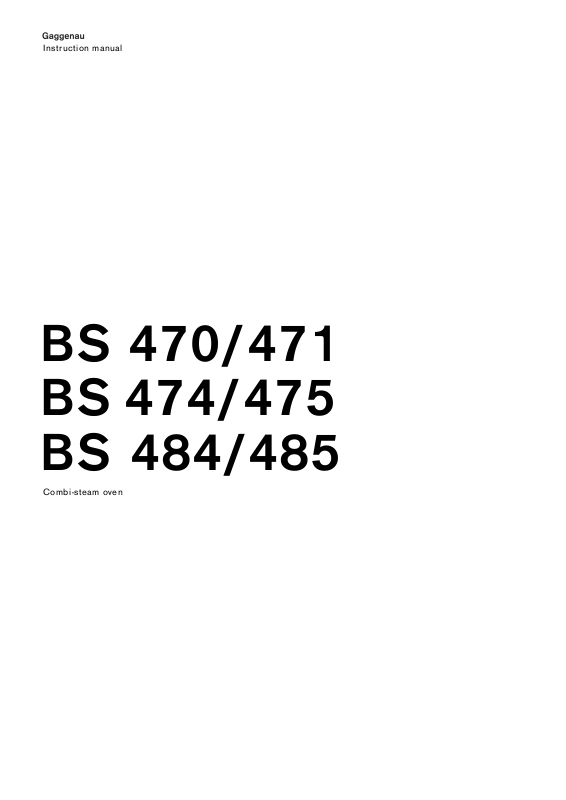

Gaggenau BS484112, BS474112 User Manual

Instruction manual
BS 470/471 BS 474/475 BS 484/485
Combi-steam oven
en
Table of contents
8
Intended use 4
(
Important safety information 5
]
Causes of damage 6
7
Environmental protection 6
Saving energy 6 Environmentally-friendly disposal 6
*
Familiarising yourself with your appliance 7
Steam oven 7 Water tank for descaling programme 7 Display and operating controls 8 Symbols 8 Colours and display 8 Automatic door opening 9 Standby 9 Activating the appliance 9 Additional information ( and ) 9 Cooling fan 9 Drying the cooking compartment 10 Function selector positions 10 Accessories 12 Special accessories 12
K
Before using the appliance for the first time 13
Setting the language 13 Setting the time format 13 Setting the clock 13 Setting the date format 13 Setting the date 13 Setting the temperature unit 13 Setting the water filter 13 Setting the water hardness 14 Ending initial set-up 14 Cleaning the door panel 14 Cleaning accessories 14 Heating up the appliance 14
+
Water filter 14
Operation with or without a water filter 14 Changing the water filter 14
9
Activating the appliance 15
Standby 15 Activating the appliance 15
Steam injection 16 Steam removal 16 After every use 17 Safety shut-off 17
O
Timer functions 17
Calling up the timer menu 17 Timer 17 Stopwatch 18 Cooking time 18 End of cooking time 19
F
Long-term timer 20
Setting the long-term timer 20
A
Childproof lock 21
Activate the child lock 21 Deactivating the child lock 21
n
Automatic programmes 21
Information on the settings 21 Selecting a dish 22 Applying settings for a dish 22 Calling up the last automatic programmes used 22
Ž
Individual recipes 23
Recording a recipe 23 Programming a recipe 23 Entering names 23 Starting recipes 24 Change recipe 24 Deleting recipes 24
@
Core temperature probe 25
Inserting the core temperature probe into the food 25 Setting the core temperature 25 Suggested values for the core temperature 26
o
Home Connect 27
Setting up 27 Remote Start 28 Home Connect settings 29 Remote diagnostics 29 About data protection 30 Declaration of Conformity 30
Q
Basic settings 31
1
Operating the appliance 15
Cooking compartment 15 Inserting accessories 16 Switching on 16 Switching off 16
2
2
Cleaning and maintenance 34
Cleaning agents 34 Cleaning programme 35 Drying programme 37 Descaling programme 37 Removing the wire racks 38
3
What to do in the event of a fault 39
Power cut 40 Demo mode 40
4
After-sales service 41
E number and FD number 41
J
Tables and tips 42
Vegetables 42 Fish 44 Fish – low-temperature steaming 45 Meat – cooking at higher temperatures 46 Meat/poultry – low-temperature cooking 47 Poultry 48 Sous-vide cooking 49 Grilling 52 Side dishes 53 Desserts 53 Miscellaneous 53 Baked items 54 Dough proving (leaving to rise) 55 Regenerating (reheating) 56 Defrosting 57 Preserving 57 Extracting juice (soft fruit) 58 Preparing yoghourt 58 Acrylamide in foodstuffs 59
en
Additional information on products, accessories, replacement parts and services can be found at
www.gaggenau.com and in the online shop www.gaggenau.com/zz/store
3
en Intended use
m 8Intended use
Intended use
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
This appliance is only intended to be fully fitted in a kitchen. Observe the special installation instructions.
Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.
Only a licensed professional may connect appliances without plugs. Damage caused by incorrect connection is not covered under warranty.
Always slide accessories into the cooking compartment correctly. See description of accessories in the instruction manual.
This appliance is intended for domestic use only. The appliance must only be used for the preparation of food and drink. The appliance must be supervised during operation. Only use this appliance indoors.
This appliance is intended for use up to a maximum height of 4000 metres above sea level.
This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards.
Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 15 years old and are being supervised.
Keep children below the age of 8 years old at a safe distance from the appliance and power cable.
4
m (Important safety information
Important safety information
m Warning – Risk of fire!
Combustible items stored in the cooking
compartment may catch fire. Never store combustible items in the cooking compartment. Never open the appliance door if there is smoke inside. Switch off the appliance and unplug it from the mains or switch off the circuit breaker in the fuse box.
Risk of fire!
A draught is created when the appliance
door is opened. Greaseproof paper may come into contact with the heating element and catch fire. Do not place greaseproof paper loosely over accessories during preheating. Always weight down the greaseproof paper with a dish or a baking tin. Only cover the surface required with greaseproof paper. Greaseproof paper must not protrude over the accessories.
m Warning – Risk of burns!
The appliance becomes very hot. Never
touch the interior surfaces of the cooking compartment or the heating elements. Always allow the appliance to cool down. Keep children at a safe distance.
Risk of serious burns!
Accessories and ovenware become very
hot. Always use oven gloves to remove accessories or ovenware from the cooking compartment.
Risk of burns!
Alcoholic vapours may catch fire in the hot
cooking compartment. Never prepare food containing large quantities of drinks with a high alcohol content. Only use small quantities of drinks with a high alcohol content. Open the appliance door with care.
Risk of burns!
Hot steam may escape during operation.
Do not touch the ventilation openings. Keep children away.
Important safety information
m Warning – Risk of scalding!
When you open the appliance door, hot
steam can escape. Steam may not be visible, depending on its temperature. When opening, do not stand too close to the appliance. Open the appliance door carefully. Keep children away.
Risk of scalding!
Hot liquid may spill over the sides of the
accessory when it is removed from the cooking compartment. Remove hot accessories with care and always wear oven gloves.
m Warning – Risk of electric shock!
Incorrect repairs are dangerous. Repairs
may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.
Risk of electric shock and serious injury!
The cable insulation on electrical
appliances may melt when touching hot parts of the appliance. Never bring electrical appliance cables into contact with hot parts of the appliance.
Risk of electric shock!
Do not use any high-pressure cleaners or
steam cleaners, which can result in an electric shock.
Risk of electric shock!
A defective appliance may cause electric
shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.
Risk of electric shock!
The insulation of an incompatible meat
probe may be damaged. Only use the meat probe which is recommended for this appliance.
en
5
en Causes of damage
m Warning – Risk of injury!
The light emitted by LED lights is very dazzling, and can damage the eyes (risk group 1). Do not look directly into the switched on LED lights for longer than 100 seconds.
]
Causes of damage
Causes of damage
Caution!
Do not place anything on the cooking compartment
floor. Do not cover it with aluminium foil. A build-up of heat could damage the appliance. The cooking compartment floor must always be kept clear. Always place ovenware in a perforated cooking container or on a wire rack.
Aluminium foil in the cooking compartment must not
come into contact with the door panel. This could cause permanent discolouration of the door panel.
We recommend you install a descaling system for
hard mains water. You can inquire with your waterworks to obtain information about your mains water.
Ovenware must be heat and steam resistant.
Silicone baking tins are not suitable for combined operation with steam.
Only use original accessories in the cooking
compartment. Do not use any enamelled baking trays or grill trays. Rusting material (e.g. serving plates, cutlery) may lead to corrosion in the cooking compartment.
Use original small parts (e.g. knurled nuts) only.
Order small parts from our after-sales service if these should be lost.
Dripping liquids: When steaming with a perforated
cooking container, always insert the solid cooking container underneath. This catches the liquid that drips down.
Do not store moist food in the closed cooking
compartment for long periods. It can lead to corrosion in the cooking compartment.
Salt, spicy sauces (e.g. ketchup or mustard) or
salted dishes (e.g. cured roast) contain chloride and acids. These corrode the surfaces of stainless steel. Always remove residues immediately.
Fruit juice may leave stains in the cooking
compartment. Always remove fruit juice immediately and wipe the cooking compartment with a moist and dry cloth.
Improper care of the appliance may lead to
corrosion in the cooking compartment. Refer to the care and cleaning instructions in the instruction manual. Clean the cooking compartment each time you use it as soon as the appliance has cooled down. After cleaning the cooking compartment, use the drying programme to dry it.
Do not detach the door seal. The appliance door
will no longer close properly if the door seal is damaged. The fronts of adjacent units could be damaged. Have the door seal replaced.
7
Environmental protection
Environmental protection
Your new appliance is particularly energy-efficient. Here you can find tips on how to save even more energy when using the appliance, and how to dispose of your appliance properly.
Saving energy
Open the appliance door as little as possible while
cooking.
Use dark, black lacquered or enamelled baking tins
for baking. They absorb the heat particularly well.
It is best to bake several cakes one after the other.
The oven will still be hot. This reduces the baking time for the second cake. You can also place two loaf tins next to each other.
For longer cooking times, you can switch off the
steam oven 10 minutes before the end of the cooking time and you can use the residual heat to finish cooking.
When steaming, you can cook simultaneously on
several levels. If dishes require different cooking times, insert the dishes that require the longest time first.
Environmentally-friendly disposal
Dispose of packaging in an environmentally-friendly manner.
This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.
6
*
Familiarising yourself with your appliance
Familiarising yourself with your appliance
Use this section to familiarise yourself with your new appliance. The control panel and the individual operating controls are explained. You will find information on the cooking compartment and the accessories.
Steam oven
#+ C
Familiarising yourself with your appliance
en
3
( Ventilation slots
0 Glass ceramic grilling surface
8 Socket for cleaning cartridge
@ Door seal
H Connection socket for core temperature probe
P Strainer filter
X Water tank for descaling programme
` Recessed door handle
;
Water tank for descaling programme
Your appliance is equipped with a water tank with a maximum capacity of 1.7 litres. If you open the appliance door, you can see the water tank for the descaling programme. The lid can be removed for cleaning. ~ "Descaling programme" on page 37
7
en Familiarising yourself with your appliance
Display and operating controls
These instructions are valid for different versions of the appliance. Depending on the appliance model, some details may differ.
All versions of the appliance are operated in an identical manner.
Operating controls on the upper side of the appliance

Operating controls on the lower side of the appliance
1 Control panel These areas are touch sensitive.
Touch a symbol to select the cor­responding function.
2 Display The display shows, for example,
current settings and options.
3 Rotary selector You can use the rotary selector to
set the temperature and to make further settings.
4 Function selector The function selector is used to
select the type of heating, the cleaning function or the basic set-
--------
tings.
Symbols
Symbol Function
I Start
Ø Stop
H Pause/End
' Cancel Ž Delete Confirm/save settings
C Selection arrow
! Open appliance door ( Call up additional information Rapid heating with status indicator i Calling up automatic programmes or individ-
ual recipes
g Record menu % Edit settings 4 Enter name l Delete letters 0 Child lock
M Call up timer menu
/ Call up long-term timer
° Demo mode
+ Call up core temperature probe ð Misting start ñ Misting stop ¡ Steam removal start ¢ Steam removal stop
E Network connection (Home Connect)
--------
Colours and display
Colours
The different colours are used to guide the user in the relevant setting situations.

8
Orange Initial settings
Main functions
Blue Basic settings
Cleaning
White Values which can be set
Familiarising yourself with your appliance
en
Appearance
Depending on the situation, the appearance of symbols, values or the entire display changes.
Zoom The setting that you are changing
will appear larger on the display.
If you have set a time and it is about to run out, it will appear larger on the display just before it runs out (e.g. 60 seconds before the end, if you have set the timer).
Pared-down
display
After a short while, the amount of information shown on the display will be reduced and only the most important information will remain.This function is pre-set and can be changed in the basic settings.
Activating the appliance
To exit standby mode, you can either
Turn the function selector,
Touch a control panel,
Or open or close the door.
You can now set the desired function. You can read about how to set functions in the respective chapters.
Notes
When "Standby screen = off" is selected in the
basic settings, you must turn the function selector to exit standby mode.
The appliance returns to the standby screen if you
have not made any settings for a long time after activation.
The appliance rinses automatically after every
cooking process. The appliance rinses automatically before each cooking process if it has not been operated for more than 100 hours.
When the door is open, the interior lighting
switches off after a short time.
Automatic door opening
The appliance door springs open when you touch the ! symbol and you can open it fully by using the recessed handle on the side.
Automatic door opening does not work if the child lock is activated or there is a power cut. You can open the recessed handle on the side by hand.
Standby
The appliance switches to standby mode if no function is set or the childproof lock is activated.
The brightness of the control panel is dimmed in standby mode.
Notes
Different things can be displayed in standby mode.
The default setting is the GAGGENAU logo and the time.
The brightness of the display depends on the
vertical viewing angle.
You can change the display and the brightness at
any time in the basic settings. ~ "Basic settings"
on page 31
Additional information ( and )
By touching the ( symbol, you can call up additional information. For example, information on the type of heating set or on the current temperature of the cooking compartment.
Note: During continuous operation after heating up, slight deviations in temperature are normal.
The ) symbol appears for important information and indicates that an action is required. Important information on safety and operating status is also occasionally displayed automatically. These messages disappear automatically after a few seconds or must be confirmed with .
With Home Connect messages, the Home Connect status additionally appears in the ). You will find more information about this in the section entitled ~ "Home
Connect" on page 27
.
Cooling fan
Your appliance has a cooling fan. The cooling fan switches on when the appliance is in operation. The hot air escapes above the door.
After removing your food from the appliance, keep the door closed until the appliance has cooled down. The appliance door must not be left half open as this may damage adjacent kitchen units. The cooling fan continues running for a certain period after the appliance has stopped heating; afterwards, it switches itself off automatically.
9
en Familiarising yourself with your appliance
Caution!
Do not cover the ventilation slots. Otherwise, the appliance may overheat.
Drying the cooking compartment
After operation with a steam function, the cooking compartment is damp. The cooling fan and the fan wheel on the back wall of the cooking compartment continue to run for a while after the appliance is switched off and then switch off automatically. This may take up to 95 minutes. The appliance door must remain closed while the cooking compartment is being dried.
Function selector positions





Position Function/heating function Temperature Application
0 Off position
ž Light Switch on the interior lighting. Access to other func-
2 \
Hot air + 100% humidity
3 ^
Hot air + 80% humidity
4 _
Hot air + 60% humidity
5 `
Hot air + 30% humidity*
6 a
Hot air + 0% humidity
7
Low-temperature cooking
8 §
Sous-vide cooking
* Heating function used to determine the energy efficiency class in accordance with EN 60350-1.
tions, e.g. automatic programmes, individual reci­pes, remote start (Home Connect).
30–230 °C
Default temperature 100 °C
Steaming at 70–100 °C: For vegetables, fish and side dishes.
The food is completely enveloped by steam.
Combination mode at 120–230 °C: For puff pastry, bread and bread rolls.
Hot air and steam are combined.
30–230 °C
Default temperature 170 °C
Combination mode: For puff pastry, meat and poul­try.
Hot air and steam are combined.
30–230 °C
Default temperature 170 °C
Combination mode: For yeast-risen baked goods and bread. Hot air and steam are combined.
30–230 °C
Default temperature 170 °C
Cooking without added liquid: For baked goods.
With this setting, no steam is generated. Any mois­ture escaping from the food remains in the cooking compartment and prevents the food from drying out.
30–230 °C
Default temperature 170 °C
Hot air: For cakes, biscuits and bakes.
The fan in the back panel of the oven distributes the heat evenly throughout the cooking compartment.
30–90 °C
Default temperature 70 °C 50–95 °C
Default temperature 60 °C
Low-temperature cooking for meat.
Gentle slow cooking for a particularly tender result. Cooking under a vacuum at low temperatures
between 50 and 95 °C and 100% steam: Suitable for meat, fish, vegetables and desserts.
A vacuum-sealing machine uses heat to hermeti­cally seal the food in a special heat-resistant cook­ing bag. The protective envelope retains the nutrients and flavours.
10
Familiarising yourself with your appliance
Position Function/heating function Temperature Application
9 b
Full surface grill setting 1 +
30–230 °C
Default temperature 170 °C
Grill mode with humidity: For bakes and gratins.
humidity
10 c
Full surface grill setting 2 +
30–230 °C
Default temperature 170 °C
Grill mode with humidity: For stuffed vegetables.
The grill output is increased.
humidity
11 Z
Full surface grill + air recirculation
12 V
Dough proving
30–230 °C
Default temperature 230 °C
30–50 °C
Default temperature 38 °C
For au gratin dishes at the end of the cooking time at 230 °C. For grilling vegetable skewers and prawn skewers at 180 °C.
Proving: For yeast dough and sourdough.
The dough rises considerably more quickly than at room temperature. Hot air and steam are combined so that the surface of the dough does not dry out.
The optimal temperature setting for yeast dough is 38 °C.
13 W
Defrosting
40–60 °C
Default temperature 45 °C
For vegetables, meat, fish and fruit.
The moisture transfers the heat to the food, gently defrosting it without impairing its quality. The food does not dry out or lose its shape.
14 d
Reheat
60–180 °C
Default temperature 120 °C
For cooked food and baked goods.
Cooked food is gently reheated without affecting its quality. The steam ensures that the food does not dry out.
Reheat plated meals at 120 °C and baked goods at 180 °C.
S t Basic settings Your appliance can be adjusted to your require-
ments in the basic settings.
¢ Cleaning programme The cleaning programme can be used to remove
stubborn dirt from the cooking compartment.
j Drying programme You can dry the cooking compartment quickly, e.g.
after cleaning, using the drying programme.
Descaling programme The descaling programme can be used to remove
limescale from the appliance.
œ Water filter change Change the water filter if a descaling system is
installed.
* Heating function used to determine the energy efficiency class in accordance with EN 60350-1.
en
11
en Familiarising yourself with your appliance
Accessories
Use only the accessories supplied with the product or available from the after-sales service. They are specially designed for your appliance. Ensure that you always insert the accessories into the cooking compartment the right way round.
Your appliance is equipped with the following accessories:
Wire rack for cookware, cake tins and casseroles and for roasts
Cooking container made of stainless steel, unperforated, 40 mm deep
For catching dripping liquid when steaming and for cooking rice, pulses and cereals
Stainless steel cooking container, perforated, 40 mm deep
For steaming vegetables or fish, juicing berries and defrosting
Core temperature probe for precise preparation of meat, fish, poultry and bread
Set with 4 cleaning cartridges
Special accessories
You can order the following special accessories from your specialist dealer:
BA 010 301 Triple telescopic pull-out rack
BA 030 300 Wire rack, with feet
BA 020 360 Container made of stainless steel,
unperforated, 40 mm deep, 5 l
BA 020 370 Stainless steel container, perforated,
40 mm deep, 5 l
BA 020 380 Container, non-stick, unperforated,
40 mm deep, 5 l
BA 020 390 Container, non-stick, perforated,
40 mm deep, 5 l
CL S10 040 Set with 4 cleaning cartridges
CL S30 040 Descaling tablets (set with four
descaling tablets)
GN 010 330 GN adapter
(For use with GN cooking inserts and roasters)
GN 114 130 Stainless steel cooking container
GN 1/3, perforated, 40 mm deep, 1.5 l
GN 114 230 Stainless steel cooking container GN
2/3, unperforated, 40 mm deep, 3 l
GN 124 130 Stainless steel cooking container GN
1/3, perforated, 40 mm deep, 1.5 l
GN 124 230 Stainless steel cooking container
GN 2/3, perforated, 40 mm deep, 3 l
Only use the accessories as specified. The manufacturer accepts no liability if these accessories are used incorrectly.
The non-stick cooking containers must not be heated to more than 230 °C. Use the non-stick cooking container only in the combi-steam oven.
12
Before using the appliance for the first time
en
K
Before using the appliance for the first time
Before using the appliance for the first time
In this section, you can find out what you must do before using your appliance to prepare food for the first time. First read the section entitled ~ "Important
safety information" on page 5
The appliance must be fully installed and connected to the mains.
After connecting the appliance to the power supply, the "Initial settings "menu will be displayed. Now you can now configure your new appliance for initial set-up.
Notes
The "Initial settings" menu will appear only after the
appliance has been connected to a power supply and switched on for the first time, or if the appliance has not been connected to a power supply for a number of days. Once the appliance has been connected to a power supply, the GAGGENAU logo will appear first for approximately 30 seconds. The "Initial settings" menu will then appear automatically.
You can change the settings at any time in the basic
settings. ~
"Basic settings" on page 31
.
Setting the language
Setting the date format
The three possible formats D.M.Y, D/M/Y and M/D/Y appear in the display. The default is the D.M.Y format.
1 Use the rotary selector to select the desired format. 2 Confirm with .
Setting the date
The preset date appears in the display. The day setting is already active.
1 Set the day using the rotary selector. 2 Touch the C symbol to switch to the month setting.
3 Set the month using the rotary selector. 4 Touch the C symbol to switch to the year setting.
5 Set the year using the rotary selector. 6 Confirm with .
Setting the temperature unit
The two possible units °C and °F will appear on the display. The default unit is °C.
1 Use the rotary selector to select the unit you
require.
2 Confirm with .
The preset language appears in the display.
1 Turn the rotary selector to select the required
display language.
2 Confirm with .
Setting the time format
The two possible formats 24h and AM/PM appear in the display. The default is the 24h format.
1 Use the rotary selector to select the desired format. 2 Confirm with .
Setting the clock
The time is shown in the display.
1 Set the desired time using the rotary selector. 2 Confirm with .
Setting the water filter
"Water filter" appears on the display. "Available "is set by default.
If the water hardness exceeds 7°dH or the carbonate hardness exceeds 5°dH, we recommend that you use the descaling system GF 111 100.
1 Use the rotary selector to select either "Available"
(with water filter) or "Not available" (without water filter).
2 Press to confirm.
3 If water filter "Available "was selected:
"Water filter capacity" appears on the display.
4 Use the rotary selector to select the capacity of the
water filter used (100–9000 litres). Observe the information supplied with the water filter.
5 Press to confirm.
13
en Water filter
Setting the water hardness
"Water hardness" appears on the display.
Note: The water hardness display only appears if "Water filter - Not available" is selected.
1 Use the enclosed carbonate hardness test to check
the tap water: Fill the measurement tubing up to the 5 ml fill mark with tap water.
2 Add the indicator solution drop by drop until the
colour changes from purple to yellow. Important: Count the drops and carefully turn the measuring tubing after every single drop until the solution is thoroughly mixed in. The number of droplets corresponds to the water hardness.
3 Using the rotary selector, set the measured water
hardness. The value 12 is set by default.
4 Press to confirm.
Ending initial set-up
"Initial set-up complete" will appear on the display.
Confirm with .
The appliance will switch to standby mode and the standby display will appear. The appliance is now ready to use.
Cleaning the door panel
The door seal has been greased in the factory to make it leaktight. There may be traces of grease left on the door panel.
Clean the door panel with glass cleaner and a window cloth or microfibre cloth before using the appliance for the first time. Do not use glass scrapers.
Cleaning accessories
+
Water filter
Water filter
Operation with or without a water
filter
You can use the appliance with or without a water filter.
If the water hardness exceeds 7°dH or carbonate hardness 5°dH, we recommend the installation of the descaling system GF 111 100.
Changing the water filter
Filter cartridges should be replaced regularly. Replacement cartridges are available from after-sales service or in the online shop (order number GF 121 110).
The capacity of the filter cartridge depends on the frequency of use of the appliance and your regional water hardness. A message will appear in the display to remind you when the filter needs to be replaced. Regardless of the actual amount of water filtered the filter cartridge needs to be changed after 12 months at the latest.
1 Set the function selector to S. Select "Water filter
change" using the rotary selector.
2 The œ symbol is displayed. Confirm with .
3 Change the water filter cartridge. Refer to the
instructions included with the filter cartridge. Confirm with .
4 "Water filter capacity" is shown in the display.
Confirm with .
5 Turn the rotary selector to select the capacity of the
filter cartridge (between 100 - 9000 litres). Confirm with .
The water filter change is complete. Confirm with . The appliance is now ready for operation.
Before using the accessories for the first time, clean them thoroughly using hot detergent solution and a soft cloth.
Heating up the appliance
Make sure that there is no leftover packaging in the cooking compartment.
To eliminate the new-appliance smell, heat up the empty appliance with the door closed. One hour with hot air H + 60% humidity at 200 °C is ideal for this.
14
9
Activating the appliance
Activating the appliance
Standby
Activating the appliance
1
Operating the appliance
Operati ng the appliance
Cooking compartment
en
The appliance switches to standby mode if no function is set or the childproof lock is activated.
The brightness of the control panel is dimmed in standby mode.
Notes
Different displays can be shown in standby mode.
The default setting is the GAGGENAU logo and the time. You can adjust the display using the "Standby screen" setting in the basic settings.~ "Basic
settings" on page 31
The brightness of the display depends on the
vertical viewing angle. You can adjust the display using the "Brightness" setting in the basic settings.
Activating the appliance
To exit standby mode, you can either
The cooking compartment has three rack levels. The rack levels are counted from the bottom up.
Note: When steaming, defrosting, dough proving and reheating, you can use up to three rack levels at a time. Only one level can be used for baking; level 2 is designated for this (or level 1 for deep baking tins). For very small baked goods, you can also use two levels, e.g. level 1 and level 3.
Caution!
Do not place anything directly on the cooking
compartment floor. Do not cover it with aluminium foil. A build-up of heat may damage the appliance. The cooking compartment floor must always be kept clear. Always place cookware in the perforated cooking container or on the wire rack.
Do not slide any accessories between the wire rack
rails, or they may tilt.
Turn the function selector,
Touch a control panel,
Open or close the door.
You can now set the desired function. You can read about how to set functions in the respective chapters.
Notes
When "Standby screen = off" is selected in the
basic settings, you must turn the function selector to exit standby mode.
The appliance returns to the standby screen if you
have not made any settings for a long time after activation.
When the door is open, the interior lighting
switches off after a short time.
15
en Operating the appliance
Inserting accessories
The wire rack and the perforated cooking container are fitted with a locking function. The locking function prevents the accessories from tilting when they are pulled out. The accessories must be correctly inserted into the cooking compartment for the tilt protection to work properly. To pull out the accessories, lift them slightly.
When inserting the wire rack, make sure that
the lug (a) is facing downwards
the safety bar on the wire rack is at the back and
facing upwards.
D
D
Switching off
Turn the function selector to 0.
Depending on the operating mode, you may hear an automatic rinse cycle running.
Steam injection
With steam injection, steam is specifically injected into the cooking compartment. This enables you to bake, e.g. bread and bread rolls, with sufficient moisture.
Steam injection only works with these types of heating:
Hot air + 30% humidity
Hot air + 0% humidity
Full surface grill + air recirculation
To start steam injection, touch the ð symbol. After a short while, steam is injected into the cooking compartment.
Steam is injected for approx. 5 minutes.
When inserting the cooking container, ensure that the lug (a) is facing upwards.
D
D
Switching on
1 Use the function selector to set the required type of
heating. The selected type of heating and recommended temperature appear on the display.
2 If you wish to change the temperature:
Turn the rotary selector to set the desired temperature.
The heat-up symbol appears on the display. The bar shows the current heat-up status. When the set temperature has been reached, an audible signal sounds and the heat-up symbol goes out.
To cancel steam injection: Press the ñ symbol.
Steam removal
During the steam removal process, cold water is introduced into the cooking compartment. This cools the cooking compartment down and the steam condenses on the cooking compartment wall. When you then open the cooking compartment door, only a little steam escapes.
m Warning – Risk of scalding!
After opening the cooking compartment door, hot water may drip down from it.
Steam removal only works with the following types of heating and if the temperature in the cooking compartment is below 130 °C:
Hot air + 100% humidity
Hot air + 80% humidity
Hot air + 60% humidity
Full surface grill Level 1 + humidity
Full surface grill Level 2 + humidity
Sous-vide cooking
Note: The temperature that has been set will be retained when you change to a different operating mode. The suggested temperature does not appear until the appliance has been switched on.
16
Proceed as follows:
Touch the ¡ symbol. Steam removal takes approximately 25 seconds. During this time, the heating is switched off.
Stopping steam removal early: Open the door or touch the ¢ symbol.
Timer functions
en
Notes
The steam removal function is also available for a
short time after switching off the appliance.
Steam removal takes place automatically at the end
of an automatic programme or a timer programme (cooking time).
After every use
1 Remove food remnants from the cooking
compartment surfaces as soon as the appliance has cooled down. Burnt-on remnants will be much harder to remove later.
2 In order to dry the cooking compartment, the
cooling fan and the fan wheel on the back wall of the cooking compartment continue to run for a while after the appliance is switched off. They then switch off automatically. This may take up to 95 minutes. The appliance door must remain closed while the cooking compartment is being dried.
3 If required, you can dry the cooking compartment
quickly using the drying programme. ~ "Drying
programme" on page 37
4 Once the cooking compartment has cooled down,
polish it with a soft cloth.
5 Wipe units and handles dry where condensation
has formed.
O
Timer functions
Timer functions
You use the timer menu to make the following settings:
Š Short-term timer
p Stopwatch
6 Cooking time (not in standby mode)
5 Cooking time end (not in standby mode)
Calling up the timer menu
You can call up the timer menu from any mode. Only from the basic settings, function selector is set to S, the timer menu is not available.
Touch the M symbol.
Safety shut-off
For your protection, the appliance is equipped with an automatic safety shut-off. Any heating process is switched off after 12 hours if the oven is not operated in this time. A message appears in the display.
Exception: The long-term timer has been programmed.
Set the function selector to 0, then the appliance can be operated again as usual.
The timer menu is displayed.
Timer
The timer runs independently of the other appliance functions. You can enter a maximum of 90 minutes.
Setting the timer
1 Call up timer menu.
The "Timer" Š function is displayed.
2 Turn the rotary selector to set the required cooking
time.

6KRUWWHUPWLPHU
3 Start with I.
17
en Timer functions
The timer menu closes and the time begins to count down. The Š symbol and the countdown appear in the display.

A signal sounds once the time has elapsed. Touch the
symbol to silence.
You can exit the timer menu at any time by touching the
' symbol. This erases the settings.
To stop the timer: Call up timer menu. Touch C to select the "Timer" Š function and touch the H symbol. To allow the timer to continue counting down, touch the I symbol.
Switching off the timer early: Call up timer menu. Touch C to select the "Timer" Š function and touch the Ž symbol.
The "Timer" menu is closed and the time starts counting down. The p symbol and the elapsed time are shown in the display.

Pausing and restarting the stopwatch
1 Call up the "Timer" menu. 2 Touch C to select the p "Stopwatch" function. 3 Touch the H symbol.

Stopwatch
The stopwatch runs independently of the other appliance functions.
The stopwatch counts from 0 seconds up to 90 minutes.
It also has a pause function, which enables you to temporarily stop the clock.
Starting the stopwatch
1 Call up the "Timer" menu. 2 Touch C to select the p "Stopwatch" function.

6WRSZDWFK
3 Press I to start.
6WRSZDWFK
The time stops. The symbol changes to I "Start".
4 Press I to start.
The time continues to run. When 90 minutes is reached, the display pulsates and a signal sounds. The signal stops when you touch the symbol. The p symbol in the display goes out. The process has finished.
To switch off the stopwatch: Call up the "Timer" menu. Touch C to select the p "Stopwatch" function and touch the Ž symbol.
Cooking time
If you set a cooking time for your meal, the appliance switches off heating automatically after the selected time.
You can set a cooking time from 1 minute to 23 hours 59 minutes.
Setting a cooking time
You have set the heating mode and temperature and you have placed your dish in the oven.
1 Touch the M symbol. 2 Use C to select the 6 "Cooking time" function.
18
Loading...
+ 42 hidden pages
