Funai DDVR-5800 Service manual

SERVICE MANUAL

Sec. 1: Main Section

I Specifications
I Preparation for Servicing
I Adjustment Procedures
I Schematic Diagrams
I CBA’s
I Exploded views
I Parts List

Sec. 2: Deck Mechanism Section

I Standard Maintenance
I Alignment for Mechanism
I Disassembly/Assembly of Mechanism
I Alignment Procedures of Mechanism
I Deck Exploded Views
I Deck Parts List

DVD PLAYER &

VIDEO CASSETTE RECORDER

DDVR-5800

PAL

MAIN SECTION

DVD PLAYER &

VIDEO CASSETTE RECORDER

DDVR-5800

Sec. 1: Main Section

I Specifications
I Preparation for Servicing
I Adjustment Procedures
I Schematic Diagrams
I CBA’s
I Exploded Views
I Parts List

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1-1

Laser Beam Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2-1

Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3-1

Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4-1

Preparation for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5-1

Cabinet Disassembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6-1

Electrical Adjustment Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7-1

Firmware Renewal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8-1

Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9-1

Function Indicator Symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9-9

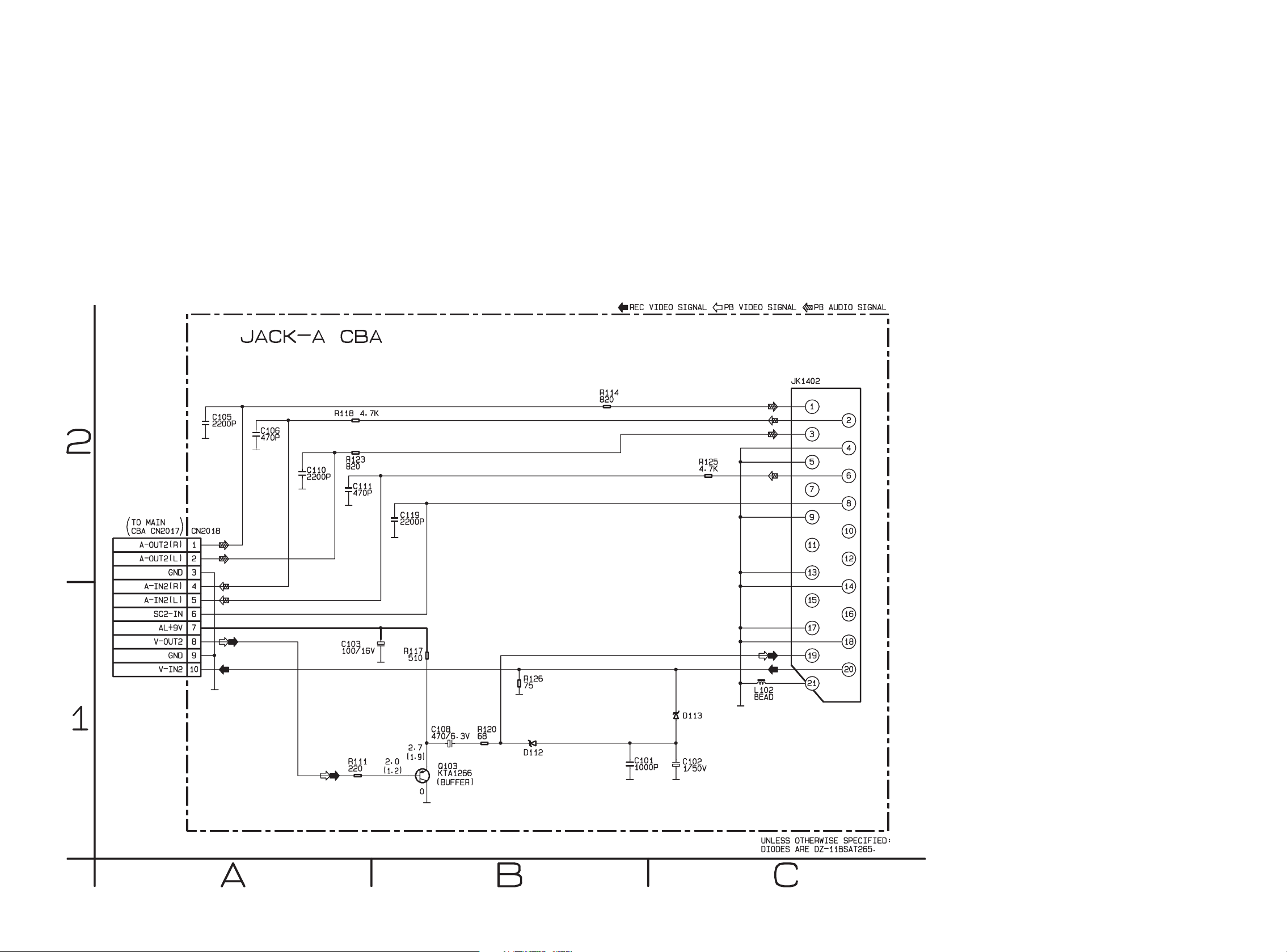

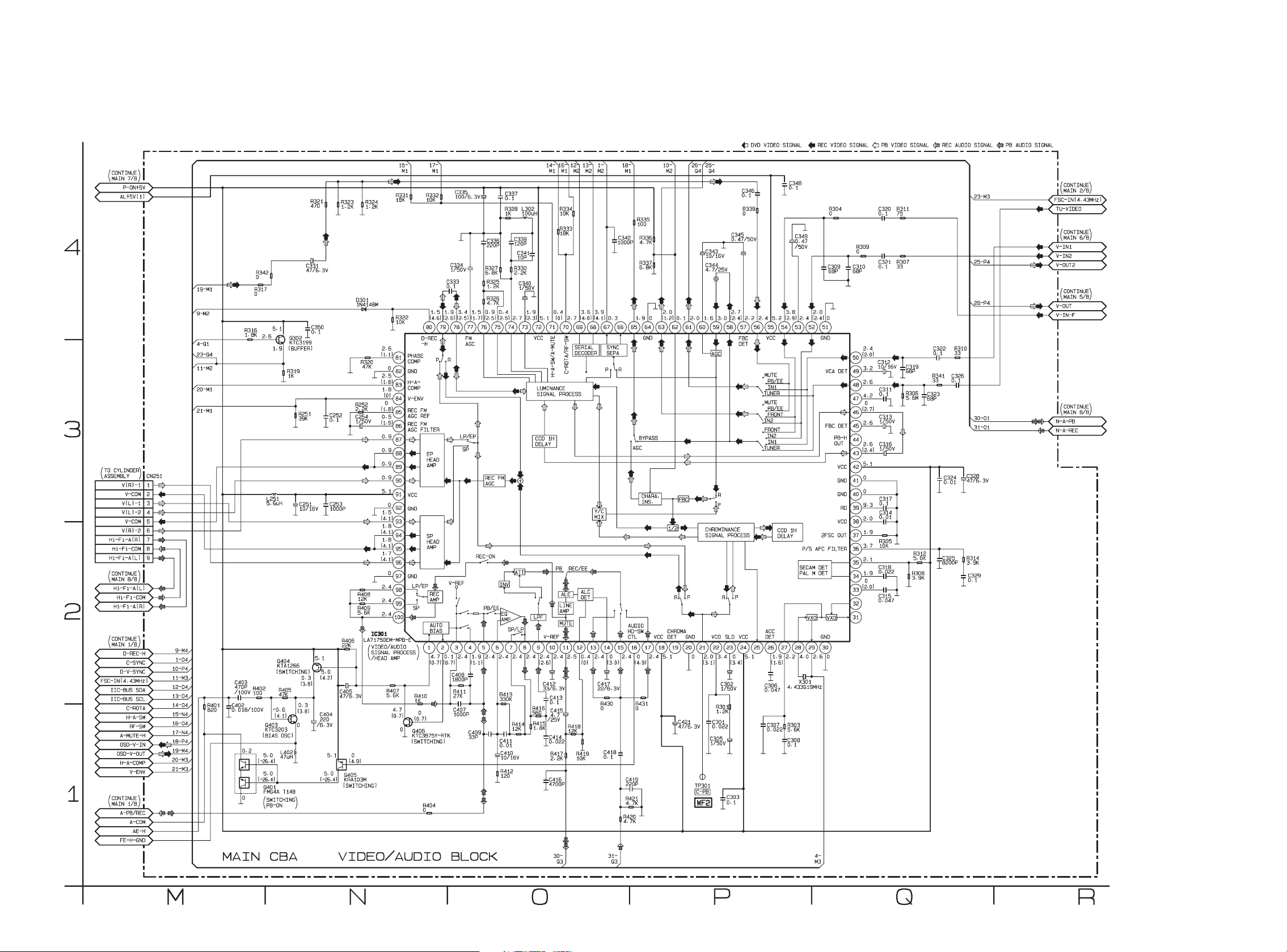

Schematic Diagrams / CBA’s and Test Points. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10-1

Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11-1

Wiring Diagram < VCR Section > . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12-1

Wiring Diagram < DVD Section > . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12-2

IC Pin Function Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13-1

Lead Identifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14-1

Exploded Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15-1

Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16-1

Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-17-1

Manufactured under license from Dolby Laboratories. "Dolby" and
the double-D symbol are trademarks of Dolby Laboratories.

SPECIFICATIONS

< VCR Section >

Description Unit Minimum Nominal Maximum Remark

1. Video

1-1. Video Output (PB) Vp-p 0.8 1.0 1.2 SP Mode

1-2. Video Output (R/P) Vp-p 0.8 1.0 1.2

1-3. Video S/N Y (R/P) dB 40 45

1-4. Video Color S/N AM (R/P) dB 37 41 SP Mode

1-5. Video Color S/N PM (R/P) dB 30 36 SP Mode

1-6. Resolution (PB) Line 230 245 SP Mode

2. Servo

2-1. Jitter Low µsec 0.07 0.12 SP Mode

2-2. Wow & Flutter % 0.3 0.5 SP Mode

3. Normal Audio

3-1. Output (PB) dBV -9 -4 -3 SP Mode

3-2. Output (R/P) dBV -9 -4 -1.5 SP Mode

3-3. S/N (R/P) dB 36 41 SP Mode

3-4. Distortion (R/P) % 1.0 4.0 SP Mode

3-5. Freq. resp (R/P) at 200Hz dB -6 -2 SP Mode

(-20dB ref. 1kHz) at 8kHz dB -8 -2 SP Mode

SP Mode,

W/O Burst

4. Tuner

4-1. Video output Vp-p 0.8 1.0 1.2 E-E Mode

4-2. Video S/N dB 39 44 E-E Mode

4-3. Audio output dB -10 -6 -2 E-E Mode

4-4. Audio S/N dB 40 46 E-E Mode

5. Hi-Fi Audio

5-1. Output dBV -12 -9 -4 SP Mode

5-2. Dynamic Range dB 70 85 SP Mode

5-3. Freq. resp (6dB B.W) Hz 20 ~ 20K SP Mode

Note: Nominal specs represent the design specs. All units should be able to approximate these – some will exceed
and some may drop slightly below these specs. Limit specs represent the absolute worst condition that still might
be considered acceptable; In no case should a unit fail to meet limit specs.

1-1-1 H9700SP

< DVD Section >

ITEM CONDITIONS UNIT NOMINAL LIMIT

1. Video Output 75 ohm load Vpp 1.0 ± 0.1

2. Optical Digital Out dBm -18

3. Audio (PCM)

3-1. Output Level 1 kHz 0 dB Vrms 2.0

3-2. S/N dB 90

3-3. Freq. Response

DVD fs = 48 kHz ± 0.5dB Hz 20~22 k

CD fs = 44.1 kHz ± 0.5dB Hz 20~20 k

3-4. THD+N

DVD 1 kHz 0dB % 0.01

CD 1 kHz 0dB % 0.01

NOTES:

1. All Items are measured without pre-emphasis unless otherwise specified.

2. Power supply : 220 - 240 V ~ 50 Hz

3. Load imp. : 100 k ohm

4. Ambient temperature : 5

°C ~ 40 °C

1-1-2 H9700SP

LASER BEAM SAFETY PRECAUTIONS

This DVD player uses a pickup that emits a laser beam.

Do not look directly at the laser beam coming
from the pickup or allow it to strike against your
skin.

The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep
your eyes at least 30cm away from the pickup lens when the diode is turned on. Do not look directly at the laser
beam.

Caution: Use of controls and adjustments, or doing procedures other than those specified herein, may result in
hazardous radiation exposure.

Drive Mecha Assembly

Laser Beam Radiation

Laser Pickup

Turntable

1-2-1 E5P_LASER

IMPORTANT SAFETY PRECAUTIONS

Product Safety Notice

Some electrical and mechanical parts have special
safety-related characteristics which are often not evi­dent from visual inspection, nor can the protection they
give necessarily be obtained by replacing them with
components rated for higher voltage, wattage, etc.
Parts that have special safety characteristics are iden­tified by a ! on schematics and in parts lists. Use of a
substitute replacement that does not have the same
safety characteristics as the recommended replace­ment part might create shock, fire, and/or other haz­ards. The Product’s Safety is under review
continuously and new instructions are issued when­ever appropriate. Prior to shipment from the factory,
our products are carefully inspected to confirm with
the recognized product safety and electrical codes of
the countries in which they are to be sold. However, in
order to maintain such compliance, it is equally impor­tant to implement the following precautions when a set
is being serviced.

Precautions during Servicing

A. Parts identified by the ! symbol are critical for

safety. Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations
applying to spurious radiation. These must also be
replaced only with specified replacements.
Examples: RF converters, RF cables, noise block­ing capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1)Wires covered with PVC tubing

2)Double insulated wires

3)High voltage leads

D. Use specified insulating materials for hazardous

live parts. Note especially:

1)Insulation tape

2)PVC tubing

3)Spacers

4)Insulators for transistors

E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before solder­ing.

F. Observe that the wires do not contact heat produc-

ing parts (heatsinks, oxide metal film resistors, fus­ible resistors, etc.).

G. Check that replaced wires do not contact sharp

edges or pointed parts.

H. When a power cord has been replaced, check that

5 - 6 kg of force in any direction will not loosen it.

I. Also check areas surrounding repaired locations.

J. Be careful that foreign objects (screws, solder

droplets, etc.) do not remain inside the set.

K. Crimp type wire connector

The power transformer uses crimp type connectors
which connect the power cord and the primary side
of the transformer. When replacing the transformer,
follow these steps carefully and precisely to prevent
shock hazards.
Replacement procedure

1)Remove the old connector by cutting the wires at a
point close to the connector.

Important: Do not re-use a connector. (Discard it.)

2)Strip about 15 mm of the insulation from the ends
of the wires. If the wires are stranded, twist the
strands to avoid frayed conductors.

3)Align the lengths of the wires to be connected.
Insert the wires fully into the connector.

4)Use a crimping tool to crimp the metal sleeve at its
center. Be sure to crimp fully to the complete clo­sure of the tool.

L. When connecting or disconnecting the internal

connectors, first, disconnect the AC plug from the
AC outlet.

1-3-1 DVD_SFNP

Safety Check after Servicing

Examine the area surrounding the repaired location for
damage or deterioration. Observe that screws, parts,
and wires have been returned to their original posi­tions. Afterwards, do the following tests and confirm
the specified values to verify compliance with safety
standards.

1. Clearance Distance

When replacing primary circuit components, confirm
specified clearance distance (d) and (d’) between sol­dered terminals, and between terminals and surround­ing metallic parts. (See Fig. 1)

Table 1 : Ratings for selected area

AC Line Voltage Clearance Distance (d), (d’)

220 to 240 V

Note: This table is unofficial and for reference only.

Be sure to confirm the precise values.

≥ 3 mm(d)

≥ 6 mm(d’)

2. Leakage Current Test

Confirm the specified (or lower) leakage current
between B (earth ground, power cord plug prongs)
and externally exposed accessible parts (RF termi­nals, antenna terminals, video and audio input and
output terminals, microphone jacks, earphone jacks,
etc.) is lower than or equal to the specified value in the
table below.

Measuring Method (Power ON) :

Insert load Z between B (earth ground, power cord
plug prongs) and exposed accessible parts. Use an
AC voltmeter to measure across the terminals of load
Z. See Fig. 2 and the following table.

Chassis or Secondary Conductor

Primary Circuit Terminals

dd'

Exposed Accessible Part

Z

One side of

B

Power Cord Plug Prongs

AC Voltmeter
(High Impedance)

Fig. 1

Fig. 2

Table 2: Leakage current ratings for selected areas

AC Line Voltage Load Z Leakage Current (i)

2kΩ RES.

Connected in

220 to 240 V

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

parallel

50kΩ RES.

Connected in

parallel

i≤0.7mA AC Peak

i≤2mA DC

i≤0.7mA AC Peak

i≤2mA DC

1-3-2 DVD_SFNP

One side of power cord plug

prongs (B) to:

RF or

Antenna terminals

A/V Input, Output

STANDARD NOTES FOR SERVICING

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is indi­cated as shown.

Top View

Input

Out

2. For other ICs, pin 1 and every fifth pin are indicated
as shown.

In

Pin 1

3. The 1st pin of every male connector is indicated as
shown.

Bottom View

5

10

Pb (Lead) Free Solder

When soldering, be sure to use the Pb free solder.

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:.

(1) Prepare the hot-air flat pack-IC desoldering

machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)

Fig. S-1-1

Pin 1

Instructions for Connectors

1. When you connect or disconnect the FFC (Flexible
Foil Connector) cable, be sure to first disconnect
the AC cord.

2. FFC (Flexible Foil Connector) cable should be
inserted parallel into the connector, not at an angle.

FFC Cable

Connector

CBA

(2) Remove the flat pack-IC with tweezers while apply-

ing the hot air.

(3) Bottom of the flat pack-IC is fixed with glue to the

CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

(4) Release the flat pack-IC from the CBA using twee-

zers. (Fig. S-1-6)

Caution:

1. The Flat Pack-IC shape may differ by models. Use
an appropriate hot-air flat pack-IC desoldering
machine, whose shape matches that of the Flat
Pack-IC.

2. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage to
the chip parts may occur. Put masking tape around
the flat pack-IC to protect other parts from damage.
(Fig. S-1-2)

* Be careful to avoid a short circuit.

1-4-1 DVD_NOTE

3. The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when removing
it.

Hot-air
Flat Pack-IC
Desoldering
Machine

CBA

With Soldering Iron:

(1) Using desoldering braid, remove the solder from all

pins of the flat pack-IC. When you use solder flux
which is applied to all pins of the flat pack-IC, you
can remove it easily. (Fig. S-1-3)

Flat Pack-IC

Desoldering Braid

Masking
Tape

Tweezers

Flat Pack-IC

Fig. S-1-2

Soldering Iron

Fig. S-1-3

(2) Lift each lead of the flat pack-IC upward one by

one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)

Sharp
Pin

Fine Tip
Soldering Iron

Fig. S-1-4

(3) Bottom of the flat pack-IC is fixed with glue to the

CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

(4) Release the flat pack-IC from the CBA using twee-

zers. (Fig. S-1-6)

With Iron Wire:

(1) Using desoldering braid, remove the solder from all

pins of the flat pack-IC. When you use solder flux
which is applied to all pins of the flat pack-IC, you
can remove it easily. (Fig. S-1-3)

(2) Affix the wire to a workbench or solid mounting

point, as shown in Fig. S-1-5.

(3) While heating the pins using a fine tip soldering

iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA contact
pads as shown in Fig. S-1-5

1-4-2 DVD_NOTE

(4) Bottom of the flat pack-IC is fixed with glue to the

CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

(5) Release the flat pack-IC from the CBA using twee-

zers. (Fig. S-1-6)

Note:

When using a soldering iron, care must be taken
to ensure that the flat pack-IC is not being held by
glue. When the flat pack-IC is removed from the
CBA, handle it gently because it may be damaged
if force is applied.

2. Installation

(1) Using desoldering braid, remove the solder from

the foil of each pin of the flat pack-IC on the CBA so
you can install a replacement flat pack-IC more
easily.

(2) The “I” mark on the flat pack-IC indicates pin 1.

(See Fig. S-1-7.) Be sure this mark matches the 1
on the PCB when positioning for installation. Then
presolder the four corners of the flat pack-IC. (See
Fig. S-1-8.)

(3) Solder all pins of the flat pack-IC. Be sure that none

of the pins have solder bridges.

To Solid
Mounting Point

CBA

Hot Air Blower

Iron Wire

Soldering Iron

Fig. S-1-5

Fine Tip
Soldering Iron

Example :

or

Pin 1 of the Flat Pack-IC
is indicated by a " " mark.

Fig. S-1-7

Presolder

Flat Pack-IC

CBA

Fig. S-1-8

Tweezers

Flat Pack-IC

Fig. S-1-6

1-4-3 DVD_NOTE

Instructions for Handling
Semi-conductors

Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by electro­static charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1MΩ) that is prop­erly grounded to remove any static electricity that may
be charged on the body.

2. Ground for Workbench

(1) Be sure to place a conductive sheet or copper plate

with proper grounding (1MΩ) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body ground­ing band, be careful to avoid contacting semi-con­ductors with your clothing.

< Incorrect >

< Correct >

1MΩ

CBA

Grounding Band

1MΩ

CBA

Conductive Sheet or
Copper Plate

1-4-4 DVD_NOTE

PREPARATION FOR SERVICING

How to Enter the Service Mode

About Optical Sensors

Caution:

An optical sensor system is used for the Tape Start
and End Sensors on this equipment. Carefully read
and follow the instructions below. Otherwise the unit
may operate erratically.

What to do for preparation

Insert a tape into the Deck Mechanism Assembly and
press the PLAY button. The tape will be loaded into
the Deck Mechanism Assembly. Make sure the power
is on, connect TP501 (S-INH) to GND. This will stop
the function of Tape Start Sensor, Tape End Sensor
and Reel Sensors. (If these TPs are connected before
plugging in the unit, the function of the sensors will
stay valid.) See Fig. 1.

Note: Because the Tape End Sensors are inactive, do
not run a tape all the way to the start or the end of the
tape to avoid tape damage.

Q503

TP501 S-INH

Q504

Fig. 1

1-5-1 H9700PFS

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps to gain
access to item(s) to be serviced. When reassembling,
follow the steps in reverse order. Bend, route, and
dress the cables as they were originally.

[1] Top Case

[2] Front Assembly

[3] Top Bracket

[4] DVD Mecha Assembly [8] DVD Main CBA Unit

[5] Partition Plate

[6] Power Supply CBA

[7] Loader Holder

[9] VCR Chassis Unit

[10] Deck Assembly

[11] DVD Open/Close CBA

REMOVAL

ID/

LOC.

No.

[8]

[9]

[10]

[11]

[12] Main CBA D6 ---------- -

[13]

PAR T

DVD Main
CBA Unit

VCR
Chassis
Unit

Deck
Assembly

DVD
Open/
Close
CBA

Jack-A
CBA

REMOVE/*UNHOOK/

Fig.

UNLOCK/RELEASE/

No.

UNPLUG/DESOLDER

2(S-7), *CN201,

D4

*CN301

5(S-8), 2(S-9), (S-10),

D5

(L-3)

Desolder,

D6

2(S-11), (S-12)

D6 Desolder -

D6 Desolder, 6(S-13) -

Note

2
2-1
2-2

3

-

4,5

[12] Main CBA

[13] Jack-A CBA

2. Disassembly Method

REMOVAL

ID/

LOC.

No.

[1] Top Case D1 8(S-1) -

[2]

[3]

[4]

[5]

PAR T

Front
Assembly

Top
Bracket

DVD
Mecha
Assembly

Partition
Plate

REMOVE/*UNHOOK/

Fig.

UNLOCK/RELEASE/

No.

UNPLUG/DESOLDER

D2 *3(L-1), *3(L-2)

D2 3(S-2) -

4(S-3), *CN401,

D3

*CN601

D3 (S-4) -

Note

1
1-1
1-2

-

↓

(1)

Note:

(1): Identification (location) No. of parts in the figures
(2): Name of the part
(3): Figure Number for reference
(4): Identification of parts to be removed, unhooked,

unlocked, released, unplugged, unclamped, or
desoldered.
P=Spring, L=Locking Tab, S=Screw,
CN=Connector
*=Unhook, Unlock, Release, Unplug, or Desolder
e.g. 2(S-2) = two Screws (S-2),
2(L-2) = two Locking Tabs (L-2)

(5): Refer to “Reference Notes.”

↓

(2)

↓

(3)

↓

(4)

↓

(5)

[6]

[7]

Power
Suppy
CBA

Loader
Holder

D3 2(S-5), CN501 -

D3 2(S-6) -

1-6-1 H97A1DC

Reference Notes

CAUTION 1: Locking Tabs (L-1) and (L-2) are fragile.
Be careful not to break them.

1-1. Release three Locking Tabs (L-1).

1-2. Release three Locking Tabs (L-2), then remove

the Front Assembly.

CAUTION 2: Electrostatic breakdown of the laser
diode in the optical system block may occur as a
potential difference caused by electrostatic charge
accumulated on cloth, human body etc, during
unpacking or repair work.

To avoid damage of pickup follow next procedures.

2-1. Disconnect Connector (CN301). Remove a

Screw (S-7) and lift the DVD Main CBA Unit. (Fig.
D4)

2-2. Short the three short lands of FPC cable with sol-

der before removing the FFC cable (CN201) from
it. If you disconnect the FFC cable (CN201), the
laser diode of pickup will be destroyed. (Fig. D4)

CAUTION 3: When reassembling, confirm the FFC
cable (CN201) is connected completely. Then remove
the solder from the three short lands of FPC cable.
(Fig. D4)

4. When reassembling, solder wire jumpers as shown
in Fig. D6.

5. Before installing the Deck Assembly, be sure to
place the pin of LD-SW on Main CBA as shown in
Fig. D6. Then, install the Deck Assembly while
aligning the hole of Cam Gear with the pin of LD­SW, the shaft of Cam Gear with the hole of LD-SW
as shown in Fig. D6.

(S-1)

(L-1)

(S-1)

[1] Top Case

(S-1)

(S-1)

Fig. D1

(S-2)

[3] Top Blacket

(S-2)

(L-1)

[2] Front

(L-2)

Assembly

Fig. D2

1-6-2 H97A1DC

[4] DVD Mecha
Assembly

[5] Partition Plate

(S-6)

[7] Loader
Holder

(S-3)

CN501

CN401

CN601

(S-4)

[6] Power
Supply CBA

(S-3)

(S-5)

(S-3)

(S-8)

(S-8)

(S-10)

(S-9)

(S-8)

(S-9)

[9] VCR Chassis Unit

(L-3)

(S-7)

[8] DVD Main
CBA Unit

CN301

A

DVD Mecha

Short the three short lands by soldering.
(Either of two places.)

Fig. D5

Fig. D3

(S-7)

CN201

Connector

View for A

Fig. D4

1-6-3 H97A1DC

[10] Deck
Assembly

FE Head

Cylinder
Assembly

ACE Head
Assembly

Pin

[12] Main CBA

[11] DVD
Open/Close CBA

(S-11)

Lead with blue stripe

[13] Jack-A CBA

(S-11)

Desolder
from bottom

(S-12)

Desolder

Lead with
blue stripe

(S-13)

(S-13)

From
ACE Head
Assembly

[12] Main CBA

[10] Deck Assembly

Shaft

Hole

LD-SW

Lead with
blue stripe

Lead with
blue stripe

From
Cylinder
Assembly

Desolder

From
FE Head

SW507
LD-SW

Cam Gear

Hole

Pin

[12] Main CBA

Lead with
red stripe

Desolder

Printing side
From
Capstan
Motor
Assembly

Desolder

BOTTOM VIEW

Lead connections of Deck Assembly and Main CBA

1-6-4 H97A1DC

Fig. D6

HOW TO EJECT MANUALLY

1. Remove the Top Case.

2. Rotate the roulette in the direction of the arrow as
shown below.

3. Pull the tray slowly with a hand.

View for A

Rotate this roulette in
the direction of the arrow

DVD Mecha

A

1-6-5 H97A1DC

ELECTRICAL ADJUSTMENT INSTRUCTIONS

c

General Note: "CBA" is an abbreviation for
"Circuit Board Assembly."

NOTE:

1.Electrical adjustments are required after replacing

circuit components and certain mechanical parts.
It is important to do these adjustments only after
all repairs and replacements have been com­pleted. Also, do not attempt these adjustments
unless the proper equipment is available.

2.To perform these alignment / confirmation proce-

dures, make sure that the tracking control is set in
the center position: Press either "CHANNEL L5??" or
"CHANNEL K" button on the front panel first, then
the "PLAY" button on the front panel.

CH1

CH2

Figure 1

EXT. Syncronize Trigger Point

1.0H

6.5H±1H (412.7µs±63.5µs)

Switching Pulse

0.5H
V-Syn

Test Equipment Required

1.Oscilloscope: Dual-trace with 10:1 probe,
V-Range: 0.001~50V/Div.,
F-Range: DC~AC-20MHz

2.Alignment Tape (FL6A)

Head Switching Position Adjustment

Purpose:

To determine the Head Switching position during
playback.

Symptom of Misadjustment:

May cause Head Switching noise or vertical jitter
in the picture.

Test point Adj.Point Mode Input

TP751(V-OUT)

TP504(RF-SW)

GND

Tape

FL6A Oscilloscope

VR501

(Switching Point)

(MAIN CBA)

Measurement

Equipment

PLAY

(SP)

6.5H±1H

(412.7µs±63.5µs)

-----

Spec.

Reference Notes:

Playback the Alignment tape and adjust VR501 so that
the V-sync front edge of the CH1 video output wave­form is at the 6.5H±1H (412.7µs±63.5µs) delayed
position from the rising edge of the CH2 head switch­ing pulse waveform.

Connections of Measurement Equipment

Oscilloscope

TP751

Main CBA

GND

TP504

CH1 CH2
Trig. (+)

1-7-1 H9700EA

FIRMWARE RENEWAL MODE

1. Turn the power on and remove the disc on the tray.

2. To put the DVD player into version up mode, press
[9], [8], [7], [6], and [SEARCH MODE] buttons on
the remote control unit in that order. The tray will
open automatically.
Fig. a appears on the screen and Fig. b appears on
the VFD.

"

" differ depending on the models.

*******

F/W Version Up Mode Model No : *******

Please insert a DISC

for F/W Version Up.

VERSION : *.**

EXIT: POWER

Fig. a Version Up Mode Screen

Fig. b VFD in Version Up Mode

The DVD player can also enter the version up
mode with the tray open. In this case, Fig. a will be
shown on the screen while the tray is open.

3. Load the disc for version up.

4. The DVD player enters the F/W version up mode
automatically. Fig. c appears on the screen and
Fig. d appears on the VFD. If you enter the F/W for
different models, “Disc Error” will appear on the
screen, then the tray will open automatically.

"

" differ depending on the models.

*******

F/W Version Up Mode Model No : *******

VERSION : D5****_****.ab5
Reading...(*2)

VERSION : *.**

5. After programming is finished, the tray opens auto­matically. Fig. e appears on the screen and the
checksum in (*3) of Fig. e appears on the VFD.
(Fig. f)

"

" differ depending on the models.

*******

F/W Version Up Mode

VERSION : D5****_****.ab5
Completed

SUM : 7ABC (*3)

Model No : *******
VERSION : *.**

Fig. e Completed Program Mode Screen

Fig. f VFD upon Finishing the Programming Mode (Example)

At this time, no buttons are available.

6. Remove the disc on the tray.

7. Unplug the AC cord from the AC outlet. Then plug it
again.

8. Turn the power on by pressing the [POWER] button
and the tray will close.

9. Press [1], [2], [3], [4], and [DISPLAY] buttons on the
remote control unit in that order.
Fig. g appears on the screen.

"

" differ depending on the models.

*******

MODEL : *******

Version
Region

: *.**

: *

Fig. c Programming Mode Screen

Fig. d VFD in Programming Mode (Example)

The appearance shown in (*2) of Fig. c is
described as follows:

AppearanceNo. State

Reading... Sending files into the memory

1

Erasing... Erasing previous version data

2

Programming...

3 Writing new version data

EXIT: POWEREEPROM CLEAR : CLEAR

Fig. g

10.Press [CLEAR] button on the remote control unit.
Fig. h appears on the screen.

"

" differ depending on the models.

*******

MODEL : *******

Version
Region

: *.**

: *

EXIT: POWEREEPROM CLEAR : CLEAR

EEPROM CLEAR : OK

Fig. h

When “OK” appears on the screen, the factory
default will be set. Then the firmware renewal mode
is complete.

11.To exit this mode, press [POWER] button.

1-8-1 H9700TEST

BLOCK DIAGRAMS <VCR SECTION>

Servo/System Control Block Diagram

TO Hi-Fi AUDIO

TO AUDIO

BLOCK DIAGRAM

BLOCK DIAGRAM

TO VIDEO

BLOCK DIAGRAM

TO DVD SYSTEM

CONTROL BLOCK

DIAGRAM

<DVD SECTION>

KEY SWITCH

TP501

SENS-INH

KEY SWITCH

7

8

KEY- 1

KEY- 2

ST-S

CTL(+)

CTL(-)

LD-SW

IC501

(SERVO/SYSTEM CONTROL)

9

949510480

MAIN CBA

T-REEL

END-S

D505 POWER

Q507

23

POWER-LED

S-REEL79

Q515

SDA

IC502 (MEMORY)

5

DVD

D502

Q508

29

DVD-LED

RESET

34

RESET

TIMER+5V

SCL

6

VCR

D503

Q509

30

VCR-LED

REMOTE-VIDEO

A-MUTE-H

IIC-BUS SCL

IIC-BUS SDA

IIC-BUS SDA

AL+5V

83

A-MUTE-H

REMOTE-VIDEO

DRV-DATA

DRV-STB

DRV-CLK

14

68

69

70

DISPLAY-DATA

DISPLAY-STB

DISPLAY-CLK

A-MODE

Hi-Fi-H-SW

IIC-BUS SCL

OUTPUT SELECT

32

19

A-MODE

Hi-Fi-H-SW

LINE-MUTE

28

LINE-MUTE

TP503

AL+5V

CTL97

CTL

RF-SW

D-REC-H

IIC-BUS SCL

IIC-BUS SDA

71

72

D-REC-H

IIC-BUS SCL

IIC-BUS SDA

REC-SAF-SW

PG-DELAY

2

31

AL+5V

VR501

SW-POINT

C-ROTA

D-V-SYNC

13

151833

RF-SW

C-ROTA

D-V-SYNC

SW506

REC-SAFETY

V-ENV

H-A-SW

H-A-COMP

OUTPUT-SELECT

6

17

16

82

V-ENV

H-A-SW

H-A-COMP

OUTPUT-SELECT

C-FG

C-F/R

87

78

P-ON+5V

AL+20.5V/+12V

C-SYNC

INPUT-SELECT

41

58

C-SYNC

INPUT-SELECT

C-CONT

LM-FWD/REV

76

81

D-CONT77

D-PFG

90

DVD-POWER

OUTPUT-SELECT

21

DVD-POWER

C-POW

AL+12V(2)

P-ON+15V

C-POW-SW

P-ON-H

-SW

67

66

P-ON-H

86 P-DOWN-L

P-DOWN-L

AL+5V

SW507

LD-SW

CN504

CL504

2 CTL(+)

AC HEAD

ASSEMBLY

CONTROL

(DECK ASSEMBLY)

1 CTL(-)

HEAD

AL+5V

TP502

PS502

Q506

END-S

S-REEL

T-REEL

S-LED

D555

TO DVD SYSTEM

ST-S

Q504

CONTROL BLOCK

DIAGRAM

<DVD SECTION>

SENSOR CBA

END-S

Q503

1-9-1

SENSOR CBA

CN502

AL+20.5V/+12V

C-F/R5C-CONT6GND7LM-FWD/REV

1

2 P-ON+5V

3 C-FG

4

M

CAPSTAN MOTOR

CAPSTAN

MOTOR

M

PG

SENSOR

DRUM

CYLINDER ASSEMBLY

MOTOR

D-CONT9D-PFG10GND11AL+12V(2)12P-ON+15V

8

M

LOADING

MOTOR

TO POWER

SUPPLY BLOCK

DIAGRAM

H9703BLS

Video Block Diagram

MODE: SP/RECPB-VIDEO SIGNAL DVD VIDEO SIGNAL

MAIN CBA

VIDEO (L)-1

HEAD

VIDEO (R)-1

HEAD

CYLINDER ASSEMBLY

(DECK ASSEMBLY)

456

123

V(L)-1

V(L)-2

CN251

V(R)-1

V-COM

VIDEO (R)-2

VIDEO (L)-2

HEAD

V(R)-2

V-COM

HEAD

WF1

TP504

RF-SW

RF-SW

D-REC-H

C-ROTA

TO SERVO/SYSTEM

CONTROL BLOCK

DIAGRAM

V-ENV

H-A-SW

C-SYNC

D-V-SYNC

H-A-COMP

REC-VIDEO SIGNAL

TO SERVO/SYSTEM

CONTROL BLOCK

DIAGRAM

IIC-BUS SCL

IIC-BUS SDA

IC501 (OSD)

50

55

COLOR

-IN

OSD

CHARACTER

MIX

52

7978

Y. DELAY

46 43

6968

SERIAL

DECORDER

65

IC301

(Y/C SIGNAL PROCESS)

969594

SP

HEAD

AMP

EP

SP

P

R

LUMINANCE

SIGNAL

PROCESS

AGC

BYPASS

IN1

IN2

TUNER

485052

93

FRT

908988

87

70

80

EP

HEAD

AMP

D-REC-H

RF-SW/C-ROTA

REC FM

AGC

+

Y

C

CCD 1H DELAY

CHARA.

INS.

IN2

FRT

MUTE

PB/EE

56

54

1/2

IN1

TUNER

CHROMINANCE

MUTE

PB/EE

SIGNAL

83

71

62

H-A-SW

D-V-SYNC

H-A-COMP

RPRP

PROCESS

FBC

67

84

V-ENV

C-SYNC

Y/C

PR

MIX

21

2928

AGC VXO

58 59

61

63

WF2

C-PB

TP301

X301

4.43MHz

3

5

DVD

VCR

IC751

(OUTPUT SELECT)

4

TO SERVO/SYSTEM

CONTROL BLOCK DIAGRAM

OUTPUT-SELECT

11109

SW CTL

6

24

VIDEO

TU-VIDEO

(TUNER UNIT)

TU701

4

(INPUT SELECT)

IC1404

5

3

JK752

V-IN

FRONT

SW CTL

9

INPUT-SELECT

TO

SERVO/SYSTEM

CONTROL BLOCK

1-9-2

DVD-VIDEO

DIAGRAM

TO DVD

VIDEO/AUDIO

JK101

19

20

V-OUT1

BLOCK DIAGRAM

<DVD SECTION>

V-IN1

8

CN2017

V-OUT2
8

CN2018

BUFFER

JK1402

19

V-OUT2

V-IN2

10 10

Q103

20

V-IN2

BUFFER

Q104

JACK-A CBA

WF3

V-OUT

TP751

H9703BLV

Audio Block Diagram

Mode : SP/REC

ALC

TO SERVO/SYSTEM

CONTROL BLOCK

11

12

SERIAL

DECODER

71

68 69

DET

LINE

MUTE

AMP

ALC

REC-ON

DIAGRAM

A-MUTE-H

IIC-BUS SCL

IIC-BUS SDA

PB-AUDIO SIGNAL REC-AUDIO SIGNAL

MAIN CBA

1513 17

IC301

(AUDIO SIGNAL PROCESS)

IN1

TUNER IN2

INV

PB-ON

P

R

ATT

98

7

EQ

AMP

SP/LP-ON

5

6

+5V

Q404

Q403

BIAS

OSC

REC

AUTO

1

AMP

100

3

BIAS

2

Q406

16

AUDIO HD-SW

CONTROL

SWITCHING

D-REC-OFF

Q405

+5V

Q401

(PB=ON)

N-A-PB

N-A-REC

TO Hi-Fi AUDIO

BLOCK DIGRAM

1-9-3

CN504

4 A-PB/REC

3 A-COM

AC HEAD ASSEMBLY

AUDI O

HEAD

(DECK ASSEMBLY)

1 AE-H

2 AE-H/FE-H

AUDI O

ERASE

HEAD

CN501

2 FE-H

1 FE-H-GND

FE HEAD

FULL

ERASE

HEAD

H9703BLA

Hi-Fi Audio Block Diagram

TO

SERVO/ SYSTEM

CONTROL BLOCK

DIAGRAM

TO DVD AUDIO

DVD AUDIO SIGNAL

JK1-A-OUT(L)

TP401

DVD-A-OUT(R)

OUTPUT-SELECT

BLOCK DIAGRAM

<DVD SECTION>

DVD-A-OUT(L)

IIC-BUS SDA

IIC-BUS SCL

A-MODE

TO

SERVO/ SYSTEM

CONTROL BLOCK

DIAGRAM

Hi-Fi-H-SW

LINE-MUTE

Hi-Fi

AUDIO

(R)

HEAD

CYLINDER

ASSEMBLY

(DECK ASSEMBLY)

A(L) 9

A(R) 7

-COM 8

CN251

Hi-Fi-

Hi-Fi-

Hi-Fi

Hi-Fi

AUDIO

(L)

HEAD

REC-AUDIO SIGNALPB-AUDIO SIGNAL Mode : SP/REC

VCR

IC751

(OUTPUT SELECT)

MAIN CBA

Q451

37

2

DVD

14

1

13

DVD

SW CTL

15

Q108

Q107

BUFFER

TO DVD VIDEO/AUDIO

A-MUTE(L)

11109

BUFFER

BLOCK DIAGRAM

<DVD SECTION>

A-MUTE(R)

SERIAL

R-CH

BPF

COMP

SW

NOISE

SW

ALC

ALC

SW

IC451 (MTS/ SAP/ Hi-Fi AUDIO PROCESS/ Hi-Fi HEAD AMP)

67

65

VCR

12

38

DATA

DECODER

P

R-CH

62 70

PNR

21

ENV

DET

DO

DET

LPF

VCO

LIM DEV

R

61 71

MUTE-ON

47

48

R-CH

INSEL

52

56

54

767774

OUTPUT

SELECT

50

60

58

39

73

MUTE-ON

HOLD

2

26

53

75

COMP

MIX

PULSE

NOISE

14

L-CH

INSEL

6104

8

DET

15

24

27

R

L

34 33

LIM

L-CH

R

L-CH

P

PNR

NOR

SW

SW

BPF

COMP

NOISE

78

80

LPF

VCO

LIM DEV

12

5

4

CN2017CN2018

A-IN2(R)

A-IN2(L)
5

4

JACK-A CBA

JK1402

2

6

A-IN2(R)

A-IN2(L)

2

1

A-OUT2(R)

A-OUT2(L)
2

1

1

3

A-OUT2(R)

A-OUT2(L)

JK101

2

1

3

A-IN1(R)

A-OUT1(R)

A-OUT1(L)

6

A-IN1(L)

JK751

A-OUT(R)

REAR

A-OUT(L)

1-9-4

Q753 Q754

JK753

A-IN(L)

FRONT

JK754

A-IN(R)

2

AUDIO

TU701

(TUNER UNIT)

4

CN701CN1

TU-AUDIO(R)

4

AFV CBA

IF SINAL

2

SIF
2

CN701 CN1

22

SIF

5

TU-AUDIO(L)
5

PROCESS

N-A-REC

N-A-PB

TO AUDIO

BLOCK DIAGRAM

H9703BLH

Power Supply Block Diagram

1 EV+1.2V

CL1051

2 EV+1.2V

3 EV+3.3V

4 EV+3.3V

5 EV+3.3V

7 P-ON+5V

8 EV+11V

9 EV+11V

6 P-ON+3.3V

17 PWRCON

P-ON+44V

SW+44V

Q053,Q054

CAUTION !

Fixed voltage (or Auto voltage selectable ) power supply circuit is used in this unit.

If Main Fuse (F1001) is blown, check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

P-ON-H

P-ON+15V

<FROM PIN 67 OF IC501>

13568

13568

CN051A

1 AL+44V13 AL+12V35

CL051A CL051B CN051

AL+12V

5

AL+5V(P-DOWN)

AL+9V

SW+9V

Q055

8

6 AL+5V68 AL+20.5V

P-ON+5V

AL+5V

SW+5V

Q056

18

101214

1012141817

Q058

17

TIMER+5V

SW+5V

Q057

Q059

C-POW-SW

P-DOWN-L

AL+20.5V/+12V

<TO PIN 86 OF IC501>

<FROM PIN 66 OF IC501>

SW+20.5V

Q051,Q052

CL052A CL052B

AL-30V

IC1002

1

359

1 AL-30V

3 AL+2.8V

IC1003

+1.2V REG.

8F2

5 AL+4V

9 F1

8

SW+5V

Q1055

+3.3V REG.

JUNCTION

Q1052

CBA

SW+3.3V

DVD P-ON+5V

-FL

DVD P-ON+3.3V

Q1053,

DVD P-ON+12V

EV+3.3V

F1

SW+12V

Q1054

F2

MAIN CBAPOWER SUPPLY CBA

CAUTION

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,

REPLACE ONLY WITH THE SAME TYPE T1.6AL/250V FUSE.

20

19

T0011

2

BRIDGE

RECTIFIER

D001 - D004

NOTE :

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

HOT CIRCUIT. BE CAREFUL.

LINE

L1003

F1001

T1.6AL/250V

AC1001

FILTER

COLD

Q1004

18

17

16

15

14

13

12

11

4

Q1001

Q1003

7

8

IC1001

ERROR

VOLTAGE DET

1

4

23

Q1008

HOT

1-9-5

H9703BLP

BLOCK DIAGRAMS <DVD SECTION>

DVD System Control / Servo Block Diagram

DVD OPEN/CLOSE CBA

IC101

CN2015 CN2016

(MICRO CONTROLLER)

SW2020

DVD OPEN/CLOSE

1

DVD-OPEN/CLOSE

2 EV+3.3V21

EV+3.3V

ADAC-MD

A-MUTE

PCM-SCLK

57

56 ADAC-MC

88

163

86 ADAC-ML

ASPECT

21

EV+3.3V

RESET73

PLAY

SW2022

STOP

SW2021

FD-OFST

FOCUS DRIVE

148

146

FROM SERVO/SYSTEM

CONTROL BLOCK

DVD-POWER

OUTPUT

CL1051

24

DVD-STOP 2626DVD-POWER 2323DVD-OPEN/CLOSE

DVD-PLAY 25

24

25

CN401

535465

68

DVD-PLAY

DVD-STOP

DVD-POWER

OPEN/CLOSE

TRACKING

DRIVE

TD-OFST

147

139

DIAGRAM

<VCR SECTION>

-SELECT

22

FP-STB 2020FP-DIN 1919FP-CLK 18

REMOTE-DVD

18

22

82

60

67

59

FP-DIN

FP-STB

FP-CLK

REMOTE

SPDL

76

IC611

23

1G

(FIP DRIVER)

IC612

27

OUTPUT-SELECT

27

55

OUTPUT-SELECT

GRID FIP

~

TO SERVO/SYSTEM

CONTROL BLOCK

DIAGRAM

<VCR SECTION>

SEGMENT

789

17

~

a

bcd

7G

12

10

11

131416

f

e

g

h

REMOTE-VIDEO

DISPLAY-CLK

DISPLAY-DATA

i

DISPLAY-STB

MAIN CBA

FP-STB

FP-DIN

FP-CLK

2281

SENSOR

REMOTE

RM2001

SLD

75

SP-ROT

143

SL-AMP

81

TRAY-IN

66

SLED SERVO SIGNAL SPINDLE SERVO SIGNAL

FOCUS SERVO SIGNAL TRACKING SERVO SIGNAL

A-MUTE

ADAC-MD

PCM-SCLK

TO DVD

VIDEO/ AUDIO

ADAC-MC

BLOCK DIAGRAM

ADAC-ML

IC462

+3.3V

ASPECT

RESET

1 3

VREF

IC301

(SERVO DRIVE)

27

26

-

+

+

FOCUS

ACTUATOR

15

FS(+)

FS(-)

-

DRIVE

16

TO DIGITAL SIGNAL

25

24

-

+

-

+

TRACKING

ACTUATOR

DRIVE

14

13

TS(+)

TS(-)

PROCESS BLOCK

DIAGRAM

312

-

+

-

+

SPINDLE

MOTOR

DRIVE

12

11

1

7

14

645

23

IC202

+

SLED

MOTOR

17

-

DRIVE

18

(OP AMP)

3

TRAY-IN

2

6

5

CN301

SPINDLE

MOTOR

+3.3V

3SP(+)

M

4SP(-)

13

12

5TRAY-IN

6GND

SLED

MOTOR

7SL(-)

DVD MAIN CBA UNITDRIVE CBA

8SL(+)

M

1-9-6

H9703BLSD

Digital Signal Process Block Diagram

TO DVD

VIDEO

/AUDIO

BLOCK

DIAGRAM

TO DVD

VIDEO

/AUDIO

BLOCK

DIAGRAM

FLASH

ROM

DATA(AUDIO) SIGNAL

DATA(VIDEO/AUDIO) SIGNAL DVD VIDEO SIGNAL

DATA

RAM

DSP

INST.

ROM

DECODER

STREAM

I/F

DATA

RAM

I/O

PROCESSOR

SPDIF

PCM-BCK

PCM-DATA

PCM-LRCLK

177

170

171

169

AUDI O

I/F

INST.

ROM

SERIAL

UMAC

GENERAL

I/O

INTERRUPT

CPU

I/F

READ

MEMORY

VIDEO-Y

156

Y

D/A

CONTROLLER

VIDEO-C

158

C

D/A

TIMER

WATCH DOG

VIDEO-R

152

R

D/A

NTSC/PAL

ENCODER

VIDEO

I/F

TIMER

REMOTE

VIDEO-B

151

B

D/A

CONTROL

VIDEO-G

149

G

D/A

32BIT CPU

BCU

DATA

INST

DEBUG

RAM

RAM

IC103 (FLASH ROM)

23~51

~

~

1

9

162548

FADR (0-19)

~

293638

FDQ (0-15)

~

45

SDRAM ADDRESS(0-10)

~

217

238

SDRAM ADDRESS(0-11)

~~

222629

IC503 (SDRAM) IC101 (MICRO CONTROLLER)

EXTERNAL

MEMORY

I/F

1

2

35

SDRAM

DECODER

I/F

ECC

SDRAM DATA(0-15)

~~

18

252

SDRAM DATA(0-15)

~~

134253

256

114

115

DMA

116

DVD/CD

RF

SIGNAL

117

132

CN201

C16

FORMATTER

PROCESS

CIRCUIT

131

134

A17

D18

192~212

CPU

I/F

BCU

WATCH DOG

5

9

GND(LD)

GND(CD-PD)

TIMER

INTERRUPT

TIMER

CONTROLLER

CD/DVD

83

TO DVD SYSTEM

CONTROL/SERVO

BLOCK DIAGRAM

6

IC201

(SW)

1 3

4

CD DVD

FS

TS

FS(+)

CN201

FS(+) 2

FS(-)

FS(-) 3

TS(+)

TS(+) 1

TS(-)

DVD MAIN CBA UNIT

TS(-) 4

PICK-UP

UNIT

32BIT

CPU

INST.

ROM

DATA

RAM

126

124

125

AMP

Q251,Q252

Q253,Q254

AMP

CN201

CD-LD 10

DVD-LD 8

PD-MONI 7

123

6

GND(DVD-PD)

133

129

130

F12

B15

E14

CD/DVD 19

DETECTOR

1-9-7

H9703BLD

DVD Video / Audio Block Diagram

DVD-G

DVD-R

DVD-B

7

11

15

JK101

2

DVD AUDIO SIGNALDATA(AUDIO) SIGNAL

1

3 4

YC

JK1401

S-VIDEO OUT

FIBER OPTIC

TRANS MODULE

IC1204

DIGITAL

AUDIO OUT

TO Hi-Fi AUDIO

BLOCK DIAGRAM

DVD-

A-OUT(R)

<VCR SECTION>

A-MUTE(L)

A-MUTE(R)

JK1202

3

DVD-

A-OUT(L)

7

(AMP)

DVD VIDEO SIGNAL

TO VIDEO

BLOCK DIAGRAM

DVD-VIDEO

5

6

DRIVER

8dB AMP

-6dB

LPF DRIVER

4dB AMP 2dB AMP

IC1403 (VIDEO DRIVER)

3

<VCR SECTION>

WF6

LPF DRIVER

4dB AMP 2dB AMP

1 7

11

10

LPF DRIVER

LPF DRIVER

4dB AMP 2dB AMP

4dB AMP 2dB AMP

IC102 (VIDEO DRIVER)

8

6

134dB AMP 2dB AMP

LPF DRIVER

1

Q1351

BUFFER

IC1201

WF7

WF9

7

L-CH

LPF+AMP

DAC

5

19

SPDIF

19

CN601 CN1601

R-CH

6

14 14DVD-A(L)

16 16DVD-A(R)

8

LPF+AMP

DAC

213

WF8

DVD-A(R)-MUTE

DVD-A-MUTE

15 15

13 13

11

AUDIO+5V

Q1204

MAIN CBA

+3.3V

WF4

11VIDEO-Y

CN601 CN1601

VIDEO-Y

44VIDEO-R

10 10VIDEO-C

VIDEO-C

VIDEO-R

FROM DIGITAL

SIGNAL PROCESS

WF5

66VIDEO-B

88VIDEO-G

VIDEO-B

VIDEO-G

BLOCK DIAGRAM

1-9-8

IC601 (AUDIO DAC)

ENPHANCED

4X/8X

OVERSAMPLING

PCM-BCK

SPDIF

FROM

DIGITAL

SIGNAL

MODULATOR

MULTI-LEVEL

DELTA-SIGMA

/FUNCTION

CONTROLLER

DIGITAL FILTER

PORT

SERIAL

123

PCM-DATA0

PCM-LRCLK

PROCESS

BLOCK

DIAGRAM

ZERO DETECT

SERIAL

131415

ADAC-MD

ADAC-MC

SYSTEM CLOCK

CONTROL

ADAC-ML

FROM

DVD

SYSTEM

CONTROL

/SERVO

16

BLOCK

DIAGRAM

DVD MAIN CBA UNIT

PCM-SCLK

A-MUTE

H9703BLVD

FUNCTION INDICATOR SYMBOLS

Note:

If a mechanical malfunction occurs, the power is turned off. When the power comes on again after that by
pressing [POWER] button, an error message is displayed on the TV screen for 5 seconds.

MODE INDICATOR ACTIVE

When reel and capstan mechanism is not
functioning correctly

When tape loading mechanism is not func­tioning correctly

When cassette loading mechanism is not
functioning correctly

When the drum is not working properly

P-ON Power safety detection

“A R” is displayed on a TV screen. (Refer to Fig. 1.)

“A T” is displayed on a TV screen. (Refer to Fig. 2.)

“A C” is displayed on a TV screen. (Refer to Fig. 3.)

“A D” is displayed on a TV screen. (Refer to Fig. 4.)

“A P” is displayed on a TV screen. (Refer to Fig. 5.)

TV screen

When reel and capstan mechanism is not functioning
correctly

A

R

Fig. 1

When the drum is not working properly

A

D

Fig. 4

When tape loading mechanism is not functioning cor­rectly

A

T

Fig. 2

When cassette loading mechanism is not functioning
correctly

A

C

Fig. 3

P-ON Power safety detection

A

P

Fig. 5

1-9-9 H9700FIS

SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS

Standard Notes

WARNING

Many electrical and mechanical parts in this chassis
have special characteristics. These characteristics
often pass unnoticed and the protection afforded by
them cannot necessarily be obtained by using replace­ment components rated for higher voltage, wattage,
etc. Replacement parts that have these special safety
characteristics are identified in this manual and its
supplements; electrical components having such fea­tures are identified by the mark " ! " in the schematic
diagram and the parts list. Before replacing any of
these components, read the parts list in this manual
carefully. The use of substitute replacement parts that
do not have the same safety characteristics as speci­fied in the parts list may create shock, fire, or other
hazards.

Notes:

1. Do not use the part number shown on these draw­ings for ordering. The correct part number is shown
in the parts list, and may be slightly different or
amended since these drawings were prepared.

2. All resistance values are indicated in ohms

3

(K=10

3. Resistor wattages are 1/4W or 1/6W unless other­wise specified.

4. All capacitance values are indicated in µF
(P=10

5. All voltages are DC voltages unless otherwise
specified.

6. Electrical parts such as capacitors, connectors,
diodes, IC’s, transistors, resistors, switches, and
fuses are identified by four digits. The first two dig­its are not shown for each component. In each
block of the diagram, there is a note such as shown
below to indicate these abbreviated two digits.

, M=106).

-6

µF).

1-10-1 SCPA1

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING
PAG ES :

1. CAUTION:

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE FUSE.

2. CAUTION:
Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown, first check to see that all components in the power supply circuit are not defective
before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the
power supply circuit to fail.

3. Note:

(1) Do not use the part number shown on the drawings for ordering. The correct part number is shown in the parts

list, and may be slightly different or amended since the drawings were prepared.

(2) To maintain original function and reliability of repaired units, use only original replacement parts which are

listed with their part numbers in the parts list section of the service manual.

4. Voltage indications for PLAY and REC modes on the schematics are as shown below:

< DVD Section >

231

5.0

The same voltage for
both PLAY & STOP modes

Indicates that the voltage
is not consistent here.

5. How to read converged lines

1-D3

Distinction Area

Line Number

(1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to area "D3".

2. "1-B1" means that line number "1" goes to area "B1".

6. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB.

: Used to indicate a test point with a component lead on foil side.

: Used to indicate a test point with no test pin.

5.0
(2.5)

PLAY mode
STOP mode

< VCR Section >

5.0

The same voltage for
both PLAY, REC & DVD
modes

5.0
(2.5)
< >

PLAY mode
REC mode
DVD mode

231

Indicates that the voltage
is not consistent here.

3

2

1

ABCD

Unit: Volts

1-B1

AREA D3

AREA B1

1-D3

: Used to indicate a test point with a test pin.

1-10-2 SCRK05

Main 1/8 Schematic Diagram < VCR Section >

1-10-3

1-10-4

H9703SCM1

Main 2/8 & Sensor Schematic Diagrams < VCR Section >

5G 4G 3G 2G 1G

7G

6G

a

d

g

c

b

ef

f

i

i

REPEAT

TITLE

GROUP

VCR

CHP

REC

SACD

TRK

A
ALL

B

PSCAN

DVD

PM

HDVCD

A

7G 6G 5G 4G 3G 2G 1G

a

b

c

d

e

f

g

c

d

e

ff

g

c

d

e

f

g

c

d

e

f

g

c

d

e

f

g

c

d

e

f

g

h

ii

ababababa

b

IC611 MATRIX CHART

REPEAT

TITLE

GROUP

VCR

CHP

REC

SACD

TRK

ALL

B

PSCAN

DVD

P
M

HD

V

CD

A

A

1-10-5

1-10-6

H9703SCM2

Main 3/8 Schematic Diagram < VCR Section >

1-10-7

1-10-8

H9703SCM3

Main 4/8 Schematic Diagram < VCR Section >

1-10-9

1-10-10

H9703SCM4

Main 5/8 Schematic Diagram < VCR Section >

1-10-11

1-10-12 H9703SCM5

Main 6/8 Schematic Diagram < VCR Section >

1-10-13 1-10-14 H9703SCM6

Main 7/8 & DVD Open/Close Schematic Diagrams < VCR Section >

1-10-15 1-10-16 H9703SCM7

Main 8/8 Schematic Diagram < VCR Section >

1-10-17 1-10-18 H9703SCM8

Power Supply & Junction Schematic Diagram < VCR Section >

CAUTION !

For continued protection against fire hazard,
replace only with the same type fuse.

NOTE :

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

1-10-19 1-10-20 H9703SCP

Jack-A Schematic Diagram

1-10-21 1-10-22 H9703SCJ

AFV Schematic Diagram

1-10-23 1-10-24 H9703SCAFV

Main CBA & Sensor CBA Top View

Sensor CBA Top View

BHF300F01011A

BHF300F01011B

WF3

TP751
V-OUT

WF2

TP301

C-PB

VR501

SW-P

WF1

TP504

RF-SW

TP501

S-INH

TP503

CTL

1-10-25

1-10-26

BH9700F01014A

Main CBA Bottom View

WF6

PIN 6 OF
IC1403

WF9

PIN 19 OF
CN1601

WF8

PIN 16 OF
CN1601

WF7

PIN 14 OF
CN1601

WF5

PIN 10 OF
CN1601

WF4

PIN 1 OF
CN1601

1-10-27 1-10-28

BH9700F01014A

DVD Open/Close

DVD Open /Close

AFV CBA Top View

AFV CBA Bottom View

CBA Top View

CBA Bottom View

BH9700F01014C

Jack-A CBA Top View

BHC400F01093

Jack-A CBA Bottom View

1-10-29

BH9700F01022C

1-10-30

Power Supply CBA Top View

Power Supply CBA Bottom View

CAUTION !

For continued protection against fire hazard,
replace only with the same type fuse.

NOTE :

The voltage for parts in hot circuit is measured
using hot GND as a common terminal.

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

Note:

L1004 is positioned on the Cathode
side of D1011 as shown below.

L1004

D1011

BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER
SUPPLY CIRCUIT , AN ISOLATION TRANSFORMER MUST BE USED.
ALSO , IN ORDER TO HAVE THE ABILITY TO INCREASE THE INPUT
SLOWLY , WHEN TROUBLESHOOTING THIS TYPE POWER SUPPLY
CIRCUIT , A VARIABLE ISOLATION TRANSFORMER IS REQUIRED.

Junction CBA

Top View

BH9700F01022A

Junction CBA

Bottom View

BH9700F01022B

1-10-31

1-10-32

DVD Main 1/3 Schematic Diagram < DVD Section >

1-10-33 1-10-34 H9703SCD1

DVD Main 2/3 Schematic Diagram < DVD Section >

1-10-35 1-10-36 H9703

IC101 VOLTAGE CHAR

T

PIN. NO PLAY STOP PIN.NO PLAY STOP PIN. NO PLAY STOP PIN.NO PLAY STOP

129 2.3 2.3 161 3.4 3.4 193 ~ ~ 225 3.4 3.4

130 2.3 2.3 162 0 0 194 ~ ~ 226 ~ ~

131 2.3 2.3 163 1.8 1.8 195 ~ ~ 227 ~ ~

132 2.4 2.3 164 0 0 196 3.4 3.4 228 ~ ~

133 2.4 2.4 165 1.7 1.8 197 ~ ~ 229 0 0

134 2.4 2.4 166 1.7 1.7 198 ~ ~ 230 ~ ~

135 2.3 2.3 167 3.4 3.4 199 ~ ~ 231 3.4 3.4

136 2.3 2.3 168 0 0 200 ~ ~ 232 1.3 1.6

137 2.3 2.3 169 1.8 1.8 201 0 0 233 ~ ~

138 2.3 2.3 170 1.7 1.7 202 3.4 3.4 234 1.9 2.3

139 1.7 1.7 171 1.3 0.1 203 ~ ~ 235 0 0

140 ----- ----- 172 1.3 1.3 204 ~ ~ 236 1.3 1.3

141 3.4 3.4 173 0 0 205 0 0 237 ~ ~

142 1.3 1.3 174 ----- ----- 206 ~ ~ 238 ~ ~

143 2.1 1.7 175 ----- ----- 207 ~ ~ 239 3.4 3.4

144 2.2 2.2 176 ----- ----- 208 ~ ~ 240 3.4 3.3

145 0 0 177 1.8 1.7 209 3.4 3.4 241 1.9 1.9

146 1.7 1.7 178 3.4 3.5 210 ~ ~ 242 0 0

147 1.8 1.7 179 0 0 211 ~ ~ 243 1.9 1.9

148 1.7 1.7 180 ----- ----- 212 ~ ~ 244 3.4 3.3

149 0.6 0.5 181 ----- ----- 213 0 0 245 3.4 3.4

150 3.4 3.4 182 ----- ----- 214 ----- ----- 246 3.4 3.4

151 0.5 0.6 183 3.5 3.5 215 ----- ----- 247 0 0

152 0.5 0.4 184 ----- ----- 216 3.4 3.4 248 3.3 3.4

153 1.4 1.3 185 ----- ----- 217 ~ ~ 249 3.2 3

154 1.4 1.3 186 ----- ----- 218 0 0 250 0 0

155 2.4 2.4 187 ----- ----- 219 1.3 1.3 251 3.2 3.0

156 3.4 3.4 188 ----- ----- 220 ~ ~ 252 ~ ~

157 0 0 189 ----- ----- 221 ~ ~ 253 0 0

158 0.9 0.9 190 3.4 3.5 222 0 0 254 ~ ~

159 3.4 3.4 191 0 0 223 ~ ~ 255 3.4 3.4

160 0 0 192 ~ ~ 224 ~ ~ 256 ~ ~

PIN.NO PLAY STOP PI N.NO PLAY STOP PI N.NO PLAY STOP PIN.NO PLAY STOP

1 ~ ~ 33 ~ ~ 65 0 0 97 ----- -----

2 ~ ~ 343.43.4663.43.5983.43.4

3 0 0 35 0 0 673.23.2990.90.8

4 ~ ~ 36 ~ ~ 68 0 0 100 0 0

5 ~ ~ 37 ~ ~ 69 ----- ----- 101 2.4 2.4

6 3.4 3.4 38 0.4 0.3 70 3.4 3.4 102 2.2 2.2

7 ~ ~ 39 ~ ~ 71 ----- ----- 103 1.9 1.9

8 ~ ~ 40 ~ ~ 72 ----- ----- 104 0.4 0.3

9 0 0 41 ~ ~ 73 3.4 3.4 105 0 0

10 ~ ~ 42 ~ ~ 74 0 0 106 1.7 1.7

11 ~ ~ 43 ~ ~ 75 1.7 1.8 107 3.4 3.4

12 3.4 3.4 44 1.3 1.3 76 2.3 1.8 108 ----- -----

13 ~ ~ 45 ~ ~ 77 ----- ----- 109 ----- -----

14 ~ ~ 46 ~ ~ 78 ----- ----- 110 1.9 1.9

15 ~ ~ 47 ~ ~ 79 ----- ----- 111 1.9 1.9

16 0 0 48 3.4 3.4 80 3.4 0.1 112 1.7 1.7

17 ~ ~ 49 0 0 81 0.1 0.1 113 1.7 1.7

18 ~ ~ 50 ~ ~ 82 2.8 2.8 114 1.7 1.7

19 3.4 3.4 51 ~ ~ 83 0.1 0.1 115 1.7 1.7

20 0 0 52 0.8 0.8 84 3.4 3.4 116 1.7 1.7

21 0.1 0.1 53 0 0 85 0.1 0.1 117 1.7 1.7

22 3.5 3.5 54 0 0 86 3.6 3.4 118 3.4 3.4

23 ~ ~ 55 1.4 1.4 87 0 0 119 2.0 2.0

24 ~ ~ 56 3.4 3.4 88 3.5 0.1 120 1.7 1.7

25 ~ ~ 57 3.5 3.5 89 1.3 1.3 121 1.5 1.5

26 1.3 1.3 58 ----- ----- 90 ----- ----- 122 0 0

27 ~ ~ 59 3.4 3.4 91 ----- ----- 123 0.3 0.1

28 3.4 3.4 60 3.4 3.4 92 ----- ----- 124 1.2 0.1

29 0 0 61 3.5 3.5 93 0 0 125 0.3 0.1

30 ~ ~

31 ~ ~

32 ~ ~

62 3.4 3.4

63 0 0
64 0 0

94 ----- ----- 126 0. 1 0.1

95 ----- ----- 127 2. 3 2.3

96 ----- ----- 128 1. 7 1.7

1-10-37 1-10-38

DVD Main 3/3 Schematic Diagram < DVD Section >

1-10-39 1-10-40 H9703SCD3

VIDEO-Y

0.2V2020

VIDEO-C

0.2V2020

DVD-VIDEO

0.5V2020

DVD-A(L)

1V

0.5ms

DVD-A(R)

1V

SPDIF

1V

0.1

s

NOTE:

0.5ms

Input
VCR: COLOR BAR SIGNAL
(WF1~WF3)
DVD: POWER ON (STOP) MODE
(WF4~WF6)
CD: 1kHz PLAY
(WF7~WF9)

WF2

UPPER

WF1

LOWER

C-PB 10mV x 10
RF-SW 0.5V x 10

TP301

TP504

5ms

WAVEFORMS

WF4

Pin 1 of CN1601

VIDEO-Y

0.2V

WF7

Pin 14 of CN1601

µ

s

DVD-A(L)

1V

0.5ms

WF3

UPPER

WF1

LOWER

V-OUT 0.1V x 10
RF-SW 0.5V x 10

WF3

TP751

TP504

50µs

TP751

WF5

Pin 10 of CN1601

VIDEO-C

WF6 Pin 6 of IC1403

0.2V

µ

s

WF8

WF9

DVD-A(R)

Pin 16 of CN1601

1V

Pin 19 of CN1601

0.5ms

V-OUT E-E
10µs 50mV x 10

DVD-VIDEO

0.5V

µ

s

SPDIF

1V

0.1

µ

s

1-11-1 H9703WF

WIRING DIAGRAM < VCR SECTION >

TO WIRING

DIAGRAM

<DVD SECTION>

GND

GND

VIDEO-B

TO DVD MAIN

VIDEO-G

123456789

CL1051

EV+3.3V

EV+1.2V

EV+3.3V

EV+1.2V

EV+3.3V

P-ON+3.3V

TO DVD MAIN

CBA UNIT

CN401

GND

GND

GND

(JW006)

GND

10111213141516171819202122

GND

GND

EV+11V

EV+11V

P-ON+5V

GND

PWRCON

FP-DIN

FP-CLK

FP-STB

FP-DOUT

232425

DVD-PLAY

DVD-POWER

REMOTE-DVD

DVD-OPEN/CLOSE

26

27

DVD-STOP

OUTPUT-SELECT

2345678

1

ASPECT

CN1601

VIDEO-Y

I/P-SW(NU)

VIDEO-R

CBA UNIT

CN601

(JW007)

9

111213141516171819

10

GND

GND

GND

VIDEO-C

DVD-A(L)

DVD-A-MUTE

SPDIF

DVD-A(R)

AUDIO+5V

AUDIO+5V

DVD-A(R)-MUTE

MAIN CBA

(BH9700F01014A)

ANT-IN ANT-OUT

DIGITAL AUDIO OUT

COAXIAL OPTICAL

AUDIO

OUT (L)

REAR

AUDIO

OUT (R)

S-VIDEO

OUT

AUDIO

IN (L)

AUDIO

IN(R)

FRONT

VIDEO

IN

CN051

CN051ACL051A

CL051B

JW001

AL+5V(P-DOWN)

5

1 AL+44V

2 GND

3 AL+12V

4 GND

112345678

23456

1AL+44V

2GND

3AL+12V

4GND

5

AL+5V(P-DOWN)

JK101

6 AL+5V6AL+5V

7 GND

8 AL+20.5V

9 GND

10 AL-30V

9

1011121314

9

7

8

CL052B

JW002

9GND

7GND

8AL+20.5V

CL052A

123456789

11 GND

12 AL+2.8V

13 GND

14 AL+4V

15 GND

16 NU

161718

15

1234567

1AL-30V

2GND

3AL+2.8V

4GND

5AL+4V

6GND

1011121314151617181920

17 F2

18 F1

8

8F2

7NU

(BH9700F01022B)

9

9F1

(BH9700F01022A)

POWER SUPPLY CBA JUNCTION CBA

21

1

2

CN2015CN2016 JW008

DVD-OPEN/CLOSE

1 EV+3.3V

2

DVD

OPEN/ CLOSE

CBA

AC CORD

CN701CN1

123456789

1NU

(BH9700F01014C)

JK1402

JACK-A CBA

(BH9700F01022C)

CN2018

1234567

JW003

1 A-OUT2(R)

CN2017

TU-AUDIO(R)

SIF

TU-AUDIO(L)5

P-ON+5V

P-ON+5V

2

3 GND

4

6

7

AFV CBA

(BHC400F01093)

123456789

A-IN2(R)

A-OUT2(L)

A-IN2(L)5

SC2-IN

2

3GND

4

6

IIC-BUS SCL8

IIC-BUS SDA9

SENSOR CBA

1011121314151617181920

8

10

V-OUT28

V-IN2 10

GND99

AL+9V
7

SENSOR CBA

(BHF300F01011A,B)

21

(BHF300F01011A,B)

CN504

AE-H1AE-H/FE-H2

A-COM3

A-PB/REC4

AUDIO

AUDIO HEAD

ERASE HEAD

AC HEAD ASSEMBLY

(DECK ASSEMBLY)

CTL(+)5

CTL(-)6

CONTROL HEAD

1-12-1

CN501

FE-H2

FE-H GND1

FULL

ERASE HEAD

FE HEAD

CN502

AL+20.5V/+12V

P-ON+5V3C-FG4C-F/R5C-CONT6GND7LM-FWD/REV

1

2

M

CAPSTAN

MOTOR

M

LOADING

MOTOR

PG

SENSOR

CYLINDER ASSEMBLY

D-CONT9D-PFG10GND11AL+12V(2)12P-ON+15V

8

CAPSTAN

MOTOR

M

VIDEO

VIDEO

(R)1

MOTOR

HEAD

DRUM

CN251

(L)1

HEAD

V(R)-11

V-COM2

VIDEO

(L)2

3 V(L)-1

HEAD

V(L)-2
4

VIDEO

V-COM5

(R)2

V(R)-26

HEAD

Hi-Fi-A(R)7

Hi-Fi-COM8

Hi-Fi-A(L)9

Hi-Fi AUDIO

(R) HEAD

Hi-Fi AUDIO

(L) HEAD

H9703WI

WIRING DIAGRAM < DVD SECTION >

TO WIRING

DIAGRAM

<VCR SECTION>

TO MAIN CBA

CL1051

123456789

CN401

EV+3.3V

EV+1.2V

EV+3.3V

EV+1.2V

EV+3.3V

P-ON+3.3V

EV+11V

P-ON+5V

10

GND

EV+11V

(JW006)

111213141516171819

GND

GND

GND

GND

GND

GND

FP-CLK

PWRCON

20

FP-DIN

FP-STB

21

22

23

FP-DOUT

DVD-POWER

REMOTE-DVD

26

27

24

25

DVD-PLAY

DVD-STOP

OUTPUT-SELECT

DVD-OPEN/CLOSE

CN601

VIDEO-Y 1

456

2

3

ASPECT

VODEO-R

I/P-SW(NU)

GND

789

GND

VIDEO-B

TO MAIN CBA

CN1601

101112

GND

VIDEO-C

VIDEO-G

(JW007)

GND

GND

13

1415161718

DVD-A(L)

DVD-A(R)

DVD-A-MUTE

DVD-A(R)-MUTE

19

SPDIF

AUDIO+5V

AUDIO+5V

CN301

FG-IN
123

TRAY-OUT

SP(-)7SP(+)

P-ON+3.3V(D)

TRAY-IN

4

5

TRAY-IN

GND
6

SL(-)

8 SL(+)

9 TRAY-OUT

DRIVE CBA

DVD MAIN CBA UNIT

CN201

TS(+)

TS(-)

FS(-)

FS(+)

GND(DVD-PD)

GND(CD-PD)

PD-MONI

123456789

FSTS

DVD-LD

CD-LD

VREF

E

GND

B

F

GND(LD)

1011121314151617181920

7

91123654

DETECTOR

DAC

CD/DVD

P-ON+5V

PICK UP UNIT

DVD MECHA

FG

SENSOR

FG CBA

M

SPINDLE

MOTOR

M

SLED

MOTOR

1-12-2

H9703WID

IC PIN FUNCTION DESCRIPTIONS

[ VCR Section ]

IC501( SERVO / SYSTEM CONTROL IC )

“H” ≥ 4.5V, “L” ≤ 1.0V

Pin

IN/

No.

OUT

1IN

2IN

3IN

4IN

5IN

6IN

7IN

8IN

9IN

10 IN

11 -

12 -

13 OUT

14 IN

15 OUT

16 OUT

17 IN

18 OUT

19 OUT

20 -

21 OUT

22 -

23 OUT

Signal

Name

SC2-IN

PG-Delay

POW-SAF

END-S

AFC

V-ENV

KEY-1

KEY-2

LD-SW

ST-S

NU Not Used

NU Not Used

D-V- SYNC

REMOTE­VIDEO

C-ROTA

H-A-SW

H-A-COMP

RF-SW

Hi-Fi-H-SW

NU Not Used

DVD­POWER

NU Not Used

POWER­LED

Function

Input Signal from
Pin 8 of SCART2

Video Head
Switching Pulse
Signal Adjusted
Voltage

P-ON Power
Detection Input
Signal

Tape End Position
Detect Signal

Automatic
Frequency Control
Signal

Video Envelope
Comparator Signal

Key Scan Input
Signal 1

Key Scan Input
Signal 2

Deck Mode
Position Detector
Signal

Tape Start Position
Detector Signal

Dummy V-sync
Output

Remote Control
Sensor

Color Phase Rotary
Changeover SIgnal

Video Head Amp
Switching Pulse

Head Amp
Comparator Signal

Video Head
Switching Pulse

HiFi Audio Head
Switching Pulse

DVD Power Control
Signal

“POWER” LED
Signal Output

Active

Level

A/D

A/D

A/D

A/D

A/D

A/D

A/D

A/D

A/D

A/D

H/Hi-z

H/L

H/L

H/L

H/L

H/L

H/L

Pin

IN/

No.

OUT

24 -

25 -

26 -

27 -

28 OUT

29 OUT DVD-LED

30 OUT VCR-LED

31 IN

32 IN

33 OUT

34 IN

35 IN

36 OUT

37 -

38 IN

39 OUT

40 -

-

-

L

-

H

-

41 OUT

42 IN

43 IN

44 IN

45 OUT

46 -

47 IN

48 IN

49 -

50 IN

51 -

52 OUT

53 -

Signal

Name

NU Not Used

NU Not Used

NU Not Used

NU Not Used

LINE­MUTE

REC-SAF­SW

A-MODE

D-REC-H

RESET

XCin Sub Clock

XCOUT Sub Clock

Vcc Vcc

Xin Main Clock Input

Xout Main Clock Input

GND Vss(GND)

INPUT
SELECT

DVD-8PIN­IN

CLKSEL Clock Select (GND)

OSCin

OSCout

NUB Not Used

LP LP

FSC-IN
[4.43MHz]

OSDVss OSDVss

OSD-V-IN

NU Not Used

OSD-V­OUT

OSDVcc OSDVcc

Function

Audio Mute Control
Signal

“DVD” LED Signal
Output

“VCR” LED Signal
Output

Recording Safety
SW Detect (With
Record tab=”L”/
With out Record
tab=”H”)

Hi-Fi Tape
Detection Signal

Delayed Record
Signal

System Reset
Signal (Reset=”L”)

Input Selector
Control Signal

SCART 8Pin DVD
Input Control
Signal

Clock Input for
letter size

Clock Output for
letter size

4.43MHz Clock
Input

OSD Video Signal
Input

OSD Video Signal
Output

Active

Level

-

-

-

-

H

H/L

H/L

H/L

L

H

L

-

-

-

-

-

-

H/L

H/L

L

-

-

-

-

-

-

-

-

-

-

1-13-1 H9703PIN

Pin

IN/

No.

OUT

54 -

55 IN COLOR-IN

56 -

57 -

58 IN

59 OUT

60 OUT

61 -

62 -

63 -

64 -

65 -

66 OUT

67 OUT

68 OUT

69 OUT

70 OUT

71 OUT

IN/

72

OUT

73 -

74 -

75 IN

76 OUT

77 OUT

78 OUT

79 IN

Signal

Name

HLF

NU Not Used

NU Not Used

C-SYNC

8POUT-1

8POUT-2

NU Not Used

NU Not Used

NU Not Used

NU Not Used

NU Not Used

C-POW-SW

P-ON-H

DRV-DATA

DRV-STB

DRV-CLK

IIC-BUS­SCL

IIC-BUS­SDA

NU Not Used

NU Not Used

DVD­POWER­MONITOR

C-CONT

D-CONT

C-F/R

S-REEL

Function

LPF Connected
Terminal (Slicer)

SECAM or
MESECAM
Chroma Video
Input Signal at
Super Impose

Composite
Synchronized
Pulse

Control SCART 1
8Pin Level by
using 8POUT-1 and
8POUT-2

Control SCART 1
8Pin Level by
using 8POUT-1 and
8POUT-2

Capstan Power
Switching Signal

Power On Signal at
High

VFD Driver IC
Control Data

VFD Driver IC Chip
Select Signal

VFD Driver IC
Control Clock

IIC BUS Control
Clock

IIC BUS Control
Data

DVD Power Monitor
Signal (P-off="L", P­on="H")

Capstan Motor
Control Signal

Drum Motor
Control Signal

Capstan Motor
FWD/REV Control
Signal (FWD=”L”/
REV=”H”)

Supply Reel
Rotation Signal

Active

Level

-

-

-

-

PULSE

H/L

Hi-z/L

-

-

-

-

-

H/L

H

H/L

H/L

H/L

H/L

H/L

-

-

H/L

PWM

PWM

H/L

PULSE

Pin

IN/

No.

OUT

80 IN

81 OUT

82 OUT

83 OUT

84 -

85 -

86 IN

87 IN

88 -

89 -

90

IN

91 -

92 -

93 -

IN/

94

OUT

IN/

95

OUT

96 -

97 -

98 -

99 -

100 IN

Notes:

Abbreviation for Active Level:

PWM -----Pulse Wide Modulation
A/D--------Analog - Digital Converter

Signal

Name

T- R E E L

LM-FWD/
REV

OUTPUT­SELECT

A-MUTE-H

NU Not Used

NU Not Used

P-DOWN-L

C-FG

NU Not Used

NU Not Used

D-PFG

AMPVREF
OUT

AMPVREF
in

P80/C P80/C Terminal

CTL -

CTL +

AMPC

CTLAMP
out

AMPVcc AMPVcc

AVcc

AGC

Function

Take Up Reel
Rotation Signal

Loading Motor
Control Signal

Output Select H/L

Audio Mute Control
Signal (Mute = “H”)

Power Voltage
Down Detector
Signal

Capstan Motor
Rotation Detection
Pulse

Drum Motor Phase/
Frequency
Generator

V-Ref for CTL AMP

V-Ref for CTL AMP

Playback/Record
Control Signal (-)

Playback/Record
Control Signal (+)

CTL AMP
Connected
Te r m i n al

To Monitor for CTL
AMP Output

A/D Converter
Power Input/
Standard Voltage
Input

IF AGC
Comparator Signal

Active

Level

PULSE

H/L/
Hi-z

H

-

-

L

PULSE

-

-

PULSE

-

-

-

H/L

H/L

-

PULSE

-

-

A/D

1-13-2 H9703PIN

IC612 ( FIP DRIVER )

Pin

No.

IN/

OUT

1 IN FP-CLK

2 IN FP-STB

3 -

4 -

5 - VSS

6 - VDD

7

8 b

9 c

10 d

OUT

11 e

12 f

13 g

14 h

Signal

Name

NU

NU

a

Clock Input

Serial Interface Strobe

Not Used

Not Used

GND

Power Supply

Segment Output

Name Function

15 - VEE

16 OUT i

17

18 6G

19 5G

OUT

20 4G

21 3G

22 2G

23 1G

24 - VDD

25 - VSS

26 IN OSC

27 -

28 IN FP-DIN

7G

NU

Pull Down Level

Segment Output

Grid Output

Power Supply

GND

Oscillator Input

Not Used

Serial Data Input

1-13-3 H9703PIN

LEAD IDENTIFICATIONS

E C B

KIA4558P
NJM4558D

8 5

1 4

MM1637XVBE

16

1

PT6313-S-TP

28

2SA1175(F,H,J)
2SC2785(F,H,J)
BA1F4M-T
BN1F4M-T
BN1L4M-T
KRA103M
KRC103M
KTA1266(GR)
KTA1267(GR,Y)
KTC3199(BL,GR,Y)
RN2204(TE4,T)

FMG4A T148
RN1511(TE85R)

C1 C2

B1 E B2

7-BT-298N

9

1

BU4053BCF-E2

8

CD4053BCSJX
CD4053BNSR
TC4053BF(N)

15

16

E C B

35

9

2SA1015-GR(TPE2)
2SA1020(Y)
2SC1815-BL(TPE2)
2SC1815-GR(TPE2)
2SC1815-Y(TPE2)
2SC2120-Y(TPE2)
2SC3266-Y(TPE2)
KTA1281(Y)
KTC3203(Y)
KTC3205(Y)

FA1F4M-T1B
KRC103S RTK
KTC3875Y-RTK

C

BE

A

K

MM1636XWRE

8

5

PQ070XZ5MZP

123345

BR24L02F-WE2
CAT24WC02JI

EL817A
EL817B
LTV-817B-F
PS2561A-1(Q,W)

C

E

LA72648M-MPB-E

60

MID-32A22F
PT204-6B-12

1: Vin
2: Vc
3: Vo
4: Vadj
5: GND

C

E

2SK3566

5

8

1

4

GDS

BA3948FP-E2

1: CTL
2: Vcc
3: N.C.
4: OUT
5: C

123645

41

6: GND

34

44

1

MSP3407G-QG-B8
MSP3407G-QG-B8-V3

33

1

14

23

11

61

1

8

1

4

80

40

21

LA71750EM-MPB-E

22

81

QSZAA0RMB200

80

51

50

1

0C-0805T*002
GP1FA513TZ

20

Note:

A: Anode
K: Cathode
E: Emitter
C: Collector
B: Base
R: Reference

12

100

31

123

1

30

S: Source
G: Gate
D: Drain

1-14-1 H9703LE

Cabinet

EXPLODED VIEWS

2L051

1B1

2B16

2L071

2B2

2L051

2B5

2L071

2L071

2B3

2L051

A22

2L012

2L071

AFV CBA

Main CBA

2B15

2L011

Sensor CBA

2B46

2L012

DVD Open/Close CBA

2B15

2L054

2L020

JW003

2B11

2B15

2L091

See Electrical Parts List
for parts with this mark.

Some Ref. Numbers are
not in sequence.

Jack-A CBA

2B55

2L012

JW008

JW006

2L022

2B54

2B40

A5

2L020

2L082

JW007

A

B

Junction CBA

AC1001

2L021

JW002

2L021

2L062

2L020

JW001

2L021

2L053

2L041

2L020

F1001

2L021

1B2

A

CN3002

2B33

Power Supply CBA

2L041

L0-9

2L041

L0-9

B

DVD Main
CBA Unit

CN3001

2L041

2L041

A1X

2B9

A10

A3

2B18

A22

A21

A7

A2

2L041

2L041

2L041

1-15-1 1-15-2 H9703CEX

Packing

Some Ref. Numbers are not in sequence.

X5

S7

X20C

S2

X20D

X1

X3

X2

X4

S3

S2

S1

Unit

A14

1-15-3 H9703PEX

MECHANICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a !

have special characteristics important to safety. Before
replacing any of these components, read carefully the
product safety notice in this service manual. Don't
degrade the safety of the product through improper ser­vicing.

Ref. No. Description Part No.

A1X FRONT ASSEMBLY H9703ED 1VM220022

A2 TOP CASE(D5 PAL FTZ) H9700ED 0VM101358

A3 CHASSIS(D5 PAL FTZ) H9700ED 0VM000205

A7 PANEL, BOTTOM H9700ED 0VM204530

A10! LABEL, RATING(U) H9703ED or ----------

! LABEL, RATING(D) H9703ED ----------

A14 LABEL, SERIAL NO. HE240ED or ----------

LABEL, BAR CODE H9703ED ----------

A21 WARNING LABEL HG249ED ----------

A22 CHASSIS FOOT H79P9JD 0VM412315

1B1 DECK ASSEMBLY CZD013/VM23ED N23E0FL

1B2 DVD MECHA(FG LESS) 0838 VCZL0500 N79F0HVM

2B2 TOP BRACKET H9700ED 0VM204531

2B3 RODER HOLDER H9600UD 0VM306676

2B5 SHEILD, CYLINDER H9700ED 0VM306780

2B9 CUSHION HC460ED 0VM413251

2B16 TAPE, HIMELON H9206JD 0VM413956

2B18 FIBER, TOP CASE HC460ED 0VM412906

2B40 PARTITION PLATE H9700ED 0VM306765

2B54 PLATE, GROUND(RCA) H9700ED 0VM306867

2B55 PLATE, GROUND(21P) H9700ED 0VM416444

2L011 P-TIGHT SCREW 3X8 BIND + GBMP3080

2L012 SCREW, S-TIGHT M3X6 BIND HEAD+ GBMS3060

2L020 P-TIGHT SCREW 3X8 BIND + GBMP3080

2L021 SCREW, P-TIGHT 3X12 BIND HEAD+ GBMP3120

2L022 P-TIGHT SCREW 3X8 BIND + GBMP3080

2L041 SCREW, P-TIGHT 3X6 BIND HEAD+ GBCP3060

2L051 SCREW, P-TIGHT M3X6 BIND HEAD+ GBMP3060

2L054 SCREW, P-TIGHT M3X6 BIND HEAD+ GBMP3060

2L071 SCREW, P-TIGHT M3X10 WASHER HEAD+ GCMP3100

2L091 SCREW, P-TIGHT M3X8 BIND HEAD+ GBCP3080

PAC KI NG

S1 GIFT BOX H9703ED 1VM320072

S2 STYROFOAM H9600UD 0VM204474

S3 UNIT, BAG E5500UD 0VM411683

S7 21P PAD HC463FD 0VM413384

ACCESSORIES

X1 REMOTE CONTROL UNIT 364/CZF05DD NB104ED

X2 DRY BATTERY R6P/2S or XB0M451T0001

DRY BATTERY ES-GR6M-C XB0M571GLP01

X3 RF CORD PAL 1.2M or WPZ0122LG001

RF CABLE CC1001020012010 WPZ0122LW001

X4 ACCESSORY BAG K8092BA 0VM404632

X5 21P CABLE(BYR SUPPLY) H9300ED 0VMN03276

X20C! OWNER'S MANUAL (HUNGARIANH9703ED 0VMN04027

X20D! OWNER'S MANUAL (ENGLISH) H9703ED 0VMN04028

20040510 1-16-1 H9703CA

ELECTRICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a !

have special characteristics important to safety. Before
replacing any of these components, read carefully the
product safety notice in this service manual. Don't
degrade the safety of the product through improper ser­vicing.

NOTES:

1. Parts that are not assigned part numbers (---------)
are not available.

2. Tolerance of Capacitors and Resistors are noted
with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

DVD MAIN CBA UNIT

Ref. No. Description Part No.

DVD MAIN CBA UNIT N79GSHEP

MCV CBA

Ref. No. Description Part No.

MCV CBA
Consists of the following

MAIN CBA(MCV-A)
DVD OPEN/CLOSE CBA(MCV-C)
SENSOR CBA

MAIN CBA

Ref. No. Description Part No.

MAIN CBA (MCV-A) ----------

Consists of the following:

CAPACITORS

C056 ELECTROLYTIC CAP. 47µF/ 25V M or CE1EMASDL470

ELECTROLYTIC CAP. 47µF/25V M CE1EMASTL470

C057 ELECTROLYTIC CAP. 10µF/ 16V M or CE1CMASDL100

ELECTROLYTIC CAP. 10µF/16V M CE1CMASTL100
C058 ELECTROLYTIC CAP. 220µF/6.3V M H7 CE0KMASSL221
C059 ELECTROLYTIC CAP. 100µF/6.3V M or CE0KMASDL101

ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASTL101
C060 CHIP CERAMIC CAP.(1608) B K 0.047µF/50V or CHD1JK30B473

CHIP CERAMIC CAP.(1608) B K 0.047µF/25V CHD1EK30B473
C062 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C063 ELECTROLYTIC CAP. 47µF/ 16V M or CE1CMASDL470

ELECTROLYTIC CAP. 47µF/16V M CE1CMASTL470

C068 CHIP CERAMIC CAP.(1608) CH J 470pF/50V or CHD1JJ3CH471

CHIP CERAMIC CAP. CG J 470pF/50V CHD1JJ3CG471
C104 ELECTROLYTIC CAP. 100µF/16V M or CE1CMASDL101

ELECTROLYTIC CAP. 100µF/16V M CE1CMASTL101
C107 ELECTROLYTIC CAP. 470µF/6.3V M or CE0KMASDL471

ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASTL471

C109 CHIP CERAMIC CAP.(1608) CH J 470pF/50V or CHD1JJ3CH471

CHIP CERAMIC CAP. CG J 470pF/50V CHD1JJ3CG471

1VSA10063

----------

---------­1VSA10047

Ref. No. Description Part No.

C112 CHIP CERAMIC CAP.(1608) CH J 470pF/50V or CHD1JJ3CH471

CHIP CERAMIC CAP. CG J 470pF/50V CHD1JJ3CG471

C113 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/ 25V or CHD1EZ30F104
CHIP CERAMIC CAP. FZ Z 0.1µF/ 50V CHD1JZ3FZ104

C114 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102

C116 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222
C117 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASTL1R0

C118 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222
C121 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C122 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C123 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C124 ELECTROLYTIC CAP. 470µF/6.3V M or CE0KMASDL471

ELECTROLYTIC CAP. 470µF/ 6.3V M CE0KMASTL471

C125 ELECTROLYTIC CAP. 470µF/6.3V M or CE0KMASDL471

ELECTROLYTIC CAP. 470µF/ 6.3V M CE0KMASTL471

C126 ELECTROLYTIC CAP. 470µF/6.3V M or CE0KMASDL471

ELECTROLYTIC CAP. 470µF/ 6.3V M CE0KMASTL471

C127 ELECTROLYTIC CAP. 10µF/16V M or CE1CMASDL100

ELECTROLYTIC CAP. 10µF/16V M CE1CMASTL100
C128 ELECTROLYTIC CAP. 22µF/6.3V M H7 CE0KMAVSL220
C129 ELECTROLYTIC CAP. 100µF/16V M H7 CE1CMAVSL101
C130 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7
C131 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7
C132 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7
C133 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/ 25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/ 50V CHD1JZ3FZ104
C134 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMAVSL100
C135 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C136 ELECTROLYTIC CAP. 100µF/6.3V H7 CE0KMAVSL101
C251 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMAVSL100
C252 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/ 25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/ 50V CHD1JZ3FZ104

C253 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C254 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C301 CHIP CERAMIC CAP.(1608) B K 0.022µF/50V or CHD1JK30B223

CHIP CERAMIC CAP.(1608) B K 0.022µF/ 25V CHD1EK30B223
C302 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C303 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/ 25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/ 50V CHD1JZ3FZ104
C305 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C306 CHIP CERAMIC CAP.(1608) B K 0.047µF/50V or CHD1JK30B473

CHIP CERAMIC CAP.(1608) B K 0.047µF/ 25V CHD1EK30B473
C307 CHIP CERAMIC CAP.(1608) B K 0.022µF/50V or CHD1JK30B223

CHIP CERAMIC CAP.(1608) B K 0.022µF/ 25V CHD1EK30B223
C308 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/ 25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/ 50V CHD1JZ3FZ104

C309 CHIP CERAMIC CAP.(1608) CH J 68pF/50V or CHD1JJ3CH680

CHIP CERAMIC CAP. CG J 68pF/50V CHD1JJ3CG680

C310 CHIP CERAMIC CAP.(1608) CH J 68pF/50V or CHD1JJ3CH680

CHIP CERAMIC CAP. CG J 68pF/50V CHD1JJ3CG680
C311 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

20040510 1-17-1 H9703EL

Ref. No. Description Part No.

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C312 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMAVSL100
C313 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMASSL1R0
C314 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C315 CHIP CERAMIC CAP.(1608) B K 0.047µF/50V or CHD1JK30B473

CHIP CERAMIC CAP.(1608) B K 0.047µF/25V CHD1EK30B473
C316 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C317 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C318 CHIP CERAMIC CAP.(1608) B K 0.022µF/50V or CHD1JK30B223

CHIP CERAMIC CAP.(1608) B K 0.022µF/25V CHD1EK30B223

C319 CHIP CERAMIC CAP.(1608) CH J 68pF/50V or CHD1JJ3CH680

CHIP CERAMIC CAP. CG J 68pF/50V CHD1JJ3CG680
C320 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C321 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C322 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104

C323 CHIP CERAMIC CAP.(1608) CH J 68pF/50V or CHD1JJ3CH680

CHIP CERAMIC CAP. CG J 68pF/50V CHD1JJ3CG680
C324 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103

C325 CHIP CERAMIC CAP. B K 8200pF/50V CHD1JK30B822
C326 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C328 ELECTROLYTIC CAP. 47µF/ 6.3V M H7 CE0KMAVSL470
C329 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C331 ELECTROLYTIC CAP. 47µF/ 6.3V M H7 CE0KMAVSL470
C333 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C334 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C335 ELECTROLYTIC CAP. 100µF/6.3V H7 CE0KMAVSL101

C336 CHIP CERAMIC CAP. CH J 220pF/50V or CHD1JJ3CH221

CHIP CERAMIC CAP. CG J 220pF/50V CHD1JJ3CG221
C337 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104

C339 CHIP CERAMIC CAP. CH J 120pF/50V or CHD1JJ3CH121

CHIP CERAMIC CAP. CG J 120pF/50V CHD1JJ3CG121
C340 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0

C341 CHIP CERAMIC CAP.(1608) CH D 10pF/50V or CHD1JD3CH100

CHIP CERAMIC CAP.(1608) CG D 10pF/50V CHD1JD3CG100

C342 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C343 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMAVSL100
C344 ELECTROLYTIC CAP. 4.7µF/25V M NP H7 CP1EMAVSB4R7
C345 ELECTROLYTIC CAP. 0.47µF/50V M H7 CE1JMAVSLR47
C346 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C348 CERAMIC CAP.(AX) F Z 0.1µF/50V CCA1JZTFZ104
C349 ELECTROLYTIC CAP. 0.47µF/50V M H7 CE1JMAVSLR47
C350 CERAMIC CAP.(AX) F Z 0.1µF/50V CCA1JZTFZ104

Ref. No. Description Part No.

C402 FILM CAP.(P) 0.018µF/100V J or CMA2AJP00183

FILM CAP.(P) 0.018µF /50V J CMA1JJP00183

C403 CERAMIC CAP. B K 470pF/100V CCD2AKS0B471
C404 ELECTROLYTIC CAP. 220µF/6.3V M H7 CE0KMASSL221
C405 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470

C407 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102

C408 CHIP CERAMIC CAP. B K 1800pF/50V CHD1JK30B182

C409 CHIP CERAMIC CAP.(1608) CH J 33pF/50V or CHD1JJ3CH330

CHIP CERAMIC CAP. CG J 33pF/50V CHD1JJ3CG330

C410 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMAVSL100
C411 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C412 ELECTROLYTIC CAP. 33µF/6.3V M H7 CE0KMAVSL330
C413 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/ 25V or CHD1EZ30F104
CHIP CERAMIC CAP. FZ Z 0.1µF/ 50V CHD1JZ3FZ104

C414 CHIP CERAMIC CAP.(1608) B K 0.022µF/50V or CHD1JK30B223

CHIP CERAMIC CAP.(1608) B K 0.022µF/ 25V CHD1EK30B223

C415 ELECTROLYTIC CAP. 4.7µF/25V M H7 CE1EMAVSL4R7

C416 CHIP CERAMIC CAP.(1608) B K 4700pF/50V CHD1JK30B472
C417 ELECTROLYTIC CAP. 22µF/6.3V M H7 CE0KMAVSL220
C418 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/ 25V or CHD1EZ30F104
CHIP CERAMIC CAP. FZ Z 0.1µF/ 50V CHD1JZ3FZ104

C419 CHIP CERAMIC CAP. CH J 220pF/50V or CHD1JJ3CH221

CHIP CERAMIC CAP. CG J 220pF/50V CHD1JJ3CG221

C421 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470
C451 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/ 25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/ 50V CHD1JZ3FZ104
C452 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMAVSL100
C453 ELECTROLYTIC CAP. 22µF/10V M H7 CE1AMAVSL220
C454 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/ 25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/ 50V CHD1JZ3FZ104
C455 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/ 25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/ 50V CHD1JZ3FZ104
C456 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMAVSL100
C457 ELECTROLYTIC CAP. 4.7µF/25V M H7 CE1EMAVSL4R7
C458 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C461 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103

C462 CHIP CERAMIC CAP.(1608) B K 4700pF/50V CHD1JK30B472
C463 ELECTROLYTIC CAP. 22µF/10V M H7 CE1AMAVSL220
C464 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C465 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMAVSL100
C466 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/ 25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/ 50V CHD1JZ3FZ104
C467 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/ 25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/ 50V CHD1JZ3FZ104
C468 ELECTROLYTIC CAP. 220µF/6.3V M H7 CE0KMAVSL221
C469 ELECTROLYTIC CAP. 22µF/10V M H7 CE1AMAVSL220

C470 CHIP CERAMIC CAP.(1608) B K 4700pF/50V CHD1JK30B472
C471 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C472 ELECTROLYTIC CAP. 4.7µF/25V M H7 CE1EMAVSL4R7
C473 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMAVSL100
C474 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/ 25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/ 50V CHD1JZ3FZ104
C475 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

20040510 1-17-2 H9703EL

Ref. No. Description Part No.

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C476 ELECTROLYTIC CAP. 22µF/ 6.3V M H7 CE0KMAVSL220
C477 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C478 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C479 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMAVSL100
C480 ELECTROLYTIC CAP. 4.7µF/25V M H7 CE1EMAVSL4R7
C481 ELECTROLYTIC CAP. 4.7µF/25V M H7 CE1EMAVSL4R7
C482 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C483 ELECTROLYTIC CAP. 4.7µF/25V M H7 CE1EMAVSL4R7
C484 ELECTROLYTIC CAP. 4.7µF/25V M H7 CE1EMAVSL4R7
C485 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMAVSL100
C486 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C487 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMAVSL470
C488 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C502 CHIP CERAMIC CAP.(1608) B K 0.022µF/50V or CHD1JK30B223

CHIP CERAMIC CAP.(1608) B K 0.022µF/25V CHD1EK30B223
C505 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C506 ELECTROLYTIC CAP. 220µF/6.3V M H7 CE0KMAVSL221

C507 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C508 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104

C509 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102

C510 CHIP CERAMIC CAP.(1608) B K 4700pF/50V CHD1JK30B472

C511 CHIP CERAMIC CAP.(1608) CH J 100pF/50V or CHD1JJ3CH101

CHIP CERAMIC CAP.(1608) CG J 100pF/50V CHD1JJ3CG101
C512 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103

C514 CHIP CERAMIC CAP. CH J 330pF/50V or CHD1JJ3CH331

CHIP CERAMIC CAP. CG J 330pF/50V CHD1JJ3CG331
C515 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C516 ELECTROLYTIC CAP. 22µF/ 6.3V M H7 CE0KMAVSL220
C517 CERAMIC CAP.(AX) F Z 0.022µF/25V CCA1EZTFZ223
C518 ELECTROLYTIC CAP. 22µF/ 6.3V M H7 CE0KMAVSL220

C519 CHIP CERAMIC CAP. CH J 560pF/50V or CHD1JJ3CH561

CHIP CERAMIC CAP. CG J 560pF/50V CHD1JJ3CG561
C521 ELECTROLYTIC CAP. 22µF/ 6.3V M H7 CE0KMAVSL220
C522 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C524 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103

C527 CERAMIC CAP.(AX) B K 100pF/50V CCA1JKT0B101

C531 CHIP CERAMIC CAP.(1608) B K 4700pF/50V CHD1JK30B472
C533 CHIP CERAMIC CAP.(1608) B K 0.047µF/50V or CHD1JK30B473

CHIP CERAMIC CAP.(1608) B K 0.047µF/25V CHD1EK30B473
C534 ELECTROLYTIC CAP. 47µF/ 6.3V M H7 CE0KMAVSL470
C535 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104

C536 CHIP CERAMIC CAP. CH J 560pF/50V or CHD1JJ3CH561

CHIP CERAMIC CAP. CG J 560pF/50V CHD1JJ3CG561

Ref. No. Description Part No.

C538 CHIP CERAMIC CAP. CH J 180pF/50V or CHD1JJ3CH181

CHIP CERAMIC CAP. CG J 180pF/50V CHD1JJ3CG181

C539 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103

C540 CHIP CERAMIC CAP.(1608) B K 4700pF/50V CHD1JK30B472

C541 CHIP CERAMIC CAP. CH J 18pF/50V or CHD1JJ3CH180

CHIP CERAMIC CAP. CG J 18pF/50V CHD1JJ3CG180

C542 CHIP CERAMIC CAP. CH J 18pF/50V or CHD1JJ3CH180

CHIP CERAMIC CAP. CG J 18pF/50V CHD1JJ3CG180

C543 CHIP CERAMIC CAP.(1608) CH J 22pF/50V or CHD1JJ3CH220

CHIP CERAMIC CAP. CG J 22pF/50V CHD1JJ3CG220

C544 CHIP CERAMIC CAP.(1608) CH J 22pF/50V or CHD1JJ3CH220

CHIP CERAMIC CAP. CG J 22pF/50V CHD1JJ3CG220

C545 CHIP CERAMIC CAP.(1608) CH J 22pF/50V or CHD1JJ3CH220

CHIP CERAMIC CAP. CG J 22pF/50V CHD1JJ3CG220

C546 CHIP CERAMIC CAP.(1608) CH J 22pF/50V or CHD1JJ3CH220

CHIP CERAMIC CAP. CG J 22pF/50V CHD1JJ3CG220

C547 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C548 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/ 25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/ 50V CHD1JZ3FZ104
C549 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C550 ELECTROLYTIC CAP. 100µF/6.3V H7 CE0KMAVSL101
C553 ELECTROLYTIC CAP. 22µF/10V M H7 CE1AMAVSL220
C555 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V or CHD1EK30B104

CHIP CERAMIC CAP.(1608) B K 0.1µF/ 16V CHD1CK30B104

C612 CHIP CERAMIC CAP.(1608) B K 4700pF/50V CHD1JK30B472
C614 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/ 25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/ 50V CHD1JZ3FZ104
C615 ELECTROLYTIC CAP. 100µF/6.3V H7 CE0KMAVSL101

C616 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C703 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/ 25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/ 50V CHD1JZ3FZ104
C706 CHIP CERAMIC CAP.(1608) B K 0.047µF/50V or CHD1JK30B473

CHIP CERAMIC CAP.(1608) B K 0.047µF/ 25V CHD1EK30B473
C709 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C711 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C712 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/ 25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/ 50V CHD1JZ3FZ104

C714 CHIP CERAMIC CAP. B K 1500pF/50V CHD1JK30B152
C715 CHIP CERAMIC CAP. F Z 0.22µF/16V or CHD1CZ30F224

CHIP CERAMIC CAP. FZ Z 0.22µF/ 25V CHD1EZ3FZ224
C716 CHIP CERAMIC CAP. F Z 0.22µF/16V or CHD1CZ30F224

CHIP CERAMIC CAP. FZ Z 0.22µF/ 25V CHD1EZ3FZ224
C751 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C752 ELECTROLYTIC CAP. 47µF/10V M H7 CE1AMAVSL470
C753 ELECTROLYTIC CAP. 4.7µF/50V M or CE1JMASDL4R7

ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASTL4R7
C754 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMASSL4R7

C755 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222

C756 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222
C757 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMASSL470
C758 CERAMIC CAP.(AX) Y M 0.01µF/16V CCA1CMT0Y103

C783 CHIP CERAMIC CAP.(1608) CH J 470pF/50V or CHD1JJ3CH471

CHIP CERAMIC CAP. CG J 470pF/50V CHD1JJ3CG471

C784 CHIP CERAMIC CAP.(1608) CH J 470pF/50V or CHD1JJ3CH471

CHIP CERAMIC CAP. CG J 470pF/50V CHD1JJ3CG471
C1039 CHIP CERAMIC CAP.(1608) F Z 0.1µF/ 50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/ 25V or CHD1EZ30F104

20040510 1-17-3 H9703EL

Ref. No. Description Part No.

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104

C1040 ELECTROLYTIC CAP. 100µF/ 6.3V M or CE0KMASDL101

ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASTL101

C1042 ELECTROLYTIC CAP. 470µF/ 6.3V M or CE0KMASDL471

ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASTL471

C1056 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C1201 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMASSL100
C1202 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMASSL100

C1205 CHIP CERAMIC CAP. CH J 220pF/50V or CHD1JJ3CH221

CHIP CERAMIC CAP. CG J 220pF/50V CHD1JJ3CG221

C1206 CHIP CERAMIC CAP. CH J 220pF/50V or CHD1JJ3CH221

CHIP CERAMIC CAP. CG J 220pF/50V CHD1JJ3CG221

C1207 CHIP CERAMIC CAP.(1608) CH J 47pF/50V or CHD1JJ3CH470

CHIP CERAMIC CAP. CG J 47pF/50V CHD1JJ3CG470

C1208 CHIP CERAMIC CAP.(1608) CH J 47pF/50V or CHD1JJ3CH470

CHIP CERAMIC CAP. CG J 47pF/50V CHD1JJ3CG470

C1221 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMAVSL100
C1222 ELECTROLYTIC CAP. 10µF/ 16V M or CE1CMASDL100

ELECTROLYTIC CAP. 10µF/16V M CE1CMASTL100

C1223 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V or CHD1JJ3CH102

CHIP CERAMIC CAP. CG J 1000pF/50V CHD1JJ3CG102

C1224 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C1245 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104

C1246 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104

C1247 ELECTROLYTIC CAP. 470µF/16V M or CE1CMASDL471

ELECTROLYTIC CAP. 470µF/16V M CE1CMASTL471

C1249 ELECTROLYTIC CAP. 47µF/ 16V M or CE1CMASDL470

ELECTROLYTIC CAP. 47µF/16V M CE1CMASTL470
C1351 ELECTROLYTIC CAP. 22µF/ 6.3V M H7 CE0KMAVSL220
C1352 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C1353 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V or CHD1EK30B104

CHIP CERAMIC CAP.(1608) B K 0.1µF/16V CHD1CK30B104

C1354 CHIP CERAMIC CAP.(1608) CH J 100pF/50V or CHD1JJ3CH101

CHIP CERAMIC CAP.(1608) CG J 100pF/50V CHD1JJ3CG101
C1355 CHIP CERAMIC CAP. F Z 1µF/10V or CHD1AZB0F105

CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105

C1359 CHIP CERAMIC CAP. CH D 9pF/50V CHD1JD3CH9R0
C1393 ELECTROLYTIC CAP. 470µF/ 6.3V M or CE0KMASDL471

ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASTL471
C1394 ELECTROLYTIC CAP. 47µF/ 6.3V M or CE0KMASDL470

ELECTROLYTIC CAP. 47µF/6.3V M CE0KMASTL470
C1421 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1422 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V or CHD1EK30B104

CHIP CERAMIC CAP.(1608) B K 0.1µF/16V CHD1CK30B104
C1441 CHIP CERAMIC CAP.(1608) B K 0.33µF/10V CHD1AK30B334
C1442 ELECTROLYTIC CAP. 470µF/ 6.3V M or CE0KMASDL471

ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASTL471
C1522 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMAVSL100
C1523 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C1524 ELECTROLYTIC CAP. 100µF/6.3V H7 CE0KMAVSL101
C1535 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1536 ELECTROLYTIC CAP. 22µF/ 6.3V M H7 CE0KMAVSL220

C2002 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102

Ref. No. Description Part No.

C2004 ELECTROLYTIC CAP. 100µF/6.3V H7 CE0KMAVSL101
C2012 CHIP CERAMIC CAP.(1608) F Z 0.1µF/ 50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/ 25V or CHD1EZ30F104
CHIP CERAMIC CAP. FZ Z 0.1µF/ 50V CHD1JZ3FZ104

CONNECTORS

CN051 CONNECTOR BASE, 18P TUC-P18P-B1 J3TUA18TG001

CN701 AFV PCB ASSEMBLY CPD0500/9701 H9701AFV

DIODES

D051 RECTIFIER DIODE 1N4005 or NDQZ001N4005

RECTIFIER DIODE 1N4005 NDWZ001N4005

D052 RECTIFIER DIODE 1N4005 or NDQZ001N4005

RECTIFIER DIODE 1N4005 NDWZ001N4005

D054 ZENER DIODE DZ-10BSBT265 or NDTB00DZ10BS

ZENER DIODE MTZJT-7710B QDTB00MTZJ10

D056 ZENER DIODE DZ-18BSBT265 or NDTB00DZ18BS

ZENER DIODE MTZJT-7718B QDTB00MTZJ18

D057 RECTIFIER DIODE 1N4005 or NDQZ001N4005

RECTIFIER DIODE 1N4005 NDWZ001N4005

D101 ZENER DIODE DZ-11BSAT265 or NDTA00DZ11BS

ZENER DIODE MTZJT-7711A QDTA00MTZJ11

D102 ZENER DIODE DZ-11BSAT265 or NDTA00DZ11BS

ZENER DIODE MTZJT-7711A QDTA00MTZJ11

D103 ZENER DIODE DZ-11BSAT265 or NDTA00DZ11BS

ZENER DIODE MTZJT-7711A QDTA00MTZJ11

D104 ZENER DIODE DZ-11BSAT265 or NDTA00DZ11BS

ZENER DIODE MTZJT-7711A QDTA00MTZJ11

D105 ZENER DIODE DZ-11BSAT265 or NDTA00DZ11BS

ZENER DIODE MTZJT-7711A QDTA00MTZJ11

D106 ZENER DIODE DZ-11BSAT265 or NDTA00DZ11BS

ZENER DIODE MTZJT-7711A QDTA00MTZJ11

D107 ZENER DIODE DZ-11BSAT265 or NDTA00DZ11BS

ZENER DIODE MTZJT-7711A QDTA00MTZJ11

D108 ZENER DIODE DZ-11BSAT265 or NDTA00DZ11BS

ZENER DIODE MTZJT-7711A QDTA00MTZJ11

D109 ZENER DIODE DZ-11BSAT265 or NDTA00DZ11BS

ZENER DIODE MTZJT-7711A QDTA00MTZJ11

D110 ZENER DIODE DZ-11BSAT265 or NDTA00DZ11BS

ZENER DIODE MTZJT-7711A QDTA00MTZJ11

D115 ZENER DIODE DZ-11BSAT265 or NDTA00DZ11BS

ZENER DIODE MTZJT-7711A QDTA00MTZJ11

D118 ZENER DIODE DZ-11BSAT265 or NDTA00DZ11BS

ZENER DIODE MTZJT-7711A QDTA00MTZJ11

D119 ZENER DIODE DZ-11BSAT265 or NDTA00DZ11BS

ZENER DIODE MTZJT-7711A QDTA00MTZJ11

D121 ZENER DIODE DZ-11BSAT265 or NDTA00DZ11BS

ZENER DIODE MTZJT-7711A QDTA00MTZJ11

D301 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D502 LED(GREEN) 204-10GD/S957 NPQZ10GDS957

D503 LED(GREEN) 204-10GD/S957 NPQZ10GDS957

D505 LED(RED) 204HD/E NPQZ00204HDE

D510 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D511 ZENER DIODE DZ-7.5BSAT265 or NDTA0DZ7R5BS

ZENER DIODE MTZJT-777.5A QDTA0MTZJ7R5

D512 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D555 LED MIE-534A2 or NPZZM1E534A2

LED SIR-563ST3F P or QPQPS1R563ST

LED SIR-563ST3F Q QPQQS1R563ST

20040510 1-17-4 H9703EL

Ref. No. Description Part No.

D611 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D612 PCB JUMPER D0.6-P5.0 JW5.0T

D613 PCB JUMPER D0.6-P5.0 JW5.0T

D701 ZENER DIODE DZ-33BSDT265 or NDTD00DZ33BS

ZENER DIODE MTZJT-7733D QDTD00MTZJ33

D1031 PCB JUMPER D0.6-P5.0 JW5.0T

D1052 RECTIFIER DIODE 1N4005 or NDQZ001N4005

RECTIFIER DIODE 1N4005 NDWZ001N4005

D1053 RECTIFIER DIODE 1N4005 or NDQZ001N4005

RECTIFIER DIODE 1N4005 NDWZ001N4005

D1054 RECTIFIER DIODE 1N4005 or NDQZ001N4005

RECTIFIER DIODE 1N4005 NDWZ001N4005

D1057 RECTIFIER DIODE 1N4005 or NDQZ001N4005

RECTIFIER DIODE 1N4005 NDWZ001N4005

D1301 ZENER DIODE DZ-5.6BSBT265 or NDTB0DZ5R6BS

ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6

ICS

IC102 DRIVER FOR DVD MM1637XVBE QSZBA0TMM102

IC301 IC:Y/C/A LA71750EM-MPB-E QSZBA0RSY020

IC451 IC:HIFI LA72648M-MPB-E QSZBA0RSY033

IC501 SYSCON IC M3776AMCA-AA8GP QSZAA0RMB200

IC502 IC:EEPROM CAT24WC02JI or NSZBA0SBG001

IC BR24L02F-WE2 QSZBA0TRM068

IC611 V.F.D. 7-BT-298N TVFD150FT012

IC612 FL DRIVER IC PT6313-S-TP NSZBA0TG2006

IC751 IC:SWITCH TC4053BF(N) or QSMBA0STS002

IC:SWITCH BU4053BCF-E2 or QSMDA0TRM010

IC:ANALOG MULTIPLEXERS CD4053BCSJX or NSZBA0TF3071

IC:ANALOG MULTIPLEXER CD4053BNSR NSZBA0TTY093

IC1002 VOLTAGE REGULATOR PQ070XZ5MZP QSZBA0TSH034

IC1003 VOLTAGE REGULATOR BA3948FP-E2 QSZBA0TRM073

IC1201 IC:OP AMP KIA4558P or NSZBA0SJY004

IC:OP AMP NJM4558D QSZBA0SJR006

IC1204 FIBER OPTIC TRANS.MODULE 0C-0805T*002 or JWHHA00JD002

FIBER OPTIC TRANS.MODULE GP1FA513TZ JWHHA00SH005

IC1403 DRIVER FOR DVD MM1636XWRE QSZBA0TMM108

IC1404 IC:SWITCH TC4053BF(N) or QSMBA0STS002

IC:SWITCH BU4053BCF-E2 or QSMDA0TRM010

IC:ANALOG MULTIPLEXERS CD4053BCSJX or NSZBA0TF3071

IC:ANALOG MULTIPLEXER CD4053BNSR NSZBA0TTY093

COILS

L053 INDUCTOR(100µH K) LAP02TA101K LLAXKATTU101

L101 BEAD CORE B16 RH 3.5X10X1.3 XL03010XM001
L121 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
L122 CHOKE COIL 47µH-K or LLBD00PKV007

CHOKE COIL 47µH-K or LLBD00PKV005

CHOKE COIL 47µH-K LLBD00PKT001
L251 INDUCTOR 5.6µH-K-26T LLAXKATTU5R6
L302 INDUCTOR(100µH K) LAP02TA101K LLAXKATTU101
L402 INDUCTOR 47µH-K-5FT LLARKBSTU470
L451 INDUCTOR 47µH-K-5FT LLARKBSTU470

L452 PCB JUMPER D0.6-P5.0 JW5.0T
L501 INDUCTOR(100µH K) LAP02TA101K LLAXKATTU101

L502 PCB JUMPER D0.6-P5.0 JW5.0T
L503 INDUCTOR 1.8µH-K-26T LLAXKATTU1R8
L701 INDUCTOR 15µH-K-26T LLAXKATTU150

L702 PCB JUMPER D0.6-P5.0 JW5.0T

L704 PCB JUMPER D0.6-P5.0 JW5.0T
L1251 INDUCTOR(0.47µH K) LAP02TAR47K LLAXKATTUR47

Ref. No. Description Part No.

L1351 INDUCTOR(100µH K) LAP02TA101K LLAXKATTU101
L1521 CHOKE COIL 47µH-K or LLBD00PKV007

CHOKE COIL 47µH-K or LLBD00PKV005

CHOKE COIL 47µH-K LLBD00PKT001
L1522 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
L2001 INDUCTOR(100µH K) LAP02TA101K LLAXKATTU101

TRANSISTORS

Q051 TRANSISTOR KTA1281(Y) or NQSY0KTA1281

TRANSISTOR 2SA1020(Y) QQSY02SA1020

Q052 RES. BUILT-IN TRANSISTOR KRC103M or NQSZ0KRC103M

RES. BUILT-IN TRANSISTOR BA1F4M-T QQSZ00BA1F4M

Q053 TRANSISTOR RN2204(TE4,T) or QQSZ00RN2204

RES. BUILT-IN TRANSISTOR BN1L4M-T QQSZ00BN1L4M

Q054 RES. BUILT-IN TRANSISTOR KRC103M or NQSZ0KRC103M

RES. BUILT-IN TRANSISTOR BA1F4M-T QQSZ00BA1F4M

Q055 TRANSISTOR KTC3199(Y) or NQSY0KTC3199

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC1815-Y(TPE2) or QQSY02SC1815

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q056 TRANSISTOR KTC3205(Y) or NQSY0KTC3205

TRANSISTOR 2SC3266-Y(TPE2) QQSY02SC3266

Q057 RES. BUILT-IN TRANSISTOR KRA103M or NQSZ0KRA103M

RES. BUILT-IN TRANSISTOR BN1F4M-T QQSZ00BN1F4M

Q058 TRANSISTOR KTA1266(GR) or NQS40KTA1266

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015

Q059 RES. BUILT-IN TRANSISTOR KRC103M or NQSZ0KRC103M

RES. BUILT-IN TRANSISTOR BA1F4M-T QQSZ00BA1F4M

Q104 TRANSISTOR KTA1266(GR) or NQS40KTA1266

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015

Q107 TRANSISTOR KTC3199(Y) or NQSY0KTC3199

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC1815-Y(TPE2) or QQSY02SC1815

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q108 TRANSISTOR KTC3199(Y) or NQSY0KTC3199

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC1815-Y(TPE2) or QQSY02SC1815

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q302 TRANSISTOR KTC3199(Y) or NQSY0KTC3199

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC1815-Y(TPE2) or QQSY02SC1815

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q401 CHIP TRANSISTOR FMG4A T148 or QQ2Z000FMG4A

CHIP TRANSISTOR RN1511(TE85R) QQ2Z00RN1511

Q403 TRANSISTOR KTC3203(Y) or NQSY0KTC3203

TRANSISTOR 2SC2120-Y(TPE2) QQSY02SC2120

Q404 TRANSISTOR KTA1266(GR) or NQS40KTA1266

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015

Q405 RES. BUILT-IN TRANSISTOR KRA103M or NQSZ0KRA103M

RES. BUILT-IN TRANSISTOR BN1F4M-T QQSZ00BN1F4M

20040510 1-17-5 H9703EL

Ref. No. Description Part No.

Q406 CHIP TRANSISTOR KTC3875Y-RTK NQ1Y0KTC3875

Q451 CHIP TRANSISTOR KRC103S RTK or NQ1Z0KRC103S

CHIP TRANSISTOR FA1F4M-T1B QQ8Z00FA1F4M

Q506 PHOTO TRANSISTOR PT204-6B-12 or NPWZT2046B12

PHOTO TRANSISTOR MID-32A22F NPWZ1D32A22F

Q507 TRANSISTOR KTC3199(Y) or NQSY0KTC3199

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC1815-Y(TPE2) or QQSY02SC1815

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q508 TRANSISTOR KTC3199(Y) or NQSY0KTC3199

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC1815-Y(TPE2) or QQSY02SC1815

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q509 TRANSISTOR KTC3199(Y) or NQSY0KTC3199

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC1815-Y(TPE2) or QQSY02SC1815

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q513 RES. BUILT-IN TRANSISTOR KRC103M or NQSZ0KRC103M

RES. BUILT-IN TRANSISTOR BA1F4M-T QQSZ00BA1F4M

Q514 TRANSISTOR KTC3199(BL) or NQS50KTC3199

TRANSISTOR 2SC1815-BL(TPE2) QQS202SC1815

Q515 TRANSISTOR KTC3199(BL) or NQS50KTC3199

TRANSISTOR 2SC1815-BL(TPE2) QQS202SC1815

Q753 TRANSISTOR KTC3199(Y) or NQSY0KTC3199

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC1815-Y(TPE2) or QQSY02SC1815

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q754 TRANSISTOR KTC3199(Y) or NQSY0KTC3199

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC1815-Y(TPE2) or QQSY02SC1815

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q1052 TRANSISTOR KTC3203(Y) or NQSY0KTC3203

TRANSISTOR 2SC2120-Y(TPE2) QQSY02SC2120

Q1053 TRANSISTOR KTA1267(Y) or NQSY0KTA1267

TRANSISTOR KTA1267(GR) or NQS10KTA1267

TRANSISTOR 2SA1175(J) or QQSJ02SA1175

TRANSISTOR 2SA1175(H) or QQSH02SA1175

TRANSISTOR 2SA1175(F) QQSF02SA1175

Q1054 TRANSISTOR KTC3199(Y) or NQSY0KTC3199

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC1815-Y(TPE2) or QQSY02SC1815

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q1055 TRANSISTOR KTC3203(Y) or NQSY0KTC3203

Ref. No. Description Part No.

TRANSISTOR 2SC2120-Y(TPE2) QQSY02SC2120

Q1204 TRANSISTOR KTA1266(GR) or NQS40KTA1266

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015

Q1351 TRANSISTOR KTC3199(Y) or NQSY0KTC3199

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC1815-Y(TPE2) or QQSY02SC1815

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q1352 TRANSISTOR KTC3199(Y) or NQSY0KTC3199

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC1815-Y(TPE2) or QQSY02SC1815

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q1502 CHIP TRANSISTOR KRC103S RTK or NQ1Z0KRC103S

CHIP TRANSISTOR FA1F4M-T1B QQ8Z00FA1F4M

Q1503 CHIP TRANSISTOR KTC3875Y-RTK NQ1Y0KTC3875

RESISTORS

R051 CARBON RES. 1/6W J 47k Ω or RCX6JATZ0473

CARBON RES. 1/4W J 47k Ω RCX4JATZ0473
R052 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681
R053 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681
R054 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R055 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

R056 PCB JUMPER D0.6-P5.0 JW5.0T
R058 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122
R059 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122
R060 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122
R061 CARBON RES. 1/4W J 8.2k Ω RCX4JATZ0822
R062 CHIP RES.(1608) 1/10W J 180 Ω RRXAJR5Z0181
R064 CARBON RES. 1/4W J 8.2k Ω RCX4JATZ0822
R065 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R070 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821
R072 CARBON RES. 1/6W J 1 Ω or RCX6JATZ01R0

CARBON RES. 1/4W J 1 Ω RCX4JATZ01R0
R112 CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221
R113 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681
R116 CARBON RES. 1/4W J 560 Ω RCX4JATZ0561
R119 CARBON RES. 1/4W J 75 Ω RCX4JATZ0750
R121 CARBON RES. 1/6W J 15k Ω or RCX6JATZ0153

CARBON RES. 1/4W J 15k Ω RCX4JATZ0153
R122 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R124 CARBON RES. 1/6W J 4.7k Ω or RCX6JATZ0472

CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472
R128 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R129 CARBON RES. 1/4W J 470 Ω RCX4JATZ0471
R130 CARBON RES. 1/6W J 4.7k Ω or RCX6JATZ0472

CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472
R131 CARBON RES. 1/4W J 470 Ω RCX4JATZ0471
R132 CHIP RES. 1/10W F 160 Ω or RRXAFR5H1600

CHIP RES. 1/10W F 160 Ω RRXAFR5Z1600
R133 CHIP RES. 1/10W F 160 Ω or RRXAFR5H1600

CHIP RES. 1/10W F 160 Ω RRXAFR5Z1600
R134 CHIP RES. 1/10W F 160 Ω or RRXAFR5H1600

CHIP RES. 1/10W F 160 Ω RRXAFR5Z1600
R135 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R136 CARBON RES. 1/4W J 75 Ω RCX4JATZ0750
R137 CARBON RES. 1/4W J 75 Ω RCX4JATZ0750

20040510 1-17-6 H9703EL

Ref. No. Description Part No.

R138 CARBON RES. 1/4W J 75 Ω RCX4JATZ0750
R140 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R141 CHIP RES.(1608) 1/10W J 150 Ω RRXAJR5Z0151
R142 CHIP RES.(1608) 1/10W J 180 Ω RRXAJR5Z0181
R143 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R144 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R145 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472
R146 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R147 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R148 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R149 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472
R150 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R251 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393
R252 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R301 CHIP RES.(1608) 1/10W J 1.2k Ω RRXAJR5Z0122
R303 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562
R304 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R305 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R306 CHIP RES.(1608) 1/10W J 5.6M Ω RRXAJR5Z0565
R307 CARBON RES. 1/6W J 33 Ω or RCX6JATZ0330

CARBON RES. 1/4W J 33 Ω RCX4JATZ0330
R308 CHIP RES.(1608) 1/10W J 3.9k Ω RRXAJR5Z0392
R309 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R310 CARBON RES. 1/6W J 33 Ω or RCX6JATZ0330

CARBON RES. 1/4W J 33 Ω RCX4JATZ0330
R311 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R312 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562
R314 CHIP RES.(1608) 1/10W J 3.9k Ω RRXAJR5Z0392
R316 CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJR5Z0182
R317 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R319 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R320 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R321 CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471
R322 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R323 CHIP RES.(1608) 1/10W J 1.2k Ω RRXAJR5Z0122
R324 CHIP RES.(1608) 1/10W J 1.2k Ω RRXAJR5Z0122
R325 CHIP RES.(1608) 1/10W J 1.2k Ω RRXAJR5Z0122
R326 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472
R327 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJR5Z0682
R328 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R330 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R331 CHIP RES.(1608) 1/10W J 18k Ω RRXAJR5Z0183
R332 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R333 CHIP RES.(1608) 1/10W J 18k Ω RRXAJR5Z0183
R334 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R335 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R336 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472
R337 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJR5Z0682
R339 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R341 CHIP RES.(1608) 1/10W J 33 Ω RRXAJR5Z0330
R342 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R401 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821
R402 CARBON RES. 1/6W J 100 Ω or RCX6JATZ0101

CARBON RES. 1/4W J 100 Ω RCX4JATZ0101
R404 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R405 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R406 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R407 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562
R408 CHIP RES.(1608) 1/10W J 12k Ω RRXAJR5Z0123
R409 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562
R410 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102

Ref. No. Description Part No.

R411 CHIP RES.(1608) 1/10W J 27k Ω RRXAJR5Z0273
R412 CHIP RES.(1608) 1/10W J 120 Ω RRXAJR5Z0121
R413 CHIP RES.(1608) 1/10W J 330k Ω RRXAJR5Z0334
R414 CHIP RES.(1608) 1/10W J 12k Ω RRXAJR5Z0123
R415 CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJR5Z0182
R416 CHIP RES.(1608) 1/10W J 560 Ω RRXAJR5Z0561
R417 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R418 CHIP RES.(1608) 1/10W J 12k Ω RRXAJR5Z0123
R419 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R420 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472
R421 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472
R430 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R431 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R451 CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJR5Z0822
R452 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393
R453 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562
R454 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393
R455 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562
R456 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393
R457 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562
R458 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R459 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393
R460 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562
R461 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R462 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R463 CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471
R464 CHIP RES.(1608) 1/10W J 3.3k Ω RRXAJR5Z0332
R465 CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJR5Z0822
R466 CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJR5Z0822
R467 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562
R468 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562
R469 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393
R470 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393
R471 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393
R472 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562
R473 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R474 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562
R475 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R476 CHIP RES.(1608) 1/10W J 150 Ω RRXAJR5Z0151
R477 CHIP RES.(1608) 1/10W J 150 Ω RRXAJR5Z0151
R478 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393
R479 CHIP RES.(1608) 1/10W J 33 Ω RRXAJR5Z0330
R480 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R481 CHIP RES.(1608) 1/10W J 33 Ω RRXAJR5Z0330
R482 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R483 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R484 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJR5Z0682
R501 CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJR5Z0182
R502 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R503 CHIP RES.(1608) 1/10W J 3.9k Ω RRXAJR5Z0392
R504 CHIP RES.(1608) 1/10W J 3.9k Ω RRXAJR5Z0392
R507 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R509 CHIP RES.(1608) 1/10W J 180 Ω RRXAJR5Z0181
R511 CARBON RES. 1/6W G 3.6k Ω or RCX6GATZ0362

CARBON RES. 1/4W G 3.6k Ω RCX4GATZ0362
R512 CHIP RES.(1608) 1/10W J 68k Ω RRXAJR5Z0683
R513 CHIP RES.(1608) 1/10W J 33k Ω RRXAJR5Z0333
R514 CARBON RES. 1/6W G 10k Ω or RCX6GATZ0103

CARBON RES. 1/4W G 10k Ω RCX4GATZ0103
R516 CARBON RES. 1/6W G 470 Ω or RCX6GATZ0471

CARBON RES. 1/4W G 470 Ω RCX4GATZ0471

20040510 1-17-7 H9703EL

Ref. No. Description Part No.

R517 CARBON RES. 1/4W J 270 Ω RCX4JATZ0271
R519 CARBON RES. 1/6W G 22k Ω or RCX6GATZ0223

CARBON RES. 1/4W G 22k Ω RCX4GATZ0223

R523 CARBON RES. 1/6W G 1.5k Ω or RCX6GATZ0152

CARBON RES. 1/4W G 1.5k Ω RCX4GATZ0152

R525 CARBON RES. 1/6W J 390k Ω or RCX6JATZ0394

CARBON RES. 1/4W J 390k Ω RCX4JATZ0394
R526 CHIP RES.(1608) 1/10W J 390k Ω RRXAJR5Z0394
R527 CARBON RES. 1/6W J 330 Ω or RCX6JATZ0331

CARBON RES. 1/4W J 330 Ω RCX4JATZ0331
R528 CARBON RES. 1/6W G 4.7k Ω or RCX6GATZ0472

CARBON RES. 1/4W G 4.7k Ω RCX4GATZ0472
R529 CHIP RES.(1608) 1/10W J 3.9k Ω RRXAJR5Z0392
R530 CARBON RES. 1/4W J 270 Ω RCX4JATZ0271
R531 CHIP RES.(1608) 1/10W J 3.9k Ω RRXAJR5Z0392
R532 CARBON RES. 1/4W J 270 Ω RCX4JATZ0271
R533 CHIP RES.(1608) 1/10W J 3.9k Ω RRXAJR5Z0392
R536 CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJR5Z0182
R537 CHIP RES.(1608) 1/10W J 680 Ω RRXAJR5Z0681
R538 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJR5Z0152
R539 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R540 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R541 CHIP RES.(1608) 1/10W J 18k Ω RRXAJR5Z0183
R542 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R543 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R544 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R545 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R546 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R547 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R550 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R552 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R558 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R560 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R562 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R567 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393
R568 CHIP RES.(1608) 1/10W J 220k Ω RRXAJR5Z0224
R569 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R570 CARBON RES. 1/6W J 4.7k Ω or RCX6JATZ0472

CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472
R572 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R574 CHIP RES.(1608) 1/10W J 560 Ω RRXAJR5Z0561
R575 CHIP RES.(1608) 1/10W J 330k Ω RRXAJR5Z0334
R576 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R577 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJR5Z0152
R578 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R581 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R582 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R583 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821
R584 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R585 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R586 CHIP RES.(1608) 1/10W J 820 Ω RRXAJR5Z0821
R588 CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471
R591 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R601 CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJR5Z0182
R602 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R603 CHIP RES.(1608) 1/10W J 1.2k Ω RRXAJR5Z0122
R604 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJR5Z0152
R605 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R613 CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJR5Z0822
R614 CHIP RES.(1608) 1/10W J 5.1k Ω RRXAJR5Z0512
R615 CHIP RES.(1608) 1/10W J 5.1k Ω RRXAJR5Z0512

Ref. No. Description Part No.

R616 CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJR5Z0822

R617 PCB JUMPER D0.6-P5.0 JW5.0T
R618 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R621 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R622 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R623 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R624 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R703 CARBON RES. 1/6W J 1.8k Ω or RCX6JATZ0182

CARBON RES. 1/4W J 1.8k Ω RCX4JATZ0182
R704 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R705 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R706 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R707 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R756 CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471
R757 CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471
R759 CARBON RES. 1/6W J 150 Ω or RCX6JATZ0151

CARBON RES. 1/4W J 150 Ω RCX4JATZ0151
R760 CHIP RES.(1608) 1/10W J 150 Ω RRXAJR5Z0151
R761 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R762 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472
R763 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472
R764 CARBON RES. 1/6W J 47k Ω or RCX6JATZ0473

CARBON RES. 1/4W J 47k Ω RCX4JATZ0473
R765 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R767 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R768 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102

R769 PCB JUMPER D0.6-P5.0 JW5.0T
R902 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R931 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R932 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R933 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R941 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R942 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R943 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R1056 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181
R1057 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181

R1060 PCB JUMPER D0.6-P5.0 JW5.0T
R1061 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R1062 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R1065 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R1066 CHIP RES.(1608) 1/10W J 220k Ω RRXAJR5Z0224
R1067 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R1068 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R1071 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R1072 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562
R1085 CHIP RES.(1608) 1/10W F 75 Ω or RRXAFR5H0750

CHIP RES.(1608) 1/10W F 75 Ω RRXAFR5Z0750
R1086 CHIP RES.(1608) 1/10W F 2.0k Ω or RRXAFR5H0202

CHIP RES. 1/10W F 2.0k Ω RRXAFR5Z0202
R1087 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R1090 CHIP RES.(1608) 1/10W J 56k Ω RRXAJR5Z0563
R1091 CHIP RES.(1608) 1/10W J 33k Ω RRXAJR5Z0333
R1205 CHIP RES.(1608) 1/10W F 20k Ω or RRXAFR5H2002

CHIP RES.(1608) 1/10W F 20k Ω RRXAFR5Z2002
R1206 CHIP RES.(1608) 1/10W F 20k Ω or RRXAFR5H2002

CHIP RES.(1608) 1/10W F 20k Ω RRXAFR5Z2002
R1207 CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJR5Z0822
R1208 CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJR5Z0822
R1209 CHIP RES.(1608) 1/10W F 30k Ω or RRXAFR5H3002

CHIP RES.(1608) 1/10W F 30k Ω RRXAFR5Z3002
R1210 CHIP RES.(1608) 1/10W F 30k Ω or RRXAFR5H3002

20040510 1-17-8 H9703EL

Ref. No. Description Part No.

CHIP RES.(1608) 1/10W F 30k Ω RRXAFR5Z3002
R1211 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R1221 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R1222 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R1223 CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471
R1224 CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471
R1227 CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221
R1228 CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221
R1229 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R1233 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R1236 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R1238 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R1240 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R1245 CHIP RES.(1608) 1/10W J 10 Ω RRXAJR5Z0100
R1351 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R1352 CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJR5Z0182
R1353 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R1354 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R1355 CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221
R1356 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R1361 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R1364 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R1394 CARBON RES. 1/6W J 100 Ω or RCX6JATZ0101

CARBON RES. 1/4W J 100 Ω RCX4JATZ0101
R1396 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R1421 CHIP RES. 1/10W F 160 Ω or RRXAFR5H1600

CHIP RES. 1/10W F 160 Ω RRXAFR5Z1600
R1422 CARBON RES. 1/4W J 75 Ω RCX4JATZ0750
R1423 CHIP RES. 1/10W F 160 Ω or RRXAFR5H1600

CHIP RES. 1/10W F 160 Ω RRXAFR5Z1600
R1442 CARBON RES. 1/4W J 75 Ω RCX4JATZ0750
R1501 CARBON RES. 1/4W J 75 Ω RCX4JATZ0750
R1502 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R1503 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJR5Z0682
R2001 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R2002 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R2003 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R2005 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R2006 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R2067 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R2082 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R2083 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R2084 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R2086 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562
R2093 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R2094 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103

SWITCHES

SW501 TACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041

TACT SWITCH TC-1104(H=9.5) SST0101DNG01

SW502 TACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041

TACT SWITCH TC-1104(H=9.5) SST0101DNG01

SW503 TACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041

TACT SWITCH TC-1104(H=9.5) SST0101DNG01

SW504 TACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041

TACT SWITCH TC-1104(H=9.5) SST0101DNG01

SW506 LEAF SWITCH MXS01830MVP0 SSC0101MCE03

SW507 ROTARY MODE SWITCH SSS-53MD SSR0106KB003

Ref. No. Description Part No.

SW601 TACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041

TACT SWITCH TC-1104(H=9.5) SST0101DNG01

SW602 TACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041

TACT SWITCH TC-1104(H=9.5) SST0101DNG01

SW603 TACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041

TACT SWITCH TC-1104(H=9.5) SST0101DNG01

SW604 TACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041

TACT SWITCH TC-1104(H=9.5) SST0101DNG01

SW605 TACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041

TACT SWITCH TC-1104(H=9.5) SST0101DNG01

SW2021 TACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041

TACT SWITCH TC-1104(H=9.5) SST0101DNG01

SW2022 TACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041

TACT SWITCH TC-1104(H=9.5) SST0101DNG01

MISCELLANEOUS

2B11 HEAD SHIELD H9700ED 0VM416291

2B15 BUSH, LED(F) H3700UD 0VM409508

2B46 ROHM HOLDER H7770JD 0VM304573

2L062 SCREW, B-TIGHT M3X8 BIND HEAD + GBKB3080

2L082 SCREW, B-TIGHT M3X8 BIND HEAD + GBKB3080

A5 JACK BOARD(RCA) H9700ED 0VM204532

JK101 RGB CONNECTOR MRC-021V-03 JXGL210LY003

JK751 RCA JACK MSP-282V-12 PBSN JXRL030LY011

JK752 RCA JACK(YELLOW) MSP-281V4-B JXRL010LY003

JK753 RCA JACK(WHITE) MSP-281V1-B JXRL010LY005

JK754 RCA JACK(RED) MSP-281V3-A JYRL010LY002

JK1202 RCA JACK(BLACK) MSP-281V2-B JXRL010LY062

JK1401 S TYPE JACK MDC-050V-2.4 JXEL040LY001

JW006 FFC CABLE, 27P FFC/P1.00/260 WX1H9700-001

JW007 FFC CABLE, 19P FFC/P1.00/195 WX1H9700-002

PS502 PHOTO INTERRUPTER RPI-302C70 QPWZP1302C70

RM2001 REMOTE RECEIVER MIM-93M6DKF or USESJRSUNT01

REMOTE RECEIVER PIC-37042LU USESJRSKK033

TP301 PCB JUMPER D0.6-P19.0 JW19.0T

TP401 PCB JUMPER D0.6-P14.5 JW14.5T

TP501 PCB JUMPER D0.6-P5.0 JW5.0T

TP502 PCB JUMPER D0.6-P5.0 JW5.0T

TP503 PCB JUMPER D0.6-P6.0 JW6.0T

TP504 PCB JUMPER D0.6-P15.0 JW15.0T

TU701 TUNER UNIT TMDG2-861A UTUNPLGAL014
VR501 CARBON P.O.T. 100k Ω B VRCB104HH014

X301 X'TAL 4.433619MHz or FXC445LLN001

X'TAL 4.433619MHz 1811388

X501 X'TAL 12.000MHz FXD126LDS001

X502 X'TAL 32.768kHz(20PPM) or FXC323LQUA01

X'TAL 32.768kHz(20PPM) FXC323LDS002

DVD OPEN/CLOSE CBA

Ref. No. Description Part No.

DVD OPEN/CLOSE CBA (MCV-C)
Consists on the following:

SWITCHES

SW2020 TACT SWITCH KSM0614B or SST0101HH013

----------

20040510 1-17-9 H9703EL

Ref. No. Description Part No.

TACT SWITCH SKQSAF001A or SST0101AL041

TACT SWITCH TC-1104(H=9.5) SST0101DNG01

MISCELLANEOUS

JW008 FLAT CABLE, 2P AWG26#2651/P2.0/120 WX1HC460-001

SENSOR CBA

Ref. No. Description Part No.

SENSOR CBA

Consists on the following:

1VSA10047

TRANSISTORS

Q503 PHOTO TRANSISTOR PT204-6B-12 or NPWZT2046B12

PHOTO TRANSISTOR MID-32A22F NPWZ1D32A22F

Q504 PHOTO TRANSISTOR PT204-6B-12 or NPWZT2046B12

PHOTO TRANSISTOR MID-32A22F NPWZ1D32A22F

PSV CBA

Ref. No. Description Part No.

PSV CBA
Consists of the following

POWER SUPPLY CBA (PSV-A)
JUNCTION CBA (PSV-B)
JACK-A CBA (PSV-C)

POWER SUPPLY CBA

Ref. No. Description Part No.

POWER SUPPLY CBA (PSV-A)

Consists on the following:

CAPACITORS

C013 ELECTROLYTIC CAP. 10µF/ 50V M or CE1JMASDL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASTL100
C014 ELECTROLYTIC CAP. 470µF/16V M or CE1CMASDL471

ELECTROLYTIC CAP. 470µF/16V M CE1CMASTL471
C015 ELECTROLYTIC CAP. 100µF/16V M or CE1CMASDL101

ELECTROLYTIC CAP. 100µF/16V M CE1CMASTL101
C017 ELECTROLYTIC CAP. 1000µF/ 16V M CE1CMZPTL102
C018 ELECTROLYTIC CAP. 470µF/6.3V M or CE0KMASDL471

ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASTL471
C020 ELECTROLYTIC CAP. 22µF/ 50V M or CE1JMASDL220

ELECTROLYTIC CAP. 22µF/50V M CE1JMASTL220
C021 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C022 ELECTROLYTIC CAP. 470µF/35V M or CE1GMASDL471

ELECTROLYTIC CAP. 470µF/35V M CE1GMASTL471
C1001! METALLIZED FILM CAP. 0.068µF/275V K or CT2E683HJE06

! METALLIZED FILM CAP. 0.068µF/250V K or CT2E683DC011
! METALLIZED FILM CAP. 0.068µF/250V K or CT2E683DC014
! METALLIZED FILM CAP. 0.068µF/250V M CT2E683MS037

C1004 ELECTROLYTIC CAP. 100µF/400V M CA2H101S6016

C1005 CERAMIC CAP. SL K 56pF/1KV or CCD3AKPSL560

CERAMIC CAP. SL J 56pF/1KV CCD3AJPSL560

C1006! SAFTY CAP. 2200pF/250V or CCN2EMA0E222

! SAFETY CAP. 2200pF/250V CA2E222MR049
C1007 ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASTL102

C1013 CERAMIC CAP.(AX) X K 3300pF/16V CCA1CKT0X332
C1018 ELECTROLYTIC CAP. 100µF/ 10V M or CE1AMASDL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASTL101
C1021 CERAMIC CAP.(AX) F Z 0.01µF/ 25V CDA1EZT0F103
C1025 CHIP CERAMIC CAP.(1608) B K 0.033µF/50V or CHD1JK30B333

CHIP CERAMIC CAP.(1608) B K 0.033µF/25V CHD1EK30B333

1VSA10018

----------

----------

----------

----------

Ref. No. Description Part No.

C1029 CERAMIC CAP.(AX) X K 2200pF/16V CCA1CKT0X222
C1032 ELECTROLYTIC CAP. 10µF/16V M or CE1CMASDL100

ELECTROLYTIC CAP. 10µF/16V M CE1CMASTL100
C1033 CERAMIC CAP. YV Z 0.022µF/50V CCD1JZSYV223
C1035 ELECTROLYTIC CAP. 470µF/6.3V M or CE0KMASDL471

ELECTROLYTIC CAP. 470µF/ 6.3V M CE0KMASTL471
C1106 ELECTROLYTIC CAP. 100µF/35V M or CE1GMASDL101

ELECTROLYTIC CAP. 100µF/35V M CE1GMASTL101
C1107 ELECTROLYTIC CAP. 220µF/6.3V M or CE0KMASDL221

ELECTROLYTIC CAP. 220µF/ 6.3V M CE0KMASTL221
C2014 CERAMIC CAP. B K 0.01µF/500V CCD2JKP0B103
C2015 ELECTROLYTIC CAP. 470µF/6.3V M or CE0KMASDL471

ELECTROLYTIC CAP. 470µF/ 6.3V M CE0KMASTL471

DIODES

D013 RECTIFIER DIODE BA158 or NDQZ000BA158

RECTIFIER DIODE BA158 NDWZ000BA158

D014 SCHOTTKY BARRIER DIODE SB390 NDQZ000SB390

D015 ZENER DIODE DZ-5.6BSCT265 or NDTC0DZ5R6BS

ZENER DIODE MTZJT-775.6C QDTC0MTZJ5R6

D016 SCHOTTKY BARRIER DIODE SB340 NDQZ000SB340

D017 ZENER DIODE DZ-18BSBT265 or NDTB00DZ18BS

ZENER DIODE MTZJT-7718B QDTB00MTZJ18

D018 RECTIFIER DIODE BA158 or NDQZ000BA158

RECTIFIER DIODE BA158 NDWZ000BA158

D019 RECTIFIER DIODE FR203-B/P NDQZ000FR203

D1001 RECTIFIER DIODE 1N4005 or NDQZ001N4005

RECTIFIER DIODE 1N4005 NDWZ001N4005

D1002 RECTIFIER DIODE 1N4005 or NDQZ001N4005

RECTIFIER DIODE 1N4005 NDWZ001N4005

D1003 RECTIFIER DIODE 1N4005 or NDQZ001N4005

RECTIFIER DIODE 1N4005 NDWZ001N4005

D1004 RECTIFIER DIODE 1N4005 or NDQZ001N4005

RECTIFIER DIODE 1N4005 NDWZ001N4005

D1006 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D1008 SCHOTTKY BARRIER DIODE SB140 or NDQZ000SB140

SCHOTTKY BARRIER DIODE SB140 or NDWZ000SB140

SCHOTTKY BARRIER DIODE ERB81-004 AERB81004***

D1011 RECTIFIER DIODE BA159 or NDQZ000BA159

RECTIFIER DIODE BA159 or NDWZ000BA159

RECTIFIER DIODE ERA22-10 QDPZ0ERA2210

D1012 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D1016 RECTIFIER DIODE FR101 NDWZ000FR101

D1017 ZENER DIODE DZ-18BSBT265 or NDTB00DZ18BS

ZENER DIODE MTZJT-7718B QDTB00MTZJ18

D1018 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D1019 ZENER DIODE DZ-6.8BSBT265 or NDTB0DZ6R8BS

ZENER DIODE MTZJT-776.8B QDTB0MTZJ6R8

D1022 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D1024 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D1025 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D1030 SCHOTTKY BARRIER DIODE SB140 or NDQZ000SB140

SCHOTTKY BARRIER DIODE SB140 or NDWZ000SB140

SCHOTTKY BARRIER DIODE ERB81-004 AERB81004***

ICS

20040510 1-17-10 H9703EL

Ref. No. Description Part No.

IC1001! PHOTOCOUPLER EL817A or NPEA000EL817

! PHOTOCOUPLER EL817B or NPEB000EL817

! PHOTOCOUPLER LTV-817B-F or NPEB0LTV817F

! PHOTOCOUPLER PS2561A-1(Q) or QPEQPS2561A1

! PHOTOCOUPLER PS2561A-1(W) QPEWPS2561A1

COILS

L010 CHOKE COIL 47µH-K or LLBD00PKV007

CHOKE COIL 47µH-K or LLBD00PKV005
CHOKE COIL 47µH-K LLBD00PKT001

L013 CHOKE COIL 47µH-K or LLBD00PKV007

CHOKE COIL 47µH-K or LLBD00PKV005
CHOKE COIL 47µH-K LLBD00PKT001

L1001 BEAD CORE B16 RH 3.5X10X1.3 XL03010XM001

L1002 BEAD CORE B16 RH 3.5X10X1.3 XL03010XM001

L1003! LINE FILTER 56MH TLF14CB5630R2 or LLBG00ZTU022

! LINE FILTER 50MH LF-4D-E503 LLBG00ZKQ009

L1004 BEAD CORE B16 RH 3.5X10X1.3 XL03010XM001

L1005 BEAD CORE B16 RH 3.5X10X1.3 XL03010XM001
L1009 CHOKE COIL 47µH-K or LLBD00PKV007

CHOKE COIL 47µH-K or LLBD00PKV005
CHOKE COIL 47µH-K LLBD00PKT001

L1011 CHOKE COIL 47µH-K or LLBD00PKV007

CHOKE COIL 47µH-K or LLBD00PKV005
CHOKE COIL 47µH-K LLBD00PKT001

L1012 CHOKE COIL 47µH-K or LLBD00PKV007

CHOKE COIL 47µH-K or LLBD00PKV005
CHOKE COIL 47µH-K LLBD00PKT001

TRANSISTORS

Q1001! FET 2SK3566 QFWZ02SK3566

Q1003 TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q1004 TRANSISTOR KTA1267(GR) or NQS10KTA1267

TRANSISTOR KTA1267(Y) or NQQY0KTA1267

TRANSISTOR 2SA1175(J) or QQSJ02SA1175

TRANSISTOR 2SA1175(H) or QQSH02SA1175

TRANSISTOR 2SA1175(F) QQSF02SA1175

Q1008 TRANSISTOR KTC3199(Y) or NQSY0KTC3199

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC1815-Y(TPE2) or QQSY02SC1815

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

RESISTORS

R013 CARBON RES. 1/6W J 2.7k Ω or RCX6JATZ0272

CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272
R057 CHIP RES.(1608) 1/10W J 220k Ω RRXAJR5Z0224
R068 CARBON RES. 1/4W J 1.8k Ω RCX4JATZ0182
R069 CARBON RES. 1/4W J 1.8k Ω RCX4JATZ0182
R073 CARBON RES. 1/4W J 1.8k Ω RCX4JATZ0182
R074 CARBON RES. 1/4W J 1.8k Ω RCX4JATZ0182
R1002 CARBON RES. 1/4W J 560k Ω RCX4JATZ0564
R1003 CARBON RES. 1/4W J 560k Ω RCX4JATZ0564
R1004 METAL OXIDE FILM RES. 2W J 82k Ω or RN02JZLZ0823

METAL OXIDE FILM RES. 2W J 82k Ω or RN02JZQZ0823

METAL OXIDE FILM RES. 2W J 82k Ω RN02JZPZ0823
R1005 CARBON RES. 1/4W J 1M Ω RCX4JATZ0105
R1006 CARBON RES. 1/4W J 1M Ω RCX4JATZ0105
R1007 CARBON RES. 1/4W J 1M Ω RCX4JATZ0105
R1008 CARBON RES. 1/4W G 680 Ω RCX4GATZ0681
R1010 CARBON RES. 1/6W J 8.2k Ω or RCX6JATZ0822

Ref. No. Description Part No.

CARBON RES. 1/4W J 8.2k Ω RCX4JATZ0822

R1011 METAL OXIDE FILM RES. 1W J 1.3 Ω or RN01JZLZ01R3

METAL OXIDE FILM RES. 1W J 1.3 Ω or RN01JZQZ01R3

METAL OXIDE FILM RES. 1W J 1.3 Ω RN01JZPZ01R3
R1020 CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJR5Z0182
R1021 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R1022 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472
R1023 CHIP RES.(1608) 1/10W F 2.2k Ω or RRXAFR5H0222

CHIP RES.(1608) 1/10W F 2.2k Ω RRXAFR5Z0222
R1024 CHIP RES.(1608) 1/10W J 68k Ω RRXAJR5Z0683
R1025 CHIP RES. 1/10W F 5.6k Ω or RRXAFR5H0562

CHIP RES. 1/10W F 5.6k Ω RRXAFR5Z0562
R1029 CARBON RES. 1/6W J 100k Ω or RCX6JATZ0104

CARBON RES. 1/4W J 100k Ω RCX4JATZ0104
R1032 CARBON RES. 1/4W G 1.8k Ω RCX4GATZ0182
R1035 CARBON RES. 1/6W J 1k Ω or RCX6JATZ0102

CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R1036 CARBON RES. 1/6W J 100k Ω or RCX6JATZ0104

CARBON RES. 1/4W J 100k Ω RCX4JATZ0104
R1037 CARBON RES. 1/6W J 10k Ω or RCX6JATZ0103

CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R1038 CARBON RES. 1/6W J 100k Ω or RCX6JATZ0104

CARBON RES. 1/4W J 100k Ω RCX4JATZ0104
R1039 CARBON RES. 1/6W J 470k Ω or RCX6JATZ0474

CARBON RES. 1/4W J 470k Ω RCX4JATZ0474
R1040 CARBON RES. 1/4W J 15 Ω RCX4JATZ0150
R1043 METAL OXIDE FILM RES. 1W J 2.7 Ω or RN012R7ZU001

METAL OXIDE FILM RES. 1W J 2.7 Ω or RN012R7KE009

METAL OXIDE FILM RES. 1W J 2.7 Ω RN012R7DP003
R1059 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681
R1126 CHIP RES.(1608) 1/10W J 33k Ω RRXAJR5Z0333
R1127 CARBON RES. 1/4W J 150 Ω RCX4JATZ0151
R1128 CARBON RES. 1/4W J 150 Ω RCX4JATZ0151

MISCELLANEOUS

2B33 HEATSINK H9700ED 0VM416271

2L053 SCREW, S-TIGHT M3X8 BIND + CHROME GBMS3080

AC1001! AC CORD PE8G2CG9G0AA059 WAE0172LW009

F1001! FUSE T1.6AL/250V or PAGC20BW3162

! FUSE 50T016H 1.6A/250V PAGH20BHV162

FH1001 FUSE HOLDER MSF-015 or XH01Z00LY001

FUSE HOLDER DFH-001 XH01Z00RP001

FH1002 FUSE HOLDER MSF-015 or XH01Z00LY001

FUSE HOLDER DFH-001 XH01Z00RP001

T0011! SWITCHING TRANSFORMER CGS-SW0001F or LTT00EPSA161

! SWITCHING TRANSFORMER BCK-28-0439 LTT00EPXB011

JUNCTION CBA

Ref. No. Description Part No.

JUNCTION CBA (PSV-B)

Consists on the following:

CONNECTOR

CN051A CONNECTOR, 18P TUC-P18X-B1 JCTUS18TG001

MISCELLANEOUS

JW001 FLAT CABLE, 9P AWG26#2651/P2.0/75 WX3809S6FF07

JW002 FLAT CABLE, 9P AWG26#2651/P2.0/65 WX3809S6FF06

----------

20040510 1-17-11 H9703EL

JACK-A CBA

Ref. No. Description Part No.

JACK-A CBA (PSV-C)
Consists on the following:

CAPACITORS

C101 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C102 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASTL1R0

C103 ELECTROLYTIC CAP. 100µF/16V M or CE1CMASDL101

ELECTROLYTIC CAP. 100µF/16V M CE1CMASTL101

C105 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222

C106 CHIP CERAMIC CAP.(1608) CH J 470pF/50V or CHD1JJ3CH471

CHIP CERAMIC CAP. CG J 470pF/50V CHD1JJ3CG471

C108 ELECTROLYTIC CAP. 470µF/6.3V M or CE0KMASDL471

ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASTL471

C110 CERAMIC CAP.(AX) X K 2200pF/16V CCA1CKT0X222

C111 CHIP CERAMIC CAP.(1608) CH J 470pF/50V or CHD1JJ3CH471

CHIP CERAMIC CAP. CG J 470pF/50V CHD1JJ3CG471

C119 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222

DIODES

D112 ZENER DIODE DZ-11BSAT265 or NDTA00DZ11BS

ZENER DIODE MTZJT-7711A QDTA00MTZJ11

D113 ZENER DIODE DZ-11BSAT265 or NDTA00DZ11BS

ZENER DIODE MTZJT-7711A QDTA00MTZJ11

COIL

L102 BEAD CORE B16 RH 3.5X10X1.3 XL03010XM001

TRANSISTORS

Q103 TRANSISTOR KTA1266(GR) or NQS40KTA1266

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015

RESISTORS

R111 CARBON RES. 1/6W J 220 Ω or RCX6JATZ0221

CARBON RES. 1/4W J 220 Ω RCX4JATZ0221
R114 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821
R117 CARBON RES. 1/4W J 510 Ω RCX4JATZ0511
R118 CARBON RES. 1/6W J 4.7k Ω or RCX6JATZ0472

CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472
R120 CARBON RES. 1/4W J 68 Ω RCX4JATZ0680
R123 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821
R125 CARBON RES. 1/6W J 4.7k Ω or RCX6JATZ0472

CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472
R126 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750

MISCELLANEOUS

JK1402 RGB CONNECTOR MRC-021V-03 JXGL210LY003

JW003 FLAT CABLE, 10P AWG26#2651/P2.0/190 WX3810S6FF19

----------

Ref. No. Description Part No.

CHIP CERAMIC CAP. CH D 3pF/50V CHD1JD3CH3R0

C8 CHIP CERAMIC CAP. CH C 3pF/50V or CHD1JC3CH3R0

CHIP CERAMIC CAP. CJ C 3pF/50V or CHD1JC3CJ3R0

CHIP CERAMIC CAP. CH D 3pF/50V CHD1JD3CH3R0

C11 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C12 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMASSL100
C13 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C14 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C15 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMASSL100
C16 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMASSL100
C17 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/ 25V or CHD1EZ30F104
CHIP CERAMIC CAP. FZ Z 0.1µF/ 50V CHD1JZ3FZ104

C19 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/ 25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/ 50V CHD1JZ3FZ104
C20 ELECTROLYTIC CAP. 3.3µF/ 50V M H7 CE1JMASSL3R3
C21 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/ 25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/ 50V CHD1JZ3FZ104
C22 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMASSL100
C24 ELECTROLYTIC CAP. 0.22µF/50V M H7 CE1JMASSLR22

CONNECTOR

CN1 ANGLE PIN HEADER, 9P 6029B-1-09Z003-T 5700069

DIODES

D2 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

ICS

IC1 IC:AUDIO PROCESSOR MSP3417G-QG-B8 or NSZBA0SP3002

IC:AUDIO PROCESSOR MSP3417G-QG-B8-V3 NSZBA0SP3005

COILS

L1 INDUCTOR 10µH-K-26T LLAXKATTU100

L2 PCB JUMPER D0.6-P5.0 JW5.0T
L3 INDUCTOR 18µH-K-26T LLAXKATTU180
L4 INDUCTOR 10µH-K-26T LLAXKATTU100

RESISTORS

R1 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R4 CHIP RES.(1608) 1/10W J 120k Ω RRXAJR5Z0124
R5 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000

MISCELLANEOUS

X1 X'TAL 18.432MHz FXD186LLN001

AFV CBA

Ref. No. Description Part No.

AFV CBA
Consists on the following:

CAPACITORS

C1 CHIP CERAMIC CAP.(1608) F Z 0.1µF/ 50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104

C4 CHIP CERAMIC CAP. CH J 56pF/50V or CHD1JJ3CH560

CHIP CERAMIC CAP. CG J 56pF/50V CHD1JJ3CG560

C5 CHIP CERAMIC CAP.(1608) CH J 22pF/50V or CHD1JJ3CH220

CHIP CERAMIC CAP. CG J 22pF/50V CHD1JJ3CG220

C6 CHIP CERAMIC CAP. CH J 56pF/50V or CHD1JJ3CH560

CHIP CERAMIC CAP. CG J 56pF/50V CHD1JJ3CG560

C7 CHIP CERAMIC CAP. CH C 3pF/50V or CHD1JC3CH3R0

CHIP CERAMIC CAP. CJ C 3pF/50V or CHD1JC3CJ3R0

20040510 1-17-12 H9703EL

1VSA10062

DECK MECHANISM SECTION

DVD PLAYER &

VIDEO CASSETTE RECORDER

DDVR-5800

Sec. 2: Deck Mechanism Section

I Standard Maintenance
I Mechanism Alignment Procedures
I Disassembly / Assembly of Mechanism
I Deck Exploded Views
I Deck Parts List

TABLE OF CONTENTS

Standard Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1-1

Service Fixture and Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2-1

Mechanical Alignment Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3-1

Disassembly / Assembly Procedures of Deck Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4-1

Alignment Procedures of Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5-1

Deck Exploded Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6-1

Deck Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7-1

STANDARD MAINTENANCE

Service Schedule of Components

This maintenance chart shows you the standard of replacement and cleaning time for each part.
Because those may replace depending on environment and purpose for use, use the chart for reference.

h: Hours : Cleaning I: Replace

Deck Periodic Service Schedule

Ref.No. Part Name 1,000 h 2,000 h 3,000 h 4,000 h

B2 Cylinder Assembly

B3

B8

B587 Tension Lever Assembly

B31

B573, B574

B37 Capstan Motor

B52

*B73

*B86 F Brake Assembly (HI) II

B133

B410

B414 M Brake (SP) Assembly (HI) II

B416

Loading Motor Assembly

Pulley Assembly

ACE Head Assembly

Reel S, Reel T

Cap Belt

FE Head

Idler Assembly (HI)

Pinch Arm Assembly

M Brake (TU) Assembly (HI)

II

I

II

II

I

I

II

II

I

II

II

II

B525

Notes:

1.Clean all parts for the tape transport (Upper Drum with Video Head / Pinch Roller / ACE Head / FE Head) using
90% lsopropyl Alcohol.

2.After cleaning the parts, do all DECK ADJUSTMENTS.

3.For the reference numbers listed above, refer to Deck Exploded Views.
* B73 ------ Recording model only
* B86 ------ Not used in 2 head model.

LDG Belt

II

2-1-1 U29PHSMEN

Cleaning

Cleaning of Video Head

Clean the head with a head cleaning stick or chamois
cloth.

Procedure

1.Remove the top cabinet.

2.Put on a glove (thin type) to avoid touching the
upper and lower drum with your bare hand.

3.Put a few drops of 90% Isopropyl alcohol on the
head cleaning stick or on the chamois cloth and,
by slightly pressing it against the head tip, turn the
upper drum to the right and to the left.

Notes:

1.The video head surface is made of very hard
material, but since it is very thin, avoid cleaning it
vertically.

2.Wait for the cleaned part to dry thoroughly before
operating the unit.

3.Do not reuse a stained head cleaning stick or a
stained chamois cloth.

Cleaning of ACE Head

Clean the head with a cotton swab.

Procedure

1.Remove the top cabinet.

2.Dip the cotton swab in 90% isopropyl alcohol and
clean the ACE Head. Be careful not to damage the
upper drum and other tape running parts.

Notes:

1.Avoid cleaning the ACE Head vertically.

2.Wait for the cleaned part to dry thoroughly before
operating the unit or damage may occur.

ACE Head

Upper
Cylinder

Do Not !

Video Head

Do Not touch
with your bare
hand!

Cleaning Stick

2-1-2 U29PHSMEN

SERVICE FIXTURE AND TOOLS

J-1-1, J-1-2

J-3

J-5

J-2

J-4

Ref. No. Name Part No. Adjustment

J-1-1 Alignment Tape FL6A Head Adjustment of ACE Head

J-1-2 Alignment Tape FL6N8

(2 Head model)
FL6NS8
(4 Head model)

J-2 Guide Roller Adj. Screwdriver Available

Locally

J-3 Mirror Available

Locally

J-4 Azimuth Adj. Screwdriver + Available

Locally

J-5 Flat Screwdriver - Available

Locally

2-2-1 U29PFIX

Azimuth and X Value Adjustment of ACE Head /
Adjustment of Envelope Waveform

Guide Roller

Tape Transportation Check

ACE Head Height

X Value

MECHANICAL ALIGNMENT PROCEDURES

Explanation of alignment for the tape to correctly run
starts on the next page. Refer to the information below
on this page if a tape gets stuck, for example, in the
mechanism due to some electrical trouble of the unit.

Service Information

A. Method for Manual Tape Loading/Unloading

To load a cassette tape manually:

1. Disconnect the AC plug.

2. Remove the Top Case and Front Assembly.

3. Insert a cassette tape. Though the tape will not be
automatically loaded, make sure that the cassette
tape is all the way in at the inlet of the Cassette
Holder. To confirm this, lightly push the cassette
tape further in and see if the tape comes back out,
by a spring motion, just as much as you have
pushed in.

4. Turn the LDG Belt in the appropriate direction
shown in Fig. M1 for a minute or two to complete
this task.

To unload a cassette tape manually:

1. Disconnect the AC plug.

2. Remove the Top Case and Front Assembly.

3. Make sure that the Moving guide preparations are
in the Eject Position.

4. Turn the LDG Belt in the appropriate direction
shown in Fig. M1 until the Moving guide prepara­tions come to the Eject Position. Stop turning when
the preparations begin clicking or can not be
moved further. However, the tape will be left wound
around the cylinder.

5. Turn the LDG Belt in the appropriate direction con­tinuously, and the cassette tape will be ejected.
Allow a minute or two to complete this task.

B. Method to place the Cassette Holder in the tape-

loaded position without a cassette tape

1. Disconnect the AC Plug.

2. Remove the Top Case and Front Assembly.

3. Turn the LDG Belt in the appropriate direction
shown in Fig. M1. Release the locking tabs shown
in Fig. M1 and continue turning the LDG Belt until
the Cassette Holder comes to the tape-loaded
position. Allow a minute or two to complete this
task.

Top View

Moving guide T preparation
(Eject Position)

Moving guide S preparation
(Eject Position)

Push the tape
to load it.

Push the locking tab gently to unlock
when loading without a cassette.

UNLOAD
/EJECT

LOAD

Side View

LDG Belt

Fig. M1

Bottom View

LDG Belt (B)

UNLOAD
/EJECT

Cam Gear

Fig. M2

2-3-1 D5P4HSMA

1. Tape Interchangeability Alignment

Note:
To do these alignment procedures, make sure that the
Tracking Control Circuit is set to the preset position
every time a tape is loaded or unloaded. (Refer to
page 2-3-4, procedure 1-C, step 2.)

Equipment required:

Dual Trace Oscilloscope
VHS Alignment Tape (FL6NS8)
Guide Roller Adj. Screwdriver
Flat Screwdriver (Purchase Locally)

Note: Before starting this Mechanical Alignment, do all
Electrical Adjustment procedures.

Flowchart of Alignment for tape traveling

Loading (Use a blank tape.)

Adjust the height of the Guide Rollers
(Supply side and take-up side).
(Use a blank tape.) (Page 2-3-3)

1-A

No good

Check to see that the tape is not creasing
and that there is no slack on the supply
and take-up side Guide Rollers.
(Use a blank tape.)

Adjust the X Value for maximum envelope.
(Page 2-3-3) (Use Alignment Tape.)

Adjust the envelope. (Page 2-3-4)

Check the envelope.

OK

Adjust the Audio Section.
(Azimuth Alignment) (Page 2-3-4)

Check the audio output.

OK

Check the following:

1. X Value (Page 2-3-3)

2. Envelope (Page 2-3-4)

OK

1-A

1-B

1-C

1-C

1-D

1-D

1-B, 1-C

No good

No good

No good

Do the final tape-traveling test to see that
the tape runs normally in play mode with­out creasing or slacking.

OK

Check to see that the tape is not creasing
and that there is no slack on the REV Post.
(Use a blank tape.)

OK

Completion

Adjust the X value and envelope.

1-A

1-E

1-B, 1-C

2-3-2 D5P4HSMA

1-A. Preliminary/Final Checking and

Alignment of Tape Path

Purpose:

To make sure that the tape path is well stabilized.

Symptom of Misalignment:

If the tape path is unstable, the tape will be damaged.

Note: Do not use an Alignment Tape for this proce­dure. If the unit is not correctly aligned, the tape may
be damaged.

1. Playback a blank cassette tape and check to see
that the tape runs without creasing at Guide Rollers
[2] and [3], and at points A and B on the lead sur­face. (Refer to Fig. M3 and M4.)

2. If creasing is apparent, align the height of the guide
rollers by turning the top of Guide Rollers [2] and
[3] with a Guide Roller Adj. Screwdriver. (Refer to
Fig. M3 and M5.)

Guide Roller [2]

Guide Roller [3]

ACE Head

4. If creasing or snaking is apparent, adjust the Tilt
Adj. Screw of the ACE Head. (Fig. M6)

Azimuth Adj. Screw

ACE Head

Flat
Screwdriver

Tilt Adj. Screw

Fig. M6

1-B. X Value Alignment

Purpose:

To obtain maximum PB FM envelope signal at the pre­set position of the Tracking Control Circuit, align the
Horizontal Position of the ACE Head.

Symptom of Misalignment:

If the Horizontal Position of the ACE Head is not prop­erly aligned, maximum PB FM envelope cannot be
obtained at the preset position of the Tracking Control
Circuit.

A

Take-up Guide Post [4]

Lead Surface of Cylinder

Correct

Guide Roller

Tape

Take-up Guide
Post

Tape

B

Incorrect

Tape

Fig. M3

Fig. M4

1. Connect the oscilloscope to TP301 (C-PB) and
TP503 (CTL) on the Main CBA. Use TP504 (RF­SW) as a trigger.

2. Playback the Gray Scale of the Alignment Tape
(FL6NS8) and confirm that the PB FM signal is
present.

3. Set the Tracking Control Circuit to the preset posi­tion by pressing CH UP button on the remote con­trol unit then “PLAY” button on the unit. (Refer to
note on bottom of page 2-3-4.)

4. Use the Flat Screwdriver so that the PB FM signal
at TP301 (C-PB) is maximum. (Fig. M6)

Fig. M5

3. Check to see that the tape runs without creasing at
Take-up Guide Post [4] or without snaking between
Guide Roller [3] and ACE Head. (Fig. M3 and M5)

2-3-3 D5P4HSMA

5. To shift the CTL waveform, press CH UP or CH
DOWN button on the remote control unit. Then
make sure that the maximum output position of PB
FM envelope signal become within
set position.

±2ms from pre-

Good

FM envelope signal

2ms

Center Position

5. When Guide Rollers [2] and [3] (Refer to Fig. M3)
are aligned properly, there is no envelope drop
either at the beginning or end of track as shown in
Fig. M9.

Dropping envelope level at the beginning of track.

Fig. M8

FM envelope output signal
is adjusted at maximum.

CTL signal

No Good

FM envelope output signal is low.

Fig. M7

6. Set the Tracking Control Circuit to the preset posi­tion by pressing CH UP button on the remote con­trol unit. and then “PLAY” button.

1-C. Checking/Adjustment of Envelope

Waveform

Purpose:

To achieve a satisfactory picture, adjust the PB FM
envelope becomes as flat as possible.

Symptom of Misalignment:

If the envelope output is poor, noise will appear in the
picture. The tracking will then lose precision and the
playback picture will be distorted by any slight varia­tion of the Tracking Control Circuit.

1. Connect the oscilloscope to TP301 (C-PB) on the
Main CBA. Use TP504 (RF-SW) as a trigger.

2. Playback the Gray Scale on the Alignment Tape
(FL6NS8). Set the Tracking Control Circuit to the
preset position by pressing CH UP button and then
“PLAY” button on the unit. Adjust the height of
Guide Rollers [2] and [3] (Fig. M3, Page 2-3-3)
watching the oscilloscope display so that the enve­lope becomes as flat as possible. To do this adjust­ment, turn the top of the Guide Roller with the
Guide Roller Adj. Screwdriver.

3. If the envelope is as shown in Fig. M7, adjust the
height of Guide Roller [2] (Refer to Fig. M3) so that
the waveform looks like the one shown in Fig. M9.

4. If the envelope is as shown in Fig. M8, adjust the
height of Guide Roller [3] (Refer to Fig. M3) so that
the waveform looks like the one shown in Fig. M9.

Dropping envelope level at the end of track.

Fig. M9

Envelope is adjusted properly. (No envelope drop)

Fig. M10

Note: Upon completion of the adjustment of Guide
Rollers [2] and [3] (Refer to Fig. M3), check the X
Value by pushing the CH UP or DOWN buttons alter­nately, to check the symmetry of the envelope. Check
the number of pushes to ensure preset position. The
number of pushes CH UP button to achieve 1/2 level of
envelope should match the number of pushes CH
DOWN button from center. If required, redo the “X
Value Alignment.”

2-3-4 D5P4HSMA

1-D. Azimuth Alignment of Audio/Con-

trol/ Erase Head

Purpose:

To correct the Azimuth alignment so that the Audio/
Control/Erase Head meets tape tracks properly.

Symptom of Misalignment:

If the position of the Audio/Control/Erase Head is not
properly aligned, the Audio S/N Ratio or Frequency
Response will be poor.

1. Connect the oscilloscope to the audio output jack
on the rear side of the deck.

2. Playback the alignment tape (FL6NS8) and confirm
that the audio signal output level is 8kHz.

3. Adjust Azimuth Adj. Screw so that the output level
on the AC Voltmeter or the waveform on the oscillo­scope is at maximum. (Fig. M6)

Note: Upon completion of the adjustment of Azimuth
Adj. Screw, check the X Value by pushing the CH UP
or DOWN buttons alternately, to check the symmetry
of the envelope. Check the number of pushes to
ensure preset position. The number of pushes CH UP
button to achieve 1/2 level of envelope should match
the number of pushes CH DOWN button from center. If
required, redo the “X Value Alignment.”

2. When the tape has been curled up or bent, turn the
alignment screw to adjust the height of REV Post.
(Refer to Fig. M11 and M13.)

REV Post [5]

Take-up Guide Post [4]

Fig. M11

Correct

REV Post

Tape

Take-up Guide
Post

Tape

Incorrect

1-E. Checking and Alignment of Tape

Path during reversing

Purpose:

To make sure that the tape path is well stabilized dur­ing reversing.

Symptom of Misalignment:

If the tape path is unstable during reversing, the tape
will be damaged.

Note: Do not use an Alignment Tape for this proce­dure. If the unit is not correctly aligned, the tape may
be damaged.

1. Insert a black cassette tape into the tray and set
the unit to REV. Then confirm if the tape has been
curled up or bent at the Take-up Guide Post[4] or
REV Post[5]. (Refer to Fig. M11 and M12.)

Fig. M12

Alignment
Screw

Tape Guide
Assembly

Fig. M13

2-3-5 D5P4HSMA

DISASSEMBLY/ASSEMBLY PROCEDURES

OF DECK MECHANISM

Before following the procedures described below, be sure to remove the deck assembly from the cabinet. (Refer to
CABINET DISASSEMBLY INSTRUCTIONS.)
All the following procedures, including those for adjustment and replacement of parts, should be done in Eject
mode; see the positions of [44] and [45] in Fig. DM1H on page 2-4-3. When reassembling, follow the steps in
reverse order.

STEP
/LOC.

*[22]

START-

ING

No.

[1] [1] Guide Holder A T DM3H 2(S-1)

[2] [1]

[3] [2] Slider (SP) T DM5H (S-1A), *(L-1)

[4] [2] Slider (TU) T DM5H *(L-2)

[5] [4] Lock Lever T DM5H *(L-3), *(P-1)

[6] [2] Cassette Plate T DM5H

[7] [7] Cylinder Assembly T DM1H, DM6H Desolder, 3(S-2)

[8] [8]

[9] [9] ACE Head Assembly T DM1H, DM7H (S-4)

[10] [2]

[11] [10] C Door Opener T DM1H, DM8H-1 (S-4A), *(L-4)

[12] [11] Pinch Arm (B) T

[13] [12]

[14] [14] FE Head T DM1H, DM9H (S-5)

[15] [15] Prism T DM1H, DM9H (S-6)

[16] [2] Slider Shaft T DM10H *(L-5)

[17] [16] C Drive Lever (SP) T DM10H

[18] [16] C Drive Lever (TU) T DM10H (S-7), *(P-4)

[19] [19] Capstan Motor B DM2H, DM11H 3(S-8), Cap Belt

[20]
[21] [20] Center Gear B DM12H

[23] [22] Worm Holder B DM2H, DM13H-1 (S-9), *(L-7), *(L-8)
[24] [22]

[25]

[26]

[27]

[28] [26]
[29] [28]
[30] [29] TR Gear A/B B DM13H-1
[31] [31]
[32] [26]

No.

[20]

[22]

[25]

[20],[25]

[22],[23],

[26]

Cassette Holder
Assembly

Loading Motor
Assembly

Tape Guide Arm
Assembly

Pinch Arm (A)
Assembly

Clutch Assembly (HI) B DM2H, DM12H (C-1)

F Brake Assembly (HI) B DM2H, DM12H *(L-6)

Pulley Assembly (HI) B DM2H, DM13H-1

Mode Gear (LM) B DM2H, DM13H-1 (C-2)

Mode Lever (HI) B

Cam Gear (A) (HI) B

TR Gear C B DM2H, DM13H-1 (C-5)
TR Gear Spring B DM13H-1

FF Arm (HI) B DM1H, DM14H
Idler Assembly (HI) B DM1H, DM14H *(L-9)

PART

Fig. No.

TDM4H

TDM1H, DM7H

T DM1H, DM8H-1 *(P-2)

DM1H, DM8H-1,
DM8H-2

DM1H, DM8H-1,

T

DM8H-2

DM2H, DM13H-1,
DM13H-2

DM2H, DM13H-1,
DM13H-2

REMOVAL INSTALLATION

REMOVE/*UNHOOK/
UNLOCK/RELEASE/
UNPLUG/DESOLDER

Desolder, LDG Belt,
2(S-3)

*(P-3)

(C-3)

(C-4)

ADJUSTMENT

CONDITION

(+)Refer to Alignment
Sec.Page 2-5-1

2-4-1 U29PHSDA

STEP
/LOC.

START-

ING

No.

[33] [26]

[34] [26]

[35] [34]

[36] [16],[26]

[37] [2],[26]

[38] [37]

[39] [38] T Lever Holder T DM15H *(L-10)
[40] [40]
[41] [15],[40]

[42] [36],[40] Reel T T DM1H, DM15H

[43] [38] Reel S T DM1H, DM15H

[44] [34],[38]

[45] [35]

[46] [19] TG Post Assembly T DM1H, DM16H *(L-11)

[47] [27] Rack Assembly R DM17H

[48] [47] F Door Opener R DM17H

[49] [49] Cleaner Assembly T DM1H, DM6H

[50] [49] CL Post T DM6H *(L-12)

↓

(1)

No.

BT Arm B DM2H, DM14H *(P-5)
Loading Arm (SP)

Assembly
Loading Arm (TU)

Assembly

M Brake (TU) Assembly
(HI)

M Brake (SP) Assembly
(HI)

Tension Lever
Assembly

M Gear (HI) T DM1H, DM15H (C-6)
Sensor Gear (HI) T DM1H, DM15H (C-7)

Moving Guide S
Preparation

Moving Guide T
Preparation

↓

(2)

PART

↓

(3)

Fig. No.

BDM2H, DM14H

BDM2H, DM14H

TDM1H, DM15H

T DM1H, DM15H *(P-6)

TDM1H, DM15H

T DM1H, DM16H (S-11), Slide Plate

TDM1H, DM16H

↓

(4)

↓

(5)

REMOVAL INSTALLATION

REMOVE/*UNHOOK/
UNLOCK/RELEASE/
UNPLUG/DESOLDER

↓

(6)

ADJUSTMENT

CONDITION

(+)Refer to Alignment
Sec.Page 2-5-1

(+)Refer to Alignment
Sec.Page 2-5-1

(+)Refer to Alignment
Sec.Page 2-5-1

↓

(7)

(1): Follow steps in sequence. When reassembling, follow the steps in reverse order.

These numbers are also used as identification (location) No. of parts in the figures.

(2): Indicates the part to start disassembling with in order to disassemble the part in column (1).

(3): Name of the part

(4): Location of the part: T=Top B=Bottom R=Right L=Left

(5): Figure Number

(6): Identification of parts to be removed, unhooked, unlocked, released, unplugged, unclamped, or desoldered.

P=Spring, W=Washer, C=Cut Washer, S=Screw, *=Unhook, Unlock, Release, Unplug, or Desolder

e.g., 2(L-2) = two Locking Tabs (L-2).

(7): Adjustment Information for Installation

(+):Refer to Deck Exploded Views for lubrication.

.

* [ 22 ] F Brake Assembly (HI) is not used in 2 head model.

2-4-2 U29PHSDA

Top View

[14]

[38]

[37]

[7] [49] [8]

[45][44] [46][9]

[32][43] [41] [40][31] [42]

[13]

[11]

[15]

[10]
[12]

[36]

Bottom View

[23]

[24]

[27]

Fig. DM1H

[19]

[35]

[34]

[25]

[26]

[33][20][28][22]

Fig. DM2H

2-4-3 U29PHSDA

(S-1)

[1]

(S-1)

Fig. DM3H

A

(S-1A)

[3]

[4]

(L-1)

(L-3)

[5]

B

(L-2)

[6]

(P-1)

Installation of [3] and [6]

First, insert [6] diagonally in [3] as shown below. Then,
install [6] in [3] while pushing (L-1) in a direction of
arrow. After installing [6] in [3], confirm that pin A of [3]
enters hole A of [6] properly.

[3]

Pin D

Pin C

Slots B

First, while pushing the locking tab as
shown in the right, slide and pull up the right
side on [2] to release Pin A and Pin B from
the slots A.
Then, remove Pin C and Pin D on [2] from
the slots B as shown.

[2]

2

Pull up

Pin A

A

1

Slide

Pin B

Slot A

Slot A

1

Hole A

[6]

2

Pin A

View for A

(L-1)

Installation of [4] and [6]

Install [6] in [4] while pulling (L-2) in a direction of
arrow. After installing [6] in [4], confirm that pin B of [4]
enters hole B of [6] properly.

[4]

View for B

Hole B

Pin B

[6]

(L-2)

Fig. DM5H

Locking tab

View for A

Fig. DM4H

2-4-4 U29PHSDA

[7]

[49]

(S-4A)

[11]

(L-4)

(P-3)

Desolder
from bottom

(S-2)

View for A

Lead with
Red Stripe

A

Fig. DM6H

[50]

(L-12)

[13]

Removal of [11]

1) Remove screw (S-4A).

2) Unhook spring (P-2).

3) Release (L-4) while

holding [12] with a
finger.

4) Loosen a finger

holding [12] and
remove [11].

Pin of [12]

Pin of [10]

View for A

[10]

A

Groove of [27]

When reassembling [10] and
[12], confirm that pin of [10]
and pin of [12] are in the

[27]

groove of [27] as shown.

Fig. DM8H-1

[12]

(P-2)

[9]

A

(S-4)

(S-3)

Desolder
from bottom

Lead with White Stripe

LDG
Belt

[8]

[8]

View for A

Fig. DM7H

2-4-5 U29PHSDA

Installation of [13] and [12]

Hook spring (P-3) up to [12]
and [13], then install then to
the specified position so that
[12] will be floated slightly
while holding [12] and [13].
(Refer to Fig. A.)

Install pin of [12] in groove of [27].
(Refer to Fig. B.)

(P-3)

[13]

Fig. A

Pin of [12]

[27]

[12]

[14]

(S-5)

(S-6)

[15]

Fig. DM9H

Groove of [27]

Fig. B (Top view)

Notch of

Hold [12] and [13] till groove of
pin of chassis looks and fit [13]
in notch of chassis. Then, turn
a few [13] while holding [12].
(Refer to Fig. C.)

Install [11] and [10] while holding [12].
(Refer to Fig. DM8H-1.)

chassis

Groove of
pin of chassis

[13]

turn

[12]

Fig. C

Fig. DM8H-2

[17]

(L-5)

[16]

[18]

(P-4)

(S-7)

Fig. DM10H

2-4-6 U29PHSDA

Cap Belt

A

[19]

(S-8)

[22]

turn

(C-1)

[20]

(L-6)

[21]

Installation position of Cap Belt

[20] Cap Belt

View for A

Pin on [22]

[27]

Position of pin on [22]

Fig. DM12H

[19]

Fig. DM11H

2-4-7 U29PHSDA

[24]

(S-9)

(L-8)

(C-4)

(C-5)

[28]

[29]

[30]

[26]

(L-7)

[23]

(C-3)

(C-2)

[25]

Position of Mode Lever when installed

Pin of [36]

Bottom View

[27]

Installation of [26]

Pin of [33]

Align [26] and [27] as shown.

Pin of [37]

[26]

[27]

[31]

Fig. DM13H-1

[33]

Top View

(P-5)

[32]

First groove on [27]

First tooth on [47]

[27]

When reassembling [27],
meet the first groove on
[27] to the first tooth on
[47] as shown.

Refer to the Alignment
Section, Page 2-5-1.

[35]

(L-9)

Fig. DM13H-2

[34]

Fig. DM14H

2-4-8 U29PHSDA

[38]

(P-6)

[37]

(C-7)

[41]

[39]

turn

(C-6)

[40]

turn

[43]

(L-10)

[42]

[36]

turn

Fig. DM15H

[48]

[47]

Slide

Fig. DM17H

[44]

Slide Plate

(S-11)

[45]

[46]

(L-11)

Fig. DM16H

2-4-9 U29PHSDA

ALIGNMENT PROCEDURES OF MECHANISM

The following procedures describe how to align the
individual gears and levers that make up the tape load­ing/unloading mechanism. Since information about the
state of the mechanism is provided to the System
Control Circuit only through the Mode Switch, it is
essential that the correct relationship between individ­ual gears and levers be maintained.

All alignments are to be performed with the mech­anism in Eject mode, in the sequence given. Each

procedure assumes that all previous procedures have
been completed.

IMPORTANT:

If any one of these alignments is not performed prop­erly, even if off by only one tooth, the unit will unload or
stop and it may result in damage to the mechanical or
electrical parts.

Alignment points in Eject Position

Top View

Alignment 3

Alignment 1

Loading Arm (SP) and (TU) Assembly

Install Loading Arm (SP) and (TU) Assembly so that
their triangle marks point to each other as shown in
Fig. AL2.

Alignment 2

Mode Gear

Keeping the two triangles pointing at each other, install
the Loading Arm (SP) Assembly so that the last tooth
of the gear meets the most inside teeth of the Mode
Gear. See Fig. AL2.

Triangle Marks

Loading Arm
(SP) Assembly

Last Tooth

Alignment 2

Loading Arm
(TU) Assembly

Most inside teeth
of Mode Gear

Alignment 1

Mode Gear

Bottom View

Alignment 1

Alignment 2

Fig. AL1

Fig. AL2

Alignment 3

Cam Gear (A) (HI), Rack Assembly

Install the Rack Assembly so that the first tooth on the
gear of the Rack Assembly meets the first groove on
the Cam Gear (A) (HI) as shown in Fig. AL3.

Top View

Cam Gear (A)(HI)

Alignment 3

First tooth

First groove
on the Cam Gear (A)(HI)

Gear on Rack Assembly

Fig. AL3

2-5-1 U29PHSAPM

DECK EXPLODED VIEWS

Deck Mechanism View 1

B2

B9

L1191

B73

B10

L1053

B411

B567

L1467

B494

Mark Description

Floil G-684G or Multemp MH-D
SLIDUS OIL #150

B35

B553

(Blue grease)

B5

L1322

B12

B11

B571

L1450

B492

B74

L1051

B37

B410

L1450

B121

B8

Chassis Assembly
Top View (Lubricating Point)

B501

L1466

B126

B86

Some Ref. Numbers are not in sequence.

Chassis Assembly
Bottom View (Lubricating Point)

2-6-1 U29P4HSDEX

Deck Mechanism View 2

B487

B587

B416

B521

B591

Mark Description

Floil G-684G or Multemp MH-D
(Blue grease)

SLIDUS OIL #150
SANKOUL FG84M (Yellow grease)

B508

B414

B572

B565

B499

B417

B568

B573

B585

B574

B518

B564

B590

B148

B592

B31

B522

L1151

L1406

B3

B558

B557

B525

B578

B579

B582

B580

B583

B579

View
for A

Some Ref. Numbers are not in sequence.

A

B581

B559

B516

B133

B52

B551

B507

B488

B491

B513

Bottom Side (Grease point)

Bottom Side
(Grease point)

2-6-2 U29P4HSDEX

Deck Mechanism View 3

L1321

B355

L1341

B347

B482

L1321

B354

Mark Description

Floil G-684G or Multemp MH-D
SLIDUS OIL #150

B483

B425

(Blue grease)

B562

B563

B300

B313

B529

B360

B359

B361

B555

Some Ref. Numbers are not in sequence.

B303

B514

2-6-3 U29P4HSDEX

DECK PARTS LIST

Ref.No Description Part No.

B2 CYLINDER ASSEMBLY MK12.5 PAL 6HD or N2367CYL

CYLINDER ASSEMBLY MK12.5 PAL 6HD(V) N2369CYL

B3 LOADING MOTOR ASSEMBLY MK12.5 0VSA14636

B5 SLIDE PLATE MK12.5 0VM416429

B8 PULLEY ASSEMBLY(HI) MK12 0VSA13501

B9 MOVING GUIDE S P.P MK12.5 0VSA14717

B10 MOVING GUIDE T P.P MK12.5 0VSA14639

B11 LOADING ARM(TU) ASSEMBLY MK12 0VSA13300

B12 LOADING ARM(SP) ASSEMBLY MK12 0VSA13299

B31 AC HEAD ASSEMBLY MK12.5 0VSA14841

B35 TAPE GUIDE ARM ASSEMBLY MK12.5 0VSA15014

B37 CAPSTAN MOTOR 288/VCZC1301 N9681CML

B52 CAP BELT MK10 0VM411138

B73 FE HEAD(MK11) MH-131SF11 or DHVEC01Z0005

FE HEAD(MK12) VTR-1X2ERS11-155 or DHVEC01TE005

FE HEAD(MK12) HVFHP0047A DHVEC01AL007

B74 PRISM MK10 0VM202870

B86 F BRAKE ASSEMBLY(HI) MK12 0VSA13447

B121 WORM MK12 0VM414091

B126 PULLEY MK12 0VM414330B

B133 IDLER ASSEMBLY(HI) MK12.5 0VSA14849

B148 TG CAP MK6 0VM407664C

B300 C DRIVE LEVER(TU) MK12 0VM203773

B303 F DOOR OPENER MK12 0VM203751C

B313 C DRIVE SPRING MK12 0VM414145

B347 GUIDE HOLDER A MK10 0VM304920

B354 SLIDER(TU) MK12 0VM101172F

B355 SLIDER(SP) MK12 0VM101182H

B359 CLEANER LEVER MK10 0VM304413

B360 CLEANER ROLLER MK9 0VM410032C

B361 CL POST MK10 0VM411114

B410 PINCH ARM(A) ASSEMBLY(6) MK12.5 or 0VSA14935

PINCH ARM(A) ASSEMBLY(5) MK12 0VSA13788

B411 PINCH SPRING MK12 0VM414644

B414 M BRAKE(SP) ASSEMBLY(HI) MK12 0VSA13655

B416 M BRAKE(TU) ASSEMBLY(HI) MK12 0VSA13449

B417 TENSION SPG(3002645) MK12.5 0VM414221G

B425 LOCK LEVER SPRING MK10 0VM411110

B482 CASSETTE PLATE MK12 0VM203749

B483 LOCK LEVER MK12 0VM414095

B487 BAND BRAKE(SP) MK12 0VM305723

B488 MODE LEVER(HI) MK12 or 0VM101175J

MODE LEVER(HI) MK12.5 0VM101352

B491 CAM GEAR(A)(HI) MK12 0VM101176

B492 MODE GEAR(LM) MK12 0VM204236

B494 C DOOR OPENER MK12 0VM305719

B499 T LEVER HOLDER MK12 0VM305729

B501 WORM HOLDER MK12 or 0VM203767

WORM HOLDER(R) MK12 0VM204324

B507 REEL WASHER MK9 5*2.1*0.5 0VM410058

B508 S BRAKE SPRING(HI) MK12 0VM414899

B513 P.S.W F 6*2.55*0.5 0VM402629A

B514 SCREW RACK MK10 0VM411535

B516 REEL WASHER MK9 5*2.1*0.5 0VM410058

B518 P.S.W CUT 1.6X4.0X0.5T 0VM408485A

B521 REV BRAKE SPG(HI) MK12 0VM414943

Ref.No Description Part No.

B522 TG POST ASSEMBLY MK10 0VSA11012

B525 LDG BELT MK11 0VM412804

B529 CLEANER ASSEMBLY MK10 0VSA11161

B551 FF ARM(HI) MK12 0VM306183

B553 REV SPRING MK11 0VM412555

B555 RACK ASSEMBLY MK12 0VSA13289

B557 MOTER PULLEY U5 0VM403205

B558 LOADING MOTOR M31E-1 R-14 7401 MMDZB12MM007

B559 CLUTCH ASSEMBLY(HI) MK12 0VSA13450

B562 C DRIVE LEVER(SP) MK12 0VM203772

B563 SLIDER SHAFT MK12 0VM305762

B564 M GEAR(HI) MK12 0VM305755

B565 SENSOR GEAR(HI) MK12 0VM305756

B567 PINCH ARM(B) MK12 0VM305718

B568 BT ARM MK12 0VM305728

B571 P.S.W CUT 1.6X4.0X0.5T 0VM408485A

B572 P.S.W CUT 1.6X4.0X0.5T 0VM408485A

B573 REEL S MK11 0VM203436

B574 REEL T MK10 0VM202872C

B578 TR GEAR A MK10 0VM304440

B579 TR GEAR B MK12 0VM305900

B580 TR GEAR C MK12 0VM305743A

B581 CENTER GEAR MK11 0VM305081

B582 TR GEAR SPRING MK10 0VM411187C

B583 CAM WASHER MK12 0VM414741

B585 PSW(317505) MK11 0VM413663

B587 TENSION LEVER ASSEMBLY MK12 0VSA13279

B590 BRAKE ARM(TU) MK12 0VM203752E

B591 BAND BRAKE(TU) MK12 0VM305724C

B592 TG POST MK10 0VM411108E

L1051 SCREW, B-TIGHT M2.6X6 PAN HEAD+ GPMB9060

L1053 SCREW, S-TIGHT M2.6X8 WASHER HEAD+ GCMS9080

L1151 SCREW, SEMS M2.6X4 PAN HEAD+ CPM39040

L1191 SCREW, S-TIGHT M2.6X8 WASHER HEAD+ GCMS9080

L1321 SCREW, S-TIGHT M3X6 BIND HEAD+ GBMS3060

L1322 SCREW, B-TIGHT M2.3X4 BIND HEAD+ GBMBY040

L1341 SCREW, P-TIGHT M2X6 PAN HEAD+ GPMP2060

L1406 AC HEAD SCREW MK9 0VM410964

L1450 SCREW, SEMS M2.6X5 PAN HEAD+ CPM39050

L1466 SCREW, S-TIGHT M2.6X6 BIND HEAD+ GBMS9060

L1467 SCREW M2.6X5 WASHER HEAD+ SCM39050

20040510 2-7-1 H9703DPL

DDVR-5800

H9703ED

2004-06-04
