Fujitsu RX330 User Manual
PRIMERGY RX330 S1 Server
Operating Manual
Edition May 2007
Comments… Suggestions… Corrections…
The User Documentation Department would like to
know your opinion of this manual. Your feedback helps
us optimize our documentation to suit your individual
needs.
Feel free to send us your comments by e-mail to
manuals@fujtsu-siemens.com.
Certified documentation
according to DIN EN ISO 9001:2000
To ensure a consistently high quality standard and
user-friendliness, this documentation was created to
meet the regulations of a quality management system
which complies with the requirements of the standard
DIN EN ISO 9001:2000.
cognitas. Gesellschaft für Technik-Dokumentation mbH
www.cognitas.de
Copyright and Trademarks
Copyright © 2007 Fujitsu Siemens Computers GmbH.
All rights reserved.
Delivery subject to availability; right of technical modifications reserved.
All hardware and software names used are trademarks of their respective manufacturers.
Contents
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.1 Documentation overview . . . . . . . . . . . . . . . . . . . . 7
1.2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1.3 Notational conventions . . . . . . . . . . . . . . . . . . . . 16
1.4 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . 17
2 Installation steps, overview . . . . . . . . . . . . . . . . . . 19
3 Important information . . . . . . . . . . . . . . . . . . . . . 21
3.1 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
3.2 CE conformity . . . . . . . . . . . . . . . . . . . . . . . . . 28
3.3 FCC Class A Compliance Statement . . . . . . . . . . . . . 28
3.4 Transporting the server . . . . . . . . . . . . . . . . . . . . 29
3.5 Notes on installing in the rack . . . . . . . . . . . . . . . . . 30
3.6 Environmental protection . . . . . . . . . . . . . . . . . . . 31
4 Hardware installation . . . . . . . . . . . . . . . . . . . . . . 33
4.1 Unpacking the server . . . . . . . . . . . . . . . . . . . . . 34
4.2 Installing/removing the server in/from the rack . . . . . . . 35
4.2.1 Installation in PRIMECENTER/DataCenter Rack . . . . . . . . 39
4.2.2 Installation in 3rd party racks . . . . . . . . . . . . . . . . . . 42
4.2.3 Inserting the server . . . . . . . . . . . . . . . . . . . . . . . 43
4.3 Connecting devices to the server . . . . . . . . . . . . . . . 45
4.4 Connecting the server to the mains . . . . . . . . . . . . . . 47
4.5 Notes on connecting/disconnecting cables . . . . . . . . . 48
RX330 S1 Operating manual
Contents
5 Starting up and operation . . . . . . . . . . . . . . . . . . . 49
5.1 Controls and displays . . . . . . . . . . . . . . . . . . . . . . 49
5.1.1 Front of server . . . . . . . . . . . . . . . . . . . . . . . . . . 49
5.1.2 Rear of server . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
5.2 Switching the server on and off . . . . . . . . . . . . . . . . 56
5.3 Configuring the server . . . . . . . . . . . . . . . . . . . . . 58
5.3.1 Configuring onboard SAS controller . . . . . . . . . . . . . . . 58
5.3.2 Configuration with ServerStart . . . . . . . . . . . . . . . . . . 59
5.3.3 Configuration without ServerStart . . . . . . . . . . . . . . . . 60
5.4 Cleaning the server . . . . . . . . . . . . . . . . . . . . . . . 60
6 Property and data protection . . . . . . . . . . . . . . . . . . 61
6.1 BIOS Setup security functions . . . . . . . . . . . . . . . . . 61
7 Troubleshooting and tips . . . . . . . . . . . . . . . . . . . . 63
7.1 Power-on indicator remains unlit . . . . . . . . . . . . . . . . 63
7.2 Server switches itself off . . . . . . . . . . . . . . . . . . . . 64
7.3 Screen remains blank . . . . . . . . . . . . . . . . . . . . . . 64
7.4 Flickering stripes on monitor screen . . . . . . . . . . . . . 65
7.5 No screen display or display drifts . . . . . . . . . . . . . . . 65
7.6 No mouse pointer displayed on screen . . . . . . . . . . . . 65
7.7 Incorrect date and time . . . . . . . . . . . . . . . . . . . . . 66
7.8 System will not boot . . . . . . . . . . . . . . . . . . . . . . . 66
7.9 Drives reported as “dead” when starting system . . . . . . . 67
7.10 Added drive reported as defective . . . . . . . . . . . . . . . 67
7.11 Error message on screen . . . . . . . . . . . . . . . . . . . . 67
Operating manual RX330 S1
Contents
8 Hot-plug components . . . . . . . . . . . . . . . . . . . . . 69
8.1 Hot-plug power supply units . . . . . . . . . . . . . . . . . 69
8.1.1 Remove the dummy module . . . . . . . . . . . . . . . . . . . 70
8.1.2 Installing/removing the hot-plug power supply unit . . . . . . . 71
8.1.3 Replacing the hot-plug power supply unit . . . . . . . . . . . . 72
8.2 Hot plug hard disk drives . . . . . . . . . . . . . . . . . . . 73
8.2.1 Handling hard disk drives and HDD modules . . . . . . . . . . 75
8.2.2 Removing/Installing the dummy module . . . . . . . . . . . . . 76
8.2.3 Installing/removing the HDD module . . . . . . . . . . . . . . 77
Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Literature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
RX330 S1 Operating manual
1 Introduction
The PRIMERGY RX330 S1 server is an AMD-based server for workgroups and
small networks. The server is suitable for use as a file server and also as an
application, information or Internet server.
Thanks to its highly developed hardware and software components, the
PRIMERGY RX330 S1 server offers a high level of data security and availability.
These components include hot-plug hard disk modules, redundant power
supply units, and the Server Management ServerView Suite, Prefailure Detection
and Analysing (PDA) and Automatic Server Reconfiguration and Restart
(ASR&R).
Security functions in the BIOS setup protect the data on the server against
manipulation. Additional security is provided by the lockable rack door.
The server occupies 2 height units (HU) in the rack.
1.1 Documentation overview
I PRIMERGY manuals are available in PDF format on the ServerBooks
DVD. The ServerBooks DVD is part of the ServerStart Suite supplied with
every server.
The PDF files of the manuals can also be downloaded free of charge
from the Internet. The overview page showing the online documentation
available on the Internet can be found using the URL:
http://manuals.fujitsu-siemens.com. The PRIMERGY server documentation
can be accessed using the Industry standard servers navigation option.
Concept and target groups for this manual
This operating manual describes how to install, set up and operate your server.
This manual is intended for those people responsible for installing the hardware
and ensuring that the system runs smoothly. The manual contains all the information required to install and operate your PRIMERGY RX330 S1.
It is assumed that users have some knowledge of hardware and data transmission, and a basic familiarity with the operating system that is being used.
RX330 S1 Operating manual 7
Documentation overview Introduction
Additional server documentation
The PRIMERGY RX330 S1 documentation also includes:
– “Quick Start Hardware - PRIMERGY RX330 S1” (leaflet)
– “Quick Start Software - PRIMERGY ServerView Suite” (leaflet)
– “Warranty” manual (print version supplied with the system, PDF file available
on the ServerBooks DVD supplied)
– “Safety notes and other important information” manual (print version
supplied with the system, PDF file available on the ServerBooks DVD
supplied)
– “Ergonomics” manual (PDF file available on the ServerBooks DVD supplied)
– “Returning used devices” manual (PDF file available on the ServerBooks DVD
supplied)
– “Helpdesk” (leaflet with worldwide helpdesk telephone numbers)
– Technical manual for the system board D2440 (PDF file available on the
ServerBooks DVD supplied)
– “BIOS Setup” (PDF file available on the ServerBooks DVD supplied)
– “PRIMERGY RX330 S1 Server Options Guide” (PDF file available on the
ServerBooks DVD)
I The “Options Guide” describes the server expansion and modifi-
cation options.
– “ServerView Suite” includes the ServerStart Disc 1, the ServerStart Disc 2
and the ServerBooks DVD. The version of the
“PRIMERGY ServerView Suite - ServerStart” user manual is available on
the ServerBooks DVD.
I If you need a replacement copy of the ServerBooks DVD, send the
details of your server to the following e-mail address: Reklamat-PC-
LOG@fujitsu-siemens.com
– “ServerView RAID User Manual” (PDF file available on the ServerBooks DVD
supplied)
– “Integrated RAID for SAS User’s Guide” (PDF file available on the
ServerBooks DVD supplied)
– “Integrated Mirroring User’s Guide” (PDF file available on the supplied
ServerBooks DVD)
– “LSI SATA Software RAID User’s Guide” (PDF file available on
theServerBooks DVD supplied)
8 Operating manual RX330 S1
Introduction Features
Further sources of information:
– Technical Manual for the relevant rack
– Manual for the monitor
– Manual on ServerView Server Management
– Manual for the remote testing and diagnostic system RemoteView
– Documentation for boards and drives
– Documentation for your operating system
– Information files on your operating system
(See also “Literature” on page 87.)
1.2 Features
System board
The features of the system board are described in the technical manual for the
system board D2440 for the hardware and in the “BIOS Setup” for the firmware
(see “Literature” on page 87).
Hard disk drives
The server includes two drive cages with up to six (2x3) SAS/SATA2 hard disk
modules. Each hard disk module can accommodate an SAS/SATA2 hard disk
drive with a maximum height of 1 inch. The module is connected to the
SAS/SATA2 backplane wirelessly. This allows hard disk drive modules to be
simply plugged in or pulled out (for further details see “Hot plug hard disk drives”
on page 73).
The hard disk subsystem is designed for SAS/SATA 2, each with one channel
for each hard disk drive.
If the server has the corresponding RAID configuration, HDD modules can also
be exchanged during operation.
RX330 S1 Operating manual 9
Features Introduction
Onboard SAS controller with Integrated Mirroring Enhanced functionality
An onboard SAS controller with "Integrated Mirroring Enhanced" (IME) functionality is fitted to operate the six hard drives. IME also offers RAID functionality for
configuring the internal hard disk drives (RAID level 0, 1).
I A separate utility is available to the controller for IME configuration.
Further information can be found in the "Integrated RAID for SAS User’s
Guide" (on the ServerBooks DVD under "Controllers").
The RAID functionality can optionally be expanded with a corresponding PCI
expansion module (zero-channel RAID controller). In addition to RAID levels 0
and 1, this RAID controller also offers the option of configuring RAID 5. The ZCR
controller uses the Onboard SAS controller using logic that is specially
integrated on the system board.
Accessible drives
A 5.25 inch bay is available for a CD/DVD drive or a magnetic tape drive. The
accessible drive installed here cannot be replaced during operation.
USB port
The USB interface on the front of the server supports activities carried out by
the service technician. The maximum length of the external cable are three
meters.
Power supply
The basic configuration of the server includes a hot-plug power supply unit,
which automatically sets itself to a mains voltage in the range of 100 V - 127 V
or 200 V - 240 V. As an option, the power supply can be expanded with an extra
power supply unit to create a redundant power supply. If a power supply unit
fails, the redundant configuration assures continued operation. The defective
power supply unit can be replaced during operation (for further details see “Hot-
plug power supply units” on page 69).
High level of availability and data security
When memory data is accessed, 1-bit errors in the main memory are identified
and automatically corrected with the ECC (Error Correcting Code) method. The
patented memory scrubbing function regularly starts up the EDC mechanism
and thus ensures continuous data integrity.
10 Operating manual RX330 S1
Introduction Features
The memory modules used support SDDC technology (Chipkill™), which also
increases the effectiveness of the monitoring and correction of memory errors.
ASR&R (Automatic Server Reconfiguration and Restart) restarts the system in
case of an error and automatically “hides” the defective system components.
The PDA (Prefailure Detection and Analyzing) technology from Fujitsu Siemens
Computers analyzes and monitors all components that are critical for system
reliability.
The onboard SAS controller in conjunction with the ZCR controller supports
RAID levels 0, 1, and 5, thereby increasing the availability of the system.
Additional security is provided by the hot-plug HDD modules (depending on the
server variant).
iRMC with integrated service LAN port
I The features of the iRMC Advanced Video Redirection and Remote
Storage are available as an option.
The iRMC (integrated Remote Management Controller) is a BMC with
integrated service LAN port and expanded functionality that was previously only
available with additional plug-in cards. In this way, the iRMC enables complete
control of PRIMERGY servers, regardless of system status, and thus particularly the control of PRIMERGY servers that are in the "out-of-band" system
status.
By default, the service LAN port is assigned to the iRMC. However, you can also
configure LAN port 2 as the service LAN port in the BIOS setup. LAN port 2
then fulfills the tasks of a standard LAN port and those of a service LAN port at
the same time (virtual LAN with 2 different IP addresses).
RX330 S1 Operating manual 11
Features Introduction
Major functions supported by the iRMC include the following:
● Browser access via iRMC's own Web server
● Secure communication (SSH, SSL)
● Power Management for the managed server (depending on its system
status)
● Text console bypass
● Command Line Interface (CLP)
● Simple, interactive or script-based iRMC configuration
● iRMC-s own user management
● Automatic network configuration via DNS / DHCP
● Power supply to the iRMC via the system standby supply
● Full-coverage alarm management
● System Error and Event Log (SEL) reading and processing
More information about the iRMC can be found in the "PRIMERGY ServerView
Suite - integrated Remote Management Controller (iRMC)" manual (see “Liter-
ature” on page 87).
12 Operating manual RX330 S1
Introduction Features
Server management
Server management is implemented using theServerView software supplied
combined with PDA (Prefailure Detection and Analyzing) technology from
Fujitsu Siemens Computers. PDA reports the threat of a system error or
overload at an early stage, allowing preventive measures to be taken.
ServerView enables the management of all PRIMERGY servers in the network
via a central console. The following key functions and others are supported by
ServerView:
● Round-the-clock monitoring, regardless of server status
● High-performance, graphical console bypass (AVR) protected by
HTTPS/SSL (128 bit)
● Remote storage via USB
● Remote power on (Wake On LAN)
● Automatic switch-off when the housing is opened (Housing monitoring)
● Temperature monitoring of the CPU and the surrounding area
● Watchdog timer for Automatic Server Reconfiguration and Restart (ASR&R)
in the event of failure of memory modules or processors
● Power monitoring
● End-of-life monitoring of fans with prompt notification before failure
● Watchdog timer for operating system monitoring and application monitoring
with ASR&R
Further information about ServerView server management is provided in the
associated documentation (see “Literature” on page 87).
RX330 S1 Operating manual 13
Features Introduction
ServerStart
You can configure the PRIMERGY server quickly and precisely with the ServerStart software provided. User-guided menus are available for installing the
server operating system (for further details see section “Configuring the server”
on page 58).
Service and support
PRIMERGY servers are service-friendly and modular, thus enabling quick and
simple maintenance.
The handles and locks (touch point) on the different hot pluggable components
are colored green to ensure simple and immediate recognition.
In order to avoid damage to components by incorrect handling when they are
being installed and removed, green highlighting also identifies the areas of all
components that can be touched without causing damage to the respective
component.
The Flash EPROM program supplied with the Fujitsu Siemens Computers
utilities supports a fast BIOS update.
With the iRMC (integrated Remote Management Controller) on the system
board and the optional remote testing and diagnostic system RemoteView, the
PRIMERGY RX330 S1 server can also be maintained and serviced remotely.
This enables remote diagnosis for system analysis, remote configuration and
remote restart should the operating system or hardware fail.
14 Operating manual RX330 S1
Introduction Features
RemoteView
RemoteView is the remote management solution from Fujitsu Siemens
Computers for PRIMERGY servers. RemoteView and the relevant hardware
components integrated on the system board allow remote monitoring and
maintenance as well as fast restoration of operation in the event of errors.
Remote monitoring and maintenance avoids time-consuming and costly on-site
repairs and reduces service costs. This leads to a reduction in the total cost of
ownership and an excellent return on investment for the remote management
solution.
The administrator can access all system information and information from the
sensors such as fan speeds or voltages via the iRMC's Web interface (see
section “iRMC with integrated service LAN port” on page 11). He can also start
the text-based or graphic console bypass (Advanced Video Redirection, AVR)
and get information about remote storage.
I The features of the iRMC Advanced Video Redirection and Remote
Storage are available as an option.
RX330 S1 Operating manual 15
Notational conventions Introduction
1.3 Notational conventions
The following notational conventions are used in this manual:
Text in italics indicates commands, menu items or software programs.
“Quotation marks” indicate names of chapters and terms that are being
emphasized.
Ê describes activities that must be performed in the order
shown.
V CAUTION! pay particular attention to texts marked with this symbol.
Failure to observe this warning may endanger your life,
destroy the system or lead to the loss of data.
I indicates additional information, notes and tips.
16 Operating manual RX330 S1
Introduction Technical data
1.4 Technical data
Electrical data (hot-plug power supply unit)
Rated voltage range 100 V - 127 V or 200 V - 240 V
Frequency 50 Hz - 60 Hz
Rated current with basic configuration 100 V - 240 V / 1.7 A - 0.8 A
Max. rated current 100 V - 240 V / 4.7 A - 2.0 A
Effective power 453 W
Apparent power 462 VA
Heat dissipation 1630 kJ/h (1545 btu/h)
Main power fuse 16 A
Protection class I
Compliance with regulations and standards
Product safety and
ergonomics
Electromagnetic
compatibility
Interference emissions EN 55022 class A
Harmonic current EN 61000-3-2
Flicker EN 61000-3-3
Interference immunity EN 55024, EN 300386
CE marking
to EU directives
RX330 S1 Operating manual 17
IEC 60950-1 / EN 60950-1, UL/CSA 60950-1,
CNS 14336 / GB 4943 / EN 50371
FCC class A
CNS 13438 class A; VCCI class A
AS/NZS CISPR 22 class A / GB 9254 class A
GB 17625
Low Voltage Directive 73/23/EEC
(Product Safety)
Electromagnetic Compatibility 89/336/EEC
Technical data Introduction
Mechanical values
Width 431 mm
Depth 686 mm
Height 87 mm (2 HU)
Installation depth in the
651 mm
rack
Cable depth in the rack 200.0 mm (1000 mm rack recommended)
Weight
Approx. 24 - 27 kg (depending on configuration).
Ventilation clearance
At least 200 mm on the front and rear.
Ambient conditions
Environment class 3K2
Environment class 2K2
EN 60721 / IEC 721 Part 3-3
EN 60721 / IEC 721 Part 3-2
Temperature:
Operation (3K2) 10 °C ... 35 °C
Transport (2K2) -25 °C ... 60 °C
Humidity 10% ... 85%
Condensation during operation must be avoided!
Noise level
Sound power level L
(ISO 9296) < 6.6 B (standby)
WAd
< 7.3 B (operation)
Sound pressure level at adjacent workstation
L
(ISO 9296)
pAm
< 49 dB (A) (standby)
< 56 dB (A) (operation)
18 Operating manual RX330 S1
2 Installation steps, overview
This chapter contains an overview of the steps necessary to install your server.
Links guide you to sections where you can find more detailed information on the
individual steps:
Ê First of all, it is essential that you familiarize yourself with the safety infor-
mation in the “Important information” on page 21 chapter.
Ê Unpack the system, check the contents of the package for visible transport
damage and check whether the delivery agrees with the details in the
delivery note (see “Unpacking the server” on page 34).
Ê The server includes loose parts. Keep these parts in a safe place. They are
designed to be used for installing optional components at a later time.
Ê Transport the server to the place where you want to install it
Ê Make sure that all necessary manuals (see “Additional server documen-
tation” on page 8) are available; print out the PDF files if required.

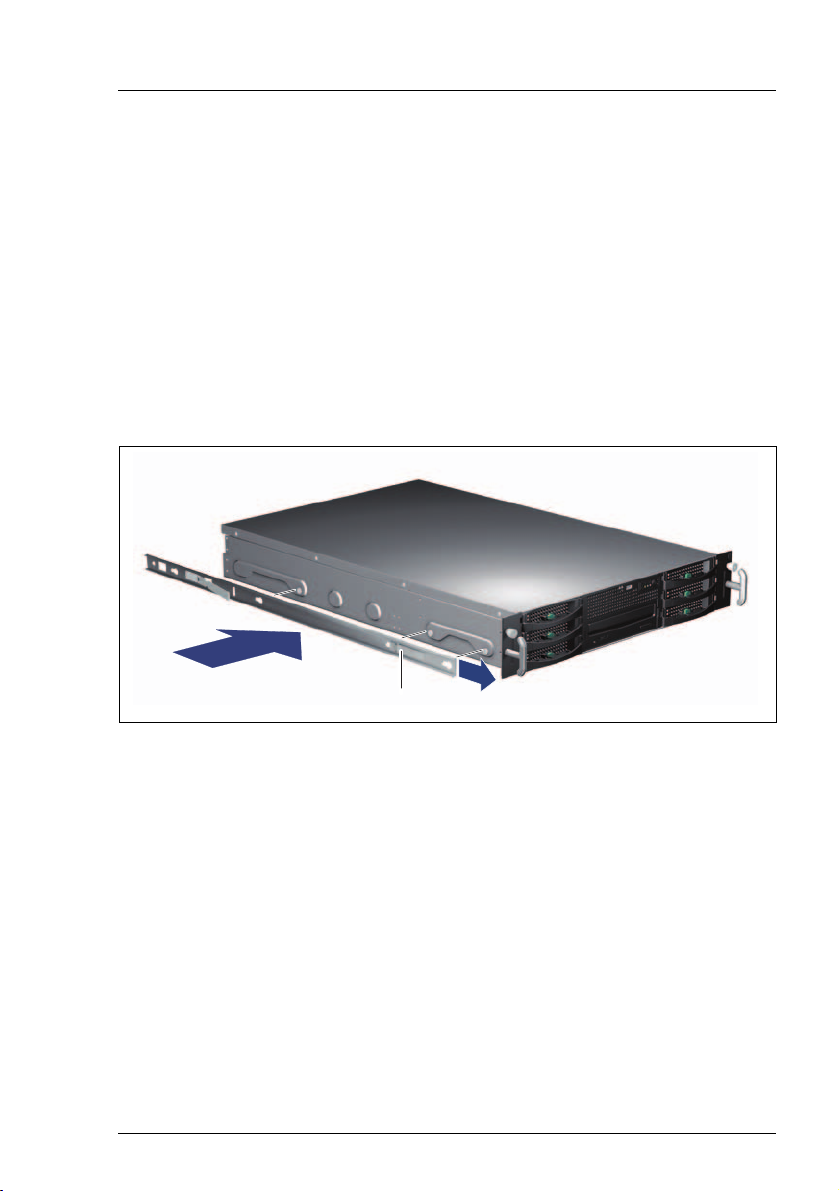

Ê Mount the server into the rack (see “Installing/removing the server in/from
the rack” on page 35).
Ê Wire the server. To do this, refer to sections “Connecting devices to the
server” on page 45 and “Notes on connecting/disconnecting cables” on
page 48.
Ê Connect the system to the line voltage (see “Connecting the server to the
mains” on page 47).
Ê Make yourself familiar with the operating and indicator elements on the front
and on the rear side of the server (see “Controls and displays” on page 49).
RX330 S1 Operating manual 19
Installation steps, overview
Ê Configure the server and install the desired operating system and applica-
tions. The following options are available:
– Remote configuration and installation with ServerStart:
The ServerStart disc supplied allows you to conveniently configure the
server and install the operating system.
Details on how to operate ServerStart, as well as some additional information, can be found in the “PRIMERGY ServerView Suite - ServerStart”
manual.
Configuration information can also be found in the “Configuration with
ServerStart” on page 59 section.
– Local configuration and installation with or without ServerStart (see the
“Configuration with ServerStart” on page 59 section or the “Configuration
without ServerStart” on page 60 section).
I You will find more information on installing the server remotely or
locally in the ServerStart manual. This manual contains the installation
steps (“Quick Step Guide”). A corresponding file in PDF format is
included on the ServerBooks DVD.
20 Operating manual RX330 S1
3 Important information
In this chapter you will find essential information regarding safety when working
on your server.
3.1 Safety
I The following safety instructions are also provided in the manual “Safety
notes and other important information”.
This device complies with the relevant safety regulations for data processing
equipment. If you have any questions about where you can set up the device,
contact your sales outlet or our customer service team.
V CAUTION!
● The actions described in this manual should only be performed by
technical specialists.
● Equipment repairs should only be performed by service personnel.
● Any unauthorized opening and improper repairs could expose the
user to risks (electric shock, energy hazards, fire hazards) and could
also damage the equipment.
● Any unauthorized opening of the device will result in the invalidation
of the warranty and exclusion from all liability.
RX330 S1 Operating manual 21
Safety Important information
Before starting up
V CAUTION!
● During installation and before operating the device, observe the
instructions on environmental conditions for your device (see section
“Technical data” on page 17).
● If the server has been moved from a cold environment, condensation
may form both inside and on the outside of the machine.
Wait until the server has acclimatized to room temperature and is
absolutely dry before starting it up. Material damage may be caused
to the server if this requirement is not met.
● Only transport the server in the original packaging or in packaging
that protects it from impacts and jolts.
Installation and operation
V CAUTION!
● This unit should not be operated in ambient temperatures above
35°C.
● If the unit is integrated into an installation that draws power from an
industrial power supply network with an IEC309 connector, the power
supply's fuse protection must comply with the requirements for nonindustrial power supply networks for type A connectors.
● The unit automatically adjusts itself to a mains voltage in a range of
100 V - 127 V or 200 V - 240 V. Ensure that the local mains voltage
lies within these limits.
● This device must only be connected to properly grounded shock-
proof sockets or insulated sockets of the rack's internal power supply
with tested and approved power cables.
● Ensure that the device is connected to a grounded shockproof socket
close to the device.
22 Operating manual RX330 S1
Important information Safety
V CAUTION!
● Ensure that the power sockets on the device and the grounded shock-
proof sockets are freely accessible.
● The On/Off button or the main power switch (if present) does not
isolate the device from the mains power supply. To disconnect it
completely from the mains power supply, unplug all network power
plugs from the grounded shockproof sockets.
● Always connect the server and the attached peripherals to the same
power circuit. Otherwise you run the risk of losing data if, for example,
the central processing unit is still running but a peripheral device (e.g.
memory subsystem) fails during a power outage.
● Data cables must be adequately shielded.
● The EN 50173 and EN 50174-1/2 standards apply for LAN cabling.
The minimum requirement is the use of a category 5 screened LAN
cable for 10/100 Mbps Ethernet, or a category 5e cable for Gigabit
Ethernet. The requirements from the ISO/IEC 11801 specification
must also be met.
● Route the cables in such a way that they do not create a potential
hazard (make sure no-one can trip over them) and that they cannot
be damaged. When connecting the server, refer to the relevant
instructions in this manual.
● Never connect or disconnect data transmission lines during a storm
(risk of lightning strike).
● Make sure that no objects (e.g. jewelry, paperclips etc.) or liquids get
inside the unit (electric shock hazard, short circuit).
● In emergencies (e.g. damaged casing, controls or cables, penetration
of liquids or foreign bodies), switch off the server immediately, remove
all power plugs and contact your sales outlet or customer service
team.
RX330 S1 Operating manual 23
Safety Important information
V CAUTION!
● Proper operation of the system (in accordance with IEC 60950-1/
EN 60950-1) is only ensured if the casing is completely assembled
and the rear covers for the installation slots have been fitted (electric
shock, cooling, fire protection, interference suppression).
● Only install system expansions that satisfy the requirements and
rules governing safety and electromagnetic compatibility and those
relating to telecommunication terminals. If you install other expansions, they may damage the system or violate the safety regulations.
Information on which system expansions are approved for installation
can be obtained from our customer service center or your sales
outlet.
● The components marked with a warning notice (e.g. lightning symbol)
may only be opened, removed or exchanged by authorized, qualified
personnel. Exception: hot-pluggable power supply units can be
replaced.
● The warranty is void if the server is damaged during installation or
replacement of system expansions.
● Only set screen resolutions and refresh rates that are specified in the
operating manual for the monitor. Otherwise, you may damage your
monitor. If you are in any doubt, contact your sales outlet or customer
service center.
24 Operating manual RX330 S1
Important information Safety
Working with CDs/DVDs and CD/DVD drives
When working with devices with CD/DVD drives, these instructions must be
followed.
V CAUTION!
● Only use CDs/DVDs that are in perfect condition in your server's
CD/DVD drive, in order to prevent data loss, equipment damage and
injury.
● Check each CD/DVD for damage, cracks, breakages etc. before
inserting it in the drive.
Note that any additional labels applied may change the mechanical
properties of a CD/DVD and cause imbalance.
Damaged and imbalanced CDs/DVDs can break at high drive speeds
(data loss).
Under certain circumstances, sharp CD/DVD fragments can pierce
the cover of the CD/DVD drive (equipment damage) and can fly out
of the device (danger of injury, particularly to uncovered body parts
such as the face or neck).
I You can prevent mechanical damage and damage to the CD/DVD drive,
as well as premature CD/DVD wear, by observing the following suggestions:
– Only insert CDs/DVDs in the drive when needed and remove them
after use.
– Store the CDs/DVDs in suitable sleeves.
– Protect the CDs/DVDs from exposure to heat and direct sunlight.
Laser information
The CD/DVD drive complies with IEC 60825-1 laser class 1.
V CAUTION!
The CD/DVD drive contains a light-emitting diode (LED), which under
certain circumstances produces a laser beam stronger than laser
class 1. Looking directly at this beam is dangerous.
Never remove parts of the CD/DVD drive casing!
RX330 S1 Operating manual 25
Safety Important information
Batteries
V CAUTION!
● Incorrect replacement of batteries may lead to a risk of explosion. The
batteries may only be replaced with identical batteries or with a type
recommended by the manufacturer (see the technical manual for the
system board under “Literature” on page 87).
● Do not throw batteries into the trash can. They must be disposed of
in accordance with local regulations concerning special waste.
● The battery must be disposed of in accordance with local regulations
concerning special waste.
● Replace the lithium battery on the system board in accordance with
the instructions in the technical manual for the system board (see
“Literature” on page 87).
● All batteries containing pollutants are marked with a symbol (a
crossed-out garbage can). In addition, the marking is provided with
the chemical symbol of the heavy metal decisive for the classification
as a pollutant:
Cd Cadmium
Hg Mercury
Pb Lead
26 Operating manual RX330 S1
Important information Safety
Modules with Electrostatic-Sensitive Devices
Modules with electrostatic-sensitive devices are identified by the following
sticker:
Figure 1: ESD label
When you handle components fitted with ESDs, you must always observe the
following points:
● Switch off the system and remove the power plugs from the power outlets
before installing or removing components with ESDs.
● You must always discharge static build-up (e.g. by touching a grounded
object) before working with such components.
● Any devices or tools that are used must be free of electrostatic charge.
● Wear a suitable grounding cable that connects you to the external chassis of
the system unit.
● Always hold components with ESDs at the edges or at the points marked
green (touch points).
● Do not touch any connectors or conduction paths on an ESD.
● Place all the components on a pad which is free of electrostatic charge.
I For a detailed description of how to handle ESD components, see the
relevant European or international standards (EN 61340-5-1,
ANSI/ESD S20.20).
RX330 S1 Operating manual 27
CE conformity Important information
Other important information:
● During cleaning, observe the instructions in section “Cleaning the server” on
page 60.
● Keep this operating manual and the other documentation (such as the
technical manual, CD) close to the device. All documentation must be
included if the equipment is passed on to a third party.
3.2 CE conformity
The system complies with the requirements of the EC directives
89/336/EEC regarding “Electromagnetic Compatibility” and
73/23/EEC “Low Voltage Directive”. This is indicated by the CE
marking (CE = Communauté Européenne).
3.3 FCC Class A Compliance Statement
If there is an FCC statement on the device, then:
The following statement applies to the products covered in this manual, unless
otherwise specified herein. The statement for other products will appear in the
accompanying documentation.
NOTE:
This equipment has been tested and found to comply with the limits for a
“Class A” digital device, pursuant to Part 15 of the FCC rules and meets all
requirements of the Canadian Interference-Causing Equipment Standard
ICES-003 for digital apparatus. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in strict accordance with the instructions, may cause harmful
interference to radio communications. However, there is no warranty that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
28 Operating manual RX330 S1
Important information Transporting the server
● Reorient or relocate the receiving antenna.
● Increase the separation between equipment and the receiver.
● Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.
Fujitsu Siemens Computers is not responsible for any radio or television interference caused by unauthorized modifications of this equipment or the substitution or attachment of connecting cables and equipment other than those
specified by Fujitsu Siemens Computers. The correction of interferences
caused by such unauthorized modification, substitution or attachment will be the
responsibility of the user.
The use of shielded I/O cables is required when connecting this equipment to
any and all optional peripheral or host devices. Failure to do so may violate FCC
and ICES rules.
WARNING:
This is a class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.
3.4 Transporting the server
V CAUTION!
Only transport the server in its original packaging or in packaging that
protects it from impacts and jolts. Do not unpack the server until it is at
its installation location.
If you need to lift or transport the server, ask other people to help you.
Never lift or carry the device by the handles on the front panel.
RX330 S1 Operating manual 29
Loading...
