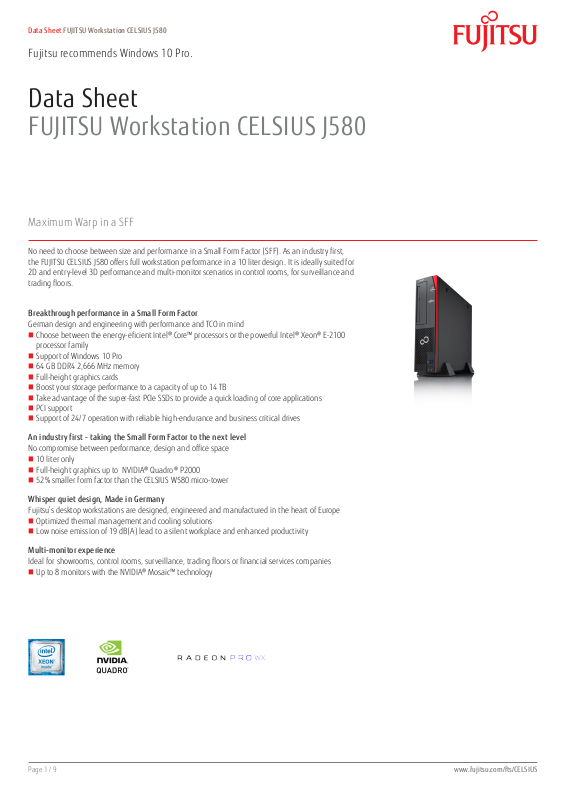

Data Sheet FUJITSU Workstation CELSIUS J580
Fujitsu recommends Windows 10 Pro.
Data Sheet
FUJITSU Workstation CELSIUS J580
Maximum Warp in a SFF
No need to choose between size and performance in a Small Form Factor (SFF). As an industry rst,
the FUJITSU CELSIUS J580 offers full workstation performance in a 10 liter design. It is ideally suited for
2D and entry-level 3D performance and multi-monitor scenarios in control rooms, for surveillance and
trading oors.
Breakthrough performance in a Small Form Factor
German design and engineering with performance and TCO in mind
Choose between the energy-ecient Intel® Core™ processors or the powerful Intel® Xeon® E-2100
processor family
Support of Windows 10 Pro
64 GB DDR4 2,666 MHz memory
Full-height graphics cards
Boost your storage performance to a capacity of up to 14 TB
Take advantage of the super-fast PCIe SSDs to provide a quick loading of core applications
PCI support
Support of 24/7 operation with reliable high-endurance and business critical drives
An industry first - taking the Small Form Factor to the next level
No compromise between performance, design and ofce space
10 liter only
Full-height graphics up to NVIDIA® Quadro® P2000
52% smaller form factor than the CELSIUS W580 micro-tower
Whisper quiet design, Made in Germany
Fujitsu’s desktop workstations are designed, engineered and manufactured in the heart of Europe
Optimized thermal management and cooling solutions
Low noise emission of 19 dB(A) lead to a silent workplace and enhanced productivity
Multi-monitor experience
Ideal for showrooms, control rooms, surveillance, trading oors or nancial services companies
Up to 8 monitors with the NVIDIA® Mosaic™ technology
Page 1 / 9 www.fujitsu.com/fts/CELSIUS
Data Sheet FUJITSU Workstation CELSIUS J580
Fujitsu recommends Windows 10 Pro.
Components
Processor Intel® Xeon® processor E-2174G (4 Cores / 8 Threads, 3.80 GHz, up to 4.7 GHz, 8 MB, Intel® UHD Graphics P630) *
Intel® Xeon® processor E-2146G (6 Cores / 12 Threads, 3.50 GHz, up to 4.5 GHz, 12 MB, Intel® UHD Graphics P630) *
Intel® Xeon® processor E-2144G (4 Cores / 8 Threads, 3.60 GHz, up to 4.5 GHz, 8 MB, Intel® UHD Graphics P630) *
Intel® Xeon® processor E-2136 (6 Cores / 12 Threads, 3.30 GHz, up to 4.5 GHz, 12 MB) *
Intel® Xeon® processor E-2134 (4 Cores / 8 Threads, 3.50 GHz, up to 4.5 GHz, 8 MB) *
Intel® Xeon® processor E-2126G (6 Cores / 12 Threads, 3.30 GHz, up to 4.5 GHz, 12 MB, Intel® UHD Graphics P630) *
Intel® Xeon® processor E-2124G (4 Cores / 8 Threads, 3.40 GHz, up to 4.5 GHz, 8 MB, Intel® UHD Graphics P630) *
Intel® Xeon® processor E-2124 (4 Cores / 8 Threads, 3.30 GHz, up to 4.5 GHz, 8 MB) *
Intel® Core™ i7-8700 processor (6 Cores / 12 Threads, 3.20 GHz, up to 4.6 GHz, 12 MB, Intel® UHD Graphics 630) *
Intel® Core™ i5-8600 processor (6 Cores / 6 Threads, 3.10 GHz, up to 4.3 GHz, 9 MB, Intel® UHD Graphics 630) *
Intel® Core™ i5-8500 processor (6 Cores / 6 Threads, 3.00 GHz, up to 4.1 GHz, 9 MB, Intel® UHD Graphics 630) *
Intel® Core™ i3-8100 processor (4 Cores / 4 Threads, 3.60 GHz, 6 MB, Intel® UHD Graphics 630)
Intel® vPro™ with all Intel® Xeon® processors
No Intel® vPro™ technology with Intel® Core i5 and Core i7 processors
*with Intel® Turbo Boost Technology (clock speed and performance will vary depending on workload and other
variables)
Operating systems
Operating system pre-installed Windows 10 Pro. Fujitsu recommends Windows 10 Pro.
Windows 10 Pro for Workstations
Windows 10 Home
Operating system compatible Linux
Operating system notes Certied for Red Hat© Enterprise Linux (pending)
Certied for SUSE Enterprise Desktop (pending)
Certied for SUSE Enterprise Server (pending)
For some congurations third party drivers are currently not available or conguration restrictions may apply.
Memory modules 4 GB (1 module(s) 4 GB) DDR4, unbuffered, non-ECC, 2,666 MHz, UDIMM
8 GB (1 module(s) 8 GB) DDR4, unbuffered, ECC, 2,666 MHz, UDIMM
8 GB (1 module(s) 8 GB) DDR4, unbuffered, non-ECC, 2,666 MHz, UDIMM
16 GB (1 module(s) 16 GB) DDR4, unbuffered, ECC, 2,666 MHz, UDIMM
16 GB (1 module(s) 16 GB) DDR4, unbuffered, non-ECC, 2,666 MHz, UDIMM
Graphics Midrange 3D: NVIDIA® Quadro® P2000, 5 GB, PCIe x16, 4 x DisplayPort
Midrange 3D: AMD Radeon™ Pro WX 5100, 8 GB, 320 stream processors, PCIe x16, 4 x DisplayPort
Entry 3D: NVIDIA® Quadro® P1000, 4 GB, PCIe x16, 4x miniDP
Entry 3D: AMD Radeon™ Pro WX 3100, 4 GB, 320 stream processors, PCIe x16, 1x DisplayPort, 2x miniDP
Entry 3D: AMD Radeon™ Pro WX 2100, 2 GB, 320 stream processors, PCIe x16, 1x DisplayPort, 2x miniDP
Entry 3D: NVIDIA® Quadro® P620, 2 GB, PCIe x16, 4x miniDP
Entry 3D: NVIDIA® Quadro® P400 , 2 GB, PCIe x16, 3x miniDP
Page 2 / 9 www.fujitsu.com/fts/CELSIUS
Data Sheet FUJITSU Workstation CELSIUS J580
Hard disk drives (internal) SSD SATA III, 960 GB High Endurance, 2.5-inch
SSD SATA III, 480 GB High Endurance, 2.5-inch
SSD SATA III, 240 GB High Endurance, 2.5-inch
SSD PCIe, 1024 GB M.2 NVMe Highend module
SSD PCIe, 512 GB M.2 NVMe Highend module
SSD PCIe, 256 GB M.2 NVMe Highend module
SSD PCIe, 1x1024 GB M.2 NVMe Highend card
SSD PCIe, 1x 512 GB M.2 NVMe Highend card
SSD PCIe, 1x 256 GB M.2 NVMe Highend card
RAID1 Bundle 2x512GB M.2 NVMe Highend
RAID1 Bundle 2x256GB M.2 NVMe Highend
SSD PCIe, 1024 GB M.2 NVMe module
SSD PCIe, 512 GB M.2 NVMe module
SSD PCIe, 256 GB M.2 NVMe module
SSD PCIe, 1024 GB M.2 NVMe module, SED
SSD PCIe, 512 GB M.2 NVMe module, SED
SSD PCIe, 256 GB M.2 NVMe module, SED
SSD PCIe, 1x 1024 GB M.2 NVMe card
SSD PCIe, 1x 512 GB M.2 NVMe card
SSD PCIe, 1x 256 GB M.2 NVMe card
SSD SATA III, 960 GB High Endurance, 2.5-inch
SSD SATA III, 480 GB High Endurance, 2.5-inch
SSD SATA III, 240 GB High Endurance, 2.5-inch
SSD SATA III, 1024 GB, 2.5-inch
SSD SATA III, 512 GB, 2.5-inch
SSD SATA III, 256 GB, 2.5-inch
SSD SATA III, 128 GB, 2.5-inch
HDD SATA III, 7,200 rpm, 6,000 GB, 3.5-inch, business critical
HDD SATA III, 7,200 rpm, 4,000 GB, 3.5-inch, business critical
HDD SATA III, 7,200 rpm, 2,000 GB, 3.5-inch, business critical
HDD SATA III, 7,200 rpm, 1,000 GB, 3.5-inch, business critical
HDD SATA III, 7,200 rpm, 2,000 GB, 2.5-inch, business critical
HDD SATA III, 7,200 rpm, 1,000 GB, 2.5-inch, business critical
HDD SATA III, 7,200 rpm, 2,000 GB, 3.5-inch
HDD SATA III, 7,200 rpm, 1,000 GB, 3.5-inch
HDD SATA III, 7,200 rpm, 500 GB, 3.5-inch
Intel Optane Memory (16 GB)
Fujitsu recommends Windows 10 Pro.
Hard disk notes One Gigabyte equals one billion bytes, when referring to hard disk drive capacity.
24/7 ready (business critical HDDs required)
Up to 20 GB of HDD space is reserved for system recovery
SSHD (Solid State Hard Disk, Hybrid drive)
SED (Self-Encrypting Drive)
SSD (Solid State Disk)
Drives (optional) BD Triple Writer SATA ultra slim (tray)
DVD Super Multi ultra slim (tray)
MultiCard Reader 24in1 USB 2.0 3.5”
Page 3 / 9 www.fujitsu.com/fts/CELSIUS
Data Sheet FUJITSU Workstation CELSIUS J580
Interface add on cards/components
(optional)
WLAN 802.11ac (2x2) PCIe x1 and BT 5 (dedicated regions only)
WLAN 802.11ac (2x2) PCIe x1 (dedicated regions only)
Parallel Interface
Gigabit Ethernet PCIe x1
eSATA Interface
Dual serial card PCIe x1
Riser Cards 1 x PCI-Express 3.0 x16, Full height (174 mm / 6.85 inch) ; 1 x PCI-Express 3.0 x4 (mech. x16), Full height (174 mm /
6.85 inch)
1 x PCI-Express 3.0 x16, Full height (174 mm / 6.85 inch) ; 1 x PCI, Full height (174 mm / 6.85 inch)
Base unit CELSIUS J580
Mainboard
Mainboard type D3628
Formfactor proprietary
Chipset Intel® C246
Processor socket LGA 1151
Supported capacity RAM (max.) 64 GB
Memory slots 4 DIMM (DDR4) ECC/non-ECC
Memory frequency 2,666 MHz
Memory notes Dual channel support
For dual channel performance, 2 memory modules have to be ordered. Capacity per channel has to be the same.
LAN 10/100/1,000 MBit/s Intel® I219LM
BIOS features BIOS Flash EPROM update by software
Recovery BIOS
Unied Extensible Firmware Interface (UEFI)
Audio type On board
Audio codec Realtek ALC671
Audio features Internal speaker supports audio playback (optional), High Denition audio, 5.1 surround sound
Fujitsu recommends Windows 10 Pro.
I/O controller on board
Serial ATA total 5
thereof SATA III 5
thereof eSATA 2 (optional)
Controller functions Serial ATA III (6 Gbit)
NCQ
AHCI
RAID 0/1/5/10
Interfaces
Audio: line-in 1
Audio: line-out 1
Front audio: microphone 1
Front audio: headphone 1
Internal speakers 1
USB 2.0 total 2
USB 3.1 Gen1 (USB 3.0) total 9
USB 3.1 Gen2 total optional via add on card
USB front 2x USB 3.1 (gen2)
USB rear 6x USB 3.0; optional: additional 1x USB 3.1 Type C (Gen2) via add on card
USB internal 2x USB 2.0 + 1x USB A 3.0
DisplayPort 2
DVI 1 (DVI-D)
Page 4 / 9 www.fujitsu.com/fts/CELSIUS
Data Sheet FUJITSU Workstation CELSIUS J580
Interfaces
Serial (RS-232) 1 ; optional: 2nd serial port (9pin, 16 byte FIFO, 16550 compatible)
Mouse / Keyboard (PS/2) 2
Ethernet (RJ-45) 1
Parallel 1 (optional) (25pin with EPP and ECP)
eSATA 1 (optional)
Interface Module notes Anytime USB charge functionality
Input device / components
Input devices (optional) Keyboard
Mouse
KBPC PX ECO
Mouse M440 ECO
Space Explorer USB
Drive bays total
3.5-inch internal bays 1
5.25-inch external bays 1
Drive bay notes 5.25” bay: for slim optical disc drive only; internal 3.5” bay: 1x 3.5” drive (screwless) or 1x 2.5” drive (screws) or optional
via adapter for 1x or 2x 2.5” drives (screws); external 3.5” bay: optional as internal 3.5” bay (screws)
M.2-2280 1 x on mainboard (for PCIe or SATA SSD modules), supports Intel® Optane™ technology
Fujitsu recommends Windows 10 Pro.
Graphics on board
Graphics brand name Intel® HD Graphics P630, Intel® HD Graphics 630
Shared video memory up to 1,782 MB
TFT resolution (VGA) 1,024 x 768 pixel
1,280 x 1,024 pixel
1,360 x 768 pixel
1,440 x 900 pixel
1,600 x 900 pixel
1,600 x 1,200 pixel
1,680 x 1,050 pixel
1,920 x 1,080 pixel
TFT resolution (DVI) 1,280 x 1,024 pixel
1,360 x 768 pixel
1,440 x 900 pixel
1,600 x 900 pixel
1,680 x 1,050 pixel
1,920 x 1,080 pixel
1,920 x 1,200 pixel
TFT resolution (DisplayPort) 1,280 x 1,024 pixel
1,360 x 768 pixel
1,440 x 900 pixel
1,600 x 900 pixel
1,680 x 1,050 pixel
1,920 x 1,080 pixel
1,920 x 1,200 pixel
2,560 x 1,440 pixel
2,560 x 1,600 pixel
3,440 x 1,440 pixel
3,840 x 2,160 pixel
4,096 x 2,304 pixel
Graphics features Support for up to three independent displays
DirectX® 12
HDCP support
OpenCL® 2.0
OpenGL® 4.4
One DisplayPort connector can be converted to DVI-D or HDMI with an optional external adapter
For multi monitoring mode, graphics card and integrated graphics run in parallel
DisplayPort interface supports Ver. 1.2 incl. Multi-Stream
DVI-D interface supports audio output for HDMI monitors
Page 5 / 9 www.fujitsu.com/fts/CELSIUS
Data Sheet FUJITSU Workstation CELSIUS J580
Graphics on board
Graphics notes up to 1 GB dedicated video memory (main memory owned and locked for graphics use)
Tested resolutions, depending on display type additional resolutions and frequencies possible
Shared memory depending on main memory size and operating system
Resolution (color depth up to 32 Bit/pixel)
For TFT we recommend using 60Hz
Electrical values
Power efciency note power supply efciency (at 230V; 10% / 20% / 50% / 100% load) : 84% / 90% / 92% / 91%
Rated voltage range 100 V - 240 V
Rated frequency range 50 Hz - 60 Hz
Operating voltage range 90 V - 264 V
Operating line frequency range 47 Hz - 63 Hz
Max. output of single power supply 280 W
Power factor correction/active power active
Dimensions / Weight / Environmental
Dimensions (W x D x H) 332 x 338 x 89 mm
12.68 x 13.31 x 3.51 inch
Operating position horizontal / vertical (optional, feet needed)
Weight approx. 9 kg
Weight (lbs) approx. 19.84 lbs
Weight notes Actual weight may vary depending on conguration
Operating ambient temperature 10 - 35 °C (50 - 95 °F)
Operating relative humidity 5 - 85 % (relative humidity)
Fujitsu recommends Windows 10 Pro.
Compliance
Product CELSIUS J580
Model DTF
Germany GS (planned)
Europe CE
USA/Canada FCC Class B
cTUVus
Global RoHS (Restriction of hazardous substances)
WEEE (Waste electrical and electronic equipment)
Microsoft Operating Systems (HCT / HCL entry / WHQL)
ENERGY STAR® in progress
EPEAT® in progress (dedicated regions)
China CCC (planned)
CCC (depending on conguration)
CEL (Chinese energy label)
TPM 2.0 for China (optional)
Compliance link https://sp.ts.fujitsu.com/sites/certicates
Additional Software
Additional software (preinstalled) Adobe® Reader® (pdf reader)
McAfee Multi Access Security (anti-virus and internet security software; 60 days trial version)
Microsoft Ofce (buy license to activate the pre-installed Microsoft Ofce)
Additional software (optional) Recovery DVD for Windows®
Drivers & Utilities DVD (DUDVD)
CyberLink PowerDVD BD (playback software for Blu-ray Disc™)
CyberLink PowerDVD DVD (playback software for DVD)
Nero Essentials XL
Security
Physical Security Kensington Lock support
Eye for padlock
Integrated cabinet lock (optional)
Page 6 / 9 www.fujitsu.com/fts/CELSIUS
Data Sheet FUJITSU Workstation CELSIUS J580
Security
System and BIOS Security Embedded security (TPM 2.0)
EraseDisk (optional)
Credential Guard Ready and Device Guard Capable (Windows 10, v. 1709)
Boot sector virus protection
Write protect option for the Flash EPROM
Control of all USB interfaces
External USB ports can be disabled separately
Control of external interfaces
User Security User and supervisor BIOS password
Hard disk password
Access protection via external SmartCard reader (optional)
Access protection via internal SmartCard reader (optional)
Workplace Protect (secure authentication solution)
Workplace Embedded Tools Auto BIOS Update via Fujitsu Server
Auto BIOS Update via customer server
Easy PC Protection
Manageability
Manageability technology DeskUpdate Driver management
PXE 2.1 Boot code
Wake up from S5 (off mode)
Intrusion switch (optional)
WoL (Wake on LAN)
iAMT 11.6 (depending on processor)
Manageability software DeskView Client
DeskView Instant BIOS Management
DeskView components BIOS Management incl. Security
Inventory Management
Driver Management
Alarm Management
Supported standards DMI (Desktop Management Interface)
SMBIOS (System Management BIOS)
PXE (Preboot Execution Environment)
WMI (Windows Management Instrumentation)
WBEM (Web Based Enterprise Management)
CIM (Common Information Model)
Manageability link http://www.fujitsu.com/fts/manageability
Fujitsu recommends Windows 10 Pro.
Miscellaneous
Keyboard on (Special Fujitsu keyboard required)
Keyboard on with one key (KBPX Eco, KB521)
Keyboard on with 2 keys (CTRL+CTRL) with PS2 or special USB keyboards
Keyboard on with any key (USB)
Thermal management
Extended lifetime 24/7 (limited congurations)
Packaging information
Packaging dimension (mm) 467 x 265 x 540 mm
Packaging dimension (inch) 18.39 x 10.43 x 21.26 inch
Max. quantity / pallet 28
Material - Weight (g) Carton 1180 g
Material - Weight (lbs) Carton 2.6 lbs
Material - Weight (g) EPS / PS 180 g
Material - Weight (lbs) EPS / PS 0.4 lbs
Material - Weight (g) PE 60 g
Material - Weight (lbs) PE 0.13 lbs
Packaging notes printed user documentation is bleached in chlorine free process
Warranty
Warranty period 3 years (depending on country)
Page 7 / 9 www.fujitsu.com/fts/CELSIUS
Data Sheet FUJITSU Workstation CELSIUS J580
Warranty
Warranty type Bring-In / Onsite Service (for countries within region EMEIA, for all other countries depending on local regulations)
Warranty Terms & Conditions http://support.ts.fujitsu.com/warranty
Product Related Services - the perfect extension
Recommended Service - 9x5, Onsite Response Time: Next Business Day
Spare Parts availability 5 years after end of product life
Service Weblink http://www.fujitsu.com/fts/services/support
Fujitsu recommends Windows 10 Pro.
Recommended Accessories
Blue LED Mouse GL9000 Blue LED Mouse GL9000 comes in a slim design with proven Fujitsu
engineering quality. The state-of-the-art blue LED sensor enables ultra
precise switchable resolution at 1,000, 1,500 and 2,000 dpi. Blue LED
Mouse GL9000 makes your life easier because it’s tailor-made for right
handed users. It just feels great in your hand.
Keyboard KBPC PX ECO Fujitsu’s KBPC PX ECO keyboard is the perfect contribution to Green IT. The
keyboard is made out of 45% renewable raw material and comes with a PVC
free USB cable. In addition, the KBPC PX ECO offers rst class comfort and
ergonomics. It attracts attention with its impressive modern design and
useful extras.
Order Code:
S26381-K438-L100
S26381-K341-L1** (**:
country specic variation)
Page 8 / 9 www.fujitsu.com/fts/CELSIUS
Data Sheet FUJITSU Workstation CELSIUS J580
More information
Fujitsu recommends Windows 10 Pro.
Fujitsu OPTIMIZATION Services
In addition to the FUJITSU Workstation CELSIUS
J580, Fujitsu provides a range of platform
solutions. They combine reliable Fujitsu
products with the best in services, know-how
and worldwide partnerships.
Fujitsu Portfolio
Build on industry standards, Fujitsu offers a full
portfolio of IT hardware and software products,
services, solutions and cloud offering, ranging
from clients to datacenter solutions and
includes the broad stack of Business Solutions,
as well as the full stack of Cloud offering. This
allows customers to leverage from alternative
sourcing and delivery models to increase
their business agility and to improve their IT
operation’s reliability.
Computing Products
www.fujitsu.com/global/products/computing/
Software
www.fujitsu.com/software/
More information
Learn more about the FUJITSU Workstation
CELSIUS J580, please contact your Fujitsu sales
representative or Fujitsu Business partner, or
visit our website.
www.fujitsu.com/fts/CELSIUS
Fujitsu green policy innovation
Fujitsu Green Policy Innovation is our
worldwide project for reducing burdens on the
environment.
Using our global know-how, we aim to
contribute to the creation of a sustainable
environment for future generations through IT.
Please nd further information at http://www.
fujitsu.com/global/about/environment
Copyrights
All rights reserved, including intellectual
property rights. Designations may be
trademarks and/or copyrights of the respective
owner, the use of which by third parties for
their own purposes may infringe the rights of
such owner. For further information see http://
www.fujitsu.com/fts/resources/navigation/
terms-of-use.html
Copyright 2018 Fujitsu Technology Solutions
Disclaimer
Technical data is subject to modication and
delivery subject to availability. Any liability
that the data and illustrations are complete,
actual or correct is excluded. Designations
may be trademarks and/or copyrights of the
respective owner, the use of which by third
parties for their own purposes may infringe
the rights of such owner.
Contact
Fujitsu Technology Solutions
Website: www.fujitsu.com/fts
2018-07-26 EM-EN
Page 9 / 9 www.fujitsu.com/fts/CELSIUS
All rights reserved, including intellectual property rights. Designations may be trademarks and/or copyrights of the respective
owner, the use of which by third parties for their own purposes may infringe the rights of such owner. For further information
see http://www.fujitsu.com/fts/resources/navigation/terms-of-use.html
Copyright 2018 Fujitsu Technology Solutions
Loading...
