SCALEOVIEW C17-3
Deutsch - English
2
Betriebsanleitu ng / O p e r ating Manual
Sie haben ...
... technische Fragen oder Probleme?
Wenden Sie sich bitte an
unseren Help Desk (siehe Garantiehef t ).
Aktuelle Informationen zu unseren Produkten, Tipps, Updat es usw. finden Sie im Internet:
http://www.fujitsu-siemens.com
Are there ...
... any technical problems or other
questions you need clarifi ed?
Please contact
our Help Desk (see Warranty Booklet).
The latest information on our produc t s, tips, updates, et c., can be found on the Internet under:
http://www.fujitsu-siemens.com
Dieses Handbuch wurde auf Recycling-Papier gedruckt.
This manual has been printed on recycled paper.
Ce manuel est imprimé sur du papier recyclé.
Este manual ha sido impreso sobre papel reciclado.
Questo manuale è stato stampato su carta da riciclaggio.
Denna handbok är tryckt på recyclingpapper.
Dit handboek werd op recycling-papier gedrukt.
Herausgegeben von/Published by
Fujitsu Siemens Computers GmbH
Bestell-Nr./Order No.:
Printed in Taiwan
AG 1003 10/03
A26361-K941-Z100-1-5E19
A26361-K941-Z100-1-5E19
SCALEOVIEW C17-3
LCD-Bildschirm
LCD monitor
Deutsch
English
Betriebsanleitung
Operating Manual
Ausgabe Oktober 2003
Octobre 2003 edition
TCO'99
VESA, DDC und DPMS sind eingetragene Warenzeic hen der Video Electronics St andards
Association.
Alle Rechte vorbehalten, i nsbesondere (auch auszugsweise) die der Übersetzung, des
Nachdrucks, der Wiedergabe durch Kopieren oder ähnliche Verfahren.
Zuwiderhandlungen verpflichten zu S chadenersatz.
Alle Rechte vorbehalten, insbesondere für den Fall der Patenterteilung oder GM-Eintragung.
Liefermöglichkeiten und technische Änderungen vorbehalten.
Dieses Handbuch wurde erstellt von
cognitas. Gesellschaft für Technik-Dokumentation mbH
www.cognitas.de
Copyright Fujitsu Si em ens Computers GmbH 2003
VESA, DDC and DPMS are registered trademarks of Video Electronics Standards
Association.
All rights, includi ng ri ghts of translation, reproduction by printing, copying or s i milar methods,
even of parts are reserved.
Offenders will be liable for damages.
All rights, including rights creat ed by patent grant or registration of a utilit y model or design,
are reserved.
Delivery subject to availability. Right of technical modification reserved.
This manual was produced by
cognitas. Gesellschaft für Technik-Dokumentation mbH
www.cognitas.de
Contents
Introduction........................................................................................................................................1
Notational conventions ..............................................................................................................2
Important notes..................................................................................................................................2
Safety notes ..............................................................................................................................2
Cleaning ....................................................................................................................................3
Transport...................................................................................................................................4
Power cable...............................................................................................................................4
Energy Star Guidelines..............................................................................................................4
CE marking................................................................................................................................4
FCC Class B Compliance Statement.........................................................................................4
Declaration of Conformity ..........................................................................................................5
Disposal and recycling...............................................................................................................6
Checking the contents of the consignment ........................................................................................6
Installing an ergonomic video workstation..........................................................................................7
Mounting and removing the monitor base..........................................................................................8
Mounting monitor base ..............................................................................................................8
Removing monitor base.............................................................................................................8
Connecting the monitor......................................................................................................................9
Connecting cables to the monitor.............................................................................................10
Connecting cables to the computer..........................................................................................10
Operation of the monitor..................................................................................................................11
Adjusting rake..........................................................................................................................11
Switching the monitor on/off.....................................................................................................11
Notes on power management..................................................................................................12
Changing the monitor settings .................................................................................................12
Notes on ergonomic colour adjustment............................................................................................18
Technical data................................................................................................................................. 18
VESA-DDC-compatible VGA interf ace.....................................................................................19
Preset operating modes...........................................................................................................20
Pin assignment D-SUB............................................................................................................20
Trouble shooting..............................................................................................................................21
A26361-K941-Z100-2-5E19 English
Introduction
Your new LCD (Liquid Crystal Displ ay) monitor SCALEOVIEW C17-3 of fers numerous features and
functions, for exam pl e:
• TFT display (Thin Film Transistor; active matrix)
• minimal space requirements thanks to slim cas i ng
• optimum ergonomic charact eri stics (totally di stortion-free, excellent pi cture definition and colour
purity right into the corners)
• high degree of brightness and good contras t
• high resolution (1280x1024) for displaying the information content of a conventional 19-inch
screen with CRT (Cathode Ray Tube)
• presentation of up to 16.2 million colours (i n conjunction with an appropriate graphics card)
• automatic scanning of hori zontal frequencies from 30 to 82 kHz and refresh rates (vertic al
frequencies) from 56 to 76 Hz (abs ol utely flicker-free)
• digital screen controlle r wi t h microprocessor for stori ng 34 di fferent display modes
• freely adjustable colour ali gnm ent for matching the screen c ol ours to the colours of various
input and output devices
• convenient operation via int egrated OSD (On-Screen-display) menu
• VESA-DDC compatibility
• VESA-FPMPMI compatibility (Flat Panel Monitor Physical Mounting Int erf ace) - mechanical
interface to swivel arm and wall bracket)
• plug&play capability
• power management for reducing power consumption when the computer is not in us e
• compliance with the recom m endations in accordance with TCO ’99
In normal screen mode (dark charac ters against a light background) the monitor satisfies the
ergonomic requirements for the GS symbol.
This operating manual contains i m port ant information you require to st art up and run your LCD
monitor.
A screen controller with VGA interface is required to control the SCALEOVIEW C17-3 LCD m oni tor.
The monitor processes the dat a supplied to it by the screen c ontroller. The screen controller/the
associated driver software is responsible for setting the modes (resolution and ref resh rate).
When putting the monitor into operati on for the first time, t he screen display should be optim al l y
adapted to the screen controll er used and adjusted in accordance with your needs (see the
"Changing the monitor settings" section in the "Operati on of the monitor" chapter).
Target group
You don't need to be an "expert" to perform the operations described here. Do, however, read the
"Important notes" chapter in the operating manual of the computer and in this operating manual.
In the event of any problems occurring, please contact your sales outlet or our help desk.
Additional information
Details of how you set t he resolution and refresh rate are provided in the documentation on your
screen controller/the as sociated driver software.
A26361-K941-Z100-2-5E19 English - 1
Colour monitor SCALEOVIEW C17-3
Notational conventions
The meanings of the symbols and fonts used in this manual are as follows:
Pay particular attention to text marked with this symbol. Failure to observe this warning
endangers your life, destroy s the device, or may lead to l oss of data.
!
Supplementary information, remarks, and tips foll ow this symbol.
i
Ê Text which follows this symbol describes activiti es that must be performed in the order shown.
"Quotation marks" indicate names of chapters or term s.
Texts in italics indicate filenames and menu items.
Important notes
In this chapter you will find information regarding s af et y which is essential to take note of
with your monitor.
!
Safety notes
This device complies wi th the relevant safety regul at i ons for data processing equipment , i ncluding
electronic office m achines for use in an office environment. If you have any questions, contact your
sales outlet or our help desk.
• Use only a type "Potrans UP060B1190" power adapter.
• The display surface of t he LCD m oni tor is sensitive to pressure and scratches. Y ou should
therefore be careful with the display surface so as to avoid lasting damage (Newton rings,
scratches). Always hold the device by the c asing!
• If the device is brought into the installation si te from a cold environment, c ondensation can
form. Before operating the devi ce, wait until it is absolutely dry and has reached approximately
the same temperature as the installation site.
• During installation and before operati ng t he device, please observe the i nstructions on
environmental conditions i n the "Technical data" chapt er as well as the instructi ons in the
"Installing an ergonomic video workstation" chapter.
• To ensure sufficient v entilation, the intake and exhaust air openings of the monitor must never
be blocked.
• The monitor automatically sets itself to a mai ns voltage in the range of 100 V to 240 V. Ensure
that the local mains voltage lies within these l i m i ts.
• Ensure that the power socke t on the device or the grounded mains outlet i s freely accessibl e.
• The ON/OFF switch does not disc onnect the device from the mains voltage. To completely
disconnect the mains voltage, remove the power plug from the socket.
2 - English A26361-K941-Z100-2-5E19
Colour monitor SCALEOVIEW C17-3
• Lay all cables so that nobody can stand on them or trip over t hem . When attaching the device,
observe the relevant notes i n the "Connecting the monitor" chapter.
• If you use a different dat a cable from the one supplied, ensure that it is adequately shielded.
CE conformance and optimum picture quality are guaranteed only if you use the data cable
supplied.
• No data transfer cables shoul d be connected or disconnected during a t hunderstorm.
• Make sure that no objects (e.g. jewellery chains, paper clips, etc.) or liquids get inside the
device (danger of electric shock, short circ ui t ).
• In emergencies (e.g. damaged casing, elements or cables, penetration of liquids or foreign
matter), switch off the unit, disconnect t he power pl ug and contact your sales outl et or our help
desk.
• The screen background lighting contains mercury. You must observe the applicable handling
and disposal safety regulations for fluorescent t ubes.
• Only qualified technici ans should repair the device. Unauthori sed opening and incorrect repair
may greatly endanger the user (elec t ri c shock, fire risk).
• You may set only thos e resolutions and refresh rates s pecified in the "Technical dat a" chapter.
Otherwise you may damage your moni tor. If you are in any doubt, c ontact your sales outlet or
our help desk.
• Keep this operating manual together wi th your device. If you pass on the device to third part i es,
you should include this m anual .
Cleaning
• Always pull out the power plug bef ore you clean the monitor.
• Do not clean any interior parts yourself, leave this j ob t o a service technician.
• Do not use any cleaning agents t hat contain abrasives or may corrode plastic.
• Ensure that no liquid will run into the system.
• Ensure that the ventilation areas of the monitor are free.
• The display surface of t he LCD m onitor is sensitive to pressure and scratches. Cl ean i t only
using a soft, slightly moistened cloth.
Wipe the monitor casing with a dry cloth. If the monitor is particularly dirt y, use a cloth which has
been moistened in mild domest i c detergent and then carefully wrung out.
A26361-K941-Z100-2-5E19 English - 3
Colour monitor SCALEOVIEW C17-3
Transport
• Transport the monitor with care and onl y in its original packaging or anot her corresponding
packaging fit to protect it against knocks and jolts .
• Never drop the LCD monitor (danger of glass breakage).
Power cable
To guarantee safe operation, use the c abl e supplied. Use the following guidel i nes if it is necessary
to replace the original cable set.
• The female/male receptacles of the cord set must m eet IEC60320/CEE-22 requirements.
• The cable has to be HAR-certified or VDE-c ertified. The mark HAR or VDE will appear on the
outer sheath.
• For devices which are mounted on a des k or table, type SVT or SJT cable sets may be used.
For devices which sit on the floor, only SJT type cable sets may be used.
• The cable set must be selected according to the rated current for your device.
Energy Star Guidelines
The Fujitsu Siemens LCD colour m oni tor SCALEOVIEW C17-3 is
designed to conserve elect ri city by dropping to less t han 3 W when i t goes
into standby, suspend and OFF mode. With this new power management
the SCALEOVIEW C17-3 qualif i es for the U.S. Environmental Protection
Agency's (EPA) Energy Star Computers award.
The EPA estimates that computer equipment us es 5 % percent of all business elect ric ity and that
this is growing rapidly. I f all desktop computers and peri pheral s enter a low-power mode when not in
use, the overall savings in elect ric it y could amount to $ 2 thousand million annually. These s av i ngs
could also prevent the emission of 20 million t ons of carbon dioxide into the atmosphere - the
equivalent of 5 million automobiles.
As an Energy Star Partner, Fuj i t su Siemens Computers GmbH has determined that this product
meets the Energy Star guidel i nes for energy efficiency .
CE marking
The shipped version of this device complies with t he requi rem ents of the EEC
directives 89/336/EEC "Elect romagnet ic compatibility" and 73/23/EEC "Low voltage
directive".
FCC Class B Compliance Statement
The following statement appli es to the products covered in this manual, unless otherwise specified
herein. The statement for other product s will appear in the accompanying documentation.
4 - English A26361-K941-Z100-2-5E19
Colour monitor SCALEOVIEW C17-3
NOTE:
This equipment has been tested and found to comply with the lim i ts for a "Class B" digit al device,
pursuant to Part 15 of the FCC rules and m eets all requirements of the Canadian InterferenceCausing Equipment Standard ICES-003 for digital apparatus. These li m i ts are designed to provide
reasonable protection against harm ful interference in a residential i nstallation. This equipment
generates, uses and can radiate radi o frequency energy and, if not ins t al l ed and used in strict
accordance with the inst ructions, may cause harm ful interference to radio comm uni cations.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful i nt erference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to t ry to correct the
interference by one or more of the f ol l owi ng m easures:
• Reorient or relocate the receivi ng antenna.
• Increase the separation between equi pm ent and the receiver.
• Connect the equipment into an outl et on a circuit different from t hat to which the receiver is
connected.
• Consult the dealer or an experienced radio/ TV technician for help.
Fujitsu Siemens Computers GmbH is not responsible for any radi o or television interference c aused
by unauthorised modificat i ons of this equipment or the substitution or attachment of connecting
cables and equipment other than thos e specified by Fujitsu S i em ens Computers GmbH. The
correction of interferenc es caused by such unauthorised modification, subst i tution or attachment will
be the responsibility of the user.
The use of shielded I/O cables is required when connecting this equi pment to any and all optional
peripheral or host devices. Fai l ure to do so may violate FCC and ICES rul es.
Declaration of Conformity
This device complies wi th Part 15 of the FCC Rules. Operation i s subject to the followi ng t wo
conditions: (1) this device may not cause harmf ul i nterference, and (2) this devic e m ust accept any
interference received, including interference that may cause undesired operation.
Product name: Colour LCD Monitor
Trade name: Fujitsu Siemens Computers Inc.
Model number(s): C17-3
Name of responsible party: Siemens Information and Comm unication
Contact person: Schroettle-Henning, Bernd
Phone No.: (408) 571-6051
Fax No.: (408) 571-6196
Products LLC
3860 N. First Street
San Jose, CA 95134-1702
U.S.A.
We, Siemens Informati on and Com m uni cation Products LLC, hereby dec l are that the equipment
bearing the trade name and model number specif i ed above was tested confirmi ng t o the applicable
FCC Rules under the most accurat e m easurement standards possibl e, and that all the necessary
steps have been taken and are in force to assure that production uni t s of the same equipment will
continue to comply with the Commissions requirements.
A26361-K941-Z100-2-5E19 English - 5
Colour monitor SCALEOVIEW C17-3
Disposal and recycling
This device has been manufac t ured to the highest possible degree from m aterials which can be
recycled or disposed of in a manner that is not environmentally damaging. The device may be taken
back after use to be recycled, provided that it is returned in a condition that is the result of normal
use. Any components not recl aimed will be dis posed of in an environmentally acceptable manner.
If you have any questions on disposal, please contact your local office, our help desk, or:
Germany Belgium Switzerland
Fujitsu Siemens Computers
GmbH
Remarketing und Recycling
D-33106 Paderborn
Tel.: +49 5251 / 81 80 10
Fax: +49 5251 / 81 80 15
http://www.fujitsu-siemens.de/wvm
RECUPEL
Boulevard Reyers, 80
B-1030 Brussels
Tel.: +32 2 / 706 86 16
Fax: +32 2 / 706 86 13
E-Mail: info@recupel.be
http://www.recupel.be
America Taiwan
National Environmental
Services LLC
Post Office Box 390407
Minneapolis, MN 55439-0407
Tel.: 1-800-872-2226
Fax: 1-520-844-9118
http://www.nesllc.com
Amtran Technology
No. 2, Industrial Rd. 3, Hsin-chu
Industrial Park, Houkou Town,
Hsinchu County, 303 R.O.C.
Tel.: +886-3-598 1188
Fax: +886-3-598 0099
http://www.amtran.con.tw
SWICO
Schweizerischer
Wirtschaftsverband der
Informations-,
Kommunikations- und
Organisationstechnik
A list of the SWICO
Acceptance places can be
found at:
http://www.swico.ch
Checking the contents of the consignment
Ê Unpack all the individual parts.
Ê Check the delivery for damage incurred during transportation.
Ê Check whether the delivery agrees with the details in the delivery note.
The complete LCD monitor package i ncludes:
− one monitor
− one data cable (D-SUB)
− one audio cable
− one power cable
− one floppy disk for the moni tor picture calibration
− one Warranty Booklet
− this operating manual
Should you discover that the delivery does not correspond t o the delivery note, notify your local
sales outlet immediat el y.
It is recommended not to throw away the original packaging mat eri al . Keep it for future
transportation.
i
6 - English A26361-K941-Z100-2-5E19
Colour monitor SCALEOVIEW C17-3
Installing an ergonomic video workstation
Before you set up your equipment , you should select a suit abl e position for working at the monit or.
Please observe the following advice when installing a video workstation.
1
1 = Windows
Avoid direct and reflected glare.
1
0°
60°
65°
65°
30°
30°
22
1 = Preferable viewing sector
2 =
Permissible viewing sec tor
Position the monitor for
optimum viewing. The viewing
distance to the monitor should
be approximately 50 cm.
Avoid glare from electric
lighting.
Keep ventilated areas clear.
1
600 mm 600 mm
2
2
1 = Edge of desk
2 =
Permissible reaching
sector
Position the keyboard where it
is easiest to reach.
2
1
approx. 90° and more
1 =
2 =
approx. 90°
Remember to maintain correct
posture.
Depending on the situation, the use of a s wivel arm or wall bracket (VESA FPMPMI), are available
from specialised dealers , m ay be advisable. For this purpos e t he m oni tor base must be removed
beforehand as described in "Mounti ng and rem oving the monitor base" chapter.
A26361-K941-Z100-2-5E19 English - 7
Colour monitor SCALEOVIEW C17-3
Mounting and removing the monitor base
The display surface is sensitive to scrat ches! Therefore, lay the monit or on a soft surface
when mounting or removing the monitor base.
!
Mounting monitor base
On delivery the monitor base i s removed.
Ê Lay the monitor on a soft surface in order to
avoid damaging the display s urface.
Ê Mount the monitor base.
Ensure that the monitor base engages
properly.
If you want to pack the monitor, you must remove the monitor base.
Ê Lay the monitor on a soft surface in order to
avoid damaging the display s urface.
Ê Open the snap hooks on the monitor base
and remove the monitor.
Removing monitor base
Before you can use a swivel arm or a wal l bracket, you must remove the monitor base:
The display surface is sensitive to scrat ches!
!
Ê Switch off the monitor and pull the power plug out of the power socket.
Ê Remove all cables.
8 - English A26361-K941-Z100-2-5E19
Connecting the monitor
Observe the "Safety not es" in the "Important notes " chapter in this operating manual.
!
CE conformance and optimum picture quality are guaranteed only if you use the data
cable supplied.
Do not cover the ventilat i on openi ngs of the monitor.
The computer power plug must be pulled out!
Colour monitor SCALEOVIEW C17-3
Ê Remove the cover (1).
Ê Lay the monitor on its face on a soft
surface.
Ê Remove the four screws on the rear of the
monitor (2).
You can now mount a swivel arm or a wall
bracket as per VESA FPMPMI with 75 mm hole
spacing.
For instructions on how to mount the swivel arm
or wall bracket, please see the documentation
for the swivel arm or wall brac ket.
Ê Be sure that the monitor and the computer are swit ched off.
A26361-K941-Z100-2-5E19 English - 9
Colour monitor SCALEOVIEW C17-3
Connecting cables to the monitor
1 = AUDIO-IN connector
2 =
D-SUB connector (ANALOG)
3 =
Power connector
4 =
Security slot for "Kensington Lock"
The data cable supplied has two 15-pin D-S UB connectors for connection t o t he m oni tor and to the
computer.
Ê Connect one of the connectors of the data cabl e t o the D-SUB connector on the monitor (2)
and secure the plug-in connection by tightening the safety screws.
Ê Insert one plug of the audio line in the AUDIO IN (1) socket on the monitor and make sure i t is
properly engaged.
Ê Plug the power cable supplied into the power connector (3) of the monitor.
A lock (Kensington Loc k) can be mounted in the security slot (4) to protect the moni tor
from theft. A Kensington Lock is not included in the consignment of the monitor.
i
Connecting cables to the computer
Information on the computer connections and interfaces i s contained in the operating manual for
your computer.
If your computer has two m oni tor ports ("onboard" screen control l er and separate
graphics card), the monitor port for the separate graphics card i s usually active.
i
Ê Connect the data cable to the (active) monitor port on the computer and secure the pl ug-i n
connection by tightening the safety screws.
Ê Insert the other plug of the audio line in the audio output of the computer.
Ê Connect the connector of the power cable supplied into a properly grounded mains outlet and
ensure a secure connection.
10 - English A26361-K941-Z100-2-5E19
Colour monitor SCALEOVIEW C17-3
Ê Plug the power connector of the computer into a properly grounded mains outlet.
When you start working with y our monitor for the first ti m e you should install the
appropriate graphics drivers f or your application software. Det ails of how to do this are
i
provided in the documentation on y our screen controller/the ass ociated driver software.
Operation of the monitor
The monitor offers the following possibilities t hat enable it to be optimally adjusted for the respective
user and the respective si tuation.
Adjusting rake
The rake of the monitor can be adjusted by 0° (forward) and +20° (back) from it s vertical position.
Ê Grasp the monitor with both hands on the right and left edge of the casing and adjust it to the
desired rake.
Switching the monitor on/off

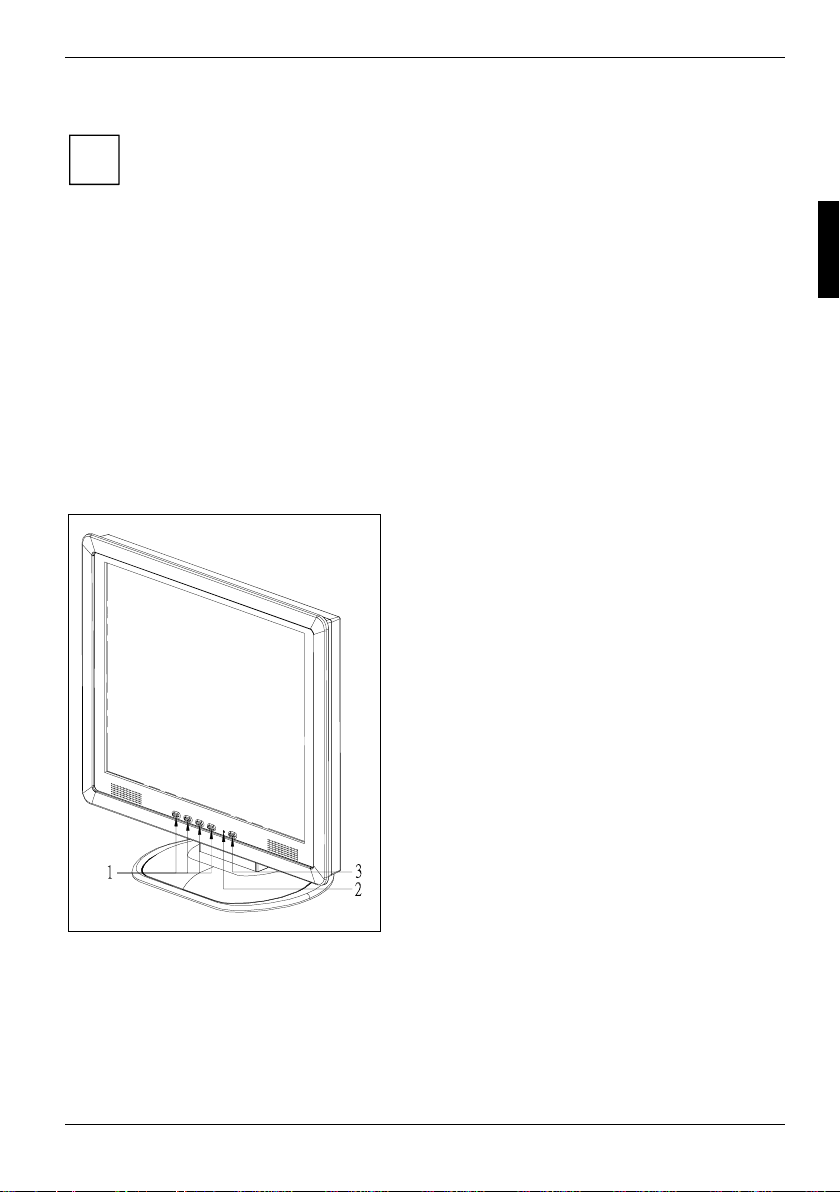

1 = Buttons for the OSD menu
(On-Screen-display)
2 =
Power indicator
3 =
ON/OFF switch
The ON/OFF switch (3) is used for switching the monitor on and off.
The power indicator (2) glows green when the monitor and computer are switched on. The power
indicator glows orange when the monitor does not receive a video signal or i s in the energy-saving
mode. The power indicator goes off when the monitor is switched off.
A26361-K941-Z100-2-5E19 English - 11
Colour monitor SCALEOVIEW C17-3
When you switch the comput er system on, you must proceed in the following order:
Ê First switch on the LCD monitor with the ON/OFF s wi tch (3).
Ê Then switch on the computer.
If your computer has a power management function (energy-saving m ode), you should
read the "Notes on power management" section in this chapter.
i
Notes on power management
If your computer is equipped wi th power management, the monitor can support this function ful l y.
Here the monitor does not disti ngui sh between the individual energy-sav i ng modes of the computer
(standby mode, suspend mode and OFF mode), as it is capable of imm edi at el y switching into the
mode with the highest energy-saving effect.
Stage ON Energy-saving mode
Power indicator lights green glows orange
Function the monitor is working
normally
Power consumption typ. 51 W reduced to < 3 W
If your computer detect s inactivity (no input) it sends an appropriate signal t o t he monitor to reduce
the power consumption (energy-sav ing mode). The power indicator of the monit or changes colour to
indicate the status change.
Once an input is made at the com puter the screen contents are redrawn and f ul l power i s restored.
For detailed information on how energy-saving mode operates refer to the operating m anual or
technical manual of the c om puter.
the screen is dark
When the monitor is switc hed to the energy-saving mode by the power managem ent
system a power consumption of up to 3 W is maintained to feed the circuit for redrawing
i
the screen contents.
To completely switc h off the power consumption, swi tch off the computer or pull t he pl ug
of the monitor power cable out of t he monitor socket of the computer.
Changing the monitor settings
When putting the monitor into operati on for the first time, t he screen display should be optim al l y
adapted to the screen controll er used and adjusted in accordance with your needs.
12 - English A26361-K941-Z100-2-5E19
Colour monitor SCALEOVIEW C17-3
Basic monitor settings with the floppy disk supplied
If one of the operating systems Windows 95/98, Windows NT, Windows Me, Windows 2000,
Windows XP or OS/2 (with Windows em ul ation installed) is used, the basic monitor setti ngs can be
set with the floppy disk supplied.
Ê Insert the supplied floppy disk int o the floppy disk drive.
Ê Open the Readme file on the floppy disk and follow the instructions in the file.
Your monitor should now already be properly adj usted. If none of the above operati ng systems is
used or minor corrections are t o be m ade t o the screen display, then c hange the monitor settings
with the OSD menu.
Changing the monitor settings with the buttons of the control panel
1 = Buttons for the OSD menu
(On-Screen-display)
Use the buttons of the control panel to make the following m oni tor settings directly while the OSD
menu is switched off.
Performing auto-adjustment of the monitor
2 = Power indicator
3 =
ON/OFF switch
Ê Press the EXIT\AUTO button for approx. 1 second while the OSD menu is swit ched off.
The Auto Processing message is di splayed.
Picture quality and posi tion are set to optimum values for your system.
Adjusting background lighting
Ê Press the
Ê Press the
This setting window can als o be called, when the OSD menu is locked.
Activating/deactivating muting
Ê Press the
A message is displayed that the action has been performed.
A26361-K941-Z100-2-5E19 English - 13
/ button for call i ng the Brightness setting window.
5
or 5/ button to adjust the brightness.
6/
button to switch the s ound off and on again.
6/
Colour monitor SCALEOVIEW C17-3
Locking the OSD menu
The OSD menu can be locked to prevent accidental or unauthorised changes to the monitor
settings.
Ê Press and hold the SELECT/MENU button for a f ew seconds while you switc h on t he m oni tor
with the ON/OFF switch.
A message is displayed that the action has been performed.
Please proceed in the same manner t o rel ease the locked OSD menu again.
Monitor settings using the OSD menu
With the buttons on the cont rol panel , call up and use the integrated OSD (On-Screen display)
menu.
The OSD menu is available in different languages. The English menu names are used in
the following description (default setting). With t he OS D function Language in the OSD
i
Setup you can select another language.
To set the OSD menu, perform the following steps:
Ê Press the SELECT/MENU button to act i vate the OSD menu.
The main menu appears on the screen (on the lef t-hand side) with icons for the setting functions.
The first symbol (Brightness/Contrast) is
highlighted. In the right-hand part of the display
the associated functions are shown.
Ê If necessary, press the
button to mark another icon (e. g. Image
adjust).
or 5/
6/
Ê Press the SELECT/MENU button to select
the highlighted icon.
14 - English A26361-K941-Z100-2-5E19
Colour monitor SCALEOVIEW C17-3

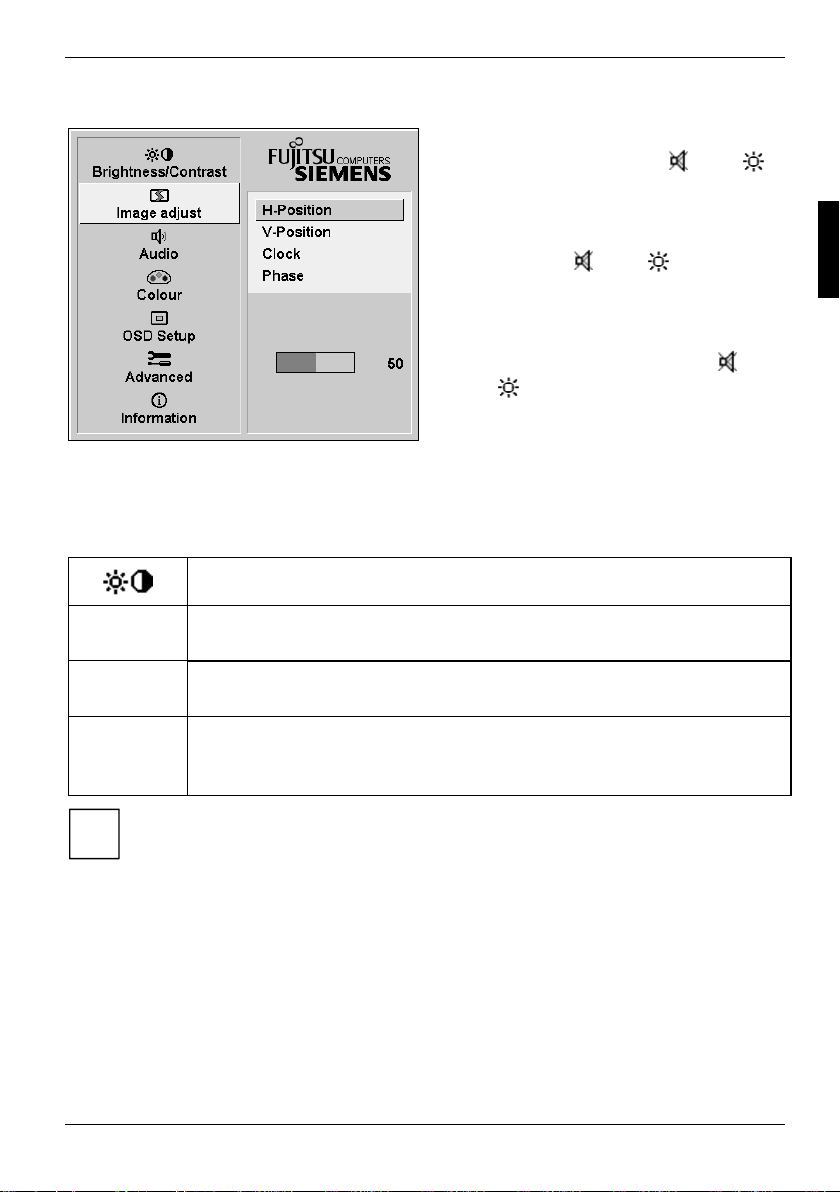

The corresponding setting window (here: Image Adjust) is dis pl ayed (on the right-hand side).
The first function (H-Position) is highlight ed.
Ê If necessary, press the
button to mark another funct i on.
or 5/
6/
Ê Press the SELECT/MENU button to select
the highlighted function.
Ê Press the
adjust the value for the s el ected function.
or 5/ button to
6/
Ê Press the EXIT/AUTO button to exit the
function.
Ê If necessary, press the button
/ to mark another function or press
5
the EXIT/AUTO button to return to the main
menu.
All changes are stored automatically.
If you want to change other settings, select t he corresponding function from the OS D m ai n m enu. All
possible adjustments of the main menu are described in the f o l l owi ng.
Adjusting the brightness and contrast
Calling the Brightness / Contrast setting window.
Brightness
Contrast
Auto Level
Setting the brightness of the display
With this function you change the brightness of the bac kground lighting.
Setting the contrast of the display
With this function you modify the contrast of bri ght colour tones.
Setting the brightness of the display
With this function you can automatically s et the contrast.
Press the SELECT/ME NU but ton to activate the func t i on.
6/
or
If the contrast is set too high, bright surfac es can no longer be distinguished from very
bright surfaces. If the contrast is set too low, the maximum brightness will not be
i
achieved.
A26361-K941-Z100-2-5E19 English - 15
Colour monitor SCALEOVIEW C17-3
Adjusting size and position
Calling the Image adjust setting window
H-Position
V-Position
Clock
Phase
Adjusting the volume
Volume
Mute
Setting colour temperature and colours
Adjusting the horizontal position
With this function you move the picture to the lef t or to the right.
Adjusting the vertical position
With this function you move the picture up or down.
Setting synchronis ation
With this function you adjust the picture width t o el i m i nate vertical picture
disturbances.
Eliminating picture interference
With this function you fine-tune your monitor to elim i nate picture interference.
Calling the Audio setting window
Setting the volume for pl ayback with the integrated loudspeakers
Switching the loudspeakers off or on
Calling the Colour setting window
Selecting the colour tem perature
The "warmth" of the screen col ours is set using the colour t emperature. The colour
temperature is measured in K (= K el vin). You can select from 6500 K, 9300 K,
Native and Custom Colour.
Native
Custom Colour
In the user-defined setting you can change the colour ratios of the basic colours
(red, green, blue) as required.
= Original colour of the LCD display
= User-defined colours
16 - English A26361-K941-Z100-2-5E19
Setting display of the OSD menu
Calling the OSD Setup setting window
Colour monitor SCALEOVIEW C17-3
Language
Setting language for the OSD menu
With this function y ou choose between English (default setting), French, German,
Italian and Spanish as the language for the OSD menu.
OSD
H-Position
OSD
V-Position
OSD
Timeout
Setting the horizontal pos i tion of the OSD menu
With this function you move the OSD menu to the left or to the right.
Setting the vertical position of the OSD menu
With this function you move the OSD menu up or down.
Setting the display durat i on of the OSD menu
With this function you select a value from 10 to 120 s econds.
If the set time ex pi res without a setting being made, the OSD menu is
automatically faded out .
Setting functions in the "Advanced " menu
Calling the Advanced setting window
Resolution
Notifier
Displaying monitor data
The optimum resolution for thi s monitor is 1280 x 1024 pixels . Wi th the function
activated (On), a mes sage appears on the screen after approx. 30 seconds if a
different resolution is set.
Change the resolution to 1280 x 1024 to ac hi eve optimum picture quality . With the
function deactivated ( Off), no message appears.
Factory Recall
Activating the factory settings
With this function al l settings are reset to the f actory settings wit hout prompting for
confirmation.
Press the SELECT/ME NU but ton to activate the function. The Auto Processing
message is displayed.
Displaying information
Calling the Information setting window
With this function t he model designation, serial number, resolution, H/V frequency,
input signal and polarity of the synchronisation signal are displayed.
A26361-K941-Z100-2-5E19 English - 17
Colour monitor SCALEOVIEW C17-3
Notes on ergonomic colour adjustment
If you select col ours for the display in your appli cation programmes, take note of the information
below.
The primary colours blue and red on a dark background do not produce the minimum required
contrast of 3:1 and are therefore not suitable for continuous t ext and data entry.
When using several colours f or characters and background and giving the primary colours full
modulation, you can obtain v ery suitable colour combinat i ons (see the following table):
Background
black white purple blue cyan green yellow red
black + + - + + + white + + + - - - +
purple + + - - - - -
blue - + - + - + cyan + - - + - - -
green + - - + - - -
yellow + - + + - - +
red - + - - - - +
+ Colour combination very suitable
- Colour com bi nation not suitable because col our l ocations are too close toget her, thin
characters are not identif i abl e or ri gorous focusing is demanded of the hum an eye.
Characters
Technical data
Dimensions and weight (LCD monitor)
Visible diagonals: 43 cm
Dot pitch: 0.264 mm
Screen size: 338 mm x 270 mm
Maximal resolution: 1280 x 1024 pixels
Dimensions (W x H x D)
without monitor base:
incl. monitor base:
Dimensions cardboard box
(W x H x D):
Weight: approx. 3.5 kg
Accessories: Power cable (1.8 m)
18 - English A26361-K941-Z100-2-5E19
409.7 mm x 400.4 mm x 72.2 m m
409.7 mm x 400.4 mm x 215.6 m m
450 mm x 466 mm x 140 mm
D-SUB data cable (1.8 m)
Audio cable (1.8 m)
Colour monitor SCALEOVIEW C17-3
Storable display modes: 34, 9 of which are preset
Electrical data
Video: analogue, positive, 0.7 V
Synchronisation: Separate Sync. TTL, positive or negative
Horizontal frequency: 30 kHz .... 82 kHz (multi-scanning)
Refresh rate: 56 Hz .... 76 Hz
Maximum pixel rate: 135 MHz
Power supply: switches automatically
Total power consumption: typ. 51 W
Sound output: 2.5 W left; 2.5 W right
Environmental conditions
Environment class 3K 2, IEC 721
Rated range of operation:
Humidity:
Limit range of operation:
Humidity:
Condensation must be avoided.
100 V - 240 V, 50 Hz - 60 Hz
< 3 W in the energy-saving mode (standby mode, suspend
mode and OFF mode)
15 °C .... 35 °C
20 % .... 85 %
5 °C .... 35 °C
20 % .... 85 %
, 75 Ω
pp
± 2 Hz, 1.5 A - 0.7 A
VESA-DDC-compatible VGA interface
Your monitor is equipped with a VESA-DDC-compatible VGA interface. VESA-DDC (Video
Electronics Standard Association, Display Data Channel) is used as the c om munications interface
between the monitor and the computer. If your computer is equipped with a VESA-DDC-compatible
VGA interface, it can automatically read the dat a for ensuring optimum operation from y our m oni tor
and select the appropriate set t i ngs.
If the monitor SCALEOV IEW C17-3 is not yet displayed in the list of monitors, you can
select the following m oni tor instead:
i
Fujitsu Siemens S7, 4311FA, 4312 FA, 43B1-M
A26361-K941-Z100-2-5E19 English - 19
Colour monitor SCALEOVIEW C17-3
Preset operating modes
The picture position and siz e have been set to optimum values at the factory for the
operating modes listed above. Dependi ng on the screen controller used, it may be
i
necessary to adjust the display position and size. In this case, you can change and save
the settings (see "Operat ion of the monitor").
The following are the most frequentl y used of the preset operating modes :
Horizontal frequency Refresh rate Screen resolution
31.5 kHz
31.5 kHz
37.5 kHz
37.9 kHz
46.9 kHz
48.4 kHz
60.0 kHz
60.0 kHz
79.9 kHz
For ergonomic reasons, a screen resolution of 1280 x 1024 pixels is recommended. Because of the
technology used (active matrix) an LCD monitor provides a totally flicker-f ree pi cture even with a
refresh rate of 60 Hz.
70 Hz
60 Hz
75 Hz
60 Hz
75 Hz
60 Hz
75 Hz
60 Hz
75 Hz
720 x 400
640 x 480
640 x 480
800 x 600
800 x 600
1024 x 768
1024 x 768
1280 x 1024
1280 x 1024
Pin assignment D-SUB
1
5
6
10
11
15
Pin Meaning Pin Meaning
1 Video input red 9 +5 V (DDC)
2 Video input green 10 S ync. ground
3 Video input blue 11 Ground
4 Ground 12 DDC-Data
5 Ground 13 H. sync
6 Red video ground 14 V. sync
7 Green video ground 15 DDC Clock
8 Blue video ground
20 - English A26361-K941-Z100-2-5E19
Colour monitor SCALEOVIEW C17-3
Trouble shooting
Should an error occur, first check the following points. If t he distortion is still not eliminated, the
monitor should, if poss i bl e, be checked on another computer and/or wi th another data cable.
If you are unable to solve t he probl em , please inform our help desk.
Having this problem? Check the following points:
No screen display
(power indicator does not light)
No screen display
(power indicator lights)
Message:
No Signal
Message:
Frequency out of range:
## kHz / ## Hz
Please change the display mode to
1280x1024 with 60 Hz.
Picture position is not correct The monitor recognises an undefined mode (see
Ê Check whether the monitor is switched on.
Ê Check whether the power cable on the
monitor is connected c orrectly.
Ê Check whether the computer is switched
on.
Ê Check whether the computer is switched
on.
Ê Check whether the data cable for the
monitor is correctly attached to the monitor
port on the computer.
Ê Press any key on the computer keyboard -
the computer may be in energy s aving
mode.
Ê Alter the brightness and/or contrast unt i l
you get a picture.
Ê Check whether the data cable for the
monitor is correctly attached to the monitor
port on the computer.
Ê Check whether the computer is switched
on.
The input signal (horizontal frequency and
refresh rate) at the display ed i nput does not
correspond to the technical m oni tor data.
Ê Adjust the video frequency range using the
computer software (see docum entation for
your computer or your graphics card).
"Technical data").
Ê Press the EXIT/AUTO button to perform the
auto-adjustment of the screen.
Ê Set the picture position with the OSD menu
(see "Operation of the monitor" ).
A26361-K941-Z100-2-5E19 English - 21
Colour monitor SCALEOVIEW C17-3
Having this problem? Check the following points:
Picture is shaking Ê Check whether the data cable for the
monitor is correctly attached to the monitor
port on the computer.
Ê Press the EXIT/AUTO button to perform the
auto-adjustment of the screen.
Picture disturbances (vertical lines) Ê Press the EXIT/AUTO button to perform the
auto-adjustment of the screen.
Picture disturbances (hori zontal lines, picture
noise)
The screen becomes darker
Ê Press the EXIT/AUTO button to perform the
auto-adjustment of the screen.
The background lighting has a limited lifetime. If
your monitor display shoul d become too dark,
the background lighting will have to be
exchanged.
Ê Please contact our help desk.
Permanently unlit or lit pi xels The standard of production techniques today
cannot guarantee an absolutely fault-free screen
display. A few isol ated constant lit or unlit pi xels
may be present. The maximum permitted
number of pixels faults i s stipulated in the
stringent international s t andard ISO 13406-2
(Class II).
Example: a 17" flat-s creen monitor with a
resolution of 1280 x 1024 has 1280 x 1024 =
1310720 pixels. Each pixel consists of three
subpixels (red, green and blue), s o t here are
almost 4 million dots in total.
According to ISO 13406-2 (Class II), a maximum
of 6 pixels and 7 subpixels may be defective, i.
e. a total of 25 faulted dots . This corresponds to
approx. 0.00062 % of the entire s creen surface!
22 - English A26361-K941-Z100-2-5E19
TCO'99
Congratulations
You have just purchased a TCO'99 approv ed and l abel l ed product!
Your choice has provided you wi t h a product developed for
professional use. Your purc hase has also contributed to reduc i ng
the burden on the environment and also to t he further development
of environmentally adapted electronics products.
Why do we have environmentally labelled computers?
In many countries, environmental labelling has become an established method for encouraging the
adaptation of goods and servic es to the environment. The main problem , as far as computers and
other electronics equipment are concerned, is that environmentally harmful substanc es are used
both in the products and during their m anufacture. Since it is not so far possible to sat i sfactorily
recycle the majority of electronics equipment, most of these potentially damagi ng substances
sooner or later enter nature.
There are also other characterist i cs of a computer, such as energy consumption levels, that are
important from the viewpoints of both the work (internal) and natural (external) environments. Si nce
all methods of electricity generation have a negative ef fect on the environment (e.g. acidic and
climate-influencing em i ssions, radioactive waste), it is vital to save energy. Electronics equipment in
offices is oft en l ef t running continuously and thereby consumes a lot of energy.
What does labelling involve?
This product meets the requirem ents for the TCO'99 scheme which provides for international and
environmental labelling of personal computers. The labelling scheme was developed as a joint effort
by the TCO (The Swedish Confederation of P rof essional Employees), S venska
Naturskyddsforeningen (The Swedi sh Society for Nature Conserv ation) and Statens
Energimyndighet (The Swedish Nati onal Energy Administration).
Approval requirements cover a wide range of issues: environment, ergonomics, us abilit y, emission
of electric and magnetic fields, energy consumpti on and el ectrical and fire safety .
The environmental demands impose restrictions on the presenc e and use of heavy metals,
brominated and chlorinated flame ret ardants, CFCs (freons) and chlorinat ed solvents, among other
things. The product must be prepared f or re cycling and the manufacturer i s obliged to have an
environmental policy which must be adhered to in each country where the company implements its
operational policy.
The energy requirements include a demand t hat the computer and/or display, after a certain period
of inactivity, shall reduce its power consumption to a lower level in one or more st ages. The length
of time to reactivate the computer shall be reasonable f or the user.
Labelled products must meet strict environmental dem ands, for example, in respect of the reduction
of electric and magnetic fields, physical and visual ergonomics and good usability.
TCO'99 - 1
TCO'99
Below you will find a brief summary of the environmental requirements met by this product. The
complete environmental c ri t eri a document may be ordered from:
TCO Development
SE-114 94 Stockholm, S weden
Fax: +46 8 782 92 07
Email (Internet): developm ent@tco.se
Current information regarding TCO'99 approved and labell ed products may also be obtained v i a t he
Internet, using the address: http://www.tco-info.com/
Environmental requirements
Flame retardants
Flame retardants are present in print ed circuit boards, cables, wires, casings and housings. Their
purpose is to prevent, or at l east to delay the spread of fire. Up to 30% of the plastic i n a computer
casing can consist of flame retardant substances. Most flame retardants contain bromine or
chloride, and those flame ret ardants are chemically related to another group of environmental toxi ns,
PCBs. Both the flam e retardants containing bromine or chlori de and the PCBs are suspected of
giving rise to severe healt h effects, including reproductive damage in fish-eating birds and
mammals, due to the bio-ac cumulative
blood and researchers fear that dis turbances in foetus development may occur.
The relevant TCO'99 demand requires that plastic components weighing more than 25 grams must
not contain flame retardants wi th organically bound bromine or chlorine. Fl am e retardants are
allowed in the printed circuit boards since no substitut es are available.
Cadmium
2)
Cadmium is present in rechargeable batteries and in the colour-generating layers of certain
computer displays. Cadm i um dam ages the nervous system and is toxic in high doses. The relevant
TCO'99 requirement states that batteries, the colour-generati ng l ayers of display screens and the
electrical or electronics components must not contain any cadmium.
Mercury
2)
Mercury is sometim es found in batteries, relays and switches. It dam ages the nervous system and
is toxic in high doses . The relevant TCO'99 requirement stat es that batteries may not contain any
mercury. It also demands that mercury is not present in any of the electric al or el ectronics
components associated with the labelled unit. There is however one exception. Mercury i s, for the
time being, permitted in the back light system of flat panel monitors as there today is no
commercially avail abl e al ternative. TCO aims on removing this exception when a mercury f ree
alternative is availabl e.
CFCs (freons)
The relevant TCO'99 requirement stat es that neither CFCs nor HCFCs may be used duri ng the
manufacture and assembly of the product. CFCs (freons) are sometimes used for washing print ed
circuit boards. CFCs break down ozone and thereby damage the ozone layer in t he stratosphere,
causing increased reception on earth of ultraviolet light with e.g. increased risks of skin cancer
(malignant melanoma) as a consequence.
2)
Lead
Lead can be found in picture tubes, display screens, sol ders and capacitors. Lead damages t he
nervous system and in higher doses, causes lead poisoning. The relevant TCO´99 requirem ent
permits the inclusion of lead since no replacement has yet been developed.
1)
Bio-accumulative i s defined as substances whi ch accumulate within living organisms.
2)
Lead, Cadmium and Mercury are heavy metals which are Bio-accum ul ative.
1)
processes. Flame retardant s have been found in human
2 - TCO'99
Loading...
