C150-E141-02EN

M4099D Image Scanner

Operator's Guide

M4099D

Image Scanner

Operator's Guide

Edition

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

This digital apparatus does not exceed the Class A limit for radio noise emissions from digital apparatus set out in the Radio interference Regulations of the Canadian Department of Communications.

Date published

01 December, 1999 First edition 02 February, 2000 • Typos corrected • Illusts corrected about pad

and regulation label • Descriptions deleted about sleep (power saving) mode, endorser, and error count and history • Descriptions corrected about buzzer, some setup options, how to quit setup mode, and replacement cycle of consumables • FCC statement added

Specification No. C150-E141-02EN

Revised contents

Le pésent appareil numérique n’ément pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la classe A prescridtes dans le Réglesment sur le brouillage radioélectrique dicté par le ministere des Communications du Canada.

MaschinenlärmInformationsverordnung 3. GSGV, 18-01. 1991: Der arbeisplatzbezogene Schalldruckpegel beträgt 70 dB (A) oder weniger gemäß ISO7779.

Printed in Japan. No part of this manual may be reproduced in any form without permission.

Please send your comments on this manual or on Fujitsu products to the following addresses:

North American contact:

FUJITSU COMPUTER PRODUCTS OF AMERICA, INC.

2904 Orchard Parkway, San Jose. California 95134-2009, U.S.A. Phone: (1-408) 432-6333 Fax: (1-408) 894-1709 HOME PAGE: http://www.fcpa.com/

FUJITSU CANADA, INC.

2800 Matheson Boulevard East, Mississauga, Ontario L4W 4X5, Canada Phone: (1-905) 602-5454 Fax: (1-905) 602-5457 HOME PAGE: http://www.fujitsu.ca/

European contact:

FUJITSU EUROPE LTD.

2, Longwalk Road, Stockley Park, Uxbridge, Middlesex UBII IAB, England Phone: (44-181) 573-4444 Fax: (44-181) 573-2643 HOME PAGE: http://www.fujitsu-europe.com/

FUJITSU DEUTSCHLAND GmbH.

Frankfurter Ring 211, 80807 München, Germany Phone: (49-89) 32378-0 Fax: (49-89) 32378-100

FUJITSU ITALIA S.p.A.

Via Nazario Sauro, 38, 20099 Sesto S, Giovanni (MI), Italy Phone: (39-2) 26294-1 Fax: (39-2) 26294-201

FUJITSU NORDIC AB

Kung Hans Väg 12, S-192 68 Sollentuna, Sweden Phone: (46-8) 626-4500 Fax: (46-8) 626-4588

FUJITSU ICL ESPAÑA, S.A

Almagro, 40 28010 Madrid, Spain Phone: (34-1) 581-8000 Fax: (34-1) 581-8300

FUJITSU FRANCE S.A.

1, Place des Etats-Unis, SILIC 310, 94588 Rungis cedex, France Phone: (33-1) 4180-3880 Fax: (33-1) 4180-3866

Australian contact:

FUJITSU AUSTRALIA LTD.

Fujitsu House 2 Julius Avenue North Ryde N.S.W. 2113, Australia Phone: (61-2) 9776-4555 Fax: (61-2) 9776-4556 HOME PAGE: http://www.fujitsu.com.au/

Asian contact:

FUJITSU HONG KONG LTD.

10/F, Lincoln House, Taikoo Place, 979 King’s Road, Island East, Hong Kong Phone: (852) 2827-5780 Fax: (852) 2827-4724 HOME PAGE: http://www.fujitsu.com.hk/

FUJITSU KOREA LTD.

6th Fl., Korea Financial center building, Yoido-Dong 23-6, Young DungPo-gu, Seoul, Republic of Korea Phone: (82-2) 3787-6000 FaX: (82-2) 3787-6074 HOME PAGE: http://www.fujitsu.co.kr/

FUJITSU COMPUTER (SINGAPORE) PTE. LTD.

20 Science Park Road, #03-01, Tele Tech Park Singapore Science Park II, Singapore 117674, Republic of Singapore Phone: (65) 777-6577 Fax: (65) 771-5669 HOME PAGE: http://www.fsl.com.sg/

FUJITSU TAIWAN LTD.

8F, Hung Tai Center, 168-170 Tun Hwa North Road, 1st Sec. Taipei, Taiwan, R.O.C. Phone: (886-2) 2545-7700 Fax: (886-2) 2717-4644

FUJITSU SYSTEMS BUSINESS (MALAYSIA) BHD.

Fujitsu Plaza, 1A Jalan Tandang 204, P.O. Box 636 Jalan Sultan 46770, Petaling Jaya, Selangor Darul Ehsan, Malaysia Phone: (603) 7783-3888 Fax: (603) 7783-0888

FUJITSU SYSTEMS BUSINESS (THAILAND) LTD.

12th Fl., Olympia Thai Tower, 444 Rachadapisek Road, Samsennok, Huay Kwang, Bangkok 10320, Thailand Phone: (662) 512-6066 Fax: (662) 512-6068

FUJITSU PHILIPPINES, INC.

2nd Floor, United Life Building, A. Arnaiz, Legaspi Village, Makati, Metro Manila, Philippines Phone: (63-2) 812-4001 Fax: (63-2) 817-7576

FUJITSU SYSTEM INDONESIA

J1. Cideng Timur 55, Jakarta 10150, Republic of Indonesia Phone: (62-21) 344-2601 Fax: (62-21) 344-2593

FUJITSU LIMITED (JAPAN)

Computer Products Business Group 4-1-1, Kamikodanaka, Nakahara-ku, Kawasaki-shi, Kanagawa-ken 211-8588, Japan Phone: (81-44) 754-8347 Fax: (81-44) 754-8348 HOME PAGE: http://www.fujitsu.co.jp/hypertext/ scanner/eng/

IMPORTANT NOTE TO USERS

READ CAREFULLY ALL OF THIS MANUAL BEFORE USING THIS PRODUCT. IF NOT USED CORRECTLY, UNEXPECTED DAMAGES MAY BE CAUSED TO THE USERS OR THE BYSTANDERS.

While all efforts have been made to ensure the accuracy of all information in this manual, FUJITSU assumes no liability to any party for any damage caused by errors or omissions or by statements of any kind in this manual, its updates or supplements, whether such errors are omissions or statements resulting from negligence, accidents, or any other cause. FUJITSU further assumes no liability arising from the application or use of any product or system described herein; nor any liability for incidental or consequential damages arising from the use of this manual. FUJITSU disclaims all warranties regarding the information contained herein, whether expressed, implied, or statutory.

FUJITSU reserves the right to make changes to any products herein, to improve reliability, function, or design, without further notice and without obligation.

Preface

This manual explains how to use the M4099D image scanner. This scanner can be equipped with an optional endorser; however, Illustrations in this manual do not include the endorser except those in Chapter 5. For details of the endorser, refer to its Operator Guide.

This manual contains COMPONENTS, INSTALLATION AND CONNECTIONS, OPERATING INSTRUCTION, DOCUMENT SPECIFICATION, SPECIFICATIONS, and SETUP, BROWSE, AND TEST MODES.

Refer to the CD-ROM for the information about the routine operation of the M4099D.

The CD-ROM contains OPERATING INSTRUCTION, CLEANING, REPLACEMENT OF PARTS, ADJUSTMENT and TROUBLESHOOTING.

The M4099D is very fast and highly functional image scanner developed for volume filing, using charge-coupled device (CCD) image sensors. This scanner features duplex scanning and high quality image processing with an automatic document feeder (ADF).

Conventions

Special information, such as warnings, cautions, and notes are indicated as follows:

WARNING

WARNING indicates that serious personal injury may result if you do not follow a procedure correctly.

CAUTION

CAUTION indicates that minor personal injury, loss of data, or damage to the scanner may result if you do not follow a procedure correctly.

NOTE

NOTE indicates remarks, tips, and other useful supplementary information. The following symbols are used in this manual.

Used for general WARNING and CAUTION.

Used for NOTE.

iii

q CHAPTER 1 COMPONENTS

q CHAPTER 2 INSTALLATION AND CONNECTIONS

q CHAPTER 3 OPERATING INSTRUCTION

q CHAPTER 4 DOCUMENT SPECIFICATION

Checking the Components .........................................................1- 1

Units and Assemblies ................................................................ 1- 2

Operator Panel ..........................................................................1-5

Buzzer .......................................................................................1-8

Precautions ................................................................................ 2-1

Inspection .................................................................................. 2-2

Cable Connection ....................................................................... 2-4

Turning the Power On ...............................................................3-1

Basic Operation of the Operator Panel......................................3-2

Document Size........................................................................... 4-1

Document Quality....................................................................... 4- 2

q CHAPTER 5 SPECIFICATIONS

Installation Specifications ..........................................................5-1

External Dimensions..................................................................5-2

Consumables.............................................................................5-3

Options ......................................................................................5-4

q CHAPTER 6 SETUP, BROWSE, AND TEST MODES

Setup, Browse, and Test Modes ...............................................6-1

Activating the Setup or Browse Mode .......................................6-2

Contents of the Setup or Browse Mode.....................................6-4

Activating the Test Mode .........................................................6-47

Contents of the Test Mode ......................................................6-49

q GLOSSARY OF TERMS ................................................................................ GL-1

q INDEX ............................................................................................................. IN-1

CHAPTER

INSTALLATION AND CONNECTIONS

CHAPTER

OPERATING INSTRUCTION

DOCUMENT SPECIFICATION

COMPONENTS

INSTALLATION AND

CONNECTIONS

OPERATING

INSTRUCTION

DOCUMENT

SPECIFICATION

CHAPTER

SETUP, BROWSE, AND TEST MODES

SPECIFICATIONS

GLOSSARY OF TERMS

SPECIFICATIONS

SETUP, BROWSE,

AND TEST MODES

GLOSSARY

OF TERMS

INDEX

vii

CHAPTER

COMPONENTS

After unpacking the scanner, confirm that all the components have been received. This chapter describes the components of the scanner, part names, and operator panel arrangement and their function.

Checking the Components

Units and Assemblies

Operator Panel

Buzzer

Checking the Components

These high precision components must be handled with care. Confirm that all the components shown in the following figure have been received. Mount the stop lever on the stacker of the scanner. If any component is missing, please contact your sales agent.

* Stop lever

Operator’s Guide (this manual) and two CD-ROMs

Scanner

Power cable for North America

Power cable for Europe

1-1

Units and Assemblies

This section shows the exterior view and assemblies of the scanner. This section also provides names of each part and describes their functions.

Units

1718

1-2

No. Name Function 1 Operator panel Used to operate the scanner. 2 Power switch Used to power on or off. 3 Hopper Document input tray. 4 Hopper guides Used to adjust the document width. 5 Hopper extension For use with long documents. 6 Automatic document feeder (ADF) Feeds documents automatically. 7 ADF release lever Used to open the ADF. 8 Pick roller unit Picks top page in document stack. 9 Guide plate The pad is mounted on. 10 Pad Separates top page from document stack. 11 Brake roller Separates top page from document stack. 12 Upper transport unit Opens for easy access. 13 Lever Used to open the upper transport unit. 14 Side cover Opens to access back-side lamp. 15 Stacker Document exit tray. 16 Check stopper Adjustable stopper for shorter length documents. 17 Stacker guides Helps guide documents into stacker. 18 Stop lever Used to keep documents in the stacker. 19 Stacker extension For use with long documents. 20 Main line switch Controls supply of line power to the scanner. 21 Power inlet Power cable connection. 22 Interface connectors Video and RS-232C 23 Interface connectors Two SCSIs.

1-3

Assemblies

Lower sheet guide assembly

Pick roller unit

1-4

Brake roller Pad

Lamp unit (back side)

Lamp

Lamp unit (front side)

Lamp

Guide plate

Operator Panel

The operator panel is located at the lower right hand side of the scanner. The panel consists of an LCD (24 character x 2 line), LEDs, and buttons.

Arrangement

Operator panel

CHECK

LCD

POWER

24 characters x 2 lines

DATA

ENTER

CANCEL

1-5

Button/LED Function

Button name Function

Turns on or off the power when the main line switch is set to “I”.

ENTER

CANCEL

F1 F2 F3

Sets the scanner in setup or browse mode. It is also used to set test mode. (See Chapter 6) Setup mode is used for customizing the scanner. Browse mode is used for glancing conditions of the scanner.

Test mode is used for testing the scanner offline. Used in setup, browse, or test mode.

• Clears an error if any.

• Stops current scanning when the video interface is used.

• Used in setup, browse, or test mode.

• Lifts the hopper in normal mode without errors.

• Used in setup, browse, or test mode.

• Lowers the hopper in normal mode without errors.

• Used in setup, browse, or test mode. Used in setup, browse, or test mode. Used in setup, browse, or test mode.

Available as shortcut keys when functions are defined in setup mode.

LED Function

POWER

DATA

CHECK

LCD Display

LCD Function

1-6

Lights when the power is on.

Lights when the image buffer contains data.

Blinks when an equipment error occurs.

Displays equipment status or error contents.

Operation status display

After power is turned on, the LCD indicates the following messages in normal mode.

Please wait Wait for a moment. This is indicated when processing takes a long

time. When this is displayed after turning power on, the second line

indicates initializing messages.

Ready The scanner can receive a command from the host computer or

can be set in setup, browse, or test mode.

Manual Feeding Load documents on the hopper table manually.

Feeding The scanner is feeding documents. The second line indicates the

number of documents fed per batch.

Transferring Data The scanner is sending data to the host computer.

Error status display

When the scanner detects errors, the LCD indicates the following messages. There are two types of errors: temporary errors and equipment errors.

Temporary errors: The message is cleared just by following the next message.

Hopper empty Mis-pick Cover open

Equipment errors: To clear the message, you must clean or replace the specified part.

Optical error: Front

Fuse alarm: Front lamp

1-7

Buzzer

The scanner has a buzzer to indicate that an error has occurred or an operator panel button is pressed. The buzzer function can be set on or off by following the procedure “Buzzer” in Chapter 6 SETUP, BROWSE, AND TEST MODES.

Sound condition Function

Error occurred Sounds continuously. The buzzer turns off when any button is pressed or the

power is turned off. Even when a button is pressed, the scanner continues to display the error.

Button pressed Sounds briefly. This sound cannot be disabled by the buzzer setup.

1-8

CHAPTER

INSTALLATION AND CONNECTIONS

The chapter describes how to install and connect the scanner.

Precautions

Inspection

Cable Connection

WARNING

Place the machine with no portion of the scanner hangs over the desktop. Never attempt to move or relocate the machine without help. And hold the horizontal plane of the scanner bottom. (Not inclined plane)

ACHTUNG

Precautions

This section describes precautions when installing the scanner.

Do not install the scanner in the following places and environments.

• Place the scanner away from electrical noise sources, strong magnetic fields and air flow. If the scanner is used near an air conditioner, copying machine, or TV set, the scanner may operate incorrectly.

• Keep the scanner out of the sun and away from heaters. These environments may shorten the scanner life or cause hardware failures.

• Do not install the scanner in a place where vibrations may occur. This environment may cause hardware failures or may cause the scanner to operate incorrectly.

• Do not install the scanner in a humid, dusty, or damp places. These environments may shorten the scanner life or cause hardware failures. Do not place the scanner where liquid spills may occur.

Stellen Sie den Scanner sicher auf eine waagerechte, ebene Flache. Bewegen Sie den Scanner nicht ohne Hilfe.

• Be aware of the static electricity. Be sure that the flooring and the desk are made of materials that do not generate the static electricity.

See Chapter 5 SPECIFICATIONS for the information such as the size of the installation space.

2-1

Inspection

This section describes how to check the labels.

Three labels

2-2

Label A (An example)

Label B (An example)

MODEL M4099D IMAGE SCANNER PART NO. CA04315-B002 AC100-240V SER. NO. 1 phase 50/60Hz

DATE 1999-10 2.9/1.5A 65 kgf

FUJITSU LIMITED

Label C (An example)

MODEL NAME M4099D PART NO. CA04315-B002 MODEL - 0 1 2 3 4 5 6 7 8 9 REV. - 0 1 2 3 4 5 6 7 8 9

- 0 1 2 3 4 5 6 7 8 9

MADE IN JAPAN

2-3

Cable Connection

This section describes how to connect the cables. Connect the cables as follows:

Turning the main line switch off

Press “O” side of the main line switch to turn the power off.

Main line switch

Connecting the power cable

Connect the power cable to the power inlet of the device and a power outlet.

2-4

Connecting the interface cable

Connect the video interface, RS-232C interface, or SCSI interface cables and secure them with hooks or screws. Connect the other ends to the host computer.

NOTE

• SCSI-ID is set to No. 5 at shipment. Refer to Chapter 6 when changing the setting.

• No SCSI terminator is required for an open connector thanks to the automatic switch function.

2-5

CHAPTER

OPERATING INSTRUCTION

This chapter describes how to turn the power on, and also describes how to operate the operator panel (basic operation). Refer to Reference Guide about information on loading document and opening/closing the upper transport unit.

Turning the Power On

Basic Operation of the Operator Panel

Turning the Power On

This section describes how to turn the power on. Press “I” side of the main line switch located at the back of the scanner. Press the power switch of

the operator panel. The power goes on and the green POWER lamp at the operator panel lights.

Main line switch

Operator panel

Power switch

3-1

Basic Operation of the Operator Panel

This section describes basic operation of the operator panel including how to enter the mode selection mode in which you can use setup mode, browse mode, and test mode.

Displaying detailed information if an error occurred

If an error occurs, the CHECK LED blinks and the error message is displayed on the LCD. For example, the LCD indicates as follows:

Cover open

Press

CANCEL

to clear the error (depending on an error, it cannot be cleared).

3-2

Lifting or lowering the hopper

When the scanner has no error (the CHECK LED does not light), pressing lifts the hopper and pressing lowers the hopper.

CAUTION

During hopper height adjustment, do not touch the hopper table or do not put anything on the hopper table to prevent your fingers from being caught. If something is caught in the mechanism, the scanner may be damaged.

This function is valid when: Ready is displayed.

In details:

• The DATA LED does not light (the scanner contains no data),

• The scanning operation is not in progress,

• The scanner is not in test mode (except the offline feed test), and

• The scanner is not in setup or browse mode.

The hopper stops at the pick position or at the 250-, 500-, or 1000-sheet position depending on the hopper height adjustment in setup mode. At the pick position, the top paper of stack (the hopper table when no paper is loaded on the hopper) is aligned to the pick roller. At the 250-sheet position, for example, the hopper table can load about 250 sheets of paper.

Each time you press or , the hopper lifts or lowers by one position. Pressing when paper is loaded, the hopper lifts up to the pick position.

3-3

Clearing a consumable life alarm

This scanner has the consumable counter to estimate consumable life of the scanner. When the consumable counter reaches the prescribed value, the LCD indicates an alarm that the consumable may be expired. For example, the following message appears:

Consumable life alarm

In this case, press

CANCEL

. The LCD indicates the following message:

Reset Consumable Counter? Yes:Enter No:Cancel

Yes (press No (press

ENTER

CANCEL

): The scanner resets the consumable counter to zero.

): The scanner does not reset the consumable counter. In this case, the

consumable life alarm recurs when the next sheet is fed.

3-4

Confirming the number of sheets processed by the scanner

The LCD indicates the numbers of sheets scanned during online or in test mode (offline feed test). The LCD indicates the numbers as follows:

Scanning AAAAAAAA MMMM

Value Meaning Description

AAAAAAAA Abrasion counter Eight columns of numbers indicate the accumulative

number of sheets fed by this scanner.

MMMM Batch counter Four columns of numbers indicate the number of sheets fed

per hopper.

3-5

Using the function buttons (F1, F2, and F3)

This scanner has the three function buttons (

, and

) to save time when

using a setup function which is likely to require tedious operation. Use these buttons as shortcut keys when you frequently use certain setup functions for your jobs. See Chapter 6 for details.

You can use function buttons after allocating a setup function to it. This allocation can be done in setup mode. After allocation, the allocated function can be easily accessed just by pressing the function button. For allocatable setup functions, see Chapter 6.

The function buttons are available when: Ready is displayed.

In details:

• The DATA LED does not light (the scanner contains no data),

• The scanning operation is not in progress,

• The scanner is not in test mode, and

• The scanner is not in setup or browse mode. The function buttons are available even in the setup mode lock state (see Chapter 6).

3-6

Using the setup, browse, and test modes

This scanner has the setup mode, browse mode, and test mode to ease operation for customizing the scanner, glancing setup conditions of the scanner, and testing the scanner offline respectively.

There are two ways to enter these modes:

• Press

• Turn the power on while pressing

Available functions differ with the two ways. For details, see Chapter 6. In the following way, you can use the setup mode and browse mode.

POWER ON

Please wait

when the LCD indicates “Ready” or

Ready

CANCEL

: Cursor buttons

: Blinking

<<MODE SELECT>>

SETUP BROWSE

ENTER

<<SETUP MODE>>

ENTER

<<SETUP MODE>>

XXXXX

ENTER

CANCEL

<<MODE SELECT>>

SETUP BROWSE

ENTER

<<BROWSE MODE>>

ENTER

<<BROWSE MODE>>

XXXXX

ENTER

CANCEL

3-7

In the following way, you can use the test mode in addition to the setup mode and browse mode. To quit these modes, turn the power off.

POWER ON with MENU ON

T Please wait

* Turn off to quit <<MODE SELECT>>.

<<MODE SELECT>>

SETUP BROWSE TEST

ENTER

CANCEL

<<SETUP MODE>>

ENTER

CANCEL

<<SETUP MODE>>

XXXXX

ENTER

CANCEL

<<MODE SELECT>>

SETUP BROWSE TEST

ENTER

CANCEL

<<BROWSE MODE>>

ENTER

CANCEL

<<BROWSE MODE>>

XXXXX

ENTER

CANCEL

: Cursor buttons

: Blinking

<<MODE SELECT>>

SETUP BROWSE TEST

ENTER

<<TEST MODE>>

Offline Feed Test

CANCEL

3-8

Transition of operator panel status and display

The following outlines the transition of status and display of the operator panel.

CANCEL

Error message

Error occurred

POWER ON

Ready

(normal mode)

Mode select screen (Setup and Browse)

ENTER

Setup mode

CANCEL

F1, F2, F3

ENTER

Browse mode

POWER ON with MENU ON

Shortcut to

setup functions

Mode select screen

(Setup, Browse, and Test)

CANCEL

ENTER

Test mode

Turn power off to quit.

CANCEL

3-9

CHAPTER

DOCUMENT SPECIFICATION

This chapter describes the document size and document quality of the scanner.

Document Size

Document Quality

Document Size

The following figure shows document sizes that the scanner can read.

Feeding Direction

Scanner

M4099D

Maximum

297 (11.7 in)

432 (17 in)

Minimum

A7 size = 74 (2.9 in) x 105 (4.1 in): Available in both portrait and landscape orientations

(Unit : mm)

4-1

Document Quality

This section describes paper types of documents and ream weights of paper available for the scanner, and precautions.

Paper types of documents

The recommended paper types of documents are as follows:

NOTE

Use the specified paper only. (In rare occasion, double feeding or document damage may occur.)

• Fine paper

• Plain paper (for example, the paper specified for XEROX4024)

• OCR paper

When using any other paper types of documents, carefully read a certain number of documents to check if the ADF successfully feeds documents.

NOTE

Because documents may be damaged when an error occurs, do not feed an important original document.

Ream weight of paper

The ream weight of paper is as follows:

• 52 to 127 g/m2 (13.9 to 34 lb)

NOTE

lb indicates the pound weight of 500 sheets of 17 x 22 inch paper (3.76 g/m2).

4-2

Precautions

Be careful not to scan the following document. Preliminary document feed test may be necessary to avoid the unexpected errors. If the document slips in ADF (JAM error) or double feed occurs frequently, refer to “Improving Document Separation” in Reference Guide.

• Paper with clips or staples

• Paper with wet ink

• Paper of which thickness is not constantly equal. (like envelope)

• Paper with large rumples or curl. (See NOTE on the next page.)

• Paper with folds or tears

• Tracing paper

• Coating paper

• Carbon paper

• Carbonless paper

• Paper smaller than A7 size, or larger than A3 size

• Other than paper: clothes, metal foils, or OHP films

• Photographic paper

• Paper with notches on its side

• Other than rectangle paper

When scanning a translucent document, set the density to light mode. To prevent roller smudging, avoid scanning a document filled out in pencil. Clean the roller as often as

possible when scanning many document. Once every 1000 sheets is recommended. The chemical composition of some carbonless papers may react with the roller rubber and damage the

rubber. Check the carbonless papers before use. When using carbonless paper, follow these conditions:

• Ream weight of the paper is 52 g/m2 (13.9 lb) or more.

• Hopper load is 500 sheets or fewer.

4-3

NOTE

• If carbonless papers are used, clean the roller twice as often as usual.

• Documents should be straightened to fit the condition below.

More than 30 mm

Less than

Feed direction

3 mm

Read surface

Top of the paper

More than 30 mm

Feed direction Less than 5 mm

Read surface

• When you read curled, wrinkled, or creased documents, documents may not be successfully arranged in the stacker.

4-4

CHAPTER

SPECIFICATIONS

This chapter describes the installation specifications, external dimensions, consumables, option.

Installation Specifications

External Dimensions

Consumables

Options

Installation Specifications

The following table lists the installation specifications of the scanner.

Item Specification

Dimensions (mm)

Weight (kg)

Voltage

Input power

Power consumption 250 VA or less

Ambient condition

Phases Frequency

Device status Operating Not operating Temperature 15 to 35°C -20 to 60°C

Humidity 20 to 80 % 8 to 95 %

Width Depth Height

590 (23.2 in) 690 (27.2 in) 540 (21.3 in) without optional endorser

610 (24.0 in) with optional endorser 65 (143 lb.)

100 to 240 VAC ±10 % Single-phase

50/60 Hz + 2% -4%

(60 to 95°F) (-4 to 140°F)

5-1

External Dimensions

5-2

(unit: mm)

Consumables

The following table lists consumables used for the scanner. Be sure to keep some consumables in stock. Customer is responsible to change these items periodically. The consumable counter can be used to check the number of scanned documents. (See page 3-4.)

Name Specification Service life and remarks

Lamp CA04315-0430 1000 hours or more. Two lamps used per scanner. Brake roller CA04315-F705 300,000 sheets or one year. Pick roller unit CA04315-F711 300,000 sheets or one year. Pad CA04315-G730 300,000 sheets or one year. Print head CA01023-0701 20,000 sheets (10 characters/sheet).

Black ink cartridge for endorser.

NOTE

• These service lives (replacement cycles) may be shortened depending on paper types of documents scanned or wrong cleaning of the scanner.

• When carbon-less paper is used, the replacement cycle is shortened. So, these parts must be replaced earlier than above.

5-3

Options

The following table lists options of this scanner.

Name Specification Remark

Endorser CA04315-D201 Ink jet printing method

• Back-side print

• Max. 30 characters

Contact your Fujitsu sales agent for more information.

5-4

CHAPTER

SETUP, BROWSE, AND TEST MODES

This chapter describes the setup, browse, and test modes of the scanner.

Setup, Browse, and Test Modes

Activating the Setup or Browse Mode

Contents of the Setup or Browse Mode

Activating the Test Mode

Contents of the Test Mode

Setup, Browse, and Test Modes

This scanner has the setup mode, browse mode, and test mode to ease setting up.

• Setup mode for customizing the scanner for user requirements

• Browse mode for glancing setup conditions of the scanner

• Test mode for testing the scanner offline There are two ways to enter these modes:

• Way 1 Press

You can use the setup mode and browse mode. To quit a mode, press

• Way 2 Turn the power on while pressing You can use the test mode in addition to the setup mode and browse mode. To quit a mode, turn off the power.

Available functions differ with modes or with ways. For details, see descriptions of each function.

Functions not available in setup mode

Way Functions not available

when the LCD indicates “Ready”.

CANCEL

pressed in Ready status IPC-3 mode, Interface, TP_IF baud rate, RS232C baud rate, SCSI ID, Product ID,

Function key, Setup mode lock

Power on with

pressed Settings

Functions not available in browse mode

Functions not available

Paper thickness setup

6-1

Activating the Setup or Browse Mode

To activate the setup mode, follow these steps:

1. While the LCD is indicating “Ready”, press

The <<MODE SELECT>> screen appears with

Ready

“SETUP” blinking.

<<MODE SELECT>> SETUP BROWSE

2. Press

ENTER

The <<SETUP MODE>> initial screen (*) appears.

* <<SETUP MODE>> Initial screen

<<SETUP MODE>>

3. Press

ENTER

The <<SETUP MODE>> menu screen (**) appears.

** <<SETUP MODE>> menu screen

<<SETUP MODE>>

XXXXX

To activate the browse mode, press before step 2 to make “BROWSE” blinking, then follows steps 2 and 3. The <<BROWSE MODE>> screen appears.

To quit the setup mode, press

CANCEL

Button functions in setup or browse mode

Button name Function

ENTER

CANCEL

Returns to the <<SETUP MODE>> menu screen without saving the change (*). Returns to the previous screen while saving the change (*). Returns to the previous screen without saving the change (*).

• Displays the next function at the right in the menu.

• Moves to the right item.

• Displays the next test function at the left in the menu.

• Moves to the left item. Changes parameters. Changes parameters.

* In browse mode, “saving the change” does not occur.

6-2

Mode selection (

pressed in Ready status)

There is another mode selection which enables you to execute the user test on the scanner without the host computer. See “ Activating the Test Mode” later in this chapter.

POWER ON

Please wait

Ready

: Cursor buttons

CANCEL

: Blinking

<<MODE SELECT>>

SETUP BROWSE

ENTER

<<SETUP MODE>>

ENTER

<<SETUP MODE>>

XXXXX

ENTER

CANCEL

<<MODE SELECT>>

SETUP BROWSE

ENTER

<<BROWSE MODE>>

ENTER

<<BROWSE MODE>>

XXXXX

ENTER

CANCEL

6-3

Contents of the Setup or Browse Mode

This section describes the contents of the setup mode. The setup mode can be classified into 26 types.

Setup item

Settings

Paper length check

Paper thickness check

Paper thickness setup

Skew check

IPC-3 mode

Hopper height Paper separation level

Drop-out color

Consumable counter

Buzzer

Buzzer volume LCD contrast Picking speed

Description

Sets simplex/duplex scanning, paper size, density, resolution, and halftone.

Enables or disables the function which detects a paper length error.

Enables or disables the function which detects the paper thickness.

Sets the permissible paper thickness to detect a double feed error.

Enables or disables the function which detects a skew error.

Selects a pattern to be set in the image processing option.

Sets the initial position of the hopper. Sets the power of separating sheets of

paper. Selects a drop-out color.

Sets the interval (in ten thousands) in which a consumable alarm occurs.

Activates or inactivates the buzzer sound when an error occurs.

Sets the volume of buzzer or click sound. Sets the contrast of the LCD. Selects the speed of the pick roller.

Remarks

• Not displayed in setup mode selected by turning power on with

• Displayed when the video or TP interface is used.

• Parameters set by the host computer cannot be changed.

The selection set by the host computer cannot be changed.

• Displayed in setup mode selected by turning power on with

• Overrides the selection set by the host computer.

The selection set by the host computer cannot be changed.

pressed.

6-4

Setup item

Description

Remarks

Interface

TP_IF baud rate

RS232C baud rate

SCSI ID

Product ID

Pre-pick Pick start time

Manual feed timeout

Paper pick retry

Paper feed retry

Function key

Setup mode lock

Selects the host interface.

Selects the control data transfer rate (2400, 4800, 9600, or 19200) for the TP interface.

Selects the transfer rate (2400, 4800, 9600, or 19200) for the RS-232C interface.

Sets the SCSI ID of this scanner.

Sets the product ID of this scanner.

Enables or disables pre-picking. Sets the period from when paper is loaded

manually to when the pick operation starts. Sets the waiting period from when the host

computer issues a scan command to when paper is loaded manually.

Sets the pick motor operation time and retry count.

Sets the feed motor operation time and retry count.

Allocates setup functions to

and

buttons.

Inhibits the operator panel from entering setup mode from normal mode.

Displayed in setup mode selected by turning power on with

pressed.

Displayed in setup mode selected by turning power on with

pressed.

Displayed in setup mode selected by turning power on with

pressed.

Displayed in setup mode selected by turning power on with

pressed.

Displayed in setup mode selected by turning power on with

Displayed in setup mode selected by turning

power on with

pressed.

• Displayed in setup mode selected by turning power on with

• Setup functions allocated to and

buttons are always valid

pressed.

regardless of this setting.

6-5

Transition of screens in setup mode

This flowchart indicates the transition of screens in setup mode for reference to the setup operation described in the following pages.

<<SETUP MODE>>

SETUP BROWSE

ENTER

<<SETUP MODE>>

ENTER

<<SETUP MODE>>

ENTER

S A4P AT2 200 LA AT2 LA

ENTER

SIMPLEX/DUPLEX

SIMPLEX

CANCEL

Settings

CANCEL

ENTER/CANCEL (*)

CANCEL

: Cursor buttons

: Blinking

Setup mode menu screen

<<SETUP MODE>>

Paper Length Check

ENTER

CANCEL

S A4P AT2 200 LA AT2 LA

ENTER ENTER

ENTER/CANCEL (*)

PAPER SIZE

A4P

ENTER

S A4P AT2 200 LA AT2 LA

<<SETUP MODE>>

Setup Mode Lock

CANCEL

HALFTONE

LA(LINEART)

ENTER/CANCEL (*)

6-6

SIMPLEX/DUPLEX

DUPLEX

* To save the change, press ENTER. To quit without saving change, press CANCEL.

PAPER SIZE

B4P

PAPER SIZE

LGP

HALFTONE

LH2(LA+HT2)

HALFTONE

HT1(DITHER)

Settings

This function sets simplex/duplex scanning mode, paper size/orientation, density, resolution, and halftone processing. It is valid when the scanner operates in normal mode through the video or TP (third party) interface. It is also valid in the offline feed test in test mode. You cannot change settings if they are set by the host computer.

LCD display

Settings

Options

S/D: xxx: A3P, DLP, LGP, B4P, A4P, LTP, B5P,

A5P, A4L, LTL, B5L, A5L, NPS

n q • • q (5 combinations), AT1, AT2

xxx: 200, 240, 300, 400 xxx: LA, HT1, HT2, LH1, LH2

Remarks

Scanning mode (simplex or duplex) Paper size/orientation

P: portrait L: landscape An: standard size A Bn: standard size B DL: double letter LG: legal LT: letter NPS:nonstandard size, displayed if it is set by

the host computer

Density

n q q q q: Light n n n n n: Dark

AT1: automatic AT2: simple automatic

Resolution (unit: dpi) Halftone processing

LA: line art (no halftone) HT1: dither HT2: error diffusion LH1: line art for character area and dither for

halftone area

LH2: line art for character area and error

diffusion for halftone area

* Symbols of density may differ from the actual symbols used in the LCD. The following is an example of operation when you change the resolution.

NOTE

• The “Settings” screen does not appear when your scanner is not controlled through the video or TP interface.

• You cannot use this function when the setup mode is brought by turning power on with pressed.

6-7

1. In <<SETUP MODE>> initial screen, press

ENTER

The <<SETUP MODE>> menu screen (Settings) appears.

<<SETUP MODE>>

Settings

2. Press The option list screen indicates the current

options with S blinking (blinking indicates “selected”).

3. Press three times. The current resolution 200 blinks.

4. Press RESOLUTION screen appears with 200

blinking (blinking indicates “changeable”).

5. Press or . The displayed option changes (240, 300, or

400).

6. When the desired value appears, press

The option list screen appears with the new value blinking.

7. Press The LCD returns to the Ready screen.

ENTER

CANCEL

again.

to save the change.

three times.

S A4P AT2 200 LA AT2

RESOLUTION

200

RESOLUTION

400

S A4P AT2 400 LA AT2

Ready

6-8

Paper length check

This function sets and detects a difference in paper length. You cannot change settings if they are set by the host computer.

LCD display

Paper Length Check

Options

On, Off (Default: Off) 10 mm, 15 mm, 20 mm (Default: 10 mm)

Remarks

Checked or not Difference:

XX mm means that it is not regarded as an error when the actual difference of paper length is within the limits of ±XX mm.

The following is an example of operation when you use this function.

1. In <<SETUP MODE>> initial screen, press

ENTER

The <<SETUP MODE>> menu screen (Settings) appears.

NOTE

The “Settings” screen does not appear and the “Paper Length Check” screen first appears when your scanner is not controlled through the video or TP interface.

2. When the menu screen indicates “Settings”, press . The <<SETUP MODE>> menu screen (Paper Length Check) appears.

<<SETUP MODE>>

Settings

<<SETUP MODE>>

Paper Length Check

3. Press

ENTER

The option select screen indicates the current options with ON blinking (blinking indicates “changeable”).

Paper Length Check

ON 10 mm

6-9

4. Press . The current difference 10 mm blinks (blinking indicates “changeable”).

Paper Length Check

ON 10 mm

5. Press or . The displayed option changes (15 mm or 20 mm).

6. When the desired value appears, press

ENTER

The LCD returns to the <<SETUP MODE>> menu screen (Paper Length Check).

7. Press The LCD returns to the Ready screen.

to save the change.

CANCEL

two times.

Paper Length Check

ON 20 mm

<<SETUP MODE>>

Paper Length Check

Ready

Paper thickness check

This function determines whether or not to enable the paper thickness which is set by the “paper thickness setup” function to detect a double feed error. You cannot change settings if they are set by the host computer.

Options

Paper Thickness Check

The following is an example of operation when you use this function.

On, Off (Default: Off)

RemarksLCD display

1. In <<SETUP MODE>> initial screen, press

ENTER

The <<SETUP MODE>> menu screen (Settings or Paper Length Check) appears.

The “Settings” screen does not appear and the “Paper Length Check” screen first appears when your scanner is not controlled through the video or TP interface.

6-10

NOTE

<<SETUP MODE>>

Settings

<<SETUP MODE>>

Paper Length Check

2. Press .

The <<SETUP MODE>> menu screen (Paper Thickness Check) appears.

<<SETUP MODE>>

Paper Thickness Check

3. Press

The option select screen appears with the current option OFF blinking (blinking indicates “changeable”).

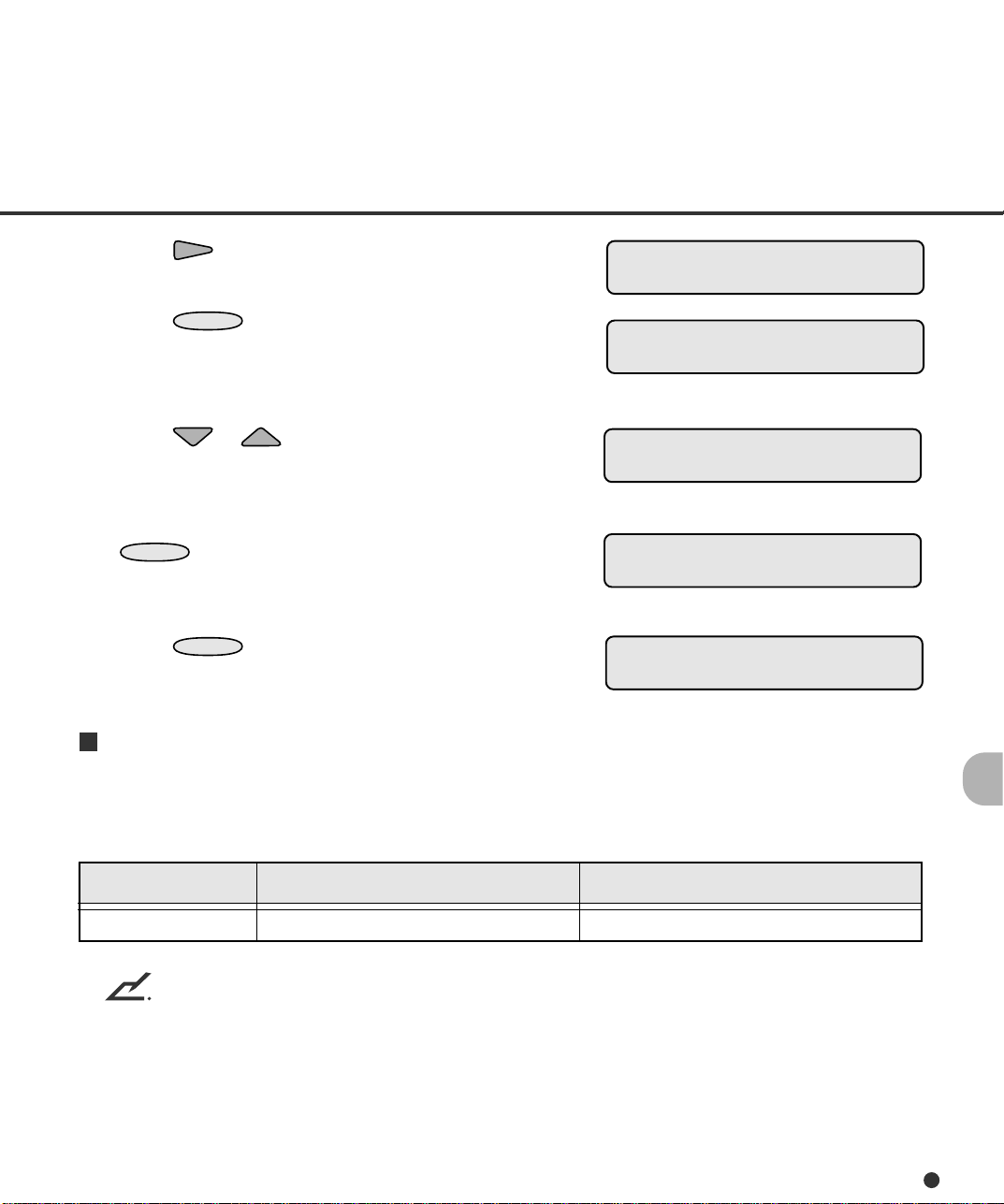

4. Press or .

The displayed option changes (ON blinks).

5. Press

The LCD returns to the <<SETUP MODE>> menu screen (Paper Thickness Check).

6. Press

The LCD returns to the Ready screen.

ENTER

CANCEL

to save the change.

two times.

Paper Thickness Check

Check: OFF

Paper Thickness Check

Check: ON

<<SETUP MODE>>

Paper Thickness Check

Ready

Paper thickness setup

This function sets the paper thickness which is used as the reference for detecting a double feed error. Whether this function is enabled or disabled is determined by the “paper thickness check” function in setup mode.

NOTE

This setting cannot be displayed in browse mode.

The following is an example of operation when you use this function.

6-11

1. In <<SETUP MODE>> initial screen, press

CANCEL

ENTER

The <<SETUP MODE>> menu screen (Settings or Paper Length Check) appears.

The “Settings” screen does not appear and the “Paper Length Check” screen first appears when your scanner is not controlled through the video or TP interface.

NOTE

<<SETUP MODE>>

Settings

<<SETUP MODE>>

Paper Length Check

2. Press twice. The <<SETUP MODE>> menu screen (Paper Thickness Setup) appears.

3. Press The paper load prompting screen appears,

requesting adjustment paper.

4. Select thickest paper used for your jobs and put the paper on the hopper.

5. Press The “Adjusting!!” message appears. The scanner

lifts the hopper, feeds the paper, adjusts the sensing level of the sensor, and saves its value.

After adjustment, the sheet is ejected and the “Finished!!” message appears for two seconds, then the LCD returns to the <<SETUP MODE>> menu screen (Paper Thickness Setup).

If an error (for example, Mis-pick) occurs during adjustment, remove the paper and press

appears again. Repeat steps 4 and 5.

ENTER

. The paper load prompting screen

<<SETUP MODE>>

Paper Thickness Setup

Set the adjustment paper

Paper Thickness Setup

Adjusting!!

Paper Thickness Setup

Finished!!

<<SETUP MODE>>

Paper Thickness Setup

6-12

6. Press The LCD returns to the Ready screen.

CANCEL

two times.

Ready

Skew check

This function determines if abnormal skew is detected or not. You cannot change the setting if it is set by the host computer.

Options

Skew Check

The following is an example of operation when you use this function.

In <<SETUP MODE>> initial screen, press The <<SETUP MODE>> menu screen (Settings or Paper Length Check) appears.

NOTE

The “Settings” screen does not appear and the “Paper Length Check” screen first appears when your scanner is not controlled through the video or TP interface.

2. Press three times.

The <<SETUP MODE>> menu screen (Skew Check) appears.

3. Press

The option select screen appears with the current option OFF blinking (blinking indicates “changeable”).

ENTER

On, Off (Default: Off)

ENTER

RemarksLCD display

<<SETUP MODE>>

Settings

<<SETUP MODE>> Paper Length Check

<<SETUP MODE>>

Skew Check

Check: OFF

4. Press or .

The displayed option changes (ON blinks).

5. Press

The LCD returns to the <<SETUP MODE>> menu screen (Skew Check).

6. Press

The LCD returns to the Ready screen.

ENTER

CANCEL

to save the change.

two times.

Skew Check

Check: ON

<<SETUP MODE>>

Skew Check

Ready

6-13

IPC-3 mode

This function selects a pattern to be set in the IPC-3 image processing feature.

NOTE

You cannot use this function when the setup mode is brought by pressing status.

in the Ready

LCD display

IPC-3 Mode

The following is an example of operation when you use this function.

1. In <<SETUP MODE>> initial screen, press

ENTER

The <<SETUP MODE>> menu screen (Settings or Paper Length Check) appears.

The “Settings” screen does not appear and the “Paper Length Check” screen first appears when your scanner is not controlled through the video or TP interface.

2. Press four times. The <<SETUP MODE>> menu screen (IPC-3 Mode) appears.

3. Press The option select screen appears with the

current setting 0 blinking (blinking indicates “changeable”).

NOTE

ENTER

Options

0, 1, 2, 3, 4, 5

Remarks

0: do not select any pattern 1 to 5: select pattern numbers 1 to 5

<<SETUP MODE>>

Settings

<<SETUP MODE>>

Paper Length Check

<<SETUP MODE>>

IPC-3 Mode

4. Press or . The displayed option changes (1, 2, 3, 4, 5).

6-14

IPC-3 Mode

5. When the desired pattern number appears, press

ENTER

to save the change.

<<SETUP MODE>>

IPC-3 Mode

The LCD returns to the <<SETUP MODE>> menu screen (IPC-3 Mode).

6. To quit the <<SETUP MODE>>, turn off the power.

Paper types and corresponding pattern numbers

User’s paper is classified into five types in line art (no halftone) mode as shown in the following table.

• The horizontal axis shows the density and color of background on paper.

• The vertical axis shows the density of characters or lines.

Background density Background color

Red

4: Light character on

red or similar background

Green

5: Light character on

green or similar background

Character density

Normal

↑

↓

Light

Normal ←

1: Normal back-

ground and normal character

2: Normal back-

ground and light character

→ Dark

3: Dark back-

ground and normal character

* 1 to 5 are pattern numbers.

NOTE

When IPC-3 mode is executed in online status, the reading parameter is valid or invalid (host setting is invalid) as follows:

Blue

6-15

Reading parameter validity

Reading parameter

Valid

Invalid

Valid

Invalid

Valid

Invalid

Reading mode

DTC

ConversionXSharpness

Transfer mode

Size

Transfer rate

Portrait/ Landscape

Reading parameter

Outline extraction

ReductionXStart of

Picking

Overlay

reading

Reading parameter

Document selection

Simplified DTC

Density

r patternsXContrast

Zooming

Line-art/ Photo

Halftone

Automatic separation

Hopper height

This function sets the initial height of the hopper. Set the height which you frequently use.

RemarksLCD display

6-16

Hopper Height

Options

250 sheets, 500 sheets, 1000 sheets

The following is an example of operation when you use this function.

CANCEL

1. In <<SETUP MODE>> initial screen, press

ENTER

The <<SETUP MODE>> menu screen (Settings or Paper Length Check) appears.

The “Settings” screen does not appear and the “Paper Length Check” screen first appears when your scanner is not controlled through the video or TP interface.

2. Press repeatedly until “Hopper Height” appears in the lower line of the menu screen.

3. Press The option select screen appears with the current

height setting 1000 sheets blinking (blinking indicates “changeable”).

4. Press . The hopper moves to the 500-sheet position and the new height setting 500 sheets blinks.

NOTE

ENTER

<<SETUP MODE>>

Settings

<<SETUP MODE>>

Paper Length Check

<<SETUP MODE>>

Hopper Height

1000 sheets

Hopper Height

500 sheets

NOTE

Each time you press or , the hopper moves to the next position and its position is automatically saved. Repeat this operation until the hopper is positioned at the desired height.

If an error occurs during positioning, press

. The LCD returns to the option select

screen. Repeat step 4.

6-17

5. Press

CANCEL

three times.

Ready

The LCD returns to the Ready screen. After this setting, the hopper is set at the new

height whenever power is turned on.

Paper separation level

This function sets the power of the brake roller for stabilizing paper separation in picking documents.

LCD display

Paper Separation Level

Options

Thick, Medium Thick, Normal, Medium Thin, Thin (Default: Normal)

Remarks

Thick: strong braking power for thick paper | (changes according to paper thickness) Thin: weak braking power for thin paper

If the following errors frequently occur, set the braking power as explained below.

• Double feed

• Mis-pick

• SF2 did not detect leading edge of paper

Set “braking power” according to the table below.

Setting

Thick

Medium

Thick

Normal

Medium

Thin

Braking power

Strong

Less strong

Medium (factory default)

Less weak

“Double feed” frequently occurs.

Make the braking power stronger.

“Mis-pick” or “SF2 ···” frequently occurs.

Make the braking power weaker.

6-18

Thin

Weak

The following is an example of operation when you use this function.

1. In <<SETUP MODE>> initial screen, press

ENTER

The <<SETUP MODE>> menu screen (Settings or Paper Length Check) appears.

The “Settings” screen does not appear and the “Paper Length Check” screen first appears when your scanner is not controlled through the video or TP interface.

2. Press repeatedly until “Paper Separation Level” appears in the lower line of the menu screen.

3. Press The option select screen appears with the

current option Normal blinking (blinking indicates “changeable”).

4. Press or . The displayed option changes (Thick to Thin).

NOTE

ENTER

<<SETUP MODE>>

Settings

<<SETUP MODE>>

Paper Length Check

<<SETUP MODE>>

Paper Separation Level

Normal

Paper Separation Level

Medium Thin

5. When the desired option appears, press

ENTER

The LCD returns to the <<SETUP MODE>> menu screen (Paper Separation Level).

6. Press The LCD returns to the Ready screen.

to save the change.

CANCEL

two times.

<<SETUP MODE>>

Paper Separation Level

Ready

6-19

Drop-out color

This function sets a drop-out color for front and back sides of paper respectively. You cannot change settings if they are selected by the host computer.

Options

Drop-out Color

The following is an example of operation when you use this function.

1. In <<SETUP MODE>> initial screen, press

ENTER

The <<SETUP MODE>> menu screen (Settings or Paper Length Check) appears.

The “Settings” screen does not appear and the “Paper Length Check” screen first appears when your scanner is not controlled through the video or TP interface.

2. Press repeatedly until “Drop-out Color” appears in the lower line of the menu screen.

3. Press The option select screen appears with the

current setting Green (for Front) blinking (blinking indicates “changeable”).

NOTE

ENTER

Front: Green, Red, Blue (Default: Green) Back: Green, Red, Blue (Default: Green)

RemarksLCD display

Front: Green Back: Green

<<SETUP MODE>>

Settings

<<SETUP MODE>>

Paper Length Check

<<SETUP MODE>>

Drop-out Color

4. Press . Green (current option for Back) blinks (blinking indicates “changeable”).

6-20

Drop-out Color

Front: Green Back: Green

5. Press or .

The displayed option changes (Blue or Red).

6. When the desired option appears, press

ENTER

The LCD returns to the <<SETUP MODE>> menu screen (Drop-out Color).

to save the change.

Drop-out Color

Front: Green Back: Red

<<SETUP MODE>>

Drop-out Color

7. Press

The LCD returns to the Ready screen.

CANCEL

two times.

Ready

6-21

Consumable counter

This function displays or sets a value of the counter which informs the user of the life (replacement cycle) of a consumable. When the number of sheets fed reaches the set value, an alarm occurs. Set this value according to types of paper you use. When using fine paper, the standard replacement cycle of pick roller units, brake rollers, and pads is per three hundred thousands of sheets fed. So, we recommend you to set the value to 0300000.

LCD display

Consumable Counter

The following is an example of operation when you use this function.

1. In <<SETUP MODE>> initial screen, press

ENTER

The <<SETUP MODE>> menu screen (Settings or Paper Length Check) appears.

The “Settings” screen does not appear and the “Paper Length Check” screen first appears when your scanner is not controlled through the video or TP interface.

2. Press repeatedly until “Consumable Counter” appears in the lower line of the menu screen.

NOTE

Options

10000 to 2560000 sheets (Default: 2560000 sheets)

Remarks

This setting can be changed in ten thousands of sheets. The least four digits of zeros are automatically added.

<<SETUP MODE>>

Settings

<<SETUP MODE>>

Paper Length Check

<<SETUP MODE>>

Consumable Counter

6-22

3. Press The option select screen appears with the

current value blinking (blinking indicates “changeable”).

ENTER

Consumable Counter

256 0000 sheets

4. Press or . The displayed value changes (1 to 256). (Value can be changed in ten thousands of sheets.) Pressing and holding down or

speeds up the change.

5. When the desired value appears, press

ENTER

The LCD returns to the <<SETUP MODE>> menu screen (Consumable Counter).

6. Press The LCD returns to the Ready screen.

to save the change.

CANCEL

two times.

Consumable Counter

<<SETUP MODE>>

Consumable Counter

Buzzer

This function enables or disables the buzzer sound when an error occurs.

NOTE

The buzzer sounds regardless of this setting when use this function.

030 0000 sheets

Ready

Options

Buzzer

The following is an example of operation when you use this function.

On, Off (Default: Off)

RemarksLCD display

6-23

1. In <<SETUP MODE>> initial screen, press

ENTER

The <<SETUP MODE>> menu screen (Settings or Paper Length Check) appears.

<<SETUP MODE>>

Settings

NOTE

The “Settings” screen does not appear and the “Paper Length Check” screen first appears when your scanner is not controlled through the video or TP interface.

2. Press repeatedly until “Buzzer” appears in the lower line of the menu screen.

3. Press The option select screen appears with the

current setting OFF blinking (blinking indicates “changeable”).

4. Press or . The displayed option changes (ON blinks).

5. Press The LCD returns to the <<SETUP MODE>>

menu screen (Buzzer).

6. Press The LCD returns to the Ready screen.

ENTER

CANCEL

to save the change.

two times.

<<SETUP MODE>>

Paper Length Check

<<SETUP MODE>>

Buzzer

OFF

Buzzer

<<SETUP MODE>>

Buzzer

Ready

6-24

Buzzer volume

This function sets the sound volume of the buzzer in six steps.

NOTE

This setting is valid both for occurrence of an error and for press of an operator panel button.

LCD display

Buzzer Volume

Options

n q q q q q to (Default: n n q q q q) n n n n n n

Remarks

Minimum to (six steps) Maximum

* Symbols of volume may differ from the actual symbols used in the LCD. The following is an example of operation when you use this function.

1. In <<SETUP MODE>> initial screen, press

ENTER

<<SETUP MODE>>

The <<SETUP MODE>> menu screen (Settings or Paper Length Check) appears.

NOTE

The “Settings” screen does not appear and the “Paper Length Check” screen first ap-

<<SETUP MODE>>

Paper Length Check

pears when your scanner is not controlled through the video or TP interface.

2. Press repeatedly until “Buzzer Volume” appears in the lower line of the menu screen.

<<SETUP MODE>>

Settings

Buzzer Volume

3. Press

ENTER

The option select screen appears with the current setting n n q q q q (no blinking but changeable).

Buzzer Volume

Min n n q q q q Max

6-25

4. Press or . The displayed option changes (n n n q q q to n n n n n n or n q q q q q).

5. When the desired option appears, press

ENTER

to save the change.

The LCD returns to the <<SETUP MODE>> menu screen (Buzzer Volume).

Buzzer Volume

Min n n n q q q Max

<<SETUP MODE>>

Buzzer Volume

6. Press

CANCEL

two times.

The LCD returns to the Ready screen.

LCD contrast

This function sets the contrast of the LCD on the operator panel in six steps.

LCD display

LCD Contrast

Options

n q q q q q to (Default: n n q q q q) n n n n n n

* Symbols of volume may differ from the actual symbols used in the LCD. The following is an example of operation when you use this function.

1. In <<SETUP MODE>> initial screen, press

ENTER

The <<SETUP MODE>> menu screen (Settings or Paper Length Check) appears.

Remarks

Dark (low contrast) to (six steps) Bright (high contrast)

<<SETUP MODE>>

Ready

Settings

6-26

NOTE

The “Settings” screen does not appear and the “Paper Length Check” screen first appears when your scanner is not controlled through the video or TP interface.

<<SETUP MODE>>

Paper Length Check

2. Press repeatedly until “LCD Contrast” appears in the lower line of the menu screen.

<<SETUP MODE>>

LCD Contrast

3. Press The option select screen appears with the

current setting n n q q q q (no blinking but changeable).

4. Press or . The displayed option changes (n n n q q q to n n n n n n or n q q q q q).

5. When the desired option appears, press

The LCD returns to the <<SETUP MODE>> menu screen (LCD Contrast).

6. Press The LCD returns to the Ready screen.

ENTER

CANCEL

to save the change.

two times.

LCD Contrast

Dark n n q q q q Bright

LCD Contrast

Dark n n n q q q Bright

<<SETUP MODE>>

LCD Contrast

Ready

Picking speed

This function sets the rotational speed of the pick roller. Slow speed is recommended when you use thin or flexible paper which is liable to mis-pick.

Options

Picking Speed

NOTE

Processing speed of scanning in 200 dpi is reduced when the picking speed is set “Slow”.

Slow, Fast (Default: Fast)

RemarksLCD display

6-27

Set “picking speed” according to the table below.

Picking speed

Fast

(factory default)

Slow

The following is an example of operation when you use this function.

1. In <<SETUP MODE>> initial screen, press

ENTER

The <<SETUP MODE>> menu screen (Settings or Paper Length Check) appears.

The “Settings” screen does not appear and the “Paper Length Check” screen first appears when your scanner is not controlled through the video or TP interface.

2. Press repeatedly until “Picking Speed”

appears in the lower line of the menu screen.

3. Press

The option select screen appears with the current setting Fast blinking (blinking indicates “changeable”).

NOTE

ENTER

“Mis-pick” frequently occurs.

Make the picking speed slow.

<<SETUP MODE>>

Settings

<<SETUP MODE>>

Paper Length Check

<<SETUP MODE>>

Picking Speed

Fast

4. Press or .

The displayed option changes (Slow blinks).

5. Press

The LCD returns to the <<SETUP MODE>> menu screen (Picking Speed).

6. Press

The LCD returns to the Ready screen.

6-28

ENTER

CANCEL

to save the change.

two times.

Picking Speed

Slow

<<SETUP MODE>>

Picking Speed

Ready

Interface

This function sets the host interface.

NOTE

You cannot use this function when the setup mode is brought by pressing status.

in the Ready

LCD display

Interface

Options

Auto, SCSI, Video, TP_IF (Default: Auto)

Remarks

Auto: The scanner automatically detects the

TP_IF: Third party’s interface

The following is an example of operation when you use this function.

1. In <<SETUP MODE>> initial screen, press

ENTER

The <<SETUP MODE>> menu screen (Settings or Paper Length Check) appears.

NOTE

The “Settings” screen does not appear and the “Paper Length Check” screen first appears when your scanner is not controlled through the video or TP interface.

2. Press repeatedly until “Interface” appears in the lower line of the menu screen.

interface through which a host computer issues a command.

<<SETUP MODE>>

Settings

<<SETUP MODE>>

Paper Length Check

<<SETUP MODE>>

Interface

3. Press

ENTER

The option select screen appears with the current setting AUTO blinking (blinking indicates “changeable”).

Interface

AUTO

6-29

4. Press or .

The displayed option changes (SCSI, VIDEO, TP_IF ).

Interface

VIDEO

5. When the desired interface appears, press

ENTER

The LCD returns to the <<SETUP MODE>> menu screen (Interface).

6. To quit the <<SETUP MODE>>, turn off the power.

to save the change.

<<SETUP MODE>>

Interface

TP_IF baud rate

This function sets the baud rate (signaling speed) according to the baud rate of the third party interface (TP_IF). At least, set the speed slower than that of the host interface.

NOTE

You cannot use this function when the setup mode is brought by pressing status.

LCD display

TP_IF Baud Rate

The following is an example of operation when you use this function.

Options

2400, 4800, 9600, 19200 (Default: 9600)

Remarks

Unit: baud

in the Ready

1. In <<SETUP MODE>> initial screen, press

ENTER

The <<SETUP MODE>> menu screen (Settings or Paper Length Check) appears.

The “Settings” screen does not appear and the “Paper Length Check” screen first appears when your scanner is not controlled through the video or TP interface.

6-30

NOTE

<<SETUP MODE>>

Settings

<<SETUP MODE>>

Paper Length Check

2. Press repeatedly until “TP_IF Baud Rate”

appears in the lower line of the menu screen.

<<SETUP MODE>>

TP_IF Baud Rate

3. Press

ENTER

The option select screen appears with the current setting 9600 blinking (blinking indicates “change-

TP_IF Baud Rate

9600

able”).

4. Press or . The displayed option changes (19200, 2400,

TP_IF Baud Rate

19200

4800 ).

5. When the desired option appears, press to save the change.

The LCD returns to the <<SETUP MODE>>

ENTER

<<SETUP MODE>>

TP_IF Baud Rate

menu screen (TP_IF Baud Rate).

6. To quit the <<SETUP MODE>>, turn off the power.

RS232C baud rate

This function sets the baud rate (signaling speed) according to the baud rate of the RS-232C interface. At least, set the speed slower than that of the host interface.

NOTE

You cannot use this function when the setup mode is brought by pressing status.

in the Ready

LCD display

RS232C Baud Rate

Options

2400, 4800, 9600, 19200 (Default: 4800)

Remarks

Unit: baud

The following is an example of operation when you use this function.

6-31

1. In <<SETUP MODE>> initial screen, press

ENTER

The <<SETUP MODE>> menu screen (Settings or Paper Length Check) appears.

<<SETUP MODE>>

Settings

NOTE

The “Settings” screen does not appear and the “Paper Length Check” screen first appears when your scanner is not controlled through the video or TP interface.

2. Press repeatedly until “RS232C Baud Rate” appears in the lower line of the menu screen.

3. Press The option select screen appears with the

current setting 4800 blinking (blinking indicates “changeable”).

4. Press or . The displayed option changes (9600, 19200,

2400).

5. When the desired option appears, press

The LCD returns to the <<SETUP MODE>> menu screen (RS232C Baud Rate).

ENTER

to save the change.

<<SETUP MODE>>

Paper Length Check

<<SETUP MODE>>

RS232C Baud Rate

4800

RS232C Baud Rate

19200

<<SETUP MODE>>

RS232C Baud Rate

6. To quit the <<SETUP MODE>>, turn off the power.

6-32

SCSI ID

This function sets the ID number for the SCSI interface.

NOTE

You cannot use this function when the setup mode is brought by pressing status.

in the Ready

Options

SCSI ID

The following is an example of operation when you use this function.

1. In <<SETUP MODE>> initial screen, press

ENTER

The <<SETUP MODE>> menu screen (Settings or Paper Length Check) appears.

The “Settings” screen does not appear and the “Paper Length Check” screen first appears when your scanner is not controlled through the video or TP interface.

2. Press repeatedly until “SCSI ID” appears in the lower line of the menu screen.

3. Press The option select screen appears with the current

setting 5 blinking (blinking indicates “changeable”).

NOTE

ENTER

0 to 7 (Default: 5)

RemarksLCD display

<<SETUP MODE>>

Settings

<<SETUP MODE>>

Paper Length Check

<<SETUP MODE>>

SCSI ID

4. Press or . The displayed option changes (6, 7, 0, 1, 2, 3, 4).

SCSI ID

6-33

5. When the desired value appears, press

ENTER

to save the change.

<<SETUP MODE>>

SCSI ID

The LCD returns to the <<SETUP MODE>> menu screen (SCSI ID).

6. To quit the <<SETUP MODE>>, turn off the power.

Product ID

This function sets the product ID of the scanner. Usually, you need not change this setting.

NOTE

You cannot use this function when the setup mode is brought by pressing status.

in the Ready

Options

Product ID

M4099D, M3099G (Default: M4099D)

* The model number of this scanner is M4099D. The following is an example of operation when you use this function.

1. In <<SETUP MODE>> initial screen, press

ENTER

The <<SETUP MODE>> menu screen (Settings or Paper Length Check) appears.

NOTE

The “Settings” screen does not appear and the “Paper Length Check” screen first appears when your scanner is not controlled through the video or TP interface.

6-34

RemarksLCD display

Model number of this scanner

<<SETUP MODE>>

Settings

<<SETUP MODE>>

Paper Length Check

2. Press repeatedly until “Product ID” appears in the lower line of the menu screen.

<<SETUP MODE>>

Product ID

3. Press The option select screen appears with the

current setting M4099D blinking (blinking indicates “changeable”).

4. Press or . The displayed option changes (M3099G blinks).

5. Press The LCD returns to the <<SETUP MODE>>

menu screen (Product ID).

6. To quit the <<SETUP MODE>>, turn off the power.

ENTER

to save the change.

Pre-pick

This function enables or disables pre-picking of paper.

Options

Product ID

M4099D

Product ID

M3099G

<<SETUP MODE>>

Product ID

RemarksLCD display

Pre-pick

The following is an example of operation when you use this function.

On, Off (Default: On)

6-35

1. In <<SETUP MODE>> initial screen, press

ENTER

The <<SETUP MODE>> menu screen (Settings or Paper Length Check) appears.

<<SETUP MODE>>

Settings

NOTE

The “Settings” screen does not appear and the “Paper Length Check” screen first appears when your scanner is not controlled through the video or TP interface.

2. Press repeatedly until “Pre-pick” appears in the lower line of the menu screen.

3. Press The option select screen appears with the

current setting ON blinking (blinking indicates “changeable”).

4. Press or . The displayed option changes (OFF blinks).

5. Press The LCD returns to the <<SETUP MODE>>

menu screen (Pre-pick).

6. Press The LCD returns to the Ready screen.

ENTER

CANCEL

to save the change.

two times.

<<SETUP MODE>>

Paper Length Check

<<SETUP MODE>>

Pre-pick

OFF

<<SETUP MODE>>

Pre-pick

Ready

6-36

Pick start time

This function sets the period from when paper is manually put on the hopper to when the pick operation starts.

LCD display

Pick start time

The following is an example of operation when you use this function.

1. In <<SETUP MODE>> initial screen, press

ENTER

The <<SETUP MODE>> menu screen (Settings or Paper Length Check) appears.

The “Settings” screen does not appear and the “Paper Length Check” screen first appears when your scanner is not controlled through the video or TP interface.

2. Press repeatedly until “Pick start time” appears in the lower line of the menu screen.

3. Press The option select screen appears with the current setting 01.0S blinking (blinking indicates “changeable”).

NOTE

ENTER

Options

00.2 S to 29.8 S (Default: 01.0 S)

Remarks

In units of 0.2 second

<<SETUP MODE>>

Settings

<<SETUP MODE>>

Paper Length Check

<<SETUP MODE>>

Pick start time

01.0 S

4. Press or . The displayed option changes (00.2S to

29.8S). The value changes in 0.2 seconds.

5. When the desired value appears, press

ENTER

The LCD returns to the <<SETUP MODE>> menu screen (Pick start time).

to save the change.

Pick start time

05.0 S

<<SETUP MODE>>

Pick start time

6-37

6. Press The LCD returns to the Ready screen.

CANCEL

two times.

Ready

Manual feed timeout

This function sets the waiting time from when the host computer issues a scan command to when paper is manually put on the hopper. A manual feed timeout error occurs if this time elapses without putting paper on the hopper.

LCD display

Manual Feed Timeout

The following is an example of operation when you use this function.

1. In <<SETUP MODE>> initial screen, press

ENTER

The <<SETUP MODE>> menu screen (Settings or Paper Length Check) appears.

The “Settings” screen does not appear and the “Paper Length Check” screen first appears when your scanner is not controlled through the video or TP interface.

2. Press repeatedly until “Manual Feed Timeout” appears in the lower line of the menu screen.

3. Press The option select screen appears with the

current setting 30 S blinking (blinking indicates “changeable”).

NOTE

ENTER

Options

1 S to 255 S (Default: 30 S)

Remarks

Unit: second

<<SETUP MODE>>

Settings

<<SETUP MODE>>

Paper Length Check

<<SETUP MODE>>

Manual Feed Timeout

30 S

6-38

4. Press or . The displayed option changes (1 S to 255 S). The value changes in seconds.

5. When the desired value appears, press

ENTER

to save the change.

The LCD returns to the <<SETUP MODE>> menu screen (Manual Feed Timeout).

Manual Feed Timeout

10 S

<<SETUP MODE>>

Manual Feed Timeout

6. Press

CANCEL

two times.

The LCD returns to the Ready screen.

Paper pick retry

This function sets the pick motor rotation period and the retry count.

LCD display

Paper Pick retry

Options

Step: 1 to 7 (Default: 2)

Times: 1 to 7 (Default: 4)

The following is an example of operation when you use this function.

Remarks

1 to 7: one time to seven times the standard

1 to 7: one retry to seven retries

Ready

steps

6-39

1. In <<SETUP MODE>> initial screen, press

ENTER

The <<SETUP MODE>> menu screen (Settings or Paper Length Check) appears.

<<SETUP MODE>>

Settings

NOTE

The “Settings” screen does not appear and the “Paper Length Check” screen first appears when your scanner is not controlled through the video or TP interface.

2. Press repeatedly until “Paper Pick retry”

appears in the lower line of the menu screen.

3. Press

The option select screen appears with the current setting 2 (for Step) blinking (blinking indicates “changeable”).

4. Press .

The current count setting 4 blinks.

5. Press or .

The displayed option changes (1, 2, 3, 4, 5, 6,

7).

6. When the desired value appears, press

The LCD returns to the <<SETUP MODE>> menu screen (Paper Pick retry).

ENTER

to save the change.

<<SETUP MODE>>

Paper Length Check

<<SETUP MODE>>

Paper Pick retry

Step: 2 Times: 4

Paper Pick retry

Step: 2 Times: 4

Paper Pick retry

Step: 2 Times: 7

<<SETUP MODE>>

Paper Pick retry

7. Press

6-40

CANCEL

The LCD returns to the Ready screen.

two times.

Ready

Paper feed retry

This function sets the feed motor rotation period and the retry count.

LCD display

Paper Feed Retry

Options

Step: 1 to 7 (Default: 1)

Times: 1 to 7 (Default: 4)

Remarks

1 to 7: one time to seven times the standard

1 to 7: one retry to seven retries

The following is an example of operation when you use this function.

1. In <<SETUP MODE>> initial screen, press

ENTER

The <<SETUP MODE>> menu screen (Settings or Paper Length Check) appears.

NOTE

The “Settings” screen does not appear and the “Paper Length Check” screen first appears when your scanner is not controlled through the video or TP interface.

2. Press repeatedly until “Paper Feed retry” appears in the lower line of the menu screen.

steps

<<SETUP MODE>>

Settings

<<SETUP MODE>> Paper Length Check

<<SETUP MODE>>

Paper Feed retry

3. Press

ENTER

The option select screen appears with the current setting 1 (for Step) blinking (blinking indicates “changeable”).

Paper Feed retry

Step: 1 Times: 4

6-41

4. Press . The current count setting 4 blinks.

5. Press or . The displayed option changes (1, 2, 3, 4, 5, 6,

7).

Paper Feed retry

Step: 1 Times: 4

Paper Feed retry

Step: 1 Times: 7

6. When the desired value appears, press

ENTER

The LCD returns to the <<SETUP MODE>> menu screen (Paper Feed retry).

7. Press The LCD returns to the Ready screen.

to save the change.

CANCEL

two times.

<<SETUP MODE>>

Paper Feed retry

Ready

6-42

Function key

This function allocates setup functions to

, and

buttons. You can allocate

up to three setup functions.

NOTE

• You cannot use this function when the setup mode is brought by pressing

in the Ready

status.

• You cannot allocate the following functions: Interface, IPC-3 mode, TP_IF Baud Rate, RS232C Baud Rate, SCSI ID, Product ID, Setup Mode Lock, and Function Key itself.

Allocatable setup functions and other special functions

Setup functions noted above START key EJECT key (Default: Undefined)

The

,or

button can be used as a shortcut key which enables you to access

Remarks

START: starts the operation stopped by EJECT and

sends data to the host computer.

EJECT:stops operation and ejects the paper in the

transport unit.

the allocated setup function just by pressing the button whenever the scanner is in the Ready state. This function is valid even in the setup mode lock state (refer to the next function). However, the

The following is an example of operation when you allocate START and EJECT keys to the and

, and

buttons are invalid in setup, browse, and test modes.

buttons respectively.

1. In <<SETUP MODE>> initial screen, press

ENTER

. The <<SETUP MODE>> menu screen (Settings or Paper Length Check) appears.

NOTE

The “Settings” screen does not appear and the “Paper Length Check” screen first appears when your scanner is not controlled through the video or TP interface.

<<SETUP MODE>>

Settings

<<SETUP MODE>>

Paper Length Check

6-43

2. Press repeatedly until “Function Key” appears in the lower line of the menu screen.

<<SETUP MODE>>

Function Key

3. Press The function key select screen appears with F1 blinking (blinking indicates “selectable”).

4. Press The F1 selection screen appears with the

current setting Undefined blinking (blinking indicates “changeable”).

5. Press or . The setup functions, START key, and EJECT key are displayed in sequence at the lower line.

6. When START key is displayed, press The LCD returns to the function key select screen with F1 blinking.

7. Press twice. F3 blinks.

8. Press The F3 selection screen appears with the current setting Undefined blinking (blinking indicates “changeable”).

ENTER

Function Key

F1 F2 F3

F1 selection

Undefined

F1 selection

START key

Function Key

F1 F2 F3

Function Key

F1 F2 F3

F3 selection

Undefined

9. Press or . The setup functions, START key, and EJECT key are displayed in sequence at the lower line.

10. When STOP key is displayed, press to save the change. The LCD returns to the function key select screen with F3 blinking.

11. To quit the <<SETUP MODE>>, turn off the power.

6-44

ENTER

F3 selection

EJECT key

Function Key

F1 F2 F3

Setup mode lock

This function inhibits the operator panel from entering setup mode from normal mode, protecting the operator panel from misoperation. Once the operator panel is locked, you cannot use the setup items

except those allocated to the

NOTE

You cannot use this function when the setup mode is brought by pressing status.

, and

buttons.

in the Ready

RemarksLCD display

Setup Mode Lock

Options

On, Off (Default: Off)

To cancel the setup mode lock state, turn off the power and turn on the power while pressing the

button to enter the setup mode. In the setup mode, select the Setup Mode Lock function

and set the option to OFF. The following is an example of operation when you use this function.

1. In <<SETUP MODE>> initial screen, press

ENTER

<<SETUP MODE>>

The <<SETUP MODE>> menu screen (Settings or Paper Length Check) appears.

<<SETUP MODE>>

Settings

NOTE

The “Settings” screen does not appear and the “Paper Length Check” screen first appears when your scanner is not controlled through the video or TP interface.

2. Press repeatedly until “Setup Mode Lock” appears in the lower line of the menu screen.

<<SETUP MODE>>

Paper Length Check

<<SETUP MODE>>

Setup Mode Lock

6-45

3. Press The option select screen appears with the

current setting OFF blinking (blinking indicates “changeable”).

ENTER

Setup Mode Lock

OFF

4. Press or . The displayed option changes (ON blinks).

5. Press The LCD returns to the <<SETUP MODE>>

menu screen (Setup Mode Lock).

6. To quit the <<SETUP MODE>>, turn off the power.

ENTER

to save the change.

Setup Mode Lock

<<SETUP MODE>>

Setup Mode Lock

6-46

Activating the Test Mode

To activate the test mode:

1. Turning power on with

pressed. The LCD indicates “Please wait” then “<<MODE SELECT>>” with “SETUP” blinking.

2. Press twice. “TEST” blinks (blinking indicates “selectable).

3. Press

ENTER

The <<TEST MODE>> initial screen (*) appears.

4. Press

ENTER

The <<TEST MODE>> menu screen (**) appears.

To quit the test mode, turn power off.

Button functions in test mode

Button name Function

ENTER

CANCEL

Returns to the <<TEST MODE>> menu screen.

• Executes the test.

• Returns to the previous screen.

• Displays the next lower level screen. Returns to the previous screen without saving the change.

• Displays the next function at the right in the menu.

• Moves to the right item.

• Displays the next test function at the left in the menu.

• Moves to the left item.

T Please wait

<<MODE SELECT>>

SETUP BROWSE TEST

<<MODE SELECT>>

SETUP BROWSE TEST

* <<TEST MODE>> Initial screen

<<TEST MODE>>

** <<TEST MODE>> menu screen

<<TEST MODE>>

Offline Feed Test

Scrolls the option downward. Scrolls the option upward.

6-47

Mode selection (power on with MENU pressed)

POWER ON with MENU ON

T Please wait

* Turn off to quit <<MODE SELECT>>.

<<MODE SELECT>>

SETUP BROWSE TEST

ENTER

CANCEL

<<SETUP MODE>>

ENTER

CANCEL

<<SETUP MODE>>

XXXXX

ENTER

CANCEL

<<MODE SELECT>>

SETUP BROWSE TEST

ENTER

CANCEL

<<BROWSE MODE>>

ENTER

CANCEL

<<BROWSE MODE>>

XXXXX

ENTER

CANCEL

: Cursor buttons

: Blinking

<<MODE SELECT>>

SETUP BROWSE TEST

ENTER

CANCEL

<<TEST MODE>>

CANCEL

<<TEST MODE>>

Offline Feed Test

CANCEL

6-48

Contents of the Test Mode

The test mode includes the user test functions listed in the following table. This section explains “Offline feed test”, “Options”, and “Device life” which are necessary for users.

NOTE

If you must need to use user test functions other than “Offline feed test”, “Options”, and “Device life”, contact your dealer.

The user test functions are as follows:

Test item Description

Offline feed test Scans sheets continuously for checking conditions of paper feeding. Options Displays the options installed in the scanner. Device life Displays the accumulative number of sheets fed and the accumulative number of hours for

Sensor auto adjustment Automatically adjusts sensors. Offset auto adjustment Adjusts offset using adjustment sheets. Operation panel test Tests functions of the LCD, LEDs, and buttons to check the operator panel. ROM revision Displays the revision of the program EPROM. Sensor status Displays the status of the sensors. Sensor adjustment Changes the current and slice level of sensors to adjust the sensors. +5V voltage check Displays the voltage of +5 volts. EEPROM edit Writes arbitrary data in EEPROM (address 00 to 127) to confirm or change the set values. Image memory capacity Displays the capacity of the image memory.

lamps lit since the scanner has been installed, to estimate the life of the device.

6-49

Offline feed test

This function scans sheets of paper continuously for checking entire operation of the mechanism without a host computer. You can use the Settings function in setup mode to modify scanning parameters (scanning mode, paper size/orientation, density, resolution, and halftone processing) for scanning documents.

LCD display

Offline Feed Test

* For SETUP operation, see the “Settings” function previously described in this chapter. The following is an example of operation when you start the offline feed test after setting scanning

parameters.

1. Put sheets of paper on the hopper table.

2. In the <<TEST MODE>> initial screen, press

ENTER

The <<TEST MODE>> menu screen (Offline Feed Test) appears.

3. Press The scanning parameters screen indicates the current parameters with START blinking (blinking indicates “selectable”).

4. Press . SETUP blinks (blinking indicates “selectable”).

5. Press The LCD changes to the parameter set screen with S (simplex mode) blinking (blinking indicates “selectable”).

ENTER

Test items

START and SETUP

again.

Remarks

START: begins the test. SETUP: changes settings of scanning

parameters.

<<TEST MODE>>

Offline Feed Test

S A4P AT2 200 LA

START SETUP

S A4P AT2 200 LA

START SETUP

S A4P AT2 200 LA AT2 LA

6. Press . A4P (A4 size in portrait orientation) blinks (blinking indicates “selectable”).

6-50

S A4P AT2 200 LA AT2 LA

7. Press The PAPER SIZE screen appears with the

current setting A4P blinking (blinking indicates “changeable”).

ENTER

PAPER SIZE

A4P

8. Press or . The displayed parameter changes (LTP, B5P, A5P, A4L, etc.).

9. When the desired parameter appears, press

ENTER

The parameter set screen appears with the new parameter blinking.

10. Press The scanning parameters screen appears with

the new parameter replaced and with SETUP blinking (blinking indicates “selectable”).

11. Press . START blinks (blinking indicates “selectable”).

12. Press The scanner feeds and scans documents

continuously until it detects an error (usually “Hopper empty”). During feeding, the upper line indicates “Feeding!!” and the lower line indicates the number of sheets fed.

• To halt the test, press

• To restart the test, press

• To restart from a hopper empty status, put

• To quit the offline feed test, press

to save the change.

CANCEL

ENTER

sheets of paper on the hopper table and press

CANCEL

the halted state.

ENTER

CANCEL

PAPER SIZE

LTP

S LTP AT2 200 LA AT2 LA

S LTP AT2 200 LA

START SETUP

S A4P AT2 200 LA

START SETUP

Feeding!!

12345678 1234

13. To quit the <<TEST MODE>>, turn off the power.

6-51

Options

This function displays the options installed in the scanner.

LCD display

Options

Displayed options

Endorser, IPC-3D

Remarks

Endorser: printer that prints back side of

documents.

IPC-3D: image processing feature (standard

installation).

* When an option is installed, ON is displayed under the option. When an option is not installed, OFF

is displayed under the option.

The following is an example when you use this function.

1. In the <<TEST MODE>> initial screen, press

ENTER

<<TEST MODE>>

The <<TEST MODE>> menu screen (Offline Feed Test) appears.

<<TEST MODE>>

Offline Feed Test

2. Press . The <<TEST MODE>> menu screen (Options) appears.

3. Press

ENTER

The current options list screen appears. You can check options installed.

<<TEST MODE>>

Options

Endorser IPC-3D

OFF ON

4. To quit the <<TEST MODE>>, turn off the power.

6-52

Device life

This function displays the accumulative number of sheets fed and the accumulative number of hours during which the lamp is lit since the scanner has been installed. These values are helpful for estimating the life of devices.

LCD display

Device Life

Displayed devices

COUNT, LAMP F, and LAMP B

Remarks

COUNT: accumulative number of sheets fed. LAMP F: accumulative number of operating

LAMP B. accumulative number of operating

* The unit of each value is not displayed on the LCD. The following is an example operation when you use this function.

1. In the <<TEST MODE>> initial screen, press

ENTER

The <<TEST MODE>> menu screen (Offline Feed Test) appears.

2. Press four times.

The <<TEST MODE>> menu screen (Device Life) appears.

3. Press

ENTER

The current value display screen appears. You can estimate the device life.

COUNT LAMP F: 1234567 12345678 B: 1234567

hours for the front-side lamp.

hours for the back-side lamp.

<<TEST MODE>>

Offline Feed Test

<<TEST MODE>>

Device Life

4. To quit the <<TEST MODE>>, turn off the

power.

6-53

GLOSSARY OF TERMS

A4 size

A standard paper size used in Japan and other countries. Paper size is 210 x 297 mm (8.25 x 11.6 inches).

ASCII

The acronym for American Standard Code for Information Interchange. ASCII is a set of 128 codes (numbered 0 to 127) used to communicate information between a computer and another device such as scanner.

Automatic separation

The image processing method to detect the difference between text and photos and choose the threshold accordingly. Automatic separation allows the scanner to switch between line mode and half tone mode in one pass.

Automatic start mode (<–> manual start mode)

In this mode the reading operation is activated only by START command.

Back-side reading = Back-side scanning

Refers to reading the back-side of the document, specifically in Duplex reading mode.

Bit

The smallest unit of information in computer memory. A bit is a single digit, either a 1 or a 0, in the binary numbering system. Eight bits equal one byte.

Browse mode

The mode in which users can glance setup conditions of the scanner in offline status.

Consumable counter

Indicates when consumables like a lamp should be replaced. The number of read document accumulates until an operator resets the counter. It should be reset when consumables are replaced.

Density

Degree of darkness of an image. Also percent of screen used in an image.

GL-1

Dither

Technique for producing halftone images representing the entire grayscale using two pixel levels black and white.

dpi

Dots per inch.

Drop-out color

A color which is used to the document but does not appear in the read image.

Duplex reading mode

Both sides of the document are read in this mode.

Endorser

The unit for printing characters before or after scanning. These character may be used for collation of the documents and the image data.

Equipment Error

An error that is not recoverable by operator. Call an authorized maintenance engineer.

Error diffusion

High-quality halftone (pseudo-grayscale) image production based on black-and-white pixel binarization. A pixel’s optical density and that of adjacent pixels are summed, with black pixels relocated in their order of density as they relate to adjacent pixels. The purpose of this technique is to minimize the average error between read and printed densities. Density data for adjacent pixels is modified by diffusing errors on the objective pixel into several pixels, which are then binarized. This maintains high grayscale levels and resolution during reading, while suppressing more patterns by dotted halftone images such as newspaper photo graphs.

Filtering

The quality of images written in pencil or ball-pointed pen and read depends on the reflective light characteristics of the ink or lead. Dropped pixel’s may produce out lines, gaps or thin, barely connected lines due to even optical density. Filtering detects areas lighter than their surroundings and increases their density to improve image clarity.

GL-2

Fujitsu C150-E141-02EN User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

IMPORTANT NOTE TO USERS

Preface

Conventions

CONTENTS

Checking the Components

Units and Assemblies

Units

Assemblies

Operator Panel

Arrangement

Button/LED Function

LCD Display

Operation status display

Error status display

Buzzer

Precautions

Inspection

Cable Connection

Turning the main line switch off

Connecting the power cable

Connecting the interface cable

Turning the Power On

Basic Operation of the Operator Panel

Displaying detailed information if an error occurred

Lifting or lowering the hopper

Clearing a consumable life alarm

Confirming the number of sheets processed by the scanner

Using the function buttons (F1, F2, and F3)

Using the setup, browse, and test modes

Transition of operator panel status and display

Document Size

Document Quality

Paper types of documents

Ream weight of paper

Precautions

Installation Specifications

External Dimensions

Consumables

Options

Setup, Browse, and Test Modes

Functions not available in setup mode

Functions not available in browse mode

Activating the Setup or Browse Mode

Button functions in setup or browse mode

Contents of the Setup or Browse Mode

Transition of screens in setup mode

Settings

Paper length check

Paper thickness check

Paper thickness setup

Skew check

IPC-3 mode

Paper types and corresponding pattern numbers

Reading parameter validity

Hopper height

Paper separation level

Drop-out color

Consumable counter

Buzzer

Buzzer volume

LCD contrast

Picking speed

Interface

TP_IF baud rate

RS232C baud rate

SCSI ID

Product ID

Pre-pick

Pick start time

Manual feed timeout

Paper pick retry

Paper feed retry

Function key

Setup mode lock

Activating the Test Mode

Button functions in test mode
