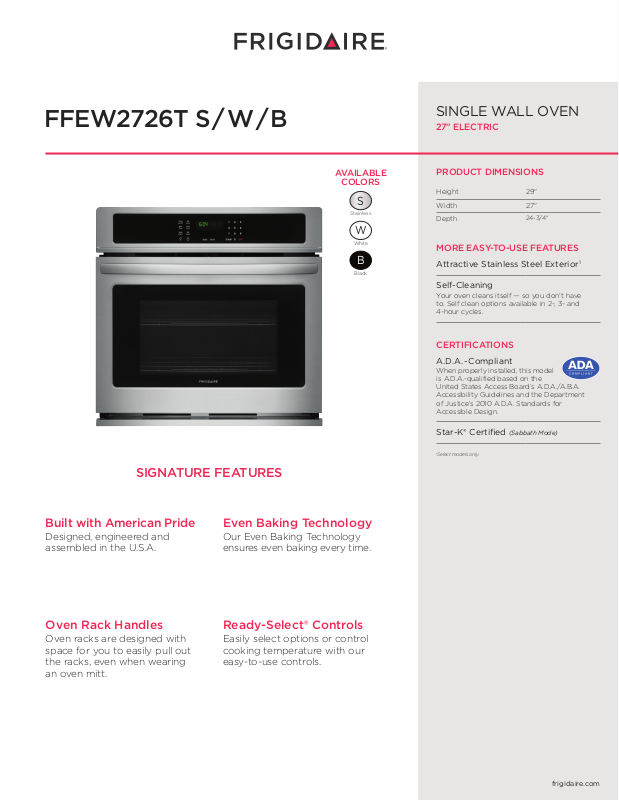

FFEW2726T S / W / B
S
W
B
SINGLE WALL OVEN
27" ELECTRIC
AVAILABLE
COLORS
Stainless
White
Black
PRODUCT DIMENSIONS
Height 29"
Width 27"
Depth
24-3/4"
MORE EASY-TO-USE FEATURES
Attractive Stainless Steel Exterior
Self-Cleaning
Your oven cleans itself — so you don't have
to. Self clean options available in 2-, 3- and
4-hour cycles.
1
CERTIFICATIONS
A.D.A. - Compliant
When properly installed, this model
is A.D.A.-qualified based on the
United States Access Board’s A.D.A./A.B.A.
Accessibility Guidelines and the Department
of Justice’s 2010 A.D.A. Standards for
Accessible Design.
Star-K® Certified (Sabbath Mode)
1
Select models only.
SIGNATURE FEATURES
Built with American Pride
Designed, engineered and
assembled in the U.S.A.
Oven Rack Handles
Oven racks are designed with
space for you to easily pull out
the racks, even when wearing
an oven mitt.
Even Baking Technology
Our Even Baking Technology
ensures even baking every time.
Ready-Select® Controls
Easily select options or control
cooking temperature with our
easy-to-use controls.
frigidaire.com
FFEW2726T S / W / B
SINGLE WALL OVEN
27" ELECTRIC
FEATURES
Oven Control / Timing System Ready-Select®
Window Large
Exterior Door Finish
Handle Design
Oven Cleaning System Self-Clean
Stainless Steel (S),
Color-Coordinated (W/B)
Stainless Steel (S),
Color-Coordinated (W/B)
OVEN CONTROLS
Bake / Broil Yes / Variable (400 - 550°F)
Convection Conversion
Convection Bake / Broil / Roast
Quick Bake Convection
Quick Preheat
My Favorite
Slow Cook
Eortless™ Temperature Probe
Keep Warm Yes
Add-a-Minute
Delay Start Yes
Self-Clean / Clean Options Yes / 2, 3, 4 Hours
Steam Clean
Delay Clean Ye s
Kitchen Timer Yes
Timed Cook Option Yes
Control Lock Yes
Auto Oven Shut-O
Oven Lock-Out Yes
OVEN FEATURES
Capacity (Cu. Ft.) 3.8
Convection System
Oven Light 1 Halogen
Hidden Bake Element Yes
Rack Configuration 2 Handle Racks
Baking System Even Baking Technology
Broiling System Vari-Broil™
Bake / Broil Element (Watts) 1,450 / 3,400
OPTIONAL ACCESSORIES
3"-High Bottom Trim –
Stainless Steel (S) / White (W) /
Black (B)
10'-Long Armored Power Cable PN # 903056-9010
(S) PN # 318903509
(W) PN # 318903506
(B) PN # 318903507
CERTIFICATIONS
A.D.A. Compliant
Sabbath Mode (Star-K® Certified) Yes
1
Yes
SPECIFICATIONS
Oven Interior ( H x W x D ) 17" x 20-1/2" x 18-3/4"
Power Supply Connection Location Left Bottom Rear
Voltage Rating 240V / 208V / 60Hz
Connected Load
(kW Rating) @ 240 / 208 Volts
Amps @ 240 / 208 Volts 15.4 / 13.5
Minimum Circuit Required (Amps) 20
Approved for Under-Counter
Installation
Shipping Weight (Approx.) 130 Lbs.
1
When properly installed, this model is A.D.A.-qualified based on the United States
Access Board’s A.D.A./A.B.A. Accessibility Guidelines and the Department of Justice’s 2010
A.D.A. Standards for Accessible Design.
2
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz AC only electrical
supply with ground required on separate circuit fused on both sides of line.
3.7 /2.8
2
Yes
PRODUCT DIMENSIONS
A - Height 29"
B - Width 27"
C - Depth 24-3/4"
D - Height (Wrapper) 27-1/4"
E - Width (Wrapper) 24-5/8"
Depth with Door Open 90° 44-3/4"
CUTOUT DIMENSIONS
Height (Min.) 27-1/4"
Height (Max.) 28-1/4"
Width (Min.) 24-7/8"
Width (Max.) 25-1/4"
Depth (Min.) 24"
B
E
A
Spacer
D
C
•
USA
10200 David Taylor Drive
•
CANADA
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Specifications subject to change. Accessories information available on the web at frigidaire.com
© 2017 Electrolux Home Products, Inc.
FFEW2726T 07/17
27" Single Electric Wall Oven (T Models)
Baseline
FFEW2726T S / W / B
SINGLE WALL OVEN
27" ELECTRIC
27
1/8"
min.
11/2"
min.
5
24
/8"
27"
29"
(includes
1"
bottom
trim)
Spacer
Power
supply
location
(left
bottom
rear)
1
27
/4"
27
min.
28
max.
1
/4"
1
/4"
7
24
/8" min.
1
25
/4" max.
2"-wide wood
spacers
(if needed)**
24" min.*
(critical
dimension)
4" x 4"
opening
to route
armored
cable
Full base
required to
support
150 lbs.
Allow at least
21" clearance
for door depth
when open
3
24
/4"
*Critical dimension – MUST be applied
**For cutout height greater than 28
wood shim of appropriate height to each side of opening
under oven side rails. Optional 3"-high bottom trim
available to hide larger cutout height.
1
/4", add one 2"-wide
INSTALLATION SPECIFICATIONS
•
Product Shipping Weight (approx.) – 130 Lbs.
•
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz AC
only electrical supply with ground required on separate circuit fused on
both sides of line.
•
Connected Load (kW Rating) @ 240 / 208 Volts = 3.7 / 2.8 kW
•
Amps @ 240 / 208 Volts = 15.4 / 13.5 Amps
•
Recommended Circuit Breaker – 20 Amps
•
Always consult local and national electric codes.
•
Minimum 21" clearance for oven door depth when open.
•
Suggested distance from floor is 31". Minimum required distance is 4-1/2".
•
Minimum 24" deep cutout dimension is critical for proper installation, to ensure
that oven’s faceplate will fit flush against cabinet front.
•
For cutout height greater than 28-1/4”, add one 2”-wide wood shim of
appropriate height to each side of opening under oven side rails. Optional
3”-high bottom trim available to hide larger cutout height.
•
Full oven base of solid plywood or similar material required, capable of
supporting 150 Lbs.
•
Base must be level and cabinet front must be square.
3"
31"
suggested
distance
1
4
/2"
min.
required
•
Single Wall Oven is NOT approved to be used in stackable or side-byside installation.
•
Single Wall Oven is approved to be used alone in under-counter installation
or beneath any approved Frigidaire® gas or electric cooktop. (Refer to Gas
or Electric Cooktop Installation Over 30" / 27" Electric Single Wall Oven
Specifications pages on web.)
•
Single Wall Oven is approved to be used in combination with any Frigidaire®
Warmer Drawer. (Refer to model-specific Warmer Drawer product page for
Combination Installation Specifications.)
•
Single Wall Oven is approved to be used in combination with
any Frigidaire® Built-In Microwave Oven.
2" min.
Electrical
junction
box location
OPTIONAL ACCESSORIES
•
3"-High Stainless Steel Bottom Trim – (PN # 318903509).
•
3"-High White Bottom Trim – (PN # 318903506).
•
3"-High Black Bottom Trim – (PN # 318903507).
•
10'-Long Armored Power Cable – (PN # 903056-9010).
•
USA
10200 David Taylor Drive
•
CANADA
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Specifications subject to change. Accessories information available on the web at frigidaire.com
© 2017 Electrolux Home Products, Inc.
FFEW2726T 07/17
