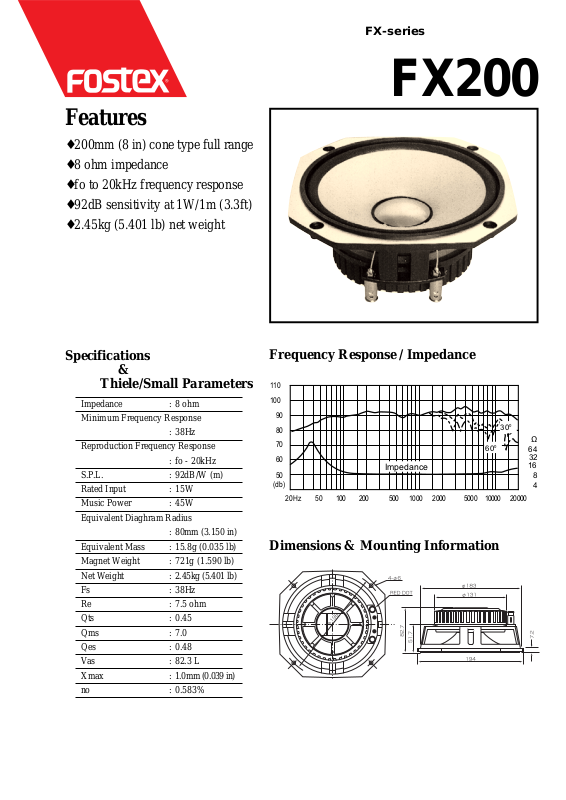

Page 1
Features
♦200mm (8 in) cone type full range
♦8 ohm impedance
♦fo to 20kHz frequency response
♦92dB sensitivity at 1W/1m (3.3ft)
♦2.45kg (5.401 lb) net weight
FX-series
FX200
Specifications
&
Thiele/Small Parameters
Impedance : 8 ohm
Minimum Frequency Response
: 38Hz
Reproduction Frequency Response
: fo - 20kHz
S.P.L. : 92dB/W (m)
Rated Input : 15W
Music Power : 45W
Equivalent Diaghram Radius
: 80mm (3.150 in)
Equivalent Mass : 15.8g (0.035 lb)
Magnet Weight : 721g (1.590 lb)
Net Weight : 2.45kg (5.401 lb)
Fs : 38Hz
Re : 7.5 ohm
Qts : 0.45
Qms : 7.0
Qes : 0.48
Vas : 82.3 L
Xmax : 1.0mm (0.039 in)
no : 0.583%
Frequency Response / Impedance
110
100
90
80
70
60
50
(db)
Hz
20 50 100 200 500
Impedance
1000
2000 5000
Dimensions & Mounting Information
0
60
10000
30
0
Ω
64
32
16
8
4
20000
