Box Includes
FortiAP 321C
Wall/Ceiling Mounting Hardware Kit
T-Rail Mounting Hardware Kit
4
FortiAP 321C
QuickStart Guide
QuickStart Guide
Mounting Bracket
Before You Begin
Write down details that you may need from your network administrator or ISP.
DSL PPPoE
Username Password
Cable Modem DHCP
It is normal to not require a hostname, but your ISP may require it.
Hostname
Static IP address
IP Address Subnet Mask
Default Gateway Primary/Secondary DNS
QuickStart Guide Video
http://video.fortinet.com/video/38/fortigate-and-fortiwifi-quick-start-guide-5-0
5
1
Mounting
Installation
The unit can be mounted on a wall or ceiling using the provided wall/ceiling mounting
hardware kit, and to an appropriate ceiling using the T-rail mounting hardware kit.
FortiAP 321C
To attach the unit to a wall or ceiling

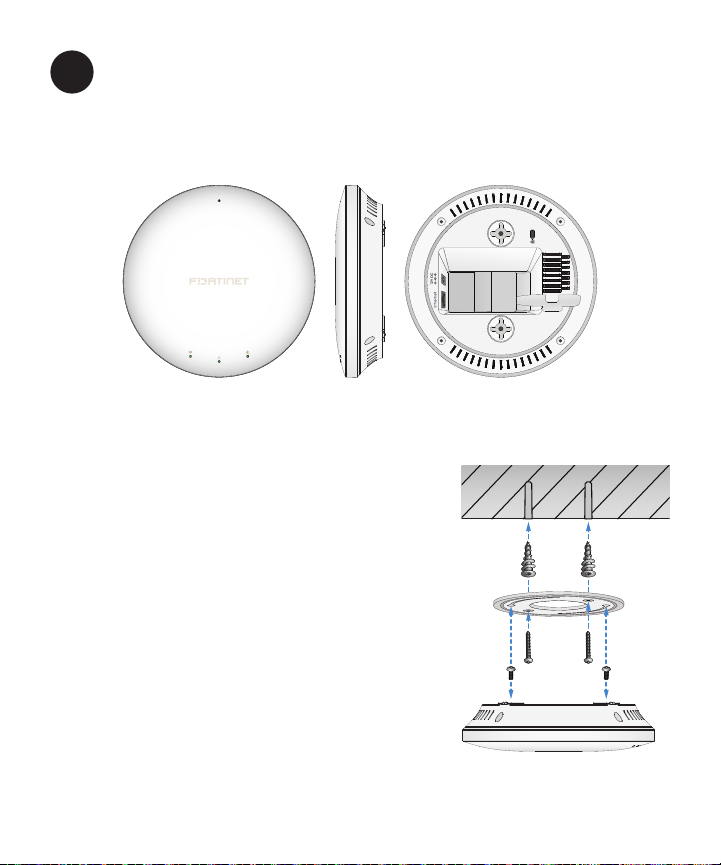

1. Select an appropriate location, then mark the
locations on the wall or ceiling where the anchors will
be inserted.
2. Drill the mounting holes, then insert the anchors into
the holes.
3. Attach the mounting bracket to the anchors using
two P3.5x32 screws.
4. Insert two P2.6X12 screws into the bottom of the
unit, leaving enough of the screws exposed so that
the unit can be mounted to the mounting bracket.
If extra space is required between the unit and the
mounting bracket, use the spacers and P2.6x25
screws from the T-rail mounting hardware kit.
5. Mount the device on the mounted mounting bracket
then rotate it clockwise to secure it in place.
P3.5x32
Screws
Mounting
Anchors
P2.6x12
Screws
Bracket
6
To attach the unit to a T-rail
Kensignton Security Slot

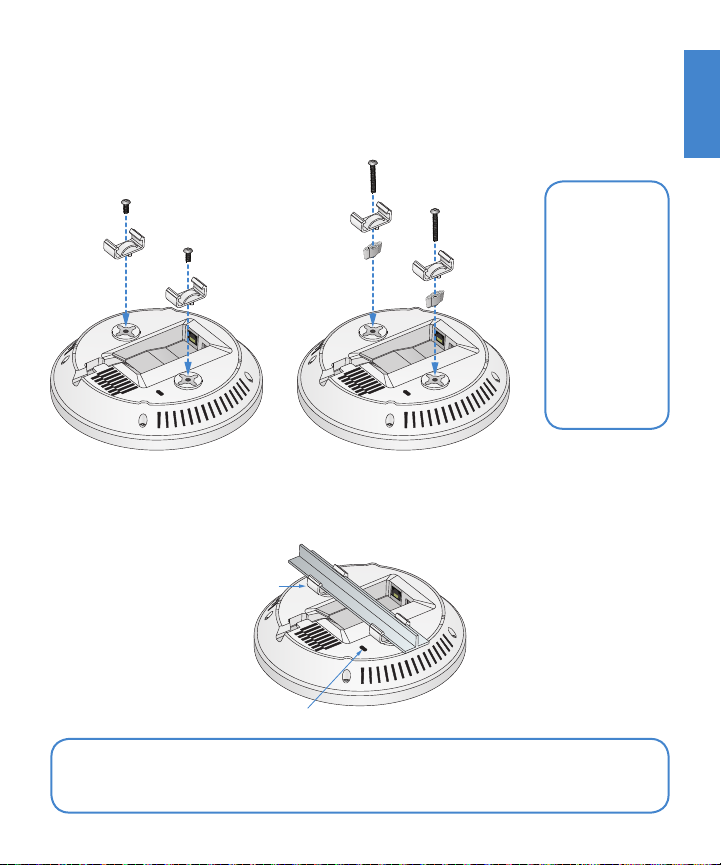

1. Attach the T-rail clips to the bottom of the unit using two P2.6X10 screws.
If extra space is required to accommodate drop ceiling tiles, use the provided spacers
and P2.6x25 screws.
Note: Two
sizes of
T-rail clips
are included
in the
P2.6x10
Screws
Clips
P2.6x25
Screws
Clips
Spacers
mounting
kit: 2.38cm
(15/16in)
and 1.43cm
(9/16in).
2. Line up the connected T-rail clips with an appropriately sized rail, then press the unit
into the rail until it snaps into place.
Rail
Clip
Note: To protect your device from unauthorized removal, use the Kensington
Security Slot to attach a cable lock (not included).
7
1
Basic Connections
Ethernet Port
Optional Power
Connection

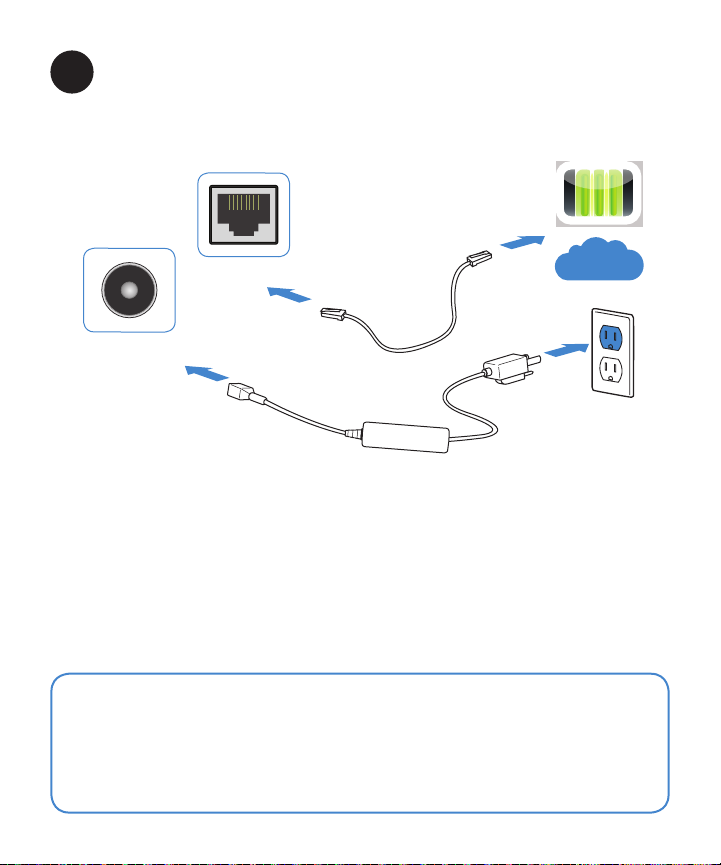

Connect your FortiAP device to a FortiGate controller or an Internet connection.
If you are using Power over Ethernet (PoE), ensure that the cable is connected to an
applicable port on your FortiGate device or PoE injector.
Optionally, connect your device to a power outlet using the optional power adapter.
Caution: Adequate grounding must be provided to the FortiAP unit and the PoE
injector, in compliance with your local electrical code or regulations.
Warning: This device complies with IEEE 802.3af PoE specification. Do not use any
PoE injectors that are not IEEE 802.3af compliant as they may damage your device.
8
