Ford Police Interceptor Utility 2013 Owner's Manual

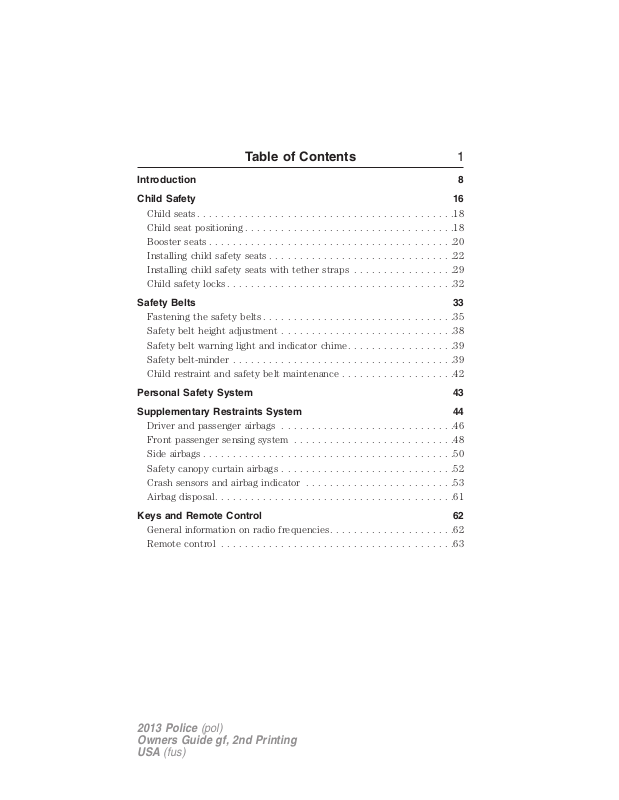

Table of Contents 1

Introduction 8

Child Safety 16

Child seats...........................................18

Child seat positioning ...................................18

Booster seats .........................................20

Installing child safety seats ...............................22

Installing child safety seats with tether straps .................29

Child safety locks ......................................32

Safety Belts 33

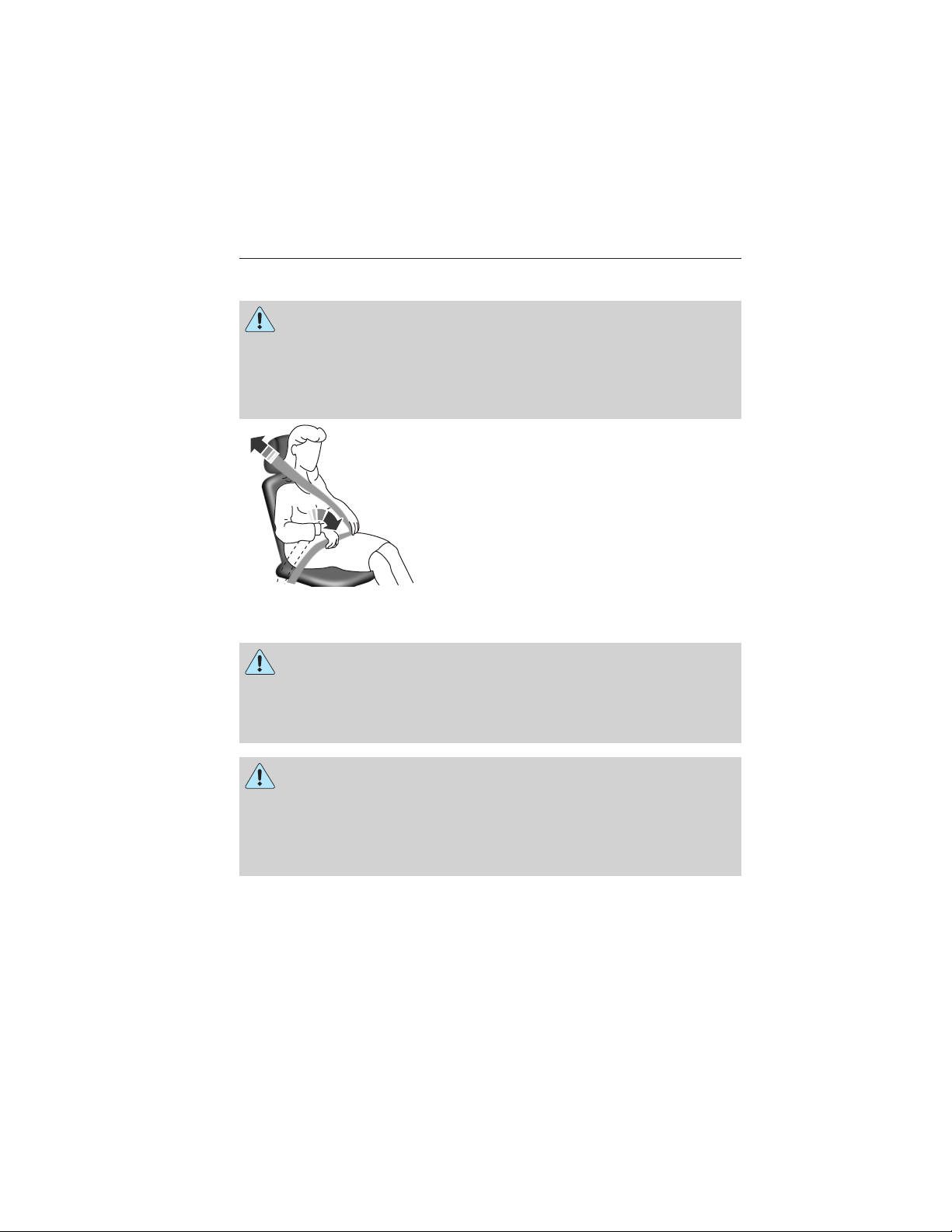

Fastening the safety belts ................................35

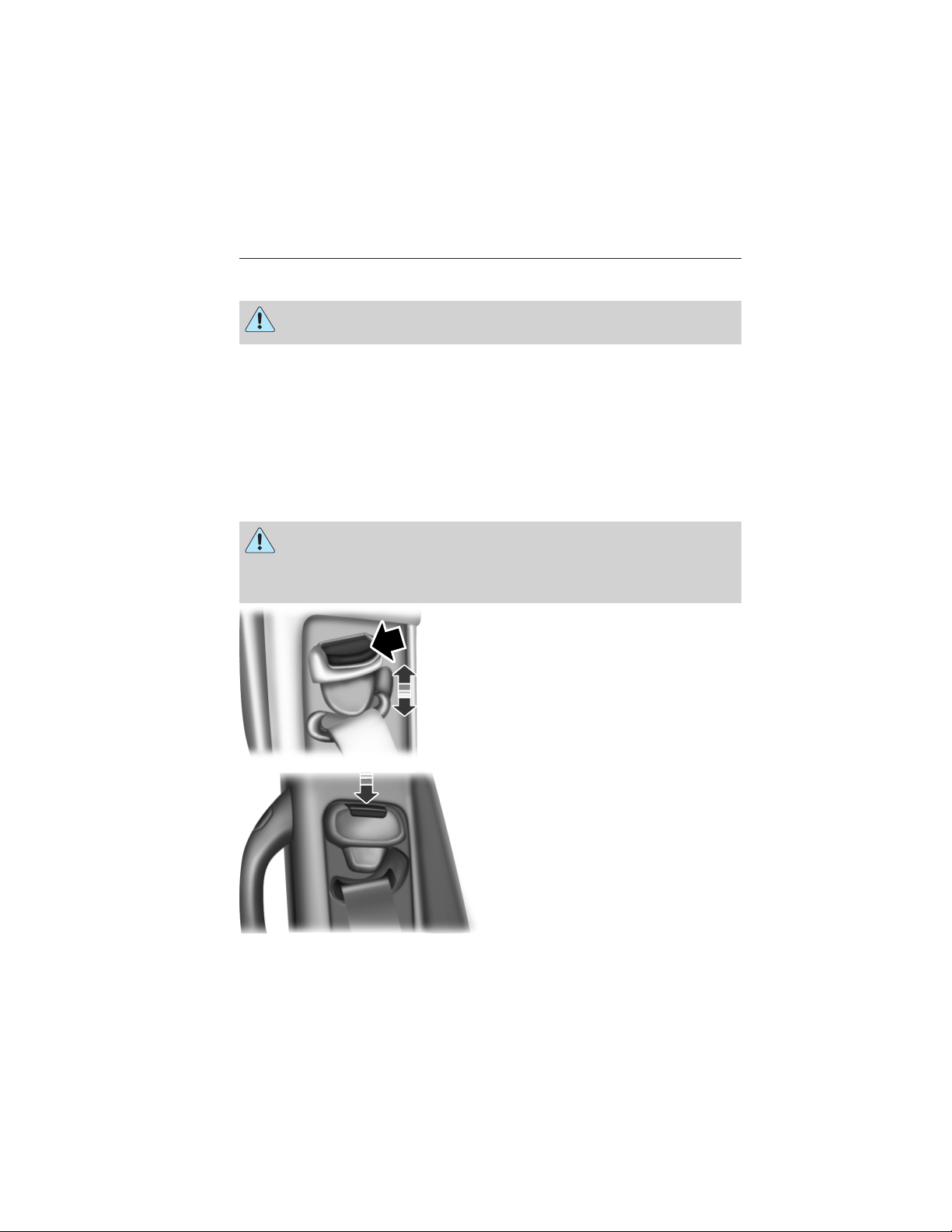

Safety belt height adjustment .............................38

Safetybeltwarninglightandindicatorchime..................39

Safety belt-minder .....................................39

Child restraint and safety belt maintenance ...................42

Personal Safety System 43

Supplementary Restraints System 44

Driver and passenger airbags .............................46

Front passenger sensing system ...........................48

Side airbags ..........................................50

Safety canopy curtain airbags .............................52

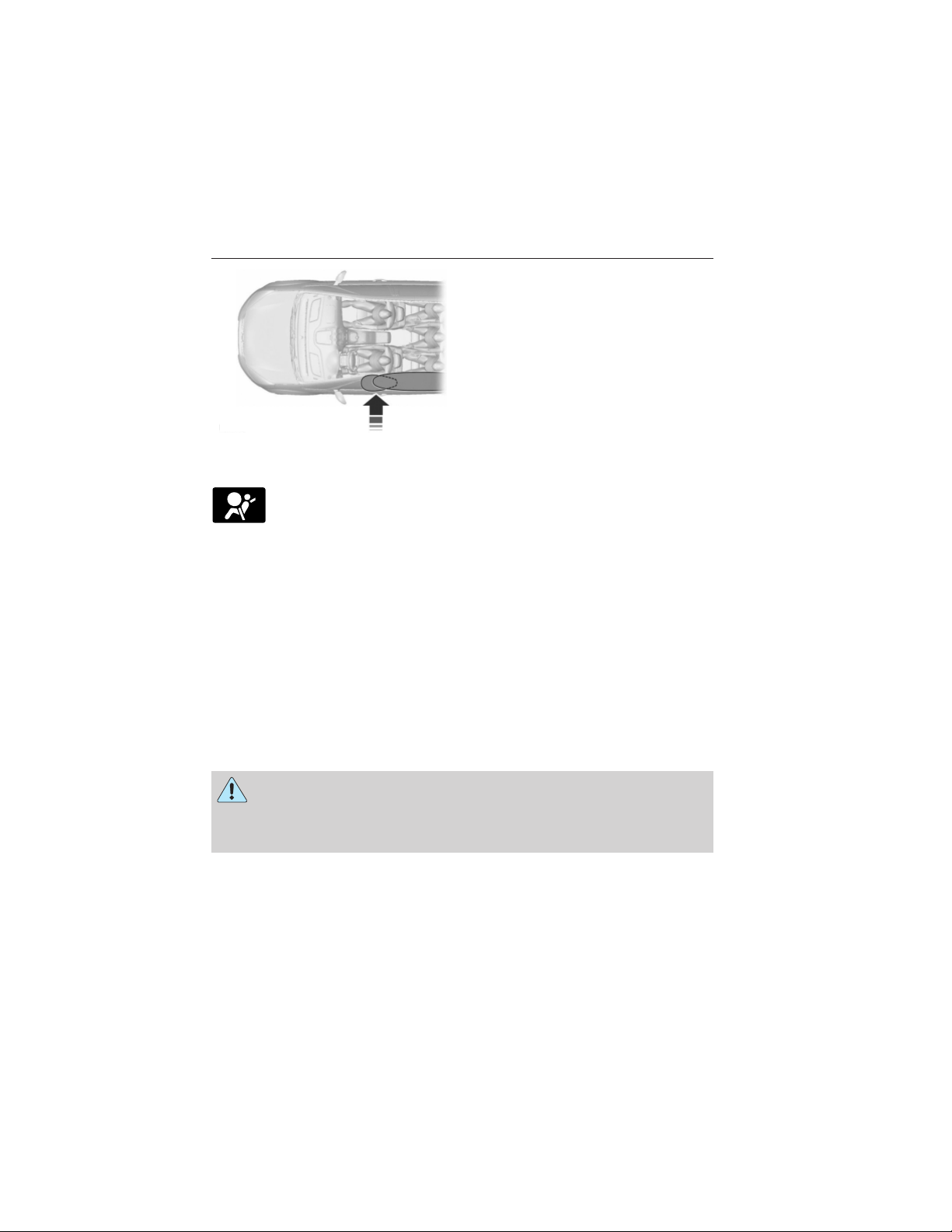

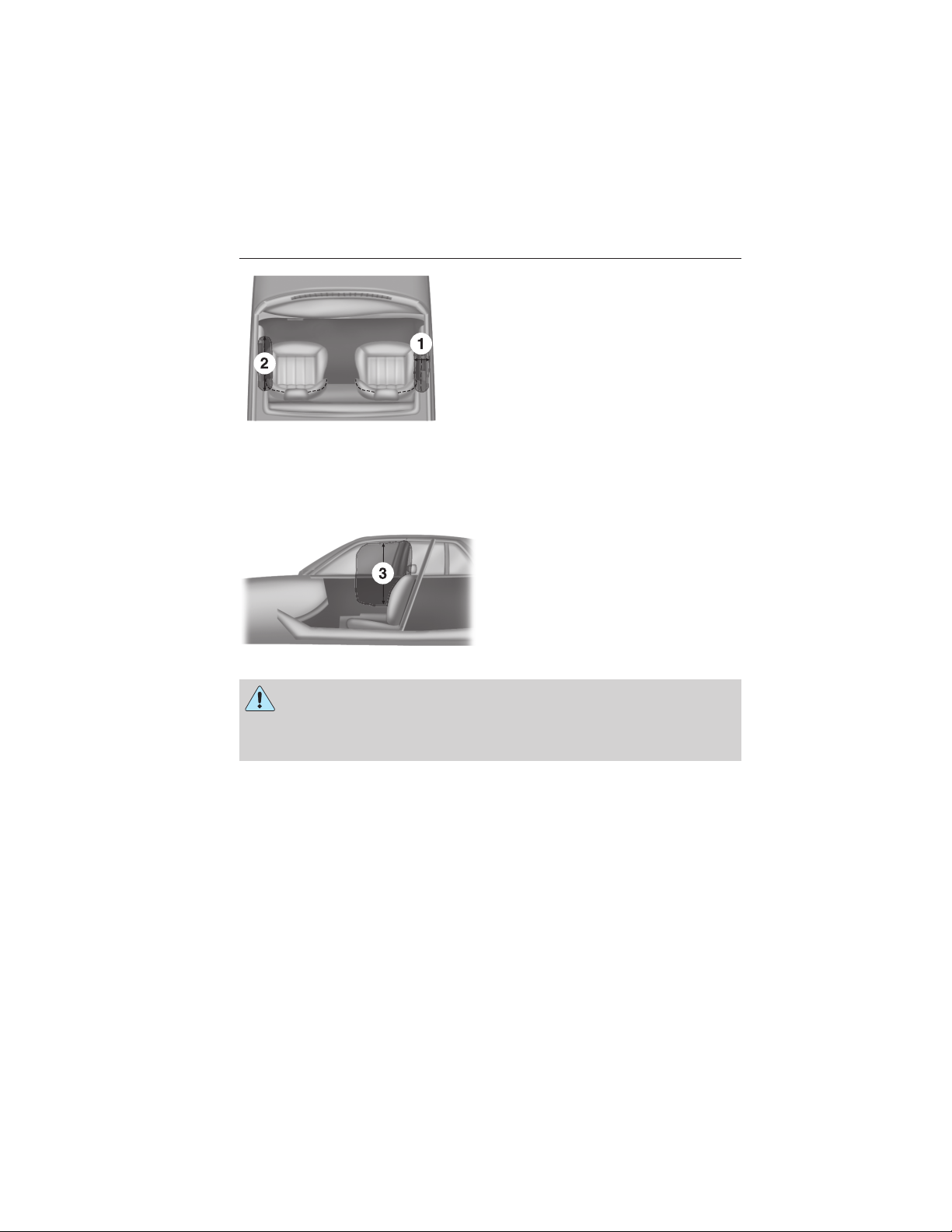

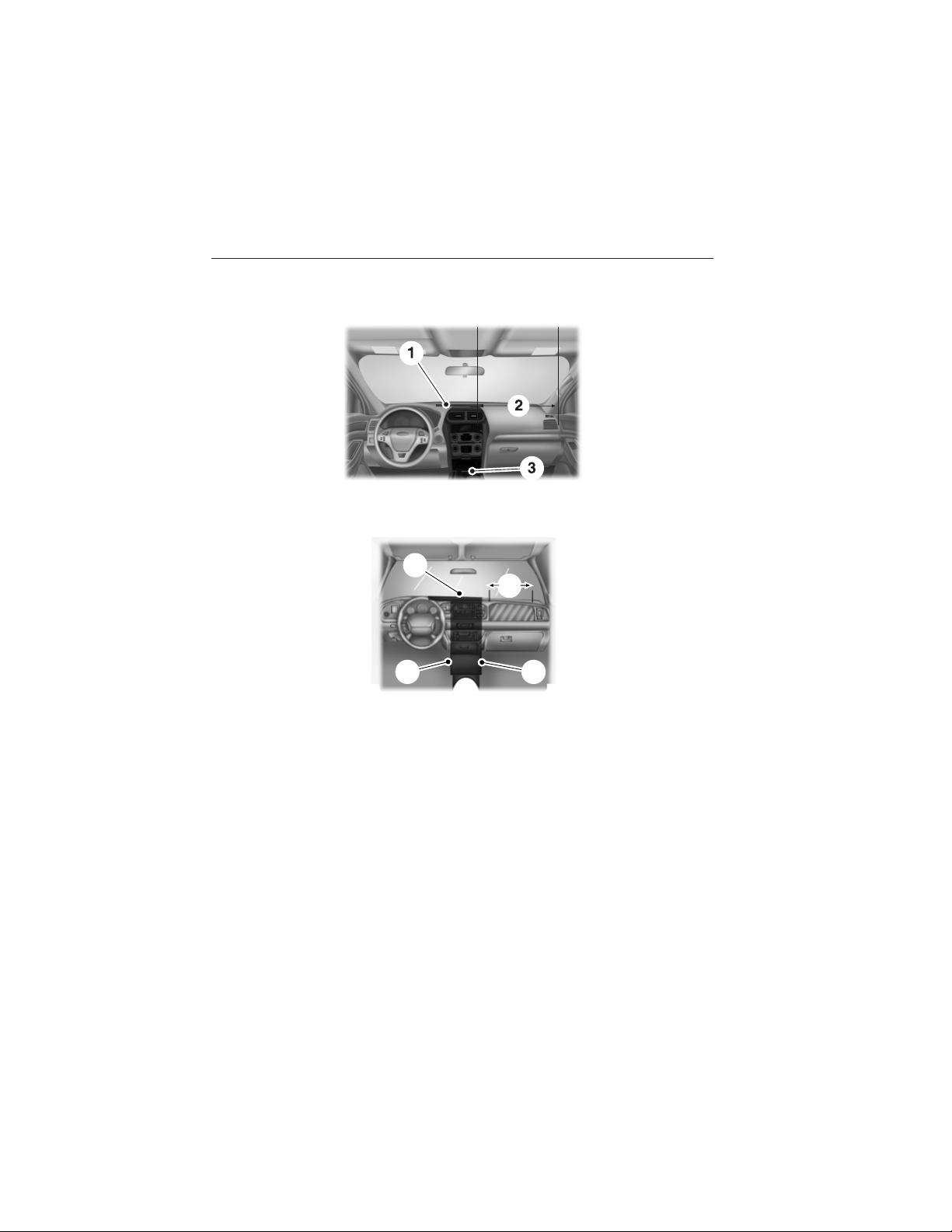

Crash sensors and airbag indicator .........................53

Airbag disposal........................................61

Keys and Remote Control 62

General information on radio frequencies.....................62

Remote control .......................................63

2013 Police (pol) Owners Guide gf, 2nd Printing USA (fus)

2 Table of Contents

Locks 66

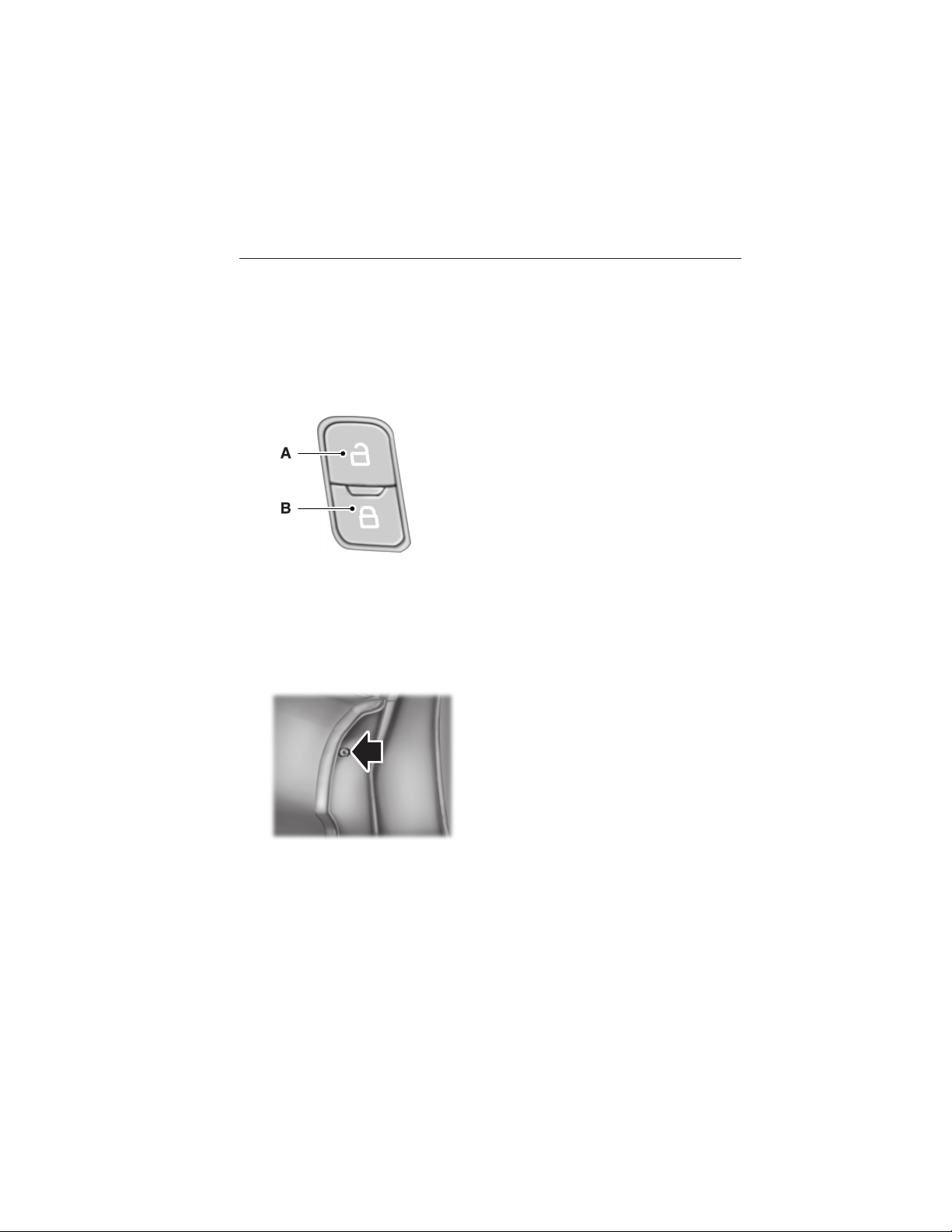

Locking and unlocking ..................................66

Trunk release .........................................69

Interior luggage compartment release .......................71

Security 72

Steering Wheel 73

Adjusting the steering wheel ..............................73

Steering wheel controls .................................73

Pedals 76

Adjustable pedals ......................................76

Wipers and Washers 77

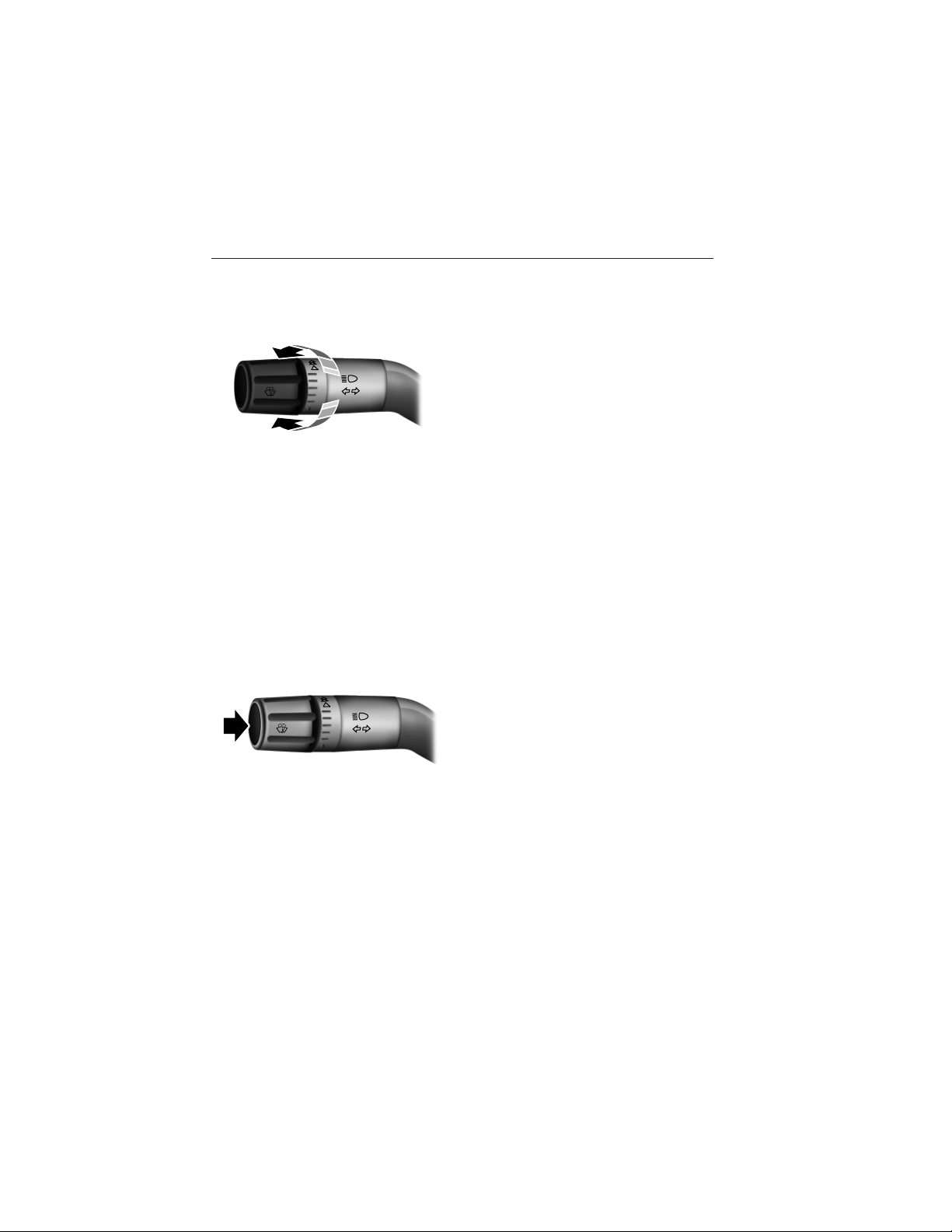

Windshield wipers .....................................77

Windshield washers ....................................77

Rear-window wiper and washer ............................78

Lighting 79

Lighting control .......................................79

Instrument lighting dimmer...............................82

Daytime running lamps..................................83

Directionindicators ....................................83

Interior lamps ........................................84

Windows and Mirrors 86

Power windows .......................................86

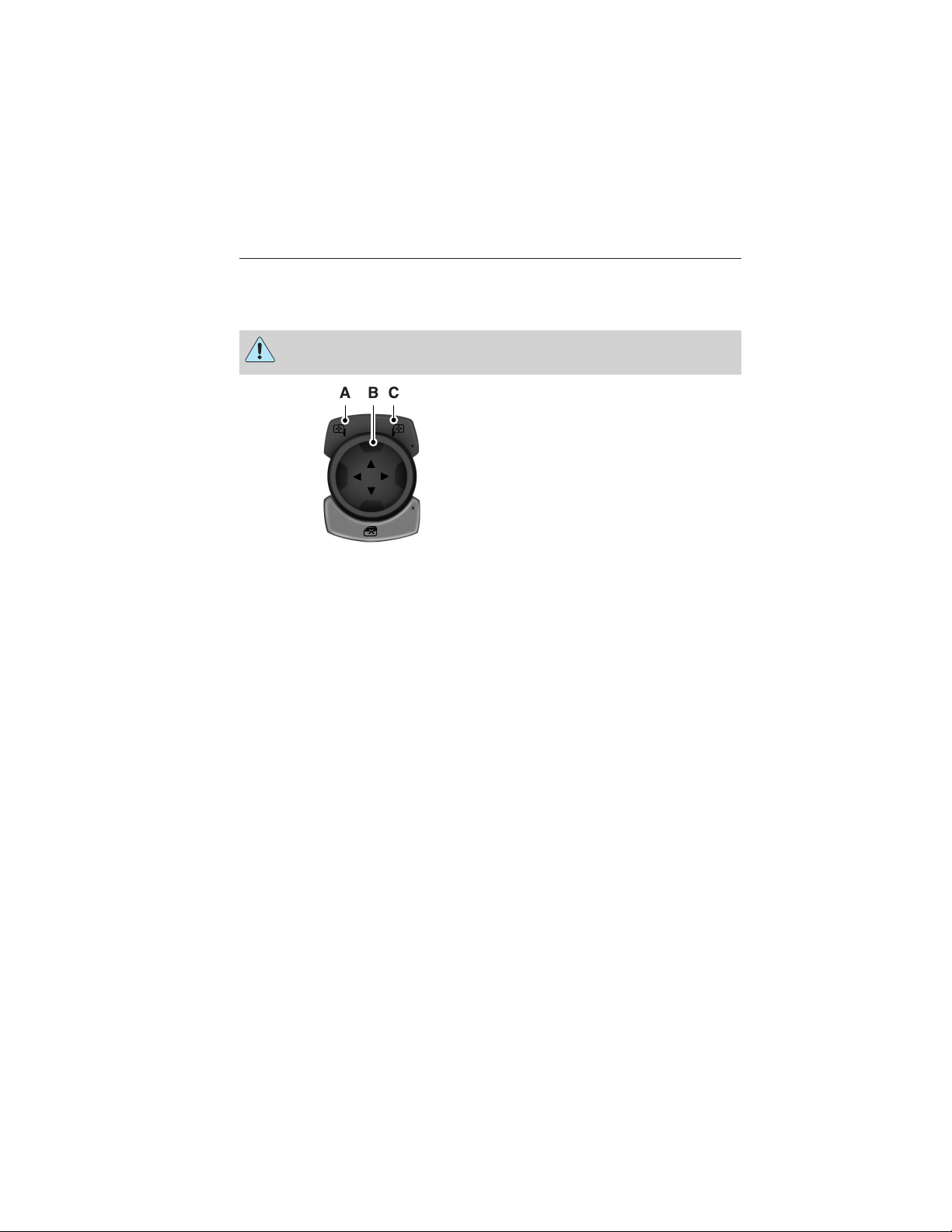

Exteriormirrors.......................................88

Interiormirrors .......................................90

Sunvisors...........................................90

2013 Police (pol) Owners Guide gf, 2nd Printing USA (fus)

Table of Contents 3

Instrument Cluster 91

Gauges .............................................92

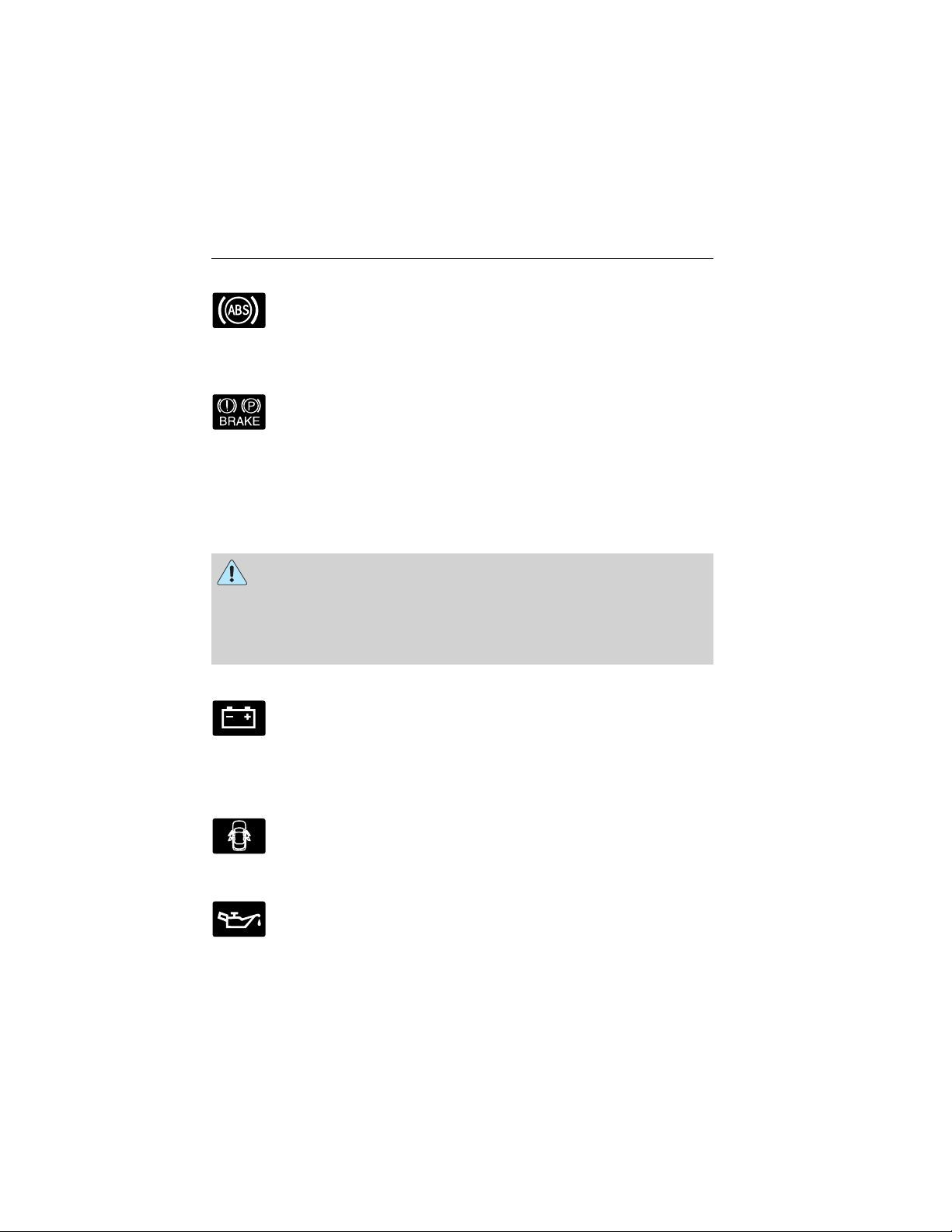

Warning lamps and indicators .............................92

Audible warnings and indicators ...........................96

Information Displays 97

Controls.............................................97

Trip computer ........................................99

Information messages ..................................100

Audio System 106

MyFord™ system .....................................108

Auxiliary input jack ...................................113

USBport...........................................114

Climate Control 115

Manual heating and air conditioning........................115

Rear window defroster .................................116

Cabin air filter .......................................117

Seats 118

Sitting in the correct position ............................118

Head restraints.......................................119

Manual seats ........................................120

Power seats .........................................121

Rear seats ..........................................122

Auxiliary Power Points 124

Storage Compartments 125

Center console .......................................125

Overhead console .....................................126

2013 Police (pol) Owners Guide gf, 2nd Printing USA (fus)

4 Table of Contents

Starting and Stopping the Engine 127

Ignition switch .......................................128

Starting the engine ....................................128

Engine block heater ...................................130

Fuel and Refueling 132

Fuel quality .........................................133

Running out of fuel....................................134

Refueling...........................................135

Fuel consumption .....................................137

Transmission 141

Automatic transmission.................................141

All-Wheel Drive (If Equipped) 143

All wheel drive .......................................143

Brakes 150

Brakes .............................................150

Hints on driving with anti-lock brakes ......................151

Parking brake........................................151

Traction Control 152

TractionControl™....................................152

Stability Control 153

AdvanceTrac威 .......................................154

Parking Aids 155

Sensing system.......................................155

Rear-view camera system ...............................156

Cruise Control 159

Usingcruisecontrol...................................159

2013 Police (pol) Owners Guide gf, 2nd Printing USA (fus)

Table of Contents 5

Driving Aids 161

Blind Spot Information System (BLIS) with Cross Traffic Alert

(CTA).............................................161

Steering ............................................166

Load Carrying 168

Cargo management system ..............................168

Roof racks and load carriers .............................169

Vehicle loading .......................................170

Towing 178

Trailertowing........................................178

Wrecker towing ......................................182

Recreational towing ...................................183

Driving Hints 184

Economical driving ....................................184

Driving through water..................................185

Floormats..........................................186

Roadside Emergencies 188

Getting roadside assistance ..............................188

Hazard warning flashers ................................189

Fuel cut-off switch ....................................189

Jump-starting the vehicle ...............................190

Customer Assistance 193

Reporting safety defects (U.S. only) .......................200

Reporting safety defects (Canada only) .....................200

Fuses 201

Changing a fuse ......................................201

Fuse specification chart ................................202

2013 Police (pol) Owners Guide gf, 2nd Printing USA (fus)

6 Table of Contents

Maintenance 211

General information ...................................211

Opening and closing the hood ............................212

Under hood overview ..................................214

Engine oil dipstick ....................................217

Engine oil check......................................217

Engine coolant check ..................................218

Automatic transmission fluid check ........................223

Brake fluid check .....................................225

Power steering fluid check ..............................225

Fuel filter...........................................226

Washer fluid check ....................................226

Changing the vehicle battery .............................226

Checking the wiper blades ..............................228

Changing the wiper blades ..............................228

Air filter(s) .........................................229

Adjusting the headlamps ................................231

Changing a bulb ......................................233

Bulb specification chart.................................242

Vehicle Care 243

Cleaning products.....................................243

Cleaning the exterior ..................................243

Waxing.............................................245

Repairing minor paint damage ............................245

Cleaning the engine ...................................245

Cleaning the windows and wiper blades .....................246

Cleaning the interior ...................................246

Cleaning the instrument panel and instrument cluster lens .......247

Cleaning leather seats ..................................248

Cleaning the alloy wheels ...............................248

Vehicle storage .......................................249

2013 Police (pol) Owners Guide gf, 2nd Printing USA (fus)

Table of Contents 7

Wheels and Tires 252

Tire care ...........................................255

Tire Pressure Monitoring System (TPMS) ...................273

Changing a road wheel .................................278

Technical specifications.................................286

Wheel lug nut torque ..................................286

Capacities and Specifications 287

Engine specifications ..................................287

Part numbers ........................................292

Vehicle identification number ............................293

Vehicle certification label ...............................294

Transmission code designation............................294

Ford Extended Service Plan 295

Scheduled Maintenance 298

Normal scheduled maintenance and log .....................303

SYNC姞 317

Pairing your phone for the first time .......................322

911 Assist™ .........................................336

Vehicle Health Report ..................................339

Appendices 361

Index 369

The information contained in this publication was correct at the time of going to print. In the interest of continuous development, we reserve the right to change specifications, design or equipment at any time without notice or obligation. No part of this publication may be reproduced, transmitted, stored in a retrieval system or translated into any language in any form by any means without our written permission. Errors and omissions excepted.

2013 Police (pol) Owners Guide gf, 2nd Printing USA (fus)

8 Introduction

ABOUT THIS MANUAL

Thank you for choosing Ford. We recommend that you take some time to get to know your vehicle by reading this manual. The more that you know about it, the greater the safety and pleasure you will get from driving it.

WARNING: Always drive with due care and attention when using and operating the controls and features on your vehicle.

Note: This manual describes a range of product features and options, sometimes before they are generally available. Therefore, you may find options in this manual that are not found on your vehicle.

Note: Some of the illustrations in this manual may be used for different models, so they may appear different than your vehicle. However, the essential information in the illustrations is always correct.

Note: Always use and operate your vehicle in line with all applicable laws and regulations.

Note: Pass on this manual when selling your vehicle. It is an integral part of the vehicle.

This manual may qualify the location of a component as right side or left side, which is determined by the side of the vehicle based on sitting in the seat.

A. Right side B. Left side

Symbols in this manual

WARNING: You risk death or serious injury to yourself and others if you do not follow the instruction highlighted by the

warning symbol.

2013 Police (pol) Owners Guide gf, 2nd Printing USA (fus)

Introduction 9

Symbols on your vehicle

When you see these symbols, read and follow the relevant instructions in this manual before touching or attempting adjustment of any kind.

Protecting the Environment

You must play your part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps toward this aim.

SYMBOL GLOSSARY

WARNING: You risk death or serious injury to yourself and others if you do not follow the instruction highlighted by the

warning symbol.

These are some of the symbols you may see on your vehicle.

Symbol Description Symbol Description Symbol Description

Safety alert See Owner’s

Manual

Avoid smoking, flames, or sparks

Brake fluid – non petroleum base

Check fuel cap

Child seat tether anchor

Battery Battery acid

Brake system Cabin air

Child Safety Door Lock and Unlock

Cruise control

Anti-lock braking system

filter

Child seat lower anchor

Do not open when hot

2013 Police (pol) Owners Guide gf, 2nd Printing USA (fus)

10 Introduction

Symbol Description Symbol Description Symbol Description

Engine air filter

Engine oil Explosive gas Fan warning

Engine coolant

Engine coolant temperature

Fasten safety belt

Fuel pump reset

Heated rear window

Lighting control

Panic alarm Parking aid

Power steering fluid

Service engine soon

Windshield defrost and demist

Front airbag Front fog

Fuse compartment

Interior luggage compartment release

Low tire pressure warning

system

Power windows front and rear

Side airbag Stability

Windshield washer and wiper

lamps

Hazard warning flasher

Jack

Maintain correct fluid level

Parking brake system

Power window lockout

control

2013 Police (pol) Owners Guide gf, 2nd Printing USA (fus)

Introduction 11

DATA RECORDING

Service Data Recording

Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access or share among them vehicle diagnostic information received through a direct connection to your vehicle when diagnosing or servicing your vehicle. Additionally, when your vehicle is in for service or repair, Ford Motor Company, Ford of Canada, and service and repair facilities may access or share among them data for vehicle improvement purposes. For U.S. only (if equipped), if you choose to use the SYNC威 Vehicle Health Report, you consent that certain diagnostic information may also be accessed electronically by Ford Motor Company and Ford authorized service facilities, and that the diagnostic information may be used for any purpose. See the SYNC威 chapter for more information.

Event Data Recording

This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an airbag deployment or hitting a road obstacle; this data will assist in understanding how a vehicle’s systems performed. The EDR is designed to record data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less. The EDR in this vehicle is designed to record such data as:

• How various systems in your vehicle were operating;

• Whether or not the driver and passenger safety belts were

buckled/fastened;

• How far (if at all) the driver was depressing the accelerator and/or the brake pedal; and

• How fast the vehicle was travelling; and

• Where the driver was positioning the steering wheel.

This data can help provide a better understanding of the circumstances in which crashes and injuries occur.

2013 Police (pol) Owners Guide gf, 2nd Printing USA (fus)

12 Introduction

Note: EDR data is recorded by your vehicle only if a non-trivial crash situation occurs; no data is recorded by the EDR under normal driving conditions and no personal data or information (e.g., name, gender, age, and crash location) is recorded (see limitations regarding 911 Assist and Traffic, directions and Information privacy below). However, parties, such as law enforcement, could combine the EDR data with the type of personally identifying data routinely acquired during a crash investigation.

To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have such special equipment, can read the information if they have access to the vehicle or the EDR. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.

Note: Including to the extent that any law pertaining to Event Data Recorders applies to SYNC威 or its features, please note the following: Once 911 Assist (if equipped) is enabled (set ON), 911 Assist may, through any paired and connected cell phone, disclose to emergency services that the vehicle has been in a crash involving the deployment of an airbag or, in certain vehicles, the activation of the fuel pump shut-off. Certain versions or updates to 911 Assist may also be capable of being used to electronically or verbally provide to 911 operators the vehicle location (such as latitude and longitude), and/or other details about the vehicle or crash or personal information about the occupants to assist 911 operators to provide the most appropriate emergency services. If you do not want to disclose this information, do not activate the 911 Assist feature. See your SYNC威 chapter for more information.

2013 Police (pol) Owners Guide gf, 2nd Printing USA (fus)

Introduction 13

Additionally, when you connect to Traffic, Directions and Information (if equipped, U.S. only), the service uses GPS technology and advanced vehicle sensors to collect the vehicle’s current location, travel direction, and speed (“vehicle travel information”), only to help provide you with the directions, traffic reports, or business searches that you request. If you do not want Ford or its vendors to receive this information, do not activate the service. Ford Motor Company and the vendors it uses to provide you with this information do not store your vehicle travel information. For more information, see Traffic, Directions and Information, Terms and Conditions. See your SYNC威 supplement for more information.

CALIFORNIA PROPOSITION 65

WARNING: Some constituents of engine exhaust, certain vehicle

components, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

PERCHLORATE MATERIAL

Note: Certain components in your vehicle such as airbag modules, safety belt pretensioners, and remote control batteries may contain perchlorate material. Special handling may apply for service or vehicle end of life disposal. See www.dtsc.ca.gov/hazardouswaste/perchlorate for more information.

FORD CREDIT (U.S. ONLY)

Ford Credit offers a full range of financing and lease plans to help you acquire your vehicle. If you have financed or leased your vehicle through Ford Credit, thank you for your business.

For your convenience we offer a number of ways to contact us, as well as help manage your account.

Phone: 1-800-727-7000 For more information regarding Ford Credit, as well as access Account

Manager, please go to www.fordcredit.com.

2013 Police (pol) Owners Guide gf, 2nd Printing USA (fus)

14 Introduction

SPECIAL NOTICES

New Vehicle Limited Warranty

For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the warranty information that is provided to you along with your Owner’s Manual.

Special Instructions

For your added safety, your vehicle is fitted with sophisticated electronic controls.

WARNING: Please read the Supplementary Restraints System chapter. Failure to follow the specific warnings and instructions

could result in personal injury.

WARNING: Front seat mounted rear-facing child or infant seats should NEVER be placed in front of an active passenger airbag.

Notice to owners of pickup trucks and utility type vehicles

WARNING: Utility vehicles have a significantly higher rollover rate than other types of vehicles.

Before you drive your vehicle, please read this Owner’s Manual carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate your vehicle correctly may result in loss of vehicle control, vehicle rollover, personal injury or death.

Using your vehicle with a snowplow

Do not use this vehicle for snowplowing.

Your vehicle is not equipped with a snowplowing package.

Using your vehicle as an ambulance

Do not use this vehicle as an ambulance.

Your vehicle is not equipped with the Ford Ambulance Preparation Package.

2013 Police (pol) Owners Guide gf, 2nd Printing USA (fus)

Introduction 15

MOBILE COMMUNICATIONS EQUIPMENT

Using mobile communications equipment is becoming increasingly important in the conduct of business and personal affairs. However, you must not compromise your own or others’ safety when using such equipment. Mobile communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits.

Mobile communication equipment includes, but is not limited to, cellular phones, pagers, portable email devices, text messaging devices and portable two-way radios.

WARNING: Driving while distracted can result in loss of vehicle

control, accident and injury. Ford strongly recommends that you use extreme caution when using any device or feature that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle. We recommend against the use of any handheld device while driving, encourage the use of voice operated systems when possible and that you become aware of applicable state and local laws that may affect use of electronic devices while driving.

EXPORT UNIQUE (NON–UNITED STATES/CANADA) VEHICLE SPECIFIC INFORMATION

For your particular global region, your vehicle may be equipped with features and options that are different from the features and options that are described in this Owner’s Manual. A market unique supplement may be supplied that complements this book. By referring to the market unique supplement, if provided, you can properly identify those features, recommendations and specifications that are unique to your vehicle. This Owner’s Manual is written primarily for the U.S. and Canadian Markets. Features or equipment listed as standard may be different on units built for Export. Refer to this Owner’s Manual for all other required

information and warnings.

2013 Police (pol) Owners Guide gf, 2nd Printing USA (fus)

16 Child Safety

GENERAL INFORMATION

See the following sections for directions on how to properly use safety restraints for children.

WARNING: Always make sure your child is secured properly in a

device that is appropriate for their height, age and weight. Child safety restraints must be purchased separately from the vehicle. Failure to follow these instructions and guidelines may result in an increased risk of serious injury or death to your child.

WARNING: All children are shaped differently. The

recommendations for safety restraints are based on probable child height, age and weight thresholds from NHTSA and other safety organizations, or are the minimum requirements of law. Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician (CPST) and consulting your pediatrician to make sure your child seat is appropriate for your child, and is compatible with and properly installed in the vehicle. To locate a child seat fitting station and CPST, contact the NHTSA toll free at 1-888-327-4236 or on the internet at http://www.nhtsa.dot.gov. In Canada, check with your local St. John Ambulance office for referral to a CPST or for further information, contact your provincial ministry of transportation, your local St. John Ambulance office at http://www.sfa.ca, or Transport Canada at 1–800–333–0371 (http://www.tc.gc.ca). Failure to properly restrain children in safety seats made especially for their height, age, and weight may result in an increased risk of serious injury or death to your child.

Recommendations for Safety Restraints for Children

Child size, height, weight, or age

Infants or toddlers

Children weighing 40 lb (18 kg) or less (generally age four or younger).

2013 Police (pol) Owners Guide gf, 2nd Printing USA (fus)

Recommended restraint type

Use a child safety seat (sometimes called an infant carrier, convertible seat, or toddler seat).

Child Safety 17

Recommendations for Safety Restraints for Children

Child size, height, weight, or age

Small children

Larger children

• You are required by law to properly use safety seats for infants and toddlers in the U.S. and Canada.

• Many states and provinces require that small children use approved booster seats until they reach age eight, a height of 4 feet 9 inches (1.45 meters) tall, or 80 pounds (36 kilograms). Check your local and state or provincial laws for specific requirements regarding the safety of children in your vehicle.

• When possible, always properly restrain children twelve (12) years of age and under in a rear seating position of your vehicle. Accident statistics suggest that children are safer when properly restrained in the rear seating positions than in a front seating position.

Children who have outgrown or no longer properly fit in a child safety seat (generally children who are less than 4 ft. 9 in. (1.45 m) tall, are greater than age four (4) and less than age twelve (12), and between 40 lb (18 kg) and 80 lb (36 kg) and upward to 100 lb (45 kg) if recommended by your child restraint manufacturer).

Children who have outgrown or no longer properly fit in a belt-positioning booster seat (generally children who are at least 4 feet 9 inches (1.45 meters) tall or greater than 80 lb (36 kg) or 100 lb (45 kg) if recommended by child restraint manufacturer).

Recommended restraint type

Use a belt-positioning booster seat.

Use a vehicle safety belt having the lap belt snug and low across the hips, shoulder belt centered across the shoulder and chest, and seat back upright.

2013 Police (pol) Owners Guide gf, 2nd Printing USA (fus)

18 Child Safety

CHILD SEATS

Use a child safety seat (sometimes called an infant carrier, convertible seat, or toddler seat) for infants, toddlers or children weighing 40 pounds (18 kilograms) or less (generally age four or younger).

CHILD SEAT POSITIONING

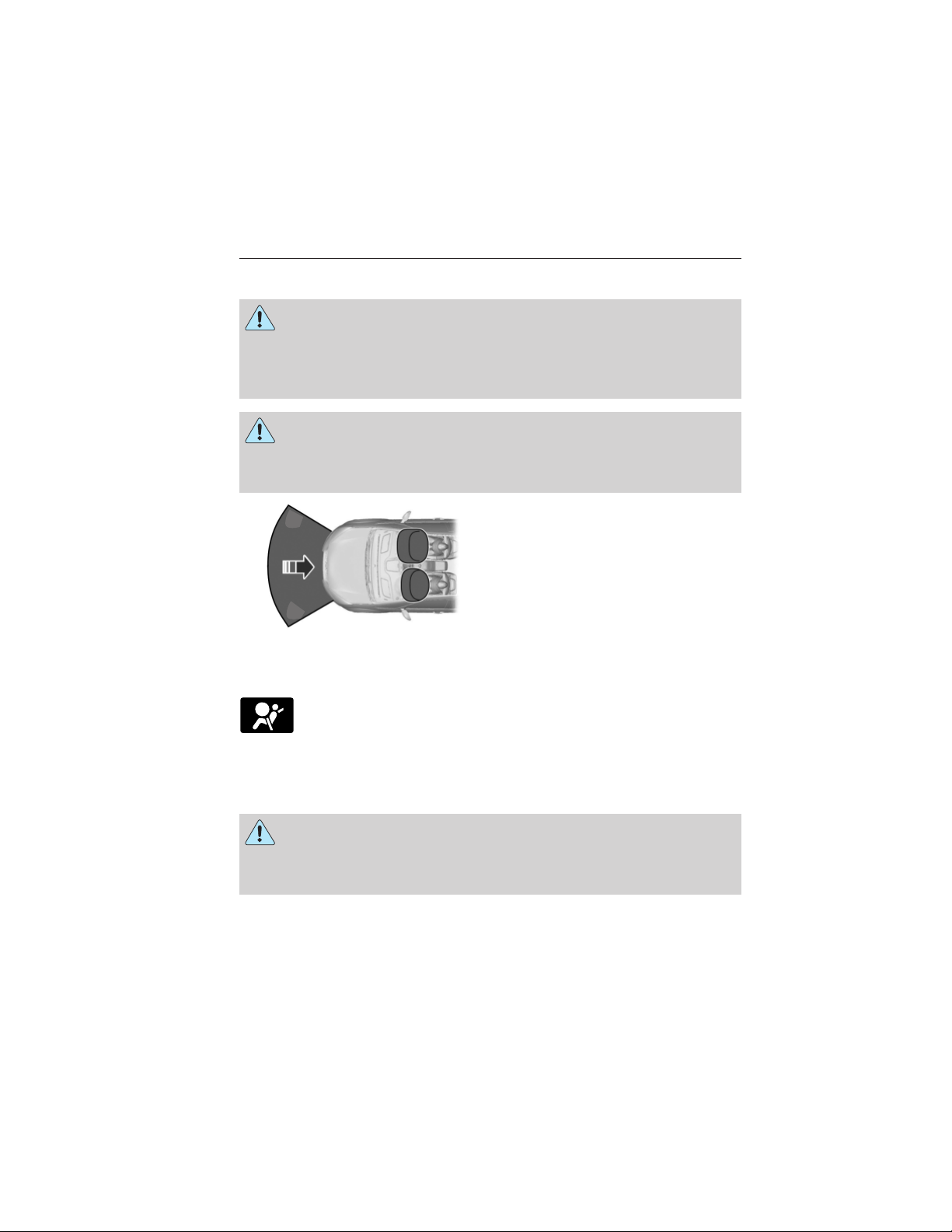

WARNING: Airbags can kill or injure a child in a child seat.

NEVER place a rear-facing child seat in front of an active airbag. If you must use a forward-facing child seat in the front seat, move the vehicle seat all the way back. When possible, all children age 12 and under should be properly restrained in a rear seating position. If all children cannot be seated and restrained properly in a rear seating position, properly restrain the largest child in the front seat.

WARNING: Always carefully follow the instructions and

warnings provided by the manufacturer of any child restraint to determine if the restraint device is appropriate for your child’s size, height, weight, or age. Follow the child restraint manufacturer’s instructions and warnings provided for installation and use in conjunction with the instructions and warnings provided by the vehicle manufacturer. A safety seat that is improperly installed or utilized, is inappropriate for your child’s height, age, or weight or does not properly fit the child may increase the risk of serious injury or death.

WARNING: Never let a passenger hold a child on his or her lap

while the vehicle is moving. The passenger cannot protect the child from injury in a collision, which may result in serious injury or death.

WARNING: Never use pillows, books, or towels to boost a child.

They can slide around and increase the likelihood of injury or death in a collision.

2013 Police (pol) Owners Guide gf, 2nd Printing USA (fus)

Child Safety 19

WARNING: Always restrain an unoccupied child seat or booster seat. These objects may become projectiles in a collision or

sudden stop, which may increase the risk of serious injury.

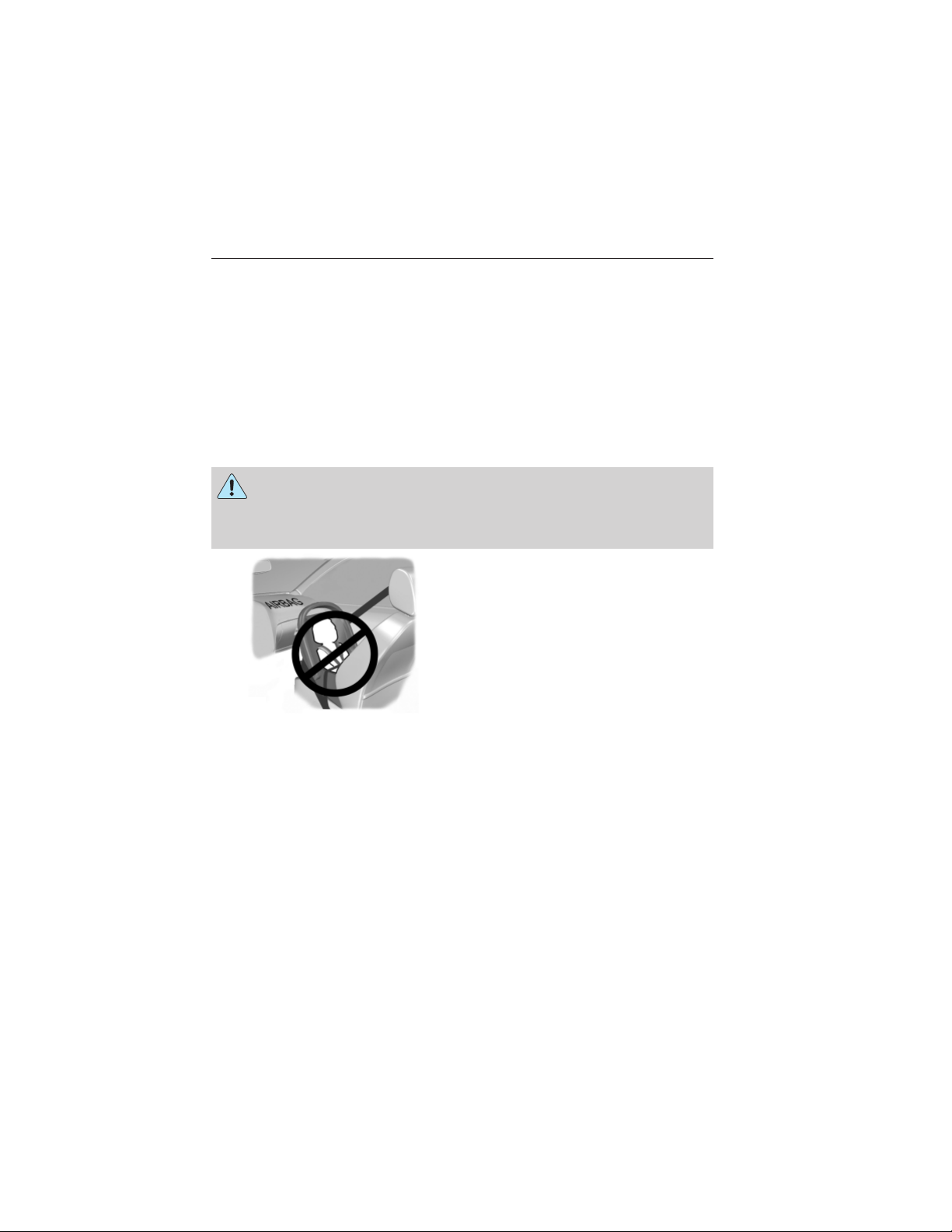

WARNING: Never place, or allow a child to place, the shoulder

belt under a child’s arm or behind the back because it reduces the protection for the upper part of the body and may increase the risk of injury or death in a collision.

WARNING: Do not leave children or pets unattended in your

vehicle.

Use any attachment method as indicated below

by X

LATCH

(lower Restraint Type

Rear facing child seat

Forward facing child seat

Note: The child seat must rest tightly against the vehicle seat. It may be necessary to lift or remove the head restraint. See the Seats chapter for information on head restraints.

Child

Weight

Up to 48 lb (21 kg)

Over 48 lb (21 kg)

anchors

and top

tether

anchor)

LATCH (lower anchors only)

XXX

Safety belt and top tether anchor

Safety belt and LATCH (lower anchors and top tether anchor)

Safety belt only

2013 Police (pol) Owners Guide gf, 2nd Printing USA (fus)

20 Child Safety

BOOSTER SEATS

WARNING: Never place, or allow a child to place, the shoulder

belt under a child’s arm or behind the back because it reduces the protection for the upper part of the body and may increase the risk of injury or death in a collision.

Use a belt-positioning booster seat for children who have outgrown or no longer properly fit in a child safety seat (generally children who are less than 4 feet 9 inches (1.45 meters) tall, are greater than age four (4) and less than age twelve (12), and between 40 lb (18 kg) and 80 lb (36 kg) and upward to 100 lb (45 kg) if recommended by your child restraint manufacturer). Many state and provincial laws require that children use approved booster seats until they reach age eight, a height of 4 feet 9 inches (1.45 meters) tall, or 80 lb (36 kg).

Booster seats should be used until you can answer YES to ALL of these questions when seated without a booster seat:

• Can the child sit all the way back against the vehicle seat back with knees bent comfortably at the edge of the seat cushion?

• Can the child sit without slouching?

• Does the lap belt rest low across the hips?

• Is the shoulder belt centered on the shoulder and chest?

• Can the child stay seated like this for the whole trip?

Always use booster seats in conjunction with the vehicle lap/shoulder belt.

2013 Police (pol) Owners Guide gf, 2nd Printing USA (fus)

Child Safety 21

Types of Booster Seats

• Backless booster seats

If your backless booster seat has a removable shield, remove the shield. If a vehicle seating position has a low seat back or no head restraint, a backless booster seat may place your child’s head (as measured at the tops of the ears) above the top of the seat. In this case, move the backless booster to another seating position with a higher seat back or head restraint and lap/shoulder belts, or consider using a high back booster seat.

• High back booster seats

If, with a backless booster seat, you cannot find a seating position that adequately supports your child’s head, a high back booster seat would be a better choice.

Children and booster seats vary in size and shape. Choose a booster that keeps the lap belt low and snug across the hips, never up across the stomach, and lets you adjust the shoulder belt to cross the chest and rest snugly near the center of the shoulder. The following drawings compare the ideal fit (center) to a shoulder belt uncomfortably close to the neck and a shoulder belt that could slip off the shoulder. The drawings also show how the lap belt should be low and snug across the child’s hips.

2013 Police (pol) Owners Guide gf, 2nd Printing USA (fus)

22 Child Safety

If the booster seat slides on the vehicle seat, placing a rubberized mesh sold as shelf or carpet liner under the booster seat may improve this condition. Do not introduce any item thicker than this under the booster seat. Check with the booster seat manufacturer’s instructions.

INSTALLING CHILD SEATS

Using Lap and Shoulder Belts

WARNING: Airbags can kill or injure a child in a child seat. NEVER place a rear-facing child seat in front of an active airbag.

If you must use a forward-facing child seat in the front seat, move the seat all the way back.

WARNING: Children 12 and under should be properly restrained in the rear seat whenever possible.

2013 Police (pol) Owners Guide gf, 2nd Printing USA (fus)

Child Safety 23

WARNING: Depending on where you secure a child restraint,

and depending on the child restraint design, you may block access to certain safety belt buckle assemblies and/or LATCH lower anchors, rendering those features potentially unusable. To avoid risk of injury, occupants should only use seating positions where they are able to be properly restrained.

When installing a child safety seat with combination lap and shoulder belts:

• Use the correct safety belt buckle for that seating position. Insert the belt tongue into the proper buckle until you hear a snap and

•

feel it latch. Make sure the tongue is securely fastened in the buckle.

• Keep the buckle release button pointing up and away from the safety seat, with the tongue between the child seat and the release button, to prevent accidental unbuckling.

• Place vehicle seat back in upright position.

• For second row seating positions, if needed, the recliner may be

adjusted slightly to improve child seat fit. If needed the head restraints may be removed.

• Put the safety belt in the automatic locking mode. See Step 5. This vehicle does not require the use of a locking clip.

Perform the following steps when installing the child seat with combination lap/shoulder belts:

Note: Although the child seat illustrated is a forward facing child seat, the steps are the same for installing a rear facing child seat.

Note: Follow all instructions provided by the manufacturer of the child restraint regarding the necessary and proper use of the Lock-off device. In some instances these devices have been provided only for use in vehicles with safety belt systems that would otherwise require a locking clip. This vehicle does not require the use of a locking clip.

2013 Police (pol) Owners Guide gf, 2nd Printing USA (fus)

24 Child Safety

1. Position the child safety seat in a seat with a combination lap and shoulder belt.

2. After positioning the child safety seat in the proper seating position, do the following:

Pull down on the shoulder belt and then grasp the shoulder belt and lap belt together behind the belt tongue.

3. While holding the shoulder and lap belt portions together, route the tongue through the child seat according to the child seat manufacturer’s instructions. Be sure the belt webbing is not twisted.

2013 Police (pol) Owners Guide gf, 2nd Printing USA (fus)

Child Safety 25

4. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) for that seating position until you hear a snap and feel the latch engage. Make sure the tongue is latched securely by pulling on it.

5. To put the retractor in the automatic locking mode, do the following;

Grasp the shoulder portion of the belt and pull downward until all of the belt is pulled out.

6. Allow the belt to retract to remove slack. The belt will click as it

retracts to indicate it is in the automatic locking mode.

7. Try to pull the belt out of the retractor to make sure the retractor is

in the automatic locking mode (you should not be able to pull more belt out). If the retractor is not locked, repeat Steps 5 and 6.

8. Remove remaining slack from the belt. Force the seat down with extra weight, e.g., by pressing down or kneeling on the child restraint while pulling up on the shoulder belt in order to force slack from the belt. This is necessary to remove the remaining slack that will exist once the additional weight of the child is added to the child restraint. It also

helps to achieve the proper snugness of the child seat to the vehicle. Sometimes, a slight lean towards the buckle will additionally help to remove remaining slack from the belt.

2013 Police (pol) Owners Guide gf, 2nd Printing USA (fus)

26 Child Safety

9. Attach the tether strap (if the child seat is equipped). See Using Tether Straps later in this chapter.

10. Before placing the child in the seat, forcibly move the seat forward and back to make sure the seat is securely held in place. To check this, grab the seat at the belt path and attempt to move it side to side and forward and back. There should be no more than 1 inch (2.5 cm) of movement for proper installation.

Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician (CPST) to make certain the child restraint is properly installed. In Canada, check with your local St. John Ambulance office for referral to a CPST.

Using Lower Anchors and Tethers for CHildren (LATCH)

WARNING: Never attach two child safety seats to the same

anchor. In a crash, one anchor may not be strong enough to hold two child safety seat attachments and may break, causing serious injury or death.

WARNING: Depending on where you secure a child restraint,

The LATCH system is composed of three vehicle anchor points: two lower anchors located where the vehicle seat back and seat cushion meet (called the seat bight) and one top tether anchor located behind that seating position.

LATCH compatible child safety seats have two rigid or webbing mounted attachments that connect to the two lower anchors at the LATCH equipped seating positions in your vehicle. This type of attachment method eliminates the need to use safety belts to attach the child seat, however the safety belt can still be used to attach the child seat. For

2013 Police (pol) Owners Guide gf, 2nd Printing USA (fus)

Child Safety 27

forward-facing child seats, the top tether strap must also be attached to the proper top tether anchor, if a top tether strap has been provided with your child seat.

Your vehicle has LATCH lower anchors for child seat installation at the seating positions marked with the child seat symbol.

The LATCH anchors are located at the rear section of the rear seat between the cushion and seat back below the symbols as shown. Follow the child seat manufacturer’s instructions to properly install a child seat with LATCH attachments.

Follow the instructions on attaching child safety seats with tether straps. Refer to Using Tether Straps later in this chapter.

Attach LATCH lower attachments of the child seat only to the anchors shown.

Use of inboard lower anchors from the outboard seating positions (center seating use) (sedan vehicles)

WARNING: The standardized spacing for LATCH lower anchors

is 11 in. (28 cm) center to center. Do not use LATCH lower anchors for the center seating position unless the child seat manufacturer’s instructions permit and specify using anchors spaced at least as far apart as those in this vehicle.

The lower anchors at the center of the second row seats are spaced 24 inches (61 cm) apart. The standardized spacing for LATCH lower anchors is 11 in. (28 cm) center to center. A child seat with rigid LATCH attachments cannot be installed at the center seating position. LATCH compatible child seats (with attachments on belt webbing) can only be used at this seating position provided that the child seat manufacturer’s

2013 Police (pol) Owners Guide gf, 2nd Printing USA (fus)

28 Child Safety

instructions permit use with the anchor spacing stated. Do not attach a child seat to any lower anchor if an adjacent child seat is attached to that anchor.

Each time you use the safety seat, check that the seat is properly attached to the lower anchors and tether anchor, if applicable. Tug the child seat from side to side and forward and back where it is secured to the vehicle. The seat should move less than one inch when you do this for a proper installation.

If the safety seat is not anchored properly, the risk of a child being injured in a crash greatly increases.

Use of inboard lower anchors from the outboard seating positions (center seating use) (utility vehicles)

WARNING: The standardized spacing for LATCH lower anchors

The lower anchors at the center of the second row bench seats are spaced 20.5 inches (52 cm) apart. The standardized spacing for LATCH lower anchors is 11 in. (28 cm) center to center. A child seat with rigid LATCH attachments cannot be installed at the center seating position. LATCH compatible child seats (with attachments on belt webbing) can only be used at this seating position provided that the child seat manufacturer’s instructions permit use with the anchor spacing stated. Do not attach a child seat to any lower anchor if an adjacent child seat is attached to that anchor.

If the safety seat is not anchored properly, the risk of a child being injured in a crash greatly increases.

Combining Safety Belt and LATCH Lower Anchors for Attaching Child Safety Seats

When used in combination, either the safety belt or the LATCH lower anchors may be attached first, provided a proper installation is achieved. Attach the tether strap afterward, if included with the child seat.

2013 Police (pol) Owners Guide gf, 2nd Printing USA (fus)

Child Safety 29

USING TETHER STRAPS

Many forward-facing child safety seats include a tether strap which extends from the back of the child safety seat and hooks to an anchoring point called the top tether anchor. Tether

straps are available as an accessory for many older safety seats.

Contact the manufacturer of your child seat for information about ordering a tether strap, or to obtain a longer tether strap if the tether strap on your safety seat does not reach the appropriate top tether anchor in the vehicle.

Once the child safety seat has been installed using either the safety belt, the lower anchors of the LATCH system, or both, you can attach the top tether strap.

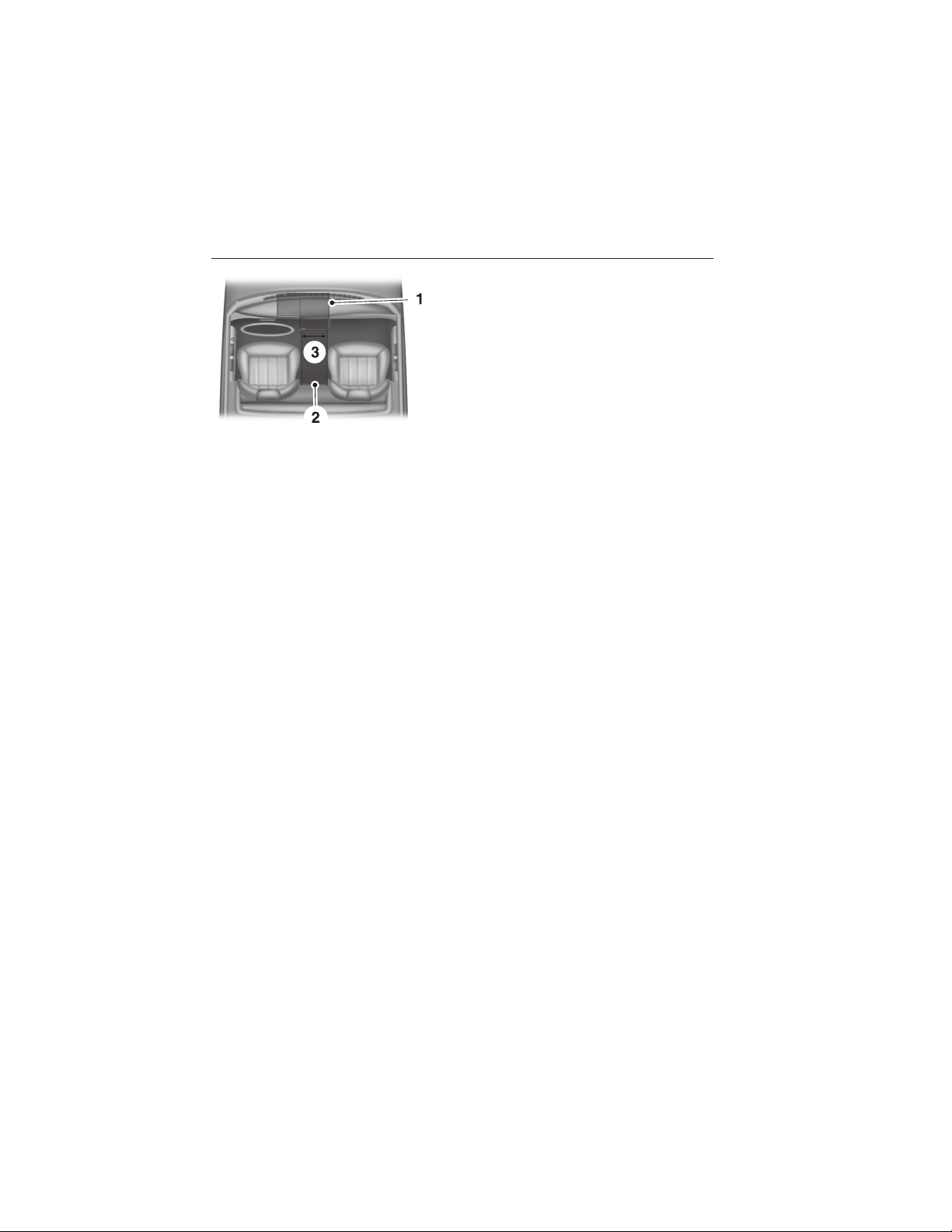

The tether strap anchors in your vehicle are in the following positions (shown from top view):

• Second row seats

Perform the following steps to install a child safety seat with tether anchors:

Note: If you install a child seat with rigid LATCH attachments, do not tighten the tether strap enough to lift the child seat off the vehicle seat cushion when the child is seated in it. Keep the tether strap just snug without lifting the front of the child seat. Keeping the child seat just touching the vehicle seat gives the best protection in a severe crash.

2013 Police (pol) Owners Guide gf, 2nd Printing USA (fus)

30 Child Safety

Sedan

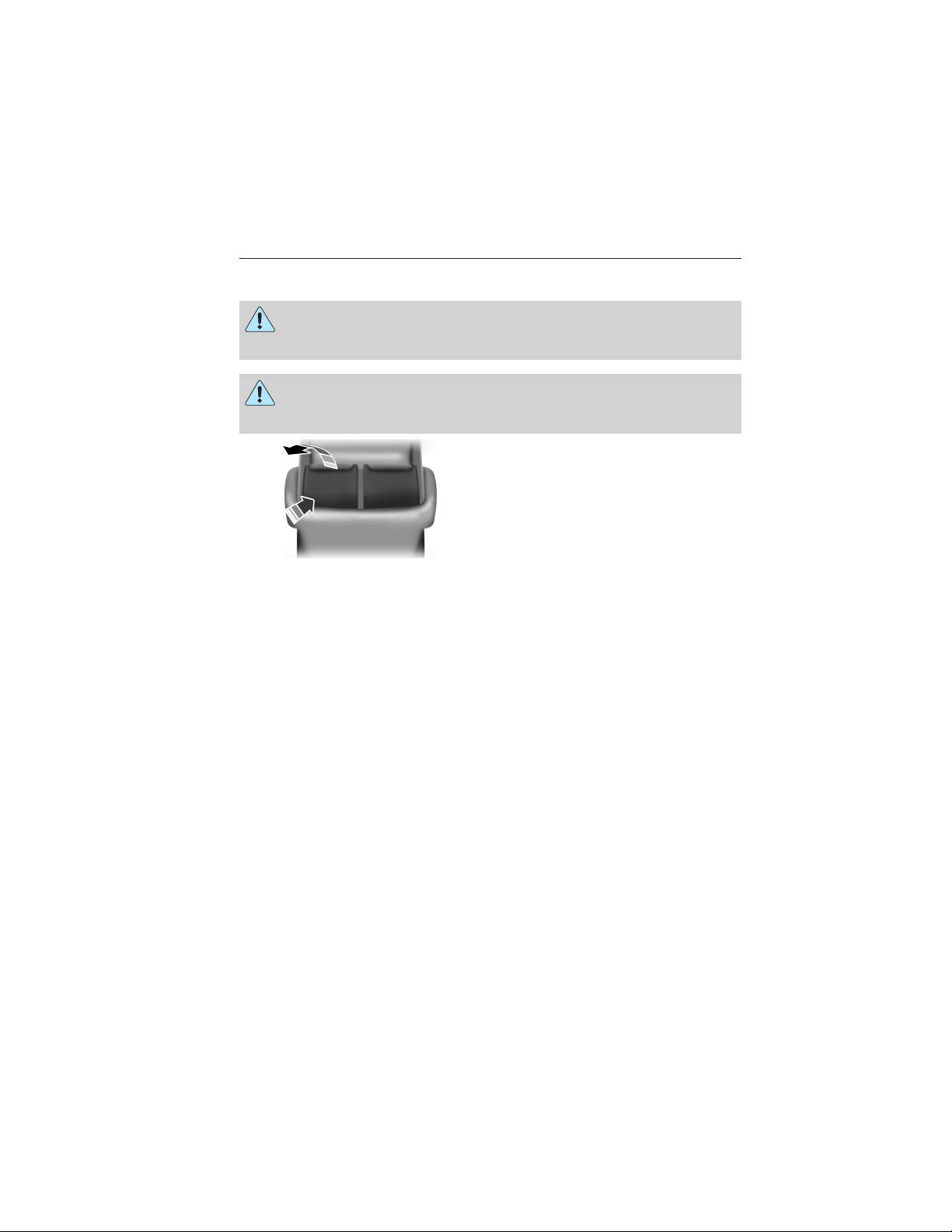

1. Route the child safety seat tether strap over the back of the seat.

2. Locate the correct anchor for the selected seating position.

3. Open the tether anchor cover.

4. Clip the tether strap to the anchor as shown.

5. Tighten the child safety seat tether strap according to the manufacturer’s instructions.

2013 Police (pol) Owners Guide gf, 2nd Printing USA (fus)
