Ford MKS 2009 User Manual

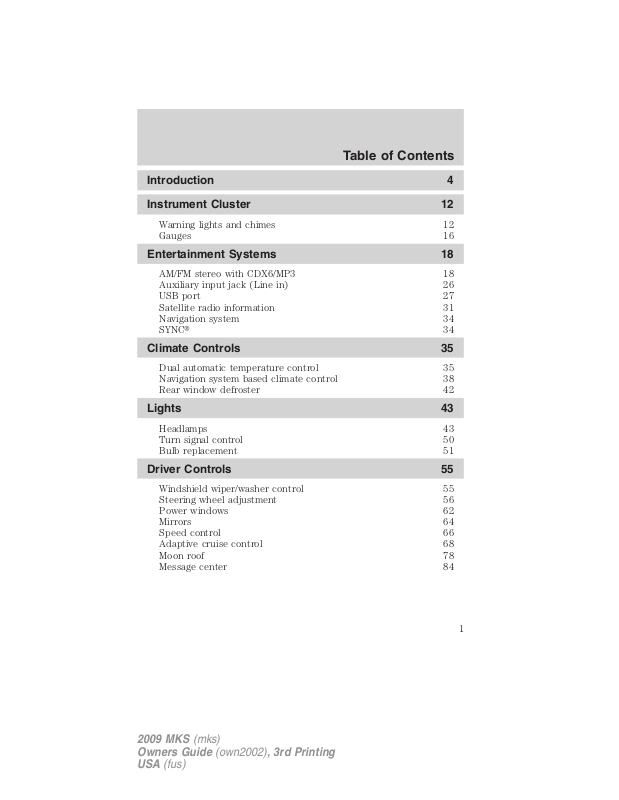

Table of Contents

Introduction 4
Instrument Cluster 12
Warning lights and chimes 12 Gauges 16
Entertainment Systems 18
AM/FM stereo with CDX6/MP3 18 Auxiliary input jack (Line in) 26 USB port 27 Satellite radio information 31 Navigation system 34 SYNC 34
Climate Controls 35
Dual automatic temperature control 35 Navigation system based climate control 38 Rear window defroster 42
Lights 43
Headlamps 43 Turn signal control 50 Bulb replacement 51
Driver Controls 55
Windshield wiper/washer control 55 Steering wheel adjustment 56 Power windows 62 Mirrors 64 Speed control 66 Adaptive cruise control 68 Moon roof 78 Message center 84
2009 MKS (mks) Owners Guide (own2002), 3rd Printing USA (fus)
1
Table of Contents
Locks and Security 97
Keys 97 Locks 100 Anti-theft system 119
Seating and Safety Restraints 127
Seating 127 Safety restraints 138 Airbags 151 Child restraints 166
Tires, Wheels and Loading 184
Tire information 184 Tire inflation 186 Tire Pressure Monitoring System (TPMS) 199 Vehicle loading 205 Trailer towing 211 Recreational towing 214
Driving 215
Starting 215 Brakes 223 AdvanceTrac 225 Transmission operation 230 Forward and reverse sensing system 235 Rear-view camera system 238 All wheel drive 240
Roadside Emergencies 247
Getting roadside assistance 247 Hazard flasher control 248 Fuses and relays 249 Changing tires 256 Wheel lug nut torque 263 Jump starting 264 Wrecker towing 270
2
Table of Contents
Customer Assistance 272
Reporting safety defects (U.S. only) 278 Reporting safety defects (Canada only) 279
Cleaning 280
Maintenance and Specifications 287
Engine compartment 289 Engine oil 291 Battery 294 Engine coolant 297 Fuel information 302 Air filter(s) 317 Part numbers 318 Maintenance product specifications and capacities 319 Engine data 321
Accessories 324
Index 326
All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.
Copyright © 2009 Ford Motor Company
3

Introduction

CONGRATULATIONS

Congratulations on acquiring your new Lincoln. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it.
For more information on Ford Motor Company and its products visit the following website:
In the United States: www.ford.com
In Canada: www.ford.ca
In Mexico: www.ford.com.mx
In Australia: www.ford.com.au
Additional owner information is given in separate publications.
This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available.
Remember to pass on the Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.
4
Introduction

Protecting the environment

We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.
CALIFORNIA Proposition 65 Warning
WARNING: Engine exhaust, some of its constituents, and
certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

PERCHLORATE MATERIAL

Certain components of this vehicle such as airbag modules, seat belt pretensioners, and button cell batteries may contain Perchlorate Material – Special handling may apply for service or vehicle end of life disposal. See www.dtsc.ca.gov/hazardouswaste/perchlorate.

BREAKING-IN YOUR VEHICLE

Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in.
Drive your new vehicle at least 1,000 miles (1,600 km) before towing a trailer. For more detailed information about towing a trailer, refer to Trailer towing in the Tires, Wheels and Loading chapter.
Do not add friction modifier compounds or special break-in oils since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage.
5
Introduction

SPECIAL NOTICES

New Vehicle Limited Warranty

For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Guide/Customer Information Guide that is provided to you along with your Owner’s Guide.

Special instructions

For your added safety, your vehicle is fitted with sophisticated electronic controls.
WARNING: Please read the section Airbag Supplemental
Restraint System (SRS) in the Seating and Safety Restraints
chapter. Failure to follow the specific warnings and instructions could result in personal injury.
WARNING: Front seat mounted rear-facing child or infant seats
should NEVER be placed in front of an active passenger airbag.

Service Data Recording

Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle. For U.S. only (if equipped), if you choose to use the SYNCVehicle Health Report, you consent that certain diagnostic information may also be accessed electronically by Ford Motor Company and Ford authorized service facilities, and that the diagnostic information may be used for any purpose. See your SYNCsupplement for more information.
6
Introduction
Event Data Recording
Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as:
how various systems in your vehicle were operating;
whether or not the driver and passenger seatbelts were
buckled;
how far (if at all) the driver was depressing the accelerator and/or the brake pedal;
how fast the vehicle was traveling; and
where the driver was positioning the steering wheel.
To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada. Please note that once 911 Assist (if equipped) is enabled (set ON), 911 Assist may, through any paired and connected cell phone, disclose to emergency services that the vehicle has been in a crash involving the deployment of an airbag or, in certain vehicles, the activation of the fuel pump shut-off. Certain versions or updates to 911 Assist may also be capable of electronically or verbally disclosing to 911 operators the vehicle location, and/or other details about the vehicle or crash to assist 911 operators to provide the most appropriate emergency services. If you do not want to disclose this information, do not activate the feature. See your SYNC supplement for more information.
7
Introduction

Cell phone use

The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits.
Mobile Communication Equipment includes, but is not limited to cellular phones, pagers, portable email devices, in-vehicle communications systems, telematics devices and portable two-way radios.
WARNING: Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.
8
Introduction

Export unique (Non–United States/Canada) vehicle specific information

For your particular global region, your vehicle may be equipped with features and options that are different from the features and options that are described in this Owner’s Guide. A market unique supplement may be supplied that complements this book. By referring to the market unique supplement, if provided, you can properly identify those features, recommendations and specifications that are unique to your vehicle. This Owner’s Guide is written primarily for the U.S. and Canadian Markets. Features or equipment listed as standard may be different on units built for Export. Refer to this Owner’s Guide for all other required
information and warnings.
9
Introduction
These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert
Fasten Safety Belt Airbag - Front
Airbag - Side
Child Seat Tether Anchor
Anti-Lock Brake System Parking Brake System
Brake Fluid ­Non-Petroleum Based
Stability Control System Speed Control
Master Lighting Switch Hazard Warning Flasher
Fog Lamps-Front Fuse Compartment
See Owner’s Guide
Child Seat Lower Anchor
Brake System
Parking Aid System
Fuel Pump Reset Windshield Wash/Wipe
Windshield Defrost/Demist
10
Rear Window Defrost/Demist
Vehicle Symbol Glossary
Introduction
Power Windows Front/Rear
Child Safety Door Lock/Unlock
Power Window Lockout
Interior Luggage Compartment Release
Panic Alarm Engine Oil
Engine Coolant
Engine Coolant Temperature
Do Not Open When Hot Battery
Avoid Smoking, Flames, or Sparks
Battery Acid
Explosive Gas Fan Warning
Power Steering Fluid
Maintain Correct Fluid Level
Service Engine Soon Engine Air Filter
MAX
MIN
Passenger Compartment Air Filter
Check Fuel Cap
Jack
Low Tire Pressure Warning
11

Instrument Cluster

WARNING LIGHTS AND CHIMES

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause extensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulbs work. If any light remains on after starting the vehicle, refer to the respective system warning light for additional information.
Service engine soon: The Service engine soon indicator light
illuminates when the ignition is first turned on to check the bulb and to indicate whether the vehicle is ready for Inspection/Maintenance (I/M) testing. Normally, the Service engine soonlight will stay on until the engine is cranked, then turn itself off if no malfunctions are present. However, if after 15 seconds the Service engine soonlight blinks eight times, it means that the vehicle is not ready for I/M testing. See the
Readiness for Inspection/Maintenance (I/M) testing in the Maintenance and Specifications chapter.
Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately by your authorized dealer.
12
Instrument Cluster
WARNING: Under engine misfire conditions, excessive exhaust
temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.
Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned on when the engine is not running, or in a position between on and start, or by applying the parking brake when the ignition is turned on. If the brake system warning light does not illuminate at this time, seek service immediately from your authorized dealer. Illumination after releasing the parking brake indicates low brake fluid level or a brake system malfunction and the brake system should be inspected immediately by your authorized dealer.
WARNING: Driving a vehicle with the brake system warning
light on is dangerous. A significant decrease in braking performance may occur. It will take you longer to stop the vehicle. Have the vehicle checked by your authorized dealer. Driving extended distances with the parking brake engaged can cause brake failure and the risk of personal injury.
Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately by your authorized dealer. Normal braking is still functional unless the brake warning light also is illuminated.
Airbag readiness: If this light fails to illuminate when the ignition is turned on, continues to flash or remains on, have the system serviced immediately by your authorized dealer. A chime will sound if there is a malfunction in the indicator light.
BRAKE
P!
ABS
13
Instrument Cluster
Safety belt: Reminds you to fasten your safety belt. A Belt-Minder chime will also sound to remind you to fasten your safety belt. Refer to the Seating and Safety Restraints chapter to activate/deactivate the Belt-Minderchime feature.
Charging system: Illuminates when the battery is not charging properly. If it stays on while the engine is running, there may be a malfunction with the charging system. Contact your authorized dealer as soon as possible. This indicates a problem with the electrical system or a related component.
Engine oil pressure: Illuminates when the oil pressure falls below the normal range, refer to Engine oil in the Maintenance and Specifications chapter.
Engine coolant temperature:
Illuminates when the engine coolant temperature is high. Stop the vehicle as soon as possible , switch off the engine and let cool. Refer to Engine coolant in the Maintenance and Specifications chapter.
WARNING: Never remove the coolant reservoir cap while the
engine is running or hot.
AdvanceTrac/Traction Control™ active: Illuminates when
the AdvanceTrac威/Traction Control™ is active. If the light remains on, it indicates a Traction Control™ fault. Have the system serviced immediately, refer to the Driving chapter for more information.
Overdrive cancel and grade assist: Illuminates when the
overdrive function of the transmission has been turned off and the grade assist function has been turned on, refer to the Driving chapter.
14
Instrument Cluster
Low tire pressure warning:
Illuminates when your tire pressure is low. If the light remains on at start up or while driving, the tire pressure should be checked. Refer to Inflating your tires in the Tires, Wheels and Loading chapter. When the ignition is first turned on, the light will illuminate for three seconds to ensure the bulb is working. If the light does not turn on or begins to flash, have the system inspected by your authorized dealer. For more information on this system, refer to Tire pressure monitoring system (TPMS) in the Tires, Wheels and Loading chapter.
Adaptive cruise control (ACC) (if equipped): Illuminates when
there is a vehicle in front of you.
Speed control: Illuminates when the speed control is engaged or when the ACC is engaged without following a vehicle. Turns off when the speed control system is disengaged or when the ACC in activated.
Anti-theft system: Flashes when the SecuriLockPassive Anti-theft System has been activated.
Door ajar: Illuminates when the ignition is turned on and any door is open.
Throttle Control/Transmission:
Illuminates when a powertrain or an AWD fault has been detected. Contact your authorized dealer as soon as possible.
Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators flash faster, check for a burned out bulb.
15
Instrument Cluster
High beams: Illuminates when the high beam headlamps are turned on.
Key-in-ignition warning chime (if equipped): Sounds when the key is left in the ignition in the off or accessory position and the driver’s door is opened.
Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key [if equipped] is not in the ignition) and the driver’s door is opened.

GAUGES

Speedometer: Indicates the current vehicle speed.
Engine coolant temperature gauge: Indicates engine coolant
temperature. At normal operating temperature, the needle will be in the normal range (between “H” and
16
Instrument Cluster
“C”). If the needle moves close to the “H” range, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.
WARNING: Never remove the coolant reservoir cap while the
engine is running or hot.
Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is on). The fuel gauge may vary slightly when the vehicle is in motion or on a grade.
The FUEL icon and arrow indicates which side of the vehicle the fuel filler door is located.
Refer to Filling the tank in the Maintenance and Specifications chapter for more information.
Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.
Odometer: Registers the total miles (kilometers) of the vehicle. Refer to
Message center in the Driver Controls chapter on how to switch
the display from Metric to English. Trip odometer: Registers the miles
(kilometers) of individual journeys. Press and release the message center INFO button until “TRIP” appears in the display (this represents the trip mode). Press the control again to select Trip A and Trip B features. Press and hold the RESET button for two seconds to reset.
17

Entertainment Systems

AUDIO SYSTEMS

Premium/Audiophile AM/FM in-dash CD6/MP3 satellite compatible sound system

WARNING: Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.
Accessory delay: Your vehicle is equipped with accessory delay. With this feature, the radio and certain electrical features may be used for up to 10 minutes after the ignition is turned off or until either front door is opened.
THX: Your vehicle may be equipped with the THXII certified premium audio system. This system creates optimal acoustic quality for all seating positions and road conditions. The system offers an advanced speaker system, amplifiers, subwoofer and equalization.
18
Entertainment Systems
Setting the clock
CLOCK: Press to set the clock. The display will read SET TIME. Use the memory preset numbers (0–9) to enter in the desired time– hours and minutes. The clock will then begin from that time.
AM/FM Radio
/ VOL (Power/Volume): Press to turn the radio on/off. Turn the
knob to increase/decrease volume. If the volume is set above a certain level and the ignition is turned off,
the volume will come back on at a nominal listening level when the ignition is turned back on.
AM/FM: Press repeatedly to select AM/FM1/FM2 frequency band. TUNE: Turn the knob to go up/down the frequency band in individual
increments. DIRECT: Press DIRECT and then select the desired radio frequency
(i.e. 93.9) using the memory preset numbers (0–9).
SEEK: Press station.
SCAN: Press for a brief sampling of all strong radio stations. MEMORY PRESETS (0–9): When tuned to any station, press and hold
a preset button until sound returns and PRESET # SAVED appears in the display. You can save up to 30 stations, 10 in AM, 10 in FM1 and FM2.
Saving presets automatically: Autoset allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2.
To activate the autoset feature: Press MENU repeatedly until AUTO PRESET ON/OFF appears in the display. Use AUTO PRESET to ON, and either wait five seconds for the search to
initiate or press OK to immediately initiate the search. If you press another control within those five seconds, the search will not initiate. The 10 strongest stations will be filled and the station stored in preset 1 will begin playing.
If there are fewer then 10 strong stations, the system will store the last one in the remaining presets.
RDS Radio
Available only in FM mode. This feature allows you to search RDS-equipped stations for a certain category of music format: CLASSIC, COUNTRY, JAZZ/RB, ROCK, etc.
SEEK to access the previous/next strong radio
SEEK to toggle
19
Entertainment Systems
To activate: Press MENU repeatedly until RDS (ON/OFF) appears in the display. Use you will not be able to search for RDS equipped stations or view the
station name or type. CAT/FLD (Category/Folder): This feature allows you to select from
various music categories. To change RDS categories: Press MENU repeatedly until RDS ON/OFF
appears in the display. Use CAT. PRESS UP OR DOWN TO CHANGE RDS CATEGORY will appear in the display. Press
When the desired category appears in the display, press find the next station playing that selection or press SCAN for a brief
sampling of all stations playing that category of music.
Six Disc CD/MP3 Player
CD: Press to enter CD/MP3 mode. If a disc is already loaded into the system, CD/MP3 play will begin where it ended last. If no CD is loaded, NO DISC will appear in the display.
LOAD: Use to load CDs into the CD player.
To load a single CD–
Press LOAD. When the display reads SELECT CD SLOT, choose the desired slot number using memory presets 1–6. The display will read MOVING TO CD # and then LOAD CD #. Load the desired disc, label side up into the CD slot opening. If you do not choose a slot within five seconds, the system will choose for you. Once loaded, the first track will begin to play.
To auto load up to six discs–
Press and hold LOAD until the display reads MOVING TO #. Load the desired disc, label side up. The system will prompt you to load discs for the remaining available slots. Insert the discs, one at a time, label side up, when prompted. Once loaded, the disc in slot 1 will begin to play.
To choose one of the loaded CDs to play, press the number preset buttons (1–6) to choose the desired disc.
OK
CD.
corresponding memory preset #. The display will read EJECTING #. 20
/ (Play/Pause): Press to play/pause a track when playing a
(EJECT): Press and select the desired CD slot by pressing the
SEEK to toggle RDS ON/OFF. When RDS is OFF,
SEEK to toggle RDS to ON. Press
SEEK to scroll through all possible categories.
SEEK to
Entertainment Systems
When the system has ejected the CD, the display will read REMOVE CD #. If you do not remove the CD the system will reload the disc. To auto eject all loaded discs– Press and hold all discs and prompt you when to remove them.
SEEK: Press
CAT (Category) / FLD (Folder):
In MP3 mode only– Press CAT/FOLD and then press access the previous/next folder.
SCAN: Press for a brief sampling of all tracks on the current disc or MP3 folder.
DIRECT:
In CD mode– Press DIRECT. The display will read DIRECT TRACK MODE SELECT TRACK. Enter the desired track number using the memory preset buttons (0–9). The system will then begin playing that track.
In MP3 folder mode– Press DIRECT and the memory preset buttons (0–9) of the desired folder. The system will advance to that specific folder.
TEXT:
In MP3 mode only– Press TEXT repeatedly to view Album (AL), Folder (FL), Song (SO) and Artist (AR) in the display, if available.
In TEXT mode: Sometimes the display requires additional text to be displayed. When the</>indicatorisactive,pressTEXT and then
press
COMPRESSION: Press MENU repeatedly until COMPRESSION ON/OFF appears in the display. Use COMPRESSION is ON, the system will bring the soft and loud CD
passages together for a more consistent listening level. SHUFFLE: Press SHUFFLE to toggle on/off and begin/stop random play.
The system will only shuffle the disc currently playing.
Satellite Radio
Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.
SIRIUS: Press repeatedly to access satellite radio mode, if equipped. Press repeatedly to cycle through SAT1, SAT2 and SAT3 modes.
SEEK to view the additional display text.
SEEK to access the previous/next track.
SEEK to toggle ON/OFF. When
. The system will eject
SEEK to
21
Entertainment Systems
TUNE: Turn to go to the next / previous available SIRIUS satellite station.
DIRECT: Press DIRECT then enter the desired channel (i.e. 002) using the memory preset buttons (0–9). If you only enter one digit, press OK and the system will go to that satellite channel. If you enter three digits, the system will automatically go to that channel, if available. You may cancel your entry by pressing DIRECT. If an invalid station number is entered, INVALID CHANNEL will appear in the display and the system will continue playing the current station.
SEEK: Press specific category is selected, (Jazz, Rock, News, etc.), press
category. Press and hold SEEK to fast seek through the previous/next channels.
SCAN: Press SCAN for a brief sampling of all available SIRIUS satellite channels. If a specific category is selected, (Jazz, Rock, News, etc.) press SCAN for a brief sampling of all available SIRIUS satellite channels within the selected category.
MEMORY PRESETS (0–9): There are 30 available presets, 10 each for SAT1, SAT2 and SAT3. To save satellite channels in your memory presets, tune to the desired channel then press and hold a memory preset number (0–9) until sound returns.
TEXT: Press and release to display the artist and song title. While in TEXT MODE, press again to scroll through the Artist (AR), Song (SO), Channel (CH) and Category (CA).
In TEXT MODE: Sometimes the display requires additional text to be displayed. When the</>indicatorisactive,pressTEXT and then
press
CAT (Category) / FLD (Folder): Press to toggle between turning the most recently selected satellite radio category on or off. The category icon (CAT) will illuminate in the display when a specific category is selected (the icon will not illuminate during CATEGORY ALL). If no category has ever been selected, NO CATEGORY SELECTED will display.
Note: Separate categories can be set for SAT1, SAT2 or SAT3. Refer to Satellite radio menu for further information on selecting a satellite radio category.
SEEK to seek to the previous/next channel in the selected
SEEK to view the additional display text.
SEEK to seek to the previous/next channel. If a
22
Entertainment Systems
SATELLITE RADIO MENU: Press MENU when satellite radio mode is active to access. Press OK to enter into the satellite radio menu.
Press
CATEGORY MENU- Press OK to enter category mode. Press channel Categories (Pop, Rock, News, etc.) Press OK when the
desired category appears in the display. After a category is selected, press only (i.e. ROCK). You may also select CATEGORY ALL to seek all
available SIRIUS categories and channels. Press OK to close and return to the main menu.
SONG SEEK MENU- Press OK to enter song seek menu. Press a. SAVE THIS SONG: Press OK to save the currently playing song’s
title in the system’s memory. (If you try to save something other than a song, CANT SAVE will appear in the display.) When the chosen song is playing on any satellite radio channel, the system will alert you with an audible prompt. Press OK while SONG ALERT is in the display and the system will take you to the channel playing the desired song. You can save up to 20 song titles. If you attempt to save more than 20 titles, the display will read REPLACE SONG? Press OK to access the
saved titles and press When the song title appears in the display that you would like to
replace, press OK. SONG REPLACED will appear in the display. b. DELETE A SONG: Press OK to delete a song from the system’s
memory. Press the song appears in the display that you would like to delete, press
OK. The song will appear in the display for confirmation. Press OK again and the display will read SONG DELETED. If you do not want
to delete the currently listed song, press RETURN or CANCEL.
Note: If there are no songs presently saved, the display will read NO SONGS. c. DELETE ALL SONGS: Press OK to delete all song’s from the system’s memory. The display will read ARE YOU SURE ? Press OK to confirm deletion of all saved songs and the display will read ALL DELETED. Note: If there are no songs presently saved, the display will read NO SONGS.
SEEK to cycle through the following options:
SEEK to scroll through the list of available SIRIUS
SEEK to search for that specific category of channels
SEEK to scroll through the following options:
SEEK to cycle through the saved titles.
SEEK to cycle through the saved songs. When
SEEK to select either
23
Entertainment Systems
d. DISABLE ALERTS/ENABLE ALERTS: Press OK to enable/disable the satellite alert status which alerts you when your selected songs are playing on a satellite radio channel. (The system default is disabled.) SONG ALERTS ENABLED/DISABLED will appear in the display. The menu listing will display the opposite state. For example, if you have chosen to enable the song alerts, the menu listing will read DISABLE as the alerts are currently on, so your other optionistoturnthemoff.
CHANNEL LOCKOUT MENU- Press OK to enter the Channel Lockout menu. Press the options:
a. LOCK/UNLOCK THIS CHANNEL: Press OK when LOCK/UNLOCK THIS CHANNEL is displayed and the display will read ENTER PIN. Enter your four-digit PIN number (initial PIN is 1234) and the system will lock/unlock the channel and CHANNEL LOCKED or UNLOCKED will be displayed. Note: you must be tuned to the specific channel you want to lock/unlock when using this feature. b. CHANGE PIN: Press OK when CHANGE PIN is displayed. The display will read ENTER OLD PIN. Enter your current (old) PIN number and when the system accepts your entry it will display ENTER NEW PIN. Enter your new four-digit PIN and the system will save the new PIN and PIN SAVED will display. c. UNLOCK ALL CHANNELS: Press OK when UNLOCK ALL CHANNELS is displayed and the display will read ENTER PIN. Enter your four-digit PIN and the system will unlock all channels and the display will read CHANNEL UNLOCKED. d. RESET PIN: Press OK when RESET PIN is displayed. The display will read ARE YOUR SURE. Press OK again to automatically reset the PIN number to its initial password setting (1234). PIN RESET TO DEFAULT PIN will be displayed. e. RETURN: Press OK when RETURN is displayed and the system will exit back to the satellite radio menu.
Sound Adjustments
Press SOUND repeatedly to cycle through the following features:
BASS: Press
SEEK to adjust the level of bass.
SEEK to scroll through the following
TREBLE: Press
BALANCE: Press
(L) and right (R) speakers. 24
SEEK to adjust the level of treble.
SEEK to adjust the audio between the left
Entertainment Systems
FADE: Press SEEK to adjust the audio between the back (B) and front (F) speakers.
SPEED COMPENSATED VOLUME: With this feature on, radio volume automatically gets louder with increasing vehicle speed to compensate for road and wind noise.
The default setting is off.
Use Increasing the level from 1 (lowest setting) to 7 (highest setting) allows
the radio volume to automatically change slightly with vehicle speed to compensate for road and wind noise.
Recommended level is 1–3; SPEED OFF turns the feature off and level 7 is the maximum setting.
ALL SEATS (Occupancy mode, if equipped): Press SOUND repeatedly to reach the Occupancy mode setting. Press select and optimize sound for ALL SEATS, DRIVERS SEAT or REAR
SEATS.
Extra Features
AUX: Press repeatedly to access SYNCor LINE IN (auxiliary audio mode).
For location and further information on auxiliary audio mode, refer to Auxiliary input jack later in this chapter. For more information on SYNC, refer to the SYNCsupplement.
OK
and media features which will require you to confirm commands by pressing OK. Refer to the SYNCinformation included with your vehicle for further information.
SYNCinformation included with your vehicle for further information.
SEEK to adjust between SPEED OFF and levels 1–7:
SEEK to
/ (Play/Pause): Your vehicle is equipped with special phone
(Phone): Press to access SYNC PHONE features. Please refer to the

Audio system–Navigation system based (if equipped)

If your vehicle is equipped with the navigation system, it will have an integrated navigation/audio system. See the Navigation system supplement for operating instructions on using this audio system.
25
Entertainment Systems

Auxiliary input jack (Line in)

WARNING: Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.
The Auxiliary Input Jack provides a way to connect your portable music player to the in-vehicle audio system. This allows the audio from a portable music player to be played through the vehicle speakers with high fidelity. To achieve optimal performance, please observe the following instructions when attaching your portable music device to the audio system. If your vehicle is equipped with a navigation system, refer to Auxiliary
input jack section in the Audio features chapter of your Navigation system supplement.
Required equipment:
1. Any portable music player designed to be used with headphones
2. An audio extension cable with stereo male 1/8 in. (3.5 mm) connectors at each end
To play your portable music player using the auxiliary input jack:
1. Begin with the vehicle parked and the radio turned off.
2. Ensure that the battery in your portable music player is new or fully charged and that the device is turned off.
3. Attach one end of the audio extension cable to the headphone output of your player and the other end of the audio extension cable to the AIJ in your vehicle.
4. Turn the radio on, using either a tuned FM station or a CD loaded into the system. Adjust the volume to a comfortable listening level.
5. Turn the portable music player on and adjust the volume to 1/2 the volume.
26
Entertainment Systems
6. Press AUX on the vehicle radio repeatedly until LINE, LINE IN or SYNC LINE IN appears in the display. You should hear audio from your portable music player although it may be low.
7. Adjust the sound on your portable music player until it reaches the level of the FM station or CD by switching back and forth between the AUX and FM or CD controls.
Troubleshooting:
1. Do not connect the audio input jack to a line level output. Line level outputs are intended for connection to a home stereo and are not compatible with the AIJ. The AIJ will only work correctly with devices that have a headphone output with a volume control.
2. Do not set the portable music player’s volume level higher than is necessary to match the volume of the CD or FM radio in your audio system as this will cause distortion and will reduce sound quality. Many portable music players have different output levels, so not all players should be set at the same levels. Some players will sound best at full volume and others will need to be set at a lower volume.
3. If the music sounds distorted at lower listening levels, turn the portable music player volume down. If the problems persists, replace or recharge the batteries in the portable music player.
4. The portable music player must be controlled in the same manner when it is used with headphones as the AIJ does not provide control (play, pause, etc.) over the attached portable music player.
5. For safety reasons, connecting or adjusting the settings on your portable music player should not be attempted while the vehicle is moving. Also, the portable music player should be stored in a secure location, such as the center console or the glove box, when the vehicle is in motion. The audio extension cable must be long enough to allow the portable music player to be safely stored while the vehicle is in motion.

USB port

WARNING: Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.
27
Entertainment Systems
Your vehicle is equipped with a USB port inside your center console. This feature allows you to plug in media playing devices, memory sticks, and also to charge devices if they support this feature. For further information on this feature, refer to
Accessing and using your USB port in the SYNC supplement or Navigation system supplement.

GENERAL AUDIO INFORMATION

Radio frequencies:
AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are:
AM: 530, 540–1700, 1710 kHz
FM: 87.7, 87.9–107.7, 107.9 MHz
Radio reception factors:
There are three factors that can affect radio reception:
Distance/strength: The further you travel from an FM station, the weaker the signal and the weaker the reception.
Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception.
Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.
CD/CD player care
Do:
Handle discs by their edges only. (Never touch the playing surface).
Inspect discs before playing.
Clean only with an approved CD
cleaner.
28
Entertainment Systems
Wipe discs from the center out.
Don’t:
Expose discs to direct sunlight or heat sources for extended periods of time.
Clean using a circular motion.
CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players.
Do not use any irregular shaped CDs or discs with a scratch protection film attached.
CDs with homemade paper (adhesive) labels should not be inserted into the CD player as the label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information.
Audio system warranty and service
Refer to the Warranty Guide/Customer Information Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.
29
Entertainment Systems
MP3 track and folder structure
Your MP3 system recognizes MP3 individual tracks and folder structure as follows:
There are two different modes for MP3 disc playback: MP3 track mode (system default) and MP3 folder mode. For more information on track and folder mode, refer to Sample MP3 structure in the following section.
MP3 track mode ignores any folder structure on the MP3 disc. The player numbers each MP3 track on the disc (noted by the .mp3 file extension) from T001 to a maximum of T255. Note: The maximum number of playable MP3 files may be less depending on the structure of the CD and exact model of radio present.
MP3 folder mode represents a folder structure consisting of one level of folders. The CD player numbers all MP3 tracks on the disc (noted by the .mp3 file extension) and all folders containing MP3 files, from F001 (folder) T001 (track) to F253 T255.
Creating discs with only one level of folders will help with navigation through the disc files.
30
Entertainment Systems
Sample MP3 structure
If you are burning your own MP3 discs, it is important to understand how the system will read the structures you create. While various files may be present, (files with extensions other than mp3), only files with the .mp3 extension will be played. Other files will be ignored by the system. This enables you to use the same MP3 disc for a variety of tasks on your work computer, home computer and your in vehicle system.
In track mode, the system will display and play the structure as if it were only one level deep (all .mp3 files will be played, regardless of being in a specific folder). In folder mode, the system will only play the .mp3 files in the current folder.

Satellite radio information

Satellite radio channels: SIRIUS broadcasts a variety of music, news, sports, weather, traffic and entertainment satellite radio channels. For more information and a complete list of SIRIUS satellite radio channels, visit www.sirius.com in the United States, www.sirius-canada.ca in Canada, or call SIRIUS at 1–888–539–7474.
Satellite radio reception factors: To receive the satellite signal, your vehicle has been equipped with a satellite radio antenna located on the roof of your vehicle. The vehicle roof provides the best location for an unobstructed, open view of the sky, a requirement of a satellite radio system. Like AM/FM, there are several factors that can affect satellite radio reception performance:
Antenna obstructions: For optimal reception performance, keep the antenna clear of snow and ice build-up and keep luggage and other material as far away from the antenna as possible.
.mp3
.mp3
11
2
2
3
.mp3
.mp3
.doc
.ppt
.xls
3
.mp3
4
.mp3
5
.mp3
64
7
31
Entertainment Systems
Terrain: Hills, mountains, tall buildings, bridges, tunnels, freeway overpasses, parking garages, dense tree foliage and thunderstorms can interfere with your reception.
Station overload: When you pass a ground based broadcast repeating tower, a stronger signal may overtake a weaker one and result in an audio mute.
Unlike AM/FM audible static, you will hear an audio mute when there is a satellite radio signal interference. Your radio display may display NO SIGNAL to indicate the interference.
SIRIUS satellite radio service: SIRIUS Satellite Radio is a subscription based satellite radio service that broadcasts music, sports, news and entertainment programming. A service fee is required in order to receive SIRIUS service. Vehicles that are equipped with a factory installed SIRIUS Satellite Radio system include:
Hardware and limited subscription term, which begins on the date of sale or lease of the vehicle.
Use of online media player providing access to all SIRIUS music channels over the internet using any computer connected to the internet (U.S. customers only)
For information on extended subscription terms, contact SIRIUS at 1–888–539–7474.
Note: SIRIUS reserves the unrestricted right to change, rearrange, add or delete programming including canceling, moving or adding particular channels, and its prices, at any time, with or without notice to you. Ford Motor Company shall not be responsible for any such programming changes.
Satellite Radio Electronic Serial Number (ESN): This 12–digit Satellite Serial Number is needed to activate, modify or track your satellite radio account. You will need this number when communicating with SIRIUS. While in Satellite Radio mode, you can view this number on the radio display by pressing AUX and Preset 1 control simultaneously.
32
Entertainment Systems
Radio Display Condition Action Required
ACQUIRING Radio requires more
than two seconds to
produce audio for
the selected
channel.
SAT FAULT Internal module or
system failure
present.
INVALID CHNL Channel no longer
available.
UNSUBSCRIBED Subscription not
available for this
channel.
NO TEXT Artist information
not available.
NO TEXT Song title
information not
available.
No action required. This
message should disappear
shortly.
If this message does not clear within a short period of time, or with an ignition
key cycle, your receiver
may have a fault. See your
authorized dealer for
service.
This previously available
channel is no longer
available. Tune to another
channel. If the channel was
one of your presets, you
may choose another
channel for that preset
button.
Contact SIRIUS at
1–888–539–7474 to
subscribe to the channel or
tune to another channel.
Artist information not
available at this time on
this channel. The system is
working properly.
Song title information not
available at this time on
this channel. The system is
working properly.
33
Entertainment Systems
Radio Display Condition Action Required
NO TEXT Category
information not
available.
NO SIGNAL Loss of signal from
the SIRIUS satellite
or SIRIUS tower to
the vehicle antenna.
UPDATING Update of channel
programming in
progress.
CALL SIRIUS 1–888–539–7474

NAVIGATION SYSTEM (IF EQUIPPED)

Your vehicle may be equipped with a navigation system. Refer to the Navigation system supplement for further information.
Satellite service has
been deactivated by
SIRIUS Satellite
Radio.
Category information not
available at this time on
this channel. The system is
working properly.
You are in a location that is
blocking the SIRIUS signal
(i.e., tunnel, under an
overpass, dense foliage,
etc). The system is working
properly. When you move
into an open area, the
signal should return.
No action required. The
process may take up to
three minutes. Call SIRIUS at
1–888–539–7474 to
re-activate or resolve
subscription issues.

SYNC

Your vehicle is equipped with SYNC, a hands-free communications and entertainment system with special phone and media features. For more information, please refer to the SYNCsupplement or to the SYNC section in the Navigation system supplement (if equipped).
34

Climate Controls

DUAL ZONE AUTOMATIC TEMPERATURE CONTROL WITH HEATED AND COOLED SEATS

Temperature conversion: To switch between Fahrenheit and Celsius, refer to Message center in the Driver Controls chapter.
1. and de-mister vents. Can be used to clear the windshield of fog and thin ice. The system will automatically provide outside air to reduce window fogging. Press this button again to return to the previous air flow selection.
2. vents, floor vents and rear seat floor vents. The system will automatically
provide outside air to reduce window fogging.
3.
4. rear seat floor vents and de-mister vents.
: Distributes outside air through the windshield defroster vents
To return to full automatic control, press AUTO.
: Distributes air through the windshield defroster vents, de-mister
To return to full automatic control, press AUTO.
: Distributes air through the floor vents, rear seat floor vents.
To return to full automatic control, press AUTO.
: Distributes air through the instrument panel vents, floor vents,
35
Climate Controls
To return to full automatic control, press AUTO.
5. : Distributes air through the instrument panel vents.
To return to full automatic control, press AUTO.
Passenger heated seat: Press to control the passenger heated
6. seat. Refer to Heated and cooled seats in the Seating and Safety Restraints chapter for more information.
7. PASS TEMP: Press to activate separate passenger temperature control and turn the dial to increase/decrease the airflow temperature on the passenger side of the vehicle.
8. seat. Refer to Heated and cooled seats in the Seating and Safety Restraints chapter for more information.
9. the vehicle. Recirculated air may reduce the amount of time needed to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle.
10. A/C: Press to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance and efficiency. A/C
engages automatically in MAX A/C, (floor/defrost).
11. AUTO / + – (Fan Speed Control): Press to engage automatic temperature control. Select the desired temperature using the temperature control. The system will automatically determine fan speed, airflow location, A/C on or off, and outside or recirculated air, to heat or cool the vehicle to reach the desired temperature.
Passenger cooled seat: Press to control the passenger cooled
Recirculated air: Press to activate/deactivate air recirculation in
Recirculated air engages automatically when MAX A/C is selected or can be engaged manually in any airflow mode except When the ignition switch is turned off and back on, the climate system will return to the recirculated air mode only if the A/C button LED is illuminated and the air distribution selection is either
or
Recirculation may turn off automatically in all airflow modes, except MAX A/C.
For manual fan speed control, turn the knob to adjust fan speed. To return to full automatic control, Press AUTO.
(panel/floor).
(defrost) and
(defrost).
(panel)
36
Climate Controls
12. MAX A/C: Distributes recirculated air through the instrument panel vents to cool the vehicle. This re-cooling of the interior air is more economical and efficient. Recirculated air may also help reduce undesirable odors from entering the vehicle. Press the MAX A/C button again for normal A/C operation.
R
13. the rear window defroster and heated outside mirrors. Refer to Rear window defroster later in this chapter and Heated outside mirrors in the Driver Controls chapter for more information.
14. Refer to Heated and cooled seats in the Seating and Safety Restraints chapter for more information.
15. climate control system. When the system is off, outside air is prevented from entering the vehicle.
16. Refer to Heated and cooled seats in the Seating and Safety Restraints chapter for more information.
Rear defroster/Heated mirrors: Press to activate/deactivate
Driver cooled seat: Press to control the driver cooled seat.
Power/Cabin temperature: Press to activate/deactivate the
Turn the dial to increase/decrease the airflow temperature on the driver side of the vehicle. This control also adjusts the passenger side temperature when PASS TEMP is off.
Driver heated seat: Press to control the driver heated seat.
37
Climate Controls

DUAL ZONE AUTOMATIC TEMPERATURE CONTROL WITH HEATED AND COOLED SEATS (NAVIGATION SYSTEM BASED–IF EQUIPPED)

A/C
Temperature conversion: To switch between Fahrenheit and Celsius, refer to Message center in the Driver Controls chapter.
1. Climate: Press to control the climate control system through the touch display screen. See Touchscreen functions later in this section.
2. Passenger temperature: Press to activate separate passenger temperature control and turn the knob to increase/decrease the air temperature on the passenger side of the vehicle.
Passenger heated seat: Press to heat the passenger heated seat.
3. Refer to Heated and cooled seats in the Seating and Safety Restraints chapter for more information.
4. A/C: Press to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance and efficiency. A/C
engages automatically in MAX A/C, (floor/defrost).
38
(defrost) and
Climate Controls
5.RRear defroster: Press to activate/deactivate the rear window defroster. Refer to Rear window defroster later in this chapter for more information. This button will also activate the heated mirrors.
6. vents and de-mister vents. Can be used to clear the windshield of fog
and thin ice. The system will automatically provide outside air to reduce window fogging. Press this button again to return to the previous air flow selection.
7. When the system is off, outside air is prevented from entering the
vehicle. The climate status in the touchscreen will also be turned off.
8. Heated and cooled seats in the Seating and Safety Restraints chapter
for more information.
9. Driver temperature: Press to increase/decrease the air temperature on the driver side of the vehicle. This control also adjusts the passenger side temperature when dual zone operation is disengaged.
10. to Heated and cooled seats in the Seating and Safety Restraints chapter for more information.
11. AUTO: Press to engage full automatic operation. Select the desired temperature using the temperature control. The system will automatically determine fan speed, airflow location, A/C on or off, and outside or recirculated air, to heat or cool the vehicle to reach the desired temperature.
12. – fan speed.
13. in the vehicle. Recirculated air may reduce the amount of time needed to cool down the interior of the vehicle when used with A/C and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculated air engages automatically when MAX A/C is selected or can be engaged manually in any airflow mode except
14. seat. Refer to Heated and cooled seats in the Seating and Safety Restraints chapter for more information.
Defrost: Distributes outside air through the windshield defroster
Power: Press to activate/deactivate the climate control system.
Driver heated seat: Press to heat the driver heated seat. Refer to
Driver cooled seat: Press to cool the driver cooled seat. Refer
+ Fan speed control: Press (- / +) to decrease/increase the
Recirculated air: Press to activate/deactivate air recirculation
(defrost).
Recirculation may turn off automatically in all airflow selections
except MAX A/C.
Passenger cooled seat: Press to cool the passenger cooled
39
Climate Controls

TOUCHSCREEN FUNCTIONS

Temperature– Press the the screen to increase/decrease the airflow temperature for the driver
side of the vehicle. This control also adjusts the passenger side temperature when dual zone operation is disengaged.
Press the increase/decrease the airflow temperature for the passenger side of the
vehicle.
- Distributes air through the instrument panel vents.
rear seat floor vents and de-mister vents.
Fan Speed– Press + to increase the fan speed and – to decrease fan speed.
Dual– Press to activate/deactivate separate driver and passenger temperature controls.
Max A/C– Distributes recirculated air through the instrument panel vents to cool the vehicle. This re-cooling of the interior air is more economical and efficient. Recirculated air may also help reduce undesirable odors from entering the vehicle. Press MAX A/C again for normal operation.
40
- Distributes air through the floor vents, rear seat floor vents.
vents, floor vents and rear seat floor vents. The system will automatically provide outside air to reduce window fogging.
To return to full automatic control, press AUTO on the main climate control bezel.
up and down arrows on the right side of the screen to
- Distributes air through the instrument panel vents, floor vents,
- Distributes air through the windshield defroster vents, de-mister
up and down arrows on the left side of
Climate Controls

VOICE COMMANDS IN CLIMATE MODE

Please refer to the Voice commands in climate mode section of the Navigation system supplement for more information on using voice
commands with the climate control system.

Operating tips

To reduce fog build up on the windshield during humid weather, place the air flow selector in the
To reduce humidity build up inside the vehicle: do not drive with the system off or with recirculated air engaged.
Do not put objects under the front seats that will interfere with the airflow to the back seats.
Remove any snow, ice or leaves from the air intake area at the base of the windshield.
For maximum cooling performance (MAX A/C):
During extreme high ambient temperatures when idling stationary for extended periods of time in gear, it is recommended to run the A/C in the MAX A/C position, reduce blower fan speed from the highest setting and put the vehicle’s transmission into the PARK gear position (automatic transmission only) to continue to receive cool air from your A/C system.
In AUTO mode, press AUTO control and set to desired temperature.
In manual override mode, select air
highest speed initially, then adjust to maintain passenger comfort.
To improve the A/C cool down, drive with the windows slightly open for 2–3 minutes after starting the vehicle or until the vehicle has “aired out.”
In extremely cold temperatures, to maximize overall heater performance it is suggested to not operate the auxiliary system (if equipped) until the engine temperature gauge crosses into the normal operating range.
and set the temperature to 60°F (16°C). Set the fan to the
position.
or , A/C and recirculated
41
Climate Controls
To aid in side window defogging/demisting in cold weather:
1. Select .
2. Select A/C.
3. Adjust the temperature control to maintain comfort.
4. Set the fan to the highest speed.
5. Direct the outer instrument panel vents toward the side windows.

REAR WINDOW DEFROSTER

R
The rear defroster control is located on the climate control panel and works to clear the rear window of fog and thin ice.
The ignition must be on to operate the rear window defroster. The rear defroster turns off automatically after 10 minutes or when the
ignition is turned off. To manually turn off the defroster before 10 minutes have passed, press the control again.
Do not use razor blades or other sharp objects to clean the inside of the rear window or to remove decals from the inside of the rear window. This may cause damage to the heated grid lines and will not be covered by your warranty.
42

Lights

HEADLAMP CONTROL

Turns the lamps off.
Turns on the parking lamps, instrument panel lamps, license plate lamps and tail lamps.
Turns the low beam headlamps
on.

Adaptive headlamps (if equipped)

The headlamp beams move in the same direction as the steering wheel to provide more visibility when driving around curves.
Note: The system has a power-up movement check feature. When the vehicle is started, the lamps track to the right, then back to center to alert the driver that the system is working properly. There is a delay of two to five seconds before the adaptive headlamp system will operate when the vehicle is driven, as the system is inactive below 3 mph (5 km/h).

Autolamp control

The autolamp system provides light sensitive automatic on-off control of the exterior lights. When selected, the automatic high beam system is active, if equipped and if enabled. See Auto high beams later in this chapter.
To turn autolamps on, rotate the
control counterclockwise to
To turn autolamps off, rotate the
control clockwise to off.
.
43
Lights
The autolamp system also keeps the lights on for a predetermined amount of time after the ignition is turned off. You can change the amount of time the lamps stay on by using the programming procedure that follows:
Note: With autolamps, your vehicle has a headlamps on with windshield wipers feature. If the windshield wipers are turned on (for a brief period of time), the exterior lamps will turn on with the headlamp control in the autolamp position.
Autolamps - Programmable exit delay
Programmable exit delay allows the length of the autolamp exit delay to be changed.
To program the auto lamp exit time delay:
1. Start with the ignition off and the headlamp control in the autolamp position.
2. Turn the headlamp switch to off.
3. Turn the ignition on and then off.
4. Turn the headlamp switch to the autolamp position. The headlamps will turn on.
5. Wait the desired amount of time for the exit delay you want (up to three minutes), then turn the headlamps off.

Fog lamp control

With the ignition on, the fog lamps can be turned on when the headlamp control is pulled toward you and is in any of the following positions:
Parking lamps
Low beams
Autolamps (when active)
The fog lamp indicator light will illuminate when the fog lamps have been turned on. The fog lamps will not operate when the high beams are active.
44
Lights

High beams

Push the lever toward the instrument panel to activate. Pull the lever towards you to deactivate.
F
F
O

Auto high beams (if equipped)

During nighttime driving, the automatic high beam system automatically turns on your high beams if it is dark enough and no other traffic is present. When it detects an approaching vehicle’s headlights or a preceding vehicle’s tail lamps, the system turns off the high beams (low beams remain on) before they distract other drivers.
If the vehicle is equipped with automatic high beams, the high beam switch will operate differently depending on the status of the automatic high beam system. Each of the possible operating scenarios are detailed below:
Scenario 1:
Conditions - The automatic high beam system is set to ON in the message center. The headlamp switch is in automatic high beam system has turned the high beams on. Operation - The high beam switch will not perform any function.
Scenario 2:
Conditions - The automatic high beam system is set to ON in the message center. The headlamp switch is in automatic high beam system has not turned the high beams on. Operation - The high beam switch can be used to turn the high beams on. They will then remain on until the switch has been returned to the neutral position and the auto high beam system has turned the high beams off.
Scenario 3:
Conditions - The automatic high beam system is set to ON in the message center. The headlamp switch is in
or
(on).
(auto lamps). The
(auto lamps). The
(off), (park lamps),
45
Lights
Operation - The high beam switch can be used to turn the high beams on and off.
Scenario 4:
Conditions - The automatic high beam system is set to OFF in the message center. The headlamp switch is in
lamps),
Operation - The high beam switch can be used to turn the high beams on and off.
Enabling/disabling auto high beams
Enabling/disabling and/or checking the status of the automatic high beam system can be performed using the message center. See Message center in the Instrument cluster chapter.
Activating high beams
If there is no traffic in front of the vehicle, the high beams will come on automatically and the the following are true:
The headlamp control is in auto
lamp
The ambient light level is low
enough that high beams are needed.
Vehicle speed must be greater
than 32 mph (51 km/h).
Severe weather is not detected.
Deactivating high beams
The automatic high beams will deactivate if any of the following events occur:
An approaching vehicle’s headlights or a preceding vehicle’s tail lamps
are detected.
The headlamp control is moved out of the autolamps position.
The vehicle speed falls below 27 mph (43 km/h).
The ambient light level is high enough that high beams are not
needed.
Severe rain, snow or fog is detected. 46
(off), (park lamps), or (on).
light will display in the instrument panel if
mode.
(auto
Lights
The camera is blocked.
Note: Activating the multi-function lever will put the headlamps in manual high beam mode (constant or flash-to-pass) until the lever is returned to the neutral position. To manually override the auto high beam and go to low beam, the headlamp control must be taken out of the in low traffic situations, use of fog lamps is recommended.
Setting auto high beam sensitivity
The automatic high beam system has two sensitivity settings. The default setting is near. If you would like the high beams to turn off when traffic is further away, the sensitivity setting can be changed to far. The procedure is as follows:
Preconditions:
Vehicle is at a stop.
Ignition is in the on position.
The headlamp control is in the
High-beams are off.
Programming Sequence:
1. Turn the headlamp control from times within two seconds, ending in
2. Cycle flash-to-pass three times using the multi-function lever.
3. The high beams will flash momentarily to confirm that the sensitivity setting has been changed.
Note: The programming sequence will end if either of the following occur:
The vehicle speed is not zero.
The battery voltage is out of normal range.
Troubleshooting
If the automatic high beam camera becomes blocked, the high beams will not come on automatically. They will only activate when they are manually turned on with the multi-function lever.
Typical road dust, dirt and water spots will not affect the automatic high beam system’s performance.
(autolamp) position. For severe fog on freeways, or severe fog
position.
(On) to (autolamp) three
(On).
47
Lights
For significant blockages (e.g. bird dropping, bug splatter, snow, or ice), the automatic high beam system uses a blocked sensor computer program. If it detects a blockage, it will be monitored for two minutes. If no changes are observed, the system will go into low beam mode until the blockage is cleared.
If it appears that automatic control of the high beams is not functioning, check the windshield in front of the camera for blockage.

Flash to pass

Pull toward you to activate and release to deactivate.

Daytime running lamps (DRL) (if equipped)

To activate:
the ignition must be in the on position,
the headlamp control must be in the off, autolamps or parking lamp
position and
the transmission must be out of the P (Park) position.
WARNING: Always remember to turn on your headlamps at
dusk or during inclement weather. The Daytime Running Lamp (DRL) system does not activate the tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.
48
Lights

PANEL DIMMER CONTROL

Use to adjust the brightness of the instrument panel and all applicable switches in the vehicle during headlamp and parking lamp operation.
Move the control to the full upright position, past detent, to turn on the interior lamps. Move the control to the full downward position, past detent, to turn off the interior lights. The instrument panel/switch lighting remains lit.
Note: If the battery is disconnected, discharged, or a new battery is installed, the dimmer switch requires re-calibration. Rotate the dimmer switch from the full dim position to the full dome/on position to reset. This will ensure that your displays are visible under all lighting conditions.

AIMING THE HEADLAMPS

The headlamps on your vehicle are properly aimed at the assembly plant. If your vehicle has been in an accident, the alignment of your headlamps should be checked by your authorized dealer.

Vertical aim adjustment

1. Park the vehicle directly in front of a wall or screen on a level surface, approximately 25 feet (7.6 meters) away.
(1) 8 feet (2.4 meters)
(2) Center height of lamp to
ground
(3) 25 feet (7.6 meters)
(4) Horizontal reference line
2. Measure the height of the headlamp bulb center from the ground and mark an 8 foot (2.4 meter) horizontal reference line on the vertical wall or screen at this height (a piece of masking tape works well).
3. Turn on the low beam headlamps to illuminate the wall or screen and open the hood.
49
Lights
To see a clearer light pattern for adjusting, you may want to block the light from one headlamp while adjusting the other.
4. On the wall or screen you will observe an area of high intensity light. The top of the high intensity area should touch the horizontal reference line, if not, the beam will need to be adjusted using the next step.
5. Locate the vertical adjuster on each headlamp. Using a Phillips #2 screwdriver, turn the adjuster either clockwise (to adjust down) or counterclockwise (to adjust up). The horizontal edge of the brighter light should touch the horizontal reference line.
6. Close the hood and turn off the lamps.
HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS NON-ADJUSTABLE.

TURN SIGNAL CONTROL

Push down to activate the left turn signal.
Push up to activate the right turn signal.
50
Lights

INTERIOR LAMPS

Second row map lamps

The second row lamps are located at the rear of the headliner above each outboard seat.
The second row lamps light when:
any door is opened,
the top of the instrument panel
dimmer switch is pressed until the courtesy lamps come on, and
any of the remote entry controls are pressed and the ignition is off.
Press the lamp lens to activate the reading lamps.

BULB REPLACEMENT

Lamp assembly condensation

Exterior lamps are vented to accommodate normal changes in pressure. Condensation can be a natural by-product of this design. When moist air enters the lamp assembly through the vents, there is a possibility that condensation can occur when the temperature is cold. When normal condensation occurs, a thin film of mist can form on the interior of the lens. The thin mist eventually clears and exits through the vents during normal operation. Clearing time may take as long as 48 hours under dry weather conditions.
Examples of acceptable condensation are:
Presence of thin mist (no streaks, drip marks or droplets)
Fine mist covers less than 50% of the lens
Examples of unacceptable moisture (usually caused by a lamp water leak) are:
Water puddle inside the lamp
Large water droplets, drip marks or streaks present on the interior of
the lens
Take your vehicle to dealer for service if any of the above conditions of unacceptable moisture are present.
51
Lights

Using the right bulbs

Replacement bulbs are specified in the chart below. Headlamp bulbs must be marked with an authorized “D.O.T.” for North America and an “E” for Europe to ensure lamp performance, light brightness and pattern and safe visibility. The correct bulbs will not damage the lamp assembly or void the lamp assembly warranty and will provide quality bulb burn time.
Function Number of bulbs
Headlamp high beam/ low beam
Front park/turn/ sidemarker lamp
Backup lamp 2 921 * Sidemarker lamp (rear) 2 LED * Tail lamp 2 LED Turn signal 4 HPC 16WY License plate lamp 2 168 * High-mount brake lamp 1 LED Fog lamp (if equipped) 2 H11 Map lamp 2 12V6W Dome/reading lamps 3 578 To replace all instrument panel lights, see your authorized dealer. * To replace these lamps, see your authorized dealer.

Replacing interior bulbs

Check the operation of all bulbs frequently.

Replacing exterior bulbs

Check the operation of all bulbs frequently.
Replacing HID headlamp bulbs
The headlamps on your vehicle use a “high intensity discharge” source. These lamps operate at a high voltage. When the bulb is burned out, the bulb assembly must be replaced by your authorized dealer.
2 D3S
2 3457
Trade
number
52
Lights
Replacing front parking lamp/turn signal/sidemarker bulbs
1. Make sure headlamp switch is in the off position, then open the hood.
2. Reach in behind the headlamp assembly to access the bulb sockets
and connectors.
3. Locate the parking/turn signal
lamp electrical connector and remove it by pulling it straight off.
4. Remove the bulb socket by
turning it counterclockwise and pulling it straight out.
5. To remove the bulb, pull it
straight out of the bulb socket.
Install the new bulb(s) in reverse order.
Replacing rear brake/tail/turn and sidemarker lamp bulbs
The brake/tail/turn/side marker lamp and backup bulbs are located in the tail lamp assembly. Follow the same steps to replace the bulbs.
Note: Your vehicle is equipped with a tail lamp assembly containing integral multiple light emitting diodes (LED) for the stop/tail and sidemarker functions. If replacement is required, see your authorized dealer.
(1) Turn signal bulbs
(2) Backup lamp
(3) Stop/tail and sidemarker
bulbs (LED)
1. Make sure the headlamp switch is
in the off position and open the trunk.
2. Remove the cargo net fastener (if
equipped) and carefully pull the carpet away to expose the backside of the tail lamp assembly.
3. Remove the nut and washer assemblies, then pull the lamp assembly
away from the vehicle.
53
Lights
4. Remove the bulb socket by rotating it counterclockwise, then pulling it
out of the lamp assembly.
5. Pull the bulb straight from the socket.
Note: The turn bulb is a socket/bulb assembly and the bulb cannot be removed separately.
Install the new bulb(s) in reverse order.
Replacing high-mount brake lamp bulbs
Your vehicle is equipped with an LED center high-mount stop lamp. It is designed to last the life of the vehicle. If replacement is required, it is recommended that you see your authorized dealer.
Replacing license plate lamp bulbs
1. Make sure the headlamp switch is
in the off position.
2. Remove the two screws from the
license plate lamp assembly.
3. Remove bulb socket by turning
counterclockwise.
4. Carefully pull the bulb out from
the socket. Install new bulb(s) in reverse order.
Replacing fog lamp bulbs
1. Make sure the fog lamp switch is in the off position.
2. Rotate the harness/bulb assembly
counterclockwise, to remove from the fog lamp.
3. Carefully disconnect the bulb
from the harness assembly via the two snap clips.
Install the new bulb in reverse order.
54

Driver Controls

MULTI-FUNCTION LEVER

Windshield wiper: Rotate the end of the control away from you to increase the speed of the wipers; rotate toward you to decrease the speed of the wipers.
Rain sensing wipers (if equipped): The rain sensing wipers
will automatically activate when moisture is present on the windshield and the multi-function switch is set to one of five auto/interval moisture sensitivity settings. Rotate the end of the control toward the windshield to increase the sensitivity. The speed of the rain sensitive wipers will vary based on the amount of moisture detected on the windshield and the auto/interval setting. The wipers will continue to wipe as long as the presence of moisture is detected on the windshield. More or less wiping may occur depending on humidity, mist or light rain, or road spray.
Keep the outside of the windshield clean, especially the area around the rear view mirror where the sensor is located or rain sensor performance may be affected.
Note: During winter driving conditions with ice, snow or a salty road mist, inconsistent wiping or smearing may occur. In these conditions, you can lower the sensitivity to reduce the amount of smearing or override the feature by selecting low- or high-speed wiping or turning the wiper system off.
Note: The rain sensing wiper feature must be turned off before entering a car wash.
Windshield washer: Push the end of the stalk:
briefly: causes a single swipe of the wipers without washer fluid.
a quick push and hold: the wipers will swipe three times with washer fluid.
a long push and hold: the wipers and washer fluid will be activated for up to ten seconds.
55
Driver Controls
Courtesy wipe feature: One extra wipe will occur a few seconds after washing the front window to clear any excess washer fluid remaining on the windshield.
Note: Do not operate the washer when the washer reservoir is empty. This may cause the washer pump to overheat. Check the washer fluid level frequently. Do not operate the wipers when the windshield is dry. This may scratch the glass, damage the wiper blades and cause the wiper motor to burn out. Before operating the wiper on a dry windshield, always use the windshield washer. In freezing weather, be sure the wiper blades are not frozen to the windshield before operating the wipers.

Windshield wiper rainlamp feature

When the windshield wipers are turned on during daylight, and the headlamp control is in the autolamp position, the exterior lamps will turn on after a brief delay and will remain on until the wipers are turned off.

POWER TILT/TELESCOPE STEERING COLUMN

The steering column can be adjusted manually by moving the four-way rocker adjustment control located below the turn signal/wiper control stalk. Hold the control to adjust.
The telescope function is adjusted by moving the control toward the driver to telescope out, and toward the instrument panel to telescope in.
The tilt function is adjusted by moving the control up or down.
During easy exit, when you remove the key, the column will move to the full in and up position. When the key is inserted into the ignition, the column will return to the previous setting.
56
WARNING: Never adjust the steering wheel when the vehicle is moving.
Driver Controls

ILLUMINATED VISOR MIRROR

Lift the mirror cover to turn on the visor mirror lamp.
Slide on rod feature
Rotate the visor towards the side window and extend it rearward for additional sunlight coverage.
Note: To stow the visor back into the headliner, visor must be retracted before moving it back toward the windshield.

OVERHEAD CONSOLE

The appearance of your vehicle’s overhead console will vary according to your option package.

Storage compartment

The storage compartment may be used to store a pair of sunglasses. Press the release area on the rear edge of the bin door to open the storage compartment. The door will open to the full open position.
Single bin compartment
57
Driver Controls
Double bin compartment

ELECTRONIC COMPASS

The compass heading is displayed as one of N, NE, E, SE, S, SW, W and NW in the Center Integrated Display (CID).
The compass reading may be affected when you drive near large buildings, bridges, power lines and powerful broadcast antenna. Magnetic or metallic objects placed in, on or near the vehicle may also affect compass accuracy.
Usually, when something affects the compass readings, the compass will correct itself after a few days of operating your vehicle in normal conditions. If the compass still appears to be inaccurate, a manual calibration may be necessary. Refer to Compass calibration
adjustment.
Most geographic areas (zones) have a magnetic north compass point that varies slightly from the northerly direction on maps. This variation is four degrees between adjacent zones and will become noticeable as the vehicle crosses multiple zones. A correct zone setting will eliminate this error. Refer to Compass zone adjustment.
58

Compass zone adjustment

1. Determine which magnetic zone
you are in for your geographic location by referring to the zone map.
2. Turn ignition to the on position.
3. Press and hold the 7 and 9 radio
preset buttons together for approximately five seconds until ZONE XX appears in the CID.
4. Press and release the 7 and 9
radio preset buttons together, repeatedly until ZONE XX changes to the correct zone (1–15) in the CID.
5. The direction will display after
the buttons are released. The zone is now updated.
Driver Controls
123
4
5
6 7 8 9 1011
15
14 13
12

Compass calibration adjustment

Perform compass calibration in an open area free from steel structures and high voltage lines. For optimum calibration, turn off all electrical accessories (heater/air conditioning, wipers, etc.) and make sure all vehicle doors are shut.
1. Start the vehicle.
59
Driver Controls
2. To calibrate, press and hold the 7
and 9 radio preset buttons together for approximately 10 seconds until CAL appears. Release the buttons.
3. Slowly drive the vehicle in a
circle (less than 3 mph [5 km/h]) until the CAL display changes to the direction value (N, S, E, W, etc.). It may take up to five circles to complete calibration.
4. The compass is now calibrated.

CENTER CONSOLE

Your vehicle may be equipped with a variety of console features. These include:
1. Cupholders
2. Driver and passenger arm rests
that slide forward or rearward and also opens the utility compartment that has an audio input jack, USB port and power point inside.
Note: Move the arm rests to the rearward position to open the utility compartment.
3. Rear power point, heated seat
switches and air vents to the rear seating positions.
4. Power point door and a power rear sunshade control (if equipped).
WARNING: Use only soft cups in the cupholder. Hard objects can injure you in a collision.

AUXILIARY POWER POINT (12VDC)

Power outlets are designed for accessory plugs only. Do not insert any other object in the power outlet as this will damage the outlet and blow the fuse. Do not hang any type of accessory or accessory bracket from the plug. Improper use of the power outlet can cause damage not covered by your warranty.
60
Driver Controls
The auxiliary power points are located on the center console and inside the utility compartment.
A third rear auxiliary power point is located on the rear of the center console. The power point is accessible from the rear seat.
Do not use the power point for operating the cigarette lighter element (if equipped).
To prevent the fuse from being blown, do not use the power point(s) over the vehicle capacity of 12 VDC/180W. If the power point or cigar lighter socket is not working, a fuse may have blown. Refer to Fuses and relays in the Roadside Emergencies chapter for information on checking and replacing fuses.
To have full capacity usage of your power point, the engine is required to be running to avoid unintentional discharge of the battery. To prevent the battery from being discharged:
do not use the power point longer than necessary when the engine is not running,
do not leave battery chargers, video game adapters, computers and other devices plugged in overnight or when the vehicle is parked for extended periods.
Always keep the power point caps closed when not being used.
Cigar/Cigarette lighter (if equipped)
Do not plug optional electrical accessories into the cigarette lighter socket.
Do not hold the lighter in with your hand while it is heating, this will damage the lighter element and socket. The lighter will be released from its heating position when it is ready to be used.
Note: Improper use of the lighter can cause damage not covered by your warranty, and can result in fire or serious injury.
61
Driver Controls

POWER WINDOWS

WARNING: Do not leave children unattended in the vehicle and do not let children play with the power windows. They may
seriously injure themselves.
WARNING: When closing the power windows, you should verify they are free of obstructions and ensure that children and/or
pets are not in the proximity of the window openings.
Press and pull the switches to open and close windows.
Press down (to the first detent) and hold the switch to open.
Pull up (to the first detent) and hold the switch to close.
Note: You can open and close the vehicle’s windows and moon roof (if equipped) by using the door key in the driver door key cylinder or the control on the remote transmitter. Refer to the Locks and Security chapter for the Opening and closing all windows and moon roof feature.
Rear Window Buffeting: When one or both of the rear windows are open, the vehicle may demonstrate a wind throb or buffeting noise. This noise can be alleviated by lowering a front window approximately two to three inches.
Express down (One Touch Down, all windows)
Allows the windows to open fully without holding the control down. Press the switch completely down to the second detent and release quickly. The window will open fully. Momentarily press the switch to any position to stop the window operation.
A
U
T
A
U
T
O
O
62
Driver Controls
Express Up (One Touch Up, all windows)
Allows the windows to close fully without holding the control up. Pull the switch completely up to the second detent and release quickly. The window will close fully. Momentarily press the switch to any position to stop the window operation.

Bounce-back

When an obstacle has been detected in the window opening as the window is moving upward, the window will automatically reverse direction and move down. This is known as “bounce-back”. If the ignition is turned off (without accessory delay being active) during bounce-back, the window will move down until the bounce-back position is reached.

Security override

To override a bounce-back condition, within two seconds after the window reaches the bounce-back position, pull and hold the switch up and the window will travel up with no bounce-back or pinch protection. If the switch is released before the window is fully closed, the window will stop. For example, this can be used to overcome the resistance of ice on the window or seals.

Window lock

The window lock feature allows only the driver to operate the power windows.
To lock out all the window controls (except for the driver’s) press the right side of the control. Press the left side to restore the window controls.

Accessory delay

With accessory delay, the radio, power windows, and moon roof (if equipped) operate for up to 10 minutes after the ignition switch is turned from on to off or until one of the front doors are opened.
63
Driver Controls

POWER REAR SUNSHADE (IF EQUIPPED)

Your vehicle may be equipped with a power rear sunshade that covers the rear window of your vehicle. The control is located in the center console access bin next to the power point.
Press the control to move the shade up or down.
The power sunshade is equipped with an automatic, one-touch, auto down feature. To stop motion at any time during the auto down operation, press the control a second time. To activate the automatic, one-touch, auto down feature, press the control and release quickly.

INTERIOR MIRROR

The interior rear view mirror has two pivot points on the support arm which lets you adjust the mirror up or down and from side to side.
WARNING: Do not adjust the mirror while the vehicle is in motion.

Automatic dimming interior rear view mirror

Your vehicle is equipped with an interior rear view mirror and a driver’s side exterior mirror that have auto-dimming function. The electronic day/night mirrors will change from the normal (high reflective) state to the non-glare (darkened) state when bright lights (glare) reach the interior mirror. When the interior mirror detects bright light from behind the vehicle, the interior rear view mirror and the driver’s side exterior mirror will automatically adjust (darken) to minimize glare.
The mirrors will automatically return to the normal state whenever the vehicle is placed in R (Reverse) to ensure a bright clear view when backing up.
Do not block the sensors on the front and back of the interior rear view mirror since this may impair proper mirror performance.
64
Driver Controls
Do not clean the housing or glass of any mirror with harsh abrasives, fuel or other petroleum-based cleaning products.

EXTERIOR MIRRORS

Power side view mirrors

WARNING: Do not adjust the mirror while the vehicle is in motion.
To adjust your mirrors:
1. Rotate the control clockwise to
adjust the right mirror and rotate the control counterclockwise to adjust the left mirror.
2. Move the control in the direction
you wish to tilt the mirror.
3. Return to the center position to lock mirrors in place.
Automatic dimming feature
The driver’s side view mirror has an auto-dimming function. For more information, refer to Automatic dimming interior rear view mirror in this chapter.

Heated outside mirrors

Both mirrors are heated automatically to remove ice, mist and fog when the rear window defrost is activated.
Note: With the Auto dimming feature, the mirror glass is thicker and will take longer to defrost.
Do not remove ice from the mirrors with a scraper or attempt to readjust the mirror glass if it is frozen in place. These actions could cause damage to the glass and mirrors.
Do not clean the housing or glass of any mirror with harsh abrasives, fuel or other petroleum-based cleaning products.
65
Driver Controls

SPEED CONTROL

With speed control set, you can maintain a set speed without keeping your foot on the accelerator pedal.
WARNING: Do not use the speed control in heavy traffic or on roads that are winding, slippery or unpaved.

Setting speed control

The controls for using your speed control are located on the steering wheel for your convenience.
1. Press the ON control and release
it.
2. Accelerate to the desired speed.
3. Press the SET + or SET - control
and release it.
4. Take your foot off the accelerator
pedal.
5. The indicator
instrument cluster will turn on.
light on the
Note:
Vehicle speed may vary momentarily when driving up and down a steep hill.
If the vehicle speed increases above the set speed on a downhill, you may want to apply the brakes to reduce the speed.
If the vehicle speed decreases more than 10 mph (16 km/h) below your set speed on an uphill, your speed control will disengage.
Disengaging speed control
To disengage the speed control:
Press the brake pedal.
66
Driver Controls
Disengaging the speed control will not erase previous set speed.
Resuming a set speed
Press the RESUME control and release it. This will automatically return the vehicle to the previously set speed.
Increasing speed while using speed control
There are two ways to set a higher speed:
Press and hold the SET + control until you get to the desired speed, then release the control. You can also use the SET + control to operate the Tap-Up function. Press and release this control to increase the vehicle set speed in small amounts by 1 mph (1.6 km/h).
Use the accelerator pedal to get to the desired speed. When the vehicle reaches that speed press and release the SET + control.
Reducing speed while using speed control
There are two ways to reduce a set speed:
Press and hold the SET - control until you get to the desired speed, then release the control. You can also use the SET ­control to operate the Tap-Down function. Press and release this control to decrease the vehicle set speed in small amounts by 1 mph (1.6 km/h).
67
Driver Controls
Press the brake pedal until the desired vehicle speed is reached and press the SET + control.
Turning off speed control
There are two ways to turn off the speed control:
Press the brake pedal. This will not erase your vehicle’s previously set speed.
Press the speed control OFF control.
Note: When you turn off the speed control or the ignition, your speed control set speed memory is erased.

ADAPTIVE CRUISE CONTROL (ACC) (IF EQUIPPED)

Adaptive cruise control is much like speed control, only this system is designed to automatically adjust your speed to maintain a proper distance between you and the vehicle in front of you in the same lane. The driver can select from one of three GAP settings, the controls are located on the steering wheel.
At startup, the system defaults to the comfort GAP <-----> setting. Once activated, the driver can deactivate the system at any time by either pressing the brake pedal or pressing the steering wheel ON/OFF control. In addition, the driver can temporarily increase the vehicle speed above the current speed by manually pressing on the accelerator pedal.
WARNING: Always pay close attention to changing road
conditions, especially when using Adaptive Cruise Control. Adaptive Cruise Control cannot replace attentive driving. Failing to follow any of the warnings below or failing to pay attention to the road may result in a collision, serious injury or death.
68
Driver Controls
WARNING: Adaptive cruise control is not a collision warning or
avoidance system. Additionally, adaptive cruise control will not detect:
Stationary or slow moving vehicles below 6 mph (10 km/h).
Pedestrians or objects in the roadway.
Oncoming vehicles in the same lane.
WARNING: Do not use the adaptive cruise control when
entering or leaving a highway, in heavy traffic or on roads that are winding, slippery or unpaved.
WARNING: Do not use in poor visibility, specifically fog, rain,
spray or snow.

Setting adaptive cruise control

Note: It is the drivers responsibility to stay alert, drive safely and be in control of the vehicle at all times.
The controls for using your cruise control are located on the steering wheel.
1. Press and release the ON control. The message center will display CRUISE ON RADAR READY.
2. Accelerate to the desired speed.
69
Driver Controls
3. Press and release the SET + control. The vehicle speed will be stored in the memory and the message center will display SET XXX MPH (your desired speed).
4. Take your foot off the accelerator pedal.
5. The green light on the instrument cluster will illuminate if there are no vehicles detected in front of you, while the yellow instrument cluster will illuminate if there is a vehicle detected in front of you.
Following a vehicle
WARNING: When following a vehicle in front of you, the vehicle
will not decelerate automatically to a stop, nor will the vehicle always decelerate quickly enough to avoid a collision without driver intervention. Always apply the brakes when necessary. Failing to do so may result in a collision, serious injury or death.
When a vehicle ahead of you enters the same lane or a slower vehicle is ahead in the same lane, the vehicle speed will adjust automatically to maintain a preset gap distance. The distance setting is adjustable, refer to Setting the gap distance in this section.
The yellow in the instrument cluster will be illuminated and the message center will temporarily display a preset GAP <--->.
The vehicle will maintain a constant distance between the vehicle ahead until:
The vehicle in front of you accelerates to a speed above the set speed.
The vehicle in front of you moves out of your lane or out of view.
The vehicle speed falls below 18 mph (30 km/h).
A new gap distance is set.
cruise indicator
ACC indicator light on the
ACC indicator light
70
Driver Controls
The vehicle brakes will be automatically applied to slow the vehicle to maintain a safe distance between the vehicle in front. The maximum braking which is applied by the ACC system is limited and can be overridden by the driver applying the brakes.
Note: If the ACC system predicts that its maximum braking level will not be sufficient, then an audible warning will sound while the ACC continues to brake. This is accompanied by DRIVER INTERVENE displayed in the message center. The driver should take immediate action.
Note: The brakes may emit a sound when they are being modulated by the adaptive cruise control system.
WARNING: Adaptive cruise control only warns of vehicles
detected by the radar sensor. In some cases there may be no warning or the warning may be delayed. The driver should always apply the brakes when necessary. Failing to do so may result in a collision, serious injury or death.
Setting the gap distance
The distance between your vehicle and the vehicle in front of you can be decreased or increased by pressing <---> control. GAP <---> will be displayed in the message center. Three gap distance settings are available:
Message
Center Display
GAP <-> 1 second 29 yards Sporty GAP <---> 1.5 seconds 44 yards Normal GAP <-----> 2.3 seconds 66 yards Comfort
After the ignition is on, the default comfort gap <-----> will be automatically selected.
Note: It is the driver’s responsibility to select a gap appropriate to the driving conditions.
Following
distance
Following
distance at
60 mph
Dynamic behavior
71
Driver Controls
Disengaging adaptive cruise control
To disengage the adaptive cruise control:
Depress the brake pedal. CRUISE CANCELLED will be displayed in the message center.
Disengaging the adaptive cruise control will not erase your previous set speed.
Overriding adaptive cruise control
WARNING: Whenever the driver is overriding the ACC by pressing the accelerator pedal, the ACC will not automatically
apply the brakes to maintain separation from any vehicle ahead.
The set speed and gap distance can be overridden by pressing the accelerator pedal.
When the driver is overriding ACC, the green is illuminated, and CRUISE OVERRIDE is displayed in the message
center. When the accelerator is released, the ACC function will operate again and vehicle speed will decrease to the set speed, or a lower speed if following a slower vehicle.
Changing the set speed
There are three ways to change the set speed:
Accelerate or brake to the desired speed and press and release the SET + or SET – control
Increase or decrease the speed by holding either the SET + or SET – control, until the desired set speed is shown on the message center. The vehicle speed will gradually change to the selected speed.
Increase or decrease the speed in increments of 1 mph (2 km/h) by briefly pressing the SET + or SET – control.
The ACC may apply the brakes to slow the vehicle down to the new set speed. The set speed will display continuously in the message center while ACC is active.
72
cruise indicator light
Driver Controls
Resuming the set speed
Press and release the RESUME control. This will automatically return the vehicle to the previously set speed. The set speed will display continuously in the message center while ACC is active.
Note: RESUME should only be used if the driver is aware of the set speed and intends to return to it.
Low speed automatic cancellation
ACC is not functional at vehicle speeds below 18 mph (30 km/h). Once the vehicle speed drops below 18 mph (30 km/h), an audible alarm will sound, DRIVER INTERVENE will be displayed in the message center, and the automatic braking will be released. The driver must take control at this time.
Hilly condition usage
It is recommended that the driver select a lower gear position when ACC is active in situations such as prolonged downhill driving on steep grades (i.e., driving in mountainous areas). In these situations, additional engine braking is needed to reduce the load on the vehicle’s regular brake system to prevent them from overheating. For more information, reference Automatic transmission operation in the Driving chapter.
Note: If ACC is applying brakes for an extended period of time, the driver will receive a DRIVER INTERVENE message and chime and ACC will shut down. This is to allow the brakes to cool down. When the brakes have cooled down, the ACC will again function normally.
73
Driver Controls
Turning off cruise control
To turn off the cruise control:
Press the OFF control.
Note: When you turn off the cruise control or the ignition, your cruise control set speed memory is erased.
Detection issues
The radar sensor has a limited field of vision. In some situations it may not detect vehicles at all or detect a vehicle later than expected.
Detection issues can occur:
When driving on a different line than the vehicle in front.
With vehicles that edge into your lane. These vehicles can only be
detected once they have moved fully into your lane.
74
Driver Controls
There may be issues with the detection of vehicles in front when driving into and coming out of a bend or curve in the road.
In these cases ACC may brake late or unexpectedly. The driver should stay alert and intervene when necessary.
ACC Not Available
Several conditions exist which can cause ACC to deactivate or prevent ACC from activating when requested. These conditions include:
The sensor is blocked, refer to Blocked sensor in this section.
Brake temperature is high, refer to Hilly condition usage in this
section.
A failure has occurred in the ACC system or related system.
Blocked sensor
If the message CRUISE RADAR BLOCKED is displayed, the radar signals from the sensor have been obstructed, a vehicle ahead cannot be detected and the ACC will not function. The following table lists possible causes and actions for this message being displayed.
75
Driver Controls
Cause Action
The surface of the radar in the grille is dirty or obstructed in some way
The surface of the radar in the grille is clean but the message remains in the display
Heavy rain or snow is interfering with the radar signals
Swirling water, or snow or ice on the surface of the road may interfere with the radar signals
WARNING: Do not use ACC when towing a trailer with brake
controls. Aftermarket trailer brakes will not function properly when ACC is activated because the brakes are electronically controlled. Failing to do so may result in loss of vehicle control, which could result in serious injury.
Clean the grille surface in front of the radar or remove the object causing the obstruction
Wait a short time. It may take several minutes for the radar to detect that it is no longer obstructed
Do not use ACC in these conditions because it may not detect, warn, or respond to potential collisions.
Do not use ACC in these conditions because it may not detect, warn, or respond to potential collisions.
WARNING: Do not use tires sizes other than those
recommended because this can affect the normal operation of ACC. Failing to do so may result in a loss of vehicle control, which could result in serious injury.
76

STEERING WHEEL CONTROLS

Radio control features

Press MEDIA to select:
AM, FM1, FM2, or CD
SAT1, SAT2 or SAT3 (Satellite
Radio mode).
LINE IN (Auxiliary input jack)
In Radio mode:
Press next/previous preset station.
In CD mode:
Press next track on the disc.
In Satellite radio mode:
Press through preset channels.
In any mode:
Press VOL + or VOL - to adjust the volume.
to access the
to listen to the
to advance
Driver Controls
77
Driver Controls
SYNCsystem hands free control feature
Press briefly to use the voice command feature. You will hear a tone and LISTENING will appear in the radio display. Press and hold
Press to activate phone mode or answer a phone call. Press and hold mode.
Press OK to confirm your selection.
For further information on the SYNCsystem, refer to the SYNC supplement.
Navigation system/SYNChands free control features (if equipped)
Press voice
Navigation display to use the voice command feature.
Press answer a phone call. Press and hold call.
For further information on the Navigation system/SYNCsystem, refer to the Navigation System and SYNCsupplements.
to exit voice command.
to end call or exit phone
to scroll through various menus and selections. Press
control briefly until the
icon appears on the
to activate phone mode or
to exit phone mode or end

DUAL PANEL MOON ROOF AND POWER SUNSCREEN (IF EQUIPPED)

The dual panel moon roof and power sunscreen controls are located on the overhead console.
WARNING: Do not let children play with the moon roof or leave children unattended in the vehicle. They may seriously hurt
themselves.
78
Driver Controls
The dual panel moon roof and power sunscreen are equipped with an automatic, one-touch, express opening and closing feature. To stop motion at any time during the one-touch operation, press the control a second time.
To open the sunscreen: Press the automatic, one-touch, express open feature, press the control and release quickly. Note: For the dual panel moon roof, the sunscreen stops at the first panel during auto open. Press and hold again to
continue to open the sunscreen past the 2nd panel. To close the sunscreen: Pull the
automatic, one-touch, express close feature, pull the control down and release quickly.
To open the dual panel moon roof: Press the SLIDE control. To
activate the automatic, one-touch, express open feature, press the SLIDE control and release quickly.
control. To activate the
control down. To activate the
WARNING: When closing the dual panel moon roof, you should verify that it is free of obstructions and ensure that children
and/or pets are not in the proximity of the roof opening.
To close the dual panel moon roof: Pull the SLIDE control down. To activate the automatic, one-touch, express close feature, pull the SLIDE control down and release quickly.
Bounce-back: When an obstacle has been detected in the moon roof opening as the moon roof is closing, the moon roof will automatically open and stop at a prescribed position.
Bounce-back override: To override bounce-back function, pull and hold the SLIDE switch within two seconds of a bounce-back event. The closing force will begin to increase each time the moon roof is closed for the first three closing cycles, with bounce-back active. For example: Bounce-back can be used to overcome the resistance of ice on the moon roof or seals.
79
Driver Controls
To vent the dual panel moon roof: Press and quickly release the TILT control (moon roof is equipped with, automatic, one-touch, tilt open feature). The moon roof must be in the closed position in order to
move it into the vent position.
To close dual panel moon roof from vent: Pull and quickly release
the TILT control down to close the glass from the vent position to close (moon roof is equipped with automatic, one-touch, tilt close feature).
Note: You can open and close the vehicle’s windows and moon roof (if equipped) by using the door key in the driver door key cylinder or the control on the remote transmitter. Refer to Power door locks in the Locks and Security chapter.
HOMELINKWIRELESS CONTROL SYSTEM
The HomeLinkWireless Control System, located on the driver’s visor, provides a convenient way to replace up to three hand-held transmitters with a single built-in device. This feature will learn the radio frequency codes of most transmitters to operate garage doors, entry gate operators, security systems, entry door locks, and home or office lighting.
WARNING: When programming your HomeLinkWireless Control System to a garage door or gate, be sure that people and
objects are out of the way to prevent potential injury or damage.
Do not use the HomeLinkWireless Control System with any garage door opener that lacks safety stop and reverse features as required by U.S. federal safety standards (this includes any garage door opener model manufactured before April 1, 1982). A garage door which cannot detect an object, signaling the door to stop and reverse, does not meet current U.S. federal safety standards. For more information, contact HomeLinkat: www.homelink.com or 1–800–355–3515.
Retain the original transmitter for use in other vehicles as well as for future programming procedures (i.e. new HomeLinkequipped vehicle purchase). It is also suggested that upon the sale of the vehicle, the programmed Homelinkbuttons be erased for security purposes, refer to Programming in this section.
80
Driver Controls

Programming

Do not program HomeLinkwith the vehicle parked in the garage. Note: Your vehicle may require the ignition to be turned on for
programming and/or operation of the HomeLink.Itisalso recommended that a new battery be placed in the hand-held transmitter of the device being programmed to HomeLinkfor quicker training and accurate transmission of the radio-frequency signal.
1. Position the end of your
hand-held transmitter 1–3 inches (2–8 cm) away from the HomeLink button you wish to program (located on your visor) while keeping the indicator light in view.
2. Simultaneously press and hold
both the chosen HomeLinkand hand-held transmitter buttons until the HomeLinkindicator light changes from a slow to a rapidly blinking light. Now you may release both the HomeLinkand hand-held transmitter buttons.
Note: Some entry gates and garage door openers may require you to replace Step 2 with procedures noted in the Gate Operator and Canadian Programming in this section for Canadian residents.
3. Firmly press, hold for five seconds and release the programmed
HomeLinkbutton up to two separate times to activate the door. If the door does not activate, press and hold the just-trained HomeLink button and observe the indicator light.
If the indicator light stays on constantly, programming is complete
and your device should activate when the HomeLinkbutton is pressed and released.
If the indicator light blinks rapidly for two seconds and then turns
to a constant light continue with “Programming” Steps 4 through 6 to complete programming of a rolling code equipped device (most
commonly a garage door opener).
4. At the garage door opener receiver (motor-head unit) in the garage,
locate the “learn” or “smart” button (usually near where the hanging antenna wire is attached to the unit).
5. Firmly press and release the “learn” or “smart” button. (The name and
color of the button may vary by manufacturer.) Note: There are 30 seconds in which to initiate Step 6.
81
Driver Controls
6. Return to the vehicle and firmly press, hold for two seconds and
release the programmed HomeLinkbutton. Repeat the press/hold/release sequence again and, depending on the brand of the
garage door opener (or other rolling code equipped device), repeat this sequence a third time to complete the programming.
HomeLinkshould now activate your rolling code equipped device. To program additional HomeLinkbuttons begin with Step 1 in this section. For questions or comments, please contact HomeLinkat www.homelink.com or 1–800–355–3515.

Gate Operator & Canadian Programming

During programming, your hand-held transmitter may automatically stop transmitting — not allowing enough time for HomeLinkto accept the signal from the hand-held transmitter.
After completing Step 1 outlined in the Programming section, replace Step 2 with the following:
Note: If programming a garage door opener or gate operator, it is advised to unplug the device during the “cycling” process to prevent overheating.
Continue to press and hold the HomeLink威 button (note Step 2 in the
Programming section) while you press and release — every two seconds (“cycle”) your hand-held transmitter until the frequency
signal has been accepted by the HomeLink. The indicator light will flash slowly and then rapidly after HomeLinkaccepts the radio frequency signal.
Proceed with Step 3 in the Programming section.
82
Driver Controls
Operating the HomeLinkWireless Control System
To operate, simply press and release the appropriate HomeLinkbutton. Activation will now occur for the trained product (garage door, gate operator, security system, entry door lock, or home or office lighting etc.). For convenience, the hand-held transmitter of the device may also be used at any time. In the event that there are still programming difficulties, contact HomeLinkat www.homelink.com or
1–800–355–3515.
Erasing HomeLinkbuttons
To erase the three programmed buttons (individual buttons cannot be erased):
Press and hold the two outer HomeLinkbuttons until the indicator light begins to flash-after 20 seconds. Release both buttons. Do not hold for longer that 30 seconds.
HomeLinkis now in the train (or learning) mode and can be programmed at any time beginning with Step 1 in the Programming section.
Reprogramming a single HomeLinkbutton
To program a device to HomeLinkusing a HomeLinkbutton previously trained, follow these steps:
1. Press and hold the desired HomeLinkbutton. Do NOT release the
button.
2. The indicator light will begin to flash after 20 seconds. Without
releasing the HomeLinkbutton, follow Step 1 in the Programming section.
For questions or comments, contact HomeLinkat www.homelink.com or 1–800–355–3515.
83
Driver Controls

MESSAGE CENTER

With the ignition on, the message center, located on your instrument cluster, displays important vehicle information through a constant monitor of vehicle systems. You may select display features on the message center for a display of status. The system will also notify you of potential vehicle problems with a display of system warnings followed by a long indicator chime.

Selectable features

Reset
Press this control to select and reset functions shown in the INFO menu and SETUP menu.
Info menu
Pressing this control displays the following:
Trip Odometer A or B
Distance to Empty
Average Fuel Economy
Instantaneous Fuel Economy
Timer
Trip odometer
Refer to Gauges in the Instrument Cluster chapter.
Distance to empty (DTE)
Selecting this function from the INFO menu estimates approximately how far you can drive with the fuel remaining in your tank under normal driving conditions. Remember to turn the ignition off when refueling to allow this feature to correctly detect the added fuel.
84
Driver Controls
The DTE function will display LOW FUEL LEVEL when you have the following miles to empty:
50 miles (80 km)
25 miles (40 km )
10 miles (20 km)
DTE is calculated using a running average fuel economy, which is based on your recent driving history of 500 miles (800 km). This value is not the same as the average fuel economy display. The running average fuel economy is reinitialized to a factory default value if the battery is disconnected.
Average fuel economy (AFE)
Select this function from the INFO menu to display your average fuel economy in miles/gallon or liters/100 km.
If you calculate your average fuel economy by dividing 100 miles traveled by gallons of fuel used (kilometers traveled by liters used), your figure may be different than displayed for the following reasons:
Your vehicle was not perfectly level during fill-up
Differences in the automatic shut-off points on the fuel pumps at
service stations
Variations in top-off procedure from one fill-up to another
Rounding of the displayed values to the nearest 0.1 gallon (liter)
1. Drive the vehicle at least 5 miles (8 km) with the speed control
system engaged to display a stabilized average.
2. Record the highway fuel economy for future reference.
It is important to press the RESET control (press and hold RESET for two seconds in order to reset the function) after setting the speed control to get accurate highway fuel economy readings.
85
Driver Controls
Instantaneous fuel economy
Select this function from the INFO menu to display your instantaneous fuel economy. This will display your fuel economy as a bar graph ranging
from excellent economy.
Your vehicle must be moving to calculate instantaneous fuel economy. When your vehicle is not moving, this function shows illuminated. Instantaneous fuel economy cannot be reset.
Timer
Select this function from the INFO menu to display a timer.
To operate the timer perform the following:
1. Press and release RESET to start
or stop the timer.
2. Press and hold RESET for two seconds to reset the timer.
Setup menu
Press this control for the following displays:
System Check
Oil Life
Units (English/Metric)
Auto high beam (if equipped)
Autolamp Delay
Autolock
Autounlock
Easy entry seat
Rear park aid
Front park aid
Language
86
poor economy to
, one or no bars
Driver Controls
System check
Selecting this function from the SETUP menu causes the message center to cycle through each of the systems being monitored.
Pressing the RESET control cycles the message center through each of the systems being monitored.
Note: Some monitored systems show a message only if a warning is present.
The sequence of the system check report is as follows:
1. OIL LIFE
2. WASHER FLUID LEVEL
3. DOOR AJAR STATUS
4. TRUNK AJAR/CLOSED
5. BRAKE SYSTEM
6. TIRE PRESSURE
7. REMOVE OBJECTS NEAR PASSENGER SEAT
8. ADAPTIVE CRUISE CONTROL (if equipped)
9. PARK AID
10. FUEL LEVEL
Oil life
An oil change is required whenever indicated by the message center. USE ONLY RECOMMENDED ENGINE OILS.
To reset the oil monitoring system to 100% after each oil change (approximately 7,500 miles [12,000 km] or six months) perform the following:
1. Press the SETUP control to enter
SYSTEM CHECK, then press SETUP control again to display “OIL LIFE = XXX% HOLD RESET = NEW”.
87
Driver Controls
2. Press and hold the RESET
control for two seconds and release. Oil life is set to 100% and “OIL LIFE SET TO 100%” is displayed.
3. While “OIL LIFE SET TO 100%”
is displayed, if a lower oil life is desired, press and release the RESET control to reduce the value. Each press of the RESET control reduces the value by 10 percent.
Note: Oil life of 100% equals 7,500 miles (12,000 km) or six months. For example, setting oil life to 60% sets the oil life value to 4,500 miles (7,200 km) and 108 days.
Units (English/Metric)
1. Select this function from the
SETUP menu for the current units to be displayed.
2. Press the RESET control to
change from English to Metric.
Auto high beam (if equipped)
This feature automatically turns on your high beams if it is dark enough and no other traffic is present.
1. To disable/enable the auto high
beam feature, select this function from the SETUP menu for the current display mode.
2. Press the RESET control to turn
the auto high beam ON or OFF.
Autolamp
This feature keeps your headlights on for up to three minutes after the ignition is switched off.
1. To disable/enable the autolamp
delay feature, select this function from the SETUP menu for the current display mode.
2. Press the RESET control to select
the new autolamp delay values of 0, 10, 20, 30, 60, 90, 120 or 180 seconds.
88
Driver Controls
Autolock
This feature automatically locks all vehicle doors when the vehicle is shifted into any gear, putting the vehicle in motion.
1. To disable/enable the autolock
feature, select this function from the SETUP menu for the current display mode.
2. Press the RESET control to turn
the autolock ON or OFF.
Autounlock
This feature automatically unlocks all vehicle doors when the driver’s door is opened within 10 minutes of the ignition being turned off.
1. To disable/enable the autounlock
feature, select this function from the SETUP menu for the current display mode.
2. Press the RESET control switch
to turn the autounlock ON or OFF.
Easy entry seat
This feature automatically moves the drivers seat backwards for easy exit from the vehicle.
1. To disable/enable the easy entry
seat feature, select this function from the SETUP menu for the current display mode.
2. Press the RESET control to turn
the easy entry seat ON or OFF.
Reverse sensing system (rear park aid)
This feature sounds a warning tone to warn the driver of obstacles near the rear bumper, and functions only when R (Reverse) gear is selected.
1. To disable/enable the reverse
sensing system feature, select this function from the SETUP menu or put the vehicle in R (Reverse).
2. Press the RESET control to turn
the rear park aid OFF or ON.
89
Driver Controls
Forward sensing system (front park aid)
This feature sounds a warning tone to warn the driver of obstacles near the front bumper.
1. To disable/enable the forward
sensing system feature, select this function from the SETUP menu or put the vehicle in D (Drive).
2. Press the RESET control to turn
the front park aid OFF or ON.
Language
1. Select this function from the
SETUP menu for the current language to be displayed.
2. Waiting four seconds or pressing
the RESET control cycles the message center through each of the language choices.
Selectable languages are English, Spanish, or French.
3. Press and hold the RESET control for two seconds to set the language
choice.
System warnings
System warnings alert you to possible problems or malfunctions in your vehicle’s operating systems.
In the event of a multiple warning situation, the message center will cycle the display to show all warnings by displaying each one for several seconds.
The message center will display the last selected feature if there are no more warning messages. This allows you to use the full functionality of the message center after you acknowledge the warning by pressing the RESET control and clearing the warning message.
Warning messages that have been reset are divided into three categories:
They will not disappear until a condition is changed.
They will reappear on the display ten minutes from the reset.
They will not reappear until an ignition off-on cycle has been
completed.
90
Driver Controls
This acts as a reminder that these warning conditions still exist within the vehicle.
Warnings Status
Driver’s door ajar Warning cannot be reset (PLEASE Passenger door ajar Left rear door ajar Right rear door ajar Park brake engaged CHECK PARK BRAKE will be
Fuel level low Warning returns after 10 minutes Check fuel fill inlet Check brake system Check park aid Warning returns after the ignition Brake fluid level low Washer fluid level low Low tire pressure Tire pressure monitor fault Tire pressure sensor fault Trunk ajar Remove objects near pass seat AWD off (if equipped) CHECK AWD (if equipped) Integrated key programming status
(if equipped) Cruise On (if equipped) Adaptive Cruise Control warnings Cruise Off (if equipped) Set speed and Gap (if equipped) Cruise override (if equipped) Driver intervene (if equipped) Cruise not available (if equipped) Cruise malfunction (if equipped) Cruise radar blocked (if equipped)
CLOSE DOOR) will be displayed
displayed
is turned from off to on
Maximum number of Integrated Keys exceeded
91
Driver Controls
Warnings Status
Press brake to start (if equipped) Intelligent Access with Push No fob detected (if equipped) Shift to park (if equipped) Restart now or fob is needed (if
equipped) Accessory power active (if
equipped) Starting system fault (if equipped) Fob programmed, 3 fobs total (if
equipped) Fob programmed, 4 fobs total (if
equipped) Max # of fobs learned (if
equipped)
DRIVER DOOR AJAR — Displayed when the driver’s door is not completely closed.
PASSENGER DOOR AJAR — Displayed when the passenger side door is not completely closed.
REAR LEFT DOOR AJAR — Displayed when the rear left door is not completely closed.
REAR RIGHT DOOR AJAR — Displayed when the rear right door is not completely closed.
PARK BRAKE ENGAGED — Displayed when the manual park brake is set, the engine is running and the vehicle is driven more than 3 mph (5 km/h). If the warning stays on after the park brake is released, contact your authorized dealer as soon as possible.
FUEL LEVEL LOW — Displayed as an early reminder of a low fuel condition.
CHECK FUEL FILL INLET — Displayed when the fuel fill inlet may not be properly closed. Refer to Easy Fuel™ “no cap” fuel system in the Maintenance and Specifications chapter.
CHECK BRAKE SYSTEM — Displayed when the brake system needs servicing. If the warning stays on or continues to come on, contact your authorized dealer as soon as possible.
92
Button Start warnings
Driver Controls
BRAKE FLUID LEVEL LOW — Indicates the brake fluid level is low and the brake system should be inspected immediately. Refer to Brake fluid in the Maintenance and Specifications chapter.
WASHER FLUID LEVEL LOW — Indicates the washer fluid reservoir is less than one quarter full. Check the washer fluid level. Refer to Windshield washer fluid in the Maintenance and Specifications chapter.
CHECK PARK AID — Displayed when the transmission is in R (Reverse) and the Reverse sensing system (park aid) is disabled. Refer to Reverse sensing system (park aid) in this section to enable.
LOW TIRE PRESSURE — Displayed when one or more tires on your vehicle have low tire pressure. Refer to Inflating your tires in the Tires, Wheels and Loading chapter.
TIRE PRESSURE MONITOR FAULT — Displayed when the Tire Pressure Monitoring System is malfunctioning. If the warning stays on or continues to come on, have the system inspected by your authorized dealer.
TIRE PRESSURE SENSOR FAULT — Displayed when a tire pressure sensor is malfunctioning, or your spare tire is in use. For more information on how the system operates under these conditions, refer to
Tire Pressure Monitoring System (TPMS) in the Tires, Wheels and Loading chapter. If the warning stays on or continues to come on,
contact your authorized dealer as soon as possible.
TRUNK AJAR — Displayed when the trunk is not completely closed. REMOVE OBJECTS NEAR PASS SEAT — Displayed when objects
are by the passenger seat. After the objects are moved away from the seat, if the warning stays on or continues to come on contact your authorized dealer as soon as possible.
AWD OFF (if equipped) — Displayed when the AWD system has been automatically disabled to protect itself. This is caused by operating the vehicle with the compact spare tire installed or if the system is overheating. The AWD system will resume normal function and clear this message after driving a short distance with the road tire re-installed or after the system is allowed to cool.
CHECK AWD (if equipped) — Displayed in conjunction with the Throttle Control/Transmission/AWD not operating properly. If the warning stays on or continues to come on, contact your authorized dealer as soon as possible.
light when the AWD system is
93
Driver Controls
INTKEY COULD NOT PROGRAM — Displayed when an attempt is made to program a fifth integrated key to the Remote keyless entry system. For more information on integrated key, refer to the Locks and Security chapter.
CRUISE ON RADAR READY (if equipped) — Displayed when the driver pressed the cruise On/Off control and ACC was off.
CRUISE OFF (if equipped) — Displayed when the driver pressed the Cruise On/Off control and ACC was on.
SET XXX MPH GAP ACC GAP (if equipped) — Displayed when ACC is active and driver has selected a GAP setting using the steering wheel control <---> button.
CRUISE OVERRIDE (if equipped) — Displayed when the accelerator pedal is being pressed while ACC is active.
DRIVER INTERVENE (if equipped) — Refer to Adaptive Cruise Control in this chapter.
CRUISE NOT AVAILABLE (if equipped) — Displayed when a system malfunction is preventing ACC from engaging.
CRUISE MALFUNCTION (if equipped) — Displayed when a radar malfunction is preventing the ACC from engaging.
CRUISE RADAR BLOCKED (if equipped) — Displayed when the radar is blocked because of poor radar visibility due to bad weather or ice/mud/water in front of radar. Driver can typically clean the sensor to resolve.
PRESS BRAKE TO START (if equipped) — Displayed when the start/stop button is pressed without the brake pedal being applied. This is a reminder that the brake pedal must be applied when the start/stop button is pressed in order to start the engine.
NO FOB DETECTED (if equipped) — Displayed if the Intelligent Access Key is not detected by the system in the following three scenarios:
When the start/stop button is pressed in an attempt to either start the
engine or cycle through the ignition states.
When the engine is running and a door is opened then closed.
When the vehicle’s speed exceeds 10 mph (16 km/h) for the first time
after starting. Refer to Push button start system in the Driving chapter for more information.
94
Driver Controls
SHIFT TO PARK (if equipped) — Displayed when the start/stop button is pressed to shut off the engine with the shift select lever in any position other than P (Park) . Refer to Fast restart feature in Push button start system in the Driving chapter for more information.
RESTART NOW OR FOB IS NEEDED (if equipped) — Displayed when the start/stop button is pressed to shut off the engine and a Intelligent Access Key is not detected inside the vehicle. Refer to Push button start system in the Driving chapter for more information.
ACCESSORY POWER ACTIVE (if equipped) — Displayed when the vehicle is in the accessory ignition state.
STARTING SYSTEM FAULT (if equipped) — This message is displayed when there is a problem with your vehicle’s starting security system; your vehicle will not be able to start. See your authorized dealer for service.
FOB PROGRAMMED 3 FOBS TOTAL (if equipped) — Displayed during spare key programming, when a third Intelligent Access Key is programmed to the system.
FOB PROGRAMMED 4 FOBS TOTAL (if equipped) — Displayed during spare key programming, when a fourth Intelligent Access Key is programmed to the system.
MAX # OF FOBS LEARNED (if equipped) — Displayed during spare key programming, after a fourth Intelligent Access Key is programmed or upon entering spare key programming mode with four Intelligent Access Keys already programmed to the vehicle.
95
Driver Controls

INTERIOR TRUNK CONTROL

Press the remote trunk release control on the instrument panel to the left of the steering wheel.

CARGO AREA FEATURES

Cargo net (if equipped)

The cargo net secures lightweight objects in the cargo area. Attach the net to the anchors provided. Do not put more than 50 lb. (22 kg) in the net.
WARNING: This net is not designed to restrain objects
during a collision.
96

Locks and Security

KEYS

Integrated Keyhead Transmitters (IKTs) (If equipped)
Your vehicle may be equipped with two Integrated Keyhead Transmitters (IKTs). The key blade functions as a programmed key which starts the vehicle and unlocks/locks all the doors. The transmitter portion functions as the remote entry transmitter.
Your IKTs are programmed to your vehicle; using a non-programmed key will not permit your vehicle to start. If you lose one or both of your IKTs, replacements are available through your authorized dealer. Standard SecuriLockkeys without remote entry transmitter functionality can also be purchased from your authorized dealer if desired.
To avoid activating the remote entry functions when starting and turning off your vehicle, refer to Recommended handling of the Integrated Keyhead Transmitter (IKT) in this section.
Always carry a spare key with you in case of an emergency.
For more information regarding programming replacement IKTs, refer to the SecuriLockpassive anti-theft system section later in this chapter.
Note: Your vehicle’s IKTs were issued with a security tag that provides important vehicle key cut information. It is recommended that you keep the tag in a safe place for future reference.
97
Locks and Security

Recommended handling of the Integrated Keyhead Transmitter (IKT)

To avoid inadvertently activating the remote entry functions of your vehicle, it is recommended that the Integrated Keyhead Transmitter (IKT) be handled properly when starting and turning off your vehicle.
When inserting the IKT into the ignition cylinder, place your thumb on the center thumb rest of the IKT and forefinger on the logo badge on the opposite side.
To gain more leverage when rotating the IKT in the ignition lock cylinder, you can readjust the location of your thumb to grasp the IKT on the outer edge next to the
control.
Likewise, when rotating the IKT to the off position in the ignition lock cylinder, the bottom edge of the IKT adjacent to the utilized.
98
control can be
Locks and Security

Intelligent Access Key (IA key) (if equipped)

Your vehicle may be equipped with two Intelligent Access keys which operate the power locks and the remote entry system. You have to have the IA key in the vehicle to activate the push button start system.
The IA key also contains a removable mechanical key blade that can be used to unlock the driver door. To release the mechanical key blade, press the release button on the back of the transmitter and slide the blade out.
Your IA keys are programmed to your vehicle. You cannot enter or start your vehicle with an unprogrammed key. If you lose one or both of your IA keys, replacements are available from your authorized dealer. For more information on programming replacement IA keys, refer to the SecuriLockpassive anti-theft system section in this chapter.
Note: Your vehicle’s IA backup keys were issued with a security tag that provides important vehicle key cut information. It is recommended that you keep the tag in a safe place for future reference.
99
Locks and Security

POWER DOOR LOCKS

Press the control to unlock all doors.
Press the doors.

Smart unlocks

This feature helps to prevent you from locking yourself out of the vehicle if your key is still in the ignition.
When you open one of the front doors and you lock the vehicle with the power door lock control (on the driver or passenger door trim panel), all the doors will lock, then all doors will automatically unlock reminding you that your key is still in the ignition.
The vehicle can still be locked, with the key in the ignition, by locking the driver’s door with a key, using the locking the vehicle with the keyless entry keypad.
If both front doors are closed, the vehicle can be locked by any method, regardless of whether the key is in the ignition or not.
Smart unlocks for Intelligent Access Keys (if equipped)
The smart unlock feature is intended to prevent you from unintentionally locking your IA key inside your vehicle’s passenger compartment or trunk.
When you lock your vehicle using the driver or passenger power door lock control (with the door open), after you close the door the vehicle will search for an IA key in the passenger compartment. If an IA key is found inside the vehicle, all of the doors will immediately unlock and the horn will chirp, indicating that the IA key is inside.
In order to override the smart unlock feature and intentionally lock the IA key inside the vehicle, you can lock your vehicle using your keyless entry keypad or using the entry system in this chapter for more information on keyless entry keypad operation.
control to lock all
control on the transmitter, or
control on another IA key. Refer to Keyless
100
Loading...
