Introduction

CONGRATULATIONS

Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it.
For more information on Ford Motor Company and its products visit the following website:
In the United States: www.ford.com
In Canada: www.ford.ca
Additional owner information is given in separate publications.
This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available.
Remember to pass on the Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury and prevent possible damage to others, your vehicle and its equipment? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.
4
2009 F-650/750 (f67) Supplement USA (fus)
Introduction

Protecting the environment

We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.
CALIFORNIA Proposition 65 Warning
WARNING: Engine exhaust, some of its constituents, and
certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

PERCHLORATE MATERIAL

Certain components of this vehicle such as airbag modules, seat belt pretensioners, and button cell batteries may contain Perchlorate Material – Special handling may apply for service or vehicle end of life disposal. See www.dtsc.ca.gov/hazardouswaste/perchlorate.

SPECIAL NOTICES

Emission warranty

The New Truck Limited Warranty includes Basic Coverage, Corrosion Coverage, Frame Coverage, Federal Emissions Defect Warranty and California Defects Warranty. For a detailed description of what is covered and what is not covered, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.
2009 F-650/750 (f67) Supplement USA (fus)
5
Introduction

Special instructions

For your added safety, your vehicle is fitted with sophisticated electronic controls.

Service Data Recording

Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle.
Event Data Recording
Other modules in your vehicle - event data recorders - are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as:
how various systems in your vehicle were operating;
whether or not the driver and passenger seatbelts were buckled;
how far (if at all) the driver was depressing the accelerator and/or the
brake pedal;
how fast the vehicle was traveling; and
where the driver was positioning the steering wheel.
To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.
6
2009 F-650/750 (f67) Supplement USA (fus)
Introduction

Cell phone use

The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits.
Mobile Communication Equipment includes, but is not limited to cellular phones, pagers, portable email devices, in-vehicle communications systems, telematics devices and portable two-way radios.
WARNING: Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The drivers primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.
2009 F-650/750 (f67) Supplement USA (fus)
7
Introduction
These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert
Fasten Safety Belt Airbag - Front
Airbag - Side
Child Seat Tether Anchor
Anti-Lock Brake System Parking Brake System
Brake Fluid ­Non-Petroleum Based
Stability Control System Speed Control
Master Lighting Switch Hazard Warning Flasher
Fog Lamps-Front Fuse Compartment
See Owner’s Guide
Child Seat Lower Anchor
Brake System
Parking Aid System
Fuel Pump Reset Windshield Wash/Wipe
Windshield Defrost/Demist
8
Rear Window Defrost/Demist
2009 F-650/750 (f67) Supplement USA (fus)
Vehicle Symbol Glossary
Introduction
Power Windows Front/Rear
Child Safety Door Lock/Unlock
Power Window Lockout
Interior Luggage Compartment Release
Panic Alarm Engine Oil
Engine Coolant
Engine Coolant Temperature
Do Not Open When Hot Battery
Avoid Smoking, Flames, or Sparks
Battery Acid
Explosive Gas Fan Warning
Power Steering Fluid
Maintain Correct Fluid Level
Service Engine Soon Engine Air Filter
MAX
MIN
Passenger Compartment Air Filter
Check Fuel Cap
2009 F-650/750 (f67) Supplement USA (fus)
Jack
Low Tire Pressure Warning
9
Introduction

FEDERAL HIGHWAY ADMINISTRATION REGULATION

Regulations such as those issued by the Federal Highway Administration or issued pursuant to the Occupational Safety and Health Act (OSHA), and/or state and local laws and regulations may require additional equipment for the way you intend to use the vehicle. It is the responsibility of the registered owner to determine the applicability of such laws and regulations to your intended use for the vehicle, and to arrange for the installation of required equipment. Your dealer has information about the availability of equipment which may be ordered for your vehicle.

ENTERING, EXITING AND/OR CLIMBING ON THIS VEHICLE

You must be careful and deliberate to minimize the possibility of personal injury from a slip and fall when entering, exiting and/or climbing on this vehicle. Always use the steps and assist handles before climbing. Do not skip any steps or assist handles. Use three point contact at all times with at least two feet and one hand or two hands and one foot firmly placed during all phases of entering, exiting and/or climbing. Always keep your shoe soles and hands clean. Keep the steps and assist handles free of snow, ice, oil, grease, substances or debris. Be sure to use extra care in bad weather. Avoid wearing thick gloves. Always perform trailer hook-up while standing on the ground.
WARNING: Do not carry items while entering, exiting, and/or
climbing. Make sure you keep a firm grip. Always FACE the VEHICLE STEP and HANDLE SYSTEM while climbing up and down. Do not climb behind the cab unless you have three point contact with a step and handle system at all times.
10
2009 F-650/750 (f67) Supplement USA (fus)

Vehicle Inspection Guide

To be sure your vehicle is ready to operate, conduct a pre-trip inspection at the beginning of each work period. Follow the steps listed in this section to ensure a proper vehicle inspection procedure. The pages in this section may be produced locally and used on a regular basis.

VEHICLE INSPECTION INFORMATION

Note: Always make sure the parking brake is applied before starting the engine.
Engine compartment (with engine stopped)
Engine oil level: Use the engine oil dipstick to verify that the
engine oil level is between the ADD and OPERATING RANGE marks.
Engine coolant level:
Power steering fluid: Verify that the fluid level is in the proper
Brake fluid (master cylinder):
Hydraulic clutch fluid:
Belts (Fan, alternator, water pump and A/C compressor):
Look through the plastic reservoir or the clear sight glass on the reservoir, depending upon vehicle equipment, and make sure the fluid is within the minimum and maximum fluid level range as marked on the reservoir. Do not
remove pressure cap until the coolant has cooled.
operating range. Refer to Power steering fluid in the Maintenance and Specifications
chapter. Remove the master cylinder caps and inspect
the fluid level. The full mark is at the bottom of the opening of the fluid ports.
Check for adequate amount of hydraulic clutch fluid. Fluid level should be at the step of the reservoir; refer to Clutch fluid/linkage
adjustments in the Maintenance and Specifications chapter.
Check for glazing, fraying or cracking. There should be no more than five - seven cracks per rib per inch (2.5 cm).
2009 F-650/750 (f67) Supplement USA (fus)
11
Vehicle Inspection Guide
Engine compartment (with engine stopped)
Any leaks: Check for signs of fluid puddles, dripping fluid
on the ground under the engine or the underside of the engine.
HVAC air inlet: Check for debris, leaves, etc. that may have
collected on the HVAC air inlet grille or inside the exterior module as this may cause reduced system performance.
WARNING: Exercise great caution when working on vehicle
equipped with an automatic fan clutch. The fan starts in motion only after the engine coolant reaches a predetermined temperature or the refrigerant pressure (if equipped with air conditioning) reaches a predetermined setting. The fan will start at this point with no advance warning. Never reach near, or permit objects to protrude into, the fan blade radius while the engine is running as this could result in vehicle damage, personal injury or death.
12
2009 F-650/750 (f67) Supplement USA (fus)
Vehicle Inspection Guide
Engine starting (parking brake applied)
Safety/Emergency equipment:
Starting the engine: Verify the parking brake is set. Depress the
Oil pressure builds: Make sure engine oil pressure is building to
Air chime sounds (if equipped with air compressor):
Prior to entering the cab, verify that the vehicle is equipped with spare electrical fuses (if used), three red reflective triangles, a properly charged and rated fire extinguisher and wheel chocks. Walk around the vehicle and check that all steps and grab handles, inside and out as well as behind, are tight and clean. Use extreme caution and a three-point stance at all times. Check door latches for positive closing, latching and locking.
clutch (if equipped with a manual transmission) and verify the transmission is in neutral. Vehicles equipped with an automatic transmission should be in N (Neutral) or P (Park) if equipped with a Park position. Turn the key to ON. When the WAIT TO START indicator light in the instrument cluster turns off, turn the key to START.
normal operating range. The low air pressure warning chime should
sound immediately after the engine starts but before the compressor has built up pressure. The low air pressure warning chime should stop when the air pressure reaches 70 psi (483 kPa) (or more). Let the air pressure build to governed cut-out pressure, which should occur between 115–130 psi (793–896 kPa).
2009 F-650/750 (f67) Supplement USA (fus)
13
Vehicle Inspection Guide
Engine starting (parking brake applied)
Accelerator: Depress the accelerator and verify that it
operates smoothly without any binding or irregular feel. Remove your foot from the pedal and make sure the engine returns to idle speed immediately.
Ammeter/Voltmeter: Check the gauge to see if the alternator is
charging.
Steering linkage free play:
Full Power Hydraulic brake check:
Parking brake: Check that the parking brake will hold the
Check for excessive free play in the steering linkages. The steering wheel should have less than two inches (five cm) of free play at rim of steering wheel.
With the ignition Off or in the Run position pump the brake pedal several times, the motor/pumps will be heard momentarily replenishing the accumulators.
vehicle by gently trying to pull forward with the parking brake applied.
14
2009 F-650/750 (f67) Supplement USA (fus)
Vehicle Inspection Guide
Engine starting (parking brake applied)
Air brake check: Check the air brakes in the following manner
(Chock the wheels, if necessary. Push in the parking brake and on tractors, also push in the tractor parking brake knob):
1. Check the that air compressor or governor cut-out pressure is approximately 120 psi (827 kPa).
2. Turn off the engine and turn the key back to ON, without starting the engine.
3. Without the brake pedal applied, note the air pressure drop for one minute. It should be less than 2 psi (14 kPa) for single vehicle and 3 psi (21 kPa) for combination vehicles.
4. Depress and hold the brake pedal with 90 psi (621 kPa) or more and make sure there is no more than a 3 psi (21 kPa) per minute leak; for combination vehicles, no more than 4 psi (28 kPa) per minute.
5. Pump the brake pedal to deplete the system of air pressure. The warning light and chime should activate at 57 psi (393 kPa).
6. Pump the brake pedal and make sure the parking brake and trailer parking brake knobs pop out at 20 psi (138 kPa) or higher.
Automatic transmission fluid:
With the engine idling at normal operating temperature and the parking brake applied, check the automatic transmission fluid. If fluid needs to be added, place the transmission in the appropriate gear as specified in the transmission operator’s manual and refer to
Transmission fluid in the Maintenance and Specifications chapter.
2009 F-650/750 (f67) Supplement USA (fus)
15
Vehicle Inspection Guide
Front of vehicle
Lights: Make sure all lights illuminate and are clean.
Make sure headlights function on both high and low beams. Make sure reflectors are clean and unbroken and of proper color (red on rear, amber elsewhere). Make sure the running lights are also clean and unbroken.
Steering gear: Look for missing or loose fasteners, power
steering fluid leaks and damage to power steering hoses.
Steering linkage: Make sure connecting links, arms and rods are
not worn or cracked; joints, sockets and boot seals are not worn or loose and that there are no loose or missing cotter keys, nuts or bolts.
Tow hooks: Front and rear tow hooks should be inspected
for damage or loose mounting. This is particularly important on vehicles where tow hooks are frequently used.
Front suspension
Spring: Inspect for missing, broken or shifted leaves or
leaves that are in contact, or nearly contacting a tire, rim, brake drum, frame or body component.
Spring mount: Inspect spring hangers, bolts, bushings, axle
mounting bolts and nuts for cracks, breaks, wear, damage and tightness.
Shock absorber: Inspect for cracks, leaks and missing or broken
bolts or bushings.
Note: Never apply grease to spring pads.
WARNING: Do not operate the vehicle if any suspension
conditions listed in the Front suspension chart are evident. Loss of steering or suspension could result in property damage, personal injury or death.
16
2009 F-650/750 (f67) Supplement USA (fus)
Vehicle Inspection Guide
Front brakes
Hoses: Check for cracked, worn or frayed hoses. Make
sure all couplings are secured.
Chambers: Make sure brake chambers are not cracked or
dented and that they are securely mounted.
Slack adjuster: Check for broken, loose or missing parts. The
angle between the push rod and adjuster arm should be approximately 90° when the brakes are applied. When pulled by hand, the push rod should not move more than approximately one inch (2.5 cm).
Drum: Make sure there are no cracks, dents or holes
and no loose or missing bolts. Make sure brake linings are not worn, dangerously thin or contaminated by lubricant.
Front wheels
Rims: Check for damaged or bent rims. Rims should
not have welding repairs and no rust trails that indicate it is loose on the wheel.
Lug nuts: Make sure all lug nuts are present and not
loose (look for rust trails around the lug nuts). There should be no cracks radiating from the lug bolt holes or distortion of the bolt holes.
Hub oil seal: Check wheel hub oil seal for leaks, and if sight
glass if present, check to see that the oil level is adequate.
Oil-lubricated front wheel bearing:
If the hubcap has a transparent window, check for proper lubrication level. If the hubcap does not have a transparent window, remove the rubber fill-plug and check for proper level.
2009 F-650/750 (f67) Supplement USA (fus)
17
Vehicle Inspection Guide
WARNING: If a wheel must be changed, obtain expert tire
service help. Mounting and un-mounting of tires should only be performed by a qualified technician using necessary safety procedures and equipment, otherwise the result could be property damage, personal injury or death.
Driver/Fuel area
Fuel tank(s): Make sure the fuel tank(s) and cap(s) are
secure. Make sure there is no damage to the tank(s).
Leaks: Check for any leaks from the fuel tank(s).
Underbody of vehicle
Driveshaft: Make sure that the driveshaft is not bent or
cracked. Ensure all driveshaft couplings are secure.
Exhaust system: Make sure the outside visible parts are
securely mounted. Make sure there are no cracks, holes or severe dents.
Frame: Check for cracks or bends in longitudinal
frame members. Make sure there are no loose, cracked, bent, broken or missing crossmembers or crossmember fasteners.
WARNING: Maintain adequate clearance between all parts of
the exhaust system and all hoses, wires and lines for engine cooling, brake system, fuel system, power steering system and electrical system, Heat damage to hoses, wires or lines may cause vehicle malfunction that could result in property damage, personal injury or death.
18
2009 F-650/750 (f67) Supplement USA (fus)
Vehicle Inspection Guide
Rear of vehicle
Air/Electric lines: Make sure that air hoses are not cut, cracked,
chafed or worn. Listen for audible air leaks, Make sure air and electrical lines are not tangled, crimped or pinched or being dragged against any truck parts. Electrical line insulation should not be cut, cracked, chafed or worn. None of the air or electrical line should be spliced or taped. Check for corrosion on pins and in electrical sockets to ensure continuity and reduced heat build-up potential.
Deck plate: Make sure deck plate is clean, securely bolted
to the frame and clear of loose objects.
Signal/Brake lights: Make sure both brake lights illuminate when
the brake pedal is applied. Also, make sure each signal flashes. Make sure that four-way flashers work properly.
Lights, reflectors: Make sure all lights illuminate and are clean.
Make sure headlights function on both high and low beams. Make sure reflectors are clean and unbroken and of proper color (red on rear, amber elsewhere). Make sure the running lights are also clean and unbroken. Rear running lights must be checked separately from signal, flasher and brake lights.
Tractor - coupling system
Mounting bolts: Check for loose or missing mounting brackets,
clamps, bolts or nuts. Both fifth wheel and slide mounting must be solidly attached.
Platform: Check for cracks or breaks in the platform
structure.
Safety latch: Make sure safety latch is engaged. Release arm: Make sure safety latch is in the engaged
position and that any safety latch is in place.
2009 F-650/750 (f67) Supplement USA (fus)
19
Vehicle Inspection Guide
Tractor - coupling system
Kingpin/Apron: Make sure kingpin is not bent or worn. Also
make sure that the apron lies flat on the fifth wheel skid plate and that the visible part of the apron is not bent, worn, cracked or broken.
Rear suspension
Springs: Check for broken or shifted leaves or leaves
that are in contact, or nearly contacting a tire, rim, brake drum, frame or body component. Check for missing or broken leaves in the leaf spring.
Spring mounts: Check for cracked or broken spring hangers,
broken, missing or loose bolts, missing or damaged bushings, broken, loose or missing axle mounting parts.
Torsion, shocks: Make sure torsion arm is not cracked, broken
or missing. Check the shock absorber for cracks or leaks; there should be no missing or broken mounting bolts or worn bushings.
Rear brakes
Hoses: Checked for cracked, worn or frayed hoses.
Make sure all couplings are secured.
Chambers: Make sure brake chambers are not cracked or
dented and that they are securely mounted.
Slack adjuster: Check for broken, loose or missing parts. The
angle between the push rod and adjuster arm should be approximately 90° when the brakes are applied. When pulled by hand, the push rod should not move more than approximately one inch (2.5 cm).
20
2009 F-650/750 (f67) Supplement USA (fus)
Vehicle Inspection Guide
Rear brakes
Drum: Make sure there are no cracks, dents or holes
and no loose or missing bolts. Make sure brake linings are not worn, dangerously thin or contaminated by lubricant.
Rear wheels
Spacers: Make sure dual wheels are evenly separated
and that tires are not touching one another.
Rims: Check for damaged or bent rims. Rims should
not have welding repairs and no rust trails that indicate it is loose on the wheel.
Lug nuts: Make sure all lug nuts are present and not
loose (look for rust trails around the lug nuts). There should be no cracks radiating from the lug bolt holes or distortion of the bolt holes.

Trailer

If you are pulling a trailer, an inspection of the trailer similar to that of the tractor should be done. Such an inspection should follow trailer manufacturer recommendations and should include at a minimum: general condition, landing gear, doors, sides, lights, reflectors, suspension, brakes, tires, wheels, cargo placement, stability and tie-downs.

Transmission

If your vehicle is equipped with an automatic transmission, regularly check the transmission’s neutral start switch. The engine should only start in the N (Neutral) or P (Park) positions.
WARNING: If the unit starts in gear and/or the neutral start
switch is not functioning correctly, the vehicle may inadvertently move which could result in property damage, personal injury or death.
Check the transmission fluid level and shift linkage for proper operation.
2009 F-650/750 (f67) Supplement USA (fus)
21

Instrument Cluster

WARNING LIGHTS AND CHIMES

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, have the respective system inspected immediately.
Some of the warning lights shown are optional based on vehicle equipment; your vehicle may not have some of the warning lights shown in this section.
Service engine soon: If this light illuminates while driving, it is a possible indication that one of the engine’s emission control systems has failed.
Check suspension (if equipped):
Illuminates when the air suspension dump switch has been activated.
SERVICE
ENGINE
SOON
22
2009 F-650/750 (f67) Supplement USA (fus)
Instrument Cluster
Stop engine: This light is used in conjunction with the electronic engine control. When illuminated, the STOP ENGINE lamp indicates the need to stop the engine as soon as it can be safely done.
If the STOP ENGINE lamp begins flashing, automatic engine shutdown may take place in as little as 20 seconds.
WARNING: In the event of engine shutdown, make sure the
vehicle is safely off the road and the problem is remedied prior to returning to the road. Failure to remove the vehicle from the road could result in an accident, causing serious injury or death.
Refer to your engine operator’s manual for specific information regarding this feature.
If the engine shuts down, it can be restarted and operated for 30 seconds at a time or until the problem is corrected. For more information, refer to Engine automatic shutdown warning light or chime (if equipped) in the Driving chapter of this owner guide and/or your engine operator’s manual.
Drivers of electronically controlled engines should know the extent of warning engine shutdown system before operating the vehicle.
STOP
ENGINE
2009 F-650/750 (f67) Supplement USA (fus)
23
Instrument Cluster
Brake system warning light: To confirm the brake system warning light is functional, this light will momentarily illuminate when the ignition is turned to the ON position when the engine is not running. If the brake system warning light does not illuminate at this time, seek service immediately from your dealership. Illumination after starting the vehicle indicates a brake system fault and should be inspected immediately by your dealership.
Note: The Brake System Warning light may be accompanied by a warning buzzer or chime.
If equipped with an air brake system, the warning light stays on until the air pressure builds up to 60 psi (414 kPa). If the air pressure drops below 60 psi (414 kPa) during operation, the remaining brake system is still operational but the stopping distance will be greater.
WARNING: Driving a vehicle with the brake system warning
light on is dangerous. A significant decrease in braking performance may occur. It will take you longer to stop the vehicle. Have the vehicle checked by your dealer immediately. Driving extended distances with the parking brake engaged can cause brake failure and the risk of personal injury.
Wait to start: Indicates the air intake heater is in operation and special starting procedures are required. Refer to Starting in the Driving chapter.
WARNING: If equipped with an air intake heater, DO NOT use
ether or any other starting fluids. The use of starting fluids (ether) in an engine equipped with an air intake heater could result in damage and/or personal injury.
24
WAIT
TO
START
2009 F-650/750 (f67) Supplement USA (fus)
Instrument Cluster
Water in fuel: During refueling, it is possible for water-contaminated diesel fuel to be pumped into your tank. Your vehicle fuel system is equipped with a fuel filter/water separator to remove water from the fuel. The WATER IN FUEL light will illuminate when the fuel filter/water separator has a significant quantity of water in it.
If the light illuminates when the engine is running, stop the vehicle as soon as safely possible, shut off the engine, then drain the fuel filter/water separator. Refer to your engine operator’s manual for the drain procedure. Allowing water to stay in the system could result in extensive damage to, or failure of, the fuel injection system.
WARNING: Do not drain water separator while engine is
running. Fuel may ignite if separator is drained while engine is running or vehicle is moving.
Traction control (if equipped):
Illuminates and flashes slowly if the Off Road or Mud/Snow mode is selected and flashes rapidly during a traction control event.
Differential lock: Illuminates when the main differential is locked (engaged).
Parking brake warning:
Momentarily illuminates when the ignition is turned to the ON position and the engine is off. Also illuminates when the parking brake is engaged. If the parking brake warning lamp does not illuminate at these times, seek service immediately.
Vehicles equipped with the Power Park Parking Brake option: If after setting the parking brake on your vehicle the park brake warning lamp begins to blink, this may indicate a failure in the parking brake system. Seek service from your dealer immediately.
WATER
IN
FUEL
BRAKE
P
2009 F-650/750 (f67) Supplement USA (fus)
25
Instrument Cluster
Trailer Anti-lock Brake System (ABS): Illuminates briefly when the
engine is powered-up and only when a PLC trailer or a PLC diagnostic tool is connected. If the light remains on after the vehicle is started, continues to flash or fails to illuminate, have the system serviced immediately.
Anti-lock Brake System (ABS): If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately. Normal braking is still functional unless the brake warning light also is illuminated.
Check trans (Allison automatic transmission only): The lamp will
illuminate for several seconds after the ignition is turned to the ON position. Illumination of this light while driving indicates that a problem has been detected and shifting may be restricted. Depending upon the severity of the problem, the read-out digit on the shifter display may be blank. Operation may continue in order to reach service assistance. The ECU may not respond to shift selector requests, since operating limitations are being placed on the transmission, i.e. upshifts and downshifts may be restricted. Direction changes will not occur.
Refer to your transmission operator’s manual for more information. Safety belt: Reminds you to fasten
your safety belt.
ABS
CHECK TRANS
Range inhibit: Illuminates when the transmission is not engaged in the selected gear. The warning light will go off when the gearshift lever is adjusted in to the appropriate gear.
Refer to your transmission operator’s manual for more information.
26
RANGE
INHIBIT
2009 F-650/750 (f67) Supplement USA (fus)
Instrument Cluster
Charging system: Illuminates when the battery is not charging properly.
Diesel particulate filter (Cummins engines only):
Illuminates if the soot in the DPF has reached a level where it requires operator assistance. Refer to Diesel Particulate Filter in the Maintenance and Specifications chapter and your engine operator’s manual, for more details.
Turn signal: Illuminates when the
left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb.
High beams: Illuminates when the high beam headlamps are turned on.
Safety belt warning chime: Sounds when the key is in the ignition and the driver’s safety belt is not fastened.
Key-in-ignition warning chime: Sounds when the key is left in the ignition in the OFF/LOCK or ACC position and the driver’s door is opened.
Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (and the key is not in the ignition) and the driver’s door is opened.
2009 F-650/750 (f67) Supplement USA (fus)
27
Instrument Cluster

GAUGES

Some of the gauges shown are optional based on vehicle equipment; your vehicle may not have some of the gauges shown in this section.
Speedometer: Indicates the current vehicle speed.
Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.
Odometer: Registers the total miles (kilometers) of the vehicle.
28
2009 F-650/750 (f67) Supplement USA (fus)
Instrument Cluster
Trip odometer: Registers the miles (kilometers) of individual journeys. To reset, depress the control.
Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the on position). If your vehicle is equipped with dual fuel tanks, the engine will draw fuel from the driver-side fuel tank only. With dual fuel tanks, the vehicle will be equipped with a fuel transfer pump system that will draw fuel from the passenger-side fuel tank and send fuel to the driver-side fuel tank. The driver-side fuel tank must have fuel in it at all times otherwise the vehicle may stall and may be difficult to re-start. The fuel gauge reads the fuel level only from the driver-side fuel tank.
Engine coolant temperature gauge: Indicates engine coolant
temperature. At normal operating temperature, the needle will be in the normal range (as indicated by the arrows). If it enters the red
section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.
C
H
WARNING: Never remove the coolant reservoir cap while the
engine is running or hot. The contents may be under pressure, and could cause burns or other serious injury.
2009 F-650/750 (f67) Supplement USA (fus)
29
Instrument Cluster
Engine oil pressure gauge:
Indicates engine oil pressure. The needle should stay in the normal operating range (as indicated by the arrows). If the needle falls below the normal range, stop the vehicle, turn off the engine and check the engine oil level. Add oil if needed. If the oil level is correct, have your vehicle checked at your dealership or by a qualified technician.
Battery voltage gauge: Indicates the battery voltage when the ignition is in the ON position. If the pointer moves and stays outside the normal operating range (as indicated by the arrows), have the vehicle’s electrical system checked as soon as possible.
Transmission fluid temperature gauge (if equipped, automatic transmission only):
Indicates the temperature of the transmission fluid. The normal temperature range is 150°–230°F (65°–110°C). Readings of 230°–250°F (110°–121°C) are satisfactory for intermittent operation and are not cause for alarm. Operation above 250°F (121°C) can cause the fluid to break down and will result in component damage.
8
18
30
2009 F-650/750 (f67) Supplement USA (fus)
Hourmeter (if equipped):
Registers the hours the engine has been operating.
UltraShift gear display (if equipped): Refer to the UltraShift
Driver Instructions Manual for the function of this display.
Air filter restriction gauge:
Measures the vacuum inside the air cleaner. The more the air cleaner is restricted (dirty, clogged), the higher the vacuum reading. Change the air filter when the gauge reads 25 inches. After installation of the new filter element, reset the gauge to 0.
Instrument Cluster
2009 F-650/750 (f67) Supplement USA (fus)
31
Instrument Cluster
Air pressure gauge: All vehicles equipped with air brakes have a dual-pointer air gauge to indicate the pressure in each brake circuit. The green pointer indicates the air pressure in the primary system and
30
the red pointer indicates the air pressure in the secondary system. When the pressure is too low for normal brake operation (less than
0
PRESSURE
60 psi [414 kPa]) and the ignition is on:
a warning buzzer will sound and
a warning light will illuminate in the instrument cluster
WARNING: Do not drive the vehicle when the low air pressure
buzzer is sounding or the warning light is lit. These warnings indicate there is not enough air pressure for the brake or suspension system to operate properly.
Vehicles equipped with hydraulic brakes and an air compressor have a single-pointer air gauge.
Note: This system does not have a low air pressure warning buzzer or a low air pressure warning light.
PSI
AIR
9060
120
150
32
2009 F-650/750 (f67) Supplement USA (fus)

AUDIO SYSTEMS

AM/FM stereo (if equipped)

Entertainment Systems

VOL
PUSH
ON
6
TONE
CLK
7
ST DX
TONE VOL
FM
12
1
SEEK
TUNE
2
5
1 2 3 4 AM/FM
4
WARNING: Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The drivers primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.
3
1. SEEK: Press
/ to find the
next strong station down/up the frequency band.
2. TUNE: Press
/ to
manually change radio frequency down/up.
2009 F-650/750 (f67) Supplement USA (fus)
33
Entertainment Systems
3. AM/FM: Press to choose a frequency band in radio mode.
4. Memory preset buttons: To set a station: Select frequency band
1 2 3 4
AM/FM
AM/FM; tune to a station, press and hold a preset button until sound returns.
5. Power/Volume: Press to turn ON/OFF; turn to increase or decrease volume levels.
6. TONE: Press TONE until the desired level — Bass, Treble, Fade appears on the display. Turn the volume control to raise/lower the levels, or to move the audio sound from the right to left or the front to back (if equipped).
7. CLK (Clock): To set the hour, press and hold CLK until CLOCK SET appears in the display. Press SEEK to decrease
increase
the hours.
or
TONE
CLK
To set the minute, press and hold CLK until CLOCK set appears in the display. Press TUNE to decrease
or increase the minutes.
34
2009 F-650/750 (f67) Supplement USA (fus)
Entertainment Systems

Satellite Compatible AM/FM Stereo In-Dash Single CD/MP3 Radio (if equipped)

WARNING: Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The drivers primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.
1. SEEK: Press and release SEEK strong station or track.
/ for previous/next
2009 F-650/750 (f67) Supplement USA (fus)
35
Entertainment Systems
2. TEXT: The filename (Fi), song title (So), artist text (Ar) or album text (AL) may be viewed while playing an MP3 selection. When MP3 selection text is shown on the message display, its corresponding text indicator (Fi, So, Ar, or AL) is shown in the elapsed time display. Press TEXT to scroll through the text fields. The display will scroll through all of the text in the current field before changing to the next field. (TEXT must be pressed within 3 seconds of the previous press to proceed to the next/last text display. The last text field shown on the display will become the new display message default. TEXT is also available when equipped with Satellite radio. Your radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit.
Dealer installed satellite kit only available in the continental United States.
3. AUX: This function is not operational.
4. MUTE: Press to MUTE playing media; press again to return to playing media.
5. EJ: Press to eject a CD.
6. Bass: Press BASS; then press SEL the bass output.
Treble: Press TREB; then press SEL the treble output.
7. Select: Use with Bass, Treble, Balance, Fade and other menu selections.
36
/ to decrease/increase
/ to decrease/increase
2009 F-650/750 (f67) Supplement USA (fus)
Entertainment Systems
8. Balance: Press BAL; then press SEL left/right speakers.
Fade: Press FADE; then press SEL rear/front speakers.
9. Menu: Press MENU and SEL to access AUTOSET and Setting the clock.
Autoset: Press MENU until AUTOSET appears in the display. Press SEL to toggle ON/OFF. Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets.
Setting the clock: Press MENU until SELECT HOUR or SELECT MINUTE is displayed. Use SEL to manually increase (
(
Folder/Track mode: In MP3 mode, press MENU until MODE appears in the display. Use SEL to toggle between FOLDER (only tracks within selected folder are accessible) or TRACK (all tracks on disc are accessible) MODE.
10. REPEAT: Repeats the current CD/MP3 track when active (ON). Press to show repeat status. Press again to toggle status.
11. SHUFFLE: Plays CD/MP3 tracks in random order when active (ON). Press to show shuffle status. Press again to toggle status.
12. FOLDER the next MP3 directory.
/ to shift sound to the
/ to shift sound to the
) or decrease
) the hours/minutes.
: Press to access
13. FOLDER the previous MP3 directory.
: Press to access
2009 F-650/750 (f67) Supplement USA (fus)
37
Entertainment Systems
14. FF(Fast forward): In CD/MP3 mode, press until desired selection is reached.
15. REW(Rewind): In CD/MP3 mode, press until desired selection is reached.
16. SAT (if equipped): Your radio comes equipped with Satellite Ready capability. The kit to enable the Satellite reception is available through your dealer. Detailed satellite instructions are included with the dealer installed kit.
Dealer installed satellite kit only available in the continental United States.
17. BAND: Press to toggle between AM/FM1/FM2 frequency band.
18. Memory presets: To set a station: Select frequency band; tune to a station, press and hold a preset button until sound returns.
19. Power/volume: Press to turn ON/OFF; turn to increase or decrease volume levels.
20. CD: Press to enter CD mode.
CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your dealer for further information.
38
2009 F-650/750 (f67) Supplement USA (fus)
Entertainment Systems
21. COMP(Compression): Brings soft and loud CD passages together for a more consistent listening level when in CD mode. Press COMP to turn the feature ON/OFF.
22. Scan: Press SCAN to hear a brief sampling of radio stations or CD/MP3 tracks. Press again to stop.
23. CAT/Tune: Press
manually tune down/up the radio frequency band.
CAT (Category): CAT is only available when equipped with Satellite Radio. Your radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit.
Dealer installed satellite kit only available in the continental United States.
For information regarding SIRIUS Satellite Radio, please call toll-free 888-539-SIRIUS (888-539-7474) or visit the SIRIUS website at www.siriusradio.com
24. CD slot: Insert a CD with the label side up.
or to
2009 F-650/750 (f67) Supplement USA (fus)
39
Entertainment Systems

Premium Satellite Compatible AM/FM Stereo In-Dash Six CD/MP3 Radio (if equipped)

WARNING: Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The drivers primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.
1. SEEK: Press and release SEEK strong station or track.
40
/ for previous/next
2009 F-650/750 (f67) Supplement USA (fus)
Entertainment Systems
2. TEXT: The filename (Fi), song title (So), artist text (Ar) or album text (AL) may be viewed while playing an MP3 selection. When MP3 selection text is shown on the message display, its corresponding text indicator (Fi, So, Ar, or AL) is shown in the elapsed time display. Press TEXT to scroll through the text fields. The display will scroll all of the text in the current field before changing to the next field. (TEXT must be pressed within 3 seconds of the previous button press to proceed to the next/last text display.)
TEXT is also available when equipped with Satellite radio. Your radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit. Dealer installed satellite kit
only available in the continental United States.
3. AUX: Press to toggle between the current playing media and DVD (if equipped).
4. MUTE: Press to MUTE playing media; press again to return to playing media
5. EJ: Press to eject a CD. Press EJ and a memory preset to eject a specific disc. Press and hold to eject all loaded discs.
6. Bass: Press BASS; then press SEL the bass output.
Treble: Press TREB; then press SEL the treble output.
/ to decrease/increase
/ to decrease/increase
7. Select: Use with Bass, Treble, Balance, Fade and other menu functions.
8. Balance: Press BAL; then press SEL left/right speakers.
/ to shift sound to the
2009 F-650/750 (f67) Supplement USA (fus)
41
Entertainment Systems
Fade: Press FADE; then press SEL rear/front speakers.
9. Menu: Press to access the following functions:
Compression: Brings soft and loud CD passages together for a more consistent listening level when in CD mode. Press MENU until compression status is displayed. Press the SEL control to enable the compression feature when COMPRESS OFF is displayed. Press the SEL control again to disable the feature when COMPRESS ON is displayed.
Autoset: Press MENU until AUTOSET appears in the display. Press SEL to toggle ON/OFF. Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets.
Setting the clock: Press MENU until SELECT HOUR or SELECT MINUTE is displayed. Use SEL to manually increase ( (
Folder/Track Mode: In MP3 mode, press MENU until MODE appears in the display. Use SEL to toggle between FOLDER (only tracks within selected folder are accessible) or TRACK (all tracks on disc are accessible) MODE.
10. REPEAT: Press to repeat the current CD/MP3 track. Press again to disable.
11. SHUFFLE: Press play the CD/MP3 tracks on the current disc in random order. Press again to disable.
12. FOLDER the next MP3 directory.
/ to shift sound to the
) or decrease
) the hours/minutes. Press MENU again to disengage clock mode.
: Press to access
13. FOLDER the previous MP3 directory
42
: Press to access
2009 F-650/750 (f67) Supplement USA (fus)
Entertainment Systems
14. FF(Fast forward): In CD/MP3 mode, press until desired selection is reached.
15. REW(Rewind): In CD/MP3 mode, press until desired selection is reached.
16. SAT (if equipped): Your radio comes equipped with Satellite Ready capability. The kit to enable the Satellite reception is available through your dealer. Detailed satellite instructions are included with the dealer installed kit. Dealer installed
satellite kit only available in the continental United States.
17. BAND: Press to toggle between AM/FM1/FM2 frequency band.
18. Memory presets: To set a station: Select frequency, tune to a station, press and hold a preset button until sound returns.
19. Power/volume: Press to turn ON/OFF; turn to increase or decrease volume levels.
20. Load: Press to load a CD. Press LOAD and a memory preset to load to a specific disc slot. Press and hold to load up to six discs.
21. CD: Press to enter CD mode.
2009 F-650/750 (f67) Supplement USA (fus)
43
Entertainment Systems
CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your dealer for further information.
22. Scan: Press SCAN to hear a brief sampling of radio stations or CD/MP3 tracks. Press again to stop.
23. Disc/Tune: Press
manually tune down/up the radio frequency band, or to listen to the previous/next CD.
CAT (Category): CAT is only available when equipped with Satellite Radio. Your Audiophile radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit. Dealer installed satellite kit only available in the
continental United States.
For information regarding SIRIUS Satellite Radio, please call toll-free 888-539-SIRIUS (888-539-7474) or visit the SIRIUS website at www.siriusradio.com
24. CD slot: Insert a CD, label side up.
or to

GENERAL AUDIO INFORMATION

Radio frequencies
AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are:
AM - 530, 540–1700, 1710 kHz FM- 87.7, 87.9–107.7, 107.9 MHz
44
2009 F-650/750 (f67) Supplement USA (fus)
Entertainment Systems
Radio reception factors
There are three factors that can effect radio reception:
Distance/Strength: The further you travel from an FM station, the weaker the signal and the weaker the reception.
Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception.
Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.
CD/CD player care
Do:
Handle discs by their edges only. Never touch the playing surface.
Inspect discs before playing. Clean only with an approved CD cleaner
and wipe from the center out.
Don’t:
Expose discs to direct sunlight or heat sources for extended periods of time.
Insert more than one disc into each slot of the CD changer magazine.
Clean using a circular motion.
CD units are designed to play commercially pressed 4.75 inch (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ball point pens may damage CDs. Please contact your dealer for further information.
Audio system warranty and service
Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.
2009 F-650/750 (f67) Supplement USA (fus)
45

Climate Controls

HEATER ONLY SYSTEM (IF EQUIPPED)

1. Fan speed adjustment: Controls
the volume of air circulated in the vehicle.
2. Temperature selection:
Controls the temperature of the airflow in the vehicle.
3. Air flow selections: Controls the direction of the airflow in the
vehicle. See the following for a brief description on each control.
: Distributes outside air through the instrument panel vents.
OFF: Outside air is shut out and the fan will not operate.
: Distributes outside air through the instrument panel vents and the
floor vents.
: Distributes outside air through the floor vents.
: Distributes outside air through the windshield defroster vents and
floor vents.
: Distributes outside air through the windshield defroster vents.

Operating tips

To reduce fog build up on the windshield during humid weather, place the air flow selector in the
To reduce humidity build up inside the vehicle during cold or warm weather, do not drive with the air flow selector in the OFF position.
Under normal weather conditions, do not leave the air flow selector in OFF when the vehicle is parked. This allows the vehicle to “breathe” using the outside air inlet vents.
Do not put objects under the front seats that will interfere with the air flow to the back seats.
Remove any snow, ice or leaves from the air intake area at the base of the windshield.
position.
46
2009 F-650/750 (f67) Supplement USA (fus)
Climate Controls
To aid in side window defogging/demisting in cold weather:
1. Select
2. Set the temperature control to full heat.
3. Set the fan speed to its highest speed.
4. Direct the outer instrument panel vents towards the side windows.
To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.
stop.

MANUAL HEATING AND AIR CONDITIONING SYSTEM (IF EQUIPPED)

1. Fan speed adjustment: Controls
the volume of air circulated in the vehicle.
2. Temperature selection:
Controls the temperature of the airflow in the vehicle.
3. Air flow selections: Controls the direction of the airflow in the
vehicle. See the following for a brief description on each control. MAX A/C: Uses recirculated air to cool the vehicle. Air flows from the
instrument panel vents only. A/C: Uses outside air to cool the vehicle. Air flows from the instrument
panel vents only.
: Distributes outside air through the instrument panel vents.
OFF: Outside air is shut out and the fan will not operate.
: Distributes outside air through the instrument panel vents and the
floor vents.
: Distributes outside air through the floor vents.
: Distributes outside air through the windshield defroster vents and
floor vents.
: Distributes outside air through the windshield defroster vents.
.
WARNING: Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden
2009 F-650/750 (f67) Supplement USA (fus)
47
Climate Controls

Operating tips

To reduce fog build up on the windshield during humid weather, place the air flow selector in the
To reduce humidity build up inside the vehicle: do not drive with the air flow selector in the OFF or MAX A/C position.
Under normal weather conditions, do not leave the air flow selector in OFF or MAX A/C when the vehicle is parked. This allows the vehicle to “breathe” using the outside air inlet vents.
Do not put objects under the front seats that will interfere with the airflow to the back seats.
Remove any snow, ice or leaves from the air intake area at the base of the windshield.
To aid in side window defogging/demisting in cold weather:
1. Select
2. Select A/C.
3. Modulate the temperature control to maintain comfort.
4. Set the fan speed to its highest speed.
5. Direct the outer instrument panel vents towards the side windows.
To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.
.
position.
WARNING: Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden
stop.
48
2009 F-650/750 (f67) Supplement USA (fus)

Lights

HEADLAMP CONTROL

Turns the lamps off.
Turns on the parking lamps, instrument panel lamps, license plate lamps and tail lamps.
Turns the headlamps on.

High beams/Flash-to-pass

Push the lever toward the instrument panel to activate the high beams. Pull the lever towards you to deactivate.
Pull toward you slightly to activate flash-to-pass. Release to deactivate.

Daytime Running Lamps (DRL) (if equipped)

Turns the headlamps on with a reduced output.
To activate:
the ignition must be in the ON position and
the headlamp control is in the OFF, parking lamp or autolamp
position.
WARNING: Always remember to turn on your headlamps at
dusk or during inclement weather. The Daytime Running Lamp (DRL) system does not activate your tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.
2009 F-650/750 (f67) Supplement USA (fus)
49
Lights

PANEL DIMMER CONTROL

Use to adjust the brightness of the instrument panel and all applicable switches in the vehicle during headlamp and parklamp operation.
Rotate the control to the full up position, past the detent, to turn on the interior lamps.
Rotate the control to the full down position, past the detent, to prevent the interior lights from illuminating when the doors are opened.

AIMING THE HEADLAMPS

The headlamps on your vehicle are properly aimed at the assembly plant. If your vehicle has been in an accident the alignment of your headlamps should be checked by a qualified service technician.

TURN SIGNAL CONTROL

Push down to activate the left turn signal.
Push up to activate the right turn signal.
If your vehicle is a tractor, the turn signals may not shut off when a turn is completed; this is normal. Please see your dealer if there are any questions on the options your vehicle has been equipped with.
50
2009 F-650/750 (f67) Supplement USA (fus)
Lights

INTERIOR LAMPS

Map lamps (if equipped)

To turn on the map lamps, press the control next to each lamp.

EXTERIOR LAMPS

Bulb inspection

It is a good safety practice to check operation of headlamps, parking lamps, turn signals, clearance and marker lamps, instrument panel and control lamps each day.

Using the right bulbs

Function Number of
bulbs
Headlamps 2 H6054 Front turn signal lamps 2 1157 Front sidemarker/Park lamps 2 (amber) 194 Brake/Tail/Stop/Rear turn
signal/License lamps Back-up lamps 2 1156 Front clearance and identification
lamps Dome lamp 1 105 To replace all instrument panel lights - see your dealer
1 bulb each side 1157
5 168
Trade number
51
2009 F-650/750 (f67) Supplement USA (fus)
Lights

Bulb replacement

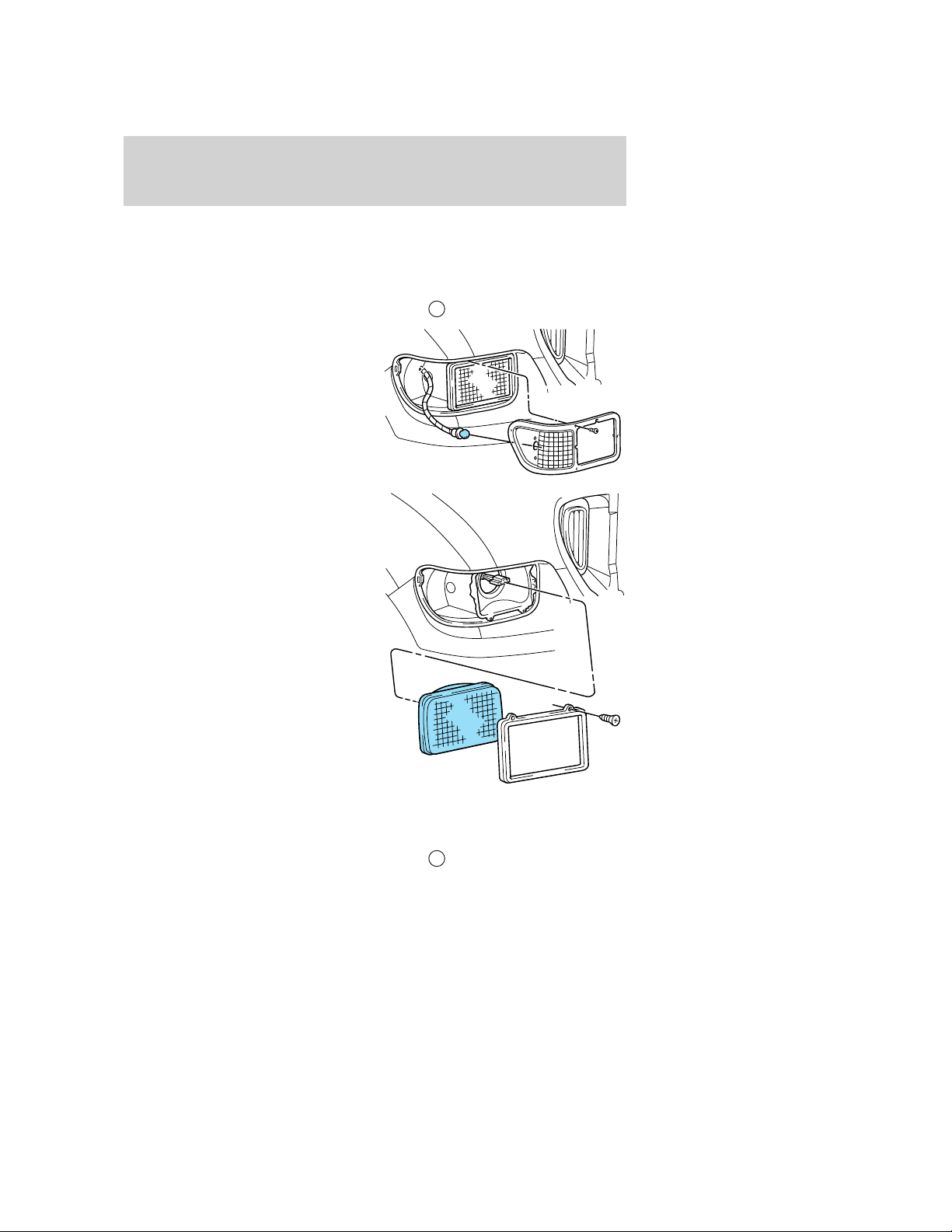

Replacing headlamp bulbs
To remove the headlamp bulbs:
1. Make sure the headlamp control is in the
2. Remove the four screws and
move the parking lamp assembly away from the headlamp bulb.
3. Remove the four screws and the
retaining bracket from the headlamp bulb.
4. Pull the headlamp bulb out of the
housing, disconnect the electrical connector and remove the headlamp bulb.
5. To complete installation, follow
the removal procedure in reverse order.
position.
Replacing front parking lamp/turn signal/side marker bulbs
To remove the parking lamp/turn signal bulbs:
1. Make sure the headlamp control is in the
signals are off.
52
position and the turn
2009 F-650/750 (f67) Supplement USA (fus)
Lights
2. Remove the four screws from the
lamp assembly.
3. Carefully lower the lamp assembly
and pull the bulb socket straight out of the lamp assembly.
4. Carefully pull the bulb straight
out of the socket and push in the new bulb.
5. To complete installation, follow
the removal procedure in reverse order.
Replacing front clearance and identification lamp bulbs
To change the cab marker bulbs:
1. Make sure the headlamp control
is in the the screw and lens from the lamp assembly.
2. Carefully pull the bulb straight
out of the socket and push in the new bulb.
3. Install the lens on lamp assembly
with screw.
Replacing brake/tail/rear turn signal/back-up/license plate lamp bulbs
The brake/tail/turn signal/back-up/license plate lamp bulbs are located in the same portion of the tail lamp assembly. Follow the same steps to replace any of these bulbs:
1. Make sure the headlamp control
is in the signals are off, then remove the four screws and the lamp lens from lamp assembly.
2. Carefully pull the bulb straight out of the socket and push in the new
bulb.
3. Install the lens on the lamp assembly with the four screws.
position, then remove
position and the turn
2009 F-650/750 (f67) Supplement USA (fus)
53

Driver Controls

MULTI-FUNCTION LEVER

Windshield wiper/washer controls

Rotate the windshield wiper control to the desired interval, low or high speed position.
The bars of varying length are for intermittent wipers. When in this position rotate the control upward for fast intervals and downward for slow intervals.
Push the control on the end of the stalk to activate washer. Push and hold for a longer wash cycle. The washer will automatically shut off after ten seconds of continuous use.

TILT STEERING

Pull the tilt steering control toward you to move the steering wheel up or down. Hold the control while adjusting the wheel to the desired position, then release the control to lock the steering wheel in position.
54
2009 F-650/750 (f67) Supplement USA (fus)
Driver Controls
WARNING: Never adjust the steering wheel when the vehicle is moving.

AUXILIARY POWER POINT

Power outlets are designed for accessory plugs only. Do not insert any other object in the power outlet as this will damage the outlet and blow the fuse. Do not hang any type of accessory or accessory bracket from the plug. Improper use of the power outlet can cause damage not covered by your warranty.
The power point is an additional power source for electrical accessories. The power points are located on the instrument panel and inside the center console storage bin.
Do not use the power point for operating the cigarette lighter element (if equipped).
To prevent the fuse from being blown, do not use the power point(s) over the vehicle capacity of 12 VDC/180W/15A. If the power point or cigar lighter socket is not working, a fuse may have blown. Refer to Fuses and relays in the Roadside Emergencies chapter for information on checking and replacing fuses.
To have full capacity usage of your power point, the engine is required to be running (in a safe manner) to avoid unintentional discharge of the battery. To prevent the battery from being discharged:
do not use the power point longer than necessary when the engine is not running,
do not leave battery chargers, video game adapters, computers and other devices plugged in overnight or when the vehicle is parked for extended periods.
Always keep the power point caps closed when not being used.
Cigarette/Cigar lighter (if equipped)
Do not plug optional electrical accessories into the cigarette lighter socket.
Do not hold the lighter in with your hand while it is heating, this will damage the lighter element and socket. The lighter will be released from its heating position when it is ready to be used.
POWER POINT
2009 F-650/750 (f67) Supplement USA (fus)
55
Driver Controls
Improper use of the lighter can cause damage not covered by your warranty.

POWER WINDOWS (IF EQUIPPED)

WARNING: Do not leave children unattended in the vehicle and do not let children play with the power windows. They may
seriously injure themselves.
WARNING: When closing the power windows, you should verify they are free of obstructions and ensure that children and/or
pets are not in the proximity of the window openings.
Press and hold the rocker switches to open and close windows.
Press the top portion of the rocker switch to close.
AUTO
Press the bottom portion of the rocker switch to open.
56
2009 F-650/750 (f67) Supplement USA (fus)
AUTO
Driver Controls

One touch down

Press AUTO completely down and release quickly. The driver’s window will open fully. Depress again to stop window operation.
AUTO

Window lock

The window lock feature allows only the driver to operate the power windows.
To lock out all the window controls except for the driver’s press the left side of the control. Press the right side to restore the window controls.

EXTERIOR MIRRORS

With the doors closed and the seat adjusted for proper comfort, move the mirrors to maximize rear viewing area by adjusting the western mirrors left or right as required.
Adjust the auxiliary convex mirrors. Convex mirrors are a ball-stud design for precise adjustment to maximize viewing area.
2009 F-650/750 (f67) Supplement USA (fus)
57
Driver Controls

Power side view mirrors (if equipped)

The ignition can be in any position to adjust the power side view mirrors. To adjust your mirrors:
1. Select L to adjust the left mirror
or R to adjust the right mirror.
2. Move the control in the direction
you wish to tilt the mirror.
3. Return to the center position to lock mirrors in place.
4. If your vehicle’s mirrors are equipped with spotter mirrors (located
below the main mirrors), they must be adjusted manually.
MIRRORS
L R
MIRRORS
L R

Heated mirrors (if equipped)

Both main mirrors are heated automatically to remove ice, mist and fog and are automatically activated when the vehicle is started.
Note: The mirrors may be hot to the touch but will not burn. This is a normal condition.
Do not remove ice from the mirrors with a scraper or attempt to readjust the mirror glass if it is frozen in place. These actions could cause damage to the glass and mirrors.
The mirror heating elements are designed to operate regardless of the geographic location of the vehicle. There is no switch to turn on, or other operator involvement required other than to start the vehicle.
58
2009 F-650/750 (f67) Supplement USA (fus)
Driver Controls
The spotter mirror (if equipped) is not heated.

Fold-away mirrors

The mirrors can be manually folded forward or backwards for narrow spaces like driving through an automatic car wash or backing out of a garage with the trailer tow mirror.
The telescoping feature (if equipped) allows the mirror to extend approximately three inches (76 mm). This feature is especially useful to the driver when towing a trailer.

SPEED CONTROL (IF EQUIPPED)

To turn speed control on

Press CRUISE RPM. If the vehicle is moving, speed control will be enabled; if the vehicle is stationary, engine RPM can be controlled.
CRUISE
RPM
OFF
WARNING: Do not use the speed control in heavy traffic or on roads that are winding, slippery, or unpaved.
Do not shift the gearshift lever into N (Neutral) with the speed control on.
2009 F-650/750 (f67) Supplement USA (fus)
59
Driver Controls

To turn speed control off

Press OFF or turn off the ignition. Once speed control is switched off,
the previously programmed engine RPM will be erased.
WARNING: Do not use the speed control in heavy traffic or on roads that are winding, slippery, or unpaved.

To set a speed

Press SET +. If the vehicle is moving, this will set the vehicle speed. If the vehicle is stationary, this will set the vehicle idle RPM.
If you drive up or down a steep hill, your vehicle speed may vary momentarily slower or faster than the set speed; this is normal.
Speed control cannot reduce the vehicle speed if it increases above the set speed on a downhill. If your vehicle speed is faster than the set speed while driving on a downhill, you may want to shift to the next lower gear or apply the brakes to reduce your vehicle speed.
If the vehicle speed falls below 30 mph (48 km/h) or engine RPM falls below 1,000 RPM, your speed control will disengage; this is normal. Pressing RESUME - will re-engage it.
CRUISE
RPM
OFF
WARNING: Do not use the speed control in heavy traffic or on roads that are winding, slippery, or unpaved.
60
2009 F-650/750 (f67) Supplement USA (fus)
Driver Controls

To set a higher set speed

Press and hold SET +. If the vehicle is moving, this will increase vehicle speed; if the vehicle is stationary, this will increase engine RPM. Release the control when the desired vehicle speed/engine RPM is reached.
Press and release SET + to operate the tap-up function. Each press will increase the set speed by 1 mph (1.6 km/h) or engine RPM in idle mode.

To set a lower set speed

Press and hold RESUME -. If the vehicle is moving, this will decrease vehicle speed; if the vehicle is stationary, this will decrease engine RPM. Release the control when the desired vehicle speed/engine RPM is reached.
Press and release RESUME - to operate the tap-down function. Each press will decrease the set speed in increments of 1 mph (1.6 km/h) or engine RPM in idle mode.
RESUME
SET

To disengage speed control

Disengaging the speed control will not erase the previously programmed set speed or engine RPM.
Depress the brake pedal or
2009 F-650/750 (f67) Supplement USA (fus)
61
Driver Controls
Depress the clutch pedal (if equipped).
Pressing OFF will erase the previously programmed engine RPM.

To return to a previously set speed

Press RESUME -. For RESUME - to operate, the vehicle speed must be above 30 mph (48 km/h) or engine speed must be above 1,000 RPM.
CRUISE
RPM
OFF
RESUME
SET
62
2009 F-650/750 (f67) Supplement USA (fus)
Driver Controls

GAUGE PACKAGE

Your vehicle may be equipped with an optional gauge package. It will have one of the following configurations:
UltraShift gauge package: This will contain the following two gauges:
1. UltraShift gauge: for the operation
of this gauge refer to the UltraShift Driver Instructions Manual.
2. Hourmeter: displays the hours of
engine run time.
Overhead gauge package: This will contain the following two gauges:
1. Transmission temperature gauge:
displays the transmission temperature at the transmission sump. (Refer to the Gauge section for additional description.)
2. Hourmeter: displays the hours of
engine run time.
2009 F-650/750 (f67) Supplement USA (fus)
63

Locks and Security

KEYS

The key operates all locks on your vehicle. In case of loss, replacement keys are available from your dealer.
You should always carry a second key with you in a safe place in case you require it in an emergency.

POWER DOOR LOCKS (IF EQUIPPED)

Press U to unlock all doors and L to lock all doors.
UL
64
2009 F-650/750 (f67) Supplement USA (fus)

Seating and Safety Restraints

SEATING

Notes:
WARNING: Reclining the seatback can cause an occupant to
slide under the seat’s safety belt, resulting in severe personal
injuries in the event of a collision.
WARNING: Do not pile cargo higher than the seatbacks to reduce the risk of injury in a collision or sudden stop.

40/0/40 split bench seat (if equipped)

Lift the track release bar to move the seat forward or backward. Ensure the seat is re-latched into place.
Lift the handle to on the side of the seat to adjust the angle of the seatback.
2009 F-650/750 (f67) Supplement USA (fus)
65
Seating and Safety Restraints

70% – two person passenger bench seat (if equipped)

Lift the handle on the seatback to tilt the seatback forward.

Adjusting the front power seat (if equipped)

The control is located on the outboard side of the seat cushion. Press to raise or lower the front
portion of the seat cushion.
66
2009 F-650/750 (f67) Supplement USA (fus)
Seating and Safety Restraints
Press to raise or lower the rear portion of the seat cushion.
Press the control to move the seat forward, backward, up or down.

Heated seats (if equipped)

To operate the heated seats:
Push control to activate.
Push again to deactivate.
2009 F-650/750 (f67) Supplement USA (fus)
67
Seating and Safety Restraints

Air-Ride seat (if equipped)

1. Chugger option: Dampens road vibrations and allows the seat to
move with the driver when unlocked. To unlock, sit in the seat and slide the tab away from the seat (to the right) To lock, sit in the seat and slide the tab toward the seat (to the left).
2. Seat adjuster: Lift up to move the seat forward or backward. Release
the bar to lock the seat in position.
3. Seat height adjuster: Pull the control up to raise the seat, push it
down to lower the seat.
WARNING: To reduce the risk of excess slack in the belt system, always adjust the seat height before fastening the seat
belt.
4. Power lumbar: Press the top of the forward control to inflate the
lower lumbar support; press the bottom of the forward control to deflate the lower lumbar support. Press the top of the rear control to inflate the upper lumbar support; press the bottom of the rear control to deflate the upper lumbar support.
5. Recline: Lift the handle to adjust the angle of the seatback.
68
2009 F-650/750 (f67) Supplement USA (fus)
Seating and Safety Restraints

REAR FLIP-UP SEAT (IF EQUIPPED)

Flipping up the seat

The rear seatback has a split 60/40 seat. Each seat cushion can be flipped-up into the seatback position.
1. Pull the control to release the
seat cushion.
2. Rotate the seat cushion up until it
locks into the vertical storage position.

Returning the seat to horizontal position

WARNING: Always latch the vehicle seat to the floor, whether the seat is occupied or empty. If not latched, the seat may cause
injury during a sudden stop.
WARNING: Make sure the safety belts are accessible and not trapped behind the seat when the seat is returned to its
horizontal position.
1. Pull the control on the side of the seat to release the seat cushion
from its storage position.
2. Push the seat cushion down until it locks into the horizontal position.
SAFETY RESTRAINTS Safety restraints precautions
WARNING: Always drive and ride with your seatback upright and the lap belt snug and low across the hips.
WARNING: To reduce the risk of injury, make sure children sit where they can be properly restrained.
WARNING: All occupants of the vehicle, including the driver, should always properly wear their safety belts.
2009 F-650/750 (f67) Supplement USA (fus)
69
Seating and Safety Restraints
WARNING: Never let a passenger hold a child on his or her lap while the vehicle is moving. The passenger cannot protect the
child from injury in a collision.
WARNING: It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts. Be sure everyone in your vehicle is in a seat and using a safety belt properly.
WARNING: In a rollover crash, an unbelted person is
significantly more likely to die than a person wearing a safety belt.
WARNING: Each seating position in your vehicle has a specific
safety belt assembly which is made up of one buckle and one tongue that are designed to be used as a pair. 1) Use the shoulder belt on the outside shoulder only. Never wear the shoulder belt under the arm. 2) Never swing the safety belt around your neck over the inside shoulder. 3) Never use a single belt for more than one person.

Combination lap and shoulder belts

1. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) until you hear a snap and feel it latch. Make sure the tongue is securely fastened in the buckle.
70
2009 F-650/750 (f67) Supplement USA (fus)
Seating and Safety Restraints
2. To unfasten, push the release button and remove the tongue from the buckle.
The front and rear outboard safety restraints in the vehicle are combination lap and shoulder belts. The front and rear seat passenger outboard safety belts have vehicle sensitive emergency locking retractors.

Lap belts

The front center and rear center lap belts do not adjust automatically.
WARNING: The lap belt should fit snugly and as low as possible
around the hips, not across the waist.
Insert the tongue into the correct buckle (the buckle closest to the direction the tongue is coming from). To lengthen the belt, turn the tongue at a right angle to the belt and pull across your lap until it reaches the buckle. To tighten the belt, pull the loose end of the belt through the tongue until it fits snugly across the hips.
Shorten and fasten the belt when not in use.
2009 F-650/750 (f67) Supplement USA (fus)
71
Seating and Safety Restraints

Vehicle sensitive mode

The vehicle sensitive retractor allows free shoulder belt length adjustment to your movements and locks in response to vehicle movement. For example, if the driver brakes suddenly or turns a corner sharply, or the vehicle receives an impact of approximately 5 mph (8 km/h) or more, the combination safety belts will lock to help reduce forward movement of the driver and passengers.

Front safety belt height adjustment

SuperCab and Crew Cab vehicles have safety belt height adjustments for the driver and front outboard passenger. Adjust the height of the shoulder belt so the belt rests across the middle of your shoulder.
SuperCab
72
2009 F-650/750 (f67) Supplement USA (fus)
Seating and Safety Restraints
Crew Cab
To lower the shoulder belt height, push the button and slide the height adjuster down. To raise the height of the shoulder belt, slide the height adjuster up. Pull down on the height adjuster to make sure it is locked in place.
WARNING: Position the safety belt height adjusters so that the
belt rests across the middle of your shoulder. Failure to adjust the safety belt properly could reduce the effectiveness of the seat belt and increase the risk of injury in a collision.

Safety belt extension assembly

If the safety belt is too short when fully extended, there is an eight inch (20 cm) safety belt extension assembly that can be added (part number 611C22). This assembly can be obtained from your dealer at no cost.
Use only extensions manufactured by the same supplier as the safety belt. Manufacturer identification is located at the end of the webbing on the label. Also, use the safety belt extension only if the safety belt is too short for you when fully extended.
2009 F-650/750 (f67) Supplement USA (fus)
73
Seating and Safety Restraints
WARNING: Do not use extensions to change the fit of the
shoulder belt across the torso.

Safety belt maintenance

Inspect the safety belt systems periodically to make sure they work properly and are not damaged. Inspect the safety belts to make sure there are no nicks, tears or cuts. Replace if necessary. All safety belt assemblies, including retractors, buckles, front seat belt buckle assemblies, buckle support assemblies (slide bar-if equipped), shoulder belt height adjusters (if equipped), shoulder belt guide on seatback (if equipped), child safety seat tether anchors, and attaching hardware, should be inspected after a collision.
WARNING: Ford Motor Company recommends that all safety
belt assemblies used in vehicles involved in a collision be inspected for proper function and replaced, if necessary. Safety belt assemblies not in use during a collision should also be inspected and replaced if either damage or improper operation is noted.
WARNING: Failure to inspect and if necessary replace the
safety belt assembly under the above conditions could result in severe personal injuries in the event of a collision.
Refer to Interior in the Cleaning chapter.

Safety belt warning light and indicator chime

The safety belt warning light illuminates in the instrument cluster and a chime sounds to remind the occupants to fasten their safety belts.
74
2009 F-650/750 (f67) Supplement USA (fus)
Seating and Safety Restraints
Conditions of operation
If... Then...
The driver’s safety belt is not buckled before the ignition switch is turned to the ON position...
The driver’s safety belt is buckled while the indicator light is illuminated and the warning chime is sounding...
The driver’s safety belt is buckled before the ignition switch is turned to the ON position...

Belt-Minder

The Belt-Minderfeature is a supplemental warning to the safety belt warning function. This feature provides additional reminders to the driver that the driver’s safety belt is unbuckled by intermittently sounding a chime and illuminating the safety belt warning lamp in the instrument cluster.
If... Then...
The driver’s safety belt is not buckled before the vehicle has reached at least 3 mph (5 km/h) and 1-2 minutes have elapsed since the ignition switch has been turned to ON...
The driver’s safety belt is buckled while the safety belt indicator light is illuminated and the safety belt warning chime is sounding...
The driver’s safety belt is buckled before the ignition switch is turned to the ON position...
The safety belt warning light illuminates 1-2 minutes and the warning chime sounds 4-8 seconds.
The safety belt warning light and warning chime turn off.
The safety belt warning light and indicator chime remain off.
The Belt-Minderfeature is activated - the safety belt warning light illuminates and the warning chime sounds for 6 seconds every 30 seconds, repeating for approximately 5 minutes or until safety belt is buckled.
The Belt-Minderfeature will not activate.
The Belt-Minderfeature will not activate.
2009 F-650/750 (f67) Supplement USA (fus)
75
Seating and Safety Restraints
The following are reasons most often given for not wearing safety belts: (All statistics based on U.S. data)
Reasons given... Consider...
“Crashes are rare events” 36700 crashes occur every day. The
more we drive, the more we are exposed to “rare” events, even for good drivers. 1 in 4 of us will be
seriously injured in a crash during our lifetime.
“I’m not going far” 3of4fatal crashes occur within 25
miles of home.
“Belts are uncomfortable” We design our safety belts to enhance
comfort. If you are uncomfortable ­try different positions for the safety belt upper anchorage and seatback which should be as upright as possible; this can improve comfort.
“I was in a hurry” Prime time for an accident.
Belt-Minderreminds us to take a few seconds to buckle up.
“Seat belts don’t work” Safety belts, when used properly,
reduce risk of death to front seat occupants by 45% in cars, and by
60% in light trucks.
“Traffic is light” Nearly 1 of 2 deaths occur in
single-vehicle crashes, many when
no other vehicles are around.
“Belts wrinkle my clothes” Possibly, but a serious crash can do
much more than wrinkle your clothes, particularly if you are unbelted.
“The people I’m with don’t wear belts”
Set the example, teen deaths occur 4 times more often in vehicles with TWO or MORE people. Children and younger brothers/sisters imitate behavior they see.
76
2009 F-650/750 (f67) Supplement USA (fus)
Seating and Safety Restraints
Reasons given... Consider...
“I have an air bag” Air bags offer greater protection when
used with safety belts. Frontal air bags are not designed to inflate in rear and side crashes or rollovers.
“I’d rather be thrown clear” Not a good idea. People who are
ejected are 40 times more likely to DIE. Safety belts help prevent
ejection, WE CAN’T “PICK OUR CRASH”.
WARNING: Do not sit on top of a buckled safety belt or insert a
latchplate into the buckle to avoid the Belt-Minderchime. To do so may adversely affect the performance of the vehicle’s air bag system
One-time disable
Any time the safety belt is buckled and then unbuckled during an ignition ON cycle, Belt-Minderwill be disabled for that ignition cycle only.
Deactivating/Activating the Belt-Minderfeature
Read Steps1-9thoroughly before proceeding with the deactivation/activation programming procedure.
The Belt-Minderfeature can be deactivated/activated by performing the following procedure:
Before following the procedure, make sure that:
The parking brake is set.
The gearshift is in P (Park) (if equipped) or N (Neutral) (automatic
transmissions) or the neutral position (manual transmission).
The ignition switch is in the OFF position.
All vehicle doors are closed.
The driver’s safety belt is unbuckled.
The headlamp control is in the
position.
2009 F-650/750 (f67) Supplement USA (fus)
77
Seating and Safety Restraints
WARNING: While the design allows you to deactivate your
Belt-Minder, this system is designed to improve your chances of being safely belted and surviving an accident. We recommend you leave the Belt-Mindersystem activated for yourself and others who may use the vehicle. To reduce the risk of injury, do not deactivate/activate the Belt-Minderfeature while driving the vehicle.
Belt-Minderactivation and deactivation procedure
1. Turn the ignition switch to the ON position. (DO NOT START THE ENGINE.)
2. Wait until the safety belt warning light turns off. (Approximately 1–2 minutes.)
Steps 3–5 must be completed within 60 seconds or the procedure will have to be repeated.
3. Buckle then unbuckle the safety belt three times, ending with the
safety belt unbuckled. This can be done before or during Belt-Minder warning activation.
4. Turn on the parklamps/headlamps, turn off the parklamps/headlamps.
5. Buckle then unbuckle the safety belt three times, ending with the
safety belt unbuckled.
After step 5 the safety belt warning light will be turned on for three seconds.
6. Within seven seconds of the safety belt warning light turning off,
buckle then unbuckle the safety belt.
This will disable Belt-Minderif it is currently enabled, or enable Belt-Minderif it is currently disabled.
7. Confirmation of disabling Belt-Minderis provided by the safety belt
warning light flashing four times per second for three seconds.
8. Confirmation of enabling Belt-Minderis provided by:
The safety belt warning light flashing four times per second for three seconds.
Followed by three seconds with the safety belt warning light off.
Once again, the safety belt warning light will flash four times per
second for three seconds.
9. After receiving confirmation, the deactivation/activation procedure is
complete.
78
2009 F-650/750 (f67) Supplement USA (fus)
Seating and Safety Restraints

SAFETY RESTRAINTS FOR CHILDREN

Important child restraint precautions

WARNING: Always make sure your child is secured properly in
a device that is appropriate for their height, age and weight. Child safety restraints must be purchased separately from the vehicle. Failure to follow these instructions and guidelines may result in an increased risk of serious injury or death to your child.
WARNING: All children are shaped differently. The
Recommendations for Safety Restraints are based on probable child height, age and weight thresholds from NHTSA and other safety organizations or are the minimum requirements of law. Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician (CPST) and your pediatrician to make sure your child seat is appropriate for your child, and is compatible with and properly installed in the vehicle. To locate a child seat fitting station and CPST contact the NHTSA toll free at 1-888-327-4236 or on the internet at http://www.nhtsa.dot.gov. Failure to properly restrain children in safety seats made especially for their height, age, and weight may result in an increased risk of serious injury or death to your child.
2009 F-650/750 (f67) Supplement USA (fus)
79
Seating and Safety Restraints
Recommendations for Safety Restraints for Children
Child size, height, weight, or age
Infants or toddlers
Small children
Larger children
You are required by law to properly use safety seats for infants and toddlers in the U.S. and Canada.
Many states and provinces require that small children use approved booster seats until they reach age eight, a height of 4 ft 9 in (1.45 meters) tall, or 80 lb (36 kg). Check your local and state or provincial laws for specific requirements regarding the safety of children in your vehicle.
When possible, always properly restrain children twelve (12) years of age and under in a rear seating position of your vehicle. Accident statistics suggest that children are safer when properly restrained in the rear seating positions than in a front seating position.
Children weighing 40 lb (18 kg) or less (generally age four or younger)
Children who have outgrown or no longer properly fit in a child safety seat (generally children who are less than 4 feet 9 inches (1.45 meters) tall, are greater than age four (4) and less than age twelve (12), and between 40 lbs (18 kg) and 80 lbs (36 kg) and upward to 100 lbs (45 kg) if recommended by your child restraint manufacturer)
Children who have outgrown or no longer properly fit in a belt-positioning booster seat (generally children who are at least 4 feet 9 inches (1.45 meters) tall or greater than 80 lb (36 kg) or 100 lb (45 kg) if recommended by child restraint manufacturer)
Recommended restraint type
Use a child safety seat (sometimes called an infant carrier, convertible seat, or toddler seat).
Use a belt-positioning booster seat.
Use a vehicle safety belt having the lap belt snug and low across the hips, shoulder belt centered across the shoulder and chest, and seatback upright.
80
2009 F-650/750 (f67) Supplement USA (fus)
Seating and Safety Restraints
Recommendations for attaching child safety restraints for children
Use any attachment method as indicated
below by “X”
LATCH
(lower Restraint Type
Rear facing child seat
Forward facing child seat
Forward facing child seat
WARNING: Air bags can kill or injure a child in a child seat.
NEVER place a rear-facing child seat in front of an active air bag. If you must use a forward-facing child seat in the front seat, move the vehicle seat all the way back. When possible, all children age 12 and under should be properly restrained in a rear seating position. If all children cannot be seated and restrained properly in a rear seating position, properly restrain the largest child in the front seat.
Child
Weight
Up to 48 lb (21 kg)
Up to 48 lb (21 kg)
Over 48 lb (21 kg)
anchors and top tether anchor)
LATCH (lower anchors only)
XX
XXX
Safety belt and top tether anchor
Safety belt and LATCH (lower anchors and top tether anchor)
XX
Safety belt only
2009 F-650/750 (f67) Supplement USA (fus)
81
Seating and Safety Restraints
WARNING: Always carefully follow the instructions and
warnings provided by the manufacturer of any child restraint to determine if the restraint device is appropriate for your child’s size, height, weight, or age. Follow the child restraint manufacturer’s instructions and warnings provided for installation and use in conjunction with the instructions and warnings provided by the vehicle manufacturer. A safety seat that is improperly installed or utilized, is inappropriate for your child’s height, age, or weight or does not properly fit the child may increase the risk of serious injury or death.
WARNING: Never let a passenger hold a child on his or her lap
while the vehicle is moving. The passenger cannot protect the child from injury in a collision, which may result in serious injury or death.
WARNING: Never use pillows, books, or towels to boost a child.
They can slide around and increase the likelihood of injury or death in a collision.
WARNING: Always restrain an unoccupied child seat or booster
seat. These objects may become projectiles in a collision or sudden stop, which may increase the risk of serious injury.
WARNING: Never place, or allow a child to place, the shoulder
belt under a child’s arm or behind the back because it reduces the protection for the upper part of the body and may increase the risk of injury or death in a collision.
WARNING: Do not leave children, unreliable adults, or pets
unattended in your vehicle.
SAFETY SEATS FOR CHILDREN Child and infant or child safety seats
Use a safety seat that is recommended for the size and weight of the child. Carefully follow all of the manufacturer’s instructions with the safety seat you put in your vehicle. If you do not install and use the safety seat properly, the child may be injured in a sudden stop or collision.
82
2009 F-650/750 (f67) Supplement USA (fus)
Seating and Safety Restraints
When installing a child safety seat:
Use the correct safety belt buckle for that seating position.
Insert the belt tongue into the proper buckle until you hear a snap and feel it latch. Make sure the tongue is securely fastened in the buckle.
Keep the buckle release button pointing up and away from the safety seat, with the tongue between the child seat and the release button, to prevent accidental unbuckling.
Place seat back in upright position.
Ford recommends the use of a child safety seat having a top tether strap. Install the child safety seat in a seating position with a tether anchor. For more information on top tether straps and anchors, refer to
Attaching safety seats with tether straps.
WARNING: Carefully follow all of the manufacturer’s
instructions included with the safety seat you put in your vehicle. If you do not install and use the safety seat properly, the child may be injured in a sudden stop or collision.
2009 F-650/750 (f67) Supplement USA (fus)
83
Seating and Safety Restraints

Installing child safety seats with combination lap and shoulder belts

1. Position the child safety seat in a seat with a combination lap and shoulder belt.
WARNING: Children under 12 are safer when properly
restrained in the rear seat, to the extent this is possible.
2. While holding the shoulder and lap belt portions together, route the tongue through the child seat according to the child seat manufacturer’s instructions. Be sure the belt webbing is not twisted.
84
2009 F-650/750 (f67) Supplement USA (fus)
Seating and Safety Restraints
3. Buckle the seat belt. Push down on the child seat and pull on the shoulder portion of the belt to snug the lap belt. Hold the lap and shoulder belts next to the tongue and unbuckle the belt.
4. Install a locking clip over both lap and shoulder belt portions next to the sliding tongue. Rebuckle the belt. Obtain the locking clip kit (part number FO3Z-5461248–A) at no charge from an authorized dealer. A locking clip may also have been provided with your child safety seat.
5. Before placing the child in the seat, forcibly tilt the seat forward and back to make sure the seat is securely held in place. To check this, grab the seat at the belt path and attempt to move it side to side and forward and back. There should be no more than one inch of movement for proper installation.
6. If the child seat is not tight enough, unbuckle the seat belt, move the tongue and locking clip to shorten the lap portion and push down hard on the child seat while you rebuckle the belt.
7. Check to make sure the child seat is properly secured before each use.
8. Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician (CPST) to make certain the child restraint is properly installed.
2009 F-650/750 (f67) Supplement USA (fus)
85
Seating and Safety Restraints

Installing child safety seats in the lap belt seating positions

1. Lengthen the lap belt. To lengthen the belt, hold the tongue so that its bottom is perpendicular to the direction of webbing while sliding the tongue up the webbing.
2. Place the child safety seat in the center seating position.
3. Route the tongue and webbing through the child seat according to the child seat manufacturer’s instructions.
4. Insert the belt tongue into the proper buckle for the center seating position until you hear a snap and feel it latch. Make sure the tongue is securely fastened to the buckle by pulling on tongue.
5. Push down on the child seat while pulling on the loose end of the lap belt webbing to remove slack from and tighten the belt.
6. Before placing the child into the child seat, forcibly tilt the child seat from side to side and in forward direction to make sure that the seat is securely held in place. To check this, grab the seat at the belt path and attempt to move it side to side and forward and back. There should be no more than one inch of movement for proper installation.
7. Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician (CPST) to make certain the child restraint is properly installed.

Attaching safety seats with tether straps

Most forward-facing child safety seats include a tether strap which goes over the back of the seat and hooks to an anchoring point. The F-650/750 vehicles are not equipped with an anchoring point. Tether straps are available as an accessory for many older safety seats. Contact the manufacturer of your child safety seat for information about ordering a tether strap.

Tether anchorage hardware

A tethered seat can be installed in the front seat. Put the tether strap over the seatback and attach it to an anchor bracket.
An anchor bracket can be installed to the inside of the back panel of your vehicle.
The anchor bracket must be installed using the instructions provided with the tether anchorage hardware kit.
Tether anchorage hardware kits (part number 613D74) including instructions, may be obtained at no charge from any Ford or Lincoln Mercury dealer.
86
2009 F-650/750 (f67) Supplement USA (fus)
Seating and Safety Restraints
If you have a SuperCab or Crew Cab, Ford recommends you attach tether safety seats in the rear seating position (if possible) with the tether strap attached to the tether anchorage bracket as shown in the instructions provided with the tether anchor kit.
WARNING: Tighten the anchor according to specifications.
Otherwise, the safety seat may not be properly secured and the child may be injured in a sudden stop or collision.

Child booster seats

The belt-positioning booster (booster seat) is used to improve the fit of the vehicle safety belt. Children outgrow a typical child seat (e.g, convertible or toddler seat) when they weigh about 40 lb (18 kg) and are around four (4) years of age. Consult your child safety seat owner guide for the weight, height, and age limits specific to your child safety seat. Keep your child in the child safety seat if it properly fits the child, remains appropriate for their weight, height and age AND if properly secured to the vehicle.
Although the lap/shoulder belt will provide some protection, children who have outgrown a typical child seat are still too small for lap/shoulder belts to fit properly, and wearing an improperly fitted vehicle safety belt could increase the risk of serious injury in a crash. To improve the fit of both the lap and shoulder belt on children who have outgrown child safety seats, Ford Motor Company recommends use of a belt-positioning booster.
Booster seats position a child so that vehicle lap/shoulder safety belts fit better. They lift the child up so that the lap belt rests low across the hips and the knees bend comfortably at the edge of the cushion, while minimizing slouching. Booster seats may also make the shoulder belt fit better and more comfortably. Try to keep the belt near the middle of the shoulder and across the center of the chest. Moving the child closer (a few centimeters or inches) to the center of the vehicle, but remaining in the same seating position, may help provide a good shoulder belt fit.
2009 F-650/750 (f67) Supplement USA (fus)
87
Seating and Safety Restraints
When children should use booster seats
Children need to use booster seats from the time they outgrow the toddler seat until they are big enough for the vehicle seat and lap/shoulder belt to fit properly. Generally this is when they reach a height of at least 4 feet 9 inches (1.45 meters) tall (around age eight to age twelve and between 40 lb (18 kg) and 80 lb (36 kg) or upward to 100 lb (45 kg) if recommended by your child restraint manufacturer). Many state and provincial laws require that children use approved booster seats until they reach age eight, a height of 4 feet 9 inches (1.45 meters) tall, or 80 lb (36 kg).
Booster seats should be used until you can answer YES to ALL of these questions when seated without a booster seat:
Can the child sit all the way back against the vehicle seat back with knees bent comfortably at the edge of the seat cushion?
Can the child sit without slouching?
Does the lap belt rest low across the hips?
Is the shoulder belt centered on the shoulder and chest?
Can the child stay seated like this for the whole trip?
Types of booster seats
There are generally two types of belt-positioning booster seats: backless and high back. Always use booster seats in conjunction with the vehicle lap/shoulder belt.
88
2009 F-650/750 (f67) Supplement USA (fus)
Seating and Safety Restraints
Backless booster seats
If your backless booster seat has a removable shield, remove the shield. If a vehicle seating position has a low seat back or no head restraint, a backless booster seat may place your child’s head (as measured at the tops of the ears) above the top of the seat. In this case, move the backless booster to another seating position with a higher seat back or head restraint and lap/shoulder belts, or consider using a high back booster seat.
High back booster seats
If, with a backless booster seat, you cannot find a seating position that adequately supports your child’s head, a high back booster seat would be a better choice.
2009 F-650/750 (f67) Supplement USA (fus)
89
Seating and Safety Restraints
Children and booster seats vary in size and shape. Choose a booster that keeps the lap belt low and snug across the hips, never up across the stomach, and lets you adjust the shoulder belt to cross the chest and rest snugly near the center of the shoulder. The drawings below compare the ideal fit (center) to a shoulder belt uncomfortably close to the neck and a shoulder belt that could slip off the shoulder. The drawings below also show how the lap belt should be low and snug across the child’s hips.
If the booster seat slides on the vehicle seat, placing a rubberized mesh sold as shelf or carpet liner under the booster seat may improve this condition. Do not introduce any item thicker than this under the booster seat. Check with the booster seat manufacturer’s instructions.
The importance of shoulder belts
Using a booster without a shoulder belt increases the risk of a child’s head hitting a hard surface in a collision. For this reason, you should never use a booster seat with a lap belt only. It is generally best to use a booster seat with lap/shoulder belts in the back seat.
90
2009 F-650/750 (f67) Supplement USA (fus)
Seating and Safety Restraints
Move a child to a different seating location if the shoulder belt does not stay positioned on the shoulder during use.
Follow all instructions provided by the manufacturer of the booster seat.
WARNING: Never place, or allow a child to place, the shoulder
belt under a child’s arm or behind the back because it reduces the protection for the upper part of the body and may increase the risk of injury or death in a collision.
2009 F-650/750 (f67) Supplement USA (fus)
91

Driving

STARTING

Positions of the ignition

1. ACCESSORY, allows the electrical accessories such as the radio to operate while the engine is not running.
2. LOCK, locks the steering wheel, automatic transmission gearshift lever and allows key removal.
3. OFF, shuts off the engine and all accessories without locking the steering wheel.
4. ON, all electrical circuits operational. Warning lights illuminated. Key position when driving.
5. START, cranks the engine. Release the key as soon as the engine starts.

Starting the engine

WARNING: Operation of a diesel engine near flammable vapors
in the air may cause the engine speed to increase uncontrollably and over speed. If this situation occurs, mechanical damage, fire, explosion, personal injury or death could result. Turning off the
ignition key will not slow or stop the engine due to uncontrollable fueling of the engine through flammable vapors being drawn into the engine air inlet. Operation of components such as starter,
alternator, electric motors, etc. and static electricity could also ignite flammable vapors. Do not operate the truck in the possible presence of flammable vapors unless both a complete hazard analysis is performed and necessary additional safety processes and/or equipment such as vapor testing, air intake shutoff devices, ventilation, etc. are utilized. The operator is responsible for using those processes and/or equipment to ensure that the diesel engine and all other components on the truck can be operated safely under the specific conditions and hazards that may be encountered.
3
2
1
4
5
Note: If equipped with Eaton UltraShift transmission, allow UltraShift to power up before starting the engine. Engine cranking is delayed until the transmission power up is complete and the gear display shows a solid N.
92
2009 F-650/750 (f67) Supplement USA (fus)
Driving
Note: When starting the engine, do not press the accelerator as engine damage may result.
1. Ensure headlamps and all accessories are turned off, the parking brake is applied and the transmission is in the neutral position (or P [Park] for Allison 2200 transmissions).
2. Turn the key to ON, but do not start the engine. In cooler weather, the air intake
heater may activate the WAIT TO START light in the instrument cluster. If the WAIT TO START light illuminates, do not crank the engine until the light goes off.
WARNING: If equipped with an air intake heater, DO NOT use
ether or any other starting fluids. The use of starting fluids (ether) in an engine equipped with an air intake heater could cause an explosion and result in property damage and/or personal injury.
3. When the WAIT TO START light turns off, turn the key to START; when the engine starts, release the key.
If the engine does not start after 30 seconds of cranking, allow two minutes for the starter to cool before trying again. Excessive cranking may damage the starter.
After the engine starts:
On some engines, the WAIT TO START light should illuminate after the engine starts. Allow the engine to idle about three minutes or until the engine coolant temperature gauge begins to rise. Maintain idle speed until the WAIT TO START light cycles off to indicate the air intake heater has shut off (approximately six minutes). Operating the engine at higher speeds will reduce the effectiveness of the air inlet heater.
WAIT
TO
START
WAIT
TO
START
2009 F-650/750 (f67) Supplement USA (fus)
93
Driving
Do not increase engine speed until the oil pressure gauge indicates normal pressure (as indicated by the arrows); this should be indicated on the gauge within 15 seconds after starting.
Idle the engine for three to five minutes before operating with a full load.
Try to limit engine idle to 10 minutes. Excessive idling reduces fuel economy.
When starting a cold engine, increase the engine speed (RPM) slowly to make sure adequate lubrication is available to the bearings.

Cold weather operation

WARNING: Do not use volatile starting aids such as ether, propane or gasoline in the engine air intake system. Glow plugs
may ignite vapors which can cause engine damage or personal injury.
In order to operate the engine in temperatures of 32°F (0°C) or lower, read the following instructions:
Make sure that the batteries are of sufficient size and are fully charged. Check other electrical components to make sure they’re in optimum condition.
Use a permanent-type engine coolant solution to protect the engine against damage from freezing.
If your vehicle is equipped with a water-fuel separator, drain it daily. Fill the fuel tank at the end of daily operation to prevent condensation in the fuel system.
Make sure you use proper cold weather engine oil and that it is at its proper level.
At temperatures of –4°F (–20°C) or below, it is recommended that you use a crankcase-mounted coolant heater to improve cold engine starting.
If operating in arctic temperatures of –20°F (–29°C) or lower, consult your truck dealer for information about special cold weather equipment and precautions.
94
2009 F-650/750 (f67) Supplement USA (fus)
Driving
Note: Idling in cold weather will not heat the engine to its normal operating temperature. Long periods of idling in cold weather can cause a build-up of heavy deposits of carbon and rust on valve stems causing them to stick which, in turn, can cause valvetrain damage.
Winter fronts
The use of winter fronts, or other air-restrictive devices mounted in front of the radiator on vehicles with chassis-mounted charge air coolers, are not recommended unless extremely cold weather conditions exist. Air flow restriction can cause high exhaust temperatures, power loss, excessive fan usage and a reduction in fuel economy. If you must use a winter front, the device should have a permanent opening of at least 120 sq in. (774 sq. cm) directly in line with the fan hub.

Hot weather operation

Keep the engine cooling system filled with a clean, permanent coolant solution to protect against damage from overheating.
Fill the fuel tank at the end of daily operation to prevent condensation in the fuel system.
Keep external surfaces of the engine, radiator, charge air cooler, A/C condenser and accessories clean to avoid dirt build-up.
Above normal coolant temperatures could be experienced while driving in a transmission gear ratio which lugs the engine. To correct this problem, engine speed should be increased by downshifting in to the next lower gear to increase engine RPM.

Starting a turbocharged engine with the vehicle on a steep grade

When starting a diesel engine when the loaded vehicle is on a grade, the engine RPM will start to fall slightly when the clutch is engaged; do not disengage the clutch and try to increase engine RPM as this may damage driveline components. The engine will recover as the vehicle begins moving.

Engine shutdown

Allow the engine to idle for three to five minutes before shutting it down. The larger the engine, the greater the need for this idling period. However, do not let the engine idle for more than 10 minutes.

Restarting after running out of fuel

The fuel system may need to be purged of air, refer to Running out of fuel in the Maintenance and Specifications chapter.
95
2009 F-650/750 (f67) Supplement USA (fus)
Driving

GENERAL OPERATING INSTRUCTIONS

Avoid extended (more than 10 minutes) and unnecessary idling.
Start the vehicle in motion by using the highest gear speed in the
transmission that will let the engine easily start the load without slipping the clutch.
Accelerate smoothly and evenly; rapid acceleration increases fuel consumption without increasing engine performance.
When approaching a hill, depress the accelerator smoothly to start the incline at full power, then shift down as needed to maintain vehicle speed.
When going down a hill, or long steep grades, prevent over-speeding of the engine. The engine governor has no control over engine speed when it is being pushed by a loaded vehicle.
Always shift to a lower gear at high altitudes to prevent engine smoking.
Operate in a gear that will permit an engine speed not in excess of the maximum governed speed or high-idle RPM (no load).
Normally, choose the same gear to descend the hill that you would use to ascend the hill.
WARNING: All vehicles have blind spots. To reduce the risk of
severe injury or property damage, never move your vehicle to the side or rear or change lanes without being sure your way is clear on both sides and to your rear.

Backing up

WARNING: To reduce the risk of the possibility of personal
injury while backing the vehicle, always be sure your vehicle’s path is clear.
Before backing your vehicle, be sure you can do so safely. If anything behind the cab limits your view, do not rely on mirrors alone to ensure that your intended path is clear. If other people are in the vicinity, have someone standing well behind your vehicle and outside of your intended path (visible through an exterior mirror) guide you as you back up.
96
2009 F-650/750 (f67) Supplement USA (fus)
Driving
Although OSHA or some governmental regulations may require the use of an electrical or mechanical back-up alarm to warn bystanders, such an alarm does not ensure that the intended path is clear. When in doubt, get out of the vehicle and visually check the intended path is clear; back-up slowly as to allow others time to move, if necessary.
If an electrical back-up alarm is installed, it should be connected to the back-up lamp circuit.

Parking your vehicle

Always use the parking brake. When parking on a grade, block the wheels and turn the front wheels to one side so that if the vehicle rolls, the front tires will act against the curb to stop the vehicle. The front wheels will be more effective at stopping a rolling vehicle than the rear wheels.
WARNING: When parking your vehicle, do not leave the
transmission in gear; if the key is in the ON position and the vehicle rolls, the engine could start. Failure to follow these instructions could result in an unattended vehicle moving, possibly causing personal injury or property damage.

Driving through water

If driving through deep or standing water is unavoidable, proceed very slowly especially if the depth is not known. Never drive through water that is higher than the bottom of the hubs. Traction or brake capability may be limited and your vehicle may stall. Water may also enter your engine’s air intake and severely damage your engine, drive axles or the transmission (through the breather ports).
Once through the water, always dry the brakes by moving your vehicle slowly while applying light pressure on the brake pedal. Wet brakes do not stop the vehicle as quickly as dry brakes.

ENGINE IDLE SHUTDOWN (IF EQUIPPED)

Your vehicle may be equipped with an Engine Idle Shutdown system. This system will automatically shut down your engine when it has been idling in P (Park) or N (Neutral) for five minutes (parking brake set) or 15 minutes (parking brake not set). During the engine idle shutdown process:
The Service Engine Soon light will flash, once per second, for the final 30 seconds just prior to shutdown.
2009 F-650/750 (f67) Supplement USA (fus)
97
Driving
Within the final 30 seconds, the timer can be reset by:
1. changing the position of the accelerator pedal, or
2. changing the brake pedal, clutch pedal, or park brake from engaged
to disengaged or from disengaged to engaged.
When the timer reaches zero, the engine will shut down.
In this event, the key remains in the ON (Run) position, and power
continues to be supplied to the accessories.
Battery power may be drained if the key is left in the ON (Run) position without the engine running. Note: The engine idle shutdown timer will not start if:
The engine is operating in power take-off (PTO) mode.
The engine coolant temperature is below 60° F (16° C).
The exhaust emission control system is regenerating the diesel
particulate filter (DPF).

ENGINE AUTOMATIC SHUTDOWN WARNING LIGHT OR CHIME (IF EQUIPPED)

Your vehicle may be equipped with an automatic shutdown feature that stops the engine in the event of high coolant temperature, low engine oil pressure, high diesel particulate filter soot loading or low engine coolant level. A warning light in the instrument cluster and a warning chime will indicate high engine coolant temperature, low engine oil pressure or the need to have the diesel particulate filter cleaned or serviced. If the engine coolant temperature becomes too high, engine oil pressure too low or the diesel particulate filter too restricted, the engine will automatically shut down.
If the engine shuts down, it can be restarted and operated for 30 seconds at a time or until the problem is corrected. Do not attempt to use this restarting feature to drive the vehicle very far as serious engine damage could result.
WARNING: In the event of engine shutdown, make sure the
vehicle is safely off the road and the problem is remedied prior to returning to the road. Failure to remove the vehicle from the road could result in an accident, causing serious injury or death.

GENERAL BRAKE INFORMATION

All standard equipment brakes are designed to be self-adjusting. Automatic adjustment, when required, occurs whenever the brakes are applied and released during forward or reverse operation. Refer to the Scheduled Maintenance Guide chapter for scheduled maintenance.
98
2009 F-650/750 (f67) Supplement USA (fus)
Driving
Occasional brake noise is normal and often does not indicate a performance concern with the vehicle’s brake system. In normal operation, automotive brake systems may emit occasional or intermittent squeal or groan noises when the brakes are applied. Such noises are usually heard during the first few brake applications in the morning; however, they may be heard at any time while braking and can be aggravated by environmental conditions such as cold, heat, moisture, road dust, salt or mud. If a “metal-to-metal,” “continuous grinding” or “continuous squeal” sound is present while braking, the brake linings may be worn-out and should be inspected by a qualified service technician.
Know the required stopping distances for all driving conditions that may be encountered. For longer brake lining life, take full advantage of engine braking power when coming to a stop.
WARNING: Do not drive with your foot resting on the brake
pedal. This will result in abnormally high brake temperatures, excessive lining wear and increased stopping distances.
Before descending a long or steep hill, shift to a lower gear and avoid continuous application of the brakes. Normally, choose the same gear to descend the hill that you would use to ascend the hill.
WARNING: Continuous application of the brakes will cause the
brakes to overheat, resulting in a temporary loss of braking.

If brakes do not grip well

If you have been driving through deep water, gently apply the brakes several times while the vehicle is moving slowly.
Let the brakes cool if you have been using them excessively, as in mountain driving or after several fast, high speed stops.
Check brake adjustment.
Check brake linings for excessive wear.
Check system air pressure. (Air brakes only)
2009 F-650/750 (f67) Supplement USA (fus)
99
Driving

HYDRAULIC BRAKES (IF EQUIPPED)

Full power brake system

The Full Power Brake System incorporates standard braking, Anti-lock Braking (ABS), and optional Power Park Brake into one fully integrated hydraulic brake system. With the Full Power Brake System, braking energy is stored, similar to an air brake system, resulting in faster response times and shorter stopping distances. This is accomplished using motor/pump assemblies that pressurized the system by pumping brake fluid into accumulators. This is similar to the air compressor of an air brake system pressurizing the air tanks. The system includes a master cylinder that provides the normal pedal “feel” and transfers the pedal force, via brake fluid, to the main components of the Full Power Brake System.
NOTE: The motor/pumps will run momentarily with the ignition switch in the ON/RUN positions or the switch is in the OFF position and the brake pedal is depressed.
WARNING: If the red BRAKE warning lamp in the instrument
cluster remains illuminated after engine start up, this indicates a system failure in the Full Power Brake System. Stop the vehicle safely as soon as possible and seek service immediately.
NOTE: During normal driving the pump/motors may be heard replenishing the accumulators. This is a normal function of the Full Power Brake System.
100
2009 F-650/750 (f67) Supplement USA (fus)
Loading...
