Ford F-250 2009 User Manual

Introduction 4

Instrument Cluster 14

Warning lights and chimes 14 Gauges 21

Entertainment Systems 26

AM/FM stereo 26 AM/FM stereo with CD 28 AM/FM stereo with in-dash six CD 35 Auxiliary input jack 42 USB port 44 Satellite radio information 48 Family entertainment system 51 Navigation system 79 SYNC威 79

Climate Controls 80

Heater only 80 Manual heating and air conditioning 81 Dual automatic temperature control 84

Lights 89

Headlamps 89 Turn signal control 94 Bulb replacement 95

Driver Controls 103

Windshield wiper/washer control 103 Steering wheel adjustment 104 Power windows 108 Mirrors 110 Speed control 116 Upfitter controls 121 Moon roof 122 Message center 127

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Table of Contents

Locks and Security 155

Keys 155 Locks 155 Anti-theft system 167

Seating and Safety Restraints 171

Seating 171 Safety restraints 180 Airbags 192 Child restraints 201

Tires, Wheels and Loading 224

Tire information 226 Tire inflation 229 Tire Pressure Monitoring System (TPMS) 244 Vehicle loading 255 Trailer towing 261 Trailer brake controller-integrated 266 Recreational towing 272

Driving 274

Starting 274 Brakes 279 Traction Control™ 281 Transmission operation 284 Reverse sensing system 291 Reverse camera 293

Roadside Emergencies 314

Getting roadside assistance 314 Hazard flasher control 315 Fuel pump shut-off switch 316 Fuses and relays 317 Changing tires 326 Wheel lug nut torque 342 Jump starting 343 Wrecker towing 348

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Table of Contents

Customer Assistance 350

Reporting safety defects (U.S. only) 356 Reporting safety defects (Canada only) 357

Cleaning 358

Maintenance and Specifications 368

Engine compartment 370 Engine oil 373 Battery 376 Engine coolant 378 Fuel information 384 Air filter(s) 402 Part numbers 403 Maintenance product specifications and capacities 405 Engine data 409

Accessories 412

Index 414

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Introduction

CONGRATULATIONS

Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it.

For more information on Ford Motor Company and its products visit the following website:

• In the United States: www.ford.com

• In Canada: www.ford.ca

• In Australia: www.ford.com.au

• In Mexico: www.ford.com.mx

Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available

and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available.

Remember to pass on this Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

WARNING: Fuel pump shut-off switch: In the event of an

accident the safety switch will automatically cut off the fuel supply to the engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside Emergencies chapter.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Introduction

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

Protecting the environment

We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and

certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

PERCHLORATE MATERIAL

Certain components of this vehicle such as airbag modules, seat belt pretensioners, and button cell batteries may contain Perchlorate Material – Special handling may apply for service or vehicle end of life disposal. See www.dtsc.ca.gov/hazardouswaste/perchlorate.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Introduction

BREAKING-IN YOUR VEHICLE

Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in.

Drive your new vehicle at least 1,000 miles (1,600 km) before towing a trailer. For more detailed information about towing a trailer, refer to Trailer towing in the Tires, Wheels and Loading chapter.

Do not add friction modifier compounds or special break-in oils since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage.

SPECIAL NOTICES

New Vehicle Limited Warranty

For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Guide/Customer Information Guide that is provided to you along with your Owner’s Guide.

Service Data Recording

Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle. For U.S. only (if equipped), if you choose to use the SYNC威 Vehicle Health Report, you consent that certain diagnostic information may also be accessed electronically by Ford Motor Company and Ford authorized service facilities, and that the diagnostic information may be used for any purpose. See your SYNC威 supplement for more information.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Introduction

Event Data Recording

Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as:

• how various systems in your vehicle were operating;

• whether or not the driver and passenger seatbelts were buckled;

• how far (if at all) the driver was depressing the accelerator and/or the

brake pedal;

• how fast the vehicle was traveling; and

• where the driver was positioning the steering wheel.

To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada. Please note that once 911 Assist (if equipped) is enabled (set ON), 911 Assist may, through any paired and connected cell phone, disclose to emergency services that the vehicle has been in a crash involving the deployment of an airbag or, in certain vehicles, the activation of the fuel pump shut-off. Certain versions or updates to 911 Assist may also be capable of electronically or verbally disclosing to 911 operators the vehicle location, and/or other details about the vehicle or crash to assist 911 operators to provide the most appropriate emergency services. If you do not want to disclose this information, do not activate the feature. See your SYNC威 supplement for more information.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Introduction

Vehicle Modification Data Recording

Some aftermarket products may cause severe engine and/or transmission damage; refer to the What is not covered section in The new vehicle

limited warranty for your vehicle chapter of your vehicle’s Warranty Guide for more information. Some vehicles are equipped with

Powertrain Control Systems that can detect and store information about vehicle modifications that increase horsepower and torque output; this information cannot be erased and will stay in the system’s memory even if the modification is removed. When a dealer or repair facility works on your vehicle, it may be necessary for them to access the information in the Powertrain Control System. This information will likely identify if any unauthorized modifications have been made to the system and may be used to determine if repairs will be covered by warranty.

Special instructions

For your added safety, your vehicle is fitted with sophisticated electronic controls.

WARNING: Please read the section Airbag Supplemental

Restraint System (SRS) in the Seating and Safety Restraints

chapter. Failure to follow the specific warnings and instructions could result in personal injury.

WARNING: Front seat mounted rear-facing child or infant seats

should NEVER be placed in front of an active passenger airbag.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Introduction

Cell phone use

The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits.

Mobile Communication Equipment includes, but is not limited to cellular phones, pagers, portable email devices, in-vehicle communications systems, telematics devices and portable two-way radios.

WARNING: Driving while distracted can result in loss of vehicle

control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.

Notice to owners of diesel-powered vehicles

Read the 6.0 and 6.4 Liter Power Stroke Direct Injection Turbo Diesel Owner’s Guide Supplement for information regarding correct operation

and maintenance of your Diesel-powered light truck.

Notice to owners of pickup trucks and utility type vehicles

WARNING: Utility vehicles have a significantly higher rollover

rate than other types of vehicles.

Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of vehicle control, vehicle rollover, personal injury or death.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Introduction

Using your vehicle with a snowplow

For more information and guidelines for using your vehicle with a snowplow, refer to the Driving chapter.

Using your vehicle as an ambulance

If your light truck is equipped with the Ford Ambulance Preparation Package, it may be utilized as an ambulance. Ford urges ambulance manufacturers to follow the recommendations of the Ford Incomplete

Vehicle Manual, Ford Truck Body Builder’s Layout Book and the Qualified Vehicle Modifiers (QVM) Guidelines as well as pertinent

supplements. For additional information, please contact the Truck Body Builders Advisory Service at 1–877–840–4338.

Use of your Ford light truck as an ambulance, without the Ford Ambulance Preparation Package voids the Ford New Vehicle Limited Warranty and may void the Emissions Warranties. In addition, ambulance usage without the preparation package could cause high underbody temperatures, overpressurized fuel and a risk of spraying fuel which could lead to fires.

If your vehicle is equipped with the Ford Ambulance Preparation Package, it will be indicated on the Safety Compliance Certification Label. The label is located on the driver’s side door pillar or on the rear edge of the driver’s door. You can determine whether the ambulance manufacturer followed Ford’s recommendations by directly contacting that manufacturer. Ford Ambulance Preparation Package is only available on certain Diesel engine equipped vehicles.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Introduction

Using your vehicle as a stationary power source (PTO)

Refer to the Driving chapter for more information and guidelines for operating a vehicle equipped with an aftermarket power take-off system.

Export unique (Non–United States/Canada) vehicle specific information

For your particular global region, your vehicle may be equipped with features and options that are different from the features and options that are described in this Owner’s Guide. A market unique supplement may be supplied that complements this book. By referring to the market unique supplement, if provided, you can properly identify those features, recommendations and specifications that are unique to your vehicle. This Owner’s Guide is written primarily for the U.S. and Canadian Markets. Features or equipment listed as standard may be different on units built for Export. Refer to this Owner’s Guide for all other required

information and warnings.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

Fasten Safety Belt Airbag - Front

Airbag - Side

Child Seat Tether Anchor

Anti-Lock Brake System Parking Brake System

Brake Fluid Non-Petroleum Based

Stability Control System Speed Control

Master Lighting Switch Hazard Warning Flasher

Fog Lamps-Front Fuse Compartment

See Owner’s Guide

Child Seat Lower Anchor

Brake System

Parking Aid System

Fuel Pump Reset Windshield Wash/Wipe

Windshield Defrost/Demist

Rear Window Defrost/Demist

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Vehicle Symbol Glossary

Introduction

Power Windows Front/Rear

Child Safety Door Lock/Unlock

Power Window Lockout

Interior Luggage Compartment Release

Panic Alarm Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

Service Engine Soon Engine Air Filter

MAX

MIN

Passenger Compartment Air Filter

Check Fuel Cap

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Jack

Low Tire Pressure Warning

Instrument Cluster

WARNING LIGHTS AND CHIMES

Vehicles equipped with a manual transmission

Vehicles equipped with an automatic transmission

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Instrument Cluster

Harley-Davidson vehicles

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulbs work. If any light remains on after starting the vehicle, refer to the respective system warning light description for additional information.

Note: Some warning lights are reconfigurable telltale (RTT) indicator lights and will illuminate in the Message Center Display and function the same as the warning light.

Service engine soon: The Service engine soon indicator light

illuminates when the ignition is first turned to the on position to check the bulb and to indicate whether the vehicle is ready for Inspection/Maintenance (I/M) testing. Normally, the “Service engine soon” light will stay on until the engine is cranked, then turn itself off if no malfunctions are present. However, if after 15 seconds the “Service engine soon” light blinks eight times, it means that the vehicle is not ready for I/M testing. See the Readiness for Inspection/Maintenance (I/M) testing in the Maintenance and Specifications chapter.

Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Instrument Cluster

chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately by your authorized dealer.

WARNING: Under engine misfire conditions, excessive exhaust

temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the on position when the engine is not running, or in a position between on and start, or by applying the parking brake when the ignition is turned to the on position. If the brake system warning light does not illuminate at this time, seek service immediately from your authorized dealer. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately by your servicing authorized dealer.

WARNING: Driving a vehicle with the brake system warning

light on is dangerous. A significant decrease in braking performance may occur. It will take you longer to stop the vehicle. Have the vehicle checked by your authorized dealer immediately. Driving extended distances with the parking brake engaged can cause brake failure and the risk of personal injury.

Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately by your authorized dealer. Normal braking is still functional unless the brake warning light also is illuminated.

BRAKE

ABS

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Instrument Cluster

Airbag readiness: If this light fails to illuminate when ignition is turned to on, continues to flash or remains on, have the system serviced immediately by your authorized dealer. A chime will sound when there is a malfunction in the indicator light.

Safety belt: Reminds you to fasten your safety belt. A Belt-Minder威 chime will also sound to remind you to fasten your safety belt. Refer to the Seating and Safety Restraints chapter to activate/deactivate the Belt-Minder威 chime feature.

Engine oil pressure: Illuminates when the oil pressure falls below the normal range. Refer to Engine oil in the Maintenance and Specifications chapter.

Low tire pressure warning (if equipped): Illuminates when

your tire pressure is low. If the light remains on start up or while driving, the tire pressure should be checked. Refer to Inflating Your Tires in the Tires, Wheels and Loading chapter. When the ignition is first turned to on, the light will illuminate for three seconds to ensure the bulb is working. If the light does not turn on, have the system inspected by your authorized dealer. For more information on this system, refer to Understanding Your Tire Pressure Monitoring System (TPMS) in the Tires, Wheels and Loading chapter.

Charging system: Illuminates when the battery is not charging properly. If it stays on while the engine is running, there may be a malfunction with the charging system. Contact your authorized dealer as soon as possible. This indicates a problem with the electrical system or a related component.

Powertrain malfunction/Reduced power/Electronic throttle control (RTT): Displays when the

engine has defaulted to a “limp-home” operation or when a

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Instrument Cluster

transmission problem has been detected and shifting may be restricted. If the light remains on, have the system serviced immediately by your authorized dealer.

Traction Control™ (RTT) (if equipped): Displays when the

Traction Control™ system is active. If the light remains on, have the system serviced immediately by your authorized dealer. Refer to Traction Control™ in the Driving chapter for more information

Check fuel cap (RTT): Displays when the fuel cap may not be properly installed. Continued driving with this light on may cause the Service engine soon warning light to come on. Refer to Fuel filler cap in the Maintenance and Specifications chapter.

Engine coolant temperature (RTT): Displays when the engine

coolant temperature is high. Stop the vehicle as soon as safely possible, switch off the engine and let it cool. Refer to Engine coolant in the Maintenance and Specifications chapter.

WARNING: Never remove the coolant reservoir cap while the

engine is running or hot.

Low fuel (RTT): Displays when the fuel level in the fuel tank is at or near empty (refer to Fuel gauge in this chapter).

Door ajar (RTT): Displays when the ignition is in the on position and any door is open.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Instrument Cluster

Transmission Tow/Haul Feature (automatic transmission) (if equipped): The Tow Haul light

remains illuminated as long as the Tow/Haul feature is activated. Refer to the Driving chapter for transmission function and operation. If the light remains illuminated and will not cancel using the Tow/Haul switch located on the end of the gear shift lever, have the system serviced immediately or damage to the transmission could occur.

Four wheel drive low (if equipped): Illuminates when

four-wheel drive low is engaged.

4x4

LOW

Four wheel drive high (if equipped): Illuminates when

four-wheel drive high is engaged.

Anti-theft system: Flashes when the SecuriLock™ Passive Anti-theft System has been activated.

Speed control (if equipped):

Illuminates when the speed control is activated. Turns off when the speed control system is deactivated.

Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb.

High beams: Illuminates when the high beam headlamps are turned on.

If your vehicle is equipped with a diesel engine, it has some unique warning lights; refer to Instrument Cluster in your 6.0 and 6.4 Liter

Power Stroke Direct Injection Turbo Diesel Owner’s Guide Supplement for detailed information on their function.

4x4

HIGH

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Instrument Cluster

Diesel warning lights:

• Glow plug pre-heat

• Waterinfuel

• Low oil pressure

Key-in-ignition warning chime: Sounds when the key is left in the ignition in the off or accessory position and the driver’s door is opened.

Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened.

Parking brake on warning chime: Sounds when the parking brake is set, the engine is running and the vehicle is driven more than 3 mph (5 km). If the warning remains on after the parking brake is off, contact your authorized dealer as soon as possible.

Turn signal chime: Sounds when the turn signal lever has been activated to signal a turn and not turned off after the vehicle is driven more than 2 miles (3.2 km).

Message center activation chime: Sounds when some warning messages appears in the message center display for the first time.

Overspeed chime (if equipped): Sounds when the vehicle speed reaches 75 mph (120 km/h) or higher.

Airbag secondary warning chime: Sounds to inform the driver, in the event that the airbag readiness warning lamp is inoperable, that there is a fault in the supplemental restraint system

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Instrument Cluster

GAUGES

Speedometer: Indicates the current vehicle speed.

Standard instrument cluster

Harley-Davidson instrument cluster

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Instrument Cluster

Engine coolant temperature gauge: Indicates engine coolant

temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section,

the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.

WARNING: Never remove the coolant reservoir cap while the

engine is running or hot.

Odometer: Registers the total miles (kilometers) of the vehicle. Refer to

Standard message center or Optional message center in the Driver Controls chapter on how to

switch the display from Metric to English.

Trip odometer: Registers the miles (kilometers) of individual journeys.

If equipped with a one button message center (Select/Reset),

press and release the SELECT/RESET button on the cluster to toggle between odometer and trip odometer display. To reset, press and hold for less than two seconds.

If equipped with a three button message center, press and release the message center INFO button until TRIP A or TRIP B appears in the display. Press the RESET button to reset.

Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Instrument Cluster

Standard instrument cluster

Harley-Davidson instrument cluster

Engine hour meter (if equipped): Registers the

accumulated time the engine has been running. Press and release the message center INFO button until this is displayed.

Engine oil pressure gauge:

Indicates engine oil pressure. The needle should stay in the normal operating range (between “L” and “H”). If the needle falls below the normal range, stop the vehicle, turn off the engine and check the engine oil level. Add oil if needed. If the oil level is correct, have your vehicle checked at your authorized dealer.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Instrument Cluster

Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the on position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade. The FUEL icon and arrow indicates which side of the vehicle the fuel filler door is located.

Refer to Filling the tank in the Maintenance and Specifications chapter for more information.

Battery voltage gauge (manual transmission only): Indicates the

battery voltage when the ignition is in the on position. If the pointer moves and stays outside the normal operating range, have the vehicle’s electrical system checked as soon as possible.

Transmission fluid temperature gauge (automatic transmission only): If the gauge is in the:

Normal area (normal) - the

transmission fluid is within the normal operating temperature (between “H” and “C”).

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Instrument Cluster

Yellow area (warning) — the transmission fluid is higher than normal operating temperature. This can be caused by special operation conditions (i.e. snowplowing, towing or off road use). Refer to Special

Operating Conditions in the scheduled maintenance information for instructions. Operating the transmission for extended

periods of time with the gauge in the yellow area may cause internal transmission damage.

Altering the severity of the driving conditions is recommended to lower the transmission temperature into the normal range.

Red area (over temperature) — the transmission fluid is overheating. Stop the vehicle to allow the temperature to return to normal range.

If the gauge is operating in the Yellow or Red area, stop the vehicle and verify the airflow is not restricted such as snow or debris blocking airflow through the grill. If the gauge continues to show high temperatures, see your authorized dealer.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

AUDIO SYSTEMS AM/FM stereo system (if equipped)

WARNING: Driving while distracted can result in loss of vehicle

The AM/FM stereo system does not contain rear speakers; only front driver side and passenger side speakers.

Accessory delay: Your vehicle is equipped with accessory delay. With this feature, the window switches and radio may be used for up to ten minutes after the ignition is turned off or until either front door is opened.

/ (Tuner): Press to

1. manually go up or down the radio

frequency. Press and hold for a fast advance through radio frequencies. Also use in AUDIO mode to gain access to various settings.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

2. AUDIO: Press AUDIO repeatedly to gain access to the following settings:

TREB (Treble): Press AUDIO to reach the treble setting. Use

/ / SEEK .

BASS (Bass): Press AUDIO to reach the bass setting. Use

SEEK .

BAL (Balance): Press AUDIO to reach the balance setting. Use speakers.

Setting the clock: Press and hold CLK until the hours start to flash, then use

again to make the minutes start to flash and use to adjust. Press CLK again to exit the clock setting mode.

3. SEEK: Press SEEK to access the previous/next strong

station.

4. Memory presets: To set a station: Select frequency band AM/FM1/FM2; tune to a station, press and hold a preset button until sound returns. You may store up to six stations in each frequency band for a total of 18.

5. AM/FM: Press AM/FM to select AM/FM1/FM2 frequency band.

6. ON/OFF/Volume: Press VOL PUSH to turn ON/OFF. Turn VOL PUSH to increase/decrease volume.

/ / SEEK to adjust between the left and right

/ / SEEK to adjust. To adjust minutes, press CLK

/ / SEEK

/ /

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

7. CLK (Clock): Press CLK to toggle between the clock and radio frequency.

AM/FM stereo single CD/satellite compatible sound system (if equipped)

WARNING: Driving while distracted can result in loss of vehicle

Accessory delay: Your vehicle is equipped with accessory delay which allows you to operate the window switches and the audio for up to ten minutes after the ignition has been turned off or until either front door is opened.

/ : Press / to

1. manually go up or down the radio

frequency. Press and hold for a fast advance through radio frequencies.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

In satellite radio mode (if equipped), press / to tune to the next/previous channel.

Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.

(Phone): If your vehicle is equipped with SYNC, press to access SYNC PHONE features. For

further information, please refer to supplemental information on SYNC included with your vehicle. If your vehicle is not equipped with SYNC, the display will read NO PHONE.

3. MENU: Press MENU repeatedly to access to the following settings:

Setting the clock: Press MENU until SET HOUR or SET MINUTES is displayed. Use hours/minutes. SATELLITE RADIO MENU (if equipped): Press MENU when satellite

radio mode is active to access. Press OK to enter into the satellite radio menu. Press

/ / SEEK, SEEK to adjust the

/ to cycle through the following options:

• CATEGORY: Press OK to enter category mode. Press

scroll through the list of available SIRIUS channel Categories (Pop, Rock, News, etc.) Press OK when the desired category appears in the display. After a category is selected, press SEEK to search for that specific category of channels only (i.e. ROCK). You may also select CATEGORY ALL to seek all available SIRIUS categories and channels. Press OK to close and return to the main menu.

• SAVE SONG: Press OK to save the currently playing song title in the

system’s memory. (If you try to save something other than a song, CANT SAVE will appear in the display.) When the chosen song is playing on any satellite radio channel, the system will alert you with an audible prompt. Press OK while SONG ALERT is in the display and the system will take you to the channel playing the desired song. You can save up to 20 song titles. If you attempt to save a song when the system is full, the display will read REPLACE SONG? Press OK to

access the saved songs and press songs. When the song appears in the display that you would like to

replace, press OK. SONG REPLACED will appear in the display.

/ to cycle through the saved

/ to

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

• DELETE SONG: Press OK to delete a song title from the system’s

memory. Press song title appears in the display that you would like to delete, press

OK. The song will appear in the display for confirmation. Press OK again and the display will read SONG DELETED. If you do not want

to delete the currently listed song, press RETURN or CANCEL.

Note: If there are no songs presently saved, the display will read NO SONGS.

• DELETE ALL SONGS: Press OK to delete all songs from the

system’s memory. The display will read ARE YOU SURE ? Press OK to confirm deletion of all saved songs and the display will read ALL DELETED. Note: If there are no songs presently saved, the display will read NO SONGS.

• ENABLE ALERTS / DISABLE ALERTS: Press OK to enable/disable

the satellite alert status which alerts you when your selected songs are playing on a satellite radio channel. (The system default is disabled.) SONG ALERTS ENABLED/DISABLED will appear in the display. The menu listing will display the opposite state. For example, if you have chosen to enable the song alerts, the menu listing will read DISABLE as the alerts are currently on, so your other option is to turn them off.

Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.

AUTOSET: Press MENU until the display reads AUTOSET. Autoset allows you to set the strongest local radio stations without losing your

original manually set preset stations for AM/FM1/FM2. Use

SEEK, SEEK to turn on/off.

When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets.

BASS: Press MENU to reach the bass setting. Use

SEEK, SEEK to adjust.

TREB (Treble): Press MENU to reach the treble setting. Use

/ / SEEK, SEEK to adjust.

/ to cycle through the saved songs. When the

/ to select either

/ /

BAL (Balance): Press MENU to reach the balance setting. Use (L) and right (R) speakers.

/ / SEEK, SEEK to adjust the audio between the left

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

FADE: Press MENU to reach the fade setting. Use / /

SEEK, SEEK to adjust the audio between the back (B) and

front (F) speakers.

SPEEDVOL (Speed sensitive volume, if equipped): Press MENU to reach the SPEEDVOL setting. Radio volume automatically gets louder with increasing vehicle speed to compensate for road and wind noise.

Use

The default setting is off; increasing your vehicle speed will not change the volume level.

Adjust 1–7: Increasing this setting from 1 (lowest setting) to 7 (highest setting) allows the radio volume to automatically change slightly with vehicle speed to compensate for road and wind noise.

Recommended level is 1–3; SPEED OFF turns the feature off and level 7 is the maximum setting.

Track/Folder mode: Available only on MP3 discs in CD mode. In Track mode, pressing disc In Folder mode, pressing tracks within the selected folder. Press available).

COMPRESS (Compression): Available only in CD/MP3 mode. Press MENU until COMPRESS ON/OFF appears in the display.

Use is ON, the system will bring the soft and loud CD passages together for a

more consistent listening level.

4. AUX: Press repeatedly to cycle through FES/DVD (if equipped), LINE IN (auxiliary audio mode, if equipped) and SAT1, SAT2 and SAT3 modes (satellite radio, if equipped). For location and further information on auxiliary audio mode, refer to

Auxiliary input jack later in this chapter. Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.

/ / SEEK, SEEK to adjust.

SEEK, SEEK will scroll through all tracks on the

SEEK, SEEK will scroll only through

FOLDER, FOLDER to access the previous/next folder (if

/ / SEEK, SEEK to toggle ON/OFF. When COMPRESS

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

5. SEEK: In radio mode, press previous/next strong station.

In CD/MP3 mode, press to access the previous/next CD/MP3 track.

/ to access the

In satellite radio mode (if equipped), press seek to the previous/next channel. If a specific category is selected, (Jazz, Rock, News, etc.), press previous/next channel in the selected category. Press and hold

SEEK, SEEK to fast seek through the previous /next channels.

In TEXT MODE, press previous/additional display text. In CATEGORY MODE, press

Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.

/ OK (Play/Pause): This

6. control is operational in CD/MP3

mode. When a CD/MP3 is playing, press to pause or play the current CD/MP3. The CD/MP3 status will display in the radio display.

OK: Use in various menu selections.

If your vehicle is equipped with a Family Entertainment System (FES) please refer to the DVD supplement for further information.

7. SHUFFLE: In CD/MP3 mode, press SHUFFLE to engage shuffle mode. SHUFFLE ON will appear in the display. If you wish to engage shuffle mode right away, press SEEK to begin random play. Otherwise, random play will begin when the current track is finished playing. CD SHUF will appear in the display. To disengage, press SHUFFLE again. SHUFFLE OFF will appear in the display.

Note: In CD/MP3 mode, press SHUFFLE to play the tracks in random order. In MP3 folder mode, the system will randomly play all tracks within the current folder.

SEEK, SEEK to view the

SEEK, SEEK to seek to the

SEEK, SEEK to select a category.

SEEK, SEEK to

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

8. FOLDER : In folder mode, press FOLDER

folder on MP3 discs, if available.

FOLDER: In folder mode,

9. press FOLDER to access the

previous folder on MP3 discs, if available.

10. FF (Fast forward): Press FF to manually advance in a CD/MP3 track.

11. REW (Rewind): Press REW to manually reverse in a CD/MP3 track.

12. Memory presets: To set a station: Select frequency band AM/FM1/FM2; tune to a station, press and hold a preset control until sound returns. You may store up to six stations in each frequency band for a total of 18.

In satellite radio mode (if equipped), there are 18 available presets, six each for SAT1, SAT2 and SAT3. To save satellite channels in your memory presets, tune to the desired channel then press and hold a preset control until sound returns.

Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.

13. TEXT/SCAN: In radio and CD/MP3 mode, press and hold for

a brief sampling of radio stations or CD tracks. Press again to stop. In CD/MP3 mode, press and release to display track title, artist name, and disc title.

In TEXT MODE sometimes the display requires additional text to be displayed. When the “>” indicator is active, press SEEK

additional display text. When the “<” indicator is active, press SEEK to view the previous display text.

to access next

to view the

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

In satellite radio mode (if equipped), press and hold to hear a brief sampling of the next channels. Press again to stop. In CATEGORY MODE, press SCAN to hear a brief sampling of the channels in the selected category. Press again to stop.

Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.

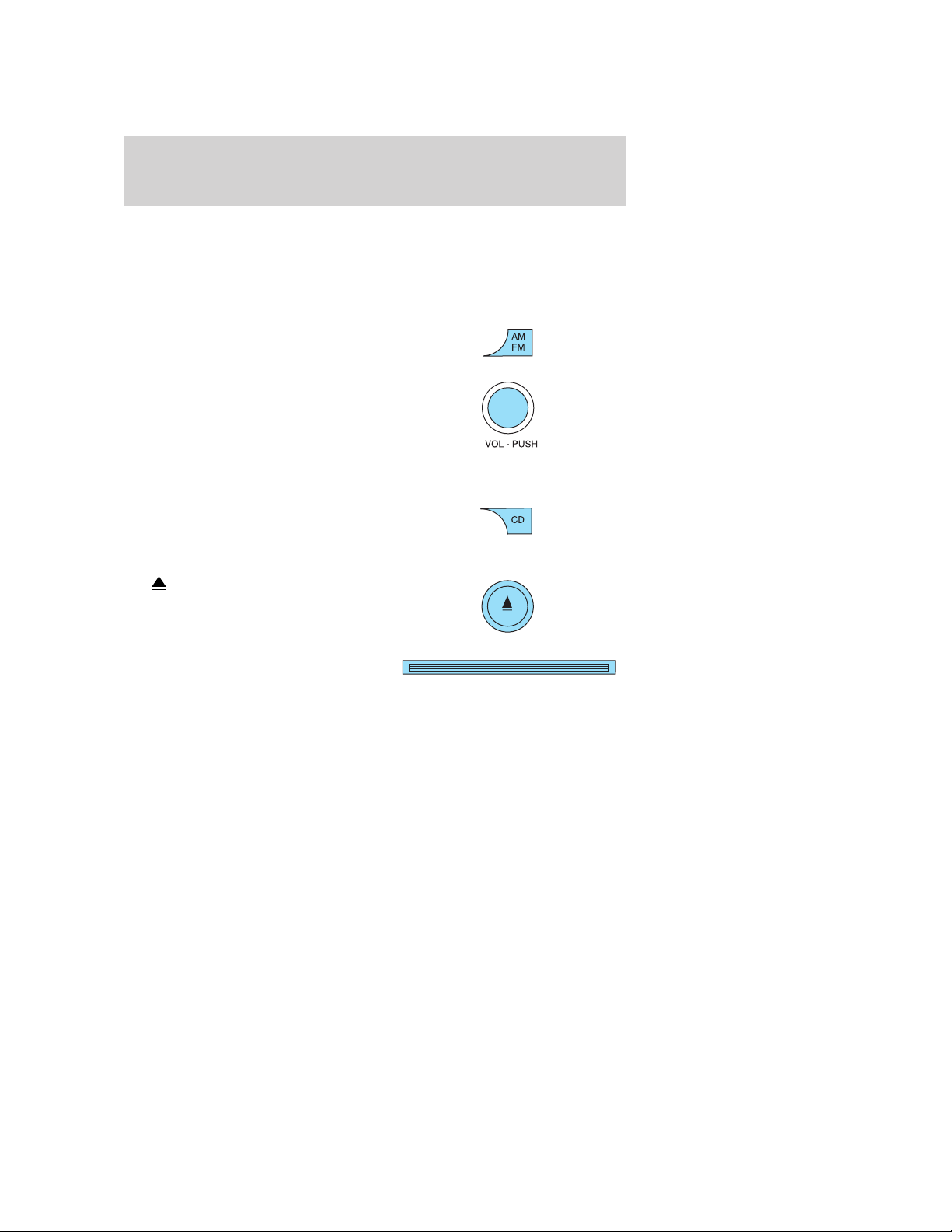

14. AM/FM: Press AM/FM to select AM/FM1/FM2 frequency band.

15. ON/OFF/Volume: Press VOL-PUSH to turn on/off. Turn VOL-PUSH to increase/decrease volume.

Note:If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

16. CD: Press to enter CD/MP3 mode. If a CD is already loaded into the system, CD/MP3 play will begin where it ended last.

17. CD.

(CD eject): Press to eject a

18. CD slot: Insert a CD label side up in the CD slot.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

Premium/Audiophile in-dash six CD/MP3/satellite compatible sound system (if equipped)

WARNING: Driving while distracted can result in loss of vehicle

Accessory delay: Your vehicle is equipped with accessory delay which allows you to operate the window switches and audio for up to ten minutes after the ignition has turned off or until either front door has opened.

/ (Tune/Disc selector):

1. In radio mode, press to manually go up ( radio frequency. Press and hold for

a fast advance through radio frequencies.

In menu mode, use to select various settings. In CD/MP3 mode, press to select the desired disc.

) or down ( )the

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.

(Phone): If your vehicle is equipped with SYNC, press to access SYNC PHONE features. For

further information, please refer to supplemental information on SYNC included with your vehicle. If your vehicle is not equipped with SYNC, the display will read NO PHONE.

3. MENU: Press repeatedly to access to the following settings:

Setting the clock: Press until SELECT HOUR or SELECT MINS is displayed. Press

SATELLITE RADIO MENU (if equipped): Press MENU when satellite radio mode is active to access. Press OK to enter into the satellite radio

menu. Press

/ / SEEK to adjust the hours/minutes.

/ to cycle through the following options:

• CATEGORY: Press OK to enter category mode. Press

• SAVE SONG: Press OK to save the currently playing song title in the

access the saved songs and press songs. When the song appears in the display that you would like to

replace, press OK. SONG REPLACED will appear in the display.

• DELETE SONG: Press OK to delete a song from the system’s

memory. Press

/ to cycle through the saved songs. When the

/ to cycle through the saved

/ to

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

song appears in the display that you would like to delete, press OK. The song will appear in the display for confirmation. Press OK again and the display will read SONG DELETED. If you do not want to

delete the currently listed song, press RETURN or CANCEL.

Note: If there are no songs presently saved, the display will read NO SONGS.

• DELETE ALL SONGS: Press OK to delete all songs from the

• ENABLE ALERTS / DISABLE ALERTS: Press OK to enable/disable

Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.

AUTOSET: Press MENU until the display reads AUTOSET. Autoset allows you to set the strongest local radio stations without losing your

original manually set preset stations for AM/FM1/FM2. Use

SEEK, SEEK to turn on/off.

When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets.

RBDS: Available only in FM mode. This feature allows you to search RBDS-equipped stations for a certain category of music format: CLASSIC, COUNTRY, INFORM, JAZZ/RB, ROCK, etc. To activate, press MENU repeatedly until RBDS (ON/OFF) appears in

the display. Use RBDS is OFF, you will not be able to search for RBDS equipped stations

or view the station name or type. To search for specific RBDS music categories: When the desired

category appears in the display, press then press and release

begin the search.

/ / SEEK to toggle RBDS ON/OFF. When

SEEK, SEEK or press and hold SCAN to

/ to select either

/ /

/ to find the desired type,

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

To view the station name or type: When the desired category appears in the display, press TEXT/SCAN to toggle between displaying the station type (COUNTRY, ROCK, etc.) or the station name (WYCD, WXYZ, etc.).

BASS: Press MENU to reach the bass setting. Use

SEEK, SEEK to adjust.

TREB (Treble): Press MENU to reach the treble setting. Use

BAL (Balance): Press MENU to reach the balance setting. Use (L) and right (R) speakers.

FADE: Press MENU to reach the fade setting. Use

front (F) speakers. ALL SEATS (Occupancy mode) (Available on Audiophile radios only): Press MENU repeatedly to access. Press optimize sound for ALL SEATS, DRIVERS SEAT or REAR SEATS. SPEEDVOL (Speed sensitive volume, if equipped): Press MENU to

reach the SPEEDVOL setting. Radio volume automatically gets louder with increasing vehicle speed to compensate for road and wind noise.

Use

/ / SEEK, SEEK to adjust.

/ / SEEK, SEEK to adjust the audio between the left

SEEK, SEEK to adjust the audio between the back (B) and

/ / SEEK to

/ / SEEK, SEEK to adjust.

/ /

The default setting is off; increasing your vehicle speed will not change the volume level.

Adjust 1–7: Increasing this setting from 1 (lowest setting) to 7 (highest setting) allows the radio volume to automatically change slightly with vehicle speed to compensate for road and wind noise.

Recommended level is1–3; SPEED OFF turns the feature off and level 7 is the maximum setting.

Track/Folder Mode: Available only on MP3 discs in CD mode. In Track Mode, pressing

In Folder mode, pressing SEEK will scroll only through tracks within the selected folder. Press available).

FOLDER, FOLDER to access the previous/next folder (if

SEEK will scroll through all tracks on the disc.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

COMPRESS (Compression): Available only in CD/MP3 mode. Press MENU until COMPRESS ON/OFF appears in the display.

Use is ON, the system will bring soft and loud CD passages together for a

more consistent listening level.

4. AUX: Press repeatedly to cycle through FES/DVD (if equipped), LINE IN (Auxiliary audio mode, if equipped), SAT1, SAT2 and SAT3 modes (Satellite Radio if equipped). For location and further information on the auxiliary audio mode, refer to Auxiliary input jack later in this chapter.

Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.

5. SEEK: In radio mode, press previous/next strong station.

In CD/MP3 mode, press to access the previous/next CD track.

In TEXT MODE, press previous/additional display text. In CATEGORY MODE, press category.

Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.

6. control is operational in CD/MP3

mode. When a CD/MP3 is playing, press to pause or play the current CD. The CD status will display in the radio display.

OK: Use in various menu selections. If your vehicle is equipped with a Family Entertainment System (FES)

please refer to the DVD supplement for further information.

/ / SEEK, SEEK to toggle ON/OFF. When COMPRESS

/ to access the

SEEK, SEEK to

SEEK, SEEK to seek to the

SEEK, SEEK to fast seek through the previous /next channels.

SEEK, SEEK to view the

SEEK, SEEK to select a

/ OK (Play/Pause): This

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

Note: In track mode, all tracks on the current disc will shuffle in random order. In MP3 folder mode, the system will randomly play all tracks within the current folder.

8. FOLDER press FOLDER

folder on MP3 discs, if available.

FOLDER: In folder mode,

9. press

previous folder on MP3 discs, if folders are available.

10. FF (Fast forward): Press FF to manually advance in a CD/MP3 track.

11. REW (Rewind): Press REW to manually reverse in a CD/MP3 track.

: In folder mode,

to access next

FOLDER to access the

Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.

13. TEXT/SCAN: In radio and CD/MP3 mode, press and hold for

2 seconds to activate mode to hear a brief sampling of radio stations or CD tracks. Press again to stop.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

In CD/MP3 mode, press and release to display track title, artist name, and disc title and file name (if available).

In satellite radio mode (if equipped), press and release to enter TEXT MODE and display the current song title. While in TEXT MODE, press again to scroll through the current song title, artist, channel category and the SIRIUS long channel name. In TEXT MODE, sometimes the display requires additional text to be displayed. When the “>” indicator is active, press SEEK

additional display text. When the “>” indicator is active, press to view the previous display text.

In satellite radio mode (if equipped), press and hold to hear a brief sampling of the next channels. Press again to stop. In CATEGORY MODE, press SCAN to hear a brief sampling of channels in the selected category. Press again to stop.

Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability.

14. AM/FM: Press to select AM/FM1/FM2 frequency band.

15. ON/OFF/Volume: Press to turn ON/OFF. Turn to increase/decrease volume.

Note: If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

16. CD: Press to enter CD/MP3 mode. If a CD is already loaded into the system, CD/MP3 play will begin where it ended last.

17. LOAD: Toloadadiscintothe system, press LOAD. Select a slot number using memory presets 1–6. When the display reads LOAD CD#, load the desired disc, label side up. If you do not choose a slot within five seconds, the system will choose for you. Once loaded, the first track will begin to play.

to view the

SEEK

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

To auto load up to 6 discs, press and hold LOAD until the display reads AUTOLOAD#. Load the desired disc, label side up. The system will prompt you to load discs for the remaining available slots. Insert the discs, one at a time, label side up, when prompted. Once loaded, the disc in the last slot loaded will begin to play.

Note: An MP3 disc with folders will show F001 (folder #) T001 (track #) in the display. An MP3 disc without folders will show T001 (track#) in the display. Refer to MP3 track and folder structure later in this chapter for further information.

18. from the system, press

the correct slot number using memory presets 1–6. When ready, the system will eject the disc and the display will read REMOVE CD. If the disc is not removed in 15 seconds, the system will reload the disc. To auto eject up to 6 CDs, press and hold ejecting the current disc. Remove the current disc and the next disc will be ejected. If the current disc is not removed, the system will reload the disc.

19. CD slot: Insert a CD label side up.

Auxiliary input jack (if equipped)

(CD eject): To eject a disc

. Select

until the system begins

WARNING: Driving while distracted can result in loss of vehicle

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

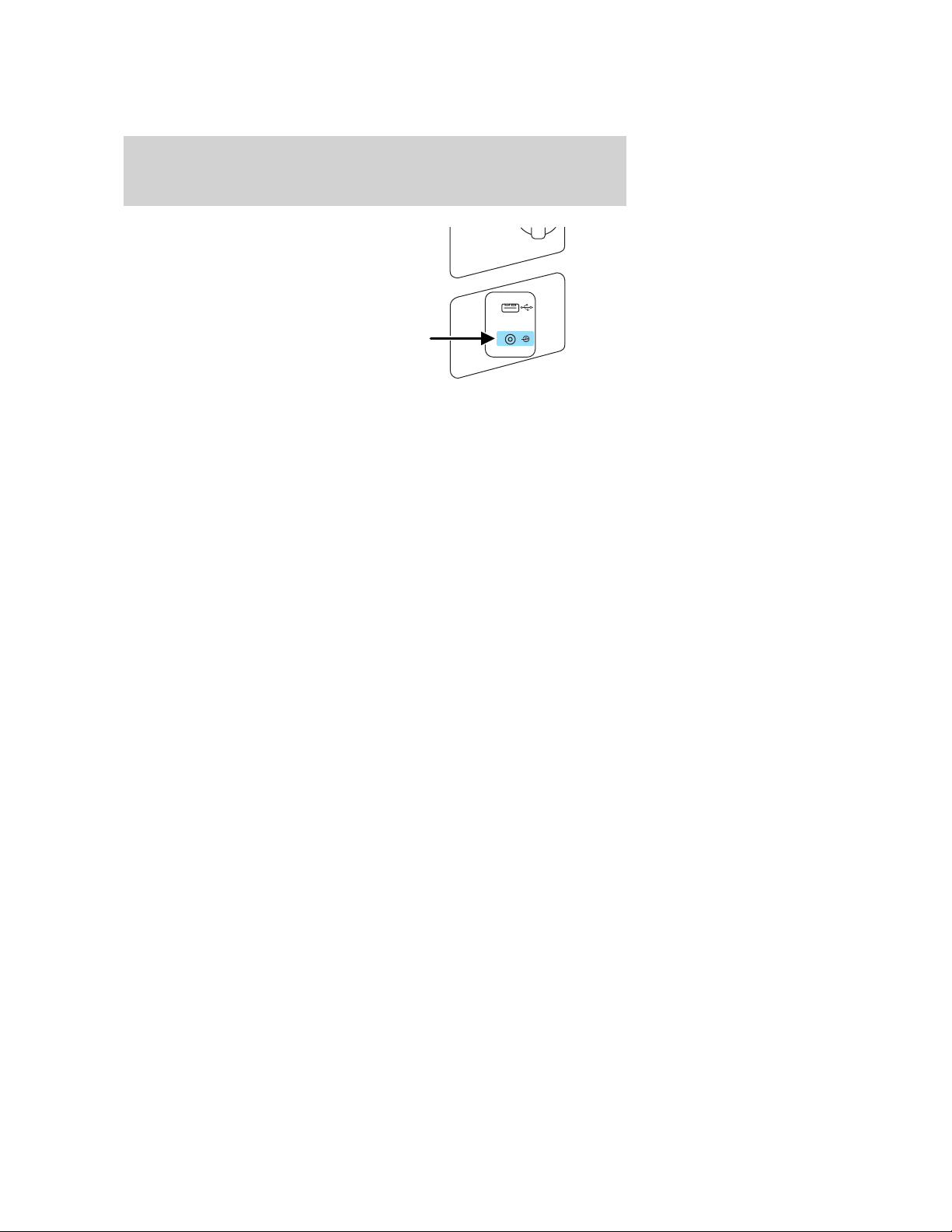

Your vehicle may be equipped with an Auxiliary Input Jack (AIJ). The Auxiliary Input Jack, located on the instrument panel below the power point, provides a way to connect your portable music player to the in-vehicle audio system. This allows the audio from a portable music player to be played through the vehicle speakers with high fidelity. To achieve optimal performance, please observe the following instructions when attaching your portable music device to the audio system. If your vehicle is equipped with a navigation system, refer to Auxiliary

input jack section in the Audio features chapter of your Navigation system supplement.

Required equipment:

1. Any portable music player designed to be used with headphones

2. An audio extension cable with stereo male 1/8 in. (3.5 mm) connectors at each end

To play your portable music player using the auxiliary input jack:

1. Begin with the vehicle parked and the radio turned off.

2. Ensure that the battery in your portable music player is new or fully charged and that the device is turned off.

3. Attach one end of the audio extension cable to the headphone output of your player and the other end of the audio extension cable to the AIJ in your vehicle.

4. Turn the radio on, using either a tuned FM station or a CD loaded into the system. Adjust the volume to a comfortable listening level.

5. Turn the portable music player on and adjust the volume to 1/2 the volume.

6. Press AUX on the vehicle radio repeatedly until LINE, LINE IN or SYNC LINE IN appears in the display. You should hear audio from your portable music player although it may be low.

7. Adjust the sound on your portable music player until it reaches the level of the FM station or CD by switching back and forth between the AUX and FM or CD controls.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

Troubleshooting:

1. Do not connect the audio input jack to a line level output. Line level outputs are intended for connection to a home stereo and are not compatible with the AIJ. The AIJ will only work correctly with devices that have a headphone output with a volume control.

2. Do not set the portable music player’s volume level higher than is necessary to match the volume of the CD or FM radio in your audio system as this will cause distortion and will reduce sound quality. Many portable music players have different output levels, so not all players should be set at the same levels. Some players will sound best at full volume and others will need to be set at a lower volume.

3. If the music sounds distorted at lower listening levels, turn the portable music player volume down. If the problems persist, replace or recharge the batteries in the portable music player.

4. The portable music player must be controlled in the same manner when it is used with headphones as the AIJ does not provide control (play, pause, etc.) over the attached portable music player.

5. For safety reasons, connecting or adjusting the settings on your portable music player should not be attempted while the vehicle is moving. Also, the portable music player should be stored in a secure location, such as the center console or the glove box, when the vehicle is in motion. The audio extension cable must be long enough to allow the portable music player to be safely stored while the vehicle is in motion.

USB port (if equipped)

WARNING: Driving while distracted can result in loss of vehicle

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

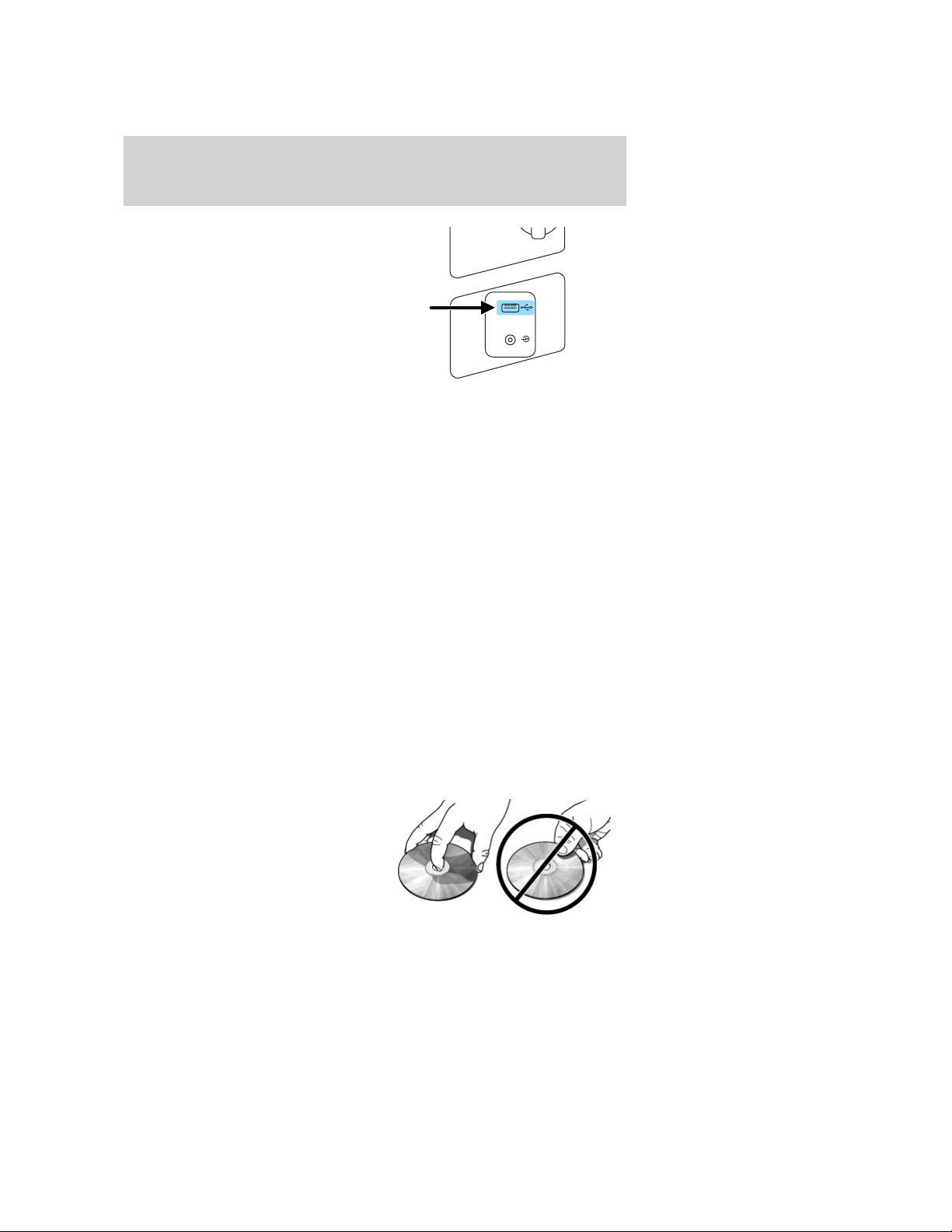

Your vehicle may be equipped with a USB port located on the instrument panel. This feature allows you to plug in media playing devices, memory sticks, and also to charge devices if they support this feature. For further information on this feature, refer to Accessing and using your USB port in the SYNC supplement or Navigation system supplement.

GENERAL AUDIO INFORMATION

Radio frequencies:

AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are:

AM: 530, 540–1700, 1710 kHz

FM: 87.7, 87.9–107.7, 107.9 MHz

Radio reception factors:

There are three factors that can affect radio reception:

• Distance/strength: The further you travel from an FM station, the weaker the signal and the weaker the reception.

• Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception.

• Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.

CD/CD player care

Do:

• Handle discs by their edges only. (Never touch the playing surface).

• Inspect discs before playing.

• Clean only with an approved CD

cleaner.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

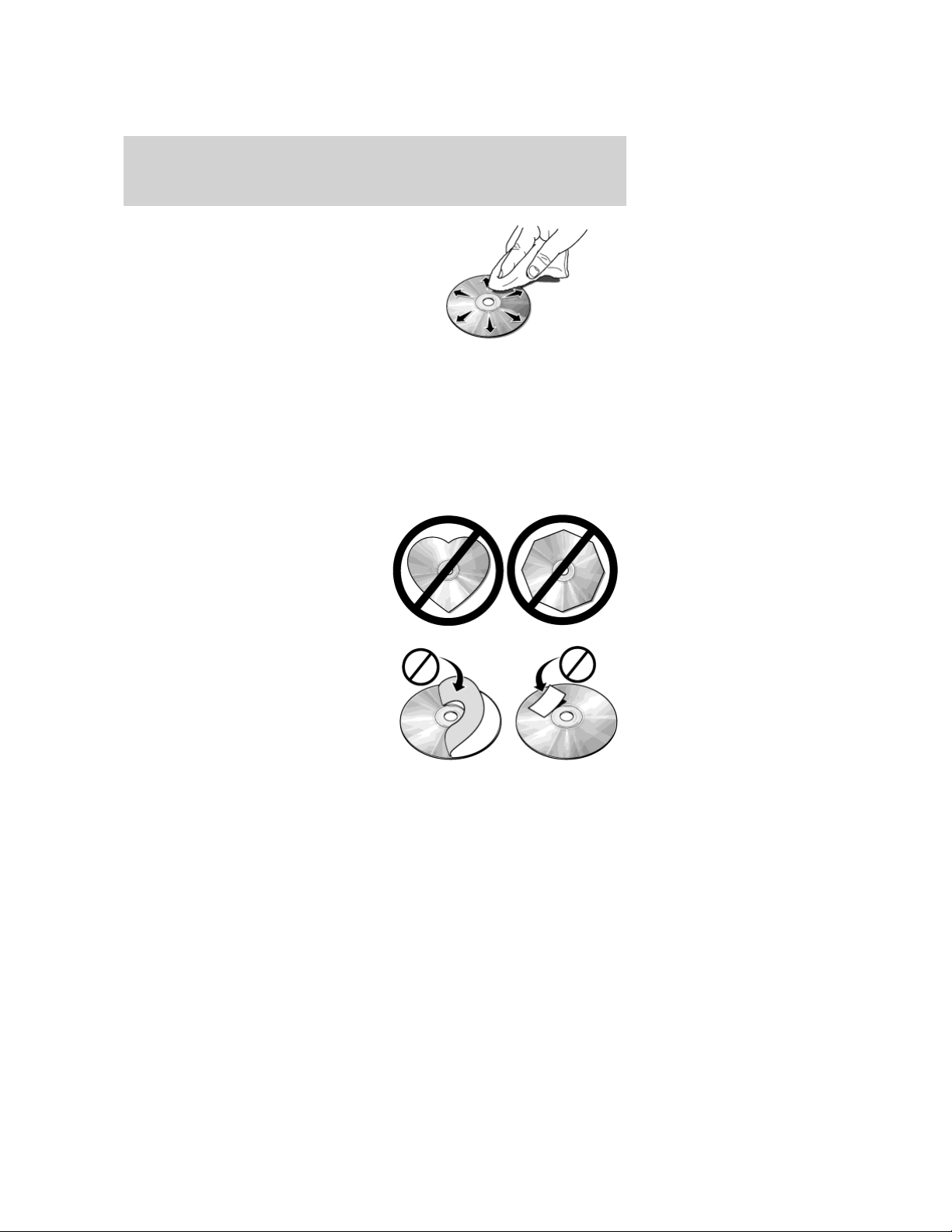

• Wipe discs from the center out.

Don’t:

• Expose discs to direct sunlight or heat sources for extended periods of time.

• Clean using a circular motion.

CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players.

Do not use any irregular shaped CDs or discs with a scratch protection film attached.

CDs with homemade paper (adhesive) labels should not be inserted into the CD player as the label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

Audio system warranty and service

Refer to the Warranty Guide/Customer Information Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.

MP3 track and folder structure

Your MP3 system recognizes MP3 individual tracks and folder structure as follows:

• There are two different modes for MP3 disc playback: MP3 track mode (system default) and MP3 folder mode. For more information on track and folder mode, refer to Sample MP3 structure in the following section.

• MP3 track mode ignores any folder structure on the MP3 disc. The player numbers each MP3 track on the disc (noted by the .mp3 file extension) from T001 to a maximum of T255. Note: The maximum number of playable MP3 files may be less depending on the structure of the CD and exact model of radio present.

• MP3 folder mode represents a folder structure consisting of one level of folders. The CD player numbers all MP3 tracks on the disc (noted by the .mp3 file extension) and all folders containing MP3 files, from F001 (folder) T001 (track) to F253 T255.

• Creating discs with only one level of folders will help with navigation through the disc files.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

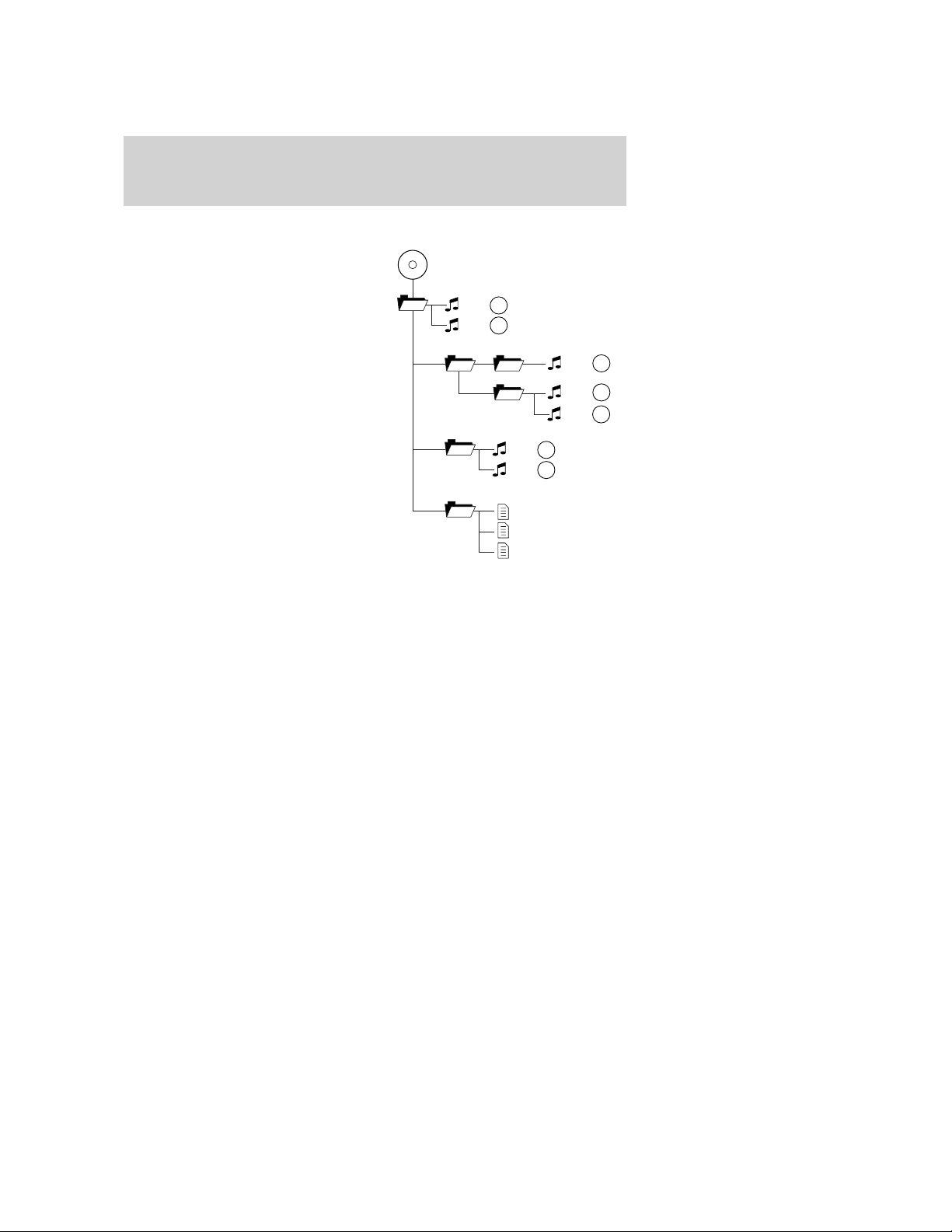

Sample MP3 structure

If you are burning your own MP3 discs, it is important to understand how the system will read the structures you create. While various files may be present, (files with extensions other than mp3), only files with the .mp3 extension will be played. Other files will be ignored by the system. This enables you to use the same MP3 disc for a variety of tasks on your work computer, home computer and your in vehicle system.

In track mode, the system will display and play the structure as if it were only one level deep (all .mp3 files will be played, regardless of being in a specific folder). In folder mode, the system will only play the .mp3 files in the current folder.

Satellite radio information (if equipped)

Satellite radio channels: SIRIUS broadcasts a variety of music, news, sports, weather, traffic and entertainment satellite radio channels. For more information and a complete list of SIRIUS satellite radio channels, visit www.sirius.com in the United States, www.sirius-canada.ca in Canada, or call SIRIUS at 1–888–539–7474.

Satellite radio reception factors: To receive the satellite signal, your vehicle has been equipped with a satellite radio antenna located on the roof of your vehicle. The vehicle roof provides the best location for an unobstructed, open view of the sky, a requirement of a satellite radio system. Like AM/FM, there are several factors that can affect satellite radio reception performance:

• Antenna obstructions: For optimal reception performance, keep the antenna clear of snow and ice build-up and keep luggage and other material as far away from the antenna as possible.

.mp3

.doc

.ppt

.xls

.mp3

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

• Terrain: Hills, mountains, tall buildings, bridges, tunnels, freeway overpasses, parking garages, dense tree foliage and thunderstorms can interfere with your reception.

• Station overload: When you pass a ground based broadcast repeating tower, a stronger signal may overtake a weaker one and result in an audio mute.

Unlike AM/FM audible static, you will hear an audio mute when there is a satellite radio signal interference. Your radio display may display NO SIGNAL to indicate the interference.

SIRIUS satellite radio service: SIRIUS Satellite Radio is a subscription based satellite radio service that broadcasts music, sports, news and entertainment programming. A service fee is required in order to receive SIRIUS service. Vehicles that are equipped with a factory installed SIRIUS Satellite Radio system include:

• Hardware and limited subscription term, which begins on the date of sale or lease of the vehicle.

• Use of online media player providing access to all SIRIUS music channels over the internet using any computer connected to the internet (U.S. customers only).

For information on extended subscription terms, contact SIRIUS at 1–888–539–7474.

Note: SIRIUS reserves the unrestricted right to change, rearrange, add or delete programming including canceling, moving or adding particular channels, and its prices, at any time, with or without notice to you. Ford Motor Company shall not be responsible for any such programming changes.

Satellite Radio Electronic Serial Number (ESN): This 12–digit Satellite Serial Number is needed to activate, modify or track your satellite radio account. You will need this number when communicating with SIRIUS. While in Satellite Radio mode, you can view this number on the radio display by pressing AUX and Preset 1 control simultaneously.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

Radio Display Condition Action Required

ACQUIRING Radio requires more

than two seconds to

produce audio for the

selected channel.

SAT FAULT Internal module or

system failure

present.

INVALID CHNL Channel no longer

available.

UNSUBSCRIBED Subscription not

available for this

channel.

NO TEXT Artist information not

available.

No action required.

This message should

disappear shortly.

If this message does

not clear within a short

period of time, or with

an ignition key cycle,

your receiver may have

a fault. See your

authorized dealer for

service.

This previously

available channel is no

longer available. Tune to another channel. If

the channel was one of

your presets, you may

choose another channel

for that preset button.

Contact SIRIUS at

1–888–539–7474 to

subscribe to the

channel or tune to

another channel.

Artist information not

available at this time on

this channel. The

system is working

properly.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

Radio Display Condition Action Required

NO TEXT Song title information

not available.

NO TEXT Category information

not available.

NO SIGNAL Loss of signal from

the SIRIUS satellite or

SIRIUS tower to the

vehicle antenna.

UPDATING Update of channel

programming in

progress.

CALL SIRIUS 1–888–539–7474

Satellite service has

been deactivated by

SIRIUS Satellite

Radio.

Song title information

not available at this

time on this channel.

The system is working

properly.

Category information

not available at this

time on this channel.

The system is working

properly.

You are in a location

that is blocking the

SIRIUS signal (i.e.,

tunnel, under an

overpass, dense foliage,

etc). The system is

working properly. When

you move into an open

area, the signal should

return.

No action required. The

process may take up to

three minutes.

Call SIRIUS at

1–888–539–7474 to

re-activate or resolve

subscription issues.

FAMILY ENTERTAINMENT DVD SYSTEM (IF EQUIPPED)

WARNING: Driving while distracted can result in loss of vehicle

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

Your vehicle may be equipped with a Family Entertainment System (FES) which allows you to listen to audio CDs, MP3 discs, watch DVDs and to plug in and play a variety of standard video game systems. The DVD player is capable of playing standard DVDs, CDs, MP3s and is compatible with CD-R/W, CD-R and certain CD-ROM media.

Please review this material to become familiar with the FES features and controls as well as the very important safety information.

Quick start

Your Family Entertainment System includes a DVD system, two sets of wireless infrared (IR) headphones and a wireless infrared (IR) remote control.

To play a DVD in the DVD system:

The DVD system can play DVD-Video, DVD-R, DVD-R/W discs as well as audio CDs and video CDs. To ensure proper disc operation, check the disc for finger prints, scratches and cleanliness. Clean with a soft cloth, wiping from center to edge.

1. Ensure that the vehicle is on or the ignition is in accessory mode.

2. Insert a DVD into the system, label-side up to turn on the system. It will load automatically.

3. Press the power button on the DVD player, then press Play begin to play the disc.

If a DVD is already loaded into the system, press PLAY on the DVD player.

Note: If sound can be heard, but no video is present, press VIDEO to select the video source (DVD or aux-inputs).

Press VIDEO to change the source displayed on the screen. Press repeatedly to cycle through: DVD-DISC, DVD-AUX, NON-DVD, OFF.

Press the power button to turn the system off. The indicator light will turn off indicating the system is off.

Note: The audio from the DVD system will play over all vehicle speakers and can be adjusted by the radio volume control.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

To play a CD in the DVD system:

The DVD system can play audio CDs, CD-R and CD-R/W, CD-ROM and video CDs. To ensure proper disc operation, check the disc for finger prints and scratches. Clean the disc with a soft cloth, wiping from the center to the edge.

1. Ensure that the vehicle is on or the ignition is in accessory mode.

2. Insert a CD into the system, label-sideuptoturnontheDVD system. It will load and automatically begin to play. If there is already a CD in the system, press PLAY on the DVD player.

3. The disc will begin to play and the ‘CD Audio Disc’ screen will display. From this screen, you can also select from COMPRESSION, SHUFFLE and SCAN features.

To play an MP3 disc in the DVD system:

1. Ensure that the vehicle is on or the ignition is in accessory mode.

2. Insert an MP3 disc into the system, label-side up to turn on the DVD system. It will load and automatically begin to play. If there is already a disc in the system, press PLAY on the DVD player.

3. The disc will begin to play and the ‘MP3 Audio Disc’ screen will display and allow you to access the COMPRESSION, SHUFFLE, SCAN and FOLDER MODE features.

To play an auxiliary source through the DVD system

The DVD system can be used to connect and play auxiliary electronic devices such as game systems, personal camcorders, video cassette recorders, etc.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

1. Ensure that the vehicle is on or the ignition is in accessory mode.

2. Press the power button to turn the DVD system on. The indicator light next to the power button will illuminate.

3. Connect an auxiliary audio/video source by connecting RCA cords (not included) to the RCA jacks on the left hand side of the system.

• Yellow (1) — video input

• White (2) — left channel audio

input

• Red (3) — right channel audio input

4. Press MEDIA on the DVD system to change the media source to AUX.

5. Press VIDEO on the DVD system to change the video source to

DVD-AUX. If your source is properly plugged in, it will appear on the LCD (Liquid Crystal Display) screen. If your auxiliary source does not have a video signal, or if the DVD system does not detect a video signal from the auxiliary source, the screen will remain black. If the video source is set to DVD-AUX, the display will automatically turn on if a video signal is detected.

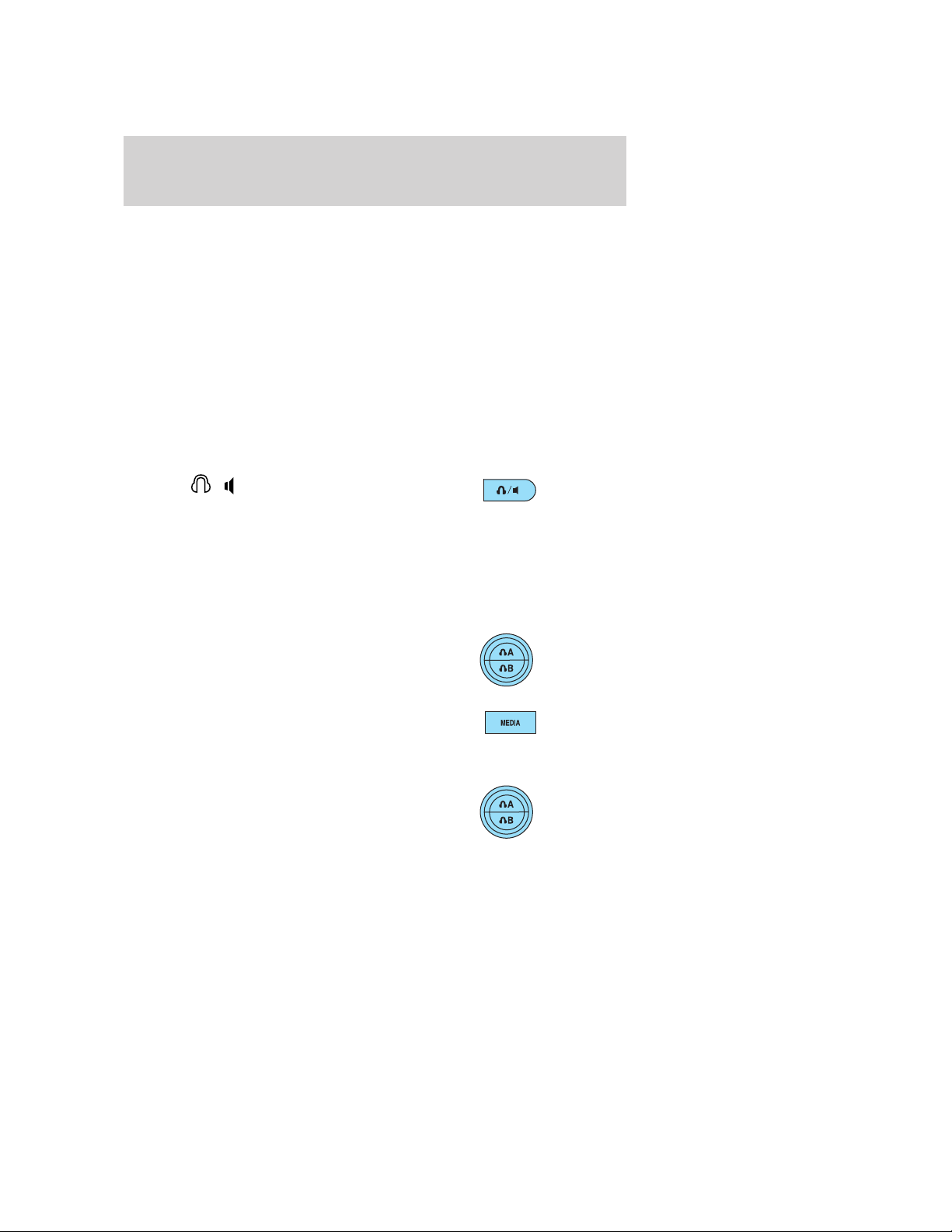

To listen to audio over the headphones (Dual play mode):

You may listen to channels A and B over wired or wireless headphones. Refer to Using the infrared wireless headphones and Using wired headphones for further information.

• Black (4) — wired headphone output (wired headphones not included)

1. Press the

headphone/speaker on the DVD player or press the 2

and 4 memory presets on the radio at the same time. A green light will illuminate next to either the A or B Headphone Control

Button to indicate which channel is active (able to be controlled).

2. Press MEDIA to change the audio source of the active channel (A or

B). The audio source will be shown on the display. You may change the active channel by pressing the A or B headphone control button.

/ button

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

Note: Channel A can access any possible media source (AM, FM1, FM2, SAT (if equipped), CD, DVD, AUX). Channel B can only access DVD and AUX sources.

Note: Refer to Single play/Dual play for more information.

Using the infrared (IR) wireless headphones:

1. Press the power control on the earpiece to turn the headphones ON.

2. Select Channel A or B for each set of wireless headphones by using

the A/B control on the ear piece.

3. Adjust the headphone volume using the rotary dial on the earpiece.

Using wired headphones (not included):

WARNING: Do not leave children unattended in the vehicle and

do not let children operate the system while unsupervised. If wired headphones or auxiliary systems are used, children may become entangled in the cords and seriously injure themselves.

1. Connect the wired headphones in to the headphone jacks on either side of the DVD system. Each side is labeled plugged into jack A will listen to Channel A and headphones plugged into

jack B will listen to Channel B.

2. Adjust the volume levels using the volume controls on the DVD system.

Aor B. Headphones

To adjust display brightness:

To decrease/increase the brightness level on the display screen, press the brightness control on the DVD system. A display will appear at the bottom of the screen indicating the brightness level. The brightness display will only appear when the menu is not displayed.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

DVD player controls

ENTER

RETURN

MEDIA

VOLUME

VIDEO

1. Headphone control A/B: Press to select either the A or B headphone source. Then press MEDIA to select the desired playing media for that headset. When a headphone channel has been selected (A or B), selections will affect the source on that channel only. Note: Headphone A can access any possible media (AM, FM1, FM2, SAT (if equipped), CD, DVD, DVD-AUX). Headphone B can only access DVD and DVD-AUX. For further information, refer to Single play/Dual play later in this section.

/ (Stop/Eject): Press

2. once to stop and press a second

time to eject a disc from the DVD system.

(Reverse): Press and release for the previous chapter or track. Press and hold to reverse search a DVD, Video CD, or FES CD in DVD/CD mode.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

4. (Fast forward): Press and release for the next chapter or track. Press and hold to forward

search a DVD, Video CD, or FES CD in DVD/CD mode.

/ (Play/Pause): Press

(Play) to select DVD mode (and to turn the DVD system on if it is off). If a disc is present, it will resume or begin to play. Press (Pause) while playing a disc to pause a DVD or CD.

6. On/Off: Press to turn the DVD system On/Off.

7. VIDEO: Press repeatedly to cycle through the following video state options which will be indicated on the bottom right hand corner of the display: DVD DISC, DVD-AUX, NON-DVD and Off (no indicator). If you select the DVD-AUX video source, the display will turn off if there is no video signal detected. When a video signal is detected on the auxiliary video input, and the display is in the DVD-AUX video mode, the display will automatically turn on.

8. Infrared (IR) Receiver & Transmitter: System sensor which reads the signals from the remote control and sends audio signals to the infrared (IR) wireless headphones.

9. LCD screen: The eight inch diagonal screen rotates down to view and up into housing to store when not in use. Ensure that the screen is latched into the housing when being stored.

10. Volume: When in Single Play, press to increase (

( ) the volume over all speakers. When in Dual Play, press to increase

) or decrease ( ) the volume

( for the wired headphones. (Wireless headphone volume is controlled

with the rotary dial on the right ear piece.)

11. (Headphone mode- the rear speakers are muted) and press again for

Single Play (same media playing through all speakers). You can also

/ (Headphones/Speakers): Press once for Dual Play

) or decrease

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

press the 2 and 4 memory preset buttons on the audio system at the same time to perform the same function. For further interaction information, refer to Single Play/Dual play under Operation later in this section.

12. MEDIA: Press repeatedly to select from the various possible playing media sources (AM, FM1, FM2, SAT (if equipped), CD, DVD, DVD-AUX). The media will show in the status display on the top of the screen when in Dual Play mode. When in Single Play mode, the media source will be displayed on the radio. Note: Channel A can access any possible media source (AM, FM1, FM2, SAT (if equipped), CD, DVD, DVD-AUX). Channel B can only access DVD and DVD-AUX sources.

13. RETURN: Press to return to the playing media or to resume playback.

14. MENU: When playing a DVD, press MENU once to enter the DVD disc menu (if available) and press twice to enter the system set-up menu. From the set-up menu, you may select from Angle, Aspect Ratio, Language, Subtitles, Disc resume, Compression, Restore Defaults and Back. For more detailed information, refer to Menu mode.

15. ENTER: Press to select/confirm the current selection.

16. Cursor /Brightness controls: Use the cursor controls to make various selections when in any menu. When not in a menu, and in

DVD mode, press the brightness. A display bar will appear at the bottom of the screen

indicating the brightness levels.

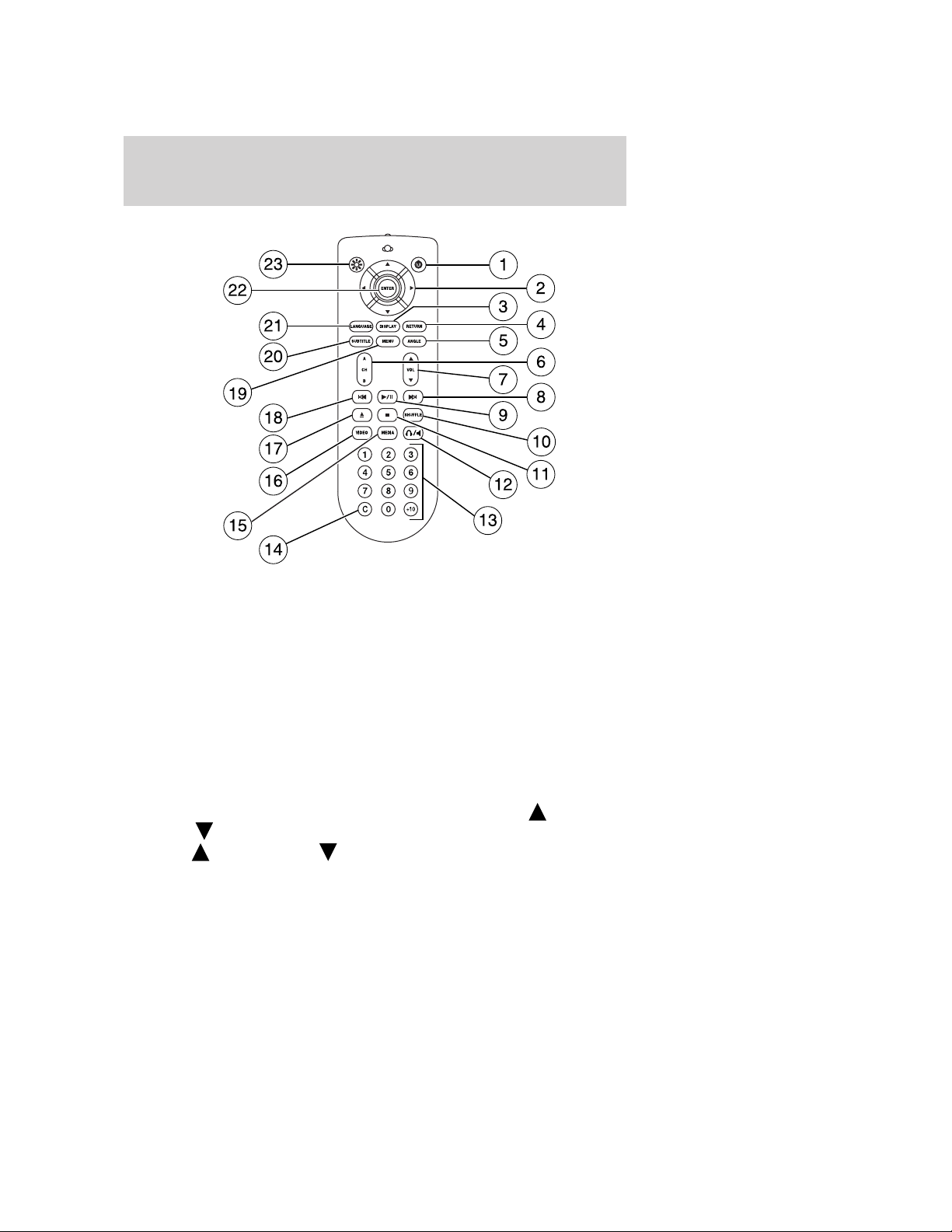

Remote control

Unless otherwise stated, all operations can be carried out with the remote control. Always point the remote control directly at the player. Ensure that there are no obstructions between the remote and player.

/ to adjust

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

1. Power control: Press to turn the FES (Family Entertainment System) ON/OFF.

2. Cursor controls: Use in various active menus to advance the cursor up/down/left/right. When not in a Menu, the left and right cursor controls decrease and increase the display brightness.

3. DISPLAY: Press to access the on-screen display of the FES functions and adjustments.

4. RETURN: Press to return to the previous menu screen.

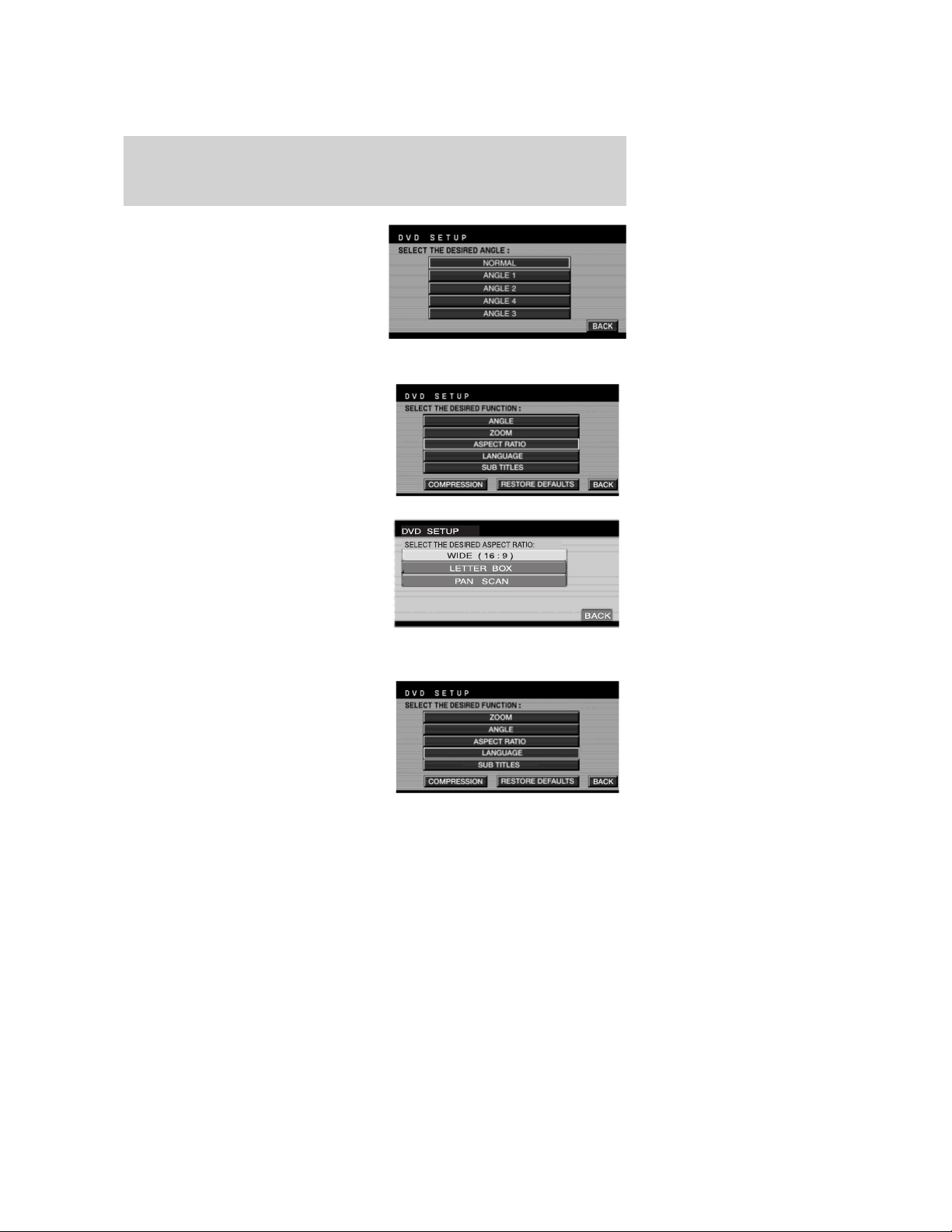

5. ANGLE (DVD dependent): Press to select the angle to view the scene.

6. Channel A/B: the MEDIA control to select the desired playing media for the headphones.

7. VOL (Volume): When in Single Play, press to increase ( )or decrease (

increase ( ) or decrease ( ) the volume for the wired headphones. (Wireless headphone volume is controlled with the rotary dial on the

right ear piece.)

Press to select either A or B headphones and then use

) the volume over all speakers. When in Dual Play, press to

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

8. Fast Forward/Next: In DVD mode, press and hold for a quick advance within the DVD. Press and release to advance to the next chapter. In CD/MP3 mode, press to access the next track.

9. Play/Pause: Press to play or pause a DVD.

10. SHUFFLE: Press to play all tracks on the current CD/MP3 disc in random order.

11. STOP: Press to stop the current DVD or CD/MP3.

12.

/ Speaker/Headphone (Single/Dual Play): Press to toggle

between Single Play (same media playing through all speakers) and Dual Play (headphone mode — the rear speakers are muted). You can also press the 2 and 4 memory presets on the audio system at the same time to perform the same function.

13. Numeric Keypad: Use the numeric controls to enter in a specific CD/MP3 track or DVD chapter to be played.

14. C (Cancel): Press to cancel/clear the numeric input (i.e. chapter number).

15. MEDIA: Press to cycle through the possible media sources: AM, FM1, FM2, SAT (if equipped), CD, DVD, LINE IN (if equipped), DVD-AUX. Channel B can only access DVD and AUX sources.

16. VIDEO: Press to cycle through video states: DVD-DISC, DVD-AUX, NON-DVD, Off.

17. EJECT: Press to eject a disc from the FES.

18. Fast reverse/Previous: When a DVD is playing, press and hold for a quick reverse within the DVD. Press and release for the previous chapter. Press PLAY to resume normal playback speed and volume. In CD/MP3 mode, press to access the previous track.

19. MENU: Press to access the DVD disc menu for selections. Press MENU again when in the DVD disc menu to access the system set-up menu.

20. SUBTITLE (DVD dependent): Press to turn the subtitle feature ON or OFF.

21. LANGUAGE (DVD dependent): Press to select the desired language.

22. ENTER: Press to select the highlighted menu option.

23. ILLUMINATION: Press to illuminate the remote control and backlight all of the buttons.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

Battery replacement

Batteries are supplied with the remote control unit. Since all batteries have a limited shelf life, replace them when the unit fails to control the DVD player.

Remove the screw and unlatch the battery cover to access the batteries. The remote control unit uses two AAA batteries which are supplied with

the unit.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

Headphones

Wireless headphones

WARNING: The driver should never use the headphones while

driving the vehicle. Using headphones may prevent the driver from hearing audible warnings such as horns or emergency sirens, which could result in a crash causing serious injury. Give your full attention to driving and to the road.

Your FES system is equipped with two sets of battery powered, infrared wireless headphones. Two AAA batteries are needed to operate the headphones. (Batteries are included.)

Additional infrared wireless headphones may be purchased for use with the system. Also, wired headphones may be purchased and plugged in where indicated on the left and right hand sides of the system. Refer to Wired Headphones following.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

To install the batteries, remove the screw at the bottom of the cover. Then, lightly press down on top and slide the cover off.

When replacing the batteries, use two new batteries (alkaline recommended) and install them with the correct orientation as indicated in the battery housing.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

To operate the headphones:

• Press POWER on the ear piece to turn on the headphones. A red indicator light will illuminate indicating the headphones are ON. Press POWER again to turn the headphones off.

• Adjust the headphones to comfortably fit your head using the headband adjustment.

• Select the desired audio source (Channel A or B) for each set of wireless headphones by using the A/B selection switch on the ear piece.

• Adjust the volume control to the desired listening level.

Ensure that the headphones are turned off when not in use. After approximately one minute of not being in use (no infrared signal is received), the wireless headphones will automatically turn off. They will also turn off after two hours of continuous use as a power save feature. If this happens, simply turn the headphones on again and continue use.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

Wired headphones

WARNING: Do not leave children unattended in the vehicle and

do not let children operate the system while unsupervised. If wired headphones or auxiliary systems are used, children may become entangled in the cords and seriously injure themselves.

WARNING: The driver should never use the headphones while

You may purchase wired headphones for your FES (Family Entertainment System). Plug them into the 3.5 mm headphone jack(s) located on the left and right sides of the system. (Channel A is located on the left side and Channel B is located on the right side.) These headphones will be active when in Dual Play mode.

To listen to the audio on wired headphones (not included), connect the wired headphones into the headphone jacks on the sides of the DVD system. The wired headphone jack for Channel A is located on the left side of the FES and is labeled headphone jack will hear audio from the audio source selected to be the Channel A source. The wired headphone jack for Channel B is located on the right side of the FES and is labeled this headphone jack will hear audio from the audio source selected to be the Channel B source.

Adjust the headphone volume using the volume control on the DVD system.

A. Headphones plugged into this

B. Headphones plugged into

Operation

Single play/Dual play

Your DVD and audio system work together with the infrared headphones and wired headphones (not included) to allow the rear seat passengers to listen to the radio (and other media sources) over the headphones. This enables the front and rear seat passengers to listen to a variety of sources a variety of ways.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

Single Play: Single play consists of all occupants in the vehicle listening to the same playing media over the front and rear speakers. When the DVD system is on, and the same source is playing through the front and rear speakers, SINGLE PLAY will appear in the front radio display.

Dual Play: Dual play is when the rear seat passengers choose to listen to a different playing media than the front seat passengers. With the DVD and Rear Seat Controls turned ON, the rear seat passengers may choose to listen to the radio, CD, MP3, DVD, or DVD-AUX media sources over headphones while the front speakers play the chosen selection for the front audio system, they may listen to another over the headphones. DUAL PLAY will appear in the radio display.

When both the front seat passengers and the rear seat passengers listen to the same audio source, SHARED MODE will appear on the radio.

Note: If the front seat passengers are listening to the radio, the rear seat passengers can also listen to the radio; however, they will be limited to listening to the same radio channel.

Press the button on the DVD player or

navigation radio touch screen. The headphone control will now be active and a green light next to the

A or B headphone control buttons will illuminate. The system can output two different audio sources over the headphones. These are called Channel A and Channel B. Both Channel A and Channel B can be listened to on the wired headphones (not included) or on the infrared (IR) wireless headphones.

Press the Headphone Control button A to change the audio source for Channel A.

/ headphone/speaker

Press MEDIA to change the audio source for Channel A. This information will display on the DVD system screen.

Press the Headphone Control button B to change the audio source for Channel B.

Press MEDIA to change the audio source for Channel B. This information will display on the DVD system screen. Channel B can listen to either the DVD media or the DVD system auxiliary inputs (DVD-AUX).

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

Operation with an aftermarket audio system (Headphone only mode)

When the Family Entertainment System (FES) detects that the original radio supplied by Ford Motor Company has been removed from the vehicle, the Family Entertainment System will work in a state referred to as “Headphone Only Mode”.

While operating in Headphone Only Mode, the system will have limited functionality.

• The system will only output audio to the headphones. It will not be capable of providing audio to the speakers.

• The available sources in FES Headphone Only Mode are DVD-DISC and DVD-AUX, regardless of headphone channel (A or B).

• When a disc is inserted into the FES while in Headphone Only Mode, both headphone channels (A&B) will be connected to FES-DISC.

Menu mode

Press MENU once on the DVD system to access the DVD disc menu if available.

Press MENU twice to access the DVD set-up menu and the following features:

1. ZOOM

2. ANGLE

3. ASPECT RATIO

4. LANGUAGE

5. SUB TITLES

Angle mode

Select ANGLE to select various angles of view for the DVD.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

This is disc dependent — some DVD discs may have more viewing angles to select from. Once you have made your selection, press ENTER to confirm. The system default is Angle 1.

Aspect ratio

Select ASPECT RATIO to select the viewing size and shape of the video displayed on the LCD screen. This is disc dependent.

You can select from: WIDE, LETTER BOX or PAN SCAN. Once you have made your selection, press ENTER to confirm. The LCD screen display will immediately change to your selection after the system resumes playback of the DVD. The system default is WIDE (16:9).

Language

Select LANGUAGE to select the language you would like to use for audio output (English, Spanish, French). This is disc dependent.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Once you have made your selection, press ENTER to confirm. The system default is English.

Subtitles

Select SUBTITLES to turn the subtitle option on or off. The system default is OFF.

Once you have made your selection, press ENTER to confirm. This is disc dependent.

Entertainment Systems

Audio CDs

To play audio CDs on your DVD system:

1. Ensure that the vehicle is on or the ignition is in accessory mode.

2. Ensure that the DVD system is on.

3. Insert an audio CD into the DVD system, label side up.

4. The track and elapsed time will

appear in the status bar. Use the DVD cursor controls on the bezel to highlight which track you would like to play. You can also use the cursor controls to highlight COMPRESSION, SHUFFLE or SCAN. Once you have highlighted the desired track or function, press ENTER on the DVD bezel to confirm your selection.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

COMP (Compression): Compression brings soft and loud CD passages together for a more consistent listening level when in CD mode. Press to turn the feature on/off.

SHUFFLE: Press to hear all tracks on the current CD in random order. Press again to stop.

SCAN: Press for a brief sampling of all tracks on the current CD. Press again to stop.

Playing MP3 discs

To play an MP3 disc on your DVD system:

1. Ensure that the vehicle is on or the ignition is in accessory mode.

2. Ensure that the DVD system is on.

3. Insert the MP3 disc into the DVD system, label side up.

4. The folder, track and elapsed

time will appear in the status bar. The screen will list the Artist, Title, Album and File Name.

COMP (Compression):

Compression brings soft and loud CD/MP3 passages together for a more consistent listening level when in CD mode. Press to turn the feature on/off.

SHUFFLE: Press to hear all tracks on the current MP3 folder in random order. Press again to stop.

SCAN: Press for a brief sampling of all tracks on the current MP3 folder. Press again to stop.

FOLDER LIST: Press access folder mode and to go to the previous/next folder in the MP3 disc.

MP3 disc quality factors

Several factors can effect disc playback quality:

• Disc capacity — Each disc contains about 650 MB of storage capacity. We do not recommend using high capacity discs containing 700MB of storage.

• Disc type — Some CD-RW discs may operate inconsistently and may cause an error message to appear. We recommend burning MP3 files onto CD-R discs.

• Disc finalization — The disc may be left open for the purpose of adding sessions to it at a later time, but be sure to close each session or the disc will not play.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

• Bit rate — The player supports bit rates from 32–320 kbps, as well as variable bit rate MP3 files, but lower bit rates will have a noticeable effect on sound quality and are recommended only for speech or low fidelity music material. We recommend that you encode MP3 files using a high quality encoder.

• PC configuration — Encoding MP3 files requires intensive use of your computer’s resources. Follow the PC configuration recommendations of the encoder software vendor. We recommend that you avoid running other software applications on your PC during MP3 encoding to avoid undesirable noise and distortion.

CD, MP3 and CD player care

• Handle discs by their edges only. Never touch the playing surface.

• Do not expose discs to direct sunlight or heat sources for extended

periods of time.

• Do not insert more than one disc into the slot of the CD player (if equipped).

• Always store discs out of direct sunlight. Excessive heat may damage or warp discs.

• Use care when handling and playing CD-R and CD-RW discs, which are more susceptible to damage from heat, light and stress than are regular CDs.

• Always insert and remove a disc by holding the disc flat, with the playing surface facing down, in order to prevent damage to the disc or the player.

• Never insert any object other than a compact disc (CD) or digital versatile disc (DVD) into the player, as doing so may damage the player and may cause injury to you.

• Do not disassemble the player. The laser used in disc playback is extremely harmful to the eyes.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

The FES DVD system is designed to play commercially pressed 12 cm (4.75 in) audio compact discs and digital versatile discs (DVD), DVD-R and R/W discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD and DVD players. Irregular shaped CDs or DVDs, CDs or DVDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the FES DVD system. The label may peel and cause the CD or DVD to become jammed. It is recommended that homemade CDs or DVDs be identified with permanent felt tip marker rather than adhesive labels. Ball point pens may damage CDs or DVDs. Please contact your authorized dealer for further information.

Playing a DVD

1. Ensure that the vehicle is on or the ignition is in accessory mode.

2. Ensure that the navigation system is on.

3. Insert a DVD label-side up into the system.

4. Use the DVD bezel controls to:

Press to play or pause a DVD.

Press to stop or eject a DVD.

Press and release to go to the previous chapter. Press and hold for a fast reverse search.

Press and release to go to the next chapter. Press and hold for a fast forward search.

Press when not in menu mode to adjust brightness, or when in menu mode to navigate through the menu selections.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

Press to adjust volume levels.

Slow play

1. With a DVD playing, press pause.

2. Press and hold the reverse or

advance button to enter into slow play mode. Once in slow play mode, press and release the reverse or advance button repeatedly to cycle through 1/4 and 1/2. These will display on the status bar on top of the screen as the screens cycle through at this rate.

Frame by frame

1. With a DVD playing, press pause.

2. Press the right cursor button. The

DVD will advance one frame. Each press of the right cursor button will advance the DVD video by one frame.

Headphone/auxiliary jacks

There are wired headphones (not included) and auxiliary jacks on the left and right side of your DVD system. They can be used to plug in wired headphones or to connect and play auxiliary electronic devices such as game systems, personal camcorders, video cassette recorders, etc.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

On the left side of the system is the Headphone A input jack. This headphone will listen to the media selected on the Channel A source. When you need to make any adjustments to the media, volume, etc, ensure that the Channel A source is highlighted.

Also located here are the various auxiliary jacks which can be used to plug in a VCR, camcorder, video games, etc. The specific jacks are as follows:

1. Yellow: video input

2. White: left channel audio input

3. Red: right channel audio input

4. Black: wired headphone jack (not included)

The B headphone jack (5) is located on the right side of the DVD system. Plug in wired headphones (not included) here.

Note: The B headphones can only access DVD and AUX modes. They cannot access radio sources.

Audio displays

Your DVD system interacts closely with the front audio system. Status messages will appear in the radio display showing the DVD status. Some possible radio display messages:

• SINGLE PLAY or DUAL PLAY

• DVD LOAD

• DVD MENU

• DVD STOP

Audio interaction

You can then also use the front audio controls to advance, reverse, play and pause a DVD. While a DVD is playing you may use the following controls on the front radio:

• SEEK: Press to advance to the previous ( chapters.

) or next ( ) DVD

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

• : Press to play a DVD or to pause the DVD.

When the radio displays “DVD MENU”, press PLAY on the radio (memory preset #6), to play the disc.

Parental control for the DVD system

Your Family Entertainment System (FES) allows you to have control over the rear seat controls in a few different ways. The DVD system is automatically activated when the vehicle ignition is ON, which allows the rear seat passengers to use the DVD system.

There are three levels of control of the FES buttons. The states are FULL (enabled), LOCAL or LOCKED (disabled). To change the level of control, press the memory preset controls 3 and 5 simultaneously on the front audio controls. The control level will cycle each time the buttons are pressed simultaneously. The three states are described as:

FULL (enabled): The FES has control over the primary (speaker) and secondary (headphone) audio sources.

LOCAL: The FES has control over the secondary source (headphones) only. The radio will ignore button presses that affect the primary (speaker) audio source.

LOCKED (disabled): The FES buttons are locked and all FES button presses are ignored by the radio and the FES except for load and eject.

When the DVD system is ON, you can then press the memory preset controls 2 and 4 simultaneously to toggle between Single Play and Dual Play. In Single Play mode, all speakers listen to the same media. In Dual Play mode, rear seat passengers can use the infrared wireless, or wired (not included) headphones to listen to a different playing media than the front seat passengers.

1 2 3 4 5 6

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

General information

Note: DVDs are formatted by regions. US and Canada systems can only play region 1 DVDs and Mexico systems can only play region 4 DVDs. Systems sold in vehicles targeted for other parts of the world would have different regions. If a playback problem is encountered, please ensure that you are using a disc designed for your vehicle. The region coding can be found stamped on the disc or on the box, and can say ‘region-1’ or ‘region 4’, etc. They may also be marked by a numerical symbol.

Macrovision: This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

MP3: Supply of this product only conveys a license for private, non-commercial use and does not convey a license nor imply any right to use this product in any commercial (i.e. revenue generating) real time broadcasting (terrestrial, satellite, cable and /or any other media) broadcasting/streaming via internet, intranets and/or other networks or in other electronic content distribution systems, such as pay-audio or audio-on-demand applications. An independent license for such use is required. For details, please visit http:// www.mp3licensing.com.

Safety information

WARNING: Driving while distracted can result in loss of vehicle

Read all of the safety and operating instructions before operating the system and retain for future reference.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

Do not attempt to service, repair or modify the Family Entertainment System (FES). See your dealer.

Do not insert foreign objects into the DVD compartment.

WARNING: Do not leave children unattended in the vehicle and

do not let children operate the system while unsupervised. If wired headphones or auxiliary systems are used, children may become entangled in the cords and seriously injure themselves.

WARNING: The front glass on the liquid crystal display (LCD)

flip-down screen may break when hit with a hard surface. If the glass breaks, do not touch the liquid crystalline material. In case of contact with skin, wash immediately with soap and water.

WARNING: The driver should not attempt to operate any

function of the DVD system while the vehicle is in motion. Give full attention to driving and to the road. Pull off the road in a safe place before inserting or extracting DVDs from the system. A remote control is included in the system to allow the rear seat occupants to operate the FES functions without distracting the driver.

Do not expose the liquid crystal display (LCD) flip-down screen to direct sunlight or intensive ultraviolet rays for extensive periods of time. Ultraviolet rays deteriorate the liquid crystal.

Be sure to review User Manuals for video games and video game equipment when used as auxiliary inputs for your Family Entertainment System (FES).

Do not operate video games or video equipment if the power cords and/or cables are broken, split or damaged. Carefully place cords and/or cables where they will not be stepped on or interfere with the operation of seats and/or compartments.

Disconnect video games and video equipment power cords and/or cables when not in use.

Avoid touching auxiliary input jacks with your fingers. Do not blow on them or allow them to get wet or dirty.

Do not clean any part of the DVD player with benzene, paint thinner, or any other solvent.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

Federal Communication Commission (FCC) Compliance

Changes or modifications not approved by Ford Lincoln-Mercury could void user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference and radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to consult the dealer or an experienced radio/TV technician for help.

Care and service of the DVD player

Environmental extremes

DVD players which are subjected to harsh environmental conditions may be damaged or perform at less than maximum capability. To avoid these outcomes, whenever possible avoid exposing your DVD player to:

• extremely hot or cold temperatures.

• direct sunlight.

• high humidity.

• a dusty environment.

• locations where strong magnetic fields are generated.

Temperature extremes

When the vehicle is parked under direct sunlight or in an extremely cold place for a long period of time, wait until the cabin temperature of the vehicle is at normal temperature before operating the system.

Humidity and moisture condensation

Moisture in the air will condense in the DVD player under extremely humid conditions or when moving from a cold place to a warm one. Moisture condensation may cause damage to the DVD and/or player. If moisture condensation occurs, do not insert a CD or DVD into the player. If one is already in the player, remove it. Turn the DVD player ON to dry the moisture before inserting a DVD. This could take an hour or more.

Foreign substances

Exercise care to prevent dirt and foreign objects from entering the DVD player compartment. Be especially careful not to spill liquids of any kind

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Entertainment Systems

onto the media controls or into the system. If liquid is accidentally spilled onto the system, immediately turn the system OFF and consult a qualified service technician.

Cleaning the liquid crystal display (LCD) flip-down screen

Clean the display screen by applying a small amount of water or any ammonia-based household glass cleaner directly to a soft cloth. Rub the screen gently until the dust, dirt or fingerprints are removed. Do not spray the screen directly with water or glass cleaning solvents. Overspray from these fluids could drip down into the internal electronics of the screen and cause damage. Do not apply excessive pressure while cleaning the screen.

Cleaning DVD and CD discs

Inspect all discs for contamination before playing. If necessary, clean discs only with an approved DVD and CD cleaner and wipe from the center out to the edge. Do not use circular motion.

Compatibility with aftermarket audio systems (headphone only mode)

When the Family Entertainment System (FES) detects that the original radio supplied by Ford Motor Company has been removed from the vehicle, the FES will work in a state referred to as “Headphone Only Mode.” This mode allows the FES to operate as a standalone system, without interface to the radio.

While operating in Headphone Only Mode, the system will have limited functionality.

• The system will only output audio to the headphones. It will not be capable of providing audio to the speakers.

• The available sources in FES Headphone Only Mode are DVD-DISC and DVD-AUX, regardless of headphone channel (A or B).

• When a disc is inserted into the FES while in Headphone Only Mode, both headphone channels (A and B) will be connected to FES-DISC.

NAVIGATION SYSTEM (IF EQUIPPED)

Your vehicle may be equipped with a navigation system. Refer to the Navigation system supplement for further information.

SYNC (IF EQUIPPED)

Your vehicle may be equipped with SYNC, a hands-free communications and entertainment system with special phone and media features. For more information, please refer to the SYNC supplement or to the SYNC section in the Navigation system supplement (if equipped).

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Climate Controls

HEATER ONLY SYSTEM (IF EQUIPPED)

1. Fan speed adjustment: Controls

the volume of air circulated in the vehicle.

2. Temperature selection:

Controls the temperature of the airflow in the vehicle.

3. Air flow selections: Controls the direction of the airflow in the

vehicle. See the following for a brief description on each control.

: Distributes outside air through the instrument panel vents.

: Distributes outside air through the instrument panel vents and the

floor vents.

(OFF): Outside air is shut out and the climate system is turned off.

: Distributes outside air through the floor vents.

: Distributes outside air through the windshield defroster vents and

floor vents.

: Distributes outside air through the windshield defroster vents and

demister vents. Can be used to clear the windshield of fog and thin ice.

Operating tips

• To reduce fog build up on the windshield during humid weather, place the air flow selector in the

• Do not put objects under the front seats that will interfere with the air flow to the back seats.

• To reduce humidity build-up inside the vehicle, do not drive in the

• Under normal weather conditions, do not leave the airflow selector in inlets.

• Remove any snow, ice or leaves from the air intake area at the base of the windshield.

To aid in side window defogging/demisting in cold weather:

1. Select

2. Adjust the temperature control to maintain comfort.

(OFF) position.

(OFF). This allows the vehicle to breathe using the outside air

position.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Climate Controls

3. Set the fan speed to the highest setting.

4. Direct the outer instrument panel vents towards the side windows.

To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.

MANUAL HEATING AND AIR CONDITIONING SYSTEMS (IF EQUIPPED)

• Manual heating and air conditioning system

• Manual heating and air conditioning system with heated mirrors

• Manual heating and air conditioning system with heated mirrors and heated seats

1. Fan speed adjustment: Controls the volume of air circulated in the

vehicle.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Climate Controls

2. Temperature selection: Controls the temperature of the airflow in

the vehicle.

3. Air flow selections: Controls the direction of the airflow in the

vehicle. See the following for a brief description on each control. MAX A/C: Distributes recirculated air through the instrument panel

vents only to cool the vehicle. This re-cooling of the interior air is more economical and efficient. Recirculated air may also help reduce undesirable odors from entering the vehicle.

: Distributes air through the instrument panel vents.

: Distributes air through the instrument panel vents and the floor

vents.

O (OFF): Outside air is shut out and the fan will not operate.

: Distributes air through the floor vents.

: Distributes air through the windshield defroster vents and floor

vents.

: Distributes outside air through the windshield defroster vents. Can

be used to clear ice or fog from the windshield.

recirculation in cabin. Recirculated air may reduce the amount of time to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculation engages automatically with selection of MAX A/C or can be engaged manually in any other airflow selection except defrost. Recirculation may turn off automatically in all airflow selections except MAX A/C.

5. A/C: Press to activate/deactivate air conditioning. Use with

recirculated air to improve cooling performance and efficiency. Engages automatically in MAX A/C,

(Recirculated air): Press to activate/deactivate air

and .

The heated mirrors turn off automatically after 10 minutes.

heated seats turn off when the ignition is turned off.

(Heated mirrors): Press to turn the heated mirrors on and off.

(Heated seats): Press to turn the heated seats on and off. The

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Climate Controls

Operating tips

• To reduce fog build up on the windshield during humid weather, place the air flow selector in the

• To reduce humidity build up inside the vehicle, do not drive with the air flow selector in the O (OFF) position.

• Do not put objects under the front seats that will interfere with the airflow to the rear seats.

• Remove any snow, ice or leaves from the air intake area at the base of the windshield.

• To improve the A/C cool down, drive with the windows slightly open for 2–3 minutes after start up or until the vehicle has been “aired out.”

During extreme high ambient temperatures when idling stationary for extended periods of time in gear, it is recommended to run the A/C in the MAX A/C position, reduce blower fan speed from the highest setting and put the vehicle’s transmission into the PARK gear position (automatic transmission only) to continue to receive cool air from your A/C system.

For maximum cooling performance in MAX A/C mode:

1. Move the temperature control to the coolest setting.

2. Set the fan to the highest speed initially, then adjust in order to

maintain comfort.

To aid in side window defogging and demisting in cold weather:

1. Select

2. Select A/C.

3. Set the temperature control to maintain comfort.

4. Set the fan speed to highest setting.

5. Direct the outer instrument panel vents towards the side windows.

position.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Climate Controls

DUAL AUTOMATIC TEMPERATURE CONTROL (DATC) SYSTEMS (IF EQUIPPED)

• DATC

• DATC with heated mirrors

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Climate Controls

• DATC with heated seats and heated mirrors

Temperature conversion: To switch between Fahrenheit and Celsius, refer to Units (English/Metric) under either Standard Message Center or Optional Message Center in the Driver Controls chapter

In order to achieve maximum cooling performance, press and set the temperature to 60°F (16°C) and the highest blower setting.

and demister vents. Can be used to clear thin ice or fog from the windshield. To exit

2. Passenger temperature control: Press to increase/decrease the

passenger side temperature in the vehicle cabin. 3A. Dual: (Single/dual electric temperature control): Allows the driver to

have full control of the cabin temperature settings (single zone) or allows the passenger to have control of their individual temperature settings (dual zone control). Press to turn on dual zone mode, press again to return to single zone.

3B. mirrors. The heated mirrors will turn off after 10 minutes or can be turned off by pressing the button again. Refer to Power mirrors in the Driver Controls chapter for more information.

Defrost: Distributes outside air through the windshield defroster

select another mode.

Heated mirrors: Press to defrost the outside rear view

, A/C, ,

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Climate Controls

4. Recirculation control: Press to activate/deactivate air

recirculation in cabin. Recirculated air may reduce the amount of time to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculation can be engaged manually in any other airflow selection except Recirculation may turn off automatically in all airflow selections except MAX A/C.

5. A/C control: Press to activate/deactivate air conditioning. Use with

recirculated air to improve cooling performance and efficiency. Engages automatically in AUTO,

6. Manual override controls: Press this control to manually select

where you want the airflow directed. To return to full automatic control, press AUTO.

vents.

10.

11.

fan speed. To return to automatic fan operation, press AUTO.

12. EXT: Press to display outside temperature. Press again to display

cabin temperature settings.

13. OFF: Outside air is shut out and the fan will not operate.

14. Driver temperature control: Press to increase/decrease the driver

side temperature in the vehicle cabin.

15. AUTO: To engage automatic temperature control, press AUTO and

select the desired temperature using the temperature control. The system will automatically determine fan speed, airflow location, A/C on or off, and outside or recirculated air, to heat or cool the vehicle to reach the desired temperature.

16.

The heated seats turn off when the ignition is turned off.

: Distributes air through the windshield defroster vents and floor

: Distributes air through the floor vents.

: Distributes air through the instrument panel vents and the floor

: Distributes air through the instrument panel vents.

Fan speed control: Press to manually increase or decrease the

Heated seat controls: Press to turn the heated seats on and off.

(defrost) and (floor/defrost).

(defrost).

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Climate Controls

Operating tips

• To reduce fog build up on the windshield during humid weather, place the air flow selector in the

• To reduce humidity build up inside the vehicle, do not drive with the system OFF, or with recirculated air

• Do not put objects under the front seats that will interfere with the airflow to the back seats.

• Remove any snow, ice or leaves from the air intake area at the base of the windshield.

• To improve the A/C cool down, drive with the windows slightly open for 2-3 minutes after start up or until the vehicle has been “aired out”.

For maximum cooling performance (MAX A/C):

Automatic operation:

1. Press AUTO for full automatic operation.

2. Do not override A/C or

3. Set the temperature to 60°F (16°C).

Override operation:

1. Select air distribution.

2. Select A/C and

A/C to provide colder airflow.

3. Set the temperature to 60°F (16°C).

4. Set highest fan speed initially, then adjust to maintain comfort.

(recirculated air). Use (recirculated air) with

position.

engaged and A/C off.

(recirculated air).

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Climate Controls

In (panel) or (panel/floor) modes:

1. Move temperature control to full cold.

2. Select A/C and

provide colder airflow.

3. Set highest fan speed initially, then adjust to maintain comfort.

To aid in side window defogging/demisting in cold weather:

1. Select

2. Select A/C.

3. Adjust the temperature control to maintain comfort.

4. Set the fan speed to the highest setting.

5. Direct the outer instrument panel vents towards the side windows.

To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.

(recirculated air). Use recirculated air with A/C to

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Lights

HEADLAMP CONTROL

Turns the lamps off.

Turns on the parking lamps, instrument panel lamps, license plate lamps and tail lamps.

Turns the headlamps on.

Autolamp control (if equipped)

The autolamp system provides light sensitive automatic on-off control of the exterior lights normally controlled by the headlamp control.

The autolamp system also keeps the lights on for approximately 20 seconds or on vehicles equipped with a message center, you can select a delay from 0–180 seconds, after the ignition switch is turned to off.

• To turn autolamps on, rotate the control counterclockwise.

• To turn autolamps off, rotate the control clockwise to the off position.

Fog lamp control (if equipped)

The headlamp control also operates the fog lamps. The fog lamps can be turned on only when the headlamp

control is in the position and the high beams are not

turned on. Pull headlamp control towards you

to turn fog lamps on. The fog lamp indicator light

, or

will illuminate.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Lights

Daytime running lamps (DRL) (if equipped)

Turns the headlamps on with a reduced output.

To activate:

• the ignition must be in the on position,

• the headlamp control is in the off or parking lamp position and

• the parking brake must be disengaged.

WARNING: Always remember to turn on your headlamps at

dusk or during inclement weather. The Daytime Running Lamp (DRL) system does not activate the tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

High beams

Push the lever toward the instrument panel to activate. Pull the lever towards you to deactivate.

Flash to pass

Pull toward you slightly to activate and release to deactivate.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Lights

PANEL DIMMER CONTROL

Use to adjust the brightness of the instrument panel and all applicable illuminated switches in the vehicle during headlamp and parklamp operation.

Move the control to the full upright position, past detent, to turn on the interior lamps.

Note: If the battery is disconnected, discharged, or a new battery is installed, the dimmer switch requires re-calibration. Rotate the dimmer switch from the full dim position to the full dome/on position to reset. This will ensure that your displays are visible under all lighting conditions

AIMING THE HEADLAMPS

Your vehicle may be equipped with a sealed beam or aerodynamic headlamp system. Sealed beam headlamps may be aimed in the vertical (up/down) and the horizontal (left/right) directions using the procedures following. The aerodynamic headlamps can only be aimed in the vertical direction (up/down) using the procedures following. The headlamps on your vehicle are properly aimed at the assembly plant and should not normally need adjusting.

Vertical and horizontal aim adjustment (sealed beam headlamps)

The headlamps on your vehicle are intended to be aimed using mechanical aimers. If mechanical aimers are used and the cross-car sight line is in any way blocked, set the legs of the universal adaptor all to the same setting, such that the cross-car sight line is no longer blocked, per the instructions for the brand of mechanical aimer used. You can also aim the headlamps visually using the procedure below.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Lights

To adjust the headlamps:

1. Park your vehicle on a level surface about 25 feet (7.6 meters) away from a vertical plain surface (3). Check your headlamp alignment at night or in a dark area so that you can see the headlamp beam pattern.

• (1) 8 feet (2.4 meters)

• (2) Center height of lamp to

ground

• (3) 25 feet (7.6 meters)

• (4) Horizontal reference line

• (5) Center of headlamps

• (6) Center line of the vehicle

2. The center of the headlamp is marked either on the lens (a circle or cross marker) or on the bulb shield, internal to the lamp (mark or feature). Measure the height from the center of your headlamp to the ground (2) and mark an 8 foot (2.4 meter) long horizontal line on the wall or screen (1) at this height (masking tape works well).

3. Turn on the low beam headlamps and open the hood.

4. Locate the high intensity area of the beam pattern and place the top edge of the intensity zone even with the horizontal reference line (4). If the top edge of the high intensity area is not even with the horizontal line, follow the next step to adjust it.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Lights

5. Locate the vertical adjuster (2) for each headlamp. Adjust the aim by turning the adjuster control either clockwise (to adjust up) or counterclockwise (to adjust down).

6. In addition to the horizontal line marked in step 2, a pair of vertical lines (5) must be marked at the center line of the headlamps on the wall or screen.

7. On the wall or screen, locate the high intensity area of the beam pattern. The left edge of the high intensity area should be even with the vertical line corresponding to the headlamp under adjustment. If the left edge of the high intensity area is not even with the vertical line, follow the next step to adjust it.

8. Locate the horizontal adjuster (1) for each headlamp. Turn it clockwise or counterclockwise, to place the left edge of the high intensity area even with the vertical line corresponding to the headlamp under adjustment.

Vertical aim adjustment (aerodynamic headlamps)

The headlamps on your vehicle can only be vertically adjusted. Your vehicle does not require horizontal aim adjustments.

To adjust the headlamps:

1. Park the vehicle directly in front of a wall or screen on a level surface, approximately 25 feet (7.6 meters) away.

• (1) 8 feet (2.4 meters)

• (2) Center height of lamp to ground

• (3) 25 feet (7.6 meters)

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Lights

• (4) Horizontal reference line

2. Measure the height from the center of your headlamp (indicated by a 3.0 mm circle on the lens) to the ground and mark an 8 foot (2.4 meter) horizontal reference line on the vertical wall or screen at this height (a piece of masking tape works well).

3. Turn on the low beam headlamps to illuminate the wall or screen and open the hood. Cover one of the headlamps so no light from that lamp hits the wall.

4. On the wall or screen you will observe a light pattern with a distinct horizontal edge towards the right. If this edge is not at the horizontal reference line, the beam will need to be adjusted so the edge is at the same height as the horizontal reference line.

5. Locate the vertical adjuster on each headlamp, then use a E5 Torx socket to turn the adjuster either counterclockwise (to adjust down) or clockwise (to adjust up) aligning the upper edge of the light pattern up to the horizontal line.

6. Repeat Steps 3–5 for the other headlamp.

7. Close the hood and turn off the lamps.

TURN SIGNAL CONTROL

• Push down to activate the left turn signal.

• Push up to activate the right turn signal.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Lights

MAP LAMPS (IF EQUIPPED)

The dome lamp turns on when:

• any door is opened,

• the instrument panel dimmer

switch is rotated up until the courtesy lamps come on, and

• any of the remote entry controls are pressed and the ignition is off.

BULB REPLACEMENT

Lamp assembly condensation

Exterior lamps are vented to accommodate normal changes in pressure. Condensation can be a natural by-product of this design. When moist air enters the lamp assembly through the vents, there is a possibility that condensation can occur when the temperature is cold. When normal condensation occurs, a thin film of mist can form on the interior of the lens. The thin mist eventually clears and exits through the vents during normal operation. Clearing time may take as long as 48 hours under dry weather conditions.

Examples of acceptable condensation are:

• Presence of thin mist (no streaks, drip marks or droplets)

• Fine mist covers less than 50% of the lens

Examples of unacceptable moisture (usually caused by a lamp water leak) are:

• Water puddle inside the lamp

• Large water droplets, drip marks or streaks present on the interior of

the lens

Take your vehicle to dealer for service if any of the above conditions of unacceptable moisture are present.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Lights

Replacing exterior bulbs

Check the operation of all the bulbs frequently.

Function Number

of bulbs

Headlamps (aerodynamic) 2 H13/9008 Headlamps (sealed beam) 2 H6054 Park lamp with aerodynamic headlamp 2 3157A or 3157AK Park lamp with sealed beam headlamp 2 3157 Sidemarker 2 194 Tail/stop/turn/sidemarker (Pick-up only) 2 3157 Tail/stop/turn/sidemarker (Chassis cabs

only; if equipped) Back-up (Pick-ups only) 2 921 Back-up (Chassis cabs only) 2 3157 High-mount stoplamp 1 922 Fog lamp 2 9145 License plate lamp 2 194 Cargo lamp 2 906 Mirror turn signal 2 2825 Mirror clearance lamp 2 2825 Front clearance lamps (2) and Front

identification lamps (3) Rear fender clearance* 4 194 Interior visor lamp (if equipped) 4 194 Rear identification 3 194 All replacement bulbs are clear in color except where noted. To replace all instrument panel lights - see your authorized dealer * Dual rear wheels, or if equipped.

2 3157

5 194

Trade number

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Replacing headlamp bulbs (aerodynamic)

1. Make sure that the headlamps are off and open the hood.

2. Remove the four bolts from the

top, side and bottom front of the headlamp assembly.

3. Pull the assembly straight out

disengaging two snap clips to fender.

4. Disconnect the electrical

connector by squeezing the release tab and pushing the connector forward and then pulling it rearward.

5. Remove the bulb assembly by

turning it counterclockwise and pulling it straight out.

Lights

WARNING: Handle a halogen headlamp bulb carefully and keep

out of children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.

Install the new bulb(s) in reverse order.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Lights

Replacing park/turn and sidemarker lamp bulbs (aerodynamic)

1. Make sure that the headlamps are off and open the hood.

2. Remove the four bolts from the top, side and bottom front of the headlamp assembly.

3. Pull the assembly straight out.

4. Remove the bulb assembly, (1) sidemarker or (2) park/turn by turning it counterclockwise and pulling it straight out.

5. Pull the old bulb out from the socket.

Install the new bulb(s) in reverse order.

Replacing headlamp bulbs (sealed beam)

1. Make sure that the headlamps are off and open the hood.

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

2. Remove the three screws and one bolt from the top and bottom of the park lamp/bezel assembly.

3. Remove the four screws and the headlamp retaining ring from headlamp.

4. Disconnect the electrical connector from the headlamp.

Install the new bulb(s) in reverse order.

Replacing park/turn/sidemarker bulbs (sealed beam)

1. Make sure that the headlamps are off and open the hood.

2. Remove the three screws and one bolt from the top and bottom of the park lamp/bezel assembly.

3. Pull the assembly straight out disengaging snap clip.

Lights

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Lights

4. Remove the bulb assembly, sidemarker or park/turn by turning it counterclockwise. (Top view of assembly shown.)

5. Pull the old bulb out from the socket.

Install the new bulb(s) in reverse order.

Replacing brake/tail/turn/back-up lamp bulbs - Pick-ups only

1. Make sure the headlamps are off and then open the tailgate to expose the lamp assemblies.

2. Remove the two bolts from the tail lamp assembly and carefully pull the lamp assembly from the tailgate pillar by releasing the two retaining tabs.

3. Rotate the bulb socket counterclockwise and remove from lamp assembly.

4. Pull the bulb straight out of the socket.

Install the new bulb(s) in reverse order.

Replacing brake/tail/turn/back-up lamp bulbs - Chassis cabs only (if equipped)

1. Make sure the headlamps are off.

2. Remove the four screws and the lamp lens from lamp assembly.

3. Carefully pull the bulb straight out of the socket and push in the new bulb.

100

2009 F-250/350/450/550 (f23) Owners Guide, 2nd Printing USA (fus)

Ford F-250 2009 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Introduction

CONGRATULATIONS

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

Warning symbols on your vehicle

Protecting the environment

PERCHLORATE MATERIAL

BREAKING-IN YOUR VEHICLE

SPECIAL NOTICES

New Vehicle Limited Warranty

Service Data Recording

Event Data Recording

Vehicle Modification Data Recording

Special instructions

Cell phone use

Notice to owners of diesel-powered vehicles

Notice to owners of pickup trucks and utility type vehicles

Using your vehicle with a snowplow

Using your vehicle as an ambulance

Using your vehicle as a stationary power source (PTO)

Export unique (Non–United States/Canada) vehicle specific information

Instrument Cluster

WARNING LIGHTS AND CHIMES

GAUGES

Entertainment Systems

AM/FM stereo single CD/satellite compatible sound system (if equipped)

Premium/Audiophile in-dash six CD/MP3/satellite compatible sound system (if equipped)

Auxiliary input jack (if equipped)

USB port (if equipped)

GENERAL AUDIO INFORMATION

Satellite radio information (if equipped)

FAMILY ENTERTAINMENT DVD SYSTEM (IF EQUIPPED)

Quick start

To play a DVD in the DVD system:

To play a CD in the DVD system:

To play an MP3 disc in the DVD system:

To play an auxiliary source through the DVD system

To listen to audio over the headphones (Dual play mode):

Using the infrared (IR) wireless headphones:

Using wired headphones (not included):

To adjust display brightness:

DVD player controls

Remote control

Battery replacement

Headphones

Wireless headphones

Wired headphones

Operation

Single play/Dual play

Operation with an aftermarket audio system (Headphone only mode)

Menu mode

Angle mode

Aspect ratio

Language

Subtitles

Audio CDs

Playing MP3 discs

MP3 disc quality factors

CD, MP3 and CD player care

Playing a DVD

Slow play

Frame by frame

Headphone/auxiliary jacks

Audio displays

Audio interaction

Parental control for the DVD system

General information

Safety information

Federal Communication Commission (FCC) Compliance

Care and service of the DVD player

Environmental extremes

Temperature extremes

Humidity and moisture condensation

Foreign substances

Cleaning the liquid crystal display (LCD) flip-down screen
