Ford F-350 2007 Owner's Manual

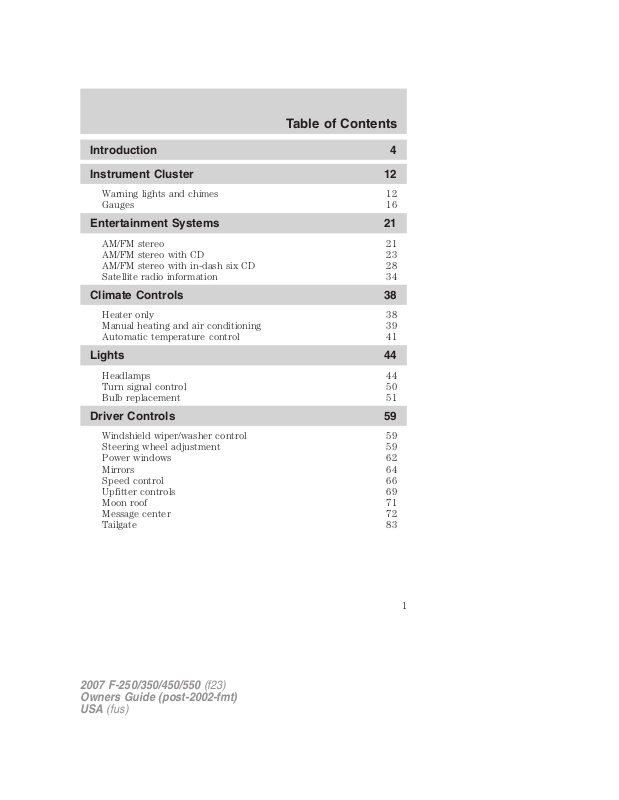

Table of Contents

Introduction 4

Instrument Cluster 12

Warning lights and chimes 12
Gauges 16

Entertainment Systems 21

AM/FM stereo 21
AM/FM stereo with CD 23
AM/FM stereo with in-dash six CD 28
Satellite radio information 34

Climate Controls 38

Heater only 38
Manual heating and air conditioning 39
Automatic temperature control 41

Lights 44

Headlamps 44
Turn signal control 50
Bulb replacement 51

Driver Controls 59

Windshield wiper/washer control 59
Steering wheel adjustment 59
Power windows 62
Mirrors 64
Speed control 66
Upfitter controls 69
Moon roof 71
Message center 72
Tailgate 83

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

1

Table of Contents

Locks and Security 85

Keys 85
Locks 85

Seating and Safety Restraints 94

Seating 94
Safety restraints 101
Airbags 113
Child restraints 121

Tires, Wheels and Loading 133

Tire information 136
Tire inflation 137
Vehicle loading 153
Trailer towing 160
Trailer brake controller-integrated 164
Recreational towing 170

Driving 172

Starting 172
Brakes 177
Transmission operation 182

Roadside Emergencies 208

Getting roadside assistance 208
Hazard flasher switch 210
Fuel pump shut-off switch 210
Fuses and relays 211
Changing tires 220
Lug nut torque 232
Jump starting 233
Wrecker towing 238

Customer Assistance 240

Reporting safety defects (U.S. only) 246
Reporting safety defects (Canada only) 247

2

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Table of Contents

Cleaning 248

Maintenance and Specifications 256

Hood 257
Engine compartment 258
Engine oil 261
Battery 265
Engine coolant 267
Fuel information 273
Air filter(s) 291
Part numbers 293
Refill capacities 294

Accessories 301

Index 304

All rights reserved. Reproduction by any means, electronic or mechanical
including photocopying, recording or by any information storage and retrieval
system or translation in whole or part is not permitted without written
authorization from Ford Motor Company. Ford may change the contents without
notice and without incurring obligation.

Copyright © 2006 Ford Motor Company

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

3

Introduction

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and

certain vehicle components contain or emit chemicals known to
the State of California to cause cancer and birth defects or other
reproductive harm. In addition, certain fluids contained in vehicles and
certain products of component wear contain or emit chemicals known
to the State of California to cause cancer and birth defects or other
reproductive harm.

CONGRATULATIONS

Congratulations on acquiring your new Ford. Please take the time to get
well acquainted with your vehicle by reading this handbook. The more
you know and understand about your vehicle, the greater the safety and
pleasure you will derive from driving it.

For more information on Ford Motor Company and its products visit the
following website:

• In the United States: www.ford.com

• In Canada: www.ford.ca

• In Australia: www.ford.com.au

• In Mexico: www.ford.com.mx

Additional owner information is given in separate publications.
This Owner’s Guide describes every option and model variant available

and therefore some of the items covered may not apply to your
particular vehicle. Furthermore, due to printing cycles it may describe
options before they are generally available.

Remember to pass on this Owner’s Guide when reselling the vehicle. It
is an integral part of the vehicle.

Fuel pump shut-off switch: In the event of an accident the

safety switch will automatically cut off the fuel supply to the
engine. The switch can also be activated through sudden vibration (e.g.
collision when parking). To reset the switch, refer to the Fuel pump
shut-off switch in the Roadside Emergencies chapter.

4

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Introduction

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury to yourself or others? In
this guide, answers to such questions are contained in comments
highlighted by the warning triangle symbol. These comments should be
read and observed.

Warning symbols on your vehicle

When you see this symbol, it is
imperative that you consult the
relevant section of this guide before
touching or attempting adjustment
of any kind.

Protecting the environment

We must all play our part in
protecting the environment. Correct
vehicle usage and the authorized
disposal of waste, cleaning and
lubrication materials are significant
steps towards this aim. Information in this respect is highlighted in this
guide with the tree symbol.

BREAKING-IN YOUR VEHICLE

During the first 1,000 miles (1,600 km) of driving, maintain speeds below
70 mph (112 km/h) and vary speeds frequently. This is recommended to
give the moving parts a chance to break-in.

Do not tow a trailer or use your vehicle to snowplow until it has been
driven at least 500 miles (800 km). Refer to Trailer towing in the Tires,
Wheels and Loading chapter for more information on towing a trailer
and Snowplowing in the Driving chapter.

Do not add friction modifier compounds or special break-in oils during
the first few thousand miles (kilometers) of operation, since these
additives may prevent piston ring seating. See Engine oil in the
Maintenance and Specifications chapter for more information on oil
usage.

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

5

Introduction

SPECIAL NOTICES

New Vehicle Limited Warranty

For a detailed description of what is covered and what is not covered by
your vehicle’s New Vehicle Limited Warranty, refer to the Warranty
Guide that is provided to you along with your Owner’s Guide.

Service Data Recording

Service data recorders in your vehicle are capable of collecting and
storing diagnostic information about your vehicle. This potentially
includes information about the performance or status of various systems
and modules in the vehicle, such as engine, throttle, steering or brake
systems. In order to properly diagnose and service your vehicle, Ford
Motor Company, Ford of Canada, Ford Motor Company, S.A. de C.V. and
service and repair facilities may access vehicle diagnostic information
through a direct connection to your vehicle when diagnosing or servicing
your vehicle.

Event Data Recording

Other modules in your vehicle — event data recorders — are capable of
collecting and storing data during a crash or near crash event. The
recorded information may assist in the investigation of such an event.
The modules may record information about both the vehicle and the
occupants, potentially including information such as:

• how various systems in your vehicle were operating;

• whether or not the driver and passenger seatbelts were buckled;

• how far (if at all) the driver was depressing the accelerator and/or the

brake pedal;

• how fast the vehicle was traveling; and

• where the driver was positioning the steering wheel.

To access this information, special equipment must be directly connected
to the recording modules. Ford Motor Company, Ford of Canada and
Ford Motor Company, S.A. de C.V. do not access event data recorder
information without obtaining consent, unless pursuant to court order or
where required by law enforcement, other government authorities or
other third parties acting with lawful authority. Other parties may seek to
access the information independently of Ford Motor Company, Ford of
Canada and Ford Motor Company, S.A. de C.V.

Vehicle Modification Data Recording

Some aftermarket products may cause severe engine and/or transmission
damage; refer to the What is not covered section in The new vehicle

6

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Introduction

limited warranty for your vehicle chapter of your vehicle’s Warranty
Guide for more information. Some vehicles are equipped with

Powertrain Control Systems that can detect and store information about
vehicle modifications that increase horsepower and torque output; this
information cannot be erased and will stay in the system’s memory even
if the modification is removed. When a dealer or repair facility works on
your vehicle, it may be necessary for them to access the information in
the Powertrain Control System. This information will likely identify if any
unauthorized modifications have been made to the system and may be
used to determine if repairs will be covered by warranty.

Special instructions

For your added safety, your vehicle is fitted with sophisticated electronic
controls.

Please read the section Airbag Supplemental Restraint System

(SRS) in the Seating and Safety Restraints chapter. Failure to
follow the specific warnings and instructions could result in personal
injury.

Front seat mounted rear-facing child or infant seats should

NEVER be placed in front of an active passenger airbag.

Cell phone use

The use of Mobile Communications Equipment has become increasingly
important in the conduct of business and personal affairs. However,
drivers must not compromise their own or others’ safety when using
such equipment. Mobile Communications can enhance personal safety
and security when appropriately used, particularly in emergency
situations. Safety must be paramount when using mobile communications
equipment to avoid negating these benefits.

Mobile Communication Equipment includes, but is not limited to cellular
phones, pagers, portable email devices, in-vehicle communications
systems, telematics devices and portable two-way radios.

A driver’s first responsibility is the safe operation of the vehicle.

The most important thing you can do to prevent a crash is to
avoid distractions and pay attention to the road. Wait until it is safe to
operate Mobile Communications Equipment.

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

7

Introduction

Notice to owners of diesel-powered vehicles

Read the 6.0 Liter Power Stroke Direct Injection Turbo Diesel Owner’s
Guide Supplement for information regarding correct operation and

maintenance of your Diesel-powered light truck.

Notice to owners of pickup trucks and utility type vehicles

Utility vehicles have a significantly higher rollover rate than

other types of vehicles.

Before you drive your vehicle, please read this Owner’s Guide carefully.
Your vehicle is not a passenger car. As with other vehicles of this type,
failure to operate this vehicle correctly may result in loss of vehicle
control, vehicle rollover, personal injury or death.

Be sure to read Driving off-road with truck and utility vehicles in the
Driving chapter.

Using your vehicle with a snowplow

For more information and guidelines for using your vehicle with a
snowplow, refer to Snowplowing in the Driving chapter.

Using your vehicle as an ambulance

If your light truck is equipped with the Ford Ambulance Preparation
Package, it may be utilized as an ambulance. Ford urges ambulance
manufacturers to follow the recommendations of the Ford Incomplete

Vehicle Manual, Ford Truck Body Builder’s Layout Book and the
Qualified Vehicle Modifiers (QVM) Guidelines as well as pertinent

supplements. For additional information, please contact the Truck Body
Builders Advisory Service at 1–877–840–4338.

Use of your Ford light truck as an ambulance, without the Ford
Ambulance Preparation Package voids the Ford New Vehicle Limited
Warranty and may void the Emissions Warranties. In addition, ambulance
usage without the preparation package could cause high underbody
temperatures.

8

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Introduction

If your vehicle is equipped with the
Ford Ambulance Preparation
Package, it will be indicated on the
Safety Compliance Certification
Label. The label is located on the
driver’s side door pillar or on the
rear edge of the driver’s door. You
can determine whether the
ambulance manufacturer followed
Ford’s recommendations by directly
contacting that manufacturer. Ford
Ambulance Preparation Package is
only available on certain 6.0L Diesel
engine equipped vehicles.

Using your vehicle as a stationary power source (PTO)

Refer to the Driving chapter for more information and guidelines for
operating a vehicle equipped with an aftermarket power take-off system.

Middle East/North Africa vehicle specific information

For your particular global region, your vehicle may be equipped with
features and options that are different from the ones that are described
in this Owner’s Guide; therefore, a supplement has been supplied that
complements this book. By referring to the pages in the provided
supplement, you can properly identify those features, recommendations
and specifications that are unique to your vehicle. Refer to this

Owner’s Guide for all other required information and warnings.

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

9

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

Fasten Safety Belt Airbag-Front

Airbag-Side Child Seat

Child Seat Installation
Warning

Child Seat Tether
Anchor

Anti-Lock Brake System

Powertrain Malfunction Speed Control

Master Lighting Switch Hazard Warning Flasher

Fog Lamps-Front Fuse Compartment

See Owner’s Guide

Child Seat Lower
Anchor

Brake System

Brake Fluid ­Non-Petroleum Based

Fuel Pump Reset Windshield Wash/Wipe

Windshield
Defrost/Demist

10

Rear Window
Defrost/Demist

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Vehicle Symbol Glossary

Introduction

Power Windows
Front/Rear

Child Safety Door
Lock/Unlock

Power Window Lockout

Interior Luggage
Compartment Release
Symbol

Panic Alarm Engine Oil

Engine Coolant

Engine Coolant
Temperature

Do Not Open When Hot Battery

Avoid Smoking, Flames,
or Sparks

Battery Acid

Explosive Gas Fan Warning

Power Steering Fluid

Maintain Correct Fluid
Level

Emission System Engine Air Filter

MAX

MIN

Passenger Compartment
Air Filter

Check Fuel Cap

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Jack

Low Tire Pressure
Warning

11

Instrument Cluster

WARNING LIGHTS AND CHIMES

Standard instrument cluster (manual transmission)

Standard instrument cluster (automatic transmission)

Harley-Davidson instrument cluster

Warning lights and gauges can alert you to a vehicle condition that may
become serious enough to cause expensive repairs. A warning light may
illuminate when a problem exists with one of your vehicle’s functions.

12

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Instrument Cluster

Many lights will illuminate when you start your vehicle to make sure the
bulbs work. If any light remains on after starting the vehicle, have the
respective system inspected immediately.

If your vehicle is equipped with a diesel engine, it has a unique cluster;
refer to Starting the engine in your 6.0 Liter Power Stroke Direct

Injection Turbo Diesel Owner’s Guide Supplement.

Service engine soon:

The Service engine soon indicator
light illuminates when the ignition is
first turned to the ON position to
check the bulb. Solid illumination after the engine is started indicates the
On Board Diagnostics System (OBD-II) has detected a malfunction. Refer
to On board diagnostics (OBD-II) in the Maintenance and
Specifications chapter. If the light is blinking, engine misfire is occurring
which could damage your catalytic converter. Drive in a moderate
fashion (avoid heavy acceleration and deceleration) and have your
vehicle serviced immediately.

Under engine misfire conditions, excessive exhaust temperatures

could damage the catalytic converter, the fuel system, interior
floor coverings or other vehicle components, possibly causing a fire.

Electronic throttle control:

Illuminates when the engine has
defaulted to a ’limp-home’ operation.
Report the fault to an authorized
dealer at the earliest opportunity.

On vehicles equipped with a message center, “ENGINE FAILSAFE
MODE” will be displayed, refer to Message Center in the Driver
Controls chapter.

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

13

Instrument Cluster

Brake system warning light: To
confirm the brake system warning
light is functional, it will
momentarily illuminate when the
ignition is turned to the ON position
when the engine is not running, or in a position between ON and START,
or by applying the parking brake when the ignition is turned to the ON
position. If the brake system warning light does not illuminate at this
time, seek service immediately from your authorized dealer. Illumination
after releasing the parking brake indicates low brake fluid level and the
brake system should be inspected immediately by your servicing
authorized dealer.

Driving a vehicle with the brake system warning light on is

dangerous. A significant decrease in braking performance may
occur. It will take you longer to stop the vehicle. Have the vehicle
checked by your authorized dealer immediately.

Anti-lock brake system: If the
ABS light stays illuminated or
continues to flash, a malfunction has
been detected, have the system
serviced immediately. Normal
braking is still functional unless the brake warning light also is
illuminated.

Airbag readiness: If this light fails
to illuminate when ignition is turned
to ON, continues to flash or remains
on, have the system serviced
immediately. A chime will also sound when a malfunction in the
supplemental restraint system has been detected.

Safety belt: Reminds you to fasten
your safety belt. A BeltMinder威
chime will also sound to remind you
to fasten your safety belt. Refer to
the Seating and Safety Restraints
chapter to activate/deactivate the BeltMinder威 chime feature.

BRAKE

P!

ABS

14

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Instrument Cluster

Charging system: Illuminates when
the battery is not charging properly.

Transmission Tow/Haul Feature
(automatic transmission):

Illuminates when the Tow/Haul
feature has been activated. Refer to
the Driving chapter for transmission function and operation. If the
remains on, have the system serviced immediately, damage to the
transmission could occur.

Four wheel drive low: Illuminates
when four-wheel drive low is
engaged.

LOW

RANGE

Four wheel drive high: Illuminates
when four-wheel drive high is
engaged.

Speed control: Illuminates when
the speed control is activated. Turns
off when the speed control system
is deactivated.

Turn signal: Illuminates when the
left or right turn signal or the
hazard lights are turned on. If the
indicators stay on or flash faster, check for a burned out bulb.

High beams: Illuminates when the
high beam headlamps are turned on.

Key-in-ignition warning chime: Sounds when the key is left in the
ignition in the OFF, LOCK or ACCESSORY position and the driver’s door
is opened.

Headlamps on warning chime: Sounds when the headlamps or parking
lamps are on, the ignition is off (the key is not in the ignition) and the
driver’s door is opened.

Parking brake ON warning chime:

set, the engine is running and the vehicle is driven more than 3 mph (5 km).

Sounds when the parking brake is

4x4

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

15

Instrument Cluster

GAUGES

Speedometer: Indicates the current vehicle speed.

Standard instrument cluster

Harley-Davidson instrument
clusters

Engine coolant temperature
gauge: Indicates engine coolant

temperature. At normal operating
temperature, the needle will be in
the normal range (between “H” and
“C”). If it enters the red section,

the engine is overheating. Stop
the vehicle as soon as safely
possible, switch off the engine and let the engine cool.

Never remove the coolant reservoir cap while the engine is

running or hot.

16

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Instrument Cluster

Odometer: Registers the total miles (kilometers) of the vehicle. Refer to

Message Center in the Drivers Controls chapter on how to switch the
display from Metric to English.

• With Mini Message Center

• With Full Message Center

Trip odometer: Registers the miles (kilometers) of individual journeys.

• With Mini Message Center
Press and release the

SELECT/RESET button on the
cluster to toggle between odometer
and trip odometer display. To reset, press and hold for less than 2
seconds.

• With Full Message Center
Press and release the message

center INFO button until TRIP
mode appears in the display. Press
the RESET button to reset.

Engine hour meter: Registers the accumulated time the engine has
been running.

• With Mini Message Center
Press the SELECT/RESET button

until the engine hours display.

• With Full Message Center
Press and release the message

center INFO button until ENG HRS
XXXX.X appears in the display.
Press the RESET button to reset.

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

17

Instrument Cluster

Tachometer: Indicates the engine speed in revolutions per minute.
Driving with your tachometer pointer continuously at the top of the scale
may damage the engine.

Standard instrument cluster

Harley-Davidson instrument
cluster

Engine oil pressure gauge:

Indicates engine oil pressure. The
needle should stay in the normal
operating range (between “L” and
“H”). If the needle falls below the
normal range, stop the vehicle, turn
off the engine and check the engine
oil level. Add oil if needed. If the oil
level is correct, have your vehicle checked at your authorized dealer.

Fuel gauge: Indicates
approximately how much fuel is left
in the fuel tank (when the ignition
is in the ON position). The fuel
gauge may vary slightly when the
vehicle is in motion or on a grade.

Refer to Filling the tank in the

Maintenance and Specifications

chapter for more information.

18

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Instrument Cluster

Battery voltage gauge (manual
transmission only):

battery voltage when the ignition is in
the ON position. If the pointer moves
and stays outside the normal operating
range, have the vehicle’s electrical
system checked as soon as possible.

Transmission fluid temperature gauge
(automatic transmission only):

If the gauge is in the:
Normal area (normal) - the

transmission fluid is within the
normal operating temperature
(between “H” and “C”).

Yellow area (warning) — the
transmission fluid is higher than
normal operating temperature. This
can be caused by special operation
conditions (i.e. snowplowing, towing
or off road use). Refer to Special

Operating Conditions in the
scheduled maintenance
information for instructions. Operating the transmission for extended

periods of time with the gauge in the yellow area may cause internal
transmission damage.

Altering the severity of the driving conditions is recommended to lower
the transmission temperature into the normal range.

Red area (over temperature) —
the transmission fluid is overheating.
Stop the vehicle to allow the
temperature to return to normal
range.

Indicates the

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

19

Instrument Cluster

If the gauge is operating in the Yellow or Red area, stop the vehicle and
verify the airflow is not restricted such as snow or debris blocking airflow
through the grill. If the gauge continues to show high temperatures, see
your authorized dealer.

20

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Entertainment Systems

AUDIO SYSTEMS

AM/FM stereo system (if equipped)

The AM/FM stereo system does not contain rear speakers; only front
driver side and passenger side speakers.

Accessory delay: Your vehicle is
equipped with accessory delay. With
this feature, the window switches
and radio may be used for up to ten
minutes after the ignition is turned
off or until either front door is opened.

/ (Tuner): Press to manually go up or down the radio

1.
frequency. Press and hold for a fast advance through radio frequencies.

Also use in AUDIO mode to gain access to various settings.

2. AUDIO: Press AUDIO repeatedly
to gain access to the following
settings.

TREB (Treble): Press AUDIO to reach the treble setting.
Use

/ / SEEK .

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

21

Entertainment Systems

BASS (Bass): Press AUDIO to reach the bass setting.
Use

BAL (Balance): Press AUDIO to reach the balance setting.
Use

/ / SEEK .

/ / SEEK to adjust between the left and right speakers.

3. SEEK: Press
access the previous/next strong

station.

4. Memory presets: To set a
station: Select frequency band
AM/FM1/FM2; tune to a station,
press and hold a preset button until sound returns. You may store up to
six stations in each frequency band for a total of 18.

5. AM/FM: Press AM/FM to select
AM/FM1/FM2 frequency band.

6. ON/OFF/Volume: Press VOL ­PUSH to turn ON/OFF. Turn VOL ­PUSH to increase/decrease volume.

7. CLK (Clock): Press CLK to
toggle between the clock and radio
frequency.

Setting the clock: Press and hold
CLK until the hours begin to flash. Press
manually increase/decrease the hours. Press CLK again to the set the
minutes using
minutes. Allow 10 seconds to pass to confirm that the time has been set.

SEEK to

/ / SEEK to

/ / SEEK to manually increase/decrease the

22

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Entertainment Systems

AM/FM stereo/single CD with satellite compatible sound system
(if equipped)

/ (Tuner): Press to

1.
manually go up or down the radio

frequency. Press and hold for a fast
advance through radio frequencies.
Also use in MENU mode to select various settings:

In satellite radio mode (if equipped), press
MODE and scroll through the current song title, artist, channel category

and SIRIUS Long Channel Name.
In TEXT MODE, sometimes the display text requires additional text to

be displayed. When the “>” indicator is active, press SEEK
the additional display text. When the “<” is displayed, press

view the previous display text.

In CATEGORY MODE, press
available SIRIUS channel categories (Pop, Rock, News, etc). Refer to

CATEGORY under MENU for further information.

Satellite radio is available only with a valid SIRIUS subscription.
Check with your authorized dealer for availability

/ to scroll through the list of

/ to enter TEXT

to view

SEEK to

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

23

Entertainment Systems

2. MUTE/ : Press to mute the
playing media. Press again to return
to the playing media.

3. MENU: Press MENU repeatedly
to gain access to the following
settings:

CATEGORY (satellite radio, if equipped): Press MENU until the
currently active category appears in the display (CATEGORY MODE). In

CATEGORY MODE, press
SIRIUS channel categories (Pop, Rock, News, etc).
Press

category is selected, press
specific category of channels only (i.e. ROCK). To select a different

category, press MENU until the category appears in the display.
Press
CATEGORY ALL to seek all available SIRIUS categories and channels.

Satellite radio is available only with a valid SIRIUS subscription.
Check with your authorized dealer for availability

AUTOSET: Press MENU until display reaches autoset.

Use the

Allows you to set the strongest local radio stations without losing your
original manually set preset stations for AM/FM1/FM2. When the six
strongest stations are filled, the station stored in preset 1 will begin
playing. If there are less than six strong stations, the system will store
the last one in the remaining presets.

TREB (Treble): Press MENU to reach the treble setting.
Use

SEEK, SEEK or SCAN to select the category. After a

/ to select a different category. You may also select

/ / SEEK, SEEK to set.

/ / SEEK, SEEK to adjust.

/ to scroll through the lists of available

SEEK, SEEK to search for that

BASS (Bass): Press MENU to reach the bass setting.
Use

BAL (Balance): Press MENU to reach the balance setting.
Use
and right speakers.

24

/ / SEEK, SEEK to adjust.

/ / SEEK, SEEK to adjust the audio between the left

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Entertainment Systems

FADE (Fade): Press MENU to reach the fade setting.
Use
and rear speakers.
SPEEDVOL (Speed sensitive volume) (if equipped): Press MENU

to reach the SPEEDVOL setting. Radio volume automatically changes
slightly with vehicle speed to compensate for road and wind noise. Use

the

The default setting is off; increasing your vehicle speed will not change
the volume level.

Adjust 1–7: Increasing this setting from 1 (lowest setting) to 7 (highest
setting) allows the radio volume to automatically change slightly with
vehicle speed to compensate for road and wind noise.

Recommended level is 1–3; level 0 turns the feature off and level 7 is the
maximum setting.

Setting the clock: Press MENU to reach SELECT HOUR or SELECT
MINS. Use
MENU again to disengage clock mode.

4. AUX: Press the AUX button to
toggle between FES/DVD (if
equipped), and SAT1, SAT2 and
SAT3 modes (satellite radio, if equipped). If no auxiliary sources are
available, NO AUX AUDIO will be displayed.

Satellite radio is available only with a valid SIRIUS subscription.
Check with your authorized dealer for availability

5. SEEK:
In radio mode, press the

access the previous/next strong
station.

In CD mode, press
previous/next track.

In satellite radio mode (if equipped), press
seek to the previous/next channel. If a specific category is selected,
(Jazz, Rock, News, etc.), press
previous/next channel in the selected category. Press and hold

/ / SEEK, SEEK to adjust the audio between the front

/ / SEEK, SEEK to adjust.

SEEK, SEEK to adjust the hours/minutes. Press

SEEK, SEEK button to

SEEK, SEEK button access the

SEEK, SEEK to

SEEK, SEEK to seek to the

SEEK, SEEK to fast seek through the previous/next channels.

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

25

Entertainment Systems

In TEXT MODE, press SEEK, SEEK to view the
previous/additional display text.

In CATEGORY MODE, press

Satellite radio is available only with a valid SIRIUS subscription.
Check with your authorized dealer for availability

6. SHUFFLE: In CD mode, press
SHUFFLE to play tracks in random
order.

7. COMPRESS (Compression): In
CD mode, press COMPRESS to
bring soft and loud CD passages
together for a more consistent listening level.

8. REPEAT: In CD mode, press
REPEAT to repeat the current CD
track.

9. FF (Fast forward): In CD
mode, press FF to manually advance
in a CD track.

10. REW (Rewind): In CD mode,
press REW to manually reverse in a
CD track.

11. Memory presets: Each number
has a specific preset frequency.
To set a station: Select frequency
band AM/FM; tune to a station, press and hold a preset button until
sound returns.

12. SCAN: Press SCAN for a brief
sampling of radio stations or CD
tracks. Press again to stop.

In satellite mode (if equipped), press to hear a brief sampling of the
next channels. Press again to stop.

In CATEGORY MODE, press SCAN to hear a brief sampling of the
channels in the selected category. Press again to stop.

Satellite radio is available only with a valid SIRIUS subscription.
Check with your authorized dealer for availability

SEEK, SEEK to select a category.

26

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Entertainment Systems

13. AM/FM: Press AM/FM to select
AM/FM1/FM2.

14. ON/OFF/Volume: Press VOL ­PUSH to turn ON/OFF. Turn VOL ­PUSH to increase/decrease volume.

Note: If the volume is set above a
certain level and the ignition is
turned off, the volume will come back on at a “nominal” listening level
when the ignition is turned back on.

15. CD: Press CD to enter CD
mode. If a CD is already loaded into
the system, the CD play will begin
where it ended last.

16.
eject a CD.

17. CD slot: Insert a CD with label
side up in the CD slot.

(CD eject): Press to

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

27

Entertainment Systems

Premium in-dash six CD/satellite compatible sound system
(if equipped)

/ (Tuner/Disc selector):

1.

In radio mode, press to manually
go up or down the radio frequency.
Press and hold for a fast advance
through radio frequencies.

In CD mode, press
hold for a fast advance through all loaded discs.

Also use in MENU mode to select various settings:

In satellite radio mode (if equipped), press
MODE and scroll through the current song title, artist, channel category

and SIRIUS Long Channel Name.
In TEXT MODE, sometimes the display text requires additional text to

be displayed. When the “>” indicator is active press SEEK
the additional display text. When the “<” indicator is active press

SEEK to view to the previous display text.

In CATEGORY MODE, press
available SIRIUS channel categories (Pop, Rock, News, etc.). Refer to

Category Mode under MENU for further information.

/ to select a desired disc (1–6). Press and

/ to enter TEXT

to view

/ to scroll through the list of

28

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Entertainment Systems

Satellite radio is available only in the continental United States with
a valid SIRIUS radio subscription.

2. MUTE/
mute playing media. Press again to
return to the playing media.

3. MENU: Press the MENU button
to gain access to various settings:

CATEGORY (satellite radio, if
equipped): Press MENU until the

currently active category appears in the display (CATEGORY MODE). In
CATEGORY MODE, press
SIRIUS channel categories (Pop, Rock, News, etc.).
Press

category is selected, press
specific category of channels only (i.e. ROCK). To select a different

category, press MENU until the category appears in the display.
Press
CATEGORY ALL to seek all available SIRIUS categories and channels.

Satellite radio is available only with a valid SIRIUS subscription.
Check with your authorized dealer for availability

AUTOSET: Press MENU until display reaches autoset. Use
the
Allows you to set the strongest local radio stations without losing your

original manually set preset stations for AM/FM1/FM2. When the six
strongest stations are filled, the station stored in preset 1 will begin
playing. If there are less than six strong stations, the system will store
the last one in the remaining presets.

TREB (Treble): Press MENU to reach the treble setting.
Use

: Press mute button to

/ to scroll through the lists of available

SEEK, SEEK or SCAN to select the category. After a

SEEK, SEEK to search for that

/ to select a different category. You may also select

/ / SEEK, SEEK to set.

/ / SEEK, SEEK to adjust.

BASS (Bass): Press MENU to reach the bass setting.
Use

BAL (Balance): Press MENU to reach the balance setting.
Use
and right speakers.

/ / SEEK, SEEK to adjust.

/ / SEEK, SEEK to adjust the audio between the left

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

29

Entertainment Systems

FADE (Fade): Press MENU to reach the fade setting.
Use
and rear speakers.
SPEEDVOL (Speed sensitive volume) (if equipped): Press MENU

to reach the SPEEDVOL setting. Radio volume automatically changes
slightly with vehicle speed to compensate for road and wind noise. Use

the

The default setting is off; increasing your vehicle speed will not change
the volume level.

Adjust 1–7: Increasing this setting from 1 (lowest setting) to 7 (highest
setting) allows the radio volume to automatically change slightly with
vehicle speed to compensate for road and wind noise.

Recommended level is 1–3; level 0 turns the feature off and level 7 is the
maximum setting.

Setting the clock: Press MENU to reach SELECT HOUR or SELECT
MINS. Use
MENU again to disengage clock mode.

4. AUX: Press the AUX button to
toggle between FES/DVD (if
equipped), and SAT1, SAT2 and
SAT3 modes (satellite radio, if equipped). If no auxiliary sources are
available, NO AUX AUDIO will be displayed.

5. SEEK:
In radio mode, press the

access the previous/next strong station.

In CD mode, press
previous/next track.

In satellite radio mode (if equipped), press
to seek to the previous/next channel. If a specific category is selected,
(Jazz, Rock, News, etc.), press
previous/next channel in the selected category. Press and hold

/ / SEEK, SEEK to adjust the audio between the front

/ / SEEK, SEEK to adjust.

SEEK, SEEK to adjust the hours/minutes. Press

SEEK, SEEK button to

SEEK, SEEK button access the

SEEK, SEEK

SEEK, SEEK to seek to the

SEEK to fast seek through the previous/next channels.

In TEXT MODE, press
previous/additional display text.

30

SEEK, SEEK to view the

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Entertainment Systems

In CATEGORY MODE, press SEEK, SEEK to select a category.

Satellite radio is available only with a valid SIRIUS subscription.
Check with your authorized dealer for availability

6. SHUFFLE: In CD mode, press
SHUFFLE to play tracks in random
order.

7. COMPRESS (Compression): In
CD mode, press COMPRESS to
bring soft and loud CD passages
together for a more consistent listening level.

8. REPEAT: In CD mode, press
REPEAT to repeat the current CD
track.

9. FF (Fast forward): In CD
mode, press FF to manually advance
in a CD track.

10. REW (Rewind): In CD mode,
press REW to manually reverse in a
CD track.

11. Memory presets: Each number
has a specific preset frequency.
To set a station: Select frequency
band AM/FM; tune to a station, press and hold a preset button until
sound returns.

12. SCAN: Press SCAN for a brief
sampling of radio stations or CD
tracks. Press again to stop.

In satellite mode (if equipped), press to hear a brief sampling of the
next channels. Press again to stop.

In CATEGORY MODE, press SCAN to hear a brief sampling of the
channels in the selected category. Press again to stop.

Satellite radio is available only with a valid SIRIUS subscription.
Check with your authorized dealer for availability

13. AM/FM: Press AM/FM to select
AM/FM1/FM2.

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

31

Entertainment Systems

14. ON/OFF/Volume: Press VOL ­PUSH to turn ON/OFF. Turn VOL ­PUSH to increase/decrease volume.

Note: If the volume is set above a
certain level and the ignition is
turned off, the volume will come back on at a “nominal” listening level
when the ignition is turned back on.

15. CD: Press CD to enter CD
mode. If a CD is already loaded into
the system, the CD play will begin
where it ended last.

16. LOAD: Press LOAD to load a
CD, then select a slot number using
the radio presets 1 through 6. If you
don’t select a slot within 5 seconds,
the radio shall choose the first
available slot for you.

Note: Press and hold for two seconds to autoload up to six CDs.

17.
then the correct memory preset to

eject a specific CD from slots 1–6.

Note: Press and hold

18. CD slot: Insert a CD with label
side up in the CD slot.

(CD eject): Press and

for two seconds to autoeject up to six CDs.

GENERAL AUDIO INFORMATION

Radio frequencies

AM and FM frequencies are established by the Federal Communications
Commission (FCC) and the Canadian Radio and Telecommunications
Commission (CRTC). Those frequencies are:

AM - 530, 540–1700, 1710 kHz
FM- 87.7, 87.9–107.7, 107.9 MHz

Radio reception factors

There are three factors that can affect radio reception:

• Distance/strength: The further you travel from an FM station, the
weaker the signal and the weaker the reception.

32

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Entertainment Systems

• Terrain: Hills, mountains, tall buildings, power lines, electric fences,
traffic lights and thunderstorms can interfere with your reception.

• Station overload: When you pass a broadcast tower, a stronger signal
may overtake a weaker one and play while the weak station frequency
is displayed.

CD/CD player care

Do:

• Handle discs by their edges only.
Never touch the playing surface.

• Inspect discs before playing.
Clean only with an approved CD
cleaner and wipe from the center
out.

• Wipe discs from the center out.

Don’t:

• Expose discs to direct sunlight or heat sources for extended periods
of time.

• Insert more than one disc into each slot of the CD changer magazine.

• Clean using a circular motion.

CD units are designed to only play commercially manufactured,
round (4.75 in / 12 cm) audio compact discs. Due to technical
incompatibility, certain homemade compact discs may not
function correctly when used in Ford CD players.

Do not use any irregular shaped
CDs or discs with a scratch
protection film attached.

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

33

Entertainment Systems

CDs with homemade paper
(adhesive) labels should not be
inserted into the CD player as
the label may peel and cause the
CD to become jammed. It is
recommended that homemade
CDs be identified with
permanent felt tip marker rather
than adhesive labels. Ballpoint pens may damage CDs. Please
contact your authorized dealer for further information.

Audio system warranty and service

Refer to the Warranty Guide for audio system warranty information. If
service is necessary, see your authorized dealer.

Satellite radio information (if equipped)

Satellite radio channels: Satellite radio frequencies are established by
the Federal Communications Commission (FCC). SIRIUS Satellite Radio
broadcasts within a frequency range of 2320.0 MHz-2332.5 MHz. This
frequency range is sub-divided into over 120 channels of music, news,
sports, weather and traffic programming. For a complete set of SIRIUS
Satellite Radio channels, visit www.sirius.com or call SIRIUS at
1–888–539–7474. For a quick reference of the SIRIUS Satellite Radio
channel guide, refer to the Sirius Welcome Kit.

Satellite radio reception factors: To receive the satellite signal, your
vehicle has been equipped with a satellite radio antenna located on the
roof of your vehicle. The vehicle roof provides the best location for an
unobstructed, open view of the sky, a requirement of a satellite radio
system. Like AM/FM, there are several factors that can affect satellite
radio reception performance:

• Antenna Obstructions: For optimal reception performance, keep the
antenna clear of snow and ice build-up and keep luggage and other
material as far away from the antenna as possible.

• Terrain: Hills, mountains, tall buildings, bridges, tunnels, freeway
overpasses, parking garages, dense tree foliage and thunderstorms can
interfere with your reception.

• Station overload: When you pass a ground based broadcast repeating
tower, a stronger signal may overtake a weaker one and result in an
audio mute.

Unlike AM/FM audible static, you will hear an audio mute when there is
a satellite radio signal interference. Your radio display may display NO
SIGNAL to indicate the interference.

34

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Entertainment Systems

SIRIUS satellite radio service: SIRIUS Satellite Radio is a continental
U.S. based satellite radio service that broadcasts over 120 channels of
music, sports, news and entertainment coast-to-coast. A service fee is
required in order to receive SIRIUS service. Vehicles that are equipped
with a factory installed SIRIUS Satellite Radio system include:

• Hardware and limited subscription term, which begins on the date of
sale or lease of the vehicle.

• SIRIUS online media player access: providing access to all 100%
commercial-free music channels over the internet. Call SIRIUS at
1–888–539–7474 to obtain login instructions and your password.

For information on extended subscription terms, contact SIRIUS at
1–888–539–7474.

Note: SIRIUS reserves the unrestricted right to change, rearrange, add
or delete programming including canceling, moving or adding particular
channels, and its prices, at any time, with or without notice to you. Ford
Motor Company shall not be responsible for any such programming
changes.

Satellite Radio Electronic Serial Number (ESN): This12digit
Satellite Serial Number is needed to activate, modify or track your
satellite radio account. You will need this number when communicating
with SIRIUS. While in Satellite Radio mode, you can view this number on
the radio display by pressing AUX and Preset 1 control simultaneously.

Radio Display Condition Action Required

ACQUIRING Radio requires more

than two seconds to

produce audio for the

selected channel.

SAT FAULT Internal module or

system failure

present.

No action required.

This message should

disappear shortly.

If this message does

not clear within a short

period of time, or with

an ignition key cycle,

your receiver may have

a fault. See your

authorized dealer for

service.

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

35

Entertainment Systems

Radio Display Condition Action Required

INVALID CHNL Channel no longer

available.

UNSUBSCRIBED Subscription not

available for this

channel.

NO TEXT Artist information not

available.

NO TEXT Song title information

not available.

NO TEXT Category information

not available.

This previously

available channel is no

longer available. Tune
to another channel. If

the channel was one of

your presets, you may

choose another channel

for that preset button.

Contact SIRIUS at

1–888–539–7474 to

subscribe to the

channel, or tune to

another channel.

Artist information not

available at this time on

this channel. The

system is working

properly.

Song title information

not available at this

time on this channel.

The system is working

properly.

Category information

not available at this

time on this channel.

The system is working

properly.

36

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Entertainment Systems

Radio Display Condition Action Required

NO SIGNAL Loss of signal from

the SIRIUS satellite or

SIRIUS tower to the

vehicle antenna.

UPDATING Update of channel

programming in

progress.

CALL SIRIUS
1–888–539–7474

Satellite service has

been deactivated by

SIRIUS Satellite

Radio.

You are in a location

that is blocking the

SIRIUS signal (i.e.,

tunnel, under an

overpass, dense foliage,

etc). The system is

working properly. When

you move into an open

area, the signal should

return.

No action required. The

process should take no

longer than one

minute.

Call SIRIUS at

1–888–539–7474 to

re-activate or resolve

subscription issues.

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

37

Climate Controls

HEATER ONLY SYSTEM (IF EQUIPPED)

1. Fan speed adjustment: Controls the volume of air circulated in the

vehicle.

2. Temperature selection: Controls the temperature of the airflow in

the vehicle.

3. Air flow selections: Controls the direction of the airflow in the

vehicle. See the following for a brief description on each control:

: Distributes outside air through the instrument panel vents.

: Distributes outside air through the instrument panel vents and the

floor vents.

O (OFF): Outside air is shut out and the fan will not operate.

: Distributes outside air through the floor vents.

: Distributes outside air through the windshield defroster vents,

floor vents and demister vents.

: Distributes outside air through the windshield defroster vents and

demister vents. Can be used to clear windshield of fog and thin ice.

Operating tips

• To reduce fog build up on the windshield during humid weather, place
the air flow selector in the

• To reduce humidity build up inside the vehicle during cold or warm
weather, do not drive with the air flow selector in the O (OFF)
position.

• Do not put objects under the front seats that will interfere with the air
flow to the rear seats.

• Remove any snow, ice or leaves from the air intake area at the base of
the windshield.

38

position.

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Climate Controls

To aid in side window defogging/demisting in cold weather:

1. Select

2. Modulate the temperature control to maintain comfort.

3. Set the fan speed to the highest setting.

4. Direct the outer instrument panel vents toward the side windows.

To increase airflow to the outer instrument panel vents, close the vents
located in the middle of the instrument panel.

MANUAL HEATING AND AIR CONDITIONING SYSTEM
(IF EQUIPPED)

.

Do not place objects on top of the instrument panel as these
objects may become projectiles in a collision or sudden stop.

1. Fan speed adjustment: Controls the volume of air circulated in the

vehicle.

2. Temperature selection: Controls the temperature of the airflow in

the vehicle.

3. Air flow selections: Controls the direction of the airflow in the

vehicle. See the following for a brief description on each control.
MAX A/C: Distributes recirculated air through the instrument panel

vents and center console vents (if equipped) to cool the vehicle. This
re-cooling of the interior air is more economical and efficient.
Recirculated air may also help reduce undesirable odors from entering
the vehicle. The temperature selection control will not adjust airflow
temperature when in MAX A/C mode.

A/C: Distributes outside air through the instrument panel vents to cool
the vehicle.

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

39

Climate Controls

: Distributes outside air through the instrument panel vents and

center console vents (if equipped).

: Distributes outside air through the instrument panel vents, floor

vents and center console vents (if equipped).

O (OFF): Outside air is shut out and the climate system is turned off.

: Distributes outside air through the floor vents.

: Distributes outside air through the windshield defroster vents,

floor vents and demister vents.

: Distributes outside air through the windshield defroster vents and

demister vents.

Operating tips

• To reduce fog build up on the windshield during humid weather, place
the air flow selector in the

• To reduce humidity build up inside the vehicle, do not drive with the
air flow selector in the O (OFF) position.

• Do not put objects under the front seats that will interfere with the
airflow to the rear seats.

• Remove any snow, ice or leaves from the air intake area at the base of
the windshield.

• To improve the A/C cool down, drive with the windows slightly open
for 2–3 minutes after start up or until the vehicle has been “aired out.”

For maximum cooling performance (MAX A/C) in MAX A/C mode:

• Move the temperature control to the coolest setting.

• Set the fan to the highest speed initially, then adjust in order to

maintain comfort.

To aid in side window defogging and demisting in cold weather:

1. Select

2. Select A/C.

3. Set the temperature control to maintain comfort.

4. Set the fan speed to highest setting.

5. Direct the outer instrument panel vents towards the side windows.

.

position.

40

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Climate Controls

Do not place objects on top of the instrument panel as these
objects may become projectiles in a collision or sudden stop.

AUTOMATIC TEMPERATURE CONTROL SYSTEM (IF EQUIPPED)

A/C

EXT TEMP

Press the AUTO and

F

AUTO

OFFAUTO

(floor/defrost) controls at the same time and

hold for one second to switch between Fahrenheit and Celsius.

1. A/C: Press to activate/deactivate

air conditioning. Use with
recirculated air to improve cooling
performance and efficiency. Engages automatically in AUTO,

(defrost), and

(floor/defrost).

2. Recirculated air: Press to

activate/deactivate air recirculation
in cabin. Recirculated air may
reduce the amount of time to cool down the interior of the vehicle and
may also help reduce undesired odors from reaching the interior of the
vehicle. Recirculation can be engaged manually in any other airflow
selection except

(defrost). Recirculation may turn off automatically

in all airflow selections.

3. Defrost:

Distributes outside
air through the windshield defroster
vents and demister vents. Can be
used to clear windshield of fog and thin ice.

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

41

Climate Controls

4. Fan speed: Press the respective
control in order to manually
increase or decrease the fan speed.
To return to automatic fan
operation, press AUTO.

5.
vents, floor vents and demister vents.

6.

7.
floor vents and center console vents (if equipped).

8.
center console vents (if equipped).

9. OFF: Outside air is shut out and
the climate control system is turned
off.

10. Manual override controls:
The manual override controls allow
you to change the system operation.
To return to full automatic control, press AUTO. Refer to controls 5–8
for a brief description of each mode.

11. AUTO: Press to engage full
automatic operation, and select the
desired temperature using the
temperature control. The system will automatically determine fan speed,
airflow location, A/C on or off, and outside or recirculated air, to heat or
cool the vehicle to reach the desired temperature.

12. EXT Control (if equipped):
Press EXT TEMP to display outside
temperature. Press again to display
cabin temperature settings.

13. Temperature controls: Press
to increase or decrease the
temperature in the vehicle cabin.
Note: The recommended vehicle
cabin setting is between 72°F (22°C) and 75°F (24°C).

(Floor/defrost): Distributes air through the instrument panel

(Floor): Distributes air through the floor vents.

(Panel/floor): Distributes air through the instrument panel vents,

(Panel): Distributes air through the instrument panel vents and

42

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Climate Controls

Operating tips

• To reduce fog build up on the windshield during humid weather, place

the air flow selector in the

• To reduce humidity build up inside the vehicle, do not drive with the

air flow selector in OFF or with recirculated air engaged.

• Do not put objects under the front seats that will interfere with the

airflow to the rear seats.

• Remove any snow, ice or leaves from the air intake area at the base of

the windshield.

• To improve the A/C cool down, drive with the windows slightly open

for 2–3 minutes after start up or until the vehicle has been “aired out.”

For maximum cooling performance in AUTO mode:

• Press AUTO control and set to desired temperature.
For maximum cooling performance using manual override modes:

• Press

60°F (16°C) and the fan to the highest setting.

To aid in side window defogging and demisting in cold weather:

1. Select

2. Select A/C.

3. Set the temperature control to maintain comfort.

4. Set the fan speed to highest setting.

5. Direct the outer instrument panel vents towards the side windows. To
increase airflow to the outer instrument panel vents, close the vents
located in the middle of the instrument panel.

To increase airflow to the outer instrument panel vents, close the vents
located in the middle of the instrument panel.

(panel), A/C, with recirculated air. Set the temperature to

.

position.

Do not place objects on top of the instrument panel as these
objects may become projectiles in a collision or sudden stop.

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

43

Lights

HEADLAMP CONTROL

Turns the lamps off.

Turns on the parking lamps,
instrument panel lamps, license
plate lamps and tail lamps.

Turns the headlamps on.

Autolamp control (if equipped)

The autolamp system provides light
sensitive automatic on-off control of
the exterior lights normally
controlled by the headlamp control.

The autolamp system also keeps the
lights on for approximately 20
seconds after the ignition switch is
turned to OFF.

To change the delay time of the
autolamp feature, do the following:

1. Start with the ignition in OFF and the autolamps selected.

2. Deselect the autolamps.

3. Put the ignition in 4 (ON).

4. Put the ignition in 3 (OFF).

5. Select the autolamps. Steps 2 through 5 must be performed within a
10 second period. At this point, the headlamps and parking lamps will
turn on.

6. Deselect the autolamps after the desired autolamp delay time
(maximum of 3 minutes). At this point, the headlamps and parking
lamps will turn off.

44

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Lights

Foglamp control (if equipped)

The headlamp control also operates
the foglamps. The foglamps can be
turned on only when the headlamp

control is in the
position and the high beams are not

turned on.
In autolamp mode, the foglamps

won’t be operational until lighting
conditions warrant the activation of the headlamp/parklamp lighting.

Pull headlamp control towards you to turn foglamps on. The foglamp
indicator light
parklamps are on.

Daytime running lamps (DRL) (if equipped)

Turns the headlamps on with a reduced output.

To activate:

• the ignition must be in the ON position,

• the headlamp control is in the OFF or parking lamp position and

• the parking brake must be disengaged.

Always remember to turn on your headlamps at dusk or during

inclement weather. The Daytime Running Lamp (DRL) system
does not activate the tail lamps and generally may not provide
adequate lighting during these conditions. Failure to activate your
headlamps under these conditions may result in a collision.

, or

will illuminate when the switch is pulled and the

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

45

Lights

High beams

Push the lever toward the
instrument panel to activate. Pull
the lever towards you to deactivate.

Flash to pass

Pull toward you slightly to activate
and release to deactivate.

PANEL DIMMER CONTROL

Use to adjust the brightness of the
instrument panel and all applicable
switches in the vehicle during
headlamp and parklamp operation.

Move the control to the full upright
position, past detent, to turn on the
interior lamps.

46

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Lights

AIMING THE HEADLAMPS

Your vehicle may be equipped with a sealed beam or aerodynamic
headlamp system. Sealed beam headlamps may be aimed in the vertical
(up/down) and the horizontal (left/right) directions using the procedures
following. The aerodynamic headlamps can only be aimed in the vertical
direction (up/down) using the following procedures. The headlamps on
your vehicle are properly aimed at the assembly plant and should not
normally need adjusting.

Vertical and horizontal aim adjustment (sealed beam headlamps)

The headlamps on your vehicle are intended to be aimed using
mechanical aimers. If mechanical aimers are used and the cross-car sight
line is in any way blocked, set the legs of the universal adaptor all to the
same setting, such that the cross-car sight line is no longer blocked, per
the instructions for the brand of mechanical aimer used. You can also
aim the headlamps visually using the procedure below.

To adjust the headlamps:

1. Park your vehicle on a level
surface about 25 feet (7.6 meters)
away from a vertical plain surface
(3). Check your headlamp alignment
at night or in a dark area so that
you can see the headlamp beam
pattern.

• (1) 8 feet (2.4 meters)

• (2) Center height of lamp to

ground

• (3) 25 feet (7.6 meters)

• (4) Horizontal reference line

• (5) Center of headlamps

• (6) Center line of the vehicle

2. The center of the headlamp is marked either on the lens (a circle or
cross marker) or on the bulb shield, internal to the lamp (mark or
feature). Measure the height from the center of your headlamp to the
ground (2) and mark an 8 foot (2.4 meter) long horizontal line on the
wall or screen (1) at this height (masking tape works well).

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

47

Lights

3. Turn on the low beam headlamps
and open the hood.

4. Locate the high intensity area of
the beam pattern and place the top
edge of the intensity zone even with
the horizontal reference line (4). If
the top edge of the high intensity
area is not even with the horizontal
line, follow the next step to adjust
it.

5. Locate the vertical adjuster (2)
for each headlamp. Adjust the aim
by turning the adjuster control
either clockwise (to adjust up) or
counterclockwise (to adjust down).

6. In addition to the horizontal line
marked in step 2, a pair of vertical
lines (5) must be marked at the
center line of the headlamps on the
wall or screen.

7. On the wall or screen, locate the high intensity area of the beam
pattern. The left edge of the high intensity area should be even with the
vertical line corresponding to the headlamp under adjustment. If the left
edge of the high intensity area is not even with the vertical line, follow
the next step to adjust it.

8. Locate the horizontal adjuster (1) for each headlamp. Turn it
clockwise or counterclockwise, to place the left edge of the high
intensity area even with the vertical line corresponding to the headlamp
under adjustment.

48

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Lights

Vertical aim adjustment (aerodynamic headlamps)

The headlamps on your vehicle can only be vertically adjusted. Your
vehicle does not require horizontal aim adjustments.

To adjust the headlamps:

1. Park the vehicle directly in front of a wall or screen on a level surface,
approximately 25 feet (7.6 meters) away.

• (1) 8 feet (2.4 meters)

• (2) Center height of lamp to ground

• (3) 25 feet (7.6 meters)

• (4) Horizontal reference line

2. Measure the height from the
center of your headlamp (indicated
by a 3.0 mm circle on the lens) to
the ground and mark an 8 foot
(2.4 meter) horizontal reference line
on the vertical wall or screen at this
height (a piece of masking tape
works well).

3. Turn on the low beam headlamps
to illuminate the wall or screen and open the hood. Cover one of the
headlamps so no light hits the wall.

4. On the wall or screen you will
observe a light pattern with a
distinct horizontal edge towards the
right. If this edge is not at the
horizontal reference line, the beam will need to be adjusted so the edge
is at the same height as the horizontal reference line.

5. Locate the vertical adjuster on
each headlamp, then use a E5 Torx
socket to turn the adjuster either
counterclockwise (to adjust down)
or clockwise (to adjust up) aligning
the upper edge of the light pattern
up to the horizontal line.

6. Repeat Steps 3–5 for the other
headlamp.

7. Close the hood and turn off the
lamps.

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

49

Lights

TURN SIGNAL CONTROL

• Push down to activate the left
turn signal.

• Push up to activate the right turn
signal.

COURTESY/READING LAMPS (IF EQUIPPED)

The dome lamp illuminates when
any door is not completely closed,
the instrument panel switch is
pushed past the detent and when
any of the remote entry controls are
pressed while the ignition is off.

The reading lamps can be turned on
by pressing the rocker controls next
to each lamp.

MAP LAMPS (IF EQUIPPED)

To turn on the map lamps, press the
control next to each lamp.

50

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Lights

BULBS

Headlamp condensation

The headlamps are vented to equalize pressure. When moist air enters
the headlamp(s) through the vents, there is a possibility that
condensation can occur. This condensation is normal and will clear
within 45 minutes of headlamp operation.

Replacing exterior bulbs

Check the operation of all the bulbs frequently.

Function Number

of bulbs

Headlamps (aerodynamic) 2 H13/9008
Headlamps (sealed beam) 2 H6054
Park lamp with aerodynamic

headlamp
Park lamp with sealed beam

headlamp
Sidemarker 2 194
Tail/stop/turn/sidemarker 2 4157K/3157
Backup 2 3156K or 3156
High-mount stoplamp 1 922
Foglamp 2 9145
License plate lamp 2 194
Cargo lamp 2 906
Front clearance lamps (2)

and Front identification
lamps (3)

Rear fender clearance* 4 W5W
Interior visor lamp (if

equipped)
Rear identification 3 194
All replacement bulbs are clear in color except where noted.
To replace all instrument panel lights - see your authorized dealer
* Dual rear wheels, or if equipped.

2 3157AK or 3157A

2 4157K/3157

5 194

4 194

Trade number

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

51

Lights

Replacing headlamp bulbs (aerodynamic)

1. Make sure that the headlamp control is in the OFF position and open

the hood.

2. Remove the four screws from the

top and bottom front of the
headlamp assembly.

3. Press the retaining clip at the top

of the headlamp assembly while
pulling the assembly straight out.

If removing the lamp is difficult,
removing the four screws along
the top of the grill will help
provide more clearance.

4. Disconnect the electrical

connector by squeezing the release
tab and pushing the connector
forward and then pulling it
rearward.

5. Remove the bulb assembly by

turning it counterclockwise and
pulling it straight out.

Handle a halogen headlamp bulb carefully and keep out of

children’s reach. Grasp the bulb only by its plastic base and do
not touch the glass. The oil from your hand could cause the bulb to
break the next time the headlamps are operated.

Install the new bulb(s) in reverse order.

52

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Lights

Replacing park/turn and sidemarker lamp bulbs (aerodynamic)

1. Make sure that the headlamp control is in the OFF position and open
the hood.

2. Remove the four screws from the
top and bottom front of the
headlamp assembly.

3. Press the retaining clip at the top
of the headlamp assembly while
pulling the assembly straight out.

If removing the lamp is difficult,
removing the four screws along
the top of the grill will help
provide more clearance.

4. Remove the bulb assembly, (1)
sidemarker or (2) park/turn by
turning it counterclockwise and
pulling it straight out.

5. Pull the old bulb out from the
socket.

Install the new bulb(s) in reverse order.

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

53

Lights

Replacing headlamp bulbs (sealed beam)

1. Make sure that the headlamp control is in the OFF position and open
the hood.

2. Remove the four screws from the
top and bottom front of the
headlamp assembly.

3. Press the retaining clip at the top
of the headlamp assembly while
pulling the assembly straight out. If
removing the lamp is difficult,
removing the four screws along the
top of the grill will help provide
more clearance.

4. Disconnect the electrical
connector from the park lamp/bezel.

5. Remove the four screws and the
headlamp retaining ring from
headlamp.

Install the new bulb(s) in reverse order.

54

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Lights

Replacing park/turn/sidemarker bulbs (sealed beam)

1. Make sure that the headlamp control is in the OFF position and open
the hood.

2. Remove the four screws from the
top and bottom front of the
headlamp assembly.

3. Press the retaining clip at the top
of the headlamp assembly while
pulling the assembly straight out. If
removing the lamp is difficult,
removing the four screws along the
top of the grill will help provide
more clearance.

4. Remove the bulb assembly, (1)
sidemarker or (2), park/turn by
turning it counterclockwise.

5. Pull the old bulb out from the
socket.

Install the new bulb(s) in reverse order.

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

55

Lights

Replacing brake/tail/turn/back-up lamp bulbs - F–250/F–350 only

1. Make sure the headlamp switch is
in the OFF position and then open
the tailgate to expose the lamp
assemblies.

2. Remove the two bolts from the
tail lamp assembly and carefully pull
the lamp assembly from the tailgate
pillar by releasing the two retaining
tabs.

3. Rotate the bulb socket counterclockwise and remove from lamp
assembly.

4. Pull the bulb straight out of the socket.

Install the new bulb(s) in reverse order.

Replacing brake/tail/turn/back-up lamp bulbs - F–450/F–550 only

1. Make sure the headlamp switch is
in the OFF position.

2. Remove the four screws and the
lamp lens from lamp assembly.

3. Carefully pull the bulb straight
out of the socket and push in the
new bulb.

56

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Replacing cargo lamp and high-mount brakelamp bulbs

1. Make sure the headlamp switch is
in the OFF position.

2. Remove the two screws and lamp
assembly from vehicle as wiring
permits.

3. Remove the bulb socket by
rotating counterclockwise.

4. Pull the bulb straight out of the
socket.

Front clearance and identification lamp bulbs

1. Make sure the headlamp switch is
in the OFF position.

2. Remove the screw and lens from
the lamp assembly.

3. Pull the bulb straight out of the
socket.

Lights

Install the bulb(s) in reverse order.

Replacing foglamp bulbs (if equipped)

1. Make sure the headlamp switch is
in the OFF position.

2. Remove the bulb socket from the
foglamp by turning
counterclockwise.

3. Disconnect the electrical connector from the foglamp bulb.

Install the new bulb(s) in reverse order.

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

57

Lights

Replacing license plate lamp bulbs

The license plate bulbs are located
behind the rear bumper. To change
the license plate lamp bulbs:

1. Reach behind the rear bumper to
locate the bulb.

2. Twist the bulb socket
counterclockwise and carefully pull
to remove it from the lamp
assembly.

3. Pull out the old bulb from the
socket and push in the new bulb.

4. Install the bulb socket in lamp assembly by turning it clockwise.

58

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Driver Controls

MULTI-FUNCTION LEVER

Windshield wiper: Rotate the end
of the control away from you to
increase the speed of the wipers;
rotate towards you to decrease the
speed of the wipers.

Windshield washer: Push the end
of the stalk:

• briefly: causes a single swipe of
the wipers without washer fluid.

• a quick push and hold: the wipers
will swipe three times with
washer fluid.

• a long push and hold: the wipers
and washer fluid will be activated for up to ten seconds.

TILT STEERING WHEEL (IF EQUIPPED)

To adjust the steering wheel:

1. Pull and hold the steering wheel

release control toward you.

2. Move the steering wheel up or

down until you find the desired
location.

3. Release the steering wheel

release control. This will lock the
steering wheel in position.

Never adjust the steering wheel when the vehicle is moving.

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

59

Driver Controls

TRANSMISSION CONTROL

Tow/Haul feature (5–speed automatic transmission) (if equipped)

To activate, press the transmission
control switch (TCS) located on the
gearshift. The TOW/HAUL indicator
light will illuminate in the
instrument cluster. The transmission
will operate in all gears. Press the
transmission control switch again to deactivate Tow/Haul mode. When
you shut off and re-start your vehicle, the transmission will automatically
return to normal mode with Tow/Haul feature deactivated, refer to the
Driving chapter for more information.

Do not use the Tow/Haul feature when driving in icy or slippery

conditions as the increased engine braking can cause the rear
wheels to slide and the vehicle to swing around with the possible loss
of vehicle control.

ILLUMINATED VISOR MIRROR (IF EQUIPPED)

Lift the mirror cover to turn on the
visor mirror lamps.

OVERHEAD CONSOLE (IF EQUIPPED)

The appearance of your vehicle’s overhead console will vary according to
your option package. If your vehicle is equipped with a moon roof, refer
to One-touch moonroof later in this chapter for information on its
operation.

60

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Driver Controls

Storage compartment (if equipped)

Press the release on the door to
open the storage compartment.

The storage compartment may be
used to secure sunglasses or a
similar object and the front tab can
be used for holding tickets, paper,
envelopes, etc. The front bin may be
used to store small objects.

AUXILIARY POWER POINT (12VDC)

Power outlets are designed for accessory plugs only. Do not insert
any other object in the power outlet for this will damage the
outlet and blow the fuse. Do not hang any type of accessory or
accessory bracket from the plug. Improper use of the power
outlet can cause damage not covered by your warranty.

The auxiliary power point is located
on the instrument panel.

Do not use the power point for operating the cigarette lighter element (if
equipped).

To prevent the fuse from being blown, do not use the power point(s)
over the vehicle capacity of 12 VDC/180W.

To prevent the battery from being discharged, do not use the power
point longer than necessary when the engine is not running.

Always keep the power point caps closed when not being used.

61

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Driver Controls

Cigar lighter (if equipped)

Do not plug optional electrical accessories into the cigarette lighter
socket.

Do not hold the lighter in with your hand while it is heating, this will
damage the lighter element and socket. The lighter will be released from
its heating position when it is ready to be used.

Improper use of the lighter can cause damage not covered by your
warranty.

POWER WINDOWS (IF EQUIPPED)

Do not leave children unattended in the vehicle and do not let

children play with the power windows. They may seriously injure
themselves.

When closing the power windows, you should verify they are free

of obstructions and ensure that children and/or pets are not in
the proximity of the window openings.

Press and hold the bottom part of
the rocker switch to open the
window. Press and hold the top part
of the rocker switch to close the
window.

One touch down

Allows the driver’s window to open
fully without holding the control
down. Press completely down on
AUTO and release quickly. Press
again to stop.

62

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Window lock (if equipped)

The window lock feature allows only
the driver to operate the power
windows.

To lock out all the window controls
except for the driver’s, press the left
side of the control. Press the right
side to restore the window controls.

Power rear slider window (if equipped)

Do not leave children unattended in the vehicle and do not let

children play with the power windows. They may seriously injure
themselves.

When closing the power windows, you should verify they are free

of obstructions and ensure that children and/or pets are not in
the proximity of the window openings.

• Press and hold the open arrow
side of control to open window.

• Press and hold the closed arrow
side of control to close window.

Driver Controls

Accessory delay (if equipped)

With accessory delay, the window switches may be used for up to ten
minutes after the ignition switch is turned to the OFF position or until
any door is opened.

AUTOMATIC DIMMING INSIDE REAR VIEW MIRROR (IF EQUIPPED)

Your vehicle may be equipped with an inside rear view mirror with an
auto-dimming function. The electronic day/night mirror will change from
the normal state to the non-glare state when bright lights (glare) reach
the mirror. When the mirror detects bright light from front or behind, it
will automatically adjust to minimize glare.

Do not clean the housing or glass of any mirror with harsh abrasives, fuel
or other petroleum-based cleaning products.

63

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Driver Controls

POWER SIDE VIEW MIRRORS (IF EQUIPPED)

To adjust your mirrors:

1. Rotate the control clockwise to

adjust the right mirror and rotate
the control counterclockwise to
adjust the left mirror.

2. Move the control in the direction

you wish to tilt the mirror.

3. Return to the center position to lock mirrors in place.

Heated outside mirrors

The main mirror glass is heated automatically to remove ice, mist and
fog and activates when the vehicle is started.

Note: The mirrors may be hot to the touch but will not burn. This is a
normal condition.

Type A

The mirror heating elements are
designed to operate regardless of
the geographic location of the
vehicle. There is no switch to turn
on, or other operator involvement
required other than to start the
vehicle.

Type B

The spotter mirror, below the main
mirror, is not heated and must be
adjusted manually.

Do not remove ice from the mirrors with a scraper or attempt to
readjust the mirror glass if it is frozen in place. These actions
could cause damage to the glass and mirrors.

(if equipped)

64

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Driver Controls

Mirror mounted side turn signal indicator (if equipped)

When the vehicle turn signals are
activated, the outer portion of the
mirror housing will blink amber.

The turn signal feature can be seen
by other drivers who may approach
from the rear of the vehicle.

Clearance lamps (if equipped)

Illuminates when the headlamps or
parking lamps are switched on.

This provides additional visibility of
your vehicle to other drivers on the
road.

Fold-away mirrors

The mirrors can be manually folded forward or backwards for narrow
spaces like driving through an automatic car wash or backing out of a
garage with the trailer tow mirror.

The telescoping feature (if equipped) allows the mirror to extend
approximately 3.15 inches (80 mm). This feature is especially useful to
the driver when towing a trailer.

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

65

Driver Controls

POWER ADJUSTABLE FOOT PEDALS (IF EQUIPPED)

The accelerator and brake pedal
should only be adjusted when the
vehicle is stopped and the gearshift
lever is in the P (Park) position.

Press and hold the rocker control to
adjust accelerator and brake pedal
toward you or away from you.

The adjustment allows for approximately 2.75 inches (70 mm) of
maximum travel.

Never adjust the accelerator and brake pedal with feet on the
pedals while the vehicle is moving.

SPEED CONTROL (IF EQUIPPED)

With speed control set, you can maintain a speed of 30 mph (48 km/h)
or more without keeping your foot on the accelerator pedal. Speed
control does not work at speeds below 30 mph (48 km/h).

Do not use the speed control in heavy traffic or on roads that
are winding, slippery or unpaved.

Setting speed control

The controls for using your speed
control are located on the steering
wheel for your convenience.

1. Press the ON control and release

it.

2. Accelerate to the desired speed.

66

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

ON

OFF

Driver Controls

3. Press the SET ACCEL control

and release it.

4. Take your foot off the accelerator

pedal.

5. The indicator

light on the

instrument cluster will turn on.

Note:

• Vehicle speed may vary momentarily when driving up and down a
steep hill.

• If the vehicle speed increases above the set speed on a downhill, you
may want to apply the brakes to reduce the speed.

• If the vehicle speed decreases more than 10 mph (16 km/h) below
your set speed on an uphill, your speed control will disengage.

Resuming a set speed

Press the RES/RESUME control and
release it. This will automatically
return the vehicle to the previously
set speed. The RES/RESUME
control will not work if the vehicle
speed is not faster than 30 mph
(48 km/h).

S

E

R

T

E

S

L

E

C

C

A

C

O

A

S

T

S

E

R

T

E

S

L

E

C

C

A

C

O

A

S

T

Increasing speed while using speed control

There are two ways to set a higher
speed:

• Press and hold the SET ACCEL
control until you get to the
desired speed, then release the
control. You can also use the SET

S

E

R

T

E

S

L

E

C

C

A

C

O

A

S

T

ACCEL control to operate the
Tap-Up function. Press and
release this control to increase the vehicle set speed in small amounts
by 1 mph (1.6 km/h).

• Use the accelerator pedal to get to the desired speed. When the
vehicle reaches that speed press and release the SET ACCEL control.

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

67

Driver Controls

Reducing speed while using speed control

There are two ways to reduce a set
speed:

• Press and hold the COAST
control until you get to the
desired speed, then release the
control. You can also use the
COAST control to operate the
Tap-Down function. Press and
release this control to decrease the vehicle set speed in small amounts
by 1 mph (1.6 km/h).

• Depress the brake pedal until the
desired vehicle speed is reached,
press the SET ACCEL control.

Turning off speed control

There are two ways to turn off the speed control:

• Depress the brake pedal or the clutch pedal (if equipped). This will
not erase your vehicle’s previously set speed.

• Press the speed control OFF
control.

Note: When you turn off the speed
control or the ignition, your speed
control set speed memory is erased.

S

E

R

T

E

S

L

E

C

C

A

C

O

A

S

T

S

E

R

T

E

S

L

E

C

C

A

C

O

A

S

T

ON

OFF

Indicator light (if equipped)

This light comes on when either the
SET ACCEL or RES controls are
pressed. The vehicle speed must be
at or above 48 km/h (30 mph). It
turns off when the speed control
OFF control is pressed, the brake or
clutch is applied, or the ignition is turned to the OFF position.

68

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Driver Controls

STEERING WHEEL CONTROLS (IF EQUIPPED)

These controls allow you to operate some radio and climate control
features.

Radio control features

• Press MODE to select AM, FM1,
FM2, TAPE or CD (if equipped).

In Radio mode:

• Press NEXT to seek/scan to the
next strong station.

In Tape mode:

• Press NEXT to listen to the next
selection on the tape.

In CD mode:

• Press NEXT to listen to the next
track on the disc.

In any mode:

• Press VOL up or down to adjust
the volume.

Climate control features

• Press TEMP up or down to adjust temperature.

• Press FAN up or down to adjust fan speed.

NEXT

MODE

UPFITTER CONTROLS (IF EQUIPPED)

Your vehicle may be equipped with
the Upfitter option package which
will provide four switches, mounted
in the center of the instrument
panel, labeled AUX 1, AUX 2, AUX 3
and AUX 4. These switches will only
operate while the ignition is in the 4
(ON) position, whether the engine
is running or not. It is, however, recommended that the engine remain
running to maintain battery charge when using the Upfitter switches for
extended duration or higher current draws. (This is even more important
for vehicles with diesel engines since the glow plugs are also draining
battery power when the ignition key is in the 4 [ON] position.)

69

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Driver Controls

When switched on by the operator they provide 10 amps or 30 amps of
electrical battery power for a variety of personal or commercial uses.

If your vehicle is equipped with this
option, there will also be a relay box
with a fuse located inside the glove
box.

The relays and fuse in the glove box are coded as shown in the
accompanying illustration.

70

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Driver Controls

There will also be one power lead
for each switch found as a blunt-cut
and sealed wire located behind the
passenger compartment fuse panel.

They are coded as follows:

Switch Circuit number Wire color Fuse

AUX 1 1936 Orange with Light

Green Trace
AUX 2 1933 Orange 30A
AUX 3 1934 Orange with Yellow

Trace
AUX 4 1935 Orange with Light Blue

Trace

More detailed information about the Upfitter switches can be found in
the Upfitter Switches bulletin found at
www.fleet.ford.com/truckbbas/non-html/Q117.pdf.

30A

10A

10A

ONE-TOUCH MOON ROOF (IF EQUIPPED)

The moon roof control is located on the overhead console.
Note: The moon roof will open to

the “comfort” position first before
opening all the way. The “comfort”
position helps to alleviate rumbling
wind noise which may happen in the
vehicle with the roof fully opened.

To open the moon roof: The moon
roof is equipped with a one-touch
open feature. Press and release the
AUTO control. The moon roof will
open to the “comfort” position.
Press and release the control again to fully open. To stop the one-touch
open feature press either the AUTO or

control again.

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

71

Driver Controls

To close the moon roof: Press and hold the control until the glass
panel stops at the “comfort” position. Press and hold the control again
until the glass stops moving. When fully closed, the rear portion of the
glass panel will appear higher than the front portion.

To vent the moon roof: Press and hold the
roof must be in the closed position in order to move it into the
vent position. To close, press and hold the AUTO control until the glass

panel stops moving.
The moon roof has a built-in sliding shade that can be manually opened

or closed when the glass panel is shut. To close the shade, pull it toward
the front of the vehicle.

Do not let children play with the moon roof or leave children
unattended in the vehicle. They may seriously hurt themselves.

When closing the moon roof, you should verify that it is free of
obstructions and ensure that children and/or pets are not in the

proximity of the moon roof opening.

CENTER CONSOLE (IF EQUIPPED)

Your vehicle may be equipped with a variety of console features. These
include:

• Utility compartment with
cassette/CD holder

• Coin holder

• Pen holder

• Writing surface

control. The moon

Use only soft cups in the
cupholder. Hard objects can

injure you in a collision.

MINI-MESSAGE CENTER (IF EQUIPPED)

With the ignition in the ON position, the mini-message center, located on
your instrument cluster, displays text messages that alert you to possible
problems or malfunctions in your vehicle’s operating systems. All warning
messages will also provide an indicator tone.

Note: The following warning messages will reappear after an ignition
OFF-ON cycle has been completed.

72

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Driver Controls

Door ajar: Displays when the
ignition is in the ON position and
any door is open.

Check fuel cap: Displays when the
fuel cap may not be properly
installed. Continued driving with
this display on may cause the
Service engine soon warning light to
come on. Refer to Fuel filler cap under the Fuel Information section in
the Maintenance and Specifications chapter.

Trailer fault (if equipped):

Displayed if there is a short circuit
on the electric brake output wire or
the trailer brakes are drawing too
much current. Refer to Integrated
trailer brake controller in the Tires, Wheels and Loading chapter for
more information.

TBC fault (if equipped): Displays
in response to faults sensed by the
TBC. In the event this message is
seen, please take your vehicle to an
authorized dealer for diagnosis and
repair. Refer to Integrated trailer brake controller in the Tires, Wheels
and Loading chapter for more information.

Note: The following warning messages will reappear on the display every
ten minutes.

Low fuel: Displays when the fuel
level in the fuel tank is at or near
empty (refer to Fuel gauge in this
chapter).

Check gauge: Displays when any of
the following conditions has
occurred:

• The engine coolant temperature
is high.

• The engine oil pressure is low.

• The fuel gauge is at or near empty.

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

73

Driver Controls

Check trailer (if equipped):

Displayed when a trailer connection
becomes disconnected, either
intentionally or unintentionally, and
has been sensed during a given
ignition cycle. Refer to Integrated trailer brake controller in the Tires,
Wheels and Loading chapter for more information.

Language

The language options are English and French. The feature works as
follows:

1. If present language is English,

press and hold the SELECT/RESET
button for 15 seconds or greater to
convert the language selection to
French. The word ⬙FRENCH⬙ will be
displayed for 4 seconds as a confirmation that language has been
changed.

2. If present language is French,

press and hold the SELECT/RESET
button for 15 seconds or greater to
convert the language selection to
English. The word ⬙ENGLISH⬙ will
be displayed for 4 seconds as a confirmation that language has been
changed.

MESSAGE CENTER (IF EQUIPPED)

With the ignition in the ON position,
the message center, located on your
instrument cluster, displays
important vehicle information

through a constant monitor of
vehicle systems. You may select

display features on the message center for a display of status preceded
by a brief indicator chime. The system will also notify you of potential
vehicle problems with a display of system warnings followed by a long
indicator chime.

74

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Driver Controls

Selectable features

Reset

Press this control to select and reset
functions shown in the INFO menu
and SETUP menu.

Info menu

This control displays the following
control displays:

• Odometer/Compass

• Tr ip

Odometer/Odometer/Compass

• Distance to Empty/Odometer/Compass

• Average Fuel Economy/Odometer/Compass

• Engine hour meter/Odometer/Compass

Odometer/Trip odometer

Refer to Gauges in the Instrument Cluster chapter.

Distance to empty (DTE)

Selecting this function from the
INFO menu estimates approximately
how far you can drive with the fuel
remaining in your tank under
normal driving conditions.
Remember to turn the ignition OFF
when refueling to allow this feature to correctly detect the added fuel.

The DTE function will display LOW FUEL LEVEL and sound a tone for
one second when you have approximately 50 miles (80 km) to empty. If
you RESET this warning message, this display and tone will return
within 10 minutes.

DTE is calculated using a running average fuel economy, which is based
on your recent driving history of 500 miles (800 km). This value is not
the same as the average fuel economy display. The running average fuel
economy is reinitialized to a factory default value if the battery is
disconnected.

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

75

Driver Controls

Average fuel economy (AFE)

Select this function from the INFO
menu to display your average fuel
economy in miles/gallon or liters/
100 km.

If you calculate your average fuel
economy by dividing miles traveled
since last fill-up by gallons of fuel used (multiply liters used by 100, then
divide by kilometers traveled), your figure may be different than
displayed for the following reasons:

• Your vehicle was not perfectly level during fill-up

• Differences in the automatic shut-off points on the fuel pumps at

service stations

• Variations in top-off procedure from one fill-up to another

• Rounding of the displayed values to the nearest 0.1 gallon (liter)

1. Drive the vehicle at least 5 miles (8 km) with the speed control

system engaged to display a stabilized average.

2. Record the highway fuel economy for future reference.

It is important to press the RESET control after setting the speed
control to get accurate highway fuel economy readings.

Compass display

The compass heading is displayed as one of N, NE, E, SE, S, SW, W and
NW in the message center display.

The compass reading may be affected when you drive near large
buildings, bridges, power lines and powerful broadcast antenna. Magnetic
or metallic objects placed in, on or near the vehicle may also affect
compass accuracy.

Usually, when something affects the compass readings, the compass will
correct itself after a few days of operating your vehicle in normal
conditions. If the compass still appears to be inaccurate, a manual
calibration may be necessary. Refer to Compass zone/calibration

adjustment.

Most geographic areas (zones) have a magnetic north compass point that
varies slightly from the northerly direction on maps. This variation is four
degrees between adjacent zones and will become noticeable as the
vehicle crosses multiple zones. A correct zone setting will eliminate this
error. Refer to Compass zone/calibration adjustment.

76

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Compass zone/calibration adjustment

1. Determine your magnetic zone by

referring to the zone map.

2. Turn ignition to the ON position.

3. Start the engine.

4. From Info menu, press and hold

the SETUP and RESET controls
simultaneously until the message
center display changes to show the
current zone setting (XX).

5. Press the SETUP control

repeatedly until the correct zone
setting for your geographic location
is displayed on the message center.
The range of zone values are from
01 to 15 and “wraps” back to 01.

6. To exit the zone setting mode,

and to “lock in” your change, press
and release the RESET control.

Driver Controls

123

4

5

6 7 8 9 1011

15

14
13

12

Perform compass calibration in an open area free from steel structures
and high voltage lines. For optimum calibration, turn off all electrical
accessories (heater/air conditioning, wipers, etc.) and make sure all
vehicle doors are shut.

7. Press the RESET control to start

the compass calibration function.

8. Slowly drive the vehicle in a

circle (less than 3 mph [5 km/h])
until the CIRCLE SLOWLY TO
CALIBRATE display changes to CALIBRATION COMPLETED. It will take
up to five circles to complete calibration.

77

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Driver Controls

9. The compass is now calibrated.

Engine hour meter

Select this function from the INFO
menu to display the accumulated
running time of the engine.

Setup menu

Press this control for the following
displays:

• System Check

• Units (English/Metric)

• Autolock

• Autolamp Delay

• Language

System check

Selecting this function from the
SETUP menu causes the message
center to cycle through each of the
systems being monitored. For each
of the monitored systems, the
message center will indicate either an OK message or a warning message
for three seconds.

Pressing the RESET control cycles the message center through each of
the systems being monitored.

The sequence of the system check report and how it appears in the
message center is as follows:

1. ENGINE TEMP

2. TRANS TEMP

3. OIL PRESSURE

4. BRAKE FLUID LEVEL

78

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Driver Controls

5. DOOR AJAR

6. FUEL CAP (gasoline engine only)

7. AIR FILTER (diesel engine only)

8. FUEL LEVEL

Units (English/Metric)

1. Select this function from the

SETUP menu for the current units
to be displayed.

2. Press the RESET control to

change from English to Metric.

Autolocks

This feature automatically locks all vehicle doors when the vehicle is
shifted into any gear, putting the vehicle in motion.

1. To disable/enable the autolock

feature, select this function from the
SETUP control for the current
display mode.

2. Press the RESET control to turn

the autolocks ON or OFF.

Autolamp delay

This feature keeps your headlights on for up to three minutes after the
ignition is switched off.

1. To disable/enable the autolamp

delay feature, select this function
from the SETUP control for the
current display mode.

2. Press the RESET control to select

the new Autolamp delay values of >0, >10, >20, >30, >60, >90, >120 or
>180.

Language

1. Select this function from the

SETUP menu for the current
language to be displayed.

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

79

Driver Controls

2. Pressing the RESET control

cycles the message center through
each of the language choices.

3. Press and hold the RESET

control to set the language choice.

System warnings

System warnings alert you to possible problems or malfunctions in your
vehicle’s operating systems.

In the event of a multiple warning situation, the message center will
cycle the display to show all warnings by displaying each one for 4
seconds.

The message center will display the last selected feature if there are no
more warning messages. This allows you to use the full functionality of
the message center after you acknowledge the warning by pressing the
RESET control and clearing the warning message.

Warning messages that have been reset are divided into three categories:

• They will not disappear until a condition is changed.

• They will reappear on the display ten minutes from the reset.

• They will not reappear until an ignition OFF-ON cycle has been

completed.

This acts as a reminder that these warning conditions still exist within
the vehicle.

Warning display Status

Reduced engine power Warning cannot be reset
Stop engine safely

80

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Driver Controls

Warning display Status

Low fuel level Warning returns after 10 minutes
Low brake fluid level
Low oil pressure
Check engine temperature
Trailer disconnected
Water in fuel (diesel only)
Check air filter (diesel only)
Door ajar Warning returns after the ignition key
Check fuel cap
Engine failsafe mode
Check compass module
Trailer fault
TBC fault

LOW FUEL LEVEL Displayed as an early reminder of a low fuel
condition.

TRAILER FAULT (if equipped): Displayed if there is a short circuit on
the electric brake output wire or the trailer brakes are drawing too much
current. Refer to Integrated trailer brake controller in the Tires,
Wheels and Loading chapter for more information.

TBC FAULT (if equipped): Displayed in response to faults sensed by
the trailer brake controller (TBC). In the event this message is seen,
please take your vehicle to an authorized dealer for diagnosis and repair.
Refer to Integrated trailer brake controller in the Tires, Wheels and
Loading chapter for more information.

TRAILER DISCONNECTED (if equipped): Displayed when a trailer
connection becomes disconnected, either intentionally or unintentionally,
and has been sensed during a given ignition cycle. Refer to Integrated
trailer brake controller in the Tires, Wheels and Loading chapter for
more information.

CHECK AIR FILTER (diesel only): Refer to Instrument Cluster in
your 6.0 Liter Power Stroke Direct Injection Turbo Diesel Owner’s

Guide Supplement.

LOW BRAKE FLUID LEVEL Indicates the brake fluid level is low and
the brake system should be inspected immediately. Refer to Brake fluid
in the Maintenance and Specifications chapter.

DOOR AJAR Displayed when a door is not completely closed.

is turned from OFF to ON.

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

81

Driver Controls

CHECK ENGINE TEMPERATURE Displayed when the engine coolant
is overheating. Stop the vehicle as soon as safely possible, turn off the
engine and let it cool. Check the coolant and coolant level. Refer to
Engine coolant in the Maintenance and Specifications chapter. If the
warning stays on or continues to come on, contact your authorized
dealer as soon as possible.

To reduce the risk of personal injury, make sure the engine is

cool before unscrewing the coolant pressure relief cap. The
cooling system is under pressure; steam and hot liquid can come out
forcefully when the cap is loosened slightly.

REDUCED ENGINE POWER Displayed when the engine is
overheating. Stop the vehicle as soon as safely possible, turn off the
engine. If the warning stays on followed by an indicator chime or
continues to come on, contact your authorized dealer as soon as
possible.

STOP ENGINE SAFELY Displayed when the engine is overheating.
Stop the vehicle as soon as safely possible, turn off the engine. If the
warning stays on followed by an indicator chime or continues to come
on, contact your authorized dealer as soon as possible.

LOW OIL PRESSURE Displayed when the engine oil pressure is low. If
this warning message is displayed, check the level of the engine oil.
Refer to Engine oil in the Maintenance and Specifications chapter for
information about adding engine oil. If the oil level is OK and this
warning persists, shut down the engine immediately and contact your
authorized dealer for service.

CHECK FUEL CAP Displayed when the fuel filler cap is not properly
installed. Check the fuel filler cap for proper installation. Refer to Fuel

filler cap under the Fuel Information section in the Maintenance and
Specifications chapter.

ENGINE FAILSAFE MODE Displayed when the engine has defaulted
to a ’limp-home’ operation. If the warning stays on or continues to come
on, contact your authorized dealer as soon as possible.

CHECK COMPASS MODULE Displayed when the compass is not
operating properly. If the warning stays on or continues to come on,
contact your authorized dealer as soon as possible.

WATER IN FUEL (diesel only): Refer to Instrument Cluster in your

6.0 Liter Power Stroke Direct Injection Turbo Diesel Owner’s Guide
Supplement.

82

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Driver Controls

DATA ERR These messages indicate improper operation of the vehicle
network communication between electronic modules.

• Odometer

• Fuel flow

• Fuel level

• Trans temp

• Fuel cap

• Engine sensor

• Brake fluid

• Auto lock

• Auto lamp delay

Contact your authorized dealer as soon as possible if these messages
occur on a regular basis.

TAILGATE LOCK (IF EQUIPPED)

Your vehicle may be equipped with a
tailgate lock designed to help
prevent theft of the tailgate.

• Insert ignition key and turn to the
right to engage lock.

• Turn ignition key to the left to
unlock.

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

83

Driver Controls

Tailgate removal

Your tailgate is removable to allow
more room for loading.

1. Lower the tailgate.

2. Use a screwdriver to pry the

spring clip (on each connector) past
the head of the support screw.
Disconnect cable.

3. Disconnect the other cable.

4. Lift tailgate to a 45–degree angle.

5. Lift right side off of its hinge.

6. Lift left side off of its hinge.

To install, follow the removal procedures in reverse order.

84

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Locks and Security

KEYS

The key operates all locks on your vehicle. You should always carry a
second key with you in a safe place in case you require it in an
emergency.

POWER DOOR LOCKS (IF EQUIPPED)

Press control to unlock all doors.

Press control to lock all doors.

Smart locks (if equipped)

This feature prevents you from locking yourself out of the vehicle if your
key is still in the ignition.

When you open the driver’s door and you lock the vehicle with the
power door lock control, all the doors will lock, then the driver’s door
will automatically unlock reminding you that your key is still in the
ignition.

The vehicle can still be locked, with the key in the ignition, using the
manual lock button on the door, locking the driver’s door with a key, by
simultaneously pressing button 7 • 8 and the 9 • 0 controls on the
remote entry keypad (if equipped), or using the lock button on the
remote entry transmitter (if equipped).

Autolock (if equipped)

This feature automatically locks all vehicle doors when the following
conditions are met:

• the ignition key is in the 4 (ON) position,

• all the doors are closed,

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

85

Locks and Security

• the brake is pressed before reaching 5 mph (8 km/h), and

• the vehicle is traveling more than 5 mph (8 km/h).

Relock

The autolock feature repeats when the following conditions are met:

• the vehicle’s speed is less than 5 mph (8 km/h),

• any door is opened then closed while the ignition is in the 4 (ON)

position,

• the brake is pressed before reaching 5 mph (8 km/h), and

• the vehicle is traveling more than 5 mph (8 km/h).

To deactivate/reactivate the autolock feature using the keypad

Your vehicle comes with the autolock feature activated. To
deactivate/reactivate this feature:

1. Electronically unlock the vehicle.

2. Turn the ignition to the 3 (OFF) position.

3. Close all the doors, liftgate and cargo doors.

4. Enter the 5-digit entry code.

5. Press and hold the 7 • 8. While holding the 7 • 8, press and release

the 3 • 4.

6. Release the 7 • 8.

The horn will chirp once when the system has been successfully
deactivated.

The horn will chirp twice (one short and one long chirp) when the
system has been successfully reactivated.

To deactivate/reactivate the autolock feature using the power door
unlock control

You must complete Steps 1-7 within 30 seconds or the procedure will
have to be repeated. If the procedure needs to be repeated, you must
wait 30 seconds.

1. Insert the key and turn the ignition to the 4 (ON) position.

2. Press the power door unlock control three times.

3. Turn the ignition from the 4 (ON) position to the 3 (OFF) position.

4. Press the power door unlock control three times.

5. Turn the ignition back to the 4 (ON) position. The horn will chirp.

86

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Locks and Security

6. Press the unlock control, then press the lock control. The horn will

chirp once if autolock was deactivated or twice (one short and one long
chirp) if autolock was activated. Note: Pressing the power door
UNLOCK/LOCK button again will toggle between activating and
deactivating the autolock feature.

7. Turn the ignition to the 3 (OFF) position. The horn will chirp once to

confirm the procedure is complete.

CHILDPROOF DOOR LOCKS (IF EQUIPPED)

• When these locks are set, the
rear doors cannot be opened from
the inside.

• The rear doors can be opened
from the outside when the doors
are unlocked.

The childproof locks are located on
rear edge of each rear door and
must be set separately for each
door. Setting the lock for one door
will not automatically set the lock
for both doors.

• Move lock control up to engage
the childproof lock.

• Move lock control down to
disengage the childproof lock.

REMOTE ENTRY SYSTEM (IF EQUIPPED)

This device complies with part 15 of the FCC rules and with RS-210 of
Industry Canada. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device
must accept any interference received, including interference that may
cause undesired operation.

Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

87

Locks and Security

The typical operating range for your remote entry transmitter is
approximately 33 feet (10 meters). A decrease in operating range could
be caused by:

• weather conditions,

• nearby radio towers,

• structures around the vehicle, or

• other vehicles parked next to your vehicle.

Your vehicle is equipped with a remote entry system which allows you to:

• unlock the vehicle doors without
a key.

• lock all the vehicle doors without
a key.

• activate the personal alarm.

If there are problems with the remote entry system, make sure to take
ALL remote entry transmitters with you to the authorized dealer in
order to aid in troubleshooting the problem.

Unlocking the doors

1. Press

lamps will illuminate.

2. Press

doors.

and release to unlock the driver’s door. Note: The interior

and release again within three seconds to unlock all the

Locking the doors

1. Press

flash if all the doors are closed and locked.

2. Press

the doors are closed and locked. Note: The doors will lock again, the
horn will chirp once, and the parking lamps will flash once more.

If any of the doors are not properly closed the horn will make two quick
chirps and the parklamps will not flash.

88

and release to lock all the doors. The parking lamps will

and release again within three seconds to confirm that all

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Locks and Security

Power door lock disable feature (if equipped)

The UNLOCK
inside the vehicle when:

• the ignition has been turned to the 3 (OFF) position, and

• 20 seconds elapse after all vehicle doors are closed and locked using

the remote entry transmitter, or the power door lock control (while
the accompanying door is open).

The UNLOCK

• a door has become ajar,

• the ignition is turned to the 4 (ON) position,

• unlocking the vehicle using the keyless entry keypad,

• or using the UNLOCK

equipped).

This feature is initially deactivated, but may be activated by taking your
vehicle to an authorized dealer.

Sounding a panic alarm

Press
(ON) to deactivate.

Note: The panic alarm will only operate when the ignition is in the 2
(LOCK) or 3 (OFF) position.

to activate the alarm. Press again or turn the ignition to 4

feature on your power door locks will not work from

feature will work again after:

control on your remote entry transmitter (if

Replacing the battery

The remote entry transmitter uses one coin type three-volt lithium
battery CR2032 or equivalent.

To replace the battery:

1. Twist a thin coin between the two

halves of the remote entry
transmitter near the key ring. DO
NOT TAKE THE RUBBER COVER
AND CIRCUIT BOARD OFF THE
FRONT HOUSING OF THE
REMOTE ENTRY TRANSMITTER.

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

89

Locks and Security

2. Do not wipe off any grease on the

battery terminals on the back
surface of the circuit board.

3. Remove the old battery. Note: Please refer to local regulations when

disposing of transmitter batteries.

4. Insert the new battery. Refer to the diagram inside the remote entry

transmitter for the correct orientation of the battery. Press the battery
down to ensure that the battery is fully seated in the battery housing
cavity.

5. Snap the two halves back together.

Note: Replacement of the battery will not cause the remote transmitter
to become deprogrammed from your vehicle. The remote transmitter
should operate normally after battery replacement.

Replacing lost remote entry transmitters

If you would like to have your remote entry transmitter reprogrammed
because you lost one, or would like to buy additional remote entry
transmitters, you can either reprogram them yourself, or take all
remote entry transmitters to your authorized dealer for
reprogramming.

How to reprogram your remote entry transmitters

You must have all remote keyless entry keypads and remote entry
transmitters (maximum of four) available before beginning this

procedure.

90

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Locks and Security

To program the keyless entry
keypads remote entry transmitters
yourself:

1. Ensure the vehicle is

electronically unlocked.

2. Put the key in the ignition.

3. Turn the key from the 2 (LOCK)

position to 3 (OFF).

4. Cycle eight times rapidly (within

10 seconds) between the 3 (OFF)
position and 4 (ON). Note: The eighth turn must end in the 4 (ON)
position.

5. The doors will lock, then unlock, to confirm that the programming

mode has been activated.

6. Within 20 seconds, program the keyless entry keypad by pressing the

7 • 8 and the 9 • 0 controls at the same time.

7. The doors will lock, then unlock, to confirm that the keypad

programming mode has been activated.

8. Within 20 seconds, program the remote entry transmitter by pressing

any button on the transmitter. Note: If more than 20 seconds have
passed you will need to start the procedure over again.

9. The doors will again lock, then unlock, to confirm that this remote

entry transmitter has been programmed.

10. Repeat Step 8 to program each additional remote keypad or entry

transmitter.

11. Turn the ignition to the 3 (OFF) position after you have finished

programming all of the remote entry transmitters. Note: If more than 20
seconds have passed you will need to start the procedure over again.

12. The doors will once again lock, then unlock, to confirm that the

programming mode has been exited.

3

2

1

4

5

Illuminated entry

The interior lamps illuminate when the remote entry system is used to
unlock the door(s).

The illuminated entry system will turn off the interior lights if:

• the ignition switch is turned to the 4 (ON) position, or

• the remote transmitter lock control is pressed, or

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

91

Locks and Security

• the 7 • 8 and the 9 • 0 controls on the keyless entry keypad are
pressed, or

• after 25 seconds of illumination.

The dome lamp control (if equipped) must not be set to the off position
for the illuminated entry system to operate.

The inside lights will not turn off if:

• they have been turned on with the dimmer control, or

• any door is open.

The battery saver will shut off the interior lamps 30 minutes after the
ignition has been turned to the 3 (OFF) position, 10 minutes after if the
dome lamp is off, and 30 minutes after if the dome lamp switch is left
on.

KEYLESS ENTRY SYSTEM (IF EQUIPPED)

You can use the keyless entry
keypad to lock or unlock the doors
without using a key.

The keypad can be operated with
the factory set 5–digit entry code;
this code is located on the owner’s wallet card in the glove box, is
marked on the computer module, and is available from your authorized
dealer. You can also create your own 5–digit personal entry code.

When pressing the controls on the keypad, press the middle of the
controls to ensure a good activation.

Programming a personal entry code

To create your own personal entry code:

1. Enter the factory set code. The driver door will unlock.

2. Within five seconds press the 1 • 2 on the keypad.

3. Enter your personal 5-digit code. Each number must be entered

within five seconds of each other.

4. The doors will lock then unlock to confirm that your personal keycode

has been programmed into the module.

Tips:

• Do not set a code that uses five of the same number.

• Do not use five numbers in sequential order.

92

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Locks and Security

• The factory set code will work even if you have set your own personal
code.

• If you set a second personal code it will erase your first personal code.

Erasing personal code

1. Enter the factory set 5–digit code.

2. Within five seconds, press the 1 • 2 on the keypad and release.

3. Press and hold the 1 • 2 for two seconds. This must be done within

five seconds of completing Step 2.
Your personal code is now erased and only the factory set 5–digit code

will work.

Anti-scan feature

If an incorrect code has been entered 7 times (35 consecutive button
presses), the keypad will go into an anti-scan mode. This mode disables
the keypad for one minute and the keypad lamp will flash during this
time.

The anti-scan feature will turn off after:

• one minute of keypad inactivity.

• pressing the

• the ignition is turned to the 4 (ON) position.

Unlocking and locking the doors using keyless entry

To unlock the driver’s door, enter the factory set 5-digit code or your
personal code. Each number must be pressed within five seconds of each
other. The interior lamps will illuminate after entering a valid keypad
entry code.

To unlock all doors, press the 3 • 4 control within five seconds.
To lock all doors, press the 7 • 8 and the 9 • 0 at the same time. You

do not need to enter the keypad code first. Note: The interior lamps

will turn off.

control on the remote entry transmitter.

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

93

Seating and Safety Restraints

SEATING

Notes:

Reclining the seatback can cause an occupant to slide under the
seat’s safety belt, resulting in severe personal injuries in the

event of a collision.

Do not pile cargo higher than the seatbacks to reduce the risk of
injury in a collision or sudden stop.

Adjustable head restraints (if equipped)

The purpose of these head restraints is to help limit head motion in the
event of a rear collision. To properly adjust your head restraints, lift the
head restraint so that it is located directly behind your head or as close
to that position as possible.

The head restraints can be moved
up and down. Lift the head restraint
so that it is located directly or as
close as possible behind your head.

Push control to lower head restraint.

94

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Seating and Safety Restraints

Full bench seat (if equipped)

• Lift the release bar to move the
seat forward or backward. Ensure
that the seat is relatched into
place.

• Pull up on the lever located at
the bottom of the seatback to
quickly fold the seatback forward.

• Pull up on the lever located at
the side of the seat cushion to
recline the seatback and to return
the seat to the upright position.

40/20/40 split bench seat (if equipped)

• Lift the track release bar to move
the seat forward or backward.
Ensure the seat is relatched into
place.

• Pull the handle on the side of the
seat up to recline the seat.

• Push down the lever located at
the bottom of the seatback to
quickly fold the seatback forward.

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

95

Seating and Safety Restraints

40/20/40 front seat armrest and console (if equipped)

To release the armrest, pull forward
on the strap and pull the armrest
down.

To gain access to the storage
compartment in your armrest, lift
the latch to open the lid. The lid
cannot be opened in the upright
position.

Lift up armrest to return it to a
center seatback.

96

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Seating and Safety Restraints

Captain’s chair (if equipped)

• Lift the bar to move the seat
forward or rearward. Make sure
that the seat is relatched into
place.

• To recline the seatback, pull the
release lever handle located on
the side of the seat up.

• Push down the lever (if
equipped) located at the bottom
of the seatback to quickly fold the
seatback forward.

Adjusting the front power seat (if equipped)

The control is located on the outboard side of the seat cushion.

Your vehicle will only be equipped with one of the two controls shown.
Press to raise or lower the front

portion of the seat cushion.

• Type A

• Type B

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

97

Seating and Safety Restraints

Press to raise or lower the rear
portion of the seat cushion.

• Type A

• Type B

Press the control to move the seat
forward, backward, up or down.

• Type A

• Type B

98

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

Seating and Safety Restraints

Using the manual lumbar support

For more lumbar support, turn the
lumbar support control toward the
front of vehicle.

For less lumbar support, turn the
lumbar support control toward the
rear of vehicle.

Heated seats (if equipped)

To operate the heated seats, do the following:

• Push control to activate.

• Push again to deactivate.

The indicator light on the control will illuminate when activated.
The system will not automatically shut off unless control is pushed to

deactivate. If system is not manually terminated at last use, then system
will remain active at next ignition key cycle.

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)

99

Seating and Safety Restraints

REAR FOLDING SEAT SYSTEM WITH LOAD FLOOR (IF EQUIPPED)

The rear seatback has a split 60/40 seat. Each seat cushion can be
flipped up into the seatback position.

1. Pull down the latch lever located

on the bottom seat back to fold the
seat back forward.

2. Pull up on the lever located on

the side of the seat cushion to
rotate the cushion up until it locks
into a vertical storage position,
gaining access to the grocery hook
located on the underside of the
driver-side seat cushion. The
maximum load is 25 lb. (11 kg).

Returning the seat to seating position

• Pull lever on the side of the seat to release seat cushion from storage
position.

• Push seat cushion down until it locks into horizontal position.

Before returning the seatback to its original position, make sure

that cargo or any objects are not trapped underneath the
seatback. After returning the seatback to its original position, pull on
the seatback to ensure that it has fully latched. An unlatched seat may
become dangerous in the event of a sudden stop or collision.

100

2007 F-250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA (fus)
