FORD Explorer Sport Trac 2009 User Manual v.1

Table of Contents
Introduction 4
Instrument Cluster 12
Warning lights and chimes 12 Gauges 19
Entertainment Systems 22
How to get going 22 AM/FM stereo with CD 26 AM/FM stereo with in-dash six CD 34 Auxiliary input jack (Line in) 42 USB port 44 Satellite radio information 47 Navigation system 50 SYNC 50
Climate Controls 51
Manual heating and air conditioning 51 Automatic temperature control 53
Lights 57
Headlamps 57 Turn signal control 61 Bulb replacement 61
Driver Controls 67
Windshield wiper/washer control 67 Steering wheel adjustment 68 Power windows 73 Mirrors 76 Speed control 79 Message center 84
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
1
Table of Contents
Locks and Security 119
Keys 119 Locks 119 Anti-theft system 130
Seating and Safety Restraints 134
Seating 134 Safety restraints 144 Airbags 160 Child restraints 175
Tires, Wheels and Loading 194
Tire information 196 Tire inflation 198 Tire Pressure Monitoring System (TPMS) 211 Vehicle loading 217 Trailer towing 224 Recreational towing 229
Driving 231
Starting 231 Brakes 236 Traction Control™/AdvanceTrac 239 Transmission operation 245 Reverse sensing system 253
Roadside Emergencies 266
Getting roadside assistance 266 Hazard flasher switch 267 Fuel pump shut-off switch 268 Fuses and relays 269 Changing tires 276 Wheel lug nut torque 284 Jump starting 285 Wrecker towing 290
2
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Table of Contents
Customer Assistance 292
Reporting safety defects (U.S. only) 298 Reporting safety defects (Canada only) 299
Cleaning 300
Maintenance and Specifications 308
Engine compartment 310 Engine oil 313 Battery 318 Engine coolant 320 Fuel information 327 Air filter(s) 340 Part numbers 342 Maintenance product specifications and capacities 343 Engine data 346
Accessories 349
Index 351
All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.
Copyright © 2008 Ford Motor Company
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
3
Introduction
CONGRATULATIONS
Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it.
For more information on Ford Motor Company and its products visit the following website:
In the United States: www.ford.com
In Canada: www.ford.ca
In Australia: www.ford.com.au
In Mexico: www.ford.com.mx
Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available
and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available.
Remember to pass on this Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.
WARNING: Fuel pump shut-off switch: In the event of an
accident the safety switch will automatically cut off the fuel supply to the engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside Emergencies chapter.
4
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Introduction
SAFETY AND ENVIRONMENT PROTECTION
Warning symbols in this guide
How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.
Warning symbols on your vehicle
When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.
Protecting the environment
We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.
CALIFORNIA Proposition 65 Warning
WARNING: Engine exhaust, some of its constituents, and
certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
PERCHLORATE MATERIAL
Certain components of this vehicle such as airbag modules, seat belt pretensioners, and button cell batteries may contain Perchlorate Material – Special handling may apply for service or vehicle end of life disposal. See www.dtsc.ca.gov/hazardouswaste/perchlorate.
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
5
Introduction
BREAKING-IN YOUR VEHICLE
Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in.
Drive your new vehicle at least 1,000 miles (1,600 km) before towing a trailer. For more detailed information about towing a trailer, refer to Trailer towing in the Tires, Wheels and Loading chapter.
Do not add friction modifier compounds or special break-in oils since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage.
SPECIAL NOTICES
New Vehicle Limited Warranty
For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Guide/Customer Information Guide that is provided to you along with your Owner’s Guide.
Special instructions
For your added safety, your vehicle is fitted with sophisticated electronic controls.
WARNING: Please read the section Airbag Supplemental
Restraint System (SRS) in the Seating and Safety Restraints
chapter. Failure to follow the specific warnings and instructions could result in personal injury.
WARNING: Front seat mounted rear-facing child or infant seats
should NEVER be placed in front of an active passenger airbag.
6
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Introduction
Service Data Recording
Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle.
Event Data Recording
Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as:
how various systems in your vehicle were operating;
whether or not the driver and passenger seatbelts were buckled;
how far (if at all) the driver was depressing the accelerator and/or the
brake pedal;
how fast the vehicle was traveling; and
where the driver was positioning the steering wheel.
To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
7
Introduction
Notice to owners of pickup trucks and utility type vehicles
WARNING: Utility vehicles have a significantly higher rollover
rate than other types of vehicles.
Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of vehicle control, vehicle rollover, personal injury or death.
Notice to owners with 20 inch wheels and tires
When equipped with 20 inch wheels and tires the vehicle is designed for on-road use only and not off-road use.
Note: When first driving the vehicle after it has been parked for a period of time, you may experience a temporary ride disturbance. This is a characteristic of the tires and should be no reason for concern. The condition should correct itself within 5-15 miles (8-25 km) of driving. If the disturbance persists, have the tires serviced by an authorized dealer.
Correct tire pressure is important to payload and proper ride and handling attributes. Check your vehicle’s Safety Compliance Certification Label or Tire Label for the proper tire pressure levels.
Using your vehicle with a snowplow
Do not use this vehicle for snowplowing.
Your vehicle is not equipped with a snowplowing package.
Using your vehicle as an ambulance
Do not use this vehicle as an ambulance.
Your vehicle is not equipped with the Ford Ambulance Preparation Package.
8
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Introduction
Cell phone use
The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits.
Mobile Communication Equipment includes, but is not limited to cellular phones, pagers, portable email devices, in-vehicle communications systems, telematics devices and portable two-way radios.
WARNING: Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.
Export unique (Non–United States/Canada) vehicle specific information
For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner’s Guide. A market unique supplement may be supplied that complements this book. By referring to the market unique supplement, if provided, you can properly identify those features, recommendations and specifications that are unique to your vehicle. This Owner’s Guide is written primarily for the U.S. and Canadian Markets. Features or equipment listed as standard may be different on units built for Export. Refer to this Owner’s Guide for all other required
information and warnings.
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
9
Introduction
These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert
Fasten Safety Belt Airbag - Front
Airbag - Side
Child Seat Tether Anchor
Anti-Lock Brake System Parking Brake System
Brake Fluid ­Non-Petroleum Based
Stability Control System Speed Control
Master Lighting Switch Hazard Warning Flasher
Fog Lamps-Front Fuse Compartment
See Owner’s Guide
Child Seat Lower Anchor
Brake System
Parking Aid System
Fuel Pump Reset Windshield Wash/Wipe
Windshield Defrost/Demist
10
Rear Window Defrost/Demist
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Vehicle Symbol Glossary
Introduction
Power Windows Front/Rear
Child Safety Door Lock/Unlock
Power Window Lockout
Interior Luggage Compartment Release
Panic Alarm Engine Oil
Engine Coolant
Engine Coolant Temperature
Do Not Open When Hot Battery
Avoid Smoking, Flames, or Sparks
Battery Acid
Explosive Gas Fan Warning
Power Steering Fluid
Maintain Correct Fluid Level
Service Engine Soon Engine Air Filter
MAX
MIN
Passenger Compartment Air Filter
Check Fuel Cap
Jack
Low Tire Pressure Warning
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
11
Instrument Cluster
WARNING LIGHTS AND CHIMES
Standard instrument cluster
Optional instrument cluster
Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, refer to the respective system warning light for additional information.
Note: Some warning lights will display in the message center as words and function the same as the warning light.
Note: Depending on which options your vehicle has, some indicators may not be present in your vehicle.
12
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Instrument Cluster
Service engine soon: The service engine soon indicator light illuminates when the ignition is first turned to the on position to check the bulb and to indicate whether the vehicle is ready for Inspection/Maintenance (I/M) testing. Normally, the service engine soon light will stay on until the engine is cranked, then turn itself off if no malfunctions are present. However, if after 15 seconds the service engine soon light blinks eight times, it means that the vehicle is not ready for I/M testing. See the Readiness for Inspection/Maintenance (I/M) testing in the Maintenance and Specifications chapter.
Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and contact your authorized dealer as soon as possible.
If the light remains on while driving, the temperature of the engine may be too high; refer to Engine coolant in the Maintenance and Specifications chapter.
WARNING: Under engine misfire conditions, excessive exhaust
temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
13
Instrument Cluster
Powertrain malfunction indicator: Illuminates when a powertrain, a 4x4 or an AWD fault has been detected. Contact your authorized dealer as soon as possible.
Standard instrument cluster
Optional instrument cluster
Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the on position when the engine is not running, or in a position between on and start, or by applying the parking brake when the ignition is turned to the on position. If the brake system warning light does not illuminate at this time, contact your authorized dealer as soon as possible. Illumination after releasing the parking brake indicates low brake fluid level. Contact your authorized dealer as soon as possible.
WARNING: Driving a vehicle with the brake system warning
light on is dangerous. A significant decrease in braking performance may occur. It will take you longer to stop the vehicle. Contact your authorized dealer as soon as possible. Driving extended distances with the parking brake engaged can cause brake failure and the risk of personal injury.
Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected. Contact your authorized dealer as soon as possible. Normal braking is still functional unless the brake warning light also is illuminated.
BRAKE
P!
ABS
14
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Instrument Cluster
Airbag readiness: If this light fails to illuminate when the ignition is turned to on, continues to flash or remains on, contact your authorized dealer as soon as possible. A chime will sound if there is a malfunction in the indicator light.
Safety belt: Reminds you to fasten your safety belt. A Belt-Minder chime will also sound to remind you to fasten your safety belt. Refer to the Seating and Safety Restraints chapter to activate/deactivate the Belt-Minderchime feature,
Charging system: Illuminates when the battery is not charging properly.
Standard instrument cluster
Optional instrument cluster
Engine oil pressure: Illuminates when the oil pressure falls below the normal range. Check the oil level and add oil if needed. Refer to Engine oil in the Maintenance and Specifications chapter.
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
15
Instrument Cluster
Engine coolant temperature: Illuminates when the engine coolant temperature is high. Stop the vehicle as soon as possible, switch off the engine and let cool. Refer to Engine coolant in the Maintenance and Specifications chapter.
Standard instrument cluster
Optional instrument cluster
WARNING: Never remove the coolant reservoir cap while the
engine is running or hot.
Low tire pressure warning:
Illuminates when your tire pressure is low. If the light remains on at start up or while driving, the tire pressure should be checked. Refer to Inflating your tires in the Tires, Wheels and Loading chapter. When the ignition is first turned to on, the light will illuminate for three seconds to ensure the bulb is working. If the light does not turn on, contact your authorized dealer as soon as possible. For more information on this system, refer to Tire pressure monitoring system (TPMS) in the Tires, Wheels and Loading chapter.
Check fuel cap (if equipped): Illuminates when the fuel cap may not be properly installed. Continued driving with this light on may cause the service engine soon warning light to come on, refer to Fuel filler cap in the Maintenance and Specification chapter.
Standard instrument cluster
16
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Optional instrument cluster
Speed control: Illuminates when the speed control is activated. Turns off when the speed control system is deactivated.
Instrument Cluster
O/D off: Illuminates when the overdrive function of the transmission has been turned off; refer to the Driving chapter.
AdvanceTrac威: Flashes when the AdvanceTracwith RSCsystem is active. Illuminates solid when the system has been disabled (by the driver or as a result of a system failure); refer to the Driving chapter for more information.
If “SERVICE RSC NOW” is displayed in the message center, refer to Message Center in the Driver Controls chapter for more information.
Four wheel drive low (if equipped): Illuminates when
four-wheel drive low is engaged. If the light fails to illuminate when the ignition is turned on, or remains on, contact your authorized dealer as soon as possible.
Four wheel drive high (if equipped): Illuminates when
four-wheel drive is engaged. If the light fails to illuminate when the ignition is turned on, or remains on, contact your authorized dealer as soon as possible.
O/D
OFF
4x4
LOW
4x4
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
17
Instrument Cluster
Door ajar: Illuminates when the ignition is in the on position and any door is open.
Low fuel (if equipped):
Illuminates when the fuel level in the fuel tank is at or near empty (refer to Fuel gauge in this chapter).
Low washer fluid (if equipped):
Illuminates when the windshield washer fluid is low.
Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb.
High beams: Illuminates when the high beam headlamps are turned on.
Key-in-ignition warning chime: Sounds when the key is left in the ignition in the off or accessory position and the driver’s door is opened.
Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened.
Turn signal warning chime: Sounds when the turn signal lever has been activated to signal a turn and not turned off after the vehicle is driven more than 2 miles (3.2 km).
Parking brake on warning chime: Sounds when the parking brake is set, the engine is running and the vehicle is driven more than 3 mph (5 km/h).
Message center activation chime: Sounds when the following warnings; DOOR AJAR, LOW FUEL LEVEL or LOW TIRE PRESSURE appear in the message center display for the first time.
18
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Instrument Cluster
GAUGES
Speedometer: Indicates the current vehicle speed.
Engine coolant temperature gauge: Indicates engine coolant
temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating; refer to
Engine coolant in the Maintenance and Specifications chapter. Stop the vehicle as soon as
safely possible, switch off the engine and let the engine cool.
WARNING: Never remove the coolant reservoir cap while the
engine is running or hot.
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
19
Instrument Cluster
Odometer: Registers the total miles (kilometers) of the vehicle.
Standard instrument cluster
Optional instrument cluster
Refer to Message center in the Driver Controls chapter on how to
switch the display from English to Metric.
Trip odometer: Registers the miles (kilometers) of individual journeys.
Standard instrument cluster Press the SELECT/RESET control
once to switch from the odometer to the TRIP A feature. Press the control again to select the TRIP B feature. To reset the trip, press and hold the control again until the trip reading is 0.0 miles.
Optional instrument cluster Press and release the message
center INFO button until TRIP A mode appears in the display. Press the control again to select the TRIP B feature. Press the RESET button to reset.
Note: Outside air temperature will only be displayed in the instrument cluster message center on vehicles with manual climate control.
20
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Instrument Cluster
Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.
Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the on position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade.
Refer to Filling the tank in the
Maintenance and Specifications
chapter for more information. The FUEL icon and arrow indicates which side of the vehicle the fuel
door is located.
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
21
Entertainment Systems
AUDIO SYSTEMS Quick start — How to get going
WARNING: Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The drivers primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.
Listening to the radio
1. If the audio system is off, press VOL-PUSH to turn the radio on. Turn VOL-PUSH to adjust the volume.
Note: The system may take a few moments to turn on.
2. Press AM/FM repeatedly to choose between AM/FM1/FM2 frequency bands.
3. Press up/down the frequency band.
/ to manually go
Press down/up the chosen frequency band
for the next strongest station. To disengage SEEK mode,
press
4. Once you are tuned to the desired station, press and hold a memory preset (1–6) to save the station. PRESET SAVED will appear on the display and the sound will return signifying the station has been saved. You can save up to six stations in each frequency band — six in AM, six in FM1 and six in FM2.
To access your saved stations, press the corresponding memory preset. The memory preset # and the station frequency will appear on the display.
22
SEEK to search
/ .
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Entertainment Systems
Listening to satellite radio (if equipped)
1. If the audio system is turned off, press VOL-PUSH to turn the radio on. Turn VOL-PUSH to adjust the volume.
Note: The system may take a few moments to turn on.
2. Press AUX repeatedly to cycle through auxiliary audio sources. Select SAT1, SAT2 or SAT3 to listen to satellite radio.
3. Press access the previous or next satellite
channel. You may also seek by music
category. For further information, refer to CATEGORY listing under the MENU control on your specific audio system.
4. Once you are tuned to the desired channel, press and hold a memory preset (1–6) to save the channel. PRESET SAVED will appear on the display and the sound will return signifying the station has been saved. You can save up to six channels in each — six in SAT1, six in SAT2, and six in SAT3.
To access your saved channels, press the corresponding memory preset. The memory preset # and the channel name will appear on the display.
SEEK, SEEK to
Listening to a CD/MP3 (if equipped)
1. If the audio system is turned off, press VOL-PUSH to turn the radio on. Turn VOL-PUSH to adjust the volume.
Note: The system may take a few moments to turn on.
2. Press CD to enter CD mode. If a disc is already loaded into the system, CD play will begin where it ended last.
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
23
Entertainment Systems
For a single CD system, if a disc is not already loaded, insert only one, label side up into the CD slot. LOADING CD and READING DISC will appear in the display. The first track on the disc will begin playing.
For an in-dash six CD system, if a disc is not already loaded, press LOAD. Select a slot number using memory presets 1–6. When the display reads LOAD CD#, load the desired disc, label side up. If you do not choose a slot within five seconds, the system will choose for you. Once loaded, the first track will begin to play. To auto load up to six discs, press and hold LOAD until the display reads AUTOLOAD#. Load the desired disc, label side up. The system will prompt you to load discs for the remaining available slots. Insert the discs, one at a time, label side up, when prompted. Once loaded, the last loaded disc will begin to play.
Note: An MP3 disc with folders will show F001 (folder #) T001 (track #) in the display. An MP3 disc without folders will show T001 (track#) in the display. Refer to MP3 track and folder structure later in this chapter for further information.
3. In CD/MP3 mode, you can access the following features:
Press access the previous/next tracks.
SEEK, SEEK to
Press and hold REW to manually reverse in a CD/MP3 track.
Press and hold FF to manually advance in a CD/MP3 track.
While in folder mode, press FOLDER to access the previous folder on MP3 discs, if available.
While in folder mode, press FOLDER folder on MP3 discs, if available.
24
to access the next
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Entertainment Systems
Press SHUFFLE to engage shuffle mode. SHUFFLE ON will appear in the display. If you wish to engage shuffle mode right away, press SEEK to begin random play. Otherwise, random play will begin when the current track is finished playing. CD SHUF will appear in the display. To disengage, press SHUFFLE again. SHUFFLE OFF will appear in the display.
Note: In track mode, all tracks on the current disc will shuffle in random order. In MP3 folder mode, the system will randomly play all tracks within the current folder.
Press CD/MP3 is playing to pause the disc.
CD PAUSE will appear in the display. Press again to resume play.
4. For a single CD system, press The display will read CD EJECT.
For an in-dash six CD system,
press correct slot number using memory presets 1–6. When ready, the system will eject the disc and the display will read REMOVE CD. If the disc is not removed in 15 seconds, the system will reload the disc. To auto eject up to six discs, press and hold begins ejecting all loaded discs. If the discs are not removed, the system will reload the discs.
/ (play/pause) when a
to eject the current disc.
and then select the
until the system
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
25
Entertainment Systems
AM/FM Single CD/MP3 satellite compatible sound system (if equipped)
WARNING: Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.
Accessory delay: Your vehicle is equipped with accessory delay. With this feature, the window switches, radio and moon roof (if equipped) may be used for up to ten minutes after the ignition is turned off or until either front door is opened.
/ (Tuner): Press to
1. manually go up or down the radio
frequency. Also use in menu mode to select various settings.
In satellite radio mode (if equipped), press next/previous channel.
26
/ to tune to the
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Entertainment Systems
In CATEGORY MODE, press / to scroll through the list of available SIRIUS channel Categories (Pop, Rock, News, etc.). Refer to
Category Mode under Menu for further information. Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability.
(Phone): If your vehicle is
2. equipped with SYNC, press to access SYNC PHONE features. Refer to the SYNC supplement for further information. If your vehicle is not equipped with SYNC, the display will read NO PHONE.
3. MENU: Press repeatedly to access the following settings:
SATELLITE RADIO MENU (if equipped): Press MENU when satellite radio mode is active to access. Press OK to enter into the satellite radio
menu. Press
/ to cycle through the following options:
CATEGORY: Press OK to enter category mode. Press scroll through the list of available SIRIUS channel Categories (Pop,
Rock, News, etc.) Press OK when the desired category appears in the display. After a category is selected, press SEEK to search for that specific category of channels only (i.e. ROCK). You may also select CATEGORY ALL to seek all available SIRIUS categories and channels. Press OK to close and return to the main menu.
SAVE SONG: Press OK to save the currently playing song’s title in the system’s memory. (If you try to save something other than a song, CANT SAVE will appear in the display.) When the chosen song is playing on any satellite radio channel, the system will alert you with an audible prompt. Press OK while SONG ALERT is in the display and the system will take you to the channel playing the desired song. You can save up to 20 song titles. If you attempt to save more than 20 titles, the display will read REPLACE SONG? Press OK to access the
saved titles and press the song appears in the display that you would like to replace, press
OK. SONG REPLACED will appear in the display.
/ to cycle through the saved titles. When
/ to
27
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Entertainment Systems
DELETE SONG: Press OK to delete a song from the system’s memory. Press song appears in the display that you would like to delete, press OK.
The song will appear in the display for confirmation. Press OK again and the display will read SONG DELETED. If you do not want to
delete the currently listed song, press RETURN or CANCEL.
Note: If there are no songs presently saved, the display will read NO SONGS.
DELETE ALL SONGS: Press OK to delete all songs from the system’s memory. The display will read ARE YOU SURE ? Press OK to confirm deletion of all saved songs and the display will read ALL DELETED. Note: If there are no songs presently saved, the display will read NO SONGS.
ENABLE ALERTS / DISABLE ALERTS: Press OK to enable/disable the satellite alert status which alerts you when your selected songs are playing on a satellite radio channel. (The system default is disabled.) SONG ALERTS ENABLED/DISABLED will appear in the display. The menu listing will display the opposite state. For example, if you have chosen to enable the song alerts, the menu listing will read DISABLE as the alerts are currently on, so your other option is to turn them off.
Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.
Setting the clock: Press MENU until SET HOURS or SET MINUTES is displayed. Use again to disengage clock mode. Press OK to close and return to the main
menu. AUTOSET: Press MENU until the display reads AUTOSET. Autoset
allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. Use turn on/off.
When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. Press OK to close and return to the main menu.
RBDS: Available only in FM mode. This feature allows you to search RBDS-equipped stations for a certain category of music format: CLASSIC, COUNTRY, INFORM, JAZZ/RB, ROCK, etc.
/ to cycle through the saved songs. When the
/ to select either
/ to manually increase/decrease. Press MENU
/ to
28
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Entertainment Systems
To activate, press MENU repeatedly until RBDS (ON/OFF) appears in the display. Use RBDS is OFF, you will not be able to search for RBDS equipped stations
or view the station name or type. Press OK to close and return to the main menu.
To search for specific RBDS music categories: When the desired category appears in the display, press
then press and release begin the search.
To view the station name or type: When the desired category appears in the display, press TEXT/SCAN to toggle between displaying the station type (COUNTRY, ROCK, etc.) or the station name (WYCD, WXYT, etc.).
BASS: Press MENU to reach the bass setting. Use Press OK to close and return to the main menu.
TREB (Treble): Press MENU to reach the treble setting. Use to adjust. Press OK to close and return to the main menu. Press OK to
close and return to the main menu.
BAL (Balance): Press MENU to reach the balance setting. Use to adjust the audio between the left (L) and right (R) speakers. Press
OK to close and return to the main menu.
FADE: Press MENU to reach the fade setting. Use audio between the back (B) and front (F) speakers. Press OK to close
and return to the main menu. SPEED VOL (Speed sensitive volume, if equipped): Press MENU to
reach the SPEEDVOL setting. Radio volume automatically gets louder with increasing vehicle speed to compensate for road and wind noise.
Use
The default setting is off; increasing your vehicle speed will not change the volume level.
Adjust 1–7: Increasing this setting from 1 (lowest setting) to 7 (highest setting) allows the radio volume to automatically change slightly with vehicle speed to compensate for road and wind noise.
Recommended level is 1–3; SPEED OFF turns the feature off and level 7 is the maximum setting.
/ to adjust. Press OK to close and return to the main menu.
/ / SEEK to toggle RBDS ON/OFF. When
/ to find the desired type,
SEEK, SEEK or press and hold SCAN to
/ to adjust.
/
/
/ to adjust the
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
29
Entertainment Systems
TRACK/FOLDER MODE: Available only on MP3 discs in CD mode. In track mode, press the disc In folder mode, press within the selected folder. Press available).
Press OK to close and return to the main menu. COMPRESS (Compression): Available only in CD/MP3 mode. Press
MENU until COMPRESS ON/OFF appears in the display. Use is ON, the system will bring the soft and loud CD passages together for a
more consistent listening level. Press OK to close and return to the main menu.
SINGLE PLAY/DUAL PLAY (if equipped): If SINGLE PLAY is ON, press Play/Dual Play, please refer to the Family Entertainment DVD system
later in this chapter.
4. AUX: Press repeatedly to cycle
through FES/DVD (if equipped), LINE IN (auxiliary audio mode), SYNC (if equipped) and SAT1, SAT2 and SAT3 modes (satellite radio, if equipped). For location and further information on auxiliary audio mode, refer to
Auxiliary input jack later in this chapter. Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.
If your vehicle is equipped with a Family Entertainment System (FES) please refer to the Family Entertainment DVD system later in this chapter.
If your vehicle is equipped with SYNC, please refer to the SYNC supplement for further information.
5. SEEK: In radio mode,
press previous/next strong station.
In CD mode, press access the previous/next CD track.
FOLDER, FOLDER to access the previous/next folder (if
/ / SEEK, SEEK to toggle ON/OFF. When COMPRESS
/ for DUAL PLAY. For further information on Single
/ to access the
SEEK, SEEK to scroll through all tracks on
SEEK, SEEK to scroll through tracks
/ to
30
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Entertainment Systems
In satellite radio mode (if equipped), press SEEK, SEEK to seek to the previous/next channel. If a specific category is selected, (Jazz, Rock, News, etc.), press
previous/next channel in the selected category. Press and hold SEEK to fast seek through the previous /next channels.
In TEXT MODE, press previous/additional display text. In CATEGORY MODE, press
Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability.
/ OK(Play/Pause): This
6.
control is operational in CD and DVD mode (if equipped). When a CD or DVD is playing in the FES system, press this control to play or pause the current CD or DVD. The CD/DVD status will display in the radio display. OK: Your vehicle may be equipped with special phone and media features which will require you to confirm commands by pressing OK. For further information, refer to the SYNC supplement.
If your vehicle is equipped with a Family Entertainment System (FES) please refer to the Family Entertainment DVD system later in this chapter.
7. SHUFFLE: Press SHUFFLE to
engage shuffle mode. SHUFFLE ON will appear in the display. If you wish to engage shuffle mode right away, press SEEK to begin random play. Otherwise, random play will begin when the current track is finished playing. CD SHUF will appear in the display. To disengage, press SHUFFLE. SHUFFLE OFF will appear in the display.
Note: In track mode, all tracks on the current disc will shuffle in random order. In MP3 folder mode, the system will randomly play all tracks within the current folder.
8. FOLDER
press FOLDER to access next folder on MP3 discs, if available.
: In folder mode,
SEEK, SEEK to seek to the
SEEK,
SEEK, SEEK to view the
SEEK, SEEK to select a category.
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
31
Entertainment Systems
9. FOLDER: In folder mode,
press previous folder on MP3 discs, if available.
10. FF (Fast forward): Press FF
to manually advance in a CD/MP3 track.
11. REW (Rewind): Press REW to
manually reverse in a CD/MP3 track.
12. Memory presets: To set a
station, select the desired frequency band, AM, FM1 or FM2. Tune to the desired station. Press and hold a preset button until sound returns and PRESET # SAVED appears in the display. You can save up to 18 stations, six in AM, six in FM1 and FM2.
In satellite radio mode (if equipped), there are 18 available presets, six each for SAT1, SAT2 and SAT3. To save satellite channels in your memory presets, tune to the desired channel then press and hold a preset control until sound returns.
Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.
13. TEXT/SCAN: In radio and
CD/MP3 mode, press and hold for
a brief sampling of radio stations or CD tracks. Press again to stop. In MP3 mode, press and release to display track title, artist name, and disc title.
In satellite radio mode (if equipped), press and release to enter TEXT MODE and display the current song title. While in TEXT MODE, press again to scroll through the current song title, artist, channel category and the SIRIUS long channel name.
In TEXT MODE, sometimes the display requires additional text to be displayed. When the “>” indicator is active, press SEEK
additional display text. When the “<” indicator is active, press SEEK to view the previous display text.
FOLDER to access the
to view the
32
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Entertainment Systems
In satellite radio mode (if equipped), press and hold to hear a brief sampling of the next channels. Press again to stop. In CATEGORY MODE, press SCAN to hear a brief sampling of the channels in the selected category. Press again to stop.
Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.
14. AM/FM: Press to select
AM/FM1/FM2 frequency band.
15. ON/OFF/Volume: Press to turn
ON/OFF. Turn to increase/decrease volume.
Note:If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.
16. CD: Press to enter CD/MP3
mode. If a CD/MP3 is already loaded into the system, CD/MP3 play will begin where it ended last. If no CD is loaded, NO DISC will appear in the display.
17.
CD.
(CD eject): Press to eject a
18. CD slot: Insert a CD label side
up in the CD slot.
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
33
Entertainment Systems
Audiophile AM/FM in-dash six CD/MP3 satellite compatible sound system (if equipped)
WARNING: Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.
Accessory delay: Your vehicle is equipped with accessory delay. With this feature, the window switches, radio and moon roof (if equipped) may be used for up to ten minutes after the ignition is turned off or until either front door is opened.
/ (Tune/Disc selector):
1. In radio mode, press to manually go up frequency. Press and hold for a fast
advance through radio frequencies.
In menu mode, use to select various settings. In CD/MP3 mode, press to select the desired disc.
34
or down the radio
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Entertainment Systems
In satellite radio mode (if equipped), press / to tune to the next/previous channel. In CATEGORY MODE, press available SIRIUS channel Categories (Pop, Rock, News, etc.). Refer to
Category Mode under Menu for further information. Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.
2.
(Phone): If your vehicle is equipped with SYNC, press to access SYNC PHONE features. For further information, please refer to the SYNC supplement. If your vehicle is not equipped with SYNC, the display will read NO PHONE.
3. MENU: Press repeatedly to access the following settings:
SATELLITE RADIO MENU (if equipped): Press MENU when satellite radio mode is active to access. Press OK to enter into the satellite radio
menu. Press
CATEGORY: Press OK to enter category mode. Press / to
scroll through the list of available SIRIUS channel Categories (Pop, Rock, News, etc.) Press OK when the desired category appears in the display. After a category is selected, press SEEK to search for that specific category of channels only (i.e. ROCK). You may also select CATEGORY ALL to seek all available SIRIUS categories and channels. Press OK to close and return to the main menu.
SAVE SONG: Press OK to save the currently playing song’s title in
the system’s memory. (If you try to save something other than a song, CANT SAVE will appear in the display.) When the chosen song is playing on any satellite radio channel, the system will alert you with an audible prompt. Press OK while SONG ALERT is in the display and the system will take you to the channel playing the desired song. You can save up to 20 song titles. If you attempt to save more than 20 titles, the display will read REPLACE SONG? Press OK to access the
saved titles and press the song title appears in the display that you would like to replace,
press OK. SONG REPLACED will appear in the display.
/ to cycle through the following options:
/ to scroll through the list of
/ to cycle through the saved titles. When
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
35
Entertainment Systems
DELETE SONG: Press OK to delete a song from the system’s
memory. Press song appears in the display that you would like to delete, press OK.
The song will appear in the display for confirmation. Press OK again and the display will read SONG DELETED. If you do not want to
delete the currently listed song, press RETURN or CANCEL.
Note: If there are no songs presently saved, the display will read NO SONGS.
DELETE ALL SONGS: Press OK to delete all songs from the
system’s memory. The display will read ARE YOU SURE ? Press OK to confirm deletion of all saved songs and the display will read ALL DELETED. Note: If there are no songs presently saved, the display will read NO SONGS.
ENABLE ALERTS / DISABLE ALERTS: Press OK to enable/disable
the satellite alert status which alerts you when your selected songs are playing on a satellite radio channel. (The system default is disabled.) SONG ALERTS ENABLED/DISABLED will appear in the display. The menu listing will display the opposite state. For example, if you have chosen to enable the song alerts, the menu listing will read DISABLE as the alerts are currently on, so your other option is to turn them off.
Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.
Setting the clock: Press MENU until SET HOURS or SET MINUTES is displayed. Use again to disengage clock mode. Press OK to close and return to the main
menu. AUTOSET: Press MENU until the display reads AUTOSET. Autoset
allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2.
Use When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. Press OK to close and return to the main menu.
/ / SEEK, SEEK to turn on/off.
/ to cycle through the saved songs. When the
/ to select either
/ to manually increase/decrease. Press MENU
36
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Entertainment Systems
RBDS: Available only in FM mode. This feature allows you to search RBDS-equipped stations for a certain category of music format: CLASSIC, COUNTRY, INFORM, JAZZ/RB, ROCK, etc. To activate, press MENU repeatedly until RBDS (ON/OFF) appears in
the display. Use RBDS is OFF, you will not be able to search for RBDS equipped stations
or view the station name or type. Press OK to close and return to the main menu.
To search for specific RBDS music categories: When the desired category appears in the display, press
then press and release begin the search.
To view the station name or type: When the desired category appears in the display, press TEXT/SCAN to toggle between displaying the station type (COUNTRY, ROCK, etc.) or the station name (WYCD, WXYT, etc.).
BASS: Press MENU to reach the bass setting. Use Press OK to close and return to the main menu.
TREB (Treble): Press MENU to reach the treble setting. Use to adjust. Press OK to close and return to the main menu.
BAL (Balance): Press MENU to reach the balance setting. Use to adjust the audio between the left (L) and right (R) speakers. Press
OK to close and return to the main menu.
FADE: Press MENU to reach the fade setting. Use audio between the back (B) and front (F) speakers. Press OK to close
and return to the main menu. SPEED VOL (Speed sensitive volume, if equipped): Press MENU to
reach the SPEEDVOL setting. Radio volume automatically gets louder with increasing vehicle speed to compensate for road and wind noise.
Use
The default setting is off; increasing your vehicle speed will not change the volume level.
Adjust 1–7: Increasing this setting from 1 (lowest setting) to 7 (highest setting) allows the radio volume to automatically change slightly with vehicle speed to compensate for road and wind noise.
Recommended level is 1–3; SPEED OFF turns the feature off and level 7 is the maximum setting.
/ to adjust. Press OK to close and return to the main menu.
/ / SEEK to toggle RBDS ON/OFF. When
/ to find the desired type,
SEEK, SEEK or press and hold SCAN to
/ to adjust.
/
/
/ to adjust the
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
37
Entertainment Systems
TRACK/FOLDER MODE: Available only on MP3 discs in CD mode. In track mode, press the disc In folder mode, press within the selected folder. Press available).
Press OK to close and return to the main menu.
COMPRESS (Compression): Available only in CD/MP3 mode. Press MENU until COMPRESS ON/OFF appears in the display.
Use
is ON, the system will bring the soft and loud CD passages together for a more consistent listening level. Press OK to close and return to the main menu.
FOLDER, FOLDER to access the previous/next folder (if
/ / SEEK, SEEK to toggle ON/OFF. When COMPRESS
SEEK, SEEK to scroll through all tracks on
SEEK, SEEK to scroll through tracks
ALL SEATS (Occupancy mode): Use sound for ALL SEATS, DRIVERS SEAT or REAR SEATS. Press OK to
close and return to the main menu.
SINGLE PLAY/DUAL PLAY (if equipped): If SINGLE PLAY is ON, press Play/Dual Play, please refer to the Family Entertainment DVD system
later in this chapter.
4. AUX: Press repeatedly to cycle through FES/DVD (if equipped), LINE IN (auxiliary audio mode), SYNC (if equipped) and SAT1, SAT2 and SAT3 modes (satellite radio, if equipped). For location and further information on auxiliary audio mode, refer to
Auxiliary input jack later in this chapter. Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.
If your vehicle is equipped with a Family Entertainment System (FES) please refer to the Family Entertainment DVD system later in this chapter.
If your vehicle is equipped with the SYNC, please refer to the SYNC supplement for further information.
38
/ for DUAL PLAY. For further information on Single
/ to select and optimize
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
5. SEEK: In radio and CD/MP3 mode, press to access the previous
) or next ( ) strong station
( or track.
Entertainment Systems
In satellite radio mode (if equipped), press the previous/next channel. If a specific category is selected, (Jazz, Rock, News, etc.), press
channel in the selected category. Press and hold fast seek through the previous /next channels. In TEXT MODE, press previous/additional display text. In CATEGORY MODE, press
Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability.
/ OKPlay/Pause: This
6. control is operational in CD and
DVD mode (if equipped). When a CD or DVD is playing in the FES system, press this control to play or pause the current CD/DVD. The CD/DVD status will display in the radio display. OK: Your vehicle may be equipped with special phone and media features which will require you to confirm commands by pressing OK. For further information, refer to the SYNC supplement.
If your vehicle is equipped with a Family Entertainment System (FES) please refer to the Family Entertainment DVD system later in this chapter.
7. SHUFFLE: Press SHUFFLE to engage shuffle mode. SHUFFLE ON will appear in the display. If you wish to engage shuffle mode right away, press SEEK to begin random play. Otherwise, random play will begin when the current track is finished playing. CD SHUF will appear in the display. To disengage, press SHUFFLE. SHUFFLE OFF will appear in the display.
Note: In track mode, all tracks on the current disc will shuffle in random order. In MP3 folder mode, the system will randomly play all tracks within the current folder.
SEEK, SEEK to seek to the previous/next
SEEK, SEEK to view the
SEEK to select a category.
SEEK to seek to
SEEK, SEEK to
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
39
Entertainment Systems
8. FOLDER : In folder mode, press FOLDER
folder on MP3 discs, if available.
FOLDER: In folder mode,
9. press FOLDER to access the
previous folder on MP3 discs, if available.
10. FF (Fast forward): Press FF to manually advance in a CD.
11. REW (Rewind): Press REW to manually reverse in a CD/MP3 track.
12. Memory presets: To set a station, select the desired frequency band, AM, FM1 or FM2. Tune to the desired station. Press and hold a preset button until sound returns and PRESET # SAVED appears in the display. You can save up to 18 stations, six in AM, six in FM1 and FM2.
In satellite radio mode (if equipped), there are 18 available presets, six each for SAT1, SAT2 and SAT3. To save satellite channels in your memory presets, tune to the desired channel then press and hold a preset control until sound returns.
Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.
13. TEXT/SCAN: In radio and CD/MP3 mode, press and hold for
a brief sampling of radio stations or CD tracks. Press again to stop. In MP3 mode, press and release to display track title, artist name, and disc title.
In satellite radio mode (if equipped), press and release to enter TEXT MODE and display the current song title. While in TEXT MODE, press again to scroll through the current song title, artist, channel category and the SIRIUS long channel name. Press and hold to hear a brief sampling of the next channels. Press again to stop. In CATEGORY MODE, press SCAN to hear a brief sampling of the channels in the selected category. Press again to stop.
to access next
40
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Entertainment Systems
Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.
In TEXT MODE, sometimes the display requires additional text to be displayed. When the “>” indicator is active, press SEEK
additional display text. When the “<” indicator is active, press to view the previous display text.
14. AM/FM: Press to select AM/FM1/FM2 frequency band.
15. ON/OFF/Volume: Press to turn ON/OFF. Turn to increase/decrease volume.
Note:If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.
16. CD: Press to enter CD mode. If a disc is already loaded into the system, CD/MP3 play will begin where it ended last. If no CD is loaded, NO DISC will appear in the display.
17. LOAD: Toloadadiscintothe system, press LOAD. Select a slot number using memory presets 1–6. When the display reads LOAD CD#, load the desired disc, label side up. If you do not choose a slot within five seconds, the system will choose for you. Once loaded, the first track will begin to play. To auto load up to 6 discs, press and hold LOAD until the display reads AUTOLOAD#. Load the desired disc, label side up. The system will prompt you to load discs for the remaining available slots. Insert the discs, one at a time, label side up, when prompted. Once loaded, the last loaded disc will begin to play.
Note: An MP3 formatted disc with folders will show F001 (folder #) T001 (track #) in the display. An MP3 disc without folders will show T001 (track#) in the display. Refer to MP3 track and folder structure later in this chapter for further information.
to view the
SEEK
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
41
Entertainment Systems
18. (CD eject): To eject a disc from the system, press
the correct slot number using memory presets 1–6. When ready, the system will eject the disc and the display will read REMOVE CD. If the disc is not removed in 15 seconds, the system will reload the disc. If there is only one disc present in the system, press
To auto eject up to 6 CDs, press and hold ejecting a loaded disc. Remove the disc and the next slot will be ejected. If the ejected disc is not removed from the slot, the system will reload the disc and cancel the auto eject function.
19. CD slot: When prompted by the system, insert a CD label side up.
Auxiliary input jack (Line in)
WARNING: Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.
. Select
.
until the system begins
The Auxiliary Input Jack provides a way to connect your portable music player to the in-vehicle audio system. This allows the audio from a portable music player to be played through the vehicle speakers with high fidelity. To achieve optimal performance, please observe the following instructions when attaching your portable music device to the audio system. If your vehicle is equipped with a navigation system, refer to Auxiliary
input jack section in the Audio features chapter of your Navigation system supplement.
Required equipment:
1. Any portable music player designed to be used with headphones
42
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Entertainment Systems
2. An audio extension cable with stereo male 1/8 in. (3.5 mm) connectors at each end
To play your portable music player using the auxiliary input jack:
1. Begin with the vehicle parked and the radio turned off.
2. Ensure that the battery in your portable music player is new or fully charged and that the device is turned off.
3. Attach one end of the audio extension cable to the headphone output of your player and the other end of the audio extension cable to the AIJ in your vehicle.
4. Turn the radio on, using either a tuned FM station or a CD loaded into the system. Adjust the volume to a comfortable listening level.
5. Turn the portable music player on and adjust the volume to 1/2 the volume.
6. Press AUX on the vehicle radio repeatedly until LINE, LINE IN or SYNC LINE IN appears in the display. You should hear audio from your portable music player although it may be low.
7. Adjust the sound on your portable music player until it reaches the level of the FM station or CD by switching back and forth between the AUX and FM or CD controls.
Troubleshooting:
1. Do not connect the audio input jack to a line level output. Line level outputs are intended for connection to a home stereo and are not compatible with the AIJ. The AIJ will only work correctly with devices that have a headphone output with a volume control.
2. Do not set the portable music player’s volume level higher than is necessary to match the volume of the CD or FM radio in your audio system as this will cause distortion and will reduce sound quality. Many portable music players have different output levels, so not all players should be set at the same levels. Some players will sound best at full volume and others will need to be set at a lower volume.
3. If the music sounds distorted at lower listening levels, turn the portable music player volume down. If the problems persists, replace or recharge the batteries in the portable music player.
4. The portable music player must be controlled in the same manner when it is used with headphones as the AIJ does not provide control (play, pause, etc.) over the attached portable music player.
5. For safety reasons, connecting or adjusting the settings on your portable music player should not be attempted while the vehicle is
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
43
Entertainment Systems
moving. Also, the portable music player should be stored in a secure location, such as the center console or the glove box, when the vehicle is in motion. The audio extension cable must be long enough to allow the portable music player to be safely stored while the vehicle is in motion.
USB port (if equipped)
WARNING: Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.

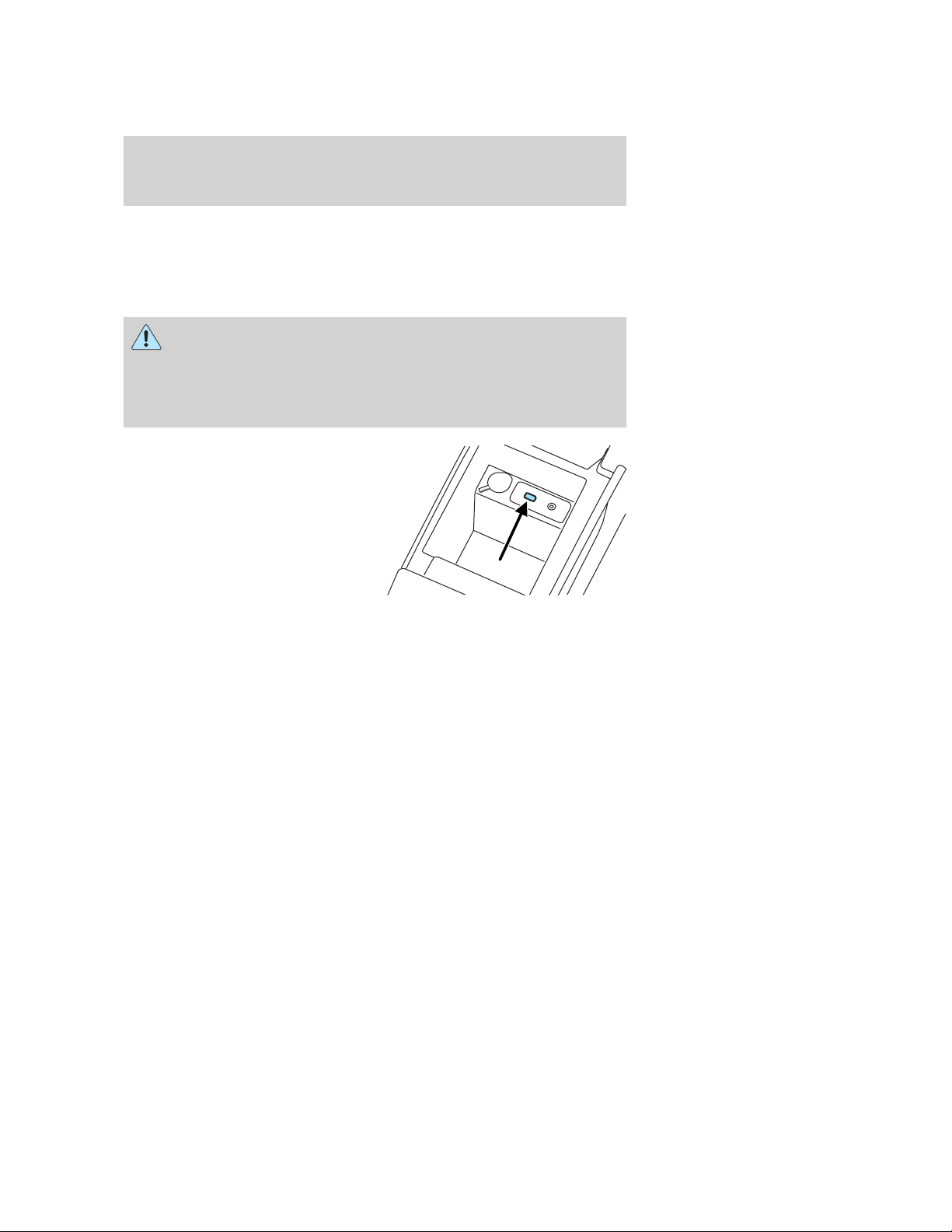

Your vehicle may be equipped with a USB port inside your center console. This feature allows you to plug in media playing devices, memory sticks, and also to charge devices if they support this feature. For further information on this feature, refer to Accessing and using your USB port in the SYNC supplement or Navigation system supplement.
GENERAL AUDIO INFORMATION
Radio frequencies:
AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are:
AM: 530, 540–1700, 1710 kHz FM: 87.7, 87.9–107.7, 107.9 MHz
Radio reception factors:
There are three factors that can affect radio reception:
Distance/strength: The further you travel from an FM station, the weaker the signal and the weaker the reception.
Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception.
Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.
44
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Entertainment Systems

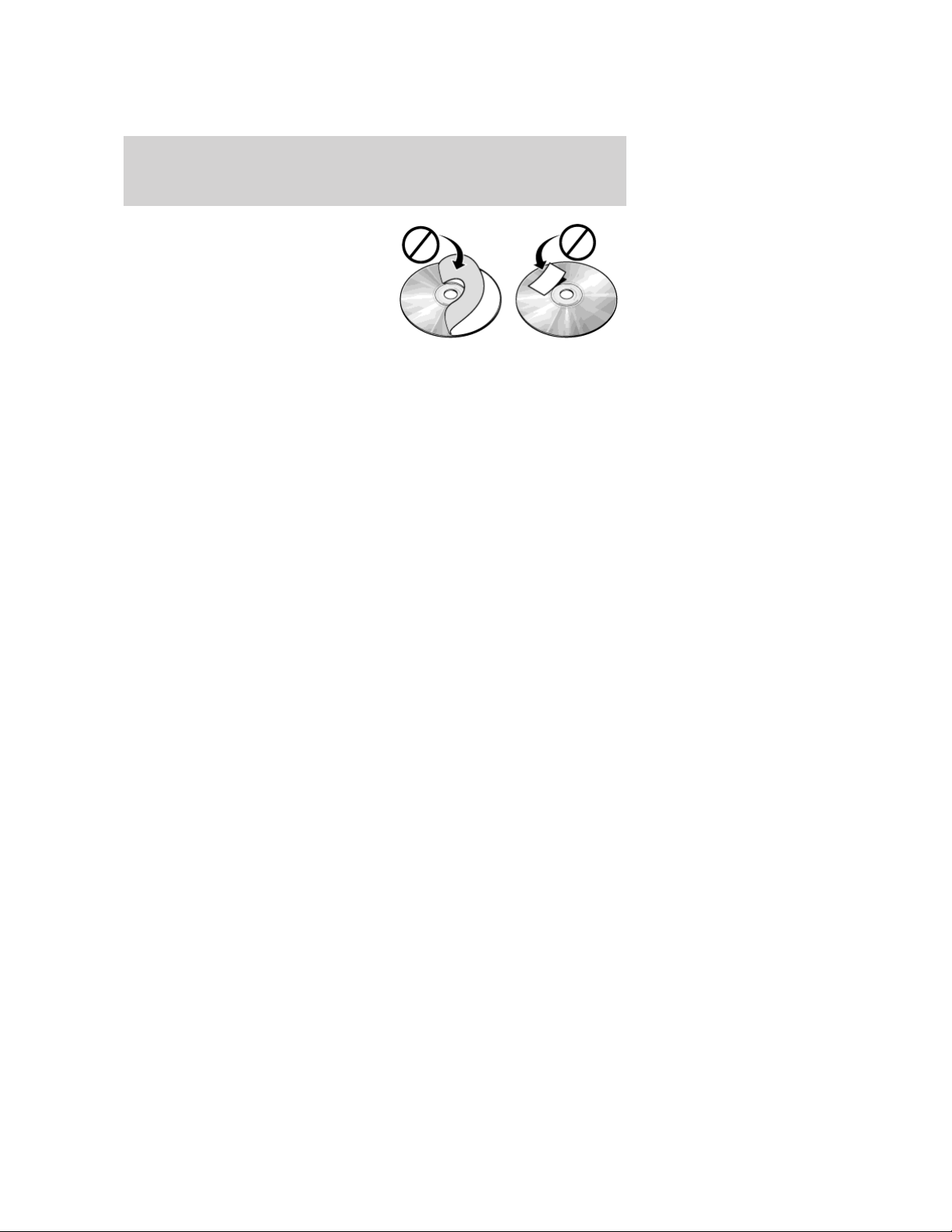

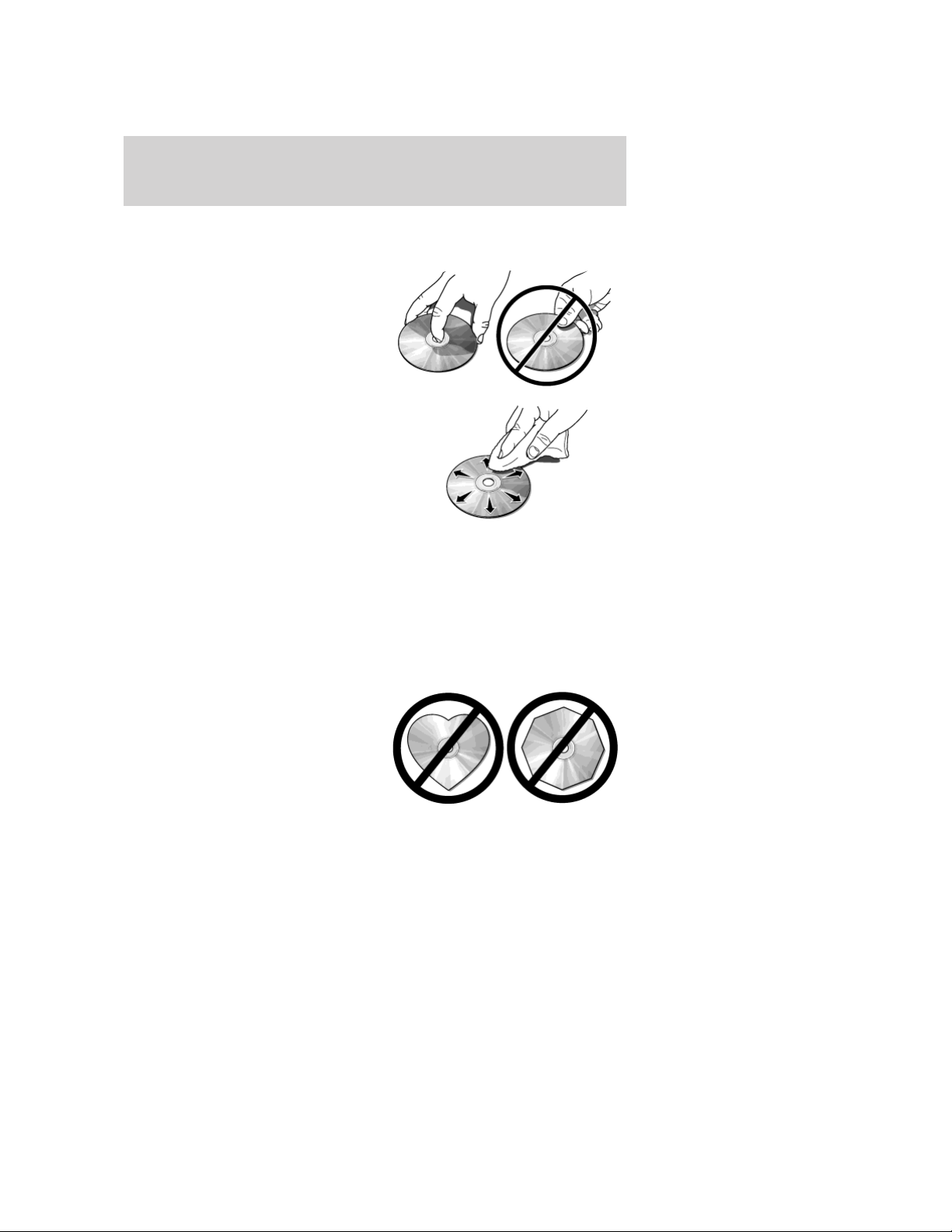

CD/CD player care
Do:
Handle discs by their edges only. (Never touch the playing surface).
Inspect discs before playing.
Clean only with an approved CD
cleaner.
Wipe discs from the center out.
Don’t:
Expose discs to direct sunlight or heat sources for extended periods of time.
Clean using a circular motion.
CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players.
Do not use any irregular shaped CDs or discs with a scratch protection film attached.
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
45
Entertainment Systems
CDs with homemade paper (adhesive) labels should not be inserted into the CD player as the label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information.
Audio system warranty and service
Refer to the Warranty Guide/Customer Information Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.
MP3 track and folder structure
Your MP3 system recognizes MP3 individual tracks and folder structure as follows:
There are two different modes for MP3 disc playback: MP3 track mode (system default) and MP3 folder mode. For more information on track and folder mode, refer to Sample MP3 structure in the following section.
MP3 track mode ignores any folder structure on the MP3 disc. The player numbers each MP3 track on the disc (noted by the .mp3 file extension) from T001 to a maximum of T255. Note: The maximum number of playable MP3 files may be less depending on the structure of the CD and exact model of radio present.
MP3 folder mode represents a folder structure consisting of one level of folders. The CD player numbers all MP3 tracks on the disc (noted by the .mp3 file extension) and all folders containing MP3 files, from F001 (folder) T001 (track) to F253 T255.
Creating discs with only one level of folders will help with navigation through the disc files.
46
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Entertainment Systems
Sample MP3 structure
If you are burning your own MP3 discs, it is important to understand how the system will read the structures you create. While various files may be present, (files with extensions other than mp3), only files with the .mp3 extension will be played. Other files will be ignored by the system. This enables you to use the same MP3 disc for a variety of tasks on your work computer, home computer and your in vehicle system.
In track mode, the system will display and play the structure as if it were only one level deep (all .mp3 files will be played, regardless of being in a specific folder). In folder mode, the system will only play the .mp3 files in the current folder.
Satellite radio information (if equipped)
Satellite radio channels: SIRIUS broadcasts a variety of music, news, sports, weather, traffic and entertainment satellite radio channels. For more information and a complete list of SIRIUS satellite radio channels, visit www.sirius.com in the United States, www.sirius-canada.ca in Canada, or call SIRIUS at 1–888–539–7474.
Satellite radio reception factors: To receive the satellite signal, your vehicle has been equipped with a satellite radio antenna located on the roof of your vehicle. The vehicle roof provides the best location for an unobstructed, open view of the sky, a requirement of a satellite radio system. Like AM/FM, there are several factors that can affect satellite radio reception performance:
Antenna obstructions: For optimal reception performance, keep the antenna clear of snow and ice build-up and keep luggage and other material as far away from the antenna as possible.
.mp3
.mp3
11
2
2
3
.mp3
.mp3
.doc
.ppt
.xls
3
.mp3
4
.mp3
5
.mp3
64
7
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
47
Entertainment Systems
Terrain: Hills, mountains, tall buildings, bridges, tunnels, freeway overpasses, parking garages, dense tree foliage and thunderstorms can interfere with your reception.
Station overload: When you pass a ground based broadcast repeating tower, a stronger signal may overtake a weaker one and result in an audio mute.
Unlike AM/FM audible static, you will hear an audio mute when there is a satellite radio signal interference. Your radio display may display NO SIGNAL to indicate the interference.
SIRIUS satellite radio service: SIRIUS Satellite Radio is a subscription based satellite radio service that broadcasts music, sports, news and entertainment programming. A service fee is required in order to receive SIRIUS service. Vehicles that are equipped with a factory installed SIRIUS Satellite Radio system include:
Hardware and limited subscription term, which begins on the date of sale or lease of the vehicle.
Use of online media player providing access to all SIRIUS music channels over the internet using any computer connected to the internet (U.S. customers only).
For information on extended subscription terms, contact SIRIUS at 1–888–539–7474.
Note: SIRIUS reserves the unrestricted right to change, rearrange, add or delete programming including canceling, moving or adding particular channels, and its prices, at any time, with or without notice to you. Ford Motor Company shall not be responsible for any such programming changes.
Satellite Radio Electronic Serial Number (ESN): This 12–digit Satellite Serial Number is needed to activate, modify or track your satellite radio account. You will need this number when communicating with SIRIUS. While in Satellite Radio mode, you can view this number on the radio display by pressing AUX and Preset 1 control simultaneously.
48
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Entertainment Systems
Radio Display Condition Action Required
ACQUIRING Radio requires more
than two seconds to
produce audio for the
selected channel.
SAT FAULT Internal module or
system failure
present.
INVALID CHNL Channel no longer
available.
UNSUBSCRIBED Subscription not
available for this
channel.
NO TEXT Artist information not
available.
NO TEXT Song title information
not available.
No action required.
This message should
disappear shortly.
If this message does
not clear within a short
period of time, or with
an ignition key cycle,
your receiver may have
a fault. See your
authorized dealer for
service.
This previously
available channel is no
longer available. Tune to another channel. If
the channel was one of
your presets, you may
choose another channel
for that preset button.
Contact SIRIUS at
1–888–539–7474 to
subscribe to the
channel or tune to
another channel.
Artist information not
available at this time on
this channel. The
system is working
properly.
Song title information
not available at this
time on this channel.
The system is working
properly.
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
49
Entertainment Systems
Radio Display Condition Action Required
NO TEXT Category information
not available.
NO SIGNAL Loss of signal from
the SIRIUS satellite or
SIRIUS tower to the
vehicle antenna.
UPDATING Update of channel
programming in
progress.
CALL SIRIUS 1–888–539–7474
NAVIGATION SYSTEM (IF EQUIPPED)
Your vehicle may be equipped with a navigation system. Refer to the Navigation system supplement for further information.
Satellite service has
been deactivated by
SIRIUS Satellite
Radio.
Category information
not available at this
time on this channel.
The system is working
properly.
You are in a location
that is blocking the
SIRIUS signal (i.e.,
tunnel, under an
overpass, dense foliage,
etc). The system is
working properly. When
you move into an open
area, the signal should
return.
No action required. The
process may take up to
three minutes. Call SIRIUS at
1–888–539–7474 to
re-activate or resolve
subscription issues.
SYNC (IF EQUIPPED)
Your vehicle may be equipped with SYNC, a hands-free communications and entertainment system with special phone and media features. For more information, please refer to the SYNC supplement or to the SYNC section in the Navigation system supplement (if equipped).
50
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Climate Controls
MANUAL HEATING AND AIR CONDITIONING SYSTEM (IF EQUIPPED)
1. Temperature selection:
Controls the temperature of the airflow in the vehicle.
2. Air flow selections: Controls
the direction of the airflow in the vehicle. See the following for a brief description on each control.
Max A/C: Distributes recirculated air through the instrument panel vents to cool the vehicle. This recooling of the interior air is more economical and efficient. Recirculated air may also help reduce undesirable odors from entering the vehicle.
: Distributes outside air through the instrument panel vents.
: Distributes outside air through the instrument panel vents and the
floor vents.
O (OFF): Outside air is shut out and the fan will not operate.
: Distributes outside air through the floor vents. Note: Some airflow
will come out of the small vents near the side windows.
: Distributes outside air through the windshield defroster vents and floor vents. Note: Some airflow will come out of the small vents near the side windows.
: Distributes outside air through the windshield defroster vents.
3. A/C: Uses outside air to cool the vehicle. Air flows primarily from the instrument panel register vents.
4. Fan speed adjustment: Controls the volume of air circulated in the vehicle.
Operating tips
To reduce fog build up on the windshield during humid weather, place
the air flow selector in the
To reduce humidity build up inside the vehicle, do not drive with the
air flow selector in the off position.
Do not put objects under the front seats that will interfere with the
airflow to the rear seats.
position.
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
51
Climate Controls
Remove any snow, ice or leaves from the air intake area at the base of
the windshield.
To improve the A/C cool down when the vehicle interior is
significantly warmer than the outside temperature, drive with the windows slightly open for 2–3 minutes after start up or until the vehicle has been “aired out.”
If you are driving during extreme high ambient temperatures and
idling for extended periods of time in gear, it is recommended to run the A/C in the MAX A/C position, adjust the blower fan speed to the lowest setting, turn off the rear A/C unit and put the vehicle’s transmission into the P (Park) to continue to receive cool air from your A/C system.
For maximum cooling performance in panel (
Select MAX A/C mode. MAX A/C uses recirculated air with A/C to
provide a cooler airflow.
Move the temperature control to the coolest setting.
Set the fan to the highest speed initially, then adjust in order to
maintain comfort.
To allow side window defogging and demisting while warming up the vehicle cabin:
1. Select
2. Select A/C.
3. Set the temperature control to maintain comfort.
4. Set the fan speed to the highest setting.
5. Direct the outer instrument panel vents towards the side windows. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.
To allow windshield defogging and demisting while warming up vehicle:
1. Select
2. Set temperature control to maintain comfort.
3. Set fan to highest setting.
.
floor/defrost mode.
) mode:
52
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Climate Controls
DUAL AUTOMATIC TEMPERATURE CONTROL (DATC) SYSTEM (IF EQUIPPED)
1. A/C control: Press to turn on the air conditioning. Press again to turn off the air conditioning. Use with
automatically with the press of AUTO,
2. Press to turn on the air circulation in the cabin. Press again to turn off. Recirculated air may reduce the amount of time to cool down the interior of the vehicle and may help reduce undesired odors from reaching the interior of the vehicle. Recirculation can be turned on manually in any airflow selection except defrost. Recirculation may turn off automatically in some modes to reduce fog potential. It operates automatically and cannot be disengaged in the MAX A/C mode.
3. Passenger side temperature control: Press to turn on the dual temperature control. It can also be pressed to increase or decrease the airflow temperature for the passenger in the front of the vehicle. Recommended initial settings are 72°F (22°C) to 75°F (24°C) and then adjust for comfort.
to improve cooling performance and efficiency. It engages
, and MAX A/C.
(Recirculation control):
A/C
53
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Climate Controls
4. MAX A/C: Distributes recirculated air through the instrument panel vents to cool the vehicle. This recooling of the interior air is more economical and efficient. Recirculated air may also help reduce undesirable odors from entering the vehicle.
5. DUAL: Press to turn on the separate passenger side temperature control. Press again to turn off the separate passenger side temperature control.
6.
: Distributes outside air through the windshield defroster vents. It
can be used to clear the windshield of fog and thin ice.
7.
: Distributes outside air through the windshield defroster vents and floor vents. Note: Some airflow will come out of the small vents near the side windows.
: Distributes air through the floor vents. Note: Some airflow will
8. come out of the small vents near the side windows.
9.
: Distributes air through the instrument panel vents and the floor
vents.
10.
: Distributes air through the instrument panel vents.
11. OFF: Outside air is shut out and the fan will not operate.
DUAL
OFF
12. AUTO: Press to turn on full
AUTO
automatic operation and select the desired temperature using the temperature control. The system will automatically determine fan speed, air flow location, A/C on or off and outside or recirculated air to heat or cool the vehicle to reach the desired temperature.
13. Manual override controls:
OFF
Allows you to manually determine where airflow is directed. To return to fully automatic control, press AUTO.
54
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Climate Controls
14. Driver’s side temperature control: Press to increase or
decrease the temperature on the driver side of the cabin. This control also sets the passenger side temperature when DUAL is disengaged. Recommended initial settings are 72°F (22°C) to 75°F (24°C) and then adjust for comfort.
15. Fan Speed: Manually increases or decreases the fan speed.
16. EXT: Displays the outside air
EXT
temperature. Press again to display cabin temperature settings. Exterior readings are more accurate when the vehicle is moving.
17. Temperature conversion:
F C
Press to toggle between Fahrenheit and Celsius temperature on the DATC display only. The set point temperatures in Celsius will be displayed in half-degree increments.
Operating tips
To reduce fog build up on the windshield during humid weather, place
the air flow selector in the
position.
To reduce humidity build up inside the vehicle, do not drive with the
air flow selector in OFF or with recirculated air engaged.
Do not put objects under the front seats that will interfere with the
airflow to the rear seats.
Remove any snow, ice or leaves from the air intake area at the base of
the windshield.
To improve the A/C cool down, drive with the windows slightly open
for 2–3 minutes after start up or until the vehicle has been “aired out.”
If you are driving during extreme high ambient temperatures and
idling for extended periods of time in gear, it is recommended to run the A/C in the MAX A/C position, adjust the blower fan speed to the lowest setting, turn off the rear A/C unit and put the vehicle’s transmission into the P (Park) to continue to receive cool air from your A/C system.
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
55
Climate Controls
For maximum cooling performance:
Select and A/C and recirculated air. Use recirculated air with A/C to
provide a cooler airflow.
Move the temperature control to the coolest setting. To allow side window defogging and demisting while warming up the
vehicle cabin:
1. Select
2. Select A/C.
3. Set the temperature control to maintain comfort.
4. Set the fan speed to the highest setting.
5. Direct the outer instrument panel vents towards the side windows. To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.
.
56
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Lights
HEADLAMP CONTROL
Turns the lamps off.
Turns on the parking lamps, instrument panel lamps, license plate lamps and tail lamps.
Turns the headlamps on.
Autolamp control (if equipped)
The autolamp control sets the
A
headlamps to turn on and off automatically. The autolamp control, located on the headlamp control, may be set to:
turn on the lamps automatically
at night
turn off the lamps automatically
during the daylight
keep the lamps on for up to three minutes after the key is turned to
off.
To turn the autolamps on, rotate the control counterclockwise to
Note: With autolamps, your vehicle has a windshield wiper rainlamp feature. When the headlamp control is in the autolamp position and the windshield wipers are turned on during daylight, the exterior lamps will turn on after a brief delay.
P
.
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
57
Lights
Fog lamp control
The fog lamps can be turned on only when the headlamp control is
in the the high beams are not turned on. Pull headlamp control towards you
to turn fog lamps on. The fog lamp indicator light below the will illuminate when fog lamp is activated.
Push the headlamp control towards the instrument panel to deactivate the fog lamps.
Daytime running lamps (DRL) (if equipped)
To activate DRL:
the ignition must be in the on position and
, or position and
icon
the headlamp control is in the
or position
the transmission is not in P (Park).
WARNING: Always remember to turn on your headlamps at
dusk or during inclement weather. The Daytime Running Light (DRL) System does not activate your tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.
High beams
Push the lever toward the instrument panel to activate. Pull the lever towards you to deactivate.
F
F
O
58
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Lights

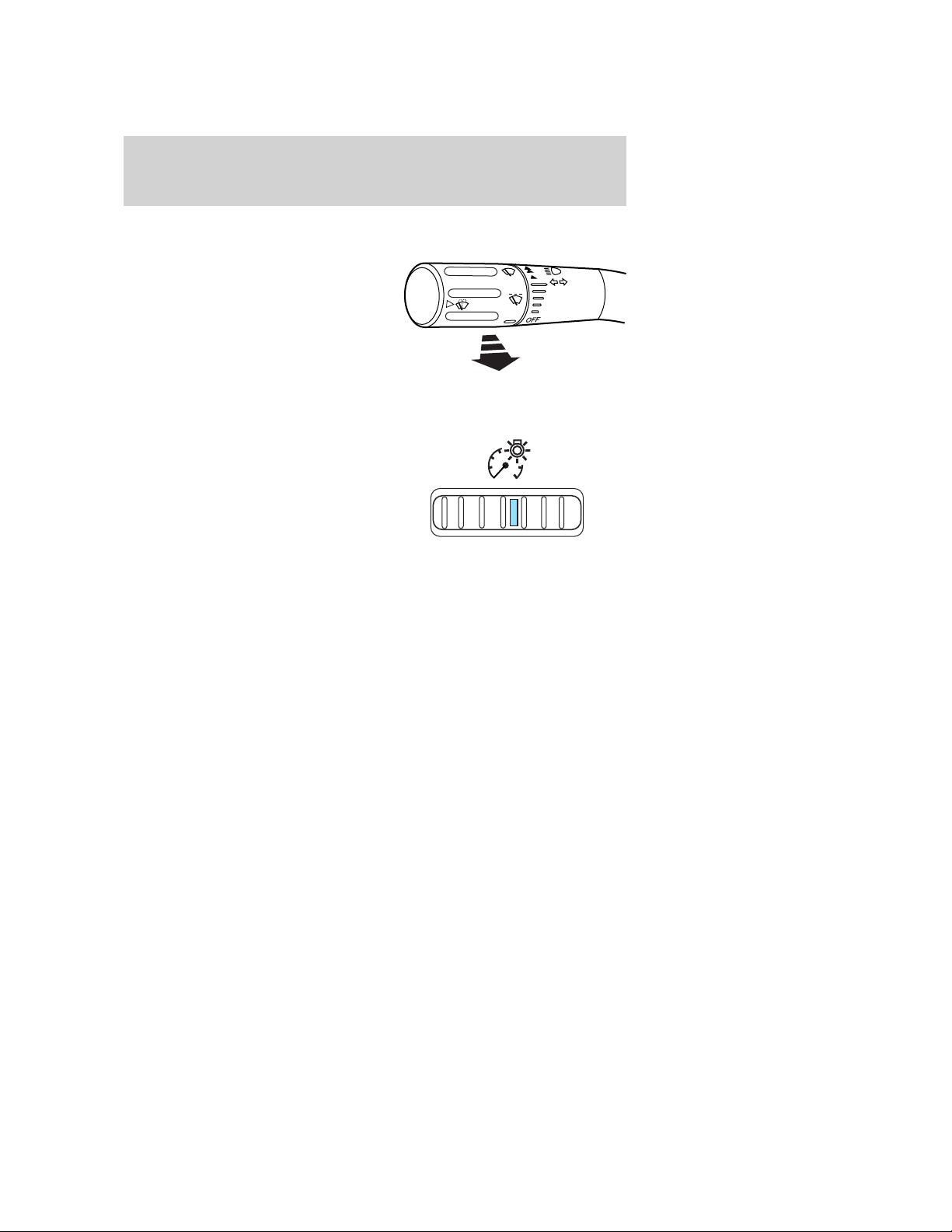

Flash to pass
Pull the lever toward you to activate. Release the lever to deactivate.
PANEL DIMMER CONTROL
Use to adjust the brightness of the instrument panel when exterior lights are on.
Rotate the thumbwheel from left to right to brighten the instrument panel.
Rotate the thumbwheel from right to left to dim the instrument panel.
Rotate fully to the right (past detent) to turn on interior lamps.
Rotate to the left position (past detent) to turn off the interior lamps
and to disable the illuminated entry feature. When the control is in the far left position, it acts as a dome lamp defeat/override.
Note: If the battery is disconnected, discharged, or a new battery is installed, the dimmer switch requires re-calibration. Rotate the dimmer switch from the full dim position to the full dome/on position to reset. This will ensure that your displays are visible under all lighting conditions.
AIMING THE HEADLAMPS
The headlamps on your vehicle are properly aimed before leaving the assembly plant. If your vehicle is involved in an accident or if you have problems fixing the alignment of your headlamps, have them checked by a qualified service technician.
Headlamp aim adjustment
The headlamps on your vehicle can only be vertically adjusted. Your vehicle does not require horizontal aim adjustments.
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
59
Lights

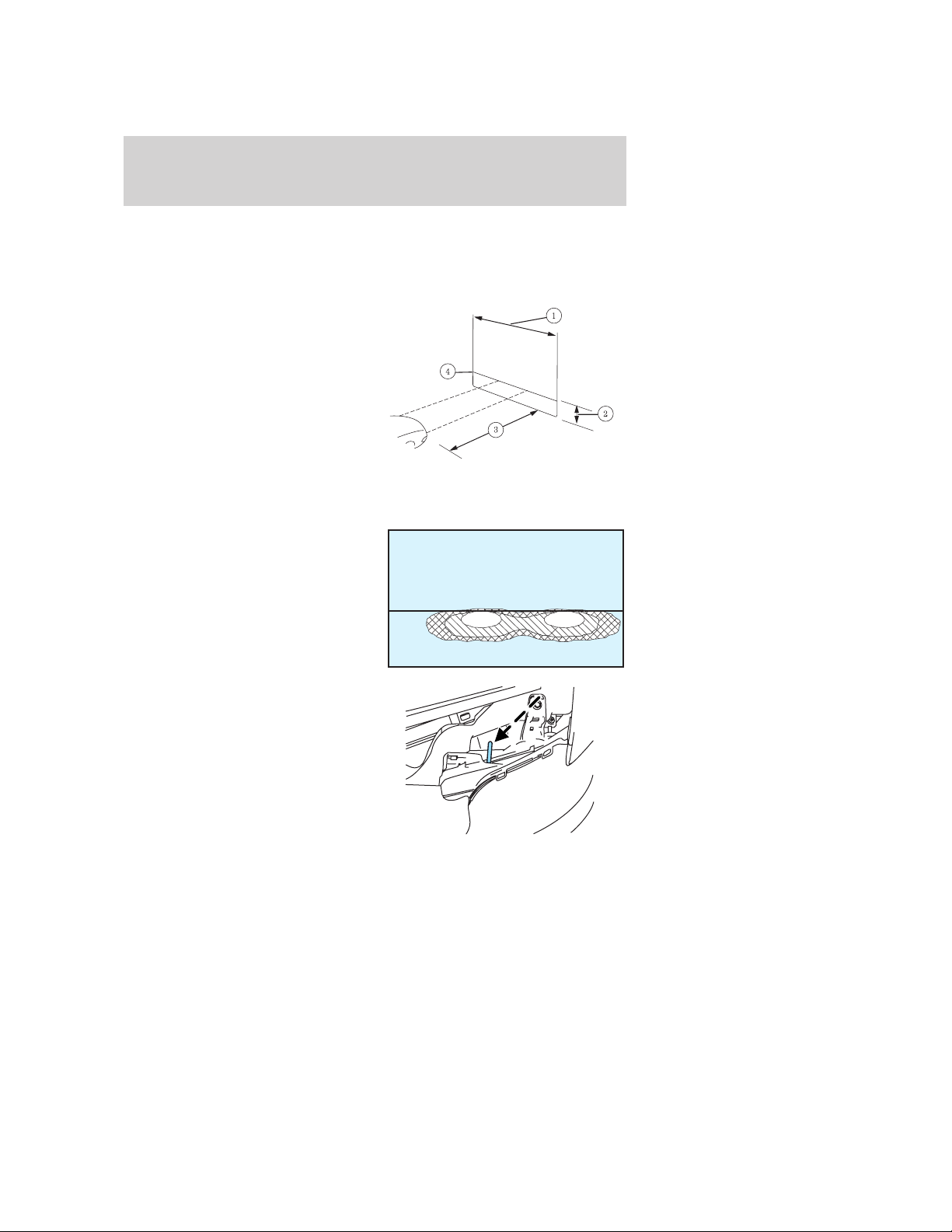

To adjust the headlamps:
1. Park your vehicle on a level surface about 25 feet (7.6 meters) away
from a vertical plain surface (3). Check your headlamp alignment at night or in a dark area so that you can see the headlamp beam pattern.
(1) 8 feet (2.4 m)
(2) Center height of lamp to
ground
(3) 25 feet (7.6 m)
(4) Horizontal reference line
2. The center of the headlamp has a
3.0 mm circle on the lens. Measure
the height from the center of your headlamp to the ground (2) and mark an 8 foot (2.4 m) long horizontal line on the plain surface (1) at this height (masking tape works well).
3. Turn on the low beam headlamps.
The brightest part of the light should be below the horizontal line (4). If it is above the line the headlamp will need to be adjusted.
4. Open the hood.
5. Locate the vertical adjuster for
each headlamp. Adjust the aim by turning the adjuster control either clockwise (to adjust down) or counterclockwise (to adjust up).
Note: Usea4mmsocket or box wrench to turn the vertical adjuster control.
6. Horizontal aiming is not required
for this vehicle and is non-adjustable.
60
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
TURN SIGNAL CONTROL
Push down to activate the left turn signal.
Push up to activate the right turn signal.
INTERIOR LAMPS
Map lamps
The front map lamps are located in the overhead console. Press the controls on either side of each map lamp to activate the lamps.
Cargo/reading lamps
The dome portion of the lamp or the center light can be turned on when the panel dimmer control is rotated past the detent or when a door is opened.
The rear dome lamp can be turned on or off by sliding the control.
Lights
BULB REPLACEMENT
Headlamp condensation
Exterior lamps are vented to accommodate normal changes in pressure. Condensation can be a natural by-product of this design. When moist air enters the lamp assembly through the vents, condensation can occur when the temperature is cold. When normal condensation occurs, a thin film of mist can form on the interior of the lens. The thin mist eventually clears and exits through the vents during normal operation. Clearing time may take as long as 48 hours under dry weather conditions.
61
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Lights
Examples of acceptable condensation are:
Presence of thin mist (no streaks, drip marks or droplets)
Fine mist covers less than 50% of the lens
Examples of unacceptable moisture (usually caused by a lamp water leak) are:
Water puddle inside the lamp
Large water droplets, drip marks or streaks present on the interior of
the lens
Take your vehicle to dealer for service if any of the above conditions of unacceptable moisture are present.
Using the right bulbs
Replacement bulbs are specified in the chart below. Headlamp bulbs must be marked with an authorized “D.O.T.” for North America and an “E” for Europe to ensure lamp performance, light brightness and pattern and safe visibility. Using incorrect bulbs may damage the lamp assembly or void the lamp assembly warranty or may not provide quality bulb burn time.
Function Number of bulbs Trade number
Headlamp low & high beam
Front park/turn lamp 2 3457 NAK (amber) Side park/turn lamp 2 194 Rear stop/tail/turn
lamp Rear backup lamp 2 3156 High-mount brakelamp 1 921 Cargo lamp 2 921 Rear license plate
lamps Front fog lamp 2 9145 Interior cargo lamp 1 211-2 Interior overhead lamp
(if equipped)
2
2
2
1
H13
4157K/3157K
194
912 (906)
62
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Lights
Function Number of bulbs Trade number
Front door courtesy lamp
Map lamps 2 168 (T10) Ashtray lamp 1 161 Visor vanity lamp -
Slide on rail system (SOR)
All replacement bulbs are clear in color except where noted. To replace all instrument panel lights - see your authorized dealer.
Replacing interior bulbs
Check the operation of the bulbs frequently. To replace any of the interior bulbs, see a dealer or qualified technician.
Replacing exterior bulbs
Check the operation of all the bulbs frequently.
Replacing headlamp bulbs
Do not touch the glass of a halogen bulb.
1. Turn off the headlamps and open
the hood.
2. Remove three screws from the
headlamp assembly and pull headlamp forward.
1
2
168
A6224PF
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
63
Lights
3. Disconnect the electrical
connector.
4. Remove the old bulb by turning
counterclockwise and pull it out.
WARNING: Handle a halogen headlamp bulb carefully and keep
out of children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.
Reverse steps to reinstall bulb(s).
Replacing front parking lamp/turn signal/sidemarker bulbs
1. Turn off the headlamps and open the hood.
2. Remove three screws from the headlamp assembly and pull headlamp forward.
3. Rotate the bulb socket counterclockwise and remove it from the lamp assembly.
4. Pull the bulb straight out of the socket.
Reverse steps to reinstall bulb(s).
64
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Replacing tail/brake/turn/backup lamp bulbs
1. Turn the headlamp switch off and open the tailgate.
2. Remove the two bolts from the lamp assembly.
3. Remove the lamp assembly.
4. Rotate the bulb socket counterclockwise and remove it from the lamp assembly.
5. Pull the bulb straight out of the socket.
Reverse steps to reinstall bulb(s).
Replacing fog lamp bulbs
1. Make sure the headlamp switch is off.
2. Remove the bulb socket from the fog lamp by turning it counterclockwise.
3. Disconnect the electrical connector.
Reverse steps to reinstall bulb(s).
Lights
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
65
Lights
Replacing license plate lamp bulbs
The license plate bulbs are located behind the rear bumper. To change the license plate lamp bulbs:
1. Reach behind the rear bumper to locate the bulb.
2. Twist the bulb socket counterclockwise and carefully pull to remove it from the lamp assembly.
3. Pull out the old bulb from the socket and push in the new bulb.
4. Install the bulb socket in lamp assembly by turning it clockwise.
Replacing high-mount brake and cargo lamp bulbs
Make sure the headlamp control is off.
1. Remove the two screws and move the lamp assembly away from the vehicle to expose the bulb sockets.
2. Remove the bulb socket by rotating counterclockwise and pulling it out of the lamp assembly.
3. Pull the bulb straight out of the socket and push in the new bulb. Install the new bulbs in reverse order.
66
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Driver Controls
MULTI-FUNCTION LEVER
Windshield wiper: Rotate the end of the control away from you to increase the speed of the wipers; rotate towards you to decrease the speed of the wipers.
Windshield washer: Push the end of the stalk:
briefly: causes a single swipe of the wipers without washer fluid.
a quick push and hold: the wipers will swipe three times with washer fluid.
a long push and hold: the wipers and washer fluid will be activated for up to ten seconds.
Note: Do not operate the washer when the washer reservoir is empty. This may cause the washer pump to overheat. Check the washer fluid level frequently. Do not operate the wipers when the windshield is dry. This may scratch the glass, damage the wiper blades and cause the wiper motor to burn out. Before operating the wiper on a dry windshield, always use the windshield washer. In freezing weather, be sure the wiper blades are not frozen to the windshield before operating the wipers.
Windshield wiper rainlamp feature (if equipped with Autolamp)
When the windshield wipers are turned on during daylight, and the headlamp control is in the autolamp position, the exterior lamps will turn on after a brief delay and will remain on until the wipers are turned off.
67
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Driver Controls
TILT STEERING COLUMN
Pull the lever down and release, to unlock the steering column tilt lock. With the lever in the down position, tilt the steering column and wheel to its desired orientation. Do not push or pull the lever while tilting the wheel.
Lift the lever back to its original position to lock the steering column.
WARNING: Never adjust the steering column when
the vehicle is moving.
ILLUMINATED VISOR MIRROR
Lift the mirror cover to turn on the visor mirror lamps.
68
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Driver Controls
Slide on rod feature
Rotate the visor towards the side window and extend it rearward for additional sunlight coverage.
Note: To stow the visor back into the headliner, visor must be retracted before moving it back towards the windshield.
OVERHEAD CONSOLE
The appearance of your vehicle’s overhead console will vary according to your option package.
Storage compartment
Press the latch to open the storage compartment.
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
69
Driver Controls
Installing a garage door opener (if equipped)
The storage compartment can be converted to accommodate a variety of aftermarket garage door openers:
Place the VELCRO威 hook onto the side of the aftermarket transmitter opposite of the button.
Place the transmitter into storage compartment, button down.
Place the provided height adaptors onto the back of the door as needed.
Close the door.
Press the depression in the door
to activate the transmitter.
70
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Driver Controls
AUXILIARY POWER POINTS (12VDC)
Power outlets are designed for accessory plugs only. Do not insert any other object in the power outlet as this will damage the outlet and blow the fuse. Do not hang any type of accessory or accessory bracket from the plug. Improper use of the power outlet can cause damage not covered by your warranty.
The auxiliary power points are located on the front of the center console, inside the utility compartment, and on the rear of the console (accessible from the rear seats).
Do not use the power point for operating the cigarette lighter element (if equipped).
To prevent the fuse from being blown, do not use the power point(s) over the vehicle capacity of 12 VDC/180W. If the power point or cigar lighter socket is not working, a fuse may have blown. Refer to Fuses and relays in the Roadside Emergencies chapter for information on checking and replacing fuses.
To have full capacity usage of your power point, the engine is required to be running to avoid unintentional discharge of the battery. To prevent the battery from being discharged:
do not use the power point longer than necessary when the engine is not running,
do not leave battery chargers, video game adapters, computers and other devices plugged in overnight or when the vehicle is parked for extended periods.
Always keep the power point caps closed when not being used.
Cigar/Cigarette lighter (if equipped)
Do not plug optional electrical accessories into the cigarette lighter socket.
Do not hold the lighter in with your hand while it is heating, this will damage the lighter element and socket. The lighter will be released from its heating position when it is ready to be used.
Note: Improper use of the lighter can cause damage not covered by your warranty, and can result in fire or serious injury.
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
71
Driver Controls
Truck bed auxiliary power point
An additional auxiliary power point is located in the bed of the truck (12V 20AMP max).
Lift the cover to access the auxiliary power point.
CENTER CONSOLE
1. Cupholders
2. Tissue holder in lid
3. Rear power point
4. Large utility compartment has an
exterior power point in front of the lid, and inside the compartment has coin holder slots, a power point, AIJ (Audio Input Jack), USB port and a business/credit card holder
The rear side of the console may incorporate the following features:
Air vents
Cupholders
WARNING: Use only soft cups in the cupholder. Hard objects can injure you in a collision.
72
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Driver Controls
POWER WINDOWS
WARNING: Do not leave children unattended in the vehicle and do not let children play with the power windows. They may
seriously injure themselves.
WARNING: When closing the power windows, you should verify they are free of obstructions and ensure that children and/or
pets are not in the proximity of the window openings.
Press and pull the window switches to open and close windows.
Push down (to the first detent) and hold the switch to open.
Pull up (to the first detent) and hold the switch to close.
Rear Window Buffeting: When one or both of the rear windows are open, the vehicle may demonstrate a wind throb or buffeting noise. This noise can be alleviated by lowering a front window approximately two to three inches.
One touch up or down (Driver’s window only) (if equipped)
This feature allows the driver’s window to open or close fully without holding the control down.
To operate ONE TOUCH DOWN:
Press the switch completely down to the second detent and release quickly. The window will open fully. Momentarily press the switch to any position to stop the window operation.
If the switch is pressed and held to the normal close or ONE TOUCH UP position during a ONE TOUCH DOWN event, the window will stop. If, after 1/2 second the switch is still held, the window will perform a normal close or ONE TOUCH UP.
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
73
Driver Controls
To operate ONE TOUCH UP:
Pull the switch completely up to the second detent and release quickly. The window will close fully. Momentarily press the switch to any position to stop the window operation.
If the switch is pressed and held to the normal open or ONE TOUCH DOWN position during a ONE TOUCH UP event, the window will stop. If, after 1/2 second the switch is still held, the window will perform a normal open or ONE TOUCH DOWN.
Bounce-Back (Driver’s window only)
When an obstacle has been detected in the window opening as the window is moving upward, the window will automatically reverse direction and move down. This is known as “bounce-back”. If the ignition is turned off (without accessory delay being active) during bounce-back, the window will move down until the bounce-back position is reached.
Security Override
To override a bounce-back condition, within two seconds after the window reaches the bounce-back position, pull and hold the switch up and the window will travel up with no bounce-back or pinch protection. If the switch is released before the window is fully closed, the window will stop. For example, this can be used to overcome the resistance of ice on the window or seals.
Window lock
The window lock feature allows only the driver to operate the power windows.
To lock out all the window controls (except for the driver’s) press the right side of the control. Press the left side to restore the window controls.
Accessory delay
With accessory delay, the audio system, power windows and moon roof (if equipped) operate for up to 10 minutes after the ignition switch is turned from the on to the off position or until either front door is opened.
74
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Driver Controls

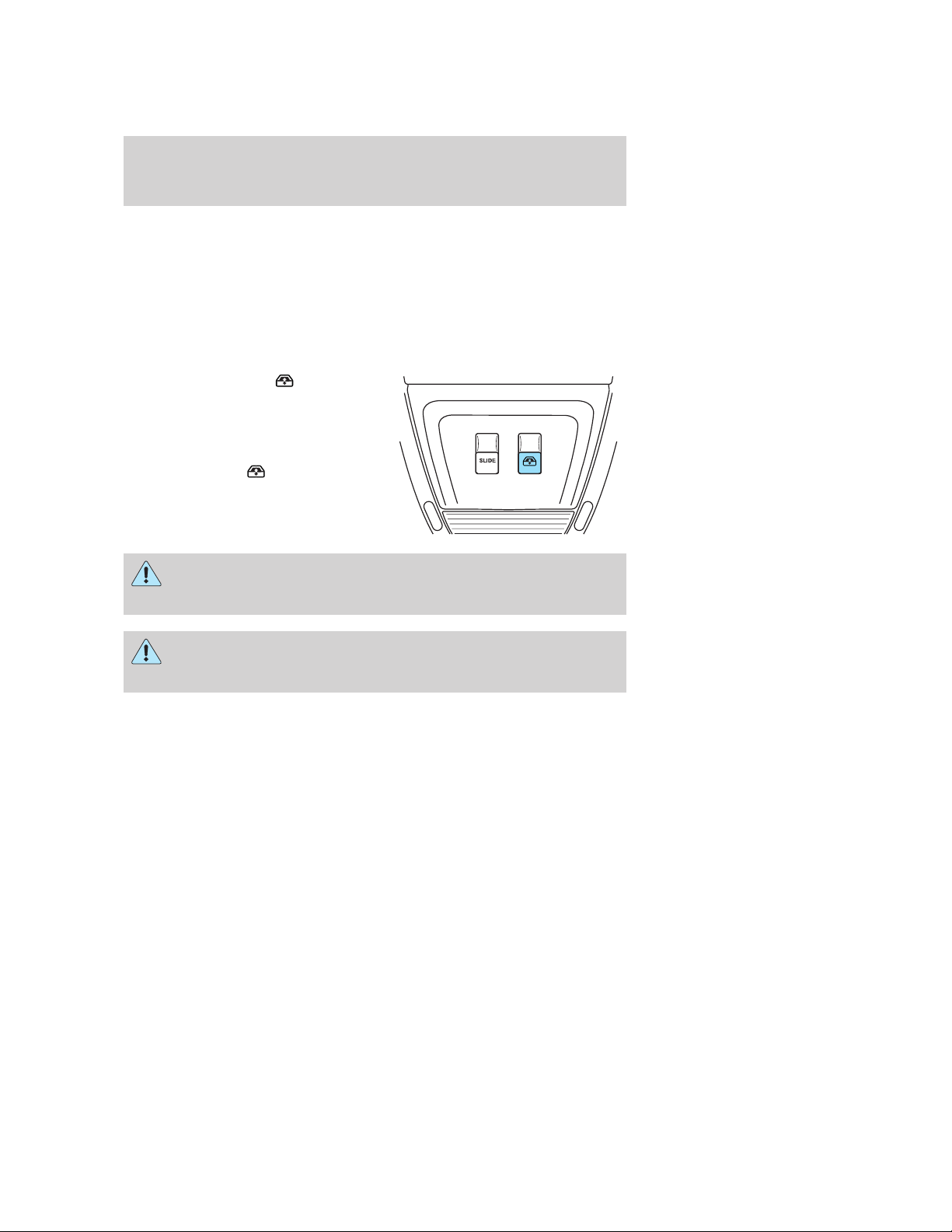

Power down back window
To operate the power down back window, the ignition switch must be in the on or accessory position (or with accessory delay power enabled).
The power down back window only has three window position selections:
Fully open
Vent
Fully closed
Press and release the open window to the vent position. Press and release the control again to open window to the full open position.
Pull and hold the close the window.
WARNING: When operating the power sliding back window you must ensure all rear seat occupants and/or cargo are not in the
proximity of the back window.
control to
control to
WARNING: Do not leave children unattended in the vehicle and do not let children play with the power sliding back window.
They may seriously injure themselves.
Normal operation
When the power down back window is opened, it will stop in the vent position. When the window is closed from full open, it will not stop in the vent position. When the power down back window is in motion, the control switch can be pressed to change the window direction and move it to the closest position.
If the power down back window is moving up and the ignition is switched to off (without accessory delay power enabled) the window will reverse direction and move down to either the full open or vent position. If the window is within 0.16 in. (4 mm) of the upper header, it will completely close.
75
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Driver Controls
Bounce-back
When the back window is moving toward the fully closed position and an obstacle interferes with the window’s movement, the back window will reverse direction and move toward the fully open position. This is known as “bounce-back”.
Security override
If, during a bounce-back condition and within two seconds after the window stops, the control is held in the closed direction, the back window will travel closed with no bounce-back protection. If the control is released before the window reaches fully closed, the back window will continue moving with bounce-back re-enabled.
The following are possible reasons for using the security override:
Ice on the window causing a restriction.
Window unexpectedly reverses.
Position recovery mode
If the motor loses position and stops mid travel, the motor will respond to switch inputs by moving 0.6 in. (15 mm) each switch command in the up direction only. Down will be a one touch down operation. If the window is stalled in the down position and there are no other system faults, the motor shall relearn its position and resume full functionality. If there is a feedback signal loss, the window will remain in its 0.6 in. (15 mm) travel mode with each switch command and will not recover full functionality. This will allow you to “inch” the window up to the fully closed position. If the window does not operate correctly, see your dealer for service.
INTERIOR MIRROR
The interior rear view mirror has two pivot points on the support arm which lets you adjust the mirror UP or DOWN and from SIDE to SIDE.
WARNING: Do not adjust the mirror while the vehicle is in motion.
Automatic dimming interior rear view mirror (if equipped)
Your vehicle may be equipped with an interior rear view mirror which has an auto-dimming function. The electronic day/night mirror will change from the normal (high reflective) state to the non-glare (darkened) state when bright lights (glare) reach the mirror. When the
76
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Driver Controls
mirror detects bright light from behind the vehicle, it will automatically adjust (darken) to minimize glare.
Without microphone
With microphone
The mirror will automatically return to the normal state whenever the vehicle is placed in R (Reverse) to ensure a bright clear view when backing up.
Do not block the sensors on the front and back of the interior rear view mirror since this may impair proper mirror performance.
Do not clean the housing or glass of any mirror with harsh abrasives, fuel or other petroleum-based cleaning products.
EXTERIOR MIRRORS
Power side view mirrors
WARNING: Do not adjust the mirror while the vehicle is in motion.
The ignition must be in the accessory or on position to adjust the power side view mirrors.
To adjust your mirrors:
1. Rotate the control clockwise to
adjust the right mirror and rotate the control counterclockwise to adjust the left mirror.
2. Move the control in the direction
you wish to tilt the mirror.
3. Return to the center position to lock mirrors in place.
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
77
Driver Controls
Fold-away mirrors
Fold the side mirrors in carefully when driving through a narrow space, like an automatic car wash.
Heated outside mirrors
Both mirrors are heated automatically to remove ice, mist and fog when the heated mirror control, located on the instrument panel, is pressed. Once activated, a small light on the button will illuminate.
Do not remove ice from the mirrors with a scraper or attempt to readjust the mirror glass if it is frozen in place. These actions could cause damage to the glass and mirrors.
Do not clean the housing or glass of any mirror with harsh abrasives, fuel or other petroleum-based cleaning products.
POWER ADJUSTABLE FOOT PEDALS (IF EQUIPPED)
The accelerator and brake pedal should only be adjusted when the vehicle is stopped and the gearshift lever is in the P (Park) position.
Press and hold the rocker control to adjust accelerator and brake pedal toward you or away from you.
(if equipped)
78
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Driver Controls
WARNING: Never adjust the accelerator and brake pedal with feet on the pedals while the vehicle is moving.
SPEED CONTROL
With speed control set, you can maintain a set speed without keeping your foot on the accelerator pedal.
WARNING: Do not use the speed control in heavy traffic or on roads that are winding, slippery or unpaved.
Setting speed control
The controls for using your speed control are located on the steering wheel for your convenience.
1. Press the ON control and release
it.
2. Accelerate to the desired speed.
3. Press the SET + control and
release it.
4. Take your foot off the accelerator
pedal.
5. The indicator light
instrument cluster will turn on.
on the
Note:
Vehicle speed may vary momentarily when driving up and down a steep hill.
If the vehicle speed increases above the set speed on a downhill, you may want to apply the brakes to reduce the speed.
If the vehicle speed decreases more than 10 mph (16 km/h) below your set speed on an uphill, your speed control will disengage.
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
79
Driver Controls
Resuming a set speed
Press the RES (resume) control and release it. This will automatically return the vehicle to the previously set speed.
Increasing speed while using speed control
There are two ways to set a higher speed:
Press and hold the SET + control until you get to the desired speed, then release the control. You can also use the SET + control to operate the Tap-Up function. Press and release this control to increase the vehicle set speed in small amounts by 1 mph or 2 km/h.
Use the accelerator pedal to get to the desired speed. When the vehicle reaches that speed press and release the SET + control.
Reducing speed while using speed control
There are two ways to reduce a set speed:
Press and hold the SET - control until you get to the desired speed, then release the control. You can also use the SET ­control to operate the Tap-Down function. Press and release this control to decrease the vehicle set speed in small amounts by 1 mph or 2 km/h.
Depress the brake pedal until the desired vehicle speed is reached, press the SET + control.
80
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Driver Controls
Turning off speed control
There are two ways to turn off the speed control:
Depress the brake pedal. This will not erase your vehicle’s previously set speed.
Press the speed control OFF control.
Note: When you turn off the speed control or the ignition, your speed control set speed memory is erased.
STEERING WHEEL CONTROLS
These controls allow you to operate some radio control features.
Audio control features
Press MEDIA to select:
AM, FM1, FM2
SAT1, SAT2 or SAT3 (Satellite
Radio mode if equipped).
CD (if equipped)
LINE IN (Auxiliary input jack)
In AM, FM1, or FM2 mode:
Press select preset stations within the
selected radio band or press and hold to select the next/previous radio frequency.
In Satellite radio mode (if equipped):
Press advance through preset channels.
SEEK to
SEEK to
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
81
Driver Controls
In CD or USB mode (if equipped):
Press or press and hold to forward or reverse through the CD/USB.
In any mode:
Press VOL + or − to adjust volume.
Navigation system hands free control features (if equipped)
Press and hold VOICE briefly until the voice Navigation display to use the voice command feature.
Press VOICE to complete a voice command.
For further information on the Navigation system, refer to the Navigation System supplement.
SYNC system hands free control feature (if equipped)
Press VOICE briefly until the voice to use the voice command feature. You will hear a tone and LISTENING will appear in the radio display. Press and hold VOICE to exit voice command.
Press answer a phone call. Press and hold
Press OK to confirm your selection.
SEEK to select the next selection on the CD/USB
icon appears on the
icon appears on the display
to activate phone mode or
to end call or exit phone mode.
to scroll through various menus and selections. Press
82
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Driver Controls
For further information on the SYNC system, refer to the SYNC supplement.
Navigation system/SYNC hands free control features (if equipped)
Press VOICE briefly until the voice Navigation display to use the voice command feature.
Press answer a phone call. Press and hold call.
For further information on the Navigation system/SYNC system, refer to the Navigation System and SYNC supplements.
MOON ROOF (IF EQUIPPED)
The moon roof control is located on the overhead console.
themselves.
icon appears on the
to activate phone mode or
to exit phone mode or end
WARNING: Do not let children play with the moon roof or leave children unattended in the vehicle. They may seriously hurt
WARNING: When closing the moon roof, you should verify that it is free of obstructions and ensure that children and/or pets are
not in the proximity of the moon roof opening.
The moon roof is equipped with an automatic, one-touch, express opening and closing feature. To stop motion at any time during the one-touch operation, press the control a second time.
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
83
Driver Controls
To open the moon roof: Press and release the SLIDE control, the moon roof will open automatically. Press the switch again to stop the moon roof.
To close the moon roof: Pull and release the SLIDE control, the moon roof will close automatically. Press the switch again to stop the moon roof.
Bounce-back: When an obstacle has been detected in the moon roof opening as the moon roof is closing, the moon roof will automatically open and stop at a prescribed position.
Bounce-back override: To override bounce-back function, pull and hold the SLIDE switch within two seconds of a bounce-back event. The closing force will begin to increase each time the moon roof is closed for the first three closing cycles, with bounce-back active. For example: Bounce-back can be used to overcome the resistance of ice on the moon roof or seals
To vent the moon roof: Press and release the TILT control, the moon roof will move to the vent position automatically from any moon roof position. Press the switch again to stop the moon roof. Pull and hold the TILT control to close the moon roof.
The moon roof has a built-in sliding shade that can be manually opened or closed when the glass panel is shut. To close the shade, pull it toward the front of the vehicle.
Accessory delay:
With accessory delay, the window switches, audio system, and moon roof may be used for up to 10 minutes after the ignition switch is turned to the off position or until either front door is opened.
STANDARD MESSAGE CENTER (IF EQUIPPED)
With the ignition in the on position, the message center, located on your instrument cluster, displays important vehicle information
through a constant monitor of vehicle systems. You may select
display features on the message center for a display of status. The system will also notify you of potential vehicle problems with a display of system warnings followed by an indicator chime.
84
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Driver Controls
Selectable features
Press and release the SELECT/RESET control switch to scroll and reset the following functions. Select or reset the function by holding the SELECT/RESET button for more than two seconds.
Info menu
This menu displays the following control displays:
Odometer/Trip Odometer (Trip A and Trip B)
Distance to Empty
Average Fuel Economy
Setup Menu
Odometer/Trip odometer
Refer to Gauges in the Instrument Cluster chapter.
Distance to empty (DTE)
Selecting this function from the INFO MENU estimates approximately how far you can drive with the fuel remaining in your tank under normal driving conditions. Remember to turn the ignition off when refueling to allow this feature to correctly detect the added fuel.
The DTE function will display LOW FUEL LEVEL and sound a tone for one second when you have approximately 50 miles (80 km) to empty. If you RESET this warning message, this display and tone will return within 10 minutes.
DTE is calculated using a running average fuel economy, which is based on your recent driving history of 500 miles (800 km). This value is not the same as the average fuel economy display. The running average fuel economy is reinitialized to a factory default value if the battery is disconnected.
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
85
Driver Controls

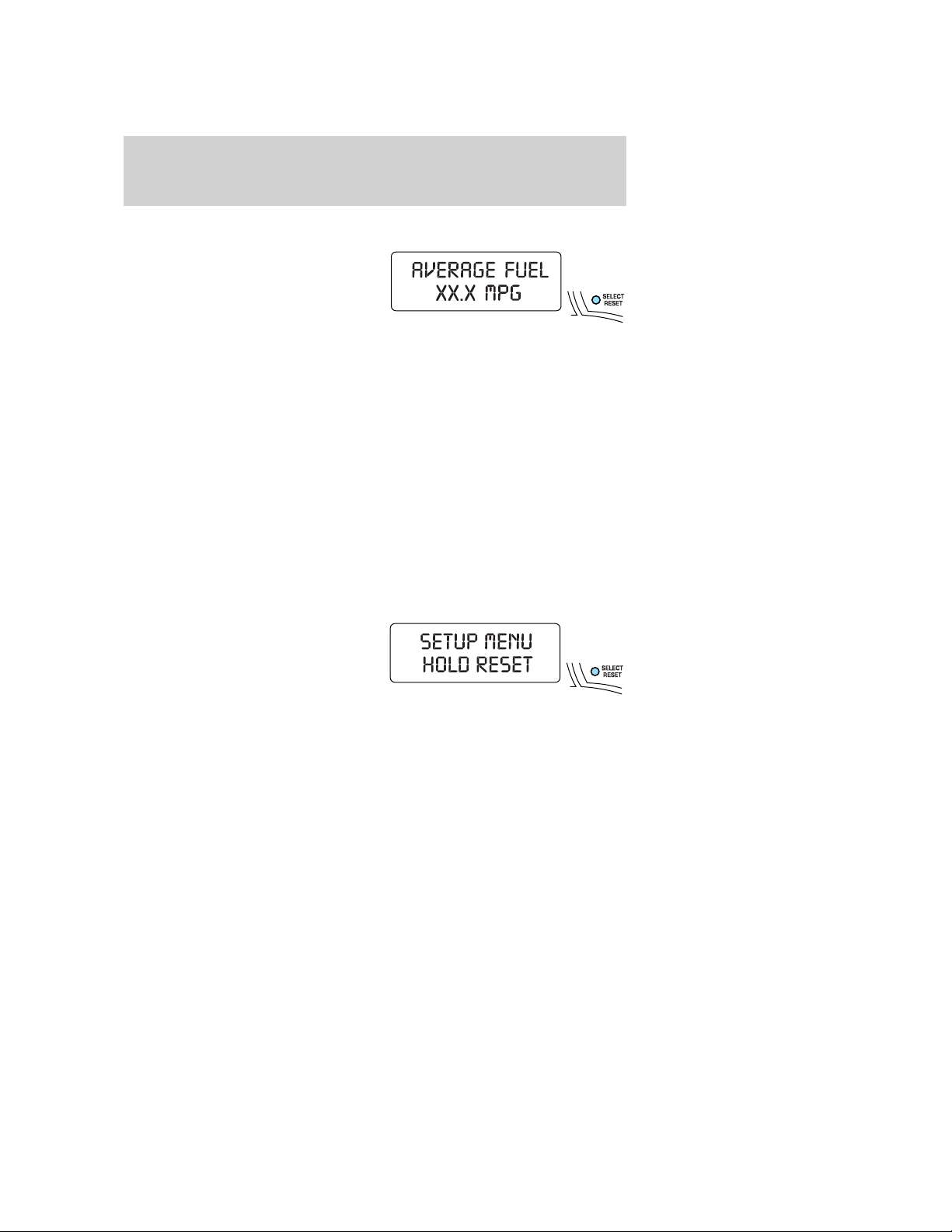

Average fuel economy (AFE)
Select this function to display your average fuel economy in miles/gallon or liters/km.
If you calculate your average fuel economy by dividing miles traveled by gallons of fuel used (liters of fuel used by 100 kilometers traveled), your figure may be different than displayed for the following reasons:
Your vehicle was not perfectly level during fill-up
Differences in the automatic shut-off points on the fuel pumps at
service stations
Variations in top-off procedure from one fill-up to another
Rounding of the displayed values to the nearest 0.1 gallon (liter)
1. Drive the vehicle at least 5 miles (8 km) with the speed control
system engaged to display a stabilized average.
2. Record the highway fuel economy for future reference.
It is important to press the SELECT/RESET control switch (press and hold for two seconds in order to reset the function) after setting the speed control to get accurate highway fuel economy readings.
Setup menu
Press and hold the SELECT/RESET control switch to get to the SETUP MENU sequence from the INFO MENU for the following displays:
System Check
AWD Lock
Units (English/Metric)
Language
Autolamp
Autolock
Autounlock
Park Aid (if equipped)
Trailer sway control
Oil Life Setup and Start Value
86
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Driver Controls
Compass display
Compass zone adjustment
Compass calibration adjustment
Briefly press the SELECT/RESET control switch to scroll through the SETUP MENU display sequence. If the SELECT/RESET control switch is not pressed within four seconds, the message center returns to the Info Menu.
AWD lock
Select this function from the SETUP MENU to display the AWD locked function.
1. Press the SELECT/RESET control
for the current display mode.
2. Press and hold the
SELECT/RESET control within four seconds to turn the AWD system to the LOCKED mode.
3. Press the SELECT/RESET control switch for the next SETUP MENU
item or wait for more than four seconds to return to the INFO MENU. Note: When the AWD system is in the LOCKED mode, the 4X4 indicator
will be illuminated.
System check
Press and hold the SELECT/RESET control switch to select SYSTEM CHECK when “SYSTEM CHECK HOLD RESET” is displayed in the message center. Selecting this function from the SETUP MENU causes the message center to cycle through each of the systems being monitored. For each of the monitored systems, the message center will indicate either an OK message or a warning message for two seconds.
Pressing the SELECT/RESET control switch cycles the message center through each of the systems being monitored.
The sequence of the system check report and how it appears in the message center is as follows:
1. OIL LIFE
2. CHARGING SYSTEM
3. WASHER FLUID
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
87
Driver Controls
4. DOOR AJAR
5. EXTERIOR LAMP
6. BRAKE FLUID LEVEL
7. PARK BRAKE
8. MILES TO EMPTY
9. FUEL LEVEL LOW (will only display if 50 miles or less to empty)
Units (English/Metric)
1. Select this function from the
SETUP MENU for the current units to be displayed.
2. Press and hold the
SELECT/RESET control switch to change from English to Metric.
3. Press the SELECT/RESET control switch for the next SETUP MENU
item or wait for more than four seconds to return to the INFO MENU.
Language
Note: When entering the SETUP MENU and a non-English language has been selected, “PRESS RESET FOR ENGLISH” will be displayed to change back to English.
1. Select this function from the
SETUP MENU for the current language to be displayed.
2. Press and hold the
SELECT/RESET control to select a new language.
Selectable languages are English, Spanish, French, or Japanese.
3. Press the SELECT/RESET control switch for the next SETUP MENU
item or wait for more than four seconds to return to the INFO MENU.
Autolamp
This feature keeps your headlights on for up to three minutes after the ignition is switched off.
88
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Driver Controls
1. To change the time delay of the
autolamp feature, select this function from the SETUP MENU.
2. Press and hold the
SELECT/RESET control switch to select the new Autolamp delay time (in seconds) values of 0, 10, 20, 30, 60, 90, 120 or 180 and wraps back to
0. Selecting 0 will result in no delay feature.
Note: “>” in front of a number indicates current selection.
3. Press the SELECT/RESET control switch for the next SETUP MENU
item or wait for more than four seconds to return to the INFO MENU.
Autolock
This feature automatically locks all vehicle doors when the vehicle is shifted into any gear and when the vehicle is in motion over 13 mph (20 km/h) or higher.
1. To disable/enable the autolock
feature, select this function from the SETUP MENU.
2. Press and hold the
SELECT/RESET control switch to turn the autolock feature ON or OFF.
3. Press the SELECT/RESET control switch for the next SETUP MENU
item or wait for more than four seconds to return to the INFO MENU.
Autounlock
This feature automatically unlocks all vehicle doors when the driver’s door is opened within 10 minutes of the ignition being turned off.
1. To disable/enable the autounlock
feature, select this function from the SETUP MENU.
2. Press and hold the
SELECT/RESET control switch to turn the autounlock ON or OFF.
3. Press the SELECT/RESET control switch for the next SETUP MENU
item or wait for more than four seconds to return to the INFO MENU.
Reverse Sensing System (Park Aid) (if equipped)
This feature sounds a warning tone to warn the driver of obstacles near the rear bumper, and functions only when R (Reverse) gear is selected.
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
89
Driver Controls
1. To disable/enable the reverse
sensing system feature with the vehicle in P (Park), select this function from the SETUP MENU or put the vehicle in R (Reverse).
2. Press and hold the
SELECT/RESET control switch to turn the park aid ON or OFF.
3. Press the SELECT/RESET control switch for the next SETUP MENU
item or wait for more than four seconds to return to the INFO MENU.
Trailer sway control
This feature uses the electronic stability control to mitigate trailer sway,
1. To disable/enable the trailer sway
feature, select this function from the SETUP menu for the current display mode.
2. Press and hold the
SELECT/RESET control to turn the trailer sway ON or OFF.
Oil Life Setup and Start Value
To reset the oil monitoring system to 100% after each oil change (approximately 7,500 miles [12,000 km] or six months) perform the following:
1. Select “HOLD RESET IF NEW
OIL” from the SETUP MENU.
2. Press and hold the
SELECT/RESET control switch for more than two seconds. Oil life is set to 100% and “OIL LIFE SET TO 100%” is displayed.
Note: To change oil life 100% miles value from 7,500 miles (12,000 km) or six months to another value, proceed to Step 3.
90
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Driver Controls
3. Once “OIL LIFE SET TO 100%” is
displayed, release, press and hold the SELECT/RESET control switch for more than two seconds to change the Oil Life Start Value. Each release, press and hold will reduce the value by 10%.
4. After setting the Oil Life Start Value, press and release the
SELECT/RESET control switch for the next SETUP MENU item or wait for more than four seconds to return to the INFO MENU.
Note: Oil Life Start Value of 100% equals 7,500 miles (12,000 km) or six months. For example, setting Oil Life Start Value to 60% sets the Oil Life Start Value to 3,000 miles (4,800 km) and 120 days.
Compass display (if equipped)
The compass heading is displayed as one of N, NE, E, SE, S, SW, W and NW in the message center display.
The compass reading may be affected when you drive near large buildings, bridges, power lines and powerful broadcast antenna. Magnetic or metallic objects placed in, on or near the vehicle may also affect compass accuracy.
Usually, when something affects the compass readings, the compass will correct itself after a few days of operating your vehicle in normal conditions. If the compass still appears to be inaccurate, a manual calibration may be necessary. Refer to Compass zone adjustment.
Most geographic areas (zones) have a magnetic north compass point that varies slightly from the northerly direction on maps. This variation is up to four degrees between adjacent zones and will become noticeable as the vehicle crosses multiple zones. A correct zone setting will eliminate this error. Refer to Compass calibration adjustment.
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
91
Driver Controls

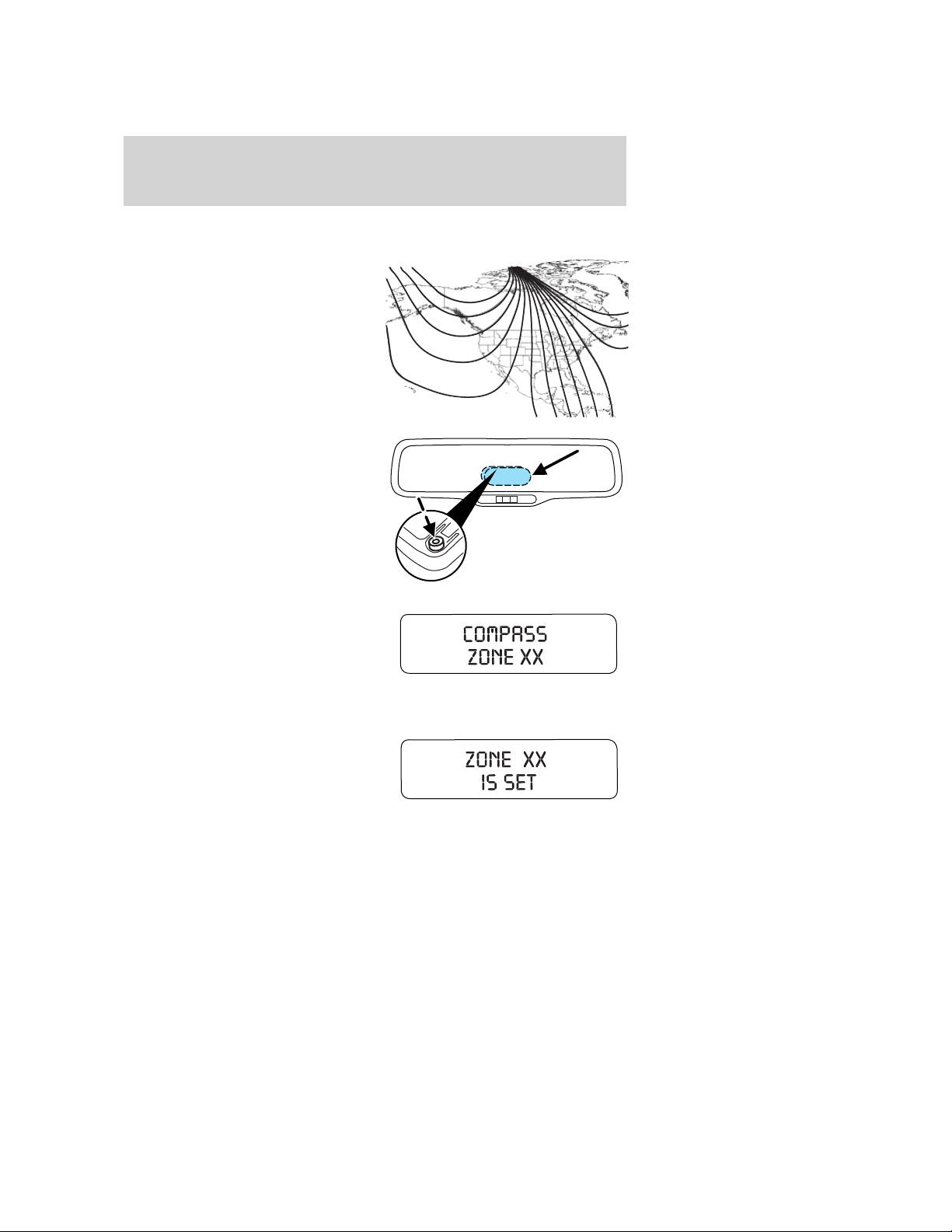

Compass zone adjustment (if equipped)
1. Determine which magnetic zone
you are in for your geographic location by referring to the zone map.
2. Turn ignition to the on position.
3. Locate the reset button on top of
the compass sensor mounted behind the mirror.
4. Press and hold the reset button
on the compass module for approximately four seconds until COMPASS ZONE XX appears in the message center display.
5. Continue to press the reset button until the correct zone appears in
the message center display.
6. After four seconds ZONE XX IS
SET will appear in the message center display.
7. The display will return to normal
operation. The zone is now updated.
Compass calibration adjustment
Perform compass calibration in an open area free from steel structures and high voltage lines. For optimum calibration, turn off all electrical accessories (heater/air conditioning, wipers, etc.) and make sure all vehicle doors are shut.
4
5
123
6 7 8 9 1011
15
14 13
12
92
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Driver Controls
1. Start the vehicle.
2. Locate the reset button on the compass sensor mounted on the base
of mirror.
3. To calibrate, press and hold the
reset button on the compass module for approximately eight seconds and release.
4. Slowly drive the vehicle in a
circle (less than 3 mph [5 km/h]) until the CIRCLE SLOW TO CALIBRATE display changes to CALIBRATION COMPLETED. It will take up to five circles to complete calibration.
5. The compass is now calibrated.
System warnings
System warnings alert you to possible problems or malfunctions in your vehicle’s operating systems.
In the event of a multiple warning situation, the message center will cycle the display to show all warnings by displaying each one for four seconds.
The message center will display the last selected feature if there are no more warning messages. This allows you to use the full functionality of the message center after you acknowledge the warning by pressing the RESET control and clearing the warning message.
Warning messages are divided into four categories:
They cannot be cleared until the condition is corrected.
They will reappear on the display 10 minutes from the reset if the
condition has not been corrected.
They will not reappear until an ignition off-on cycle has been completed.
They reappear if the condition clears then reoccurs within the same ignition on-off cycle.
This acts as a reminder that these warning conditions still exist within the vehicle.
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
93
Driver Controls
Warning display Status
Door ajar Warning cannot be reset Fuel level low Warning returns after 10 minutes Park brake engaged Check brake system Check park aid (if equipped) Warning returns only after the ignition Brake fluid level low Washer fluid level low Oil change required Oil life change soon Remove objects near pass seat Warning returns after the condition Check charging system Low tire pressure Tire pressure monitor fault Tire pressure sensor fault Trailer sway, reduce speed (if
equipped) For 4x4 low stop vehicle (if
equipped) For 4x4 low shift to N (if
equipped) To exit 4x4 low stop vehicle (if
equipped) To exit 4x4 low shift to N (if
equipped)
DOOR AJAR — Displayed when a door is not completely closed. REMOVE OBJECTS NEAR PASS SEAT — Displayed when objects
are by the passenger seat. After the objects are moved away from the seat, if the warning stays on or continues to come on contact your authorized dealer.
CHECK CHARGING SYSTEM — Displayed when the electrical system is not maintaining proper voltage when the engine is running. If you are operating electrical accessories when the engine is idling at a low speed, turn off as many of the electrical loads as soon as possible. If the warning stays on or comes on when the engine is operating at normal speeds, have the electrical system checked as soon as possible.
key is turned from off to on.
has cleared then reoccurs within the same ignition on-off cycle.
Temporary alert
94
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Driver Controls
FUEL LEVEL LOW — Displayed as an early reminder of a low fuel condition.
PARK BRAKE ENGAGED — Displayed when the manual park brake is set, the engine is running and the vehicle is driven more than 3 mph (5 km/h). If the warning stays on after the park brake is released, contact your authorized dealer as soon as possible.
CHECK BRAKE SYSTEM — Displayed when the braking system is not operating properly. If the warning stays on or continues to come on, contact your authorized dealer as soon as possible.
CHECK PARK AID (if equipped) — Displayed when the transmission is in R (Reverse) and the Reverse Sensing System (Park Aid) is disabled. Refer to Reverse Sensing System (Park Aid) in this section to enable.
LOW TIRE PRESSURE — Displayed when one or more tires on your vehicle have low tire pressure. Refer to Inflating Your Tires in the Tires, Wheels and Loading chapter.
TIRE PRESSURE MONITOR FAULT — Displayed when the Tire Pressure Monitoring System is malfunctioning. If the warning stays on or continues to come on, have the system inspected by your authorized dealer.
TIRE PRESSURE SENSOR FAULT — Displayed when a tire pressure sensor is malfunctioning, or your spare tire is in use. For more information on how the system operates under these conditions, refer to
Understanding Your Tire Pressure Monitoring System (TPMS) in the Tires, Wheels and Loading chapter. If the warning stays on or
continues to come on, have the system inspected by your authorized dealer.
BRAKE FLUID LEVEL LOW — Indicates the brake fluid level is low and the brake system should be inspected immediately. Refer to Brake Fluid in the Maintenance and Specifications chapter.
WASHER FLUID LEVEL LOW — Indicates the washer fluid reservoir is less than one quarter full. Check the washer fluid level. Refer to Windshield washer fluid in the Maintenance and Specifications chapter.
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
95
Driver Controls
OIL LIFE CHANGE SOON — Displayed when the engine oil life reaches 5% or less of the Oil Life Start Value.
OIL CHANGE REQUIRED — Displayed when the engine oil life remaining is 0%. An oil change is required whenever indicated by the message center and according to the recommended maintenance schedule. USE ONLY RECOMMENDED ENGINE OILS.
TRAILER SWAY REDUCE SPEED — Displayed when your trailer starts to sway when towing. Refer to Trailer sway control in the Driving chapter for more information.
FOR 4X4 LOW STOP VEHICLE(if equipped) — Displayed when 4X4 LOW is selected while the vehicle is moving. For more information, refer to Using the Control Trac 4WD system in the Driving chapter.
FOR 4X4 LOW SHIFT TO N(if equipped) — Displayed when 4X4 LOW is selected and the vehicle is stopped. For more information, refer to Using the Control Trac 4WD system in the Driving chapter.
TO EXIT 4X4 LOW STOP VEHICLE(if equipped) — Displayed when 2WD is selected while the vehicle is operating in 4X4 LOW. For more information, refer to Using the Control Trac 4WD system in the Driving chapter.
TO EXIT 4X4 LOW SHIFT TO N(if equipped) — Displayed when 2WD is selected while the vehicle has been stopped in 4X4 LOW. For more information, refer to Using the Control Trac 4WD system in the Driving chapter.
96
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Driver Controls
OPTIONAL MESSAGE CENTER (IF EQUIPPED)
With the ignition in the on position, the message center, located on your instrument cluster, displays important vehicle information
through a constant monitor of vehicle systems. You may select
display features on the message center for a display of status. The system will also notify you of potential vehicle problems with a display of system warnings followed by an indicator chime.
Your display can show up to six reconfigurable telltales at one time. What ever is displayed in the top left corner has the highest priority.
Selectable features
Reset
Press the RESET control to select and reset functions shown in the INFO menu, SETUP menu, text warnings and reconfigurable telltale warnings.
97
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Driver Controls
Info menu
The Info menu items are shown on the top two lines of the message center. Press the INFO control to display the following:
Trip odometer (Trip A and Trip B)
Distance to Empty
Average Fuel Economy
Instantaneous Fuel Economy
Fuel Used
Trip Elapsed Drive Time
Blank
Trip odometer
Refer to Gauges in the Instrument Cluster chapter.
Distance to empty (DTE)
Selecting this function from the INFO menu estimates approximately how far you can drive with the fuel remaining in your tank under normal driving conditions. Remember to turn the ignition off when refueling to allow this feature to correctly detect the added fuel.
The DTE function will display LOW FUEL LEVEL and sound a tone for one second when you have approximately 50 miles (80 km) to empty. If you RESET this warning message, this display and tone will return within 10 minutes.
DTE is calculated using a running average fuel economy, which is based on your recent driving history of 500 miles (800 km). This value is not the same as the average fuel economy display. The running average fuel economy is reinitialized to a factory default value if the battery is disconnected.
98
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Driver Controls
Average fuel economy (AFE)
Select this function from the INFO menu to display your average fuel economy in miles/gallon or liters/km.
If you calculate your average fuel economy by dividing miles traveled by gallons of fuel used (liters of fuel used by 100 kilometers traveled), your figure may be different than displayed for the following reasons:
Your vehicle was not perfectly level during fill-up
Differences in the automatic shut-off points on the fuel pumps at
service stations
Variations in top-off procedure from one fill-up to another
Rounding off the displayed values to the nearest 0.1 gallon (liter)
1. Drive the vehicle at least 5 miles (8 km) with the speed control
system engaged to display a stabilized average.
2. Record the highway fuel economy for future reference.
It is important to press the RESET control (press and hold RESET for two seconds in order to reset the function) after setting the speed control to get accurate highway fuel economy readings.
Instantaneous fuel economy
Select this function from the INFO menu to display your instantaneous fuel economy. This will display your fuel economy as a bar graph ranging
from excellent fuel economy. As the bars
increase from left to right, the instantaneous fuel economy is increasing.
Your vehicle must be moving to calculate instantaneous fuel economy. When your vehicle is not moving, this function shows one or no bars illuminated. Instantaneous fuel economy cannot be reset.
poor fuel economy to
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
99
Driver Controls
Fuel Used
Selecting this function from the INFO menu. “FUEL USED XXX.X GAL” will display the fuel used since last reset. The information displayed will be in gallons or liters, depending on English/Metric mode state.
Trip elapsed drive time
Select this function from the INFO menu to display a timer.
To operate the Trip Elapsed Drive Time perform the following:
1. Press and release RESET in order
to start the timer.
2. Press and release RESET to
pause the timer.
3. Press and hold RESET for two seconds in order to reset the timer to
zero.
Blank display
Select this function from the INFO menu to turn the upper two lines of the message center display off.
Setup menu
Press the SETUP control twice for the following displays:
System Check
AWD Lock
Units (English/Metric)
Language
Autolamp
Autolock
Autounlock
Park Aid (if equipped)
Trailer sway control
INFO
SETUP
RESET
100
2009 07+ Explorer Sport Trac (esp) Owners Guide, 1st Printing USA (fus)
Loading...
