FORD Explorer Sport Trac 2003 User Manual v.1

Download

Table of Contents

Introduction 4

Instrument Cluster 10

Warning and control lights 10 Gauges 13

Entertainment Systems 16

AM/FM stereo with CD 16 AM/FM stereo cassette with CD 18 Rear seat controls 28

Climate Controls 29

Manual heating and air conditioning 29

Lights 31

Driver Controls 40

Windshield wiper/washer control 40 Power windows 44 Mirrors 48 Speed control (Cruise control) 48

Locks and Security 60

Keys 60 Locks 60 Anti-theft system 61

Table of Contents

Seating and Safety Restraints 70

Seating 70 Safety restraints 75 Air bags 85 Child restraints 93

Driving 106

Starting 106 Brakes 110 Transmission operation 112

Roadside Emergencies 134

Getting roadside assistance 134 Hazard flasher switch 135 Fuel pump shut-off switch 135 Fuses and relays 136 Changing tires 143 Jump starting 150 Wrecker towing 155

Customer Assistance 156

The dispute settlement board 159 Utilizing the mediation/arbitration 162 Getting assistance outside the U.S. and Canada 162 Ordering additional owner’s literature 163 Reporting safety defects (U.S. only) 165

Cleaning 166

Table of Contents

Maintenance and Specifications 172

Hood 173 Engine compartment 174 Engine oil 175 Battery 176 Fuel information 183 Part numbers 197 Refill capacities 198 Lubricant specifications 200

Accessories 206

Index 209

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.

Introduction

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and

certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

CONGRATULATIONS

Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle the greater the safety and pleasure you will derive from driving it.

For more information on Ford Motor Company and its products visit the following website:

• In the United States: www.ford.com

• In Canada: www.ford.ca

• In Australia: www.ford.com.au

• In Mexico: www.ford.com.mx

Additional owner information is given in separate publications.

This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available.

Remember to pass on the Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

Fuel pump shut-off switch In the event of an accident the

safety switch will automatically cut off the fuel supply to the engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside emergencies chapter.

Introduction

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury and prevent possible damage to others, your vehicle and its equipment? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

Protecting the environment

We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.

BREAKING-IN YOUR VEHICLE

Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,600 km (1,000 miles) of new vehicle operation. Vary your speed to allow parts to adjust themselves to other parts.

Drive your new vehicle at least 800 km (500 miles) before towing a trailer.

Do not add friction modifier compounds or special break-in oils during the first few thousand kilometers (miles) of operation, since these additives may prevent piston ring seating. See Engine oil in the Maintenance and care chapter for more information on oil usage.

Introduction

SPECIAL NOTICES

Special instructions

For your added safety, your vehicle is fitted with sophisticated electronic controls.

Please read the section Air bag in the Seating and safety

restraints chapter. Failure to follow the specific warnings and instructions could result in personal injury.

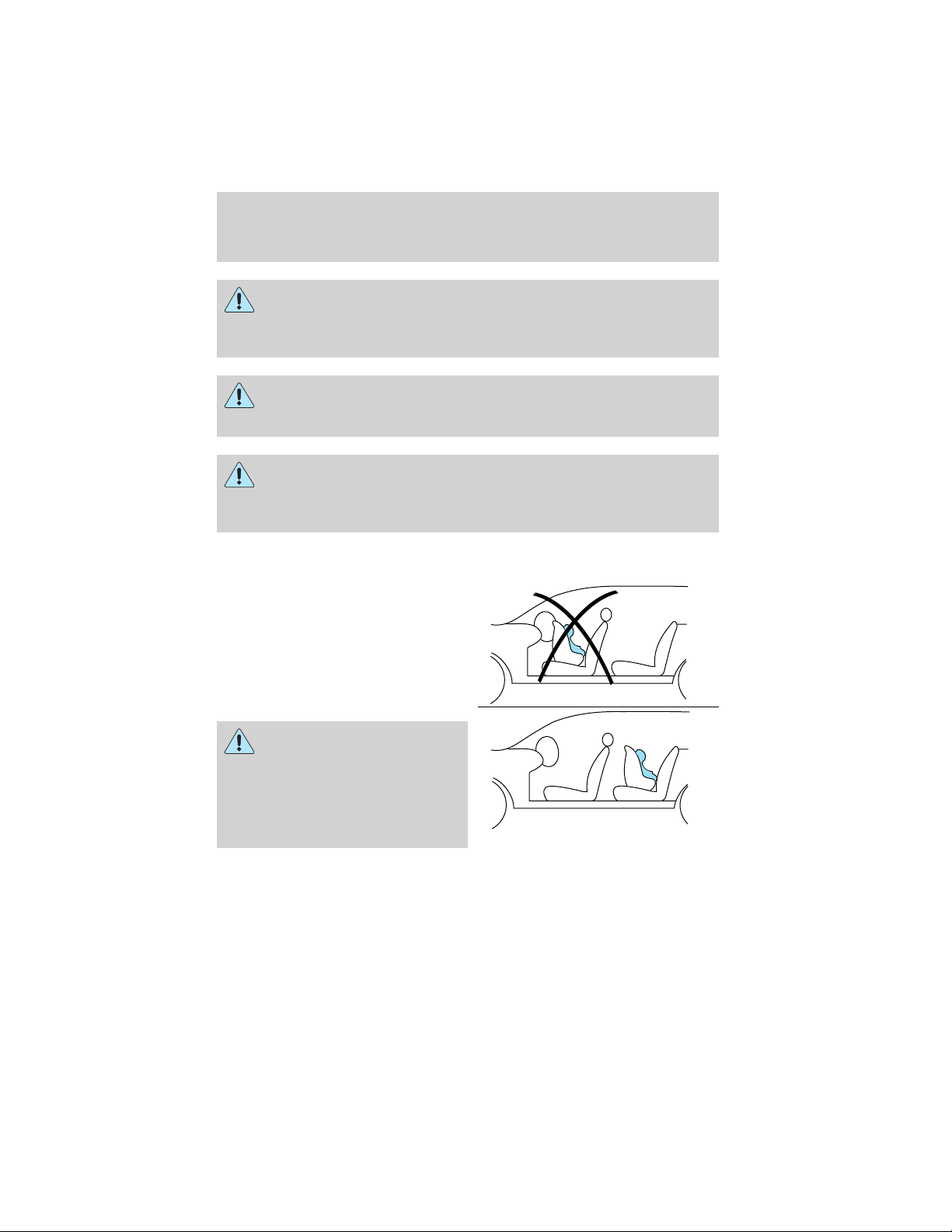

Front seat mounted rear facing child or infant seats should

NEVER be used in front of a passenger side air bag unless the air bag can be and is turned OFF.

Event Data Recorder

The computer in your vehicle is capable of recording detailed data potentially including but not limited to information such as:

• the use of restraint systems including seat belts by the driver and passengers,

• information about the performance of various systems and modules in the vehicle, and

• information related to engine, throttle, steering, brake or other system status potentially including information related to how the driver operates the vehicle including but not limited to vehicle speed.

This information may be stored during regular operation or in a crash or near crash event. This stored information may be read out and used by:

• Ford Motor Company.

• service and repair facilities.

• law enforcement or government agencies.

• others who may assert a right or obtain your consent to know such

information.

Introduction

Notice to owners of pickup trucks and utility type vehicles

Utility vehicles have a significantly higher rollover rate than other types of vehicles.

Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of vehicle control, vehicle rollover, personal injury or death.

Be sure to read Driving off road in the Driving chapter.

MIDDLE EAST/NORTH AFRICA VEHICLE SPECIFIC INFORMATION

For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner Guide; therefore, a supplement has been supplied that complements this book. By referring to the pages in the provided supplement, you can properly identify those features, recommendations and specifications that are unique to your vehicle. Refer to this Owner

Guide for all other required information and warnings.

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

Fasten Safety Belt Air Bag-Front

Air Bag-Side Child Seat

Child Seat Installation Warning

Child Seat Tether Anchor

Anti-Lock Brake System

Traction Control AdvanceTrac

Master Lighting Switch Hazard Warning Flasher

Fog Lamps-Front Fuse Compartment

See Owner’s Guide

Child Seat Lower Anchor

Brake System

Brake Fluid Non-Petroleum Based

Fuel Pump Reset Windshield Wash/Wipe

Windshield Defrost/Demist

Rear Window Defrost/Demist

Vehicle Symbol Glossary

Introduction

Power Windows Front/Rear

Child Safety Door Lock/Unlock

Power Window Lockout

Interior Luggage Compartment Release Symbol

Panic Alarm Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

Emission System Engine Air Filter

MAX

MIN

Passenger Compartment Air Filter

Jack

Check fuel cap Low tire warning

Instrument Cluster

WARNING LIGHTS AND CHIMES

DOOR

CHECK

GAGE

RPMx1000

ABS

BRAKE

CHECK

FUEL

CAP

CHECK ENGINE

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, have the respective system inspected immediately.

Check engine: If this light illuminates while driving, it is a possible indication that one of the engine’s emission control systems has failed.

Check fuel cap: Illuminates when the fuel cap may not be properly installed. Continued driving with this light on may cause the Check Engine warning light to come on.

Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the ON position when the engine is not running, or in a position between ON and START, or by applying the parking brake when the ignition is turned to the ON position. If the brake system warning light does not illuminate at this time, seek service immediately from your dealership. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately by your servicing dealership.

AJAR

MPH

RN D 2 1

100

140

180

km/h

THEFT

SPEED

CONT

4WD HIGH

4WD

LOW

O/D OFF

CHECK

ENGINE

CHECK

FUEL

CAP

BRAKE

Instrument Cluster

Driving a vehicle with the brake system warning light on is

dangerous. A significant decrease in braking performance may occur. It will take you longer to stop the vehicle. Have the vehicle checked by your dealer immediately.

Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately. Normal braking is still functional unless the brake warning light also is illuminated.

Air bag readiness: If this light fails to illuminate when ignition is turned to ON, continues to flash or remains on, have the system serviced immediately. A chime will also sound when a malfunction in the supplemental restraint system has been detected.

Safety belt: Reminds you to fasten your safety belt. A chime will also sound to remind you to fasten your safety belt.

ABS

Charging system: Illuminates when the battery is not charging properly.

Check gage: Illuminates when any of the following conditions has occurred:

• The engine coolant temperature is high.

• The engine oil pressure is low.

• The fuel gauge is at or near empty.

CHECK

GAGE

Instrument Cluster

Door ajar: Illuminates when the ignition is in the ON position and any door is open.

DOOR

AJAR

Overdrive off: Illuminates when the overdrive function of the transmission has been turned off, refer to the Driving chapter. If the light flashes steadily, have the system serviced immediately.

Four wheel drive low: Illuminates when four-wheel drive low is engaged.

Four wheel drive high: Illuminates when four-wheel drive high is engaged.

Anti-theft system: Flashes when the Securilock娂 Passive Anti-theft System has been activated.

Speed control: Illuminates when the speed control is activated. Turns off when the speed control system is deactivated.

Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb.

High beams: Illuminates when the high beam headlamps are turned on.

O/D

OFF

4WD

LOW

SPEED

CONT

Key-in-ignition warning chime: Sounds when the key is left in the ignition in the OFF/LOCK or ACC position and the driver’s door is opened.

Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (and the key is not in the ignition) and the driver’s door is opened.

GAUGES

CHECK

FUEL

CAP

CHECK ENGINE

GAGE

ABS

BRAKE

RPMx1000

RN D 2 1

Speedometer: Indicates the current vehicle speed.

Engine coolant temperature gauge: Indicates engine coolant

temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.

Instrument Cluster

DOOR AJAR

MPH

100

140

km/h

THEFT

180

SPEED

CONT

4WD HIGH

4WD

LOW

O/D OFF

Never remove the coolant reservoir cap while the engine is running or hot.

Instrument Cluster

Odometer: Registers the total kilometers (miles) of the vehicle.

Trip odometer: Registers the kilometers (miles) of individual journeys. To reset, depress the control.

Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

Battery voltage gauge: Indicates the battery voltage when the ignition is in the ON position. If the pointer moves and stays outside the normal operating range (as indicated by arrows), have the vehicle’s electrical system checked as soon as possible.

Engine oil pressure gauge:

Indicates engine oil pressure. The needle should stay in the normal operating range (between “L” and “H”). If the needle falls below the normal range, stop the vehicle, turn off the engine and check the engine oil level. Add oil if needed. If the oil level is correct, have your vehicle checked at your dealership or by a qualified technician.

Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the ON position).

Instrument Cluster

Entertainment Systems

AM/FM STEREO / SINGLE CD RADIO

VOL - PUSH ON

SEEK

TUNE

DISCS

16 17

AM FM

BASSCDTREB BAL FADE

CDCD

123456

1. Balance: Press

sound to the left/right speakers.

2. Fade: Press

sound to the front/rear speakers.

/ to shift

FM1

DISC

1 234

COMP

SHUFFLE

7910

SCN

CLK

3. SCN (Scan): Press to hear a

brief sampling of all listenable stations or CD tracks. Press again to stop.

4. CLK: To set the hour, press and

hold CLK and press SEEK to decrease

or increase the

CLK

hours.

To set the minute, press and hold CLK and press TUNE to decrease or increase

the minutes.

Entertainment Systems

5. EJ (eject): Press to eject a CD.

6. COMP (Compression): In CD

mode, press to bring louder and softer levels into more comfortable listening level. The compression icon (c) will appear in the display.

7. Shuffle: Press to listen to the

tracks on the CD in random order. Press again to turn off.

8. Memory presets: To set a

station: Select frequency band

CDCD

123456

AM/FM; tune to a station. Press and hold a preset button until sound returns. This radio is equipped with six station memory preset controls which allow you to set up to six AM stations and 12 FM stations (six in FM1 and six in FM2).

9. CD:

Press and hold until

desired selection is reached.

SHUFFLE

10.

CD:Press and hold until

desired selection is reached.

11. Tune / Discs: In radio mode,

press to move up or down the frequency band in individual increments.

12. Seek: Press and release

SEEK

/ for previous/next

strong station, selection or track.

13. Power/volume: Press to turn

ON/OFF; turn to increase or decrease volume levels.

14. CD: Press to enter CD mode or

to play a CD already loaded into the system.

Entertainment Systems

15. AM/FM: Press to choose a

frequency band in radio mode.

16. Bass: Press

/ to

increase/decrease the bass output.

17. Treble: Press

/ to

increase/decrease the treble output.

18. CD door: Insert a CD printed

side up.

PREMIUM AM/FM STEREO/CASSETTE/SINGLE CD

DISC

1. Power/volume: Press to turn

ON/OFF; turn to increase/decrease volume.

Entertainment Systems

2. Scan: Press to hear a brief

sampling of all listenable stations, tape selections or CD tracks. Press again to stop.

3. CD Door: Insert a CD with the

label side up.

4. Cassette door: Insert the

cassette with the opening to the right.

5. Eject: Press to eject the

cassette/CD. The radio will resume playing.

6. Tape: Press to start tape play.

Press to stop tape during rewind/fast forward.

CD: Press to start CD play. With the dual media audio, press CD to toggle between single CD and CD changer play (if equipped).

7. Mute: Press to MUTE playing

media; press again return to playing media.

SCAN

Entertainment Systems

8. Auto: Press to set first six

strongest stations (if available) into AM, FM1 or FM2 memory buttons; press again to return to normal stations.

9. Clock: Press and hold to set the

clock. Press the decrease hours or SEEK increase hours. Press the TUNE to decrease minutes or TUNE

increase minutes. If your vehicle has a stand alone clock this control will not function.

10. Balance: Press BAL; then press

SEL left/right speakers.

Fade: Press FADE; then press SEL rear/front speakers.

/ to shift sound to the

SEEK to

11. Memory preset buttons: To

set a station: Select frequency band AM/FM, tune to a station, press and hold a preset button until sound returns.

12. Shuffle (CD): Press to play

tracks in random order.

13. Compression (CD): Press to

bring soft and loud passages together for a more consistent listening level.

14. Dolby威 noise reduction:

Works in tape mode only. Reduces tape noise and hiss; press to activate/deactivate.

15. Side 1–2: Works in tape mode

only. Press to play reverse side of the tape.

Entertainment Systems

16. Fast Forward (FF): Press for

a slow advance, press and hold for a fast advance.

17. Rewind (REW): Press for a

slow rewind, press and hold for a fast rewind.

18. Select (SEL): Use with Bass,

Treble, Balance and Fade controls.

19. Bass: Press BASS; then press

SEL

/ to decrease/increase

the bass output.

Treble: Press TREB; then press SEL

/ to decrease/increase

the treble output.

20. Tune: Works in radio mode only.

Press TUNE

/ to change

frequency down/up.

SEEK

TUNE

REW

SEL

Entertainment Systems

21. Seek: Press and release

SEEK strong station, selection or track.

22. AM/FM: Press to select

AM/FM1/FM2 frequency band.

PIONEER EDITION AUDIO SYSTEM

/ for previous/next

SEEK

TUNE

1. MUTE: Press to mute the playing

media. Press again to return to the playing media.

2. TAPE: Insert the cassette with

the opening to the right. If a tape is already inserted into the system, press TAPE to being tape play.

Entertainment Systems

TAPE

3. CD: Insert a CD label side up. If a

CD is already inserted, press CD to

begin CD play.

4. TUNE: Works in radio mode.

Press to move down

or up

TUNE

the frequency band.

5. SEEK: Turn to listen to the

previous (left) or next (right) radio station, cassette selection, or CD track.

SCAN: Press to hear a short sampling of all listenable radio stations, cassette selections or CD tracks. Press again to stop and remain on a desired selection.

6. EJ (Eject): Press to eject a tape.

7. BAL (Balance): Press BAL, then

press SEL( Select) control to adjust the sound between the left

BAL FADE

right speakers.

FADE: Press FADE, and then press SEL (Select) to adjust the sound between the front

8. COMP (Compression): Press to

bring soft and loud passages

and rear speakers.

COMP

SHUF

together for a more consistent listening level.

SHUF (Shuffle): Works in CD mode only. Press to randomly play all tracks on the current disc. Press again to disengage random play.

Entertainment Systems

9. (Dolby威 noise reduction):

Works in tape mode only. Reduces

SIDE 1-2

tape noise and hiss; press to activate/deactivate.

Side 1–2: Works in tape mode only. Press to change the playing side of the tape.

10. SEL (Select): Allows you to

adjust various settings such as bass

SEL

levels, RDS information, the time, etc.

11. REW (rewind)/FF (fast

forward): Press to play previous or

REW

the next cassette selections or CD tracks.

12. BASS: Press BASS and then

press SEL to decrease increase

the bass levels.

TREB (treble): Press TREB and then press SEL to decrease increase

the treble levels.

13. ON/Off/VOL (Volume): Press

to turn the system ON. Turn to adjust the volume levels. Press again

VOL

PUSH

BASS TREB

to turn the system off.

14. AUTO: Press to set first six

strong stations into AM, FM1 or

AUTO RDS

CLK

FM2 memory controls; press again to return to normal stations.

RDS: Press to engage Radio Data System and select:

• TRAFFIC — Interrupts playing media to play a traffic report. To activate, press SCAN or SEEK when TRAFFIC ON is displayed.

• FIND program type — Press SEL to choose the desired program type: Classic, Country, Info., Jazz/R&B, Religious, Rock, Soft or Top 40.

• SHOW — Displays station name, station type and/or radio text. Press RDS until SHOW is displayed.

CLK (Clock): Press RDS until SET HOURS is displayed. Press SEL to decrease

or increase the hours.

Entertainment Systems

Press RDS again until SET MIN is displayed. Press SEL to decrease or increase the minutes. If your vehicle has a stand alone clock this

control will not function.

15. AM/FM: Press to select AM or

FM frequency bands. Press to end tape or CD play and begin radio play.

16. EJ (Eject): Press to eject a CD.

AM/FM STEREO IN-DASH SIX CD RADIO FOR PIONEER姞 SOUND SYSTEM

1. Power/volume: Press to turn

ON/OFF; turn to increase or decrease volume levels.

Entertainment Systems

2. AM/FM: Press to select AM/FM

frequency band.

3. CD: Press to select CD mode.

4. Memory presets: To set a

station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns.

5. Rewind: Press to stop tape

during rewind/fast forward.

Fast forward: Press to start CD play. With the dual media audio, press CD to toggle between single CD and CD changer play.

6. Seek: Press and release

SEEK strong station, selection or track.

7. Tune: Radio: Press

manually tune down or up the radio frequency band. CD: Press

select the previous track or to select the next track on the CD.

8. Scan: Press SCAN to move up

the radio frequency band. SCAN automatically finds a station, plays it for five seconds, then moves to the next station. Press again to stop. CD: Press SCAN to sample CD selections for eight seconds. Press again to stop.

9. Shuffle: Press to play tracks in

random order.

/ for previous/next

or to

10. CD door: Insert the disc with

the playing side down and printed side up.

Entertainment Systems

11. Load: Press to load a CD. Press

and hold to load up to six discs.

12. Eject: Press to eject a CD.

Press and hold to eject all loaded discs.

13. Balance: Press BAL; then press

SEL left/right speakers.

Fade: Press FADE; then press SEL rear/front speakers.

14. Select: Use with Bass, Treble, Balance and Fade controls to adjust

levels.

15. Bass: Press BASS; then press

SEL the bass output.

Treble: Press TREB; then press SEL the treble output.

16. Menu: Press MENU and SEL to

access clock mode, RDS on/off, Traffic announcement mode and Program type mode.

17. Mute: Press to MUTE playing

media; press again return to playing media

18. DSP (Digital Signal

Processing): Press to enter DSP mode – allows you to engage/disengage DSP status, and choose signal modes of JAZZ CLUB, HALL, CHURCH, STADIUM. You may also change the occupancy mode to optimize sound for ALL SEATS, DRIVER SEAT or REAR SEAT.

/ to shift sound to the

/ to decrease/increase

Entertainment Systems

REAR AUDIO CONTROLS (IF EQUIPPED)

The rear seat controls allow the rear seat passengers to operate the radio, tape, CD or CD changer (if equipped).

To engage, simultaneously press the memory preset controls 3 and 5. Press again to disengage.

1. Mode: Push to toggle between

AM, FM1, FM2, tape, CD or CD changer mode (if equipped).

2. Memory: Push successively to

allow rear seat passengers to scroll through memory presets. Push in CD changer mode (if equipped) to advance to the next disc.

3. Headphone jack: Plug a 3.5 mm

headphone into the jack.

4. Headphone/speaker: Press to turn all speakers off (headphone

mode). Press again to deactivate the headphone and activate system speakers.

5. Seek: Press

or track.

6. Volume: Press + to increase and — to decrease volume levels. From

the rear seat controls, volume cannot be set higher than the front seat setting.

or to access the previous or next station, selection

Climate Controls

MANUAL HEATING AND AIR CONDITIONING SYSTEM

1. Fan speed adjustment: Controls

the volume of air circulated in the vehicle.

2. Temperature selection:

Controls the temperature of the airflow in the vehicle.

3. Air flow selections: Controls the direction of the airflow in the

vehicle. See the following for a brief description on each control.

MAX A/C (if equipped): Uses recirculated air to cool the vehicle. Air flows from the instrument panel vents only.

A/C (if equipped): Uses outside air to cool the vehicle. Air flows from the instrument panel vents only.

: Distributes outside air through the instrument panel vents.

O (OFF): Outside air is shut out and the fan will not operate.

: Distributes outside air through the instrument panel vents and the

floor vents.

: Distributes outside air through the floor vents.

: Distributes outside air through the windshield defroster vents and

floor vents.

: Distributes outside air through the windshield defroster vents.

Operating tips

• To reduce fog build up on the windshield during humid weather, place the air flow selector in the

• To reduce humidity build up inside the vehicle: do not drive with the air flow selector in the OFF or MAX A/C position.

• Under normal weather conditions, do not leave the air flow selector in MAX A/C or OFF when the vehicle is parked. This allows the vehicle to “breathe” using the outside air inlet vents.

• Do not put objects under the front seats that will interfere with the airflow to the back seats.

• Remove any snow, ice or leaves from the air intake area at the base of the windshield.

position.

Climate Controls

To aid in side window defogging/demisting in cold weather:

1. Select A/C

2. Modulate the temperature control to maintain comfort.

3. Set the fan speed to HI

4. Direct the outer instrument panel vents towards the side windows

To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

Lights

HEADLAMP CONTROL

Turns the lamps off.

Turns on the parking lamps, instrument panel lamps, license plate lamps and tail lamps.

Turns the headlamps on.

AUTOLAMP DELAY SYSTEM (IF EQUIPPED)

The autolamp sets the headlamps to turn on and off automatically. The autolamp control, located in the interior mirror, may be set to:

• turn on the lamps automatically at night

• turn off the lamps automatically during daylight

• keep the lamps on for up to three minutes after the key is turned to

OFF

Refer to Setting autolamp in the Driver Controls chapter.

Foglamp control (if equipped)

The foglamps can be turned on when the headlamp control is in either of the following positions:

• Parking lamps

• Low beams

• Autolamp position

Press the foglamp control to activate the foglamps. The foglamp indicator light will illuminate. When the highbeams are activated, the foglamps will not operate.

Press the foglamp control again to deactivate the foglamps.

OFF

Lights

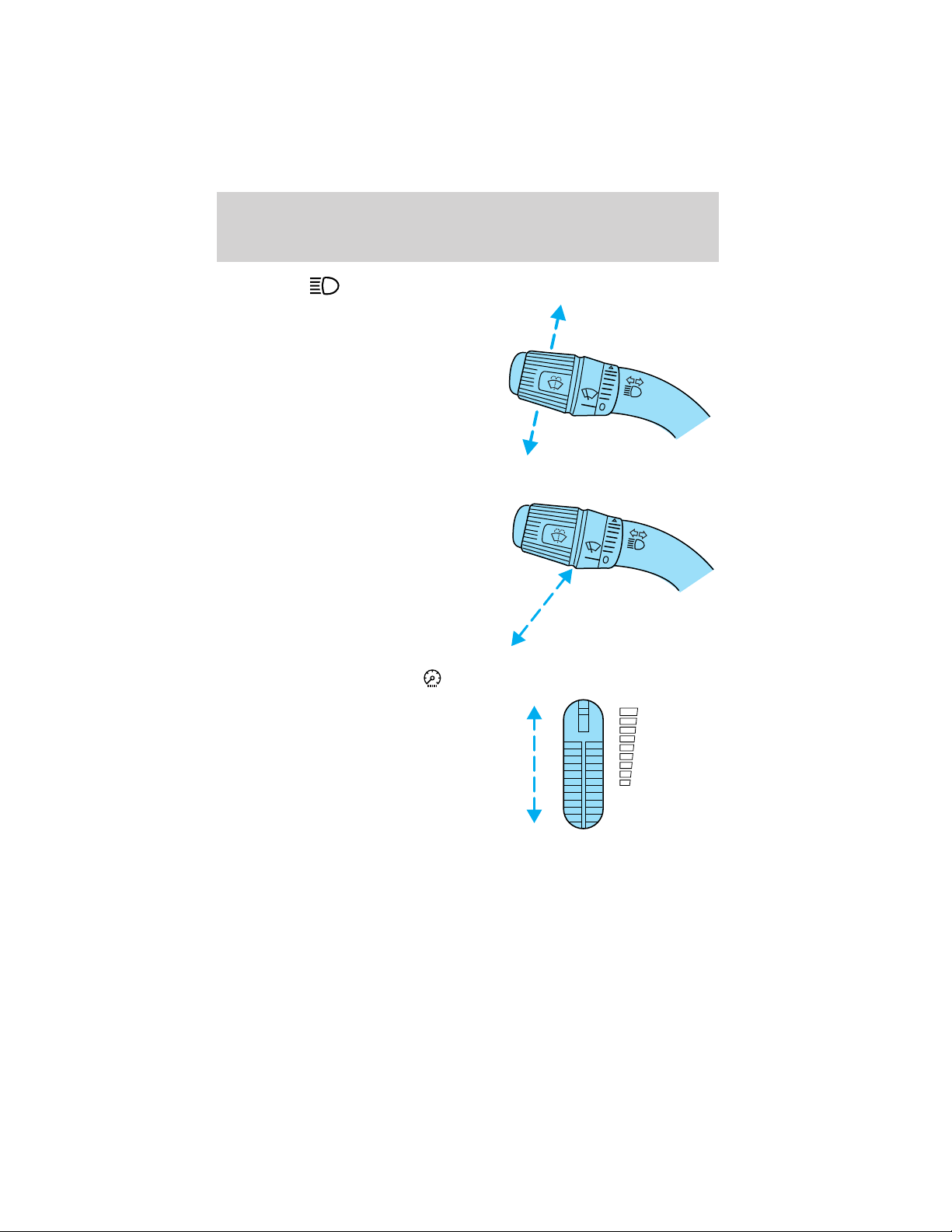

High beams

Push the lever toward the instrument panel to activate. Pull the lever towards you to deactivate.

Flash to pass

Pull the lever toward you to activate. Release the lever to deactivate.

PANEL DIMMER CONTROL

Move the control up and down to adjust the intensity of the panel lighting. Operates only when the exterior lights are switched on.

Move the control to the full upright position (past detent) to turn on the interior lamps.

Move the control to the full down position (past detent) to prevent interior lamps from illuminating when the doors are opened (if equipped).

DIM

AIMING THE HEADLAMPS

The headlamps on your vehicle are properly aimed before leaving the assembly plant. If your vehicle is involved in an accident or if you have problems fixing the alignment of your headlamps, have them checked by a qualified service technician.

Lights

Headlamp aim adjustment

The headlamps on your vehicle can only be vertically adjusted. Your vehicle does not require horizontal aim adjustments.

To adjust the headlamps:

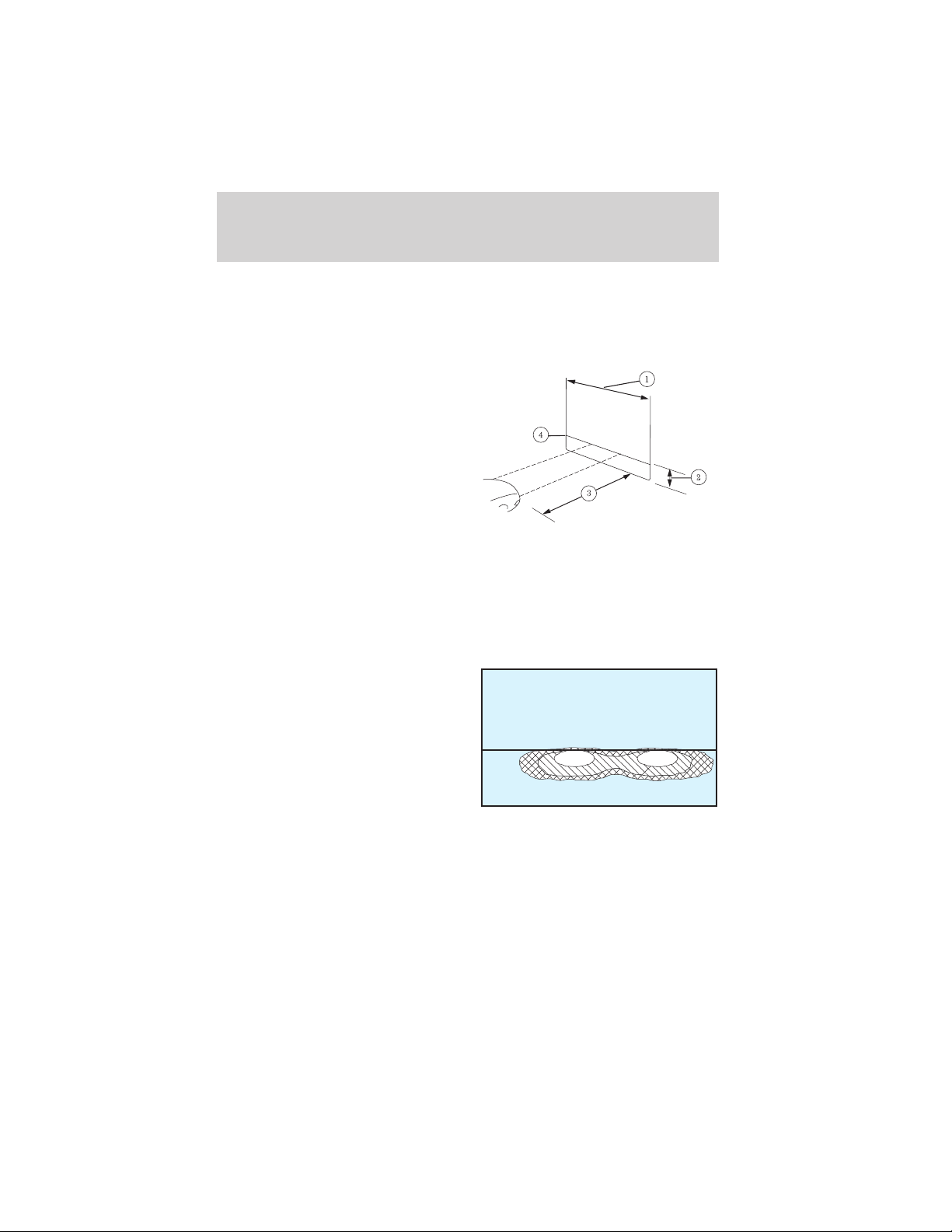

1. Park your vehicle on a level surface about 7.6 meters (25 feet) away from a vertical plain surface (3). Check your headlamp alignment at night or in a dark area so that you can see the headlamp beam pattern.

• (1) Eight feet

• (2) Center height of lamp to

ground

• (3) Twenty-five feet

• (4) Horizontal reference line

2. The center of the headlamp has a 3.0 mm circle on the lens. Measure the height from the center of your headlamp to the ground (2) and mark a 2.4 meter (8 foot) long horizontal line on the plain surface (1) at this height (masking tape works well).

3. Turn on the low beam headlamps. The brightest part of the light should be below the horizontal line (4). If it is above the line the headlamp will need to be adjusted.

4. Open the hood.

Lights

5. Locate the vertical adjuster for each headlamp. Adjust the aim by turning the adjuster control either clockwise (to adjust down) or counterclockwise (to adjust up).

Note: Usea4mmsocket or box wrench to turn the vertical adjuster control.

6. Horizontal aiming is not required for this vehicle and is non-adjustable.

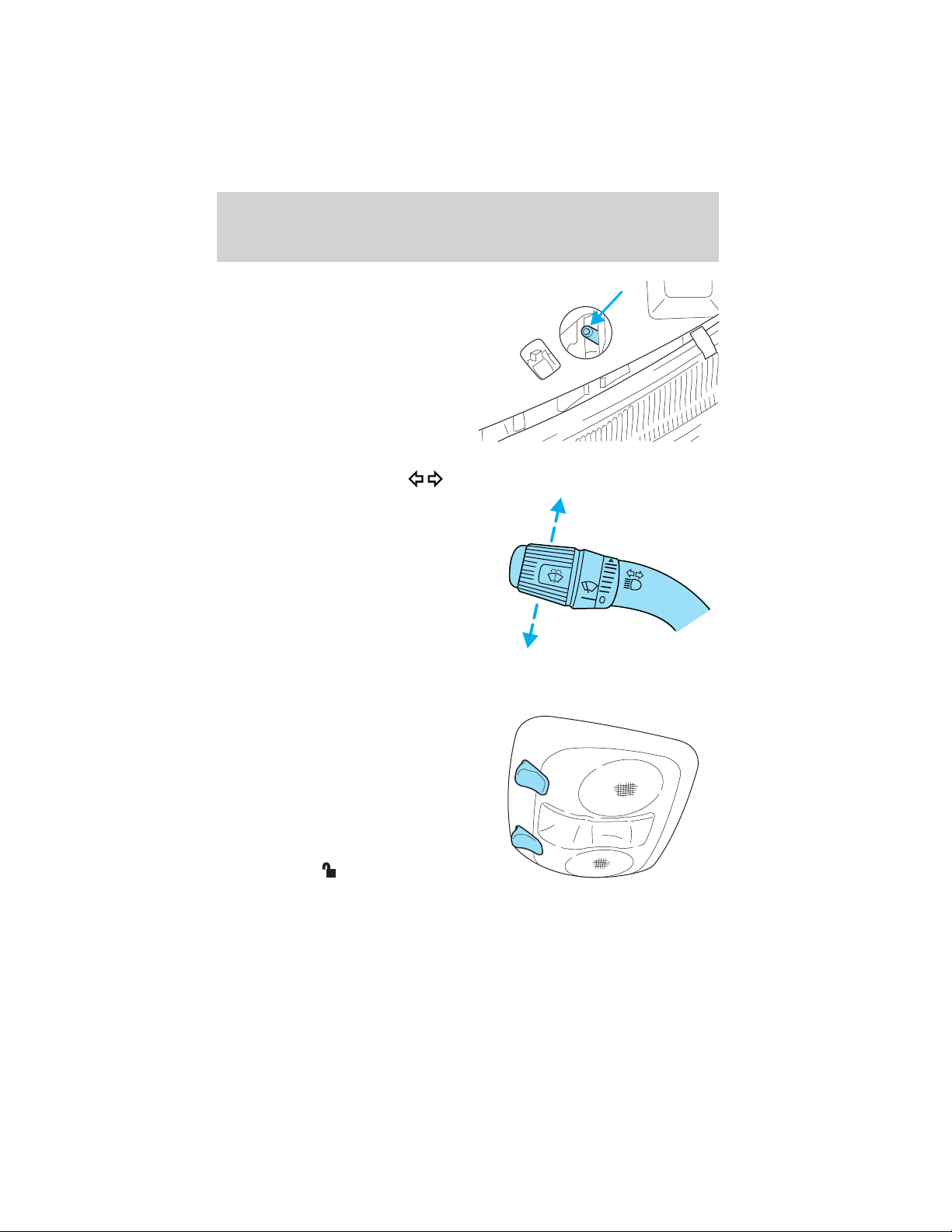

TURN SIGNAL CONTROL

• Push down to activate the left

turn signal.

• Push up to activate the right turn

signal.

INTERIOR LAMPS Courtesy/reading lamps

The courtesy lamp will turn on when:

• any door is opened, unless the

dimmer switch is in the full down position.

• the instrument panel dimmer

switch is rotated all the way up (past detent).

• pressing the

entry key fob and the ignition is in the OFF position.

NOTE: If your vehicle is equipped with the Remote Keyless Entry feature, the courtesy lamp will remain on for 25 seconds after the door is shut or until the ignition is turned to the ON position.

on the remote

Lights

To use the reading lamps:

• Press the rocker control located near each reading lamp to turn it on.

• Press the rocker control again to turn it off.

BULBS

Replacing exterior bulbs

Check the operation of all the bulbs frequently.

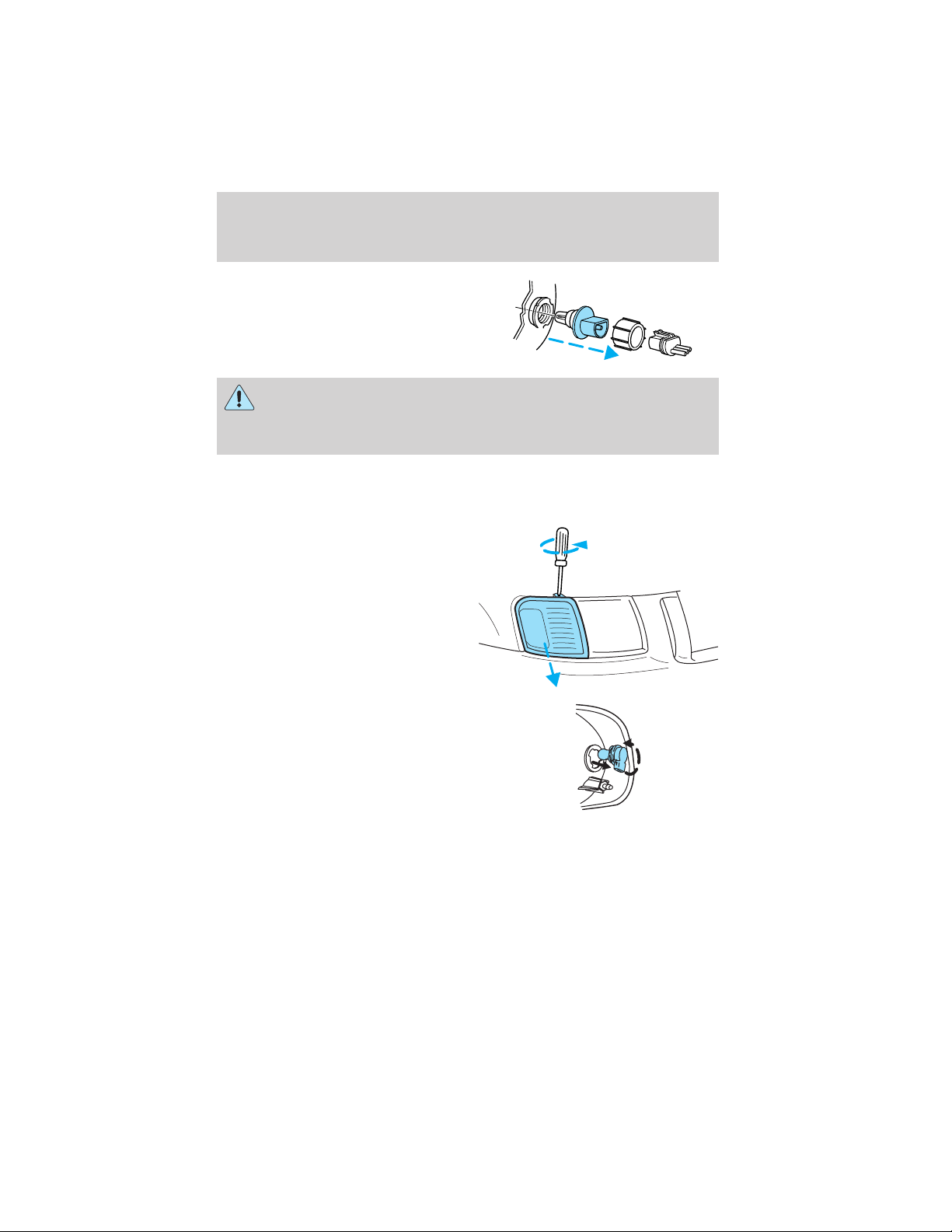

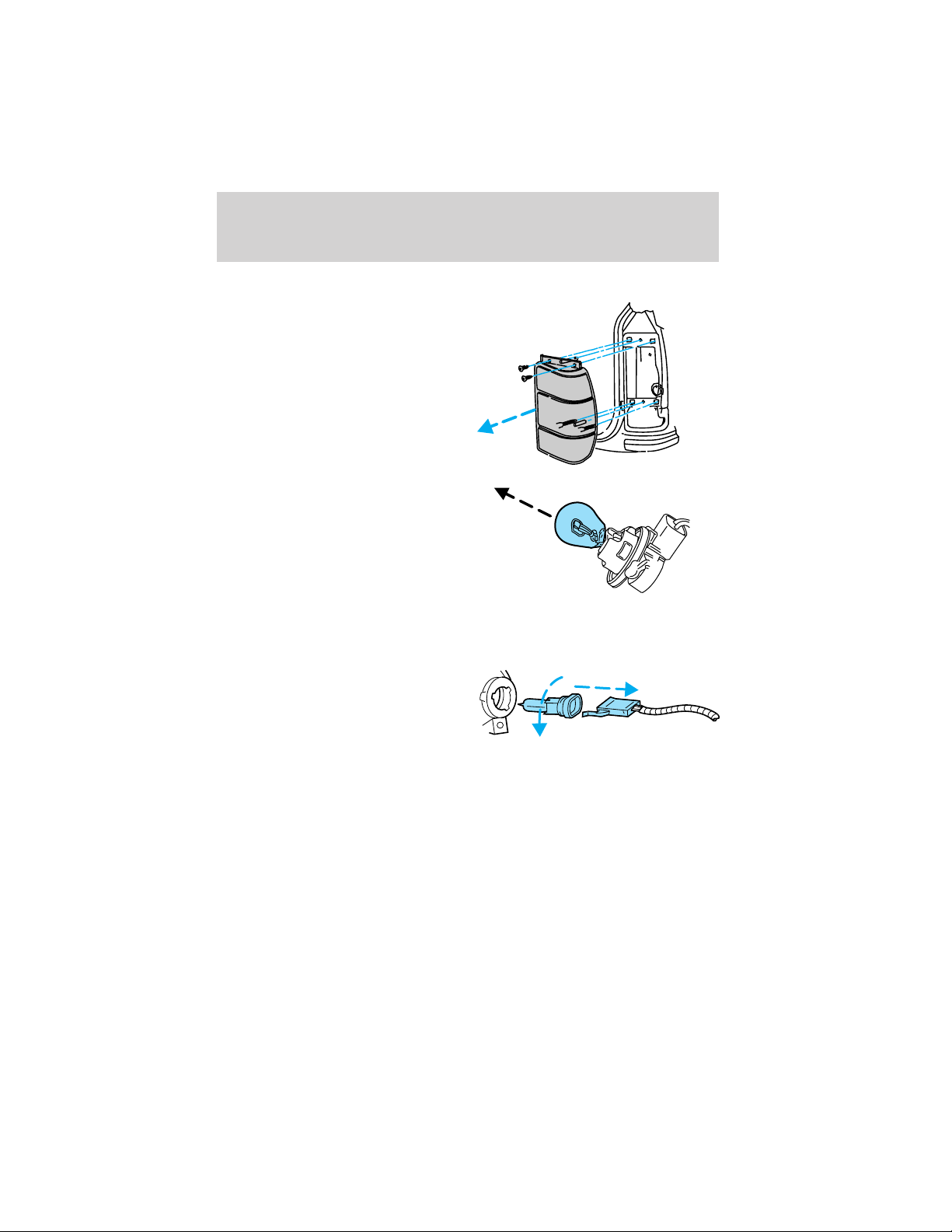

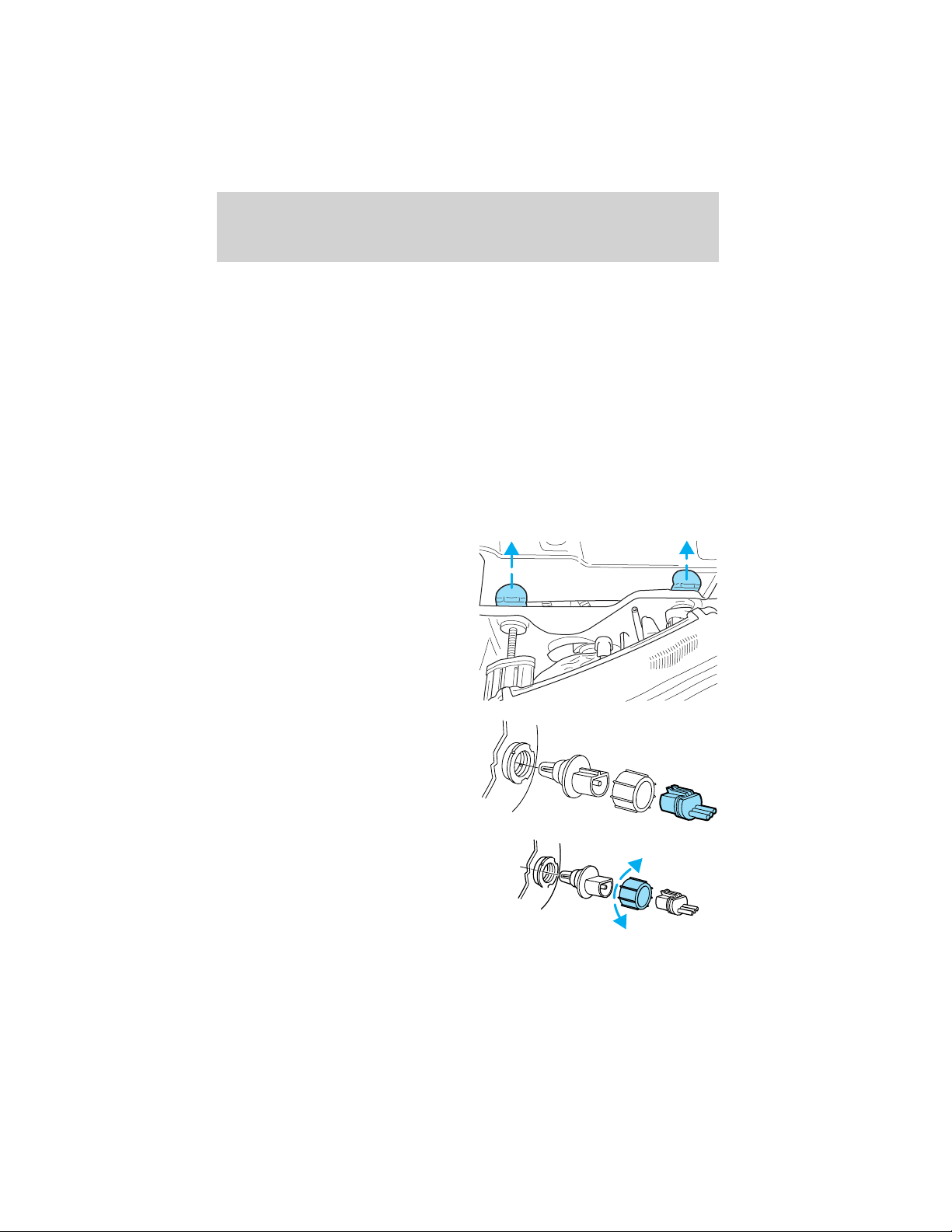

Replacing headlamp bulbs

Do not touch the glass of a halogen bulb.

1. Make sure the headlamp switch is in the OFF position and open the hood.

2. Lift the headlamp cover.

3. Remove two retainer pins, then pull headlamp forward.

4. Disconnect the electrical connector.

5. Remove the bulb retaining ring.

Lights

6. Carefully pull old bulb out of the lamp assembly

Handle a halogen headlamp bulb carefully and keep out of

children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.

Reverse steps to reinstall bulb(s).

Replacing front parking lamp/turn signal bulbs

1. Make sure the headlamp switch is in the OFF position and open the hood.

2. Remove screw from the lamp assembly.

3. Disengage lamp assembly.

4. Remove the bulb socket.

5. Carefully pull bulb straight out of the socket.

Reverse steps to reinstall bulb(s).

Replacing tail lamp/turn/backup lamp bulbs

1. Make sure the headlamp switch is in the OFF psoition and then open the liftgate/tailgate.

2. Remove the two screws from the lamps assembly.

3. Remove the lamp assembly.

4. Rotate the bulb socket counterclockwise and remove it from the lamp assembly.

5. Carefully pull the bulb straight out of the socket.

Reverse steps to reinstall bulb(s).

Replacing foglamp bulbs

1. Make sure the headlamp switch is in the OFF position and then remove the plastic splash shield, by removing the two screws on the front of the fenderwell.

2. Remove the bulb socket from the foglamp by turning it counterclockwise.

3. Disconnect the electrical connector.

Reverse steps to reinstall bulb(s).

Lights

Replacing license plate lamp bulbs

1. Make sure the headlamp switch is in the OFF position and then remove two screws and the license plate lamp assembly.

2. Remove the bulb socket from the lamp assembly by turning counterclockwise and pull the bulb straight out.

Reverse steps to reinstall bulb(s).

Replacing high-mount brakelamp bulb

1. Remove the two screws and lamp assembly from vehicle.

2. Remove the bulb socket from the lamp assembly by turning counterclockwise and pull the bulb straight out.

Reverse steps to reinstall bulb(s).

Replacement bulbs

Lights

Function Number of

bulbs

Headlamps 2 9007 Park/turn/side marker lamps 2 3157 AK

Rear stop/tail/turn lamps 2 3157K Backup lamps 2 3156K Hi-mount brake lamp 1 922 Foglamps 2 9145 Rear license plate lamps 2 168 Overhead map lamps 2 PC579

Cargo lamp 1 211–2 Map lamps 2 168 (T10) Dome lamp 1 906 Front door courtesy lamp (if

equipped) Ashtray lamp 1 161 All replacement bulbs are clear in color except where noted. To replace all instrument panel lights – see your dealer.

Replacing the interior bulbs

Check the operation of the bulbs frequently. To replace any of the interior bulbs, see a dealer or qualified technician.

1 168

Trade number

(Amber)

(XU5B-13466–AA)

Driver Controls

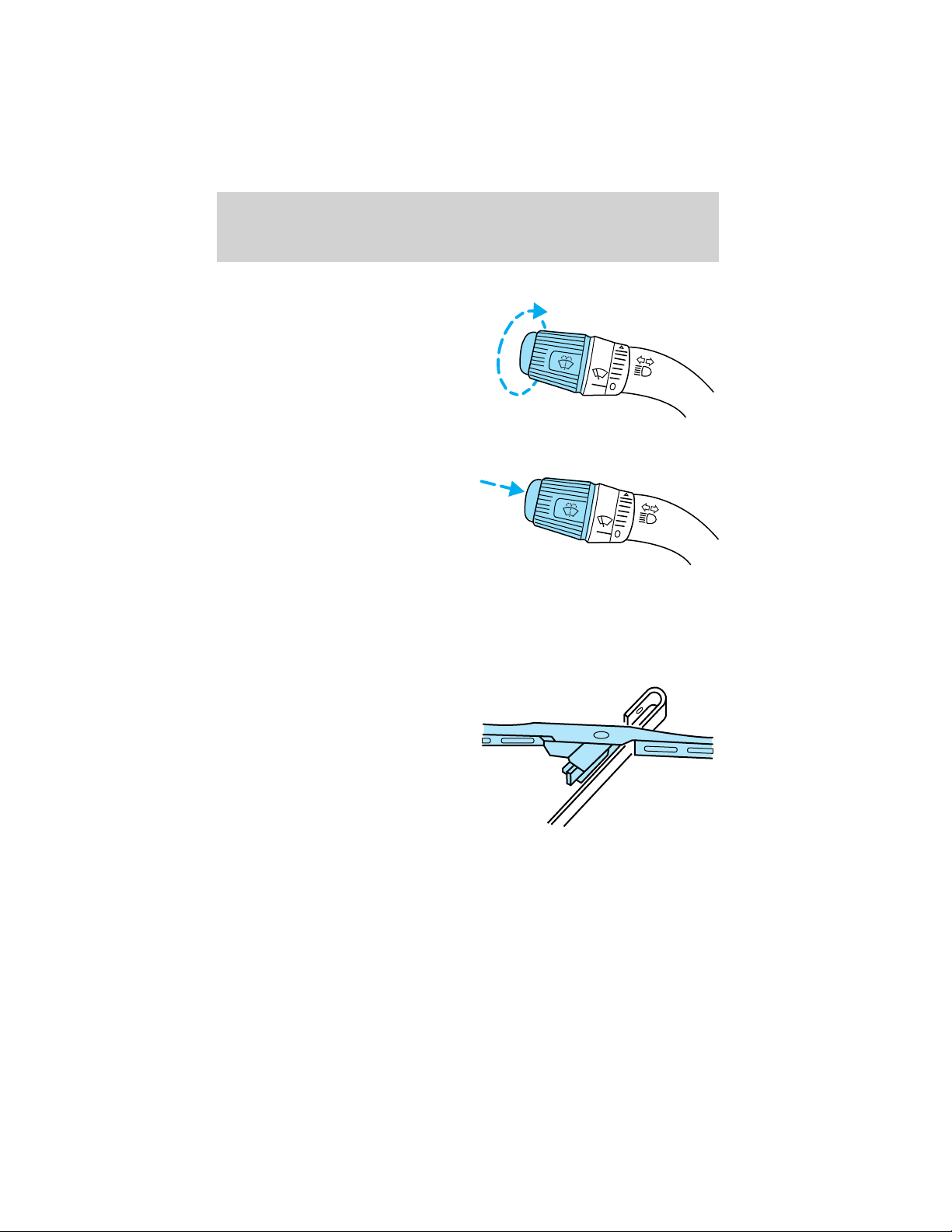

MULTI-FUNCTION LEVER

Windshield wiper: Rotate the end of the control away from you to increase the speed of the wipers; rotate towards you to decrease the speed of the wipers.

Speed dependent wipers: When the wiper control is on, the speed of the wipers will automatically adjust with the vehicle speed. The faster your vehicle is travelling the faster the wipers will go.

Windshield washer: Push the end of the stalk:

• briefly: causes a single swipe of the wipers without washer fluid.

• a quick push and hold: the wipers will swipe three times with washer fluid.

• a long push and hold: the wipers and washer fluid will be activated for up to ten seconds.

Changing the wiper blades

1. Pull the wiper arm away from the

vehicle. Turn the blade at an angle from the wiper arm. Push the lock pin manually to release the blade and pull the wiper blade down toward the windshield to remove it from the arm.

2. Attach the new wiper to the

wiper arm and press it into place until a click is heard.

3. Replace wiper blades every 6 months for optimum performance.

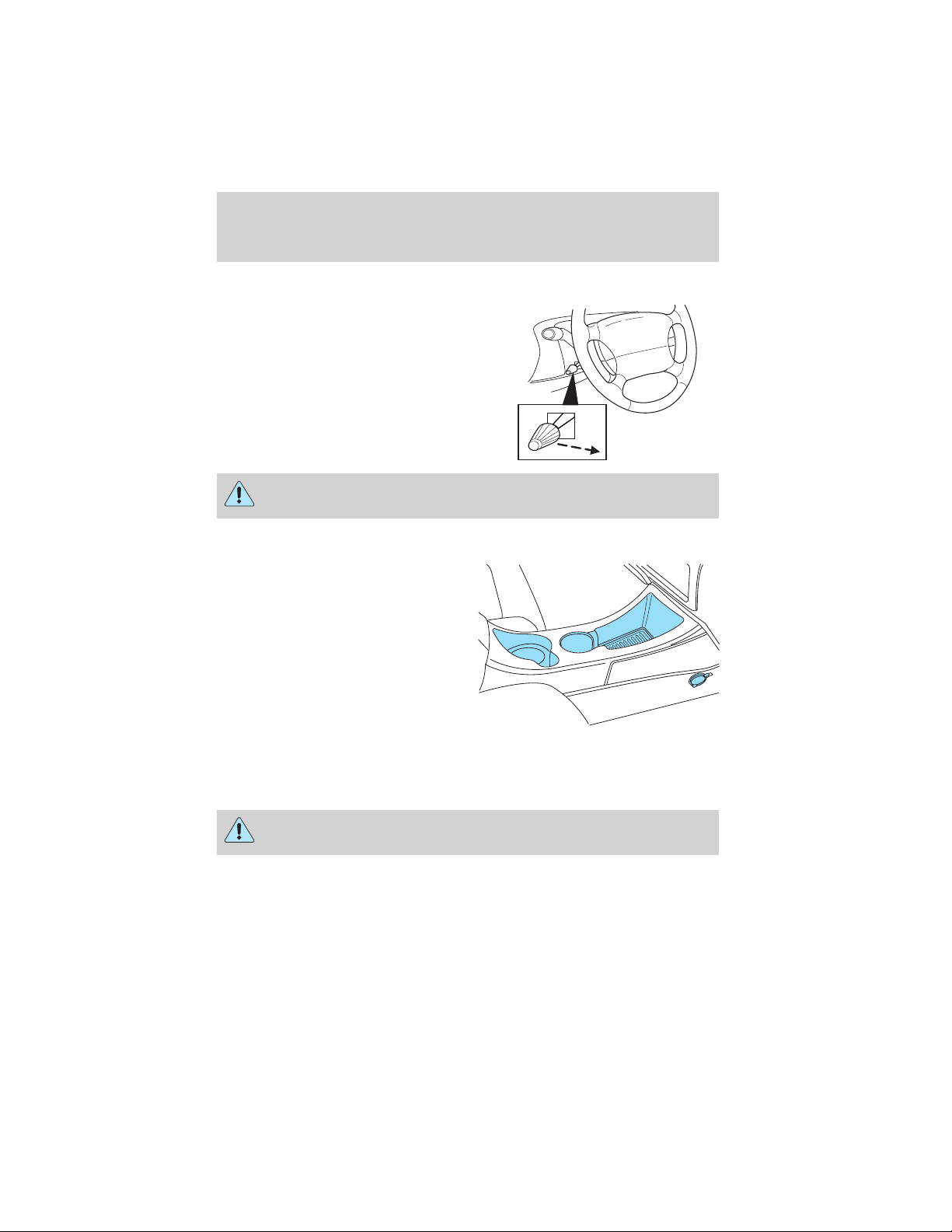

TILT STEERING WHEEL (IF EQUIPPED)

To adjust the steering wheel:

1. Pull and hold the steering wheel

release control toward you.

2. Move the steering wheel up or

down until you find the desired location.

3. Release the steering wheel

release control. This will lock the steering wheel in position.

Never adjust the steering wheel when the vehicle is moving.

CENTER CONSOLE

Your vehicle may be equipped with a variety of console features. These include:

• Utility compartment with compact disc storage

• Auxiliary power point

• Cupholders

• Ashcup

• Removable utility bag

• Writing surface with note pad

• Coin holder

• Armrest

Driver Controls

Use only soft cups in the cupholder. Hard objects can injure you in a collision.

Cell phone use

The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, driver’s must not compromise their own or other’s safety when using such equipment. Mobile Communications can enhance personal safety

Driver Controls

and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits.

Mobile Communication Equipment includes, but is not limited to cellular phones, pagers, portable email devices, in vehicle communications systems, telematics devices and portable two-way radios.

A driver’s first responsibility is the safe operation of the vehicle.

The most important thing you can do to prevent a crash is to avoid distractions and pay attention to the road. Wait until it is safe to operate Mobile Communications Equipment.

OVERHEAD CONSOLE (IF EQUIPPED)

The appearance of your vehicle’s overhead console will vary depending on your option package.

Storage compartment (if equipped)

Press the OPEN control to open the door slightly. Pull the door down to open.

The storage compartment may be used to secure sunglasses or a similar object.

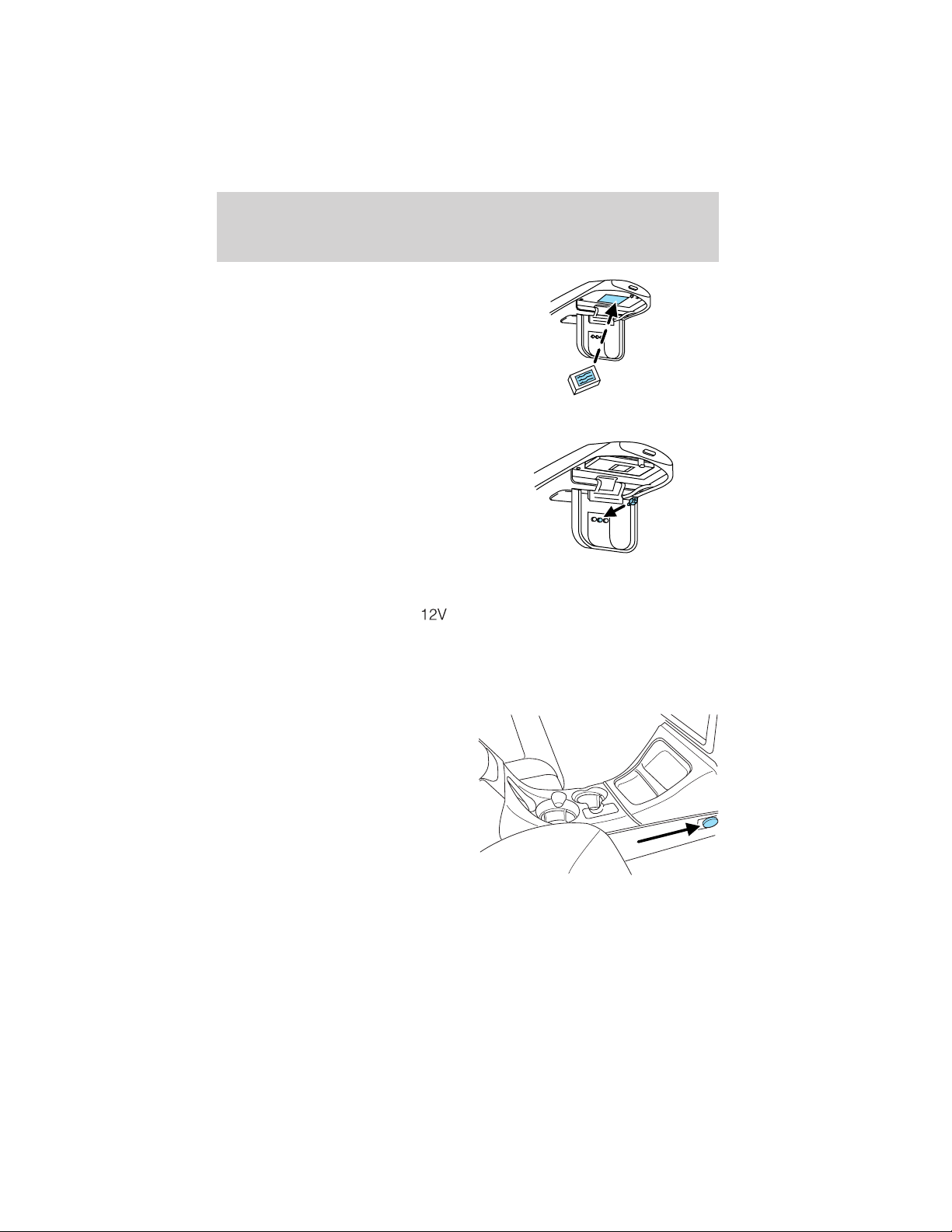

Install a garage door opener (if equipped)

The storage compartment can be used to hold a variety of aftermarket garage door openers. To install your garage door opener:

1. Open the storage compartment door.

2. Remove the storage clip and stow it away.

Driver Controls

3. Place the Velcro娂 strip onto the back of the garage door opener control.

4. Adhere the back of garage door opener control to the Velcro娂 strip found inside the storage compartment. Make sure that the controls for the garage door opener face outward.

5. Place the height adjusters onto the back of the storage compartment door. Add as many adjusters are needed to activate the garage door opener.

6. Close the storage compartment door and press the garage door opener control to verify that it works. If not, you may need to add more adjusters.

AUXILIARY POWER POINT

The power point is an additional power source for electrical accessories.

NOTE: Power outlets are designed for accessory plugs only. Do not hang any type of accessory or accessory bracket from the plug. Improper use of the power outlet can cause damage not covered by your warranty.

• With a full console:

Driver Controls

• Without a full console:

The maximum current draw of any single power point should not exceed it’s fuse rating, otherwise this will result in a blown fuse.

Do not use the the cigarette/cigar lighter element in any power point.

Keep power point caps closed when not in use.

Truck bed auxiliary power point

An additional auxiliary power point is located in the bed of the truck.

Lift the cover to access the auxiliary power point.

POWER WINDOWS

Press and hold the bottom part of the rocker switch to open the window. Press and hold the top part of the rocker switch to close the window.

Driver Controls

One touch down

Allows the driver’s window to open fully without holding the control down. Press completely down on AUTO and release quickly. Press again to stop.

Window lock

The window lock feature allows only the driver to operate the power windows.

To lock out all the window controls except for the driver’s press the left side of the control. Press the right side to restore the window controls.

Power Down Back Window

To operate the power down back window, the ignition switch must be in the Run or Accessory position.

The power down back window has three window position selections:

• Fully open

• Vent

• Fully closed

Turn control counter-clockwise and release to lower window all the way to the full open position.

All rear seat occupants and/or cargo must be properly restrained

and clear of the back window opening before operating the power down rear window.

Driver Controls

Turn control clockwise and release to raise the window all the way to the full closed position.

Push control once to move window (up or down) to the vent position (open approximately 2.00 inches for cab ventilation). If the window is already in the vent position and the control is pressed, no movement will occur.

Normal Operation

If an “up” command is selected and the ignition is switched to OFF or START during window travel, the window will:

• stop if it is between the vent position and fully closed or

• continue to move up to the vent position if it is between vent and fully

open.

If a “down” or “vent” command is selected and the ignition is switched to OFF or START during window travel, the window will move to the fully open or vent position and then stop.

The “down” command is the only one allowed after the ignition has been switched to OFF or START while the window is moving.

Bounce-Back

When the back window is moving upward and an obstacle interferes with the window’s movement, the back window will reverse direction and move toward the fully open position. This is known as “bounce-back”.

Security Override

If, during a bounce-back condition, the control is held in the clockwise (“up”) direction for at least two seconds, the back window will travel up with no bounce-back protection. If the control is released before the window reaches fully closed or the ignition is switched to OFF or START, the back window will reverse direction with bounce-back re-enabled.

The following are possible reasons for using the security override:

• Ice on the window causing a restriction.

• Window unexpectedly reverses.

Driver Controls

Position recovery mode

If the window fails to operate in “normal” operation mode, the control can be turned and held in the active position (up or down window direction) which will move the window in increments of approximately 15mm (0.6 inches) in the selected direction. (The “vent” feature is inoperable in this mode.) This feature allows the window to be closed. Once the window has reached the full closed position, the window should again operate in the “normal” operation mode. If the window still does not operate correctly, see your dealer for service.

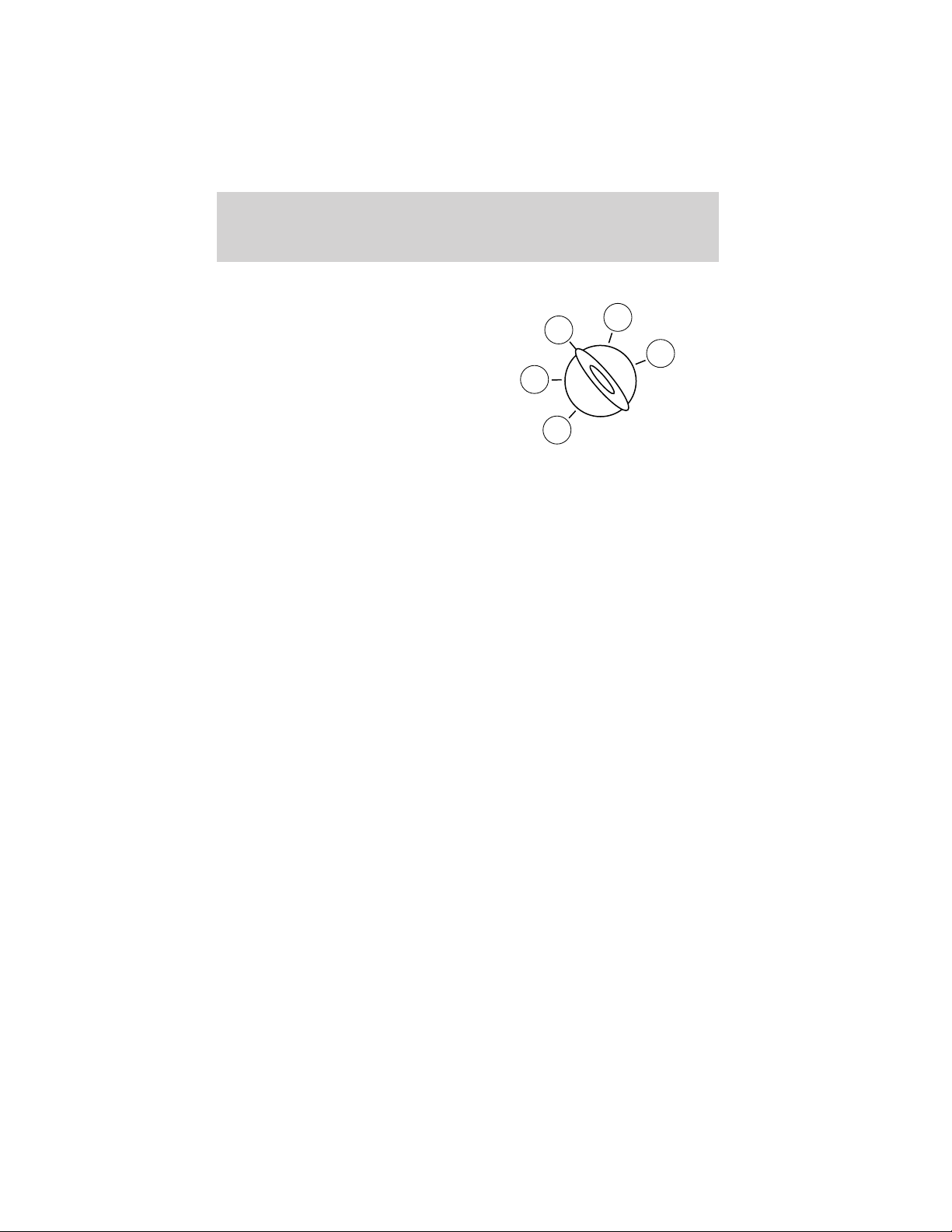

SETTING AUTOLAMP (IF EQUIPPED)

1. Make sure the headlamp control is in the OFF position. Leaving the headlamp control on will override the autolamp.

2. Turn the ignition to the ON position or start the vehicle.

3. Slide the delay control all the way to the left for the shortest delay and past detent to turn off.

The further you move the knob to the right, the longer the headlamps stay on after the ignition is turned to the OFF position. The autolamp will keep the headlamps on for a maximum of three minutes after the ignition is turned to OFF.

AUTOLAMP

OFF

DELAY

MAX.

Automatic dimming rear view mirror

The autolamp/automatic dimming mirror is equipped with an automatic dimming feature. This feature will change from the normal state to the non-glare “active” state

AUTOLAMP

DELAY

OFF

MAX.

when bright lights (glare) reach the mirror. When the mirror detects bright light from front or behind, it will adjust automatically to minimize glare.

The mirror will automatically return to the normal position whenever the vehicle is placed in R (Reverse) (when the mirror is in the ON position). This helps to ensure a bright clear view in the mirror when backing up.

Driver Controls

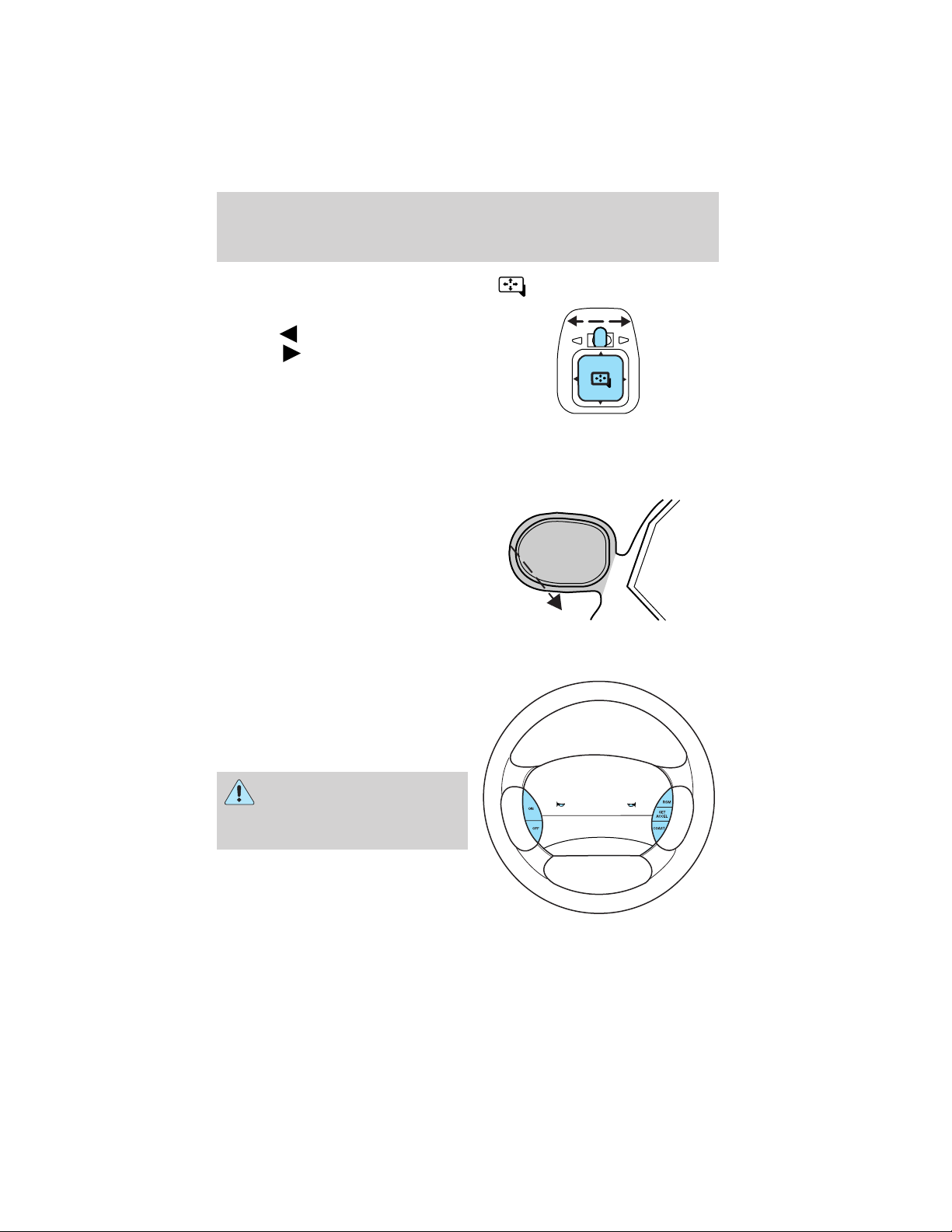

Power side view mirrors (if equipped)

To adjust your mirrors

1. Select mirror or to adjust the right

mirror.

2. Move the control in the direction you wish to tilt the mirror.

3. Return to the center position to disable the adjust function.

Fold-away mirrors

Pull the side mirrors in carefully when driving through a narrow space, like an automatic car wash.

SPEED CONTROL (IF EQUIPPED)

With speed control set, you can maintain a speed of 48 km/h (30 mph) or more without keeping your foot on the accelerator pedal. Speed control does not work at speeds below 48 km/h (30 mph).

to adjust the left

Do not use the speed

control in heavy traffic or on roads that are winding, slippery or unpaved.

Driver Controls

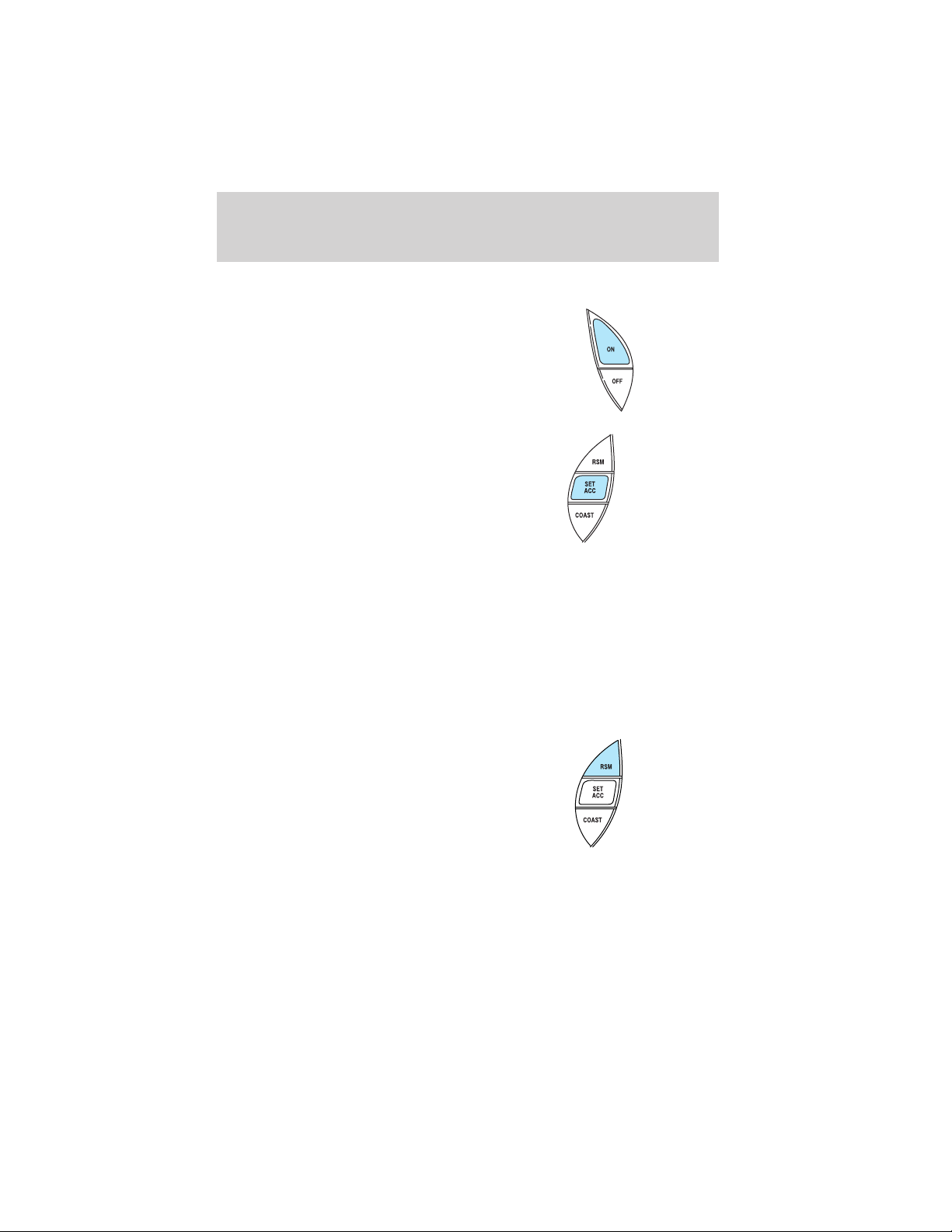

Setting speed control

The controls for using your speed control are located on the steering wheel for your convenience.

1. Press the ON control and release it.

2. Accelerate to the desired speed.

3. Press the SET ACC control and release it.

4. Take your foot off the accelerator pedal.

5. The indicator light

SPEED

instrument cluster will turn on.

Note:

• Vehicle speed may vary momentarily when driving up and down a steep hill.

• If the vehicle speed increases above the set speed on a downhill, you may want to apply the brakes to reduce the speed.

• If the vehicle speed decreases more than 16 km/h (10 mph) below your set speed on an uphill, your speed control will disengage.

CONT

on the

Resuming a set speed

Press the RSM (resume) control and release it. This will automatically return the vehicle to the previously set speed. The RSM control will not work if the vehicle speed is not faster than 48 km/h (30 mph).

Driver Controls

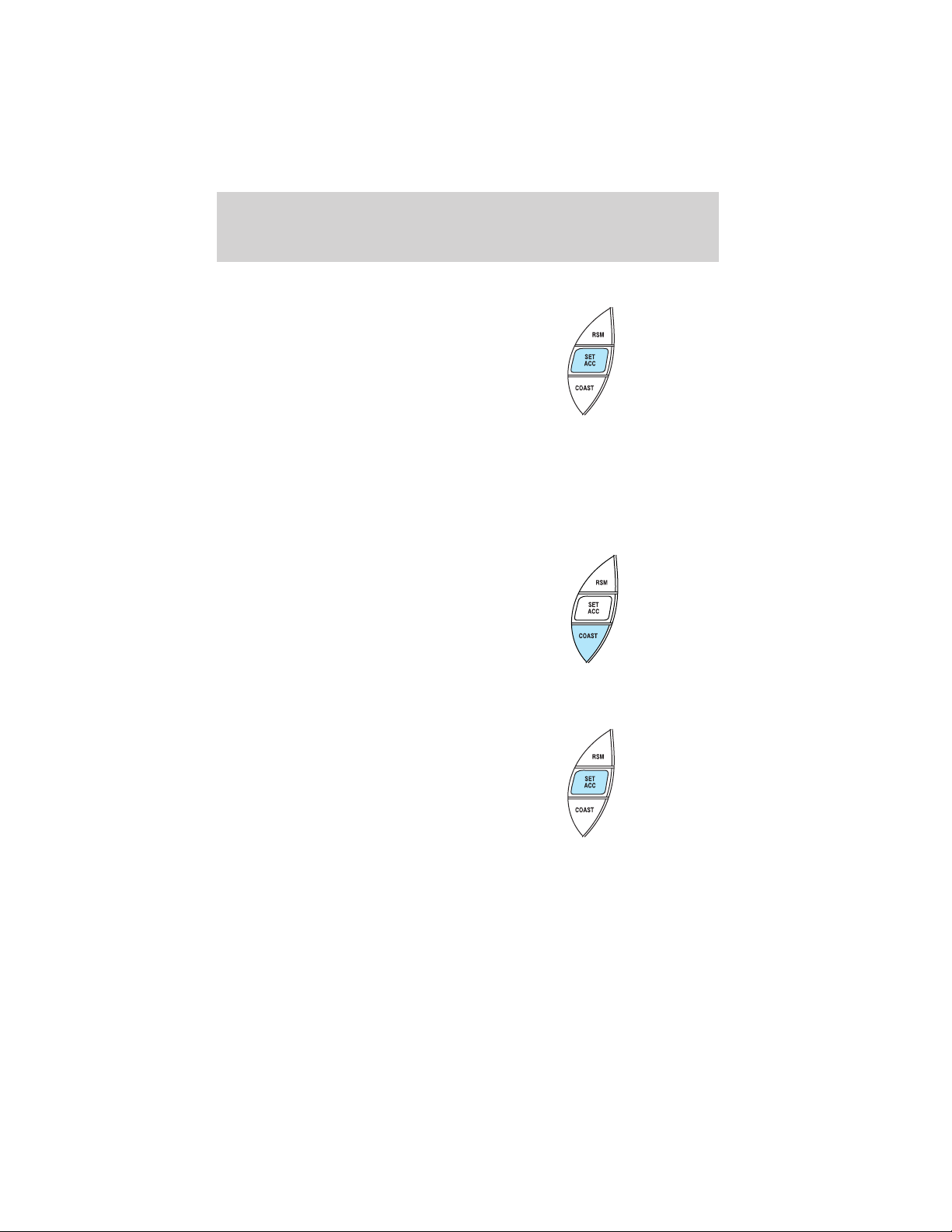

Increasing speed while using speed control

There are two ways to set a higher speed:

• Press and hold the SET ACC control until you get to the desired speed, then release the control. You can also use the SET ACC control to operate the Tap-Up function. Press and release this control to increase the vehicle set speed in small amounts by 1.6 km/h (1 mph).

• Use the accelerator pedal to get to the desired speed. When the vehicle reaches that speed, press and release the SET ACC control.

Reducing speed while using speed control

There are two ways to reduce a set speed:

• Press and hold the COAST control until you get to the desired speed, then release the control. You can also use the COAST control to operate the Tap-Down function. Press and release this control to decrease the vehicle set speed in small amounts by 1.6 km/h (1 mph).

• Depress the brake pedal until the desired vehicle speed is reached, press the SET ACC control.

Turning off speed control

There are two ways to turn off the speed control:

• Depress the brake pedal or the clutch pedal (if equipped). This will not erase your vehicles previously set speed.

Driver Controls

• Press the speed control OFF control.

Note: When you turn off the speed control or the ignition, your speed control set speed memory is erased.

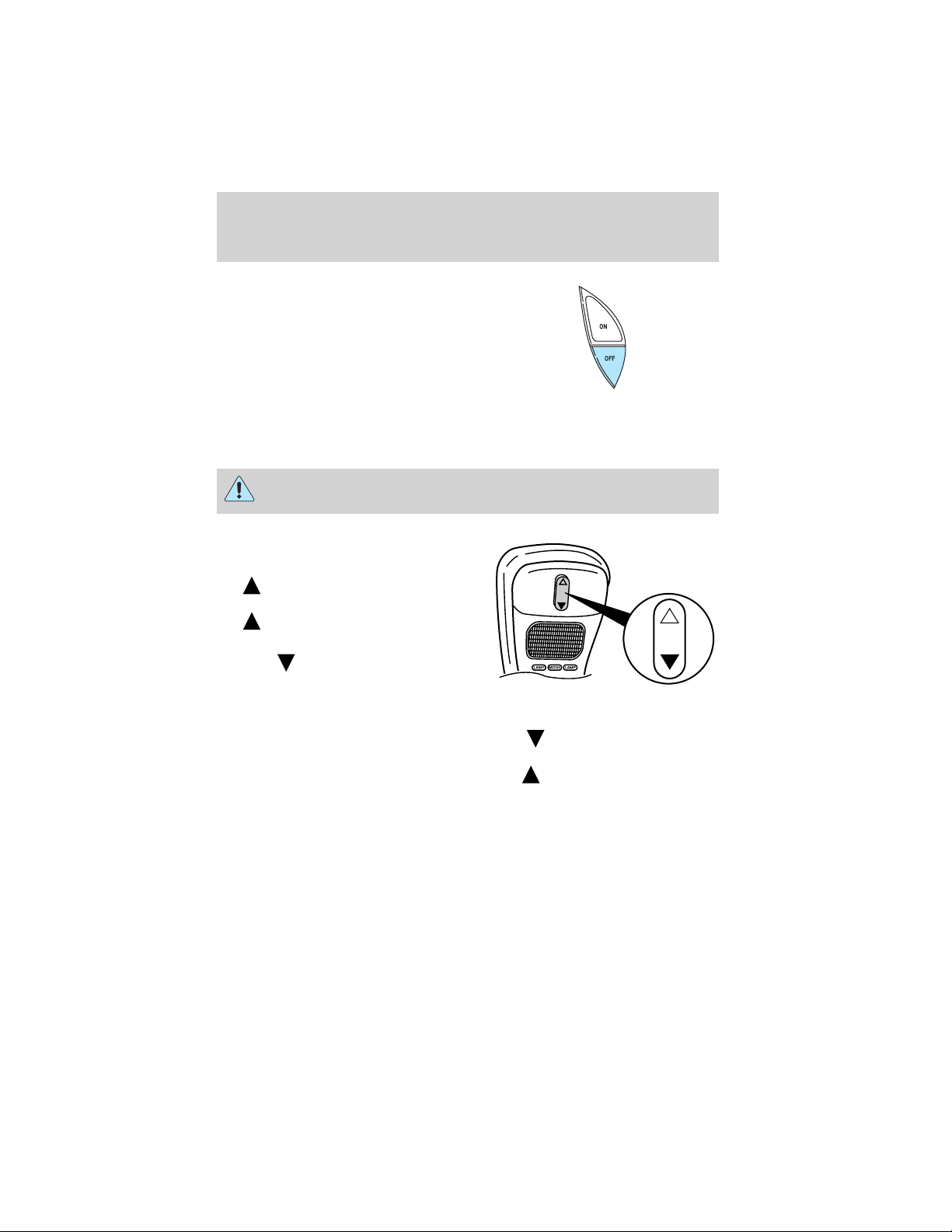

MOON ROOF (IF EQUIPPED)

The moon roof control is located on the overhead console.

Do not let children play with the moon roof. They may seriously hurt themselves.

To open the moon roof: the moon roof is equipped with a one-touch open feature. Press and release the one-touch open feature press the

To close the moon roof: press and hold the panel stops moving. When fully closed, the rear portion of the glass panel will appear higher than the front portion.

To vent the moon roof: press and hold the roof must be in the closed position in order to move it into the vent position. To close, press and hold the

panel stops moving.

The moon roof sliding shade can be opened or closed manually. The glass panel must be closed in order to move the sliding shade.

Note: If the battery is disconnected, discharged, or a new battery is installed, the moon roof positions will need to be reset. To reset the moon roof positions, move the moon roof into the vent position.

control. To stop the

control again.

control until the glass

control. The moon

control until the glass

Driver Controls

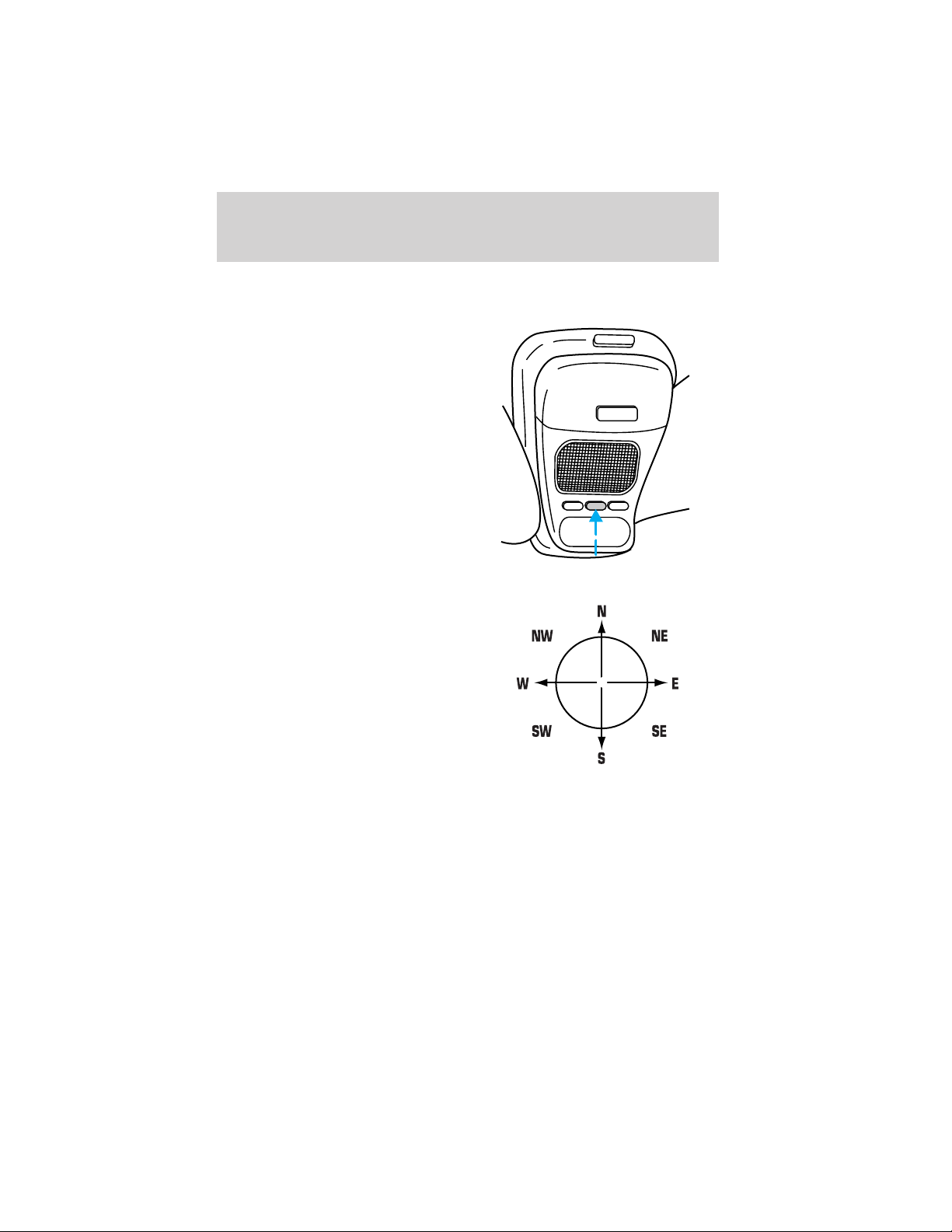

ELECTRONIC COMPASS AND OUTSIDE TEMPERATURE DISPLAY (IF EQUIPPED)

This display provides the outside temperature in °C (Centigrade) or °F (Fahrenheit) and one of the eight compass headings to indicate the direction the vehicle is facing.

Outside temperature display

Press the MODE control to turn on the display. Press the MODE control again to change from °Cto °F. Press the MODE control again to turn off the display.

If the outside temperature drops below 4° C (38° F) the word “ICE” will flash in the display alternately with the outside temperature for approximately one minute.

Electronic compass

As an orientation aid, the compass direction abbreviations are displayed here.

If you suspect that the compass is not operating correctly, it can be recalibrated.

Note: The compass reading may be affected when driving near large buildings, bridges, power lines and broadcast antennas. Magnetic or metallic objects place on or in the vehicle may also affect the compass reading.

• Adjusting the compass

Note: The ignition must be in the ON position.

OPEN

GARAGE

LAMP MODE LAMP

73° NW

Driver Controls

1. Press and hold the MODE

control until “VA R” appears in the display. The current location number should be displayed.

2. Press the MODE control

repeatedly until your desired location number appears in the display. Use this zone map to determine which location number

you should be using.

• Adjusting the calibration of the compass

Note: To adjust the calibration find an open area free from steel structures and high voltage lines.

1. Press and hold the MODE

control until “CAL” appears in the display then release the control.

2. Drive slowly (less than 5 km/h

[3 mph]) in circles until “CAL” disappears from the display (approximately 2 or 3 circles).

LAMP

MODE

LAMP

9 VAR

123

6 7 8 9 1011

LAMP

MODE

LAMP

CAL

14 13

Driver Controls

POSITIVE RETENTION FLOOR MAT

Position the floor mat so that the eyelets are over the pointed end of the retention posts and rotate forward to lock in. Make sure that the mat does not interfere with the operation of the accelerator or the brake pedal.

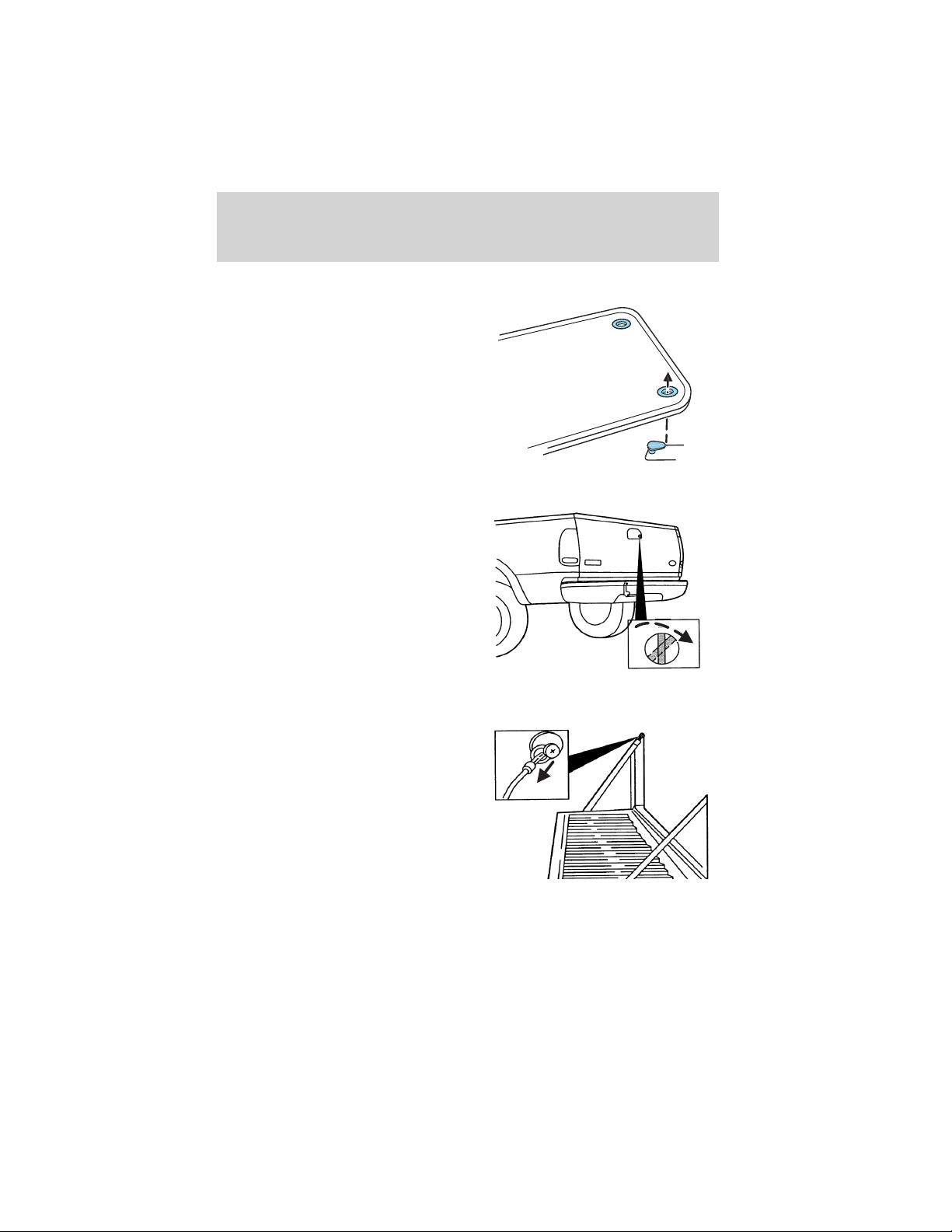

TAILGATE LOCK

The tailgate lock is designed to prevent theft of the tailgate.

• Insert ignition key and turn to the right to lock.

• Turn ignition key to the left to unlock.

TAILGATE REMOVAL

Your tailgate is removable to allow more room for loading.

1. Lower the tailgate.

2. Use a screwdriver to pry the

spring clip (on each connector) past the head of the support screw. Disconnect the cables.

3. Lift tailgate to a 45 degree angle

and remove it from the left and right hinges.

To install, follow the removal procedures in reverse order.

Driver Controls

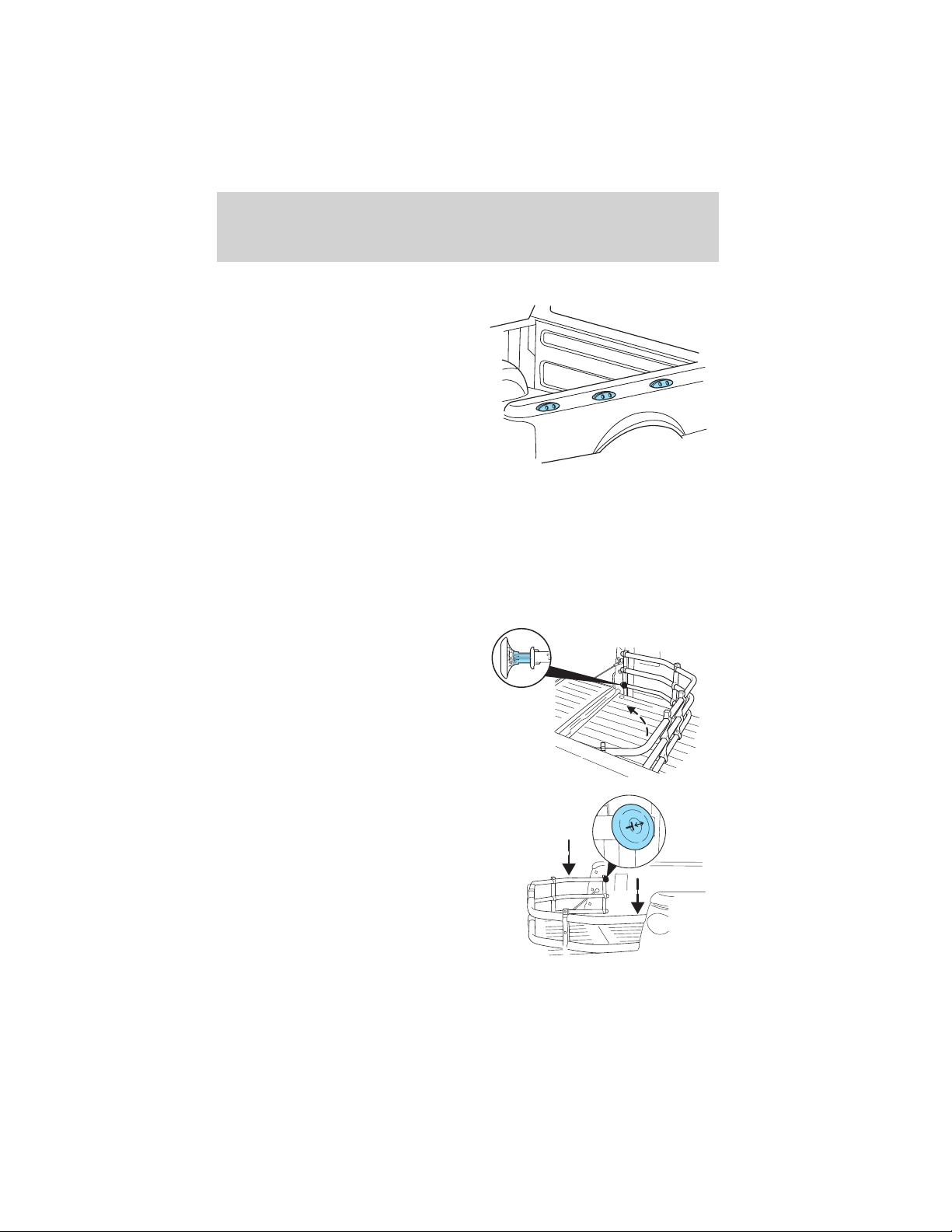

EXTERIOR TIEDOWN HOOKS

Exterior tiedown hooks mounted on the side of the pickup box:

• can be used to secure loads within the pickup box.

• can be used to secure half the tonneau cover in an open position.

• allow for continued use of the stake pockets.

Each tiedown hook can secure loads of up to 350 kg (770 lbs.) inside the pickup box (total load not to exceed box payload of 1000kg (2,200 lbs)). Loads can be secured to the hooks with up to three wraps of 10 mm rope.

CARGO CAGE (IF EQUIPPED)

Your vehicle may be equipped with a cargo cage designed to extend the pickup box for larger loads.

To extend the cargo cage:

1. Lower tailgate.

2. Pull the round knobs on each side

of the cargo cage to release it from the pickup box.

Red markings behind the knobs indicate the unlocked position.

3. Lift the cargo cage over on to the

tailgate.

4. Evenly push down on the cargo

cage and push the round knobs in on each side locking it in place.

To stow the cargo cage, follow steps one through four in reverse order.

The cargo cage may be used to secure a load of up to 46 kg (100 lbs.) on the tailgate.

Driver Controls

The cargo cage should always be kept in the stowed position with the tailgate closed when not in use.

Activating Cargo Cage Theft Deterrent Device:

The following procedure can be done with the cargo cage in the stowed or extended position.

1. Locate the phillips head screw in

the middle of the vertical brace on the locking clip.

2. Turn the screw counterclockwise

until you hear an audible click.

3. To deactivate, turn the screw clockwise until the locking clip moves

freely.

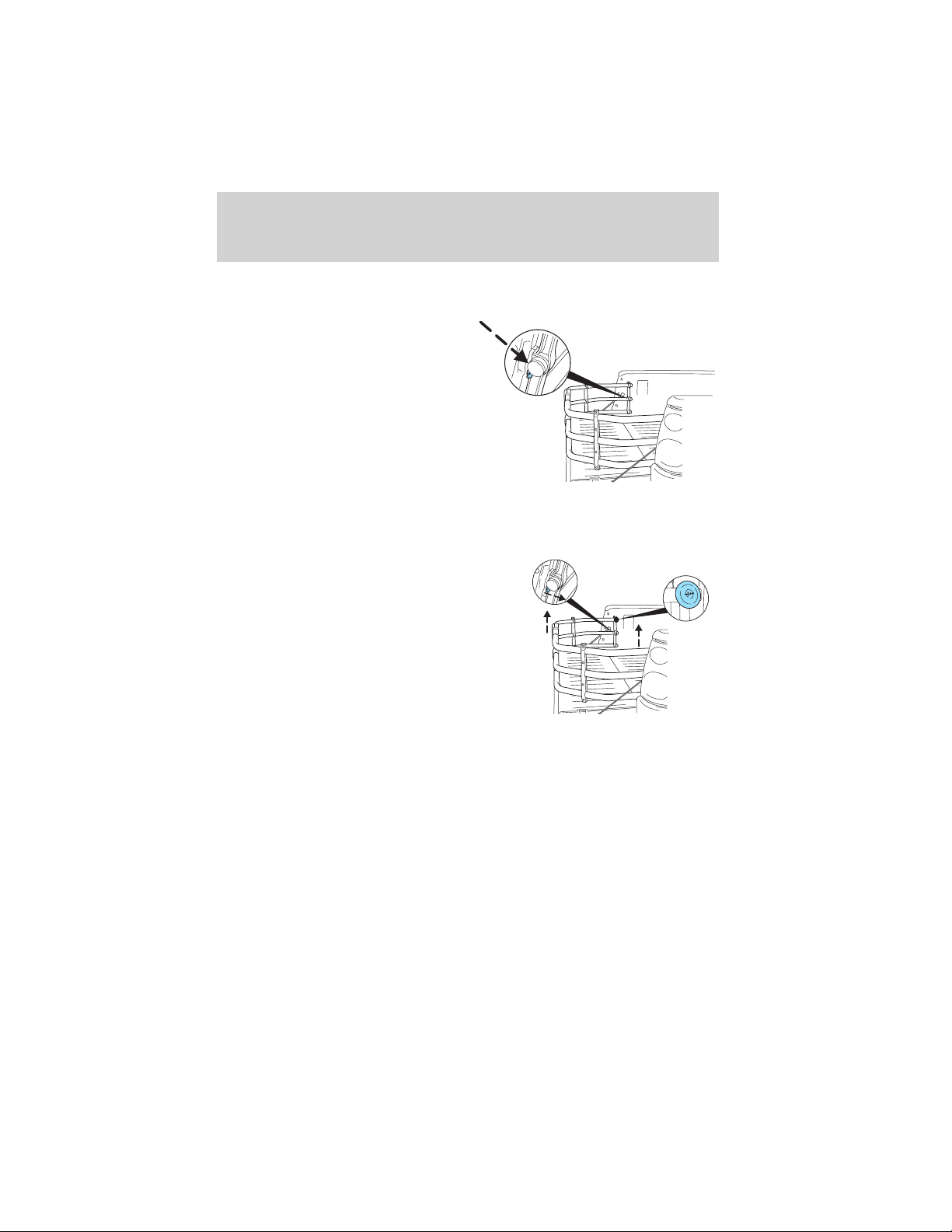

To remove the cargo cage:

1. Extend the cargo cage.

2. Pull the round knobs on each side

of the cage to unlock it.

Make sure the locking clip screws are loose before removing the cargo cage.

3. Press the locking clips below the

middle bar and lift the cargo cage out of the channels on the “D” pillar.

To install the cargo cage, follow the removal procedure in reverse order.

TONNEAU COVER (IF EQUIPPED)

The tonneau cover has been designed to maximize fuel economy and should be fully installed whenever possible.

The rear panel can be folded in half and secured behind the cab, or the whole cover can be removed completely from the vehicle.

To avoid damage to the cover, do not operate the vehicle unless the cover is fully installed, or securely stowed.

To avoid damage to the cover, do not stand, sit or load anything on top of the cover.

Driver Controls

To open the front panel:

• Open the driver side lock cover and unlock the front panel.

• Lift the panel to access items in the pickup box near the cab.

• To close, lower the panel down on the pickup box.

The panel will automatically lock when lowered onto the pickup box.

Do not drive with front panel unlocked or folded on top of the rear panel.

To open the rear panel:

• Open the lock cover and unlock the rear panel.

• Lift the rear panel to access items in the pickup box.

• To close, lower the rear panel on the pickup box.

The panel will automatically lock when lowered onto the pickup box.

To stow the rear panel:

• Before driving with the rear panel open, unlock the rear panel.

• Lift the rear panel up, lay it on top of the front panel and secure it with the two straps to the exterior tiedowns on the pickup box.

Failure to secure the rear panel could damage the tonneau cover or vehicle.

Driver Controls

To remove the tonneau cover:

The tonneau cover weighs 29 kg (70 lbs.) and needs to be supported during removal since the panels will automatically lock when set down on the pickup box. This is a two person operation.

• Unlock and support the front and rear panels.

• Fold the rear panel on top of the front panel.

• Pull the release levers on the underside of the tonnneau cover from the pickup box and remove the cover.

For installation of the tonneau cover, reverse the removal procedure.

Interior tonneau cover release

Your vehicle is equipped with a mechanical interior tonneau cover release handle that provides a means of escape for children and adults in the event they become locked inside the pickup box.

Adults are advised to familiarize themselves with the operation and location of the release handle.

To open the tonneau cover from the inside, pull the “T” shaped handle and push up on the tonneau cover panel. The handle is composed of a material that will glow for hours in darkness following brief exposure to ambient light.

The “T” shaped handle is located on the tonneau cover panel.

Keep vehicle doors and tonneau cover locked and keep keys and

remote transmitters out of a child’s reach. Unsupervised children could lock themselves in the box and risk injury. Children should be taught not to play in vehicles.

Driver Controls

On hot days, the temperature in the pickup box can rise very

quickly. Exposure of people or animals to these high temperatures for even a short time can cause death or serious heat-related injuries, including brain damage. Small children are particularly at risk.

LUGGAGE RACK

Your vehicle is equipped with a roof rack with out cross bars. The maximum recommended load is 44kg (100 lbs), evenly distributed. If it is not possible to distribute the load, position it as far rearward as possible. .Use the tiedown loops to secure the load.

Loaded vehicles, with a higher center of gravity, may handle

differently than unloaded vehicles. Extra precautions, such as slower speeds and increased stopping distance, should be taken when driving a heavily loaded vehicle.

Vehicles with a higher center of gravity such as utility and

four-wheel drive vehicles handle differently than vehicles with a lower center of gravity. Utility and four-wheel drive vehicles are not designed for cornering at speeds as high as passenger cars any more than low-slung sport cars are designed to perform satisfactorily under off-road conditions. Avoid sharp turns, excessive speed and abrupt maneuvers in these vehicles. Failure to drive cautiously could result in an increase risk of loss of vehicle control, vehicle rollover, personal injury and death.

Locks and Security

KEYS

The key operates all locks on your vehicle. In case of loss, replacement keys are available from your dealer.

You should always carry a second key with you in a safe place in case you require it in an emergency.

Refer to SecuriLock娂 Passive Anti-Theft System for more information.

POWER DOOR LOCKS

The power door lock controls are located on the driver and front passenger door panels.

Pressing the doors. Pressing the will lock all

the doors.

Childproof door locks

• When these locks are set, the rear doors cannot be opened from the inside.

• The rear doors can be opened from the outside when the doors are unlocked.

The childproof locks are located on rear edge of each rear door and must be set separately for each door. Setting the lock for one door will not automatically set the lock for both doors.

• Move lock control up to engage the childproof lock.

• Move control down to disengage childproof locks.

will unlock all the

LOCKED

VERROUILLÉE

WHEN LOCKED DOOR WON'T OPEN FROM INSIDE

VERROUILLÉE AINSI LA PORTE NE PEUT S DUYRIR DE L'INTERIEUR

CHILD LOCK BELO

SECURITÉ ENFANTS CI-DESSOUS

Locks and Security

REMOTE ENTRY SYSTEM (IF EQUIPPED)

This device complies with part 15 of the FCC rules and with RS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Your vehicle is equipped with a remote entry system which allows you to:

• unlock the vehicle doors without a key.

• lock all the vehicle doors without a key.

• activate the personal alarm.

If there is any potential remote keyless entry problem with your vehicle, ensure ALL remote entry transmitters are taken to the dealership, to aid in troubleshooting.

Unlocking the doors

1. Press and release to unlock the driver’s door. Note: The interior

lamps will illuminate.

2. Press

doors.

The remote entry system activates the illuminated entry feature. This feature turns on the interior lamps for 25 seconds or until the ignition is turned to the ON position. If the dome lamp control is in the off position the illuminated entry feature will not work.

The inside lights will not turn off if:

• they have been turned on using the dimmer control or

• any door is open.

The battery saver feature will turn off the interior lamps 30 minutes after the ignition is turned to the OFF position.

and release again within three seconds to unlock all the

Locks and Security

Locking the doors

1. Press and release to lock all the doors. Note: the interior lamps

will turn off (unless the dome lamp control is in the full-up position), and the headlamps and parking lamps will flash.

2. Press

doors are closed and locked. Note: the doors will lock again, the horn will chirp once and the headlamps and parking lamps will flash.

If any of the doors are not properly closed the horn will make two quick chirps.

Sounding a panic alarm

Press 30 seconds and the parklamps will flash for a maximum of 3 minutes.

Press again or turn the ignition to ON to deactivate, or wait for the alarm to timeout in 3 minutes.

Note: The panic alarm will only operate when the ignition is in the OFF or ACC position.

Replacing the battery

The remote entry transmitter uses one coin type three-volt lithium battery CR2032 or equivalent. The typical operating range for your remote entry transmitter is approximately 10 meters (33 feet). A decrease in the operating range could be caused by:

• weather conditions,

• nearby radio towers,

• structures around the vehicle and

• other vehicles parked next to the vehicle.

To replace the battery:

1. Twist a thin coin between the two

halves of the remote entry transmitter near the key ring. DO NOT TAKE THE FRONT PART OF THE REMOTE ENTRY TRANSMITTER APART.

2. Remove the old battery.

3. Insert the new battery. Refer to

the diagram inside the remote entry transmitter for the correct orientation of the battery.

and release again within three seconds to confirm that all the

to activate the alarm. The horn will sound for a maximum of

Locks and Security

4. Snap the two halves back together.

Note: Replacement of the battery will not cause the remote transmitter to become deprogrammed from your vehicle. The remote transmitter should operate normally after battery replacement.

Replacing lost remote entry transmitters

If you would like to have your remote entry transmitter reprogrammed because you lost one, or would like to buy additional remote entry transmitters, you can either reprogram them yourself, or take all remote entry transmitters to your authorized dealer for reprogramming.

How to reprogram your remote entry transmitters

You must have all remote entry transmitters (maximum of four) available before beginning this procedure.

To reprogram the remote entry transmitters:

1. Ensure the vehicle is

electronically unlocked.

2. Put the key in the ignition.

3. Turn the key from the 2 (LOCK)

position to 3 (OFF).

4. Cycle, eight times, rapidly (within

10 seconds) between the 3 (OFF) position and 4 (ON). Note: The eighth turn must end in the 4 (ON) position.

5. The doors will lock, then unlock, to confirm that the programming

mode has been activated.

6. Within 20 seconds press any button on the remote entry transmitter.

Note: If more than 20 seconds have passed you will need to start the procedure over again.

7. The doors will lock, then unlock, to confirm that this remote entry

transmitter has been programmed.

8. Repeat Step 6 to program each additional remote entry transmitter.

9. Turn the ignition to the 3 (OFF) position after you have finished

programming all of the remote entry transmitters.

10. The doors will lock, then unlock, to confirm that the programming

mode has been exited.

Locks and Security

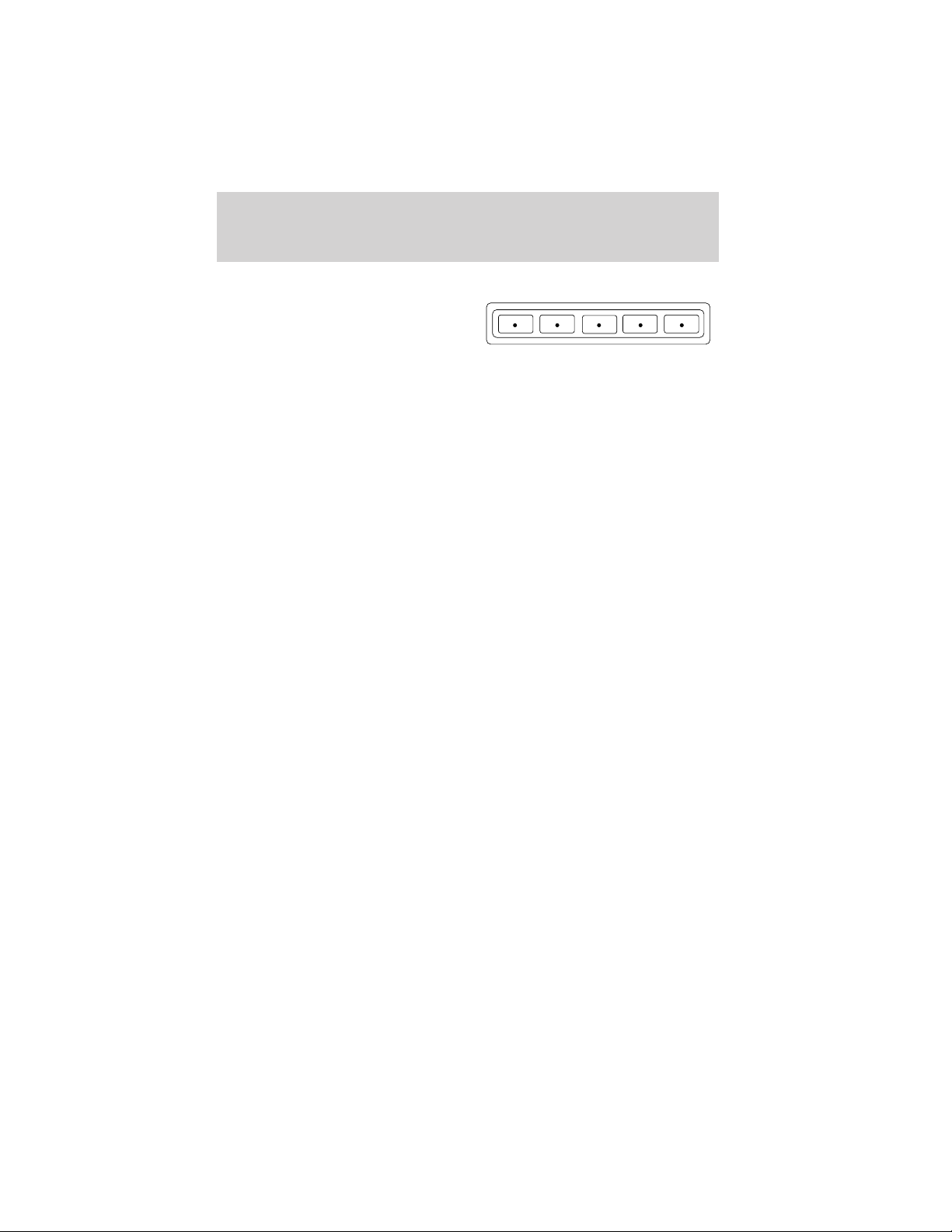

KEYLESS ENTRY SYSTEM (IF EQUIPPED)

You can use the keyless entry keypad to:

• lock or unlock the doors without using a key.

• activate or deactivate the autolock feature.

The keypad can be operated with the factory set 5–digit entry code; this code is located on the owner’s wallet card in the glove box, is marked on the computer module, and is available from your authorized dealer. You can also create your own 5–digit personal entry code.

When pressing the controls on the keypad, press the middle of the controls to ensure a good activation.

Programming a personal entry code

To create your own personal entry code:

1. Enter the factory set code.

2. Within five seconds press the 1 • 2 on the keypad.

3. Enter your personal 5-digit code. Each number must be entered

within five seconds of each other.

Tips:

• Do not set a code that uses five of the same number.

• Do not use five numbers in sequential order.

• The factory set code will work even if you have set your own personal

code.

• If you set a second personal code it will erase your first personal code.

1 2

4567890

Erasing personal code

1. Enter the factory set 5–digit code.

2. Press and hold the 1 • 2 for two seconds. This must be done within

five seconds of completing step 1.

3. Press the 7 • 8 and the 9 • 0 at the same time. This must be done

within five seconds of completing step 2. Your personal code is now erased and only the factory set 5–digit code

will work.

Anti-scan feature

If the wrong code has been entered 36 times, the keypad will go into an anti-scan mode. This mode disables the keypad for one minute and the keypad lamp will flash during this time.

Locks and Security

The anti-scan feature will turn off after:

• one minute of keypad inactivity.

• pressing the UNLOCK

• the ignition is turned to the ON position.

Unlocking and locking the doors using keyless entry

To unlock the driver’s door, enter the factory set 5-digit code or your personal code. Each number must be pressed within five seconds of each other. The interior lamps will illuminate after pressing the first control on the keypad.

To unlock all doors, press the 3 • 4 control within five seconds.

To lock all doors, press the 7 • 8 and the 9 • 0 at the same time. You do not need to enter the keypad code first. Note: The interior lamps

will turn off.

Autolock (if equipped)

This feature will automatically lock all the doors when:

• all the doors are closed,

• the ignition key is in the ON position,

• the gearshift lever is shifted into, then out of, R (reverse) and then

• the brake pedal is released.

This feature will also automatically relock all the doors when:

• the ignition is in the ON position and any door is opened then closed, and

• you put the vehicle in motion by releasing the brake pedal.

Deactivating/reactivating the autolock feature

The autolock feature can be deactivated/reactivated using the following two methods:

• keyless entry keypad, or

• ignition lock cylinder and interior power door locks control.

To deactivate/reactivate the autolock feature using the keypad

Your vehicle comes with the autolock feature activated. To deactivate/reactivate this feature:

1. Turn the ignition to the OFF position.

control on the remote entry transmitter.

Locks and Security

2. Close all the doors.

3. Enter the 5-digit entry code.

4. Press and hold the 3 • 4. While holding the 3 • 4, press the 7 • 8

within five seconds.

5. Within 5 seconds of Step 4, release the 3 • 4.

6. Within 5 seconds of Step 5, Release the 7 • 8.

The horn will chirp once when the system has been successfully deactivated.

The horn will chirp twice (one short and one long chirp) when the system has been successfully reactivated.

To deactivate/reactivate the autolock feature using the ignition lock cylinder and interior power door locks control

1. Close all the doors.

2. Ensure that the ignition lock cylinder is in the OFF position.

3. Note: Steps 4 through 8 must be carried out within 30 seconds. Turn

the ignition lock cylinder from OFF to RUN.

4. Press the power door locks UNLOCK control three times.

5. Turn the ignition lock cylinder from RUN to OFF.

6. Press the power door locks UNLOCK control three times.

7. Turn the ignition lock cylinder from OFF to RUN.

8. Ensure that the vehicle’s horn chirps. This chirp indicates that the

feature is in an enable/disable mode and ready to accept program changes.

9. Press the power door locks UNLOCK control once, then the LOCK

control once, in order to toggle the autolock feature.

10. Ensure that the horn chirps once; there should only be one horn

chirp, indicating that the autolock feature has been deactivated. If one chirp is heard, followed by a longer sound of the horn, the autolock feature has been reactivated.

11. Turn the ignition lock cylinder to the OFF position, or wait two

minutes, in order to exit the enable/disable mode.

12. Exit the vehicle and ensure that the horn chirps once to indicate that

a feature has been changed and that the autolock feature has been toggled.

Locks and Security

SECURILOCK姟 PASSIVE ANTI-THEFT SYSTEM

SecuriLock娂 passive anti-theft system is an engine immobilization system. This system is designed to prevent the engine from being started unless a coded key programmed to your vehicle is used. The use of the wrong type of coded key may lead to a “no-start” condition.

Your vehicle comes with two coded keys; additional coded keys may be purchased from your dealer. The dealer can program your spare keys to your vehicle or you can program the keys yourself. Refer to Programming spare keys for instructions on how to program the coded key.

Note: The SecuriLock娂 passive anti-theft system is not compatible with non-Ford aftermarket remote start systems. Use of these systems may result in vehicle starting problems and a loss of security protection.

Note: Large metallic objects, electronic devices that are used to purchase gasoline or similar items, or a second coded key on the same key chain may cause vehicle starting issues. You need to prevent these objects from touching the coded key while starting the engine. These objects will not cause damage to the coded key, but may cause a momentary issue if they are too close to the key when starting the engine. If a problem occurs, turn the ignition off, remove all objects on the key chain away from the coded key and restart the engine.

Theft indicator

The theft indicator is located in the instrument cluster.

• When the ignition is in the OFF position, the indicator will flash once every 2 seconds to indicate the SecuriLock娂 system is functioning as a theft deterrent.

• When the ignition is in the ON position, the indicator will glow for 3 seconds, then turn off, to indicate normal system functionality.

If a problem occurs with the SecuriLock娂 system, the indicator will flash rapidly or glow steadily when the ignition is in the ON position. If this occurs, the vehicle should be taken to an authorized dealer for service.

Locks and Security

Automatic arming

The vehicle is armed immediately after switching the ignition to the 3 (OFF) position.

The

THEFT

indicator will flash

every two seconds when the vehicle

is armed.

Automatic disarming

Switching the ignition to the 4 (ON) position with a coded key disarms the vehicle.

• The

THEFT

indicator will illuminate for three seconds and then go

out.

• If the

THEFT

indicator stays on for an extended period of time or

flashes rapidly, have the system serviced by your dealer.

Replacement keys

If your keys are lost or stolen and you don’t have an extra coded key, you will need to have your vehicle towed to a dealership. The key codes need to be erased from your vehicle and new coded keys will need to be programmed.

Replacing coded keys can be very costly. Store an extra programmed key away from the vehicle in a safe place to help prevent any inconveniences. Please visit an authorized dealer to purchase additional spare or replacement keys.

Programming spare keys

You can program your own coded keys to your vehicle. Please read and understand the entire procedure before you begin.

Tips:

• A maximum of eight keys can be coded to your vehicle.

• Only use Securilock娂 keys.

• You must have two previously programmed coded keys (keys that

already operate your vehicle’s engine) and the new unprogrammed key(s) readily accessible.

Locks and Security

• If no previously programmed coded keys are available, you must take your vehicle to your dealer to have the spare key(s) programmed.

1. Insert a previously programmed

coded key into the ignition.

2. Turn the ignition from the 3

(OFF) position to the 4 (ON) position. Keep the ignition in the 4 (ON) position for at least one second, but no more than 10 seconds.

3. Turn the ignition to the 3 (OFF)

position, and remove the coded key from the ignition.

4. Within ten seconds of removing the previously programmed coded key,

insert the other previously programmed coded key into the ignition.

5. Turn the ignition from the 3 (OFF) position to the 4 (ON) position.

Keep the ignition in the 4 (ON) position for at least one second but not more than 10 seconds.

6. Turn the ignition to the 3 (OFF) position, and remove the second key

from the ignition.

7. Within twenty seconds of removing the previously programmed coded

key, insert the unprogrammed key (new/valet key) into the ignition.

8. Turn the ignition from the 3 (OFF) position to the 4 (ON) position.

Keep the ignition in the 4 (ON) position for at least one second.

9. Your new unprogrammed key is now programmed.

If the key has been successfully programmed it will start the vehicle’s engine and the theft indicator light will illuminate for three seconds and then go out. If the key was not successfully programmed, it will not start your vehicle’s engine and the theft indicator light will flash on and off rapidly. If failure repeats, bring your vehicle to your dealer to have the new key(s) programmed.

To program additional new unprogrammed key(s), repeat this procedure from step 1 for each additional key.

Seating and Safety Restraints

FRONT SEATS

Notes:

Reclining the seatback can cause an occupant to slide under the seat’s safety belt, resulting in severe personal injuries in the

event of a collision.

Do not pile cargo higher than the seatbacks to avoid injury in a collision or sudden stop.

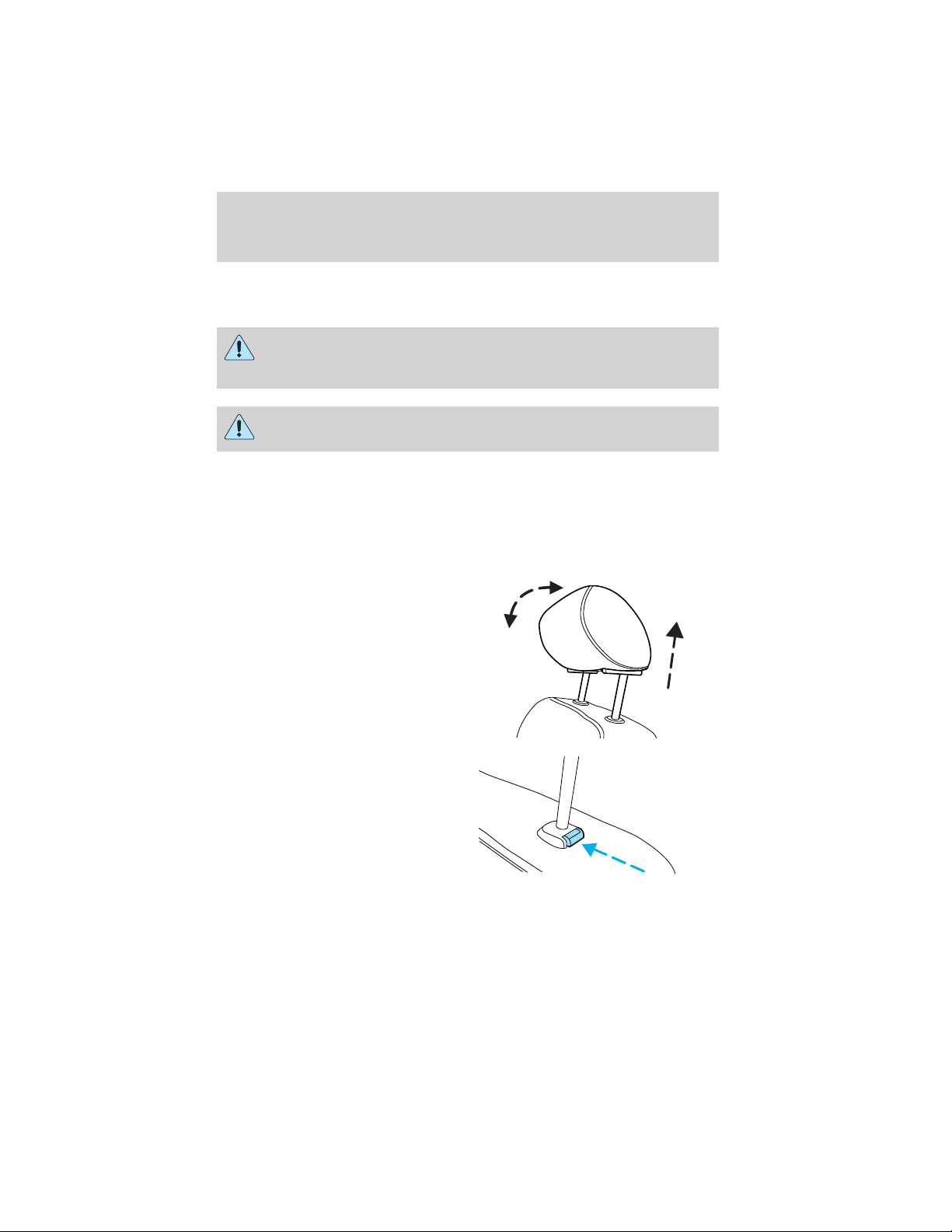

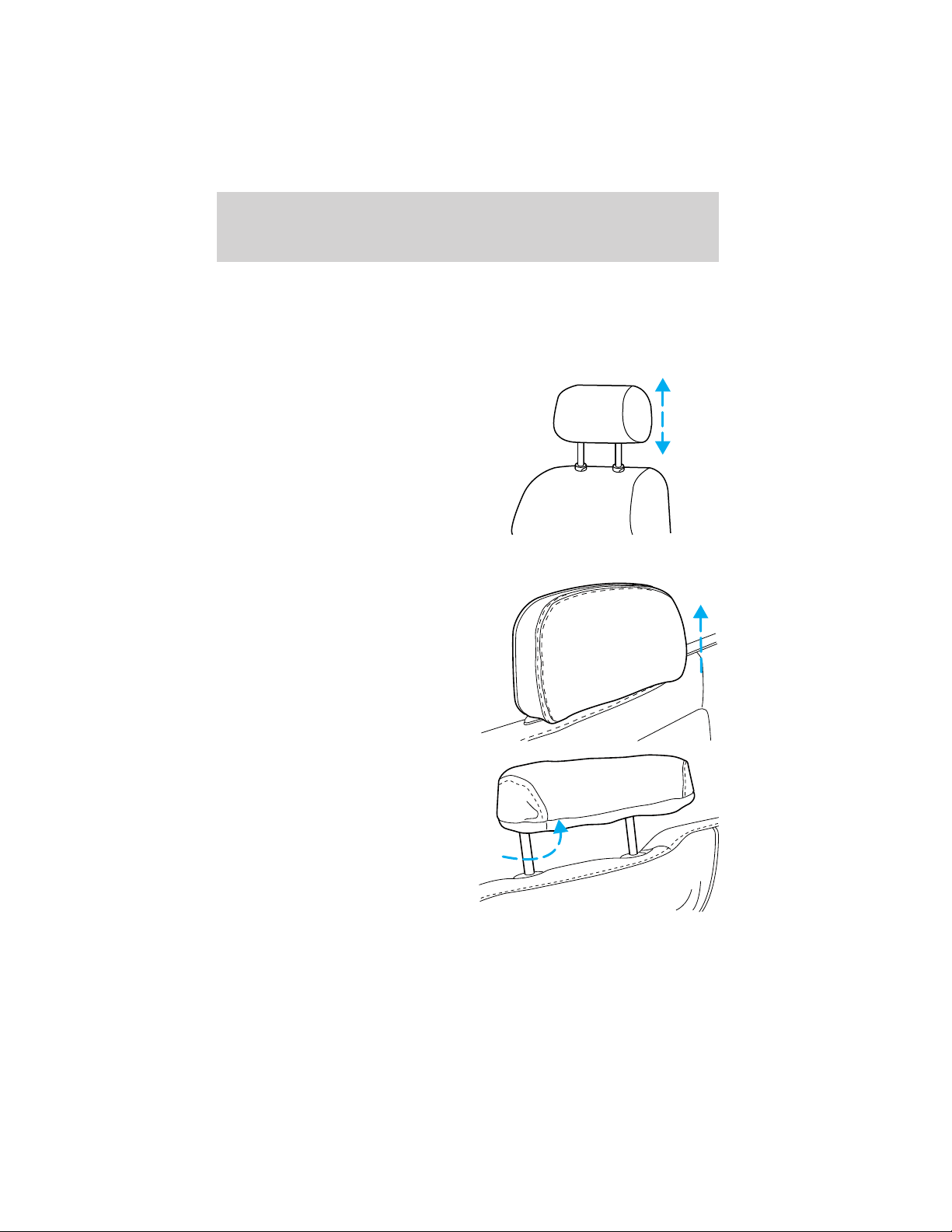

Adjustable head restraints (if equipped)

Head restraints help to limit head motion in the event of a rear collision. The seats in your vehicle may have adjustable head restraints. Adjust your head restraint so that it is located directly or as close as possible behind your head.

To adjust the head restraint:

• Raise the head restraint by pulling it upward.

Four-way head restraints (if equipped):

• Tilt the head restraint forward or backward by holding it and rotating it to the desired position.

To lower the head restraint:

• Push the release control.

• Push down on the head restraint.

Seating and Safety Restraints

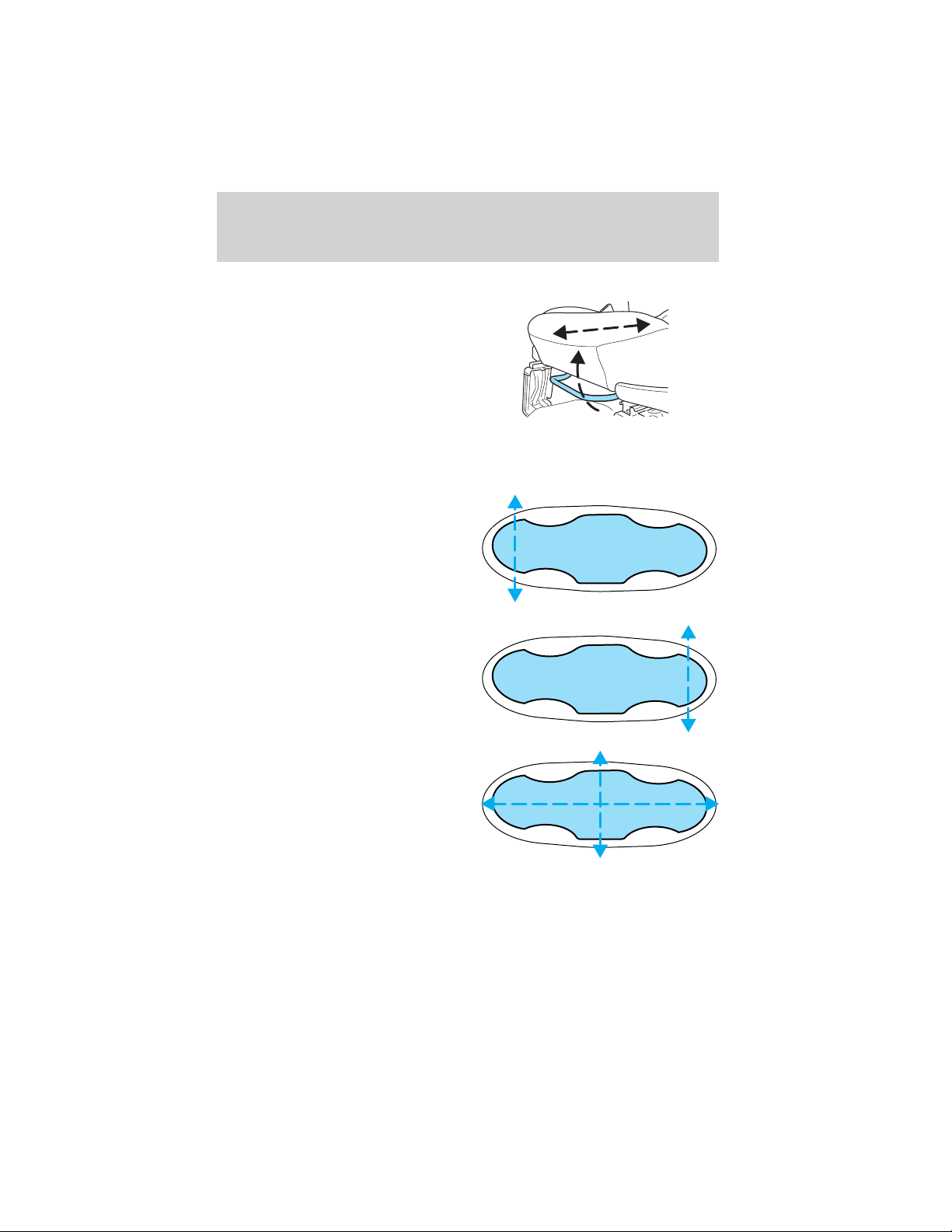

Adjusting the front manual seat

Pull the lever located at the front edge of the seat to move the seat forward or backward. Release the lever to lock the seat in place.

Adjusting the front power seat (if equipped)

The control is located on the outboard side of the seat cushion.

Press to raise or lower the front portion of the seat cushion.

Press to raise or lower the rear portion of the seat cushion.

Press the control to move the seat forward, backward, up or down.

Seating and Safety Restraints

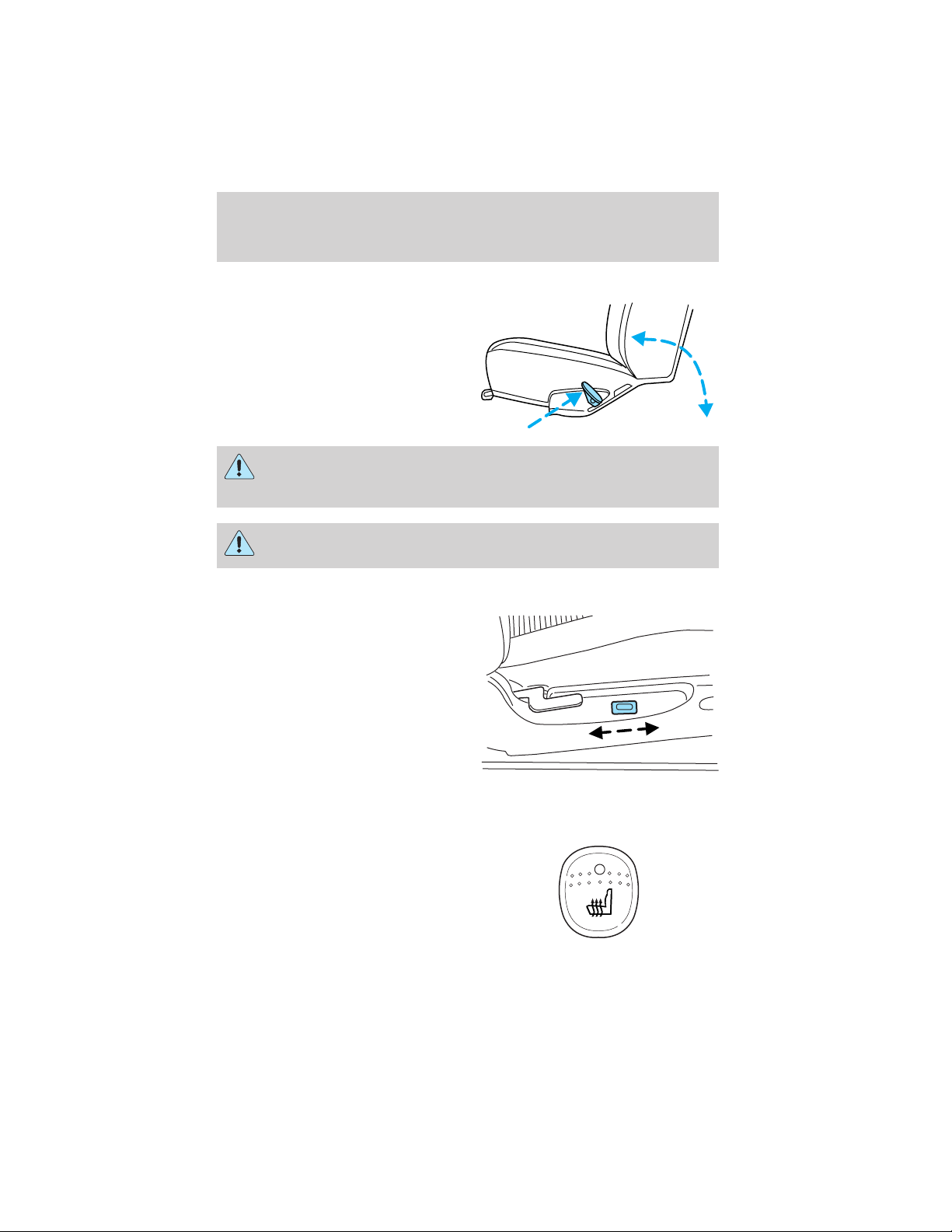

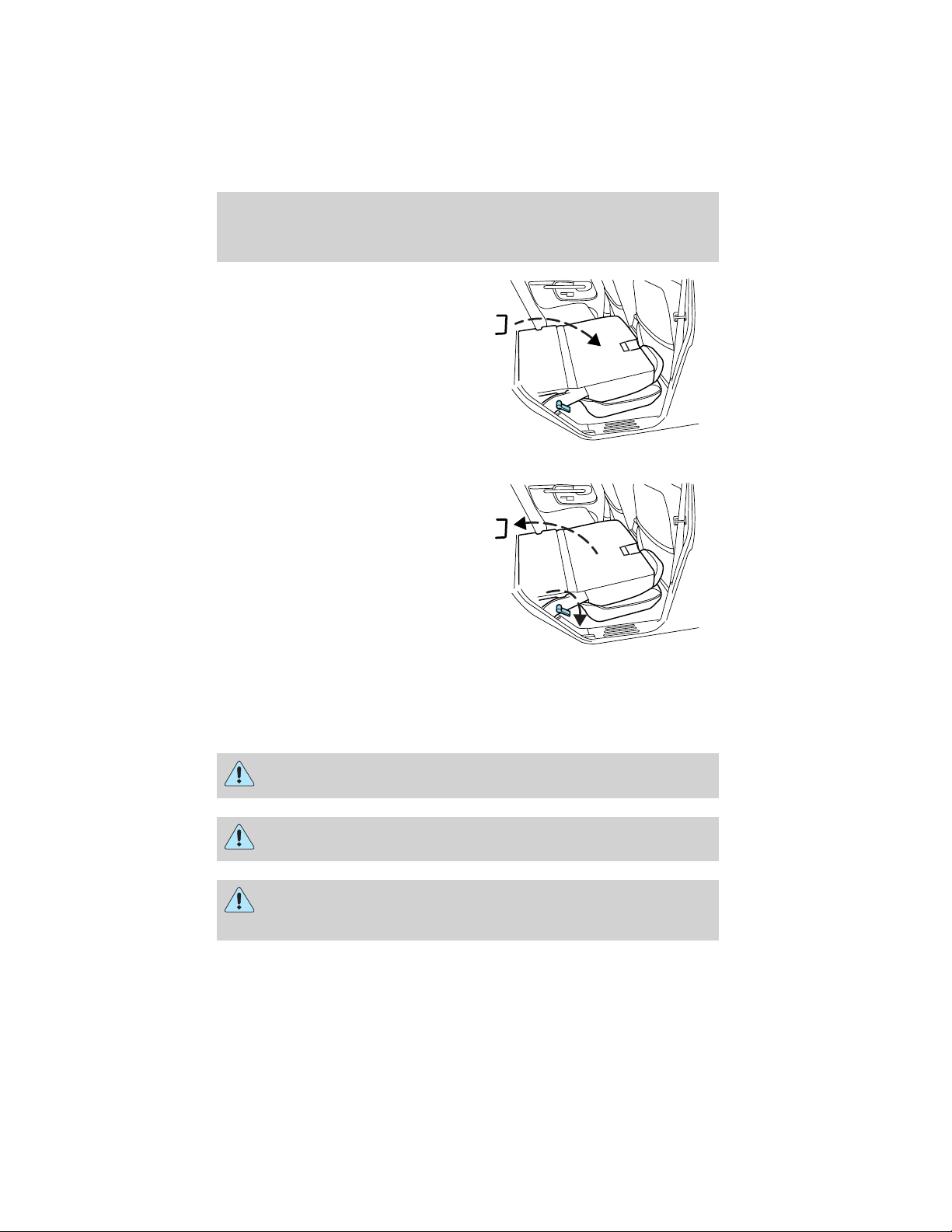

Reclining the seats

Pull the lever located on the outside of the seat to recline the seatback. Release the lever to lock the seatback in place.

Reclining the seatback can cause an occupant to slide under the seat’s safety belt, resulting in severe personal injuries in the

event of a collision.

Never adjust the driver’s seat or seatback when the vehicle is moving.

Power lumbar (if equipped)

Push the button forward to inflate, or rearward to deflate.

Heated seats (if equipped)

To operate the heated seats:

• Push control to activate.

• Push again to deactivate.

The indicator light on the control will illuminate when activated.

Seating and Safety Restraints

REAR SEATS

Adjustable rear head restraints

Lift the head restraint so that it is located directly or as close as possible behind your head.

Push or pull the head restraint to the desired position.

Folding down rear 60/40 seats

1. Raise the rear seat head restraint.

2. Flip the bottom of the head

restraint up, toward the front seat.

Seating and Safety Restraints

3. While holding the head restraint

in a “flat” position, lower the head restraint to the seat back.

4. Flip the seat release control

toward the front seat.

5. The seat will automatically fall

forward. For Pioneer Edition vehicles, the 40 percent rear seat (behind the driver) does not fold due to the subwoofer location. See

Attaching child safety seats with tether straps in this chapter for

tether access behind this seat.

Seating and Safety Restraints

A carpeted panel will flip down from the back panel to complete the load floor.

Returning the rear 60/40 seats to upright position

1. Push down seatback release

control and pull seatback up and into upright position making sure seatback locks into place.

2. Pull head restraint up and return to upright position.

SAFETY RESTRAINTS

Safety restraints precautions

Always drive and ride with your seatback upright and the lap belt snug and low across the hips.

To reduce the risk of injury, make sure children sit where they can be properly restrained.

Never let a passenger hold a child on his or her lap while the vehicle is moving. The passenger cannot protect the child from

injury in a collision.

Seating and Safety Restraints

All occupants of the vehicle, including the driver, should always properly wear their safety belts, even when an air bag (SRS) is

provided.

It is extremely dangerous to ride in a cargo area, inside or

outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts. Be sure everyone in your vehicle is in a seat and using a safety belt properly.

In a rollover crash, an unbelted person is significantly more likely

to die than a person wearing a safety belt.

Each seating position in your vehicle has a specific safety belt

assembly which is made up of one buckle and one tongue that are designed to be used as a pair. 1) Use the shoulder belt on the outside shoulder only. Never wear the shoulder belt under the arm. 2) Never swing the safety belt around your neck over the inside shoulder.

3) Never use a single belt for more than one person.

Always transport children 12 years old and under in the back

seat and always properly use appropriate child restraints.

Safety belts and seats can become hot in a vehicle that has been

closed up in sunny weather; they could burn a small child. Check seat covers and buckles before you place a child anywhere near them.

Energy Management Feature

• This vehicle has a safety belt system with an energy management feature at the front seating positions to help further reduce the risk of injury in the event of a head-on collision.

• The front outboard safety belt system has a retractor assembly that is designed to extend the seat belt webbing in a controlled manner. This helps reduce the belt force acting on the user’s chest.

Seating and Safety Restraints

BELT AND RETRACTOR ASSEMBLY MUST BE REPLACED if

the safety belt assembly automatic locking retractor feature or any other safety belt function is not operating properly when checked according to the procedures in Workshop Manual. Failure to replace the Belt and Retractor assembly could increase the risk of injury in collisions.

Combination lap and shoulder belts

1. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) until you hear a snap and feel it latch. Make sure the tongue is securely fastened in the buckle.

2. To unfasten, push the release button and remove the tongue from the buckle.

The front and rear outboard safety restraints in the vehicle are combination lap and shoulder belts. The front passenger and rear seat outboard safety belts have two types of locking modes described below:

Vehicle sensitive mode

This is the normal retractor mode, which allows free shoulder belt length adjustment to your movements and locking in response to vehicle movement. For example, if the driver brakes suddenly or turns a corner sharply, or the vehicle receives an impact of approximately 8 km/h (5 mph) or more, the combination safety belts will lock to help reduce forward movement of the driver and passengers.

Seating and Safety Restraints

Automatic locking mode

How to use the automatic locking mode

• Buckle the combination lap and shoulder belt.

• Grasp the shoulder portion and pull downward until the entire belt is extracted.

• Allow the belt to retract. As the belt retracts, you will hear a clicking sound. When you hear the clicking sound, the safety belt is now in the automatic locking mode.

How to disengage the automatic locking mode

Disconnect the combination lap/shoulder belt and allow it to retract completely to disengage the automatic locking mode and activate the vehicle sensitive (emergency) locking mode.

After any vehicle collision, the safety belt systems at all outboard

seating positions (except the driver position, which doesn’t have this feature) must be checked by a qualified technician to verify that the automatic locking retractor feature for child seats is still functioning properly. In addition, all seat belts should be checked for proper function.

Seating and Safety Restraints

BELT AND RETRACTOR ASSEMBLY MUST BE REPLACED if

the seat belt assembly “automatic locking retractor” feature or any other seat belt function is not operating properly when checked according to the procedures in Workshop Manual. Failure to replace the Belt and Retractor assembly could increase the risk of injury in collisions.

In this mode, the shoulder belt is automatically pre-locked. The belt will still retract to remove any slack in the shoulder belt. The automatic locking mode is not available on the driver safety belt.

This mode should be used any time a child safety seat is installed in a passenger front or outboard rear seating position (if equipped). Children 12 years old and under should be properly restrained in the rear seat whenever possible. Refer to Safety restraints for children or Safety seats for children later in this chapter.

Front safety belt height adjustment

Adjust the height of the shoulder belt so the belt rests across the middle of your shoulder.

To adjust the shoulder belt height, push the button and slide the height adjuster up or down. Release the button and pull down on the height adjuster to make sure it is locked in place.

Position the safety belt

height adjusters so that the belt rests across the middle of your shoulder. Failure to adjust the safety belt properly could reduce the effectiveness of the seat belt and increase the risk of injury in a collision.

Seating and Safety Restraints

Safety belt pretensioner

Your vehicle is equipped with safety belt pretensioners at the driver and right front passenger seating positions.

The safety belt pretensioner removes some slack from the safety belt system at the start of a crash. The safety belt pretensioner uses the same crash sensor system as the front airbags and Safety Canopy娂 system. When the safety belt pretensioner deploys, the lap and shoulder belt are tightened.

When the Safety Canopy娂 system and/or the front airbags are activated, the safety belt pretensioners for the driver and right front passenger seating positions will be activated when the respective seatbelt is properly buckled.

The driver and the right front passenger seat belt system

(including retractors, buckles and height adjusters) must be replaced if the vehicle is involved in a collision that results in deployment of front air bags or Safety Canopy娂 and safety belt pretensioners.

Refer to the Safety belt maintenance section in this chapter.

Safety belt warning light and indicator chime

The seat belt warning light illuminates in the instrument cluster and a chime sounds to remind the occupants to fasten their safety belts.

Conditions of operation

If... Then...

The driver’s safety belt is not buckled before the ignition switch is turned to the ON position...

The driver’s safety belt is buckled while the indicator light is illuminated and the warning chime is sounding...

The driver’s safety belt is buckled before the ignition switch is turned to the ON position...

The safety belt warning light illuminates 1-2 minutes and the warning chime sounds 4-8 seconds.

The safety belt warning light and warning chime turn off.

The safety belt warning light and indicator chime remain off.

Seating and Safety Restraints

BeltMinder

The BeltMinder feature is a supplemental warning to the safety belt warning function. This feature provides additional reminders to the driver that the driver’s safety belt is unbuckled by intermittently sounding a chime and illuminating the safety belt warning lamp in the instrument cluster.

If... Then...

The driver’s safety belt is not buckled before the vehicle has reached at least 5 km/h (3 mph) and 1-2 minutes have elapsed since the ignition switch has been turned to ON...

The driver’s safety belt is buckled for 20 seconds or longer...

The driver’s safety belt is buckled while the safety belt indicator light is illuminated and the safety belt warning chime is sounding...

The driver’s safety belt is buckled before the ignition switch is turned to the ON position...

The following are reasons most often given for not wearing safety belts: (All statistics based on U.S. data)

The BeltMinder feature is activated the safety belt warning light illuminates and the warning chime sounds for 6 seconds every 30 seconds, repeating for approximately 5 minutes or until safety belt is buckled.

The BeltMinder feature is re-activated.

The BeltMinder feature will not activate.

Seating and Safety Restraints

Reasons given... Consider...

“Crashes are rare events” 36700 crashes occur every day. The

more we drive, the more we are exposed to “rare” events, even for good drivers. 1 in 4 of us will be

seriously injured in a crash during our lifetime.

“I’m not going far” 3of4fatal crashes occur within 25

miles of home.

“Belts are uncomfortable” We design our safety belts to enhance

comfort. If you are uncomfortable try different positions for the safety belt upper anchorage and seatback which should be as upright as possible; this can improve comfort.

“I was in a hurry” Prime time for an accident.

BeltMinder reminds us to take a few seconds to buckle up.

“Seat belts don’t work” Safety belts, when used properly,

reduce risk of death to front seat occupants by 45% in cars, and by 60% in light trucks.

“Traffic is light” Nearly 1 of 2 deaths occur in

single-vehicle crashes, many when

no other vehicles are around.

“Belts wrinkle my clothes” Possibly, but a serious crash can do

much more than wrinkle your clothes, particularly if you are unbelted.

“The people I’m with don’t wear belts”

Set the example, teen deaths occur 4 times more often in vehicles with TWO or MORE people. Children and younger brothers/sisters imitate behavior they see.

Seating and Safety Restraints

Reasons given... Consider...

“I have an air bag” Air bags offer greater protection when

used with safety belts. Frontal airbags are not designed to inflate in rear and side crashes or rollovers.

“I’d rather be thrown clear” Not a good idea. People who are

ejected are 40 times more likely to DIE. Safety belts help prevent

ejection, WE CAN’T “PICK OUR CRASH”.

Do not sit on top of a buckled safety belt to avoid the Belt

Minder chime. Sitting on the safety belt will increase the risk of injury in an accident. To disable (one-time) or deactivate the Belt Minder feature please follow the directions stated below.

One time disable

Any time the safety belt is buckled and then unbuckled during an ignition ON cycle, BeltMinder will be disabled for that ignition cycle only.

Deactivating/activating the BeltMinder feature

Before following the procedure, make sure that:

• The ignition switch and headlamp control are in the OFF position and all the doors are closed.

• The parking brake is set and the gearshift is in P (Park) (automatic transmission) or neutral (manual transmission).

• The driver’s safety belt is unbuckled.

Read steps1-9before proceeding with the deactivation/activation procedure.

BeltMinder deactivation/activation procedure:

To reduce the risk of injury, do not deactivate/activate the Belt Minder feature while driving the vehicle.

1. Turn the ignition switch to the RUN (or ON) position without starting

the engine.

2. Wait for the safety belt warning light to turn off. (Approximately 1–2

minutes.)

Seating and Safety Restraints

• Steps 3–5 must be completed within 60 seconds or the procedure will have to be repeated.

3. Buckle, then unbuckle, the safety belt three times, ending with the

safety belt unbuckled. This can be done before or during BeltMinder warning activation.

4. Turn on the headlamp control, then turn it off.

5. Buckle then unbuckle the safety belt three times, ending with the

safety belt unbuckled.

• After step 5, the safety belt warning light will be turned on for three seconds.

6. Within seven seconds of the safety belt warning light turning off,

buckle, then unbuckle, the safety belt once.

• This will disable BeltMinder if it is currently enabled, or enable BeltMinder if it is currently disabled.

7. Confirmation of disabling BeltMinder is provided by the safety belt

warning light flashing four times per second for three seconds.

8. Confirmation of enabling BeltMinder is provided by:

• The safety belt warning light flashing four times per second for three seconds, followed by three seconds with the safety belt warning light off.

• Once again, the safety belt warning light will flash four times per second for three seconds.

9. After receiving confirmation, the deactivation/activation procedure is

complete.

Safety belt extension assembly

If the safety belt is too short when fully extended, there is a 20 cm (8 inch) safety belt extension assembly that can be added (part number 611C22). This assembly can be obtained from your dealer at no cost.

Use only extensions manufactured by the same supplier as the safety belt. Manufacturer identification is located at the end of the webbing on the label. Also, use the safety belt extension only if the safety belt is too short for you when fully extended.

Do not use extensions to change the fit of the shoulder belt across the torso.

Safety belt maintenance

Inspect the safety belt systems periodically to make sure they work properly and are not damaged (nicks, tears or cuts). Replace parts as

Seating and Safety Restraints

necessary. All safety belt assemblies, including retractors, buckles, front seat belt buckle assemblies, buckle support assemblies (slide bar-if equipped), shoulder belt height adjusters (if equipped), shoulder belt guide on seatback (if equipped), child safety seat tether bracket assemblies (if equipped), LATCH child seat tether anchors and lower anchors (if equipped), and attaching hardware, should be inspected after a collision. Ford Motor Company recommends that all safety belt assemblies used in vehicles involved in a collision be replaced. However, if the collision was minor and a qualified technician finds that the belts do not show damage and continue to operate properly, they do not need to be replaced. Safety belt assemblies not in use during a collision should also be inspected and replaced if either damage or improper operation is noted.

Failure to inspect and if necessary replace the safety belt assembly under the above conditions could result in severe

personal injuries in the event of a collision.

Refer to Interior in the Cleaning chapter.

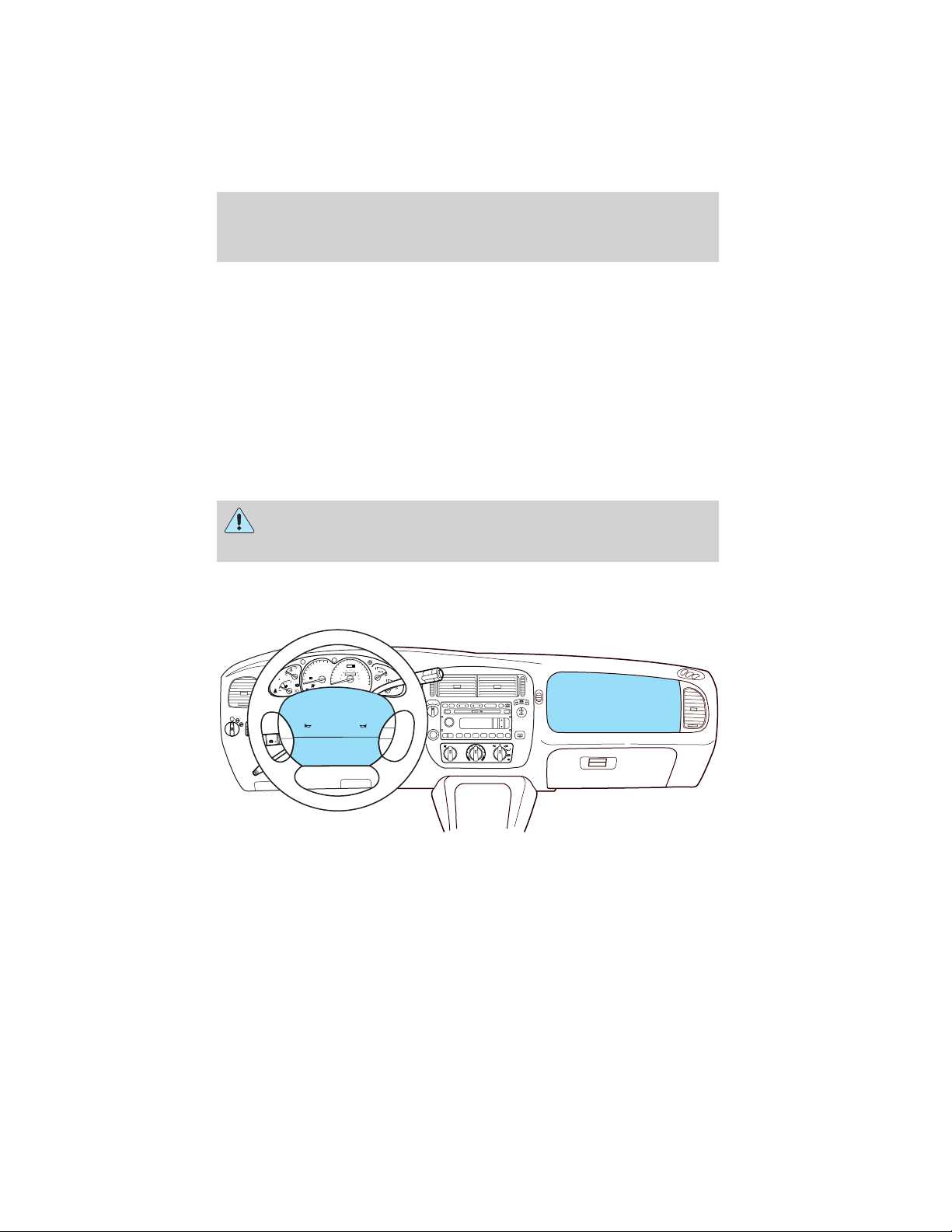

AIR BAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

CHECK GAGE

0 0 0

RPMx1000

100

CHECK

ENGINE

FUEL DOOR

FUEL

RESET

ABS

OFF

120

140

MPH

SPEED

0 0 0 0 0 0

CONT

160

180

4WD

101

km/h

CHECK SUSP

OVERDRIVE

HIGH

4WD

LOW

O/D OFF

4X4

HIGH

2WD

LOW

SEEK REW FF

TUNE

SCAN

SHUF DSP

RSM

SET

ACCEL

COAST

LOAD

PUSH ON

MMA

1 2 3 4 5 6

MUTE

BALBASS

SEL

FADETREB

A/C

MAX A/C

Your vehicle is equipped with a crash sensing and diagnostic module which records information about the air bag and sensor systems. In the event of a collision this module may save information related to the collision including information about the air bag system and impact severity. This information will assist Ford Motor Company in servicing the vehicle and in helping to better understand real world collisions and further improve the safety of future vehicles.

Seating and Safety Restraints

The front passenger air bag is not designed to offer protection to an occupant in the center front seating position.

Important SRS precautions

The SRS is designed to work with the safety belt to help protect the driver and right front passenger from certain upper body injuries. Air bags DO NOT inflate slowly; there is a risk of injury from a deploying air bag.

All occupants of the vehicle, including the driver, should always properly wear their safety belts, even when an air bag (SRS) is

provided.

Always transport children 12 years old and under in the back seat and always properly use appropriate child restraints.

National Highway Traffic Safety Administration (NHTSA) recommends a minimum distance of at least 25 cm (10 inches)

between an occupant’s chest and the air bag module.

Never place your arm over the air bag module as a deploying air bag can result in serious arm fractures or other injuries.

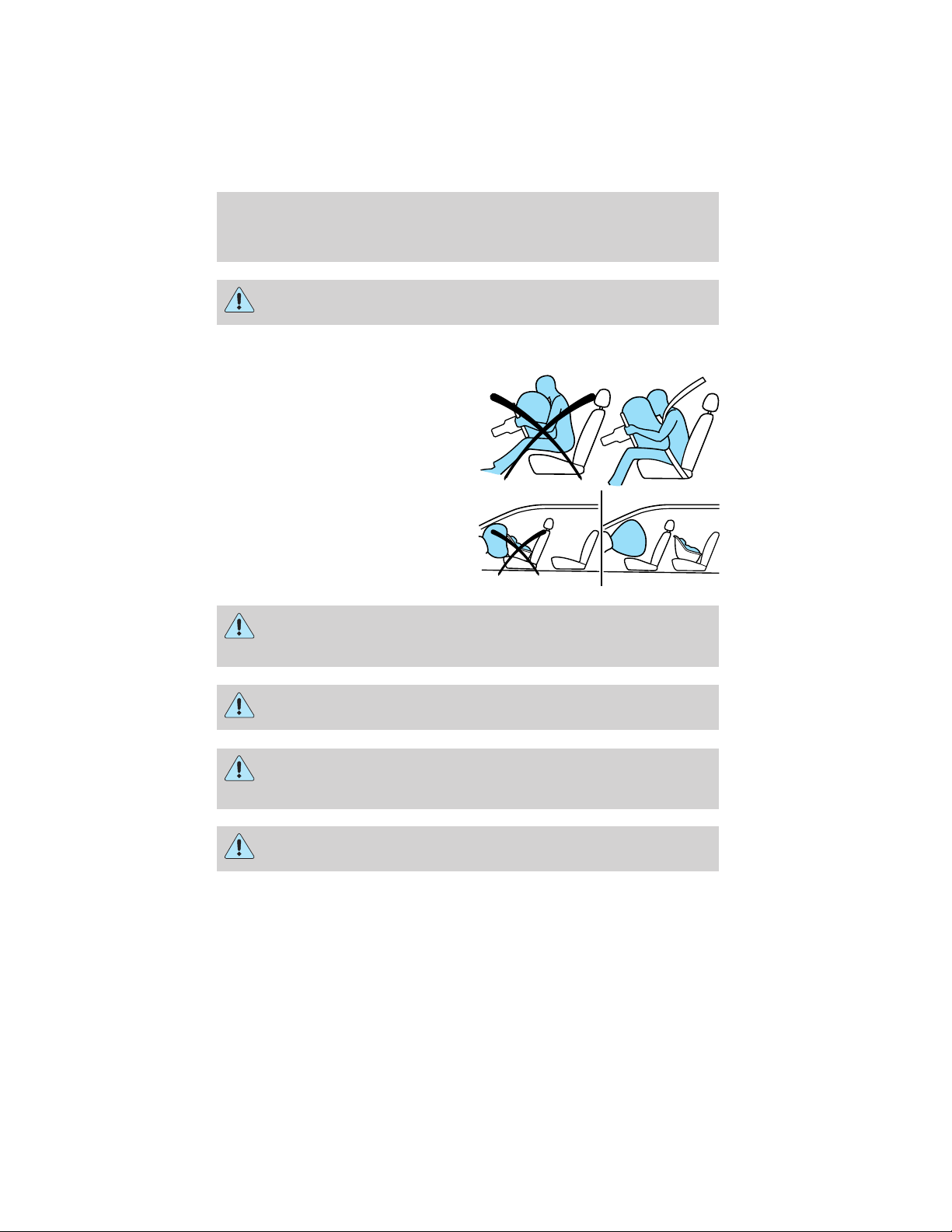

To properly position yourself away from the air bag:

• Move your seat to the rear as far as you can while still reaching the pedals comfortably.

• Recline the seat slightly one or two degrees from the upright position.

Seating and Safety Restraints

Do not put anything on or over the air bag module. Placing

objects on or over the air bag inflation area may cause those objects to be propelled by the air bag into your face and torso causing serious injury.

Do not attempt to service, repair, or modify the air bag

supplemental restraint systems or its fuses. See your Ford or Lincoln Mercury dealer.

Modifying or adding equipment to the front end of the vehicle

(including frame, bumper, front end body structure and tow hooks) may affect the performance of the air bag system, increasing the risk of injury. Do not modify the front end of the vehicle.

Children and air bags

Children must always be properly restrained; accident statistics suggest that children are safer when properly restrained in the rear seating positions than in the front seating position. Failure to follow these instructions may increase the risk of injury in a collision.

Air bags can kill or injure a

child in a child seat. NEVER place a rear-facing child seat in front of an active air bag. If you must use a forward-facing child seat in the front seat, move the seat all the way back.

Seating and Safety Restraints

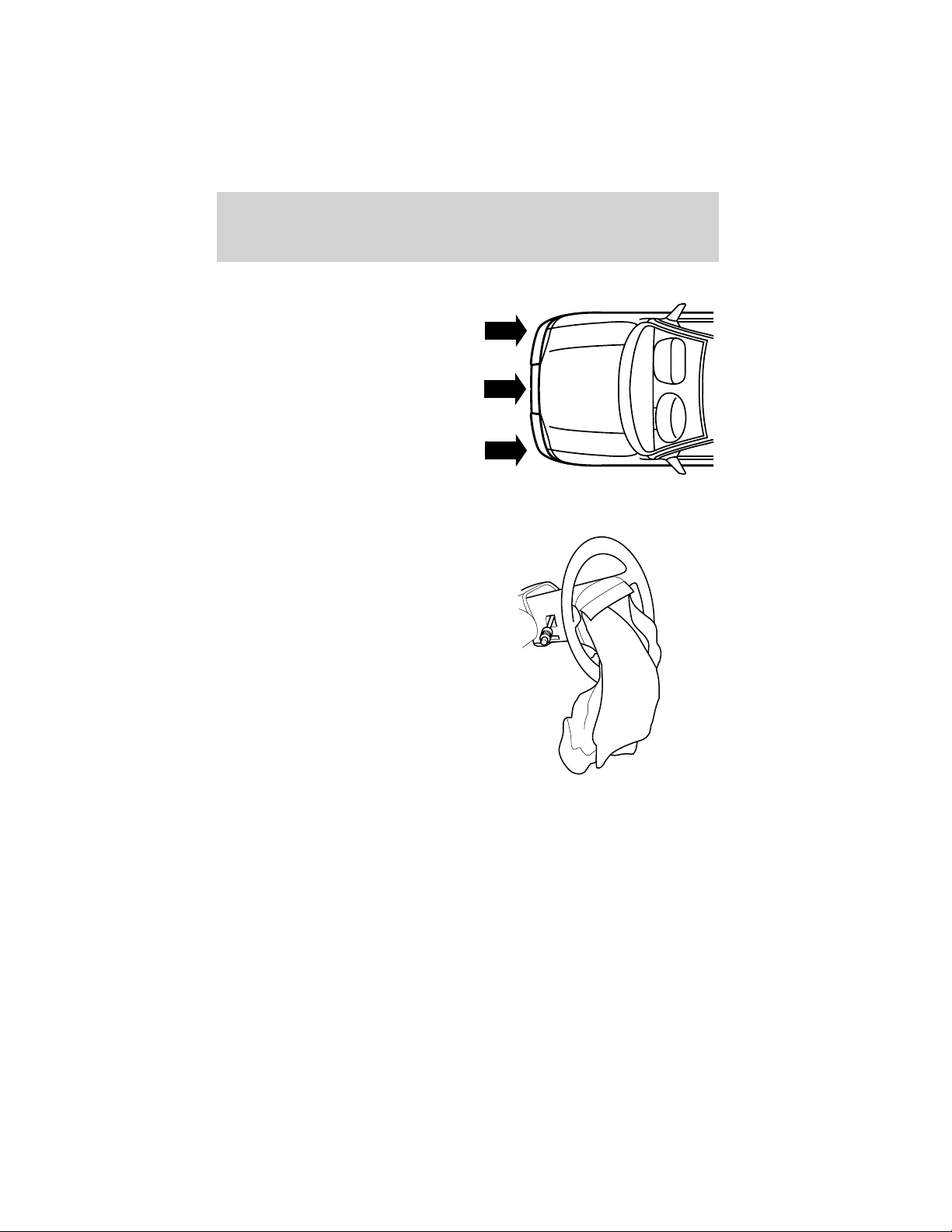

How does the air bag supplemental restraint system work?

The air bag SRS is designed to activate when the vehicle sustains a longitudinal deceleration sufficient to cause the air bag sensors to close an electrical circuit that initiates air bag inflation. The fact that the air bags did not inflate in a collision does not mean that something is wrong with the system. Rather, it means the forces were not sufficient enough to cause activation. Air bags are designed to inflate in frontal and near-frontal collisions, not rollover, side-impact, or rear-impacts unless the collision causes sufficient longitudinal deceleration.

The air bags inflate and deflate rapidly upon activation. After air bag deployment, it is normal to notice a smoke-like, powdery residue or smell the burnt propellant. This may consist of cornstarch, talcum powder or sodium compounds which may irritate the skin and eyes, but none of the residue is toxic.

While the SRS is designed to help reduce serious injuries, contact with a deploying air bag may also cause abrasions, swelling or temporary hearing loss. Because air bags must inflate rapidly and with considerable force, there is the risk of death or serious injuries such as fractures, facial and eye injuries or internal injuries, particularly to occupants who are not properly restrained or are otherwise out of position at the time of air bag deployment. It is extremely important that occupants be properly restrained as far away from the air bag module as possible while maintaining vehicle control.

The SRS consists of:

• driver and passenger air bag modules (which include the inflators and air bags)

• one or more impact and safing sensors

Seating and Safety Restraints

• a readiness light and tone

• a diagnostic module

• and the electrical wiring which connects the components

Several air bag system components get hot after inflation. Do not touch them after inflation.

If the air bag has deployed, the air bag will not function again and must be replaced immediately. If the air bag is not

replaced, the unrepaired area will increase the risk of injury in a collision.

Determining if the system is operational

The SRS uses a readiness light in the instrument cluster or a tone to indicate the status of the system. Refer to Air bag readiness section in the Instrument cluster chapter. Routine maintenance of the air bag is not required.

A difficulty with the system is indicated by one or more of the following:

• The readiness light will either flash or stay lit.

• The readiness light will not illuminate immediately after ignition is turned on.

• A series of five beeps will be heard. The tone pattern will repeat periodically until the problem and/or light are repaired.

If any of these things happen, even intermittently, have the SRS serviced at your dealership or by a qualified technician immediately. Unless serviced, the system may not function properly in the event of a collision.

Seating and Safety Restraints

SAFETY CANOPY姟 SYSTEM (IF EQUIPPED)

Do not place objects or

mount equipment on or near the headliner at the siderail that may come into contact with a deploying Safety Canopy娂. Failure to follow these instructions may increase the risk of personal injury in the event of a collision.

Do not lean your head on the door. The Safety Canopy娂 could

injure you as it deploys from the headliner.

Do not attempt to service, repair, or modify the Safety Canopy娂

system, its fuses, the A, B, or C pillar trim, or the headliner on a vehicle containing a Safety Canopy娂. See your Ford or Lincoln Mercury dealer.

All occupants of the vehicle including the driver should always

wear their safety belts even when an air bag SRS and Safety Canopy娂 system is provided.

To reduce risk of injury, do not obstruct or place objects in the

deployment path of the inflatable Safety Canopy娂.

Seating and Safety Restraints

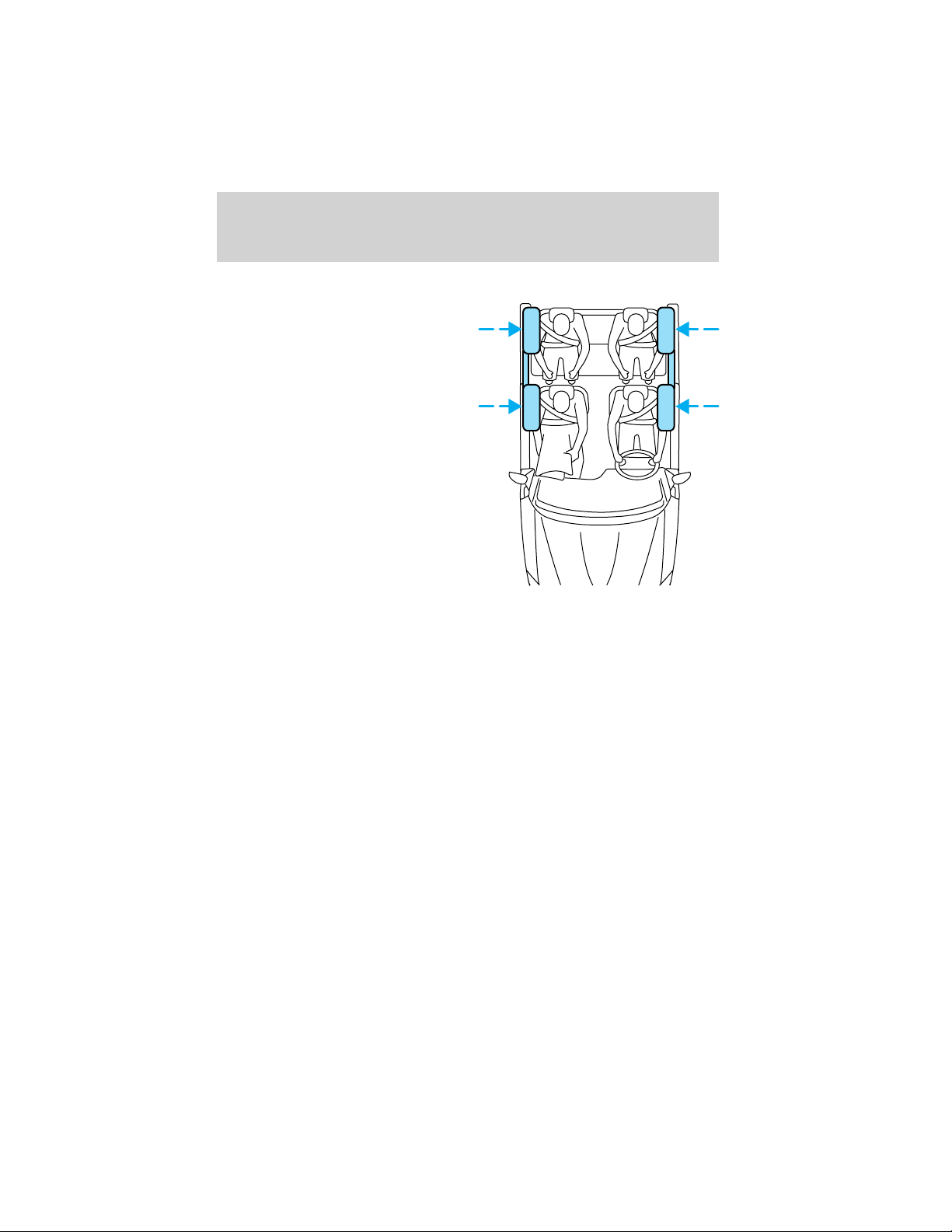

How does the Safety Canopy姟 system work?

The design and development of the Safety Canopy娂 system included recommended testing procedures that were developed by a group of automotive safety experts known as the Side Air Bag Technical Working Group. These recommended testing procedures help reduce the risk of injuries related to the deployment of side airbags (including the Safety Canopy娂).

The Safety Canopy娂 system consists of the following:

• An inflatable nylon curtain with a gas generator concealed behind the headliner and above the doors (one on each side of vehicle).

• A headliner designed to flex open above the side doors to allow Safety Canopy娂 deployment.

• The same warning light, electronic control and diagnostic unit as used for the front airbags.

• Two crash sensors mounted in the b-pillars (one on each side).

• Two crash sensors located at the c-pillar (one on each side).

• Rollover sensor in the restraints control module (RCM).

The Safety Canopy娂 system, in combination with seat belts, can help reduce the risk of severe injuries in the event of a significant side impact collision or rollover event.

Children 12 years old and under should always be properly restrained in the second or third row seats. The Safety Canopy娂 will not interfere with children restrained using a properly installed child or booster seat because it is designed to inflate downward from the headliner above the doors along the side window opening.

The Safety Canopy娂 system is designed to activate when the vehicle sustains lateral deceleration sufficient to cause the side crash sensor to close an electrical circuit that initiates Safety Canopy娂 inflation or when a certain likelihood of a rollover event is detected by the rollover sensor.

The Safety Canopy娂 is mounted to roof side-rail sheet metal, behind the headliner, above the first and second row seats. In certain lateral

Seating and Safety Restraints

collisions or rollover events, the Safety Canopy娂 system will be activated on both sides of the vehicle, regardless of which seats are occupied. The Safety Canopy娂 is designed to inflate between the side window area and occupants to further enhance protection provided in side impact collisions and rollover events.

The fact that the Safety Canopy娂 did not activate in a collision does not mean that something is wrong with the system. Rather, it means the forces were not of the type sufficient to cause activation. The Safety Canopy娂 is designed to inflate in certain side impact collisions or rollover events, not in rear impact, frontal or near-frontal collisions, unless the collision causes sufficient lateral deceleration or rollover likelihood.

Several Safety Canopy娂

system components get hot after inflation. Do not touch them after inflation.

If the Safety Canopy娂

system has deployed, the

Safety Canopy娂 will not function again unless replaced. The Safety Canopy娂 system (including the A, B and C pillar trim) must be inspected and serviced by a qualified technician in accordance with the vehicle service manual. If

the Safety Canopy娂 is not replaced, the unrepaired area will increase the risk of injury in a collision.

Determining if the system is operational

The SRS uses a readiness light in the instrument cluster or a tone to indicate the condition of the system. Refer to the Air bag readiness section in the Instrument Cluster chapter. Routine maintenance of the air bag is not required.

Seating and Safety Restraints

A difficulty with the system is indicated by one or more of the following:

• The readiness light (same light as for front air bag system) will either flash or stay lit.

• The readiness light will not illuminate immediately after ignition is turned on.

• A series of five beeps will be heard. The tone pattern will repeat periodically until the problem and light are repaired.

Disposal of air bags and air bag equipped vehicles (including pretensioners)

See your local dealership or qualified technician. Air bags MUST BE disposed of by qualified personnel.

SAFETY RESTRAINTS FOR CHILDREN

Read the following sections for directions on how to properly use safety restraints for children. Also see Air bag supplemental restraint system (SRS) in this chapter for special instructions about air bags.

Important child restraint precautions

You are required by law to use safety restraints for children in the U.S. and Canada. If small children (generally children who are four years old or younger and who weigh 18 kg [40 lbs] or less) ride in your vehicle, you must put them in safety seats made especially for children. Check your local and state or provincial laws for specific requirements regarding the safety of children in your vehicle. When possible, always place children under age 12 in the rear seat of your vehicle. Accident statistics suggest that children are safer when properly restrained in the rear seating positions than in the front seating position.

Never let a passenger hold a child on his or her lap while the vehicle is moving. The passenger cannot protect the child from

injury in a collision.

Always follow the instructions and warnings that come with any infant or child restraint you might use.

Seating and Safety Restraints

Children and safety belts

If the child is the proper size, restrain the child in a safety seat. Children who are too large for child safety seats (as specified by your child safety seat manufacturer) should always wear safety belts.

Follow all the important safety restraint and air bag precautions that apply to adult passengers in your vehicle.

Do not leave children, unreliable adults, or pets unattended in your vehicle.

To improve the fit of lap and shoulder belts on children who have outgrown child safety seats, Ford recommends use of a belt-positioning booster seat that is labeled as conforming to all applicable Federal motor vehicle safety standards. Belt-positioning booster seats raise the child and provide a shorter, firmer seating cushion that encourages safer seating posture and better fit of lap and shoulder belts on the child.

A belt-positioning booster seat should be used if the shoulder belt rests in front of the child’s face or neck, or if the lap belt does not fit snugly on both thighs, or if the thighs are too short to let the child sit all the way back on the seat cushion when the lower legs hang over the edge of the seat cushion. You may wish to discuss the special needs of your child with your pediatrician.

Child booster seats

Children outgrow a typical convertible or toddler seat when they weigh 40 pounds and are around 4 years of age. Although the lap/shoulder belt will provide some protection, these children are still too small for lap/shoulder belts to fit properly, which could increase the risk of serious injury.

To improve the fit of both the lap and shoulder belt on children who have outgrown child safety seats, Ford Motor Company recommends use of a belt-positioning booster.

Booster seats position a child so that safety belts fit better. They lift the child up so that the lap belt rests low across the hips and the knees bend comfortably. Booster seats also make the shoulder belt fit better and more comfortably for growing children.

When children should use booster seats

Children need to use booster seats from the time they outgrow the toddler seat until they are big enough for the vehicle seat and lap/shoulder belt to fit properly. Generally this is when they weigh about 80 lbs (about 8 to 12 years old).

Seating and Safety Restraints

Booster seats should be used until you can answer YES to ALL of these questions:

• Can the child sit all the way back against the vehicle seat back with knees bent comfortably at the edge of the seat without slouching?

• Does the lap belt rest low across the hips?

• Is the shoulder belt centered on the shoulder and chest?

• Can the child stay seated like this for the whole trip?

Types of booster seats

There are two types of belt-positioning booster seats:

• Those that are backless.

If your backless booster seat has a removable shield, remove the shield and use the lap/shoulder belt. If a seating position has a low seat back and no head restraint, a backless booster seat may place your child’s head (top of ear level) above the top of the seat. In this case, move the backless booster to another seating position with a higher seat back and lap/shoulder belts.

• Those with a high back.

If, with a backless booster seat, you cannot find a seating position that adequately supports your child’s head, a high back booster seat would be a better choice.

Both can be used in any vehicle in a seating position equipped with lap/shoulder belts if your child is over 40 lbs.

Seating and Safety Restraints

The shoulder belt should cross the chest, resting snugly on the center of the shoulder. The lap belt should rest low and snug across the hips, never up high across the stomach.

If the booster seat slides on the vehicle seat, placing a rubberized mesh sold as shelf or carpet liner under the booster seat may improve this condition.

The importance of shoulder belts

Using a booster without a shoulder belt increases the risk of a child’s head hitting a hard surface in a collision. For this reason, you should never use a booster seat with a lap belt only. It is best to use a booster seat with lap/shoulder belts in the back seat- the safest place for children to ride.

Follow all instructions provided by the manufacturer of the booster seat.

Never put the shoulder belt under a child’s arm or behind the back because it eliminates the protection for the upper part of

the body and may increase the risk of injury or death in a collision.

Never use pillows, books, or towels to boost a child. They can slide around and increase the likelihood of injury or death in a

collision.

SAFETY SEATS FOR CHILDREN

Child and infant or child safety seats

Use a safety seat that is recommended for the size and weight of the child. Carefully follow all of the manufacturer’s instructions with the

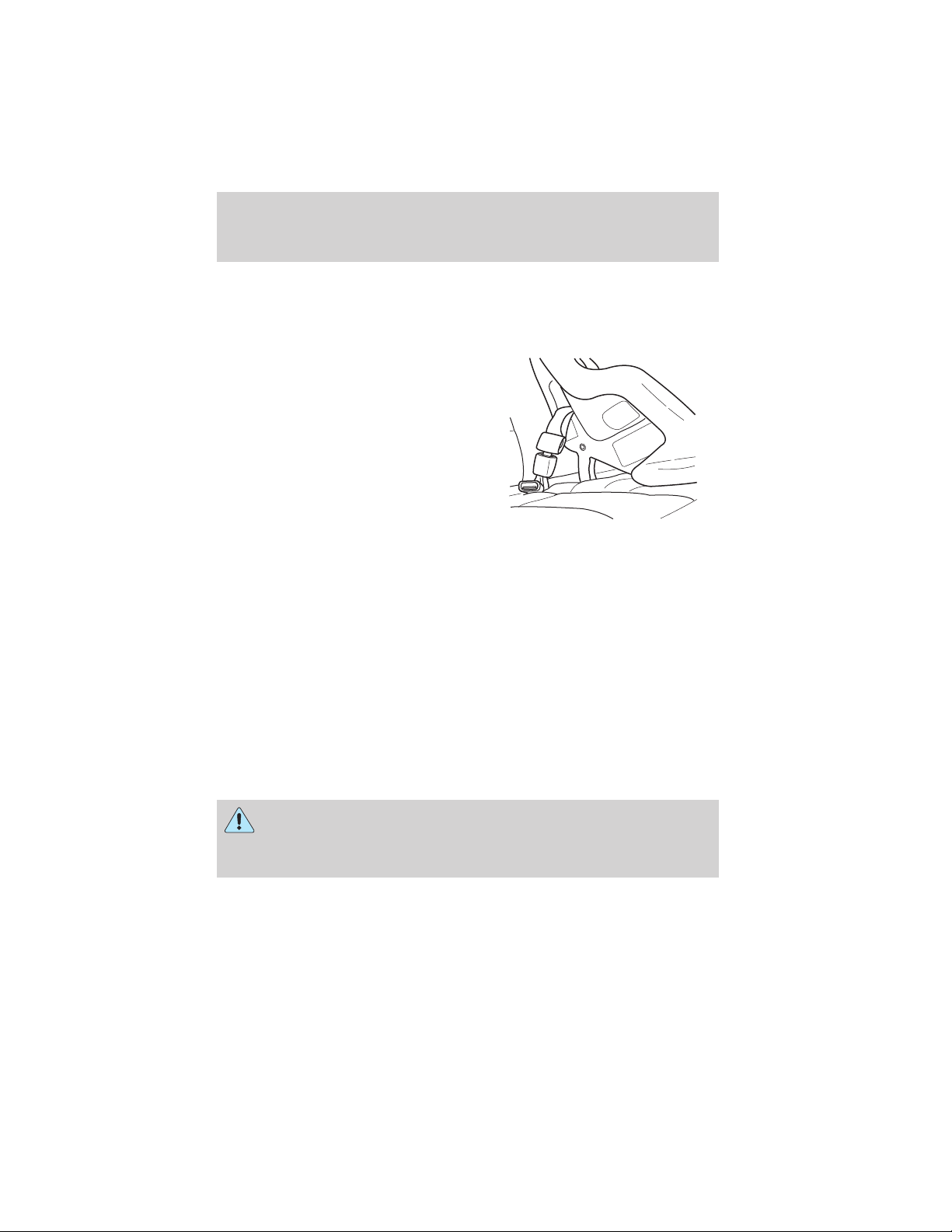

Seating and Safety Restraints

safety seat you put in your vehicle. If you do not install and use the safety seat properly, the child may be injured in a sudden stop or collision.

When installing a child safety seat:

• Review and follow the information presented in the Air Bag

Supplemental Restraint System

(SRS) section in this chapter.

• Use the correct safety belt buckle for that seating position (the buckle closest to the direction the tongue is coming from).

• Insert the belt tongue into the proper buckle until you hear a snap and feel it latch. Make sure the tongue is securely fastened in the buckle.

• Keep the buckle release button pointing up and away from the safety seat, with the tongue between the child seat and the release button, to prevent accidental unbuckling.

• Place seat back in upright position.

• Put the safety belt in the automatic locking mode. Refer to Automatic

locking mode (passenger side front and outboard rear seating positions) (if equipped) section in this chapter.

Ford recommends the use of a child safety seat having a top tether strap. Install the child safety seat in a seating position which is capable of providing a tether anchorage. For more information on top tether straps, refer to Attaching child safety seats with tether straps in this chapter.

Carefully follow all of the manufacturer’s instructions included

with the safety seat you put in your vehicle. If you do not install and use the safety seat properly, the child may be injured in a sudden stop or collision.

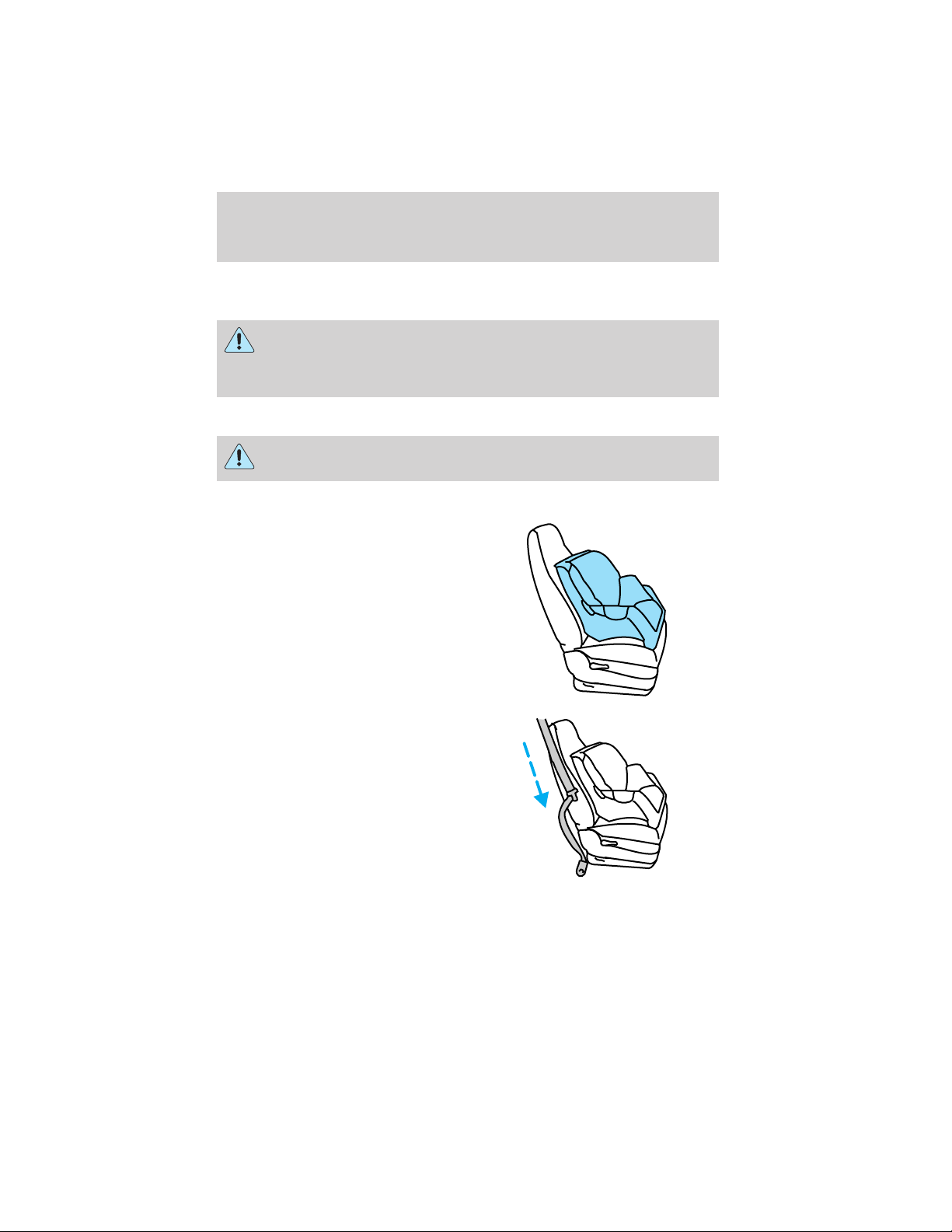

Seating and Safety Restraints

Installing child safety seats in combination lap and shoulder belt seating positions

Air bags can kill or injure a child in a child seat. NEVER place a

rear-facing child seat in front of an active air bag. If you must use a forward-facing child seat in the front seat, move the seat all the way back.

Children 12 and under should be properly restrained in the rear

seat whenever possible.

1. Position the child safety seat in a seat with a combination lap and shoulder belt.

2. Pull down on the shoulder belt and then grasp the shoulder belt and lap belt together.

Seating and Safety Restraints

3. While holding the shoulder and lap belt portions together, route the tongue through the child seat according to the child seat manufacturer’s instructions. Be sure the belt webbing is not twisted.

4. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) for that seating position until you hear a snap and feel the latch engage. Make sure the tongue is latched securely by pulling on it.

5. To put the retractor in the automatic locking mode, grasp the shoulder portion of the belt and pull downward until all of the belt is extracted and a click is heard.

6. Allow the belt to retract. The belt will click as it retracts to indicate it is in the automatic locking mode.

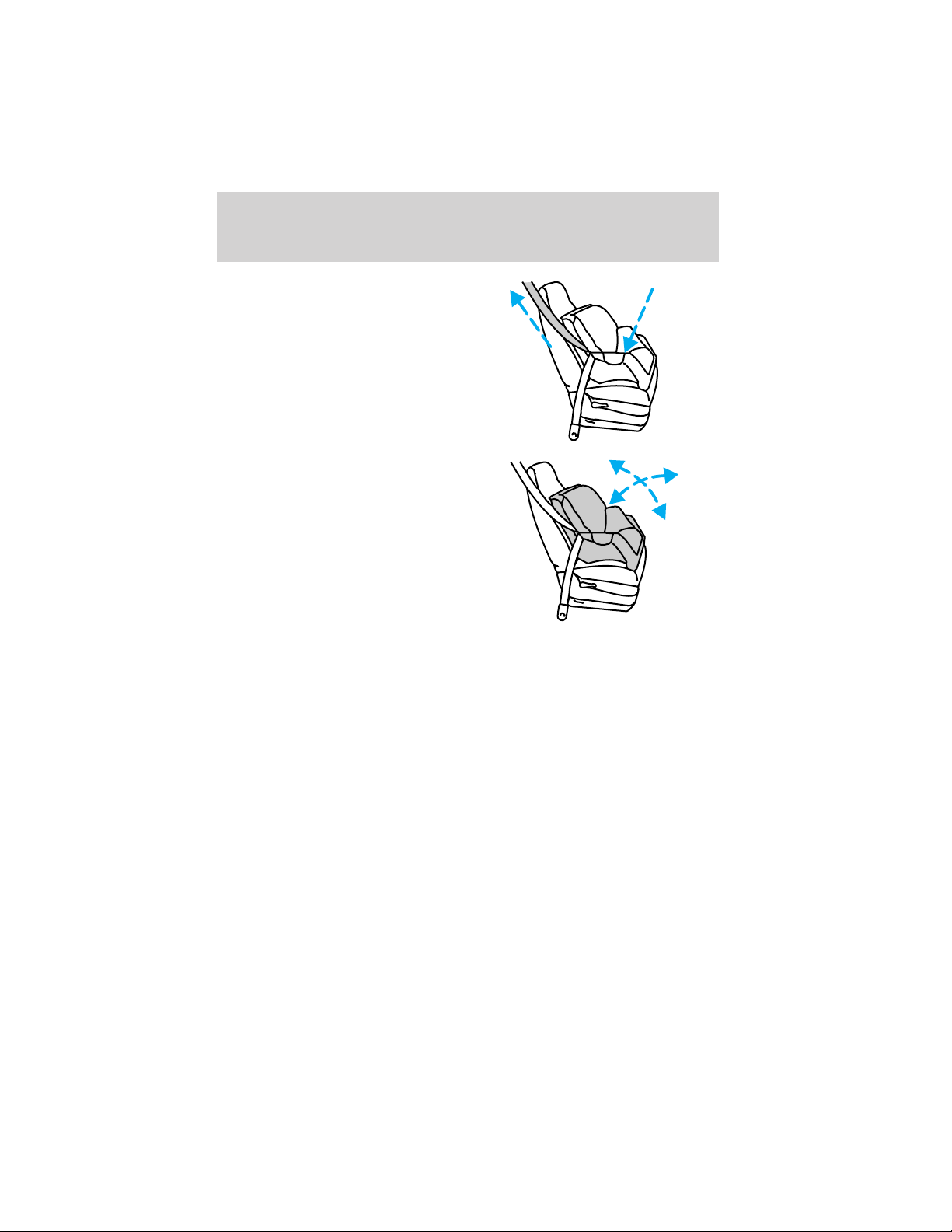

Seating and Safety Restraints

7. Pull the lap belt portion across the child seat toward the buckle and pull up on the shoulder belt while pushing down with your knee on the child seat.

8. Allow the safety belt to retract to remove any slack in the belt.

9. Before placing the child in the seat, forcibly tilt the seat forward and back to make sure the seat is securely held in place. To check this, grab the seat at the belt path and attempt to move it side to side and forward and back. There should be no more than one inch of movement for proper installation.

10. Try to pull the belt out of the retractor to make sure the retractor is in the automatic locking mode (you should not be able to pull more belt out). If the retractor is not locked, unbuckle the belt and repeat steps two through nine.

Check to make sure the child seat is properly secured before each use.

Installing child safety seat in the second row center seating position with an automatic locking retractor

1. Place the child safety seat in the center seating position.

2. In a continuous motion, pull out enough webbing from the retractor to route the tongue through the child seat.

3. While holding the webbing to prevent it from retracting, route the webbing through the child seat according to the child seat manufacturer’s instructions. Be sure the belt webbing is not twisted.

4. Insert the tongue into the correct buckle for that seating position until you hear and feel the buckle engage. Make sure the buckle is latched securely by pulling on the webbing.

100

FORD Explorer Sport Trac 2003 User Manual v.1

Specifications and Main Features

Frequently Asked Questions

User Manual
