Ford EXPLORER SPORT TRAC-2005, EXPEDITION-2005, EXPLORER-2005 User Manual

Introduction 4

Instrument Cluster 10

Warning and control lights 10 Gauges 13

Entertainment Systems 16

AM/FM stereo with CD 16 AM/FM stereo cassette with CD 19 AM/FM stereo with in-dash six CD 23 AM/FM stereo with CD6/MP3 28 AM/FM stereo with single CD 31

Climate Controls 48

Manual heating and air conditioning 48

Lights 50

Driver Controls 58

Windshield wiper/washer control 58 Steering wheel adjustment 59 Power windows 63 Mirrors 66 Speed control 67

Locks and Security 79

Keys 79 Locks 79 Anti-theft system 86

Seating and Safety Restraints 90

Seating 90 Safety restraints 96 Airbags 108 Child restraints 115

Table of Contents

Tires, Wheels and Loading 129

Tire Information 131 Tire Inflation 133 Changing tires 136 Lug Nut Torque 144 Vehicle loading 154 Trailer towing 161 Recreational towing 165

Driving 167

Starting 167 Brakes 171 Transmission operation 174

Roadside Emergencies 186

Getting roadside assistance 186 Hazard flasher switch 187 Fuel pump shut-off switch 187 Fuses and relays 188 Jump starting 195 Wrecker towing 200

Customer Assistance 201

Reporting safety defects (U.S. only) 209

Cleaning 210

Maintenance and Specifications 216

Hood 217 Engine compartment 217 Engine oil 218 Battery 222 Fuel information 229 Air filter(s) 242 Part numbers 243 Refill capacities 244 Lubricant specifications 246

Table of Contents

Accessories 252

Index 255

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.

Introduction

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and

certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

CONGRATULATIONS

Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it.

For more information on Ford Motor Company and its products visit the following website:

• In the United States: www.ford.com

• In Canada: www.ford.ca

• In Australia: www.ford.com.au

• In Mexico: www.ford.com.mx

Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available

and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available.

Remember to pass on this Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

Fuel pump shut-off switch: In the event of an accident the

safety switch will automatically cut off the fuel supply to the engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside Emergencies chapter.

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Introduction

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

Protecting the environment

We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.

BREAKING-IN YOUR VEHICLE

Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in.

Drive your new vehicle at least 500 miles (800 km) before towing a trailer.

Do not add friction modifier compounds or special break-in oils during the first few thousand miles (kilometers) of operation, since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage.

SPECIAL NOTICES

Emission warranty

The New Vehicle Limited Warranty includes Bumper-to-Bumper Coverage, Safety Restraint Coverage, Corrosion Coverage, and 6.0L Power Stroke Diesel Engine Coverage. In addition, your vehicle is eligible for Emissions Defect and Emissions Performance Warranties. For a detailed description of what is covered and what is not covered, refer to the Warranty Guide that is provided to you along with your Owner’s

Guide.

Special instructions

For your added safety, your vehicle is fitted with sophisticated electronic controls.

Introduction

Please read the section Supplemental restraint system (SRS)

in the Seating and Safety Restraints chapter. Failure to follow the specific warnings and instructions could result in personal injury.

Front seat mounted rear-facing child or infant seats should

NEVER be placed in front of an active passenger air bag.

Service Data Recording

Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle.

Event Data Recording

Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as:

• how various systems in your vehicle were operating;

• whether or not the driver and passenger seatbelts were buckled;

• how far (if at all) the driver was depressing the accelerator and/or the

brake pedal;

• how fast the vehicle was traveling; and

• where the driver was positioning the steering wheel.

To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.

Introduction

Notice to owners of pickup trucks and utility type vehicles

Utility vehicles have a significantly higher rollover rate than

other types of vehicles.

Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of vehicle control, vehicle rollover, personal injury or death.

Be sure to read Driving off road in the Driving chapter.

MIDDLE EAST/NORTH AFRICA VEHICLE SPECIFIC INFORMATION

For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner’s Guide; therefore, a supplement has been supplied that complements this book. By referring to the pages in the provided supplement, you can properly identify those features, recommendations and specifications that are unique to your vehicle. Refer to this

Owner’s Guide for all other required information and warnings.

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

Fasten Safety Belt Air Bag-Front

Air Bag-Side Child Seat

Child Seat Installation Warning

Child Seat Tether Anchor

Anti-Lock Brake System

Powertrain Malfunction Speed Control

Master Lighting Switch Hazard Warning Flasher

Fog Lamps-Front Fuse Compartment

See Owner’s Guide

Child Seat Lower Anchor

Brake System

Brake Fluid Non-Petroleum Based

Fuel Pump Reset Windshield Wash/Wipe

Windshield Defrost/Demist

Rear Window Defrost/Demist

Vehicle Symbol Glossary

Introduction

Power Windows Front/Rear

Child Safety Door Lock/Unlock

Power Window Lockout

Interior Luggage Compartment Release Symbol

Panic Alarm Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

Emission System Engine Air Filter

MAX

MIN

Passenger Compartment Air Filter

Jack

Check fuel cap Low tire warning

Instrument Cluster

WARNING LIGHTS AND CHIMES

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, have the respective system inspected immediately.

Check engine: The Check Engine indicator light illuminates when the ignition is first turned to the ON position to check the bulb. Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately.

Under engine misfire conditions, excessive exhaust temperatures

could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the ON position when the engine is not running, or in a position between ON and START,

BRAKE

Instrument Cluster

or by applying the parking brake when the ignition is turned to the ON position. If the brake system warning light does not illuminate at this time, seek service immediately from your dealership. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately by your servicing dealership.

Driving a vehicle with the brake system warning light on is

dangerous. A significant decrease in braking performance may occur. It will take you longer to stop the vehicle. Have the vehicle checked by your dealer immediately.

Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately. Normal braking is still functional unless the brake warning light also is illuminated.

Air bag readiness: If this light fails to illuminate when ignition is turned to ON, continues to flash or remains on, have the system serviced immediately. A chime will also sound when a malfunction in the supplemental restraint system has been detected.

Safety belt: Reminds you to fasten your safety belt. A chime will also sound to remind you to fasten your safety belt.

ABS

Charging system: Illuminates when the battery is not charging properly.

Door ajar: Illuminates when the ignition is in the ON position and any door is open.

Instrument Cluster

Four wheel drive low (if equipped): Illuminates when

four-wheel drive low is engaged.

Four wheel drive high (if equipped): Illuminates when

four-wheel drive high is engaged.

Anti-theft system: Flashes when the Securilock娂 Passive Anti-theft System has been activated.

Speed control (if equipped):

Illuminates when the speed control is activated. Turns off when the speed control system is deactivated.

Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb.

High beams: Illuminates when the high beam headlamps are turned on.

DIGITAL DISPLAY WARNINGS

Overdrive off: Displays when the overdrive function of the transmission has been turned off, refer to the Driving chapter. If the display stays on, have the transmission serviced soon, or damage may occur. Press the Trip Odometer reset button to display Odometer or Trip Odometer.

Check fuel cap: Displays when the fuel cap may not be properly installed. Continued driving with this display on may cause the Check Engine warning light to come on. Refer to Fuel filler cap in the Maintenance and Specifications chapter. Press the Trip Odometer reset button to display Odometer or Trip Odometer.

4x4

LOW

4x4

Instrument Cluster

Check gauge: Displays when any of the following conditions has occurred:

• The engine coolant temperature is high.

• The engine oil pressure is low.

Press the Trip Odometer reset button to display Odometer or Trip Odometer.

Low fuel: Displays when the fuel level in the fuel tank is at or near empty (refer to Fuel gauge in this chapter). Press the Trip Odometer reset button to display Odometer or Trip Odometer.

Key-in-ignition warning chime: Sounds when the key is left in the ignition in the OFF/LOCK or ACCESSORY position and the driver’s door is opened.

Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened.

GAUGES

Instrument Cluster

Speedometer: Indicates the current vehicle speed.

Engine coolant temperature gauge: Indicates engine coolant

temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.

Never remove the coolant reservoir cap while the engine is running or hot.

Odometer: Registers the total miles (kilometers) of the vehicle.

Trip odometer: Registers the miles (kilometers) of individual journeys. To reset, depress and hold the control.

Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

Instrument Cluster

Battery voltage gauge: Indicates the battery voltage when the ignition is in the ON position. If the pointer moves and stays outside the normal operating range (as indicated by arrows), have the vehicle’s electrical system checked as soon as possible.

Engine oil pressure gauge:

Indicates engine oil pressure. The needle should stay in the normal operating range (between “L” and “H”). If the needle falls below the normal range, stop the vehicle, turn off the engine and check the engine oil level. Add oil if needed. If the oil level is correct, have your vehicle checked at your dealership or by a qualified technician.

Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade.

The FUEL icon and arrow indicates which side of the vehicle the fuel filler door is located.

Refer to Filling the tank in the Maintenance and Specifications chapter for more information.

Entertainment Systems

AM/FM STEREO / SINGLE CD RADIO (IF EQUIPPED)

VOL - PUSH ON

SEEK

TUNE

16 17

AM FM

BASSCDTREB BAL FADE

CDCD

123456

1. BAL (Balance): Press

to shift sound to the left/right speakers.

2. FADE: Press

/ to shift

sound to the front/rear speakers.

FM1

DISC

1 234

COMP

SHUFFLE

7910

SCN

CLK

3. SCN (Scan): Press to hear a

brief sampling of all listenable stations or CD tracks. Press again to stop.

4. CLK (Clock): To set the hour,

press and hold CLK and press SEEK to decrease

or increase the

hours.

CLK

Entertainment Systems

To set the minute, press and hold CLK and press TUNE to decrease or increase the minutes.

5. EJ (Eject): Press to eject a CD.

6. COMP (Compression): In CD

mode, press to bring louder and softer levels into more comfortable listening level. The compression icon (c) will appear in the display.

7. SHUFFLE: Press to listen to the

tracks on the CD in random order. Press again to turn off.

8. Memory presets: To set a

station: Select frequency band

CDCD

123456

AM/FM; tune to a station. Press and hold a preset button until sound returns. This radio is equipped with six station memory preset controls which allow you to set up to six AM stations and 12 FM stations (six in FM1 and six in FM2).

9. CD

: Press and hold until desired point of a selection is reached.

10.

CD: Press and hold until

desired point of a selection is reached.

11. TUNE: In radio mode, press to move up or down the frequency band in individual increments.

12. SEEK: Press and release SEEK

/ for previous/next

strong station, selection or track.

13. Power/volume: Press to turn ON/OFF; turn to increase or decrease volume levels.

SHUFFLE

Entertainment Systems

14. CD: Press to enter CD mode or to play a CD already loaded into the system.

15. AM/FM: Press to choose a frequency band in radio mode.

16. BASS: Press

/ to

increase/decrease the bass output.

17. TREB (Treble): Press

to increase/decrease the treble output.

18. CD slot: Insert a CD printed

DISC

side up.

CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your dealer for further information.

Entertainment Systems

PREMIUM AM/FM STEREO/CASSETTE/SINGLE CD (IF EQUIPPED)

1. Power/volume: Press to turn ON/OFF; turn to increase/decrease volume.

2. SCAN: Press to hear a brief sampling of all listenable stations, tape selections or CD tracks. Press again to stop.

3. CD slot: Insert a CD with the label side up.

SCAN

Entertainment Systems

into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your dealer for further information.

4. Cassette door: Insert the cassette with the opening to the right.

5. EJ (Eject): Press to eject the cassette/CD. The radio will resume playing.

6. TAPE: Press to start tape play. Press to stop tape during rewind/fast forward.

CD: Press to start CD play. With the dual media audio, press CD to toggle between single CD and CD changer play (if equipped).

7. MUTE: Press to MUTE playing media; press again to return to the playing media.

8. AUTO: Press to set first six strongest stations (if available) into AM, FM1 or FM2 memory buttons; press again to return to normal stations.

9. CLK (Clock): Press to toggle between station mode and clock mode. Press and hold to set the clock. Press the

decrease hours or SEEK increase hours. Press the TUNE

SEEK to

Entertainment Systems

to decrease minutes or TUNE to increase minutes. If your vehicle has a stand alone clock this control will not function.

10. BAL (Balance): Press BAL; then press SEL sound to the left/right speakers.

FADE: Press FADE; then press SEL rear/front speakers.

11. Memory preset buttons: To set a station: Select frequency band AM/FM, tune to a station, press and hold a preset button until sound returns.

12. SHUFFLE: Works in CD mode. Press to play tracks in random order. Press again to disable.

13. COMP (Compression): Works in CD mode. Press to bring soft and loud passages together for a more consistent listening level. A small “c” will appear in the display to indicate that compression is enabled. Press again to disable.

14. Works in tape mode only. Reduces tape noise and hiss; press to activate/deactivate.

The Dolby威 noise reduction system is manufactured under license from Dolby Laboratories Licensing Corporation. Dolby威 and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation.

/ to shift sound to the

Dolby威 noise reduction:

/ to shift

Entertainment Systems

15. SIDE 1–2: Works in tape mode only. Press to play reverse side of the tape.

16. FF (Fast Forward): In CD mode, press for a slow advance,

press and hold for a fast advance. In TAPE mode, press FF to enable Fast Forward feature. Press FF or TAPE to resume tape play.

17. REW (Rewind): In CD mode, press for a slow reverse, press and

REW

hold for a fast reverse. In TAPE mode, press REW to enable the rewind feature. Press REW or TAPE to resume tape play.

18. SEL (Select): Use with Bass, Treble, Balance and Fade controls.

SEL

19. BASS: Press BASS; then press SEL

/ to decrease/increase

the bass output.

TREB (Treble): Press TREB; then press SEL

/ to

decrease/increase the treble output.

20. TUNE: Works in radio mode only. Press TUNE

/ to

SEEK

TUNE

change frequency down/up.

Entertainment Systems

21. SEEK: Press and release SEEK strong station, selection or track.

22. AM/FM: Press to select AM/FM1/FM2 frequency band.

AUDIOPHILE SATELLITE READY AM/FM STEREO IN-DASH SIX CD RADIO (IF EQUIPPED)

/ for previous/next

SEEK

TUNE

1. Seek: Press and release SEEK

/ for previous/next

strong station or track.

2. Rewind: In CD mode, press until the desired point on the current selection is reached.

Fast forward: In CD mode, press until the desired point on the current selection is reached.

Entertainment Systems

TEXT: TEXT is only available when equipped with Satellite radio. Your Audiophile radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your Ford dealer. Detailed Satellite instructions are included with the dealer installed kit.

Dealer installed satellite kit only available in the continental United States.

3. DSP (Digital Signal Processing): Press DSP to access

the Ambiance menu. Ambiance gives the feeling of “being there” to your music, creating increased clarity as well as an open and spacious feel to the music. Press SEL to engage/disengage. Turn the volume control to increase/decrease the level of ambiance.

Occupancy: Press DSP again to change the occupancy mode to optimize sound for ALL SEATS, DRIVERS SEAT or REAR SEATS. Press SEL to scroll through settings.

4. Mute: Press to MUTE playing media; press again to return to playing media

5. Eject: Press to eject a CD. Press EJ and a memory preset to eject a specific disc. Press and hold to eject all loaded discs.

6. Bass: Press BASS; then press SEL the bass output.

Treble: Press TREB; then press SEL the treble output.

/ to decrease/increase

7. Select: Use with Bass, Treble, Balance, Fade and other menu selections.

8. Balance: Press BAL; then press SEL left/right speakers.

/ to shift sound to the

Entertainment Systems

Fade: Press FADE; then press SEL rear/front speakers.

9. Menu: Press MENU to access clock mode, RDS on/off, Traffic announcement mode, Program type mode, Shuffle mode and Compression Mode.

The Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC) recommend that FM radio broadcasters use RDS technology to transmit information. FM radio stations are independently operated and individually elect to use RDS technology to transmit station ID and program type as desired.

Traffic: Allows you to hear traffic broadcasts. With the feature ON, press SEEK or SCAN to find a station broadcasting a traffic report (if it is broadcasting RDS data). Traffic information is not available in most

U.S. markets.

FIND Program type: Allows you to search RDS-equipped stations for a certain category of music format: Classic, Country, Info, Jazz, Oldies, R&B, Religious, Rock, Soft, Top 40. Press MENU until FIND appears in the display. Use SEL to scroll through music types. Press SEEK or SCAN to search for a station playing the requested music category.

Show TYPE: Displays the station’s call letters and format. Press MENU until SHOW appears on display. Use SEL to select NONE, NAME or TYPE.

Shuffle: Press to play tracks in a random order. Press MENU until SHUFFLE appears in the display. Use SEL to select SHUFFLE DISC, SHUFFLE TRK or SHUFFLE OFF.

Compression: Brings soft and loud CD passages together for a more consistent listening level. Press MENU until COMPRESS is displayed. Press the SEL control to enable the compression feature when COMPRESS OFF is displayed. Press the SEL control again to disable the feature when COMPRESS ON is displayed.

Setting the clock: Press MENU until SELECT HOUR or SELECT MINS is displayed. Use SEL to manually increase ( hours/minutes. Press MENU again to disengage clock mode.

/ to shift sound to the

) or decrease ( )the

Entertainment Systems

10. Memory presets: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns.

11. SAT (if equipped): Your Audiophile radio comes equipped with Satellite Ready capability. The kit to enable the Satellite reception is available through your Ford dealer. Detailed satellite instructions are included with the dealer installed kit.

Dealer installed satellite kit only available in the continental United States.

12. AM/FM: Press to select AM/FM frequency band.

Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2 . Press and momentarily hold AM/FM. AUTOSET will be shown. When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. Press and hold again to disengage.

13. Power/volume: Press to turn ON/OFF; turn to increase or decrease volume levels.

14. Load: Press to load a CD. Press LOAD and a memory preset to load to a specific slot. Press and hold to load up to six discs.

15. CD AUX: Press to access CD or AUX mode.

Entertainment Systems

16. Scan: Press SCAN to hear a brief sampling of radio stations or CD tracks. Press again to stop.

17. Disc/Tune: Press manually tune down/up the radio

frequency band, or change to the previous/next CD.

CAT: CAT is only available when equipped with Satellite Radio. Your Audiophile radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your Ford dealer. Detailed Satellite instructions are included with the dealer installed kit.

Dealer installed satellite kit only available in the continental United States.

For information regarding SIRIUS Satellite Radio, please call toll-free 888-539-SIRIUS (888-539-7474) or visit the SIRIUS website at www.siriusradio.com

or to

Entertainment Systems

ADRENALIN CD/MP3 AUDIO SYSTEM — (IF EQUIPPED)

1. EJ (Eject): Press to eject a CD. Press EJECT and a memory preset to eject a specific disc. Press and hold to eject all loaded discs.

2. CD: Press to enter CD mode. If there is no disc in the system, insert a CD label side up. If a CD is already inserted, press CD to begin CD play.

3. CLK (Clock): Press CLK until SELECT HOUR /SELECT MINUTE is displayed. Press TUNE to

decrease hours/minutes.

4. TUNE: Press to manually go up or down the radio frequency, or to access another CD. Also use in menu mode to select various settings.

or increase the

Entertainment Systems

5. TEXT: In MP3 track title/file name mode, press to view the next 12 characters in the MP3 music name/file name of the current MP3 track and directory.

6. SHUF (Shuffle): Press to play the tracks on the current CD/MP3 in random order. In MP3 directory mode, press to play the tracks within the current directory in random order.

7. COMP (Compression): In CD/MP3 modes, press to bring soft and loud passages together for a more consistent listening level.

8. MENU:Press TUNE to toggle through the following modes

and adjustments in these modes.

Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. Press

MENU to access, use stations are filled, the station stored in preset 1 will begin playing. If

there are less than six strong stations, the system will store the last one in the remaining presets. Press again to disengage.

BASS: Press

TUNE to make

TUNE to set. When the six strongest

TUNE to decrease/increase the bass levels.

TREB (treble): Press levels.

BAL (Balance):Press left and right speakers.

FADE: Press rear speakers.

Flat file/directory mode: Press or Directory mode.

Normal/Track Title/File Name: Press number, track title or file name. In directory mode, press MENU until DIR NO XXX appears in the display. Press previous/next directory.

TUNE to adjust the audio between the front and

TUNE to decrease/increase the treble

TUNE to adjust the audio between the

TUNE to select Flat file mode

TUNE to view by track

TUNE to access the

Entertainment Systems

9. ON/OFF/VOL (Volume): Press to turn the system ON/OFF. Turn to adjust the volume levels. If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition is turned back on.

10. SCAN: In radio, CD and MP3 flat file mode, press for a brief sampling of radio stations or CD/MP3 tracks. In MP3 directory mode, press to hear a brief sampling of all tracks in the current directory. Press again to stop.

11. REPEAT: Press to repeat the current CD/MP3 track.

12. FF (fast forward): Press to manually advance in a CD track.

13. Memory presets: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns. To select a preset station, press the desired memory preset button.

14. MUTE: Press to mute the playing media. Press again to return to the playing media.

15. REW (rewind): Press to manually reverse a CD track.

16. SEEK: In radio, CD and MP3 flat file mode, press access the next/previous strong

station or track. In MP3 directory mode, press to select the next/previous track in the current directory.

/ to

Entertainment Systems

17. AM/FM: Press to select AM/FM frequency band.

18. LOAD: Press to load a CD/MP3 disc. Press LOAD and a memory preset to load a specific slot. Press and hold to autoload up to six discs.

19. CD slot: Insert a CD, label side up.

SATELLITE COMPATIBLE AM/FM STEREO IN-DASH SINGLE CD/MP3 RADIO — LATE AVAILABILITY (IF EQUIPPED)

1. SEEK: Press and release SEEK strong station or track.

/ for previous/next

Entertainment Systems

2. TEXT: The filename (Fi), song title (So), artist text (Ar) or album text (AL) may be viewed while playing an MP3 selection. When MP3 selection text is shown on the message display, its corresponding text indicator (Fi, So, Ar, or AL) is shown in the elapsed time display. Press TEXT to scroll through the text fields. The display will scroll through all of the text in the current field before changing to the next field. (TEXT must be pressed within 3 seconds of the previous press to proceed to the next/last text display. The last text field shown on the display will become the new display message default. TEXT is also available when equipped with Satellite radio. Your radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit.

Dealer installed satellite kit only available in the continental United States.

3. AUX: This function is not operational.

4. MUTE: Press to MUTE playing media; press again to return to playing media.

5. EJ: Press to eject a CD.

6. Bass: Press BASS; then press SEL the bass output.

Treble: Press TREB; then press SEL the treble output.

7. Select: Use with Bass, Treble, Balance, Fade and other menu selections.

/ to decrease/increase

Entertainment Systems

8. Balance: Press BAL; then press SEL left/right speakers.

Fade: Press FADE; then press SEL rear/front speakers.

9. Menu: Press MENU and SEL to access AUTOSET, Speed sensitive volume and Setting the clock.

Autoset: Press MENU until AUTOSET appears in the display. Press SEL to toggle ON/OFF. Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets.

Setting the clock: Press MENU until SELECT HOUR or SELECT MINUTE is displayed. Use SEL to manually increase (

(

Folder/Track mode: In MP3 mode, press MENU until MODE appears in the display. Use SEL to toggle between FOLDER (only tracks within selected folder are accessible) or TRACK (all tracks on disc are accessible) MODE.

10. REPEAT: Repeats the current CD/MP3 track when active (ON). Press to show repeat status. Press again to toggle status.

11. SHUFFLE: Plays CD/MP3 tracks in random order when active (ON). Press to show shuffle status. Press again to toggle status.

12. FOLDER the next MP3 directory.

/ to shift sound to the

) or decrease

) the hours/minutes. Press MENU again to disengage clock mode.

: Press to access

13. FOLDER the previous MP3 directory.

: Press to access

Entertainment Systems

14. FF(Fast forward): In CD/MP3 mode, press until desired selection is reached.

15. REW(Rewind): In CD/MP3 mode, press until desired selection is reached.

16. SAT (if equipped): Your radio comes equipped with Satellite Ready capability. The kit to enable the Satellite reception is available through your dealer. Detailed satellite instructions are included with the dealer installed kit.

Dealer installed satellite kit only available in the continental United States.

17. BAND: Press to toggle between AM/FM1/FM2 frequency band.

18. Memory presets: To set a station: Select frequency band; tune to a station, press and hold a preset button until sound returns.

19. Power/volume: Press to turn ON/OFF; turn to increase or decrease volume levels.

20. CD: Press to enter CD mode.

Entertainment Systems

21. COMP(Compression): Brings soft and loud CD passages together for a more consistent listening level when in CD mode. Press COMP to turn the feature ON/OFF.

22. Scan: Press SCAN to hear a brief sampling of radio stations or CD/MP3 tracks. Press again to stop.

23. CAT/Tune: Press

manually tune down/up the radio frequency band.

CAT: CAT is only available when equipped with Satellite Radio. Your radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit.

Dealer installed satellite kit only available in the continental United States.

For information regarding SIRIUS Satellite Radio, please call toll-free 888-539-SIRIUS (888-539-7474) or visit the SIRIUS website at www.siriusradio.com

24. CD slot: Insert a CD with the label side up.

or to

Entertainment Systems

PREMIUM SATELLITE COMPATIBLE AM/FM STEREO/CASSETTE/SINGLE CD/MP3 — LATE AVAILABILITY (IF EQUIPPED)

VOL-PUSH ON

BAND

SEEK

TUNE

CAT

REW FF

SCAN

DOLBY B NR

BASS TREB

DISC

TEXT

SEL

SHUFFLE

TAPE

BAL

1-2

FADE

MUTE

AUX

REPEATFOLDER FOLDER

123456

1. CD slot: Insert a CD with the label side up.

2. CD Eject: Press to eject a CD. The radio will resume playing.

3. Mute: Press to MUTE playing media; press again to return to the playing media.

4. Tape Eject: Press to eject the cassette. The radio will resume playing.

5. Tape 1–2/CD: Press to begin tape play. If a cassette is already playing, press to change playing sides.

CD: If a CD is loaded in the radio, pressing CD will cause the CD to begin playing.

6. AUX: This control is not operational.

Entertainment Systems

7. MENU: Press to access the following functions:

Clock: Press MENU until HOURS or MINUTES is displayed. Press SEL to decrease/ increase hours or minutes. Compression: In CD mode, compression brings soft and loud passages

together for a more consistent listening level. Press MENU until COMPRESS is displayed. Use SEL to toggle on/off.

Dolby: In tape mode, press MENU until DOLBY B XX appears in the display. Press SEL to toggle ON/OFF. The Dolby威 noise reduction system is manufactured under license from Dolby Laboratories Licensing Corporation. Dolby威 and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation.

Entertainment Systems

Folder/Track Mode: In MP3 mode, press MENU until MODE appears in the display. Use SEL to toggle between FOLDER (only tracks within selected folder are accessible) or TRACK (all tracks on disk are accessible) MODE.

Autoset: Press MENU until AUTOSET appears in the display. Press SEL to toggle on/off. Allows you to set the strongest local stations without losing your original memory preset stations for AM/FM1/FM2. When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets.

8. REPEAT: Repeats current CD/MP3 track when active (ON). Press to show repeat status. Press again to toggle status.

9. Balance: Press BAL; then press SEL left/right speakers.

Fade: Press FADE; then press SEL rear/front speakers.

10. SHUFFLE: Plays CD/MP3 tracks in random order when active (ON). Press to show shuffle status. Press again to toggle status.

11. TEXT/SEL: The filename, song title, artist text or album text may be viewed while playing an MP3 selection. Press TEXT to scroll through the text fields. The display will scroll through all of the text in the current field before changing to the next field. (TEXT must be pressed within three seconds of the previous button press to proceed to the next/last text display. ) The last text field shown on the display will become the new display message default.

TEXT is also available when equipped with Satellite radio. Your radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit. Dealer installed satellite kit

only available in the continental United States.

/ to shift sound to the

Entertainment Systems

Select: Use with Bass, Treble, Balance, Fade and other menu selections.

12. FOLDER the next MP3 directory folder.

: Press to access

13. FOLDER

: Press to access

the previous MP3 directory folder.

14. Bass: Press BASS; then press SEL

/ to decrease/increase

the bass output.

Treble: Press TREB; then press SEL

/ to decrease/increase

the treble output.

15. Fast Forward (FF): In CD mode, press and hold to fast

forward. In tape mode, press to activate fast forward. Press FF again to return to play.

16. Rewind (REW): In CD mode, press and hold to reverse CD. In

REW

tape mode, press to rewind. Press REW again to return to play.

17. Memory preset buttons: To set a station: Press BAND to select the frequency band (AM/FM1/FM2), tune to a station, press and hold a preset button until sound returns.

18. Scan: Press to hear a brief sampling of all listenable stations, tape selections or CD tracks. Press again to stop.

19. Tune/CAT: TUNE: Works in radio mode only. Press

TUNE

/ to change frequency

down/up.

Entertainment Systems

satellite kit only available in the continental United States.

For information regarding SIRIUS Satellite Radio, please call toll-free 888–539–SIRIUS (888–539–7474) or visit SIRIUS website at www.siriusradio.com.

20. Seek: Press and release SEEK strong station, tape selection or CD

track.

21. BAND: Press to toggle through AM/FM1/FM2 frequency bands.

22. Cassette door: Insert the cassette with the opening to the right.

23. Power/volume: Press to turn ON/OFF; turn to increase/decrease volume.

/ for previous/next

Entertainment Systems

AUDIOPHILE SATELLITE COMPATIBLE AM/FM STEREO IN-DASH SIX CD/MP3 RADIO — LATE AVAILABILITY (IF EQUIPPED)

1. SEEK: Press and release SEEK strong station or track.

Dealer installed satellite kit only available in the continental United States.

/ for previous/next

Entertainment Systems

3. AUX: This function is not operational.

4. MUTE: Press to MUTE playing media; press again to return to playing media

5. EJ: Press to eject a CD. Press EJ and a memory preset to eject a specific disc. Press and hold to eject all loaded discs.

6. Bass: Press BASS; then press SEL the bass output.

Treble: Press TREB; then press SEL the treble output.

7. Select: Use with Bass, Treble, Balance, Fade and other menu functions.

8. Balance: Press BAL; then press SEL left/right speakers.

Fade: Press FADE; then press SEL rear/front speakers.

9. Menu: Press and hold MENU to access RDS on/off. Use SEL to toggle RDS on/off. Press MENU again to access Traffic mode, Program type mode or Show Type mode. (MENU must be pressed within 10 seconds to proceed to the next RDS mode.)

/ to decrease/increase

/ to shift sound to the

Entertainment Systems

Traffic: Allows you to hear traffic broadcasts. With the feature ON, press SEEK or SCAN to find a station broadcasting a traffic report (if it is broadcasting RDS data).

Traffic information is not available in most U.S. markets.

FIND Program type: Allows you to search RDS-equipped stations for a certain category of music format: Classic, Country, Info, Jazz, Oldies, R&B, Religious, Rock, Soft, Top 40. Press and hold MENU until RDS XX is shown in the display. Press MENU until FIND appears in the display. Use SEL to scroll through music types. Press SEEK or SCAN to search for a station playing the requested music category.

Show TYPE: Displays the station’s call letters or music format. Press and hold MENU until RDS XX is shown in the display. Press MENU until SHOW appears in the display. Use SEL to select NAME or TYPE.

Compression: Brings soft and loud CD passages together for a more consistent listening level when in CD mode. Press MENU until compression status is displayed. Press the SEL control to enable the compression feature when COMPRESS OFF is displayed. Press the SEL control again to disable the feature when COMPRESS ON is displayed.

Occupancy mode: Press MENU until occupancy mode appears in the display. Press SEL to select ALL, DRIVER or REAR SEAT occupancy mode.

Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. Press MENU until AUTOSET appears in the display. Press SEL to toggle ON/OFF. When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets.

Setting the clock: Press MENU until SELECT HOUR or SELECT MINS is displayed. Use SEL to manually increase ( hours/minutes. Press MENU again to disengage clock mode.

10. REPEAT: Repeats the current CD/MP3 track when active (ON). Press to show repeat status. Press again to toggle status.

) or decrease ( )the

Entertainment Systems

11. SHUFFLE: Plays CD/MP3 tracks in random order when active (ON). Press to show shuffle status. Press again to toggle status.

12. FOLDER the next MP3 directory.

: Press to access

13. FOLDER the previous MP3 directory

14. FF(Fast forward): In CD mode, press until desired selection is reached.

15. REW(Rewind): In CD mode, press until desired selection is reached.

satellite kit only available in the continental United States.

17. BAND: Press to toggle between AM/FM1/FM2 frequency band.

18. Memory presets: To set a station: Select frequency band, tune to a station, press and hold a preset button until sound returns.

19. Power/volume: Press to turn ON/OFF; turn to increase or decrease volume levels.

: Press to access

20. Load: Press to load a CD. Press LOAD and a memory preset to load to a specific disc slot. Press and hold to load up to six discs.

Entertainment Systems

21. CD: Press to enter CD mode.

22. Scan: Press SCAN to hear a brief sampling of radio stations or CD/MP3 tracks. Press again to stop.

23. Disc/Tune: Press

manually tune down/up the radio frequency band, or to listen to the previous/next CD.

CAT: CAT is only available when equipped with Satellite Radio. Your Audiophile radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit. Dealer

installed satellite kit only available in the continental United States.

For information regarding SIRIUS Satellite Radio, please call toll-free 888-539-SIRIUS (888-539-7474) or visit the SIRIUS website at www.siriusradio.com

24. CD slot: Insert a CD, label side up.

or to

RADIO FREQUENCIES

AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are:

AM - 530, 540–1700, 1710 kHz

FM- 87.7, 87.9–107.7, 107.9 MHz

Entertainment Systems

RADIO RECEPTION FACTORS

There are three factors that can affect radio reception:

• Distance/strength: The further you travel from an FM station, the

weaker the signal and the weaker the reception.

• Terrain: Hills, mountains, tall buildings, power lines, electric fences,

traffic lights and thunderstorms can interfere with your reception.

• Station overload: When you pass a broadcast tower, a stronger signal

may overtake a weaker one and play while the weak station frequency is displayed.

CASSETTE/PLAYER CARE

Do:

• Use only cassettes that are 90 minutes long or less.

• Tighten very loose tapes by inserting a finger or pencil into the hole

and turning the hub.

• Remove loose labels before inserting tapes.

• Allow tapes which have been subjected to extreme heat, humidity or

cold to reach a moderate temperature before playing.

• Clean the cassette player head with a cassette cleaning cartridge after

10–12 hours of play to maintain good sound/operation.

Don’t:

• Expose tapes to direct sunlight, extreme humidity, heat or cold.

• Leave tapes in the cassette player for a long time when not being

played.

CD/CD PLAYER CARE

Do:

• Handle discs by their edges only. Never touch the playing surface.

• Inspect discs before playing. Clean only with an approved CD cleaner

and wipe from the center out.

Don’t:

• Expose discs to direct sunlight or heat sources for extended periods

of time.

• Insert more than one disc into each slot of the CD changer magazine.

• Clean using a circular motion.

Entertainment Systems

AUDIO SYSTEM WARRANTY AND SERVICE

Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.

Climate Controls

MANUAL HEATING AND AIR CONDITIONING SYSTEM

1. Fan speed adjustment: Controls the volume of air circulated in the vehicle.

2. Temperature selection: Controls the temperature of the airflow in the vehicle.

3. Air flow selections: Controls the direction of the airflow in the vehicle. See the following for a brief description on each control.

MAX A/C: Uses recirculated air to cool the vehicle. Air flows from the instrument panel vents only. Temperature of airflow not adjustable.

A/C : Uses outside air to cool the vehicle. Air flows from the instrument panel vents only.

: Distributes outside air through the instrument panel vents.

O (OFF): Outside air is shut out and the fan will not operate.

: Distributes outside air through the instrument panel vents and the

floor vents.

: Distributes outside air through the floor vents.

: Distributes outside air through the windshield defroster vents and

floor vents.

: Distributes outside air through the windshield defroster vents.

Operating tips

• To reduce fog build up on the windshield during humid weather, place

the air flow selector in the

• To reduce humidity build up inside the vehicle: do not drive with the

air flow selector in the O (OFF) or MAX A/C position.

• Under normal weather conditions, do not leave the air flow selector in

MAX A/C or O (OFF) when the vehicle is parked. This allows the vehicle to “breathe” using the outside air inlet vents.

• Do not put objects under the front seats that will interfere with the

airflow to the back seats.

• Remove any snow, ice or leaves from the air intake area at the base of

the windshield.

position.

Climate Controls

To aid in side window defogging/demisting in cold weather:

1. Select

2. Select A/C.

3. Adjust the temperature control to maintain comfort.

4. Set the highest fan speed.

5. Direct the outer instrument panel vents towards the side windows.

To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

Lights

HEADLAMP CONTROL

Turns the lamps off.

Turns on the parking lamps, instrument panel lamps, license plate lamps and tail lamps.

Turns the headlamps on.

Autolamp system (if equipped)

The autolamp system sets the headlamps to turn on and off automatically. The autolamp control, located on the headlamp control, may be set to:

• turn on the lamps automatically

at night

• turn off the lamps automatically during the daylight

• keep the lamps on for up to three minutes after the key is turned to

OFF.

To turn the autolamps on, rotate the control counterclockwise to

Foglamp control (if equipped)

The foglamps can be turned on only when the headlamp control is in

the the high beams are not turned on.

Pull headlamp control towards you to turn foglamps on. The foglamp indicator light when foglamp is activated.

Push the headlamp control towards the instrument panel to deactivate the foglamps.

, and position and

will illuminate

Lights

High beams

Push the lever toward the instrument panel to activate. Pull the lever towards you to deactivate.

Flash to pass

Pull the lever toward you to activate. Release the lever to deactivate.

PANEL DIMMER CONTROL

Move the control up and down to adjust the intensity of the panel lighting. Operates only when the exterior lights are switched on.

Move the control to the full upright position (past detent) to turn on the interior lamps.

Move the control to the full down position (past detent) to prevent interior lamps from illuminating when the doors are opened.

Note: On some models, when the instrument panel dimmer switch is rotated all the way up (past the detent), turning on the interior dome lamp, the exterior rear cargo lamp is also turned on.

AIMING THE HEADLAMPS

The headlamps on your vehicle are properly aimed before leaving the assembly plant. If your vehicle is involved in an accident or if you have problems fixing the alignment of your headlamps, have them checked by a qualified service technician.

Lights

Headlamp aim adjustment

The headlamps on your vehicle can only be vertically adjusted. Your vehicle does not require horizontal aim adjustments.

To adjust the headlamps:

1. Park your vehicle on a level surface about 25 feet (7.6 meters) away from a vertical plain surface (3). Check your headlamp alignment at night or in a dark area so that you can see the headlamp beam pattern.

• (1) Eight feet

• (2) Center height of lamp to

ground

• (3) Twenty-five feet

• (4) Horizontal reference line

2. The center of the headlamp has a

3.0 mm circle on the lens. Measure the height from the center of your headlamp to the ground (2) and mark an 8 foot (2.4 meter) long horizontal line on the plain surface (1) at this height (masking tape works well).

3. Turn on the low beam headlamps. The brightest part of the light should be below the horizontal line (4). If it is above the line the headlamp will need to be adjusted.

4. Open the hood.

5. Locate the vertical adjuster for each headlamp. Adjust the aim by turning the adjuster control either clockwise (to adjust down) or counterclockwise (to adjust up).

Note: Usea4mmsocket or box wrench to turn the vertical adjuster control.

6. Horizontal aiming is not required for this vehicle and is non-adjustable.

Lights

TURN SIGNAL CONTROL

• Push down to activate the left

turn signal.

• Push up to activate the right turn

signal.

INTERIOR LAMPS

Courtesy/reading lamps

The courtesy lamp lights when:

• any door is opened.

• the instrument panel dimmer

switch is rotated past the detent.

• the UNLOCK control of the

remote entry transmitter is pressed and the ignition is OFF.

The reading lamps can be turned on by pressing the rocker controls next to each lamp.

If equipped with Remote Keyless Entry, the courtesy lamp will illuminate whenever any door is opened and will remain on for 25 seconds after the door is shut or when the ignition is turned to the ON position.

BULBS

Headlamp Condensation

The headlamps are vented to equalize pressure. When moist air enters the headlamp(s) through the vents, there is a possibility that condensation can occur. This condensation is normal and will clear within 45 minutes of headlamp operation.

Replacing the interior bulbs

Check the operation of the bulbs frequently. To replace any of the interior bulbs, see a dealer or qualified technician.

Replacing exterior bulbs

Check the operation of all the bulbs frequently.

Lights

Replacement bulbs

Function Number of

bulbs

Headlamps 2 9007 Park/turn/side marker lamps 2 3157 AK (Amber) Rear stop/tail/turn lamps 2 3157K Backup lamps 2 3156K Hi-mount brake lamp 1 922 Foglamps 2 9145 Rear license plate lamps 2 168 Overhead map lamps 2 PC579

Cargo lamp 1 211–2 Map lamps 2 168 (T10) Dome lamp 1 906 Front door courtesy lamp (if

equipped) Ashtray lamp 1 161 All replacement bulbs are clear in color except where noted. To replace all instrument panel lights – see your dealer.

Replacing headlamp bulbs

To remove the headlamp bulb:

1. Make sure headlamp switch is in OFF position, then lift hood and remove the plastic headlamp cover.

2. At the back of the headlamp, remove the two retainer pins then pull headlamp forward.

1 168

Trade number

(XU5B-13466–AA)

Lights

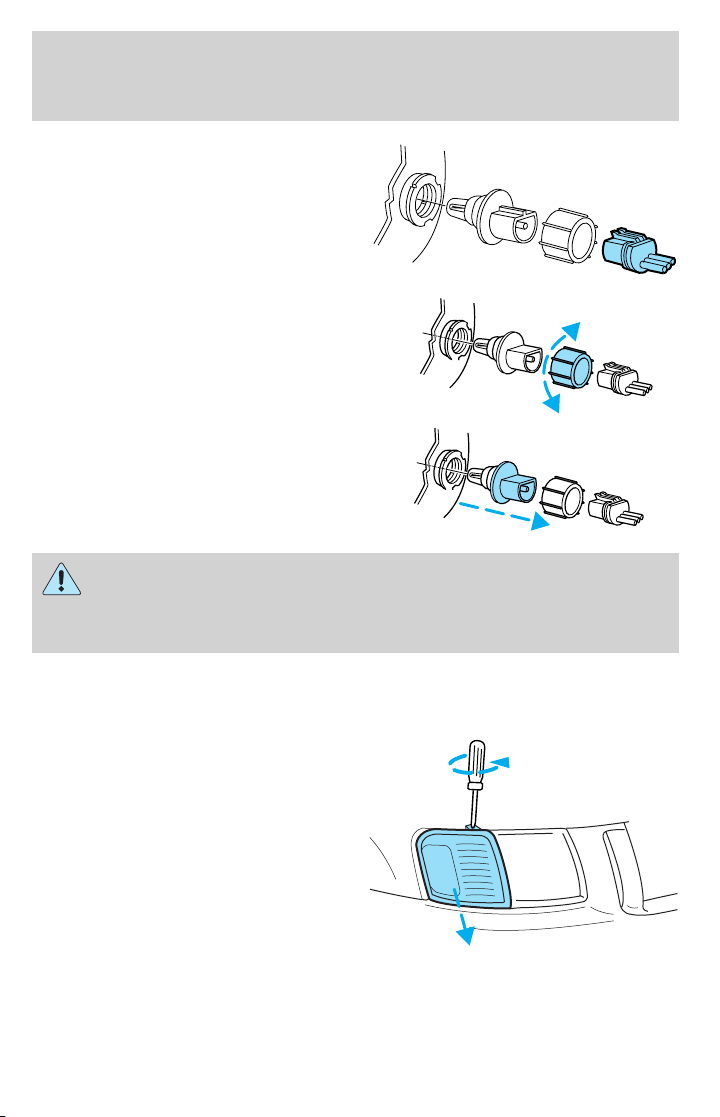

3. Disconnect the electrical connector.

4. Remove the bulb retaining ring.

5. Carefully pull the old bulb out of the lamp assembly.

Handle a halogen headlamp bulb carefully and keep out of

children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.

Reverse steps to reinstall the bulb(s).

Replacing front parking lamp/turn signal bulbs

1. Make sure the headlamp switch is in the OFF position and open the hood.

2. Remove screw from the lamp assembly.

3. Disengage lamp assembly.

Lights

4. Remove the bulb socket.

5. Carefully pull bulb straight out of socket and push in the new bulb.

Reverse steps to reinstall the bulb(s).

Replacing tail lamp/turn/backup lamp bulbs

1. Make sure the headlamp switch is in the OFF position and lower the tailgate to expose the lamp assembly.

2. Remove the three rubber plugs, screws and the lamp assembly from vehicle.

3. Rotate bulb socket counterclockwise and remove from lamp assembly.

4. Carefully pull the bulb straight out of the socket.

Reverse steps to reinstall the bulb(s).

Replacing foglamp bulbs

1. Make sure the headlamp switch is in the OFF position and then remove the splash shield, by removing the two screws on the front of the fenderwell.

2. Remove the bulb socket from the foglamp by turning counterclockwise.

3. Disconnect the electrical connector from the foglamp bulb. Reverse steps to reinstall the bulb(s).

Replacing high-mount brakelamp and cargo lamp bulbs

To remove the brakelamp assembly:

1. Remove the two screws and lamp assembly from vehicle.

2. Remove the bulb socket from lamp assembly by turning it counterclockwise and pull the bulb straight out.

Lights

Reverse steps to reinstall the bulb(s).

Replacing license plate lamp bulbs

1. Make sure the headlamp switch is in the OFF position, then remove the license plate assembly.

2. Remove the bulb socket from the lamp assembly by turning it counterclockwise and pulling the bulb straight out.

Reverse steps to reinstall the bulb(s).

Driver Controls

MULTI-FUNCTION LEVER

Windshield wiper: Rotate the end of the control away from you to increase the speed of the wipers; rotate towards you to decrease the speed of the wipers.

Speed dependent wipers: When the wiper control is on, the speed of the wipers will automatically adjust with the vehicle speed. The faster your vehicle is travelling the faster the wipers will go.

Windshield washer: Push the end of the stalk:

• briefly: causes a single swipe of the wipers without washer fluid.

• a quick push and hold: the wipers will swipe three times with washer fluid.

• a long push and hold: the wipers and washer fluid will be activated for up to ten seconds.

Changing the wiper blades

1. Pull the wiper arm away from the

vehicle. Turn the blade at an angle from the wiper arm. Push the lock pin manually to release the blade and pull the wiper blade down toward the windshield to remove it from the arm.

2. Attach the new wiper to the

wiper arm and press it into place until a click is heard.

Replace wiper blades at least once per year for optimum performance.

Poor wiper quality can sometimes be improved by cleaning the wiper blades, refer to Windows and wiper blades in the Cleaning chapter.

Driver Controls

To prolong the life of the wiper blades, it is highly recommended to scrape off the ice on the windshield before turning on the wipers. The layer of ice has many sharp edges and can damage the micro edge of the wiper rubber element.

TILT STEERING WHEEL (IF EQUIPPED)

To adjust the steering wheel:

1. Pull and hold the steering wheel

release control toward you.

2. Move the steering wheel up or

down until you find the desired location.

3. Release the steering wheel

release control. This will lock the steering wheel in position.

Never adjust the steering wheel when the vehicle is moving.

CENTER CONSOLE

Your vehicle may be equipped with a variety of console features. These include:

• Utility compartment with compact disc storage

• Auxiliary power point

• Cupholders

• Ashcup (if equipped)

• Removable utility bag

• Writing surface with note pad

• Coin holder

• Armrest

Use only soft cups in the cupholder. Hard objects can injure you in a collision.

Driver Controls

Cell phone use

The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits.

Mobile Communication Equipment includes, but is not limited to cellular phones, pagers, portable email devices, in-vehicle communications systems, telematics devices and portable two-way radios.

A driver’s first responsibility is the safe operation of the vehicle.

The most important thing you can do to prevent a crash is to avoid distractions and pay attention to the road. Wait until it is safe to operate Mobile Communications Equipment.

OVERHEAD CONSOLE (IF EQUIPPED)

The appearance of your vehicle’s overhead console will vary depending on your option package.

Storage compartment (if equipped)

Press the OPEN control to open the door slightly. Pull the door down to open.

The storage compartment may be used to secure sunglasses or a similar object.

Install a garage door opener (if equipped)

The storage compartment can be used to hold a variety of aftermarket garage door openers. To install your garage door opener:

1. Open the storage compartment door.

2. Remove the storage clip and stow it away.

3. Place the Velcro娂 strip onto the back of the garage door opener control.

4. Adhere the back of garage door opener control to the Velcro娂 strip found inside the storage compartment. Make sure that the controls for the garage door opener face outward.

5. Place the height adjusters onto the back of the storage compartment door. Add as many adjusters as needed to activate the garage door opener.

6. Close the storage compartment door and press the garage door opener control to verify that it works. If not, you may need to add more adjusters.

Driver Controls

AUXILIARY POWER POINT (12VDC)

Power outlets are designed for accessory plugs only. Do not insert any other object in the power outlet for this will damage the outlet and blow the fuse. Do not hang any type of accessory or accessory bracket from the plug. Improper use of the power outlet can cause damage not covered by your warranty.

Driver Controls

• With a full console:

• Without a full console:

Do not use the power point for operating the cigarette lighter element (if equipped).

To prevent the fuse from being blown, do not use the power point(s) over the vehicle capacity of 12 VDC/180W.

To prevent the battery from being discharged, do not use the power point longer than necessary when the engine is not running.

Always keep the power point caps closed when not being used.

Cigar/Cigarette lighter (if equipped)

Do not plug optional electrical accessories into the cigarette lighter socket.

Do not hold the lighter in with your hand while it is heating, this will damage the lighter element and socket. The lighter will be released from its heating position when it is ready to be used.

Improper use of the lighter can cause damage not covered by your warranty.

Truck bed auxiliary power point

An additional auxiliary power point is located in the bed of the truck.

Lift the cover to access the auxiliary power point.

POWER WINDOWS

Do not leave children unattended in the vehicle and do not let

children play with the power windows. They may seriously injure themselves.

When closing the power windows, you should verify they are free

of obstructions and ensure that children and/or pets are not in the proximity of the window openings.

Press and hold the bottom part of the rocker switch to open the window. Press and hold the top part of the rocker switch to close the window.

Driver Controls

One touch down

Allows the driver’s window to open fully without holding the control down. Press completely down on AUTO and release quickly. Press again to stop.

Driver Controls

Window lock

The window lock feature allows only the driver to operate the power windows.

To lock out all the window controls except for the driver’s press the left side of the control. Press the right side to restore the window controls.

Accessory delay

With accessory delay, the radio, windows, and moonroof operate for up to ten minutes after the ignition switch is turned from the ON to the OFF position or until any door is opened.

Power Down Back Window

To operate the Power Down Back window, the ignition switch must be in the ON or ACCESSORY position (or with accessory delay power enabled).

The power down back window has three window position selections:

• Fully open

• Vent

• Fully closed

Turn control counter-clockwise and release to lower window all the way to the full open position.

All rear seat occupants and/or cargo must be properly restrained

and clear of the back window opening before operating the power down rear window.

Driver Controls

Turn control clockwise and release to raise the window all the way to the full closed position.

Push control once to move window (up or down) to the vent position (opens approximately 2.00 inches for cab ventilation). If the window is already in the vent position and the control is pressed, no movement will occur.

Normal Operation

If an “up” command is selected and the ignition is switched to OFF or START during window travel, the window will (or with accessory delay power enabled):

• stop if it is between the vent position and fully closed or

• continue to move up to the vent position if it is between vent and fully

open.

If a “down” or “vent” command is selected and the ignition is switched to OFF or START during window travel (or with accessory delay power enabled), the window will move to the fully open or vent position and then stop.

The “down” command is the only one allowed after the ignition has been switched to OFF or START (or with accessory delay power enabled) while the window is moving.

Bounce-Back

When the back window is moving upward and an obstacle interferes with the window’s movement, the back window will reverse direction and move toward the fully open position. This is known as “bounce-back”.

Security Override

If, during a bounce-back condition, the control is held in the clockwise (“up”) direction for at least two seconds, the back window will travel up with no bounce-back protection. If the control is released before the window reaches fully closed or the ignition is switched to OFF or START (or with accessory delay power enabled), the back window will reverse direction with bounce-back re-enabled.

The following are possible reasons for using the security override:

• Ice on the window causing a restriction.

Driver Controls

• Window unexpectedly reverses.

Position recovery mode

If the window fails to operate in “normal” operation mode, the control can be turned and held in the active position (up or down window direction) which will move the window in increments of approximately 15mm (0.6 inches) in the selected direction. (The “vent” feature is inoperable in this mode.) This feature allows the window to be closed. Once the window has reached the full closed position, the window should again operate in the “normal” operation mode. If the window still does not operate correctly, see your dealer for service.

AUTOMATIC DIMMING REAR VIEW MIRROR

Your vehicle may be equipped with an inside rear view mirror with an auto-dimming feature. When the auto-dimming mirror is turned on, as indicated by an illuminated green LED to the left of the button on mirror, it will detect bright lights(glare) from behind the vehicle, and will change from the normal, high reflective state, to the darkened state to minimize glare.

When the auto-dimming mirror is turned on, it will automatically return to the normal, high reflective, state whenever the vehicle is placed in R (Reverse) to ensure a clear view while backing up.

Do not block the sensor located to the right of the mirror button or the sensor located on the back side of the mirror as this may impair mirror performance.

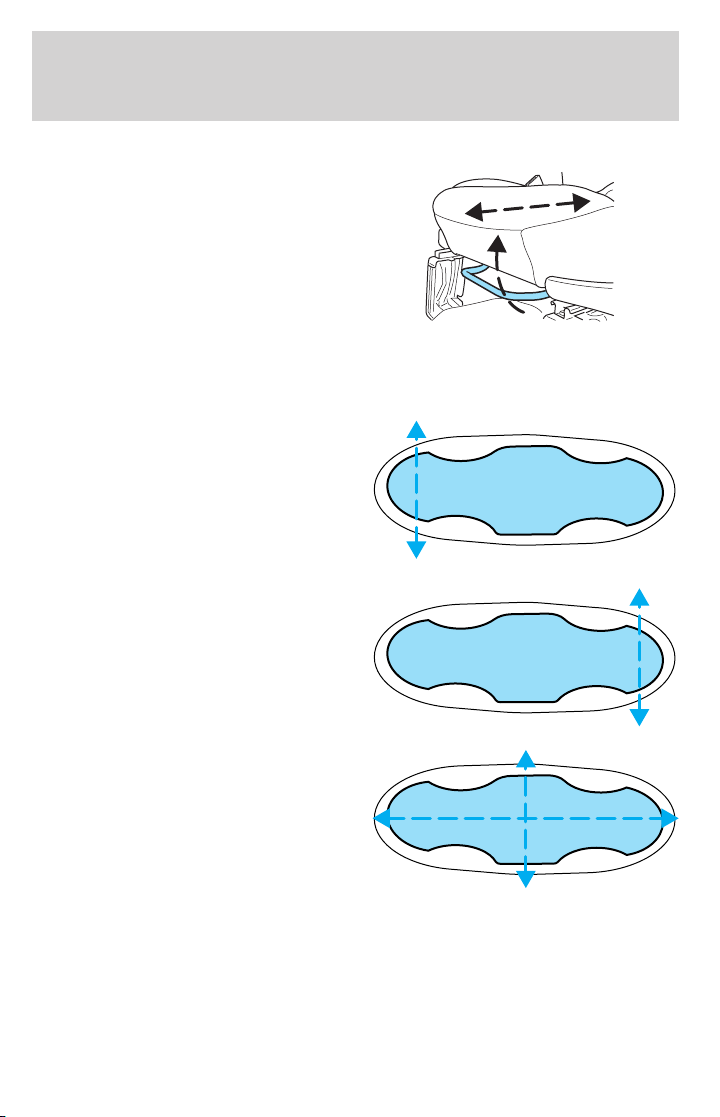

Power side view mirrors (if equipped)

To adjust your mirrors:

1. Select to adjust the left mirror or

mirror.

2. Move the control in the direction you wish to tilt the mirror.

3. Return to the center position to disable the adjust function.

to adjust the right

Fold-away mirrors

Pull the side mirrors in carefully when driving through a narrow space, like an automatic car wash.

SPEED CONTROL (IF EQUIPPED)

With speed control set, you can maintain a speed of 30 mph (48 km/h) or more without keeping your foot on the accelerator pedal. Speed control does not work at speeds below 30 mph (48 km/h).

Do not use the speed

control in heavy traffic or on roads that are winding, slippery or unpaved.

Driver Controls

Setting speed control

The controls for using your speed control are located on the steering wheel for your convenience.

1. Press the ON control and release it.

2. Accelerate to the desired speed.

Driver Controls

3. Press the SET ACC control and release it.

4. Take your foot off the accelerator pedal.

5. The indicator light instrument cluster will turn on.

Note:

• Vehicle speed may vary momentarily when driving up and down a steep hill.

• If the vehicle speed increases above the set speed on a downhill, you may want to apply the brakes to reduce the speed.

• If the vehicle speed decreases more than 10 mph (16 km/h) below your set speed on an uphill, your speed control will disengage.

Resuming a set speed

Press the RSM (resume) control and release it. This will automatically return the vehicle to the previously set speed. The RSM control will not work if the vehicle speed is not faster than 30 mph (48 km/h).

on the

Increasing speed while using speed control

There are two ways to set a higher speed:

• Press and hold the SET ACC control until you get to the desired speed, then release the control. You can also use the SET ACC control to operate the Tap-Up function. Press and release this control to increase the vehicle set speed in small amounts by 1 mph (1.6 km/h).

• Use the accelerator pedal to get to the desired speed. When the vehicle reaches that speed, press and release the SET ACC control.

Driver Controls

Reducing speed while using speed control

There are two ways to reduce a set speed:

• Press and hold the COAST control until you get to the desired speed, then release the control. You can also use the COAST control to operate the Tap-Down function. Press and release this control to decrease the vehicle set speed in small amounts by 1 mph (1.6 km/h).

• Depress the brake pedal until the desired vehicle speed is reached, press the SET ACC control.

Turning off speed control

There are two ways to turn off the speed control:

• Depress the brake pedal. This will not erase your vehicle’s previously set speed.

• Press the speed control OFF control.

Note: When you turn off the speed control or the ignition, your speed control set speed memory is erased.

MOON ROOF (IF EQUIPPED)

The moon roof control is located on the overhead console.

Do not let children play with the moon roof or leave children unattended in the vehicle. They may seriously hurt themselves.

Note: The moon roof will open to the “comfort” position first before opening all the way. The “comfort” position helps to alleviate rumbling wind noise which may happen in the vehicle with the roof fully opened.

Driver Controls

To open the moon roof: the moon roof is equipped with a one-touch open feature. Press and release the open to the “comfort” position. Press and release the control again to fully open. To stop the one-touch open feature press the again.

To close the moon roof: press and hold the closed, the rear portion of the glass panel will appear higher than the front portion.

To vent the moon roof: press and hold the roof must be in the closed position in order to move it into the vent position. To close, press and hold the

panel stops moving.

The moon roof sliding shade can be opened or closed manually. The glass panel must be closed in order to move the sliding shade.

Note: If the battery is disconnected, discharged, or a new battery is installed, the moon roof positions will need to be reset. To reset the moon roof positions, move the moon roof into the vent position.

control. The moon roof will

control

control until the glass panel stops moving. When fully

control. The moon

control until the glass

When closing the moon roof, you should verify that it is free of obstructions and ensure that children and/or pets are not in the

proximity of the moon roof opening.

Driver Controls

ELECTRONIC COMPASS AND OUTSIDE TEMPERATURE DISPLAY (IF EQUIPPED)

This display provides the outside temperature in °F (Fahrenheit) or °C (Centigrade) and one of the eight compass headings to indicate the direction the vehicle is facing.

Outside temperature display

Press the MODE control to turn on the display. Press the MODE control again to change from °F to °C. Press the MODE control again to turn off the display.

If the outside temperature drops below 38° F (4° C) the word “ICE” will flash in the display alternately with the outside temperature for approximately one minute.

Electronic compass

As an orientation aid, the compass direction abbreviations are displayed here.

If you suspect that the compass is not operating correctly, it can be recalibrated.

Note: The compass reading may be affected when driving near large buildings, bridges, power lines and broadcast antennas. Magnetic or metallic objects placed on or in the vehicle may also affect the compass reading.

• Adjusting the compass

Note: The ignition must be in the ON position.

OPEN

GARAGE

LAMP MODE LAMP

73° NW

Driver Controls

1. Press and hold the MODE

control until “VAR” appears in the display. The current location number should be displayed.

2. Press the MODE control

repeatedly until your desired location number appears in the display. Use this zone map to determine which location number

you should be using.

• Adjusting the calibration of the compass

Note: To adjust the calibration find an open area free from steel structures and high voltage lines.

1. Press and hold the MODE

control until “CAL” appears in the display then release the control.

2. Drive slowly (less than 3 mph

[5 km/h]) in circles until “CAL” disappears from the display (approximately 2 or 3 circles).

9 VAR

123

6 7 8 9 1011

CAL

14 13

POSITIVE RETENTION FLOOR MAT

Position the floor mat so that the eyelets are over the pointed end of the retention posts and rotate forward to lock in. Make sure that the mat does not interfere with the operation of the accelerator or the brake pedal.

TAILGATE LOCK

The tailgate lock is designed to prevent theft of the tailgate.

• Insert ignition key and turn to the right to lock.

• Turn ignition key to the left to unlock.

Driver Controls

TAILGATE REMOVAL

Your tailgate is removable to allow more room for loading.

1. Lower the tailgate.

2. Use a screwdriver to pry the

spring clip (on each connector) past the head of the support screw. Disconnect the cables.

3. Lift tailgate to a 45–degree angle

and remove it from the left and right hinges.

To install, follow the removal procedures in reverse order.

Driver Controls

EXTERIOR TIEDOWN HOOKS

Exterior tiedown hooks mounted on the side of the pickup box:

• can be used to secure loads within the pickup box.

• can be used to secure half the tonneau cover in an open position.

• allow for continued use of the stake pockets.

Each tiedown hook can secure loads of up to 770 lb. (350 kg) inside the pickup box (total load not to exceed box payload of 2,200 lb. [1000 kg ]). Loads can be secured to the hooks with up to three wraps of 10 mm rope.

CARGO CAGE (IF EQUIPPED)

Your vehicle may be equipped with a cargo cage designed to extend the pickup box for larger loads.

To extend the cargo cage:

1. Lower tailgate.

2. Pull the round knobs on each side

of the cargo cage to release it from the pickup box.

Red markings behind the knobs indicate the unlocked position.

3. Lift the cargo cage over on to the

tailgate.

4. Evenly push down on the cargo

cage and push the round knobs in on each side locking it in place.

To stow the cargo cage, follow steps one through four in reverse order.

The cargo cage may be used to secure a load of up to 100 lb. (46 kg) on the tailgate.

Driver Controls

The cargo cage should always be kept in the stowed position with the tailgate closed when not in use.

Activating Cargo Cage Theft Deterrent Device:

The following procedure can be done with the cargo cage in the stowed or extended position.

1. Locate the Phillips head screw in

the middle of the vertical brace on the locking clip.

2. Turn the screw counterclockwise

until you hear an audible click.

3. To deactivate, turn the screw clockwise until the locking clip moves

freely.

To remove the cargo cage:

1. Extend the cargo cage.

2. Pull the round knobs on each side

of the cage to unlock it.

Make sure the locking clip screws are loose before removing the cargo cage.

3. Press the locking clips below the

middle bar and lift the cargo cage out of the channels on the “D” pillar.

To install the cargo cage, follow the removal procedure in reverse order.

TONNEAU COVER (IF EQUIPPED)

The tonneau cover has been designed to maximize fuel economy and should be fully installed whenever possible.

The rear panel can be folded in half and secured behind the cab, or the whole cover can be removed completely from the vehicle.

To avoid damage to the cover, do not operate the vehicle unless the cover is fully installed, or securely stowed.

To avoid damage to the cover, do not stand, sit or load anything on top of the cover.

Driver Controls

To open the front panel:

• Open the driver side lock cover and unlock the front panel.

• Lift the panel to access items in the pickup box near the cab.

• To close, lower the panel down on the pickup box.

The panel will automatically lock when lowered onto the pickup box.

Do not drive with front panel unlocked or folded on top of the rear panel.

To open the rear panel:

• Open the lock cover and unlock the rear panel.

• Lift the rear panel to access items in the pickup box.

• To close, lower the rear panel on the pickup box.

The panel will automatically lock when lowered onto the pickup box.

To stow the rear panel:

• Before driving with the rear panel open, unlock the rear panel.

• Lift the rear panel up, lay it on top of the front panel and secure it with the two straps to the exterior tiedowns on the pickup box.

Failure to secure the rear panel could damage the tonneau cover or vehicle.

Driver Controls

To remove the tonneau cover:

The tonneau cover weighs 70 lb. (29 kg) and needs to be supported during removal since the panels will automatically lock when set down on the pickup box. This is a two person operation.

• Unlock and support the front and rear panels.

• Fold the rear panel on top of the front panel.

• Pull the release levers on the underside of the tonneau cover from the pickup box and remove the cover.

For installation of the tonneau cover, reverse the removal procedure.

Interior tonneau cover release

Your vehicle is equipped with a mechanical interior tonneau cover release handle that provides a means of escape for children and adults in the event they become locked inside the pickup box.

Adults are advised to familiarize themselves with the operation and location of the release handle.

To open the tonneau cover from the inside, pull the “T” shaped handle and push up on the tonneau cover panel. The handle is composed of a material that will glow for hours in darkness following brief exposure to ambient light.

The “T” shaped handle is located on the tonneau cover panel.

Keep vehicle doors and tonneau cover locked and keep keys and

remote transmitters out of a child’s reach. Unsupervised children could lock themselves in the box and risk injury. Children should be taught not to play in vehicles.

Driver Controls

On hot days, the temperature in the pickup box can rise very

quickly. Exposure of people or animals to these high temperatures for even a short time can cause death or serious heat-related injuries, including brain damage. Small children are particularly at risk.

LUGGAGE RACK

Your vehicle is equipped with a roof rack without cross bars. The maximum recommended load is 100 lbs. (44 kg), evenly distributed. If it is not possible to distribute the load, position it as far rearward as possible. Use the tiedown loops to secure the load.

Loaded vehicles, with a higher center of gravity, may handle

differently than unloaded vehicles. Extra precautions, such as slower speeds and increased stopping distance, should be taken when driving a heavily loaded vehicle.

Vehicles with a higher center of gravity such as utility and

four-wheel drive vehicles handle differently than vehicles with a lower center of gravity. Utility and four-wheel drive vehicles are not designed for cornering at speeds as high as passenger cars any more than low-slung sport cars are designed to perform satisfactorily under off-road conditions. Avoid sharp turns, excessive speed and abrupt maneuvers in these vehicles. Failure to drive cautiously could result in an increase risk of loss of vehicle control, vehicle rollover, personal injury and death.

Locks and Security

KEYS

The key operates all locks on your vehicle. In case of loss, replacement keys are available from your dealer.

You should always carry a second key with you in a safe place in case you require it in an emergency.

Refer to the SecuriLock娂 passive anti-theft system section in this chapter for more information.

POWER DOOR LOCKS

The power door lock controls are located on the driver and front passenger door panels.

• Pressing the the doors.

• Pressing the doors.

Childproof door locks

• When these locks are set, the rear doors cannot be opened from the inside.

• The rear doors can be opened from the outside when the doors are unlocked.

The childproof locks are located on rear edge of each rear door and must be set separately for each door. Setting the lock for one door will not automatically set the lock for both doors.

• Move lock control up to engage the childproof lock.

• Move control down to disengage childproof locks.

will unlock all

will lock all the

Locks and Security

REMOTE ENTRY SYSTEM (IF EQUIPPED)

This device complies with part 15 of the FCC rules and with RS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

The typical operating range for your remote entry transmitter is approximately 33 feet (10 meters). A decrease in operating range could be caused by:

• weather conditions,

• nearby radio towers,

• structures around the vehicle, or

• other vehicles parked next to your vehicle.

Your vehicle is equipped with a remote entry system which allows you to:

• unlock the vehicle doors without a key.

• lock all the vehicle doors without a key.

• activate the personal alarm.

If there are problems with the remote entry system, make sure to take ALL remote entry transmitters with you to the dealership in order to aid in troubleshooting the problem.

Unlocking the doors

1. Press and release to unlock the driver’s door. Note: The interior

lamps will illuminate.

2. Press

doors.

and release again within three seconds to unlock all the

Locks and Security

The remote entry system activates the illuminated entry feature. This feature turns on the interior lamps for 25 seconds or until the ignition is turned to the 4 (ON) position. If the dome lamp control is in the off position the illuminated entry feature will not work.

The inside lights will not turn off if:

• they have been turned on using the dimmer control or

• any door is open.

The battery saver feature will turn off the interior lamps 30 minutes after the ignition is turned to the 3 (OFF) position.

Locking the doors

1. Press and release to lock all the doors. Note: The interior lamps

will turn off (unless the dome lamp control is in the full-up position), and the lamps will flash.

2. Press

doors are closed and locked. Note: The doors will lock again, the horn will chirp once and the lamps will flash.

If any of the doors are not properly closed the horn will make two quick chirps.

Sounding a panic alarm

Press 30 seconds and the parklamps will flash for a maximum of 3 minutes. Press again or turn the ignition to the 4 (ON) position to deactivate, or wait for the alarm to timeout in 3 minutes.

Note: The panic alarm will only operate when the ignition is in either the 3 (OFF) or the 1 (ACCESSORY) position.

and release again within three seconds to confirm that all the

to activate the alarm. The horn will sound for a maximum of

Replacing the battery

The remote entry transmitter uses one coin type three-volt lithium battery CR2032 or equivalent.

Locks and Security

To replace the battery:

1. Twist a thin coin between the two

halves of the remote entry transmitter near the key ring. DO NOT TAKE THE RUBBER COVER AND CIRCUIT BOARD OFF THE FRONT HOUSING OF THE REMOTE ENTRY TRANSMITTER.

2. Do not wipe off any grease on the

battery terminals on the back surface of the circuit board.

3. Remove the old battery. Note: Please refer to local regulations when

disposing of transmitter batteries.

4. Insert the new battery. Refer to the diagram inside the remote entry

transmitter for the correct orientation of the battery. Press the battery down to ensure that the battery is fully seated in the battery housing cavity.

5. Snap the two halves back together.

Note: Replacement of the battery will not cause the remote transmitter to become deprogrammed from your vehicle. The remote transmitter should operate normally after battery replacement.

Replacing lost remote entry transmitters

If you would like to have your remote entry transmitter reprogrammed because you lost one, or would like to buy additional remote entry transmitters, you can either reprogram them yourself, or take all remote entry transmitters to your authorized dealer for reprogramming.

How to reprogram your remote entry transmitters

You must have all remote entry transmitters (maximum of four) available before beginning this procedure.

Locks and Security

To reprogram the remote entry transmitters:

1. Ensure the vehicle is

electronically unlocked.

2. Put the key in the ignition.

3. Turn the key from the 2 (LOCK)

position to 3 (OFF).

4. Cycle eight times rapidly (within

10 seconds) between the 3 (OFF) position and 4 (ON). Note: The eighth turn must end in the 4 (ON) position.

5. The doors will lock, then unlock, to confirm that the programming

mode has been activated.

6. Within 20 seconds press any button on the remote entry transmitter.

Note: If more than 20 seconds have passed you will need to start the procedure over again.

7. The doors will lock, then unlock, to confirm that this remote entry

transmitter has been programmed.

8. Repeat Step 6 to program each additional remote entry transmitter.

9. Turn the ignition to the 3 (OFF) position after you have finished

programming all of the remote entry transmitters. Note: After 20 seconds, you will automatically exit the programming mode.

10. The doors will lock, then unlock, to confirm that the programming

mode has been exited.

KEYLESS ENTRY SYSTEM (IF EQUIPPED)

You can use the keyless entry keypad to lock or unlock the doors without using a key.

The keypad can be operated with the factory set 5–digit entry code; this code is located on the owner’s wallet card in the glove box, is marked on the computer module, and is available from your authorized dealer. You can also create your own 5–digit personal entry code.

When pressing the controls on the keypad, press the middle of the controls to ensure a good activation.

Locks and Security

Programming a personal entry code

To create your own personal entry code:

1. Enter the factory set code.

2. Within five seconds press the 1 • 2 on the keypad.

3. Enter your personal 5-digit code. Each number must be entered

within five seconds of each other.

4. The doors will again lock then unlock to confirm that your personal

keycode has been programmed to the module.

Tips:

• Do not set a code that uses five of the same number.

• Do not use five numbers in sequential order.

• The factory set code will work even if you have set your own personal

code.

• If you set a second personal code it will erase your first personal code.

Erasing personal code

1. Enter the factory set 5–digit code.

2. Press and release 1 • 2 then,

3. Press and hold the 1 • 2 for two seconds. This must be done within

five seconds of completing Step 1.

Your personal code is now erased and only the factory set 5–digit code will work.

Anti-scan feature

If an incorrect code has been entered 7 times (35 consecutive button presses), the keypad will go into an anti-scan mode. This mode disables the keypad for one minute and the keypad lamp will flash during this time.

The anti-scan feature will turn off after:

• one minute of keypad inactivity.

• pressing the

• the ignition is turned to the 4 (ON) position.

control on the remote entry transmitter.

Locks and Security

Unlocking and locking the doors using keyless entry keypad

To unlock the driver’s door, enter the factory set 5-digit code or your personal code. Each number must be pressed within five seconds of each other. Note: The driver’s door will unlock and the interior lamps will illuminate after the factory set 5-digit code or your personal code are correctly entered.

To unlock all doors, press the 3 • 4 control within five seconds.

To lock all doors, press the 7 • 8 and the 9 • 0 at the same time. You do not need to enter the keypad code first. Note: The interior lamps

will turn off.

Autolock (if equipped)

This feature will automatically lock all the doors when:

• all the doors are closed,

• the ignition is in the 4 (ON) position,

• the gearshift lever is shifted into, then out of, R (Reverse) and then

• the brake pedal is released.

This feature will also automatically relock all the doors when:

• the ignition is in the 4 (ON) position and any door is opened then closed, and

• you put the vehicle in motion by releasing the brake pedal.

Deactivating/reactivating the autolock feature

The autolock feature can be deactivated/reactivated using the following two methods:

• keyless entry keypad, or

• ignition lock cylinder and interior power door locks control.

To deactivate/reactivate the autolock feature using the keypad

Your vehicle comes with the autolock feature activated. To deactivate/reactivate this feature:

1. Turn the ignition to the 3 (OFF) position.

2. Close all the doors.

3. Enter the 5-digit entry code.

4. Press and hold the 7 • 8. While holding the 7 • 8, press the 3 • 4

within five seconds.

Locks and Security

5. Within 5 seconds of Step 4, release the 3 • 4.

6. Within 5 seconds of Step 5, Release the 7 • 8.

The horn will chirp once when the system has been successfully deactivated.

The horn will chirp twice (one short and one long chirp) when the system has been successfully reactivated.

To deactivate/reactivate the autolock feature using the ignition lock cylinder and interior power door locks control

1. Close all the doors.

2. Ensure that the ignition is in the 3 (OFF) position.

3. Note: Steps 4 through 8 must be carried out within 30 seconds. Turn

the ignition from the 3 (OFF) to the 4 (ON) position.

4. Press the power door locks

5. Turn the ignition lock from the 4 (ON) to the 3 (OFF) position.

6. Press the power door locks

7. Turn the ignition from the 3 (OFF) to the 4 (ON) position.

8. Ensure the vehicle’s horn chirps. This chirp indicates the feature is in

an enable/disable mode and ready to accept program changes.

9. Press the power door locks

(lock) control once, in order to toggle the autolock feature.

10. Ensure that the horn chirps once; there should only be one horn

chirp, indicating that the autolock feature has been deactivated. If one chirp is heard, followed by a longer sound of the horn, the autolock feature has been reactivated.

11. Turn the ignition to the 3 (OFF) position, or wait two minutes, in

order to exit the enable/disable mode.

12. Exit the vehicle and ensure the horn chirps once to indicate that a

feature has been changed and the autolock feature has been toggled.

(unlock) control three times.

(unlock) control once, then the

SECURILOCK姟 PASSIVE ANTI-THEFT SYSTEM

SecuriLock娂 passive anti-theft system is an engine immobilization system. This system is designed to help prevent the engine from being started unless a coded key programmed to your vehicle is used. The use of the wrong type of coded key may lead to a “no-start” condition.

Your vehicle comes with two coded keys; additional coded keys may be purchased from your dealer. The dealer can program your spare keys to

Locks and Security

your vehicle or you can program the keys yourself. Refer to Programming spare keys for instructions on how to program the coded key.

Note: The SecuriLock娂 passive anti-theft system is not compatible with non-Ford aftermarket remote start systems. Use of these systems may result in vehicle starting problems and a loss of security protection.

Note: Large metallic objects, electronic devices that are used to purchase gasoline or similar items, or a second coded key on the same key chain may cause vehicle starting issues. You need to prevent these objects from touching the coded key while starting the engine. These objects will not cause damage to the coded key, but may cause a momentary issue if they are too close to the key when starting the engine. If a problem occurs, turn the ignition off, remove all objects on the key chain away from the coded key and restart the engine.

Theft indicator

The theft indicator is located in the instrument cluster.

• When the ignition is in the 2 (LOCK) position, the will flash once every 2 seconds to indicate the SecuriLock娂 system is functioning as a theft deterrent.

• When the ignition is in the 4 (ON) position, the glow for 3 seconds, then turn off to indicate normal system functionality.

If a problem occurs with the SecuriLock娂 system, the indicator will flash rapidly or glow steadily when the ignition is in the 4 (ON) position. If this occurs, the vehicle should be taken to an authorized dealer for service.

THEFT

indicator

indicator will

Automatic arming

The vehicle is armed immediately after switching the ignition to the 3 (OFF) position.

The

THEFT

indicator will flash every two seconds when the vehicle is armed.

Locks and Security

Automatic disarming

Switching the ignition to the 4 (ON) position with a coded key disarms the vehicle.

• The

THEFT

out.

• If the

flashes rapidly, have the system serviced by your dealer.

Replacement keys

If your keys are lost or stolen and you don’t have an extra coded key, you will need to have your vehicle towed to a dealership. The key codes need to be erased from your vehicle and new coded keys will need to be programmed.

Replacing coded keys can be very costly. Store an extra programmed key away from the vehicle in a safe place to help prevent any inconveniences. Please visit an authorized dealer to purchase additional spare or replacement keys.

Programming spare keys

You can program your own coded keys to your vehicle. Please read and understand the entire procedure before you begin.

Tips:

• A maximum of eight keys can be coded to your vehicle.

• Only use Securilock娂 keys.

• You must have two previously programmed coded keys (keys that

already operate your vehicle’s engine) and the new unprogrammed key(s) readily accessible.

• If no previously programmed coded keys are available, you must take

your vehicle to your dealer to have the spare key(s) programmed.

indicator will illuminate for three seconds and then go

THEFT

indicator stays on for an extended period of time or

Locks and Security

1. Insert a previously programmed coded key into the ignition.

2. Turn the ignition from the 2 (LOCK) position to the 4 (ON) position. Keep the ignition in the 4 (ON) position for at least one second, but no more than 10 seconds.

3. Turn the ignition to the 2 (LOCK) position, and remove the coded key from the ignition.

4. Within ten seconds of removing the previously programmed coded key, insert the other previously programmed coded key into the ignition.

5. Turn the ignition from the 2 (LOCK) position to the 4 (ON) position. Keep the ignition in the 4 (ON) position for at least one second but not more than 10 seconds.

6. Turn the ignition to the 2 (LOCK) position, and remove the second key from the ignition.

7. Within twenty seconds of removing the previously programmed coded key, insert the unprogrammed key (new/valet key) into the ignition.

8. Turn the ignition from the 2 (LOCK) position to the 4 (ON) position. Keep the ignition in the 4 (ON) position for at least one second.

9. Your new unprogrammed key is now programmed.

If the key has been successfully programmed it will start the vehicle’s engine and the theft indicator light will illuminate for three seconds and then go out. If the key was not successfully programmed, it will not start your vehicle’s engine and the theft indicator light will flash on and off rapidly. If failure repeats, bring your vehicle to your dealer to have the new key(s) programmed.

To program additional new unprogrammed key(s), repeat this procedure from Step 1 for each additional key.

Seating and Safety Restraints

FRONT SEATS

Notes:

Reclining the seatback can cause an occupant to slide under the seat’s safety belt, resulting in severe personal injuries in the

event of a collision.

Do not pile cargo higher than the seatbacks to reduce the risk of injury in a collision or sudden stop.

Adjustable head restraints (if equipped)

Head restraints help to limit head motion in the event of a rear collision. The seats in your vehicle may have adjustable head restraints. Adjust your head restraint so that it is located directly or as close as possible behind your head.

To adjust the head restraint:

• Raise the head restraint by

pulling it upward.

To lower the head restraint:

• Push the release control.

• Push down on the head restraint.

Seating and Safety Restraints

Adjusting the front manual seat

Pull the lever located at the front edge of the seat to move the seat forward or backward. Release the lever to lock the seat in place.

Adjusting the front power seat (if equipped)

The control is located on the outboard side of the seat cushion.

Press to raise or lower the front portion of the seat cushion.

Press to raise or lower the rear portion of the seat cushion.

Press the control to move the seat forward, backward, up or down.

Seating and Safety Restraints

Reclining the seats

Pull the lever located on the outside of the seat to recline the seatback. Release the lever to lock the seatback in place.

Reclining the seatback can cause an occupant to slide under the seat’s safety belt, resulting in severe personal injuries in the

event of a collision.

Never adjust the driver’s seat or seatback when the vehicle is moving.

Power lumbar (if equipped)

Depress the button forward to inflate, or rearward to deflate.

Seating and Safety Restraints

Heated seats (if equipped)

To operate the heated seats:

• Push control to activate.

• Push again to deactivate.

The system will not automatically shutoff unless the control is pushed again to deactivate. If the system is not manually terminated at last use, then the system will remain active at the next ignition key cycle.

REAR SEATS

Adjustable rear head restraints

Lift the head restraint so that it is located directly or as close as possible behind your head.

Push or pull the head restraint to the desired position.

Seating and Safety Restraints

Folding down rear 60/40 seats

1. Raise the rear seat head restraint.

2. Flip the bottom of the head restraint up, toward the front seat.

Note: Rotate center head restraint in opposite direction (in order to clear center console in fold down position).

3. While holding the head restraint in a “flat” position, lower the head restraint to the seat back.

4. Flip the seat release control toward the front seat.

Seating and Safety Restraints

5. The seat will automatically fall forward. For 40% seat move the handle and push the seat forward to fold. For Adrenalin vehicles, the 40 percent rear seat (behind the driver) does not fold due to the subwoofer location. See Attaching

child safety seats with tether straps in this chapter for tether

access behind this seat.

Note: To prevent possible damage to the seat or safety belts, ensure that the safety belts are not buckled when folding the seat.

A carpeted panel will flip down from the back panel to complete the load floor.

Returning the rear 60/40 seats to upright position

1. Push down seatback release control and pull seatback up and into upright position making sure seatback locks into place.

2. Pull head restraint up and return to upright position.

Seating and Safety Restraints

Before returning the seatback to its original position, make sure

that cargo or any objects are not trapped underneath the seatback. After returning the seatback to its original position, pull on the seatback to ensure that it has fully latched. An unlatched seat may become dangerous in the event of a sudden stop or collision.

SAFETY RESTRAINTS

Personal Safety System姟

The Personal Safety System娂 provides an improved overall level of frontal crash protection to front seat occupants and is designed to help further reduce the risk of airbag-related injuries. The system is able to analyze different occupant conditions and crash severity before activating the appropriate safety devices to help better protect a range of occupants in a variety of frontal crash situations.

Your vehicle’s Personal Safety System娂 consists of:

• driver and passenger dual-stage airbag supplemental restraints

• front outboard safety belts with pretensioners and energy managment

retractors.

• front safety belt usage sensors

• one or more impact and safing sensors

• a readiness light and tone

• a diagnostic module

• and the electrical wiring which connects the components

How does the Personal Safety System姟 work?

The Personal Safety System娂 can adapt the deployment strategy of your vehicle’s safety devices according to crash severity and occupant conditions. A collection of crash and occupant sensors provides information to the Restraints Control Module (RCM). During a crash, the RCM activates the safety belt pretensioners and airbag supplemental restraints based on crash severity and occupant conditions.

The fact that the pretensioners or airbags did not activate for both front seat occupants in a collision does not mean that something is wrong with the system. Rather, it means the Personal Safety System娂 determined the accident conditions (crash severity, belt usage, etc.) were not appropriate to activate these safety devices. Front airbags are designed to activate only in frontal and near-frontal collisions, not rollovers, side-impacts, or rear-impacts unless the collision causes sufficient longitudinal deceleration.

Seating and Safety Restraints

Driver and passenger dual-stage airbag supplemental restraints

The dual-stage airbags offer the capability to tailor the level of airbag inflation energy. A lower, less forceful energy level is provided for more common, moderate-severity impacts. A higher energy level is used for the most severe impacts. Refer to Airbag Supplemental Restraints section in this chapter.

Front crash severity sensor

The front crash severity sensor enhances the ability to detect the severity of an impact. Positioned up front, it provides valuable information early in the crash event on the severity of the impact. This allows your Personal Safety System娂 to distinguish between different levels of crash severity and modify the deployment strategy of the airbags and safety belt pretensioners.

Front safety belt usage sensors

The front safety belt usage sensors detect whether or not the driver and front outboard passenger safety belts are fastened. This information allows your Personal Safety System娂 to tailor the airbag deployment and safety belt pretensioner activation depending upon safety belt usage. Refer to Safety Belt section in this chapter.

Front safety belt pretensioners

The safety belt pretensioners at the front outboard seating positions are designed to tighten the safety belts firmly against the occupant’s body during frontal collisions, and in side collisions and rollovers when the vehicle is equipped with the Safety Canopy娂 system. This maximizes the effectiveness of the safety belts. In frontal collisions, the safety belt pretensioners can be activated alone or, if the collision is of sufficient severity, together with the front airbags.

Front safety belt energy management retractors

The front outboard safety belt energy management retractors allow webbing to be pulled out of the retractor in a gradual and controlled manner in response to the occupant’s forward momentum. This helps reduce the risk of force-related injuries to the occupant’s chest by limiting the load on the occupant. Refer to Safety Belt section in this chapter.

Determining if the Personal Safety System姟 is operational

The Personal Safety System娂 uses a warning light in the instrument cluster or a back-up tone to indicate the condition of the system. Refer

Seating and Safety Restraints

to the Warning Light section in the Instrument Cluster chapter. Routine maintenance of the Personal Safety System娂 is not required.

The Restraints Control Module (RCM) monitors its own internal circuits and the circuits for the airbag supplemental restraints, crash sensor(s), safety belt pretensioners, and front safety belt buckle sensors. In addition, the RCM also monitors the restraints warning light in the instrument cluster. A difficulty with the system is indicated by one or more of the following:

• The warning light will either flash or stay lit.

• The warning light will not illuminate immediately after the ignition is

turned on.

• A series of five beeps will be heard. The tone pattern will repeat periodically until the problem and warning light are repaired.

If any of these things happen, even intermittently, have the Personal Safety System娂 serviced at your dealership or by a qualified technician immediately. Unless serviced, the system may not function properly in the event of a collision.

Safety restraints precautions

Always drive and ride with your seatback upright and the lap belt snug and low across the hips.

To reduce the risk of injury, make sure children sit where they can be properly restrained.

Never let a passenger hold a child on his or her lap while the vehicle is moving. The passenger cannot protect the child from

injury in a collision.

All occupants of the vehicle, including the driver, should always properly wear their safety belts, even when an air bag

supplemental restraint system (SRS) is provided.

It is extremely dangerous to ride in a cargo area, inside or

outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts. Be sure everyone in your vehicle is in a seat and using a safety belt properly.

Seating and Safety Restraints

In a rollover crash, an unbelted person is significantly more likely

to die than a person wearing a safety belt.

Each seating position in your vehicle has a specific safety belt

assembly which is made up of one buckle and one tongue that are designed to be used as a pair. 1) Use the shoulder belt on the outside shoulder only. Never wear the shoulder belt under the arm. 2) Never swing the safety belt around your neck over the inside shoulder.

3) Never use a single belt for more than one person.

Always transport children 12 years old and under in the back

seat and always properly use appropriate child restraints.

Safety belts and seats can become hot in a vehicle that has been

closed up in sunny weather; they could burn a small child. Check seat covers and buckles before you place a child anywhere near them.

Energy Management Feature

• This vehicle has a safety belt system with an energy management feature at the front outboard seating positions to help further reduce the risk of injury in the event of a head-on collision.

• The front outboard safety belt system has a retractor assembly that is designed to extend the safety belt webbing in a controlled manner. This helps reduce the belt force acting on the user’s chest.

Combination lap and shoulder belts

1. Insert the belt tongue into the

proper buckle (the buckle closest to the direction the tongue is coming from) until you hear a snap and feel it latch. Make sure the tongue is securely fastened in the buckle.

Seating and Safety Restraints

2. To unfasten, push the release

button and remove the tongue from the buckle.

The front and rear outboard safety restraints in the vehicle are combination lap and shoulder belts. The front passenger and rear seat outboard safety belts have two types of locking modes described below:

Vehicle sensitive mode

This is the normal retractor mode, which allows free shoulder belt length adjustment to your movements and locking in response to vehicle movement. For example, if the driver brakes suddenly or turns a corner sharply, or the vehicle receives an impact of approximately 8 km/h (5 mph) or more, the combination safety belts will lock to help reduce forward movement of the driver and passengers.

Automatic locking mode

How to use the automatic locking mode

• Buckle the combination lap and shoulder belt.

100

Ford EXPLORER SPORT TRAC-2005, EXPEDITION-2005, EXPLORER-2005 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Introduction

CONGRATULATIONS

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

Warning symbols on your vehicle

Protecting the environment

BREAKING-IN YOUR VEHICLE

SPECIAL NOTICES

Emission warranty

Special instructions

Service Data Recording

Event Data Recording

Notice to owners of pickup trucks and utility type vehicles

MIDDLE EAST/NORTH AFRICA VEHICLE SPECIFIC INFORMATION

Instrument Cluster

WARNING LIGHTS AND CHIMES

DIGITAL DISPLAY WARNINGS

GAUGES

Entertainment Systems

AM/FM STEREO / SINGLE CD RADIO (IF EQUIPPED)

PREMIUM AM/FM STEREO/CASSETTE/SINGLE CD (IF EQUIPPED)

AUDIOPHILE SATELLITE READY AM/FM STEREO IN-DASH SIX CD RADIO (IF EQUIPPED)

ADRENALIN CD/MP3 AUDIO SYSTEM — (IF EQUIPPED)

SATELLITE COMPATIBLE AM/FM STEREO IN-DASH SINGLE CD/MP3 RADIO — LATE AVAILABILITY (IF EQUIPPED)

PREMIUM SATELLITE COMPATIBLE AM/FM STEREO/CASSETTE/SINGLE CD/MP3 — LATE AVAILABILITY (IF EQUIPPED)

AUDIOPHILE SATELLITE COMPATIBLE AM/FM STEREO IN-DASH SIX CD/MP3 RADIO — LATE AVAILABILITY (IF EQUIPPED)

RADIO FREQUENCIES

RADIO RECEPTION FACTORS

CASSETTE/PLAYER CARE

CD/CD PLAYER CARE

AUDIO SYSTEM WARRANTY AND SERVICE

Climate Controls

MANUAL HEATING AND AIR CONDITIONING SYSTEM

Operating tips

Lights

HEADLAMP CONTROL

Autolamp system (if equipped)

Foglamp control (if equipped)

High beams

Flash to pass

PANEL DIMMER CONTROL

AIMING THE HEADLAMPS

Headlamp aim adjustment

TURN SIGNAL CONTROL

INTERIOR LAMPS

Courtesy/reading lamps

BULBS

Headlamp Condensation

Replacing the interior bulbs

Replacing exterior bulbs

Replacement bulbs

Replacing headlamp bulbs

Replacing front parking lamp/turn signal bulbs

Replacing tail lamp/turn/backup lamp bulbs

Replacing foglamp bulbs

Replacing high-mount brakelamp and cargo lamp bulbs

Replacing license plate lamp bulbs

Driver Controls

MULTI-FUNCTION LEVER

Changing the wiper blades

TILT STEERING WHEEL (IF EQUIPPED)

CENTER CONSOLE

Cell phone use

OVERHEAD CONSOLE (IF EQUIPPED)

Storage compartment (if equipped)

Install a garage door opener (if equipped)

AUXILIARY POWER POINT (12VDC)

Truck bed auxiliary power point

POWER WINDOWS

One touch down

Window lock

Accessory delay

Power Down Back Window

AUTOMATIC DIMMING REAR VIEW MIRROR

Power side view mirrors (if equipped)
