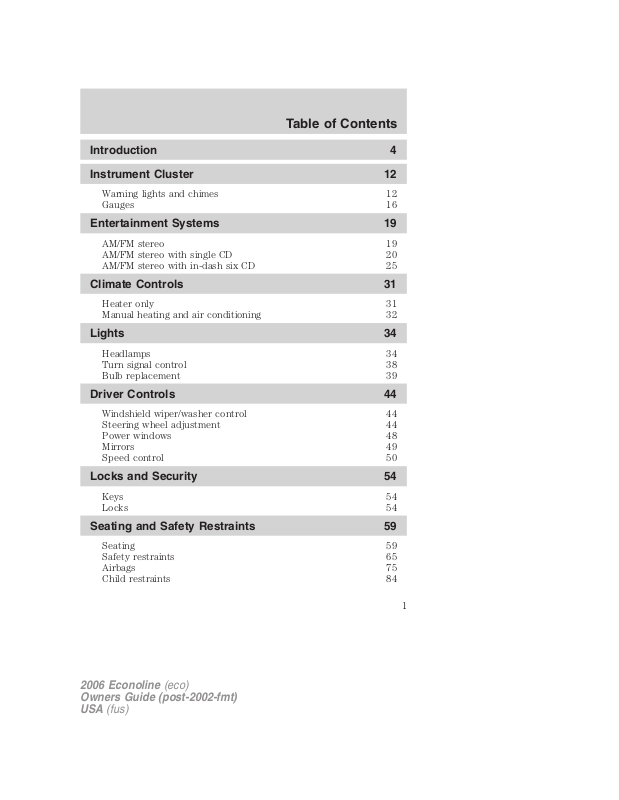

Table of Contents

Introduction 4

Instrument Cluster 12

Warning lights and chimes 12 Gauges 16

Entertainment Systems 19

AM/FM stereo 19 AM/FM stereo with single CD 20 AM/FM stereo with in-dash six CD 25

Climate Controls 31

Heater only 31 Manual heating and air conditioning 32

Lights 34

Headlamps 34 Turn signal control 38 Bulb replacement 39

Driver Controls 44

Windshield wiper/washer control 44 Steering wheel adjustment 44 Power windows 48 Mirrors 49 Speed control 50

Locks and Security 54

Keys 54 Locks 54

Seating and Safety Restraints 59

Seating 59 Safety restraints 65 Airbags 75 Child restraints 84

2006 Econoline (eco) Owners Guide (post-2002-fmt) USA (fus)

Table of Contents

Tires, Wheels and Loading 101

Tire Information 103 Tire Inflation 105 Vehicle loading 120 Trailer towing 127 Recreational towing 138

Driving 139

Starting 139 Brakes 142 Traction control/AdvanceTrac 144 Transmission operation 150

Roadside Emergencies 160

Getting roadside assistance 160 Hazard flasher switch 162 Fuel pump shut-off switch 162 Fuses and relays 164 Changing tires 171 Lug Nut Torque 180 Jump starting 181 Wrecker towing 186

Customer Assistance 187

Reporting safety defects (U.S. only) 193

Cleaning 194

Underbody preservation 198

2006 Econoline (eco) Owners Guide (post-2002-fmt) USA (fus)

Table of Contents

Maintenance and Specifications 200

Engine compartment 201 Engine oil 203 Battery 207 Engine Coolant 209 Fuel information 215 Air filter(s) 229 Part numbers 231 Refill capacities 232 Lubricant specifications 236 Engine data 239

Accessories 244

Index 246

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.

2006 Econoline (eco) Owners Guide (post-2002-fmt) USA (fus)

Introduction

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and

certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

CONGRATULATIONS

Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it.

For more information on Ford Motor Company and its products visit the following website:

• In the United States: www.ford.com

• In Canada: www.ford.ca

• In Australia: www.ford.com.au

• In Mexico: www.ford.com.mx

Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available

and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available.

Remember to pass on this Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

Fuel pump shut-off switch: In the event of an accident the

safety switch will automatically cut off the fuel supply to the engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside Emergencies chapter.

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

2006 Econoline (eco) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

Protecting the environment

We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.

BREAKING-IN YOUR VEHICLE

During the first 1,000 miles (1,600 km) of driving, maintain speeds below 70 mph (110 km/h) and vary speeds frequently. This is recommended to give the moving parts a chance to break in. Do not tow a trailer during this break-in period. For more detailed information about towing a trailer, refer to Trailer towing in the Tires, Wheels and Loading chapter.

SPECIAL NOTICES

New Vehicle Limited Warranty

For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.

Service Data Recording

Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle.

2006 Econoline (eco) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Event Data Recording

Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as:

• how various systems in your vehicle were operating;

• whether or not the driver and passenger seatbelts were buckled;

• how far (if at all) the driver was depressing the accelerator and/or the

brake pedal;

• how fast the vehicle was traveling; and

• where the driver was positioning the steering wheel.

To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.

Vehicle Modification Data Recording

Some aftermarket products may cause severe engine and/or transmission damage; refer to the What is not covered section in The new vehicle

limited warranty for your vehicle chapter of your vehicle’s Warranty Guide for more information. Some vehicles are equipped with

Powertrain Control Systems that can detect and store information about vehicle modifications that increase horsepower and torque output; this information cannot be erased and will stay in the system’s memory even if the modification is removed. When a dealer or repair facility works on your vehicle, it may be necessary for them to access the information in the Powertrain Control System. This information will likely identify if any unauthorized modifications have been made to the system and may be used to determine if repairs will be covered by warranty.

2006 Econoline (eco) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Special instructions

For your added safety, your vehicle is fitted with sophisticated electronic controls.

Please read the section Supplemental restraint system (SRS)

in the Seating and Safety Restraints chapter. Failure to follow the specific warnings and instructions could result in personal injury.

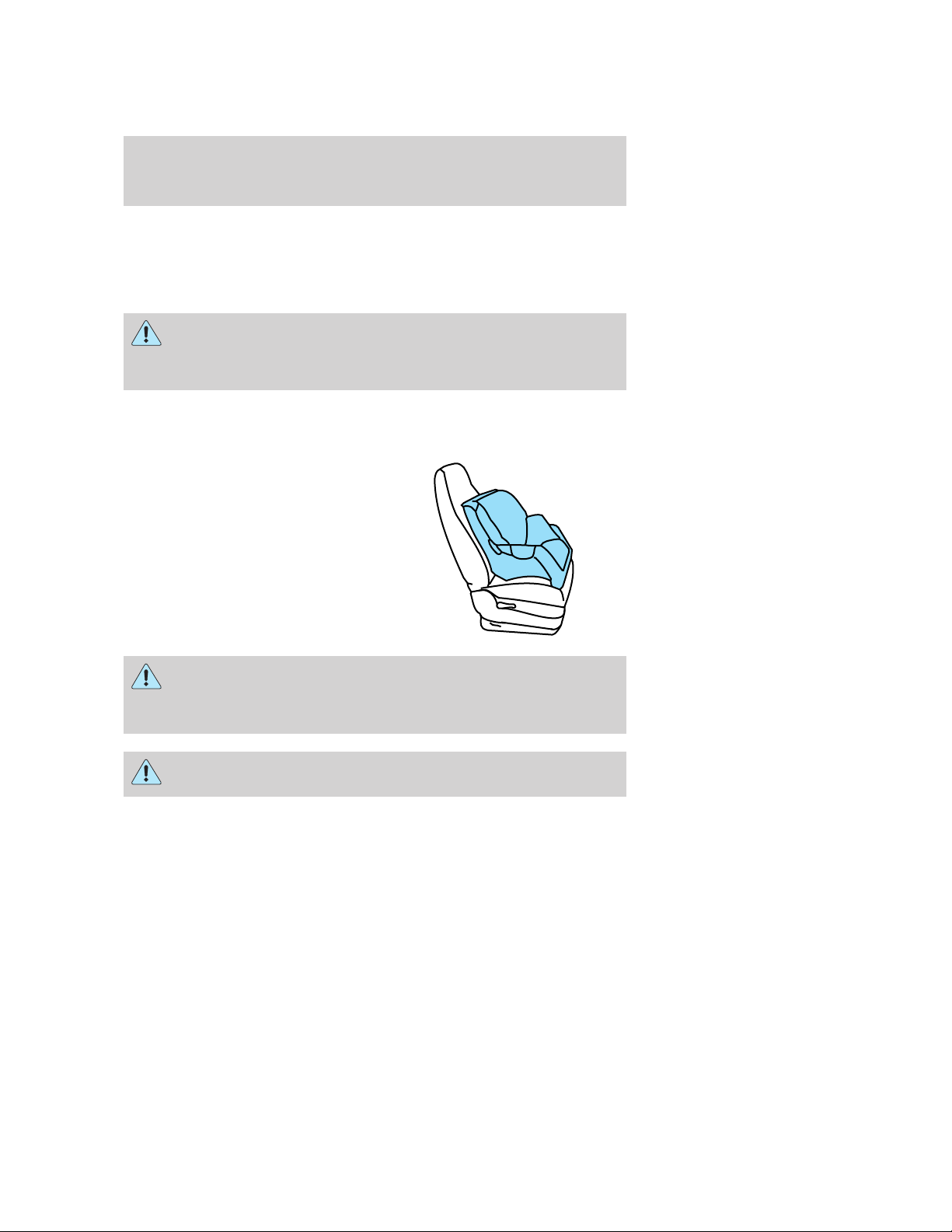

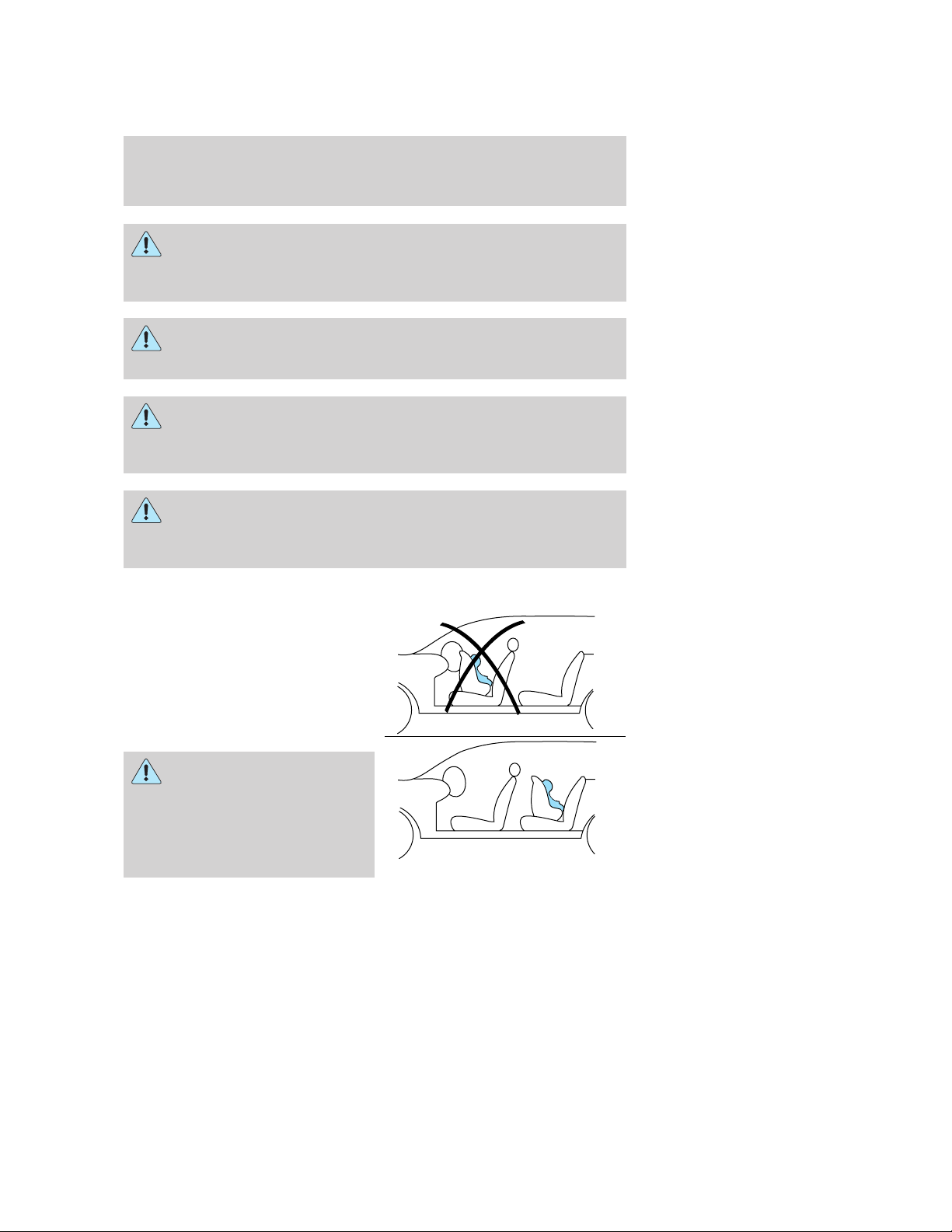

Front seat mounted rear-facing child or infant seats should

NEVER be placed in front of an active passenger airbag.

Notice to owners of diesel-powered vehicles

Read the 6.0 Liter Power Stroke Direct Injection Turbo Diesel Owner’s Guide Supplement for information regarding correct operation and

maintenance of your Diesel-powered light truck.

Notice to owners of pickup trucks and utility type vehicles

Utility vehicles have a significantly higher rollover rate than

other types of vehicles.

Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of vehicle control, vehicle rollover, personal injury or death.

2006 Econoline (eco) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Using your vehicle as an ambulance

If your light truck is equipped with the Ford Ambulance Preparation Package, it may be utilized as an ambulance. Ford urges ambulance manufacturers to follow the recommendations of the Ford Incomplete

Vehicle Manual, Ford Truck Body Builder’s Layout Book and the Qualified Vehicle Modifiers (QVM) Guidelines as well as pertinent

supplements. For additional information, please contact the Truck Body Builders Advisory Service at 1–877–840–4338.

Use of your Ford light truck as an ambulance, without the Ford Ambulance Preparation Package voids the Ford New Vehicle Limited Warranty and may void the Emissions Warranties. In addition, ambulance usage without the preparation package could cause high underbody temperatures, overpressurized fuel and a risk of spraying fuel which could lead to fires.

If your vehicle is equipped with the Ford Ambulance Preparation Package, it will be indicated on the Safety Compliance Certification Label. The label is located on the driver’s side door pillar or on the rear edge of the driver’s door. You can determine whether the ambulance manufacturer followed Ford’s recommendations by directly contacting that manufacturer. Ford Ambulance Preparation Package is only available on certain 6.0L Diesel engine equipped vehicles.

2006 Econoline (eco) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Using your vehicle as a stationary power source (PTO)

Refer to the Driving chapter for more information and guidelines for operating a vehicle equipped with an aftermarket power take-off system.

Cell phone use

The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits.

Mobile Communication Equipment includes, but is not limited to cellular phones, pagers, portable email devices, in-vehicle communications systems, telematics devices and portable two-way radios.

A driver’s first responsibility is the safe operation of the vehicle.

The most important thing you can do to prevent a crash is to avoid distractions and pay attention to the road. Wait until it is safe to operate Mobile Communications Equipment.

Middle East/North Africa vehicle specific information

For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner’s Guide; therefore, a supplement has been supplied that complements this book. By referring to the pages in the provided supplement, you can properly identify those features, recommendations and specifications that are unique to your vehicle. Refer to this

Owner’s Guide for all other required information and warnings.

2006 Econoline (eco) Owners Guide (post-2002-fmt) USA (fus)

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

Fasten Safety Belt Airbag - Front

Airbag - Side Child Seat

Child Seat Installation Warning

Child Seat Tether Anchor

Anti-Lock Brake System

Powertrain Malfunction Speed Control

Master Lighting Switch Hazard Warning Flasher

Fog Lamps-Front Fuse Compartment

See Owner’s Guide

Child Seat Lower Anchor

Brake System

Brake Fluid Non-Petroleum Based

Fuel Pump Reset Windshield Wash/Wipe

Windshield Defrost/Demist

Rear Window Defrost/Demist

2006 Econoline (eco) Owners Guide (post-2002-fmt) USA (fus)

Vehicle Symbol Glossary

Introduction

Power Windows Front/Rear

Child Safety Door Lock/Unlock

Power Window Lockout

Interior Luggage Compartment Release Symbol

Panic Alarm Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

Emission System Engine Air Filter

MAX

MIN

Passenger Compartment Air Filter

Check Fuel Cap

2006 Econoline (eco) Owners Guide (post-2002-fmt) USA (fus)

Jack

Low Tire Pressure Warning

Instrument Cluster

WARNING LIGHTS AND CHIMES

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, refer to the respective system warning light for additional information.

If your vehicle is equipped with a Diesel engine, it has a unique cluster, refer to Starting the engine in your 6.0 Liter Power Stroke Direct

Injection Turbo Diesel Owner’s Guide Supplement. Service engine soon: The Service

engine soon indicator light

illuminates when the ignition is first turned to the ON position to check the bulb. Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately by your authorized dealer.

Under engine misfire conditions, excessive exhaust temperatures

could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

2006 Econoline (eco) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Electronic throttle control (if equipped): Illuminates when the

engine has defaulted to a ’limp-home’ operation. Report the fault to a dealer at the earliest opportunity.

Check fuel cap: Illuminates when the fuel cap may not be properly installed. Continued driving with this light on may cause the Service Engine Soon warning light to come on, refer to Fuel filler cap in the Maintenance and Specification chapter.

Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the ON position when the engine is not running, or in a position between ON and START, or by applying the parking brake when the ignition is turned to the ON position. If the brake system warning light does not illuminate at this time, seek service immediately from your authorized dealer. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately by your authorized dealer.

Driving a vehicle with the brake system warning light on is

dangerous. A significant decrease in braking performance may occur. It will take you longer to stop the vehicle. Have the vehicle checked by your authorized dealer.

BRAKE

Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately by your authorized dealer. Normal braking is still functional unless the brake warning light also is illuminated.

ABS

2006 Econoline (eco) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Airbag readiness: If this light fails to illuminate when ignition is turned to ON, continues to flash or remains on, have the system serviced immediately by your authorized dealer. A chime will also sound when a malfunction in the supplemental restraint system has been detected.

Safety belt: Reminds you to fasten your safety belt. A chime will also sound to remind you to fasten your safety belt.

AdvanceTrac威 (if equipped):

Flashes (two times per second) when the AdvanceTrac威 with RSC system is active. If the light remains on, or ⬙SERVICE RSC NOW⬙ is displayed in the odometer display with a chime, have the system serviced immediately by your authorized dealer. (Flashes one time every two seconds when AdvanceTrac威 with RSC system has not yet initialized and is not available.) For further information, refer to AdvanceTrac威 with RSC stability enhancement system in the Driving chapter.

If your vehicle is equipped with the AdvanceTrac威 with RSC

system, then it was designed to be operated with RSC. Driving without a functioning RSC娂 system could be dangerous. Reduce speed and proceed to an authorized dealer to have the system serviced immediately.

Charging system: Illuminates when the battery is not charging properly.

Low fuel: Illuminates when the fuel level in the fuel tank is at or near empty (refer to Fuel gauge in this chapter).

2006 Econoline (eco) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Check gauge: Illuminates when any of the following conditions has occurred:

• The engine coolant temperature is high.

• The engine oil pressure is low.

• Flashes when Failsafe cooling mode has been activated.

Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb.

High beams: Illuminates when the high beam headlamps are turned on.

Transmission control indicator light (TCIL): Illuminates when the

overdrive function of the transmission has been turned off, refer to the Driving chapter. If the light flashes steadily or does not illuminate, have the transmission serviced soon, or damage may occur.

Transmission Tow/Haul light (TCIL) (5.4L and 6.8L gasoline engines only): Illuminates when

the Tow/Haul feature of the transmission has been turned on, refer to the Driving chapter.

Key-in-ignition warning chime: Sounds when the key is left in the ignition in the OFF/LOCK or ACCESSORY position and the driver’s door is opened.

Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened.

Parking brake ON warning chime: Sounds when the parking brake is set, the engine is running and the vehicle is driven more than 3 mph (5 km/h).

CHECK

GAGE

OVERDRIVE

2006 Econoline (eco) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

GAUGES

Speedometer: Indicates the current vehicle speed.

Engine coolant temperature gauge: Indicates engine coolant

temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section,

the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.

Never remove the coolant reservoir cap while the engine is running or hot.

2006 Econoline (eco) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Odometer: Registers the total miles (kilometers) of the vehicle.

Trip odometer: Registers the miles (kilometers) of individual journeys. Press the SELECT/RESET control once to switch from the odometer to the trip odometer. Press the control again to select Trip A and Trip B features. To reset the trip, press and hold the control again until the trip reading is 0.0 miles.

Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

Battery voltage gauge: Indicates the battery voltage when the ignition is in the ON position. If the pointer moves and stays outside the normal operating range, have the vehicle’s electrical system checked by your authorized dealer as soon as possible.

Engine oil pressure gauge:

Indicates engine oil pressure. The needle should stay in the normal operating range (between “L” and “H”). If the needle falls below the normal range, stop the vehicle, turn off the engine and check the engine oil level. Add oil if needed. If the oil level is correct, have your vehicle checked by your authorized dealer.

2006 Econoline (eco) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade.

The FUEL icon and arrow indicates which side of the vehicle the fuel filler door is located.

Refer to Filling the tank in the Maintenance and Specifications chapter for more information.

2006 Econoline (eco) Owners Guide (post-2002-fmt) USA (fus)

AUDIO SYSTEMS

AM/FM stereo (if equipped)

Entertainment Systems

1. Seek: Press

next listenable station down/up the frequency band.

2. Tune: Press

adjust the radio frequency down/up.

3. AM/FM: Press to choose a

frequency band in radio mode.

4. Memory preset buttons: To set

a station: Select frequency band AM/FM1/FM2; tune to a station, press and hold a preset button until sound returns.

/ to find the

/ to manually

1 2 3 4

2006 Econoline (eco) Owners Guide (post-2002-fmt) USA (fus)

AM/FM

Entertainment Systems

5. Power/volume: Press to turn

ON/OFF; turn to increase or decrease volume levels.

VOL

PUSH

6. Tone: Press TONE until the

desired level — Bass, Treble, Fade appears on the display. Turn the volume control to raise/lower the levels, or to move the audio sound from the right to left or the front to back (if equipped).

7. CLK (Clock): To set the hour,

press and hold CLK until CLOCK SET appears in the display. Press SEEK to decrease

increase

the hours.

To set the minute, press and hold CLK until CLOCK SET appears in the display. Press TUNE to decrease

or increase the minutes.

Satellite Compatible AM/FM Stereo In-Dash Single CD/MP3 Radio (if equipped)

2006 Econoline (eco) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

1. SEEK: Press and release

SEEK strong station or track.

2. TEXT: The filename (Fi), song

title (So), artist text (Ar) or album text (AL) may be viewed while playing an MP3 selection. When MP3 selection text is shown on the message display, its corresponding text indicator (Fi, So, Ar, or AL) is shown in the elapsed time display. Press TEXT to scroll through the text fields. The display will scroll through all of the text in the current field before changing to the next field. (TEXT must be pressed within 3 seconds of the previous press to proceed to the next/last text display. The last text field shown on the display will become the new display message default. TEXT is also available when equipped with Satellite radio. Your radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit.

Dealer installed satellite kit only available in the continental United States.

3. AUX: This function is not

operational.

4. MUTE: Press to MUTE playing

media; press again to return to playing media.

5. EJ: Press to eject a CD.

/ for previous/next

6. Bass: Press BASS; then press

SEL the bass output.

Treble: Press TREB; then press SEL the treble output.

/ to decrease/increase

2006 Econoline (eco) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

7. Select: Use with Bass, Treble,

Balance, Fade and other menu selections.

8. Balance: Press BAL; then press

SEL left/right speakers.

Fade: Press FADE; then press SEL rear/front speakers.

9. Menu: Press MENU and SEL to

access/adjust the following functions:

Autoset: Press MENU until AUTOSET appears in the display. Press SEL to toggle ON/OFF. Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets.

Setting the clock: Press MENU until SELECT HOUR or SELECT MINUTE is displayed. Use SEL to manually increase ( (

Folder/Track mode: In MP3 mode, press MENU until MODE appears in the display. Use SEL to toggle between FOLDER (only tracks within selected folder are accessible) or TRACK (all tracks on disc are accessible) MODE.

10. REPEAT: Repeats the current

CD/MP3 track when active (ON). Press to show repeat status. Press again to toggle status.

11. SHUFFLE: Plays CD/MP3

tracks in random order when active (ON). Press to show shuffle status. Press again to toggle status.

12. FOLDER

the next MP3 directory.

/ to shift sound to the

) or decrease

) the hours/minutes. Press MENU again to disengage clock mode.

: Press to access

2006 Econoline (eco) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

13. FOLDER : Press to access

the previous MP3 directory.

14. FF(Fast forward): In CD/MP3

mode, press until desired selection is reached.

15. REW(Rewind): In CD/MP3

mode, press until desired selection is reached.

16. SAT (if equipped): Your radio

comes equipped with Satellite Ready capability. The kit to enable the Satellite reception is available through your dealer. Detailed satellite instructions are included with the dealer installed kit.

Dealer installed satellite kit only available in the continental United States.

17. BAND: Press to toggle between

AM/FM1/FM2 frequency band.

18. Memory presets: To set a

station: Select frequency band; tune to a station, press and hold a preset button until sound returns.

19. Power/volume: Press to turn

ON/OFF; turn to increase or decrease volume levels.

20. CD: Press to enter CD mode.

2006 Econoline (eco) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information.

21. COMP(Compression): Brings

soft and loud CD passages together for a more consistent listening level when in CD mode. Press COMP to turn the feature ON/OFF.

22. Scan: Press SCAN to hear a

brief sampling of radio stations or CD/MP3 tracks. Press again to stop.

23. CAT/Tune: Press

manually tune down/up the radio frequency band.

CAT: CAT is only available when equipped with Satellite Radio. Your radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit.

Dealer installed satellite kit only available in the continental United States.

For information regarding SIRIUS Satellite Radio, please call toll-free 888-539-SIRIUS (888-539-7474) or visit the SIRIUS website at www.siriusradio.com

24. CD slot: Insert a CD with the label side up.

or to

2006 Econoline (eco) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Premium Satellite Compatible AM/FM Stereo In-Dash Six CD/MP3 Radio (if equipped)

1. SEEK: Press and release

SEEK strong station or track.

2. TEXT: The filename (Fi), song

TEXT is also available when equipped with Satellite radio. Your radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit. Dealer installed satellite kit

only available in the continental United States.

/ for previous/next

2006 Econoline (eco) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

3. AUX: Press to toggle between the

current playing media and DVD (if equipped).

4. MUTE: Press to MUTE playing

media; press again to return to playing media

5. EJ: Press to eject a CD. Press EJ

and a memory preset to eject a specific disc. Press and hold to eject all loaded discs.

6. Bass: Press BASS; then press

SEL the bass output.

Treble: Press TREB; then press SEL the treble output.

7. Select: Use with Bass, Treble,

Balance, Fade and other menu functions.

8. Balance: Press BAL; then press

SEL left/right speakers.

Fade: Press FADE; then press SEL rear/front speakers.

9. Menu: Press to access the

following functions: Compression: Brings soft and loud

CD passages together for a more consistent listening level when in CD mode. Press MENU until compression status is displayed. Press the SEL control to enable the compression feature when COMPRESS OFF is displayed. Press the SEL control again to disable the feature when COMPRESS ON is displayed.

/ to decrease/increase

/ to shift sound to the

2006 Econoline (eco) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

AM/FM1/FM2. When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets.

Setting the clock: Press MENU until SELECT HOUR or SELECT MINUTE is displayed. Use SEL to manually increase (

) the hours/minutes. Press MENU again to disengage clock mode.

(

Folder/Track Mode: In MP3 mode, press MENU until MODE appears in the display. Use SEL to toggle between FOLDER (only tracks within selected folder are accessible) or TRACK (all tracks on disc are accessible) MODE.

10. REPEAT: Press to repeat the

current CD/MP3 track. Press again to disable.

11. SHUFFLE: Press play the

CD/MP3 tracks on the current disc in random order. Press again to disable.

12. FOLDER

the next MP3 directory.

: Press to access

) or decrease

13. FOLDER

the previous MP3 directory

14. FF(Fast forward): In CD/MP3

mode, press until desired selection is reached.

15. REW(Rewind): In CD/MP3

mode, press until desired selection is reached.

16. SAT (if equipped): Your radio

comes equipped with Satellite Ready capability. The kit to enable the Satellite reception is available through your dealer. Detailed satellite instructions are included with the dealer installed kit. Dealer installed

satellite kit only available in the continental United States.

17. BAND: Press to toggle between

AM/FM1/FM2 frequency band.

: Press to access

2006 Econoline (eco) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

18. Memory presets: To set a

station: Select frequency, tune to a station, press and hold a preset button until sound returns.

19. Power/volume: Press to turn

ON/OFF; turn to increase or decrease volume levels.

20. Load: Press to load a CD. Press

LOAD and a memory preset to load to a specific disc slot. Press and hold to load up to six discs.

21. CD: Press to enter CD mode.

22. Scan: Press SCAN to hear a

brief sampling of radio stations or CD/MP3 tracks. Press again to stop.

23. Disc/Tune: Press

or to

manually tune down/up the radio frequency band, or to listen to the previous/next CD.

CAT: CAT is only available when equipped with Satellite Radio. Your Audiophile radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit. Dealer

installed satellite kit only available in the continental United States.

2006 Econoline (eco) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

For information regarding SIRIUS Satellite Radio, please call toll-free 888-539-SIRIUS (888-539-7474) or visit the SIRIUS website at www.siriusradio.com

24. CD slot: Insert a CD, label side up.

Accessory delay

With accessory delay, the window switches, moon roof (if equipped) and audio system may be used for up to ten minutes after the ignition switch is turned off or until any door is opened.

GENERAL AUDIO INFORMATION

Radio frequencies:

AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are:

AM: 530, 540–1700, 1710 kHz FM: 87.7, 87.9–107.7, 107.9 MHz

Radio reception factors:

There are three factors that can affect radio reception:

• Distance/strength: The further you travel from an FM station, the weaker the signal and the weaker the reception.

• Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception.

• Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.

CD/CD player care

Do:

• Handle discs by their edges only. Never touch the playing surface.

• Inspect discs before playing. Clean only with an approved CD cleaner

and wipe from the center out.

Don’t:

• Expose discs to direct sunlight or heat sources for extended periods of time.

• Clean using a circular motion.

2006 Econoline (eco) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Dirty, warped or damaged CDs, irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information.

Audio system warranty and service

Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.

2006 Econoline (eco) Owners Guide (post-2002-fmt) USA (fus)

+ 226 hidden pages
