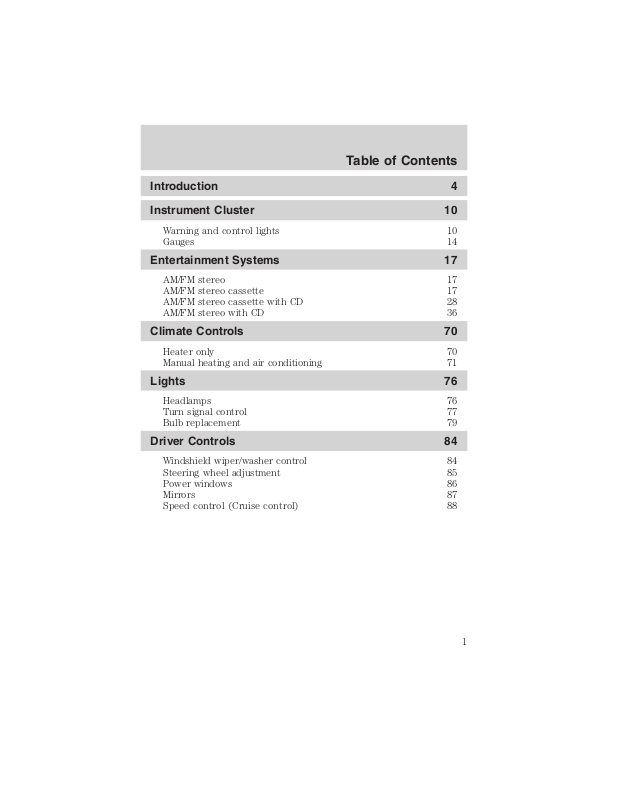

Table of Contents

Introduction 4

Instrument Cluster 10

Warning and control lights 10 Gauges 14

Entertainment Systems 17

AM/FM stereo 17 AM/FM stereo cassette 17 AM/FM stereo cassette with CD 28 AM/FM stereo with CD 36

Climate Controls 70

Heater only 70 Manual heating and air conditioning 71

Lights 76

Headlamps 76 Turn signal control 77 Bulb replacement 79

Driver Controls 84

Windshield wiper/washer control 84 Steering wheel adjustment 85 Power windows 86 Mirrors 87 Speed control (Cruise control) 88

Page 2

Table of Contents

Locks and Security 97

Keys 97 Locks 97 Anti-theft system 97

Seating and Safety Restraints 101

Seating 101 Safety restraints 109 Air bags 119 Child restraints 124

Driving 136

Starting 136 Brakes 140 Transmission operation 145 Vehicle loading 149 Trailer towing 151

Roadside Emergencies 158

Getting roadside assistance 158 Hazard flasher switch 159 Fuel pump shut-off switch 160 Fuses and relays 161 Changing tires 168 Jump starting 175 Wrecker towing 180

Customer Assistance 181

Reporting safety defects (U.S. only) 190

Page 3

Table of Contents

Cleaning 191

Underbody preservation 195

Maintenance and Specifications 198

Engine compartment 199 Engine oil 201 Battery 204 Fuel information 216 Air filter(s) 229 Part numbers 235 Refill capacities 236 Lubricant specifications 240

Accessories 248

Index 251

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.

Page 4

Introduction

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and

certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

CONGRATULATIONS

Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle the greater the safety and pleasure you will derive from driving it.

For more information on Ford Motor Company and its products visit the following website:

• In the United States: www.ford.com

• In Canada: www.ford.ca

• In Australia: www.ford.com.au

• In Mexico: www.ford.com.mx

Additional owner information is given in separate publications.

This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available.

Remember to pass on the Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

Fuel pump shut-off switch In the event of an accident the

safety switch will automatically cut off the fuel supply to the engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside emergencies chapter.

Page 5

Introduction

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury and prevent possible damage to others, your vehicle and its equipment? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

Protecting the environment

We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.

BREAKING-IN YOUR VEHICLE

There are no particular guidelines for breaking-in your vehicle. During the first 1,600 km (1,000 miles) of driving, vary speeds frequently. This is recommended to give the moving parts a chance to break in.

SPECIAL NOTICES

Emission warranty

The New Vehicle Limited Warranty includes Bumper-to-Bumper Coverage, Safety Restraint Coverage, Corrosion Coverage, and 7.3L Power Stroke Diesel Engine Coverage. In addition, your vehicle is eligible for Emissions Defect and Emissions Performance Warranties. For a detailed description of what is covered and what is not covered, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.

Special instructions

For your added safety, your vehicle is fitted with sophisticated electronic controls.

Page 6

Introduction

Please read the section Air bag in the Seating and safety

restraints chapter. Failure to follow the specific warnings and

instructions could result in personal injury.

Front seat mounted rear facing child or infant seats should

NEVER be used in front of a passenger side air bag unless the air bag can be and is turned OFF.

Notice to owners of diesel-powered vehicles

Read the 7.3 Liter Power Stroke Direct Injection Turbo Diesel Owner’s Guide Supplement for information regarding correct operation and maintenance of your diesel-powered light truck.

Notice to owners of pickup trucks and utility type vehicles

Utility vehicles have a significantly higher rollover rate than

other types of vehicles.

Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of vehicle control, vehicle rollover, personal injury or death.

Using your vehicle as an ambulance

If your light truck is equipped with the Ford Ambulance Preparation Package, it may be utilized as an ambulance. Ford urges ambulance manufacturers to follow the recommendations of the Ford Incomplete

Vehicle Manual, Ford Truck Body Builder’s Layout Book and the QVM guidelines as well as pertinent supplements. For additional information,

please contact the Truck Body Builders Advisory Service 1–877–840–4338.

Use of your Ford light truck as an ambulance, without the Ford Ambulance Preparation Package voids the Ford New Vehicle Limited Warranty and may void the Emissions Warranties. In addition, ambulance usage without the preparation package could cause high underbody temperatures, overpressurized fuel and a risk of spraying fuel which could lead to fires.

Page 7

Introduction

If your vehicle is equipped with the Ford Ambulance Preparation Package, it will be indicated on the Certification label. The label is located on the driver’s side door pillar or on the rear edge of the driver’s door. You can determine whether the ambulance manufacturer followed Ford’s recommendations by directly contacting that manufacturer. Ford Ambulance Preparation Package is only available on certain 7.3L Diesel engine equipped vehicles.

Notice to owners of natural gas fueled vehicles

Before you drive your vehicle, be sure to read the Dedicated Natural Gas Vehicle supplement. This book contains important operation and

maintenance information.

Middle East/North Africa vehicle specific information

For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner Guide; therefore, a supplement has been supplied that complements this book. By referring to the pages in the provided supplement, you can properly identify those features, recommendations and specifications that are unique to your vehicle. Refer to this Owner

Guide for all other required information and warnings.

Page 8

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

Fasten Safety Belt Air Bag-Front

Air Bag-Side Child Seat

Child Seat Installation Warning

Child Seat Tether Anchor

Anti-Lock Brake System

Traction Control AdvanceTrac

Master Lighting Switch Hazard Warning Flasher

Fog Lamps-Front Fuse Compartment

See Owner’s Guide

Child Seat Lower Anchor

Brake System

Brake Fluid Non-Petroleum Based

Fuel Pump Reset Windshield Wash/Wipe

Windshield Defrost/Demist

Rear Window Defrost/Demist

Page 9

Vehicle Symbol Glossary

Introduction

Power Windows Front/Rear

Child Safety Door Lock/Unlock

Power Window Lockout

Interior Luggage Compartment Release Symbol

Panic Alarm Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

Emission System/Check Engine/Service Engine

Engine Air Filter

Soon

MAX

MIN

Passenger Compartment Air Filter

Jack

Check fuel cap Low tire warning

Page 10

Instrument Cluster

WARNING LIGHTS AND CHIMES

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, have

the respective system inspected immediately.

Service engine soon

Illuminates briefly to ensure the system is functional. If it comes on after the engine is started, one of the engine’s emission control systems may be malfunctioning. The light may illuminate without a driveability concern being noted. The vehicle will usually be drivable and will not require towing.

Light turns on solid:

Temporary malfunctions may cause the light to illuminate. Examples are:

1. The vehicle has run out of fuel.

2. Poor fuel quality or water in the fuel.

3. The fuel cap may not have been properly installed and securely tightened.

These temporary malfunctions can be corrected by filling the fuel tank with high quality fuel of the recommended octane and/or properly installing and securely tightening the fuel cap. After three driving cycles without these or any other temporary malfunctions present, the light should turn off. (A driving cycle consists of a cold engine startup followed by mixed city/highway driving.) No additional vehicle service is required.

SERVICE

ENGINE

SOON

Page 11

Instrument Cluster

If the light remains on, have your vehicle serviced at the first available opportunity.

Light is blinking:

Engine misfire is occurring which could damage your catalytic converter. You should drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced at the first available opportunity.

Under engine misfire conditions, excessive exhaust temperatures

could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

Brake system warning

To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the ON position (alternatively for some vehicles when the ignition is moved from the ON position to START position, the light will momentarily illuminate prior to reaching the START position). It also illuminates if the parking brake is engaged. If the brake system warning light does not illuminate as described, seek service immediately. Illumination after the parking brake is released indicates low brake fluid level or a brake system malfunction and the brake system should be serviced immediately by a qualified technician.

Refer to Brakes in the Driving chapter for more information.

Brake reserve system warning (if equipped)

Illuminates to indicate normal Hydromax booster reserve system activation when the engine is OFF and the service brake pedal is applied.

This light may also illuminate momentarily if the engine is running and the driver turns the steering wheel fully in one direction while braking.

If the light remains on while the engine is running, this indicates inadequate hydraulic booster pressure or reserve pump system failure. Stop the vehicle safely as soon as possible and seek service immediately.

BRAKE

Page 12

Instrument Cluster

Anti-lock brake system (ABS)

To confirm the anti-lock brake system (ABS) warning light is functional it will momentarily illuminate when the ignition is turned to the ON position (alternatively for some vehicles when the ignition is moved from the ON position to the START position, the light will momentarily illuminate just prior to reaching the START position). If the light remains on, continues to flash or fails to illuminate, have the ABS serviced immediately. If the ABS light remains on, it means the anti-lock brake system has malfunctioned and is disabled, however, the normal brake system will still function unless the brake warning light also remains illuminated and parking brake is off. Refer to Brakes in the Driving chapter for more information.

Safety belt

Illuminates to remind you to fasten your safety belts. For more information, refer to the Seating and safety restraints chapter.

Air bag readiness

Illuminates to confirm that the air bags (front or side) are operational. If the light fails to illuminate, continues to flash or remains on, have the system serviced immediately.

ABS

Charging system

Illuminates when the battery is not charging properly.

Low fuel

Illuminates when the fuel level in the fuel tank is at, or near, empty (refer to Fuel gauge in this chapter for more information).

LOW

FUEL

Page 13

Instrument Cluster

Speed control (if equipped)

Illuminates when the speed control is activated.

Oil pressure/Engine coolant

Illuminates when the engine coolant temperature is above the normal range or the engine oil pressure is outside normal range. Check the engine oil and coolant level refer to

Adding engine oil and Adding coolant in the Maintenance and specifications chapter.

Transmission control indicator light (TCIL)

Illuminates when the overdrive function of the transmission has been turned OFF using the Transmission Control Switch (TCS). Refer to the Driving chapter for transmission function and operation.

If the light does not come on or if the light flashes steadily, have your vehicle serviced as soon as possible, damage to the transmission could occur.

Turn signal

Illuminates when the turn signals or the hazard lights are turned on. If the lights stay on continuously or flash faster, check for a burned-out bulb.

High beams

Illuminates when the high beam headlamps are turned on.

OVERDRIVE

Safety belt warning chime/buzzer

For information on the safety belt warning chime, refer to the Seating and safety restraints chapter.

Page 14

Instrument Cluster

BeltMinder姟 chime

Sounds intermittently to remind you to fasten your safety belts.

Supplemental restraint system (SRS) warning chime

Sounds when a malfunction in the supplemental restraint system (front or side airbags) has been detected. Have the supplemental restraint system inspected immediately.

Headlamps on warning chime (if equipped)

Sounds when the headlamps or parking lamps are on, the key is removed from the ignition and the driver’s door is opened.

Key-in-ignition warning chime/buzzer

Sounds when the key is left in the ignition and the driver’s door is opened.

GAUGES

Engine coolant temperature gauge

Indicates the temperature of the engine coolant. At normal operating temperature, the needle remains within the normal area (the area between the “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine immediately and let the engine cool. Refer to Engine coolant in the Maintenance and specifications chapter.

Page 15

Instrument Cluster

Never remove the coolant reservoir cap while the engine is

running or hot. Steam and scalding liquid from a hot cooling system can burn you badly.

This gauge indicates the temperature of the engine coolant, not the coolant level. If the coolant is not at its proper level the gauge indication will not be accurate. If the gauge enters the red section, the oil pressure/engine coolant and Check Engine/Service Engine Soon indicators illuminate, refer to What you should know about fail-safe cooling in the Maintenance and specifications chapter.

Engine oil pressure gauge

Indicates engine oil pressure. At normal operating temperature, the needle will be in the normal range (the area between the “L” and “H”); if the needle goes below the normal range, stop the vehicle as soon as safely possible and switch off the engine immediately. Check the oil level. Add oil if needed (refer to Engine oil in the Maintenance and specifications chapter). If the oil level is correct, have your vehicle checked at your dealership or by a qualified technician.

Battery voltage gauge

Indicates battery voltage. If the pointer moves and stays outside the normal operating range, have the vehicle’s electrical system checked as soon as possible.

Page 16

Instrument Cluster

Fuel gauge

Displays approximately how much fuel is in the fuel tank. The fuel gauge may vary slightly when the vehicle is in motion or on a grade.

When refueling the vehicle from empty indication, the amount of fuel that can be added will be less than the advertised capacity due to the reserve fuel.

The FUEL DOOR icon and arrow indicates which side of the vehicle the fuel filler door is located.

Speedometer

Indicates the current vehicle speed.

Odometer

Registers the total kilometers (miles) of the vehicle.

Trip odometer

Registers the kilometers (miles) of individual journeys. To reset, depress the control.

Page 17

Entertainment Systems

USING YOUR AUDIO SYSTEM

AM/FM Stereo (with 2 speakers)

VOL

PUSH

TONE

CLK

1 2 3 4 AM/FM

AM/FM Stereo (with 4 speakers and fade capability)

VOL

PUSH

TONE

CLK

TONE VOL

ST DX

SEEK

TUNE

SEEK

TUNE

AM / FM STEREO

1 2 3 4 AM/FM

Page 18

Entertainment Systems

Volume/power control

Press the control to turn the audio system on or off.

Turn the control to raise or lower volume.

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

Bass adjust

The bass adjust control allows you to increase or decrease the audio system’s bass output.

TONE

Press the TONE control once, then use the volume knob to adjust the

CLK

desired level.

VOL

PUSH

VOL

PUSH

VOL

PUSH

Treble adjust

The treble adjust control allows you to increase or decrease the audio system’s treble output.

Press the TONE control twice, then use the volume knob to adjust the desired level.

TONE

CLK

VOL

PUSH

Page 19

Entertainment Systems

Speaker balance adjust

Speaker sound distribution can be adjusted between the right and left speakers.

Press the TONE control three times, then use the volume knob to adjust the desired level.

Speaker fade adjust (if equipped)

Speaker sound can be adjusted between the front and rear speakers.

Press the TONE control four times, then use the volume knob to adjust the desired level.

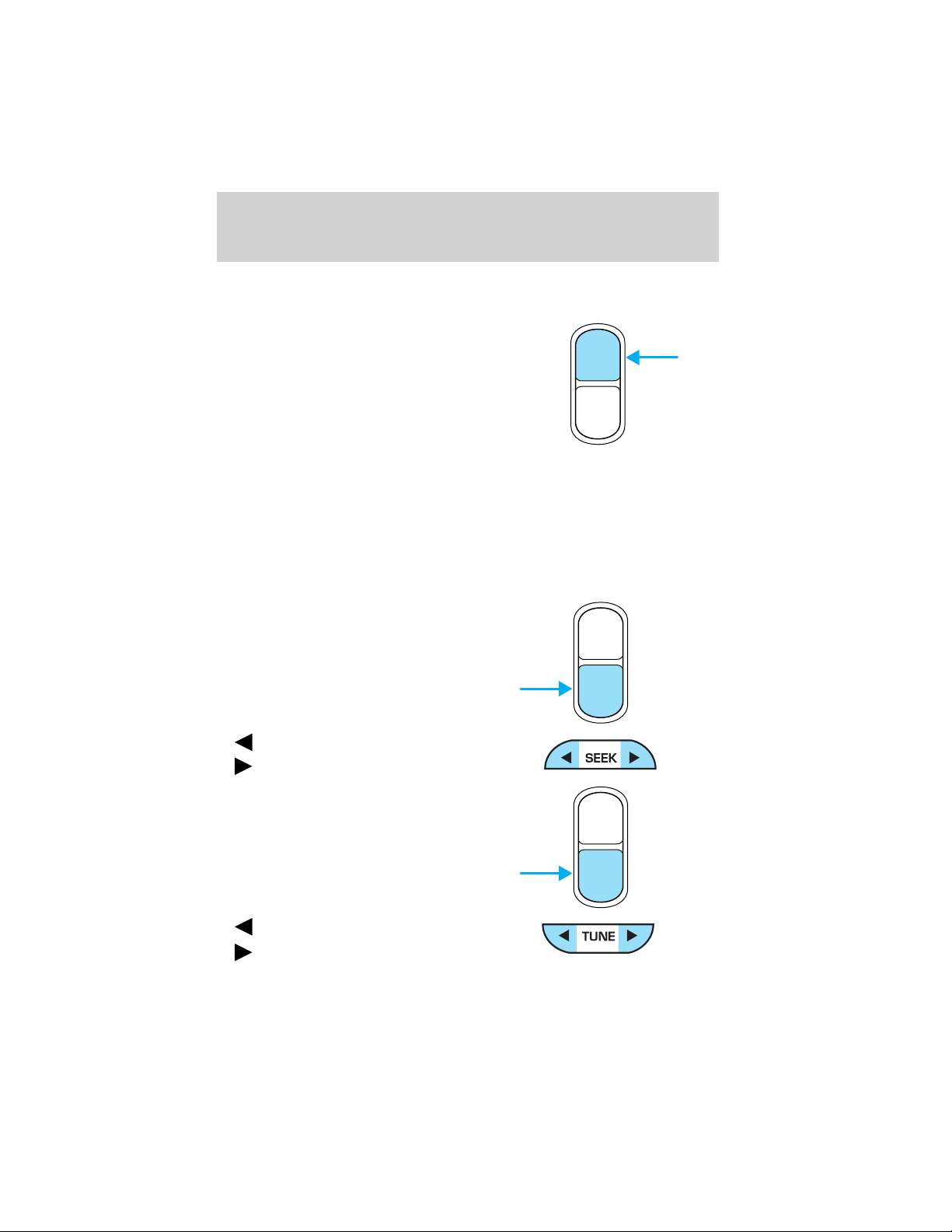

Seek function

The seek function control works in radio mode.

Seek function in radio mode

• Press

to find the next listenable station down the frequency band.

• Press

to find the next listenable station up the frequency band.

TONE

CLK

TONE

CLK

SEEK

TUNE

VOL

PUSH

VOL

PUSH

AM/FM select

The AM/FM select control works in radio mode.

AM/FM

AM/FM select in radio mode

This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations.

Page 20

Entertainment Systems

Radio station memory preset

1 2 3 4

The radio is equipped with four station memory preset controls. These controls can be used to select up to four preset AM stations and eight FM stations (four in FM1 and four in FM2).

Setting memory preset stations

1. Select the frequency band with the AM/FM select control.

2. Select a station. Refer to Tune adjust or Seek function for more information on selecting a station.

3. Press and hold a memory preset control until the sound returns, indicating the station is held in memory on the control you selected.

1 2 3 4

Setting the clock

Press CLK to toggle between listening frequencies and clock mode.

To set the hour, press and hold the CLK control until CLOCK SET appears in the display and press the SEEK control:

TONE

CLK

•

to decrease hours and

to increase hours.

Page 21

To set the minute, press and hold the CLK control until CLOCK SET appears in the display and press the TUNE control:

Entertainment Systems

TONE

CLK

•

• to increase minutes.

The CLK control will allow you to switch between media display mode (radio station, stereo information, etc.) and clock display mode (time). When in clock mode, the media information will display for ten seconds, when the radio is turned on, and then revert to clock information. Any time that the media is changed, (new radio station, etc.), the media information will again display for ten seconds before reverting back to the clock. In media mode, the media information will always be displayed.

Tune adjust

The tune control works in radio mode.

Tune adjust in radio mode

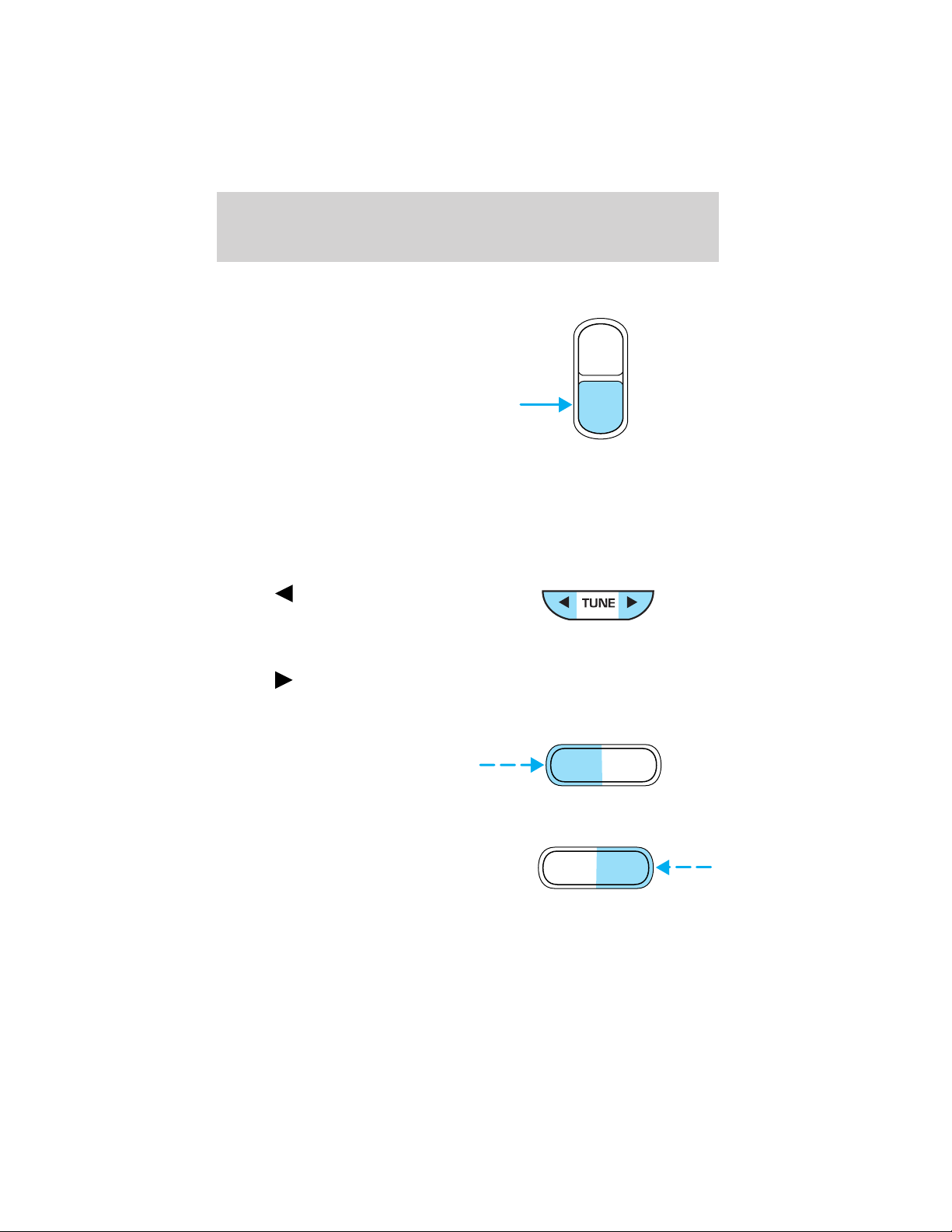

• Press

to decrease minutes and

to move to the next frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.

to move to the next frequency up the band (whether or not a listenable station is located there). Hold for quick movement.

SEEK

TUNE

Page 22

Entertainment Systems

AM/FM STEREO CASSETTE

VOL - PUSH ON

BASS TREB BAL FADE

FM1

CLK

TAPE

AMS

SEEK

TUNE

SCAN

123456

Volume/power control

Press the control to turn the audio system on or off.

Turn the control to raise or lower volume.

SIDE REW FF

VOL - PUSH ON

1 - 2

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

Page 23

Bass adjust

The bass adjust control allows you to increase or decrease the audio system’s bass output.

Treble adjust

The treble adjust control allows you to increase or decrease the audio system’s treble output.

Speaker balance adjust

Speaker sound distribution can be adjusted between the right and left speakers.

Entertainment Systems

BASS

TREB

Speaker fade adjust

Speaker sound can be adjusted between the front and rear speakers.

BAL

FADE

Page 24

Entertainment Systems

Seek function

The seek function control works in radio mode.

Seek function in radio mode

• Press to find the next listenable station down the frequency band.

• Press listenable station up the frequency band.

Scan function

The scan function works in radio mode.

Scan function in radio mode

Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the SCAN control again to stop the scan mode.

AM/FM select

The AM/FM select control works in radio and tape modes.

to find the next

SCAN

AM/FM select in radio mode

This control allows you to select AM or FM frequency bands. Press the AM control to select from AM selections, and press the FM control to select from FM1 or FM2 memory preset stations.

AM/FM select in tape mode

Press this control to stop tape play and begin radio play.

Radio station memory preset

The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations (six in FM1 and six in FM2).

Page 25

Entertainment Systems

Setting memory preset stations

1. Select the frequency band with the AM or the FM select control.

2. Select a station. Refer to Tune adjust or Seek function for more

information on selecting a station.

3. Press and hold a memory preset control until the sound returns,

indicating the station is held in memory on the control you selected.

123456

Setting the clock

Press CLK to toggle between listening frequencies and clock mode while in radio mode.

To set the hour, press and hold the CLK control and press the SEEK control:

CLK

TAPE

AMS

•

To set the minute, press and hold the CLK control and press the TUNE control:

to decrease hours and

to increase hours.

SEEK

TUNE

DISCS

CLK

TAPE

AMS

•

The CLK control will allow you to switch between media display mode (radio station, stereo information, etc.) and clock display mode (time).

to decrease minutes and

to increase minutes.

SEEK

TUNE

DISCS

Page 26

Entertainment Systems

When in clock mode, the media information will display for 10 seconds, when the radio is turned on, and then revert to clock information. Any time that the media is changed, (new radio station, etc.), the media information will again display for 10 seconds before reverting back to the clock. In media mode, the media information will always be displayed.

Tune adjust

The tune control works in radio mode.

Tune adjust in radio mode

• Press frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.

• Press a listenable station is located there). Hold for quick movement.

Tape select

• To enter tape mode while in radio mode, press the TAPE AMS control.

to move to the next

to move to the next frequency up the band (whether or not

CLK

TAPE

AMS

Automatic Music Search

The Automatic Music Search feature allows you to quickly locate the beginning of the tape selection being played or to skip to the next selection.

To activate the feature, momentarily depress the TAPE AMS button. Then, press either REW (for the beginning of the current selection) or FF (to advance to the next selection). The tape deck stops and returns to play mode when the AMS circuit senses a blank section on the tape.

CLK

TAPE

AMS

Page 27

Entertainment Systems

In order to ensure proper operation of the AMS feature, the tape MUST have a blank section of at least four seconds duration between programs.

Rewind

The rewind control works in tape mode.

To rewind in tape mode, press the REW control.

Fast forward

The fast forward control works in tape mode.

To fast forward in tape mode, press the FF control.

In the tape mode, tape direction will automatically reverse when the end of the tape is reached.

Tape direction select

Press SIDE and 1–2 at the same time to play the alternate side of a tape.

Eject function

Press the control to stop and eject a tape.

SIDE

1 - 2

REW FF

SIDE

1 - 2

REW FF

SIDE

1 - 2

REW FF

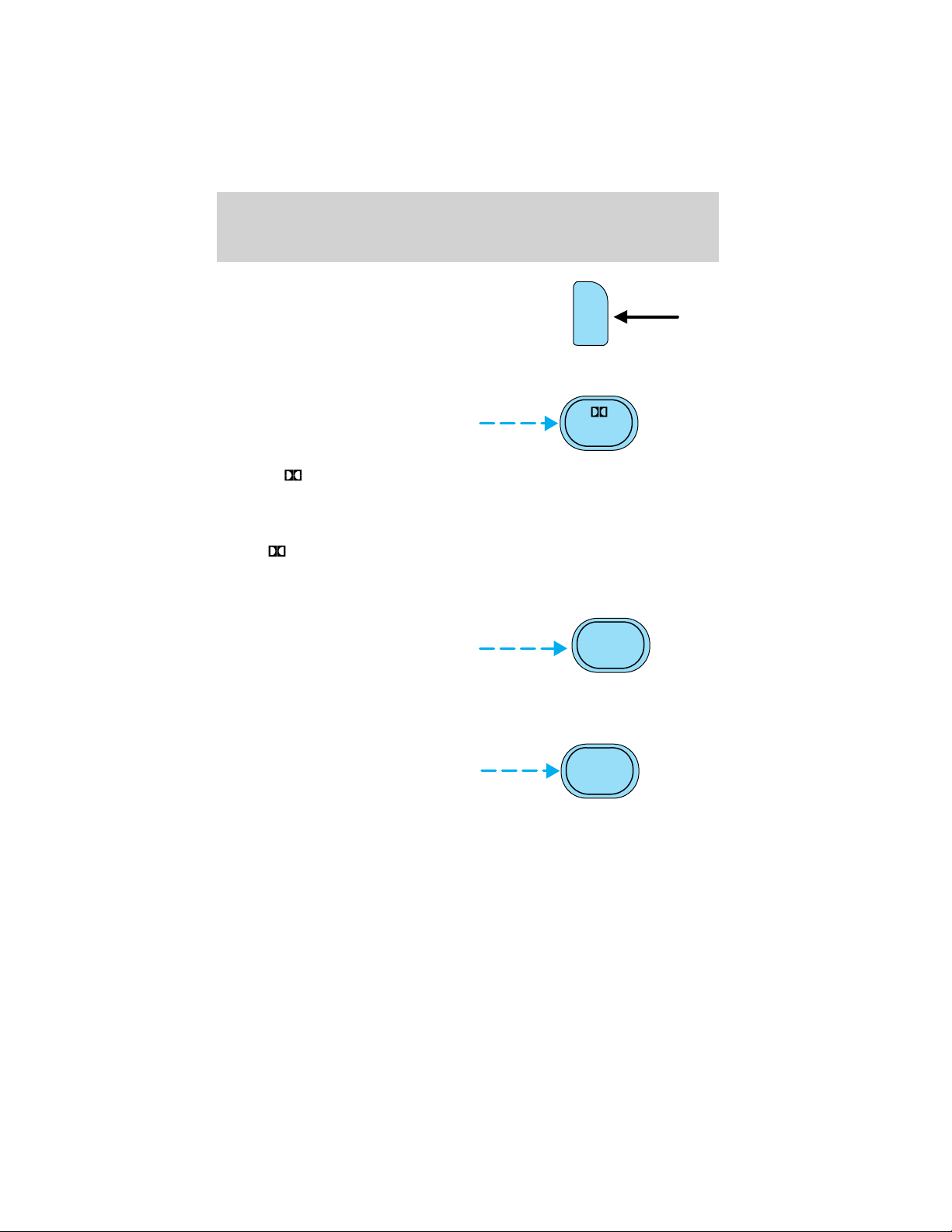

Dolby姞 noise reduction

Dolby威 noise reduction operates only in tape mode. Dolby威 noise reduction reduces the amount of hiss and static during tape playback.

Press the reduction.

Dolby威 noise reduction is manufactured under license from Dolby威 Laboratories Licensing Corporation. “Dolby威” and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation.

control to activate (and deactivate) Dolby威 noise

Page 28

Entertainment Systems

PREMIUM AM/FM STEREO/CASSETTE/SINGLE CD

VOL PUSH ON

FM 1 AMC

BL RF

AM FM

SEEK

TUNE

REW FF

DOLBY B NR

SCAN

BASS TREB SEL BAL

SIDE 1-2 COMP SHUFFLE

123456

Volume/power control

Press the control to turn the audio system on or off.

Audio power can also be turned on by pressing the AM/FM select control or the TAPE/CD select control.

Turn control to raise or lower volume.

DISC

TAPE

EJ CD

VOL - PUSH ON

FADE

MUTE

AUTO

CLK

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

Page 29

Bass adjust

The bass adjust control allows you to increase or decrease the audio system’s bass output.

Press the BASS control then press:

•

Treble adjust

The treble adjust control allows you to increase or decrease the audio system’s treble output.

Press the TREB control then press:

•

Speaker balance adjust

Speaker sound distribution can be adjusted between the right and left speakers.

Press the BAL control then press:

•

to decrease the bass output

and

to increase the bass output.

to decrease the treble output

and

to increase the treble output.

to shift sound to the left and

to shift sound to the right.

Entertainment Systems

BASS TREB

BAL FADE

Speaker fade adjust

Speaker sound can be adjusted between the front and rear speakers.

Press the FADE control then press:

•

Seek function

The seek function control works in radio, tape or CD mode.

to shift the sound to the

front and

to shift the sound to the rear.

BAL FADE

Page 30

Entertainment Systems

Seek function in radio mode

• Press listenable station down the frequency band.

• Press

Seek function in tape mode

• Press

Seek function in CD mode

• Press track of the disc. If a selection has been playing for three seconds or more and you press from the beginning.

• Press track has been completed, the first track of the current disc will automatically replay.

Scan function

The scan function works in radio, tape or CD mode.

to find the next

to find the next listenable station up the frequency band.

to listen to the previous selection on the tape.

to listen to the next selection on the tape.

to seek to the previous

, the CD will replay that selection

to seek forward to the next track of the disc. After the last

SCAN

Scan function in radio mode

Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the control again to stop the scan mode.

Scan function in tape mode

Press the SCAN control to hear a short sampling of all selections on the tape. (The tape scans in a forward direction. At the end of the tape’s first side, direction automatically reverses to the opposite side of the tape.) To stop on a particular selection, press the control again.

Scan function in CD mode

Press the SCAN control to hear a short sampling of all selections on the CD. (The CD scans in a forward direction, wrapping back to the first track at the end of the CD.) To stop on a particular selection, press the control again.

Page 31

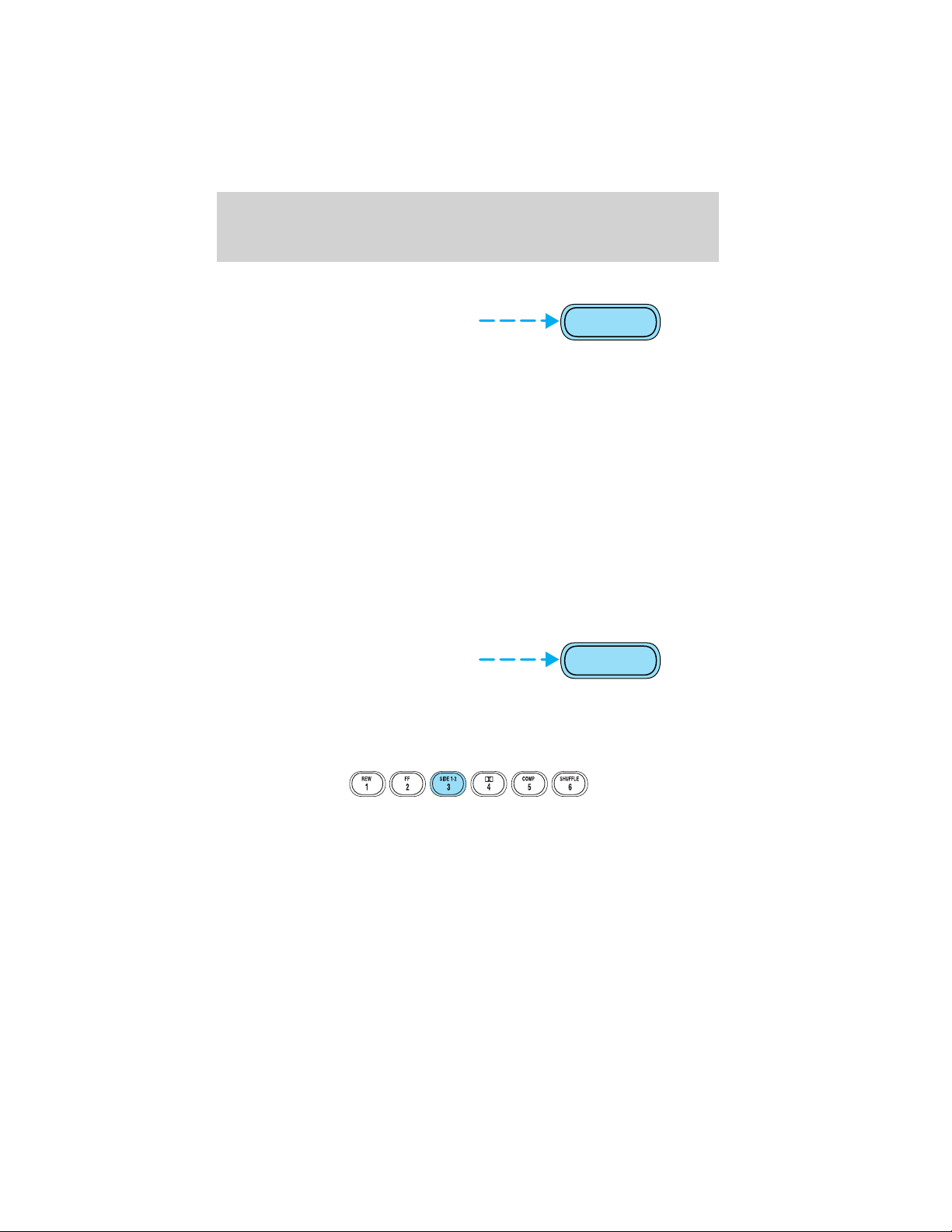

Entertainment Systems

AM/FM select

The AM/FM select control works in radio, tape and CD modes.

AM/FM select in radio mode

This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations.

AM/FM select in tape mode

Press this control to stop tape play and begin radio play.

AM/FM select in CD mode

Press this control to stop CD play and begin radio play.

Radio station memory preset

The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations (six in FM1 and six in FM2).

Setting memory preset stations

1. Select the frequency band with

the AM/FM select control.

2. Select a station. Refer to Tune

adjust or Seek function for more information on selecting a station.

3. Press and hold a memory preset control until the sound returns,

indicating the station is held in memory of the control you selected.

AM FM

Autoset memory preset

Autoset allows you to set strong radio stations without losing your original manually set preset stations. This feature is helpful on trips when you travel between cities with different radio stations.

Page 32

Entertainment Systems

Starting autoset memory preset

1. Select a frequency using the AM/FM select controls.

2. Press the control.

3. When the first six strong stations

are filled, the station stored in memory preset control 1 will start playing.

If there are less than six strong stations available on the frequency band, the remaining memory preset controls will all store the last strong station available.

These stations are temporarily stored in the memory preset controls (until deactivated) and are accessed in the same manner as your original presets.

To deactivate autoset and return to your audio system’s manually set memory stations, press the AUTO control again.

Setting the clock

To set the hour, press and hold the CLK control and press SEEK:

AUTO

CLK

AUTO

CLK

•

To set the minute, press and hold the CLK control and press TUNE:

•

to decrease hours and

to increase hours.

to decrease minutes and

to increase minutes.

AUTO

CLK

Page 33

Entertainment Systems

If your vehicle has a separate clock, (other than the digital radio display), the CLK control will not function in the above manner.

The CLK control will allow you to switch between media display mode (radio station, stereo information, etc.) and clock display mode (time). When in clock mode, the media information will display for 10 seconds, when the radio is turned on, and then revert to clock information. Any time that the media is changed, (new radio station, etc.), the media information will again display for 10 seconds before reverting back to the clock. In media mode, the media information will always be displayed.

Tune adjust

The tune control works in radio mode.

Tune adjust in radio mode

• Press frequency down the band (whether or not a listenable

station is located there). Hold the control to move through the frequencies quickly.

• Press a listenable station is located there). Hold for quick movement.

to move to the next

to move to the next frequency up the band (whether or not

AUTO

CLK

Tape/CD select

• To begin tape play (with a tape loaded into the audio system) while in the radio or CD mode, press the TAPE control. Press the button during rewind or fast forward to stop the rewind or fast forward function.

• To begin CD play (if CD is loaded), press the CD control. The first track of the disc will begin playing. If returning from radio or tape mode, CD play will begin where it stopped last.

CD units are designed to play commercially pressed 12 cm (4.75 in) audio compact discs only. Due to technical incompatibility,

TAPE CD

Page 34

Entertainment Systems

certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ball point pens may damage CDs. Please contact your dealer for further information.

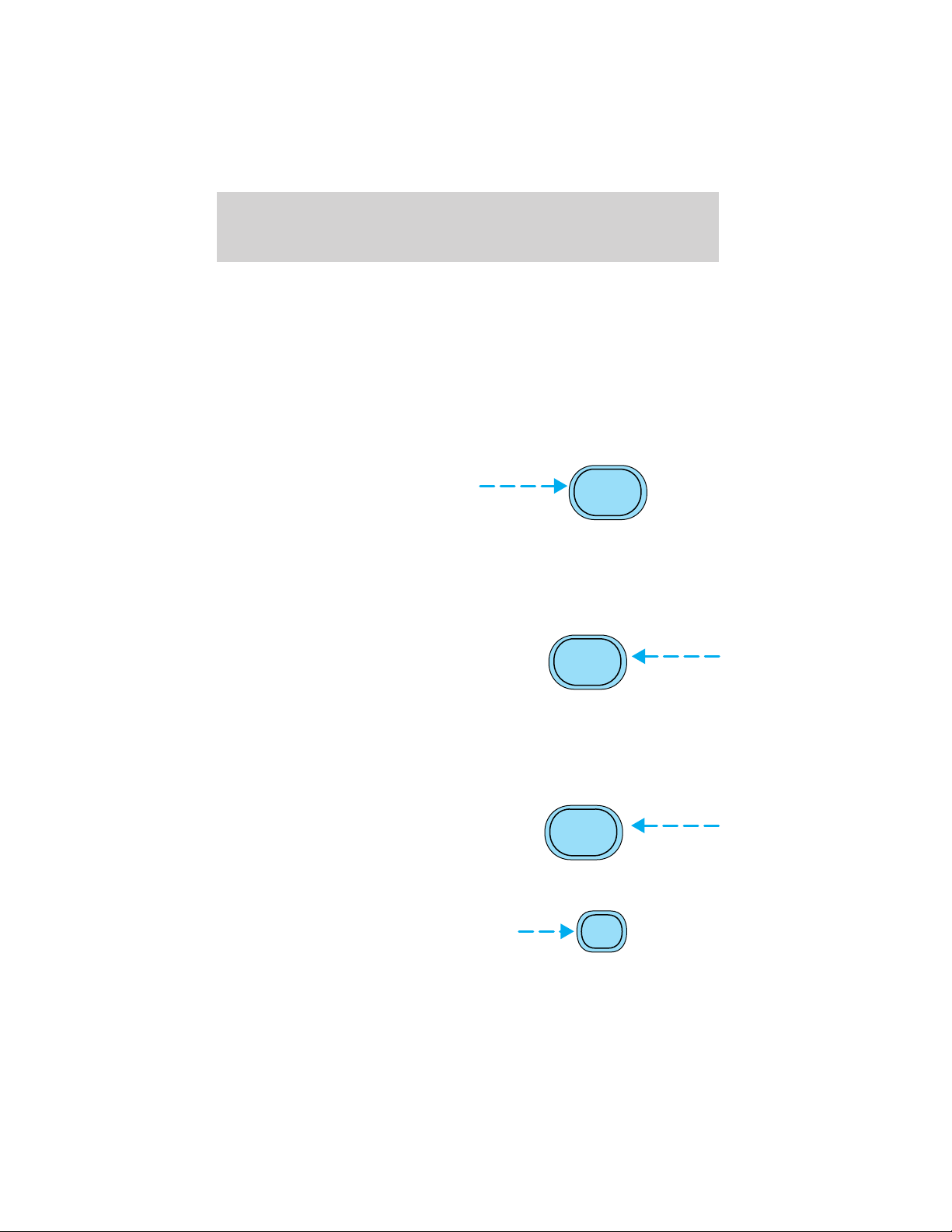

Rewind

The rewind control works in tape and CD modes.

• In tape mode, radio play will continue until rewind is stopped (with the TAPE control) or the beginning of the tape is reached.

• In CD mode, pressing the REW control rewinds the CD within the current track.

Fast forward

The fast forward control works in tape and CD modes.

• In the tape mode, tape direction will automatically reverse when the end of the tape is reached.

• In CD mode, pressing the FF control fast forwards the CD within the current track.

REW

Tape direction select

Press to play the alternate side of the tape.

Eject function

Press the EJ control to stop and eject a tape.

SIDE 1-2

Page 35

Entertainment Systems

Press the EJ control to stop and eject a CD.

Dolby姞 noise reduction

Dolby威 noise reduction operates in tape mode. Dolby威 noise reduction reduces the amount of hiss and static during tape playback.

Press the reduction.

Dolby威 noise reduction is manufactured under license from Dolby威 Laboratories Licensing Corporation. “Dolby威” and the double-D symbol Corporation.

Compression adjust

Compression adjust brings soft and loud CD passages together for a more consistent listening level.

Press the COMP control to activate and deactivate compression adjust.

control to activate (and deactivate) the Dolby威 noise

are registered trademarks of Dolby威 Laboratories Licensing

COMP

Shuffle feature

The shuffle feature operates in CD mode and plays all tracks in random order.

Press the SHUFFLE control to start this feature. Random order play will continue until the SHUFFLE control is pressed again.

SHUFFLE

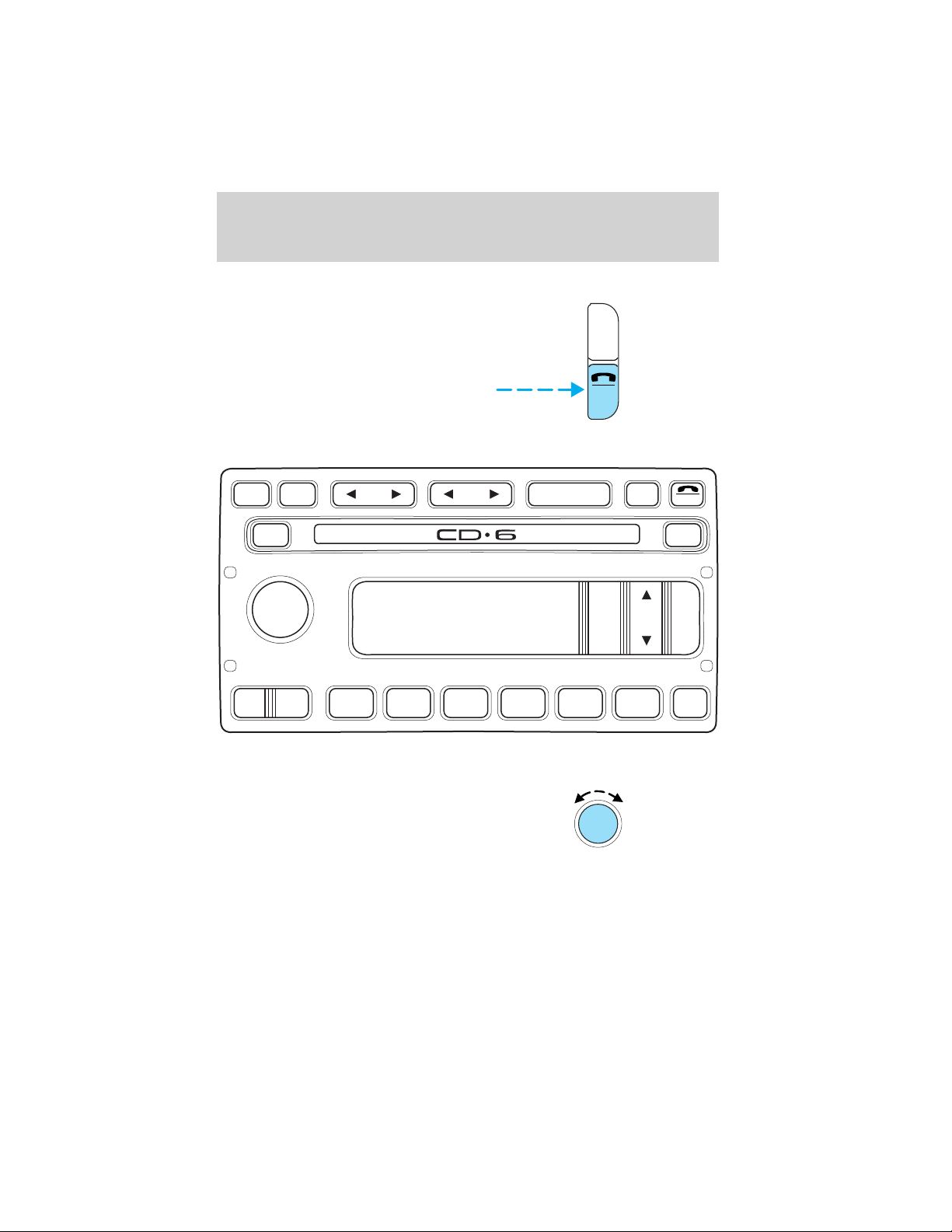

Page 36

Entertainment Systems

Mute mode

Press the MUTE control to mute the playing media. Press the MUTE control again to return to the playing media.

PREMIUM AM/FM STEREO IN DASH SIX CD RADIO

MUTE

SHUF COMP

SCAN

LOAD

PUSH ON

DISC

TUNE

SEEK REW FF

1 2 3 4 5 6

MUTE

BALBASS

SEL

FADETREB

Volume/power control

Press the control to turn the audio system on or off. Turn the control to raise or lower volume.

PUSH ON

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

Page 37

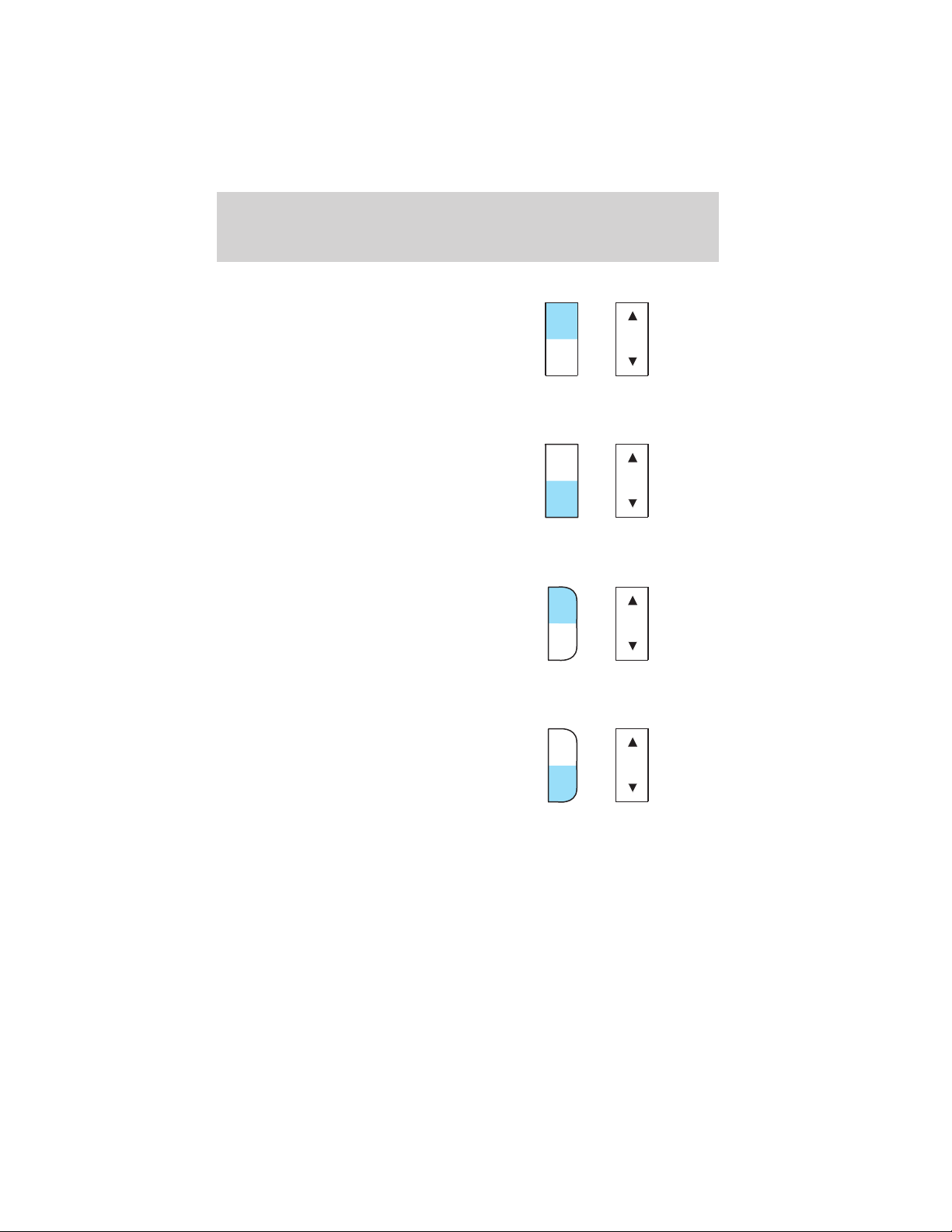

Bass adjust

The bass adjust control allows you to increase or decrease the audio system’s bass output.

Press the BASS control. Use the SEL control to increase or decrease the amount of bass.

Treble adjust

The treble adjust control allows you to increase or decrease the audio system’s treble output.

Press the TREB control. Use the SEL control to increase or decrease the amount of treble.

Speaker balance adjust

Speaker sound distribution can be adjusted between the right and left speakers.

Press the BAL control. Use the SEL control to adjust the sound between the left and right speakers.

Entertainment Systems

BASS

SEL

TREB

BASS

SEL

TREB

BAL

SEL

FADE

Speaker fade adjust

Speaker sound can be adjusted between the front and rear speakers.

Press the FADE control. Use the SEL control to adjust the sound between the front and rear speakers.

Seek function

The seek function works in radio or CD mode.

BAL

FADE

SEL

Page 38

Entertainment Systems

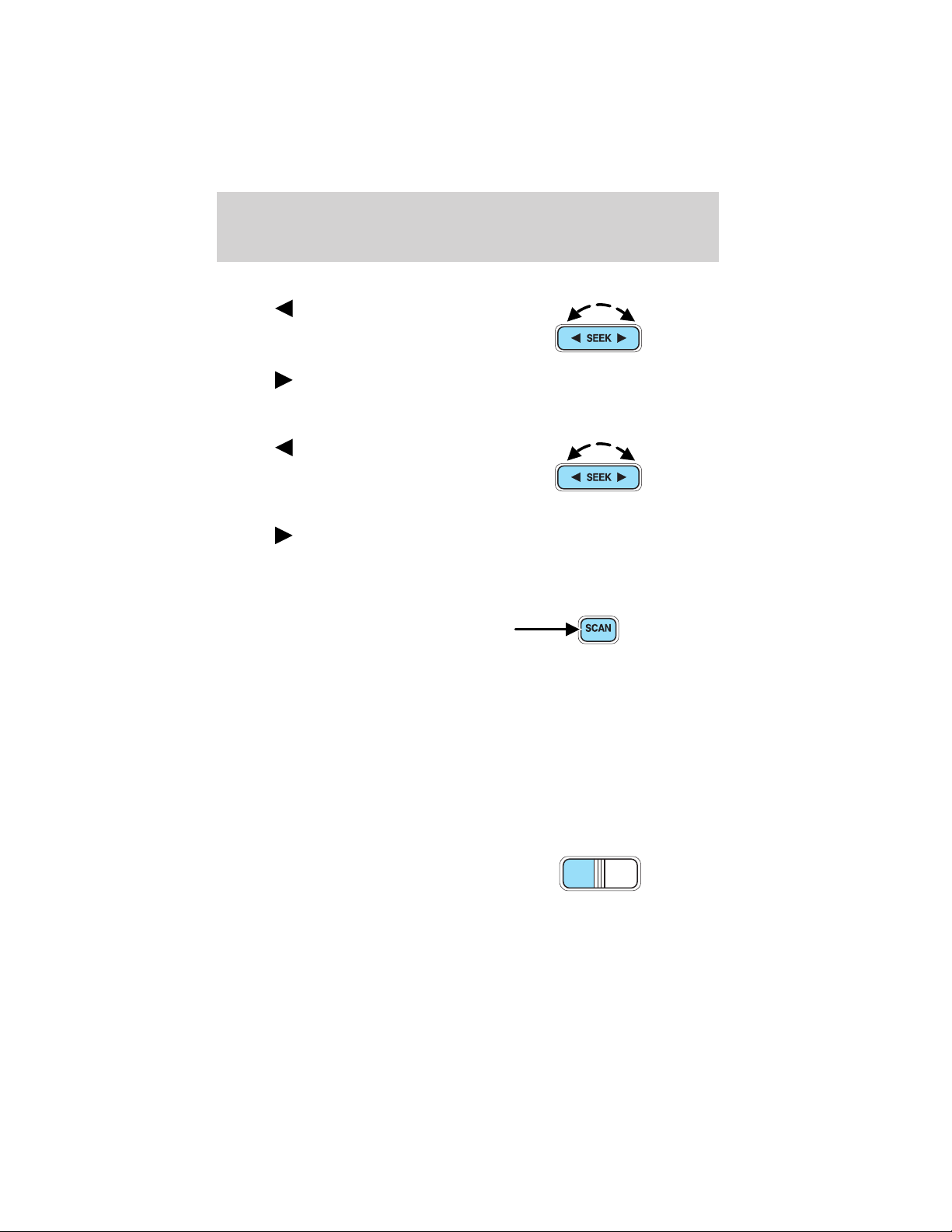

Seek function in radio mode

• Press listenable station down the frequency band. SEEK DOWN will display.

• Press SEEK UP will display.

Seek function in CD mode

• Press track of the current disc. If the beginning of the disc is reached, the CD player seeks to the beginning of the last track on the current disc and begins playing.

• Press the last track has been completed, the first track of the current disc will automatically replay.

Scan function

The scan function works in radio or CD mode.

Scan function in radio mode

Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the SCAN control again to stop the scan mode.

Scan function in CD mode

AM/FM select

The AM/FM select control works in radio and CD modes.

to find the next

to find the next listenable station up the frequency band.

to seek to the previous

to seek forward to the next track of the current disc. After

AM/FM select in radio mode

This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations.

Page 39

Entertainment Systems

AM/FM select in CD mode

Press this control to stop CD play and begin radio play.

Radio station memory preset

The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations (six in FM1 and six in FM2).

Setting memory preset stations

1. Select the frequency band with the AM/FM select control. Press the

AM/FM control to toggle between AM, FM1, or FM2.

2. Press the SEEK control to access the next listenable station up or

down the frequency band. Press the TUNE control to go up or down the listening band in individual increments.

3. Select a station. Refer to Seek function for more information on

selecting a station.

4. Press and hold a memory preset control. The playing media will mute

momentarily. When the sound returns, the station is held in memory on the control you selected. The display will read SAVED.

Autostore

Autostore allows you to set the strongest local radio stations without losing your original manually set preset stations. This feature is helpful on trips when you travel between cities with different radio stations.

Starting autostore

1. Press and momentarily hold the AM/FM control.

2. AUTOSET will flash in the display

as the frequency band is scrolled

AM FM

through.

3. When the six strongest stations are filled, the station stored in

memory preset control 1 will start playing.

If there are fewer than six strong stations available on the frequency band, the remaining memory preset controls will all store the last strong station available.

Page 40

Entertainment Systems

To deactivate autoset and return to your audio system’s manually set memory stations, press the AM/FM control again.

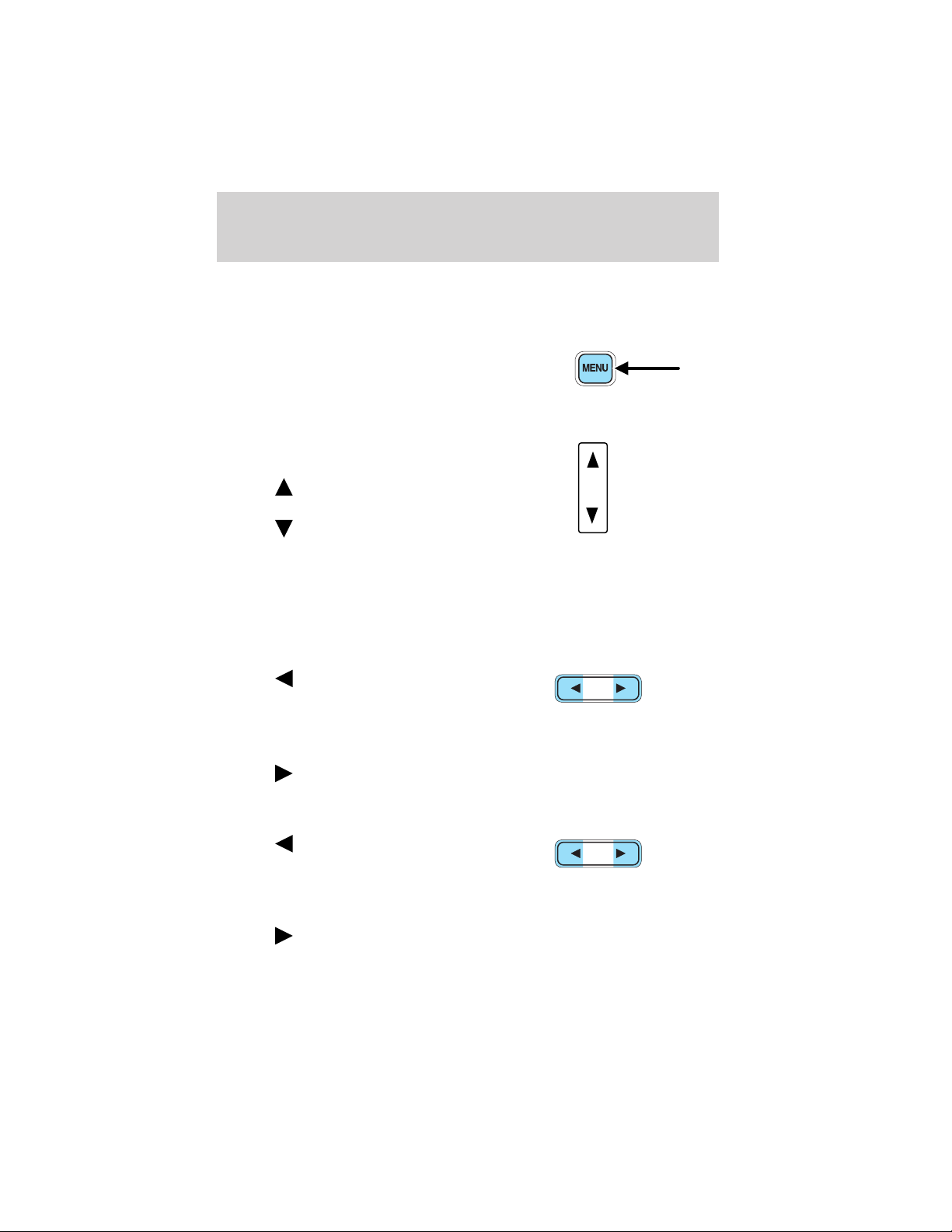

Setting the clock

Press the MENU control until SELECT HOUR or SELECT MINUTE is displayed. (The menu mode must be engaged to enable clock mode).

Use the SEL control to manually set the time.

• Press

to increase

hours/minutes.

• Press

to decrease

hours/minutes.

Press the MENU control again to disengage the clock mode.

Tune/disc adjust

The tune control works in radio or CD mode.

Tune adjust in radio mode

• Press

to move to the next frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.

• Press

to move to the next frequency up the band (whether or not a listenable station is located there). Hold for quick movement.

SEL

DISC

TUNE

Disc adjust for CD mode

• Press disc. (Play will begin on the first

to select the previous

DISC

TUNE

track of the disc unless shuffle mode is engaged.) Refer to Shuffle feature for more information. Hold the control to continue reversing through the discs.

• Press

to select the next disc. Hold the control to fast-forward

through the remaining discs.

Page 41

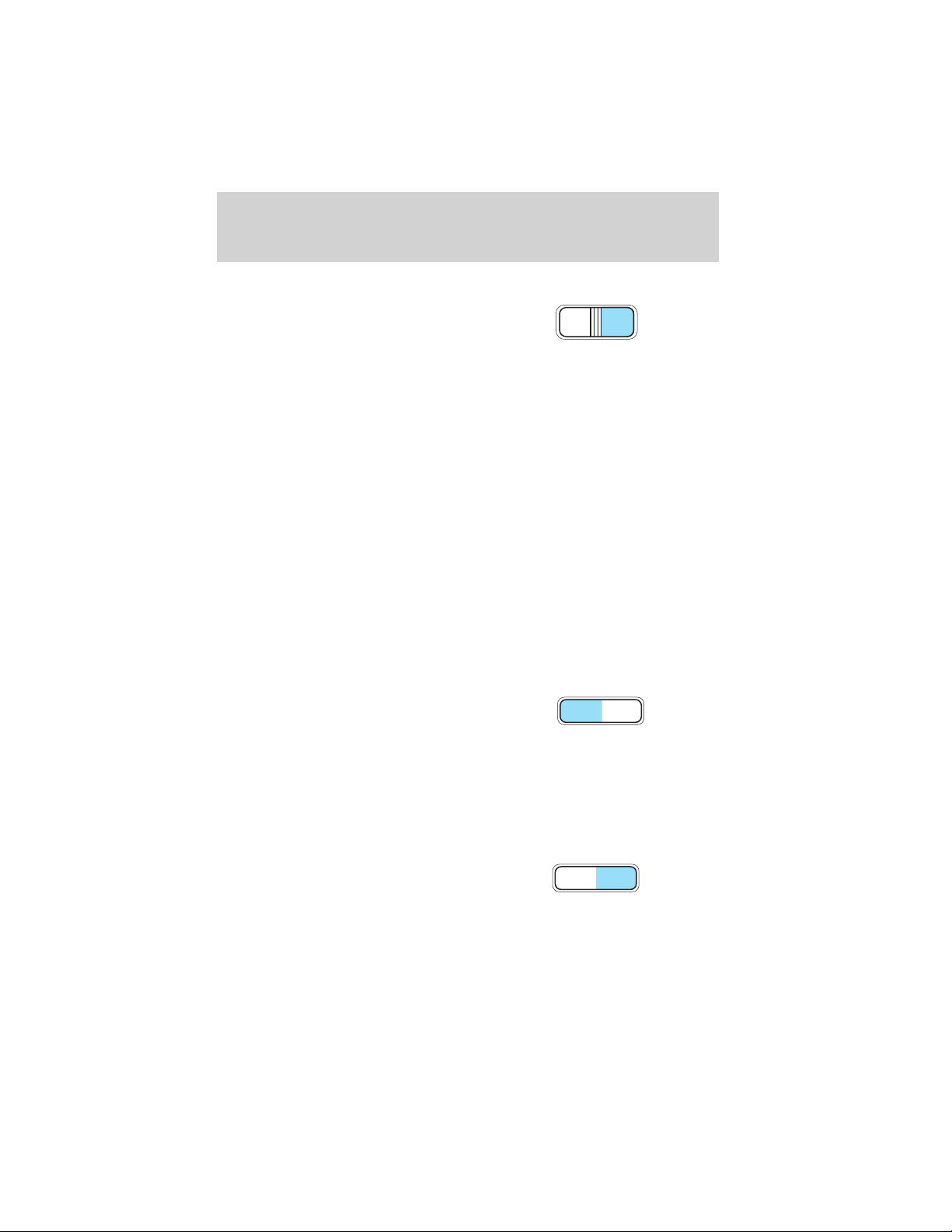

Entertainment Systems

CD select

CD mode may be entered by pressing the CD control and the LOAD control. Load the CD into the audio system. The first track of the disc will begin playing. After that, CD play will begin where it stopped last.

If an alternative CD is desired, press the corresponding preset control (1–6) of a loaded CD, or press the TUNE control to access the other loaded CDs.

NO CD will display if the CD control is activated when there is not a CD present in the audio system.

NO CD will illuminate in the display if the CD control and a present number (that is currently empty) are pressed. The system will play the next available disc.

If your vehicle is equipped with a CD changer, pressing the CD control again will allow you to toggle between accessing the multi disc system and the CD changer. The display will read CD or CDDJ.

Display description

Six circles are always lit in the digital display. These signify the six CD slots in the audio system. When a disc is loaded into a particular slot (1–6), the number inside that specific circle lights. If the circle is empty, there is no CD in that particular slot.

Rewind

The rewind control works in CD modes.

Press and hold the REW control until the desired selection is reached. If the beginning of the disc is reached, the CD will begin play at the first track. Release the control to disengage rewind mode.

When in rewind mode, your audio system will automatically lower the volume level of the playing media.

Fast forward

The fast forward control works in CD modes.

Press and hold the FF control until the desired selection is reached. If the end of the disc is reached, the CD will return to the first track. Release the control to disengage fast forward mode.

REW FF

Page 42

Entertainment Systems

When in fast forward mode, your audio system will automatically lower the volume level of the playing media.

Load

The load feature allows you to load single CDs into the player internal to the radio.

This six disc CD player is equipped with a CD door. Compact discs should only be inserted into the player after the CD door has been opened by the player. Do not attempt to force the door open. Compact discs should only be loaded by pressing the LOAD control.

Press the LOAD control. (You can choose which slot will be loaded by pressing the desired preset number. If you do not choose a slot, the system will choose the next available one.) Wait until the CD door opens. Load the CD into the player. LOADING CD# is displayed. When the CD has been loaded, the door will close and the CD will begin to play. For example, to load a CD into slot 2, press the LOAD control and then press preset 2.

Auto load

This feature allows you to autoload up to 6 discs into the multi disc CD player internal to the radio.

Press and hold the LOAD control until AUTOLOAD # is displayed. The CD door will open. Load the desired discs, one at a time. The CD is loaded into position and the audio system will display CD#. Each time the CD door opens, INSERT CD# is displayed. The door will close and the player will move to the next slot after each disc has been loaded. The process is repeated until all 6 slots are full. The audio system plays the last CD loaded and the display is updated. If some slots are already full and autoload is activated, the system will fill all empty slots.

LOAD

Eject

Press the EJ control to stop and eject a CD. You can choose which

CD will be ejected by pressing the EJ control and the desired preset number (1–6). For example, to eject CD 2, press the EJ control and then press the preset 2 control. If you do not choose a specific CD, the player will eject the current CD.

Page 43

Entertainment Systems

If a CD is ejected and not removed from the door of the CD player, the player will automatically reload the CD. This feature may be used when the ignition is ON or OFF.

Auto eject

Press and momentarily hold the EJ control to engage auto eject. All CDs which are present in the player will be ejected one at a time. If a CD is ejected and not removed from the door of the CD player, the player will automatically reload the CD. This feature may be used when the ignition is ON or OFF.

Shuffle feature

Press the SHUF control until the desired shuffle mode is displayed. The audio system will then engage the desired shuffle mode.

When engaged, the shuffle feature has two different modes: SHUFFLE DISC and SHUFFLE TRK.

SHUFFLE DISC randomly plays tracks from all the discs presently in the audio system.

SHUFFLE TRK plays all the tracks on the current disc in random order.

Compression feature

The compression feature operates in CD mode and brings soft and loud CD passages together for a more consistent listening level.

Press the COMP control until COMP ON is displayed.

Menu mode

The MENU control allows you to access many different features within your audio system. There are three sets of menus available depending upon which mode or feature is activated.

While in FM mode, two menus are available. If RDS is turned OFF, you can access the following:

• SELECT HOURS — Refer to Setting the clock.

• SELECT MINUTES — Refer to Setting the clock.

• RDS OFF — Refer to Radio data system feature.

Page 44

Entertainment Systems

If RDS is turned ON, you can access the following:

• TRAFFIC ON/OFF-Refer to Traffic announcements.

• FIND type-Refer to Program type.

• SHOW (NAME, TYPE, NONE)- Refer to Radio data system feature.

• RDS ON— Refer to Radio data system feature.

• SELECT HOURS — Refer to Setting the clock.

• SELECT MINUTES —Refer to Setting the clock.

When in CD mode, you can access: SELECT HOURS, SELECT MINUTES or COMP ON/OFF.

SELECT HOURS, SELECT MINUTES— Allows you to adjust the hours and minutes. Refer to Setting the clock.

TRAFFIC ON/OFF— Traffic announcements can be programmed as local or distant. Refer to Traffic announcements.

RDS ON/OFF— This feature allows your audio system to receive text information from RDS-equipped FM radio stations. Refer to Radio Data

System feature.

FIND type — Allows you to select your desired FM program type and search for that selection.

SHOW — Allows you to select from NAME (displays the name of the radio station), TYPE (displays the RDS program type: rock, jazz, etc.), or NONE (deactivates the RDS display).

Radio data system (RDS) feature

This feature allows your audio system to receive text information from RDS-equipped FM radio stations.

To activate RDS:

• When in FM mode, press the MENU control until RDS OFF displays.

• Press the SEL control to engage this feature (RDS ON).

RDS features:

Once the RDS feature is on, press the MENU control to scroll through the following selections:

Traffic announcements

This feature allows you to hear traffic announcements while in CD mode. These announcements are broadcast by traffic capable RDS stations.

SEL

Page 45

Entertainment Systems

When in this mode, traffic announcements will interrupt radio and CD play.

• Press the MENU control until TRAFFIC is displayed.

• Press the SEL control to engage the feature. The display will read

TRAFFIC ON.

This feature also allows you to control the volume of traffic announcements. With the display reading TRAFFIC ON, adjust the volume using the volume control to the desired level. The volume level will show at the bottom of the display. Interrupting traffic announcements will be at the selected volume level.

To disengage the feature, press the MENU control until TRAFFIC ON displays. Press the SEL control. The display will read TRAFFIC OFF.

Traffic announcements are not available in most U.S. markets.

Program type

This feature allows you to search for RDS stations selectively by their program type.

Press the MENU control until FIND program type is displayed.

Use the SEL control to select the program type. With the feature on, use the SEEK or SCAN control to find the desired program type from the following selections:

• Classic

• Country

• Info

• Jazz

• Oldies

• R&B

• Religious

• Rock

• Soft

• To p 40

Show

This feature allows you to select the type of RDS broadcast information the radio will regularly show in the display.

SEL

Page 46

Entertainment Systems

With RDS activated, press the MENU control until SHOW is displayed.

Use the SEL control to select TYPE (displays the RDS program type: rock, jazz, etc), NAME (displays the name of the radio station) or NONE (deactivates the RDS display).

Mute mode

Press the control to mute the playing media. Press the control again to return to the playing media.

REAR SEAT ENTERTAINMENT SYSTEM (IF EQUIPPED)

Quick Start — How to get going

SEL

To operate the system:

1. Your AutoVision威 system is automatically activated when the vehicle

ignition and the audio system are ON.

2. If a movie is desired, insert a VHS cassette into the VCP and the video

should start playing.

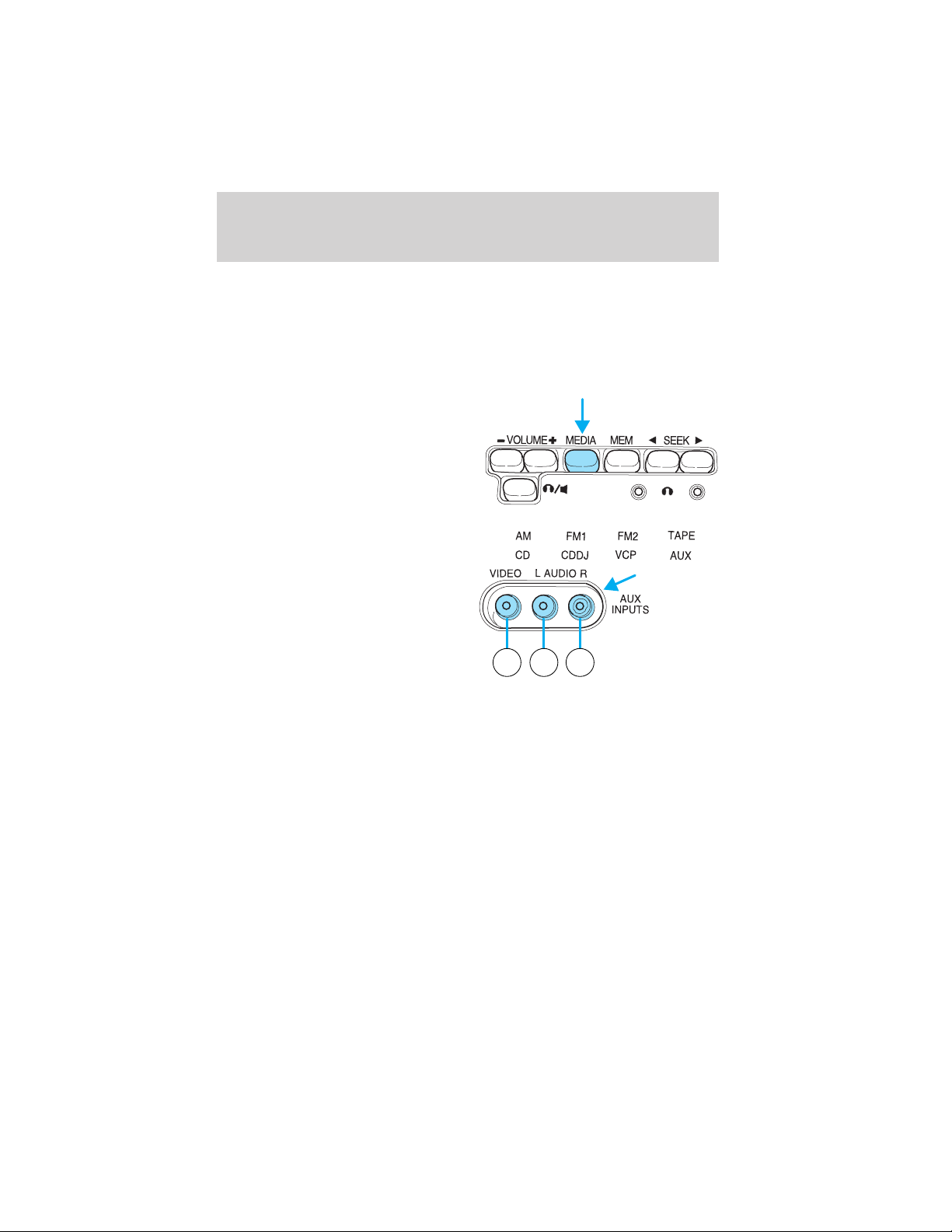

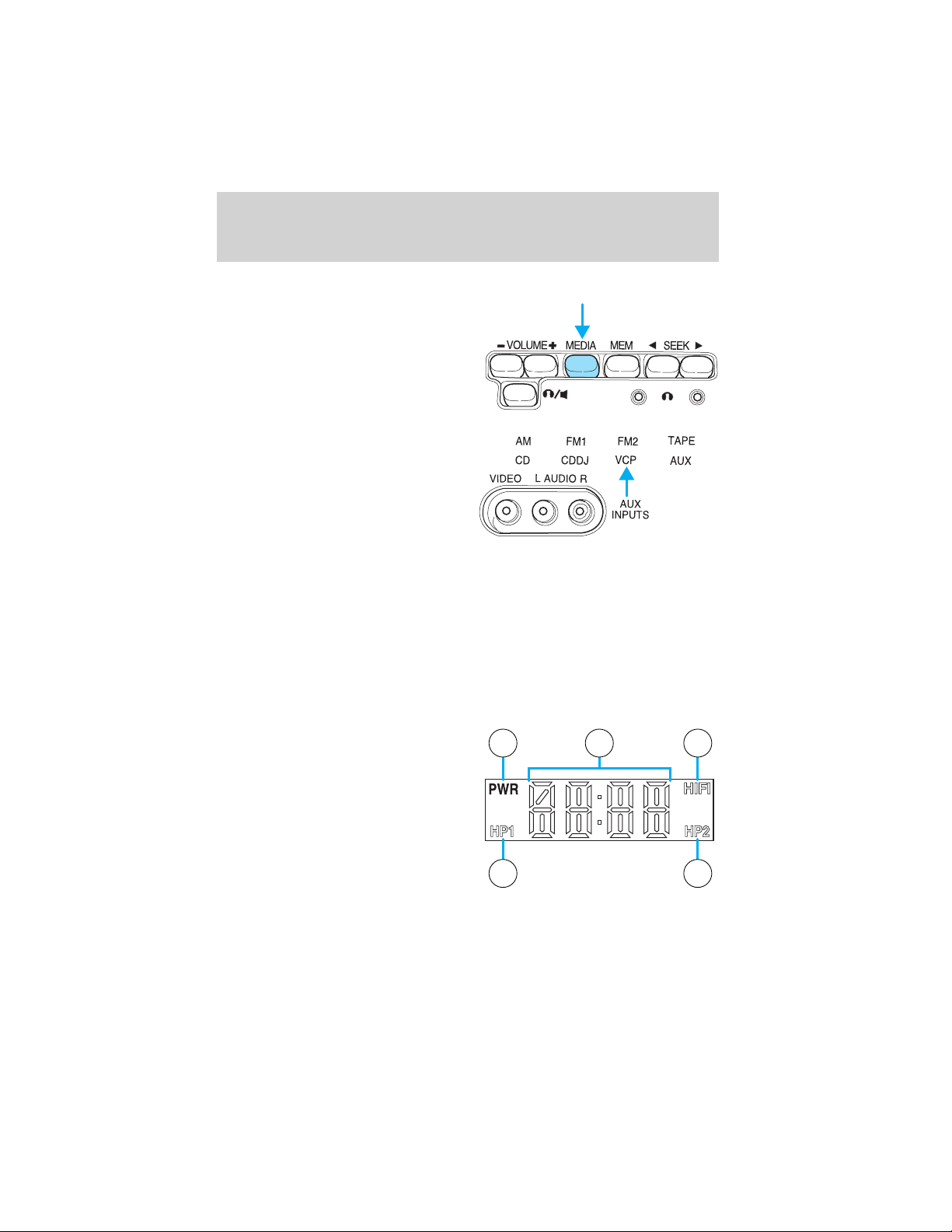

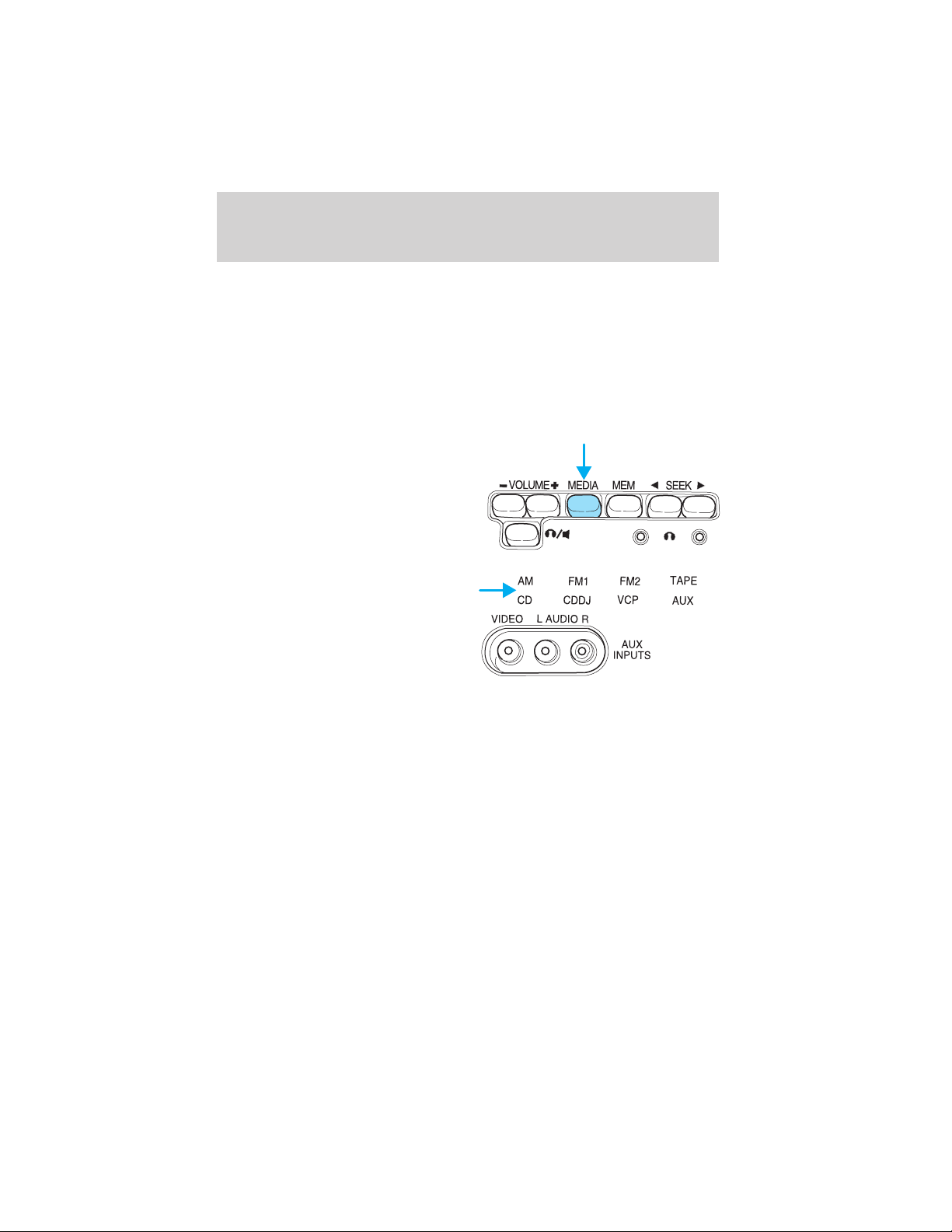

3. Press the MEDIA control to toggle to any other desired media source.

Page 47

Entertainment Systems

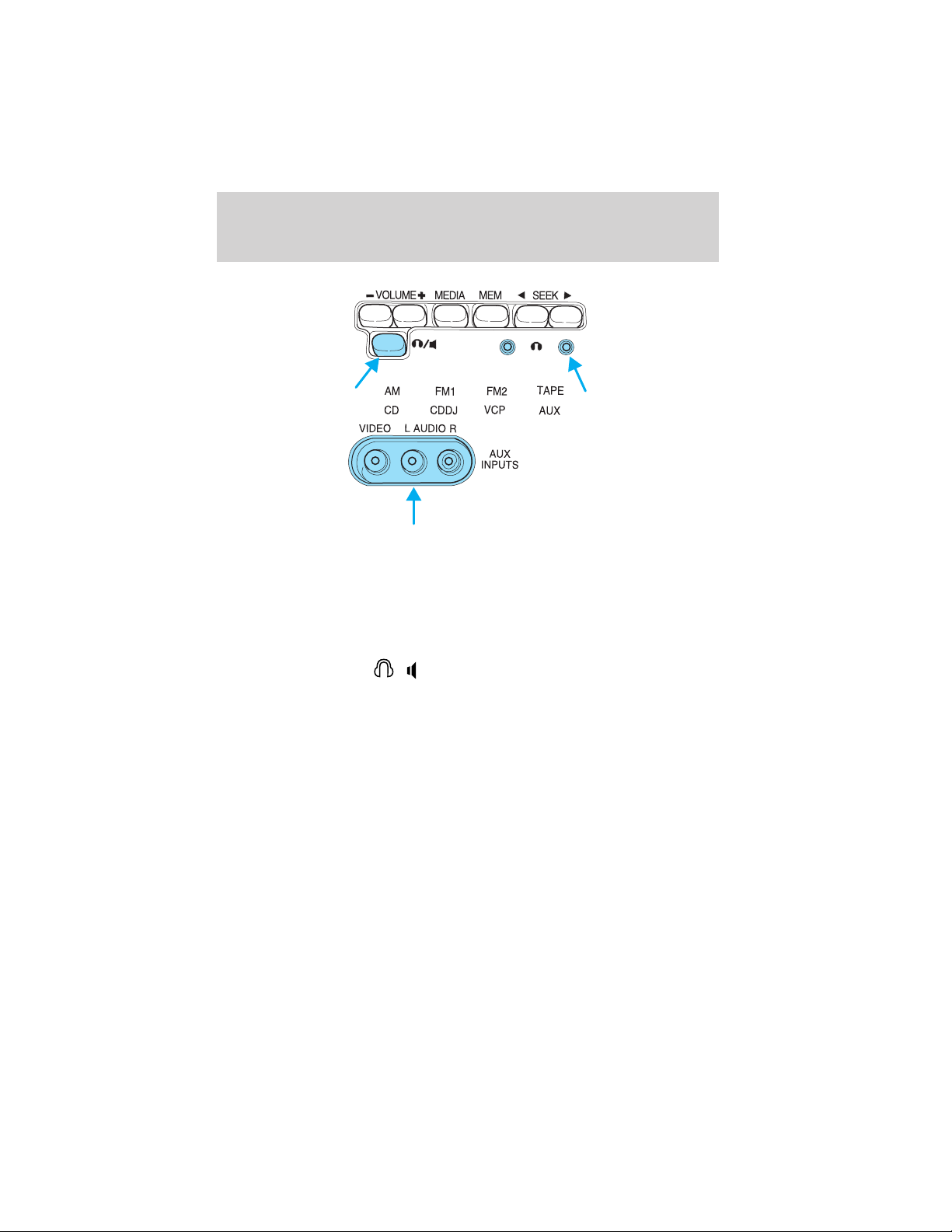

To play a video game:

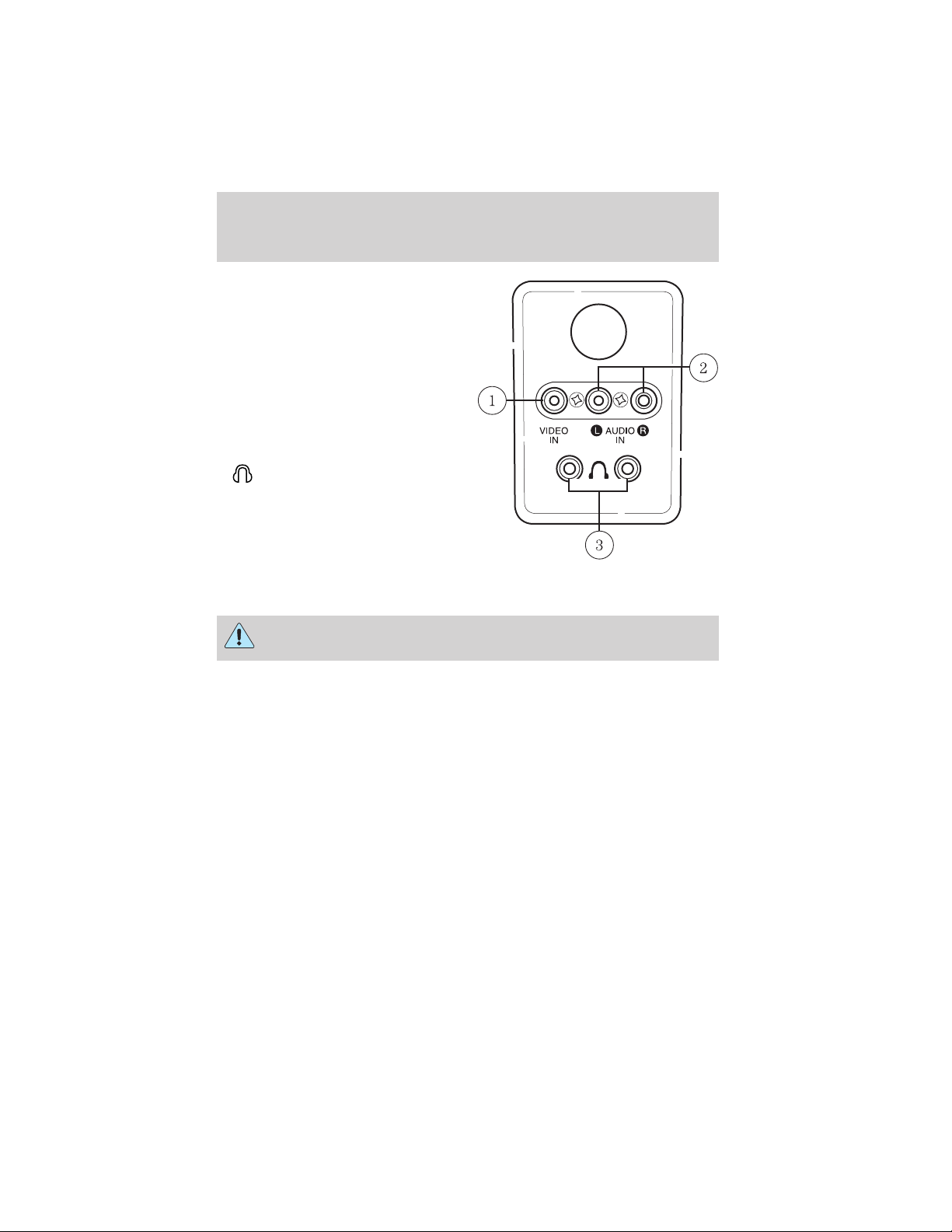

1. Connect the video line from your game device to the VIDEO jack.

2. Connect the left and right audio cables to the left (L) and right (R)

audio jacks.

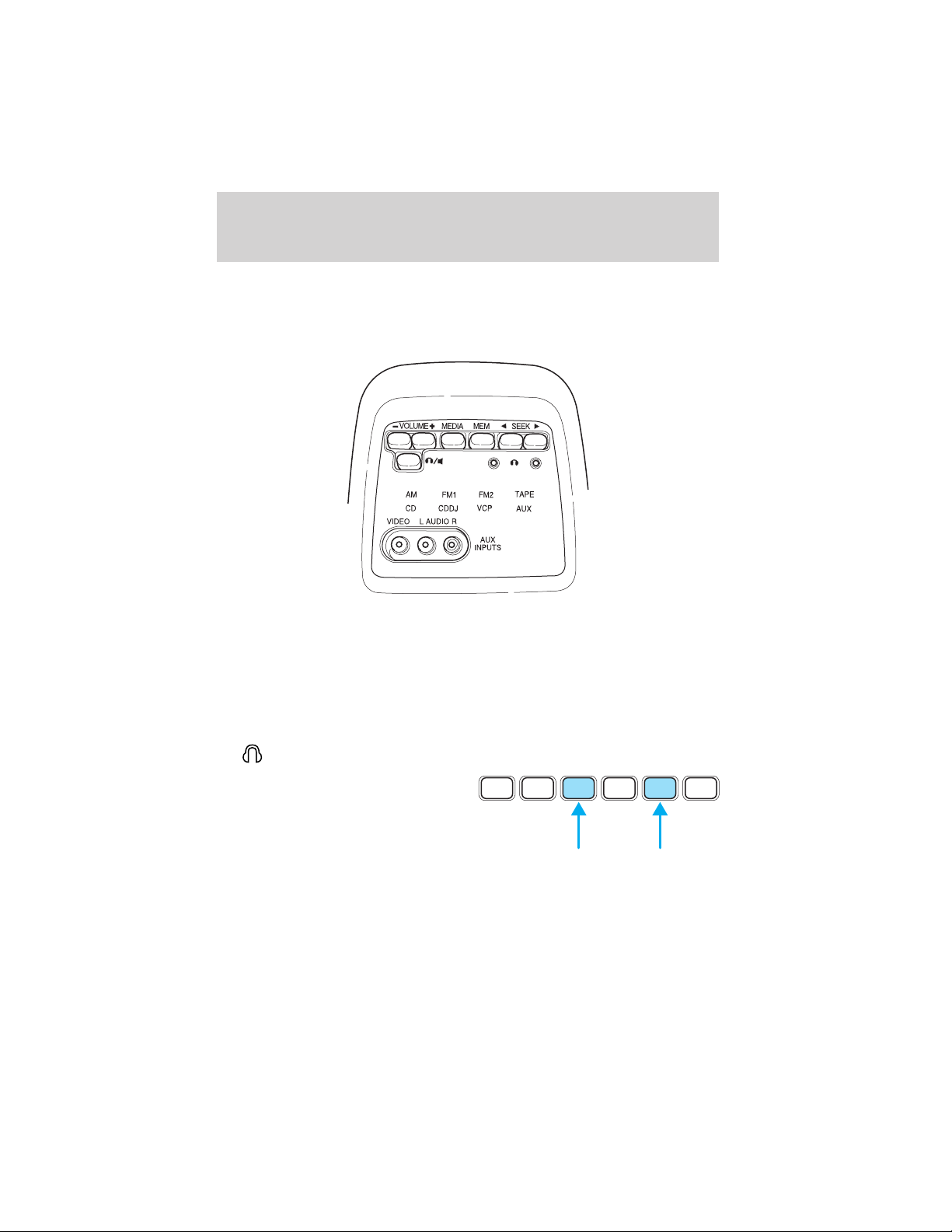

3. Ensure that the system is in AUX mode. The LCD screen will turn on

and the AUX indicator will illuminate.

4. If desired, press the

the headphone jack. With the headphones ON, the rear speakers will not operate.

Your AutoVision威 System allows you to watch movie rentals and your favorite home videocassettes. It also allows you to plug in and play a variety of standard video games. Please review this user manual to become familiar with the AutoVision威 features and controls as well as the very important safety information.

Should you have any questions regarding your AutoVision威 System, please feel free to call the toll free assistance hotline at 1 (877) 848–6434.

/ control and plug a 3.5mm headphone into

Safety information

Read all of the safety and operating instructions before operating the system and retain for future reference.

Do not attempt to service, repair or modify the AutoVision威 System. See your Ford or Lincoln Mercury dealer.

Page 48

Entertainment Systems

Do not insert foreign objects into the videocassette player (VCP) tape cassette compartment.

The front glass on the liquid crystal display may break when hit

with a hard surface. If the glass breaks, do not touch the liquid crystalline material. In case of contact with skin, wash immediately with soap and water.

The driver must not attempt to operate any function of the floor

console mounted VCP while the vehicle is in motion. Give full attention to driving and to the road. Pull off the road and park in a safe place before inserting or extracting video tapes from the VCP. A remote control is included in the system to allow the rear seat occupants to operate the VCP functions without distracting the driver.

Be sure to review User Manuals for video games and video game equipment when used as auxiliary inputs for your AutoVision威 System.

Do not operate video games or video equipment if the power cords and/or cables are broken, split or damaged. Carefully place cords and/or cables where they will not be stepped on or interfere with the operation of seats and/or compartments.

Disconnect video games and video equipment power cords and/or cables when not in use.

Avoid touching auxiliary input jacks with your fingers. Do not blow on them or allow them to get wet or dirty.

Do not clean any part of the AutoVision威 system with benzene, paint thinner or any other solvent.

Federal Communication Commission (FCC) Compliance

Changes or modifications not approved by Ford Lincoln Mercury could void user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference and radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference

Page 49

Entertainment Systems

to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to consult the dealer or an experienced radio/TV technician for help.

Care of the videocassette player (VCP)

Environmental extremes

Videocassette players subjected to harsh environmental conditions may be damaged or perform at less than maximum capability. To avoid these outcomes, avoid leaving the VCP:

• in extremely hot or cold temperatures.

• in direct sunlight.

• in high humidity.

• in a dusty environment.

• in locations where strong magnetic fields are generated.

• on a surface that is instable or subject to vibrations.

Temperature extremes

When the vehicle is parked under direct sunlight or in an extremely cold place for a long period of time, wait until the cabin temperature of the vehicle is at normal temperature before operating the system.

High/low temperature sensor circuit

• Excessively high or low temperatures may cause damage to the VCP.

• When the temperature of the VCP becomes too high or low, the

temperature sensor circuit stops machine operation, ejects the cassette and the WAIT indicator illuminates. The lamp will remain illuminated until the system has returned to a safe operating temperature.

Humidity and moisture condensation

Moisture in the air will condense in the VCP under extremely humid conditions or when moving from a cold place to a warm one. Moisture condensation on the tape playback head drum may damage the videocassette and/or drum. If moisture condensation occurs, do not insert a videocassette into the player. If a videocassette is already in the player, remove it. Turn the VCP power ON to dry the moisture before inserting a videocassette. This could take an hour or more.

Dew sensor circuit

• Under high moisture (dewed) conditions, the tape heads and cassette tape may be damaged if the VCP is operated.

Page 50

Entertainment Systems

• When the vehicle’s cabin temperature is very low and then is heated quickly, or the humidity is very high within the vehicle, the inside of the windows most likely will be fogged. Under these conditions, the inside of the VCP most likely is dewed.

• When a dewed condition exists, the dew sensor circuit stops machine operation, ejects the cassette and the WAIT indicator illuminates. The lamp will remain illuminated until the system is dry enough to operate safely.

Cleaning video heads

Magnetic video heads convert the videocassette into pictures on the screen during playback. Over a period of time, particles rub off the tape and are left on the heads. Using an old or poor quality tape together with dust and air particles, high temperature and humidity cause dirty heads. Dirty heads generally cause “snowy” pictures and, in some severe cases, blurred or interrupted pictures. A variety of products are available at video stores to clean tape heads. Use these products sparingly, because some are abrasive to the video heads. If normal head cleaning procedures do not resolve the problem, have the system checked by a service technician.

Foreign substances

Exercise care to prevent dirt and foreign objects from entering the VCP compartment. Be especially careful not to spill liquids of any kind onto the media controls or into the videocassette player. If liquid is accidentally spilled onto the system, immediately turn the system OFF and consult a qualified service technician.

AutoVision姞 system

Features

• 2–head hi-fi playback

• AutoPlay feature

• Digital auto tracking

• Dual stereo headphone with electric volume control

• Self docking connection for easy mobile installation

• Latching system for secure safety

• Carrying handle for portability

• Water resistant tape door

• On screen display

• Protection circuits

Page 51

Entertainment Systems

Playback and format

• The videocassette player of your AutoVision威 system can only be used in the “playback” mode. You are not able to record with your system.

• The system plays standard videocassettes marked “VHS” (or “S-VHS).

VCP protection circuits

Tape protection circuit

• When the system is in PAUSE mode, the tape mechanism will continue to create tension on the tape.

• When the VCP is in still playback, FFWD (fast forward) or REW (reverse) mode for more than five minutes, the tape protection circuit automatically returns the system to PLAY mode to avoid damage to the tape.

Your AutoVision System is also equipped with a Dew sensor circuit and a High/low temperature sensor circuit. For more information on these circuits, please refer to Humidity and moisture condensation and Temperature extremes in this chapter.

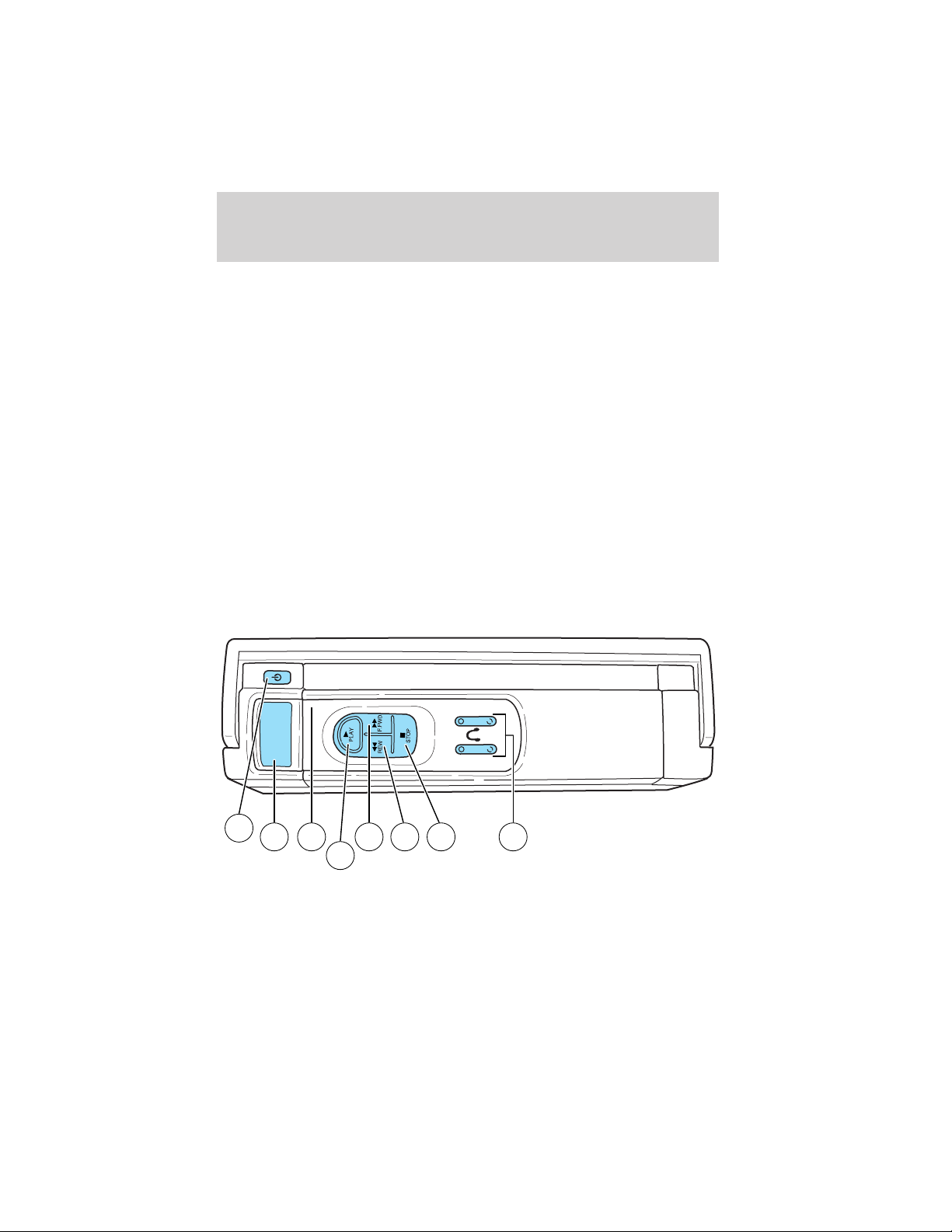

VCP controls

1 8

1. LED display

The display lamp will light up in green when power is supplied to the videocassette player.

2. POWER key

5 4 6 7

Page 52

Entertainment Systems

Press to toggle between ON/OFF. When the power is ON, other keys (PLAY, FF, REW, STOP) will illuminate.

3. PLAY key

Press to playback a videocassette tape.

4. REWIND/REVIEW button

Press to enter the reverse picture mode when in PLAYBACK mode. If in STOP mode, the tape will rewind at a high speed.

5. FAST FORWARD/CUE button

Press to enter forward picture search mode when in PLAYBACK mode. If in STOP mode, the tape will fast-forward at a high speed.

6. STOP button

Press to stop the tape.

7. HEADPHONE VOLUME UP/DOWN KEYS button

For home use only, please refer to the In-Home Use section.

8. EJECT button

Located inside the videocassette cover. Press to eject the tape.

Page 53

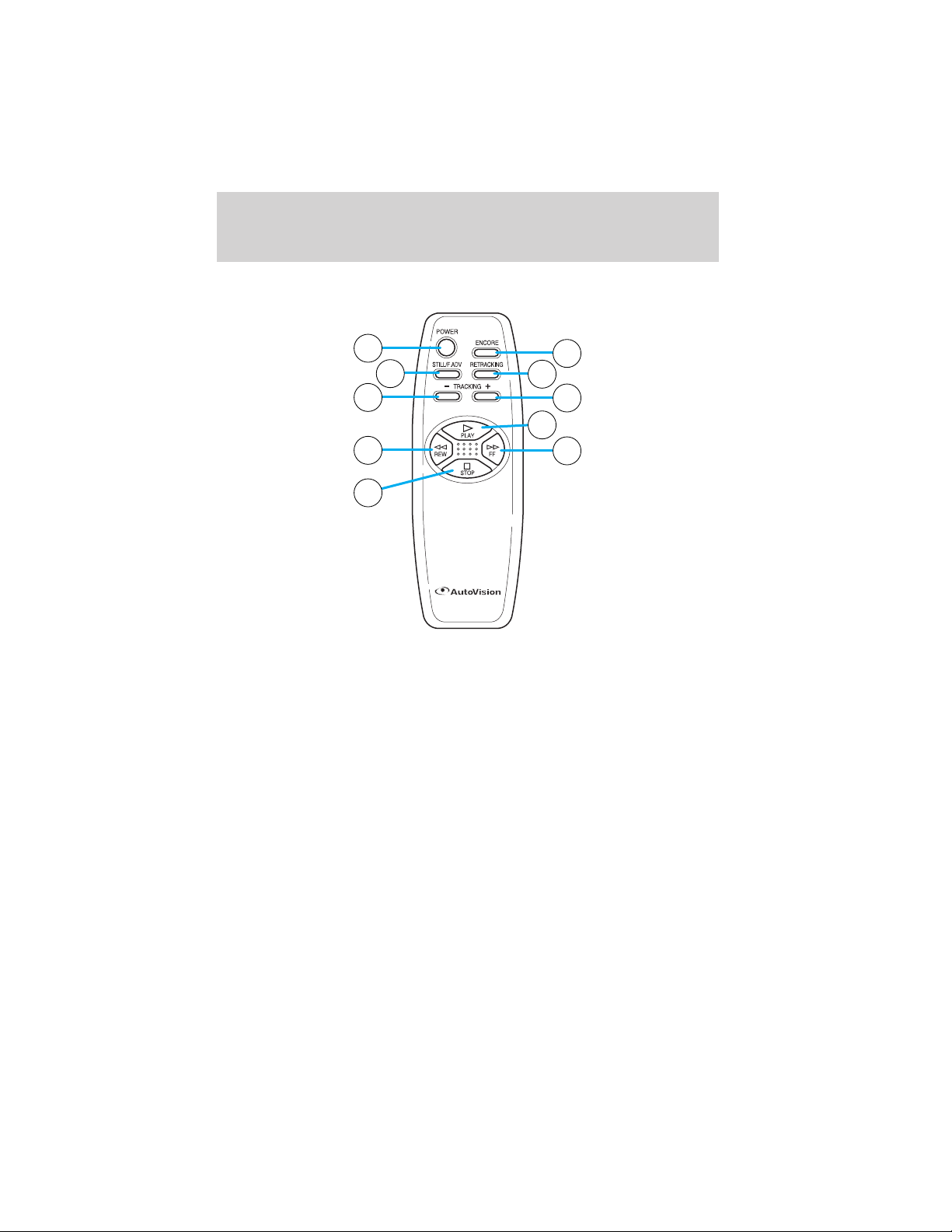

Remote control

Entertainment Systems

1. POWER button

Press to turn the videocassette player (VCP) ON or OFF.

2. ENCORE button

Press to reverse the casssette for 5 seconds. Normal playback will then resume when in PLAYBACK mode.

3. STILL/ADVANCE (frame advance button)

Press to temporarily suspend playback. Press again to make the tape advance one frame at a time.

4. RETRACKING button

Press to activate Auto Tracking in the playback mode.

5. TRACKING + button

Press for manual tape tracking.

6. TRACKING — button

Press for manual tape tracking.

Page 54

Entertainment Systems

7. PLAY button

Press to play the tape.

8. REW button

Press to rewind the tape.

9. FF button

Press to fast forward the tape.

10. STOP button

Press to stop the tape.

Battery replacement

Batteries are supplied with the remote control unit. However, they are simply for operation check and will only work for a short time.

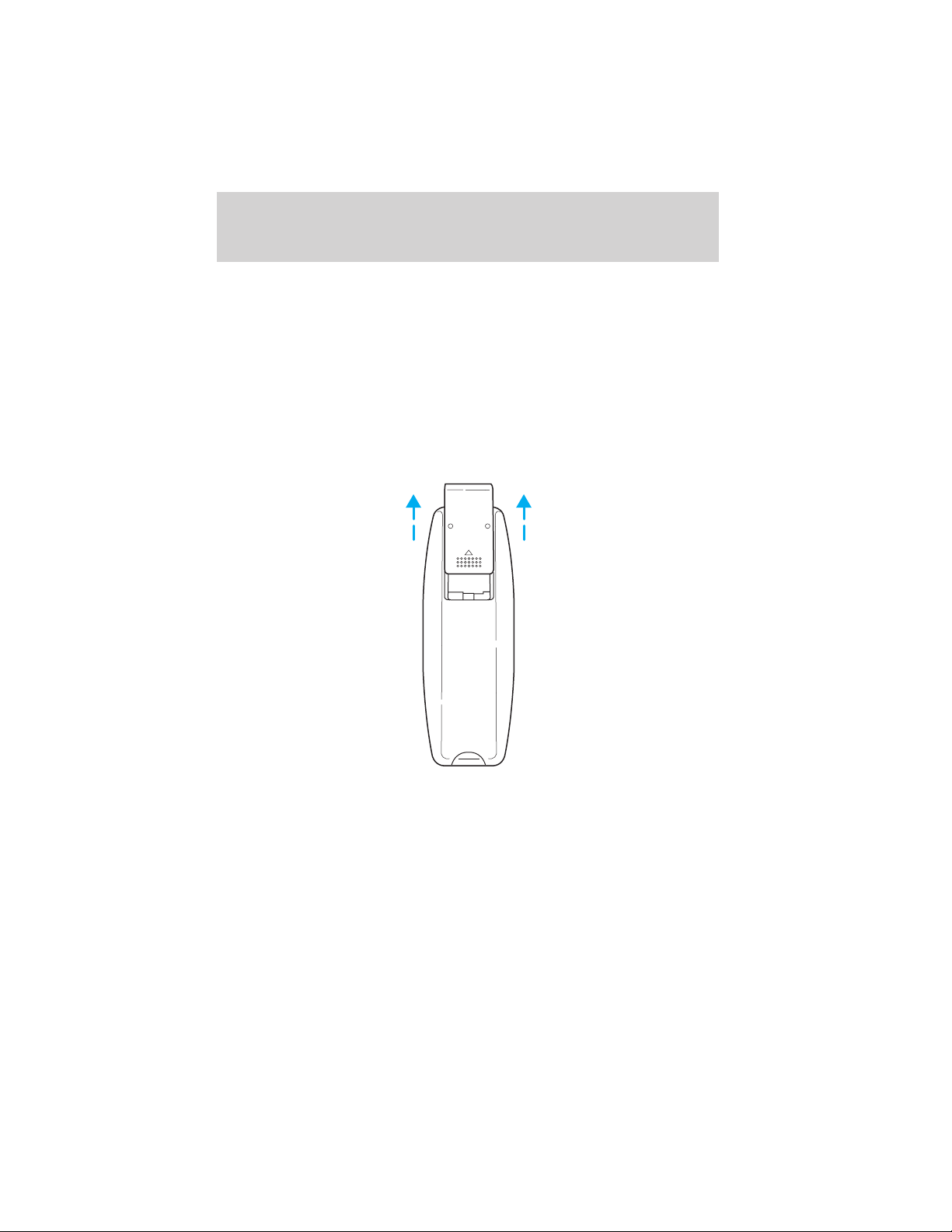

Slide battery cover off as shown on remote control to access the batteries.

The remote control unit uses two AAA batteries.

The need for battery replacement is usually indicated if the remote control only functions at extremely close distances to the entertainment center or not at all.

When replacing batteries, use two new batteries (alkaline recommended) and install with correct orientation (+ and − polarities). Ensure that you use only new batteries of the same brand.

Page 55

Entertainment Systems

If you will not be using the remote control for a considerably long time, remove the batteries.

AutoVision姞 controls

The AutoVision威 controls allow the rear seat passengers to operate the radio, tape, CD or CD DJ(if equipped).

Parental control

Your AutoVision威 system allows you to have control over the rear seat controls. The system is automatically activated when the ignition is ON. This enables rear seat passengers to play a videocassette or listen to any of the available media sources. Once the headphone mode is activated, the

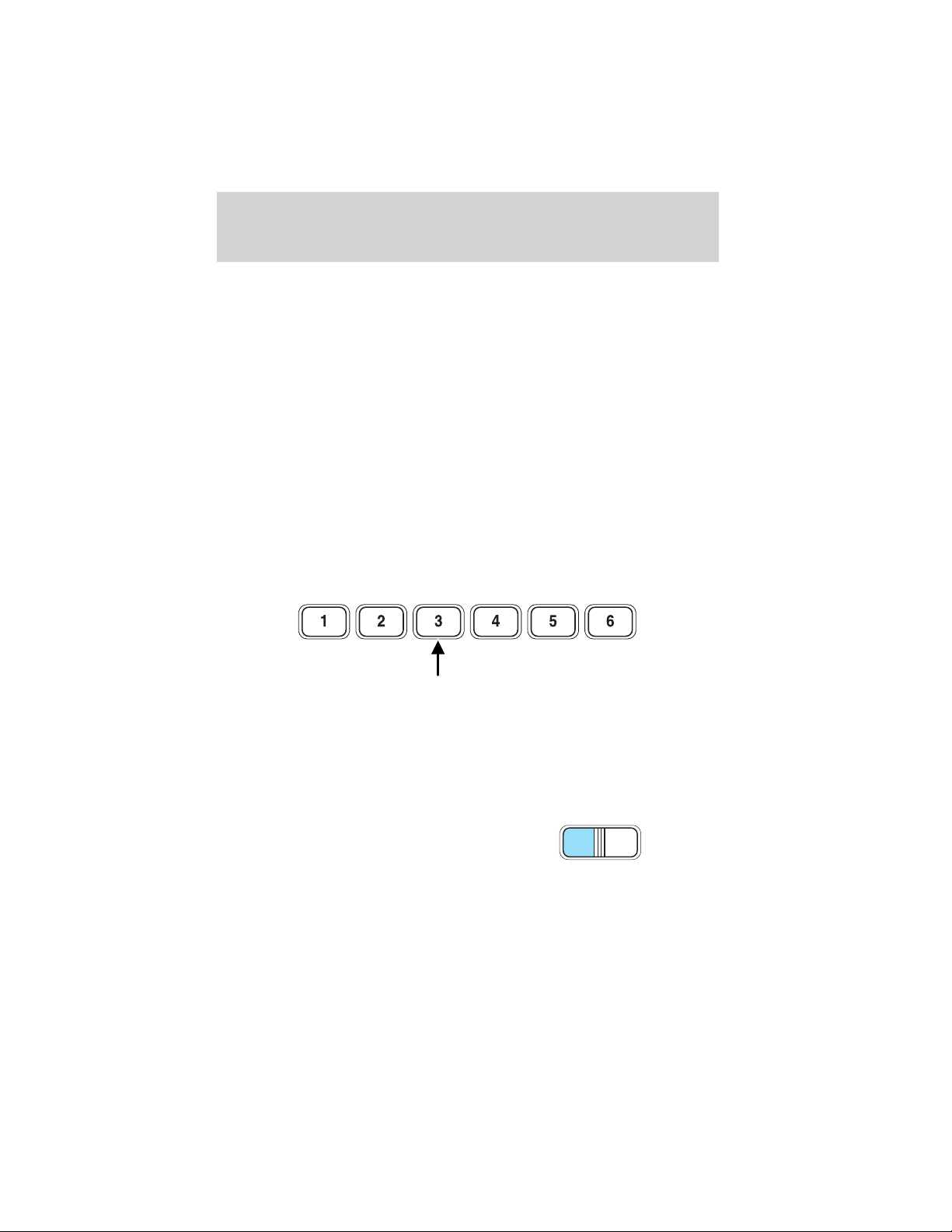

Press the memory preset controls 3 and 5 simultaneously on the front audio controls to disable the AutoVision威 controls. They will remain disabled until the front seat passengers “enable” them again by simultaneously pressing the 3 and 5 preset controls. The settings of the front seat controls will always override those of the rear seat controls.

symbol will appear in the radio display.

1 2 3 4 5 6

Page 56

Entertainment Systems

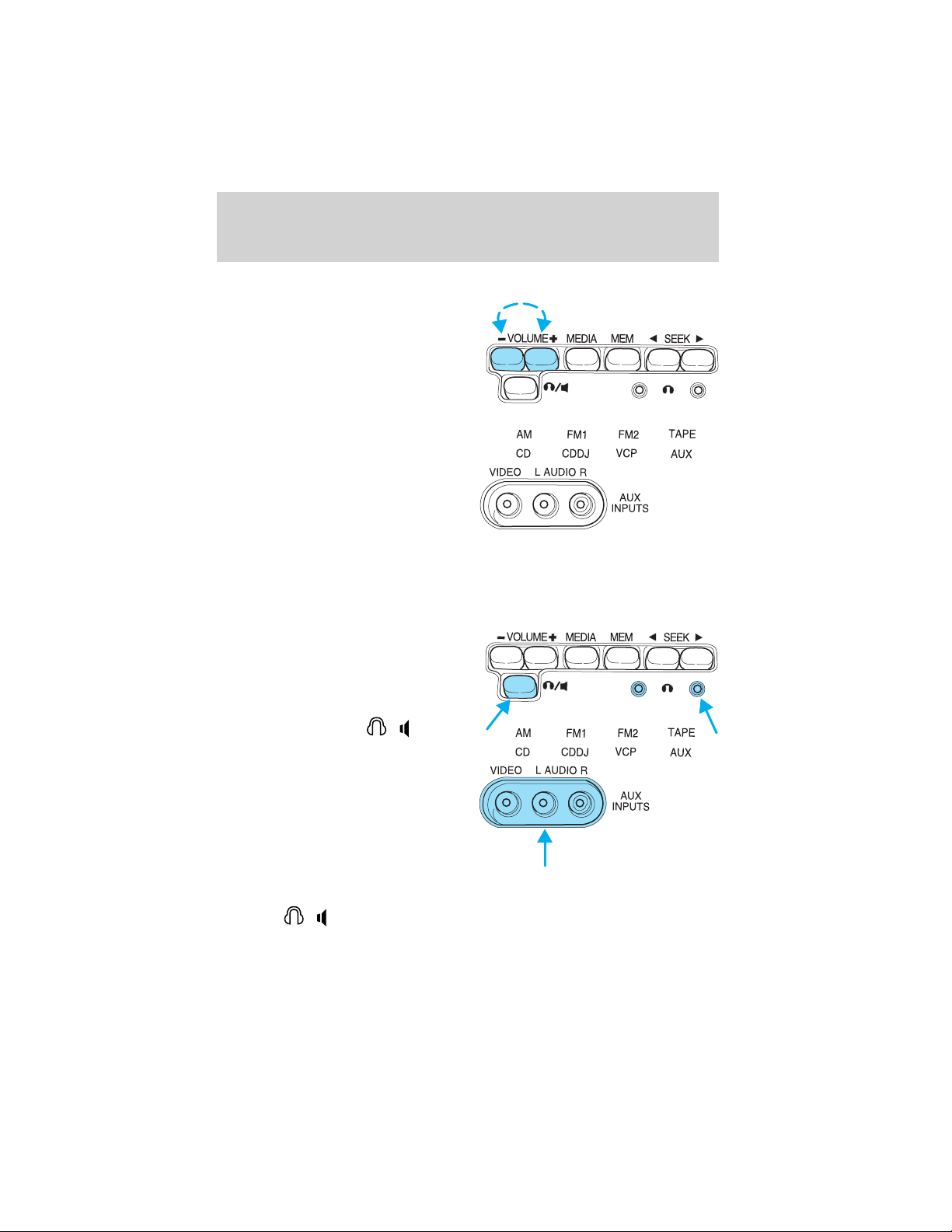

Adjusting the volume

This control allows the rear seat passengers to adjust the volume level of the audio system.

Press the + control to increase the volume.

Press the — control to decrease the volume.

From the AutoVision威 controls, the speaker volume cannot be set higher than the current volume radio setting. When in headphone mode, the AutoVision威 controls can change the volume setting to any desired level.

Using headphones/Personal Audio Feature

The Personal Audio Feature allows the rear seat passengers to listen to one media source (radio, TAPE, CD, CDDJ, VCP, or AUX) while the front seat passengers listen to another.

To activate, press the control and plug a 3.5mm

headphone into the headphone jack. With the headphones ON, the rear speakers will not operate.

Press the MEDIA control to toggle to the desired media source.

Use the SEEK, VOLUME and MEM controls to make any desired adjustments.

Press the deactivate the Personal Audio Feature.

/ control again to engage the rear speakers and

Page 57

Entertainment Systems

Speakers ON/OFF mode

With the speakers ON, you can adjust the audio output to all system speakers — front and rear together (headphones are disabled in this mode). The rear seat passengers can not raise the volume of the system above the level on the front radio bezel.

With the speakers OFF, the headphones are enabled. The rear seat passengers have control over the desired volume levels.

Media select

Press the MEDIA control to toggle between AM, FM1, FM2, TAPE, CD, CDDJ, VCP and AUX modes. When selected, the media source will illuminate.

• AM — AM radio frequency band

• FM1, FM2 — FM radio frequency bands

• TAPE — cassette tape (if equipped)

• CD — single cd player (if equipped)

• CDDJ — compact disc changer (if equipped)

• VCP — video cassette player

• AUX — auxiliary jack input

Page 58

Entertainment Systems

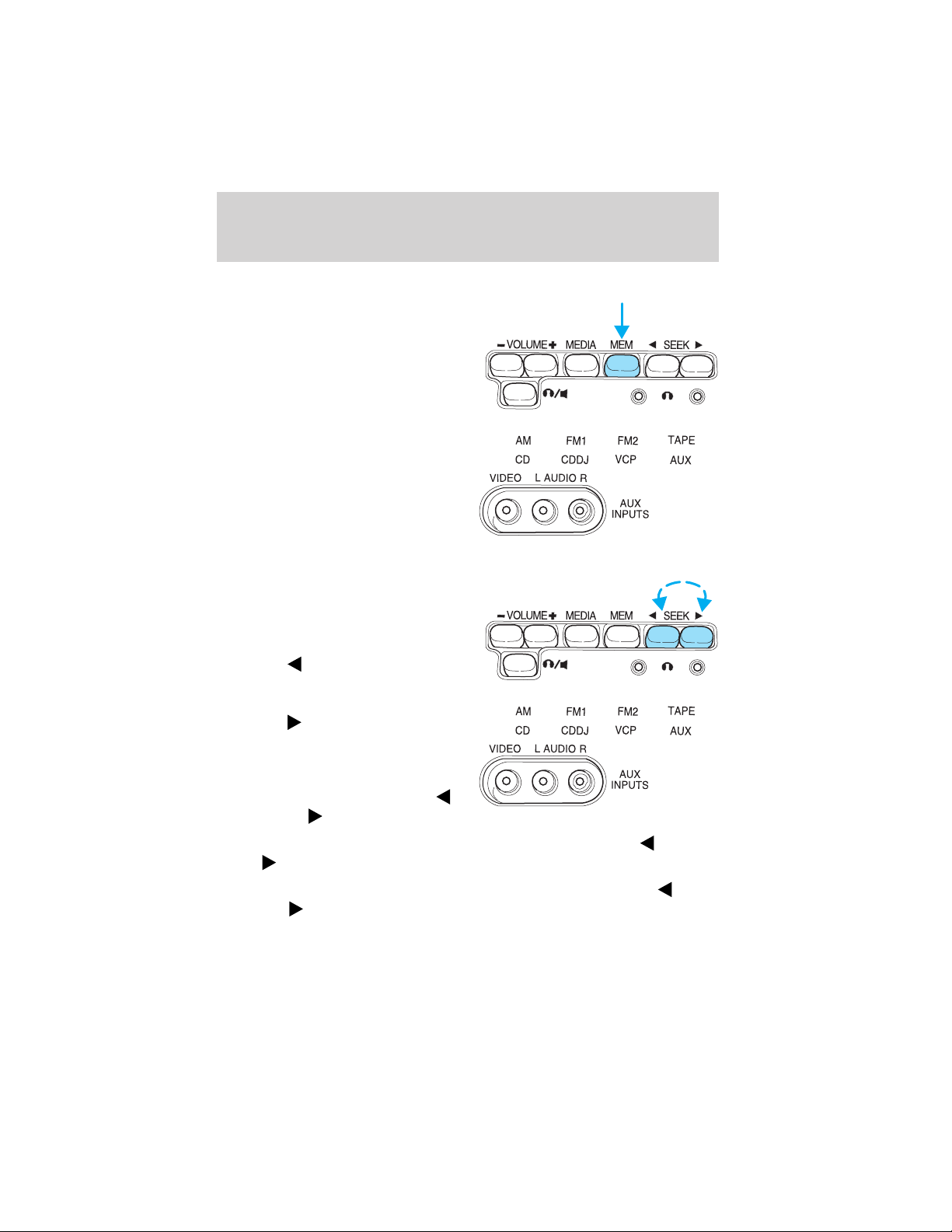

Memory preset control

In radio mode, press the MEM (Memory) control successively to scroll through the memory presets in AM, FM1 or FM2.

In CDDJ mode, press the MEM (Memory) control to select the next disc in the compact disc changer. Play will begin with the first track.

Seek function

The SEEK control has varying functions depending on which mode is enabled.

In radio mode (AM, FM1, FM2):

Press the next listenable station down the frequency band.

Press the next listenable station up the frequency band.

In tape mode, press the SEEK control to access the previous (

or the next (

control to find the

) selection.

)

In CD mode, press the SEEK control to access the previous ( next (

In CDDJ mode, press the SEEK control to access the previous ( the next (

) track.

) track of the currently selected disc.

)orthe

)or

Page 59

Entertainment Systems

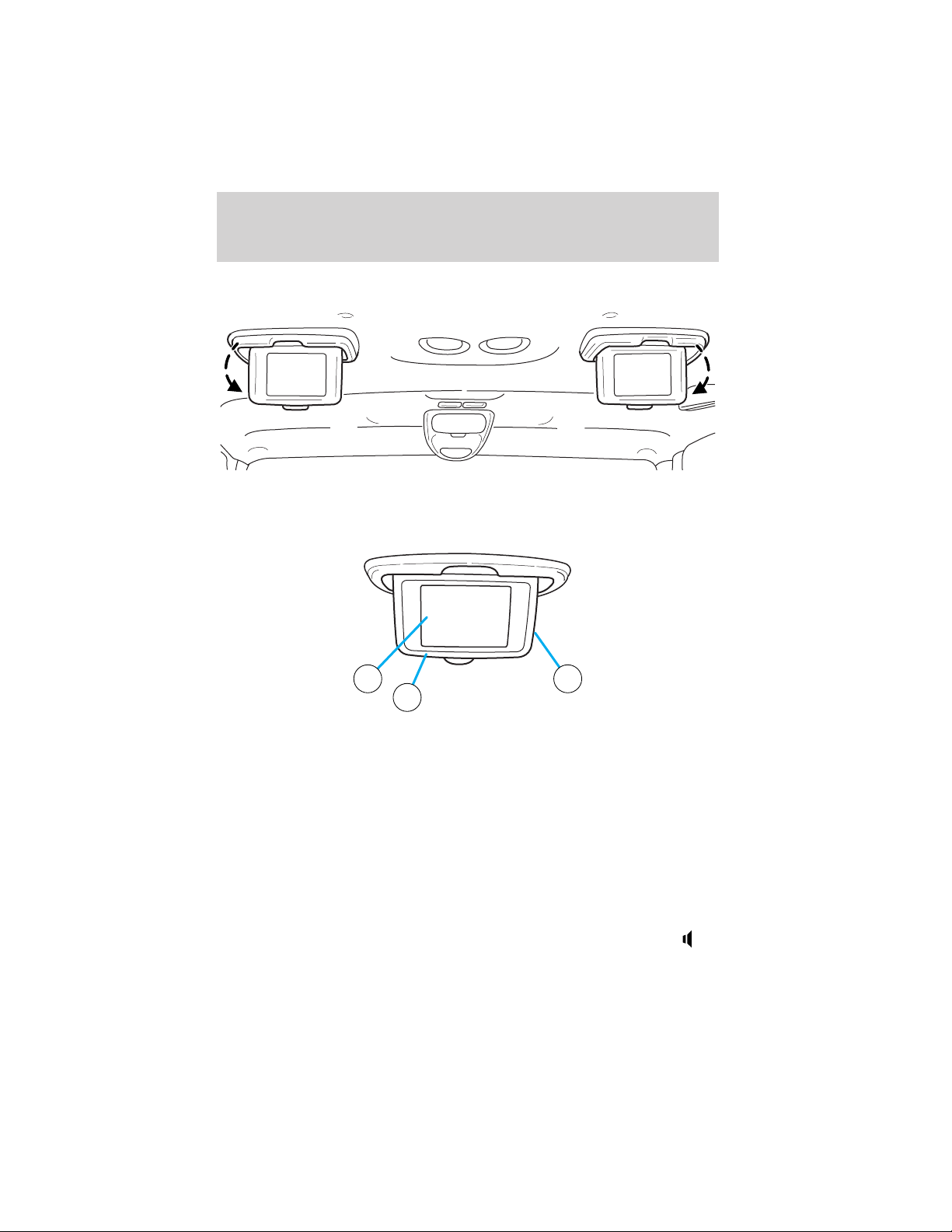

Flip-down screens

The screens rotate down to view and up into the housing to store when not in use. Ensure that the screens are latched into the housing when being stored.

1 3

1. 6.4” (diagonal) color liquid crystal display (LCD) screen.

2. Screen housing.

3. Dimmer switch. Rotate to increase/decrease the brightness of the

screen.

General operation

• When the engine is not running, use the system sparingly otherwise it will run the battery down.

• Do not leave the videocassette in the VCP overnight or for long periods of time.

• When the ignition is turned ON, audio is through the headphones as LOW volume. Press the (+) control to increase volume. To listen through the vehicle’s speaker system, press the speaker button ( on the media control panel.

)

Page 60

Entertainment Systems

Inserting/removing cassette

Inserting cassette

• Open the AutoVision威 console cover.

• Insert the videocassette into the cassette compartment.

Inserting a videocassette into the VCP automatically turns the power ON (the indicator lamp will illuminate) and the tape will begin playback.

If the vehicle is traveling over rough terrain, it may be difficult to insert the cassette because the machine attempts to hold the cassette firmly to prevent vibration. If this condition is encountered, either press firmly or remove the cassette and insert it again.

The system will not allow a cassette to be inserted in the wrong position.

• Once the cassette is completely inserted, close the VCP and console covers.

Removing cassette

1. Open the console cover, open the VCP cover and press the STOP

button.

2. Press the EJECT button.

Do not insert any foreign substances into the cassette compartment.

After removing the cassette from the VCP, close the door.

When the engine is turned OFF, the cassette is ejected from the compartment.

To play a video game

1. Connect the video line from your video game device to the YELLOW

jack.

2. Connect the left and right audio cables to the WHITE and RED jacks

respectively.

3. Ensure that the system is in AUX mode. The LCD screen will turn on

and the AUX indicator will illuminate.

Page 61

Entertainment Systems

On-screen indicators

Playback operation

1. Press the POWER control on the VCP.

2. Insert a videocassette into the VCP.

3. The videocassette should automatically begin playback, and the

picture will appear within approximately nine seconds.

4. Press the STOP control to stop playback or press EJECT to remove

the cassette.

Fast-forward or rewind (no picture)

1. Press the FF/REW control on the VCP.

2. Press the STOP control to stop or press EJECT to remove the

cassette.

The tape will fast forward or rewind until it has reached the end or the beginning.

Fast-forward or rewind (with picture)

1. While in playback mode, momentarily press the FF/REW key. The VCP

will search the playback direction five times faster than normal playback mode.

2. Press the PLAY key to resume normal playback.

Special effects playback

Still playback/Frame-to-frame playback (on remote control)

1. Press the STILL/F.ADV key while in playback mode. The playback

picture becomes still.

2. Press the STILL/F.ADV key again. Each time the control is pressed,

the pictures are played back one frame at a time.

The still playback feature can also be used in REW (reverse) mode.

If still playback/or frame-to-frame playback is engaged for five minutes or longer, the VCP will automatically begin playback to protect the tape.

Automatic tracking is automatically activated the moment the VCP is turned ON or a cassette is inserted.

If a videocassette is in poor shape (i.e., badly recorded), any tracking adjustment may result in failure. The VCP will eject the videocassette.

Page 62

Entertainment Systems

Encore (on remote control)

• Press the ENCORE control while in playback mode.

The VCP will reverse to the previous five seconds of the selection and then operate at normal playback mode.

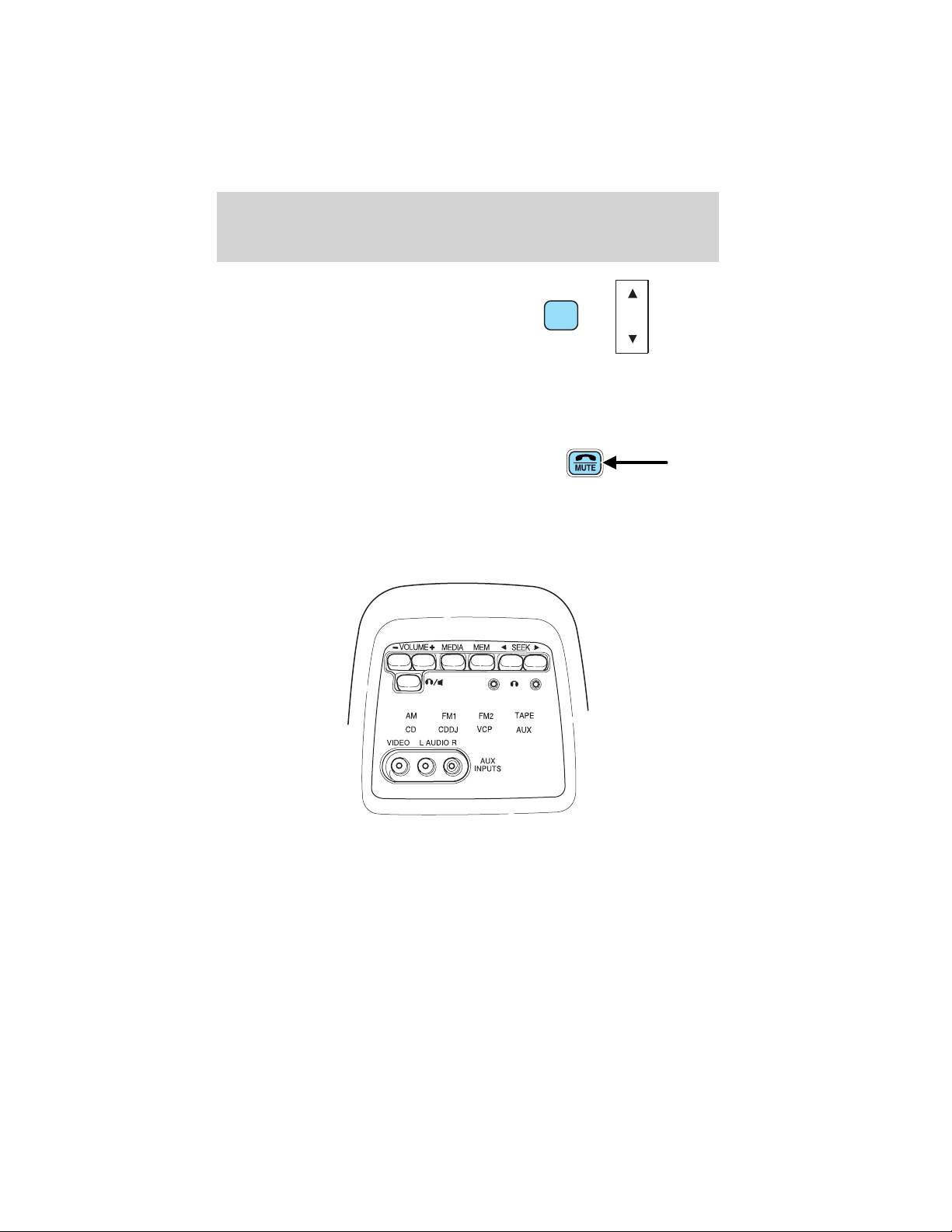

Auxiliary input jacks

The auxiliary input jacks on the AutoVision威 control panel accepts video and audio connectors for all standard video games (Nintendo威, PlayStation威, etc.) Other compatible devices such as DVD players, camcorders and portable CD players can also be connected to the auxiliary jacks.

The auxiliary jack is color-coded for identification purposes. They are as follows:

• YELLOW (1)— video input

• WHITE (2)— left channel audio

input

• RED (3)— right channel audio input

Press the MEDIA control until AUX is illuminated in the control panel. This will allow you to view the video and listen to the audio from the auxiliary input.

To listen to another audio source while viewing video from the auxiliary input, press the MEDIA control until the desired media source is illuminated.

321

Page 63

Entertainment Systems

Video source selection

The MEDIA control determines which video (VCP or Auxiliary input) is seen on the AutoVision威 screen.

When the vehicle ignition is ON and the system is not in VCP mode, the AutoVision威 selects the Auxiliary input as the video source. (If there is not a video source connected to the Auxiliary input jack, the screen will be blank.)

AutoPlay feature

Your AutoVision威 system is equipped with an AutoPlay Feature. When a video cassette is inserted into the player, video and audio sources are automatically switched to VCP. This will override any other selections currently made.

Indications on the VCP

The operation and status of the VCP can be checked by the indications appearing on the LED display.

1. The Power indicator flashes on

during POWER ON and will blink when in emergency mode.

2. The HI-FI indicator illuminates

when a HI-FI tape is loaded.

3. The HP1 indicator illuminates

when the headphone jack 1 is plugged in.

4. The HP2 indicator illuminates

when the headphone jack 2 is plugged in.

5. The Operation indicators illuminate when the system is powered

ON, a HIFI tape is being played, or headphones are being used.

21 5

Page 64

Entertainment Systems

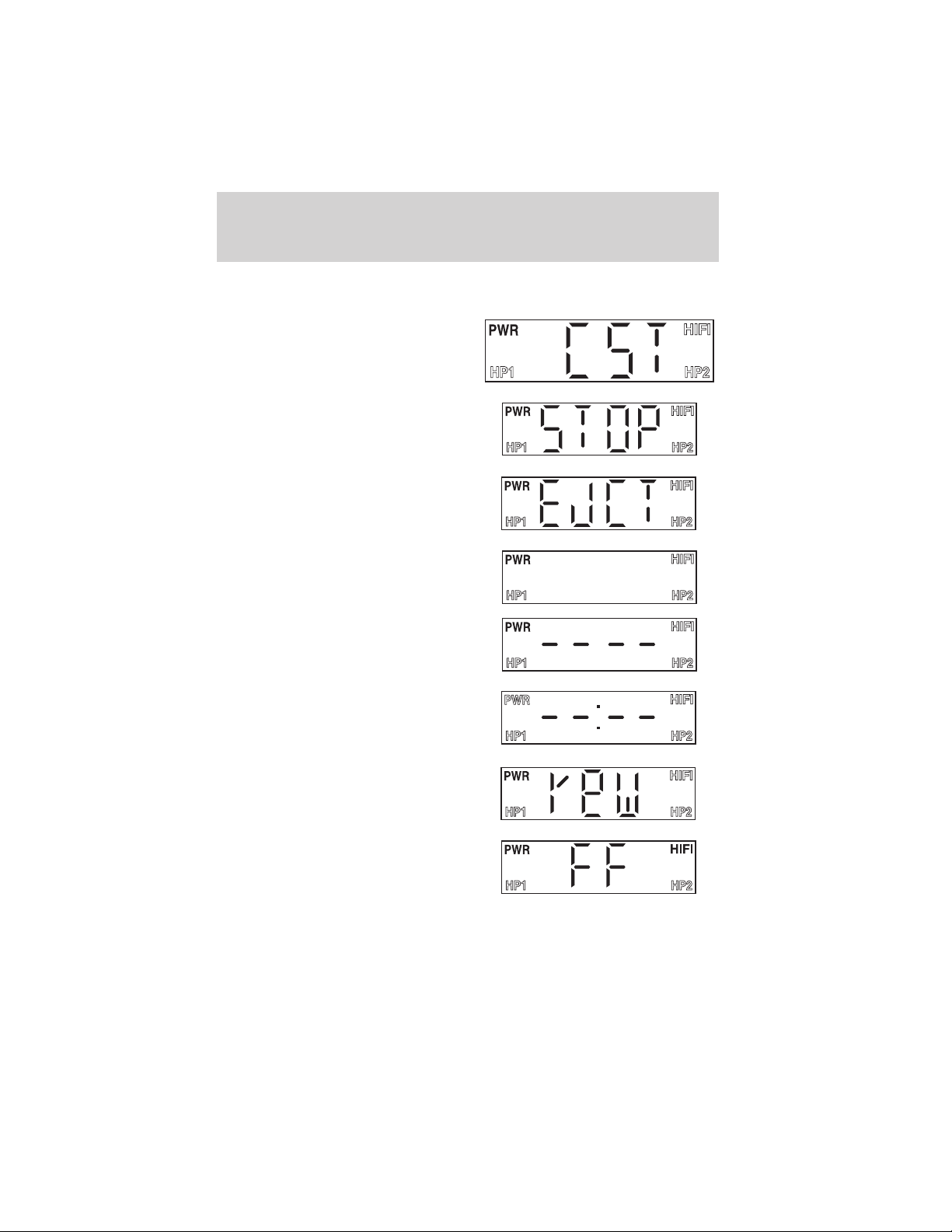

The following are some possible messages that may illuminate on your LED display and their meanings.

Illuminates when there is a videocassette in the system during power off.

Illuminates when there is a videocassette in the system during power on.

Illuminates when a videocassette is ejected from the system.

Flashes during emergency mode.

Illuminates during power on when there is not a videocassette present in the system.

Illuminates during power off when there is not a cassette present in the system.

Illuminates when the videocassette is in REW (rewind) mode.

Illuminates when the videocassette is in FF (fast forward) mode.

Page 65

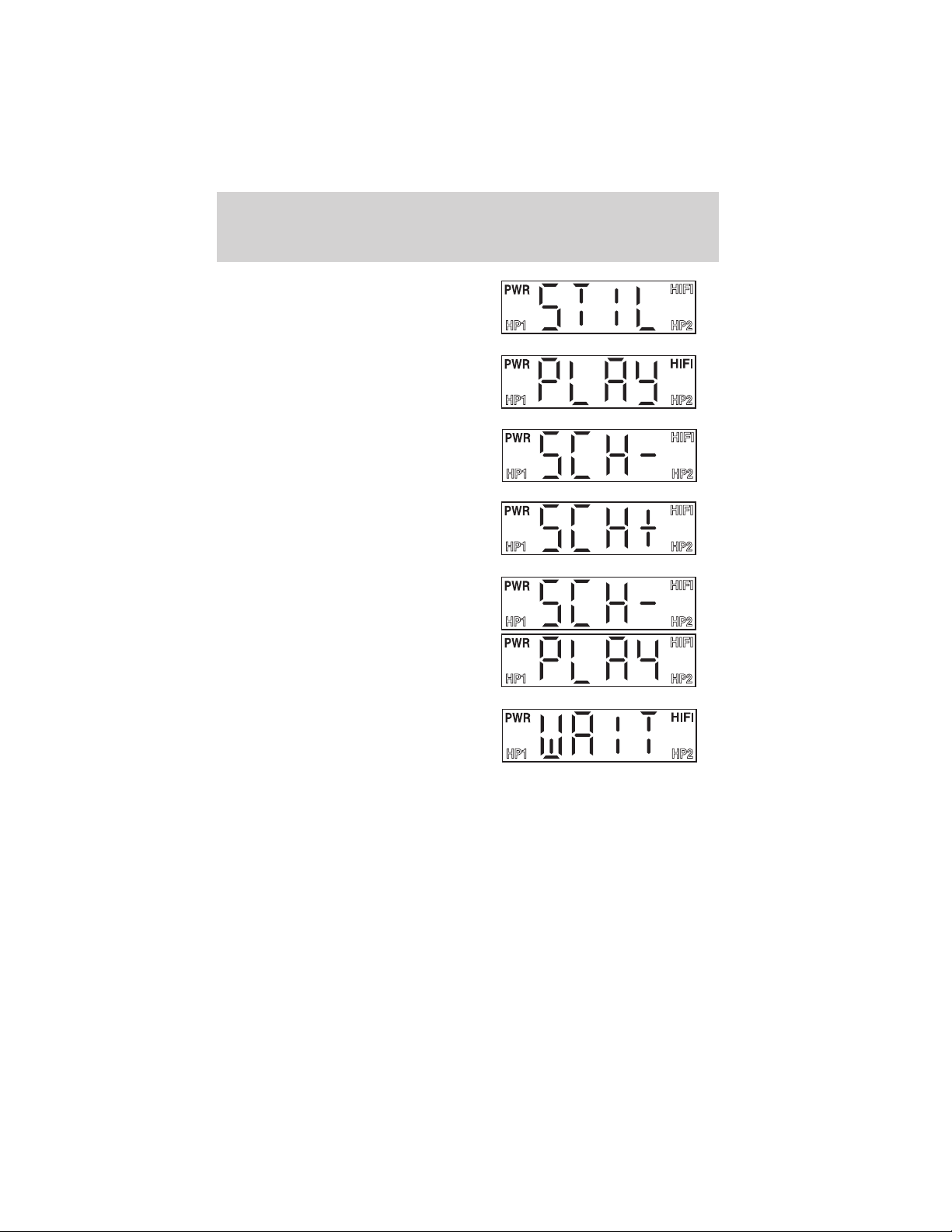

Illuminates when the videocassette is in STIL (pause) mode.

Illuminates when the videocassette is in PLAY mode.

Illuminates when the videocassette is in REV (review) mode.

Illuminates when the videocassette is in CUE mode.

Flashes separately when the videocassette is in ENCORE mode.

Entertainment Systems

Displays when:

• the thermostat detects an extremely high or low temperature, or

• the dew sensor is activated for high humidity

In-home use

Your AutoVision威 system is UL registered for in-home use. This system has the unique feature of also being completely portable and able to be used in your home.

To remove your AutoVision威 system from your vehicle, depress the lever on the center console labeled VCP RELEASE. This will release the VCP and enable you to remove the system from the vehicle. If pressing the lever does not release your system, please contact your dealer.

Page 66

Entertainment Systems

To re-install the VCP in your vehicle, insert the VCP into the console and push lightly until the VCP clicks into place.

To use the AutoVision威 system in your home, you will need:

• a DC 12V power converter rated for 1.5 amps/min and

• Patch cords with RCA style connectors

These parts are available in your local electronics store or call toll free 1 (877) 848–6434 for assistance.

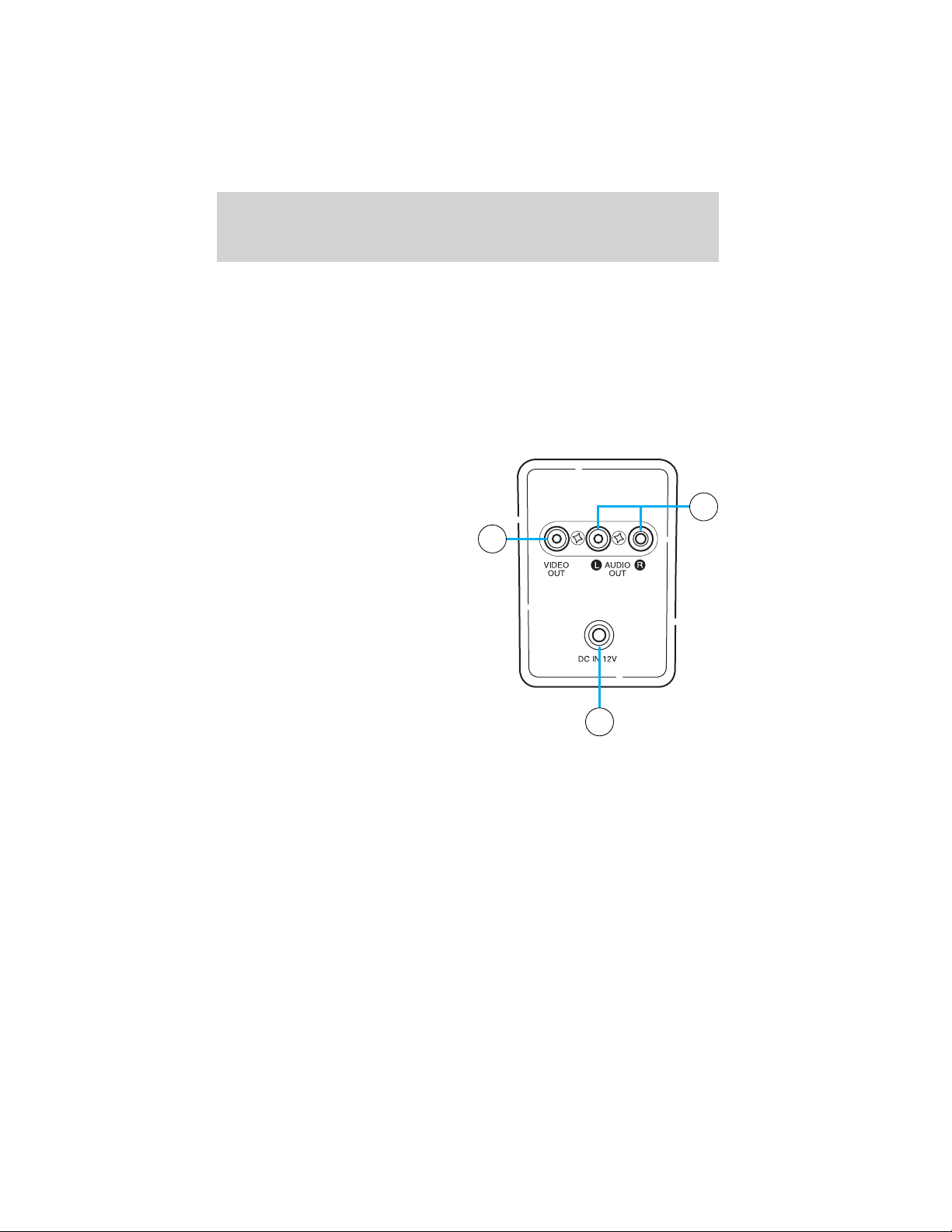

Auxiliary jacks for home use

1. VIDEO OUT

Connect this terminal to the VIDEO IN terminal of your display (LCD, TV).

2. DC jack in

Connect this jack to the DC source (DC 12V).

3. AUDIO OUT LR

Connect these terminal(s) to the AUDIO IN terminals of your display (LCD, TV).

Page 67

Entertainment Systems

1. VIDEO IN

Connect this terminal to the AUDIO OUT terminal of your other apparatus (DVD, game machine, etc.).

2. AUDIO IN LR

Connect these terminal(s) to the AUDIO OUT terminals of your other apparatus (DVD, game machine, etc.).

Plug headphones into these jacks.

TROUBLESHOOTING THE CD PLAYER (IF EQUIPPED)

The laser beam used in the compact disc player is harmful to the eyes. Do not attempt to disassemble the case.

If sound skips:

• You may be traveling on a rough road, playing badly scratched discs or the disc may be dirty. Skipping will not scratch the discs or damage the player.

If your changer does not work, it may be that:

• A disc is already loaded where you want to insert a disc.

• The disc is inserted with the label surface downward.

• The disc is dusty or defective.

• The player’s internal temperature is above 60°C (140°F). Allow the

player to cool down before operating.

• A disc with format and dimensions not within industry standards is inserted.

CLEANING COMPACT DISCS

Inspect all discs for contamination before playing. If necessary, clean discs only with an approved CD cleaner and wipe from the center out to the edge. Do not use circular motion.

Page 68

Entertainment Systems

CD AND CD PLAYER CARE

• Handle discs by their edges only. Never touch the playing surface.

• Do not insert more than one disc at a time.

• Do not expose discs to direct sunlight or heat sources for extended

periods of time.

• After playing, store the disc in its case.

CD units are designed to play commercially pressed 12 cm (4.75 in) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ball point pens may damage CDs. Please contact your dealer for further information.

CLEANING CASSETTE PLAYER (IF EQUIPPED)

Clean the tape player head with a cassette cleaning cartridge after 10 to 12 hours of play in order to maintain the best sound and operation.

CASSETTE AND CASSETTE PLAYER CARE

• Use only cassettes that are 90 minutes long or less.

• Do not expose tapes to direct sunlight, high humidity, extreme heat or

extreme cold. Allow tapes that may have been exposed to extreme temperatures to reach a moderate temperature before playing.

• Tighten very loose tapes by inserting a finger or pencil into the hole and turning the hub.

• Remove loose labels before inserting tapes.

• Do not leave tapes in the cassette player for a long time when not

being played.

Page 69

Entertainment Systems

RADIO FREQUENCY INFORMATION

The Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission(CRTC) establish the frequencies AM and FM stations may use for their broadcasts. Allowable frequencies are:

AM 530, 540–1600, 1610 kHz

FM 87.7, 87.9–107.7, 107.9 MHz

Not all frequencies are used in a given area.

RADIO RECEPTION FACTORS

Three factors can affect radio reception:

• Distance/strength. The further an FM signal travels, the weaker it is. The listenable range of the average FM station is approximately 40 km (24 miles). This range can be affected by “signal modulation.” Signal modulation is a process radio stations use to increase their strength/volume relative to other stations.

• Terrain. Hills, mountains and tall buildings between your vehicle’s antenna and the radio station signal can cause FM reception problems. Static can be caused on AM stations by power lines, electric fences, traffic lights and thunderstorms. Moving away from an interfering structure (out of its “shadow”) returns your reception to normal.

• Station overload. Weak signals are sometimes captured by stronger signals when you pass a broadcast tower. A stronger signal may temporarily overtake a weaker signal and play while the weak station frequency is displayed.

The audio system automatically switches to single channel reception if it will improve the reception of a station normally received in stereo.

AUDIO SYSTEM WARRANTIES AND SERVICE

Refer to the Warranty Guide for audio system warranty information.

If service is necessary, see your dealer or a qualified technician.

Page 70

Climate Controls

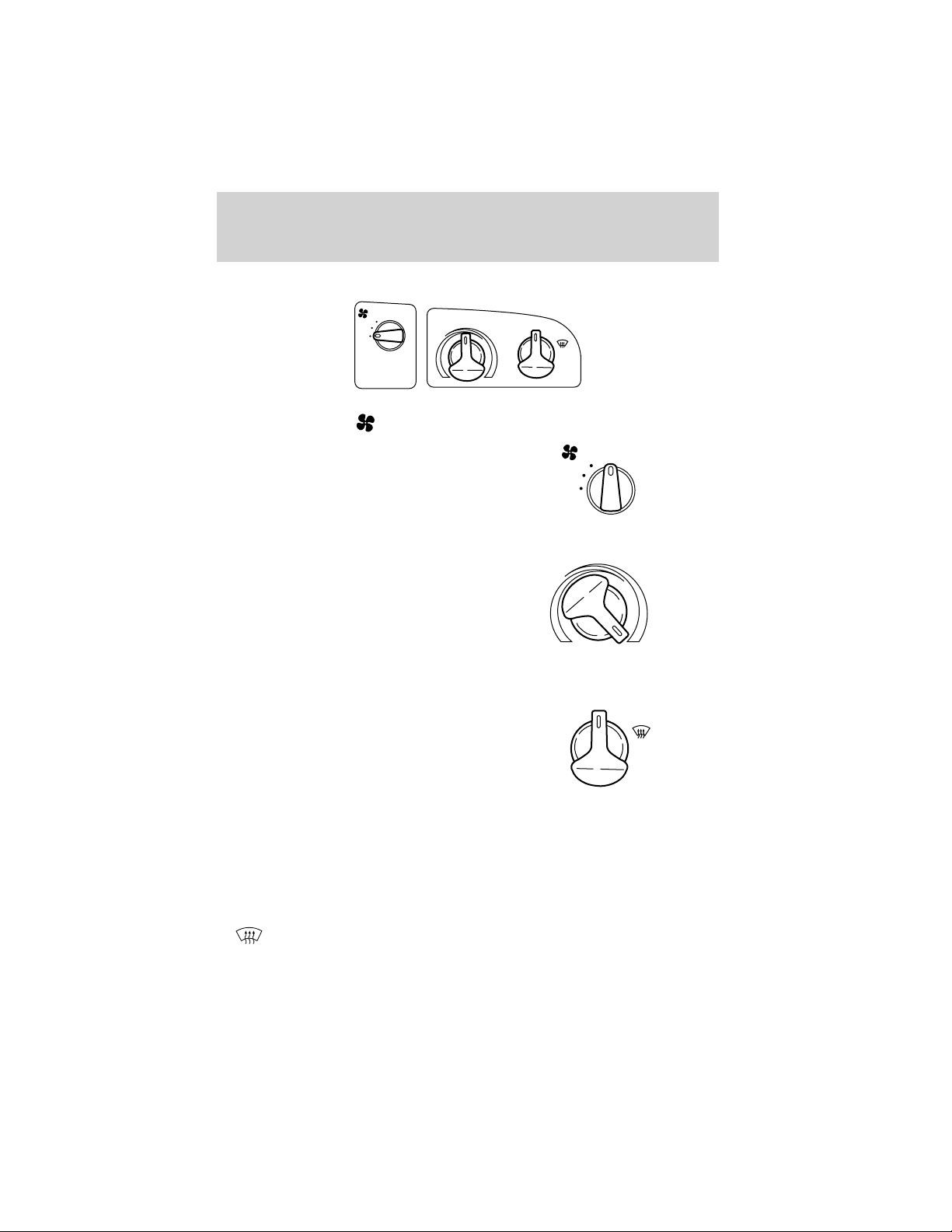

HEATER ONLY SYSTEM (IF EQUIPPED)

FAN

COOL WARM

Fan speed control

Controls the volume of air circulated in the vehicle.

Temperature control knob

Controls the temperature of the airflow inside the vehicle. On heater-only systems, the air cannot be cooled below the outside temperature.

Mode selector control

Controls the direction of the airflow to the inside of the vehicle.

• VENT – Distributes outside air through the instrument panel registers.

• FLR – Allows for maximum heating. Distributes outside air through the floor ducts.

• OFF – Outside air is shut out and the fan will not operate. For short periods of time only, use this mode to prevent undesirable odors from entering the vehicle.

• MIX – Distributes outside air through the floor ducts and the windshield defroster ducts.

•

(Defrost) – Distributes outside air through the windshield

defroster ducts. It can be used to clear ice or fog from the windshield.

VENT

OFF

FLR

MIX

FAN

COOL WARM

OFF

FLR

VENT

MIX

Page 71

Climate Controls

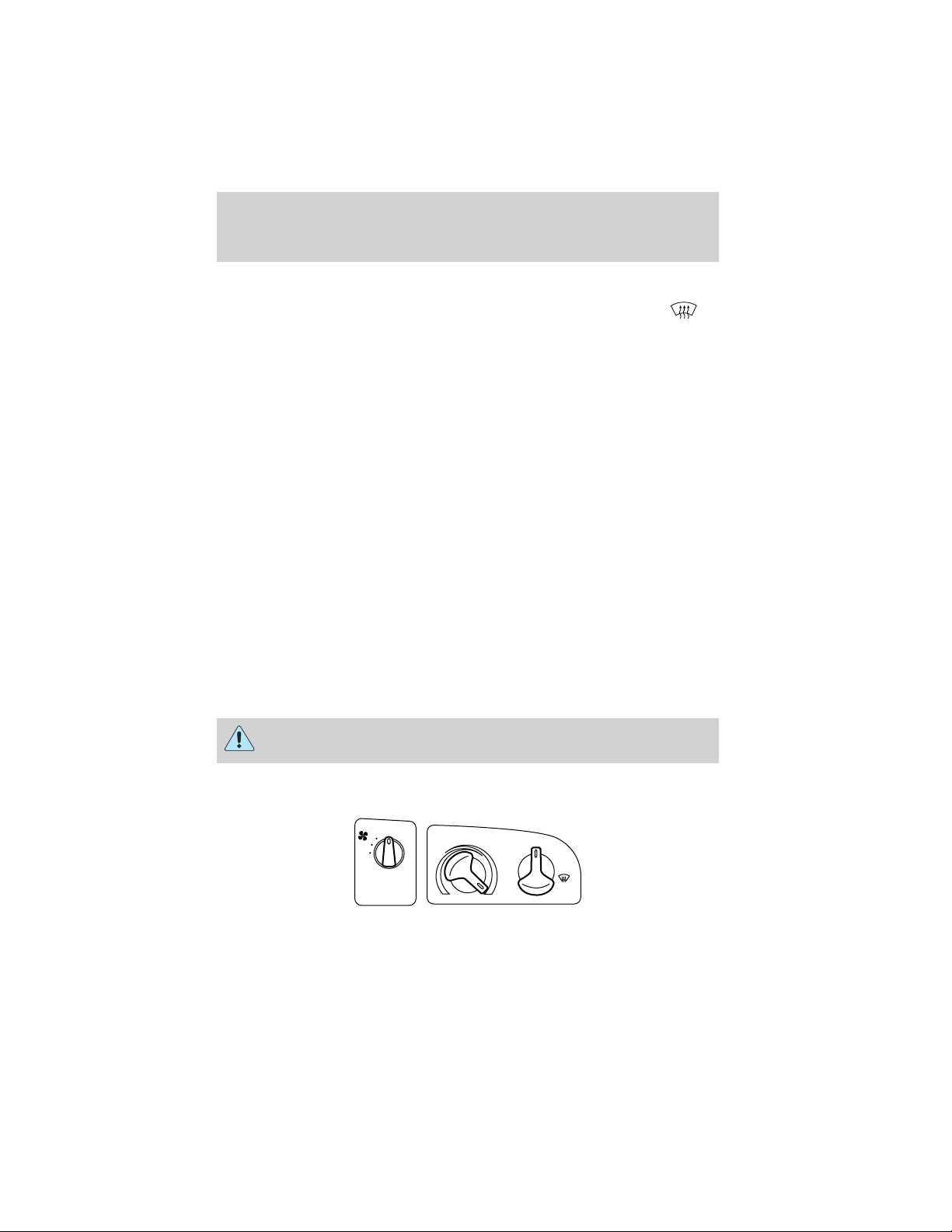

Operating tips

• In humid weather, place the climate control system in Defrost ( before driving. This will reduce fogging on your windshield. Once the windshield has been cleared, select any desired position.

• To reduce humidity buildup inside the vehicle, do not drive with the climate control system in the OFF position.

• Under normal weather conditions, your vehicle’s climate control system should be left in any position other than OFF position when the vehicle is parked. This allows the vehicle to “breathe” through the outside air inlet duct.

• Under snowy or dirty weather conditions, your vehicle’s climate control system should be left in the OFF position when the vehicle is parked. This allows the climate control system to be free from contamination of outside pollutants.

• Do not place objects under the front seat which may interfere with the airflow to the rear seats (if equipped).

• Remove any snow, ice, or leaves from the air intake area (at the base of the windshield and underneath the hood).

• Do not place objects over the defroster outlets. These objects may block airflow and reduce your visibility through the windshield. Avoid placing small objects on top of the instrument panel. These objects can fall into the defroster outlets and block airflow, in addition to, damaging your climate control system.

)

Do not place objects on top of the instrument panel, as these objects may become projectiles in a collision or sudden stop.

MANUAL HEATING AND AIR CONDITIONING SYSTEM (IF EQUIPPED)

FAN

COOL WARM

NORM

A/C

MAX

OFF

FLR

VENT

MIX

A/C

Page 72

Climate Controls

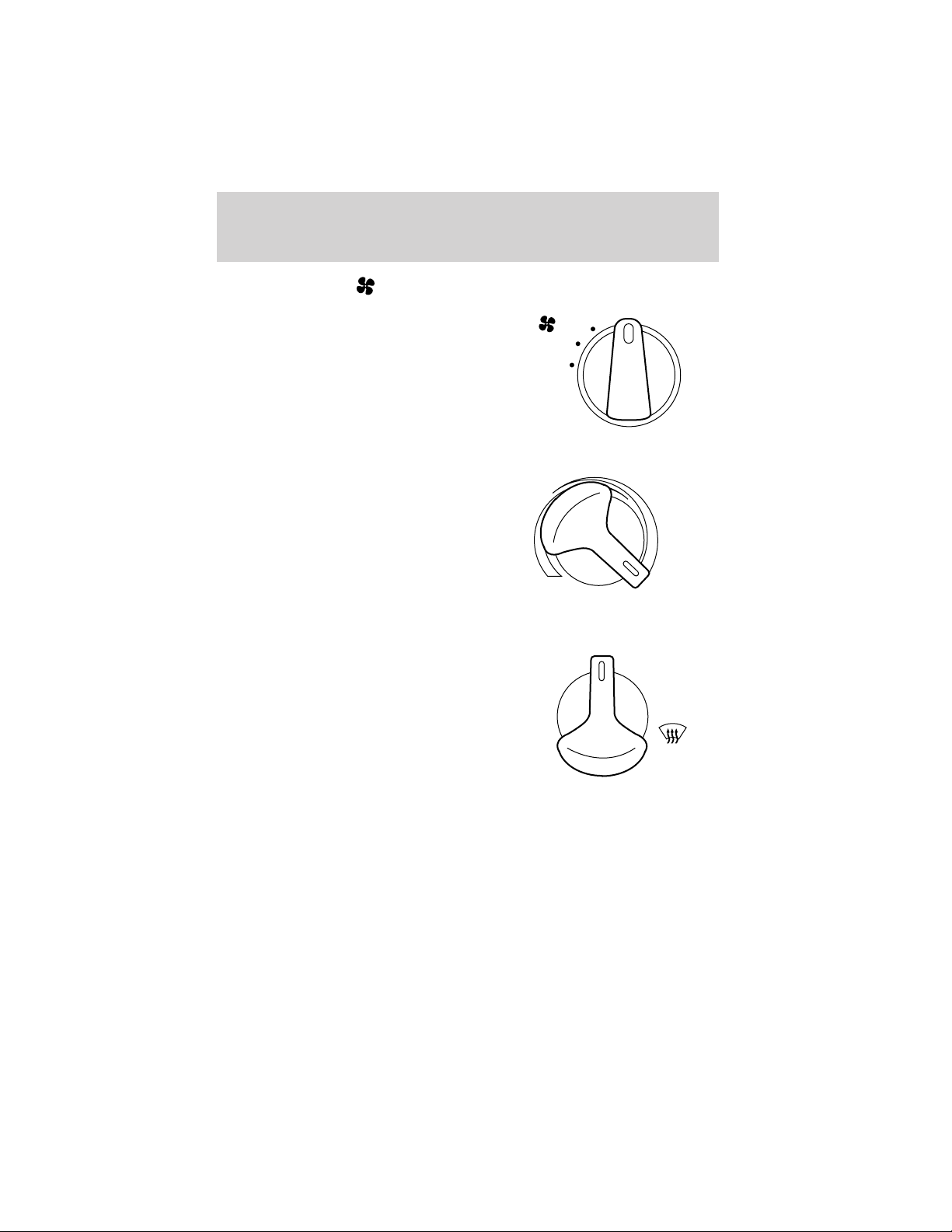

Fan speed control

Controls the volume of air circulated in the vehicle.

Temperature control knob

Controls the temperature of the airflow inside the vehicle.

FAN

COOL

WARM

Mode Selector Control

Controls the direction of the airflow to the inside of the vehicle.

The air conditioning compressor can operate in all modes except VENT and FLR. However, the air conditioning will only function if the outside temperature is about 6°C

VENT

NORM

A/C

MAX

A/C

OFF

FLR

MIX

(43°F) or higher.

Since the air conditioner removes considerable moisture from the air during operation, it is normal if clear water drips on the ground under the air conditioner drain while the system is working and even after you have stopped the vehicle.

• MAX A/C – Uses recirculated air to cool the vehicle. MAX A/C is noisier than NORM A/C but more economical and will cool the inside of the vehicle faster. Airflow will be from the instrument panel registers. This mode can also be used to prevent undesirable odors from entering the vehicle.

Page 73

Climate Controls

• NORM A/C – Uses outside air to cool the vehicle. It is quieter than MAX A/C but not as economical. Airflow will be from the instrument panel registers.

• VENT – Distributes outside air through the instrument panel registers. However, the air will not be cooled below the outside temperature because the air conditioning does not operate in this mode.

• OFF – Outside air is shut out and the fan will not operate. For short periods of time only, use this mode to prevent undesirable odors from entering the vehicle.

• FLR – Allows for maximum heating by distributing outside air through the floor ducts. However, the air will not be cooled below the outside temperature because the air conditioning does not operate in this mode.

• MIX – Distributes outside air through the windshield defroster ducts and the floor ducts. Heating and air conditioning capabilities are provided in this mode. For added customer comfort, when the temperature control knob is anywhere in between the full hot and full cold positions, the air distributed through the floor ducts will be slightly warmer than the air sent to the windshield defroster ducts. If the temperature is about 6°C (43°F) or higher, the air conditioner will automatically dehumidify the air to reduce fogging.

•

(Defrost) – Distributes outside air through the windshield defroster ducts. It can be used to clear ice or fog from the windshield. If the temperature is about 6°C (43°F) or higher, the air conditioner will automatically dehumidify the air to reduce fogging.

Operating tips

• In humid weather conditions, place the climate control system in Defrost mode before driving. This will reduce fogging on your windshield. Once the windshield has been cleared, operate the climate control system as desired.

• To reduce humidity buildup inside the vehicle in cold weather conditions, don’t drive with the climate control system in the OFF or MAX A/C position.

• To reduce humidity buildup inside the vehicle in warm weather conditions, don’t drive with the climate control system in the OFF position.

Page 74

Climate Controls

• Under normal weather conditions, your vehicle’s climate control system should be left in any position other than the MAX A/C or OFF when the vehicle is parked. This allows the vehicle to “breathe” through the outside air inlet duct.

• If your vehicle has been parked with the windows closed during warm weather conditions, the air conditioner will perform more efficiently in cooling the vehicle if driven for two or three minutes with the windows open. This will force most of the hot, stale air out of the vehicle. Once the vehicle has been “aired out”, operate the climate control system as desired.

• Do not put objects under the front seat which may interfere with the airflow to the rear seats (if equipped).

• Remove any snow, ice or leaves from the air intake area (at the bottom of the windshield and underneath the hood).

• Do not place objects over the defroster outlets. These objects can block airflow and reduce visibility through your windshield. Avoid placing small objects on top of the instrument panel. These objects may fall down into the defroster outlets and block airflow, in addition to, damaging the climate control system.

To aid in side window defogging/demisting in cold weather conditions:

1. Select the position that distributes air through the Panel and Floor.

2. Set the temperature control to full heat.

3. Set the fan speed to full fan.

4. Direct the outer panel vents towards the side windows.

5. To increase airflow to the outer panel vents, close the central panel

vents.

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

Page 75

Climate Controls

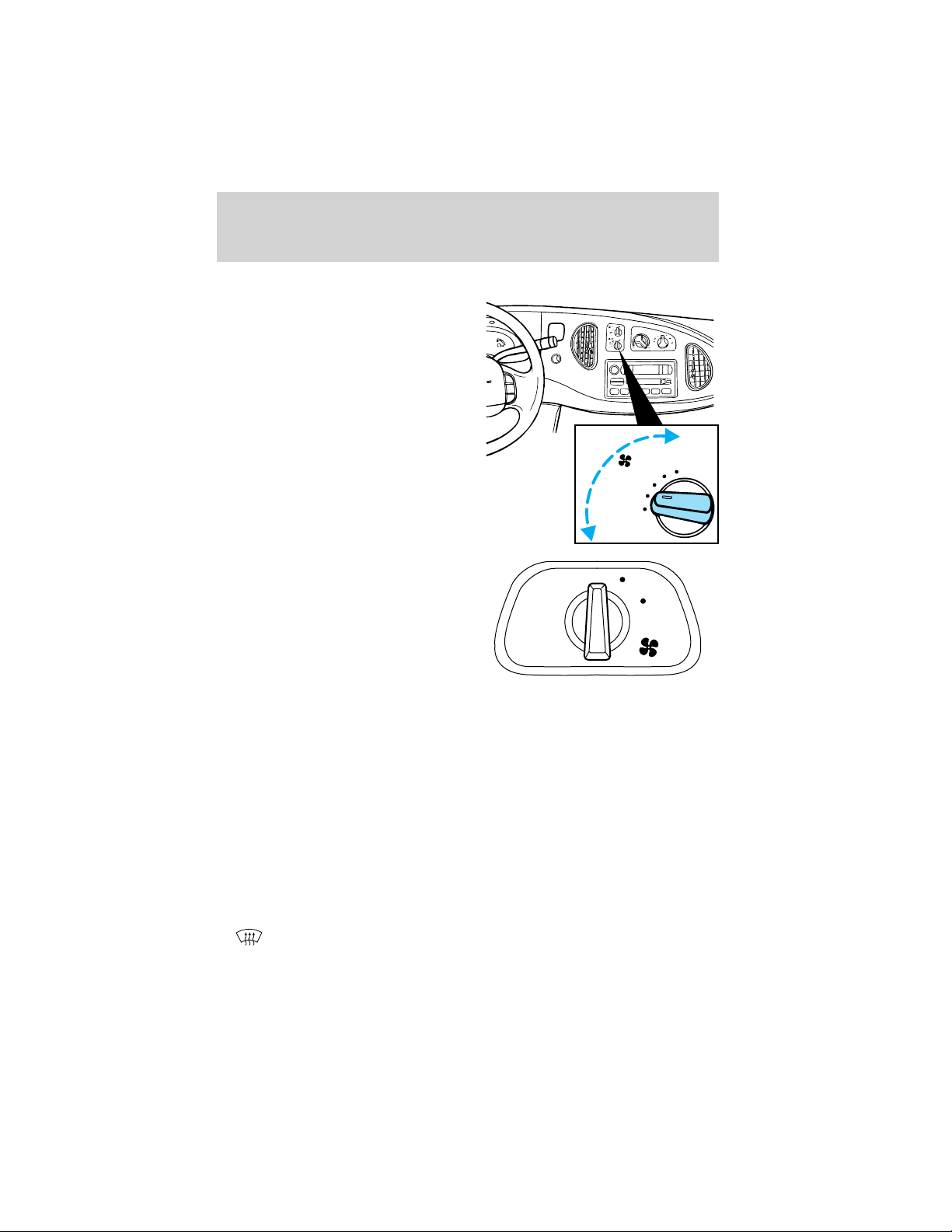

AUXILIARY HEATER AND AIR CONDITIONER (IF EQUIPPED)

If your vehicle is equipped with a factory installed auxiliary unit, the main climate control panel will include separate controls for the front fan speed and the rear fan speed. In conjunction with the front fan speed control, an additional fan speed control is located overhead between the second and third row seating.

REAR

REAR CTRL

OFF

The fan speed of the auxiliary unit can be controlled either by the front

OFF

seat using the front auxiliary control or by the rear seat passengers using the rear auxiliary control, but not

both. To control the auxiliary unit using the rear control, the front control must be in the REAR position.

Air temperature and air distribution are dependent upon the mode that is selected on the main climate control panel:

• MAX A/C-Distributes recirculated air conditioning through the overhead vents of the rear compartment.

• NORM A/C-Distributes recirculated air conditioning through the overhead vents of the rear compartment.

• VENT-Distributes recirculated ambient air through the overhead vents of the rear compartment.

OFF-No air, cooled, ambient, or heated, is distributed through any vents

•

• FLR-Distributes heated air through the floor vents of the rear

compartment.

• MIX-Distributes heated air through the floor vents of the rear compartment.

•

(Defrost)-Distributes heated air through the floor vents of the

rear compartment.

Page 76

Lights

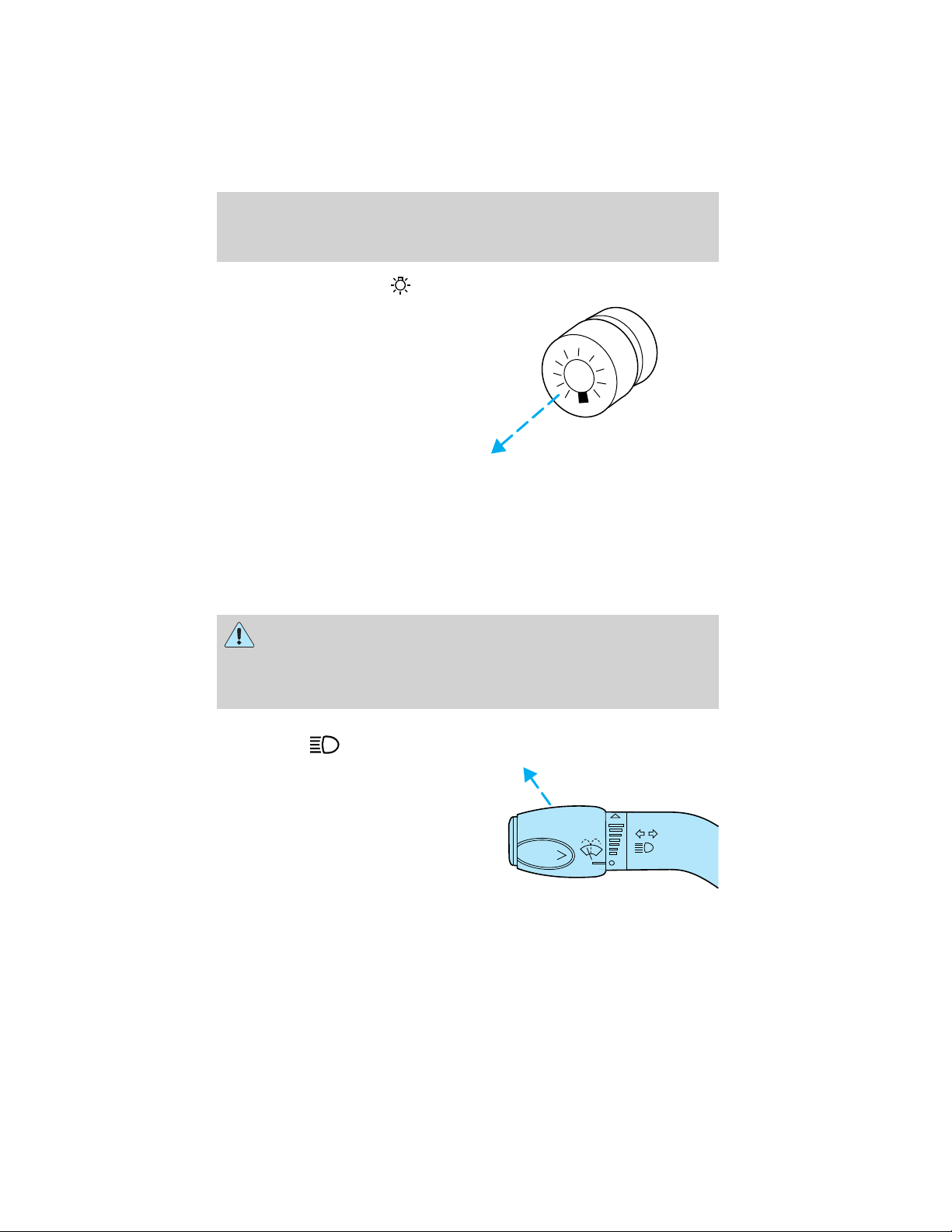

HEADLAMP CONTROL

• Pull the headlamp control toward you to the first position to turn on the parking lamps, tail lamps, license plate lamps and marker lamps.

• Pull the headlamp control toward you to the outer position to turn on the headlamps (in addition to the previous lamps).

Daytime running lamps (DRL) (if equipped)

Turns the headlamps on with a reduced output.

To activate:

• the ignition must be in the ON position and

• the headlamp control is in the OFF, parking lamp or autolamp

position.

Always remember to turn on your headlamps at dusk or during

inclement weather. The Daytime Running Lamp (DRL) system does not activate with your tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

High beams

Push the lever toward the instrument panel to activate. Pull the lever towards you to deactivate.

Page 77

Lights

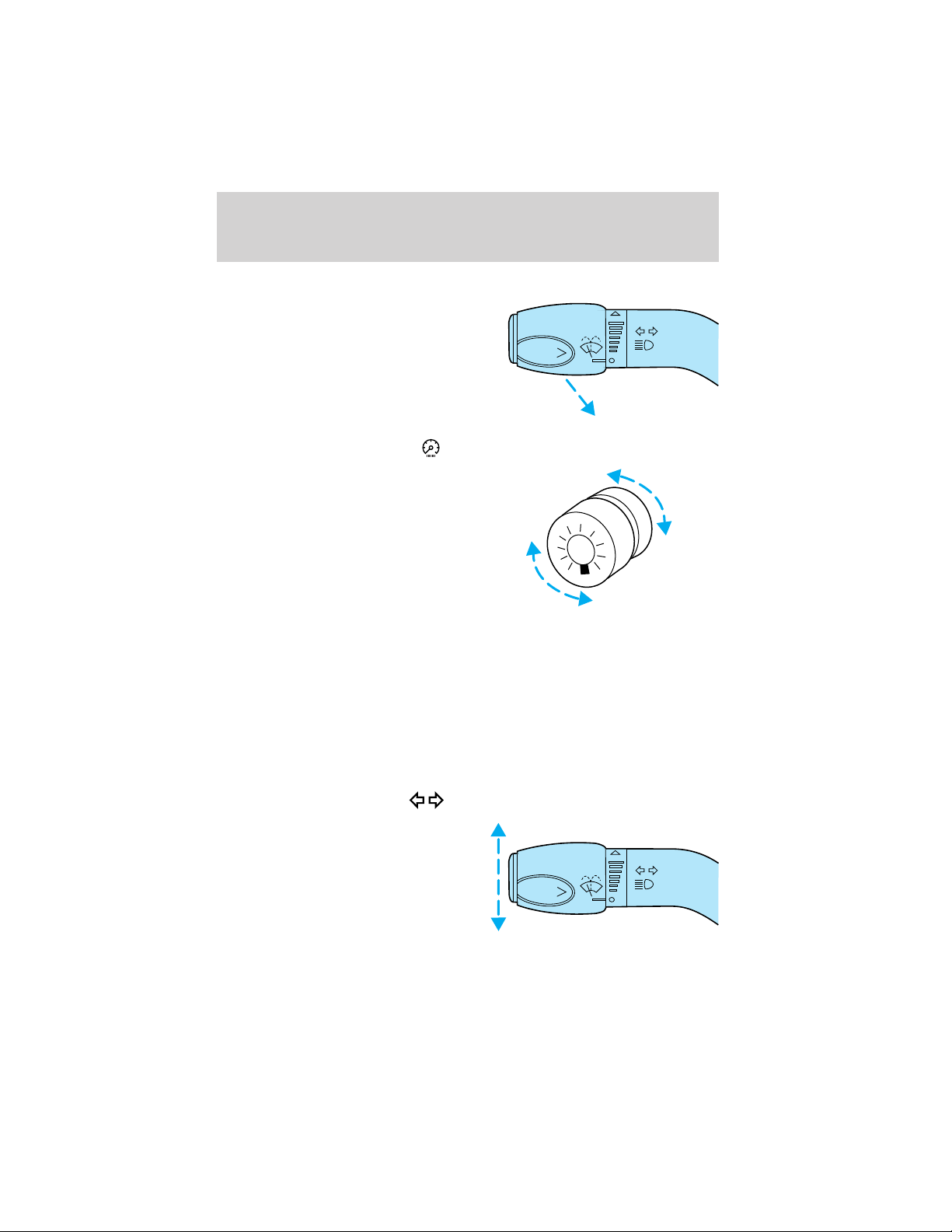

Flash to pass

Pull toward you slightly to activate and release to deactivate.

PANEL DIMMER CONTROL

To adjust the brightness of the instrument panel:

• Rotate clockwise/counterclockwise when the headlamp control is in the parking lamp or low-beam position.

To turn on the courtesy lamp, cargo lamps or the dome lamp:

• Rotate fully counterclockwise.

The dome lamp will not illuminate if the control switch is in the OFF position.

AIMING THE HEADLAMPS

The headlamps on your vehicle are properly aimed at the assembly plant. If your vehicle has been in an accident the alignment of your headlamps should be checked by a qualified service technician.

TURN SIGNAL CONTROL

• Push down to activate the left turn signal.

• Push up to activate the right turn signal.

Page 78

Lights

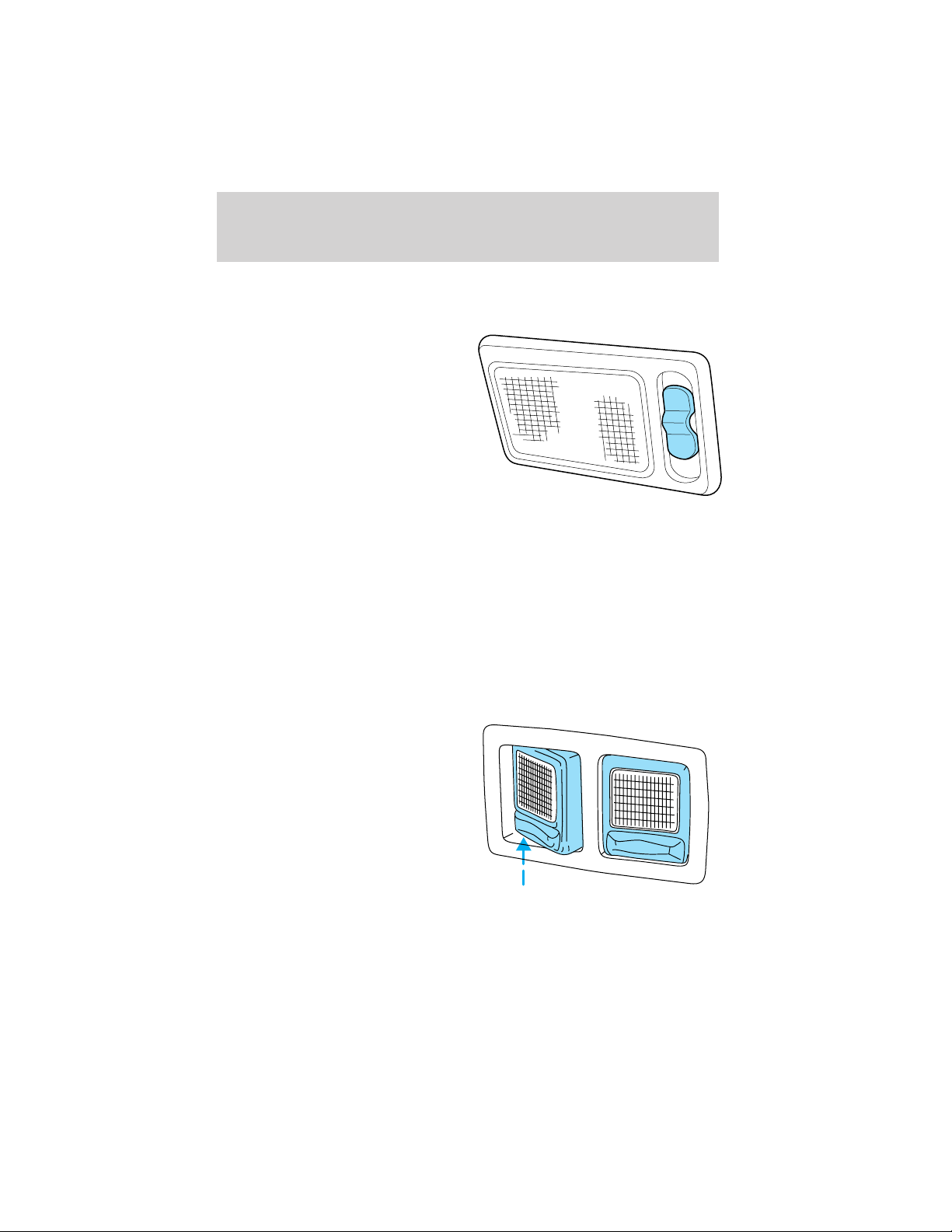

INTERIOR LAMPS

Cargo and dome lamps with rear headliner

Rear cargo lamps equipped with an ON/OFF/DOOR control will light when:

• doors are closed and the control is in the ON position

• control is in the DOOR position and any door is open

• headlamp control is rotated fully counterclockwise

When the control is in the OFF position, it will not illuminate when you open the doors or fully rotate the headlamp control.

Cargo and dome lamps without rear headliner

If your vehicle is equipped with a bypass switch on the rear dome lamp, all of the dome lamps may be turned off only with the rear doors open. While the switch is in rear door bypass mode, the dome lamps will light as normal when any other door is open or the headlamp control is rotated fully conterclockwise. If the switch is not in the bypass position, opening the rear doors will light the dome lamp as normal.

DOOR OFF ON

Front and rear courtesy/reading lamps

Rotate the lens to illuminate the lamp. With the lens in the flat position, the courtesy lamp lights when:

• any door is opened

• the headlamp control is rotated

fully counterclockwise

Page 79

Lights

BULBS

Replacing exterior bulbs

Check the operation of the following lamps frequently:

• Headlamps

• Tail lamps

• Brakelamps

• High-mount brakelamp

• Turn signal lamps

• Backup lamps

• License plate lamp

Do not remove lamp bulbs unless they will be replaced immediately. If a bulb is removed for an extended period of time, contaminants may enter the lamp housings and affect performance.

Using the right bulbs

Replacement bulbs are specified in the chart below. Headlamp bulbs must be marked with an authorized “D.O.T.” for North America and an “E” for Europe to assure lamp performance, light brightness and pattern and safe visibility. The correct bulbs will not damage the lamp assembly or void the lamp assembly warranty and will provide quality bulb burn time.

Function Number of bulbs Trade number

Headlamps (low series) 2 H5054 Headlamps (high series) 2 9007 Park lamp and turn signal (front) 2 3157 AK (amber) Back-up lamps 2 3156K License plate lamp 1 168 Stop/tail/turn/side marker lamp 2 3357 K High-mount brakelamp 2 912 Cargo lamp 1 211-2 Dome lamp (standard) 1 912 Map/reading lamp 2 211-2 Roofmarker 5 194 All replacement bulbs are clear in color except where noted. To replace all instrument panel lights - see your dealer

Page 80

Lights

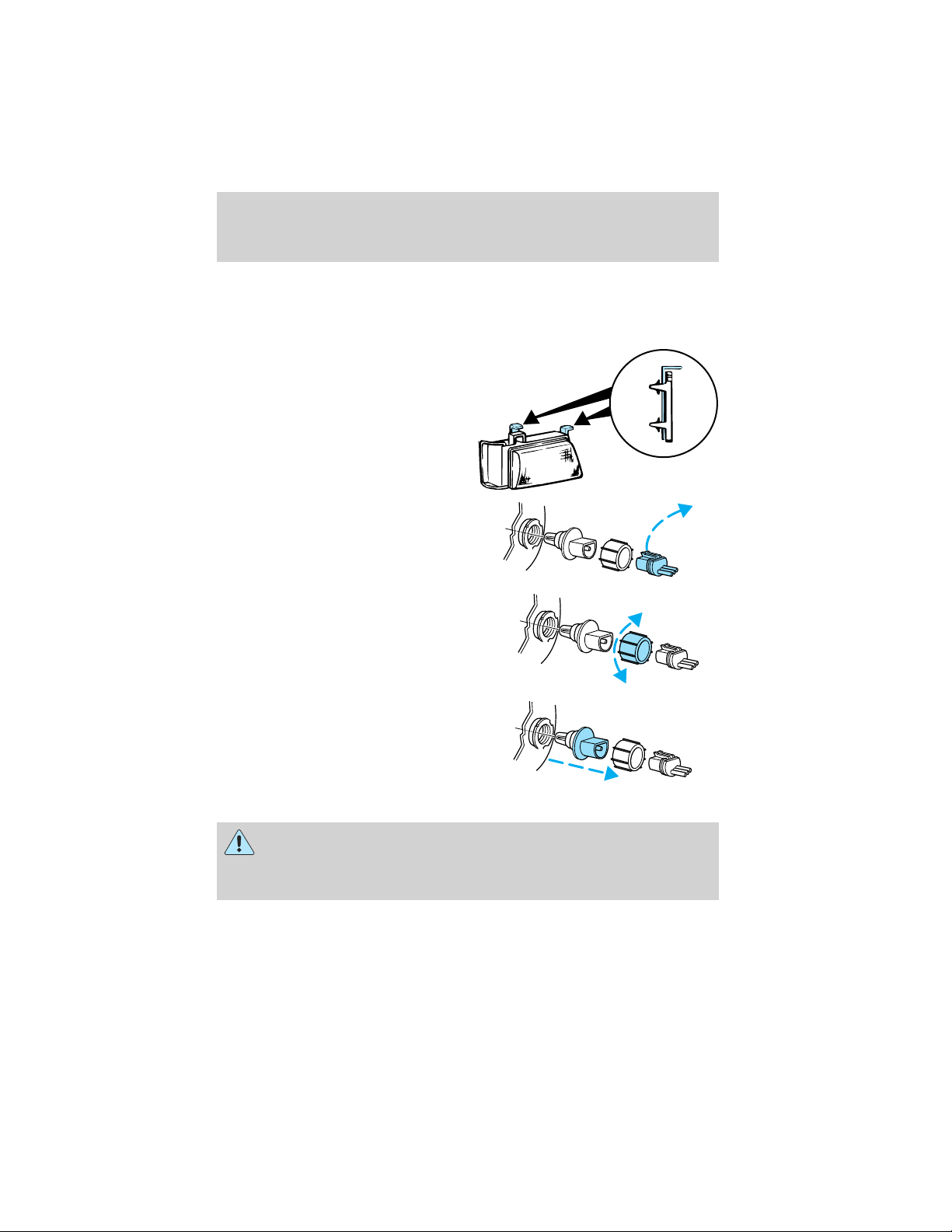

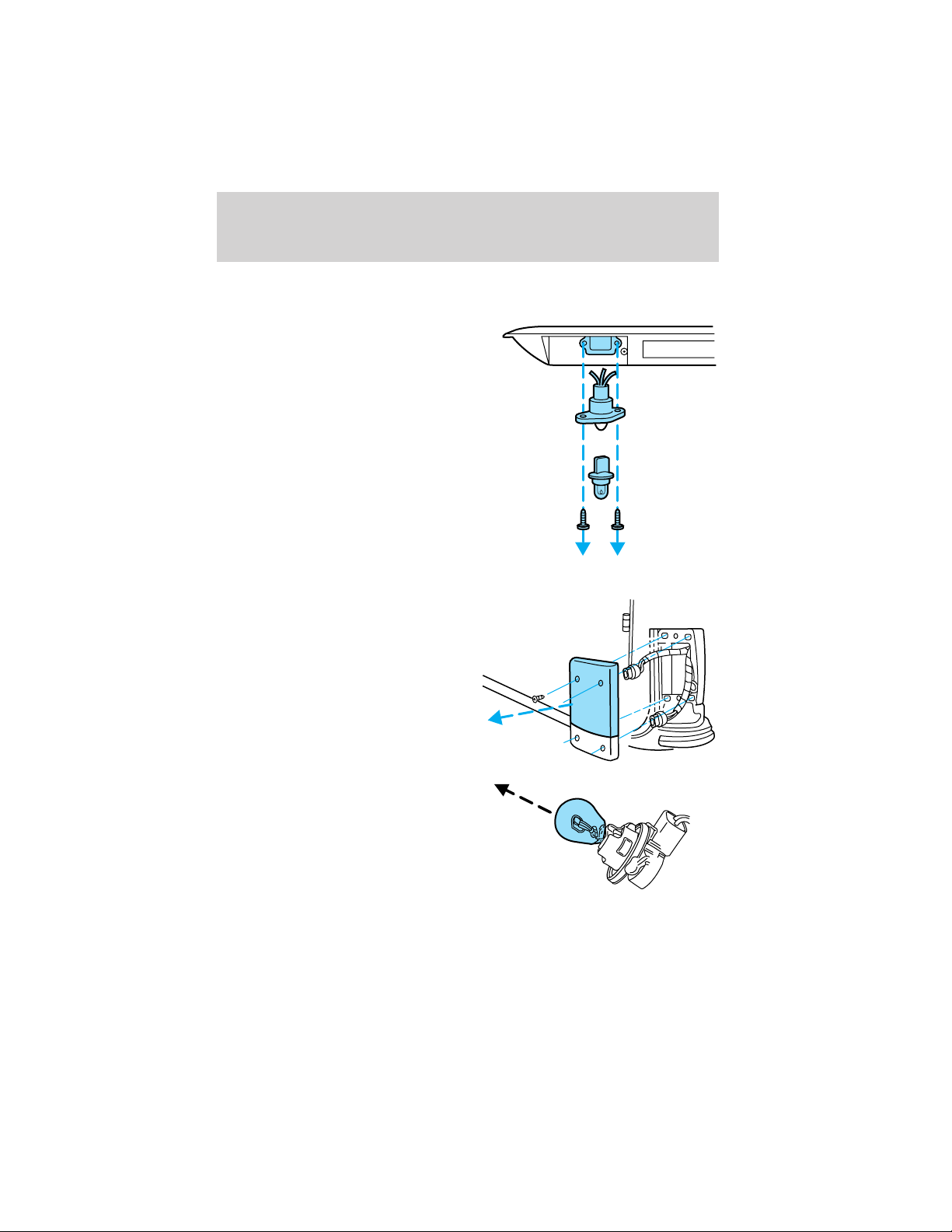

Replacing headlamp bulbs (aerodynamic)

1. Make sure headlamp switch is in the OFF position.

2. Open the hood.

3. Push each clip tab toward the

engine compartment and lift upward to the stop position.

4. Remove the headlamp assembly.

5. Disconnect the electrical

connector from the bulb by pulling rearward.

6. Remove the bulb retaining ring by

rotating it counterclockwise (when viewed from the rear) to free it from the bulb socket, and slide the ring off the plastic base. Keep the ring to retain the new bulb.

7. Without turning, remove the old

bulb from lamp assembly by gently pulling it straight back out of the lamp assembly and replace.

To install the new bulb:

Handle a halogen headlamp bulb carefully and keep out of

children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.

1. With the flat side of the bulb’s plastic base facing upward, insert the glass end of the bulb into the lamp assembly. You may need to turn the bulb left or right to align the grooves in the plastic base with the tabs in

Page 81

Lights

the lamp assembly. When the grooves are aligned, push the bulb into the socket until the plastic base contacts the rear of the lamp assembly.

2. Install the bulb retaining ring over the plastic base until it contacts the rear of the lamp assembly by rotating clockwise until you feel a “stop.”

3. Install the electrical connector into the rear of the plastic base until it snaps, locking it into position.

4. Install the headlamp assembly into the vehicle and secure it with the clip tabs.

5. Turn the headlamps on and make sure they work properly. If the headlamp was correctly aligned before you changed the bulb, you should not need to align it again.

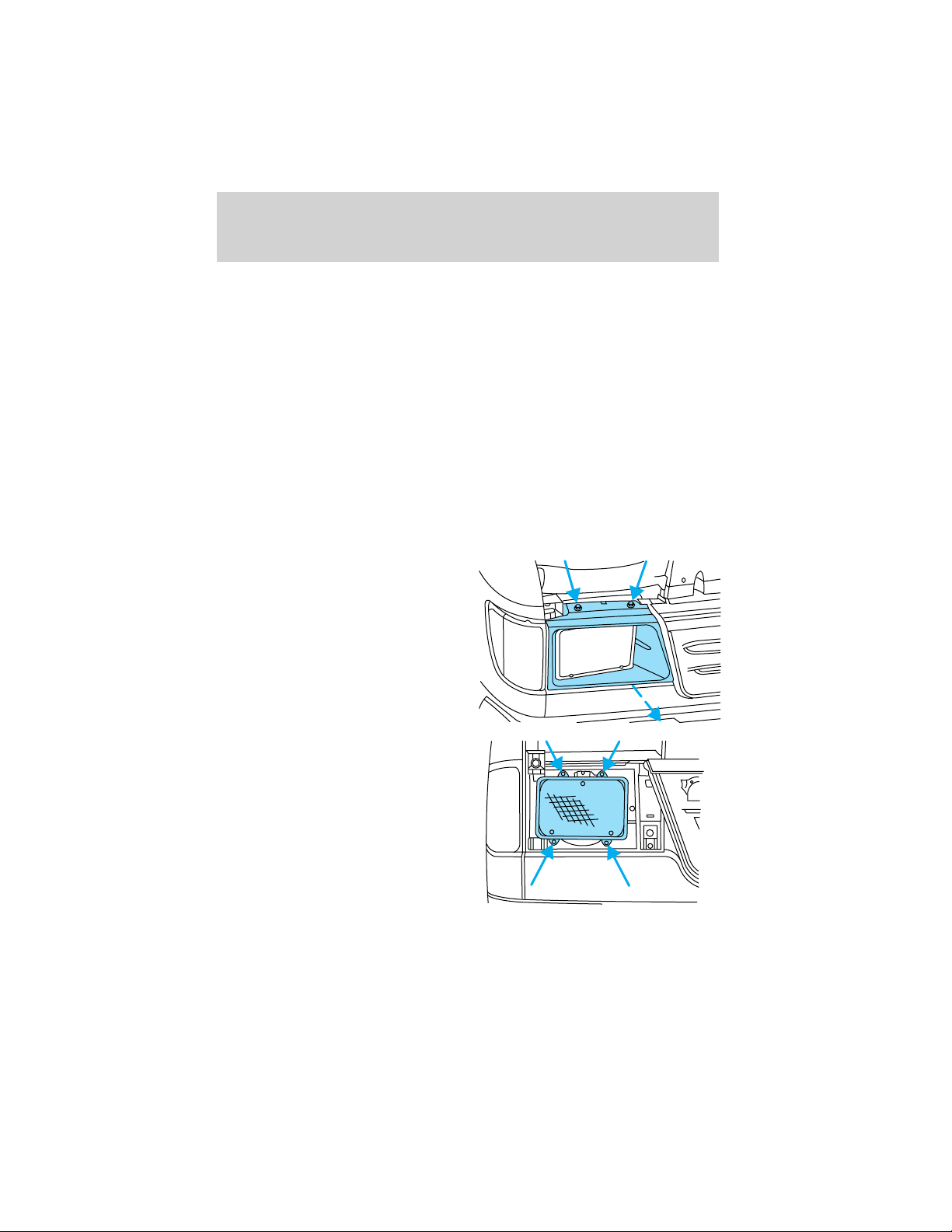

Replacing headlamp bulbs (low series)

1. Make sure headlamp switch is in OFF position.

2. Open the hood.

3. Remove the two screws and bezel from the headlamp housing.

4. Remove the four headlamp bulb retaining screws and the retaining ring.

5. Remove the headlamp.

6. Disconnect the electrical connector from the bulb.

To install the new bulb, follow the removal procedures in reverse order.

Page 82

Lights

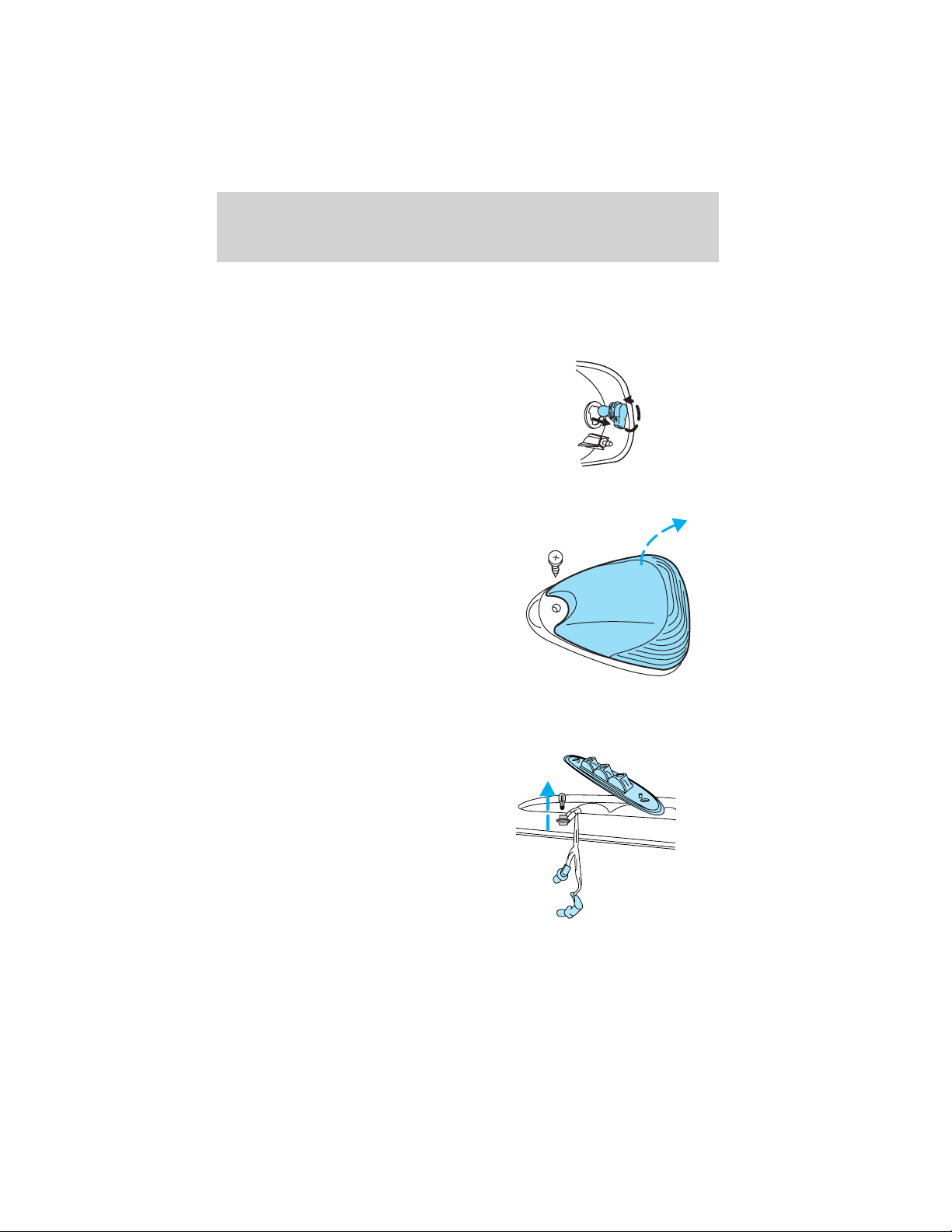

Replacing front parking lamp/turn signal bulbs

1. Make sure the headlamp control is in the OFF position and then open the hood.

2. Remove two screws and pull lamp assembly away from the vehicle.

3. Rotate the bulb socket counterclockwise and remove.

4. Carefully pull the bulb straight out of the socket.

To complete installation, follow the removal procedures in reverse order.

Replacing roof marker bulbs

1. Remove the screw and lens from the lamp assembly.

2. Carefully pull the bulb straight out of the socket and push in the new bulb.

3. Install lens on lamp assembly with screw.

Replacing high-mount brakelamp bulbs

The interior cargo lamp (if equipped) will have to be removed from under the high-mount brakelamp assembly located inside the vehicle.

To change the high-mount brakelamp bulbs:

1. Remove the two screws from the high-mount brakelamp assembly and lift the lamp from the vehicle.

2. Remove the bulb socket from the lamp assembly by turning counterclockwise.

3. Carefully pull the bulb straight out of the socket and push in the new bulb.

4. Install bulb socket in lamp assembly by turning clockwise.

5. Install brakelamp assembly on the vehicle with two screws.

Page 83

Replacing license plate lamp bulbs

To change the license plate bulbs:

1. Remove two screws and the license plate lamp assembly from the rear door.

2. Remove bulb socket from lamp assembly by turning counterclockwise.

3. Pull the bulb out from socket and push in the new bulb.

4. Install the bulb socket in lamp assembly turning it clockwise,

5. Install the lamp assembly on rear door with two screws.

Replacing tail lamp/turn/backup lamp bulbs

The tail lamp/turn/backup lamp bulbs are located the tail lamp assembly, one just below the other. Follow the same steps to replace either bulb:

1. Remove the four screws and the lamp assembly from vehicle.

Lights

2. Rotate bulb socket counterclockwise and remove from lamp assembly.

3. Carefully pull the bulb straight out of the socket and push in the new bulb.

4. Install the bulb socket in lamp assembly by turning clockwise.

5. Install the lamp assembly and secure with four screws.

Page 84

Driver Controls

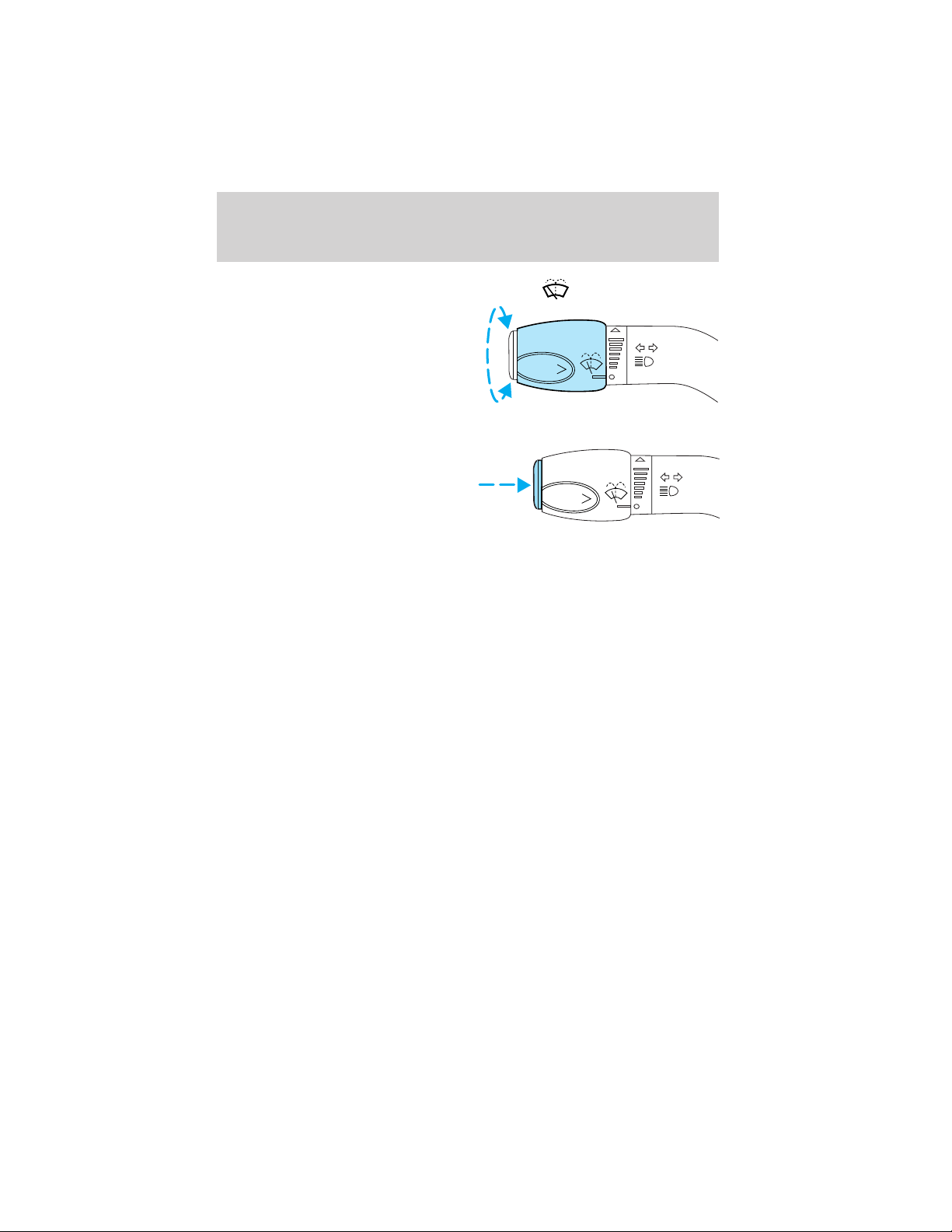

WINDSHIELD WIPER/WASHER CONTROLS

Rotate the windshield wiper control to the desired interval, low or high speed position.

The bars of varying length are for intermittent wipers. When in this position rotate the control upward for fast intervals and downward for slow intervals.

Push the control on the end of the stalk to activate washer. Push and hold for a longer wash cycle. The washer will automatically shut off after ten seconds of continuous use.

Windshield wiper blades

Check the wiper blades for wear at least twice a year or when they seem less effective. Substances such as tree sap and some hot wax treatments used by commercial car washes reduce the effectiveness of wiper blades.

Checking the wiper blades

If the wiper blades do not wipe properly, clean both the windshield and wiper blades using undiluted windshield wiper solution or a mild detergent. Rinse thoroughly with clean water. To avoid damaging the blades, do not use fuel, kerosene, paint thinner or other solvents.

Page 85

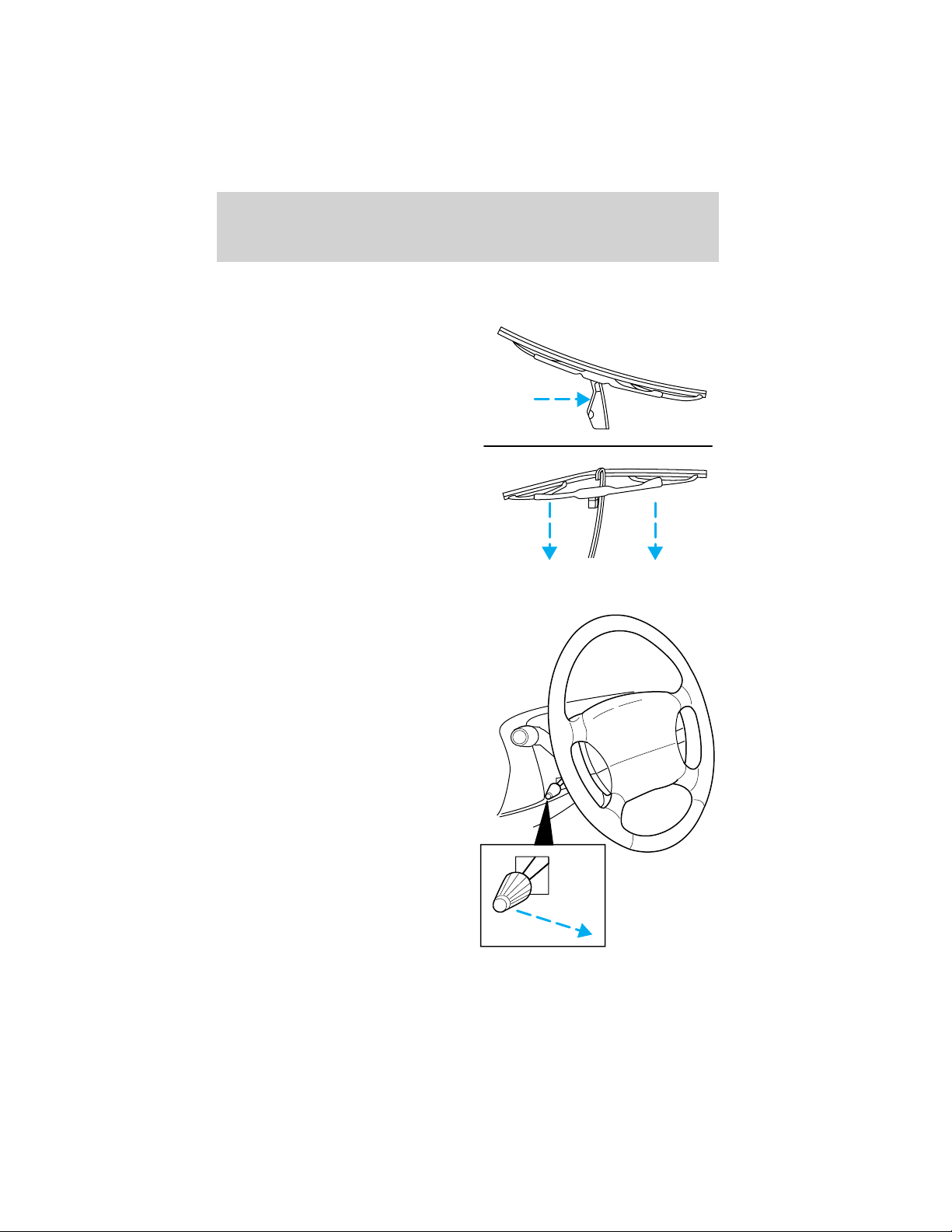

Changing the wiper blades

To replace the wiper blades:

1. Pull the wiper arm away from the windshield and lock into the service position.

2. Turn the blade at an angle from the wiper arm. Push the lock pin manually to release the blade and pull the wiper blade down toward the windshield to remove it from the arm.

3. Attach the new wiper to the wiper arm and press it into place until a click is heard.

TILT STEERING

Pull the tilt steering control toward you to move the steering wheel up or down. Hold the control while adjusting the wheel to the desired position, then release the control.

Driver Controls

Page 86

Driver Controls

Never adjust the steering wheel when the vehicle is moving.

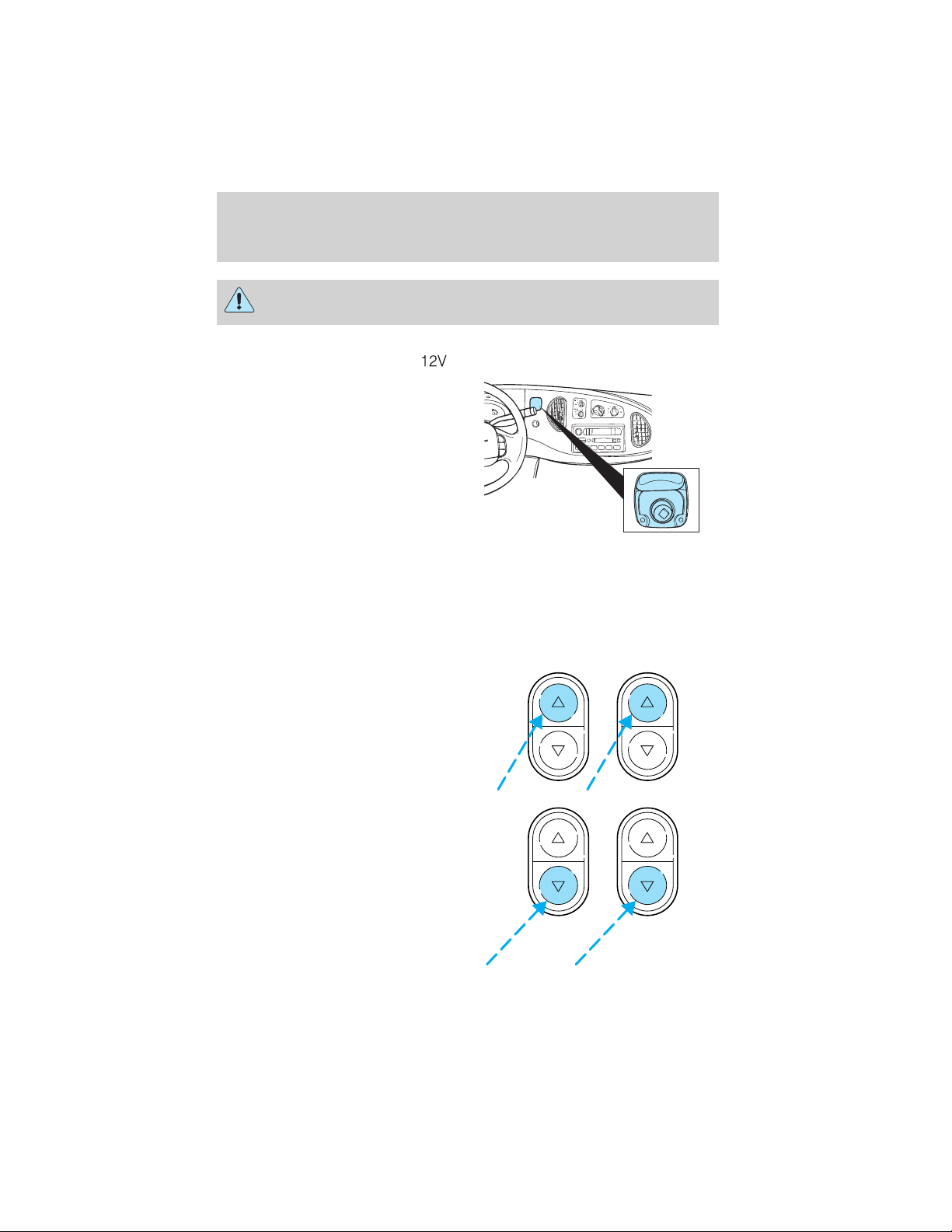

AUXILIARY POWER POINT

Power outlets are designed for accessory plugs only. Do not hang any type of accessory or accessory bracket from the plug. Improper use of the power outlet can cause damage not covered by your warranty.

The auxiliary power point is located on the instrument panel.

A second power point (if equipped) is located behind the driver’s seat on the upper trim panel.

Do not plug optional electrical accessories into the cigarette lighter. Use the power point.

POWER WINDOWS (IF EQUIPPED)

Press and hold the rocker switches to open and close windows.

• Press the top portion of the rocker switch to close.

• Press the bottom portion of the rocker switch to open.

Page 87

Driver Controls

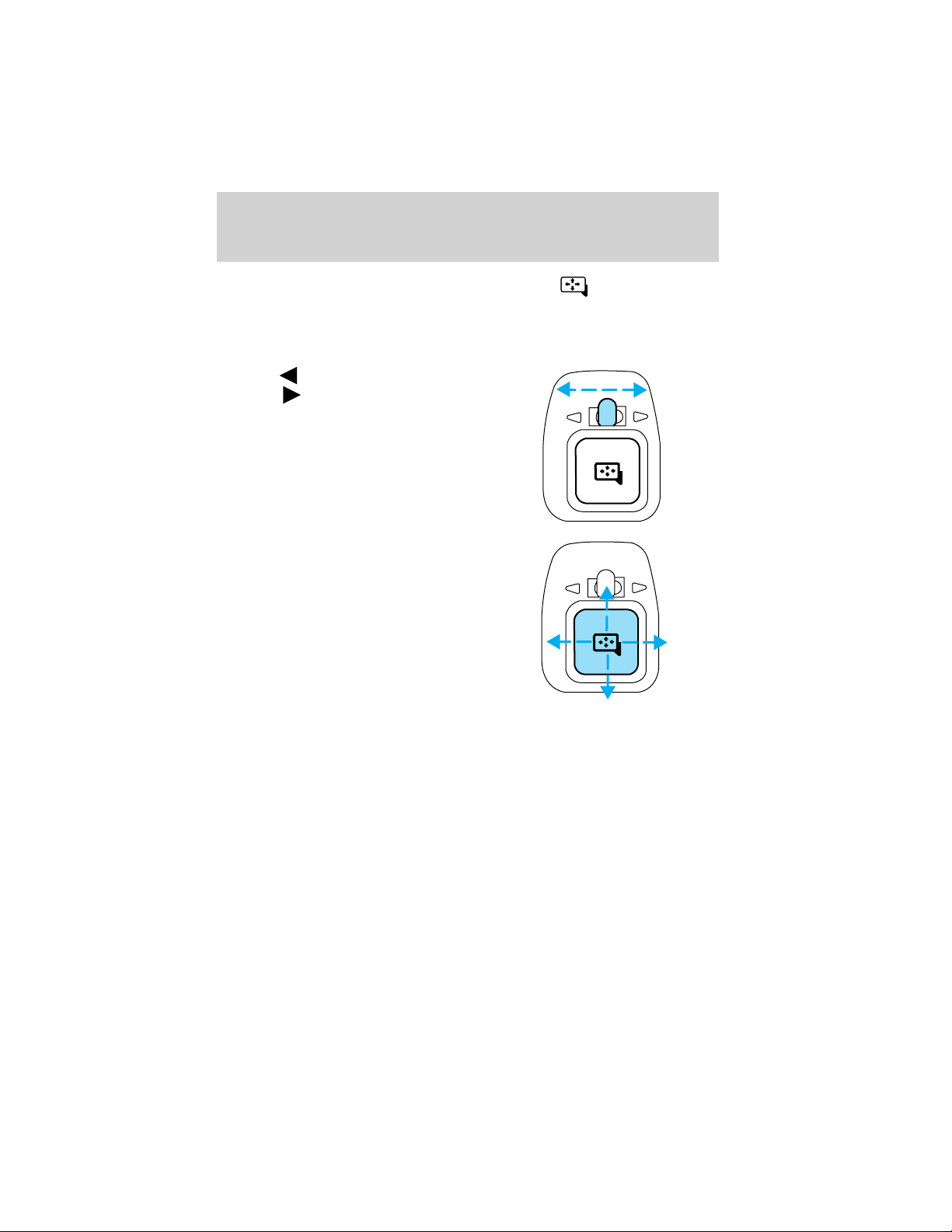

POWER SIDE VIEW MIRRORS (IF EQUIPPED)

The ignition may be in any position to adjust the power side view mirrors.

To adjust your mirrors:

1. Select

mirror or mirror.

2. Move the control in the direction

you wish to tilt the mirror.

to adjust the left

to adjust the right

3. Return to the center position to lock mirrors in place.

Page 88

Driver Controls

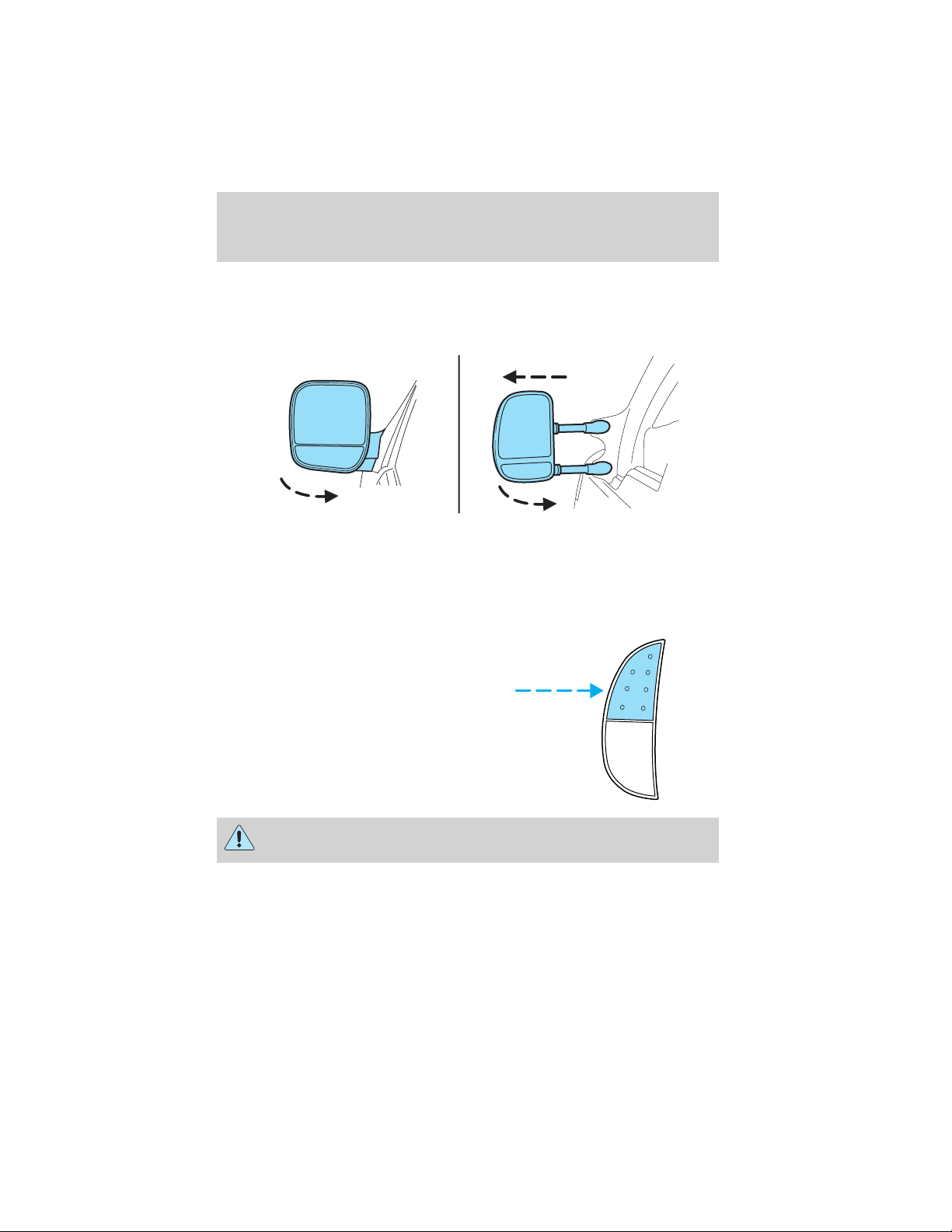

Fold-away mirrors

Fold the side mirrors in carefully when driving through a narrow space, like an automatic car wash.

The telescoping feature (if equipped) allows the mirror to extend approximately 76 mm (3 inches).

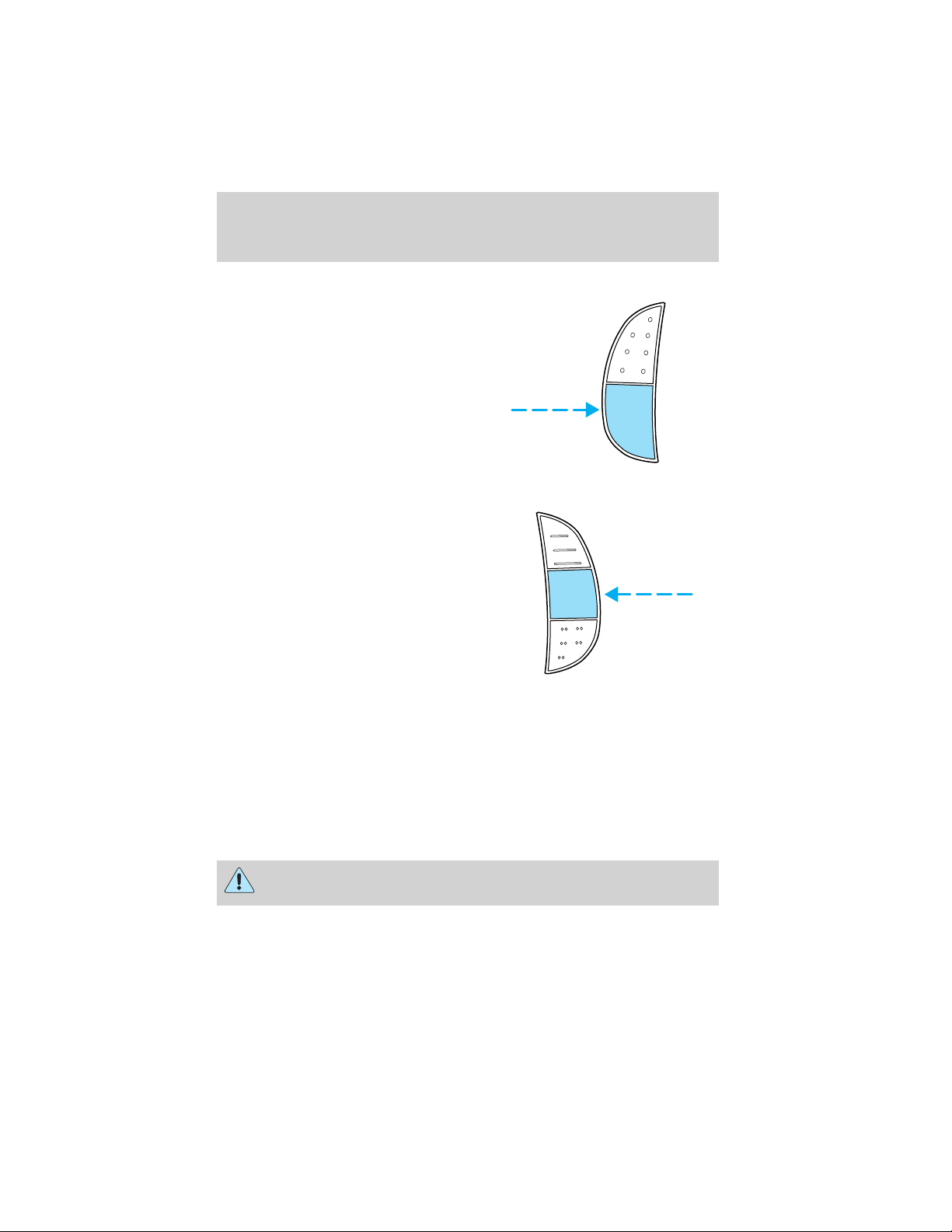

SPEED CONTROL (IF EQUIPPED)

To turn speed control on

• Press ON.

Vehicle speed cannot be controlled until the vehicle is traveling at or above 48 km/h (30 mph).

Do not shift the gearshift lever into N (Neutral) with the speed control on.

OFF

Do not use the speed control in heavy traffic or on roads that are winding, slippery, or unpaved.

Page 89

Driver Controls

To turn speed control off

• Press OFF or

• Turn off the vehicle ignition.

Once speed control is switched off, the previously programmed set speed will be erased.

To set a speed

• Press SET ACCEL. For speed control to operate, the speed control must be ON and the vehicle speed must be greater than 48 km/h (30 mph).

RES

SET

ACCEL

COAST

If you drive up or down a steep hill, your vehicle speed may vary momentarily slower or faster than the set speed. This is normal.

Speed control cannot reduce the vehicle speed if it increases above the set speed on a downhill. If your vehicle speed is faster than the set speed while driving on a downhill, you may want to shift to the next lower gear or apply the brakes to reduce your vehicle speed.

If your vehicle slows down more than 16 km/h (10 mph) below your set speed on an uphill, your speed control will disengage. This is normal. Pressing RES will re-engage it.

OFF

Do not use the speed control in heavy traffic or on roads that are winding, slippery, or unpaved.

Page 90

Driver Controls

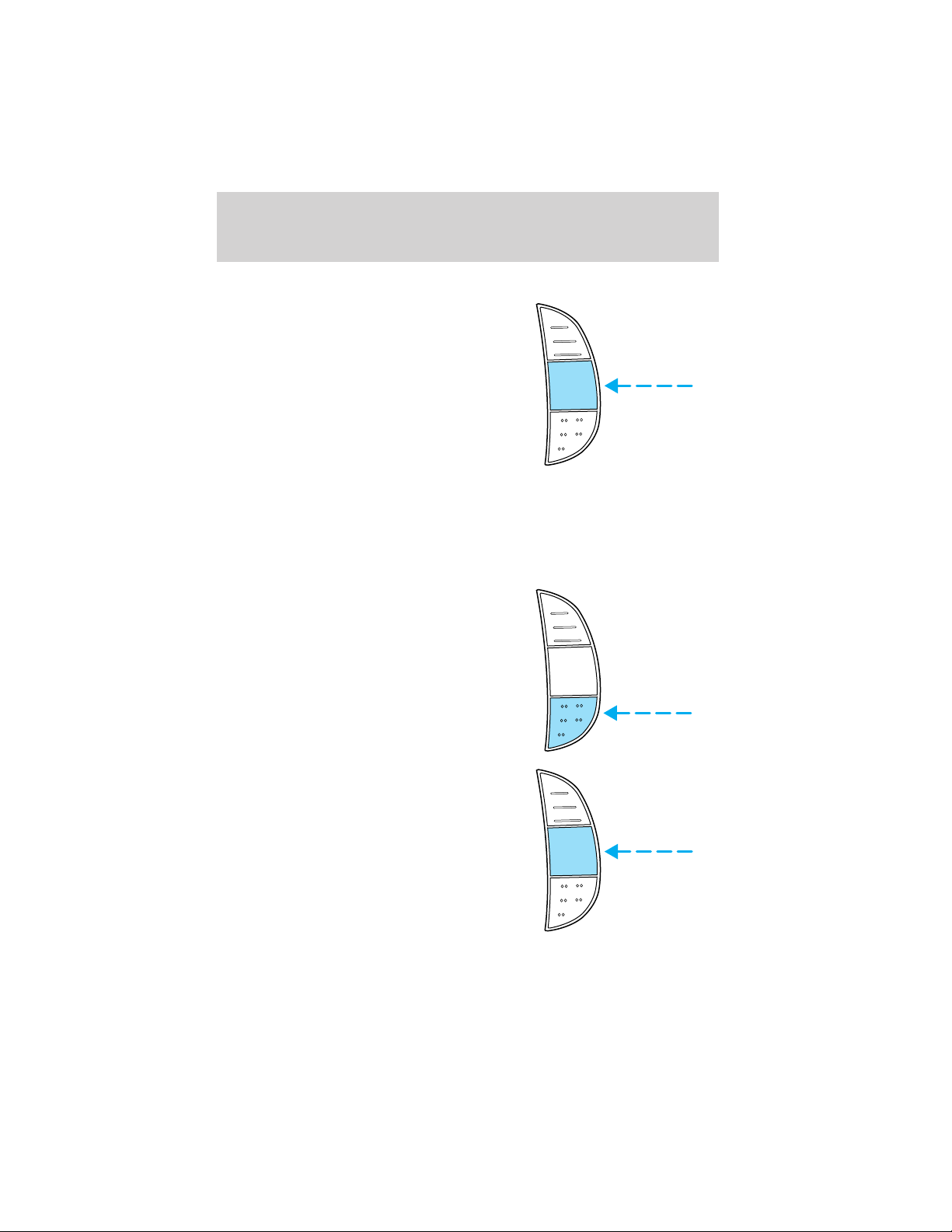

To set a higher set speed

• Press and hold SET ACCEL. Release the control when the desired vehicle speed is reached or

• Press and release SET ACCEL to operate the Tap-Up function. Each press will increase the set speed by 1.6 km/h (1 mph) or

• Accelerate with your accelerator pedal. When the desired vehicle speed is reached, press and release SET ACCEL.

You can accelerate with the accelerator pedal at any time during speed control usage. Releasing the accelerator pedal will return your vehicle to the previously programmed set speed.

To set a lower set speed

• Press and hold COAST. Release the control when the desired speed is reached or

• Press and release COAST to operate the Tap-Down function. Each press will decrease the set speed by 1.6 km/h (1 mph) or

RES

SET

ACCEL

COAST

RES

SET

ACCEL

COAST

• Depress the brake pedal. When the desired vehicle speed is reached, press SET ACCEL.

RES

SET

ACCEL

COAST

Page 91

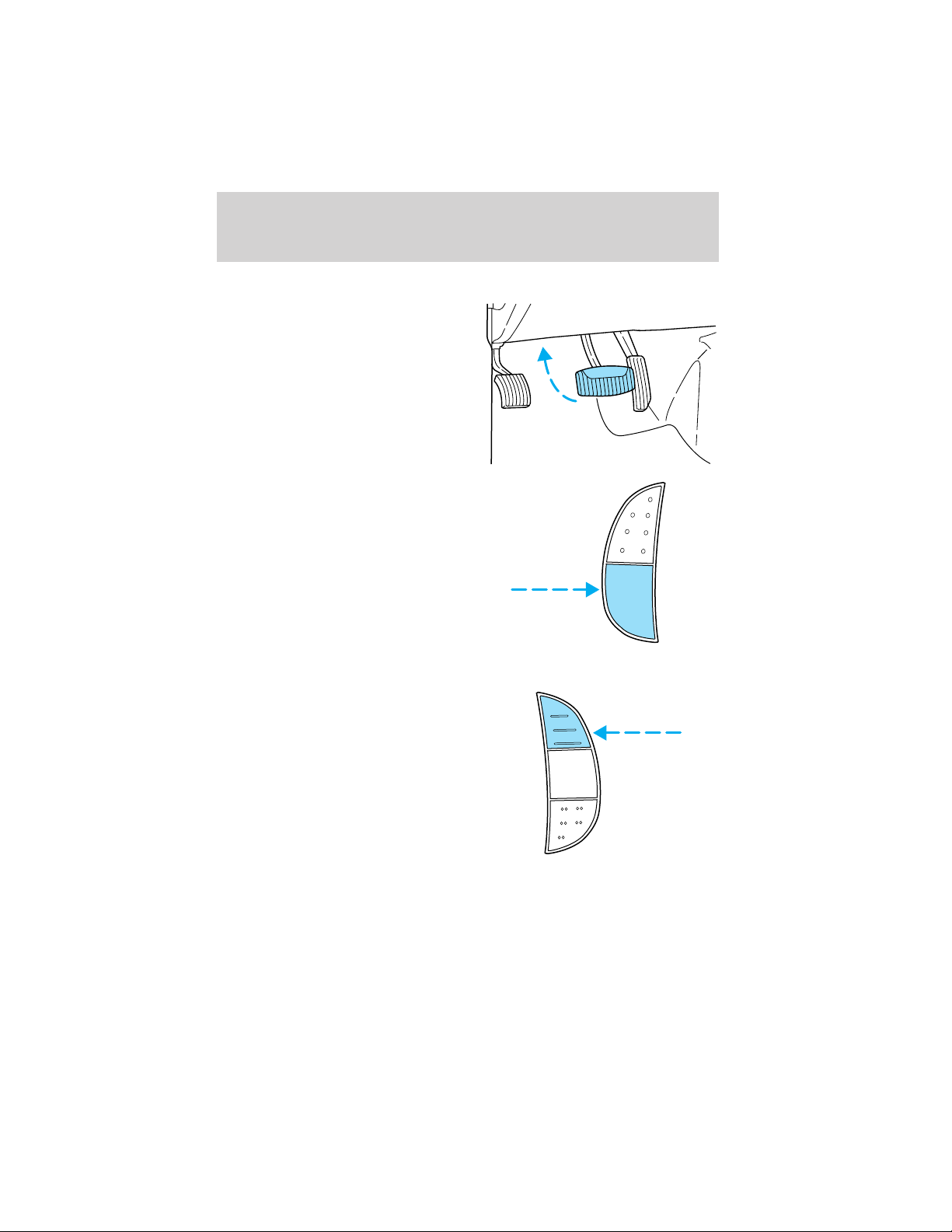

To disengage speed control

• Depress the brake pedal.

Disengaging the speed control will not erase the previously programmed set speed.

Pressing OFF will erase the previously programmed set speed.

To return to a previously set speed

• Press RES. For RES to operate, the vehicle speed must be faster than 48 km/h (30 mph).

Driver Controls

OFF

RES

SET

ACCEL

COAST

Page 92

Driver Controls

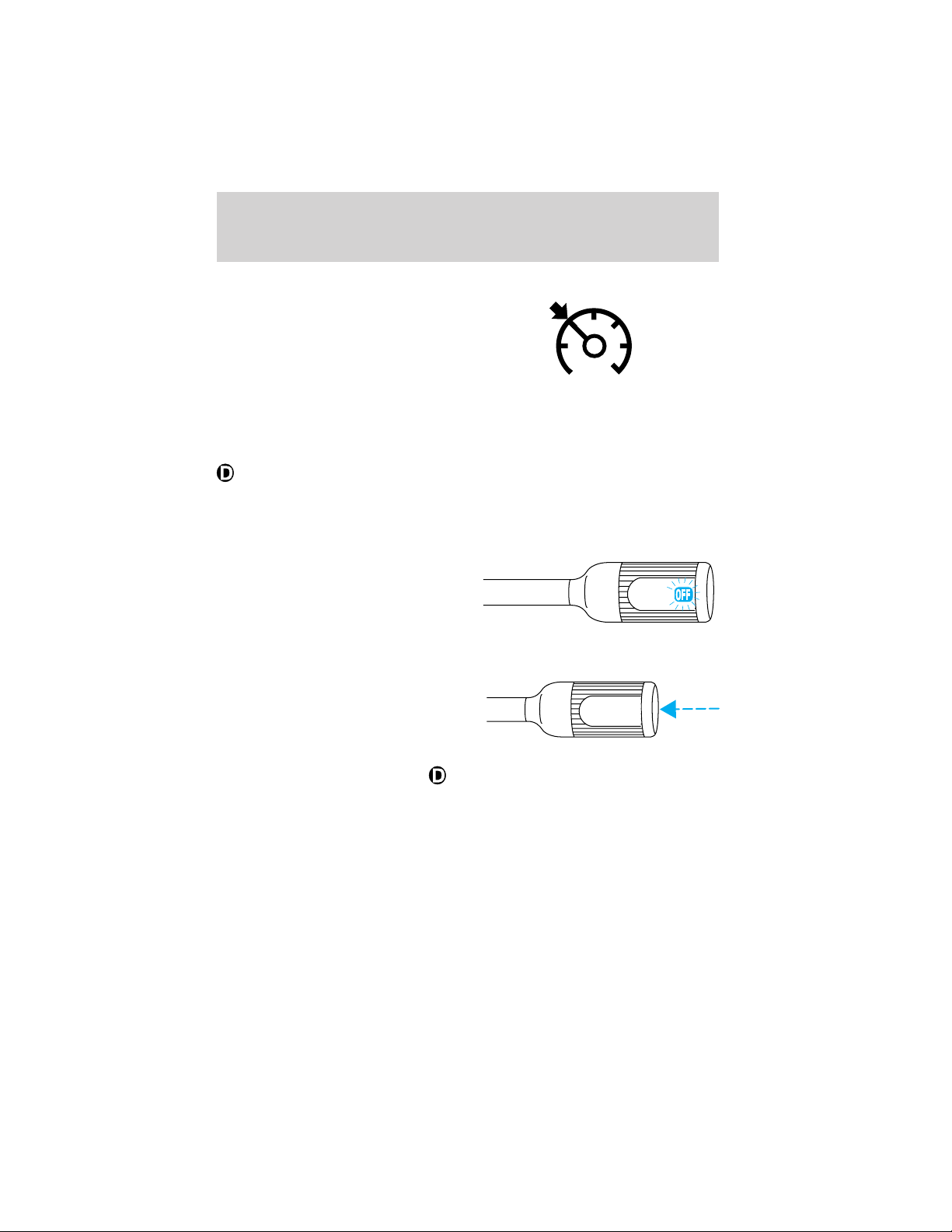

Indicator light (if equipped)

This light comes on when either the SET ACCEL or RES controls are pressed. It turns off when the speed control OFF control is pressed, the brake is applied or the ignition is turned to the OFF position.

OVERDRIVE CONTROL

Activating overdrive

(Overdrive) is the normal drive position for the best fuel economy.

The overdrive function allows automatic upshifts and downshifts through all available gears.

Deactivating overdrive

Press the Transmission Control Switch (TCS) located on the end of the gearshift lever. The Transmission Control Indicator Light (TCIL) (the word OFF) will illuminate on the end of the gearshift lever. The transmission will operate in all gears except overdrive.

To return to normal overdrive mode, press the Transmission Control Switch again. The TCIL (the word

OVERDRIVE

OFF) will no longer be illuminated.

When you shut off and re-start your vehicle, the transmission will automatically return to normal

(Overdrive) mode.

For additional information about the gearshift lever and the transmission control switch operation refer to the Automatic Transmission Operation section of the Driving chapter.

OVERDRIVE

OFF

Page 93

Driver Controls

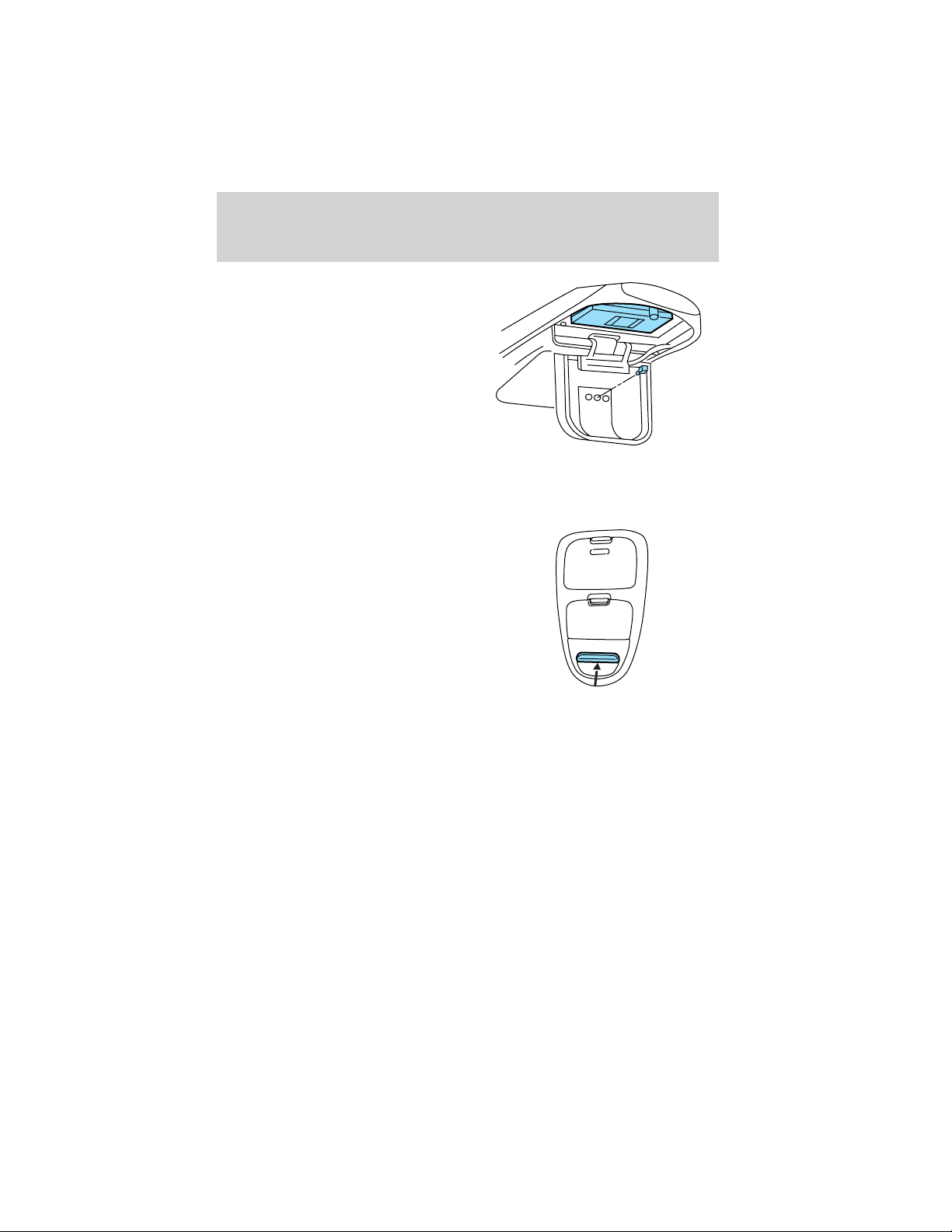

OVERHEAD CONSOLE (IF EQUIPPED)

The appearance of your vehicle’s overhead console will vary according to your option package.

Storage compartment (if equipped)

Press the OPEN control to open the storage compartment. The door will open slightly and can be moved to full open.

The storage compartment may be used to secure sunglasses or a similar object.

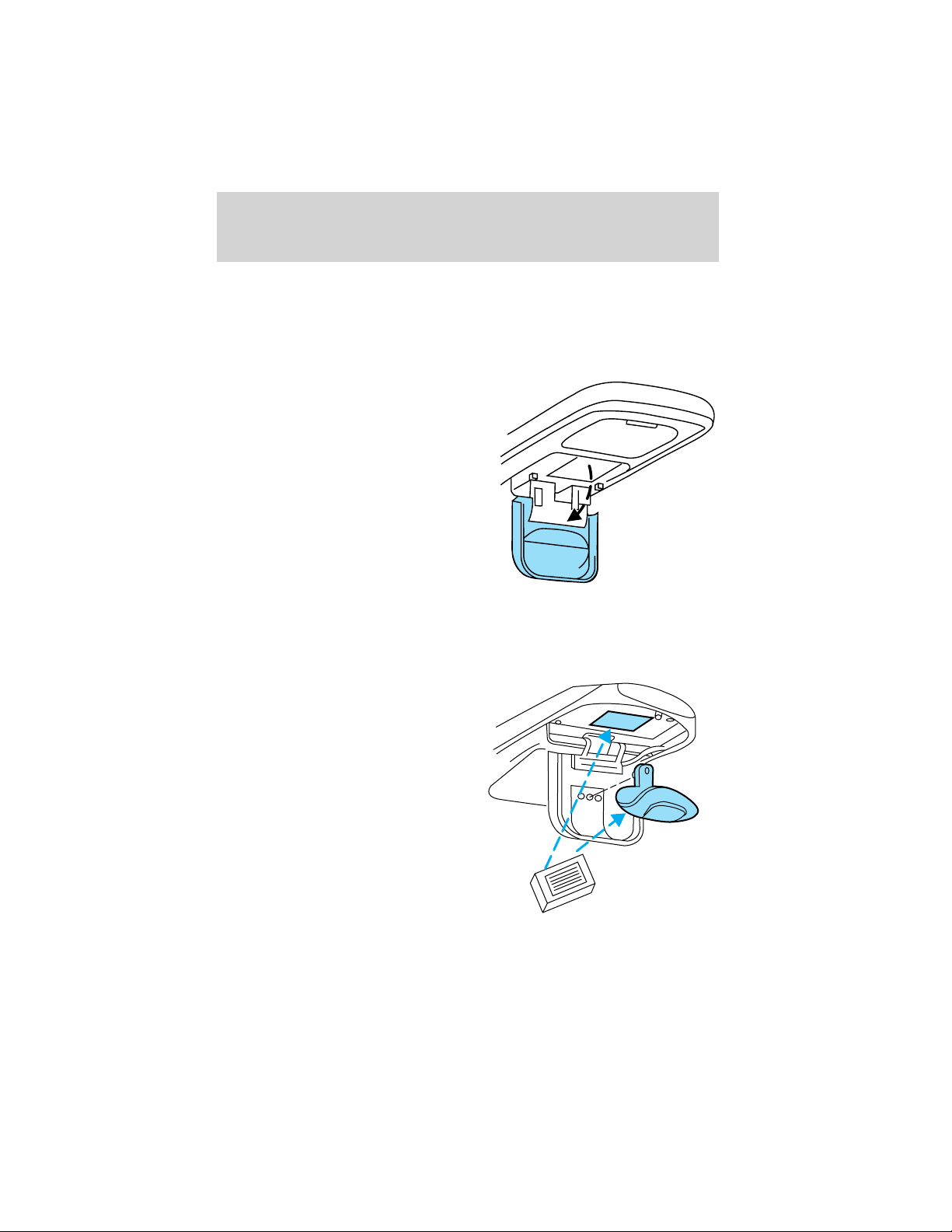

Installing a garage door opener (if equipped)

The storage compartment can be converted to accommodate a variety of aftermarket garage door openers:

1. Remove the storage clip from the

door.

2. Place Velcro hook onto side of

aftermarket transmitter opposite of actuator control.

3. Place the transmitter into storage

compartment, control down.

Page 94

Driver Controls

4. Place the provided height

adaptors onto the back of the GARAGE control as needed.

5. Press the GARAGE control to

activate the transmitter.

Electronic compass/temperature display (if equipped)

Outside air temperature

The outside temperature display is contained in the overhead console.

The temperature display can be turned off and on by pressing the SELECT control on the overhead console. The temperature can be displayed in Centigrade or Fahrenheit by pressing the SELECT control.

If the outside temperature falls below 3°C (38°F), the display will alternate from “ICE” to the outside temperature at a two second rate for one minute.

73˚ NW

Compass

The compass display is contained in the overhead console. The vehicle heading is displayed as one of N, NE, E, SE, S, SW, W and NW.

The compass reading may be affected when you drive near large buildings, bridges, power lines and powerful broadcast antenna. Magnetic or metallic objects placed in or on the vehicle may also affect compass accuracy. Adjustments may need to be made to the zone and calibration of the compass.

Page 95

Driver Controls

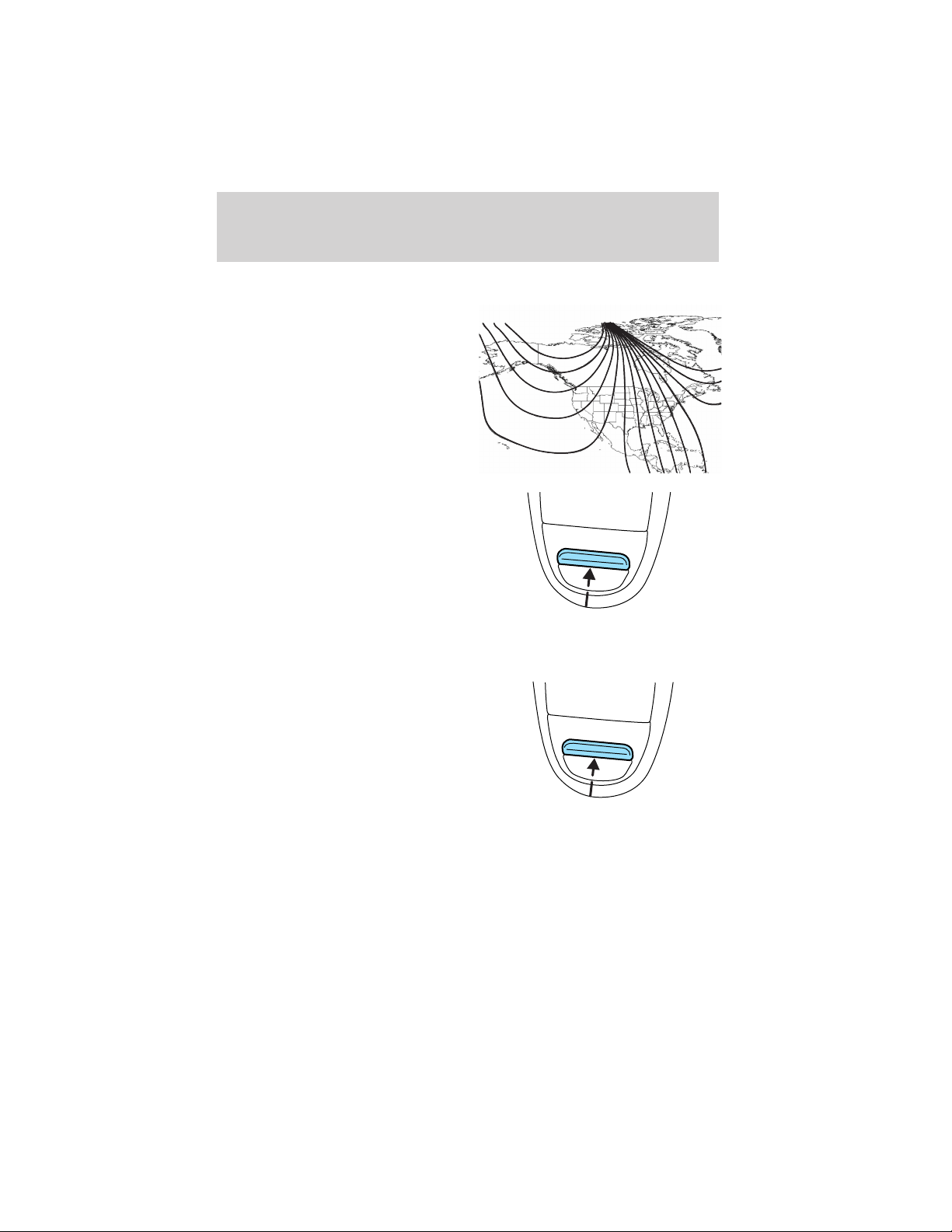

Compass zone adjustment

1. Determine which magnetic zone

you are in by referring to the zone map.

2. Turn the ignition to the ON

position.

3. Press and hold the SELECT

control until VAR appears in the display, then release. The display should show the current zone number.

4. Press the SELECT control until

the desired zone number appears. The display will flash and then return to normal operation. The zone is now updated.

Compass calibration adjustment

Perform this adjustment in an open area free from steel structures and high voltage lines:

• Press and hold the SELECT control until CAL appears in the display (approximately eight seconds) and release.

• Drive the vehicle slowly (less than 5 km/h [3 mph]) in circles until CAL indicator turns off in about 2–3 complete circles.

• The compass is now calibrated.

123

6 7 8 9 1011

9 VAR

CAL

14 13

Page 96

Driver Controls

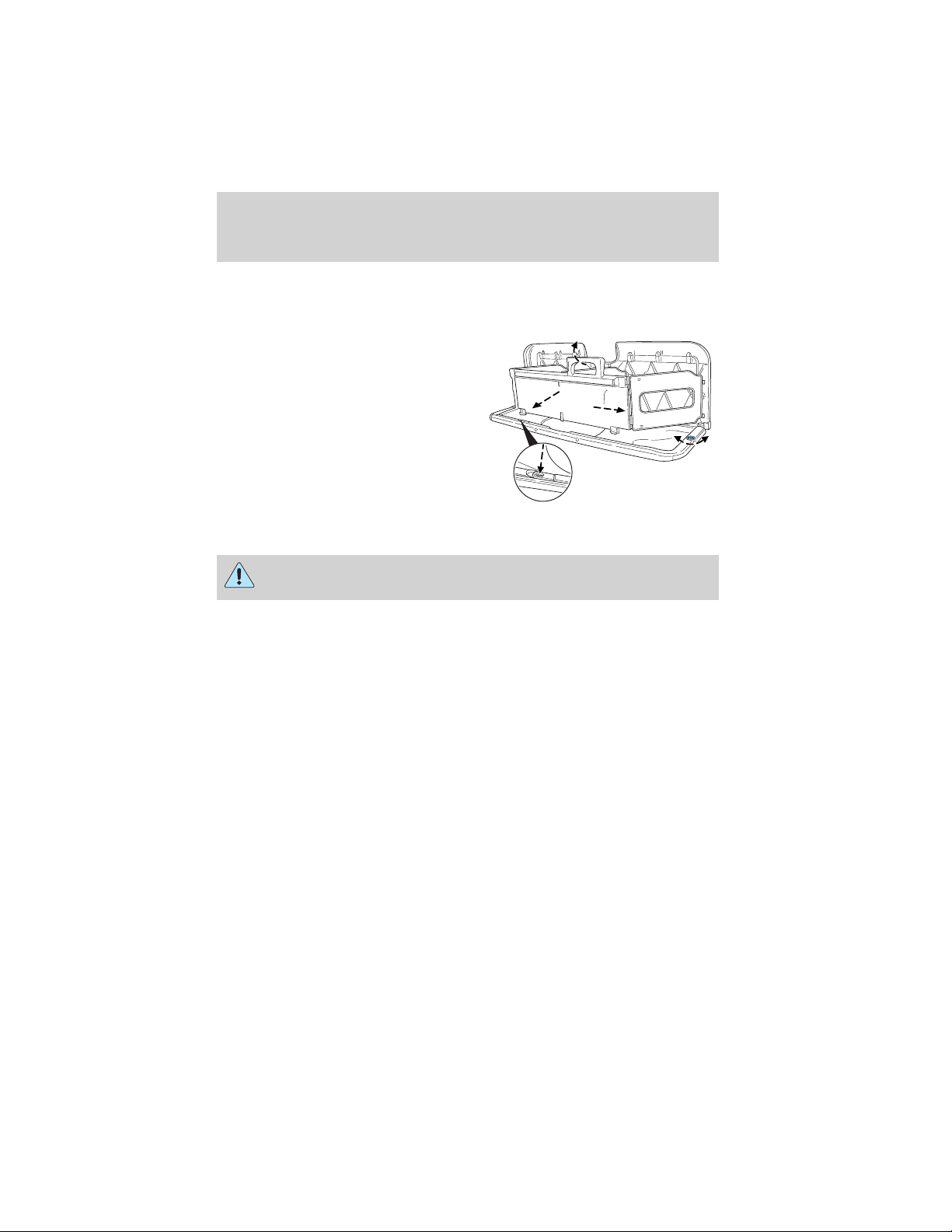

CARGO ORGANIZER (IF EQUIPPED)

Your vehicle comes equipped with a cargo organizer located on the floor of the cargo area.

• To open, lift the cargo organizer up to the upright position, pull the front panel away from the rear panel sliding it to the right until it locks.

• To close, press the release button, slide the front panel towards the rear panel and fold down to the stowed position.

• To remove, lift the cargo organizer up to the upright position, unscrew the screw caps on each side of the organizer and remove.

This cargo organizer is not designed to restrain objects during a collision.

Page 97

Locks and Security

KEYS

The key operates all locks on your vehicle. In case of loss, replacement keys are available from your dealer.

You should always carry a second key with you in a safe place in case you require it in an emergency.

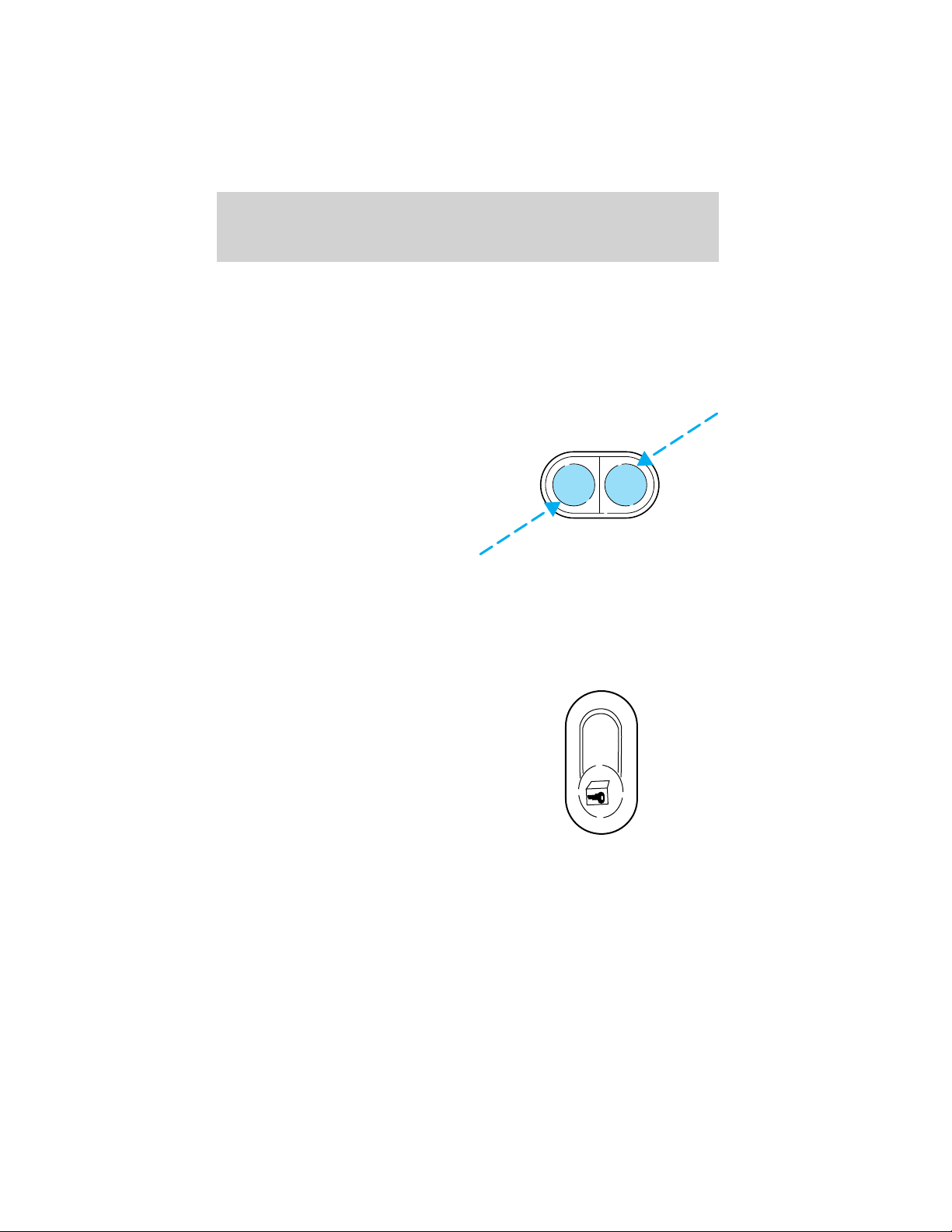

POWER DOOR LOCKS (IF EQUIPPED)

Press U to unlock all doors and L to lock all doors.

Memory lock

If you lock your doors with the power lock switch or the remote transmitter while the sliding door is open, the door will automatically lock after it is closed.

Back cargo door lock (if equipped)

The passenger side rear cargo door has a power door lock control mounted on the inside of the door. When this lock is pressed, all doors will lock/unlock.

REMOTE ENTRY SYSTEM (IF EQUIPPED)

This device complies with part 15 of the FCC rules and with RS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Page 98

Locks and Security

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

The remote entry system allows you to lock or unlock all vehicle doors without a key.

The remote entry features only operate with the ignition in the LOCK position.

If there is any potential remote keyless entry problem with your vehicle, ensure ALL remote entry transmitters are brought to the dealership, to aid in troubleshooting.

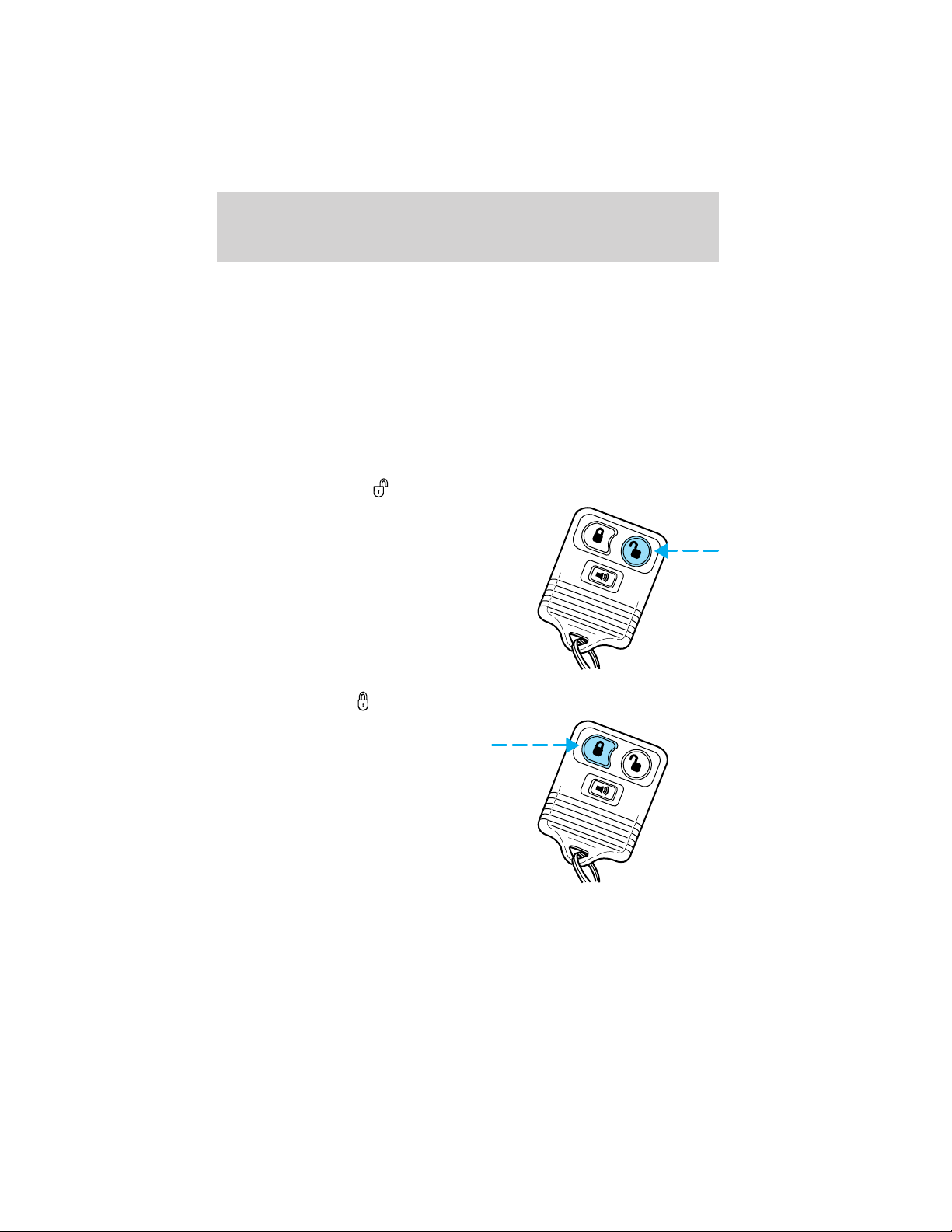

Unlocking the doors

Press this control to unlock the driver’s door. The interior lamps will illuminate.

Press the control a second time within three seconds to unlock all doors.

Locking the doors

Press this control to lock all doors.

To confirm all doors are closed and locked, press the control a second time within three seconds. The doors will lock again and the horn will chirp.

Page 99

Locks and Security

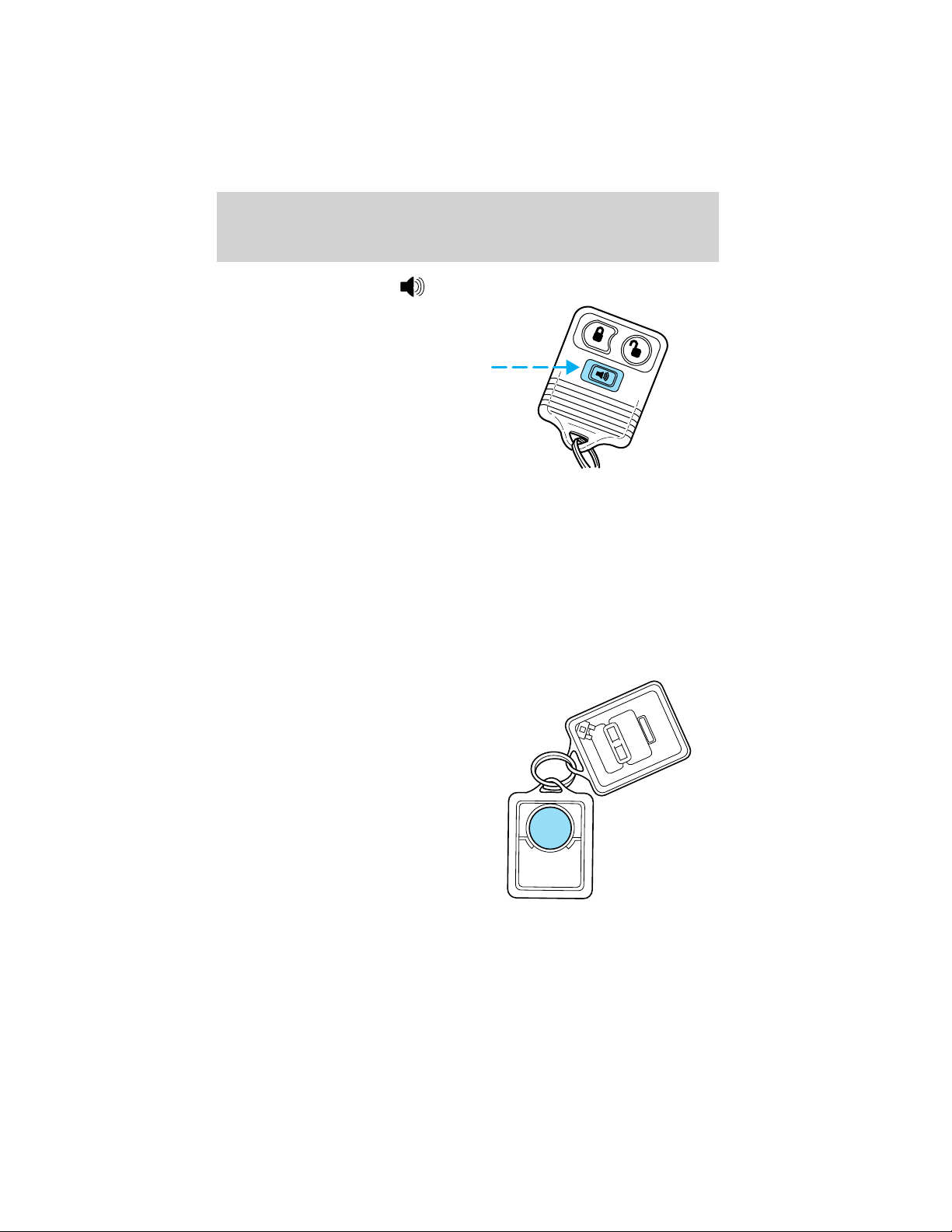

Sounding a panic alarm

Press this control to activate the alarm.

To deactivate the alarm, press the control again or turn the ignition to ACC or ON.

Replacing the battery

The transmitter is powered by one coin type three-volt lithium battery CR2032 or equivalent. Typical operating range will allow you to be up to 10 meters (33 feet) away from your vehicle. A decrease in operating range can be caused by:

• Weather conditions

• Nearby radio towers

• Structures around the vehicle

• Other vehicles parked next to the vehicle

To replace the battery:

1. Twist a thin coin between the two

halves of the transmitter near the key ring. DO NOT TAKE THE FRONT PART OF THE TRANSMITTER APART.

2. Place the positive (+) side of new

battery UP. Refer to the diagram inside the transmitter unit.

3. Snap the two halves back

together.

Replacement of the battery will not cause the remote transmitter to become deprogrammed from your vehicle. The remote transmitter should operate normally after battery replacement.

Page 100

Locks and Security

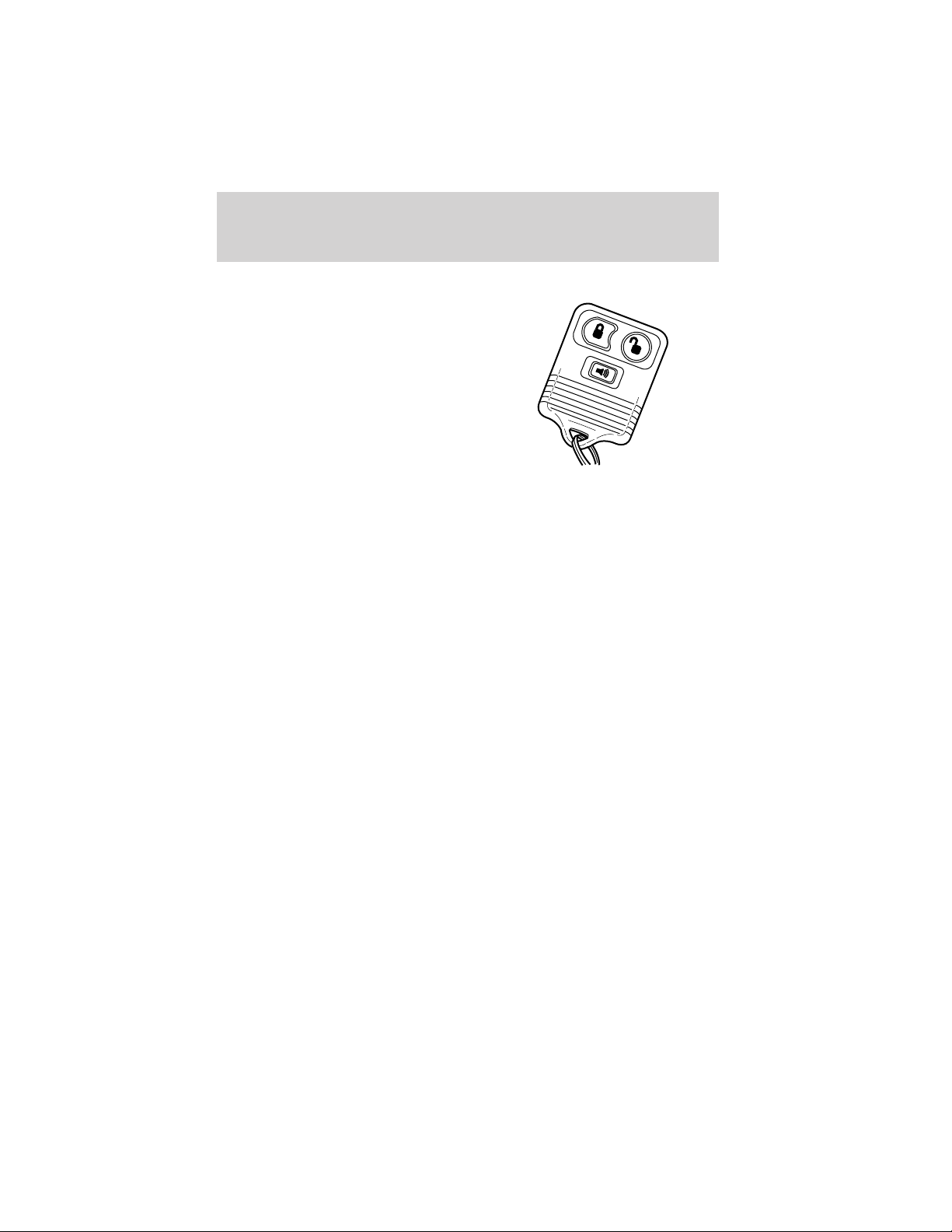

Replacing lost transmitters

• Take all your vehicle’s transmitters to your dealer if service is required.

• If you purchase additional transmitters (up to four may be programmed into memory), perform the following procedure.

To reprogram the transmitters yourself, place the key in the ignition and turn from 2 (LOCK) to 3 (OFF) and cycle between 3 (OFF) and 4(ON) eight times in rapid succession (within 10 seconds) ending in the ON position. After doors lock/unlock, press any control on all transmitters (up to four). With each control press of the transmitters, the door should cycle (lock/unlock) to confirm programming. When completed, turn the ignition to OFF. The door locks should cycle (lock/unlock) one last time to confirm completion of programming.

All transmitters must be programmed at the same time.

Illuminated entry

The interior lamps illuminate when the remote entry system is used to unlock the door(s) or sound the personal alarm.

The system automatically turns off after 25 seconds or when the ignition is turned to the RUN or ACC position. The dome lamp control (if equipped) must not be set to the OFF position for the illuminated entry system to operate.

The inside lights will not turn off if:

• they have been turned on with the dimmer control, or

• any door is open.

100
